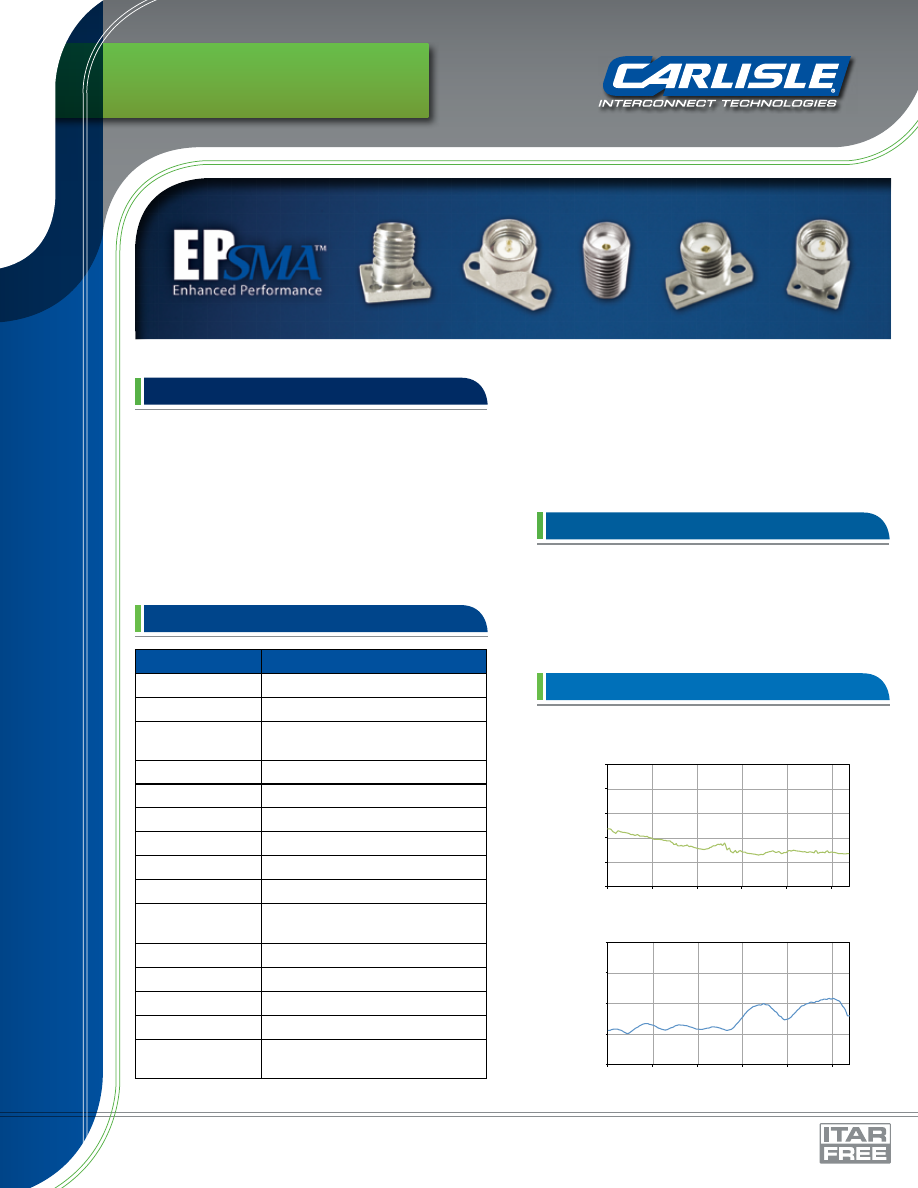

™ Connectors H5638-3CCSF, H5771-6CCSF, H5959-6CCSF, H5696-5CCSF and H5772-6CCSF
The EP
SMA
™ (Enhanced Performance) connector series
improves upon the performance of the ubiquitous
standard SMA connector. Carlisle’s EP
SMA
™ connectors
are designed and tuned to provide ultra low VSWR
(typically 1.15:1) and mode free operation to 27 GHz.
The current product offering consists of field replaceable
styles with industry standard flange configurations and
pin sizes. In addition, we provide SMA cable assemblies
in different configurations to match the frequency
coverage of the EP
SMA
™ product line.
INTRODUCTION
Carlisle Interconnect Technologies
/ 12900 Alondra Blvd., Cerritos, CA 90703
Toll Free - 866.282.4708 / Fax - 562.494.0955 /
CarlisleIT.com
» Frequency range: DC to 27 GHz
» Low VSWR (1.15:1 max to 27 GHz)
» 2-Hole and 4-Hole flange mount field replaceable
configurations
» Low RF leakage (less than 90 dB)
» MIL-STD 348 compliant interface
FEATURES
TYPICAL PERFORMANCE DATA
0.90
1.00
1.10
1.20
1.30
0
5
10
15
20
25
VSWR
FREQUENCY (GHz)
MATED PAIR
Frequency (GHz)
VSWR
-0.50
-0.30
-0.10
0.10
0.30
0.50
0
5
10
15
20
25
INSERTION LOSS (dB)
FREQUENCY (GHz)
MATED PAIR
Frequency (GHz)
Inser
tion L
oss (dB)
Insertion Loss and VSWR measurement on a mated
pair of H5773-6CCSF
SPECIFICATIONS
Parameter
Specification
Impedance
50 Ohms
Frequency Range
DC-27 GHz
VSWR
DC - 18 GHz: 1.10.1 (max)
18 - 27 GHz: 1.15.1 (max)
Insertion Loss
.035 x
√
f (GHz)
RF Leakage
-(100 - f(GHz))
Working Voltage
335 Vrms Max at Sea-Level
Dielectric Withstanding Voltage
1000 Vrms min
RF HiPot Voltage
670 Vrms min at 5 MHz
Corona Level
250 Vrms at 70,000 ft
Center Contact Captivation -
Axial Force from Interface
6 lbs (min)
Rotational Captivation - Torque
4 in-oz (min)
Coupling Proof Torque
15 in-lbs (min)
Coupling Mech. Retention
60 lbs (min)
Temperature Range
-65°C to +165°C
Environmental
Meets MIL-STD-202 for Corrosion, Vibration Moisture
Resistance, Thermal and Mechanical Shock
The EP
SMA
™ product line is ideal for use in high
performance military systems and test & measurement
applications where improved match and frequency
coverage are desired. The EP
SMA
™ connector series is
designed with a thicker outer wall that increases the
durability for repeated matings, making this an excellent
choice for harsh military and defense applications.
