Cole Hersee have been manufacturing reliable
electrical switches for vehicles for close to 90 years,
and throughout history have been recognised for
innovative products. Some innovative switches
have been awarded patents. Many of the electrical
and electronic switches and connectors made today
are specified by OEMs, or used as high-quality
replacement parts.

Although 1924 is taken as the date Cole Hersee was
established, antecedents go back even further to
the dawn of the automobile age: The Henry Cole
Company of Boston was founded in 1914!

Cole Hersee are a leading manufacturer of
electromechanical, electronic and digital switches
and connectors, designing dependable products
for a broad range of vehicles. Since its founding
in 1924, Cole Hersee has been a pioneer and
leader in the development of heavy-duty electrical
products for the vehicle industry, and has earned a
reputation for quality and value.

Cole Hersee collaborated on many basic industry
standards and today is a preferred supplier of over
2,000 dependable vehicle products and accessories.
Cole Hersee is ISO 9001:2008 certified. Cole Hersee
was acquired by Littelfuse, Inc. in 2010.

History - Manufacturing switches since 1924

3

www.colehersee.com.au

Partnership - Cole Hersee is proudly supplied

across Australia by ESG Asia Pacific

ESG Asia Pacific are currently, and have been, the exclusive

Australian distributor of Cole Hersee for over twenty

years!

ESG has also played a pivotal role in developing partnership
products including the ‘Australian Mining Regulations Standards’
stamped 75910 battery master switch.

Along with Cole Hersee, ESG Asia Pacific also distributes other
well-known automotive brands including ECCO, Code 3, Britax
and Xray Vision.

ESG Asia Pacific is part of the ECCO Safety Group which globally
serves more than 3,000 OEM and aftermarket customers.

4

www.colehersee.com.au

What would happen if you couldn’t shut off the
power in an emergency? What would happen if the
power was accidentally switched on while someone
was working on a machine? What would happen if
you couldn’t securely lock off your machinery—only
to have it then damaged, vandalised, or stolen?

Beware of inferior

and copy products

Cheap copy components can cause
expensive damage to equipment and
put lives at risk. Cole Hersee products are
renowned for quality and reliability that
will protect you, your workers, and your
valuable vehicles and equipment.

It’s not how much you save,

it’s what and who you save

5

www.colehersee.com.au

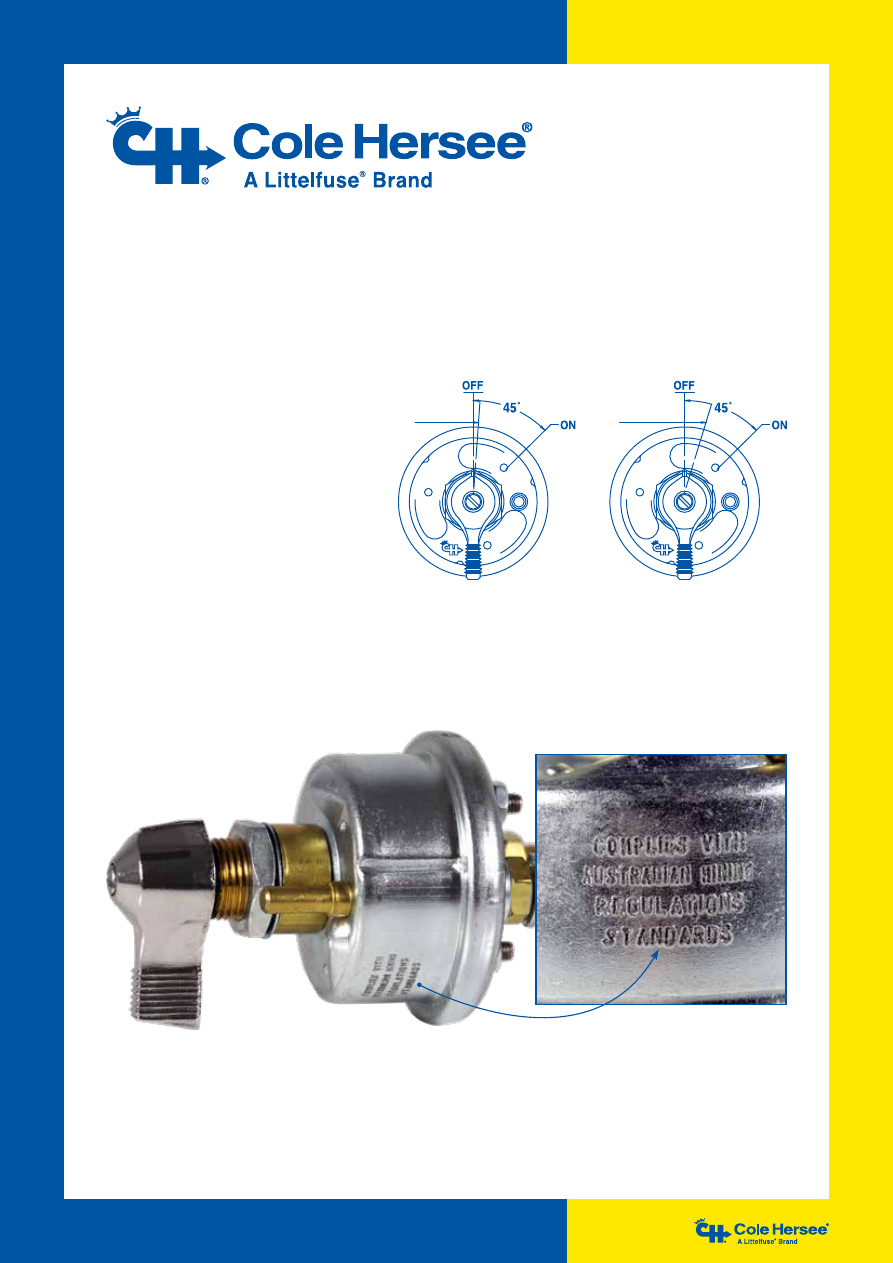

This battery master switch was developed
by ESG in conjunction with Cole Hersee
and major mining corporations, to
service specific safety requirements.

Part of the mining corporations design
requirement was an extended actuation
point to prevent accidental actuation
even when a lockout lever is in use.

The Cole Hersee 75910 is now specified
and required for all vehicles entering
most major mine sites.

For more features and specifications on
this switch please see page 8.

Only genuine stamped Cole Hersee 75910 battery master switches are designed and built to not only
withstand harsh mining environments, but also to ensure that when the switch is on or off, it stays on or
off—without any chance of it being accidentally switched or deliberately tampered with.

Make sure the switch you’re using is stamped
with the official Cole Hersee insignia, and if
it’s a genuine 75910 it will have ‘Complies with
Australian mining regulations standards’ etched

into the housing. If it doesn’t have the etching, you
don’t have the genuine switch that is specified and
required on many major mining sites.

‘Complies With Australian Mining Regulations Standards’ stamp

Cole Hersee 75904 with

a standard 4° actuation

point

Cole Hersee 75910 with

an extended 17° actuation

point

4° Min

of Off

17° Min

of Off

Genuine Cole Hersee 75910 Battery Master Switch

6

www.colehersee.com.au

For over forty years Cole Hersee has been designing
and building heavy duty battery master switches
that have been installed as OE equipment by leading
manufacturers of heavy duty vehicles.

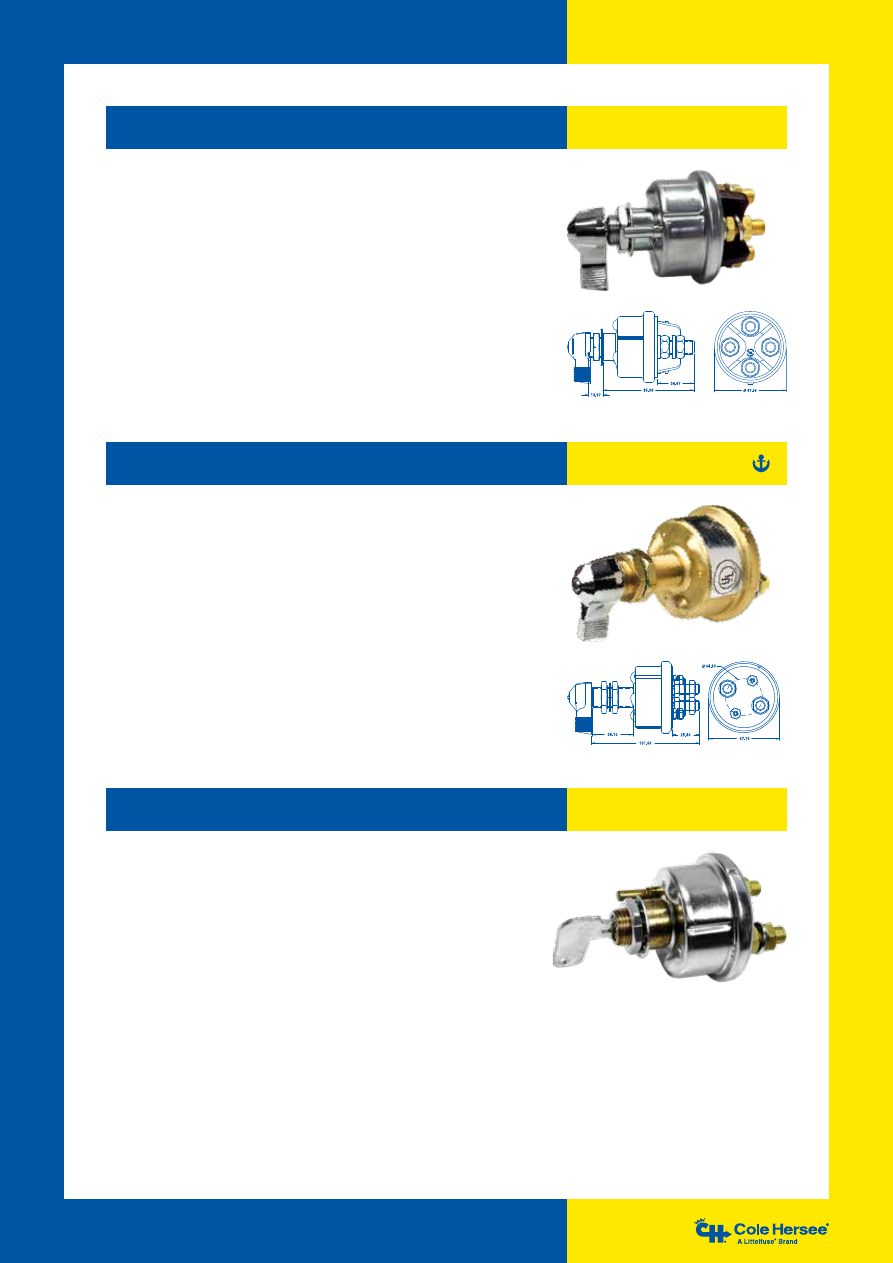

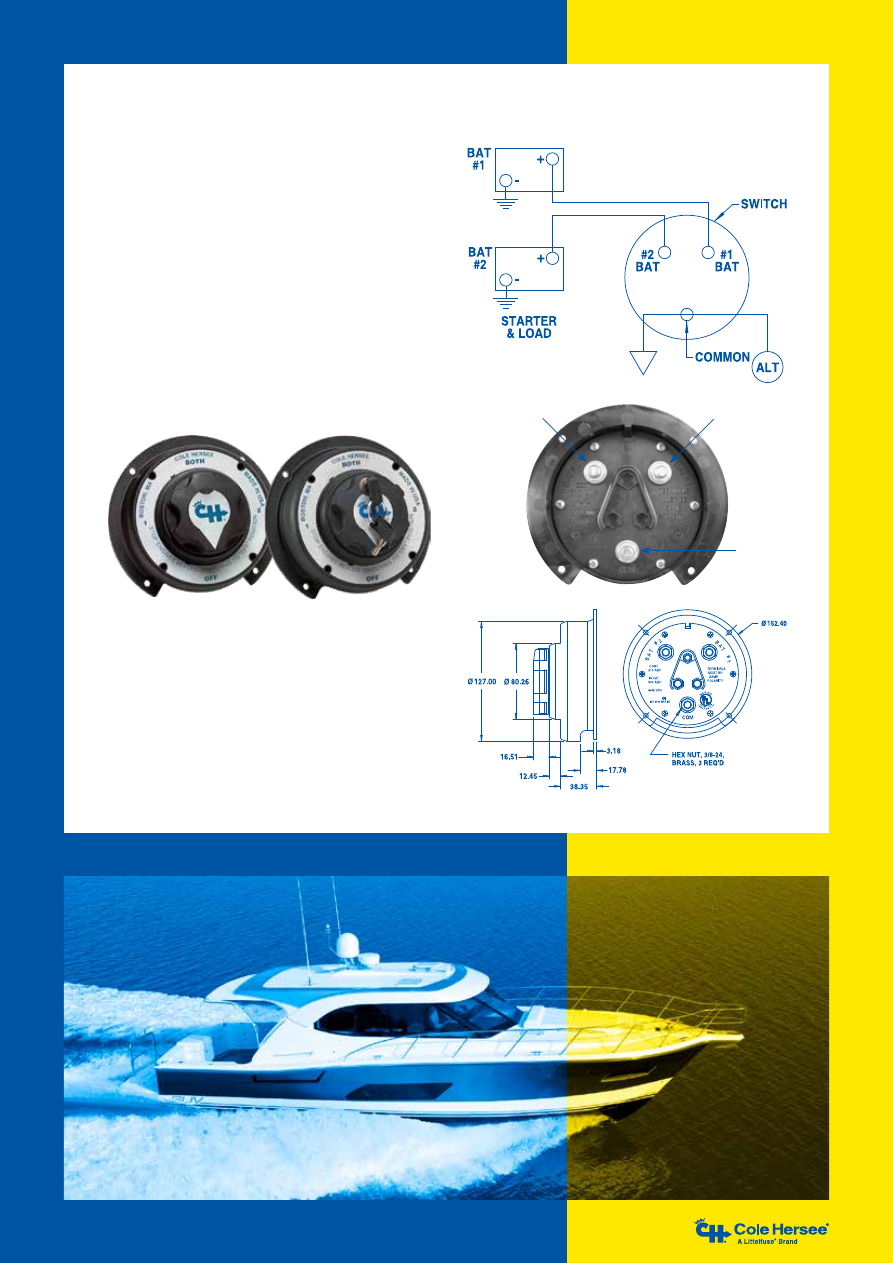

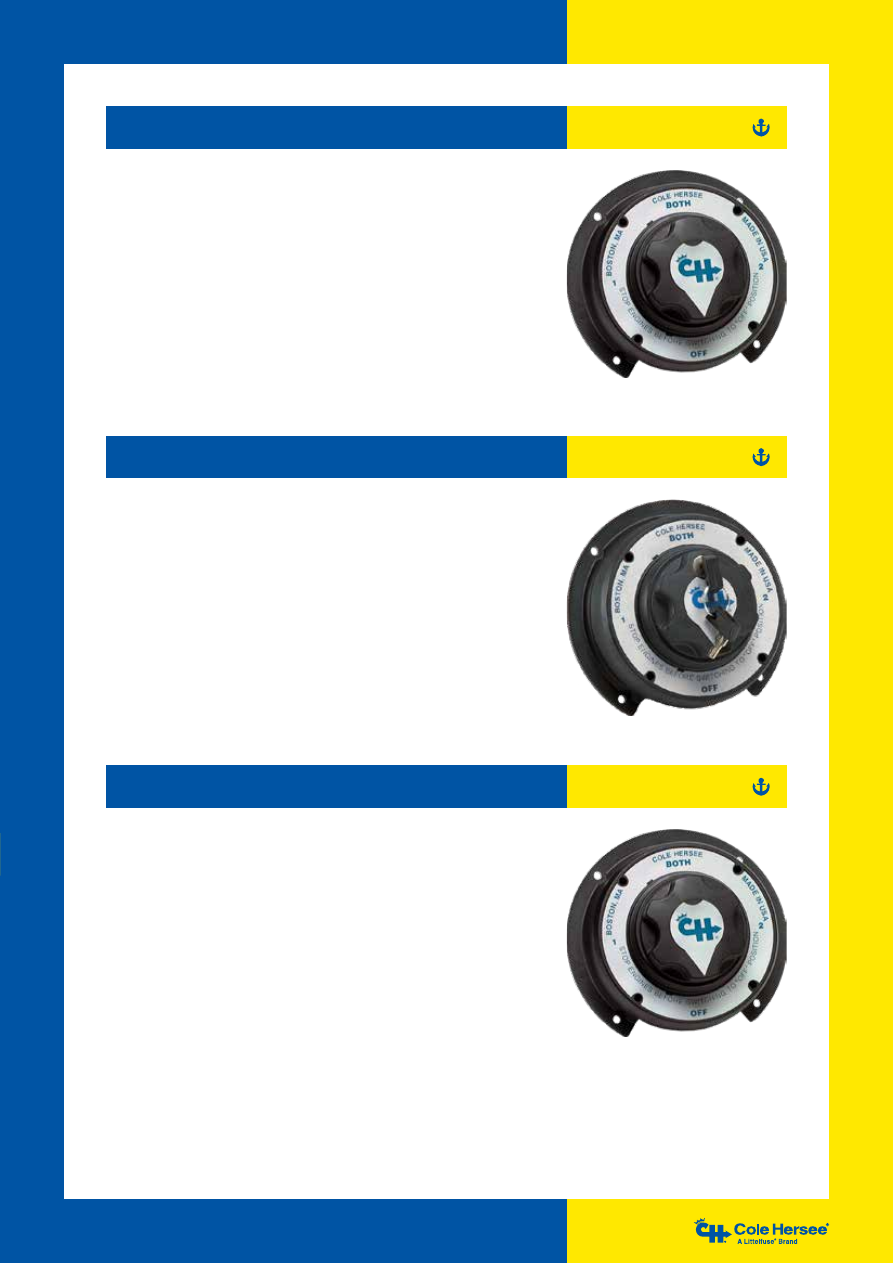

Battery master switches shut down a vehicle’s electrical
system by cutting off current from the battery. They
are designed to help prevent tampering, theft, battery
drain and electrical fires.

Battery master switches are available with brass or
plated steel cases and are actuated by lever or hencol
key. Contacts are either silver or copper. O-rings feature
in the operating shaft of some models for additional
moisture and dirt protection.

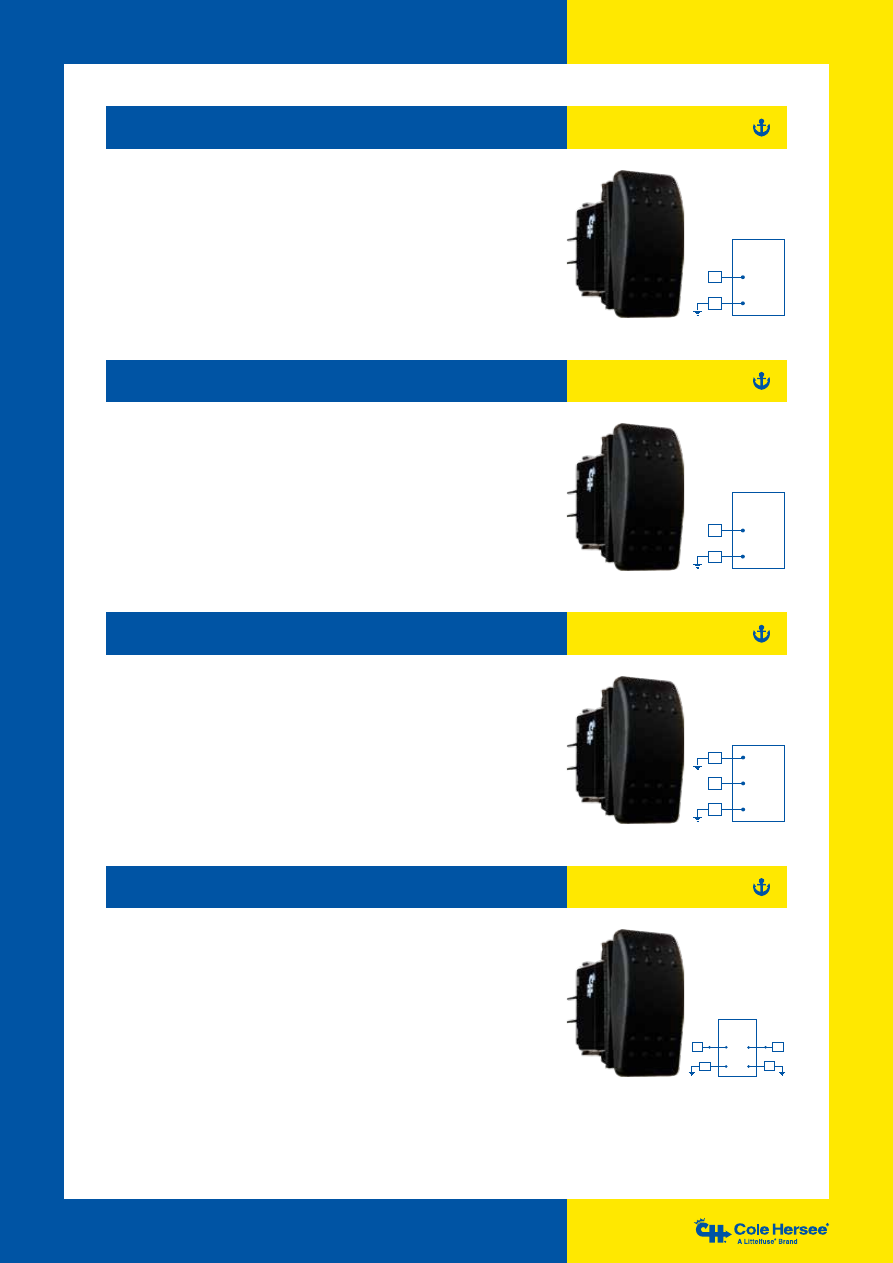

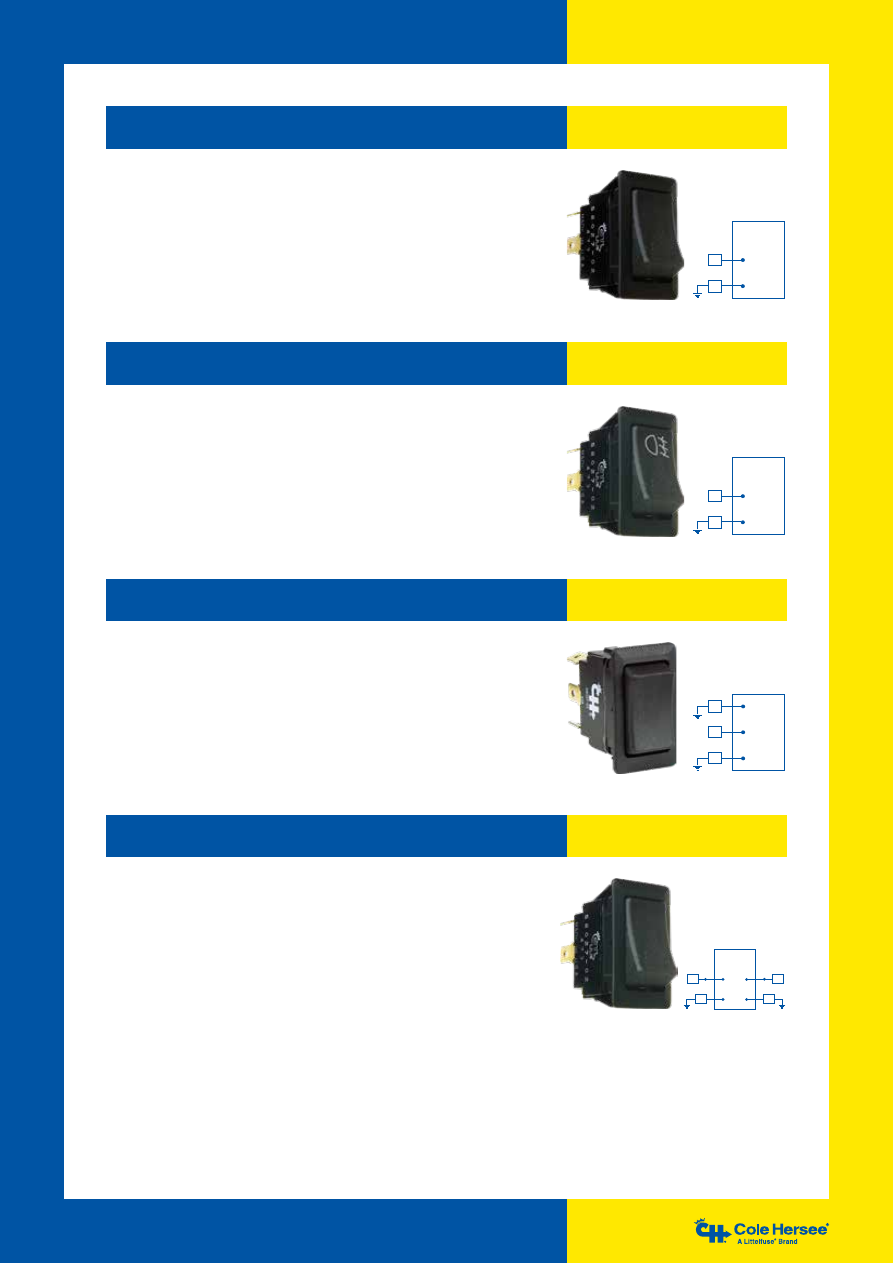

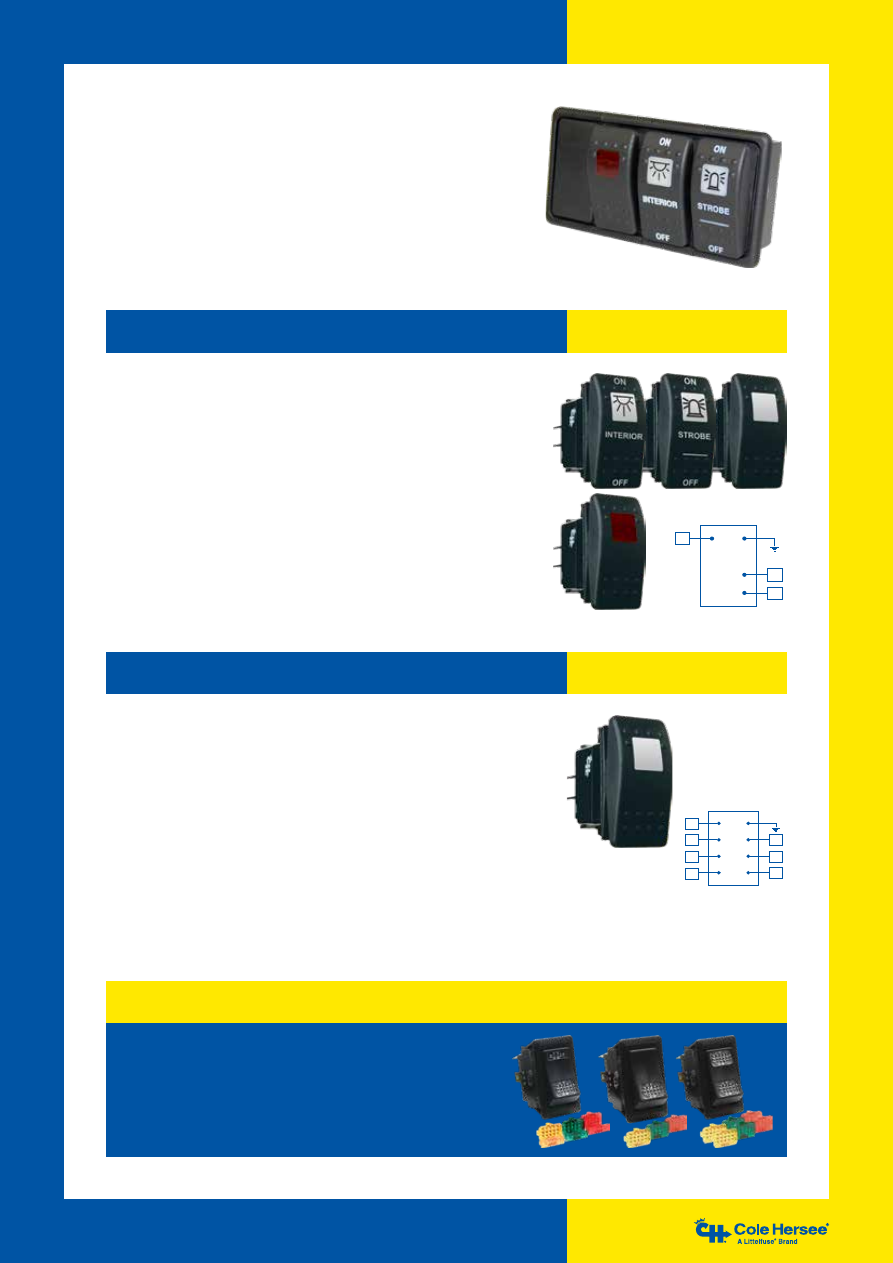

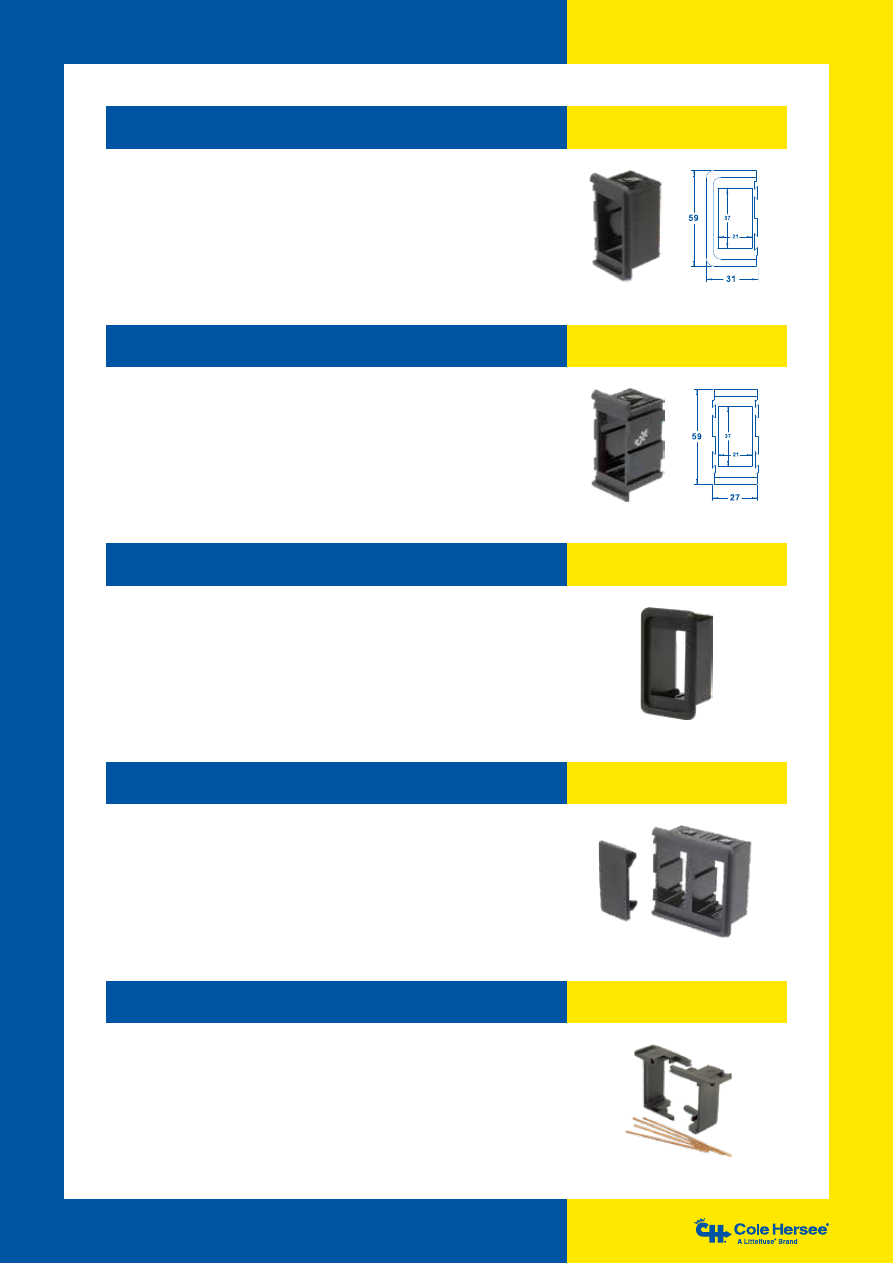

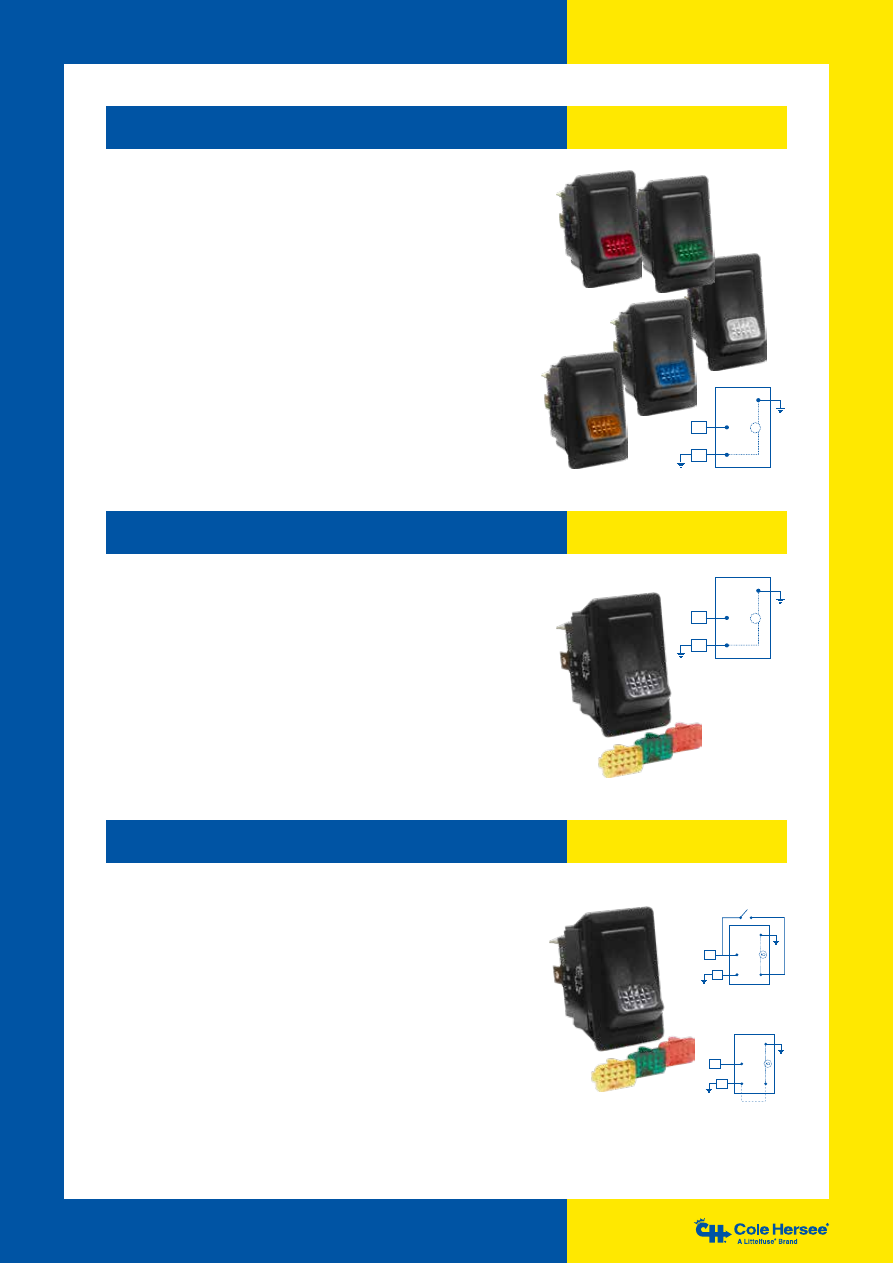

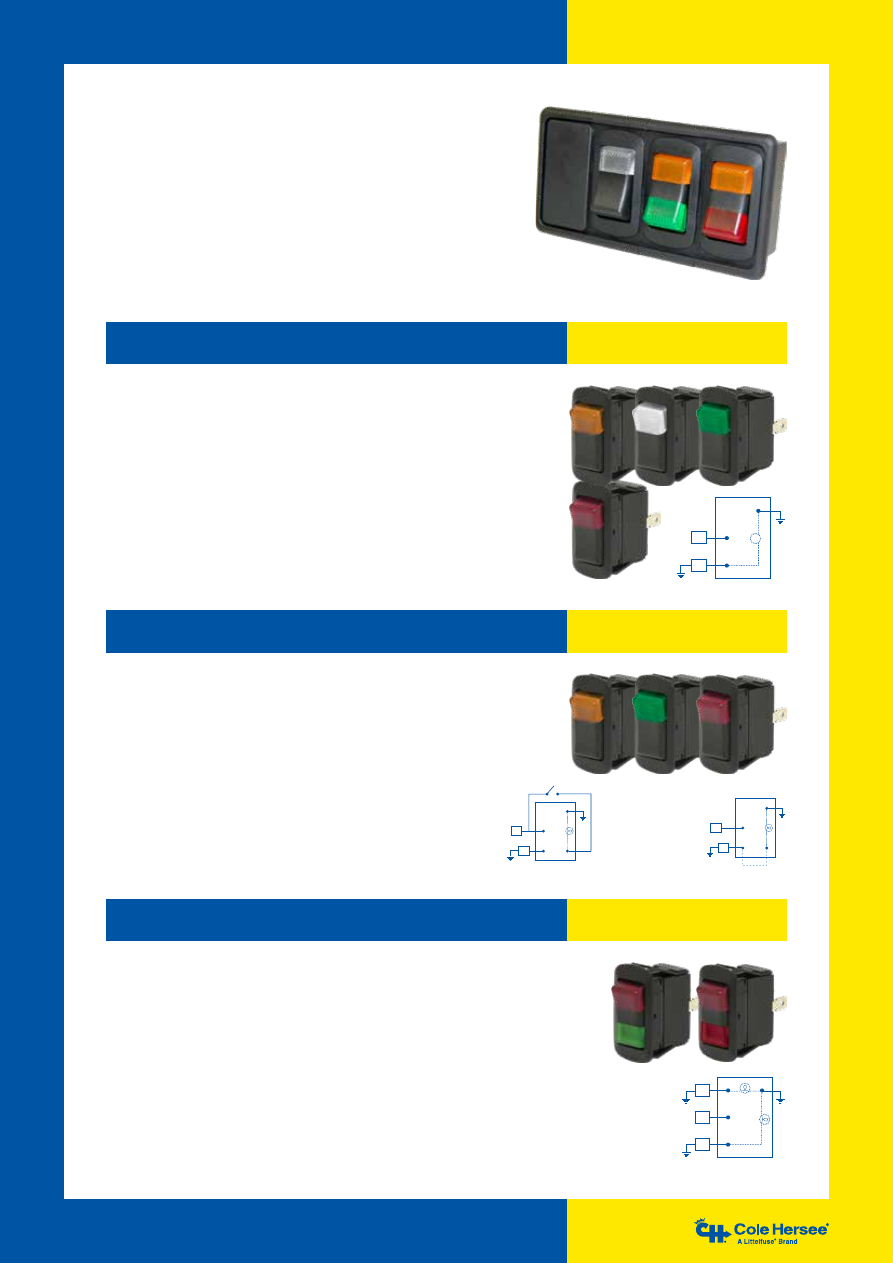

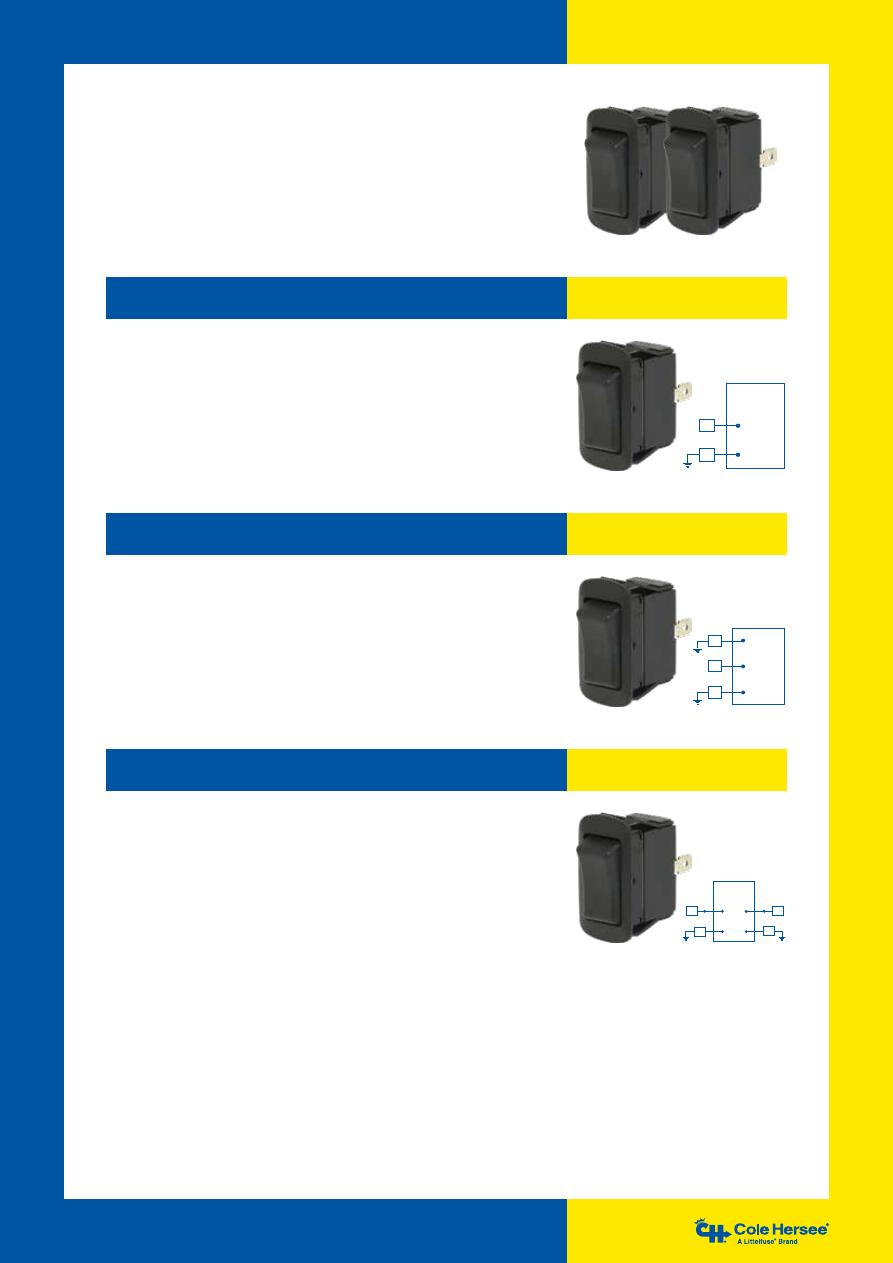

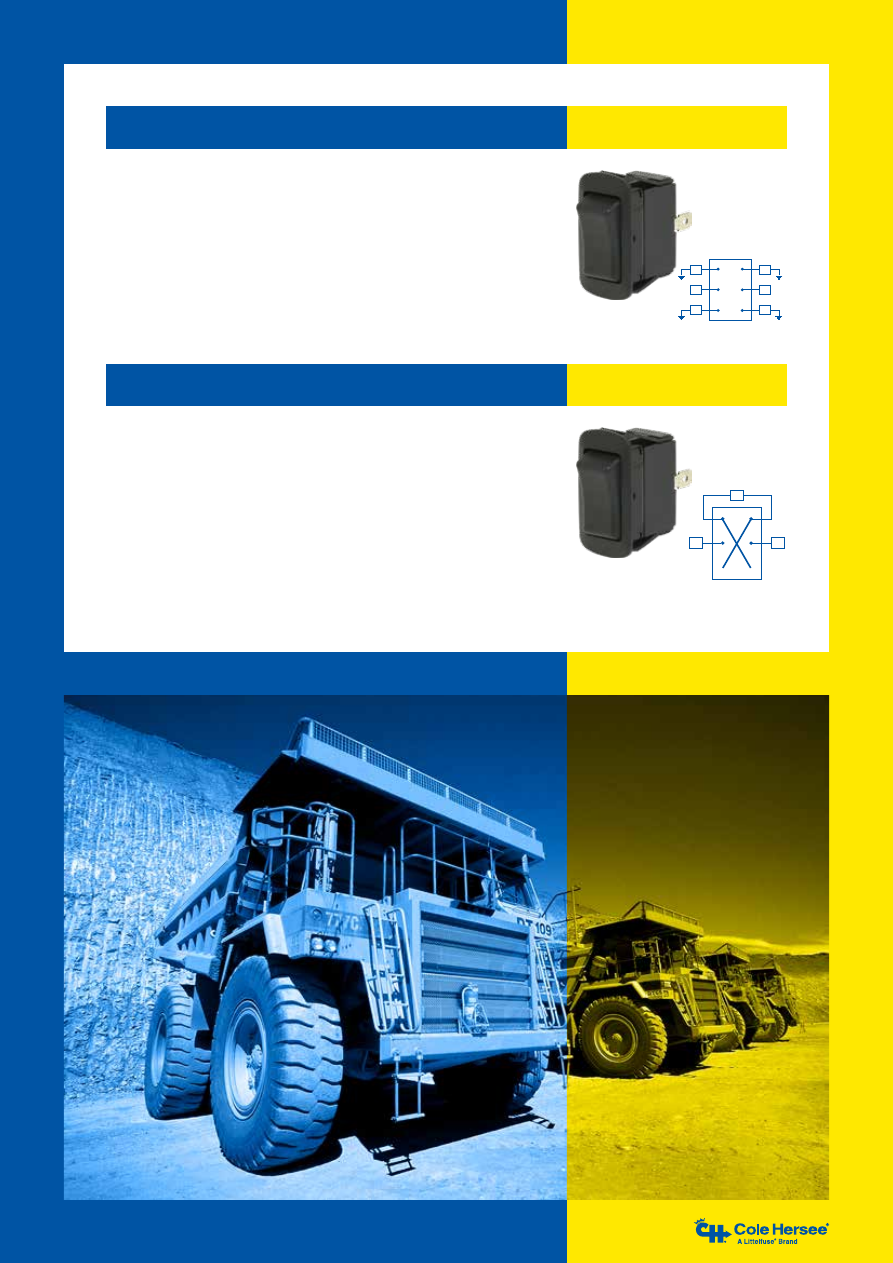

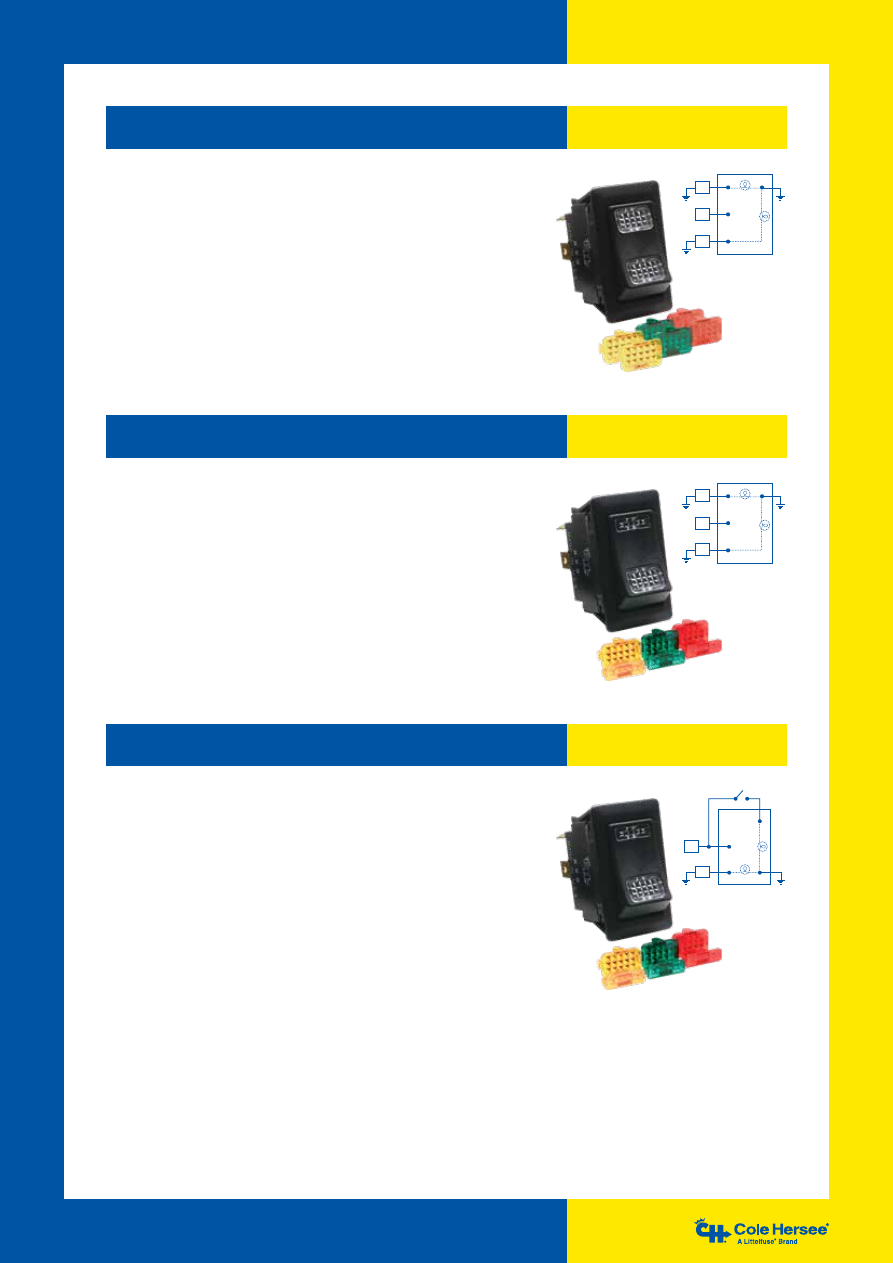

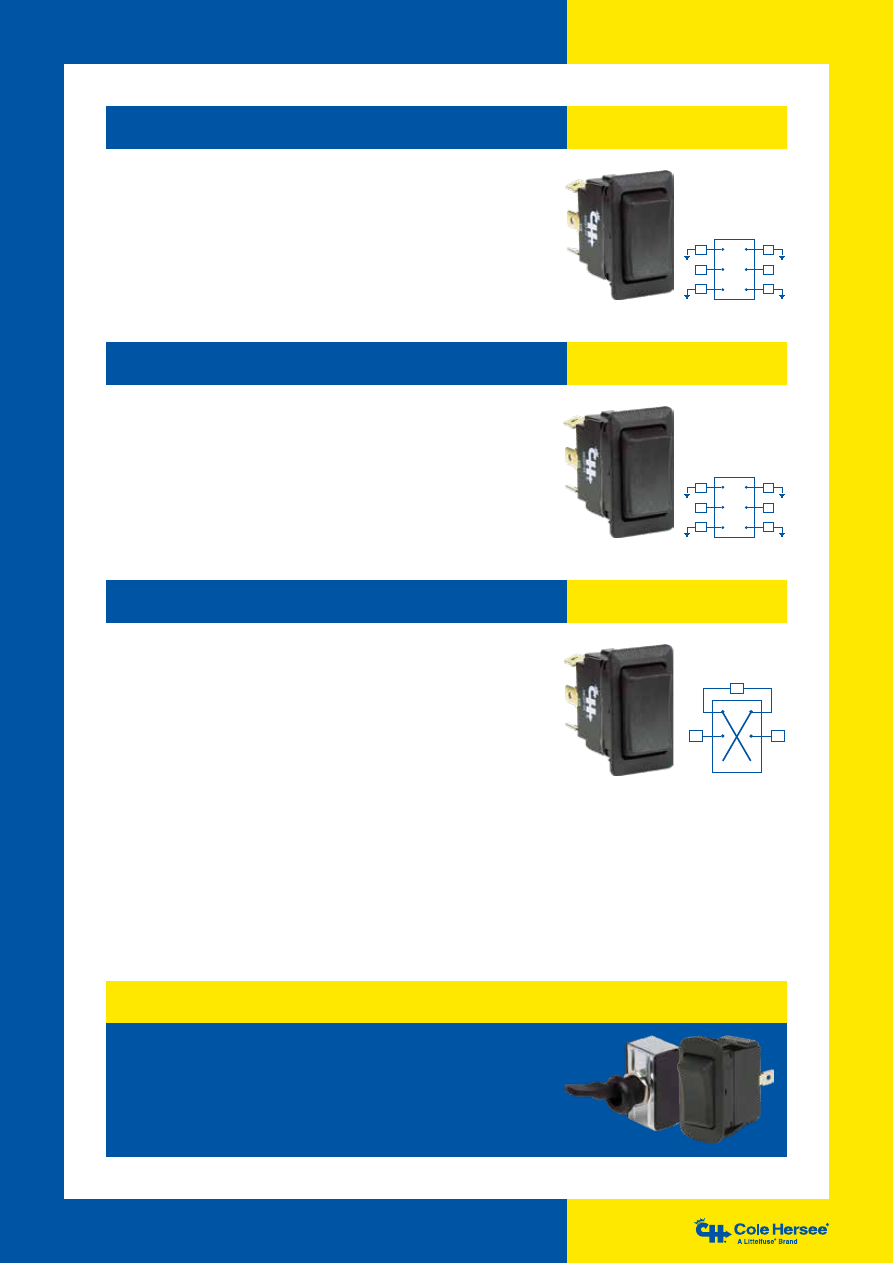

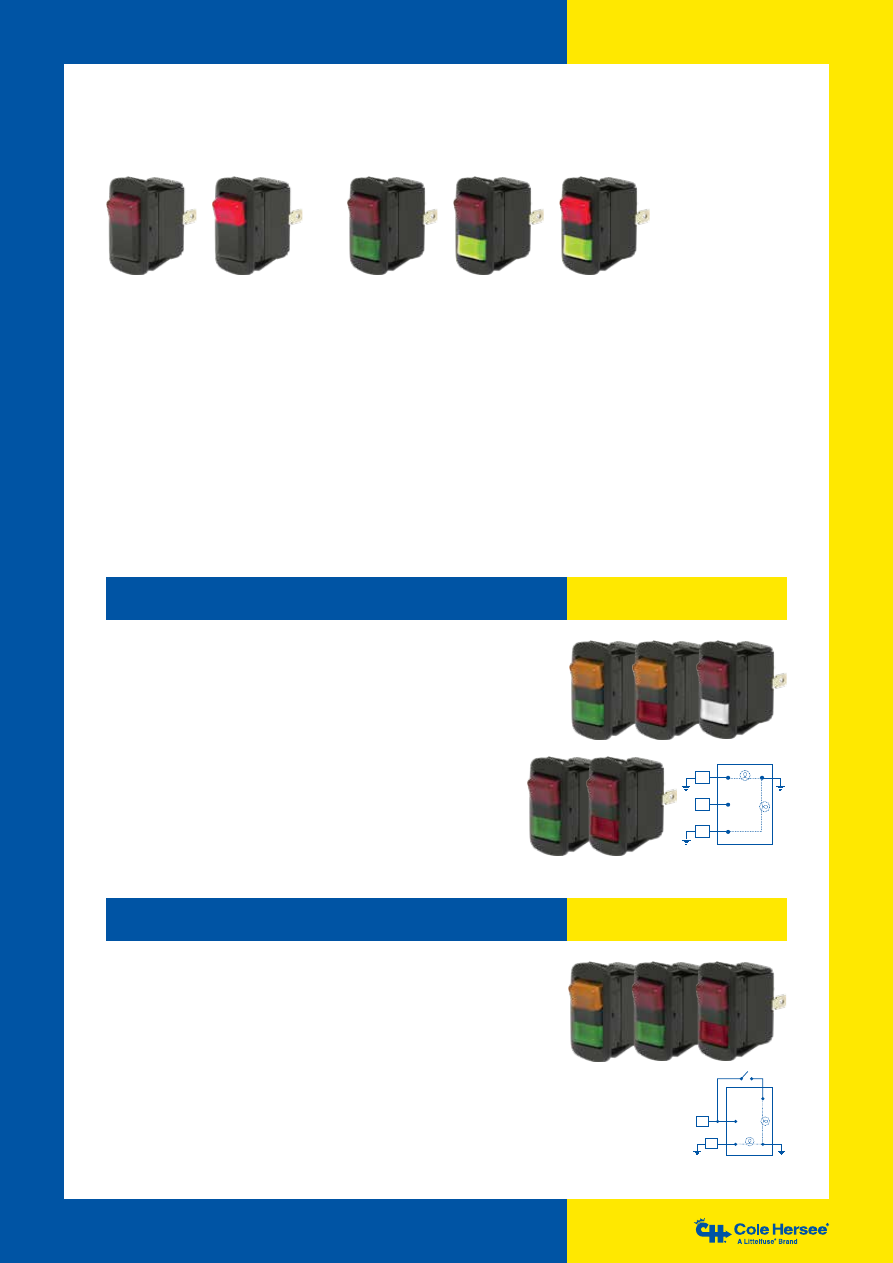

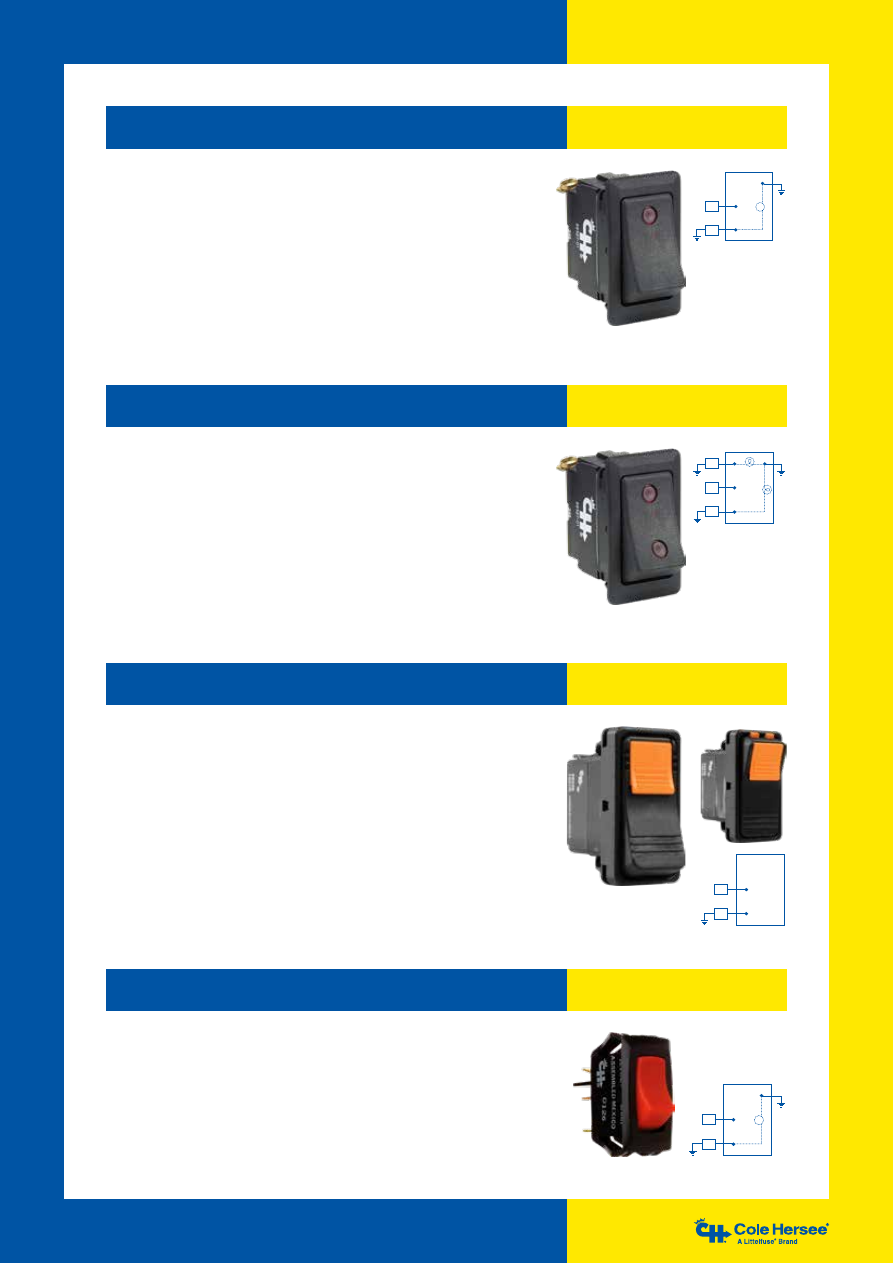

Rocker switches are manufactured in many
different variations to handle most vehicle
and equipment applications and are usually
classified by the number of poles and throws
to identify their basic operation.

Rocker switches can be either snap-in
or bracket mounting, actuators can be
illuminated or imprinted, contain pilot lights,
or have both pilot lights and imprinting.

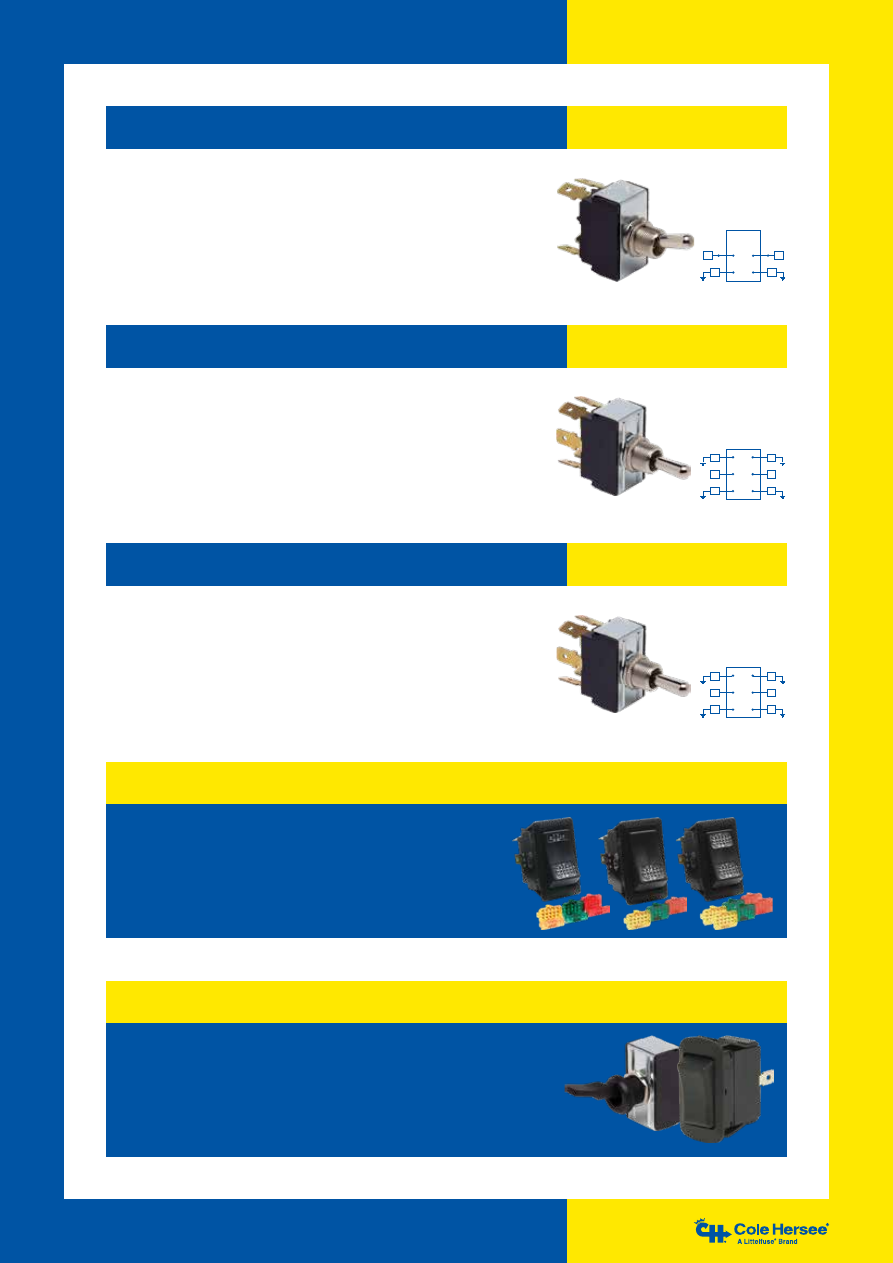

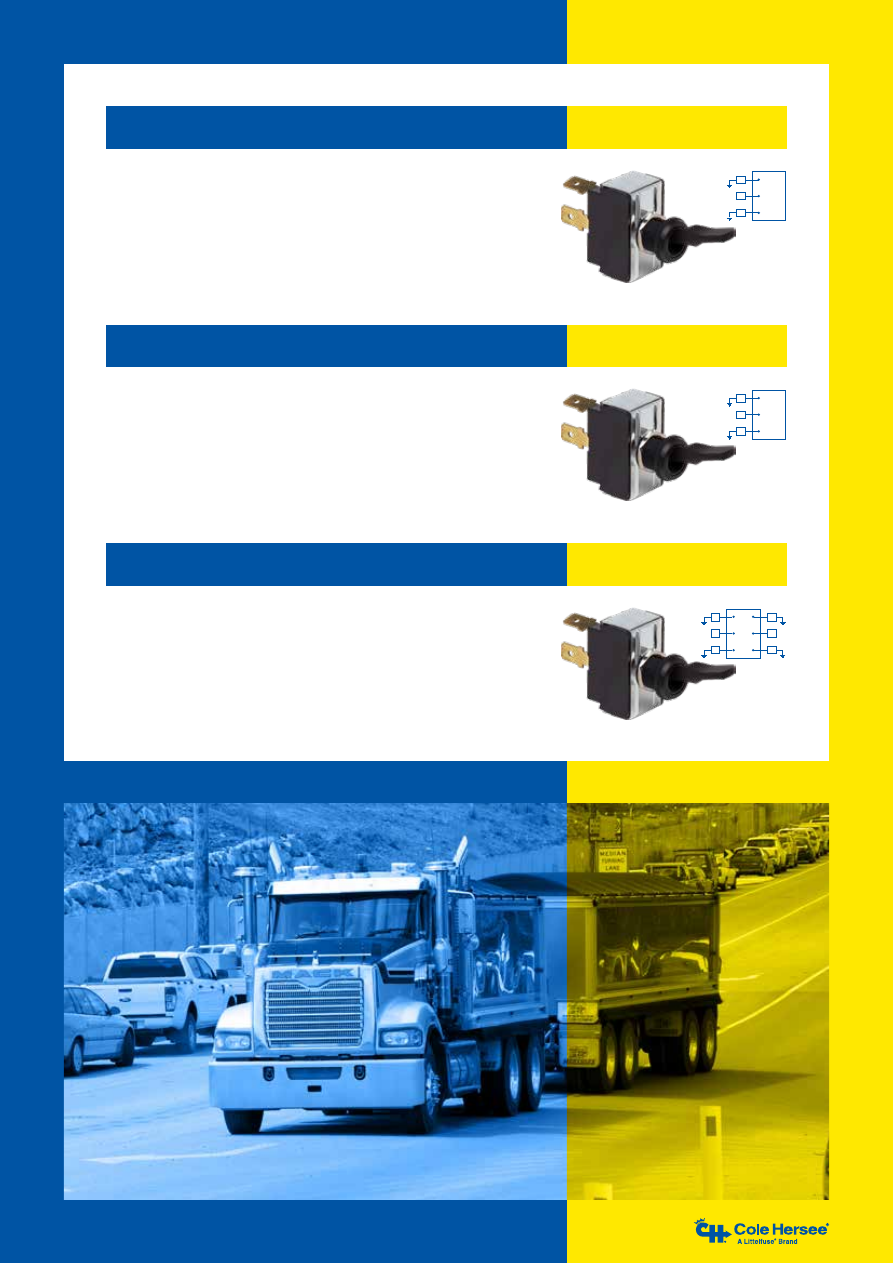

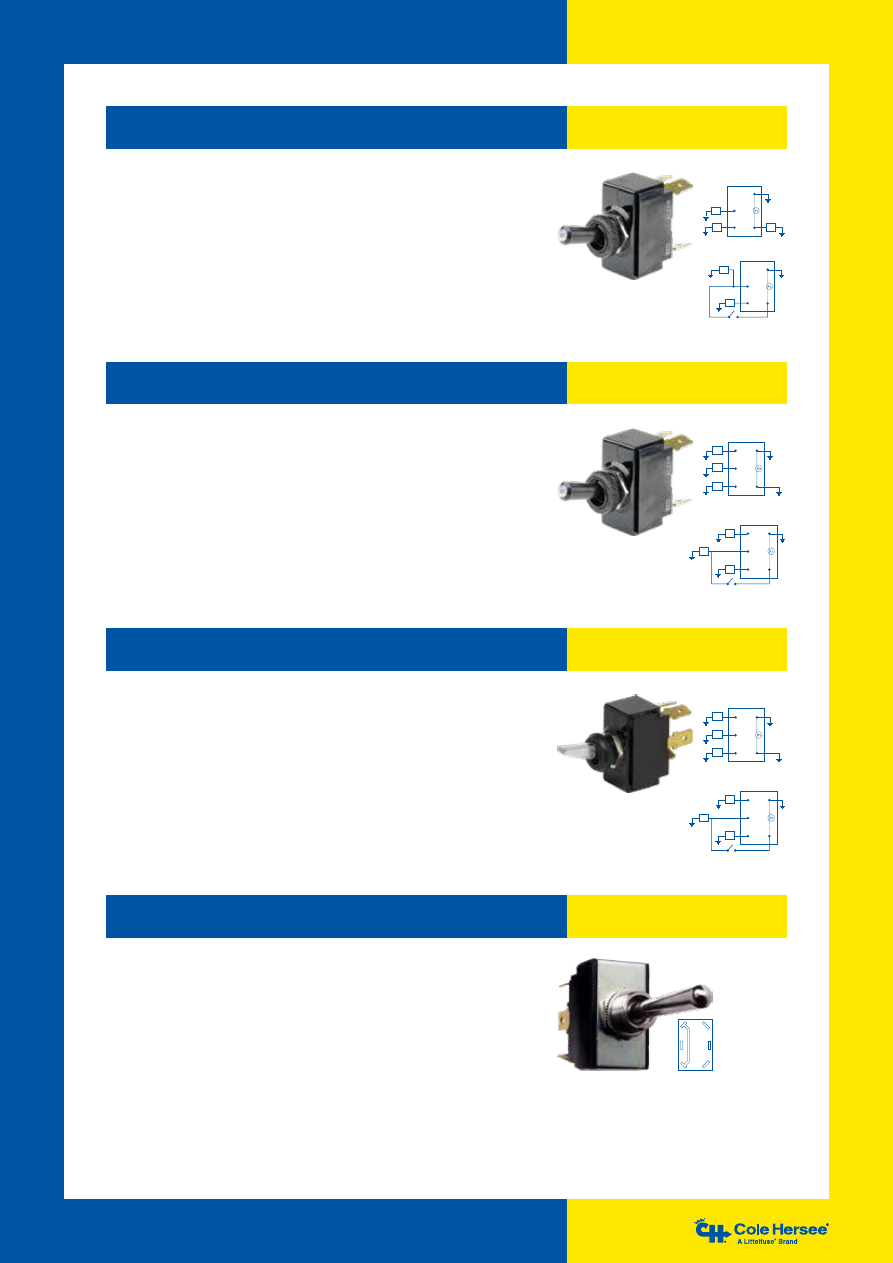

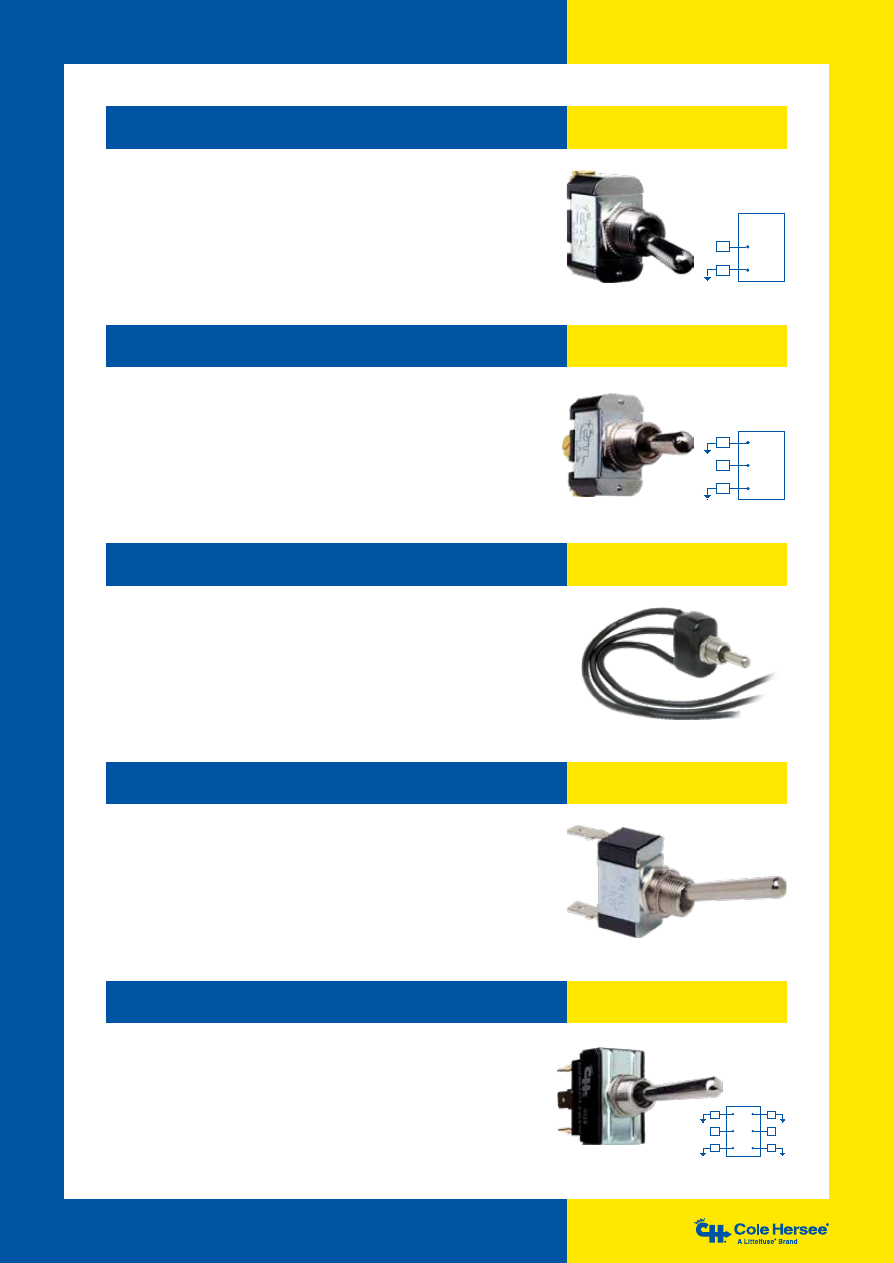

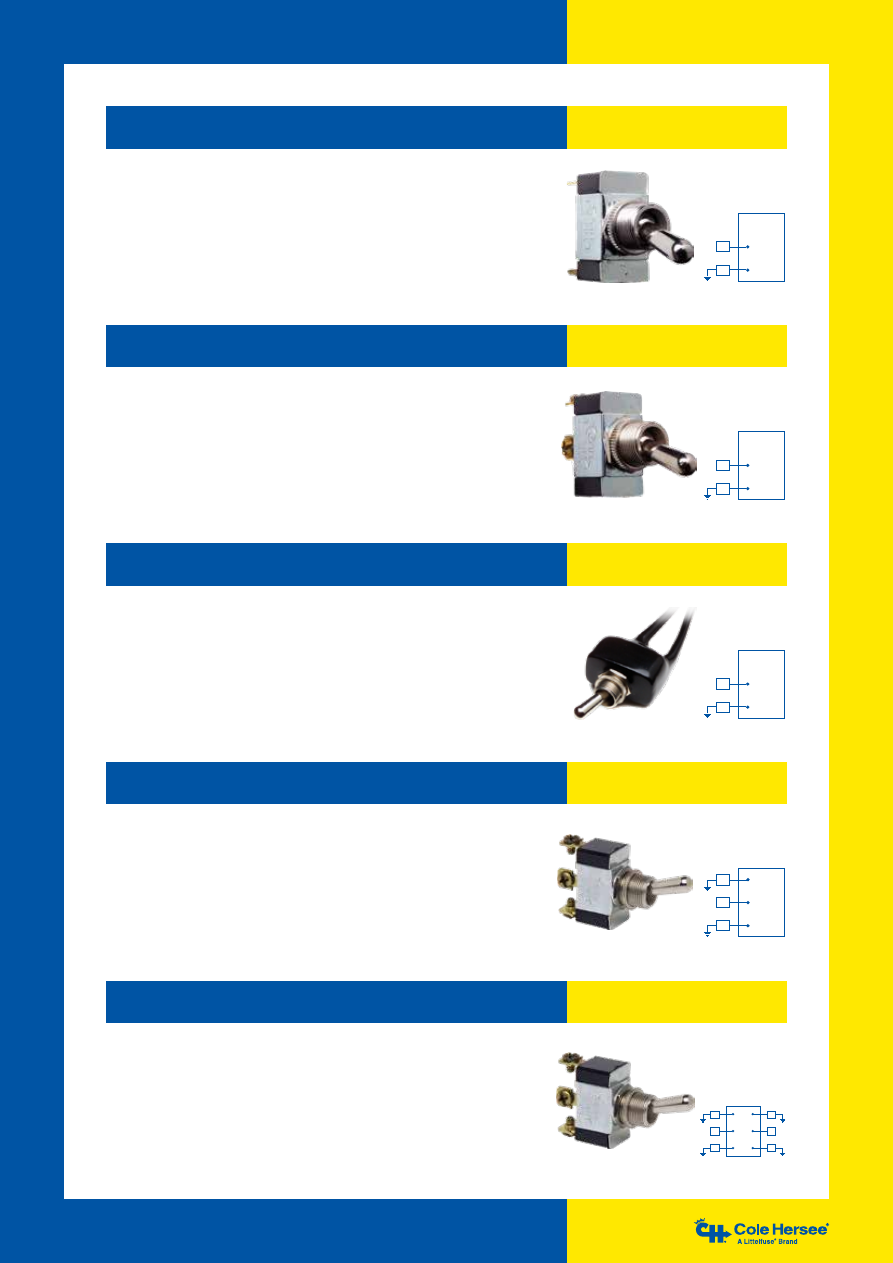

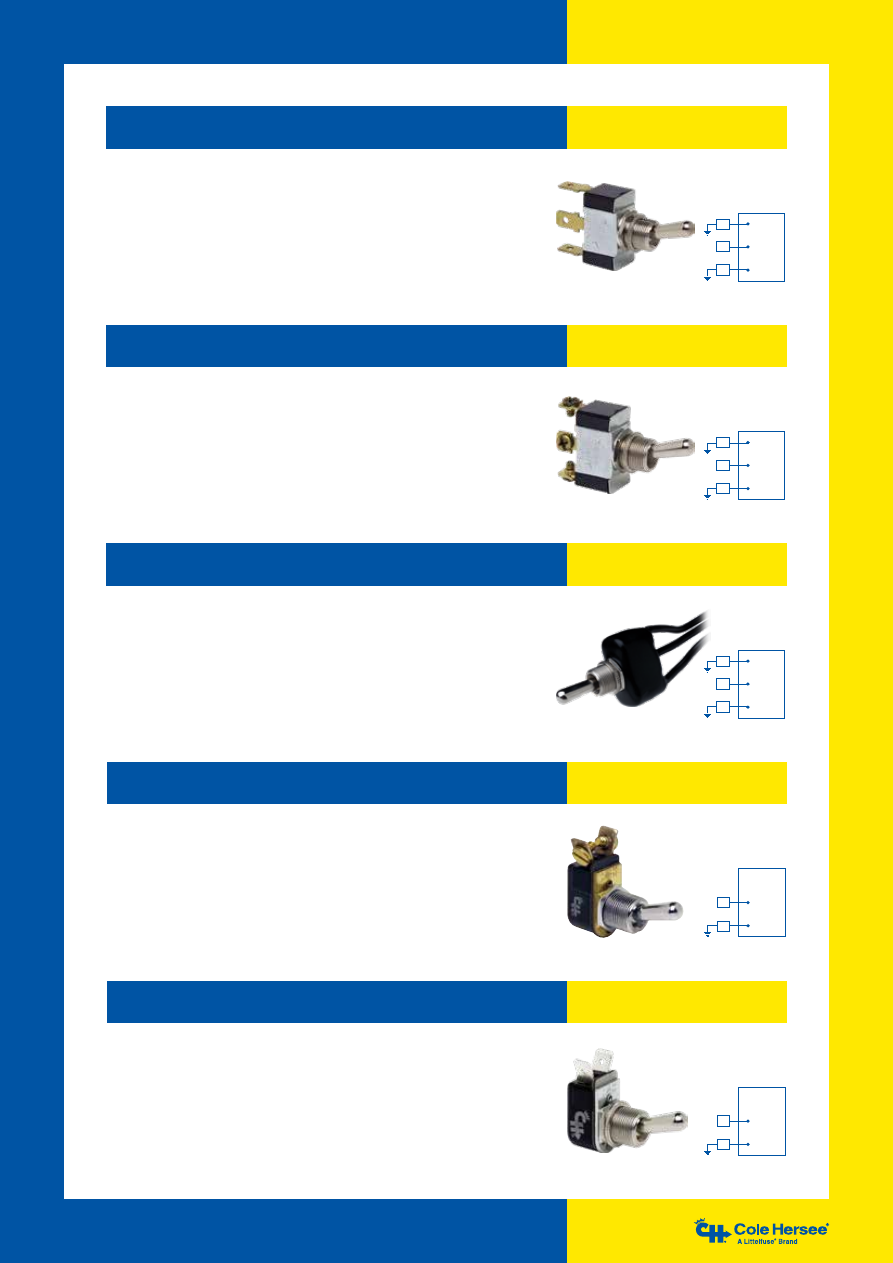

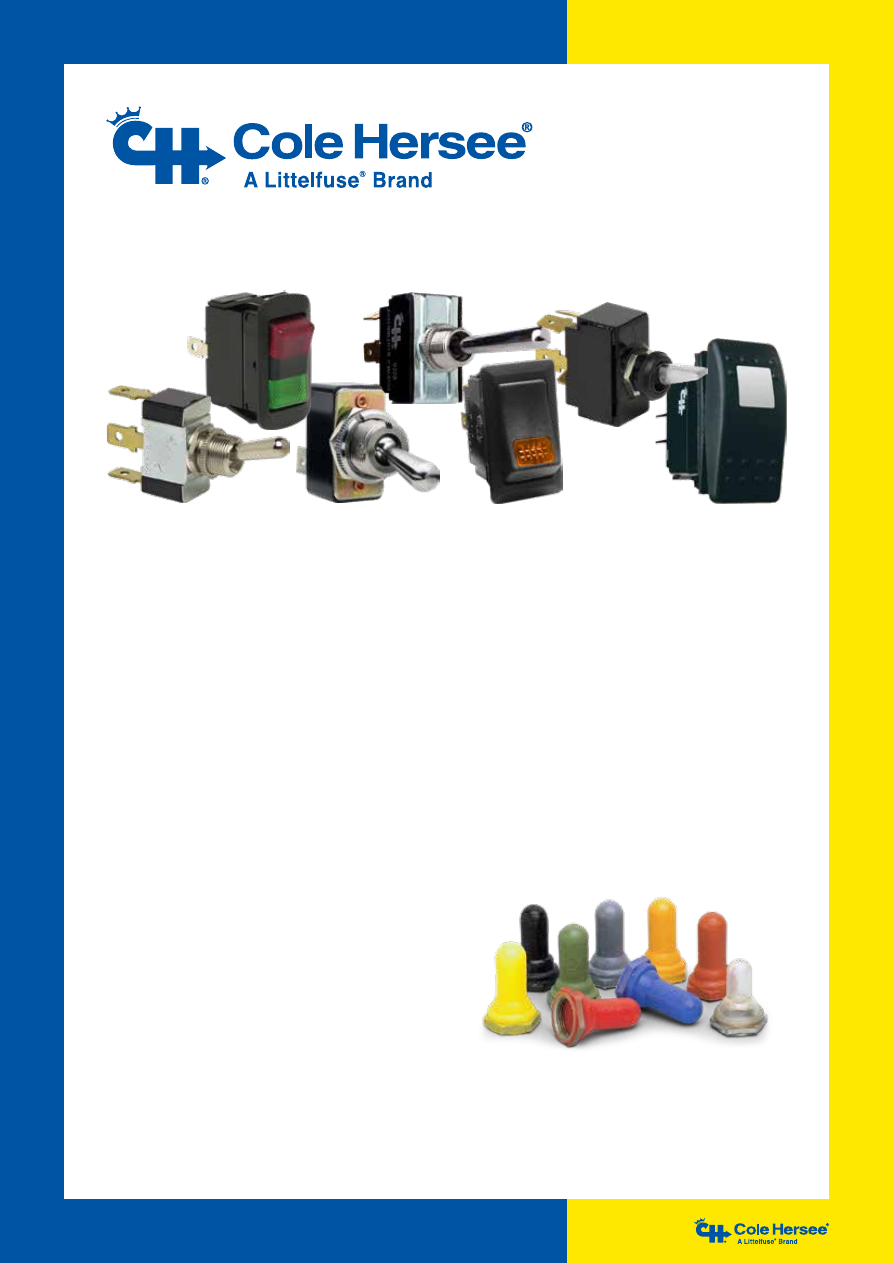

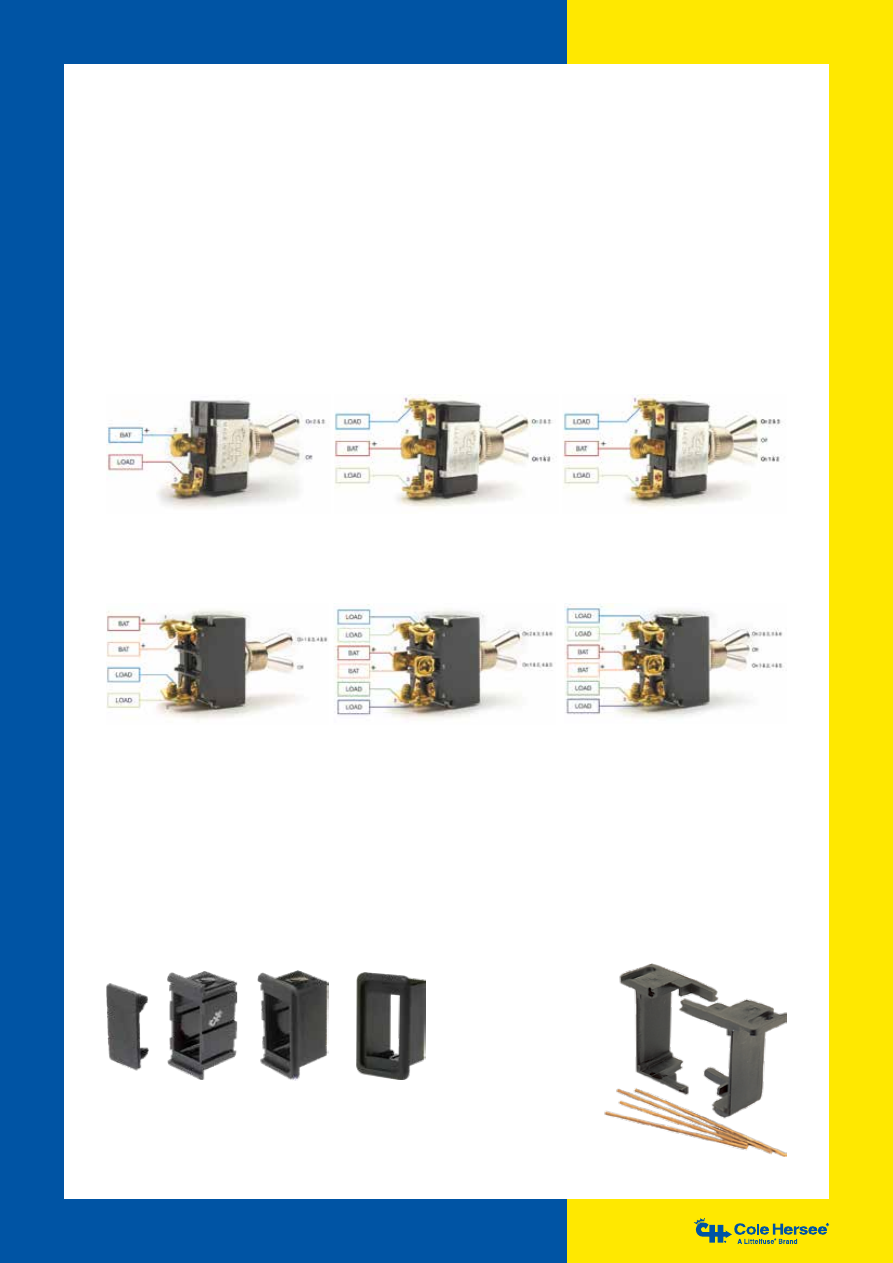

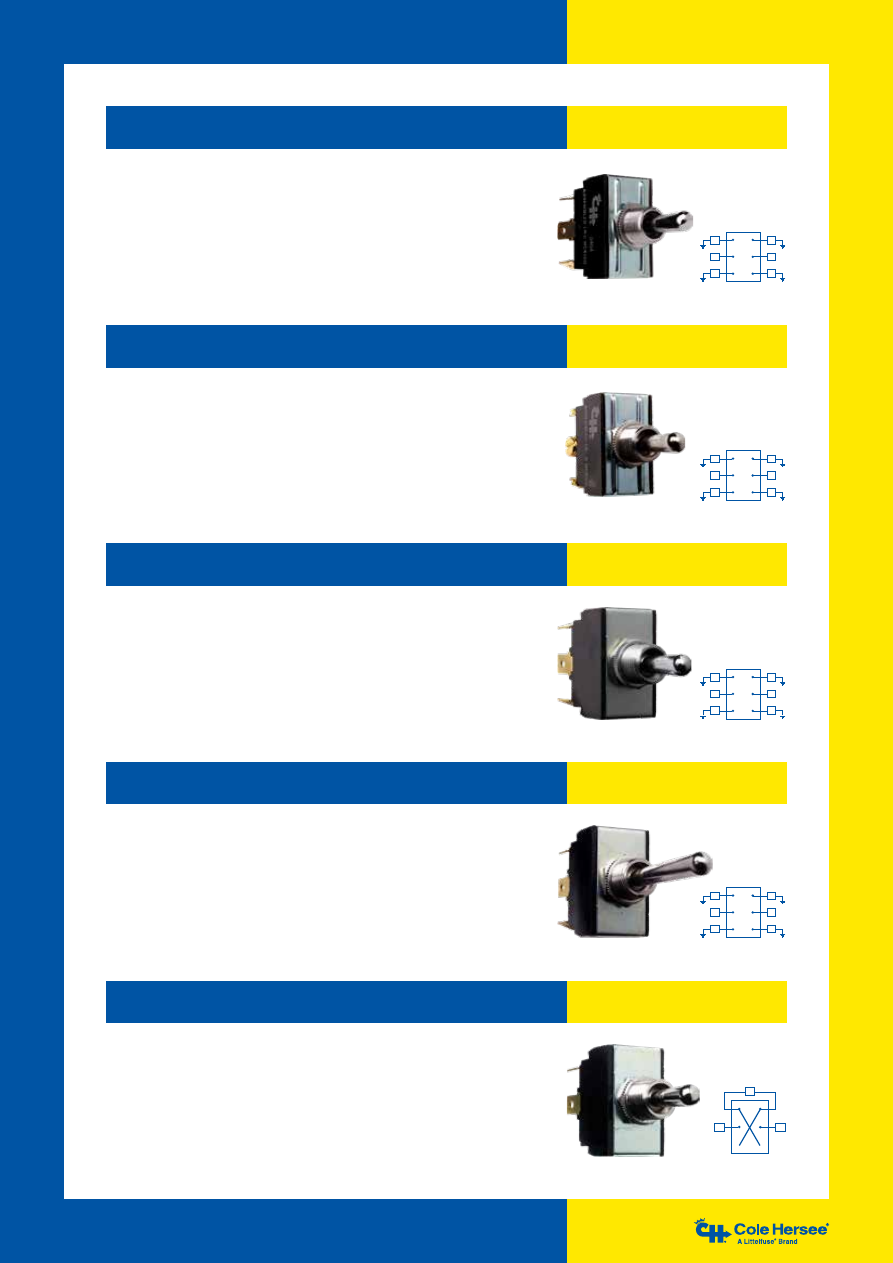

Toggle switches are manufactured in many
different variations to handle most vehicle and
equipment applications. Toggle switches are
usually classified by the number of poles and
throws to identify their basic operation.

Cole Hersee Toggle switches are available with
ball, short or long handles, paddle or illuminated
actuators. Housings are either plastic, plastic and
metal combined, or die-cast metal.

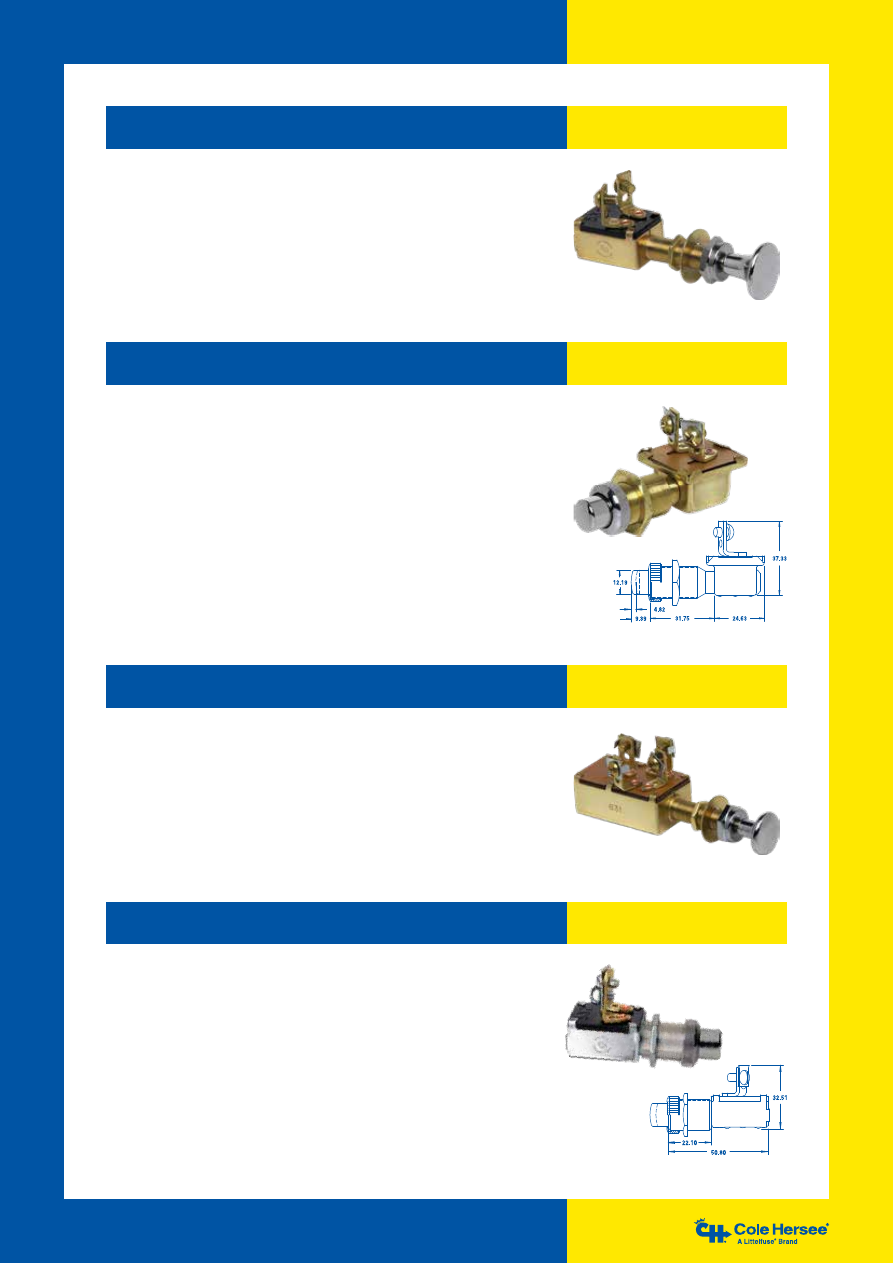

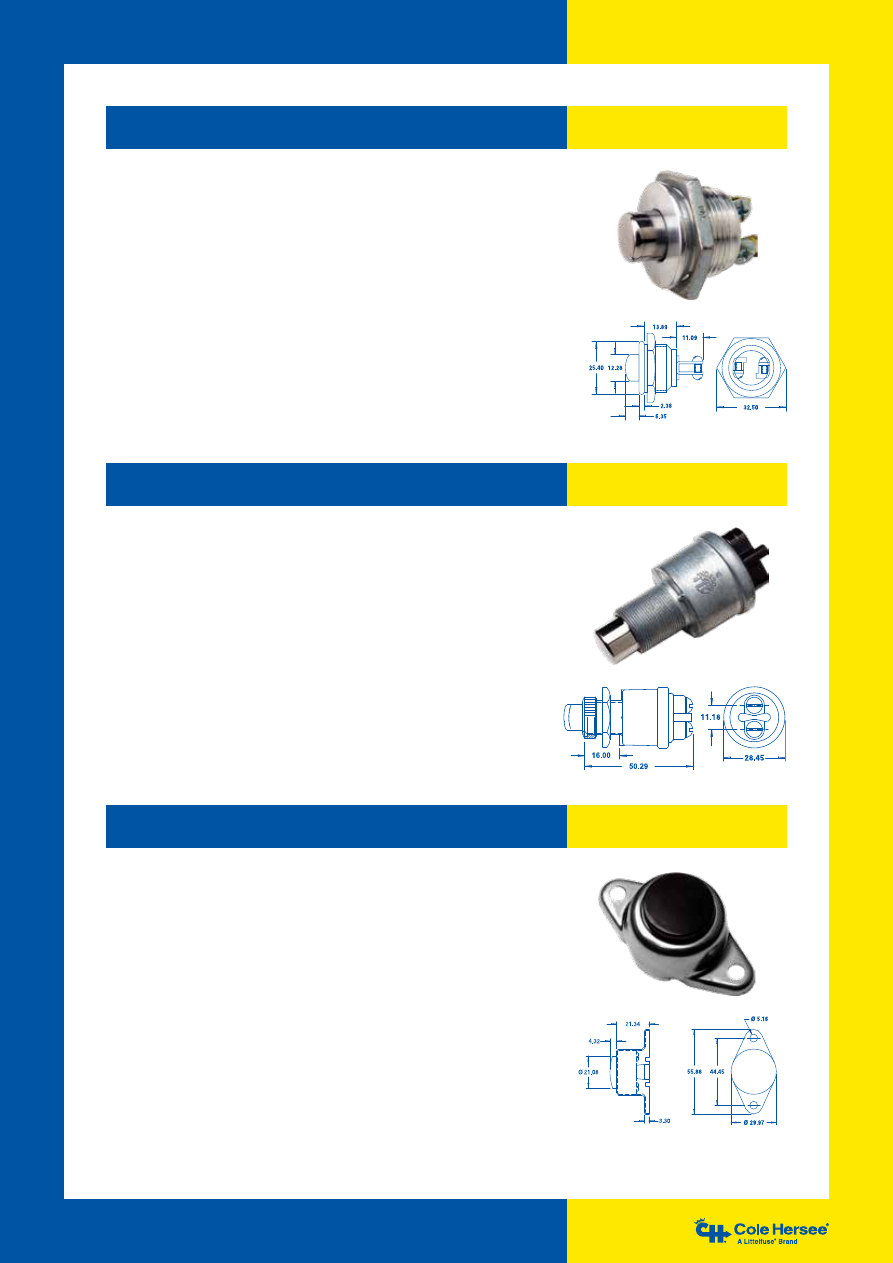

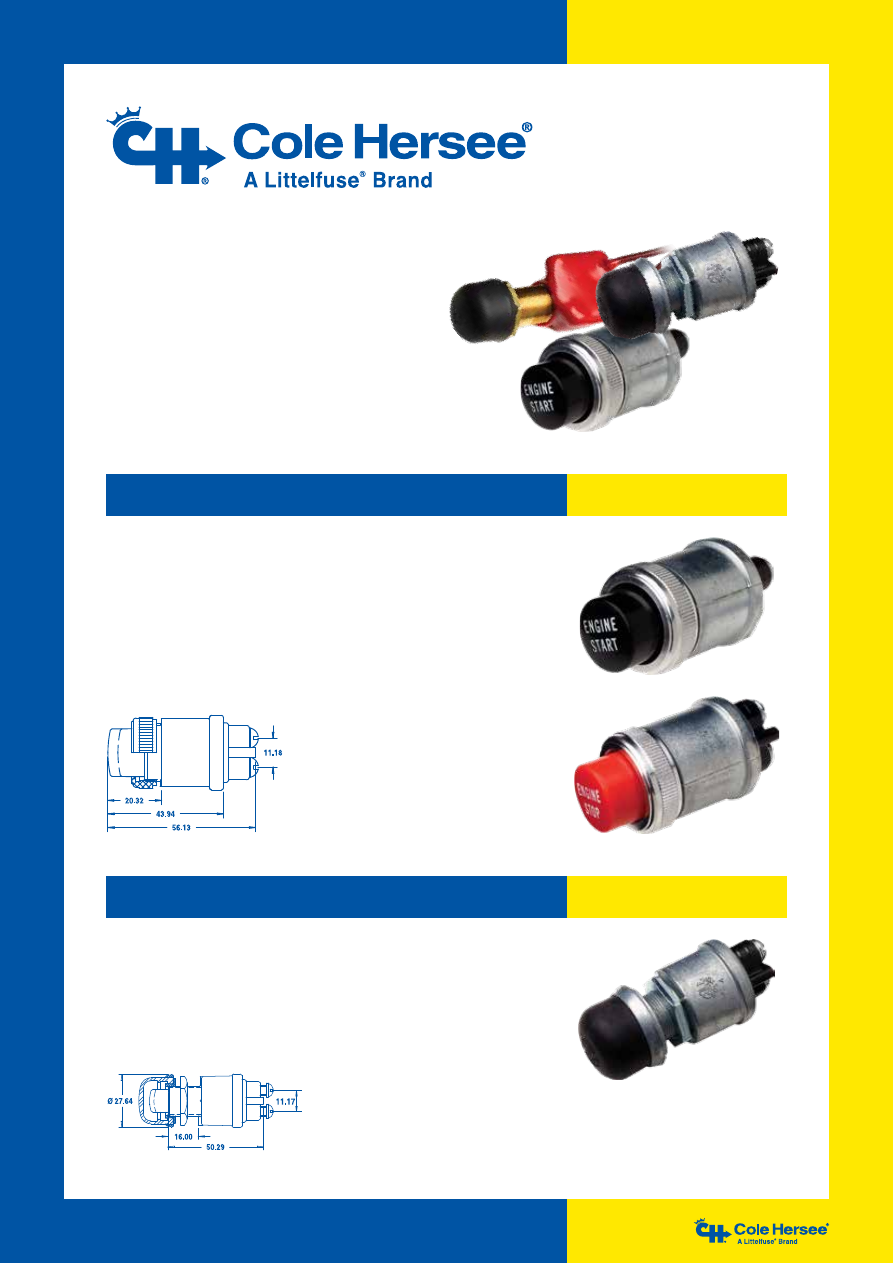

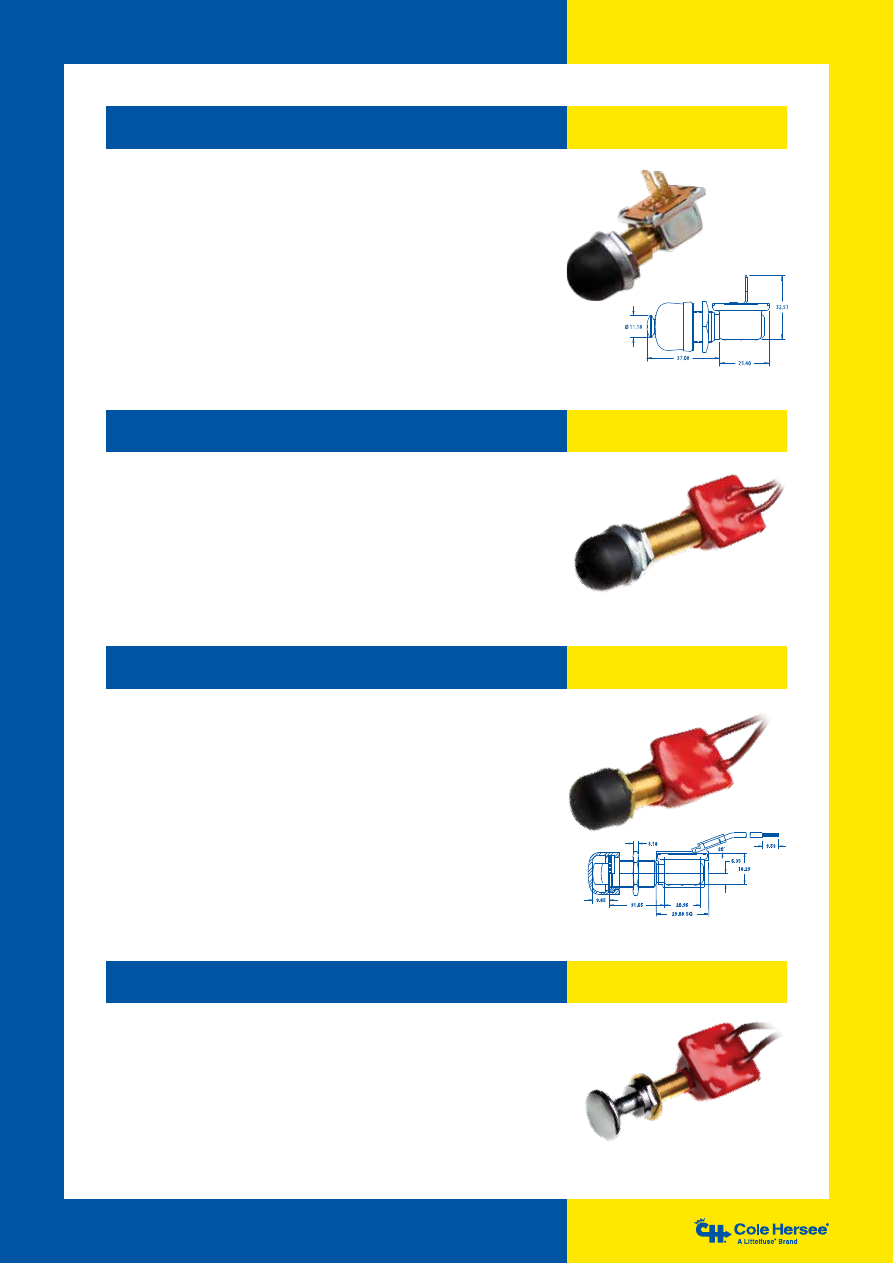

Push Button switches (sometimes referred to as
momentary switches) are most commonly used
for Off/Mom On ignition type applications.

Cole Hersee Push Button switches are available
in die-cast alloy or brass housing with most
featuring chrome plated button and face nut or
rubber capping.

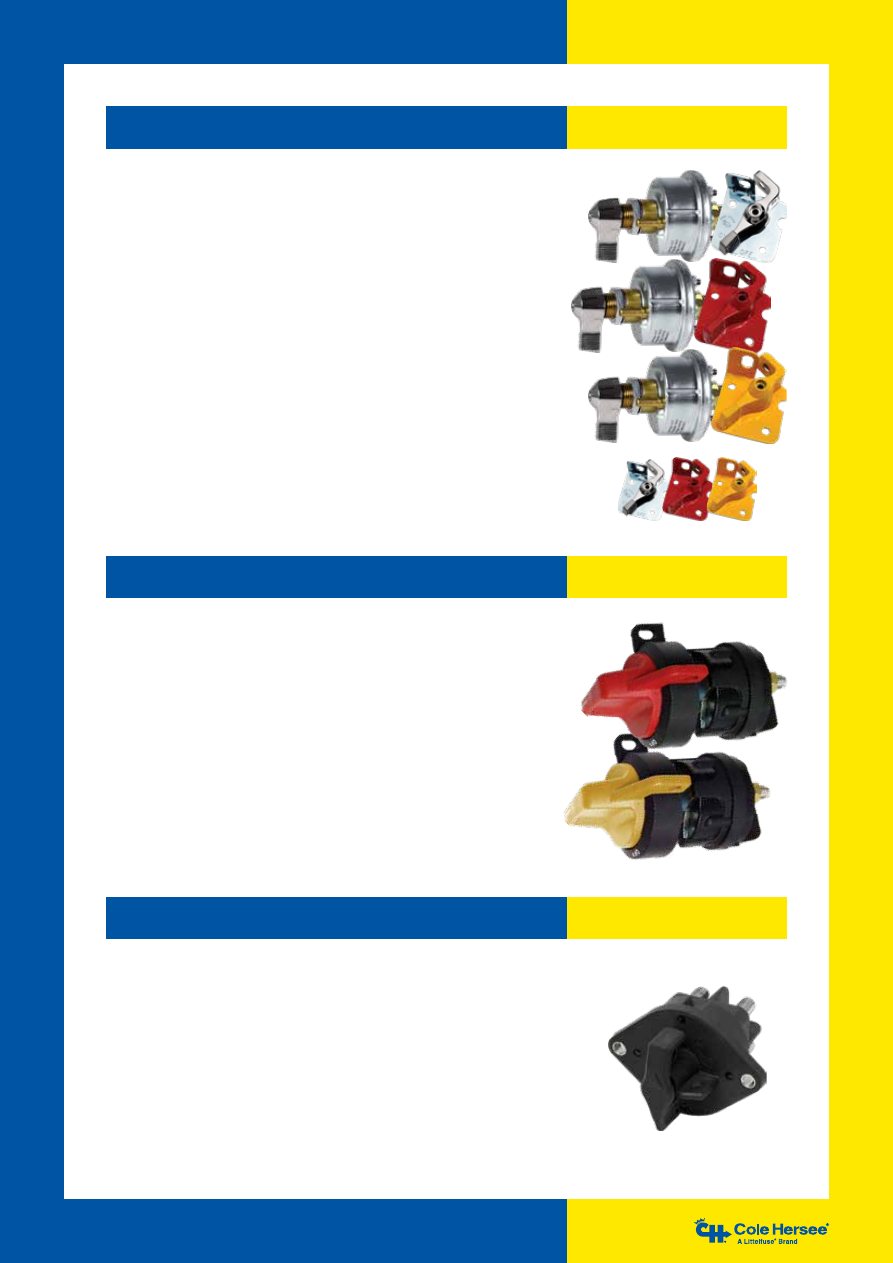

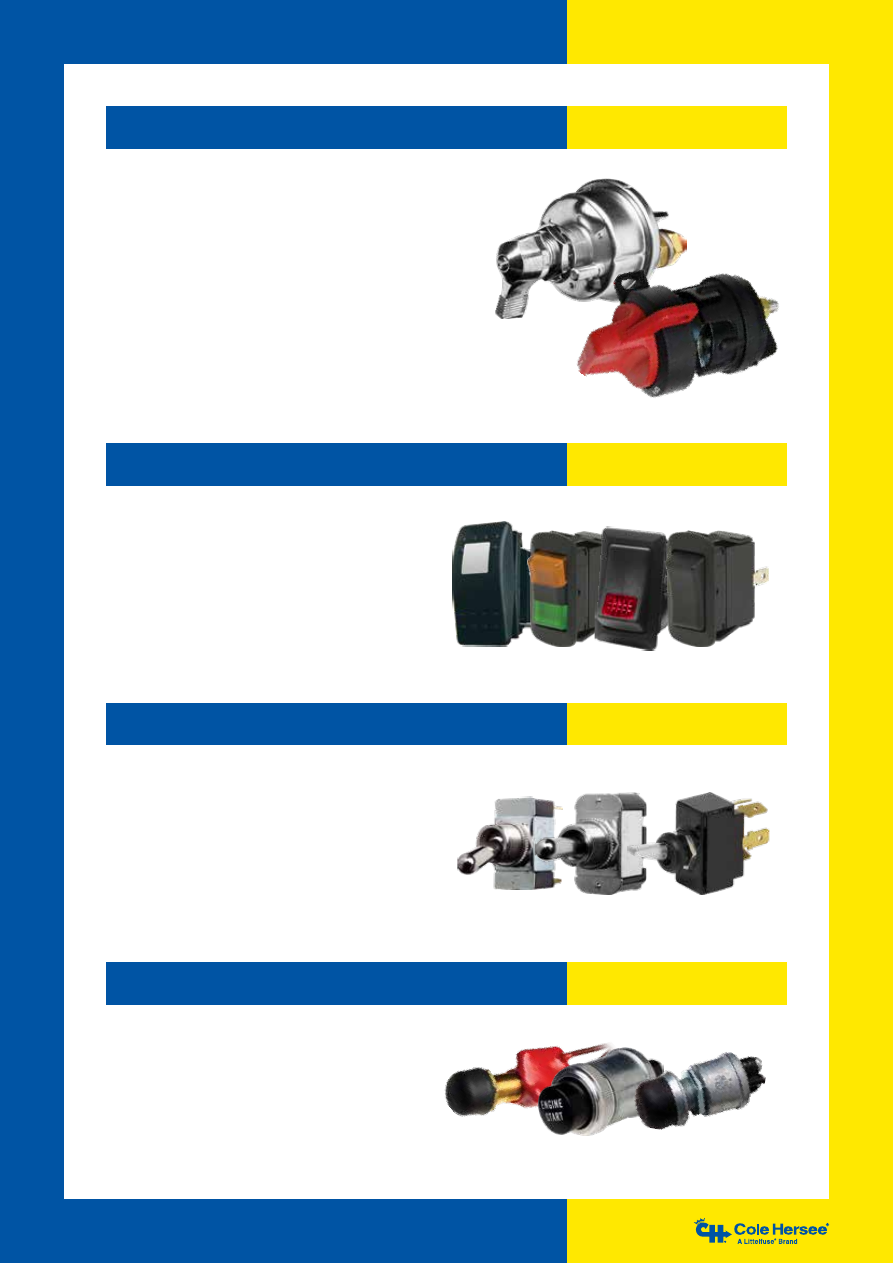

Battery Master Switches

Rocker Switches

Toggle Switches

Push Button Switches

Page 8

Page 16

Page 32

Page 40

7

www.colehersee.com.au

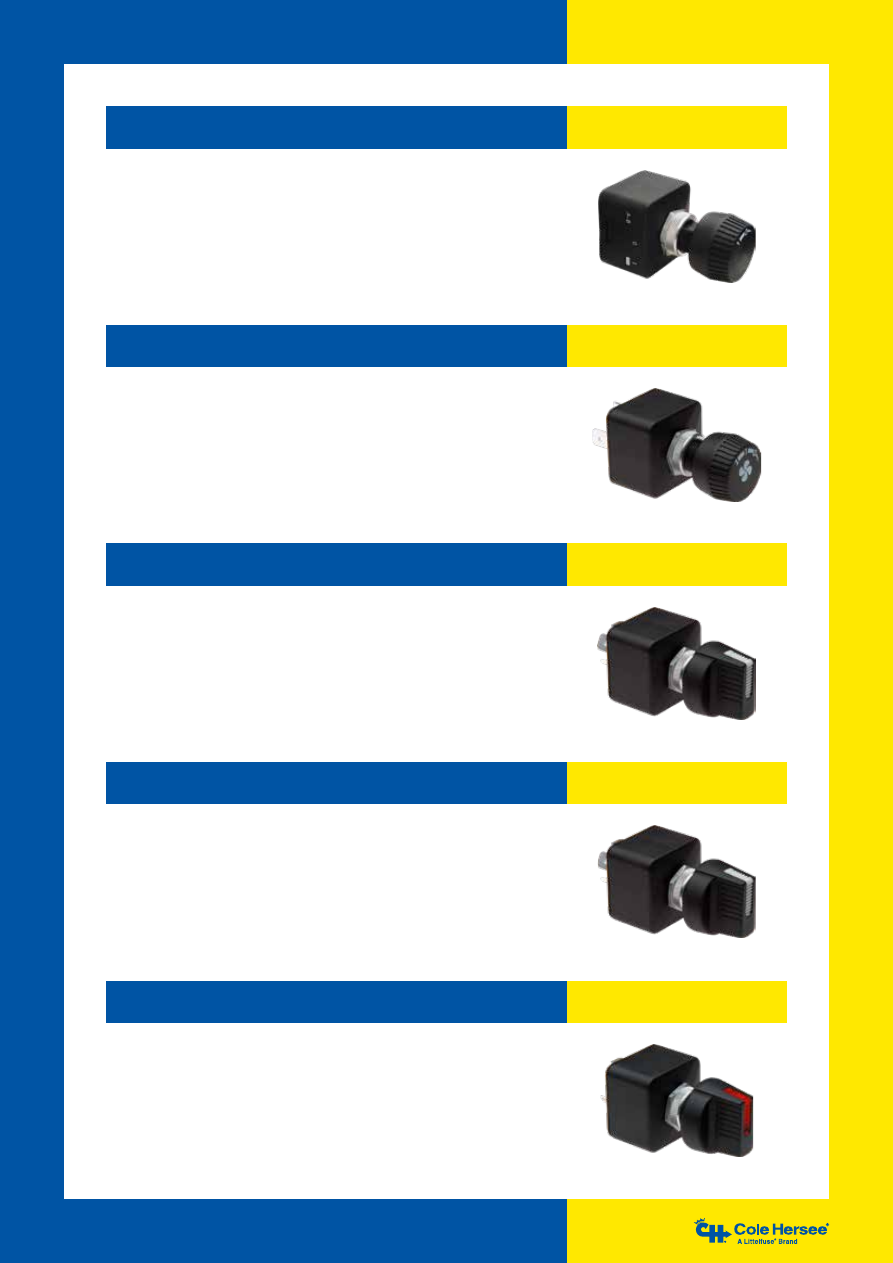

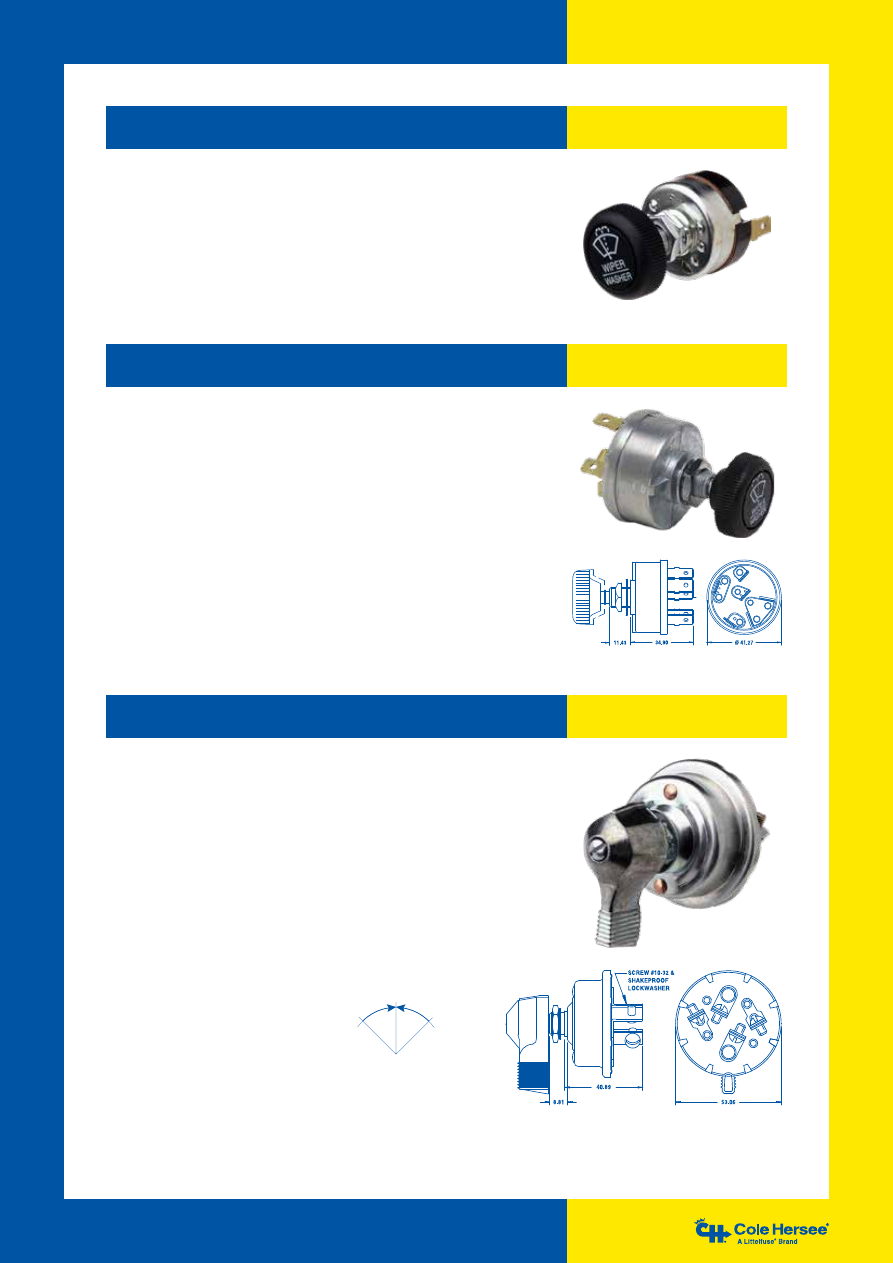

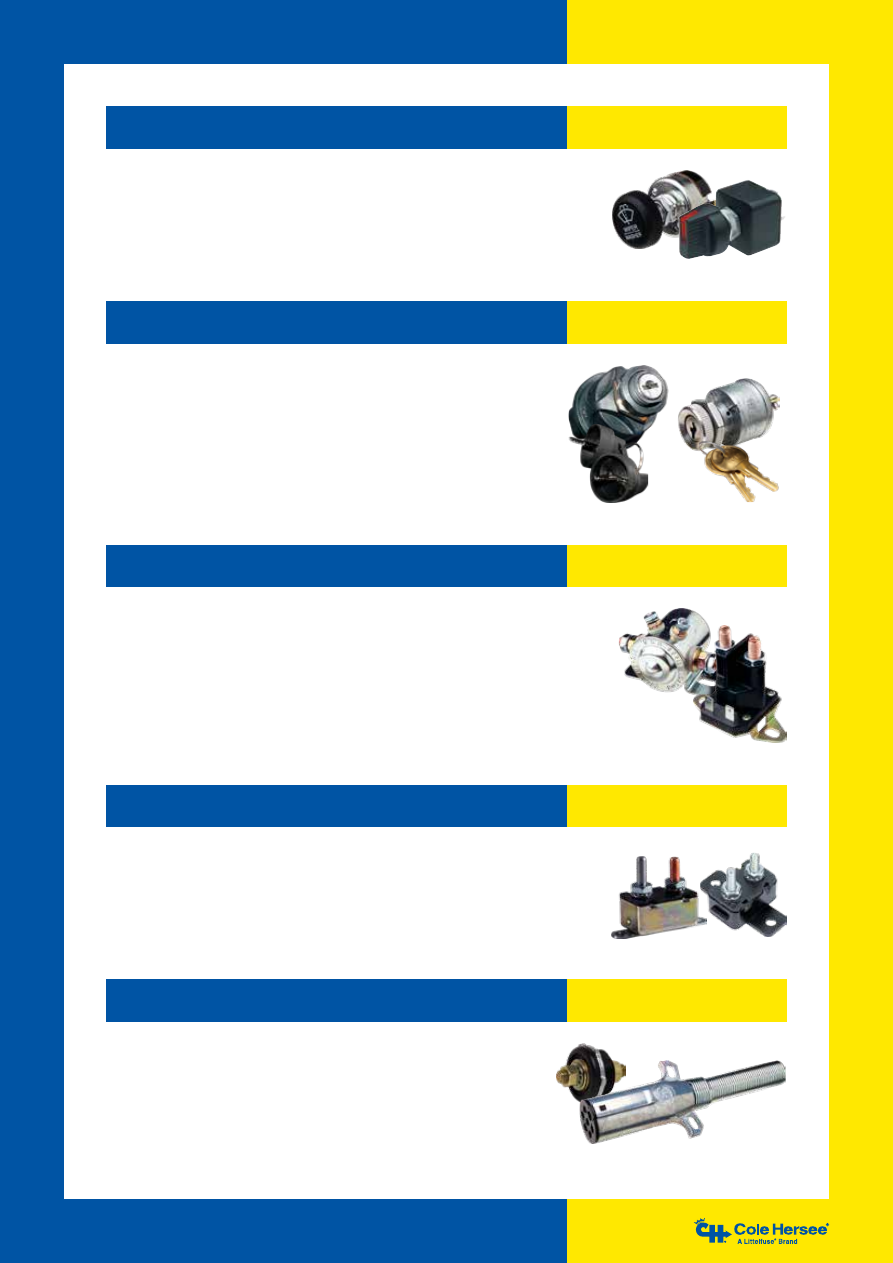

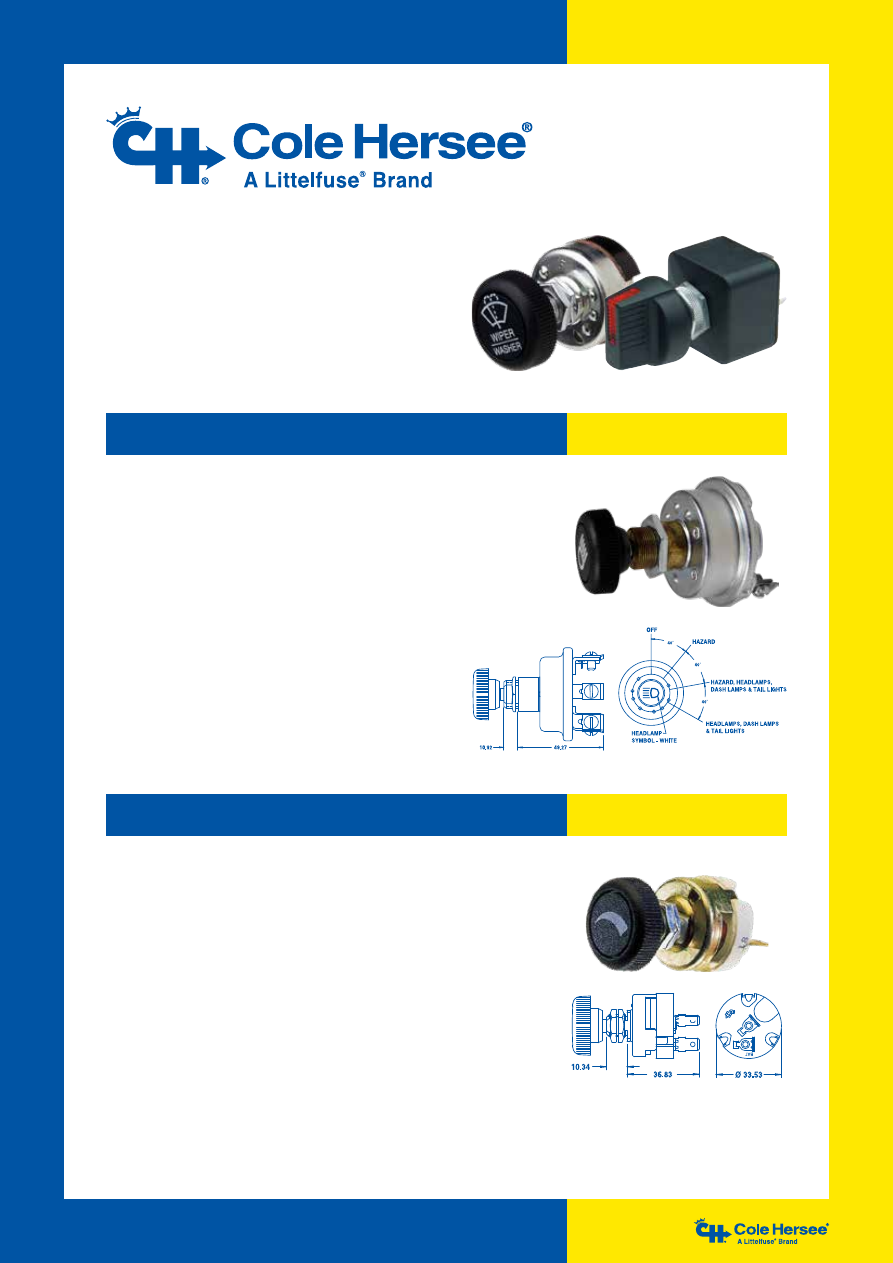

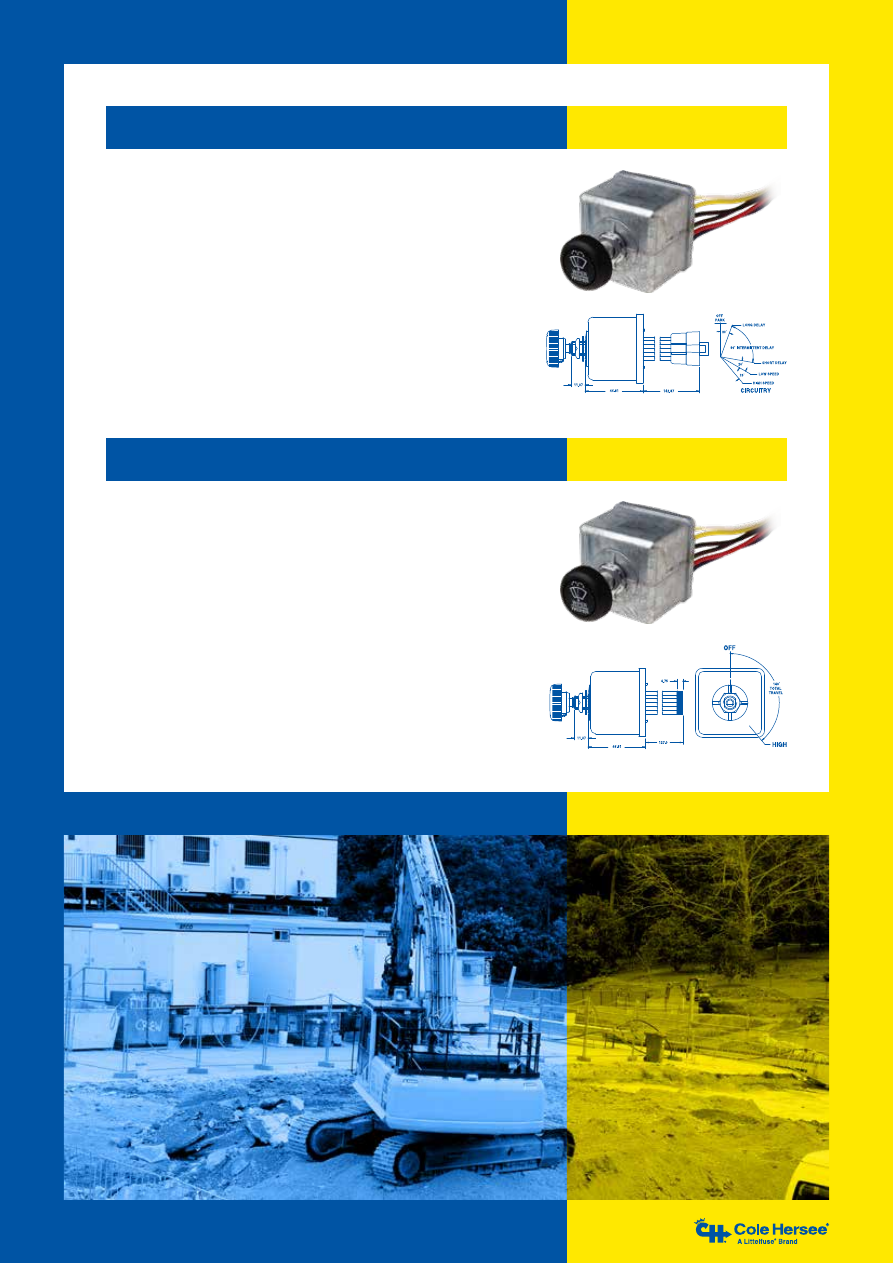

Rotary switches are usually used for special purpose applications including
headlamp and windscreen wiper operation. The Cole Hersee range features
models which can be used for more common applications.

Cole Hersee Rotary switches are available in die-cast alloy or nylon housing with
most featuring a nylon knob to fit in with your existing vehicle interior.

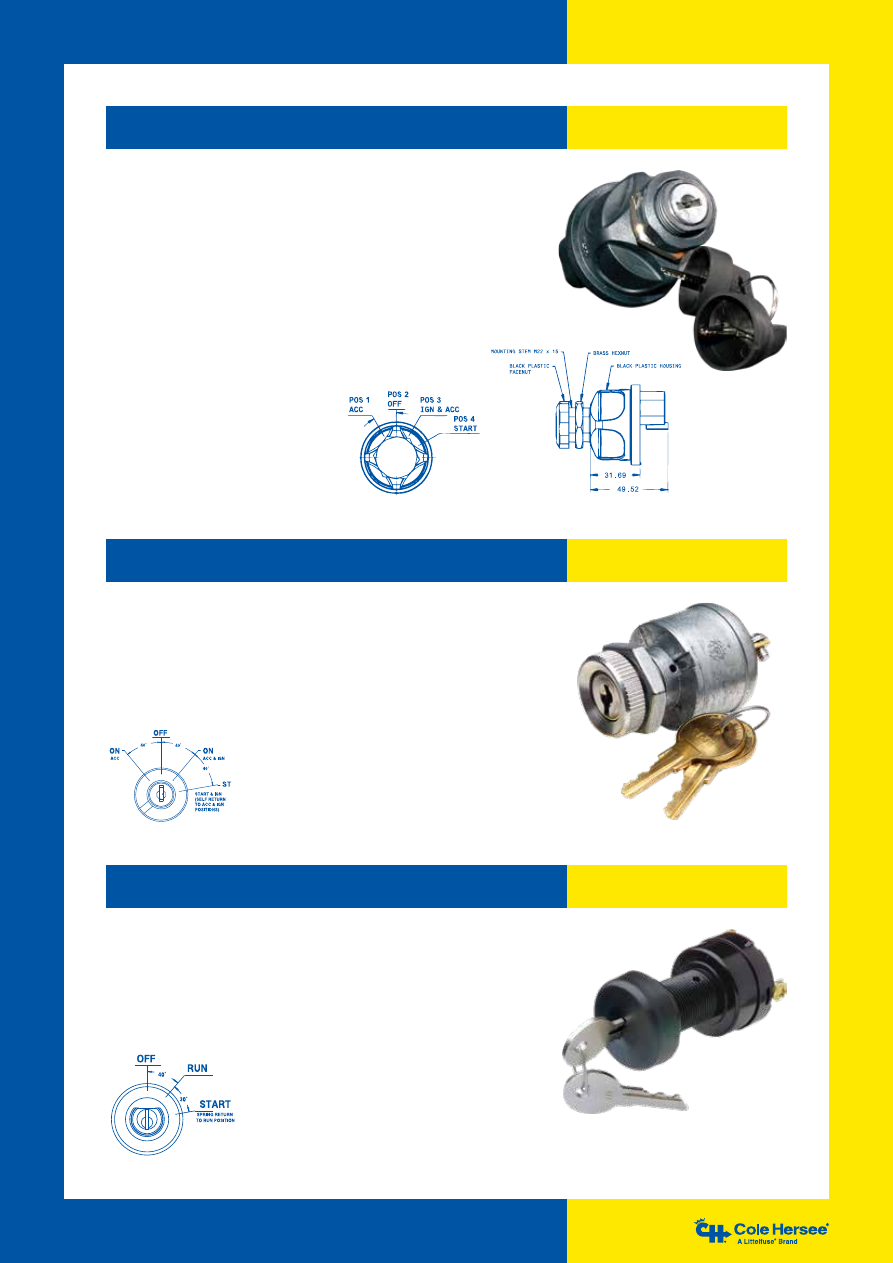

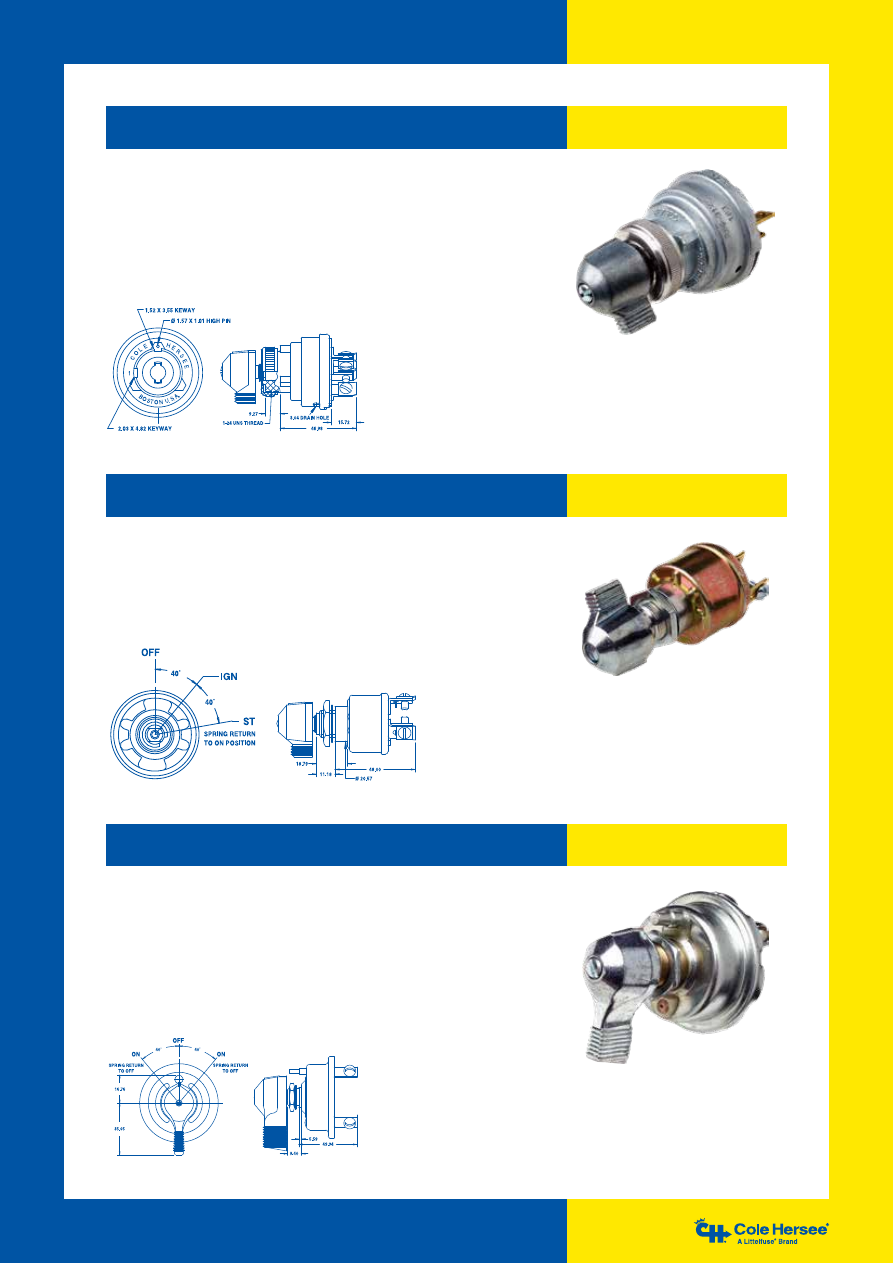

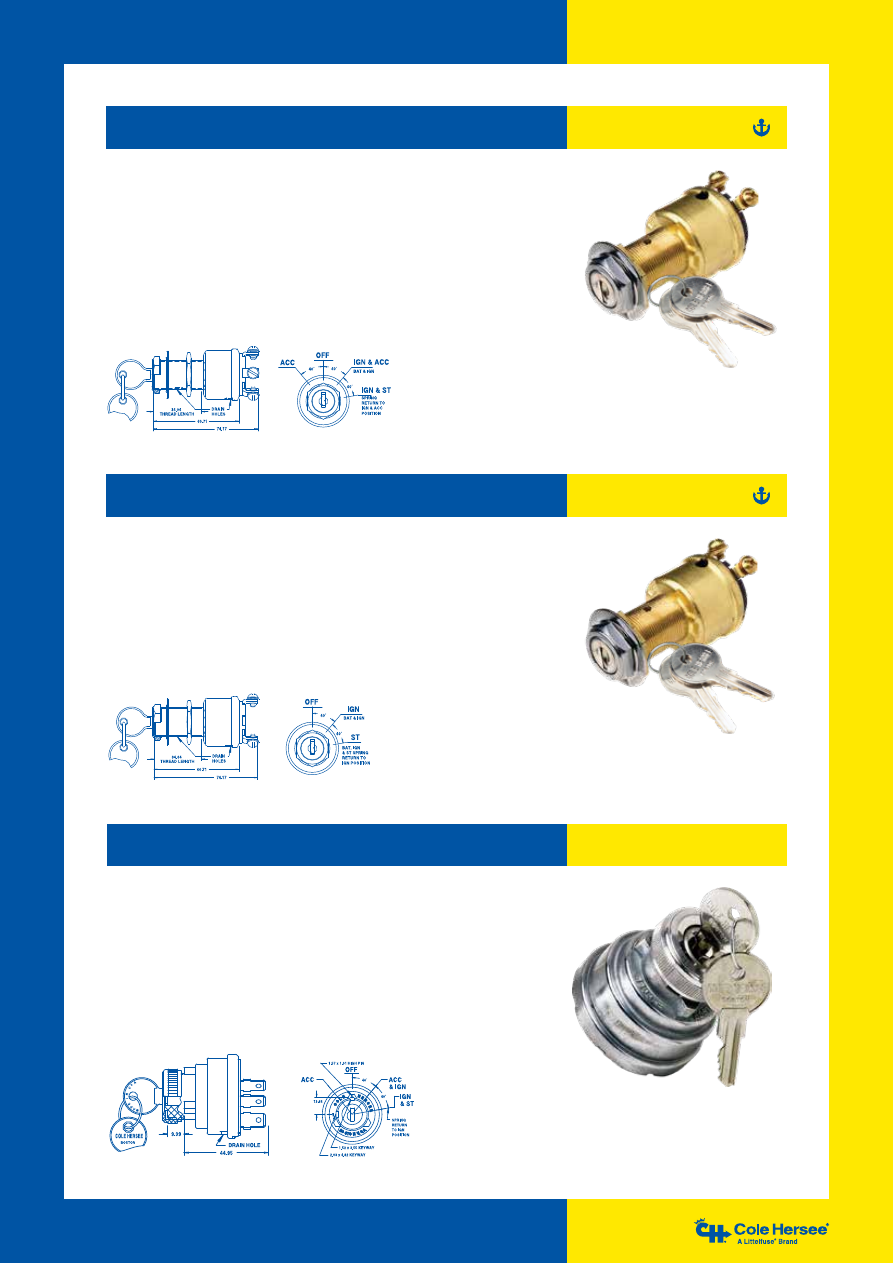

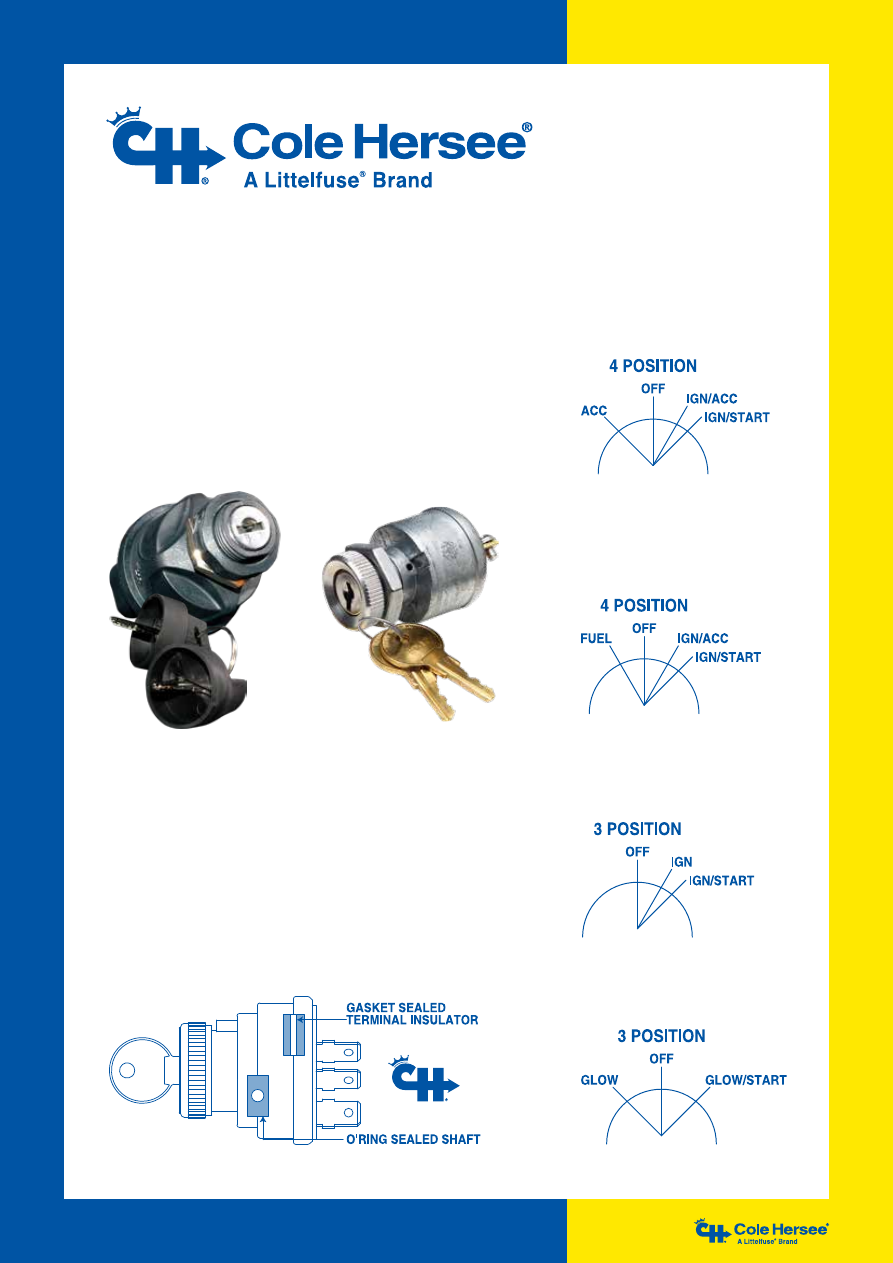

Ignition switches are operated by a coded key and tumbler lock,
hencol keyed lock or lever. Lever design is available in three
different configurations: short, long and military. Ignition switches
are available with coded cylinder locks and keys or hencol non-
tumbler locks with compatible keys.

Switches are available with a grounded case design with a separate
ground terminal. A grounded case switch must be installed in a
metal panel which is part of the vehicle earthing system.

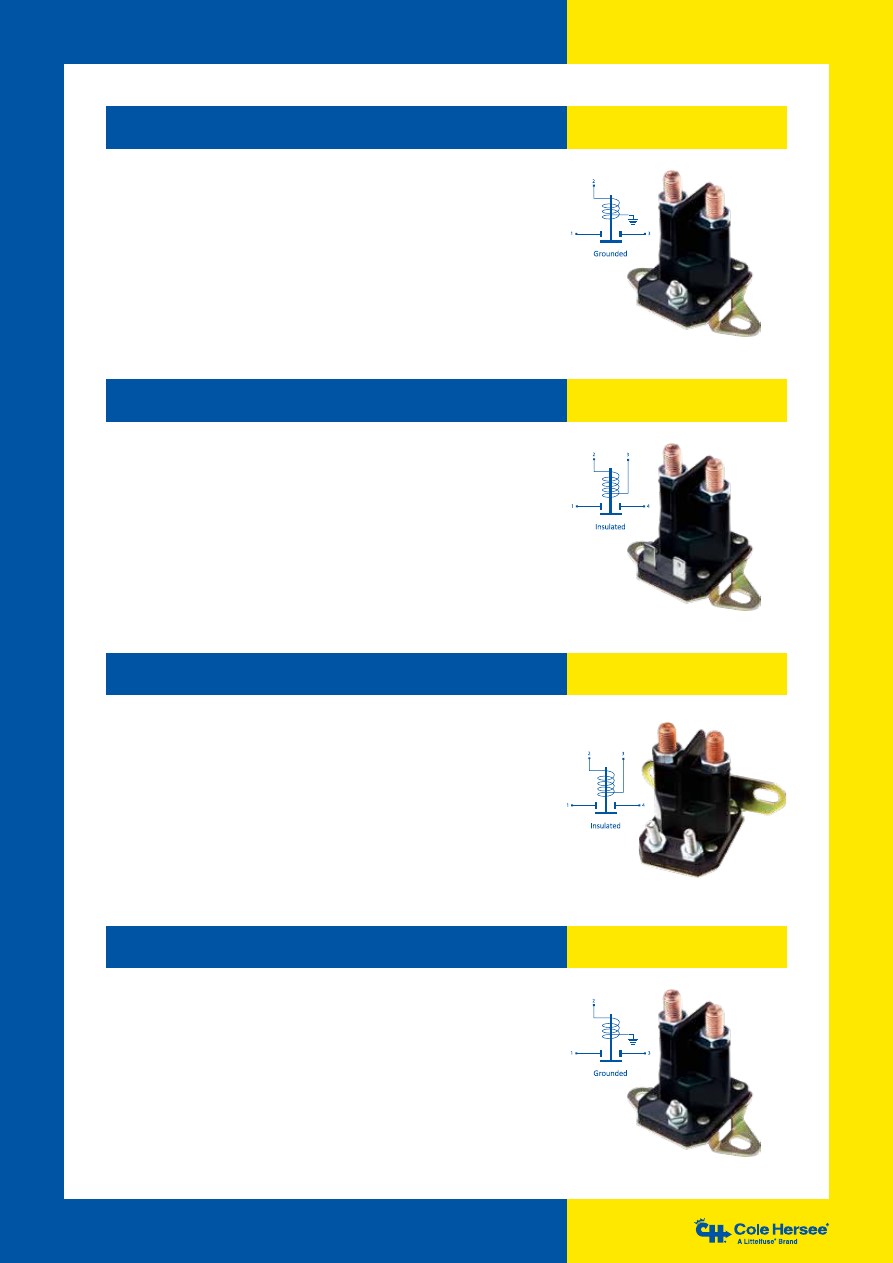

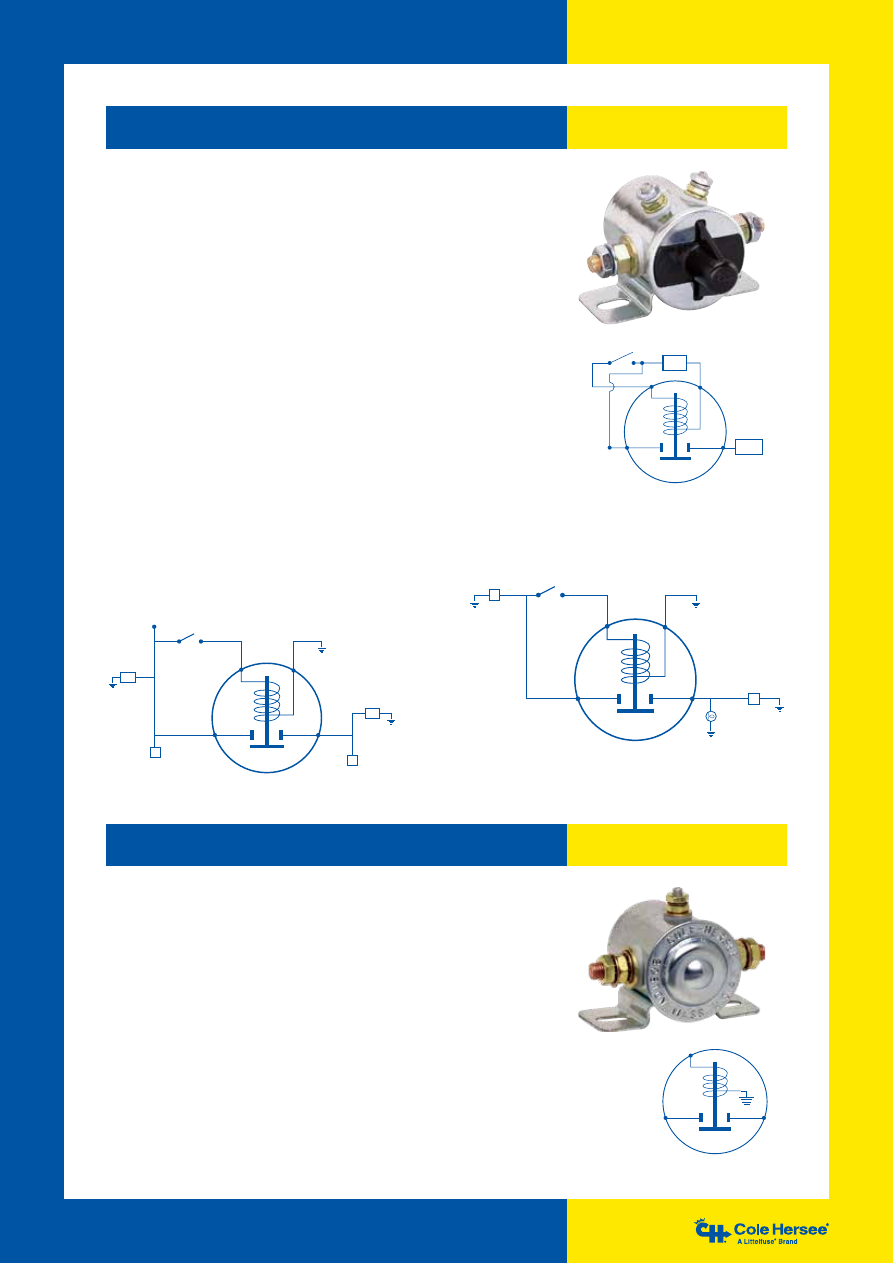

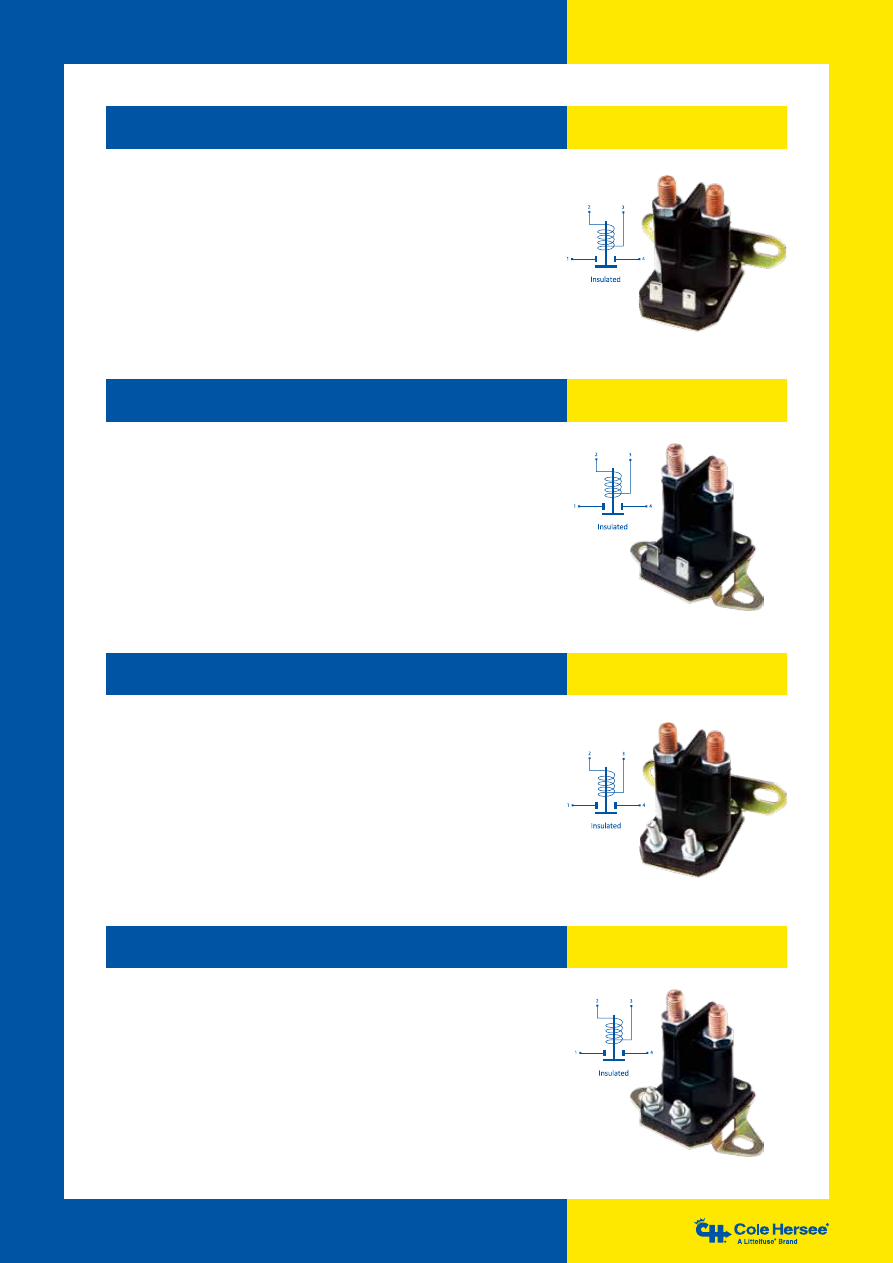

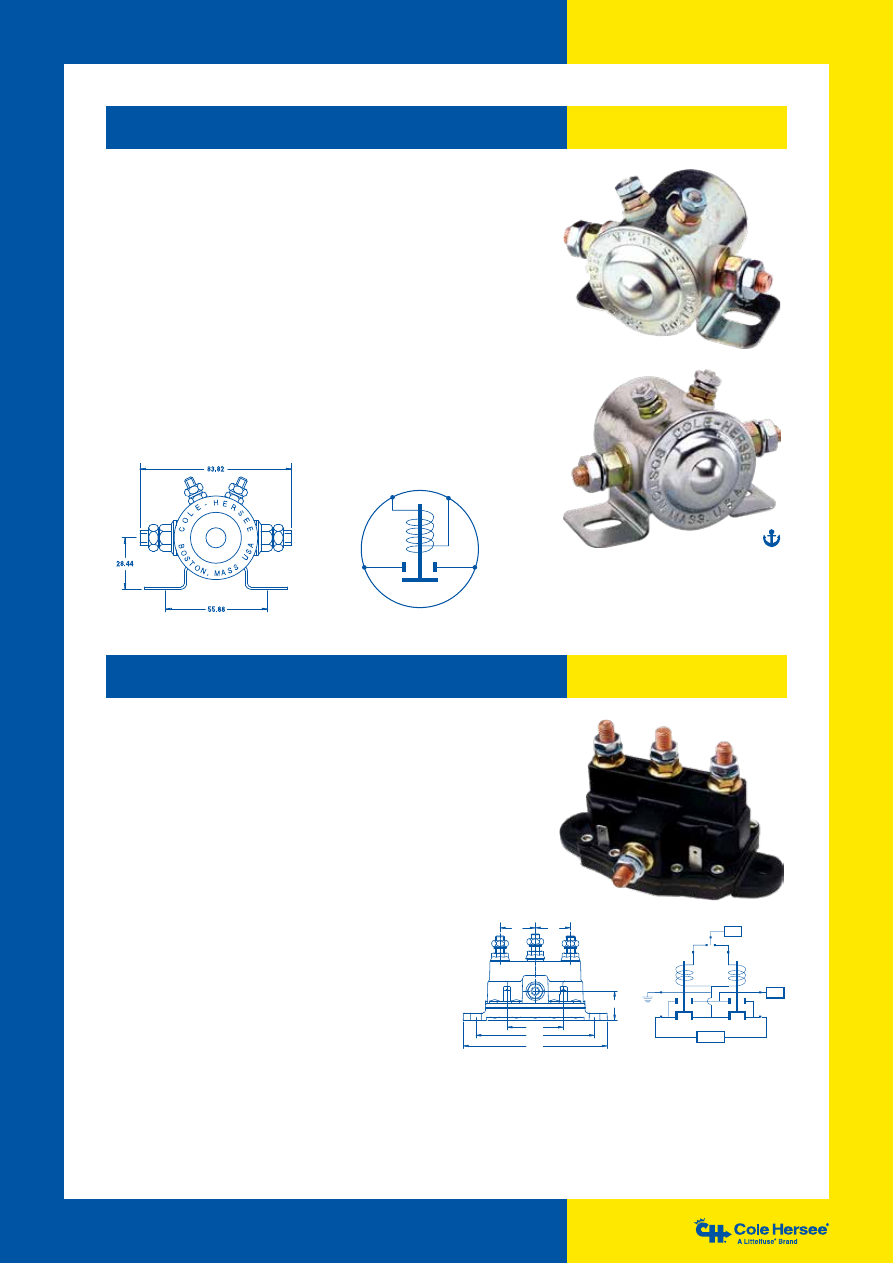

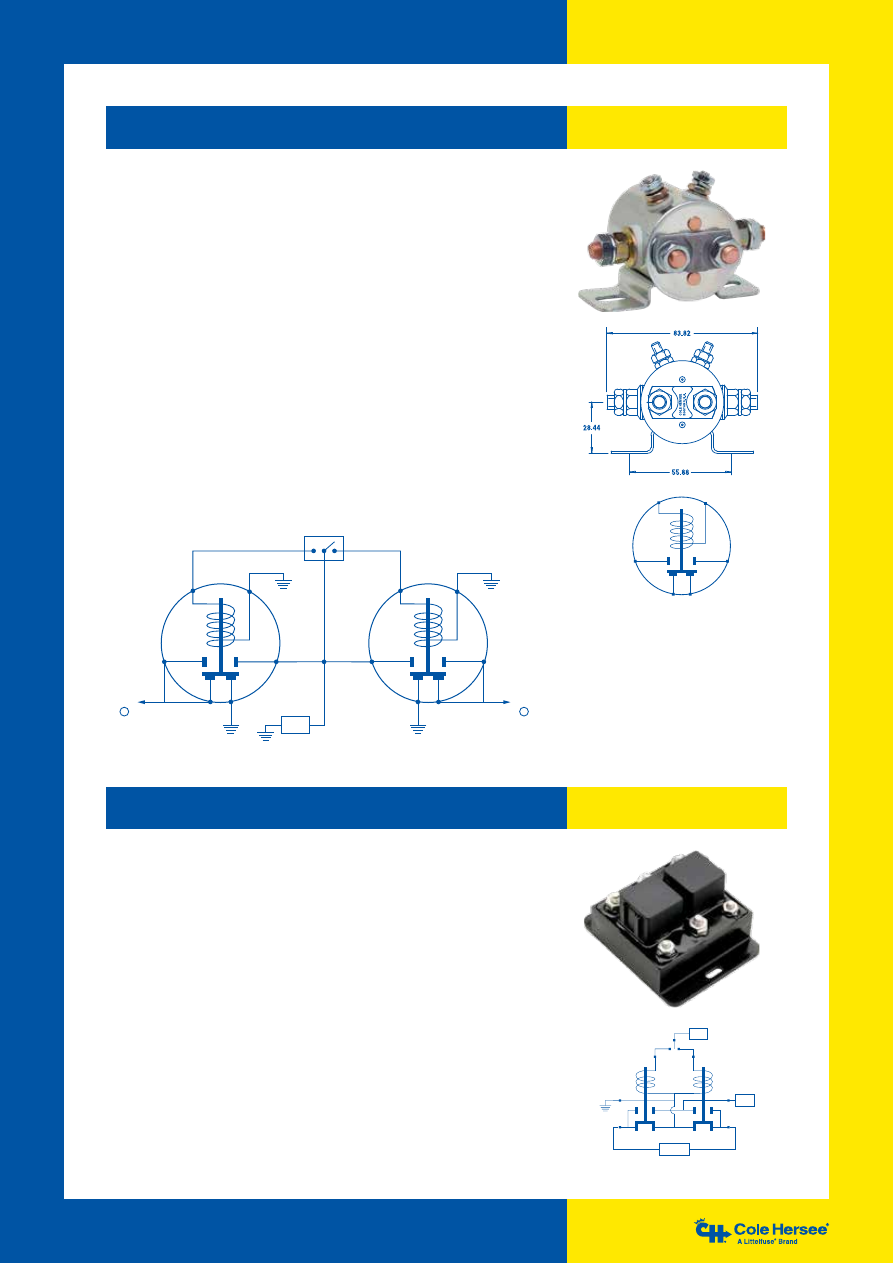

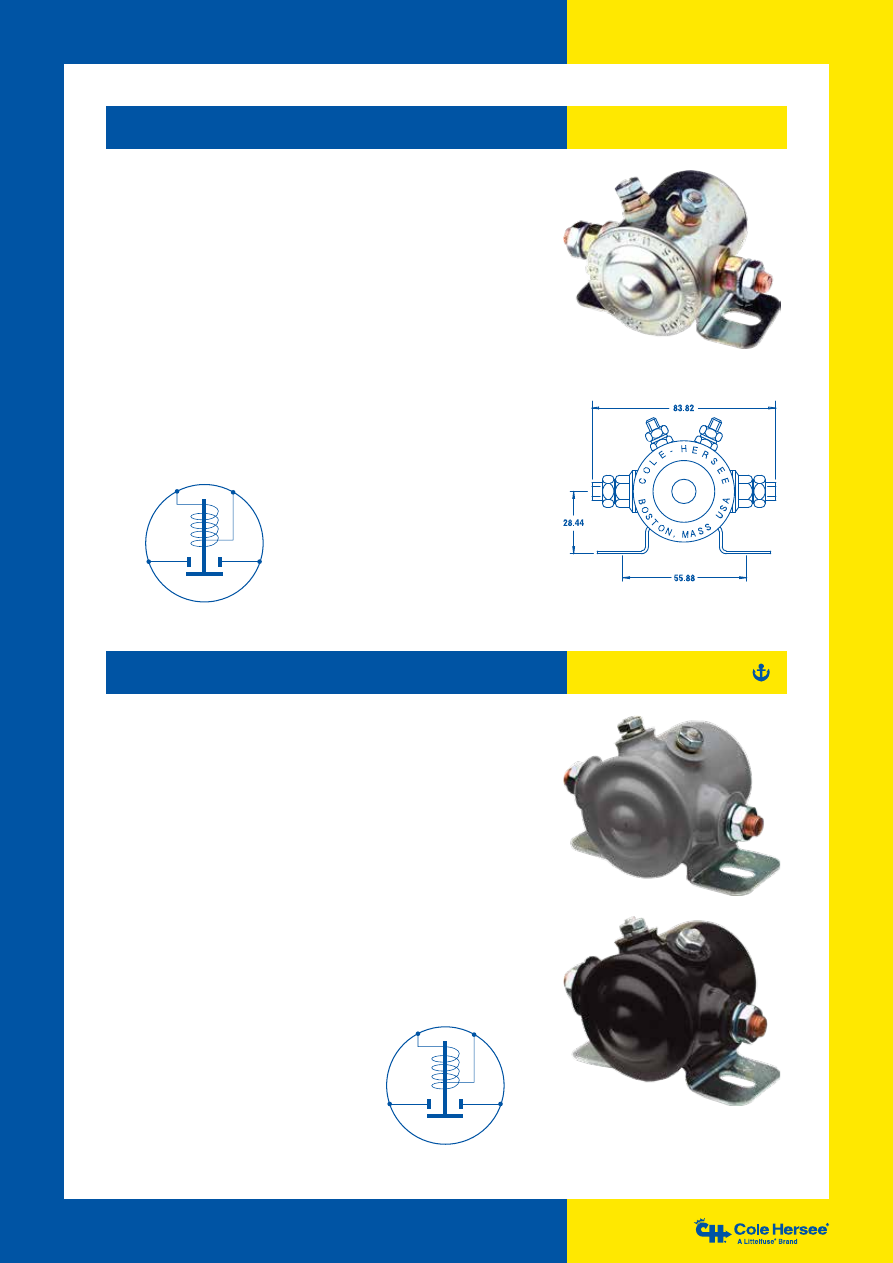

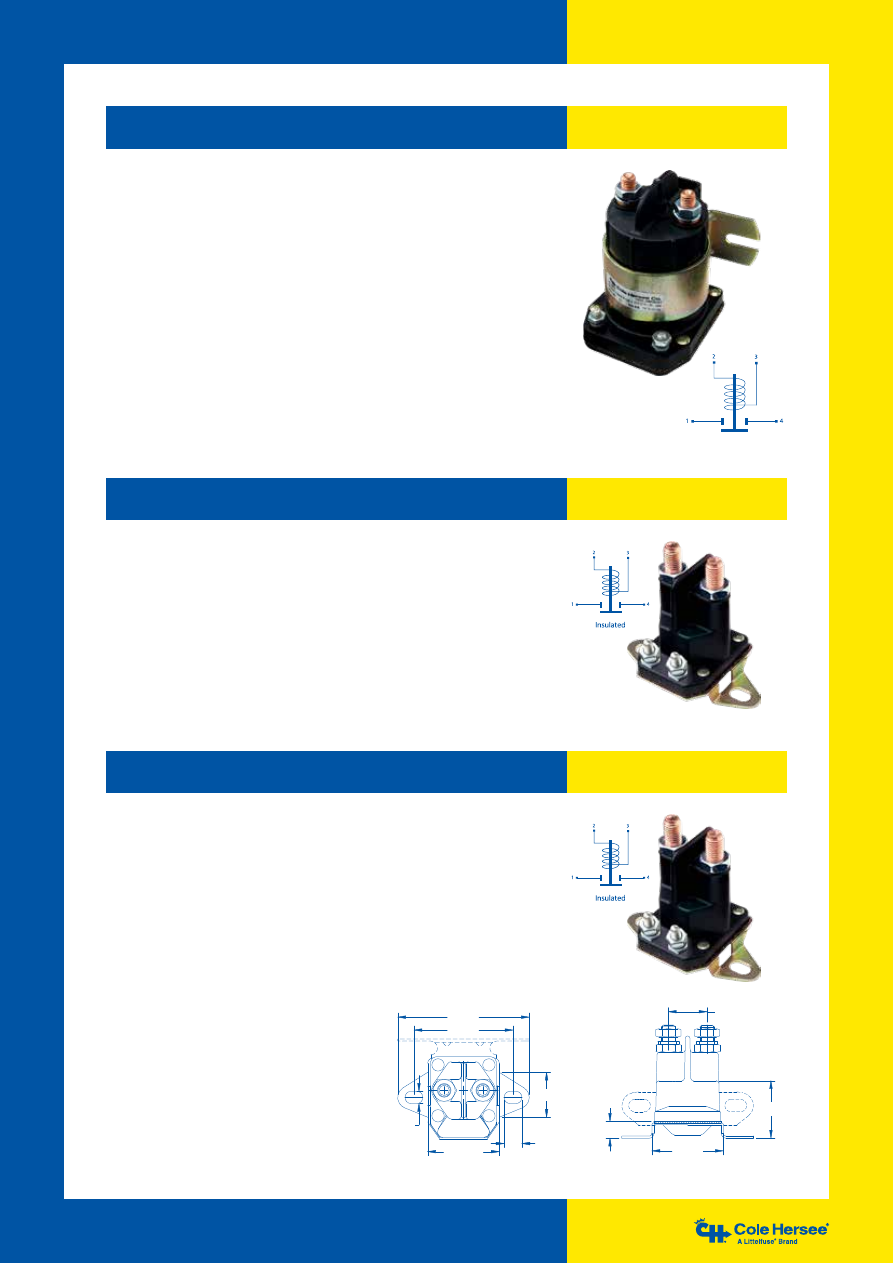

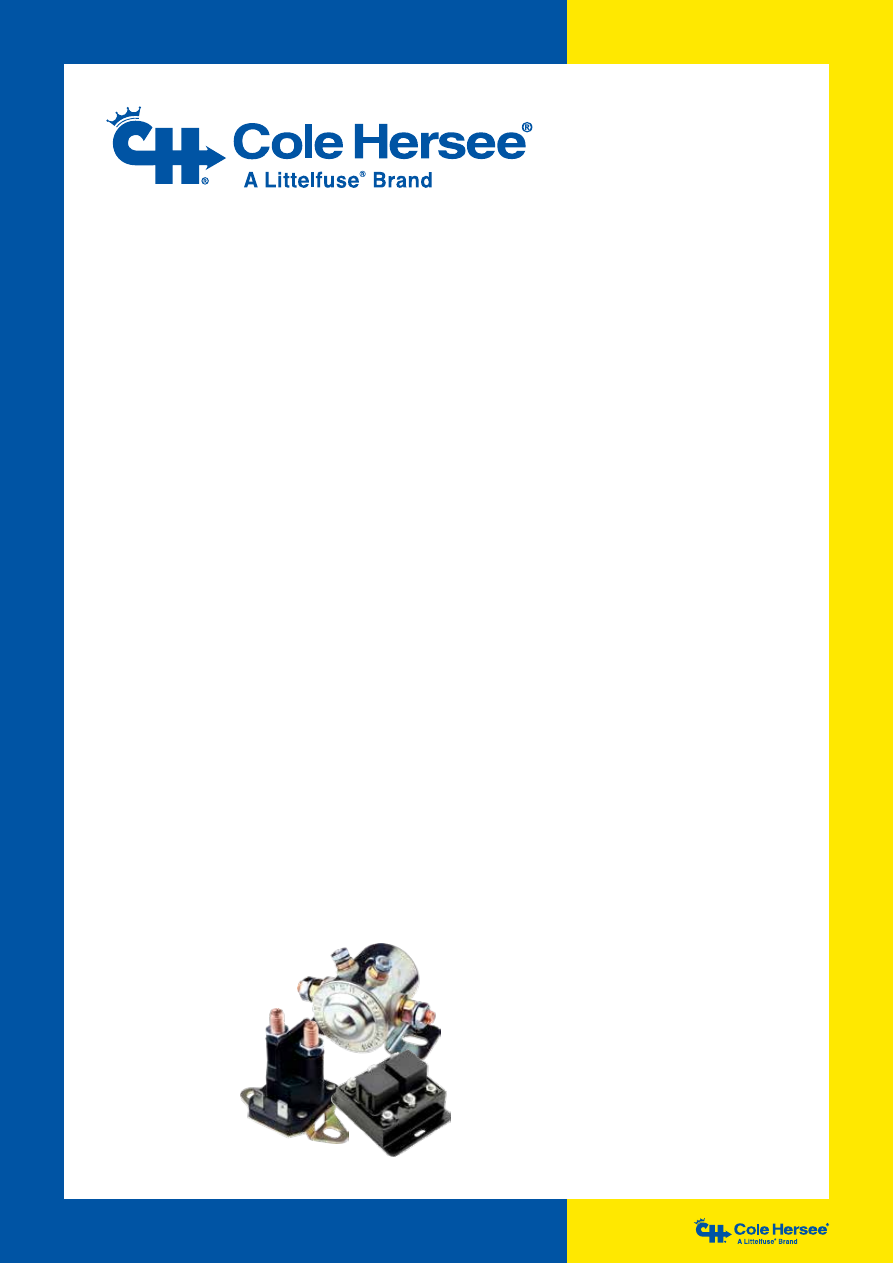

A solenoid is an electromagnetic relay used in a direct current wiring system
between a low current capacity switch and a high current load requirement.

In an engine starting system, the ignition switch in the start position may have
a rating of 5 amps whilst the starter motor may have a cranking requirement of
200 to 350 amps.

Once energised by the ignition switch, the solenoid coil moves the high current
capacity contact to a closed position, thereby energising the starter motor.

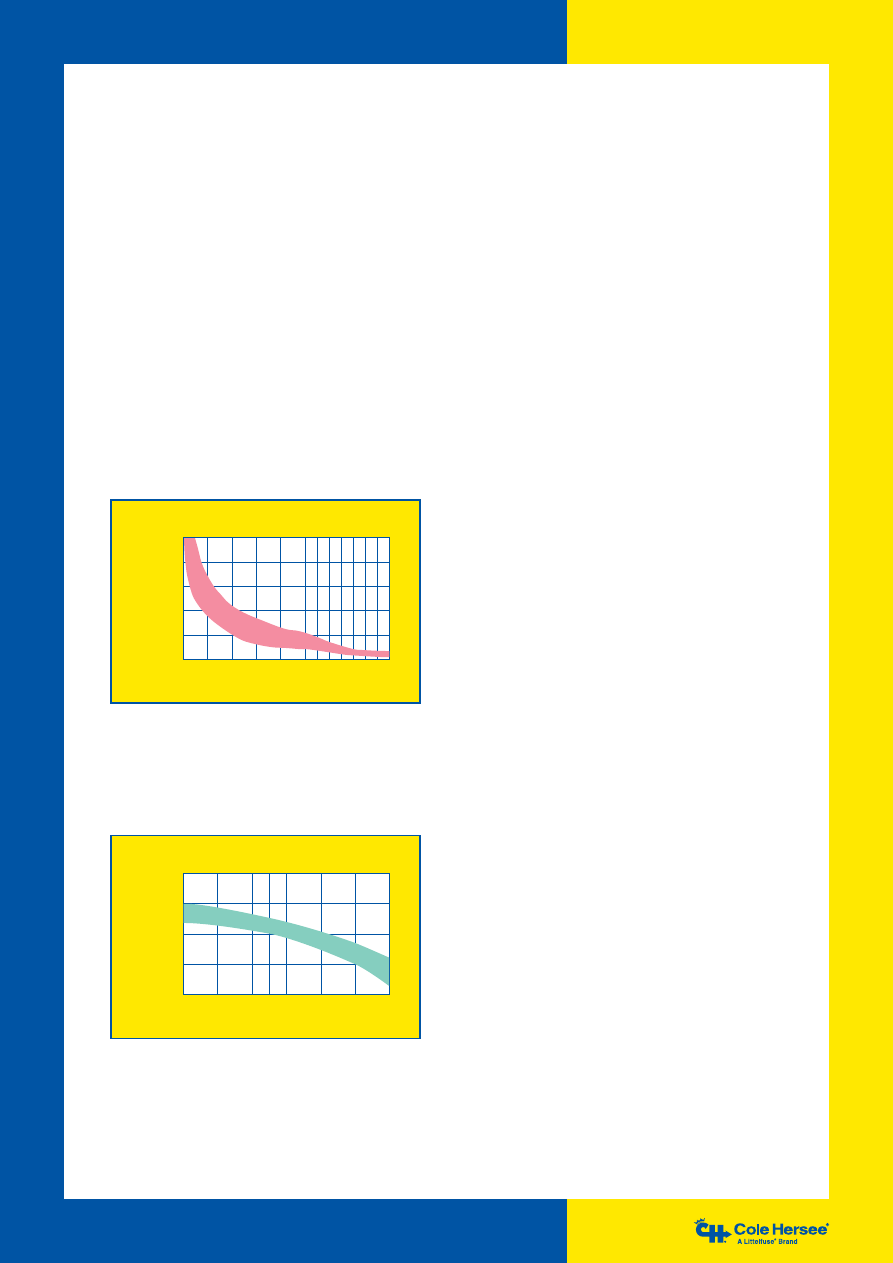

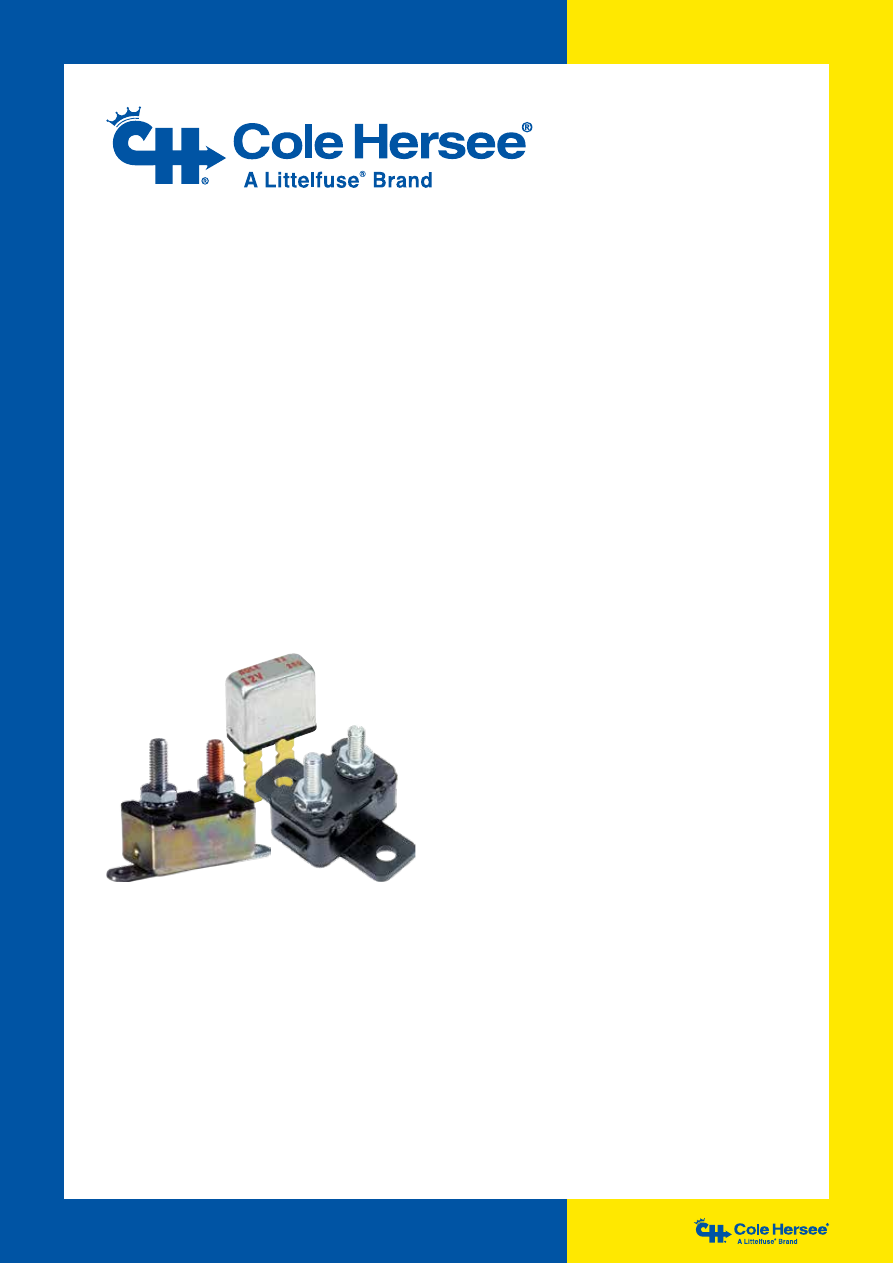

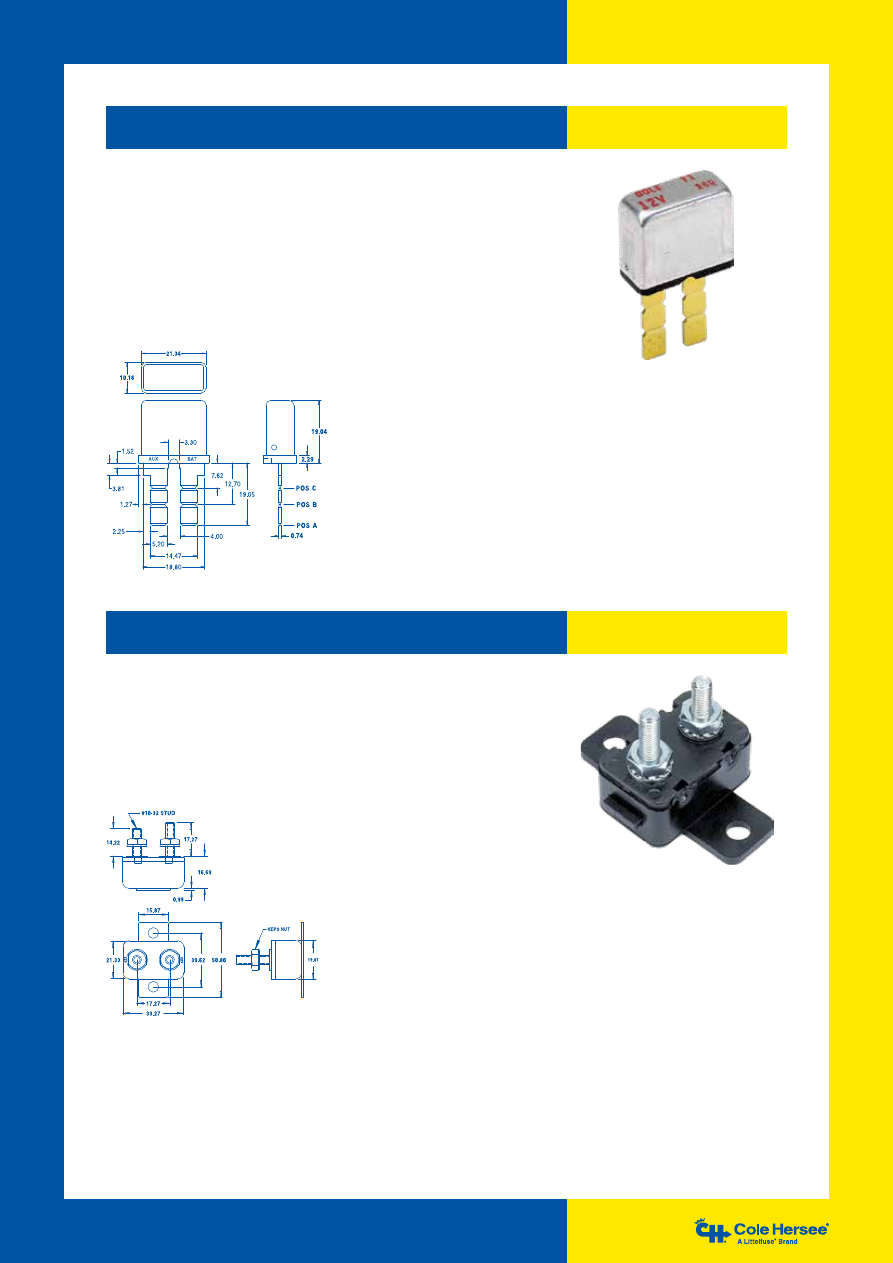

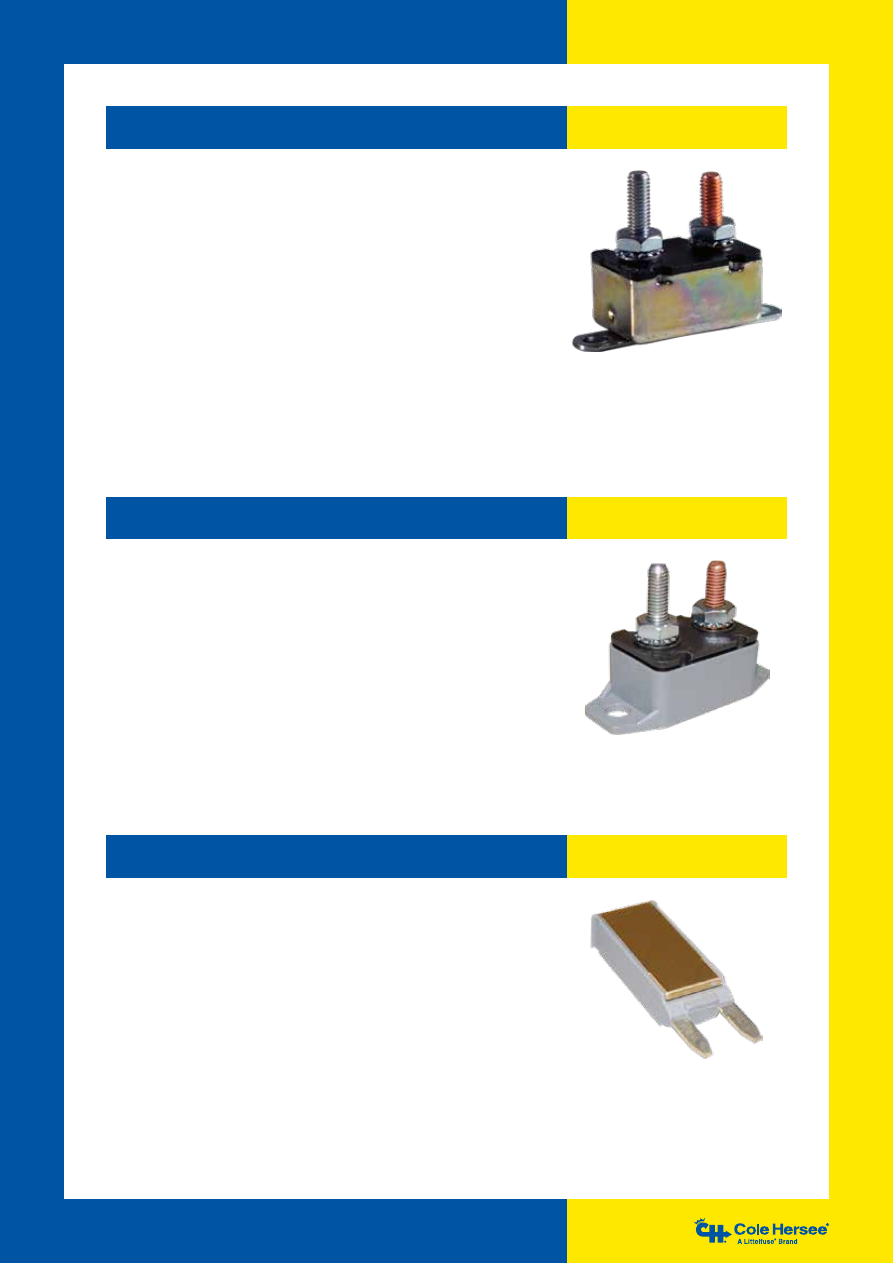

Cole Hersee circuit breakers are designed and engineered for responsive
performance over a long period. Casings are manufactured from either high
quality plated steel or durable plastic. Cole Hersee circuit breakers are designed
and engineered for responsive performance over a long product life.

All Cole Hersee circuit breakers conform to SAE Standard J553.

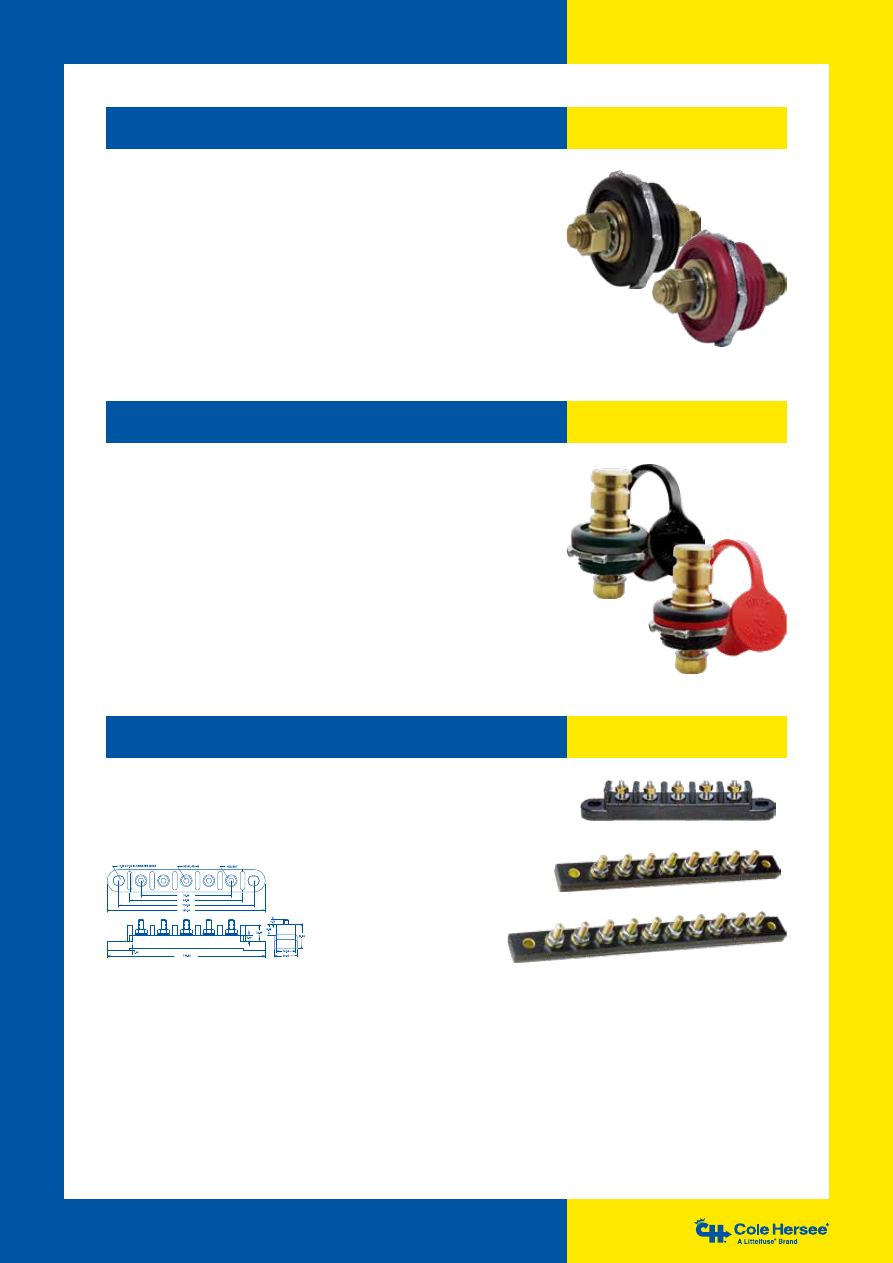

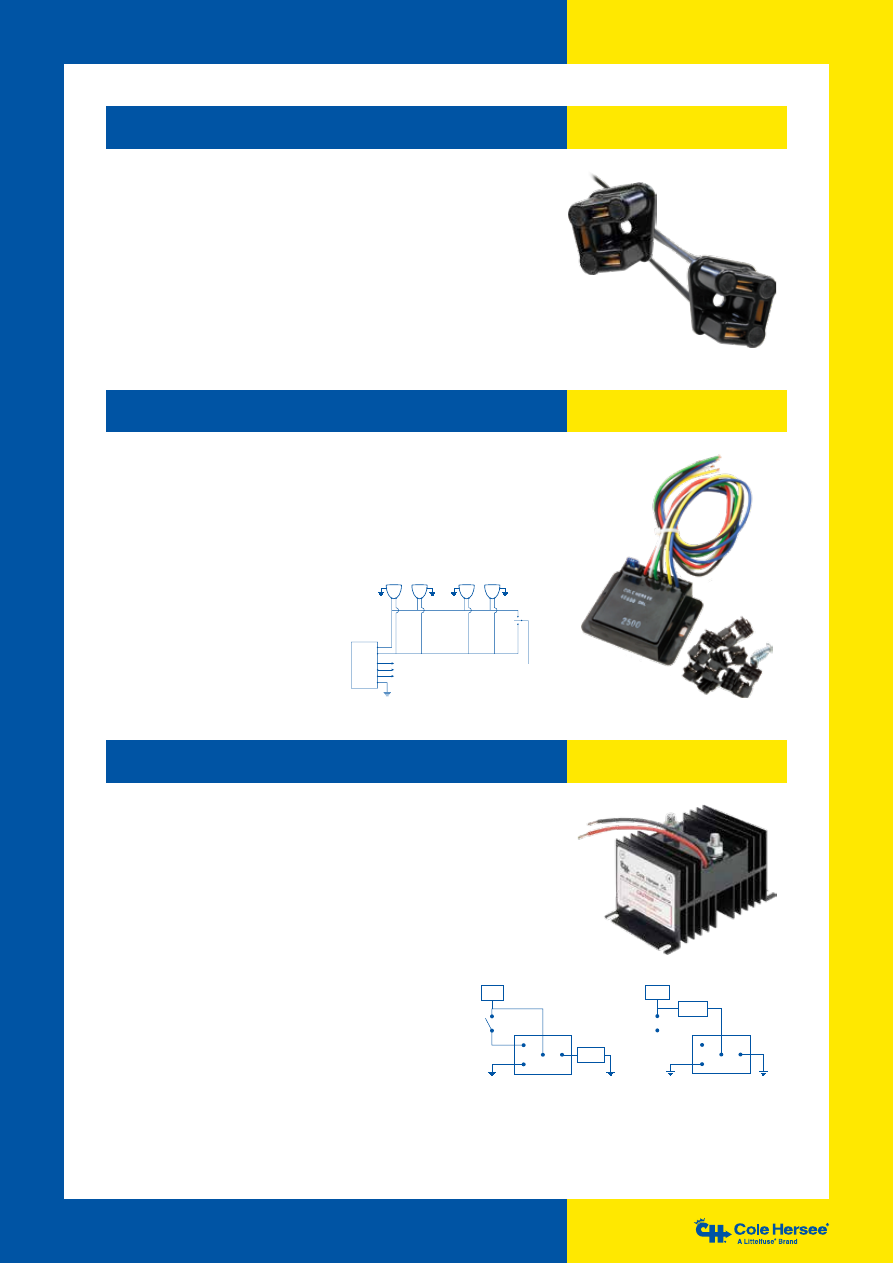

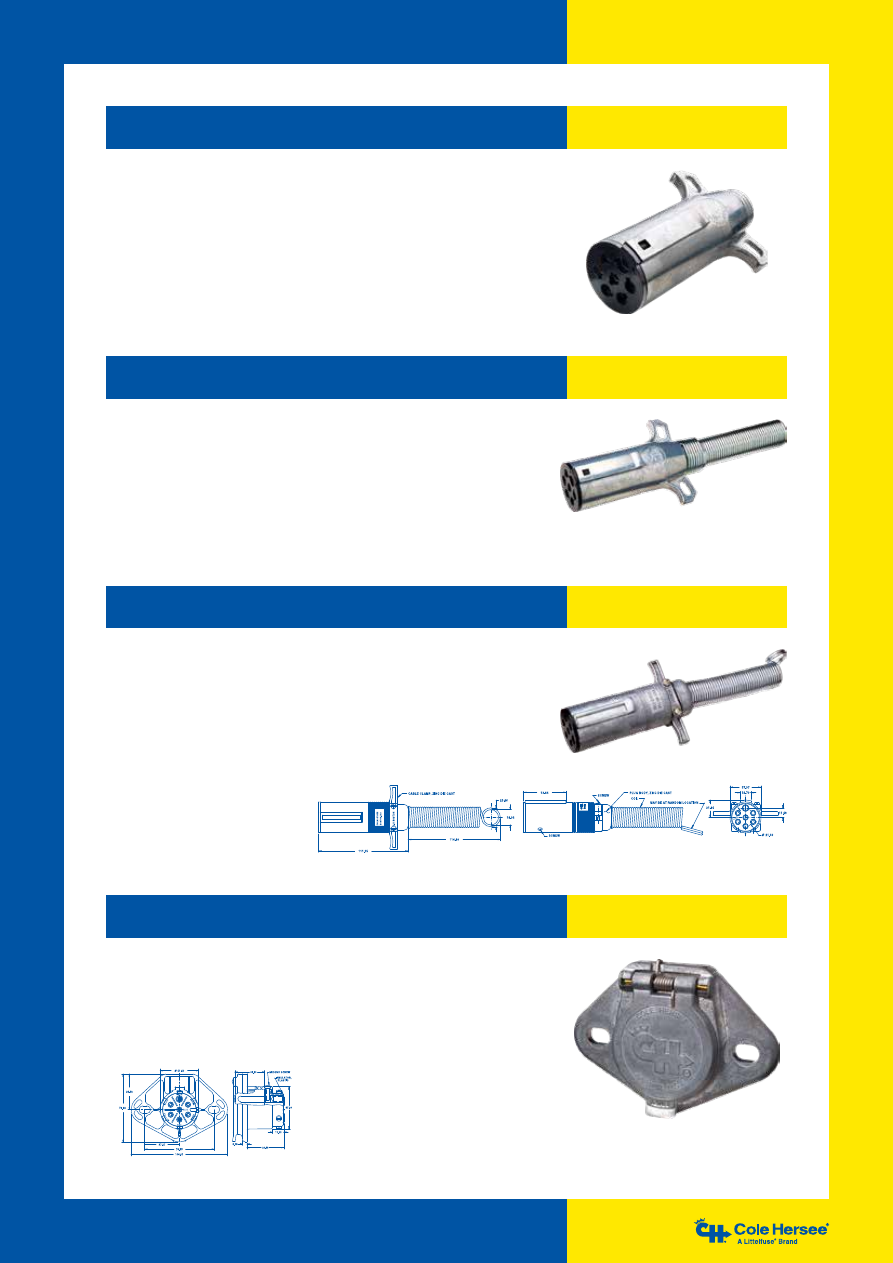

The Cole Hersee range includes high quality connectors and electrical
equipment such as heavy duty trailer connectors, battery studs and
jumpers, headlight connectors and electronic units.

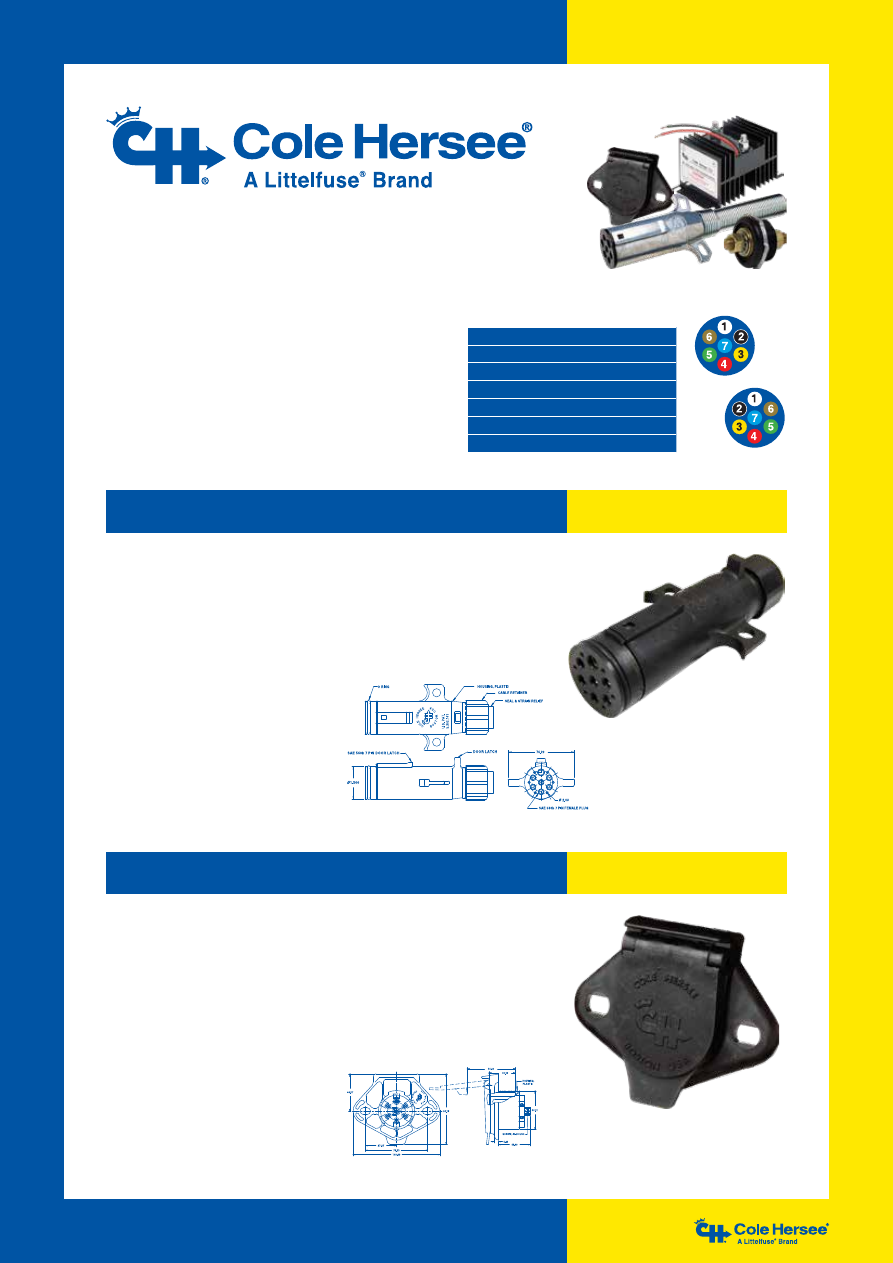

Cole Hersee trailer connectors are built to withstand the rigors of trucking
thousands of kilometers in dust and dirt, heat and cold, yet maintain the
all-important electrical continuity between vehicle and trailer.

Rotary Switches

Ignition Switches

Solenoids

Circuit Breakers

Connectors and Electrical

Page 44

Page 48

Page 52

Page 60

Page 64

8

www.colehersee.com.au

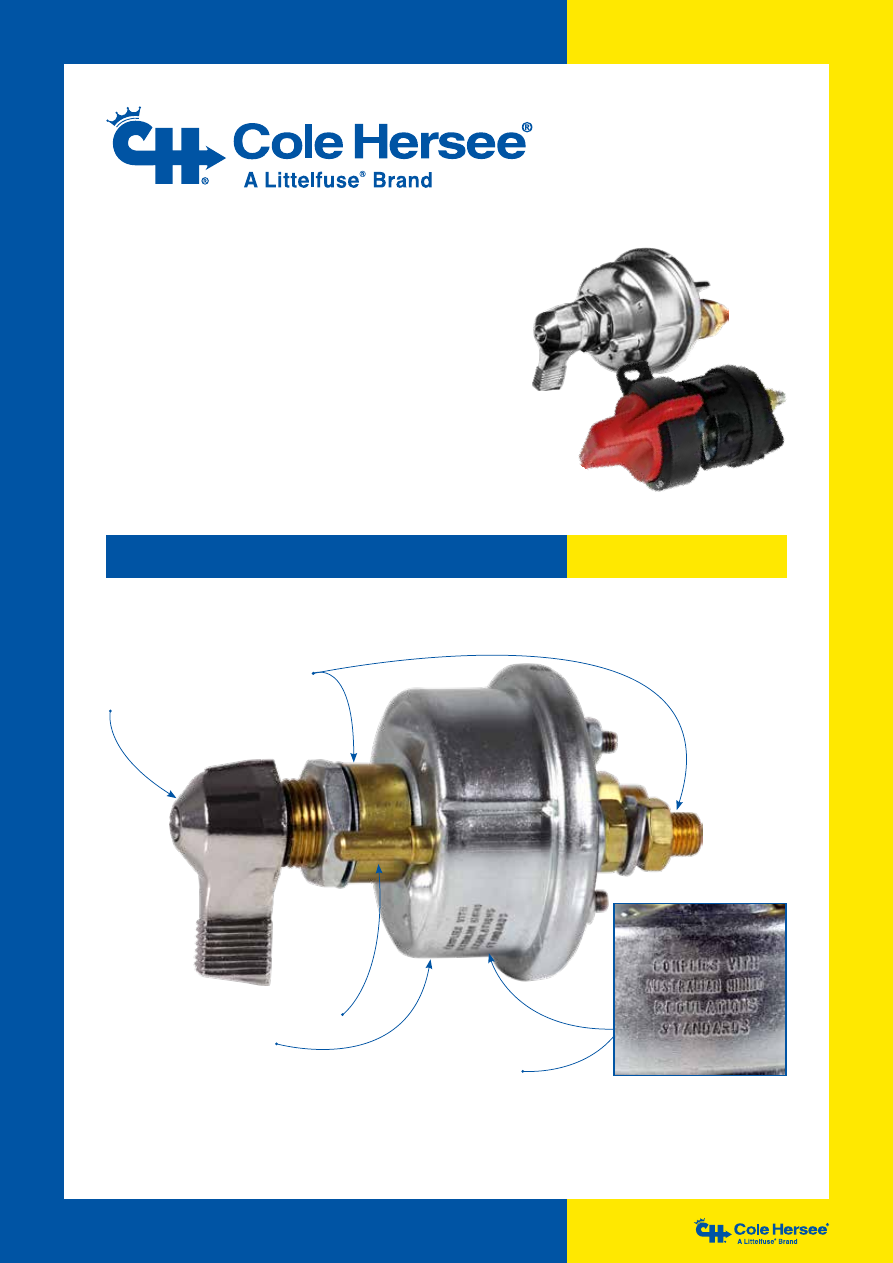

Brass mounting stem and studs

Chrome-plated die-cast alloy lever

Brass indexing pin prevents rotation

Strong steel plated casing

‘Complies With Australian Mining Regulations Standards’ stamp

Features

• Silver contacts, chrome lever

• Weather resistant, O-ring sealed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  1000A Int, 125A Cont

Part Numbers

75910BX . . . . . Boxed

Australia’s most reliable Battery Master Switch was developed by Cole Hersee in conjunction with ESG and
major mining corporations, to service a specific requirement. The Cole Hersee 75910 is now spec’d in for all
vehicles entering most major mine sites.

DPST On/Off Battery and Field Master Silver

75910BX

Battery Master Switches

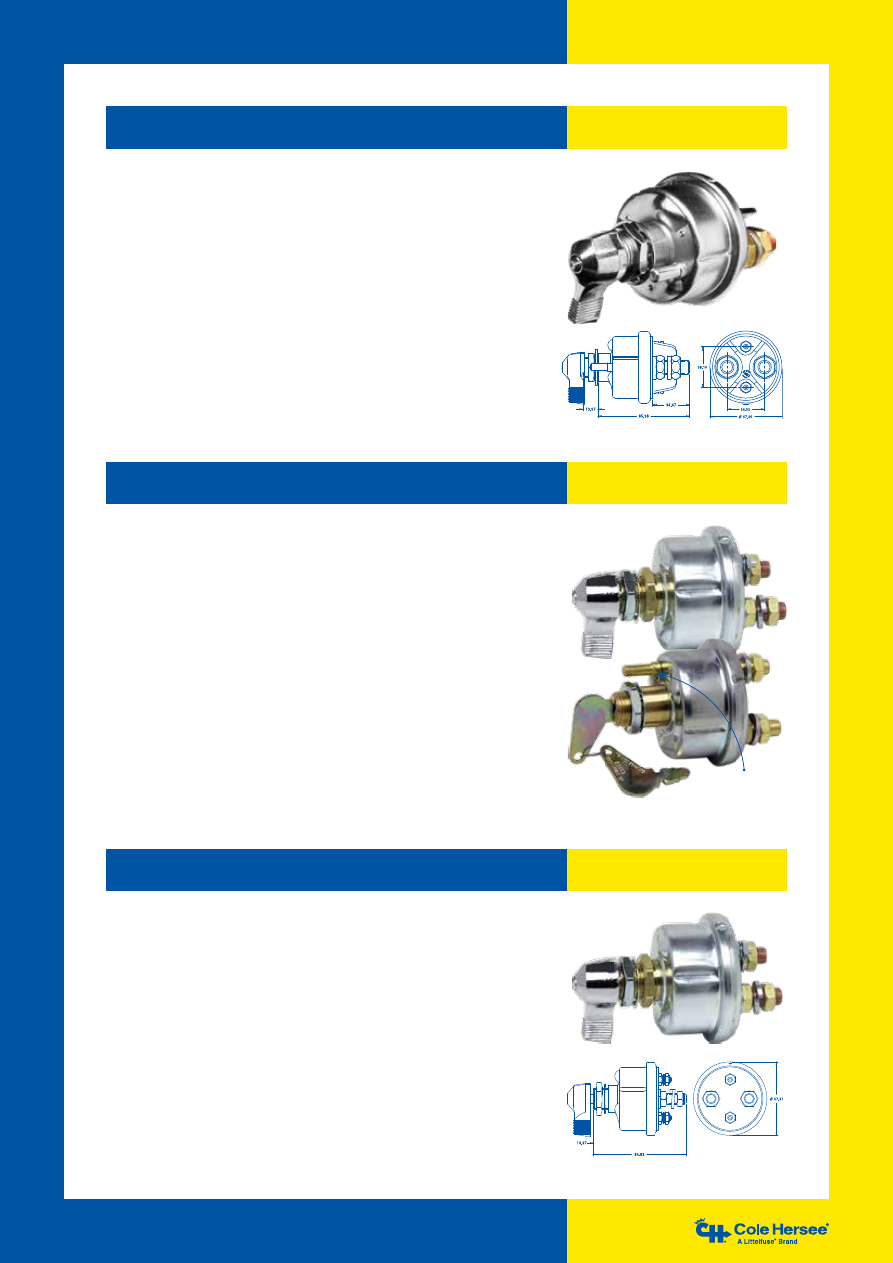

For over forty years Cole Hersee has been designing and
building heavy duty battery master switches that have been
installed as OE equipment by leading manufacturers of heavy
duty vehicles.

Battery master switches shut down a vehicle’s electrical system
by cutting off current from the battery. They are designed to
help prevent tampering, theft, battery drain and electrical fires.

Battery master switches are available with brass or plated steel
cases and are actuated by lever or hencol key. Contacts are
either silver or copper. O-rings feature in the operating shaft of
some models for additional moisture and dirt protection.

9

www.colehersee.com.au

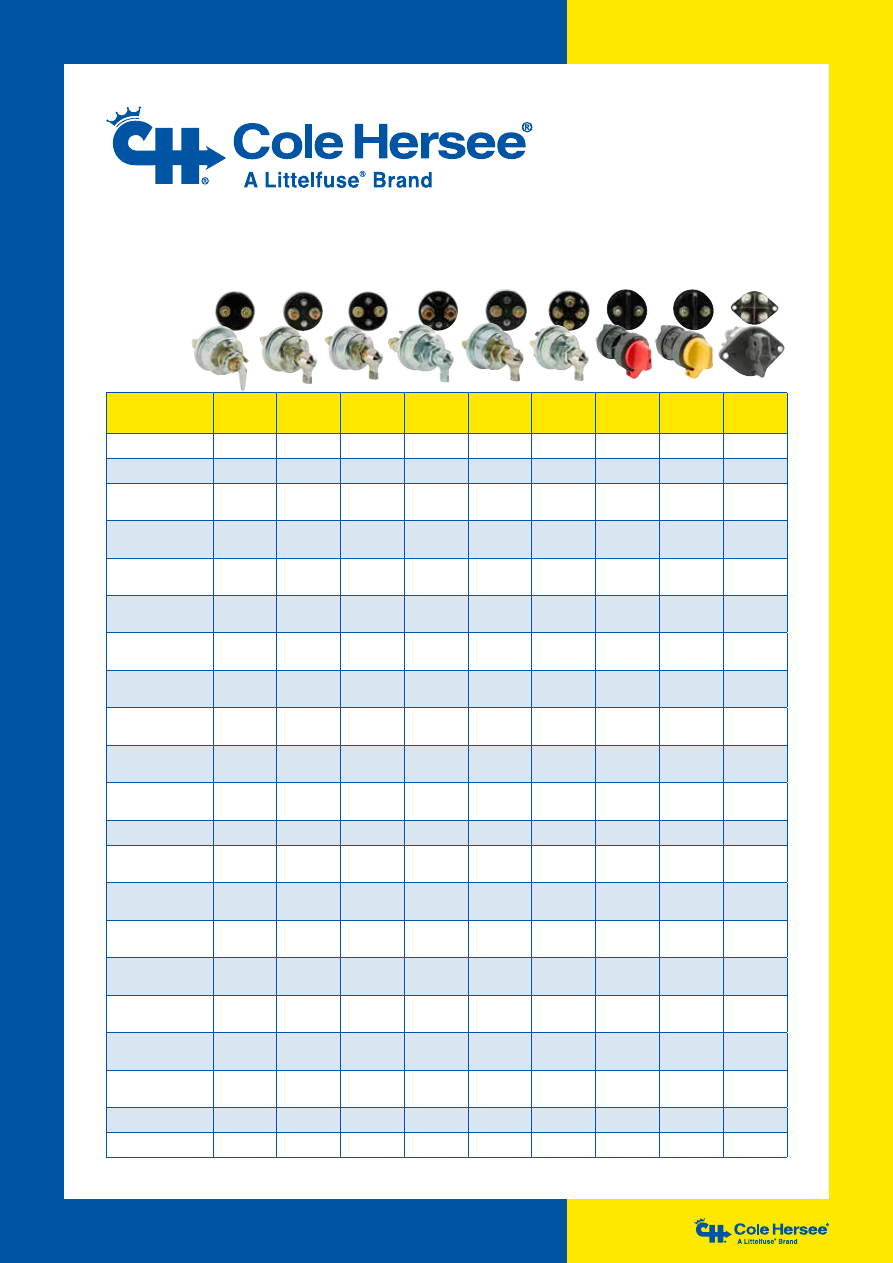

Part Number

24024

75903

75904

75907

75910

75912

75920

75920-

01

880175

Battery Inputs

1

2

2

2

2

2

1

1

2

Switch Positions

2

2

2

2

2

2

2

2

2

Alternator Field
Disconnect (AFD)

No

Yes

Yes

Yes

Yes

No

No

No

No

Make Before Break
Contact

No

Yes

Yes

Yes

Yes

No

N/A

N/A

No

Maximum Operating
Voltage

36V DC

36V DC

36V DC

36V DC

36V DC

36V DC

36V DC

36V DC

48V DC

Continuous Rating
(studs)

175A

Large: 175A

Small: 20A

Large: 175A

Small: 20A

Large: 300A

Small: 20A

Large:125A

Small: 20A

2 X 125A

400A

400A

500A

Intermittent Rating
(5 min)

400A

1000A

400A

1000A/20A

800A/20A

2x 750A

400A

400A

1000A

Cranking Rating
(30 sec)

N/R

1000A

1000A min

1000A/20A

min.

800A/20A

min

750A each

min.

2,000A

2,000A

2,250A

Inrush Rating

400A

1000A

1000A

1000A/20

1000A/20

2x 1000A

2,000A

2,000A

3,000A (1

sec)

Cable Size required to
Meet Ratings

1/0

2/0

2/0

 4/0

2/0

2/0

 4/0

 4/0

4/0

Temperature Range

-40 to

+85°C

-40 to

+85°C

-40 to

+85°C

-40 to

+85°C

-40 to

+85°C

-40 to

+85°C

-40 to

+85°C

-40 to

+85°C

-50 to

+85°C

Terminal Stud Size

3/8"-24

3/4"-16

3/4"-16

3/4"-16

3/4”-16

3/4"-16

3/4"-16

3/4"-16

M12

Terminal Stud Length

0.690”

(17.5mm)

0.690”

(17.5mm)

0.690”

(17.5mm)

0.690”

(17.5mm)

0.690”

(17.5mm)

0.690”

(17.5mm)

3/4”

(19mm)

3/4”

(19mm)

0.984”

(25mm)

Maximum Terminal
Stud Torque

8-10 Nm

8-10 Nm

8-10 Nm

8-10 Nm

8-10 Nm

8-10 Nm

8 Nm

8 Nm

30 Nm

Terminal Stud Mate-
rial

Brass

Copper

Brass

Copper

Brass

Brass

Tin-Plated

Copper

Tin-Plated

Copper

Tin-Plated

Copper

Lock Out/Tag Out

with 24505

kit

with 24505

kit

with 24505

kit

with 24505

kit

with 24505

kit

with 24505

kit

Yes

Yes

Yes

Actuator

2 Prong Key

Chrome

Lever

Chrome

Lever

Diecast

Lever

Chrome

Lever

Chrome

Lever

Red Knob

Yellow Knob Black Knob

Ignition Protected

No

No

No

No

No

No

No

No

SAE J11

 & ISO 8846

Ingress Protection

IP55

IP55

IP55

IP64

IP64

IP64

IP68

IP68

IP67 &

IP69K

Mounting Stem

3/4"-16

3/4"-16

3/4"-16

3/4"-16

3/4"-16

3/4"-16

3/4"-16

3/4"-16

N/A

Anti-Rotation Pin

Yes

No

No

Yes

Yes

Yes

Yes

Yes

–

Battery Master Switches Selection Guide

10

www.colehersee.com.au

DPST On/Off Battery Master Switch Lockout

Kits

SPST On/Off ABS Body Battery Master Switch

DPST On/Off ABS Body Battery Master Switch

75910CBX

75920BX

880175BX

This Cole Hersee master switch will

disconnect the battery and the

alternator or generator field circuit.

The 75910 Cole Hersee battery master

switch is the Australian approved switch

by major mining corporations.

For piece of mind use a Cole Hersee

lockout lever kit and flange plate that

can accept a padlock to securely lock a

Disconnect Switch in the Off position.

Features

• DPST, Silver contacts, chrome lever

• Weather resistant, O-ring sealed

• Field terminals 20A continuous

• Indexing pin aligns switch and

prevents rotation

• 2 x Field stud 10-32

• 2 x Battery stud 3/8”-24

• Mounting stem 3/4”-24 thread, L 13mm

• Suits panel thickness to 6.5mm

• Accepts padlocks up to 6mm diameter

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  1000A  Intermittent,

125A Continuous,
Small: 20A Cont

• Dimensions  . . H 110 x Ø 67

• Configuration . DPST

• Modes  .   .   .   .   . On/Off

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kit Part Numbers

75910CBX . . . . Chrome Lockout Kit

75910RBX . . . . Red Lockout Kit

75910YBX . . . . Yellow Lockout Kit

Lever Part Numbers

24505-01B . . . . Chrome Lever

24505-01RB . . . Red Lever

24505-01YB . . . Yellow Lever

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  300A  Continuous,

1000A to 3000A
Intermittent

• Dimensions  . . H 136 x D 86 W 70

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75920BX . . . . . Red Handle

75920-01BX . . . Yellow Handle

Features

• Strong black ABS body

• Silver laminated contacts

• Built-in security locking

• Indexing pin aligns switch and

prevents rotation

• O-ring seal on mounting shaft

• Red or yellow locking actuator handle

• 2 x Battery studs 3/8”-24

• Mounting stem 3/4”-16 thread, L 22mm

• Suits panel thickness 12mm

• Approvals: IP68, SAE, J1455

This dual pole 500A Master Switch cuts

all battery power from vehicle electrical

systems with applications needing

switching of two circuits, or both

positive and negative.

Features

• 2 x Battery studs 3/8”-24

• Terminal stud size: M12 x 25mm.

• Temperature range: -50° to 85°C,

DC-Rated to 105°C

• Shock: 30G, Vibration: 8 G

• Ingress rating: IP67 & IP69K

Specifications

• Voltage  . . . . 6V-48V Multivoltage

• Amperage . . .  500A  Continuous,

with 2 x 4/0 input and

2 x 4/0 output cables

• Dimensions  . . H 85 x D 103 W 120

• Configuration . DPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

880175BX . . . . Boxed

11

www.colehersee.com.au

Battery and Field Master Switch DPST On/Off

Battery and Field Master Copper DPST On/Off

Battery and Field Master Silver DPST On/Off

75907BX

75903BX

75904BX

This battery and field master switch

will disconnect the battery and the

alternator or generator field circuit.

Features

• Battery and field master switching

• Silver contacts, chrome lever

• Weather resistant, O-ring sealed

• Field terminals 20A continuous

• Indexing pin aligns switch and

prevents rotation

• 2 x Field stud 10-32

• 2 x Battery stud 3/8”-24

• Mounting stem 3/4”-24 thread, L 13mm

• Suits panel thickness to 6.5mm

This battery and field master switch

will disconnect the battery and the

alternator or generator field circuit.

Features

• Battery and field master switching

• Copper contacts, chrome lever

• Weather resistant

• Field terminals 20A continuous

• 2 x Field stud 10-32

• 2 x Battery stud 3/8”-24

• Mounting stem 3/4”-24 thread, L 13mm

• Suits panel thickness to 6.5mm

This battery and field master switch

will disconnect the battery and the

alternator or generator field circuit.

Features

• Battery and field master switching

• Silver contacts, chrome lever

• Weather resistant, O-ring sealed

• Field terminals 20A continuous

• Indexing pin aligns switch and

prevents rotation (key start only)

• 2 x Field stud 10-32

• 2 x Battery stud 3/8”-24

• Mounting stem 3/4”-24 thread, L 13mm

• Suits panel thickness to 6.5mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  2000A  Intermittent,

300A Continuous,
Small: 20A Cont

• Dimensions  . . H 110 x Ø 67

• Configuration . DPST

• Modes  .   .   .   .   . On/Off

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75907BX . . . . . Boxed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  1000A  Intermittent,

125A Continuous,
Small: 20A Cont

• Dimensions  . . H 110 x Ø 67

• Configuration . DPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75903BX . . . . . Boxed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  1000A  Intermittent,

125A Continuous,
Small: 20A Cont

• Dimensions  . . H 91 x Ø 67

• Configuration . DPST

• Modes  .   .   .   .   . On/Off

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75904BX . . . . . Lever switch

75904-03BX . . . Key start switch

Indexing pin

(key start only)

12

www.colehersee.com.au

Marine Battery Master Switch DPST On/Off

M290-05BX

This marine battery master switch will

disconnect the battery preventing drain.

Features

• Silver laminating contacts

• Brass case, chrome lever

• Field term 20A continuous

• 2 stud terminals 10-32

• Mounting stem 3/4”-24 thread

• Mounting stem length 46mm

• Suits panel thickness up to 23mm

• UL rating 707B

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  800A  Intermittent,

125A Continuous,
Small: 20A Cont

• Dimensions  . . H 86 x Ø 67

• Configuration . DPST

• Modes  .   .   .   .   . On/Off

• Application  . . Heavy Duty, Marine

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M290-05BX  . . . Boxed

Dual Battery Master Switch 4 Main Studs

DPST

75912BX

This switch can be used to switch

positive and negative at the same time,

or for two separate circuits.

Features

• Suitable for two high current loads

• Silver contacts, chrome lever

• Weather resistant, O-ring sealed

• Battery 4 x stud 3/8”-24 studs

• Indexing pin aligns switch and

prevents rotation

• Mounting stem 3/4”-24 thread, L 13mm

• Suits panel thickness to 6.5mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  750A Intermittent x 2,

125A Continuous x 2

• Dimensions  . . H 110 x Ø 67

• Configuration . DPST

• Modes  .   .   .   .   . On/Off

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75912BX . . . . . Boxed

CAT OEM Battery Master SPST On/Off Key

24024BX

CAT OEM switch replace 7N0718

Features

• Two prong key type

• Silver laminated contacts, chrome lever

• Weather resistant O-ring sealed

• Indexing pin aligns switch and

prevents rotation

• 2 stud terminals 10-32

• Mounting stem 3/4”-24 thread, L 13.5mm

• Suits panel thickness 6.5mm to 19mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  1000A  Intermittent,

125A Continuous

• Dimensions  . . H 86 x Ø 67

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

24024BX . . . . . Boxed

13

www.colehersee.com.au

14

www.colehersee.com.au

Battery 1

Battery 2

Common

Back of

an M750

6–36 VDC

Terminals

must be the

same polarity

M750 Series

Battery Selector and Disconnect Switches

In a dual battery system, one battery is used for
starting the engine while the other is used to
power auxiliary loads. A battery selector switch
enables the use of the first battery, the second
battery or both batteries simultaneously.

A dual battery system with a battery selector
switch provides backup starting power in an
emergency. One application is to put two
batteries together (in parallel) to start the engine
in cold weather. If the primary battery is not at
full power, then the second battery can be used.
This assures the availability of adequate power
for starting. It also enables the user to select
either battery for charging.

It will provide battery disconnect, protection
against electrical fire, tampering, theft and
battery drain when the vehicle, equipment or
boat is unattended.

When using a dual battery charger it is necessary
to separate the batteries while the charger is
operating. The batteries must be independent
of each other for the dual battery charger to
operate properly. The selector switch must be
turned to the OFF position to avoid damage to
the charger.

15

www.colehersee.com.au

Dual Battery Switch Selector And Disconnect

Dual Battery Key Switch Select Disconnect

Dual Battery Switch Selector And Alt Field

M750

M751

M752

This dual battery selector/master

disconnect switch will suit any vehicle

that needs to use two batteries where

one battery is used for starting the

engine, while the other is used to

power auxiliary loads. UL rating 707B.

This is a common situation in trucks,

boats, RVs, police and rescue vehicles,

and in ambulances and fire equipment.

Features

• High impact and plastic case and knob

• High temperature engineered plastic

• 4 Position dual battery control

• Heavy duty copper stud terminals 3/8

This dual battery selector/master

disconnect switch will suit any vehicle

that needs to use two batteries where

one battery is used for starting the

engine, while the other is used to

power auxiliary loads. UL rating 707B.

This is a common situation in trucks,

boats, RVs, police and rescue vehicles,

and in ambulances and fire equipment.

Features

• High impact and plastic case and knob

• High temperature engineered plastic

• 4 Position dual battery control

• Heavy duty copper stud terminals 3/8

This dual battery selector/master

disconnect switch will suit any vehicle

that needs to use two batteries where

one battery is used for starting the

engine, while the other is used to

power auxiliary loads. UL rating 707B.

Alternator field disconnect circuit

switch prevents possible alternator

diode failure if the switch is accidentally

turned to Off with the engines running.

Features

• High impact and plastic case and knob

• High temperature engineered plastic

• 4 Position dual battery control

• Heavy duty copper stud terminals 3/8

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  500A  Intermittent,

310A Continuous

• Dimensions  . . H 67 x Ø 127

• Modes  .   .   .   .   .  1: Batteries OFF

2: Battery #1 ON
3: Battery #1&2 ON
4: Battery #2 ON

• Application  . . Heavy Duty

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M750 .   .   .   .   .   .   . Clam blister

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  500A  Intermittent,

310A Continuous

• Dimensions  . . H 67 x Ø 127

• Modes  .   .   .   .   .  1: Batteries OFF

2: Battery #1 ON
3: Battery #1&2 ON
4: Battery #2 ON

• Application  . . Heavy Duty

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M751 .   .   .   .   .   .   . Clam blister

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  500A  Intermittent,

310A Continuous

• Dimensions  . . H 67 x Ø 127

• Modes  .   .   .   .   .  1: Batteries OFF

2: Battery #1 ON
3: Battery #1&2 ON
4: Battery #2 ON

• Application  . . Heavy Duty

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M752 .   .   .   .   .   .   . Clam blister

16

www.colehersee.com.au

Toggle and rocker switches are manufactured in
many different variations to handle most vehicle
and equipment applications. Toggle and rocker
switches are usually classified by the number of
poles and throws to identify their basic operation.

Toggle switches are available with ball, short or
long handles, paddle or illuminated actuators.
Housings are either plastic, plastic and metal
combined, or die-cast metal.

Rocker switches can be either snap-in or bracket
mounting, actuators can be illuminated or
imprinted, contain pilot lights, or have both pilot
lights and imprinting. Housings are usually plastic,
however some models feature plastic with a metal
bezel or mounting bracket.

Cole Hersee toggle and rocker switches can be
used in 6, 12, 24 and 36 volt systems, and are
rated up to 35 amp inductive load and 25 amp
lamp load at 12 volts.

They can be used in applications such as signalling
and marker lamps, windshield wiper systems, fuel
selector valves, heater systems, headlight systems,
and more.

Amperage requirements differ from application
to application. Clearance and marker lamps on a
12 volt truck system for example, can require from
less that one to just over two amps to operate.
Other applications may require anywhere from
five to eight amps.

When switches are turned ON or OFF, they must
handle more current or voltage than is required
to operate in a steady state—Cole Hersee switches
are built to handle these requirements.

Weather Resistant Features

A PVC (Polyvinyl Chloride) coating is applied to the
switch body for effective sealing and protection
from moisture, dirt and the elements. PVC coated
switches usually come with wire leads that permit
complete covering and insulation of the terminals.

Neoprene seals (O-rings) within the mounting
stem protect against moisture and dirt from
entering around the base of the actuator handle.

Also available are protective durable Silicone
Rubber Boots that fit over the toggle handles and
fasten securely to the mounting stem, making the
toggle switch adaptable for use where moisture,
dirt and similar elements are present.

Available in two styles: one covers the entire
toggle handle (81264), the other allows the
handle to protrude (81255).

Rocker and Toggle Switches

Part Numbers

81264BX . . . . . Grey

81264-01BX . . . Black

81264-02BX . . . Blue

81264-03BX . . . Clear

81264-04BX . . . Green

81264-05BX . . . Red

81264-07BX . . . Yellow

81255BX . . . . . Grey half

17

www.colehersee.com.au

Bezels for Mounting Switches Side by Side

For snap-in mounting of any regular size switch
such as 58312 and 58328 series. Bezels can be
arranged in a parallel array of any length.

Bezels themselves can snap into a panel, or be
mounted with the Bracket Mounting Kit.

Snap-together Bracket Mounting Kit

For installing an array of switches onto a panel,
when through mounting isn’t possible. Use in
conjunction with 82159 bezels.

Holds from 2 to 6 bezels. Snap-together assembly.
Kit contains two bracket sections and brass
stabilizing rods.

Kit brackets
engage with
bezels. Brass rods
snap into brackets
to stabilize the
unit.

Rocker Switch Mounting Accessories

Part Numbers

98628BX . . . . . Blank

82159-2BX . . . . Centre

Part Numbers

87167-01BX . . . Boxed

82159-3BX . . . . End

82159-3BX . . . . Single

Single Pole (SP)

A switch that opens,
closes or changes
connection of a single
conductor in an
electrical circuit.

Double Pole (DP)

A switch that opens,
closes or changes
connection of two
conductors in an
electrical circuit.

Single Throw (ST)

A switch that opens,
closes or completes a
circuit at only one of
the extreme positions
of its actuator.

Double Throw (DT)

A switch that opens,
closes or completes
a circuit at both
extreme positions of its
actuator.

Rocker and Toggle Switch Capabilities

SPST On/Off

Switch controls a single
wire circuit.

SPDT On/On and SPDT On/Off/On

Switch controls two single wire circuits, permitting
only one circuit to be energised at a time.

Note: “Pole” should not be confused with “Terminal”. The DPST switch, for example has four terminals
however is a Double Pole (DP) and not a four pole (4P) switch.

DPST On/Off

Switch controls two single wire circuits, permitting
only one circuit to be energised at a time.

DPDT On/On and DPDT On/Off/On

Switch controls two circuits, permitting only
two circuits to be energised at a time.

18

www.colehersee.com.au

58312 Series

Sealed Rocker Switches with LED Pilot Lights

The 58312 Series switches feature modern LED technology which
gives a wide illumination angle, low power consumption and
long service life meaning no globes to change. IP66 rated.

With silver contacts for superior switching performance, and
modern rounded edges and actuators, these matte finish
switches fit perfectly into any modern vehicle or machine.

SPST On/Off Dependent LED Rocker Switch

58312-A4BX

The 58312 Series switches feature

modern LED technology which gives

a wide illumination angle, low power

consumption and long service life.

Features

• Dependent operation, on with load

• 3 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Fits panel 2.4mm – 4.7mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 44 x D 41 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58312-A4BX . . . Amber

58312-C4BX . . . Clear

58312-G4BX . . . Green

58312-R4BX . . . Red

SPST On/Off Independent LED Rocker Switch

58312-A2BX

The 58312 Series switches feature

modern LED technology which gives

a wide illumination angle, low power

consumption and long service life.

Features

• Independent pilot with Switch or Load

• 4 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Fits panel 2.4mm – 4.7mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 44 x D 41 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58312-A2BX . . . Amber

58312-G2BX . . . Green

58312-R2BX . . . Red

Switch converted to

dependent by adding

jumper wire

→

SPDT On/On Dependent LED Rocker Switch

58312-RG2BX

The 58312 Series switches feature

modern LED technology which gives

a wide illumination angle, low power

consumption and long service life.

Features

• Dependent operation, on with load

• 4 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Fits panel 2.4mm – 4.7mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 44 x D 41 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58312-RG2BX . . Red/Green

58312-RRBX . . . Red/Red

B

L

2

4

3

+

B

L

2

4

3

6

+

B

L

2

4

3

6

Jumper

+

B

L

2

4

3

6

+

B

L

2

4

3

6

Jumper

+

←

   Independent

illumination

L1

1

B

L2

2

4

3

+

19

www.colehersee.com.au

Illumination

Dependent Vs Independent

Dependent illumination means
the lamp in the switch is
powered by the load.

Therefore, when the switch
is off, the lamp is off.  When
the switch is on, the lamp is
illuminated.

This makes it easy to see
when the load is active. These
switches are also available as
ON/ON and ON/OFF/ON with
dual dependent illumination.

Independent + Dependent Illumination

Independent illumination means that a separate electrical
signal or switch powers the lamp, regardless of what
function the switch is performing at any one time.

For example, the independent lamp might be wired to the
dash lights of a vehicle to make the switch visible in the
dark. Or it could be used as a driving light switch with the
independent lamp signaling when the headlights are active.

The independent + dependent switches enable a pilot light
to be illuminated and an additional lamp to be illuminated
when the switch is actuated.

Actuator and Load

OFF, Independent

Signal OFF

Actuator and Load

OFF, Independent

Signal ACTIVE

Actuator and Load

ON, Independent

Signal ACTIVE

Actuator and Load

ON

Actuator and Load

OFF

SPDT On/Off/On Dependent LED Rocker

Switch

SPST On/Off Dependent + Independent LED

Rocker

58312-AGBX

58312-GA4BX

The 58312 Series switches feature

modern LED technology which gives

a wide illumination angle, low power

consumption and long service life.

Features

• Dependent LED’s x 2, ON with Load

• 4 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Fits panel 2.4mm – 4.7mm

• Panel hole: W 21.1mm, H 36.8mm

The 58312 Series switches feature

modern LED technology which gives

a wide illumination angle, low power

consumption and long service life.

Features

• Dependent LED + Independent LED,

Switched or with Load

• 4 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Fits panel 2.4mm – 4.7mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 44 x D 41 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58312-AGBX . . . Amber/Green

58312-ARBX . . . Amber/Red

58312-RCBX . . . Red/Clear

58312-RGBX . . . Red/Green

58312-RRBX . . . Red/Red

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 44 x D 41 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58312-GA4BX . . Amber/Green

58312-RG4BX . . Red/Green

58312-RR4BX  . . Red/Red

L1

1

B

L2

2

4

3

+

B

L

2

4

3

6

+

20

www.colehersee.com.au

SPST On/Off Dependent Pilot Rocker Switch

SPST On/Off Dependent Pilot Rocker Switch

SPST On/Off Independent Pilot Rocker Switch

58328-100BX

58328-13BX

58328-101BX

These kits come with a selection of

snap-in lenses to customise or change

the colour combinations.

Features

• Dependent pilot ON with load

• Black actuator illuminated

• 3 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• 4 Coloured lenses supplied

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Rocker switches are manufactured

in many different variations to

handle most vehicle and equipment

applications and are usually classified

by the number of poles and throws to

identify their basic operation.

Features

• Dependent pilot ON with load

• Black actuator illuminated

• 3 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• Range of colour options

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

These kits come with a selection of

snap-in lenses to customise or change

the colour combinations.

Features

• Independent pilot with switch or load

• Black actuator illuminated

• 4 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• 4 Coloured lenses supplied

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 41 x W 24

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58328-100BX.   .   .  Boxed

Specifications

• Voltage  . . . . 12V or 24V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 41 x W 24

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58328-04BX . . . Red 12V

58328-11BX . . . Green 12V

58328-12BX . . . Clear 12V

58328-13BX . . . Amber 12V

58328-55BX . . . Blue 12V

58328-58BX . . . Red 24V

58328-62BX . . . Amber 24V

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 41 x W 24

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58328-101BX.   .   .  Boxed

Switch converted

to dependent by

adding jumper wire

B

L

2

4

3

6

+

B

L

2

4

3

6

Jumper

+

B

L

2

4

3

6

+

B

L

2

4

3

6

Jumper

+

Independent

illumination

B

L

2

4

3

+

B

L

2

4

3

+

21

www.colehersee.com.au

SPDT On/On Dependent Pilot Rocker Switch

SPDT On/Off/On Dependent Pilot Rocker

Switch

SPST On/Off Dependent + Independent Rocker

58328-102BX

58328-103BX

58328-104BX

These kits come with a selection of

snap-in lenses to customise or change

the colour combinations.

Features

• Dependent dual pilot ON with loads

• Black actuator illuminated

• 4 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• 2 x 4 Coloured lenses supplied

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

These kits come with a selection of

snap-in lenses to customise or change

the colour combinations.

Features

• Dependent dual pilot ON with loads

• Black actuator illuminated

• 4 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• 2 x 4 Coloured lenses supplied

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

These kits come with a selection of

snap-in lenses to customise or change

the colour combinations.

Features

• Dependent pilot ON with load +

Independent Pilot Switch or Load

• Black actuator illuminated

• 4 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• 2 x 4 Coloured lenses supplied

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 41 x W 24

• Configuration . SPDT

• Modes  .   .   .   .   . On/On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58328-102BX.   .   .  Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 41 x W 24

• Configuration . SPDT

• Modes  .   .   .   .   . On/Off/On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58328-103BX.   .   .  Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 41 x W 24

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58328-104BX.   .   .  Boxed

L1

1

B

L2

2

4

3

+

L1

1

B

L2

2

4

3

+

B

L

2

4

3

6

+

22

www.colehersee.com.au

8

7

6

5

+

+

B

L

B

SPST On/Off Illuminated Symbol Rocker

DPDT On/Off/On Illuminated Blank Rocker

58326-01BX

58326-06BX

Features

• Independent illumination, Term 7 & 8

• Sealed, blade terminals, silver contacts

• Nylon wide bezel, snap in mounting

• Supplied with neoprene panel seal

• Fits panels 2.35mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Independent illumination, Term 7 & 8

• ON 1&2, 4&5> OFF > ON 2&3, 5&6

• Sealed, blade terminals, silver contacts

• Nylon wide bezel, snap in mounting

• Supplied with neoprene panel seal

• Fits panels 2.35mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 49 x D 39 x W 24

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58326-01BX . . . White Blank

58326-01RBX.   .   . Red Blank

58326-15BX . . . White Interior

58326-18BX . . . White Strobe

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 49 x D 39 x W 24

• Configuration . DPDT

• Modes  .   .   .   .   . On/Off/On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58326-06BX . . . White Blank

58326 Series

Sealed Rocker Switches with Incandescent Pilot

Lights

The Incandescent Paddle Series Rocker Switches feature
imprinted automotive symbols on some models. With
silver contacts for superior switching performance,
these matte finish switches fit perfectly into any
modern or classic vehicle or machine.

8

7

+

+

+

B

1

4

6

5

3

2

L

B

L

B

L

L

Five handy kits, each with a set of snap-in pilot light lenses, cover all the
electrical types and pilot light combinations.

58328-100BX

 On-Off SPST, dependent

58328-101BX

 On-Off SPST, independent

58328-102BX

 On-On SPDT, dependent

58328-103BX

 On-Off-On, dependent

58328-104BX

 On-Off SPST, one dependent, one independent

Build Your Own Illuminated Rocker Switch - Page 16

23

www.colehersee.com.au

8

7

+

+

B

3

2

L

B

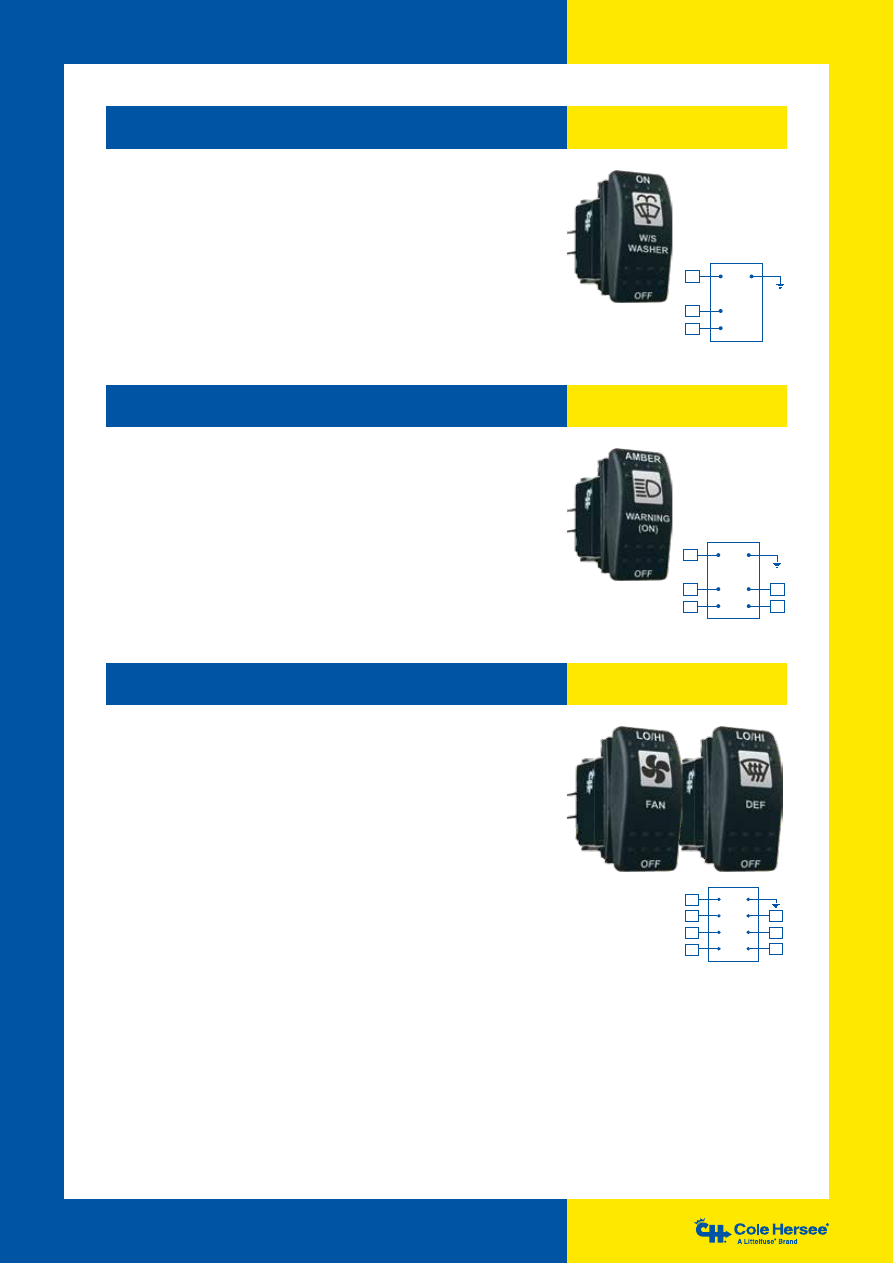

SPST Off/Mom On Illuminated Symbol Rocker

DPDT Off/On/Mom On Illuminated Symbol

DPTT On/On/On Illuminated Symbol Rocker

58326-21BX

58326-11BX

58326-29BX

Features

• Independent illumination, Term 7 & 8

• Sealed, blade terminals, silver contacts

• Nylon wide bezel, snap in mounting

• Supplied with neoprene panel seal

• Fits panels 2.35mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Independent illumination, Term 7 & 8

• SPST Off/On Term 2 & 3

• SPDT Mom On Term 5 & 6

• Sealed, blade terminals, silver contacts

• Nylon wide bezel, snap in mounting

• Supplied with neoprene panel seal

• Fits panels 2.35mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Independent illumination, Term 7 & 8

• ON 1&2, 4&5> ON 2&3, 4&5> ON 2&3,

5&6

• Sealed, blade terminals, silver contacts

• Nylon wide bezel, snap in mounting

• Supplied with neoprene panel seal

• Fits panels 2.35mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 49 x D 39 x W 24

• Configuration . SPST

• Modes  .   .   .   .   . Off/Mom On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58326-21BX . . . White Wash

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 49 x D 39 x W 24

• Configuration . SPST

• Modes  .   .   .   .   . Off/On/Mom On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58326-11BX . . . White Warning

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 49 x D 39 x W 24

• Configuration . DPTT

• Modes  .   .   .   .   . On/On/On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58326-29BX . . . White Fan

58326-24BX . . . White Defrost

8

7

+

+

+

B

1

4

6

5

3

2

L

B

L

B

L

L

8

7

6

5

+

+

+

B

L

B

3

2

L

B

24

www.colehersee.com.au

58311 Series

Sealed Weather Resistant Rocker Switches IP66

The 58311 Series switches feature silver contacts for superior
switching performance, and modern rounded edges and
actuators, these matte finish switches fit perfectly into any
modern vehicle or machine. They are also IP66 rated.

SPST Sealed Blank Rocker Switch

SPDT Sealed Blank Rocker Switch

DPST Sealed Blank Rocker Switch

58311-01BX

58311-03BX

58311-06BX

Features

• 2 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Dimensions H 44 x D 41 x W 25

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• 3 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Dimensions H 44 x D 41 x W 25

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• 4 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Dimensions H 44 x D 41 x W 25

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58311-01BX . . . On/Off

58311-02BX . . . Off/Mom On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58311-03BX . . . On/Off/On

58311-04BX . . . Mom On/Off/Mom On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58311-06BX . . . On/Off

58311-13BX . . . Off/Mom On

B

L

+

L1

B

L2

1

2

3

+

L2

B

L1

2

3

6

5

+

B

+

25

www.colehersee.com.au

DPST Sealed Blank Rocker Switch

DPDT Sealed Blank Reverse Rocker Switch

58311-07BX

58311-18BX

Features

• 6 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Polarity reversing

• Dimensions H 44 x D 41 x W 25

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

This switch suit forward and reverse

control of permanent magnet motors,

momentary actuator.

Features

• 4 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Weather resistant IP66 sealed

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58311-07BX . . . On/Off/On

58311-08BX . . . On/On

58311-11BX . . . Mom On/Off/Mom On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

• Dimensions  . . H 44 x D 41 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58311-18BX . . .  Mom On/Off/Mom On

Rev

L

B

_

B

+

1

2

4

5

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

26

www.colehersee.com.au

SPST Non-Illuminated Blank Rocker Switch

SPST On/Off Non-Illuminated Fog Symbol

Rocker

58027-01BX

58027-17BX

Features

• 2 Blade terminals, silver contacts

• Narrow black bezel, snap in mounting

• Dimensions H 43 x D 41 x W 24

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• 2 Blade terminals, silver contacts

• Narrow black bezel, snap in mounting

• Dimensions H 43 x D 41 x W 24

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58027-01BX . . . On/Off

58027-02BX . . . Off/Mom On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58027-17BX . . . On/Off

B

L

+

B

L

+

SPDT Non-Illuminated Blank Rocker Switch

DPST On/Off Non-Illuminated Blank Rocker

58027-03BX

58027-06BX

Features

• 3 Blade terminals, silver contacts

• Narrow black bezel, snap in mounting

• Dimensions H 43 x D 41 x W 24

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• 4 Blade terminals, silver contacts

• Narrow black bezel, snap in mounting

• Dimensions H 43 x D 41 x W 24

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58027-03BX . . . On/Off/On

58027-04BX . . . Mom On/Off/Mom On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58027-06BX . . . On/Off

L1

B

L2

1

2

3

+

L2

B

L1

2

3

6

5

+

B

+

27

www.colehersee.com.au

DPDT On/Off/On Non-Illuminated Blank

Rocker

DPDT Mom On/Off/Mom On Reversing Rocker

DPDT Mom On/Off/Mom On Reversing Rocker

58027-07BX

58027-11BX

58027-18BX

Features

• 6 Blade terminals, silver contacts

• Narrow black bezel, snap in mounting

• Dimensions H 43 x D 41 x W 24

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Polarity reversing

• 6 Blade terminals, silver contacts

• Narrow black bezel, snap in mounting

• Dimensions H 43 x D 41 x W 24

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

This switch suit forward and reverse

control of permanent magnet motors,

momentary actuator.

Features

• Forward and Reversing

• Permanent magnet

• 4 Blade terminals, silver contacts

• Wide bezel black, snap in mounting

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58027-07BX . . . On/Off/On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58027-11BX . . . Mom On/Off/Mom On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58027-18BX . . . Mom On/Off/Mom On

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

L

B

_

B

+

1

2

4

5

Generally, Cole Hersee heavy duty 12V non-illuminated* toggle and rocker switches
can be used at higher voltage but lower current.
Example: By calculation, 25A 12V switch will derate to 8.3A at 36V, or 12.5A at 24V.
This calculated de-rating gives a conservative result. 25A at 12V toggle switches* can
actually be used at 15A at 24V, and 10A at 36V.
*Exception: This does not apply to Illuminated switches. The pilot light must only be
supplied with the stated voltage. Do not derate any illuminated switches.

Blank Toggle and Rocker Switch 12V, 24V, 36V Ratings

28

www.colehersee.com.au

SPST On/Off Sealed Marine Blank Rocker

Switch

SPST Off/Mom On Sealed Marine Blank

Rocker

SPDT On/Off/On Sealed Marine Blank Rocker

DPST On/Off Sealed Marine Blank Rocker

M58031-01BX

M58031-07BX

M58031-02BX

M58031-04BX

Features

• Water resistant, IP66 rating, UL 1500

• Supplied with neoprene panel seal

• 2 Blade terminals, silver contacts

• Wide black bezel, snap in mounting

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Water resistant, IP66 rating, UL 1500

• Supplied with neoprene panel seal

• 2 Blade terminals, silver contacts

• Wide black bezel, snap in mounting

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Water resistant, IP66 rating, UL 1500

• Supplied with neoprene panel seal

• 3 Blade terminals, silver contacts

• Wide black bezel, snap in mounting

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Water resistant, IP66 rating, UL 1500

• Supplied with neoprene panel seal

• 4 Blade terminals, silver contacts

• Wide black bezel, snap in mounting

• Fits panels 2.35mm - 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  20A@12V,  10A@24V

• Dimensions  . . H 49 x D 39 x W 24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M58031-01BX . . On/Off

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  20A@12V,  10A@24V

• Dimensions  . . H 49 x D 39 x W 24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M58031-07BX . . Off/Mom On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  20A@12V,  10A@24V

• Dimensions  . . H 49 x D 39 x W 24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M58031-02BX . . On/Off/On

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  20A@12V,  10A@24V

• Dimensions  . . H 49 x D 39 x W 24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M58031-04BX . . On/Off

B

L

+

B

L

+

L1

B

L2

1

2

3

+

L2

B

L1

2

3

6

5

+

B

+

29

www.colehersee.com.au

SPST On/Off Illuminated Red Rocker Switch

54012BX

Features

• 3 Blade terminals, silver contacts

• Narrow body, snap in mounting

• Dimensions H 31 x D 35 x W 17

• Fits panels thickness 1.35 - 5.15mm

• Panel hole W 14mm, H 28.6mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A@12V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

54012BX . . . . . Boxed

B

L

2

4

3

+

B

L

2

4

3

+

L1

1

B

L2

2

4

3

+

B

L

+

SPST On/Off Dependent Pilot Rocker Switch

SPDT On/Off/On Dependent Pilot Rocker

Switch

SPST On/Off Locking Actuator Rocker Switch

58327-01BX

58327-06BX

58336BX

Features

• Dependent pilot ON with load

• Black actuator illuminated

• 3 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Features

• Dependent pilot ON with load

• Black actuator illuminated

• 4 Blade terminals, silver contacts

• Wide bezel, snap in mounting

• Fits panel 2.36mm – 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

This rocker switch automatically locks

the actuator into the Off position to

help prevent accidental actuation.

And must be slid to allow the actuator

to be moved to the On position.

Features

• Locking actuator, slide release

Orange Lock on each operation

• 2 Blade terminals, silver contacts

• Fits panels 2.35mm to 4.73mm

• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 38 x W 25

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58327-01BX . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 38 x W 25

• Configuration . SPDT

• Modes  .   .   .   .   . On/Off/On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58327-06BX . . . Boxed

Specifications

• Voltage  . . . . 12V or 24V

• Amperage . . .  25A@12V

• Dimensions  . . H 43 x D 38 x W 25

• Configuration . SPST

• Modes  .   .   .   .   . On/Off

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

58336BX . . . . . Boxed

30

www.colehersee.com.au

Rocker Switch Mounting Independent Bezel

Rocker Switch Mounting Blank Insert Cover

Rocker Switch Mounting Bracket Kit Under

Dash

Rocker Switch Mounting End Section

Rocker Switch Mounting Centre Section

82159-3BX

98628BX

87167-01BX

82159-1BX

82159-2BX

Features

• Rocker switch independent bezel

• Hole height 48.3mm, W 25mm

• Accepts wide body rockers 58328,

58027, 58326, 58312 & 58311 series

Features

• Rocker blank insert

• Use with rocker switch mounting

brackets 82159-1BX and 82159-2BX

Features

• Snap together holds 3-5 brackets

• Brass rods to stabilize section

• Assembled kit mounts on top of or

under the dash panel

• Mounting holes 18mm x 6.7mm

Features

• Rocker switch end panel

• Hole height 48.3mm, W 26.2mm

for each section

• Accepts wide body rockers 58328,

58027, 58326, 58312 & 58311 series

Features

• Rocker switch centre  panel

• Hole height 48.3mm, W 26.2mm

for each section

• Accepts wide body rockers 58328,

58027, 58326, 58312 & 58311 series

Specifications

• Dimensions  . . H 48.3 x D 31 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

82159-3BX . . . . Boxed

Specifications

• Dimensions  . . H 48.3 x D 31 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

98628BX . . . . . Boxed

Part Numbers

87167-01BX . . . Boxed

Specifications

• Dimensions  . . H 59 x D 31 x W 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

82159-1BX . . . . Boxed

Specifications

• Dimensions  . . H 59 x D 31 x W 27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

82159-2BX . . . . Boxed

31

www.colehersee.com.au

32

www.colehersee.com.au

SPST On/Off Blade Terminals Toggle Switch

SPDT On/On Screw Terminals Toggle Switch

SPST On/Off Screw Terminals Toggle Switch

SPST On/Off Sealed Leads Toggle Switch

55014BX

5584BX

5582BX

5582-10BX

Features

• 2 Blade terminals, silver contacts

• Dimensions H 29 x D 60 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• 3 Screw terminals, silver contacts

• Dimensions H 29 x D 53 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• 2 Screw terminals, silver contacts

• Dimensions H 29 x D 55 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• O-ring in stem, silver contact

• Pre-wired, PVC coated housing

• Dimensions H 29 x D 55 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55014BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

5584BX.   .   .   .   .   . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

5582BX.   .   .   .   .   . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

5582-10BX . . . . Boxed

B

L

+

L1

B

L2

1

2

3

+

B

L

+

B

L

+

DPDT On/Off/On Screw Terminals Toggle

Switch

5592BX

Features

• 6 Screw terminals, silver contacts

• Dimensions H 33 x D 48 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

5592BX.   .   .   .   .   . Boxed

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

33

www.colehersee.com.au

SPDT On/On Blade Terminals Toggle Switch

SPDT On/Off/On Blade Terminals Toggle

Switch

SPDT On/Off/On Sealed Leads Toggle Switch

55016BX

5585BX

M55036BX

Features

• 3 Blade terminals, silver contacts

• Dimensions H 29 x D 60 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• 3 Screw terminals, silver contacts

• Dimensions H 29 x D 55 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• O-ring in stem, silver contact

• Pre-wired, PVC coated housing

• Dimensions H 29 x D 55 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55016BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

5585BX.   .   .   .   .   . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M55036BX . . . . Boxed

L1

B

L2

1

2

3

+

L1

B

L2

1

2

3

+

L1

B

L2

1

2

3

+

SPST On/Off Screw Terminals Mini Toggle

SPST On/Off Blade Terminals Mini Toggle

M484BX

M586BX

Features

• 2 Brass screw terminals

• Dimensions H 32 x D 41 x W 13

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• 2 Blade terminals

• Dimensions H 32 x D 41 x W 13

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M484BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M586BX . . . . . Boxed

B

L

+

B

L

+

34

www.colehersee.com.au

SPST Off/Mom On Screw Terminals Toggle

SPDT Mom On/Off/Mom On Screw Terminals

SPDT Mom On/Off/Mom On Screw Terminals

55020BX

55021BX

55021-07BX

Features

• 2 Screw terminals, silver contacts

• Dimensions H 28 x D 41 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• 2 Screw terminals, silver contacts

• Dimensions H 34 x D 55 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• O-ring in stem, silver contact

• Pre-wired, PVC coated housing

• Dimensions H 34 x D 55 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55020BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55021BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55021-07BX . . . Boxed

B

L

+

L1

B

L2

1

2

3

+

DPDT On/Off/On Blade Terminals Long Handle

55057BX

Features

• 6 Blade terminals, silver contacts

• Dimensions H 34 x D 94 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 38mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55057BX . . . . . Boxed

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

SPST On/Off Blade Terminals Long Handle

55055BX

Features

• 2 Blade terminals, silver contacts

• Dimensions H 28 x D 94 x W 16

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 38mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55055BX . . . . . Boxed

35

www.colehersee.com.au

SPST On/Off Blade Terminals Illuminated Red

SPDT On/Off/On Blade Terminals Illuminated

Red

M54111-01BX

M54111-02BX

Features

• Clear OFF, illuminates red ON

• 5 Blade terminals, silver contacts

• Dimensions H 35 x D 56 x W 16

• Stem: thread 15/32-32, L 9mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• Clear OFF, illuminates red ON

• 4 Blade terminals, silver contacts

• Dimensions H 35 x D 56 x W 16

• Stem: thread 15/32-32, L 9mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M54111-01BX . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M54111-02BX . . Boxed

L1

L2

2

4

1

3

6

B

+

Independent Illumination

B

L1

L2

2

4

1

3

6

+

Dependent Illumination

L1

L2

2

4

1

3

6

B

+

Independent Illumination

B

L1

L2

2

4

1

3

6

+

Dependent Illumination

L1

L2

2

4

1

3

6

B

+

Independent Illumination

B

L1

L2

2

4

1

3

6

+

Dependent Illumination

L1

L2

2

4

1

3

6

B

+

Independent Illumination

B

L1

L2

2

4

1

3

6

+

Dependent Illumination

SPDT On/Off/On Blade Terminals Illuminated

Red

54110-01BX

Features

• Weather resistant, O-ring seal bushing

• Clear OFF, illuminates red ON

• 5 Blade terminals, silver contacts

• Dimensions H 35 x D 61 x W 19

• Stem: thread 15/32-32, L 9mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  25A@12V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

54110-01BX . . . Boxed

L

4

2

3

6

+

B

+

B

L

4

2

3

6

B

+

Dependent Illumination

Independent Illumination

L

4

2

3

6

+

B

+

B

L

4

2

3

6

B

+

Dependent Illumination

Independent Illumination

DPDT On/Off/On Blade Long Handle Head

Light

55064BX

Features

• Bridged 4 circuit, headlamp switch

• 6 Blade terminals, silver contacts

• Dimensions H 34 x D 94 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 38mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55064BX . . . . . Boxed

P

B

T

A

B

H

1

2

3

4

5

6

A Auxiliary lamps

B Battery+

H Headlamps

P Parking lights

T Tail lights

36

www.colehersee.com.au

SPDT On/On Blade Terminals Paddle Toggle

SPDT On/Off/On Blade Terminals Paddle

Toggle

DPDT On/Off/On Blade Terminals Paddle

Toggle

59024-104BX

59024-13BX

59024-15BX

Features

• Paddle handle (nylon), rep ‘Freightliner’

• 3 Blade terminals, silver contacts

• Dimensions H 33 x D 67 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 25mm

Features

• Paddle handle (nylon), rep ‘Freightliner’

• 3 Blade terminals, silver contacts

• Dimensions H 33 x D 67 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 25mm

Features

• Paddle handle (nylon), rep ‘Freightliner’

• 6 Blade terminals, silver contacts

• Dimensions H 33 x D 67 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 25mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

59024-104BX.   .   . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

59024-13BX . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

59024-15BX . . . Boxed

L1

B

L2

1

2

3

+

L1

B

L2

1

2

3

+

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

37

www.colehersee.com.au

DPDT On/Off/On Blade Terminals Toggle

Switch

DPDT On/On Blade Terminals Toggle Switch

DPDT On/Off/On Blade Terminals Toggle

Switch

55017BX

55018BX

55019BX

Features

• 4 Blade terminals, silver contacts

• Dimensions H 33 x D 44 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• 6 Blade terminals, silver contacts

• Dimensions H 34 x D 60 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• 6 Blade terminals, silver contacts

• Dimensions H 34 x D 60 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55017BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55018BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55019BX . . . . . Boxed

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

L2

B

L1

2

3

6

5

+

B

+

Generally, Cole Hersee heavy duty 12V non-illuminated* toggle and rocker switches
can be used at higher voltage but lower current.
Example: By calculation, 25A 12V switch will derate to 8.3A at 36V, or 12.5A at 24V.
This calculated de-rating gives a conservative result. 25A at 12V toggle switches* can
actually be used at 15A at 24V, and 10A at 36V.
*Exception: This does not apply to Illuminated switches. The pilot light must only be
supplied with the stated voltage. Do not derate any illuminated switches.

Five handy kits, each with a set of snap-in pilot light lenses, cover all the
electrical types and pilot light combinations.

58328-100BX

 On-Off SPST, dependent

58328-101BX

 On-Off SPST, independent

58328-102BX

 On-On SPDT, dependent

58328-103BX

 On-Off-On, dependent

58328-104BX

 On-Off SPST, one dependent, one independent

Blank Toggle and Rocker Switch 12V, 24V, 36V Ratings

Build Your Own Illuminated Rocker Switch - Page 16

38

www.colehersee.com.au

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

L

B

_

B

+

1

2

4

5

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

L1

B

L2

+

L3

B

L4

+

1

2

3

4

5

6

DPDT Mom On/Off/Mom On Blade Reversing

DPDT Mom On/Off/Mom On Blade Reversing

DPDT Mom On/Off/Mom On Bridged

Reversing

DPDT Mom On/Off/On Blade Terminals

Reversing

DPDT Mom On/Off/Mom On Screw Reversing

55065-02BX

55065-03BX

55046BX

55081BX

55054BX

Features

• Reversing polarity, long handle

• 6 Blade terminals, silver contacts

• Dimensions H 34 x D 58 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 38mm

Features

• Reversing polarity

• 6 Blade terminals, silver contacts

• Dimensions H 34 x D 58 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

This switch if used for changing

direction of permanent magnet electric

motors: fans, booms, conveyors etc.

Features

• 4 Blade terminals, silver contacts

• Dimensions H 34 x D 69 x W 19

Features

• Reversing polarity

• 6 Blade terminals, silver contacts

• Dimensions H 28 x D 58 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Features

• Reversing polarity

• 6 Screw terminals, silver contacts

• Dimensions H 34 x D 58 x W 19

• Stem: thread 15/32-32, L 12mm, D 12mm

• Panel thickness: 6.35mm, Handle: 17mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55065-02BX . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55065-03BX . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55046BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55081BX . . . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  25A@12V,  12A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

55054BX . . . . . Boxed

39

www.colehersee.com.au

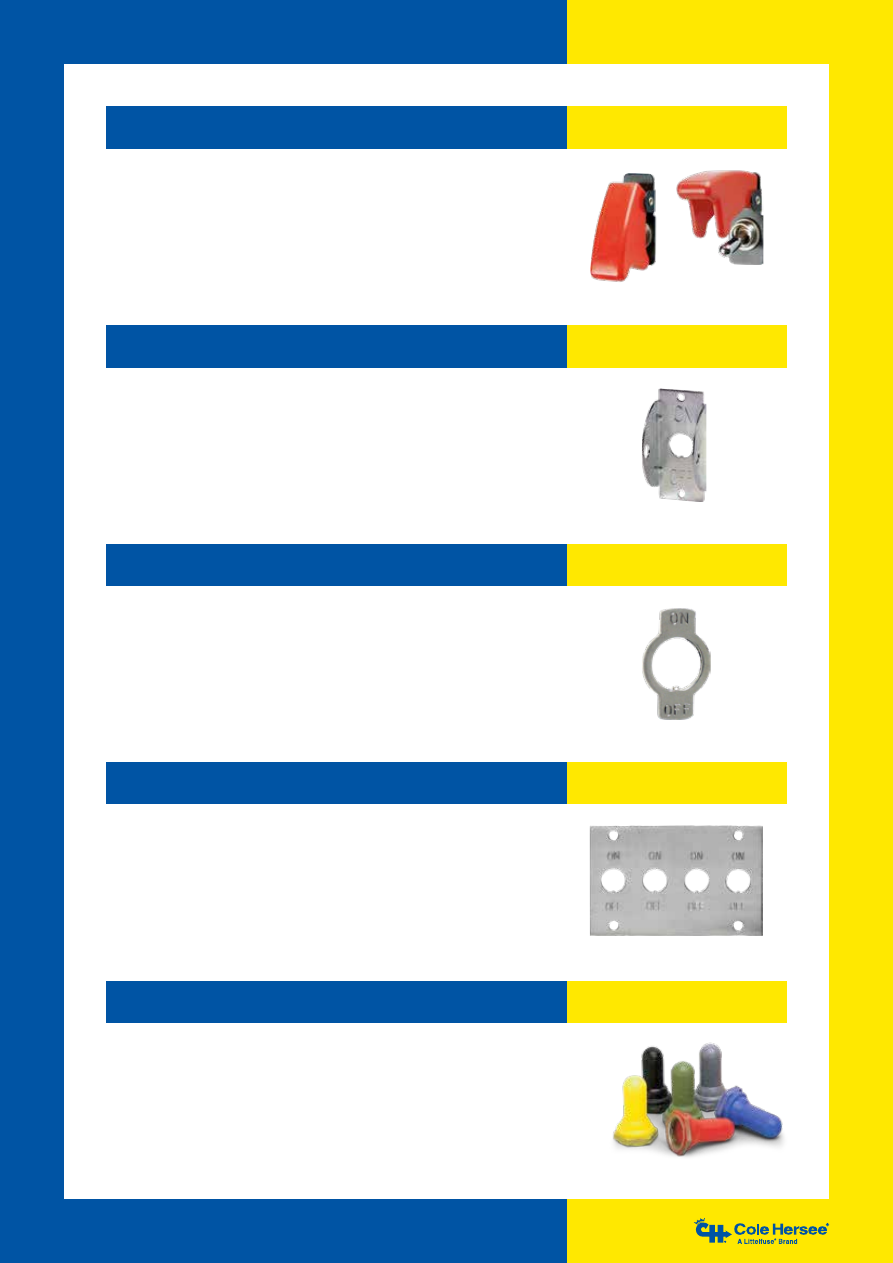

Toggle Switch Security Cover Guard

82468BX

Features

• For security of switch operation

• Spring-loaded snap action cover

• Stops accidental operation

• Rugged red melamine cover

• Suit D 12mm, Handle 18mm

Specifications

• Dimensions  . . H 47 x D 27 x W 18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

82468BX . . . . . Boxed

Toggle Switch Guard Nickel Plated Steel

Toggle Switch Faceplate Chrome Plated

Toggle Switch Gangplate Chrome Plated

Toggle Switch Silicone Sealing Boots

82465BX

M-518BX

M-506BX

81264BX

Features

• Nickel plated steel

• Stamped ‘ON’ ‘OFF’

• Suits 15/32” 12mm diameter switches

• Side wall protection for handle

Features

• Chrome plated brass

• Stamped ‘ON’ ‘OFF’

• Suits 15/32” 12mm diameter switches

Features

• Chrome plated brass

• Stamped ‘ON’ ‘OFF’

• Dimensions H 55.5

• Suits 15/32” 12mm diameter switches

Part Numbers

81264BX . . . . . Grey

81264-01BX . . . Black

81264-02BX . . . Blue

81264-03BX . . . Clear

Features

• Highly-durable silicone rubber

• O-ring seal with the panel

• Silicon rubber, up to 17.5mm handle

• Suits thread 15/32-32, Screw on to fit

Specifications

• Dimensions  . . H 54 x W 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

82465BX . . . . . Boxed

Specifications

• Dimensions  . . H 25 x W 16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M-518BX .   .   .   .   . Boxed

Part Numbers

M-505BX .   .   .   .   . 3 Gang, W 65mm

M-506BX .   .   .   .   . 4 Gang, W 86mm

M-507BX .   .   .   .   . 5 Gang, W 106mm

M-508BX .   .   .   .   . 6 Gang, W 127mm

Part Numbers

81264-04BX . . . Green

81264-05BX . . . Red

81264-07BX . . . Yellow

81255BX . . . . . Grey half

40

www.colehersee.com.au

Push Button Switches

SPST Off/Mom On START Push Button Switch

SPST Off/Mom On Screw Push Button Switch

90047BX

90030BX

Features

• 2 Screw terminals, silver contacts

• ‘ENGINE START’ imprint (black)

• ‘ENGINE STOP’ imprint (red)

• Embossed in white on black

• Impact resistant, repels water and oil

• Mounting hole 21mm

• Suits panel thickness 1mm to 2.5mm

Features

• Spring return to OFF

• 2 Screw terminals, silver contacts

• Protective weather/dustproof cap

• Mounting stem 5/8” – 32, Length 16mm

• Suits panel thickness 6.35mm-15.87mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  35A@12V,  20A@24V

• Dimensions  . . H 56 x Ø 29

• Configuration . SPST

• Modes  .   .   .   .   . Off/Mom On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

90047BX . . . . . Boxed (start)

90048BX . . . . . Boxed (stop)

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  35A@12V,  20A@24V

• Dimensions  . . H 60 x Ø 28

• Configuration . SPST

• Modes  .   .   .   .   . Off/Mom On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

90030BX . . . . . Boxed

Push Button switches (sometimes referred to as
momentary switches) are most commonly used
for Off/Mom On ignition type applications.

Cole Hersee Push Button switches are available in
die-cast alloy or brass housing with most featuring
chrome plated button and face nut or rubber
capping. Some models feature a PVC coated body
to help seal against moisture and dirt.

41

www.colehersee.com.au

SPST On/Mom Off Sealed Push Button Switch

90043-07BX

Features

• Spring return to ON

• Normally ON, steel plunger

• Pre-wired PVC coated body

• Mounting stem 5/8”-32, Length 16mm

• Suits panel thickness 12.7mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  20A@12V,  10A@24V

• Dimensions  . . H 33 x D 62 x W 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

90043-07BX . . . Boxed

SPST On/Mom Off Sealed Push Button Switch

90043BX

Features

• Spring return to ON

• Normally ON, 2 blade terminals

• 2 Screw terminals (with lock washers)

• Mounting stem 5/8”-32, Length 22.3mm

• Suits panel thickness 12.7mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 33 x D 62 x W 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

90043BX . . . . . Boxed

SPST Off/Mom On Sealed Push Button Switch

SPST Off/On Sealed Push Button Switch

M608BX

M606BX

Features

• Spring return to OFF

• Pre-wired PVC coated housing

• Copper alloy contacts, brass body

• Mounting stem 5/8-32”, L 24mm

• Suits panel thickness 12.70mm

Features

• Pre-wired PVC coated housing

• Chrome plated brass knob and face nut

• Copper alloy contacts, dia 22.3mm

• Suits panel thickness up to 15.87mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 33 x D 62 x W 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M608BX . . . . . Boxed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 82 x D 22 x W 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M606BX . . . . . Boxed

42

www.colehersee.com.au

SPST Off/On Screw Push Pull Button Switch

SPST Off/Mom On Screw Push Button Switch

SPDT Off/On/On Push Pull Button Switch

M628BX

M485BX

M532BX

Features

• 2 Screw terminals, Brass Push Pull

• Copper alloy contacts, dia 22.3mm

• Chrome plated brass knob and face nut

• Suits panel thickness up to 15.87mm

Features

• Spring return to OFF

• 2 Screw terminals, silver contacts

• Brass case, stem, plunger button,

terminals

• Gasket sealed case

• Stem 5/8”-32, L 35mm, panel to 19mm

Features

• Copper alloy contacts

• 4 screw terminals, Dia 22.3mm

• Off- On 1&2, On- On 1&3

• Chrome plated knob & face nut

• Suits panel thickness up to 15.87mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 68 x D 22 x W 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M628BX . . . . . Boxed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 39 x D 67 x W 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M485BX . . . . . Boxed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 97 x D 35 x W 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M532BX . . . . . Boxed

SPST On/Mom Off Screw Push Button Switch

9115BX

Features

• Spring return to ON

• Normally ON, chrome button

• 2 screw terminals (with lock washers)

• Stem 5/8”-32, L 22.3mm, Dia 16mm

• Suits panel thickness 12.7mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 33 x D 51 x W 23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

9115BX.   .   .   .   .   . Boxed

43

www.colehersee.com.au

SPST Off/Mom On Screw Push Button Switch

SPST Off/Mom On Screw Push Button Switch

SPST Off/Mom On Push Button Switch

9011BX

9095BX

96101BX

Features

• Spring return to OFF

• 2 Screw terminals, compact design

• Aluminium stem: L 9.52mm, Dia 22.3mm

• Suits panel thickness 6.35mm

Features

• Spring return to OFF

• 2 Screw terminals, silver contacts

• Mounting stem 5/8-32”, Length 16mm

• Suits panel thickness 6.35mm -16mm

Features

• Spring return to OFF

• 2 screw terminals

• Copper alloy contacts

• Black button, flange mount

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  5A@12V,  2.5A@24V

• Dimensions  . . H 33 x Ø 33

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

9011BX.   .   .   .   .   . Boxed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  35A@12V,  20A@24V

• Dimensions  . . H 58 x Ø 28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

9095BX.   .   .   .   .   . Boxed

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

• Dimensions  . . H 56 x D 26 x W 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

96101 BX.   .   .   .   . Boxed

44

www.colehersee.com.au

Rotary switches are usually used for special
purpose applications including headlamp and
windscreen wiper operation. The Cole Hersee
range features models which can be used for more
common applications.

Rotary Switches

Headlamp Rotary Switch Off/On/On/On

Rheostat Dimmer Off/Variable Switch

72079-01BX

7496-11BX

Features

• Black actuator knob, Headlamp symbol

• Positions: Hazard, Head & Tail light,

Dash & Work light

• Silver contacts, 5 screw terminals

• O-ring Mounting stem 5/8”-32 thread

Features

• Black actuator, 2 blade terminals

• Ceramic insulator with embedded coil

• Mounting stem 7/16”-28 thread

• Mounting stem length 10.34mm

Specifications

• Voltage  . . . . 6V-24V Multivoltage

• Amperage . . .  20A@12V,  10A@24V

• Dimensions  . . H 80 x Ø 53

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

72079-01BX . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  2.1A@12V, 18 Ohms

• Dimensions  . . H 58 x Ø 34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

7496-11BX . . . . Boxed

45

www.colehersee.com.au

DPDT Reversing Mom On/Off/Mom On

75712-04BX

Heavy duty 50A switch allows forward

and reverse motion of a motor without

the need for a relay, especially for

operation of tarps on trucks.

Features

• 4 Screw terminals, silver contacts

• Mounting stem 1/2”-20

• Terminal screws 10-32 / 9.5mm

• Forward and reverse control of motors

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  50A@12V,  30A@24V

• Dimensions  . . H 69 x Ø 53

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75712-04BX . . . Boxed

Off

A1  & A2

Both positions spring return to OFF position



On

Reverse

A1 & B1

A2 & B2

On

Forwar d

A1 & B2

A2 & B1

A1 & A2 circuits must break before

another circuit makes

Windscreen Wiper Washer Off/Park/Lo/Hi

Windscreen Wiper Washer Off/Park/Lo/Hi

75221-09BX

75228-03BX

Features

• Without dynamic parking

• 5 blade terminals

• 6A internal circuit breaker

• Push to wash, white imprint

• Mounting stem thread 7/16”-28

• Mounting stem length 9.6mm

Features

• For dynamic parking motors, single motor

• 6 blade terminals

• Push to wash, white imprint

• O-ring sealed shaft

• Mounting stem 7/16”-28 thread

• Mounting stem length 11.43mm

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  6A@12V,  3A@24V

• Dimensions  . . H 61 x Ø 41

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75221-09BX . . . Boxed

Specifications

• Voltage  . . . . 12/24V Dualvoltage

• Amperage . . .  6A@12V,  3A@24V

• Dimensions  . . H 61 x D 41

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75228-03BX . . . Boxed

46

www.colehersee.com.au

SPST Off/On Round Knob Rotary Switch

SPDT Off/On/On Round Knob Rotary Switch

SPST Off/On Flat Knob Rotary Switch

SPDT Off/On/On Flat Knob Rotary Switch

SPDT Off/On/On Flat Red Knob Rotary Switch

72150-01BX

72171-02BX

72150-02BX

72171-04BX

72161-01BX

Features

• Compact durable nylon body, knob

and stem, IP53

• Aluminium hardware, plated brass

blade terminals

• Dimensions H 30 x D 52 x W 30

Features

• Compact durable nylon body, knob

and stem, IP53

• Aluminium hardware, plated brass

blade terminals

• Dimensions H 30 x D 52 x W 30

Features

• Compact durable nylon body, knob

and stem, IP53

• Aluminium hardware, plated brass

blade terminals

• Dimensions H 30 x D 55 x W 30

Features

• Compact durable nylon body, knob

and stem, IP53

• Aluminium hardware, plated brass

blade terminals

• Dimensions H 30 x D 55 x W 30

Features

• Illuminated Red handle, 12V Standard

• Compact durable nylon body, knob

and stem, IP53

• Aluminium hardware, plated brass

blade terminals

• Dimensions H 30 x D 55 x W 30

Specifications

• Voltage  . . . . 6V-24V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

72150-01BX . . . Boxed

Specifications

• Voltage  . . . . 6V-24V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

72171-02BX . . . Boxed

Specifications

• Voltage  . . . . 6V-24V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

72150-02BX . . . Boxed

Specifications

• Voltage  . . . . 6V-24V Multivoltage

• Amperage . . .  10A@12V,  5A@24V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

72171-04BX . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A@12V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

72161-01BX . . . Boxed

47

www.colehersee.com.au

Windscreen Wiper Washer Electronic 12V

Windscreen Wiper Washer Electronic 24V

75600-02BX

75602-04BX

Features

• Pre-wired single motor control

• Silver contacts, heavy duty

• Mounting stem 7/16”-28 thread, L 11.4mm

• Suits system with or without dynamic park

• Approvals; SAE J1455, J112a, J234

Features

• Single motor control

• Silver contacts, heavy duty

• Mounting stem 7/16”-28 thread, L 11.4mm

• Suits system with or without dynamic park

• Variable speed intermittent function

• Approvals; SAE J1455, J112a, J234

Specifications

• Voltage  . . . . 12V

• Amperage . . .  6A@12V

• Dimensions  . . H 47 x D 56 x W 56

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75600-02BX . . . Boxed

Specifications

• Voltage  . . . . 24V

• Amperage . . .  3A@24V

• Dimensions  . . H 47 x D 56 x W 56

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

75602-04BX . . . Boxed

48

www.colehersee.com.au

Ignition switches are usually operated by a coded key and tumbler
lock, hencol keyed lock or lever. Lever design is available in three
different configurations: short, long and military. Ignition switches
are available with coded cylinder locks and keys or hencol non-
tumbler locks with compatible keys.

Switches are available with a grounded case design with a separate
ground terminal. A grounded case switch must be installed in a metal
panel which is part of the vehicle earthing system. In non-grounded
panels, select a switch with an earth terminal.

For applications subject to adverse environmental conditions a switch
can be furnished with an O-ring seal in the bushing and a gasket
seal to protect the terminal insulator. As an added feature Cole
Hersee manufacturers weather resistant rubber boot and mounting
assemblies, and protective caps.

Two, three and four position circuitry is available for battery ignition
and magneto switches. Combination circuits include:
 earth, accessory, lighting, diesel glow plug, and anti-restart options.
Standard configurations include spring return from one or two positions.

Screw terminals are equipped with lockwashers to assure efficient
connection of circuit wire. Blade terminals are brass, 1/4” wide
arranged to accept multi-pole connectors.

Key removable in OFF
position only, spring return to
IGN/ACC position.

Key removable in OFF
position only, spring return
to IGN/ACC position, spring
return to OFF from FUEL.

Key removable in OFF
position only, spring return
to IGN position.

Spring return to OFF position
from GLOW and GLOW/START.

Ignition Switches

49

www.colehersee.com.au

Anti-restart 4 Position Sealed Ignition Switch

4 Position Heavy Duty Ignition Switch

95060-01BX

9579BX

This sealed switch from Cole Hersee

is constructed from engineered

thermoplastic and is OEM quality.

A fully sealed O-ring, ultrasonic welding

and integral Deutsch connector, this

switch is rated to IP67. Supplied with two

matching keys including integrated boots.

Features

• Engineered thermoplastic, OEM quality

• Fully sealed O-ring, ultrasonic welding

• Integral Deutsch connector, IP67

• Selectable switching and key options

• Multiple key codes or keyed alike option

• Supplied with 2 matching keys

• Plastic facenut and nickel plated back nut

• Key removable only in OFF position

• Spring return to IGN/ACC position

• Ideal for agricultural, earthmoving

and mining

Features

• 4 Screw terminals, bronze contacts

• Heavy duty, coded key actuator

• Key removable in OFF position only

• Mounting stem 3/4” – 20 bush

• Panel thickness 1.52mm to 9.52mm

Specifications

• Voltage  . . . . 6V-24V Multivoltage

• Amperage . . .   10A@12V,  5A@24V

• Dimensions  . . H 72 x Ø 51

• Modes  .   .   .   .   .  Acc/Off/Ign/Start

(anti-restart)

• Application  . .  Heavy Duty, Mining,

Marine, Key Start

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

95060-01BX . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .   10A@12V  accessory,

10A@12V ignition,
10A@12V start

• Dimensions  . . H 60 x Ø 37

• Modes  .   .   .   .   .  Acc/Off/Ign  Acc/Ign

• Application  . .  Heavy Duty, Mining,

Key Start

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

9579BX.   .   .   .   .   . Boxed

Marine 3 Position Ignition Off/Ign/Ign Start

M850BX

Features

• Push for choke, coded key actuator

• Impact resistant plastic body

• 3 Screw terminals, nickel silver contacts

• Individual key codes for added security

• Long stem suits panel up to 33mm thick

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  15A@6-36V  ignition,

20A@6-36V start

• Dimensions  . . H 72 x Ø 38

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M850BX . . . . . Boxed

50

www.colehersee.com.au

Marine 4 Position Ignition Acc/Off/Ign Start

Marine 3 Pos Ignition Switch Off/Ign/Ign Start

Anti-restart Ignition Switch Off/On/Ign Start

M712-02BX

M550BX

956-3125BX

Features

• O-ring sealed stem, cylinder shutter

• 4 Brass screw terminals, coded key

actuator

• Brass contacts, case and hardware

• Key removable in OFF position only

• Mounting stem 13/16”-24 bush

• Mounting stem length 30.95mm

• Panel thickness up to 25.40mm

Features

• Heavy duty, 3 brass screw terminals

• Brass case and hardware, coded key

actuator

• Key removable in OFF position only

• Mounting stem 13/16”-24 bush

• Mounting stem length 30.95mm

• Panel thickness up to 25.40mm

Features

•  4 Screw terminals, Copper contacts

• O-ring sealed housing, keyed actuator

• Will not restart unless returned to OFF

position

• Key removable in OFF position only

• Mounting stem 1”-24 bush

• Panel thickness 0.76mm to 2.85mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A@12V  accessory,

10A@12V ignition,
5A@12V start

• Dimensions  . . H 74 x Ø 37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M712-02BX  . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A@12V  ignition,

5A@12V start

• Dimensions  . . H 74 x Ø 37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M550BX . . . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  30A@12V  accessory,

10A@12V ignition,
10A@12V start

• Dimensions  . . H 65 x Ø 47

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

956-3125BX . . . Boxed

51

www.colehersee.com.au

Anti-restart Ignition Switch Off/Ign/Start

956-3124BX

Features

•  4 Screw terminals, Copper contacts

• O-ring sealed housing, keyed actuator

• Will not restart unless returned to OFF

position

• Mounting stem 1”-24 bush

• Panel thickness 0.76mm to 2.85mm

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A@12V  accessory,

10A@12V ignition,
10A@12V start

• Dimensions  . . H 78 x Ø 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

956-3124BX . . . Boxed

Universal Ignition Switch Off/Ign/Start

95612BX

Features

•  3 Screw terminals, silver contacts

• O-ring sealed housing, lever actuator

• Mounting stem 5/8-32

• Panel thickness 1.52mm to 6.65mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  25A@12V  ignition,

20A@12V start

• Dimensions  . . H 81 x Ø 37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

95612BX . . . . . Boxed

Diesel Ignition Switch 3 Pos Glow/Off/Glow

Start

95033BX

This heavy duty switch provides a

superior pre-heat circuit to energize the

glow pins.

Features

•  3 Screw terminals, silver contacts

• O-ring sealed housing, Lever actuator

• Mounting stem 5/8-32

• Panel thickness 1.52mm to 6.65mm

Specifications

• Voltage  . . . . 6V-36V Multivoltage

• Amperage . . .  50A@12V  ignition,

run glow,
5A@12V start

• Dimensions  . . H 81 x Ø 37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

95033BX . . . . . Boxed

52

www.colehersee.com.au

A solenoid is an electromagnetic relay used in
a direct current wiring system between a low
current capacity switch and a high current load
requirement. In an engine starting system, the
ignition switch in the start position may have a
rating of 5 amps whilst the starter motor may have
a cranking requirement of 200 to 350 amps.

Once energised by the ignition switch, the solenoid
coil moves the high current capacity contact to
a closed position, thereby energising the starter
motor.

When equipment is started, the intermittent
starter application is used for only a few seconds
during each start. To meet this short term demand,
an intermittent solenoid is used to carry the high
rating of current. However, the solenoid will
overheat and fail, as would the starter motor, if
the starter were to run continuously.
For periods up to 15 seconds, it is constructed
so it can be energised without overheating and
destroying its windings.

Rated much lower, the continuous solenoid will
not overheat in continuous operation. Used
for such applications as accessory circuits and
lifts—where there is uninterrupted operation—a
continuous duty solenoid is constructed so it can
be energised constantly without its windings.

As the demands placed upon vehicle electrical
systems continue to increase, the electrical system
components must be able to handle higher loads.

Numerous applications require a solenoid, listed
below are just a few:
• Farm equipment
• Emergency vehicles
• Golf carts
• Hoists
• Buses
• Industrial equipment
• Construction equipment
• Tailgates
• Trucks
• Lift trucks
• Tractors

Conservative Electrical Ratings for Solenoids

Intermittent Duty Solenoids

SPST 6–12 volts DC
750 amp make
100 amp break
10 seconds ON, 20 minutes OFF

Intermittent Duty Solenoids

SPST 6–36 volts DC
120 amp make
65 amp break
10 seconds ON, 30 minutes OFF

Continuous Duty Solenoids

SPST 24–36 volts DC
85 amp make

Continuous Duty Solenoids: SPDT

35 amp: front studs, normally closed
85 amp: side studs, normally open

Cole Hersee Solenoids

• Intermittent Duty Solenoids: SPST, steel housing,

normally open contacts, one circuit: OFF/ON

• Intermittent Duty Solenoids: SPST, phenolic

housing, normally open contacts, one circuit:
OFF/ON

• Intermittent Duty Solenoids: SPST, plasticised

steel housing, normally open contacts, one
circuit: OFF/ON

• Continuous Duty Solenoids: SPST, steel housing,

normally open contacts, one circuit: OFF/ON

• Continuous Duty Solenoids: SPST, steel housing,

normally closed contacts

• Continuous Duty Solenoids: SPST, steel housing,

normally open and closed contacts

• Continuous Duty Solenoids: SPST, plasticised steel

housing, normally open contacts, one circuit:
OFF/ON

• Continuous Duty Latching Solenoids: carry only

Please note: some of the above mentioned
options may not be shown in this catalogue.

Solenoids

53

www.colehersee.com.au

SPST Continuous Duty Solenoid Insulated

Earth

24059BX

A solenoid in an electromagnetic relay

used in a direct current wiring system

between a low current capacity switch

and a high current load requirement.

Features

• 4 Stud, Insulated stud earth

• SPST Normally open (one circuit) OFF/

ON

• Copper Stud terminals 5/16”-24

• Insulated Coil terminals 10-32

• Strong plated steel housing

• Plated steel nuts and washers included

• Mounting holes;

8mm x 15mm, 56mm CTC

• Mount with brand cap facing DOWN

• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage  . . . . 12V, 24V, 36V Models

• Dimensions  . . H 60 x D 64 x W 84

• Configuration . SPST

• Modes  .   .   .   .   . Off/On

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 17.5 ohm

24059BX . . . . .  85A  Continuous

750A Make
100A Break

24143BX . . . . .  200A  Continuous

600A Inrush
200A Make
200A Break

Part Numbers 24V, 71 ohm

24063BX . . . . .  85A  Continuous

120A Make
100A Break

24144BX . . . . .  200A  Continuous

150A Make
150A Break

Part Numbers 36V, 130 ohm

24080BX . . . . .  85A  Continuous

120A Make
65A Break

3

2

1

4

STEEL

BRACKET

STEEL

CASE

MOUNTING HOLES

3

2

1

4

STEEL

BRACKET

STEEL

CASE

MOUNTING HOLES

SPST Continuous Duty Insulated Earth PVC

Coated

M24117BX

A solenoid in an electromagnetic relay

used in a direct current wiring system

between a low current capacity switch

and a high current load requirement.

Weatherproof PVC coated housing

versions are UL listed and ISO 8846

Marine grade.

Features

• 4 Stud, Insulated stud earth

• SPST Normally open (one circuit) OFF/

ON

• Copper Stud terminals 5/16”-24

• Insulated Coil terminals 10-32

• Strong plated steel housing

• Plated steel nuts and washers included

• Mounting holes;

8mm x 15mm, 56mm CTC

• Mount with brand cap facing DOWN

• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage  . . . . 12V, 24V, 36V Models

• Dimensions  . . H 60 x D 64 x W 84

• Configuration . SPST

• Modes  .   .   .   .   . Off/On

• Application  . . Heavy Duty, Marine

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 17.5 ohm

M24117BX . . . .  85A  Continuous

750A Make
100A Break

Part Numbers 24V, 71 ohm

24063BX . . . . .  85A  Continuous

120A Make
100A Break

3

2

1

4

STEEL

BRACKET

STEEL

CASE

MOUNTING HOLES

54

www.colehersee.com.au

SPST Intermittent Duty Solenoid Grounded

Earth

24037BX

Features

• 3 Stud, Grounded stud earth

• SPST Normally open (one circuit) OFF/

ON

• Copper Stud terminals 5/16”-24

• Internal grounded, Coil terminals 10-32

• Strong plated steel housing

• Plated steel nuts and washers included

• Mounting holes;

8mm x 15mm, 56mm CTC

• Mount with brand cap facing DOWN

• Int. ratings: 10 sec ON, 20 min OFF

Specifications

• Voltage  . . . . 12V, 24V, 36V Models

• Dimensions  . . H 60 x D 64 x W 84

• Configuration . SPST

• Modes  .   .   .   .   . Off/On

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 4.4 ohm

24037BX . . . . .  750A  Make

100A Break

Part Numbers 24V, 29 ohm

24063BX . . . . .  375A  Make

100A Break

BRACKET

STEEL

MOUNTING HOLES

2

3

1

SPST Continuous 12V 110A Latching Solenoid

24200BX

Features

• Pulse energise, stays on; pulse again,

drops out.

• No heat generated due to coil taken

out of circuit

• Copper Stud terminals 5/16”-24

• Insulated Coil terminals 10-32

• Strong plated steel housing

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Mount with brand cap facing DOWN

• Int. ratings: 10 sec ON, 30 min OFF

This special solenoid toggles On and Off, and requires no current to maintain the

continuity of the power circuit. Use it with a Mom function switch. Actuation of the

momentary switch causes current to flow in the solenoid coil, locking the contact

in place, maintaining the load circuit in an On position. A second actuation of the

momentary switch releases the plunger, turning the load circuit Off.

Suggested to be used with momentary switches.

Remote Battery Isolator

In a two-battery system, use the Latching Solenoid to isolate

the batteries from each other, and prevent battery drain from

the higher into the lower. It has an advantage over electronic

Battery Isolators, in that it will not produce a voltage drop

during operation.

Remote Battery Disconnect

Use it as a remote Battery Disconnect Switch. This eliminates

the need for heavy gauge wiring between the control panel

and the battery.

Specifications

• Voltage  . . . . 12V

• Dimensions  . . H 60 x D 79 x W 84

• Configuration . SPST

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

24200BX . . . . .  110A  Continuous

110A (carry only)

LOAD

BAT

+

3

2

4

1

MOUNTING HOLES

BRACKET

STEEL

3

2

1

4

L

B1

+

L

MAIN LOAD

B2

+

ALTERNATOR

BATTERY TERMINAL

SECONDARY LOADS

3

2

1

4

L

B

+

Pilot Light

55

www.colehersee.com.au

SPST Intermittent Duty Solenoid Insulated

Earth

24047BX

A solenoid in an electromagnetic relay

used in a direct current wiring system

between a low current capacity switch

and a high current load requirement.

Features

• 4 Stud, Insulated stud earth

• SPST Normally open (one circuit) OFF/

ON

• Copper Stud terminals 5/16”-24

• Insulated Coil terminals 10-32

• Strong plated steel housing

• Plated steel nuts and washers included

• Mounting holes;

8mm x 15mm, 56mm CTC

• Mount with brand cap facing DOWN

• Int. ratings: 10 sec ON, 20 min OFF

Specifications

• Voltage  . . . . 12V or 24V Models

• Dimensions  . . H 60 x D 64 x W 84

• Configuration . SPST

• Modes  .   .   .   .   . Off/On

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 4.4 ohm

24047BX . . . . .  750A  Make

100A Break

M200BX . . . . .  750A  Make

100A Break
clear protective coating

Part Numbers 24V, 29 ohm

24008BX . . . . .  120A  Make

65A Break

3

2

1

4

STEEL

BRACKET

STEEL

CASE

MOUNTING HOLES

3

2

1

4

STEEL

BRACKET

STEEL

CASE

MOUNTING HOLES

Marine, clear protective coating finish, M200BX

DPDT Twin Motor Reversing Intermittent

Solenoid

24450BX

For reversing motors such as hoists,

winches, ATVs and snowplow blades.

Two solenoids in one for cost and space

savings and simpler wiring. Two integral

solenoids provide dynamic braking

for permanent magnet motors when

neither coil is energized.

Features

• F bracket, copper contacts

• Coil terminal blades, common ground

• Two blade coil terminals 5/16”-24

• Black nylon housing, nuts & washers

• Strong black nylon housing

• Plated steel nuts and washers included

• Mounting holes, 105mm CTC

Specifications

• Voltage  . . . . 12V, 24V Models

• Amperage . . .  75A@12V,  45A@24V

• Dimensions  . . H 76 x D 83 x W 127

• Configuration . DPST

• Modes  .   .   .   .   . Intermittent Duty

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V

24450BX . . . . .  Boxed

Part Numbers 24V

24450-02BX . . .    Boxed

31

31

25

50

127

T2

T1

+

Forward

Reverse

BAT

+

BAT

MOTOR

105

56

www.colehersee.com.au

Twin Motor Forward & Reverse Relay

Solenoid

24452BX

Features

• Dynamic braking when switch turned OFF

• Heavy load current, dielectric strength

500V RMS

• Studs are securely protected in epoxy

• Low profile module (less than H 50mm)

• Fully sealed for harsh environment,

• Rust and moisture resistant housing

• Tin plated brass studs, vibration

resistance: 10-55Hz

• For intermittent operation use switch:

Mom On/Off/Mom On

• For continuous use switch:

On/Off/On

• Ideal for tarp, hoist, winch, fans and

other motor reversing applications

• Automatically reverses the direction

of motors

Reversing module carries a heavy load

and is suitable for intermittent or

continuous operation at 12V DC.

Ideal for tarp or lift applications as

well as for hoists, hatches, winches/

windlasses, snowplows, intake/exhaust

fans, vehicle outriggers and many other
direction reversing applications.

Specifications

• Voltage  . . . . 12V

• Dimensions  . . H 48 x D 74 x W 92

• Configuration . SPST

• Modes  .   .   .   .   . Off/On

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V

24452BX . . . . .  Boxed

T2

T1

+

Forward

Reverse

BAT

+

BAT

MOTOR

DPST Two Circuit Change Over Solenoid

24401BX

This solenoid can be used for special

application like forward and reverse

systems in electric golf carts, garden

tractors, fork lift trucks, winches, etc.

Features

• Normally open and normally closed

contacts

• Used for forward and reverse systems

like winches, fork lifts, etc

• Copper Stud terminals 5/16”-24

• Insulated Coil terminals 10-32

• Strong plated steel housing

• Plated steel nuts and washers included

• Mounting holes;

 8mm x 15mm, 56mm CTC

• Int. ratings: 10 sec ON, 30 min OFF

Motor Reversing Solenoid Wiring Diagram

Typical DC series wound permanent magnet circuit, using a pair of double-action solenoids.

Use pairs of the following solenoids: 24401 (12V) or 24402 (24V).

Specifications

• Voltage  . . . . 12V, 24V Models

• Amperage . . .  35A Normally Closed,

85A Normally Open
Continuous

• Dimensions  . . H 60 x D 64 x W 84

• Configuration . DPST

• Modes  .   .   .   .   . Continuous Duty

• Application  . . Heavy Duty, Mining

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 17.5 ohm

24401BX . . . . .  Boxed

Part Numbers 24V, 71 ohm

24402BX . . . . .    Boxed

3

2

1

5

6

4

3

2

1

5

6

4

To

Motor

BAT +

+

To

Motor

2440X Series

Solenoid

2440X Series

Solenoid

SPDT

Control Switch

Fwd

Rev

–

3

2

1

5

6

4

BRACKET

STEEL

MOUNTING HOLES

3

2

1

5

6

4

BRACKET

STEEL

MOUNTING HOLES

57

www.colehersee.com.au

SPST 225A Heavy Duty Solenoid Continuous

24812BX

For use with heavy vehicles, materials

handling, hydraulic systems, large DC

machinery, and electric vehicles.

Features

• SPST Normally open (one circuit) OFF/

ON

• Copper Stud terminals 5/16”-24

• Insulated Coil terminals 10-32, L bracket

• Strong plated steel housing

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage  . . . . 12V, 24V Models

• Dimensions  . . H 103 x D 69 x W 100

• Configuration . SPST

• Modes  .   .   .   .   . Continuous Duty

• Application  . . Heavy Duty

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 7.7 ohm

24812BX . . . . .  225A  Continuous

750A Make
150A Break

Part Numbers 24V, 32 ohm

24824BX . . . . .  225A  Continuous

250A Make
150A Break

66

49.5
83.5

82

SPST 24V 100A Continuous Nylon Solenoid

SPST 12V 100A Continuous Nylon Solenoid

24624-10BX

24612-10BX

Features

• SPST Normally open (one circuit) OFF/ON

• 4 Stud, Copper Stud terminals 5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, F bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 10 sec ON, 30 min OFF

Features

• SPST Normally open (one circuit) OFF/ON

• 4 Stud, Copper Stud terminals 5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, F bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage  . . . . 24V

• Amperage . . .  100A  Continuous

200A Inrush
100A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

24624-10BX . . . 24V, 64 ohm

Specifications

• Voltage  . . . . 24V

• Amperage . . .  100A  Continuous

400A Inrush
100A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

24612-10BX . . . 12V, 16 ohm

22.25

33.10

9.73

41.27

75.94
57.15

41.27

10.31

25.88

7.13

22.25

33.10

9.73

41.27

75.94
57.15

41.27

10.31

25.88

7.13

58

www.colehersee.com.au

SPST 12V 200A Intermittent Nylon Solenoid

SPST 12V 100A Continuous Nylon Solenoid

24712-GS7BX

24612BX

Features

• 3 Stud, Grounded stud earth, F bracket

• SPST Normally open (one circuit) OFF/ON

• Copper Stud terminals 5/16”-24

• Internal grounded coil terminal 10-32

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 20 sec ON, 40 min OFF

Features

• SPST Normally open (one circuit) OFF/ON

• 4 Stud, Copper Stud terminals 5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, L bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage  . . . . 12V

• Amperage . . .  200A  Intermittent

500A Inrush
200A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24712-GS7BX  . . Boxed

Specifications

• Voltage  . . . . 12V

24059BX . . . . .  100A  Continuous

400A Inrush
100A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24612BX . . . . . Boxed

SPST 12V 100A Continuous Nylon Solenoid

24512-10BX

Features

• SPST Normally open (one circuit) OFF/ON

• 2 Blade, 2 Stud, Copper Stud terminals

5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, F bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage  . . . . 12V

• Amperage . . .  100A  Continuous

400A Inrush
100A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24512-10BX . . . Boxed

SPST 12V 100A Continuous Nylon Solenoid

24612-G10BX

Features

• 3 Stud, Grounded stud earth, F bracket

• SPST Normally open (one circuit) OFF/ON

• Copper Stud terminals 5/16”-24

• Internal grounded coil terminal 10-32

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage  . . . . 12V

• Amperage . . .  100A  Continuous

100A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24612-G10BX  . . Boxed

59

www.colehersee.com.au

SPST 12V 200A Intermittent Nylon Solenoid

SPST 12V 200A Intermittent Nylon Solenoid

SPST 12V 200A Intermittent Nylon Solenoid

SPST 12V 200A Intermittent Nylon Solenoid

24512-03BX

24512-13BX

24612-13BX

24612-03BX

Features

• SPST Normally open (one circuit) OFF/ON

• 2 Blade, 2 Stud, Copper Stud terminals

5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, L bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 20 sec ON, 40 min OFF

Features

• SPST Normally open (one circuit) OFF/ON

• 2 Blade, 2 Stud, Copper Stud terminals

5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, F bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 20 sec ON, 40 min OFF

Features

• SPST Normally open (one circuit) OFF/ON

• 2 Blade, 2 Stud, Copper Stud terminals

5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, F bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 20 sec ON, 40 min OFF

Features

• SPST Normally open (one circuit) OFF/ON

• 4 Stud, Copper Stud terminals 5/16”-24

• Insulated coil terminal 10-32

• Glass black nylon housing, L bracket

• Plated steel nuts and washers included

• Mounting holes 8mm x 15mm, 56mm CTC

• Int. ratings: 20 sec ON, 40 min OFF

Specifications

• Voltage  . . . . 12V

• Amperage . . .  200A  Intermittent

500A Inrush
200A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24512-03BX . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  200A  Intermittent

500A Inrush
200A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24512-13BX . . . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  200A  Intermittent

500A Inrush
200A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24612-13BBX.   .   . Boxed

Specifications

• Voltage  . . . . 12V

• Amperage . . .  200A  Intermittent

500A Inrush
200A Make and Break

• Dimensions  . . H 65 x D 47 x W 76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V, 16 ohm

24612-03BX . . . Boxed

60

www.colehersee.com.au

Cole Hersee circuit breakers and compatible mounting
brackets are designed and engineered for responsive
performance over a long period. Casings are
manufactured from either high quality plated steel
or durable plastic. Mounting brackets are available in
heavy gauge steel or lightweight moulded plastic.

All electrical circuits need protection so an overload
condition can be detected and the circuit opened
until the overload can be corrected. The inexpensive
protection of a circuit breaker can save the failure of
an expensive piece of equipment or an even greater
loss due to an electrical fire.

Generation of heat is a result of an electrical overload.
A fuse has a metal element which is designed to
melt and open the circuit at a relatively low heat.
Two different elements of metals are used in a circuit
breaker. The elements bend and separate due to
heat, thus opening the circuit. A melted fuse must
be replaced, but a circuit breaker can continue to
function after the cause of the overload is corrected.

Most electrical systems have numerous circuits: each
circuit can be operated independently, therefore each
circuit needs protections. With direct current circuits
in a battery powered vehicle, circuit protection is
very important. The cost of an engine starter or other
equipment in a car or truck compared to the cost of a
circuit breaker, makes the circuit breaker an obvious
and necessary addition.

Circuit breakers are the choice for protection in
heavy duty vehicles and equipment. There are more
than twenty types of circuit breakers to fit the
requirements of both equipment design engineers
and aftermarket replacement—suitable for vehicles
on and off the road, equipment in the field and the
construction site.

SAE J553 Circuit Breaker Types

Type I

: Automatic: Cycle or continuously

reset until the overload is corrected

Type II

: Remains open as long as the

overload exists, the unit resets when the
situation is corrected

Type III

: Manual: Remains open until the

unit is manually reset by pushing a button

Circuit Breaker Type Options

Type I

• 12 volt, steel housing, bracket along case

• 12 volt, steel housing, snap-in mounting

• 12 volt, steel housing, plug-in mounting

• 24 volt, steel housing, bracket along case

• 24 volt, steel housing, snap-in mounting

• 12 volt, steel housing, dual circuit breaker,

bracket along case

• 12 volt, plastic housing, bracket along case

• 12 volt, plasticised housing, no bracket

• 12 volt, plasticised housing, bracket along case

Type II

• 12 volt, steel housing, bracket along case

• 12 volt, steel housing, snap-in mounting

• 12 volt, plastic housing, plug-in mounting

• 12 volt, plastic housing, fuse clip snap-in

mounting

Type III

• 12 volt, plastic housing, bracket along case

• 12 volt, plastic housing, snap-in mounting

Please note: some of the above mentioned options may not be shown in
this catalogue.

Metal or Plastic Body?

There’s not a lot of difference between
metal body and plastic body circuit breakers:
both are about the same weight and
structural integrity, but the plastic type is
more resistant to denting and corrosion.
One type of plastic-body breaker, the 30427
series, is also weather-resistant.

Circuit Breakers

61

www.colehersee.com.au

Society of Automotive Engineers Standard J553 defines
testing and performance requirements for three types
of circuit breakers up to 50A for 6V, 12V, and 24V
operation: Type I, Type II and Type III.

Conforming circuit breakers

• Must carry 100% of rated current continuously for a

minimum of 1 hour

• Must open at 135% of rated current within 30 minutes

• Must open at 200% of rated current within 1 minute

The specific current capacity of the circuit breaker is a
function of the particular electrical system being utilised.

It is recommended that the actual performance be verified
through testing experimentally in the proposed application.

Several factors should be considered:

TIME VS. PERCENT OF RATED CURRENT

600%

500%

400%

300%

200%

100%

5

10

15

20

30 40

200  500

0

% OF RATED CURRENT

TIME IN SECONDS

TEMPERATURE DERATING CURVES

200%

150%

100%

50%

0%

0°

7°  25° 37°

65°

93°

121°

% OF RATED CURRENT

TEMPERATURE IN DEGREES °C

-45°

100

Ambient temperature

Circuit breakers are thermal devices. Changes in the
ambient temperature will have an effect on the current
carrying capacity and on the effective limitation of
current during overload cycling.

TIME VS. PERCENT OF RATED CURRENT

600%

500%

400%

300%

200%

100%

5

10

15

20

30 40

200  500

0

% OF RATED CURRENT

TIME IN SECONDS

TEMPERATURE DERATING CURVES

200%

150%

100%

50%

0%

0°

7°  25° 37°

65°

93°

121°

% OF RATED CURRENT

TEMPERATURE IN DEGREES °C

-45°

100

Wire and Terminations

The connecting wires and their
terminations will affect the heat dissipation
characteristic of the breakers. Deviations
from the breaker application specifications
may affect the current carrying capacity or
the effective limitation of current during
overload cycling.

Voltage Rating

The rating marked on breakers is the
maximum value recommended.
Use at higher voltages may significantly
shorten product life under load
conditions, and possibly cause damage to
your equipment.

Circuit Protection

Components are thermal devices that
create an open circuit under overcurrent
conditions. They are deliberately
designed as the sacrificial weakest link
in a system, protecting components from
costly damage. It is important to select
a fuse or circuit breaker with a current
rating equal to or lower than the lowest
current rating of any part of the circuit.

All Cole Hersee circuit breakers conform
to SAE Standard J553.

SAE J553 For Circuit Breakers

62

www.colehersee.com.au

Metal Thermal Reset Cycling Circuit Breakers

Plastic Plugin Cycling Mini Circuit Breakers

Plastic Thermal Reset Cycling Circuit Breakers

30055-10BX

30418-10BX

30427-10BX

These metal Type I circuit breakers cycle

or continuously reset until the overload

is corrected.

Features

• Plated steel case and mounting brackets

• Flange mount, stud terminals 10-32

• Short stud – BAT, Long stud – LOAD

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications

• Voltage  . . . . 12V, 24V

• Amperage . . .  6A, 10A, 15A, 20A,

25A, 30A, 40A, 50A

• Dimensions  . . H 31 x D 20 x W 51

These metal Type I circuit breakers cycle

or continuously resets until the overload

is corrected.

Features

• Grey plastic housing, plug in mounting

• Dimensions H 27 x D 6 x W 11

These weather resistant plastic Type I

circuit breakers cycle or continuously

resets until the overload is corrected.

Features

• Weather resistant plastic body

• Grey plastic case and mounting brackets

• Flange mount, stud terminals 10-32

• Short stud – BAT, Long stud – LOAD

• Dimensions H 31 x D 20 x W 51

Part Numbers 12V

30055-6BX . . . . 6A

30055-10BX . . . 10A

30055-15BX . . . 15A

30055-20BX . . . 20A

30055-25BX . . . 25A

30055-30BX . . . 30A

30055-40BX . . . 40A

30055-50BX . . . 50A

Part Numbers 24V

30172-10BX . . . 10A

30172-15BX . . . 15A

30172-20BX . . . 20A

30172-30BX . . . 30A

Specifications

• Amperage . . .  10A, 15A, 20A, 25A,

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V

30418-10BX . . . 10A

30418-15BX . . . 15A

30418-20BX . . . 20A

30418-25BX . . . 25A

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A, 15A, 20A, 25A,

30A, 40A

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V

30427-10BX . . . 10A

30427-15BX . . . 15A

30427-20BX . . . 20A

30427-25BX . . . 25A

30427-30BX . . . 30A

30427-40BX . . . 40A

63

www.colehersee.com.au

Metal Plugin Cycling ATC/ATO Circuit Breakers

Plastic Resettable Circuit Breakers Type III

30409-10BX

30407-15BX

These metal Type I circuit breakers cycle

or continuously resets until the overload

is corrected.

Terminals are grooved so that they can

be easily snapped off with pliers to fit

the electrical blocks of different vehicles.

Use as is long terms for Kenworth trucks.

Features

• Plated steel case, plug in mounting

• Cut on grooves for Length of terminals

These plastic Type III resettable circuit

breakers remains open on overload

until reset button depressed.

Features

• Push button reset, plastic case

• Flange mount, stud terminals 10-32

• Short stud – BAT, Long stud – LOAD

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A, 15A, 20A, 25A,

30A

• Dimensions  . . H 19 x D 10 x W 21

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V

30409-10BX . . . 10A

30409-15BX . . . 15A

30409-20BX . . . 20A

30409-25BX . . . 25A

30409-30BX . . . 30A

Specifications

• Voltage  . . . . 12V

• Amperage . . .  10A, 15A, 20A, 25A,

30A, 40A

• Dimensions  . . H 31 x D 20 x W 51

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers 12V

30407-15BX . . . 15A

30407-20BX . . . 20A

30407-25BX . . . 25A

30407-30BX . . . 30A

30407-40BX . . . 40A

30407-50BX . . . 50A

64

www.colehersee.com.au

 7 Pole Heavy Duty ABS Body Trailer Plug

 7 Pole Heavy Duty ABS Body Trailer Socket

12311BX

12080BX

Features

• Glass filled plastic housing prevents

rust and corrosion

• Spring grip design with self-adjusting

spring band for uniform contact with

socket pins.

• Contacts flat for best alignment and

connection

• O-ring at plug end prevents moisture

from reaching contacts

• Strain relief isolates connections on

terminals from mechanical strain.

• Grommet seal provides additional

moisture protection

Features

• Glass filled plastic housing prevents

rust and corrosion

• Insulated circuit contacts

(not self-grounding)

• Spring loaded cover

• Solid brass contact pins

• Earth Pin 8AWG others 10 AWG

Specifications

• Dimensions  . . H 40 x D 156 x W 76

• Approvals . . . ADR 42, SAE J560b

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

12311BX . . . . . Boxed

Specifications

• Dimensions  . . H 84 x D 54 x W 104

• Approvals . . . ADR 42, SAE J560b

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

12080BX . . . . . Boxed

12080-01BX . . . Split pin contacts

Connectors and Electrical

The Cole Hersee range includes high quality
connectors and electrical equipment such as heavy
duty trailer connectors, battery studs and jumpers,
headlight connectors and electronic units.

Cole Hersee trailer connectors are built to
withstand the rigors of trucking thousands of
kilometers in dust and dirt, heat and cold, yet
maintain the all-important electrical continuity
between vehicle and trailer.

7 Pole Trailer Connector

Wiring

Socket

1 Earth return

White

2 Reversing lamp

Black

3 Left hand turn signal

Yellow

4 Stop lamps

Red

5 Right hand turn signal

Green

6 Rear, clearance, marker lamps

Brown

7 Service brakes

Blue

Plug

65

www.colehersee.com.au

 7 Pole Heavy Duty Metal Body Trailer Plug

 7 Pole Heavy Duty Metal Body Trailer Plug

 7 Pole Heavy Duty Metal Body Trailer Plug

 7 Pole Heavy Duty Metal Body Trailer Socket

12091BX

12092BX

1255BX

12063BX

Features

• Die-cast metal housing, Quick release

• Floating contacts for best alignment

• Cable clamp holds cables firmly in place

• Earth Pin 8AWG others 10AWG

Features

• Die-cast metal housing, Quick release

• Floating contacts for best alignment

• Plated steel cable protector provides

strain relief and abrasion protection

• Cable clamp holds cables firmly in place

• Earth Pin 8AWG others 10AWG

Features

• Die-cast metal housing, spring grip

• Plated steel cable protector provides

strain relief and abrasion protection

• Cable clamp holds cables firmly

• Unique brass female contact with

self-adjusting spring band, ensures

uniform contact with socket pins

• Greater contact area for increased

electrical efficiency

• Coupling and uncoupling are easier,

creates a wiping action that eliminates

dirt, dust, etc.

Features

• Corrosion resistant die-cast metal

• Spring loaded cover

• Solid brass contact pins

• Earth Pin 8AWG others 10 AWG

Specifications

• Dimensions  . . H 45 x D 107 x W 76

• Approvals . . . ADR 42, SAE J560b

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

12091BX . . . . . Boxed

Specifications

• Dimensions  . . H 40 x D 200 x W 76

• Approvals . . . ADR 42, SAE J560b

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

12092BX . . . . . Boxed

Specifications

• Dimensions  . . H 40 x D 225 x W 68

• Approvals . . . ADR 42, SAE J560b

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

1255BX.   .   .   .   .   . Boxed

Specifications

• Dimensions  . . H 84 x D 54 x W 104

• Approvals . . . ADR 42, SAE J560b

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

12063BX . . . . . Boxed

12063-01BX . . . Split pin contacts

66

www.colehersee.com.au

Heavy Duty Battery Feed Studs

Heavy Duty Battery Jumper Studs

M46211-01BX

M46210-03BX

These battery feed studs are designed

to bring power through fire walls and

bulk heads.

Features

• Impact resistant threaded mount bushing

• Self locking mounting nut

• Suits panel up to 9mm thick

• Hole Dia Flats 28.5mm, Body 36mm

• Double sided cable stud 3/8”-16, D

9.5mm, L 15mm

• Includes lock washer & brass hexnut

A battery jumper studs allow direct

connection to the battery at more easily

accessible locations inside or outside the

vehicle.

Features

• Impact resistant threaded mount bushing

• Self locking mounting nut

• Suits panel up to 9mm

• Hole Dia Flats 28.5mm, Body 36mm

• Cable stud 3/8”-16, D 9.5mm, L 15mm

• Includes lock washer & brass hexnut

• Brass jumper stud 20.6mm, H 29mm

Specifications

• Voltage.   .   .   .   . 6V - 48V Multivoltage

• Dimensions  . . H 52 x D 40 x W 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M46211-01BX . . Black Negative

M46211-RBX .   .   . Red Positive

Specifications

• Voltage.   .   .   .   . 6V - 48V Multivoltage

• Dimensions  . . H 67 x D 40 x W 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M46210-03BX . . Black Negative

M46210-02BX . . Red Positive

ABS Base Brass Terminal Strip Connector

M4755BX

Features

• Moisture-repellent molded fibre base

• Nickle-plated brass terminal links

5 Circuit diagram

Specifications

• 5 Circuit . . . . H 24 x D 19 x W 133

• 8 Circuit . . . . H 21 x D 16 x W 162

• 10 Circuit  . . . H 21 x D 16 x W 197

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

M4755BX.   .   .   .   . 5 Circuit

M4721BX.   .   .   .   . 8 Circuit

M4722BX.   .   .   .   . 10 Circuit

67

www.colehersee.com.au

Three Pole Sealed Beam Connector

3028-02BX

Features

• Sealed beam connector without wires

• Three pole headlamp type

• High temperature resistant material

with bronze contacts

• Pre-wired version available

Specifications

• Dimensions  . . H 28 x D 16 x W 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

3028-02BX . . . . Boxed

3029BX.   .   .   .   .   . Pre-wired

To keyed 12V ignition power

To parking brake switch

Battery+

Headlights

Green

DRL Module

White

Blue

Yellow

Red

Black

HIGH

LOW

High/Low

Selector

Switch

Red

LOAD

BAT

–

+

+

Black

High side switching application

Red

LOAD

BAT

–

+

+

Black

Low side switching application

Electronic Daytime Running Light Module

Intermittent Duty Electronic Solenoid 9-31V

48600BX

48785BX

This module automatically turns on low-

beam headlights when the ignition is

turned on (after a 10 second delay, thus

reducing the initial starting load).

Features

• Activated when the parking brake

is released; deactivated when the

parking brake is set (with ignition On)

• Deactivates when high beams are

flashed for signaling

• DRLs on with ignition, 10 Sec delay

• Suits two or four headlamp systems

• 75% reduction of lamp intensity

• Suits positive switch circuits only

• Completely solid-state construction

Features

• Fully solid state, fully sealed, resistant

to vibration and adverse conditions

• Overcurrent and voltage spike protect

• No contacts, 20 million On-Off cycles

• Resistant to vibration, moisture and dust

• Operating temp -40° to 85° C

• Suitable for high inrush loads

Specifications

• Voltage.   .   .   .   . 12V

• Dimensions  . . H 42 x D 75 x W 92

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

48600BX . . . . . Boxed

Specifications

• Amperage . . .  85A  Continuous

175A Intermittent
2mA @12V draw

• Dimensions  . . H 76 x D 85 x W 135

• Application  . . Heavy Duty

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Part Numbers

48600BX . . . . . Boxed

68

www.colehersee.com.au

ESG Asia Pacific is part of the ECCO Safety Group of companies.
Britax is the registered trademark of, and is used under licence from, a member of the Britax group of companies.

www.colehersee.com.au

Partnership

ESG Asia Pacific are currently, and
have been, the exclusive Australian
distributor of Cole Hersee for over
twenty years!

Along with Cole Hersee, ESG Asia
Pacific also distributes other well-
known automotive brands including
ECCO, Code 3, Britax and Xray Vision.

ESG Asia Pacific is part of the
ECCO Safety Group which globally
serves more than 3,000 OEM and
aftermarket customers.

Website

In conjunction with Australian
packaging, brochures and
merchandising, ESG have
developed a dedicated
Australian Cole Hersee website.

• Browse and compare Cole Hersee

products available in Australia

• Filter products to suit your

application and requirements

• View the latest updates and

additions to the range

Edition 17.1

ESG Asia Pacific

Freecall 1800 025 921

www.eccosafetygroup.com.au
