This self-leveling
pr
oduct fills cracks
and gaps in concrete –
quickl y
and
easil y
.
Fits in standard caulking gun!
Fix them with
Forklift traffic in 1 hour
W
alking traffic in 30 minutes
2
DESCRIPTION
PART NO.
SIZE
FLOORSAVERS
TM
Concrete Crack Repair
13400
250 ml cartridge
ORDER INFORMATION
MRO Repair Products
4
MRO Product Selector Guide
5
Surface Preparation
6
Metal Repair: Putties
8
Metal Repair: Liquids and Metal Casting Compounds
10
Abrasion-Resistant Wearing Compounds
12
Castable Urethanes
16
Rubber Repair: Urethanes
18
Flooring Product Selector Guide
20
Flooring Products
21
Emergency Repair
23
Anti-Seize and Lubricants
24
Gasket Sealants
25
Specialty Maintenance
25
Hand Cleaners
26
Specialty Adhesives
27
Assembly
&
Repair
28
Threadlockers: Liquid
29
Threadlockers: Gel
31
Retaining Compounds
32
Thread Sealants
33
Gasket Makers
34
OEM Adhesives
38
OEM Adhesive Selector Guide
39
Epoxy Adhesives
40
Urethane Adhesives
43
Methacrylate Adhesives
44
Cyanoacrylates /Instant Adhesives
46
Dispensing Systems
47
Agency Approvals, References, and Indexes
Approvals
48
References
49
Item Number
50
MSDS / Warranty
51
C O N T E N T S
3
Contents
MAINTENANCE
&
REPAIR PRODUCTS
Products to Extend the Life of Your Processing Equipment

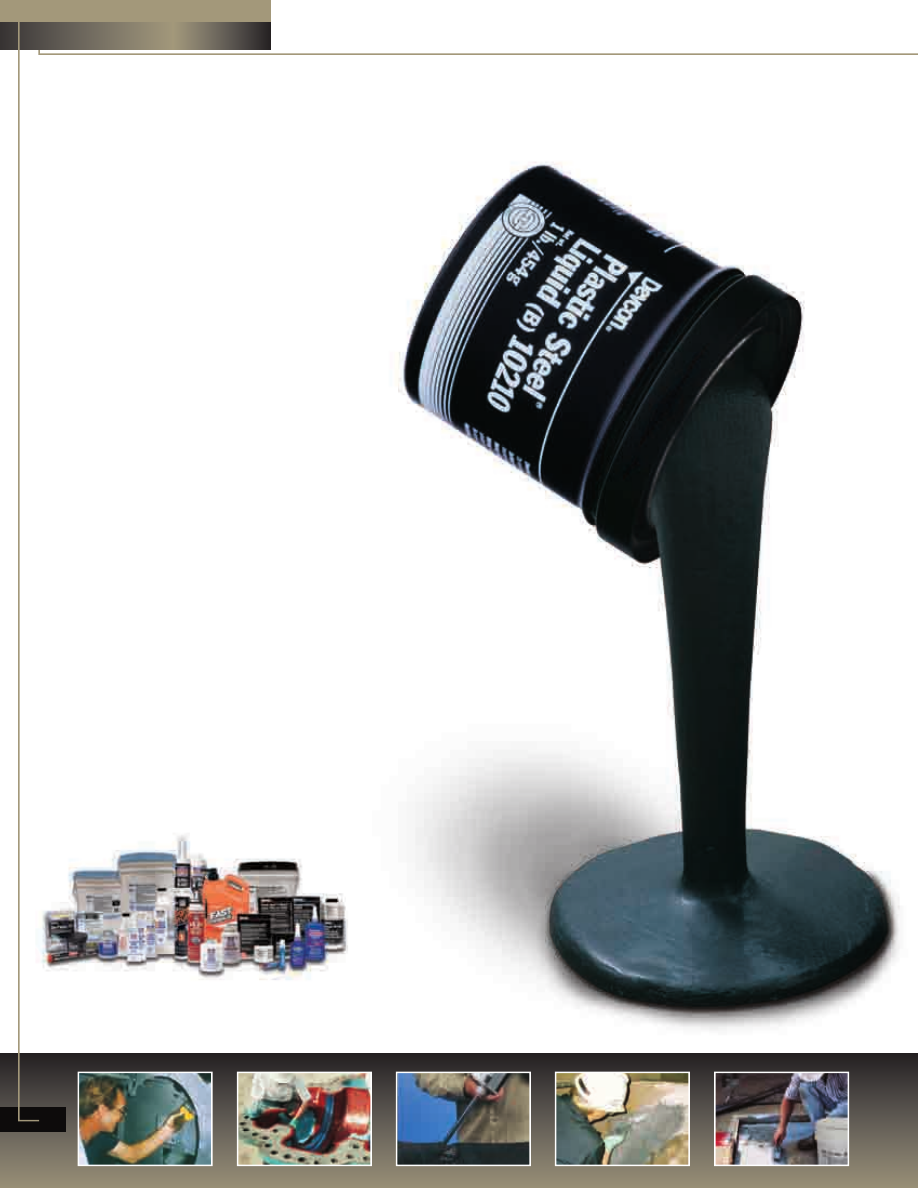

More than 50 years ago, Devcon introduced Plastic Steel
®
, a tough,
steel-filled epoxy putty, as an alternative to welding and brazing.
Today, with the addition of several well-known Permatex
®
product
lines, ITW Devcon boasts one of the world’s most comprehensive
offerings of maintenance and repair products. All these products
can be easily applied by plant maintenance personnel with
minimal training.
Devcon
®
and Permatex
®
MRO products include:
t
Metal repair epoxies designed to extend the
life of critical process equipment
t
Flexane
®
urethanes for rubber repair
t
Protective coatings that reduce damage from
wear and abrasion
t
Floor Savers
™
repair systems for repairing,
protecting and skid-proofing facility floors
t
Compounds for sealing and removing gaskets
t
Emergency repair products for repairing and
returning equipment to service in minutes
t
Anti-seize and specialty lubricants
t
General-purpose and specialty parts cleaners
t
Fast Orange
®
waterless lotion and pumice
hand cleaners
M R O P R O D U C T S
4
M R O P R O D U C T S
MAINTENANCE
&
REPAIR PRODUCTS
5
MRO Product Selector Guide
MRO Applications
Plastic Steel
®
Putty (A)
Aluminum
Putty (F)
Plastic Steel
®
(B)/
Aluminum Liquid
(F-2)
Titanium
Putty
Stainless
Steel
Putty (ST)
Ceramic
Repair
Putty/Compound
Brushable
Ceramic
Wear Guard
™
High-Temp /
High Impact
DFense Blok
™
/
DFense Blok
™
Fast Cure (FC)
DFense Blok
™
Quick Patch
Magic Bond
™
Epoxy Putty
Underwater
Repair Putty
(UW)
Acid Resistant Coating
t
t
t
Casting Repair
t
t
t
t
t
Chemical Resistant
Products / Coatings
t
t
t
Chocking, L eveling Compound
t
Coating
(Impact, Abrasion)
t
t
t
t
t
t
Collection Bins
t
Condenser Tube
Sheet Coating
t
t
t
Corrosion Resistant Coating
t
t
t
t
Cyclones
t
t
Epoxy
(Fast-Cure Repairs)
t
Fans / Exhauster Fan Blades
t
t
t
Flotation Cells
t
t
Holding Fixtures
(Making Molds)
t
Hoppers
(Rebuild & Coat)
t
t
t
Leaks
(Drums, Pipes, Tanks)
t
t
t
t
t
Lining Coal Chutes
t
t
t
Machinable Repair Material
t
t
t
t
t
Meat and Poultry Plants
t
t
t
t
Pipe Elbow Coatings / Linings
t
t
Pulverizers / Mills
t
t
Pump Repairs - Slurry
t
t
t
Pump Repairs - Water
t
t
t
t
Rebuild Worn Threads /
Keyways / Metal
t
t
t
Repairing Engine Blocks
t
t
Screw Conveyors
t
Shaft Repairs
t
Tank Linings
t
t
t
Tank Repairs
(Holes)
t
t
t
t
Valve Rebuild / Repairs
t
t
t
t
t
Wet / Damp Surface Bonding
t
t
SURFACE PREPARATION
SURFACE PREPARATION
6
The Key to Successful Repairs
Proper surface preparation and thorough cleaning are essential for the successful application of Devcon repair products and protective coatings.
General Surface Preparation
In general, the following steps will help you
properly prepare a surface prior to applying
Devcon products:
1) Make sure the surface is completely dry.
Moisture will adversely affect the strength of
the bond to the surface.
2) Remove all surface contamination (paint, rust
and grime) by abrasive blasting, sanding or
other mechanical means.
3) Degrease with Devcon Cleaner Blend 300.
4) Abrade the surface to roughen it and create a
surface profile.
5) Use the appropriate Devcon primer.
For detailed surface preparation procedures,
refer to the appropriate substrate category.
Metal
To properly prepare a metal surface:
1) If the surface is oily or greasy, degrease it with
Devcon Cleaner Blend 300.
2) Abrasive-blast the surface with 25-40 grit (or
coarser) to produce a good surface profile.
If you cannot abrasive-blast the surface, use
a 60 grit or coarser sandpaper to achieve a
similar result.
3) Immediately coat the metal surface with
Flexane
®
FL-10 Primer to prevent it from rusting.
4) Make repairs as soon as possible after blasting
the substrate to avoid oxidation or flash rusting.
Rubber
To properly prepare a rubber surface:
1) Abrade the surface using a rubber rasp or
a grinder with a wire wheel to produce a
good surface profile. (Oils and contaminants
imbedded in the rubber surface are typically
released in this process.)
2) Remove all oil and grease from the rubber
surface with Devcon Cleaner Blend 300 and an
abrasive pad.
3) Wipe the surface with a clean, lint-free cloth
continuously until black residue is no longer
picked up by the white cloth.
4) Prime the surface as follows:
Rubber to metal :
Coat all metal surfaces
(including stainless steel and aluminum) with
two coats of Flexane
®
FL-10 Primer. The
primer will significantly improve adhesion of
Devcon products to metal.
Rubber to metal (for immersion service):
Coat
any metal that will be immersed in an aque-
ous solution with Flexane
®
FL-10 Primer and
Flexane
®
FL-20 Primer. First apply the FL-10
Primer and let dry for 60 minutes. Next, coat
with the FL-20 Primer. Let dry for 30 minutes
before applying the Devcon product.
Rubber to rubber:
Coat all gum rubbers,
neoprene or cured urethanes with a thin coat
of Flexane
®
FL-20 Primer. For ultimate peel
strength, use FL-40 Primer (on rubber only).
Rubber to concrete:
Coat concrete with
Flexane
®
FL-20 Primer. Multiple coats may be
necessary because concrete is very porous. Let
the primer dry for 30 minutes between coats.
Rubber to wood or fiberglass:
Coat these
surfaces with Flexane
®
FL-20 Primer. Soft
woods will require a second coat due to their
absorption characteristics.
When bonding rubber to other surfaces, contact
Devcon Technical Service for a recommendation
on primers and surface preparation procedures.
Aluminum Surfaces
Oxidation on aluminum surfaces reduces epoxy
adhesion. This oxidation film must be removed
before repairing aluminum with Devcon Metal
Repair Epoxies.
To properly prepare an aluminum surface:
1) Remove oxidation by mechanical means such
as grit-blasting or by chemical means such as
acid etching.
2) Follow the General Surface Preparation guidelines.
Devcon Technical Service:
If you have questions, please contact
Devcon Technical Service:
1-800-933-8266
SURFACE PREPARATION
SURFACE PREPARATION
7
Concrete
To properly prepare a concrete surface:
1) Degrease the surface with Devcon Cleaner
Blend 300 or any water-based emulsifying
cleaner and rinse thoroughly. Multiple
cleanings may be necessary. Power washers
or steam cleaners are very effective and can
reduce the number of passes needed to clean
the surface. Let the surface dry thoroughly
before proceeding.
2) Remove any cap-curing agents that were
applied to the concrete when it was poured.
These agents form a dense, impenetrable
finish, making it almost impossible for coatings
to adhere to them.
3) Shot blast (Blastrac
®
) the concrete to create
a porous surface profile. This will improve
surface “wetting” and coating or repair
product adhesion.
Wet Surfaces
In general, Devcon repair products and protective
coatings will not adhere to wet surfaces.
To properly repair a wet surface:
1) Review the General Surface Preparation guidelines.
2) Thoroughly dry the surface. (If you are using
Devcon Underwater Repair Putty (UW), refer to
Underwater Surfaces section.)
3) Stop all leaks or seepage as follows:
t
Shut off the flow or pressure;
t
Fit a wooden peg or a sheet metal screw into
the hole; or
t
Stuff wax, cork, plumber’s caulk, Mortite or
a cloth into the opening.
If the leak is caused by corrosion, the sidewall
might be weak. Open the orifice until sound
metal is exposed and the wall is thick enough
to be plugged.
4) Remove surface condensation (sweating) or
dampness with a heat gun or similar device.
Underwater Surfaces
To properly prepare an underwater surface:
1) Remove all dirt, barnacles, flaking paint or
algae/seaweed from the surface.
2) Wipe the surface with a clean cloth to remove
any film. Although you cannot degrease
underwater, wiping and turning a clean cloth
will often remove any film from the surface.
3) Abrade the surface if possible. (Use a file or
other mechanical means.)
4) Remove oxidation by mechanical means such
as high-pressure water or grit-blasting, or by
chemical means such as acid etching.
Blastrac
®
is a registered trademark of Blastrac, NA.
M E T A L R E P A I R
METAL REPAIR PUTTIES
Devcon Metal Repair Putties
Metal-filled epoxy putties allow fast, economical, permanent repairs to plant and equipment;
cure quickly; and resist corrosion and harsh chemicals.
8
Devcon
®
Wear Resistant Putty (WR-2)
Smooth, nonrusting, all-purpose epoxy compound
for repairs requiring smooth, high-slip finishes
(such as lathe beds).
Item #
Container Size
11410
1 lb
11420
3 lb
Devcon
®
Ceramic Repair Compound
Trowelable, alumina-filled epoxy compound with
a 45-minute pot life and larger kit size for bigger
jobs of rebuilding, smoothing and protecting
processing equipment.
Item #
Container Size
11730
32 lb
Approved by
American Bureau of Shipping
Devcon
®
Plastic Steel
®
Putty (A)
The original metal-filled epoxy putty, it
is ideal for repairing areas where
welding or brazing would be impractical.
Can be drilled, tapped and machined.
Conforms to the requirements of
MIL-PRF-24176C, Type I.
Item #
Container Size
10110
1 lb
10120
4 lb
10130
25 lb
Devcon
®
Plastic Steel
®
5 Minute
®
Putty (SF)
Fast-curing, steel-filled epoxy for
emergency repairs at temperatures
as low as 40°F. Repaired parts can be
returned to service within one hour.
Item #
Container Size
10240
1 lb
Devcon
®
Titanium Putty
H i g h - p e r f o r m a n c e, n o n r u s t i n g
titanium-reinforced epoxy putty for
making repairs that can be precision
machined. Withstands heavy loads
in harsh chemical environments.
Conforms to the requirements of
MIL-PRF-24176C, Type I.
Item #
Container Size
10760
1 lb
10770
2 lb
Devcon
®
Ceramic Repair Putty
Trowelable, alumina-filled epoxy
compound for rebuilding, smoothing
and protecting processing equipment
exposed to corrosion, erosion,
cavitation, chemicals and acids.
Conforms to the requirements of
MIL-PRF-24176C, Type I.
Item #
Container Size
11700
3 lb
Devcon
®
Stainless Steel Putty (ST)
Stainless steel-filled epoxy putty for
patching, repairing and rebuilding
stainless steel surfaces as well as food
processing equipment.
Item #
Container Size
10270
1 lb
ANSI/NSF 61
NSF
®
Devcon
®
Aluminum Putty (F)
Aluminum-filled epoxy putty for
dependable nonrusting repairs to
aluminum castings, machinery and
equipment. Widely used in HVAC
applications, it conforms to requirements
of MIL-PRF-24176C, Type II.
Item #
Container Size
10610
1 lb
10620
3 lb
Devcon
®
Bronze Putty (BR)
Bronze-filled epoxy putty for repairing
bronze and brass bushings, castings
and parts.
Item #
Container Size
10260
1 lb
Devcon
®
HVAC Repair (Special F)
Aluminum-filled epoxy for repairing worn or fatigued
metals. Ideal for repairing copper compressor coils.
Item #
Container Size
19770
6.5 oz
Devcon
®
FasMetal
™
High-performance, alumina-filled
epoxy for making quick, permanent
emergency repairs to pipes, chutes,
tanks and bearing housings.
Item #
Container Size
10780
.75 lb
Canadian part numbers are the same as US part numbers.
METAL REPAIR PUTTIES
9
Key: Excellent Very Good Fair Poor
M E T A L R E P A I R
Physical Properties
Plastic Steel
®
Putty
(A)
Plastic Steel
®
5 Minute
®
Putty
(SF)
Aluminum
Putty
(F)
Stainless Steel
Putty
(ST)
Bronze
Putty
(BR)
Titanium
Putty
Ceramic
Repair
Putty
Ceramic
Repair
Compound
Wear Resistant
Putty
(WR-2)
HVAC Repair
(Special F)
FasMetal
™
Color
Dark Grey
Dark Grey
Aluminum
Grey
Bronze
Grey
Dark Blue
Dark Blue
Dark Grey
Grey
Grey
Mix ratio by
weight / volume
resin:hardener
9:1 / 2.5:1
1.7:1 / 1:1
9:1 / 4:1
11:1 / 3.75:1
9:1 / 3:1
4.3:1 / 3:1
7:1 / 4.3:1
4.7:1 / 3.3/1
9:1 / 4:1
0.9:1 / 1:1
1.07:1 / 1:1
Mixed viscosity
cP
Putty
Putty
Putty
Putty
Putty
Putty
Putty
Putty
Putty
40,000
Putty
Functional cure
hours
16
1
16
16
16
16
16
16
16
16
1
Pot life
minutes
@
75˚F
45
5
60
58
35
21
25
45
45
60
4
Specific volume
inches
3
/pound
11.9
12.2
17.5
12.4
12.4
11.7
16.4
17.9
13.9
16.1
17.2
Coverage
per pound
inches
2
@
1⁄4" thickness
48
49
70
50
50
47
66
72
56
64
69
Cured hardness
(ASTM D2240)
Shore D
85
85
85
85
85
87
90
86
85
85
90
Cured shrinkage
(ASTM D2566)
inch/inch
0.0006
0.0006
0.0008
0.0010
0.0010
0.0010
0.0022
0.0024
0.0005
0.0008
0.0093
Adhesive tensile shear
(ASTM D1002)
psi
2,800
2,026
2,600
2,385
2,680
2,000
2,000
2,231
2,200
2,500
2,000
Compressive strength
(ASTM D695)
psi
8,260
10,400
8,420
8,400
8,540
15,200
12,700
10,240
9,800
8,420
12,700
Flexural strength
(ASTM D790)
psi
5,600
7,680
6,760
5,280
6,180
7,700
6,475
5,870
6,500
6,260
7,700
Modulus of elasticity
(ASTM D638)
psi x 10
5
8.5
7.5
8.0
8.0
8.0
9.5
9.0
8.1
7.5
7.8
8.5
Coefficient of thermal expansion
(ASTM D696)
[(in)/(in x ˚F)] x 10
-6
48
34
29
34
33
22
17
20
32
29
32
Thermal conductivity
(ASTM C177)
[(cal x cm)/(sec x cm
2
x ˚C)] x 10
-3
1.37
2.65
1.73
1.23
1.57
1.95
1.88
1.72
1.67
1.73
2.04
Dielectric constant
(ASTM D150 )
1 kHz
67.5
35.0
21.4
75.0
75.0
44.8
41.0
38.0
6.3
21.4
18.6
Dielectric strength
(ASTM D149 )
volts/mil
30
30
100
30
25
56
370
350
400
100
370
Maximum continuous dry
service temperature
˚F
250
200
250
250
250
350
350
350
250
250
250
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Methanol
Isopropanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
CHLORINATED HYDROCARBONS
1-1-1 Trichloroethane
SALTS
Sodium chloride
Trisodium phosphate
M E T A L R E P A I R
METAL REPAIR LIQUIDS
10
Devcon
®
Cleaner Blend 300
Safe, multi-purpose, nontrichloroethane based
degreaser for removing heavy grease and oil from
metal surfaces. Excellent general-purpose degreaser.
Item #
Container Size
19510
1 pt
Devcon
®
Plastic Steel
®
Liquid (B)
A pourable steel-filled epoxy that
provides accurate detail reproduction
in making holding fixtures, light gauge
forming dies and molds. Can be drilled,
tapped and machined. Qualifies under
Federal Specification MMM-A-1754,
Adhesive/Sealing.
Item #
Container Size
10210
1 lb
10220
4 lb
10230
25 lb
Liquids and Metal Casting Compounds
Pourable epoxy compounds provide accurate detail reproduction and are ideal for
making molds, patterns, holding fixtures and forming dies.
Devcon
®
Liquid Release Agent
Silicone release agent prevents Devcon’s
epoxy and urethane compounds from
sticking to patterns or mold surfaces.
Item #
Container Size
19600
1 pt
Devcon
®
Aluminum Liquid (F-2)
Aluminum-filled pourable epoxy for
making molds, patterns and holding
fixtures. It can be drilled, tapped
and machined and qualifies under
Federal Specification MMM-A-1754,
Adhesive/Sealing.
Item #
Container Size
10710
1 lb
10720
3 lb
Devcon
®
Brushable Ceramic
When applied in a 15-20 mil coating,
this low-viscosity, alumina-filled,
brushable epoxy compound produces
a smooth, protective barrier against
wear, abrasion, corrosion, erosion and
chemical attack. Devcon
®
Brushable
Ceramic White is NSF 61 Certified.
Item #
Container Size
11760
2 lb
(red)
11762
12 lb
(red)
11765
2 lb
(blue)
11767
12 lb
(blue)
11768
55 lb
(blue)
11770
2 lb
(white)
For Technical Information or information on where
to buy Devcon
®
and Permatex
®
products,
call
1-800-933-8266
or visit
www.devcon.com
Approved by
American Bureau of Shipping
Canadian part numbers are the same as US part numbers.
M E T A L R E P A I R
METAL REPAIR LIQUIDS
11
NOTES:
1
Coverage (feet
2
@
15 mils)
Physical Properties
Plastic Steel
®
Liquid (B)
Aluminum Liquid (F-2)
Brushable Ceramic
Color
Dark Grey
Aluminum
Red, Blue
White
Mix ratio by weight / volume
resin:hardener
9:1 / 3:1
9:1 / 5:1
5.6:1
/
3.4:1
8.5:1
/
5.6:1
Mixed viscosity
cP
15 / 25,000
15
/
25,000
32,000
40,000
Functional cure
hours
16
16
16
16
Pot life
minutes
@
75˚F
45
75
40
21
Specific volume
inches
3
/pound
13.1
17.5
17.5
16.5
Coverage per pound
inches
2
@
1⁄4" thickness
52
70
7.6
1
7.6
1
Cured hardness
(ASTM D2240)
Shore D
85
85
90
87
Cured shrinkage
(ASTM D2566)
inch/inch
0.0006
0.0009
0.0020
0.0020
Adhesive tensile shear
(ASTM D1002)
psi
2,800
2,700
2,000
2,000
Tensile strength
(ASTM D638)
psi
4,900
5,000
3,800
3,800
Compressive strength
(ASTM D695)
psi
10,200
9,820
15,200
15,200
Flexural strength
(ASTM D790)
psi
7,480
7,180
8,000
8,000
Modulus of elasticity
(ASTM D638)
psi x 10
5
8.5
7.5
9.0
9.0
Coefficient of thermal expansion
(ASTM D696)
[(in)/(in x ˚F)] x 10
-6
38
50
19
19
Thermal conductivity
(ASTM C177)
[(cal x cm)/(sec x cm2 x ˚C)] x 10
-3
1.39
1.58
1.92
1.92
Dielectric constant
(ASTM D150 )
1 kHz
67.5
8.6
38.7
38.7
Dielectric strength
(ASTM D149 )
volts/mil
30
100
382
382
Maximum continuous dry
service temperature
˚F
250
250
350
350
Key: Excellent Very Good Fair Poor
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Methanol
Isopropanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
CHLORINATED HYDROCARBONS
1-1-1 Trichloroethane
SALTS
Sodium chloride
Trisodium phosphate
A B R A S I O N - R E S I S T A N T
WEARING COMPOUNDS
12
DFense Blok™
DFense Blok
™
is a new, innovative line of specially formulated wear and abrasion products
designed to outperform and outlast traditional wear and abrasion epoxies, while also
providing superior performance in the most severe conditions.
Devcon
®
DFense Blok
™
A revolutionary epoxy compound formulated to
significantly outlast traditional wear and abrasion
products while providing superior protection in the
most severe conditions.
Item #
Container Size
11330
30 lb
NEW!
Devcon
®
DFense Blok
™
Surface Wetting Agent
A thixotropic epoxy gel system that improves the
ease of application and cured adhesion properties of
DFense Blok
™
.
Item #
Container Size
11340
1 lb
Devcon
®
DFense Blok
™
Fast Cure (FC)
Alumina ceramic bead-filled epoxy system with
outstanding wear and abrasion resistance for
severe service conditions. Fast cure allows repaired
processing equipment to be returned to service in as
little as 2 hours.
Item #
Container Size
11350
9 lb
Devcon
®
DFense Blok
™
Quick Patch
Alumina ceramic bead-filled epoxy system with a very
fast cure speed for emergency patching of processing
equipment. Provides wear and abrasion resistance for
extended service life.
Item #
Container Size
11320
1 lb
DFENSE
BLO
Canadian part numbers are the same as US part numbers.
Watch our
Impact Test!
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Methanol
Isopropanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
CHLORINATED HYDROCARBONS
1-1-1 Trichloroethane
SALTS
Sodium chloride
Trisodium phosphate
Physical Properties
DFense Blok
™
with Surface Wetting Agent (SWA)
DFense Blok
™
Fast Cure (FC)
DFense Blok
™
Quick Patch
Pot life
minutes
@
75˚F
25
15
4
Functional Cure
4-5 hours
2-3 hours
30 minutes
Coverage per pound
inches
2
@
1⁄4" thickness
47
53
60
Adhesive tensile shear (ASTM D1002)
psi
2,616
2,764
2,495
Lap Shear Adhesion
psi
882
886
656
T-Peel Adhesion
psi
44
30
22
Side Impact Adhesion
psi
>113
80
29
Grit Blast Volume Loss
cc
0.25
0.36
0.51
Sliding Abrasion Volume Loss
cc
0.8
0.8
2.0
Drop Impact Strength
in
81
60
24
Key: Excellent Very Good Fair Poor
A B R A S I O N - R E S I S T A N T
WEARING COMPOUNDS
13
NEW!
A B R A S I O N - R E S I S T A N T
WEARING COMPOUNDS
14
Trowelable and Brushable Wearing Compounds
Nonsagging, alumina bead-filled coatings that protect dry materials handling and storage
equipment from abrasion, corrosion and wear.
Devcon
®
Wear Guard
™
High Impact
High-density, micro-alumina ceramic bead-filled epoxy
system with flexible polymers for superior adhesion
and protection against extreme impact and flexing.
Item #
Container Size
11460
30 lb
Devcon
®
Tile Adhesive
High-strength, trowelable adhesive that cures at
room temperature.
Item #
Container Size
11495
20 lb
Devcon
®
High-Performance
Backing Compound
High-strength epoxy liquid for use in rod, ball,
pebble and autogenous mills, as well as in cone
and gyratory crushers.
Item #
Container Size
11170
20 lb
Devcon
®
Carbide Putty
Silicone carbide-filled epoxy putty for economical
protection against sliding wear and abrasion. Ideal
for mining applications.
Item #
Container Size
10050
3 lb
10080
20 lb
Devcon
®
Wear Guard
™
Fine Load
High-density, micro-alumina ceramic bead-filled
epoxy system for protecting equipment that handles
particulate smaller than 1⁄ 8".
Item #
Container Size
11470
30 lb
Devcon
®
Wear Guard
™
Ultra
Alumina ceramic bead-filled epoxy system with
outstanding abrasion resistance for severe
conditions. Ideal for environments experiencing
extreme wear.
Item #
Container Size
11475
30 lb
Devcon
®
Combo Wear FC (Fast Cure)
High-tech, three-component compound for quickly
repairing processing equipment and returning it to
service in as little as 1 1/2 hours.
Item #
Container Size
11450
9 lb
Devcon
®
Wear Guard
™
High Load
Alumina ceramic bead-filled epoxy system with
outstanding abrasion resistance for severe service
conditions with particulate greater than 1⁄ 8".
Item #
Container Size
11490
30 lb
Devcon
®
Wear Guard
™
High Temp
High-density, ceramic bead-filled epoxy system for
maximum wear and abrasion resistance in high-
temperature applications.
Item #
Container Size
11480
30 lb
Devcon
®
Brushable Ceramic
When applied in a 15-20 mil coating,
this low-viscosity, alumina-filled,
brushable epoxy compound produces
a smooth, protective barrier against
wear, abrasion, corrosion, erosion and
chemical attack. Devcon
®
Brushable
Ceramic White is NSF 61 Certified.
(See page 11 for Brushable Ceramic
physical properties.)
Item #
Container Size
11760
2 lb
(red)
11762
12 lb
(red)
11765
2 lb
(blue)
11767
12 lb
(blue)
11768
55 lb
(blue)
11770
2 lb
(white)
Canadian part numbers are the same as US part numbers.
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Methanol
Isopropanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
CHLORINATED
HYDROCARBONS
1-1-1 Trichloroethane
SALTS
Sodium chloride
Trisodium phosphate
NOTES:
1
See page 11 for Brushable Ceramic physical properties
2
Three-part system, beads separate
3
Coverage in inches
2
/ 20.4 pound unit
Physical Properties
1
DFense Blok
™
Wear Guard
™
High Load
Wear Guard
™
High Temp
Wear Guard
™
High Impact
Wear Guard
™
Fine Load
Wear Guard
™
Ultra
Combo Wear FC
(Fast Cure)
High Performance
Backing Compound
Tile Adhesive
Carbide Putty
Color
Grey
Grey
Grey
Dark Grey
Grey
Grey
Grey
Red
Light Grey
Grey
Mix ratio by weight / volume
resin:hardener
2:1 / 100:45
2:1 / 2:1
13.7:1 / 6:1
2.5:1 / 2.5:1
2:1 / 2:1
2.15:1:5.65
2
2:1 / 2:1
100:5.94 / 9.9:1
1.1:1 / 1:1
8:1 / 4:1
Mixed viscosity
cP
Putty
Putty
Putty
Putty
Putty
Putty
Putty
10,320
Putty
Putty
Functional cure
hours
4-5
6-8
Heat Cured
6-8
6-8
16
2-3
8
12
16
Pot life
minutes
@
75˚F
25
30
120
30
30
20
7
56
240
50
Specific volume
inches
3
/pound
12.6
12.9
14.3
12.4
12.4
11.4
12.4
17.2
19.2
15.9
Coverage per pound
inches
2
@
1⁄4" thickness
47
50
60
50
50
44
50
349
3
76.8
64
Cured hardness
(ASTM D2240)
Shore D
77
87
87
85
87
87
87
85
81
85
Cured shrinkage
(ASTM D2566)
inch/inch
0.0005
0.0006
0.0010
0.0006
0.0006
0.0004
0.0008
0.0006
0.0010
0.0009
Adhesive tensile shear
(ASTM D1002)
psi
2,616
1,474
2,300
2,567
1,375
1,425
1,450
5,300
2,890
1,350
Compressive strength
(ASTM D695)
psi
7,145
11,000
13,200
7,250
11,000
13,910
11,000
18,850
9,620
8,160
Flexural strength
(ASTM D790)
psi
7,876
7,140
8,220
6,144
7,190
7,220
7,140
11,500
5,480
5,480
Coefficient of thermal
expansion (ASTM D696)
[(in)/(in x ˚F)] x 10
-6
29
32
27
34
34
26
34
22
14
14
Dielectric constant
(ASTM D150)
1 kHz
49.0
41.0
38.0
46.0
46.0
40.0
41.0
N / A
46.0
25.0
Maximum continuous dry
service temperature
˚F
300
300
450
300
300
300
300
250
200
250
Key: Excellent Very Good Fair Poor
A B R A S I O N - R E S I S T A N T
WEARING COMPOUNDS
15
C A S T A B L E U R E T H A N E S
URETHANE CASTING COMPOUNDS
16
Devcon
®
Flexane
®
80 Liquid
Medium-viscosity (10,000 cP) urethane fills voids
completely and faithfully reproduces mold detail.
Cures to semi-rigid rubber (Shore A 87).
Item #
Container Size
15800
1 lb
15810
10 lb
Devcon
®
Flexane
®
94 Liquid
Low-viscosity (6,000 cP) urethane fills voids
completely and faithfully reproduces mold detail.
Similar to Flexane
®
80 Liquid, but cures to a rigid
rubber (Shore A 97).
Item #
Container Size
15250
1 lb
15260
10 lb
Devcon
®
Liquid Release Agent
Silicone release agent produces high-gloss finish,
prevents sticking of and damage to Flexane
®
parts
during demolding.
Item #
Container Size
19600
1 pt
Devcon
®
Edge & Seal (T-35)
Liquid urethane for edging fabric felt belting used
in the papermaking industry as well as potting and
encapsulating.
Item # Container Size Dispenser
Nozzle
DF039 400 ml cartridge 15043
(manual)
15047
Urethane Casting Compounds
Castable, nonshrinking liquid urethanes for producing flexible molds, holding fixtures
and linings as well as low-volume or discontinued parts.
Devcon
®
Flex-Add
™
Used with Flexane
®
80 Liquid to produce a more
flexible urethane.
Item #
Container Size
15940
8 oz
Devcon
®
Flexane
®
Accelerator
Shortens the cure time of Flexane
®
products even in
temperatures as low as 32°F (0°C).
Item #
Container Size
15990
12 oz
Canadian part numbers are the same as US part numbers.
C A S T A B L E U R E T H A N E S
URETHANE CASTING COMPOUNDS
17
NOTES:
1
Taber H-18 wheel (mg / 1,000 revolutions
@
1,000 gram load )
Key: Excellent Very Good Fair Poor
Physical Properties
Flexane
®
80 Liquid
Flexane
®
94 Liquid
Edge & Seal
(T-35)
Color
Black
Black
Black
Mix ratio by weight
resin: hardener
77:23
69:31
80:20
Mixed viscosity
cP
10,000
6,000
5,000
Pot life
minutes
@
75˚F
30
10
3
Specific volume
inches
3
/pound
26.5
26.5
26.5
Coverage per pound
inches
2
@
1/4" thickness
106
106
106
Functional cure
hours
16
16
1.5
Demolding time
hours
10
5
N / A
Cured hardness
(ASTM D2240)
Shore A
87
97
94
Cured shrinkage
(ASTM D2566)
inch/inch
0.0018
0.0014
0.0014
Tensile strength
(ASTM D412)
psi
2,100
2,800
3,300
Tear resistance
(ASTM D624)
pli
350
415
430
Abrasion resistance
weight loss
1
285
330
250
Maximum elongation
(ASTM D412)
%
650
500
450
Dielectric strength
(ASTM D149 )
volts/mil
350
350
350
Maximum continuous service temperature
˚F wet
120
120
120
Maximum continuous service temperature
˚F dry
180
180
180
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
Sulfuric 50%
Phosphoric 10%
ALCOHOLS
Methanol
Isopropanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
SALTS
Sodium chloride
Trisodium phosphate
Aluminum sulfate 10%
Sodium carbonate 10%
R U B B E R R E P A I R
URETHANE REPAIR COMPOUNDS
18
Devcon
®
Flexane
®
80 Putty
Trowelable urethane for repairing and lining process
equipment exposed to wear, abrasion, vibration or
expansion/contraction.
Item #
Container Size
15820
1 lb
15850
4 lb
Devcon
®
Flexane
®
Primers
Required for maximum adhesion of Flexane
®
products.
FL-10 Primer for all metals.
FL-20 Primer for rubber, wood, fiberglass and concrete.
FL-40 Primer for rubber. Ensures ultimate peel strength
(greater than 80 psi).
Item #
Primer
Container Size
15980
FL-10
4 oz
15985
FL-20
4 oz
15984
FL-40
4 oz
Devcon
®
Flexane
®
Brushable
High-performance brushable urethane
for protection against abrasion and
impact. Excellent for repairing/ coating
rubber-lined pumps, tanks and valves.
Item #
Container Size
15350
1 lb
Devcon
®
Flexane
®
High Performance Putty
Trowelable lining for maximum protection against
abrasion, gouging and impact.
Item #
Container Size
15330
1 lb
Devcon
®
Flexane
®
Belt Repair Kit
An ideal solution for making fast, permanent emergency
repairs to damaged conveyor belts, rubber rollers or
other rubber parts.
Item #
Container Size
15165
Kit
Devcon
®
Cable Cast FR
Flame-retardant urethane for encapsulating/insulating
cable jackets; provides superior environmental
protection. MSHA approved for the mining industry.
Item # Container Size
Dispenser
Nozzle
15051 400 ml cartridge
14410
(manual)
14293
Devcon
®
Flexane
®
Fast Cure Putty
Black Flexane
®
Fast Cure thickens to a putty in
seconds providing superior flexibility, elongation and
adhesion to rubber. Ideal for belt repairs.
Item # Container Size
Dispenser
Nozzle
15049 400 ml cartridge
15043
(manual)
15047
Devcon
®
Flexane
®
Fast Cure Liquid
Grey Flexane
®
Fast Cure Liquid is a convenient,
time-saving method of filling expansion joints and
repairing rubber.
Item # Container Size
Dispenser
Nozzle
15050 400 ml cartridge
15043
(manual)
15047
Urethane Repair Compounds
Flexible urethane compounds for repairing worn or damaged belting and rubber surfaces subject
to wear, impact, abrasion, vibration or expansion.
Canadian part numbers are the same as US part numbers.
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
Sulfuric 50%
Phosphoric 10%
ALCOHOLS
Methanol
Isopropanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
SALTS
Sodium chloride
Trisodium phosphate
Aluminum sulfate 10%
Sodium carbonate 10%
R U B B E R R E P A I R
URETHANE REPAIR COMPOUNDS
19
NOTES:
1
Taber H-18 wheel (mg / 1,000 revolutions @ 1,000 gram load )
2
Due to solvent loss
Key: Excellent Very Good Fair Poor
Physical Properties
Flexane
®
80 Putty
Flexane
®
High
Performance Putty
Flexane
®
Fast Cure
Putty
Flexane
®
Fast Cure
Liquid
Flexane
®
Brushable
Cable Cast FR
Flexane
®
Belt
Repair Kit
Color
Black
Black
Black
Grey
Black
Black
Black
Mix ratio
by weight
resin:hardener
72:28
94:6
80:20
80:20
80:20
63:37
72:28
Mixed viscosity
cP
Putty
Putty
Putty
5,800
40,000
10,000
Putty
Pot life
minutes
@
75˚F
20
10
8
8
45
10
20
Specific volume
i
nches
3
/pound
23.5
23.5
23.5
26.5
26.0
22.6
23.5
Coverage
per pound
inches
2
@
1/4" thickness
94
94
94
106
104
90
94
Functional cure
hours
12
16
3
2
18
12
12
Demolding time
hours
N / A
N / A
N / A
N / A
N / A
N / A
N / A
Cured hardness
(ASTM D2240)
Shore A
87
78
88
94
86
83
87
Cured shrinkage
(ASTM D2566)
inch/inch
0.0014
0.12
2
0.0014
0.0018
0.23
2
0.0014
0.0014
Tensile strength
(ASTM D412)
psi
1,700
4,500
2,400
3,300
3,500
2,600
1,700
Tear resistance
(ASTM D624)
pli
300
400
275
430
400
325
300
Abrasion
resistance
weight loss
1
280
140
220
330
90
N / A
280
Maximum elongation
(ASTM D412)
%
300
600
500
450
600
800
300
Dielectric strength
(ASTM D149 )
volts/mil
350
350
350
350
340
300
350
Maximum continuous wet
service temperature
˚F
120
120
120
120
120
120
120
Maximum continuous dry
service temperature
˚F
180
180
180
180
180
180
180
FLOORING PRODUCTS
FLOOR REPAIR
&
RESURFACING
20
Floor Repair and Resurfacing Product Selector Guide
Flooring Applications
Floor Patch
™
Floor Patch
™
FC Ultra Quartz
™
Floor Patch
™
Resurfacer
Deep Pour
Grout
™
Concrete Crack
Repair
Epoxy Concrete
Sealer
Epoxy Coat
™
7000 Non VOC
Epoxy Coat
™
7000 AR
Floor Grip
™
Acid-Resistant Coating
t
t
t
Anchoring Bolts in Concrete
t
t
t
Anti-Skid Floors / Ramps / Docks
t
Chemical Containment Coatings
t
t
t
Chocking Equipment
t
Coatings
(Impact, Abrasion)
t
t
t
Crack Filling
t
Expansion Joints
t
t
Floor Coating
t
t
t
Floor Hole-Filling & Patching
t
t
Floor Resurfacing
(Up to 1")
t
t
Leveling Equipment
t
Leveling Floors
t
t
t
Metal Coatings
t
t
Wet / Damp Surface Coatings
t
t
t
t
t
FLOORING PRODUCTS
FLOOR REPAIR
&
RESURFACING
21
Floor Repair/Patching Compounds
100% solids epoxy-based polymers for patching, rebuilding and resurfacing concrete, brick,
stucco and block.
Devcon
®
Ultra Quartz
™
Heavy-duty, trowelable premium floor patching
system with excellent chemical resistance. System
includes a primer for superior adhesion to cured
concrete or other surfaces.
Item #
Container Size
13550
35 lb
Devcon
®
Floor Patch
™
Resurfacer
A three-part filled epoxy system for concrete floors
where aggregate is exposed. This self-leveling
product mixes easily, is ideal for repairing damaged
concrete and rebuilding to depths of 1/4" to 1".
Item #
Container Size
13130
41 lb
Devcon
®
Deep Pour Grout
™
Filled epoxy grout for pouring machinery mounting
pads to 6" deep and rebuilding worn concrete. Easy
to mix and self-leveling.
Item #
Container Size
13800
50 lb
Devcon
®
FloorSavers
™
Concrete Crack Repair
A self-leveling urethane compound designed to repair
cracks and gaps in concrete – quickly and easily. Grey
in color and cartridge fits in a standard caulking gun.
Item #
Container Size
13400
250 ml cartridge
Devcon
®
Floor Patch
™
All-purpose, easy-to-mix and apply concrete patching
compound. With a compressive strength of 8,000 psi,
Floor Patch
™
, provides three times the typical
strength of concrete.
Item #
Container Size
13100
10 lb
13120
40 lb
Devcon
®
Floor Patch
™
FC
(Fast-Cure)
With this fast-curing version of Floor Patch
™
, repaired
areas can be back in service in 3 hours.
Item #
Container Size
13110
10 lb
Floor Coatings
Epoxy floor coatings for protecting plant floors, platforms, walkways and ramps against acids,
alkalis and solvents.
Devcon
®
Epoxy Coat
™
7000 AR
(Acid Resistant)
Novolac non-VOC epoxy coating provides superior
resistance to concentrated acids (including 98%
sulfuric) and chemicals. Excellent adhesion to
concrete surfaces. Ideal for use around chemical
storage tanks, dike walls and containment areas.
Item #
Container Size
12750
2 gal
Devcon
®
Epoxy Coat
™
7000
Non VOC
100
%
solids self-leveling coating for
smooth or mildly spalled concrete.
Produces an attractive, durable, chemical-
resistant finish. Silica aggregate can be
added to rebuild floors by 1/16" or more.
Item #
Container Size
12710
2 gal
Devcon
®
Epoxy Concrete Sealer
Self-leveling, non-VOC clear epoxy sealer can be
used as a primer on damp surfaces. Easily applied
by brush, roller or squeegee at temperatures as low
as 40°F. Outstanding resistance to chemicals, acids,
alkalis and hydrocarbons.
Item #
Container Size
12560
2 gal
Anti-Skid Additives
Granular additives used with Devcon floor coatings to produce anti-slip surfaces for worker safety.
Devcon
®
Floor Grip
™
Heavy-duty epoxy compound with silicone carbide
granules produces an exceptional non-skid surface
on walkways, ramps, loading docks and stairs.
Excellent adhesion to concrete, brick, steel, aluminum
and wet surfaces. Can be applied at temperatures
as low as 40°F.
Item #
Container Size
13090
2 gal
Canadian part numbers are the same as US part numbers.
22
FLOORING PRODUCTS
FLOOR REPAIR
&
RESURFACING
Physical Properties
Floor Patch
™
Floor Patch
™
FC
Ultra Quartz
™
Floor Patch
™
Resurfacer
Deep Pour
Grout
™
Concrete
Crack Repair
Epoxy Concrete
Sealer
Epoxy Coat
™
7000
Non VOC
Epoxy Coat
™
7000 AR
Coverage per unit
feet
2
@ thickness
18@ 0.25" /
40 lb unit
4.5@ 0.25" /
10 lb unit
13@ 0.25" /
35 lb unit
568 inches
3
/
41 lb unit
640 inches
3
/
50 lb unit
20.3 Lft @0.25" /
250 mils
400 @ 8 mils
400 @ 8 mils
200 @ 16 mils
Mixed viscosity
cP
Putty
Putty
Putty
5,000
13,000
3,250
2,000
2,000
3,600
Minimum application
temperature
°F
60 ~ 90
60 ~ 90
60 ~ 90
50 ~ 90
50 ~ 90
50 ~ 90
40 ~ 90
55 ~ 90
60 ~ 90
Pot life
minutes @ 75°F
45
15
60
40
40
1.5
60
55
36
Functional cure
hours
16
3
16
24
16
30 min
24
24
24
Cured hardness
(ASTM D2240)
Shore D
85
85
95
85
83
53
85
85
85
Maximum continuous
service temperature
°F
250
250
250
180
180
250
180
180
200
% Solids
100
100
100
100
100
100
100
100
100
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
N/A
ALCOHOLS
Methanol
Isopropanol
N/A
KETONES
Acetone
Methyl ethyl ketone
N/A
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
N/A
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
N/A
CHLORINATED HYDROCARBONS
1-1-1 Trichloroethane
N/A
SALTS
Sodium chloride
Trisodium phosphate
N/A
Key: Excellent Very Good Fair Poor
23
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Methanol
Isopropanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
CHLORINATED HYDROCARBONS
Perchloroethylene
1-1-1 Trichloroethane
SALTS
Sodium chloride
Trisodium phosphate
E M E R G E N C Y R E P A I R
EMERGENCY REPAIR
Devcon
®
Magic Bond
™
Epoxy Putty
Seals leaks and repairs gouges in steel, aluminum,
wood, fiberglass, concrete and ceramics. Two-color
stick ensures thorough mixing. Cures rock-hard in
30 minutes. Can be painted, sanded, machined,
tapped or drilled.
Item #
Container Size
11600
4 oz stick
Devcon
®
Zip Patch
™
Easy-to-use adhesive patch kit for permanent water-
proof repairs to pipes, tanks and drums. Hardens in
minutes at room temperature.
Item #
Container Size
11500
4" x 9" patch
Devcon
®
Underwater Repair Putty (UW)
Water-resistant putty for repairing, patching and
rebuilding equipment in underwater or habitually wet
environments.
Item #
Container Size
11800
1 lb
Devcon
®
Magic Sorb
™
Spill Cleanup Products
Ideal for containment and cleanup of chemical, acid
and hydrocarbon spills.
Item #
Container Size
48000
Bag 25 lb
48100
Sock 3" diameter x 42"
Emergency Repair Products
These epoxy compounds cure rapidly — even under water — to form strong, permanent
repairs, minimizing spills due to leaks or accidental punctures as well as remediation costs.
Key: Excellent Very Good Fair Poor
Physical Properties
Magic Bond
™
Epoxy Putty
Zip Patch
™
Underwater
Repair Putty (UW)
Color
Light Grey
Brown
Grey
Mix ratio by weight / volume
resin:hardener
1:1
N / A
1.4:1 / 1:1
Mixed viscosity
cP
Putty
17,000
Putty
Functional cure
hours
1
1
24
Pot life
minutes
@
75˚F
20
5
45
Specific volume
inches
3
/pound
15.3
N / A
17.0
Coverage per pound
inches
2
@
1⁄4" thickness
61
N / A
68
Cured hardness (ASTM D2240)
Shore D
83
70
82
Cured shrinkage (ASTM D2566)
inch/inch
0.0030
0.0010
0.0020
Adhesive tensile shear (ASTM D1002)
psi
920
2,400
2,685
Compressive strength (ASTM D695)
psi
12,000
N / A
5,625
Flexural strength (ASTM D790)
psi
4,280
19,000
4,990
Modulus of elasticity (ASTM D638)
psi x 10
5
7.0
2.9
7.5
Coefficient of thermal expansion
(ASTM D696)
[(in)/(in x ˚F)] x 10
-6
21
64
18
Thermal conductivity (ASTM C177)
[(cal x cm)/(sec x cm
2
x ˚C)] x 10
-3
1.24
1.71
1.41
Dielectric constant (ASTM D150 )
1 kHz
28.1
43.5
8.6
Dielectric strength (ASTM D149 )
volts/mil
300
250
150
Maximum continuous dry service temperature
˚F
250
200
250
Canadian part numbers are the same as US part numbers.
24
L U B R I C A N T S
ANTI-SEIZE & LUBRICANTS
Permatex
®
Anti-Seize Lubricant
A heavy-duty blend of aluminum, copper and graphite
lubricants in a petroleum base. Use during assembly
to prevent galling, corrosion and seizing and to
assure easier disassembly. An inert formulation,
it will not evaporate or harden in extreme
temperatures. Salt-, corrosion- and moisture-
resistant. Temperature range -60°F to 1,600°F
(-51°C to 871°C). Non-aerosol version meets MIL-SPEC
A-907.
s
NFPA Fire Code 30B: Level 3 (aerosol).
Item # Container Size
P/N
80071 4 oz brush-top bottle
80558
80078 8 oz brush-top bottle
133K
81464 12 oz aerosol can,
133MA
81464
8.5 oz net wt
80208 16 oz brush-top bottle 767
17511
Permatex
®
Copper Anti-Seize Lubricant
A premium quality copper anti-seize and thread
lubricant that may be used to prevent seizing, corrosion
and galling where high temperature conditions exist.
Temperature range -30°F to 1,800°F (-34°C to
982°C). Provides good electrical conductivity. Meets
MIL-SPEC A-907.
Item # Container Size
09128 8 oz brush-top bottle
09127
31163 16 oz brush-top bottle 09124
Permatex
®
Nickel Anti-Seize Lubricant
Copper-free anti-seize lubricant that protects metal
parts from seizing and galling at temperatures up
to 2,400°F (1,316°C). Ideal for use under conditions
of extreme pressure and temperature and with
stainless steel, titanium and nickel alloys.
Item # Container Size
P/N
77124 8 oz brush-top bottle
771
77124
77164 16 oz brush-top bottle 771
77164
Permatex
®
Anti-Seize & Lubricants
Permatex
®
Anti-Seize Compounds protect mated metal parts against in-service rusting,
corrosion, friction and galling. Made to serve the demanding needs of even the most severe
industrial environments. They reduce wrench torque and ease assembly and disassembly of
threaded, slip-fit and press-fit connections. Depend on Permatex
®
Anti-Seizes to reduce
friction and wear, even at temperatures up to 2,400°F (1,316°C).
Permatex
®
Lubricants and Penetrants are formulated to protect and lubricate a wide array
of parts and components.
Permatex
®
Dielectric Grease
Protects electrical connections and wiring from
salt, dirt and corrosion. Extends the life of bulb
sockets. Prevents voltage leakage around any
electrical connection. Also prevents spark plugs
from fusing to boots. Required for modern high-energy
ignition systems.
Item #
Container Size
22058
3 oz tube, carded
22064
Canadian part numbers
Permatex
®
Form-A-Gasket
®
No. 1 Sealant
Reliable paste-like gasket sealant/dressing/coating.
Form-A-Gasket
®
No. 1 sets quickly. Recommended for
rigid, permanent assemblies. Use to 400°F (204°C).
Resistant to gasoline and other solvents. Conforms to
MIL-S-45180 D, Type I.
Item #
Container Size
P/N
80003
11 oz tube, boxed
1C
80003
Permatex
®
Form-A-Gasket
®
No. 2 Sealant
Reliable paste-like gasket sealant/dressing/coating.
Form-A-Gasket
®
No. 2 sets more slowly to a pliable
film best suited for non-rigid, vibrating assemblies.
Use to 400°F (204°C). Resistant to gasoline and
other solvents. Conforms to MIL-S-45180 D, Type II.
Item #
Container Size
P/N
80015
1.5 oz tube, carded
2AR
80016
3 oz tube, carded
2BR
80500
80011
11 oz tube, boxed
2C
Permatex
®
Aviation
Form-A-Gasket
®
No. 3 Sealant
Non-hardening liquid gasket sealant/dressing/coating
is a thin, brushable dressing or sealer for close-fitting
parts. Suitable for continuous temperatures to 400°F
(204°C). Resistant to antifreeze, aviation fuels,
high-detergent oils and lubricants. Conforms
to MIL-S-45180 D, Type III.
Item #
Container Size
P/N
80017
16 fl oz bottle
3D
80502
Permatex
®
High Tack
™
Spray-A-Gasket
®
Sealant
Red colored, all-purpose sealant that holds even the
heaviest of gaskets in place during assembly. Seals and
bonds rubber, cork, paper, felt and metal gaskets.
Sets quickly to a very tacky film. Suitable to 500°F
(260°C). Contains no ozone-depleting compounds.
Resists gasoline, oil, kerosene, propane and butane.
s
NFPA Fire Code 30B: Level 3.
Item #
Container Size
P/N
80065
12 oz aerosol can/
99MA
80546
9 oz net wt
G A S K E T S E A L A N T S
S P E C I A LT Y M A I N T E N A N C E
25
Gasket Sealants
and Remover
Canadian part numbers
Specialty
Maintenance
Permatex
®
products for specialized maintenance
as well as specially packaged products for general
maintenance.
Canadian part numbers
Permatex
®
Prussian Blue
Aids precision fitting of machined surfaces. Locates
high spots on bearings, valves and other close-to-
tolerance components. Non-drying. Easy cleanup.
Item #
Container Size
P/N
80038
.75 fl oz tube
35V
80518
Permatex
®
Counterman’s Choice
®
Medium Strength Threadlocker Blue
An all-purpose, medium strength threadlocker.
Ideal for all nut and bolt applications 1/4" to 3/4"
(6 mm to 20 mm).
Item #
Container Size
09978
1 g pouch
Permatex
®
Counterman’s Choice
®
Anti-Seize Lubricant
Heavy-duty blend of aluminum, copper and graphite
lubricants in a petroleum base. Use during assembly
to prevent galling, corrosion and seizing.
Item #
Container Size
09975
5 g pouch
H A N D C L E A N E R S
HAND CLEANERS
26
DL
®
Permatex
®
Trounce
®
Lotion
and Hand Cleaner
Pleasantly scented with fine ground pumice for deep
scrubbing to remove the most difficult soils. This
fast-acting formula won’t irritate hands or leave a
greasy residue. Professional strength.
Item # Container Size
21218
1 gallon bottle w/pump
21218
v
Biodegradable according to 40 CFR 796.3240
Permatex
®
Fast Orange
®
Hand Cleaner Wipes
Fast Orange
®
Hand Cleaner Wipes remove the toughest
grease, tar, grime, ink, paints, sealants, adhesives
and other difficult soils. Each pre-moistened wipe
has a textured surface on one side that is ideal for
cleaning heavy-duty soils from hands, tools and work
areas. The wipes also have a smooth side for general
purpose cleaning.
Item #
Container Size
25072
72-count bucket
25072
Permatex
®
Fast Orange
®
Pumice
and Smooth Lotion Hand Cleaners
Industrial grade, biodegradable
v
, waterless,
petroleum solvent-free hand cleaner. It contains
no harsh chemicals, mineral oils or ammonia that
can sting cuts and abrasions. Pure, fresh-smelling
natural citrus power does the cleaning while
aloe, lanolin, glycerin and jojoba condition and
protect skin. Fast Orange
®
gently deep cleans the
toughest dirt and grease.
Pumice Lotion
Item # Container Size
25108 7.5 fl oz bottle
20857
25116 15 fl oz squeeze bottle
20859
25219 1 gallon bottle w/pump
20861
25104 1 gallon flat-top bottle
25104
Smooth Lotion
Item # Container Size
23108
7.5 fl oz bottle
20851
23116
15 fl oz squeeze bottle
20853
23218
1 gallon bottle w/pump
20855
Canadian part numbers
Permatex
®
Hand Cleaners
You need a waterless hand cleaner that
really cleans – without turning your hands
into sandpaper. You need the strength to
remove grease, grime, paint, adhesives and
all other soils your working hands get into –
plus conditioners to prevent your hands from
cracking and drying out. Permatex
®
hand
cleaners are the choice of working hands. For
over 50 years, Permatex
®
has offered high-
quality hand cleaners and has maintained
a leadership position through innovation
and a concern for users’ needs. Wherever
hands are getting dirty, there’s a place for
Permatex
®
hand cleaners. To meet your
growing needs, Permatex
®
offers a broad
selection of product formulations and sizes.
Specialty Adhesives
High-performance adhesives
for specialized applications.
Permatex
®
Black Silicone
Adhesive Sealant
General-purpose, black RTV sealant. Seals, bonds,
repairs, mends and secures glass, metal, plastics,
fabric, vinyl, weather stripping and vinyl tops. May be
applied to horizontal or vertical surfaces. Waterproof
and flexible. Temperature range -75°F to 450°F (-59°C
to 232°C); resists oil, water, weather, vibration, grease
and more. Nonpaintable. MIL-A-46106B, Type I.
Item # Container Size
P/N
81158 3 oz tube, carded
16BR
81237
81173 12.9 oz cartridge
16C
81238
Permatex
®
Fast Cure Epoxy
Convenient premeasured epoxy mixer cups. No mess,
no guess, no waste. Ideal for bonding glass, hard
plastics, rubber and metal. Bonds in 5-15 minutes.
Grey adhesive has excellent chemical resistance. Fills
porosities and can be used to build up worn parts.
Item # Container Size
21425 4 g mixer cups 21425
Devcon
®
Duco
®
Cement
Clear all-purpose waterproof household glue. Ideal for
china, glass, plastic, wood and metal and is fast-drying.
Item #
Container Size
6245
1 fl oz
6245
SPECIALTY ADHESIVES
SPECIALTY ADHESIVES
27
Canadian part numbers
Permatex
®
Clear RTV
Silicone Adhesive Sealant
General-purpose, clear RTV sealant. Seals, bonds,
repairs, mends and secures glass, metal, plastics,
fabric, vinyl, weather stripping and vinyl tops. May be
applied to horizontal or vertical surfaces. Waterproof
and flexible. Temperature range -75°F to 400°F (-59°C
to 204°C); resists oil, water, weather, vibration,
grease and more. Nonpaintable. MIL-A-46106B, Type I.
Item # Container Size
P/N
80050 3 oz tube, carded
66BR 80533
81913 7.25 oz Automatic Tube
®
85913 7.25 oz PowerBead
™
can
85913
80855 11 oz cartridge
66C
80834
Devcon
®
Silite
®
Silicone
RTV-Clear
Single-component sealant for gasketing, sealing,
bonding, and weatherproofing applications. Cures at
room temperature to a clear, flexible silicone rubber. Can
be used to seal window plates, ceramic tile, and bond
gaskets. Excellent resistance to a wide range of weather
and temperatures ranging from -60° to 450°F (-50° to
232°C). Acceptable for use in meat and poultry plants.
Listed under NSN Stock#8040-01-193-3312, qualifies
under MIL-A-46106A, Galv. Repair.
Item #
Container Size
17100
3 oz tube, boxed 17100
17150
10.3 oz cartridge
17150
Devcon
®
Silite
®
Silicone
RTV-White
Single-component sealant for gasketing, sealing,
bonding, and weatherproofing applications. Cures at
room temperature to a white, flexible silicone rubber.
Can be used to seal panels, bond and seal appliance
ports, attach brackets, nameplates, and bond gaskets.
Excellent resistance to a wide range of weather and
temperatures ranging from -60° to 450°F (-50° to
232°C). Acceptable for use in meat and poultry plants.
Qualifies under MIL-A-46106A, Galv. Repair.
Item #
Container Size
17140
10.3 oz cartridge
17140
Devcon
®
Silite
®
Silicone
RTV-Red (High Temp.)
High-temperature silicone rubber with a temperature
resistance of up to 600°F for bonding and sealing. Used
for assembly or repair of high-temperature ducting,
bonding ceramic tile in pulverizers, and making form-in-
place gaskets. Cures at room temperature. Acceptable
for use in meat and poultry plants. Qualifies under
MIL-A-46106A, Galv. Repair.
Item #
Container Size
17130
10.3 oz cartridge
17130
O E M / M R O P R O D U C T S
ASSEMBLY
&
REPAIR
28
Products for Both Maintenance/Repair
and OEM Assembly
Certain products are hard to keep in stock because everyone in the plant—
from production to maintenance — uses them routinely. Today, with
it’s highly respected Permatex
®
brands, ITW Devcon offers field-proven
products to improve reliability in both assembly and repair applications.
Permatex
®
products for both Assembly and Repair include:
t
Permatex
®
liquid and gel threadlockers to prevent fastener loosening caused by
shock or vibration, and to protect against rust and corrosion
t
Permatex
®
retaining compounds to secure and protect non-threaded assemblies
t
Permatex
®
thread sealants to lubricate and protect threads and prevent leakage in both
high-pressure and low-pressure systems
t
Permatex
®
anaerobic and RTV silicone form-in-place gasket makers, dressings and
general-purpose sealants
Permatex
®
Liquid Threadlockers…
Providing Threaded Fastener Reliability
Permatex
®
Threadlockers are superior to conventional lock washers, nylon inserts
and other mechanical devices because they secure the entire fastener assembly
against loosening from shock or vibration and maintain fastener clamping forces.
Threadlockers also seal the threads against leakage and prevent rust and corrosion.
Available in a variety of strengths and temperature ranges, threadlockers remain
the most reliable way to lock and seal threaded fasteners of all shapes and
sizes, either before or after assembly.
T H R E A D L O C K E R S
THREADLOCKERS
29
NOTES:
1
.375" x 16 phosphate steel
2
Fixture strength is equivalent to 20
%
of full cure strength
VS.
PERMATEX
®
THREADLOCKER
Entire threaded area
filled with threadlocker.
ONE DROP FITS ALL!
Threads sealed—
moisture can’t get inside.
LOCK WASHER
Contact only under bolt—
bolt can vibrate loose.
Must use right size.
Threads open—
moisture can get in
causing corrosion.
Permatex
®
Liquid Threadlockers
Product
Item
Number
Container
Size
Typical Use
Color
Viscosity
cP
Break/Prevail
Torque
in-lbs
1
Temperature
Range
Fixture Time
2
/
Full Cure
Fixture
with Primer
Specific
Gravity
Permatex
®
Low Strength
Threadlocker
PURPLE
22250
22225
50 ml bottle
250 ml bottle
Up to 1/4"
(6 mm)
Purple
1,200/5,000
Thixotropic
62/27
-65° to 300°F
(-54° to 149°C)
20 min/
24 hrs
5 min
1.05
Permatex
®
Medium Strength
Threadlocker BLUE
24210
24250
24225
10 ml bottle
50 ml bottle
250 ml bottle
1/4" to 3/4"
(6-20 mm)
Blue
1,200/6,000
Thixotropic
115/53
-65° to 300°F
(-54° to 149°C)
20 min/
24 hrs
5 min
1.00
Permatex
®
Surface Insensitive
Threadlocker BLUE
24350
24325
50 ml bottle
250 ml bottle
1/4" to 3/4"
(6-20 mm)
Blue
2,250/12,000
Thixotropic
180/62
-65° to 300°F
(-54° to 149°C)
20 min/
24 hrs
5 min
1.08
Permatex
®
Permanent Strength
Threadlocker RED
26210
26250
26225
26201
10 ml bottle
50 ml bottle
250 ml bottle
1 L bottle
3/8" to 1"
(10-25 mm)
Red
1,800/5,000
Thixotropic
189/275
-65° to 300°F
(-54° to 149°C)
20 min/
24 hrs
5 min
1.10
Permatex
®
High Strength
Threadlocker RED
27110
27150
27125
10 ml bottle
50 ml bottle
250 ml bottle
3/8" to 1"
(10-25 mm)
Red
500
230/225
-65° to 300°F
(-54° to 149°C)
20 min/
24 hrs
5 min
1.10
Permatex
®
High Temperature
Threadlocker RED
27250
27225
50 ml bottle
250 ml bottle
3/8" to 1
1/2
"
(10-38 mm)
Red
10,000
180/270
-65° to 450°F
(-54° to 232°C)
30 min/
24 hrs
5 min
1.11
Permatex
®
Large Diameter
Threadlocker RED
27750
27725
50 ml bottle
250 ml bottle
1" and over
(25 mm+)
Red
7,000
250/200
-65° to 300°F
(-54° to 149°C)
60 min/
24 hrs
5 min
1.12
Permatex
®
Penetrating Grade
Threadlocker
GREEN
29050
29025
50 ml bottle
250 ml bottle
#2 to 1/2"
(2.2-12 mm)
Green
12
90/310
-65° to 300°F
(-54° to 149°C)
20 min/
24 hrs
3 min
1.08
T H R E A D L O C K E R S
Permatex
®
Surface Insensitive
Threadlocker BLUE
Medium/High strength threadlocker for general-purpose
applications. Especially well-suited for 1/4" to 3/4"
(6 mm to 20 mm) fasteners that have a slight oil film.
Prevents vibration loosening.
Item #
Container Size
24350
50 ml bottle
24350
24325
250 ml bottle
24325
Permatex
®
Low Strength
Threadlocker PURPLE
Low strength threadlocker designed for fasteners
under 1/4" (6 mm) that require occasional adjustment.
Removable with hand tools for easy disassembly.
MIL-SPEC (S-46163A), Type II, Grade M.
Item #
Container Size
22250
50 ml bottle
22250
22225
250 ml bottle
22225
Permatex
®
Medium Strength
Threadlocker BLUE
All-purpose, medium strength threadlocker. Ideal for
all nut and bolt applications 1/4" to 3/4" (6 mm to
20 mm). Eliminates need for stocking expensive lock
nuts and lock washers. Locks and seals while preventing
parts from loosening due to vibration. Protects threads
from corrosion. Removable with hand tools for easy
disassembly. MIL-SPEC (S-46163A), Type II, Grade N.
Item #
Container Size
24210
10 ml bottle, carded
24210
36 ml bottle
24242
24250
50 ml bottle
24250
24225
250 ml bottle
24225
30
Permatex
®
High Temperature
Threadlocker RED
Hi-temp/hi-strength threadlocker for heavy-duty
applications. Prevents bolts 3/8" to 1
1/2
" (10 mm to
38 mm) from loosening due to shock, severe vibration
and heat stress. Suited for temperatures up to 450°F
(232°C). Removable with heat and hand tools.
Item #
Container Size
27250
50 ml bottle
27250
27225
250 ml bottle
27225
Permatex
®
Large Diameter
Threadlocker RED
A high strength adhesive for locking and sealing large
bolts and studs 1" (25 mm+) or larger in diameter. Heat
may be required to weaken bond before parts can be
disassembled. MIL-SPEC (S-46163A), Type I, Grade L.
Item #
Container Size
27750
50 ml bottle
27750
27725
250 ml bottle
27725
Permatex
®
Penetrating Grade
Threadlocker GREEN
A low viscosity threadlocking liquid that wicks along
the threads of preassembled fasteners to secure them
in place. Since it is applied after assembly, preventive
maintenance procedures are simplified. Ideal for
fasteners ranging from #2 to 1/2" (2.2 to 12 mm) in
size. Localized heating and hand tools are needed for
disassembly. MIL-SPEC (S-46163A), Type III, Grade R.
Item #
Container Size
29050
50 ml bottle
29050
29025
250 ml bottle
29025
Permatex
®
High Strength
Threadlocker RED
High strength threadlocker for heavy-duty applications
3/8" to 1" (10 mm to 25 mm). Especially well suited for
permanently locking studs. Locks against vibration
loosening. Removable with heat and hand tools.
MIL-SPEC (S-46163A), Type I, Grade K.
Item #
Container Size
27110
10 ml bottle, carded
27110
27150
50 ml bottle
27150
27125
250 ml bottle
27125
LIQUID THREADLOCKERS
Permatex
®
Permanent Strength
Threadlocker RED
A permanent, high strength threadlocker that is applied
to fasteners 3/8" to 1" (10 mm to 25 mm) in size before
assembly. Designed for securing parts that must
withstand heavy shock, vibration or extreme chemical
or environmental conditions. Localized heat and hand
tools are required to separate parts. MIL-SPEC
(S-46163A), Type II, Grade O.
Item #
Container Size
26210
10 ml bottle, carded
26210
36 ml bottle
26242
26250
50 ml bottle
26250
26225
250 ml bottle
26225
26201
1 L bottle
Permatex
®
Threadlockers…
Exceptional Performance, Reliability and Value
Canadian part numbers
T H R E A D L O C K E R S
31
GEL THREADLOCKERS
Permatex
®
GEL TWIST
™
Threadlockers...
TRUE Threadlocking Innovation!
Permatex
®
GEL TWIST
™
Threadlockers
Canadian part numbers
Product
Item
Number
Container
Size
Typical Use
Color
Viscosity
cP
Break / Prevail
Torque
in-lbs
1
Temperature
Range
Fixture Time
2
/
Full Cure
Specific
Gravity
Permatex
®
Medium Strength
Threadlocker
BLUE Gel
24010
10 g GEL TWIST
™
Applicator
1/4" to 1"
(6-25 mm)
Blue
75,000/
900,000
Thixotropic
115/53
-65° to 300°F
(-54° to 149°C)
15 min/
24 hrs
1.15
Permatex
®
High Strength
Threadlocker
RED Gel
27010
10 g GEL TWIST
™
Applicator
3/8" to 1"
(10-25 mm)
and greater
Red
75,000/
900,000
Thixotropic
175/230
-65° to 300°F
(-54° to 149°C)
15 min/
24 hrs
1.13
NOTES:
1
.375" x 16 phosphate steel
2
Fixture strength is equivalent to 20
%
of full cure strength
Permatex
®
Medium Strength
Threadlocker BLUE Gel
An all-purpose, medium strength blue thread-
locker gel that reliably secures all nut and bolt
applications
1/4
" to 1" (6 mm to 25 mm). Locks
and seals while preventing parts from loosening
due to vibration. Protects threads from corrosion.
Removable with hand tools for easy disassembly.
Item #
Container Size
24010
10 g GEL TWIST
™
24215
applicator, carded
Permatex
®
High Strength
Threadlocker RED Gel
A high strength threadlocker red gel for heavy-duty
applications. Ideal for reliably securing all permanent
nut and bolt applications
3/8
" to 1" (10 mm to 25 mm)
and greater. Locks and seals while preventing parts
from loosening due to vibration. Protects threads from
corrosion. Requires heat or special tools for removal.
Item #
Container Size
27010
10 g GEL TWIST
™
27115
applicator, carded
Permatex
®
Threadlocker Gels are the true innovation in threadlocking!
Available in Medium Strength BLUE Gel and High Strength RED Gel, the
unique Permatex
®
GEL TWIST
™
applicators leave the threadlocker where
you want it…on the part! No more liquid drips or solid stick globs to deal
with. No more mess to clean or costly waste to worry about. Permatex
®
Threadlocker Gels eliminate these hassles while still providing “liquid
quality” application reliability.
Product
Item
Number
Container
Size
Color
Maximum
Diametral
Gap Fill
Viscosity
cP
Shear
Strength
psi
Temperature
Range
Fixture Time/
Full Cure
(on Steel)
Specific
Gravity
Permatex
®
Bearing Mount
For Close Fits
60950
60925
50 ml bottle
250 ml bottle
Green
.005"
125
3,000
-65° to 300°F
(-54° to 149°C)
10 min/
24 hrs
1.10
Permatex
®
Maximum Temperature
Bearing Mount
62050
50 ml bottle
Green
.015"
8,500
3,800
-65°
to 450°F
(-54° to 232°C)
1 hr/
24 hrs
1.16
Permatex
®
High Temperature
Sleeve Retainer
64050
50 ml bottle
Green
.007"
600
3,000
-65°
to 400°F
(-54° to 204°C)
1 hr/
24 hrs
1.12
Permatex
®
Bearing Mount
For Worn Parts
66050
50 ml tube
Silver
.020"
1,200,000
3,000
-65°
to 300°F
(-54° to 149°C)
10 min/
1-2 hrs
1.13
Permatex
®
Bearing Mount
For Relaxed Fits
68050
68025
50 ml bottle
250 ml bottle
Green
.015"
1,250
3,800
-65°
to 300°F
(-54° to 149°C)
10 min/
24 hrs
1.10
R E T A I N I N G C O M P O U N D S
RETAINING COMPOUNDS
32
Permatex
®
Bearing Mount for Close Fits
A low viscosity, rapid-curing anaerobic adhesive
that augments the strength of press fit assemblies.
Prevents fretting and corrosion. Up to 3,000 psi
holding power. MIL-SPEC (R-46082B), Type I.
Item #
Container Size
60950
50 ml bottle
60950
60925
250 ml bottle
60925
Permatex
®
Maximum Temperature
Bearing Mount
Maximum temperature (up to 450°F / 232°C)
anaerobic retaining adhesive for close fitting
cylindrical joints. Provides excellent resistance at
elevated temperatures.
Item #
Container Size
62050
50 ml bottle
62050
Permatex
®
High Temperature
Sleeve Retainer
High temperature (up to 400°F / 204°C) anaerobic
adhesive that secures slip and press fit assemblies.
Up to 3,000 psi holding power. Restores fit to worn
or out-of-tolerance assemblies. Prevents fretting and
corrosion. MIL-SPEC (R-46082B), Type II.
Item #
Container Size
64050
50 ml bottle
64050
Permatex
®
Bearing Mount
for Worn Parts
A creamy, non-running gel that can be applied onto
cylindrical parts to fill surface imperfections and
repair worn areas. It contains no metal, but once
assembled, hardens to a strength that often doubles
that of a press fit. Use to salvage worn metallic parts
or to keep machinery running until new parts arrive.
Product remaining outside the joint does not dry,
allowing for easy clean up. Use to 300°F (149°C).
Can bond cylindrical assemblies, particularly where
gaps approach 0.50 mm.
Item #
Container Size
66050
50 ml tube, carded
66050
Permatex
®
Retaining Compounds
Permatex
®
Retaining Compounds are designed to bond non-threaded, cylindrical,
metal assemblies by filling the voids between close-fitting metal parts. Retaining
Compounds harden to create a solid, one-piece assembly. Retaining Compounds
can be used to lock keyways, secure splines, augment press fits and strengthen
interference fits. Use them to prevent wear on new components, or restore the fit to
worn or out-of-tolerance parts. Retaining Compounds seal joints against leakage
and prevent fretting and corrosion. Formulated in a variety of viscosities, strength
characteristics, gap-filling abilities and temperature ranges, Permatex
®
Retaining
Compounds can solve even the most difficult retaining applications.
Permatex
®
Bearing Mount
for Relaxed Fits
High strength, medium viscosity anaerobic adhesive
for slip fit assemblies. Provides 3,500 psi shear
strength on steel. Prevents fretting and corrosion.
Fixture time is 10 minutes at room temperature.
Item #
Container Size
68050
50 ml bottle
68050
68025
250 ml bottle
68025
Permatex
®
Retaining Compounds
Canadian part numbers
Product
Item
Number
Container
Size
Color
Viscosity
cP
Seal to Operating
Pressure
Temperature
Range
Specific
Gravity
Permatex
®
High Performance
Thread Sealant
56521
56525
50 ml tube
250 ml tube
White
300,000
4 hrs
- 65° to 300°F
(-54° to 149°C)
1.10
Permatex
®
High Temperature
Thread Sealant
59235
59225
50 ml tube
250 ml tube
White
350,000
4 hrs
- 65° to 400°F
(-54° to 204°C)
1.21
Permatex
®
Maximum Temperature
Thread Sealant
56750
56725
50 ml tube
250 ml tube
White
300,000
4 hrs
- 65° to 400°F
(-54° to 204°C)
1.10
Permatex
®
Thread Sealant
w/PTFE
80632
80633
4 oz can
16 oz can
White
55,000
Instant/
Non-Curing
- 65° to 300°F
(-54° to 149°C)
1.12
Permatex
®
Pneumatic/Hydraulic
Sealant
54550
50 ml bottle
Purple
14,000
4 hrs
- 65° to 300°F
(-54° to 149°C)
1.02
Permatex
®
Pipe Joint
Compound
80045
16 oz bottle
Black
40,000
Instant/
Non-Curing
- 65° to 400°F
(-54° to 204°C)
1.28
Permatex
®
Thread Sealants
Permatex
®
Thread Sealants seal and secure metal pipes and fittings. By filling the space
between threaded metal parts, Thread Sealants prevent leakage caused by vibration
loosening, tape shredding, solvent evaporation, damaged threads and temperature cycling.
Designed for low- and high-pressure applications, Thread Sealants seal instantly for online low-
pressure testing. When fully cured, they seal to the burst strength of most piping systems. The
high lubricating properties of Permatex
®
Thread Sealants ease assembly and prevent galling of the
threads. For system repairs, parts may be disassembled with basic hand tools.
Permatex
®
High Temperature
Thread Sealant
Locks and seals threaded fittings. Resists leakage,
vibration loosening, moisture, hydraulic fluids and
diesel fuels. Lubricates threads for easy assembly
and disassembly. Won’t shred or tear like tape. Parts
may be repositioned up to 4 hours after application.
Contains PTFE. Temperature range from -65°F to
400°F (-54°C to 204°C).
Item #
Container Size
59235
50 ml tube, carded
17358
59225
250 ml tube
59225
Permatex
®
High Performance
Thread Sealant
Formulated specifically for metal, tapered pipe
thread fittings. High Performance Thread Sealant
replaces tapes and pipe dopes. Cures rapidly to
withstand 10,000 psi. Prevents galling and protects
mated threaded areas from rust and corrosion.
Contains PTFE.
Item #
Container Size
56521
50 ml tube, carded
19545
56525
250 ml tube
56525
Permatex
®
Thread Sealants
T H R E A D S E A L A N T S
THREAD SEALANTS & ACTIVATORS
33
Canadian part numbers
Permatex
®
Maximum Temperature
Thread Sealant
A high performance, solvent resistant sealant
that locks and seals metal tapered pipe threads
and fittings. Specifically formulated for aluminum,
stainless steel, galvanized metal and other inert metals.
Temperature range -65°F to 400°F (-54°C to 204°C).
Contains PTFE.
Item #
Container Size
56750
50 ml tube, carded
56750
56725
250 ml tube
56725
Permatex
®
Thread Sealant with PTFE
Economical general-purpose fitting sealant.
Outperforms tapes and pipe dopes. Seals and resists
pressure in air, oil, diesel fuel and hydraulic systems.
Remains pliable at high and low temperatures.
Temperature range -65°F to 300°F (-54°C to 149°C);
resists common shop fluids.
Item #
Container Size
P/N
80632
4 oz can
14H
80510
80633
16 oz can
14D
80633
Permatex
®
Pneumatic/Hydraulic Sealant
Designed for locking and sealing high pressure
hydraulic and pneumatic systems. Contains no fillers
or particles which could contaminate system fluids,
foul valves or clog fine filters and screens. Reliably
cures on “as received” fasteners and controlled
locking strength affords easy disassembly.
Item #
Container Size
54550
50 ml bottle
54550
Permatex
®
Pipe Joint Compound
Universal sealant. Lubricates and seals threaded
joints on water, oil and fuel lines. Temperature range
-65°F to 400°F (-54°C to 204°C); resists common
shop fluids.
Item #
Container Size
P/N
80045
16 oz bottle
51D
80045
Permatex
®
Surface Prep
™
Activator for Anaerobics
Speeds cure of Permatex
®
Threadlockers, Thread Sealants,
Retaining Compounds and Anaerobic Gasket Makers.
Recommended for use during cold weather. General
purpose solvent for preparing parts and surfaces.
s
NFPA Fire Code 30B: Level 1.
Item #
Container Size
24163
6 oz aerosol can,
24163
4.5 oz net wt
Activators
G A S K E T I N G
GASKET MAKERS
34
Permatex
®
Gasket Makers
Permatex
®
, the leader in form-in-place gasket makers,
gasket dressings and general-purpose sealants for over
a century, has an extensive selection of anaerobics, RTV
silicones and solvent-based products to meet all
your gasketing and sealing needs.
Anaerobic Gasket Makers
• Rigid assemblies
• Designed to eliminate movement
• Gaps up to 0.050" primed
• High chemical resistance
• Maximum temperature of 400°F
RTV Silicone Gasket Makers
• Instant seal with the Right Stuff
®
• Flexible joints
• Use with dissimilar materials
• Gaps up to 0.250"
• Temperatures to 600°F
• Makes application quick and easy
• Provides smooth flow and bead
• Extended, rigid nozzle gives
pinpoint control
• Patented vertically-actuated valve
design eliminates clogging
• Product flow is easily regulated
without finger fatigue
• Permatex
®
branded cushion-grip
shows you have chosen the best
Permatex
®
PowerBead
the ultimate dispensing system
™
…
G A S K E T I N G
GASKET MAKERS
35
The Right Stuff
®
Application Instructions
1. Clean and dry parts.
2. Apply a continuous bead of the Right Stuff
®
to
one surface, surrounding all bolt holes.
3. Assemble parts within 5 minutes, tightening bolts
to recommended torque levels. Material will fill
any surface imperfection. Equipment can be
returned to service immediately. No waiting.
Permatex
®
Gasket Makers
Product
Item Number
Color
Maximum Gap Fill
Typical Use
Temperature Range
Flange Type
Cure Type
Specific Gravity
Permatex
®
the Right Stuff
®
Gasket Maker
25224, 29208,
85224, 33694
Black
0.25"
High adhesion,
instant seal
-75° to 450°F
(-59° to 232°C), 500°F
(260°C) intermittent
Rigid or
Flexible
Elastomeric
Rubber
1.31
Permatex
®
Ultra Black
®
Maximum Oil Resistance
Gasket Maker
82180, 82080,
85080, 24105
Metallic Black
0.25"
Increased
oil resistance,
noncorrosive
-65° to 400°F
(-54° to 204°C), 500°F
(260°C) intermittent
Rigid or
Flexible
Silicone
(Oxime)
1.26
Permatex
®
Ultra Copper
®
Maximum Temperature
RTV Silicone Gasket Maker
81878
82751
Metallic Copper
0.25"
High temperature,
noncorrosive
-65° to 600°F
(-54° to 316°C), 700°F
(371°C) intermittent
Rigid or
Flexible
Silicone
(Oxime)
1.05
Permatex
®
Ultra Blue
®
RTV Silicone Gasket Maker
81724
85519
81725
Metallic Blue
0.25"
Increased
oil resistance,
noncorrosive
-65° to 400°F
(-54° to 204°C), 500°F
(260°C) intermittent
Rigid or
Flexible
Silicone
(Oxime)
1.30
Permatex
®
Ultra Grey
®
Gasket Maker
82194
82195
Metallic Grey
0.25"
High durometer
for more rigid
flanges
-65° to 450°F
(-54° to 232°C), 500°F
(260°C) intermittent
Rigid or
Flexible
Silicone
(Oxime)
1.50
Permatex
®
Sensor-Safe Blue RTV
Silicone Gasket Maker
80022, 81860,
80628
Blue
0.25"
General-purpose
sealing
-65° to 400°F
(
-54° to 204°C), 500°F
(260°C) intermittent
Rigid or
Flexible
Silicone
(Acetoxy)
1.30
Permatex
®
High-Temp Red RTV
Silicone Gasket Maker
81160, 81915,
85915, 81409
Red
0.25"
High temperature
general-purpose
sealing
-65° to 600°F
(-54° to 316°C), 650°F
(343°C) intermittent
Rigid or
Flexible
Silicone
(Acetoxy)
1.05
Permatex
®
Anaerobic
Flange Sealant
51531
51580
Dark Purple
0.010"
(0.050
" primed)
For flexible
applications
-65° to 300°F
(
-54° to 149°C)
Rigid
Anaerobic
1.10
Permatex
®
Anaerobic
Gasket Maker
51813
51845
Red
0.010"
(0.050
" primed)
For all metals
including
aluminum flanges
-65° to 300°F
(
-54° to 149°C)
Rigid
Anaerobic
1.13
G A S K E T I N G
GASKET MAKERS
36
Permatex
®
Ultra Black
®
Gasket Maker
Fast-curing formula. Sensor-safe, low odor, noncorrosive.
Fills gaps of up to 0.25" when fully cured. Meets
performance specs of OE silicone gaskets. Retains
high flexibility, oil resistant properties through use
of a patented adhesion system. Temperature range
-65°F to 400°F (-54°C to 204°C) continuous, 500°F
(250°C) intermittent. Resists common fluids and
excessive vibration.
Item # Container Size
82180 3.35 oz tube, carded
59803
82080 8.75 oz Automatic Tube
®
85080 9.5 oz PowerBead
™
can 85080
24105 13 oz cartridge
59813
Permatex
®
Ultra Copper
®
RTV Silicone Gasket Maker
Premium silicone designed to provide reliable, tough,
flexible formed-in-place gaskets for mechanical
assemblies. Temperature range -65°F to 600°F (-54°C
to 316°C) continuous, 700°F (371°C) intermittent.
Item # Container Size
P/N
81878 3 oz tube, carded
101BR
17914
82751 300 ml cartridge
101C
82751
Permatex
®
Ultra Grey
®
Gasket Maker
Designed for high torque applications requiring a unique
RTV gasket. Fills gaps of up to 0.25" when fully cured.
Low odor, noncorrosive. Outstanding oil and coolant
resistance. Temperature range -65°F to 450°F (-54°C
to 232°C) continuous, 500°F (250°C) intermittent.
Resists common fluids and excessive vibration.
Item # Container Size
82194 3.5 oz tube, carded
18572
82195 13 oz cartridge
82195
Permatex
®
Ultra Blue
®
RTV Silicone Gasket Maker
Fills gaps up to 0.25" when fully cured. Sensor-safe,
low odor, noncorrosive. Outstanding oil resistance
and joint movement values. Eight times more flexible
than cork/composite gaskets; three times more oil
resistant than conventional silicones. Temperature
range -65°F to 400°F (-54°C to 204°C) continuous,
500°F (250°C) intermittent. Resists common fluids
and excessive vibration.
Item # Container Size
P/N
81724 3.35 oz tube, carded
77BR
81805
85519 9.5 oz PowerBead
™
can
85519
81725 13 oz cartridge
77C
17359
Permatex
®
the Right Stuff
®
Gasket Maker
Heavy-bodied, black, elastomeric rubber provides
instant seal. Superior flexibility and adhesion
accommodates joint movement. Excellent oil
resistance. Noncorrosive. Low odor. Low volatility.
Temperature range of -75°F to 450°F (-59°C to
232°C) continuous, 500°F (260°C) intermittent. Not
recommended for use on parts that will be in contact
with gasoline.
Item # Container Size
25224 7 oz Automatic Tube
®
85224 7.5 oz PowerBead
™
can 26015
29208 5 oz cartridge
30874
33694 10.1 fl oz cartridge
33694
29247 short caulking gun
29247
Canadian part numbers
GASKET MAKERS
37
Permatex
®
High-Temp Red
RTV Silicone Gasket Maker
Formulated for high-temp applications. It replaces
almost any cut gasket by making reliable “formed-
in-place” gaskets that resist cracking, shrinking and
migrating caused by thermal cycling. Coat pre-cut
gaskets to increase reliability. Temperature range
-65°F to 600°F (-54°C to 316°C) continuous, 650°F
(343°C) intermittent. Fills gaps to 0.25" when fully
cured. MIL-A-46106 B, Type 1.
Item # Container Size
P/N
81160 3 oz tube, carded
26BR
81311
81915 7.25 oz Automatic Tube
®
85915 7.25 oz PowerBead
™
can
85915
81409 11 oz cartridge
26C
81312
Permatex
®
Anaerobic Flange Sealant
Flexible gasketing material ideal for use on rigid,
machined flanges. Withstands temperatures to 300°F
(149°C). Fills gap of 0.050" (primed) and eliminates
the need for preformed gaskets. Ideal for flanges that
move in service.
Item #
Container Size
51531
50 ml tube
17369
51580
300 ml cartridge
51580
Permatex
®
Anaerobic
Gasket Maker
Ideal for on-the-spot and emergency repairs, or
when a conventional gasket is out of stock. This
single component, thixotropic gasket maker cures
rapidly for a medium strength, solvent resistant
seal that resists temperatures up to 300°F (149°C)
and fills gaps to 0.050" (primed). Can be used on a
variety of metal surfaces including aluminum. Parts
disassemble easily even after extended service.
Item #
Container Size
51813
50 ml tube, carded
19550
51845
300 ml cartridge
51845
Permatex
®
Sensor-Safe Blue
RTV Silicone Gasket Maker
The original Permatex
®
blue makes reliable “formed-
in-place” gaskets that resist shrinking, cracking and
migrating. Product cures to a strong, flexible rubber
that seals flanges against leakage and resists oil and
other shop fluids. Coat pre-cut gaskets to increase
reliability. Temperature range -65°F to 400°F (-54°C
to 204°C) continuous, 500°F (250°C) intermittent.
Low volatility. Fills gaps to 0.25" when fully cured.
Item # Container Size
P/N
80022 3 oz tube, carded
6BR
80506
81860 7.25 oz Automatic Tube
®
6MA
80628 12.9 oz cartridge
6C
80580
G A S K E T I N G
For Technical Information or information on where
to buy Devcon
®
and Permatex
®
products,
call
1-800-933-8266
or visit
www.devcon.com
Canadian part numbers
Anaerobic Gasket Makers
O E M A D H E S I V E S
OEM ADHESIVES
38
Total Adhesive Solutions Carefully Matched
or Custom Formulated to Your Application
Because ITW Devcon offers a full range of high-performance adhesives, we will
never force your application to fit our technology. Through our national network of
distributors, we will work with you to assess your adhesive requirements. Our
experienced application specialists will then recommend a total adhesives solution
including the best adhesive for your needs, along with the right dispensing system.
If desired, we will also supply bonded samples and test results, as well as
training and support.
Devcon and Permatex
®
OEM Adhesives include:
t
High-strength, fast-curing epoxies
t
Advanced methacrylates for bonding plastics, composites,
metals and dissimilar substrates
t
Instant-curing cyanoacrylates that eliminate the need for fixturing
t
Chemical-resistant, MIL-SPEC threadlockers, retaining compounds
and pipe sealants
t
UV adhesives with unlimited open times and rapid light curing
t
Specialty adhesives custom engineered for specialized applications
All these adhesives are available in a variety of package sizes
including convenient, no-waste, mix-as-dispensed dual cartridges.
O E M A D H E S I V E S
OEM ADHESIVES
39
NOTES
:
1
Use of Metal Prep 90
™
primer/cleaner is recommended on these metals prior to bonding with Plastic Welder
™
, Plastic Welder
™
II and Composite Welder
™
FS.
OEM Adhesive Selector Guide
Key:
excellent Choice Good Choice Requires Metal Prep 90
™
Blank - Not Recommended
OEM Material
One
Minute
™
Epoxy Gel
5 Minute
™
Epoxy /
Epoxy Gel
Dev-Thane
™
Adhesives
10 Minute
™
Epoxy
2 Ton
®
Clear
Epoxy
Epoxy
Plus
™
25
HP 250
Plastic
Welder
™
Plastic
Welder
™
II
Composite
Welder
™
FS
Metal Welder
™
Adhesives
ZipGrip
®
Adhesives
UV
Adhesives
METAL
Aluminum
1
Brass
Cast Iron
Copper
Ferrite
Painted metals
Plated metals
Sheet metal
Stainless steel
1
Cold rolled steel
Galvanized
PLASTIC
ABS
Acrylics
(PMMA)
Fiberglass
Gel coats
Epoxy
Polyamides
(Nylon) (6,6/6)
Polyesters
(PET/PBA blends)
Polycarbonate
PPO and PPO blends
Vinyls
(PVC)
RIM urethanes
SMCs
Styrene resins
Polyacrylate
Polyurea
Cellulosics
(CAL, CAB, CAP)
Polysulfone
Phenolics
Laminates
WOOD
Wood
(hard and soft)
Plywood
Particle board
OTHER
Brick
Concrete
Rubber
Honeycomb
Ceramics
Glass
E P O X I E S
EPOXY ADHESIVES
40
2-Part Structural Epoxy Adhesives
Devcon advanced epoxy adhesives are used for structural bonding, potting and encapsulating,
and come in a variety of cure times and package sizes.
Devcon
®
5 Minute
®
Epoxy
Rapid-curing, general-purpose adhesive/encapsulant.
Item # Container Size
Dispenser
Nozzle
14250 25 ml Dev-Tube
™
—
—
14270 50 ml cartridge
14280
(manual)
14285
14210 2.5 oz
—
—
DA051 400 ml cartridge
14410
(manual)
14292
14200 15 oz
—
—
14630 9 lb
—
—
Devcon
®
5 Minute
®
Epoxy Gel
Thixotropic, nonmigrating gel adhesive with excellent
gap filling properties.
Item # Container Size
Dispenser
Nozzle
14240 25 ml Dev-Tube
™
—
—
14265 50 ml cartridge
14280
(manual)
14285
DA052 400 ml cartridge
14410
(manual)
14292
Devcon
®
One Minute
™
Epoxy Gel
Lightning fast curing gel adhesive for filling gaps,
cracks and holes.
Item # Container Size
Dispenser
Nozzle
14277 50 ml cartridge
14280
(manual)
14285
Devcon
®
10 Minute
™
Epoxy
Flexible epoxy provides excellent adhesion to metals
and superior peel, impact and chemical resistance.
Item # Container Size
Dispenser
Nozzle
14251 50 ml cartridge
(clear)
14280
(manual)
14285
14255 50 ml cartridge
(black)
Devcon
®
HP 250
High-performance, toughened structural adhesive
with outstanding environmental, impact and
chemical resistance.
Item #
Container Size
Dispenser
Nozzle
14315
50 ml cartridge
14415
400 ml cartridge
14410
(manual)
14292
Devcon
®
2 Ton
®
Clear Epoxy
Extremely strong, medium-cure, water-resistant adhesive.
Item #
Container Size
Dispenser
Nozzle
14310
25 ml Dev-Tube
™
—
—
14260
50 ml cartridge
14280
(manual)
14285
14355
400 ml cartridge
14410
(manual)
14292
14360
9 lb
—
—
Devcon
®
Epoxy Plus
™
25
Rubber-toughened structural adhesive with superior
peel, impact and fatigue resistance.
Item #
Container Size
Dispenser
Nozzle
14278
50 ml cartridge
14280
(manual)
14285
14350
400 ml cartridge
14410
(manual)
14293
Canadian part numbers are the same as US part numbers.
E P O X I E S
EPOXY ADHESIVES
41
NOTES:
1
The maximum allowable time to mate and position parts after mixing and application of the adhesive. After this interval, parts must not be disturbed.
3
All tensile strength data per ASTM D1002 on grit-blasted steel, bond line thickness of 0.010".
2
The time required for the adhesive to generate sufficient bond strength to allow parts to be handled without deformation of the bond line.
4
Bond line thickness of 0.005".
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Glycol
Isopropanol
Methanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
Motor oil
SALTS
Sodium chloride
Trisodium phosphate
Physical Properties
5 Minute
®
Epoxy
5 Minute
®
Epoxy Gel
One Minute
™
Epoxy Gel
10 Minute
™
Epoxy
2 Ton
®
Clear Epoxy
Epoxy Plus
™
25
HP 250
Color
Clear
Opaque
Clear
Black
Clear
Clear
Grey
Straw
Mix ratio
resin:hardener
1:1
1:1
1:1
1:1
1:1
1:1
1:1
2:1
Mixed viscosity
cP
10,000
Gel
70,000
90,000
80,000
8,000
70,000
105,000
Working time
1
minutes
3 ~ 6
4 ~ 7
45 sec
10
10
8 ~ 12
25
65
Fixture time
2
minutes
10 ~ 15
10 ~ 15
1
20
20
30 ~ 35
3.5 hours
5 hours
Functional cure
hours
1.5
0.75 ~ 1
0.5 ~ 0.75
1.5
1.5
2
24
24
Adhesive tensile
lap shear
(ASTM D1002)
3
psi
1,900
4
2,500
1,600
4
2,400
2,400
2,250
2,750
3,200
Tensile elongation
%
5
1
1
5
5
1
20
25
Peel strength
pli
2 ~ 3
2 ~ 3
2 ~ 3
20 ~ 25
20 ~ 25
2 ~ 3
20 ~ 25
35 ~ 40
Impact resistance
ft-lb / in
2
5.5
6.5
4.5
10
10
6.5
10
12
Maximum dry
service temperature
˚F
-40 ~ 200
-40 ~ 200
-40 ~ 200
-67 ~ 200
-67 ~ 200
-40 ~ 200
-40 ~ 200
-67 ~ 250
Key: Excellent Very Good Fair Poor
E P O X I E S
EPOXY ADHESIVES
42
Devcon
®
Food Grade Pot
&
Seal
An epoxy potting compound acceptable for meat and
poultry plants. It is ideal for bonding filter screens
to frames.
Item # Container Size Dispenser
Nozzle
DA999 400 ml cartridge 15043
(manual)
15047
Devcon
®
5-Minute
®
I-FR
Flame retardant, non-brominated, antimony free,
5-Minute
®
2-component epoxy paste. Ideal for
applications requiring a self-extinguishing structural
epoxy system. Meets UL94V-0 and FAR 25.853 [a],
and is RoHS compliant.
Item #
Container Size
Dispenser
Nozzle
14272
50 ml cartridge
14280
(manual)
14285
Devcon
®
10-Minute
™
I-FR
Flame retardant, non-brominated, antimony free,
10-Minute
™
epoxy with impact resistance. 2-component
epoxy paste. Non-sag, structural epoxy for potting inserts
and edge sealing. Meets UL94V-0 and FAR 25.853 [a],
and is RoHS compliant.
Item #
Container Size
Dispenser
Nozzle
14258
50 ml cartridge
14280
(manual)
14285
NOTES
:
1
The maximum allowable time to mate and position parts after mixing and application of the adhesive. After this interval, parts must not be disturbed.
2
The time required for the adhesive to generate sufficient bond strength to allow parts to be handled without deformation of the bond line.
3
Per ASTM D1002 on grit-blasted steel, bond line thickness of 0.010".
4
Bond line thickness of 0.005".
Physical Properties
Food Grade
Pot & Seal
F l a m e R e t a r d a n t
5-Minute
®
I-FR
10-Minute
™
I-FR
Color
White
White
White
Mix ratio
resin:hardener
4:1
1:1
1:1
Mixed viscosity
cP
100,000
55,000
150,000
Working time
1
minutes
42 @ 75°F
4 - 6
10
Fixture time
2
minutes
10 @ 200°F
10 ~ 15
20 ~ 25
Functional cure
hours
25 @ 200°F
1
3
Adhesive tensile
lap shear
(ASTM D1002)
3
psi
1,980
1,430
4
2,700
Tensile elongation
%
1
1
5
Peel strength
pli
2 ~ 3
2
15
Impact resistance
ft-lb/in
2
5.2
5
8
Maximum dry
service temperature
˚
F
-40 - 275
-40 - 200
-67 - 200
Key: Excellent Very Good Fair Poor
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Glycol
Isopropanol
Methanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
Motor oil
SALTS
Sodium chloride
Trisodium phosphate
Canadian part numbers are the same as US part numbers.
URETHANE ADHESIVES
URETHANE ADHESIVES
43
Urethane Adhesives
Devcon urethane formulations are primerless adhesives that bond metals, plastic, galvanized
metal and other hard-to-bond substrates. They offer rapid curing and exceptional flexibility.
Devcon
®
Dev-Thane
™
5
Primerless, fast-setting, two-part urethane adhesive
for high-performance bonding of a variety of
substrates such as aluminum, steel, ABS, urethane
and composites.
Item # Container Size Dispenser
Nozzle
14503 50 ml cartridge
14280
(manual)
14285
14500 400 ml cartridge 14410
(manual)
14293
Devcon
®
Dev-Thane
™
2
Faster-curing version of Dev-Thane
™
5 with a fixture
time of 20 minutes.
Item # Container Size Dispenser
Nozzle
14501 50 ml cartridge
14280
(manual)
14285
(light grey)
14510 400 ml cartridge 14410
(manual)
14293
(dark grey)
NOTES:
1
Faster cure times can be achieved by heating.
Key: Excellent Very Good Fair Poor
Physical Properties
Dev-Thane
™
2
Dev-Thane
™
5
Color
Light Grey, Dark Grey
Grey
Mix ratio
resin:hardener
1:1
1:1
Mixed viscosity
cP
100,000
45,000
Fixture time
minutes
20
45
Working time
minutes
2
5
Peel strength
pli
60 ~ 75
60 ~ 75
Functional cure
1
hours
1.5
4
Tensile Elongation
%
200
200
Cured hardness
(ASTM D2240)
Shore D
63
63
Adhesion Tensile Lap Shear
(ASTM D1002)
psi
2,750
2,750
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Glycol
Isopropanol
Methanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
Motor oil
SALTS
Sodium chloride
Trisodium phosphate
Canadian part numbers are the same as US part numbers.
M E T H A C R Y L A T E S
METHACRYLATE ADHESIVES
44
2-Part Structural Acrylic Adhesives
Advanced methacrylate adhesives produce tough, flexible bonds on today’s hard-to-bond
plastics, composites, exotic metals and dissimilar substrates.
Devcon
®
Metal Prep 90
™
Primer/conditioner improves bond durability on
aluminum or stainless steel surfaces.
Item # Container Size
Dispenser
Nozzle
19650 1 pt
—
—
Devcon
®
Plastic Welder
™
II
Formulated for difficult-to-bond engineered plastics
such as nylon-based alloys, epoxy composites and
modified polyesters.
Item # Container Size
Dispenser
Nozzle
14340 47 ml cartridge
(straw)
14280
(manual)
14285
14390
400 ml cartridge
(straw)
Devcon
®
Plastic Welder
™
Toughened adhesive for high strength load-bearing
bonds to engineered plastics, metals, composites,
ceramics and dissimilar substrates. Approved under
UL 746C Polymeric Adhesive Systems, Electrical
Equipment - Component. SAMS listed.
Item #
Container Size
Dispenser
Nozzle
14300
25 ml Dev-Tube
™
(straw)
—
—
14320
47 ml cartridge
(straw)
14280
(manual)
14285
DA291
47 ml cartridge
(white)
DA290
47 ml cartridge
(black)
14385
400 ml cartridge
(straw)
14410
(manual)
14292
DA160
400 ml cartridge
(white)
DA295
400 ml cartridge
(black)
14330
2 liter kit
(straw)
—
—
DA033/034
10 gal kit
(straw)
—
—
14388/14389
10 gal kit
(black)
—
—
DA309/307
100 gal kit
(straw)
—
—
Contact Devcon Tech Service
Contact Devcon Tech Service
Devcon
®
Composite Welder
™
FS
Flexible adhesive for bonding composites, thermoplastics
and thermosets. Fast fixture and cure times; superior
impact and fatigue resistance. Approved under
UL 746C Polymeric Adhesive Systems, Electrical
Equipment - Component. SAMS listed.
Item #
Container Size
Dispenser Nozzle
14165
490 ml cartridge
(blue green)
14166
490 ml cartridge
(black)
DA461/462 10 gal kit
—
—
Devcon
®
Metal Welder
™
High-performance structural adhesive formulated to
bond a wide range of metals including: aluminum,
stainless steel, cold-rolled steel and dissimilar
substrates without primers. Approved under UL
746C Polymeric Adhesive Systems, Electrical
Equipment - Component. SAMS listed.
Item # Container Size
Dispenser
Nozzle
14366 35 ml cartridge
14280
(manual)
14285
14367 380 ml coax cartridge 14409
(manual)
14293
Devcon
®
Metal Welder
™
ll
Longer open time version of Metal Welder
™
adhesive for
bonding large metal parts and assemblies.
Item # Container Size
Dispenser
Nozzle
14363 380 ml coax cartridge 14409
(manual)
14293
All Devcon
Methacrylate Adhesives
Are GreenGu Ar D
®
Certified
Canadian part numbers are the same as US part numbers.
M E T H A C R Y L A T E S
METHACRYLATE ADHESIVES
45
NOTES:
1
The maximum allowable time to mate and position parts after mixing and application of the adhesive. After this interval, parts must not be disturbed.
2
The time required for the adhesive to generate sufficient bond strength to allow parts to be handled without deformation of the bond line.
3
All tensile strength data per ASTM D1002 on grit-blasted steel, bond line thickness of 0.010".
4
Thixotropic gel.
Physical Properties
Plastic Welder
™
Plastic Welder
™
II
Composite
Welder
™
FS
Metal Welder
™
Metal Welder
™
II
Color
Straw, Black
White
Straw
Blue Green, Black
Grey / Beads
Grey / Beads
Mix ratio
resin:hardener
1:1
1:1
1:1
10:1
10:1
10:1
Mixed viscosity
cP
50,000
4
50,000
4
56,000
4
120,000
4
90,000
4
90,000
4
Working time
1
minutes
4 ~ 6
2 ~ 3
15 ~ 20
4 ~ 8
4 ~ 6
12 ~ 16
Fixture time
2
minutes
10 ~ 15
8 ~ 10
30 ~ 35
10 ~ 15
20 ~ 25
45 ~ 55
Functional cure
hours
0.75 ~ 1
0.75 ~ 1
2 ~ 4
0.75 ~ 1
1 ~ 2
4
Adhesive tensile lap shear
3
(ASTM D1002)
psi
3,500
3,500
3,000
2,260
2,450
2,020
Tensile elongation
%
15 ~ 25
15 ~ 25
5 ~ 15
100 ~ 125
30 ~ 60
40 ~ 60
Peel strength
pli
35 ~ 40
35 ~ 40
15 ~ 20
60 ~ 65
30 ~ 40
30 ~ 40
Impact resistance
ft-lb / in
2
22
22
17
22
>20
>20
Maximum dry
service temperature
˚F
-67 ~ 250
-67 ~ 250
-67 ~ 250
-40 ~ 250
-67 ~ 200
-67 ~ 200
Chemical Resistance
ACIDS
Acetic 10%
Hydrochloric 10%
Sulfuric 10%
ALCOHOLS
Glycol
Isopropanol
Methanol
KETONES
Acetone
Methyl ethyl ketone
ALKALIS
Ammonium hydroxide 20%
Sodium hydroxide 10%
HYDROCARBONS
Gasoline (unleaded)
Mineral spirits
Motor oil
SALTS
Sodium chloride
Trisodium phosphate
Key: Excellent Very Good Fair Poor
NOTES:
1
Commercial Item Standard A-A-3097, Type II, Class 1
2
Commercial Item Standard A-A-3097, Type II, Class 2
3
Commercial Item Standard A-A-3097, Type II, Class 3
C Y A N O A C R Y L A T E S
INSTANT ADHESIVES
From a world leader in cyanoacrylate technology, Permatex
®
ZipGrip
®
Instant Adhesives are designed to handle the full range of OEM
applications. This comprehensive line includes formulations for
even the most specialized needs.
Permatex
®
ZipGrip
®
Instant Adhesives
Permatex
®
ZipGrip
®
General Purpose
Instant Adhesives
General Purpose formulations for bonding metals,
plastics and rubber in all combinations. Gels are ideal
for vertical or inverted surfaces.
Item #
Container Size
P/N
70144
14 g bottle
GPE 3
70144
70145
2 g tube
GPE 3
70145
70213
1/3 oz bottle
GPE 15
70213
70350
1 oz bottle
GPE 30
70350
70450
1 oz bottle
GPE 100
70450
Permatex
®
ZipGrip
®
Toughened
Instant Adhesives
Toughened ethyl versions are modified with
elastomeric compounds to improve impact, peel and
general toughness of cyanoacrylates. They also exhibit
higher temperature and moisture resistance than
standard formulas.
Item #
Container Size
P/N
72161
1 lb bottle
TE 1000
72161
72250
1 oz bottle
TE 2400
72250
72261
1 lb bottle
TE 2400
72261
Permatex
®
ZipGrip
®
Toughened Instant Adhesives
Product Item Number Container Size Viscosity Color
Type
Gap Filling
Adhesive
Tensile Shear
Service
Temperature
Cure Speed
Steel-Plastic-Rubber
TE 1000
3
72161
1 lb bottle
1,000 cP
Clear
Ethyl
0.008"
3,700 psi
-65 to 280°F
25-40 / 25-50 / 20-50 sec
TE 2400
3
72250
72261
1 oz bottle
1 lb bottle
2,400 cP
Clear
Ethyl
0.009"
3,700 psi
-65 to 280°F
40-70 / 25-50 / 25-50 sec
Permatex
®
ZipGrip
®
General Purpose Instant Adhesives
Product Item Number Container Size Viscosity Color
Type
Gap Filling
Adhesive
Tensile Shear
Service
Temperature
Cure Speed
Steel-Plastic-Rubber
GPE 3
1
70144
70145
14 g bottle
2 g tube
3 cP
Clear
Ethyl
0.003"
3,200 psi
-65 to 200°F
5-10 / 3-5 / <2 sec
GPE 15
1
70213
1/3 oz bottle
15 cP
Clear
Ethyl
0.005"
3,200 psi
-65 to 200°F
5-10 / 4-10 / <3 sec
GPE 30
1
70350
1 oz bottle
30 cP
Clear
Neomer
Ethyl
0.004"
3,200 psi
-65 to 200°F
5-12 / 5-13 / <6 sec
GPE 100
2
70450
1 oz bottle
100 cP
Clear
Ethyl
0.004"
3,200 psi
-65 to 200°F
10-20 / 10-20 / <5 sec
46
Canadian part numbers
A D H E S I V E S D I S P E N S E R S
DISPENSING SYSTEMS
47
Manual Applicator Guns and Nozzles
Manual applicator guns with static nozzles mix as they dispense, eliminating premixing and
ensuring precise bead control.
Devcon
®
380 ml Coaxial
Dispensing System
Manual dispensing guns and custom designed static
mixing nozzles for 10:1 380 ml coaxial systems.
Item #
Dispensing Guns
14409
Manual (10:1 ratio)
Mixing Nozzles
14293
Ø .315" (10:1 ratio)
Devcon
®
490 ml Dispensing System
Manual dispensing gun and custom-designed
static mixing nozzles for 10:1 490 ml systems.
Item #
Dispensing Guns
Contact Devcon Tech Service
Mixing Nozzles
14287
Ø .375" (10:1 ratio)
Mix Nozzle Selector Guide
Devcon
®
400 ml Dispensing System
Manual dispensing guns and custom-designed
static mixing nozzles for 1:1 400 ml systems and 4:1
400 ml systems.
Item #
Dispensing Guns
14410
Manual (1:1 and 2:1 ratio)
15043
Manual (4:1 ratio)
Mixing Nozzles
14291
Ø .250" (1:1 ratio)
14293
Ø .315" (1:1 ratio)
14292
Ø .395" (1:1 and 10:1 ratio)
15047
Ø .394" (4:1 ratio)
Devcon
®
50 ml Mark 5
™
Dispensing System
Manual dispensing guns and custom-designed
static mixing nozzles for 1:1 and 10:1 50 ml systems.
Item #
Dispensing Guns
14280
Manual (1:1 and 10:1 ratio)
Mixing Nozzles
14285
Ø .25" (1:1, 2:1 and 10:1 ratio)
Item Number
Element
Product Compatibility
14285
(for Mark 5
™
1:1, 2:1 and 10:1 50 ml gun)
20 element
6.35 mm or Ø .250"
One Minute
™
, 5 Minute
®
, 2 Ton
®
, Epoxy Plus
™
25,
HP 250, 5 Minute
®
Gel, Plastic Welder
™
,
Plastic Welder
™
II, Metal Welder
™
14287
(for 490 ml cartridge with
10:1 manual or pneumatic gun)
24 element
9 mm or Ø .375"
Composite Welder
™
FS
14291
(for 400 ml pneumatic gun only)
18 element
6 mm or Ø .250"
Smaller diameter for less waste for methacrylates / Plastic
Welder
™
, Plastic Welder
™
II
14292
(for 400 ml 1:1 manual or pneumatic gun)
18 element
10 mm or Ø .395"
One Minute
™
, 5 Minute
®
, 2 Ton
®
, Epoxy Plus
™
25,
HP 250, 5 Minute
®
Gel, Plastic Welder
™
,
Plastic Welder
™
II, Food Grade Pot & Seal
14293
(for 400 ml 1:1 manual or pneumatic gun)
(for 380 ml 10:1 Coaxial manual or pneumatic gun)
32 element
8 mm or Ø .315"
Epoxy Plus
™
25, Cable Cast,
Metal Welder
™
, Metal Welder
™
II, Dev-Thane
™
5
15047
(for 400 ml 4:1 manual or pneumatic gun)
24 element
10 mm or Ø .394"
Flexane
®
FC Rubber Repair Liquid,
Flexane
®
FC Rubber Repair, Edge & Seal (T-35)
Canadian part numbers are the same as US part numbers.
A P P R O VA L S
AGENCY APPROVALS and REFERENCE CHARTS
48
Devcon
®
/ Permatex
®
Mil-Spec, UL and Other Government Specifications
Devcon
®
/ Permatex
®
ABS Type Approved Products
Product Category
Specification
Product
Part #
Size
Devcon
®
Epoxy Adhesives
FAR 25.853 [a]
5-Minute
®
I-FR
14272
50 ml cartridge
10-Minute
®
I-FR
14258
50 ml cartridge
RoHS
5-Minute
®
I-FR
14272
50 ml cartridge
10-Minute
®
I-FR
14258
50 ml cartridge
Devcon
®
Methacrylate Adhesives
UL 746C Polymeric
Adhesive Systems,
Electrical Equipment
Component
Plastic Welder
™
14300
25 ml Dev-Tube
™
14320
47 ml cartridge
14385
400 ml cartridge
14330
2 liter kit
DA033/34
10 gal kit
DA309/307
100 gal kit
Composite Welder
™
FS
14165
490 ml cartridge
Metal Welder
™
14366
35 ml cartridge
14367
380 ml coax cartridge
Permatex
®
ZIP GRIP
®
Instant Adhesives
A-A-3097, Type II,
Class 1
GPE 3 Wicking
70144
14 g bottle
70145
2 g tube
GPE 15 Rubber Bonder
70213
1/3 oz bottle
GPE 30 All Purpose
70350
1 oz bottle
A-A-3097, Type II,
Class 2
GPE 100 All Purpose-
Medium Viscosity
70450
1 oz bottle
A-A-3097, Type II,
Class 3
TE 1000 Gap Filling
72161
1 lb bottle
TE 2400 Gap Filling-
Hi Temp
72250
1 oz bottle
72261
1 lb bottle
Permatex
®
Threadlockers
Liquids
S-46163A, Type II,
Grade M
Low Strength
Threadlocker PURPLE
22250
50 ml bottle
22225
250 ml bottle
S-46163A, Type II,
Grade N
Medium Strength
Threadlocker BLUE
24210
10 ml bottle
24250
50 ml bottle
24225
250 ml bottle
S-46163A, Type II,
Grade O
Permanent Strength
Threadlocker RED
26210
10 ml bottle
26250
50 ml bottle
26225
250 ml bottle
26201
1 Liter bottle
S-46163A, Type I,
Grade K
High Strength
Threadlocker RED
27110
10 ml bottle
27150
50 ml bottle
27125
250 ml bottle
S-46163A, Type I,
Grade L
Large Diameter
Threadlocker RED
27750
50 ml bottle
27725
250 ml bottle
S-46163A, Type III,
Grade R
Penetrating Grade
Threadlocker GREEN
29050
50 ml bottle
29025
250 ml bottle
Permatex
®
Retaining Compounds
R-46082B, Type I
Bearing Mount for Close Fits
60950
50 ml bottle
60925
250 ml bottle
R-46082B, Type II
High Temp Sleeve Retainer
64050
50 ml bottle
Devcon
®
Silicone Adhesive
Sealants
A-46106A
Silite
®
Silicone RTV-Clear
17100
3 oz cartridge
17150
10.3 oz cartridge
Silite
®
Silicone RTV-White
17140
10.3 oz cartridge
Silite
®
Silicone RTV (High Temp.)
17130
10.3 oz cartridge
Permatex
®
Silicone Adhesive
Sealants
A-46106B, Type I
Clear RTV
Silicone Adhesive Sealant
80050
3 oz tube
81913
7.25 oz
Automatic Tube
®
85913
7.25 oz
PowerBead
™
can
80855
11 oz cartridge
High Temp Red RTV
Silicone Gasket
81160
3 oz tube
81915
7.25 oz
Automatic Tube
®
85915
7.25 oz
PowerBead
™
can
81409
11 oz cartridge
Black
Silicone Adhesive Sealant
81158
3 oz tube
81173
12.9 oz cartridge
Product Category
ABS
Product
Part #
Size
Devcon
®
Urethane Repair
Compounds
ABS
Flexane Brushable
15350
1 lb
Devcon
®
Metal Repair
Putties
ABS
Plastic Steel
®
Putty (A)
10110
1 lb
10120
4 lb
10130
25 lb
Plastic Steel
®
5 Minute
®
Putty (SF)
10240
1 lb
Aluminum Putty (F)
10610
1 lb
10620
3 lb
Titanium Putty
10760
1 lb
10770
2 lb
Stainless Steel Putty (ST)
10270
1 lb
Bronze Putty (BR)
10260
1 lb
Ceramic Repair Putty
11700
3 lb
Devcon
®
Metal Repair Liquids/
Wearing Compounds
ABS
Plastic Steel
®
Liquid (B)
10210
1 lb
10220
4 lb
10230
25 lb
Aluminum Liquid (F2)
10710
1 lb
10720
3 lb
Brushable Ceramic Red
11760
2 lb
11762
12 lb
Brushable Ceramic Blue
11765
2 lb
11767
12 lb
Brushable Ceramic White
11770
2 lb
Product Category
Specification
Product
Part #
Size
Devcon
®
Metal Repair
Compounds
MIL-PRF-24176C,
Type I
Plastic Steel
®
Putty (A)
10110
1 lb
10120
4 lb
10130
25 lb
Titanium Putty
10760
1 lb
10770
2 lb
Ceramic Repair Putty
11700
3 lb
MIL-PRF-24176C,
Type II
Aluminum Putty (F)
10610
1 lb
10620
3 lb
MMM-A-1754
Plastic Steel
®
Liquid (B)
10210
1 lb
10220
4 lb
10230
25 lb
Aluminum Liquid (F-2)
10710
1 lb
10720
3 lb
Permatex
®
Anti-Seize
Lubricants
A-907
Anti-Seize Lubricant
81343
1 oz tube
80071
4 oz brush-top bottle
80078
8 oz brush-top bottle
81464
12 oz aerosol can,
8.5 oz net wt
80208
16 oz bottle
Copper Anti-Seize
09128
8 oz brush-top bottle
31163 16 oz brush-top bottle
∆
NFPA Fire Code 30B:
Level 3
Anti-Seize Lubricant
81343
1 oz tube
80071
4 oz brush-top bottle
80078
8 oz brush-top bottle
81464
12 oz aerosol can,
8.5 oz net wt
80208
16 oz bottle
Permatex
®
Gasket Sealants
S-45180D, Type I
Form-A-Gasket
®
No. 1 Sealant
80003
11 oz tube
S-45180D, Type II
Form-A-Gasket
®
No. 2 Sealant
80015
1.5 oz tube
80016
3 oz tube
80011
11 oz tube
S-45180D, Type III
Form-A-Gasket
®
No. 3 Sealant
80017
16 oz bottle
R E F E R E N C E S
49
AGENCY APPROVALS and REFERENCE CHARTS
Shore Hardness
Devcon
®
/ Permatex
®
NSF Registered Products
Viscosity
(cP)
Bead Length
2
(inches)
Product Category
NSF Approval
Product
Part #
Size
Permatex
®
Liquid Threadlockers
P1
Low Strength
Threadlocker PURPLE
22250
50 ml bottle
22225
250 ml bottle
Medium Strength
Threadlocker BLUE
24210
10 ml bottle
24242
36 ml bottle
24250
50 ml bottle
24225
250 ml bottle
Permanent Strength
Threadlocker RED
26210
10 ml bottle
26242
36 ml bottle
26250
50 ml bottle
26225
250 ml bottle
26201
1 Liter bottle
Penetrating Grade
Threadlocker GREEN
29050
50 ml bottle
29025
250 ml bottle
Permatex
®
Gel Threadlockers
P1
Medium Strength
Threadlocker BLUE
24010
10 g Gel Twist
™
carded
High Strength
Threadlocker RED
27010
10 g Gel Twist
™
carded
Permatex
®
Thread Sealants
P1
High Performance
Thread Sealant
56521
50 ml tube, carded
56525
250 ml tube
Permatex
®
Retaining Compounds
P1
Bearing Mount
for Relaxed Fits
68050
50 ml bottle
68025
250 ml bottle
Permatex
®
Activators
∆
NFPA Fire Code 30B:
Level 1
Surface Prep
™
Activator for
Anaerobic
24163
6 oz aerosol can,
4.5 oz net wt
Permatex
®
Gasket Makers
P1
ULTRA BLUE
®
RTV Silicone Gasket Maker
81724
3.35 oz tube, carded
85519
9.5 oz
PowerBead
™
can
81725
13 oz cartridge
The Right Stuff
®
Gasket Maker
25224
7 oz
Automatic Tube
29208
5 oz cartridge
85224
9.5 oz
PowerBead
™
can
33694
10.1 fl oz cartridge
Anaerobic Gasket Maker
51813
50 ml tube, carded
51845
300 ml cartridge
Devcon
®
Silicone Adhesive
Sealants
NSF /
ANSI 51
Silite
®
Silicone RTV-Clear
17100
3 oz tube
17150
10.3 oz tube
Silite
®
Silicone RTV-White
17140
10.3 oz tube
Silite
®
Silicone RTV (High Temp.)
17130
10.3 oz tube
Devcon
®
Metal Repair
Compounds
NSF/
ANSI 61
Stainless Steel Putty
10270
1 lb
Brushable Ceramic (White)
11770
2 lb
Devcon
®
Flooring Repair
R2
Floor Patch
™
13100
10 lb.
13120
40 lb
Floor Patch
™
FC
13110
10 lb
Epoxy Coat
™
7000
Non VOC
12710
2 gal
Material
Centipoise (cP)
@
70˚F
1
Water
1-3
Blood
10
Ethylene Glycol
15
Motor Oil (SAE 10)
50
Corn Oil
65
Maple Syrup
150
Motor Oil (SAE 40)
250
Motor Oil (SAE 60)
1,000
Honey
2,000
Molasses
5,000
Chocolate Syrup
10,000
Ketchup
50,000
Peanut Butter
150,000
Lard
1,000,000
Sample Material
Shore Hardness
Scale
Bicycle Gel Seat
15-30
OO
Chewing Gum
20
OO
Rubber Band
20-25
A
Pencil Eraser
40
A
Door Seal
55
A
Car Tire Tread
60-70
A
Running Shoe Sole
70
A
Soft Skateboard Wheel
78
A
Leather Belt
80
A
Hydraulic O-Ring
70-90
A
Hard Skateboard Wheel
98
A
Shopping Cart Wheel
100
A
Ebonite Rubber
100
A
Solid Truck Tires
50
D
Hard Hat
75
D
Bead Diameter
50 ml
300 ml
380 ml
400 ml
1 lb
1 gal
3
1/4"
124
740
945
992
1,073
9,450
3/8"
56
335
420
448
477
4,200
1/2"
30
180
230
240
265
2,360
5/8"
20
120
151
160
172
1,510
Viscosity is a measure of a fluid's resistance to flow as compared to water. Viscosity is
measured in Centipoise (cP).
NOTES:
1
Viscosities shown are measured at room temperature (70˚F) and are approximate. Values will increase at lower
temperatures and decrease at warmer temperatures.
NOTES:
2
For methacrylates, epoxies, and silicones.
3
1 gallon = 3,791.76 ml (128.1 oz.)
I N D E X
ITEM NUMBERS
50
09124 . . . . 24
09127 . . . . 24
09128 . . . . 24
09975 . . . . 25
09978 . . . . 25
1C . . . . . . . 25
14D. . . . . . 33
14H. . . . . . 33
16BR. . . . . 27
16C . . . . . . 27
101BR. . . . 36
101C . . . . . 36
133K . . . . . 24
133MA . . .24
10050 . . . . 14
10080 . . . . 14
10110 . . . . . 8
10120 . . . . . 8
10130 . . . . . 8
10210 . . . . 10
10220 . . . . 10
10230 . . . . 10
10240 . . . . . 8
10260 . . . . . 8
10270 . . . . . 8
10610 . . . . . 8
10620 . . . . . 8
10710 . . . . 10
10720 . . . . 10
10760 . . . . . 8
10770 . . . . . 8
10780 . . . . . 8
11170 . . . . 14
11320 . . . . 12
11330 . . . . 12
11340 . . . . 12
11350 . . . . 12
11410 . . . . . 8
11420 . . . . . 8
11450 . . . . 14
11460 . . . . 14
11470 . . . . 14
11475 . . . . 14
11480 . . . . 14
11490 . . . . 14
11495 . . . . 14
11500 . . . . 23
11600 . . . . 23
11700 . . . . . 8
11730 . . . . . 8
11760 . . . . 10
11762 . . . . 10
11765 . . . . 10
11767 . . . . 10
11768 . . . . 10
11770 . . . . 10
11800 . . . . 23
12560 . . . . 21
12710 . . . . 21
12750 . . . . 21
13090 . . . . 21
13100 . . . . 21
13110 . . . . 21
13120 . . . . 21
13130 . . . . 21
13400 . . . . 21
13550 . . . . 21
13800 . . . . 21
14165 . . . . 44
14166 . . . . 44
14200 . . . . 40
14210 . . . . 40
14240 . . . . 40
14250 . . . . 40
14251 . . . . 40
14255 . . . . 40
14258 . . . . 42
14260 . . . . 40
14265 . . . . 40
14270 . . . . 40
14272 . . . . 42
14277 . . . . 40
14278 . . . . 40
14280 . . . . 47
14285 . . . . 47
14287 . . . . 47
14291 . . . . 47
14292 . . . . 47
14293 . . . . 47
14300 . . . . 44
14310 . . . . 40
14315 . . . . 40
14320 . . . . 44
14330 . . . . 44
14340 . . . . 44
14350 . . . . 40
14355 . . . . 40
14360 . . . . 40
14363 . . . . 44
14366 . . . . 44
14367 . . . . 44
14385 . . . . 44
14388 . . . . 44
14389 . . . . 44
14390 . . . . 44
14409 . . . . 47
14410 . . . . 47
14415 . . . . 40
14500 . . . . 43
14501 . . . . 43
14503 . . . . 43
14510 . . . . 43
14630 . . . . 40
15043 . . . . 47
15047 . . . . 47
15049 . . . . 18
15050 . . . . 18
15051 . . . . 18
15165 . . . . 18
15250 . . . . 16
15260 . . . . 16
15330 . . . . 18
15350 . . . . 18
15800 . . . . 16
15810 . . . . 16
15820 . . . . 18
15850 . . . . 18
15940 . . . . 16
15980 . . . . 18
15984 . . . . 18
15985 . . . . 18
15990 . . . . 16
17100 . . . . 27
17130 . . . . 27
17140 . . . . 27
17150 . . . . 27
17358 . . . . 33
17359 . . . . 36
17361 . . . . 27
17369 . . . . 37
17511 . . . . 24
17914 . . . . 36
18572 . . . . 36
19510 . . . . 10
19545 . . . . 33
19550 . . . . 37
19600 . . . . 16
19650 . . . . 44
19770 . . . . . 8
2AR. . . . . . 25
2BR. . . . . . 25
2C . . . . . . . 25
20851 . . . . 26
20853 . . . . 26
20855 . . . . 26
20857 . . . . 26
20859 . . . . 26
20861 . . . . 26
21218 . . . . 26
21425 . . . . 27
22058 . . . . 24
22064 . . . . 24
22225 . . . . 30
22250 . . . . 30
23108 . . . . 26
23116 . . . . 26
23218 . . . . 26
24010 . . . . 31
24105 . . . . 36
24163 . . . . 33
24210 . . . . 30
24215 . . . . 31
24225 . . . . 30
24242 . . . . 30
24250 . . . . 30
24325 . . . . 30
24350 . . . . 30
25072 . . . . 26
25104 . . . . 26
25108 . . . . 26
25116 . . . . 26
25219 . . . . 26
25224 . . . . 36
26BR. . . . . 37
26C . . . . . . 37
26015 . . . . 36
26201 . . . . 30
26210 . . . . 30
26225 . . . . 30
26242 . . . . 30
26250 . . . . 30
27010 . . . . 31
27110 . . . . 30
27115 . . . . 31
27125 . . . . 30
27150 . . . . 30
27225 . . . . 30
27250 . . . . 30
27725 . . . . 30
27750 . . . . 30
29025 . . . . 30
29050 . . . . 30
29208 . . . . 36
29247 . . . . 36
3D. . . . . . . 25
35V . . . . . . 25
30874 . . . . 36
31163 . . . . 24
33694 . . . . 36
48000 . . . . 23
48100 . . . . 23
51D. . . . . . 33
51531 . . . . 37
51580 . . . . 37
51813 . . . . 37
51845 . . . . 37
54550 . . . . 33
56521 . . . . 33
56525 . . . . 33
56725 . . . . 33
56750 . . . . 33
59225 . . . . 33
59235 . . . . 33
59803 . . . . 36
59813 . . . . 36
6BR. . . . . . 37
6C . . . . . . . 37
6MA . . . . . 37
66BR. . . . . 27
66C . . . . . . 27
60925 . . . . 32
60950 . . . . 32
62050 . . . . 32
6245 . . . . . 27
64050 . . . . 32
66050 . . . . 32
68025 . . . . 32
68050 . . . . 32
70144 . . . . 46
70145 . . . . 46
70213 . . . . 46
70350 . . . . 46
70450 . . . . 46
72161 . . . . 46
72250 . . . . 46
72261 . . . . 46
77BR. . . . . 36
77C . . . . . . 36
767 . . . . . . 24
771 . . . . . . 24
77124 . . . . 24
77164 . . . . 24
80003 . . . . 25
80011 . . . . 25
80015 . . . . 25
80016 . . . . 25
80017 . . . . 25
80022 . . . . 37
80038 . . . . 25
80045 . . . . 33
80050 . . . . 27
80065 . . . . 25
80071 . . . . 24
80078 . . . . 24
80208 . . . . 24
80500 . . . . 25
80502 . . . . 25
80506 . . . . 37
80510 . . . . 33
80518 . . . . 25
80533 . . . . 27
80546 . . . . 25
80558 . . . . 24
80580 . . . . 37
80628 . . . . 37
80632 . . . . 33
80633 . . . . 33
80834 . . . . 27
80855 . . . . 27
81158 . . . . 27
81160 . . . . 37
81173 . . . . 27
81237 . . . . 27
81238 . . . . 27
81311 . . . . 37
81312 . . . . 37
81409 . . . . 37
81464 . . . . 24
81724 . . . . 36
81725 . . . . 36
81805 . . . . 36
81860 . . . . 37
81878 . . . . 36
81913 . . . . 27
81915 . . . . 37
82080 . . . . 36
82180 . . . . 36
82194 . . . . 36
82195 . . . . 36
82751 . . . . 36
85080 . . . . 36
85224 . . . . 36
85519 . . . . 36
85913 . . . . 27
85915 . . . . 37
99MA . . . .25
DA007. . . . 40
DA012. . . . 40
DA033. . . . 44
DA034. . . . 44
DA051. . . . 40
DA052. . . . 40
DA160. . . . 44
DA290. . . . 44
DA291. . . . 44
DA295. . . . 44
DA307. . . . 44
DA309. . . . 44
DA461. . . . 44
DA462. . . . 44
DA999. . . . 42
DF039. . . . 16
Item #
Page
Item #
Page
Item #
Page
Item #
Page
I N D E X
51
Warranty
Devcon will replace any material found to be defective. Because
storage, handling and a pplication of this material are beyond i ts
control, Devcon accepts no liability for the results obtained.
Disclaimer
All information is based on laboratory testing and is not intended
for design purposes. ITW Devcon makes no representations or
warranties of any kind concerning this data.
MSDS / TDS
You can also access MSDSs and TDSs from our website:
www.devcon.com
.
Technical Services:
1-800-933-8266
Customer Services:
1-800-626-7226
30 Endicott Street
Danvers, MA 01923
TEL: (978) 777-1100
FAX: (978) 774-0516
www.devcon.com
© 2012 ITW Devcon
All rights reserved.
Except where noted,
all trademarks are
the property of
Illinois Tool Works Inc.
CAT-12A
www.ptda.org
Edition 9
