Smart [Pro]

Smart [4] 2.0 FL

pag. 27

pag. 38

Smart [4] 2.1 HLO

pag. 88

Innovative LED Floodlight

Industrial Low bays

Floodlights

NEW

PRODUCT

NEW

PRODUCT

Index

Lighting > Index

Gewiss-Depliant-Lighting-html.html

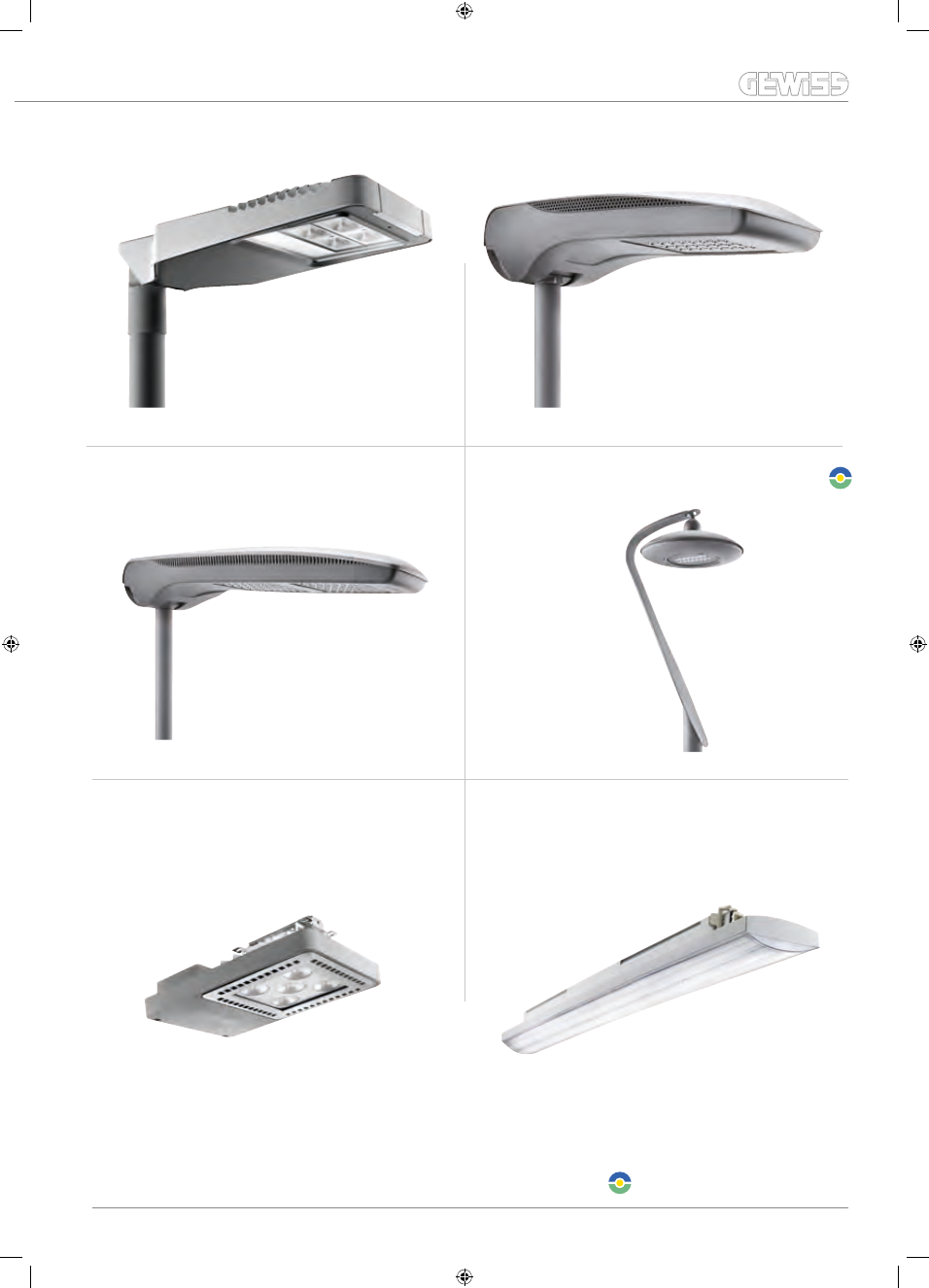

Blue green versions available in Midnight blue

Street [O

] Maxi

Road [5]

Urban [O

]

Street [O

]

pag. 44

pag. 14

pag. 23

pag. 4

Smart [3]

Smart [4] 2.0 LB-HB

pag. 67

pag. 62

Urban lighting systems

Low bays and High bays

Street lighting systems

LED watertight luminaires

Street lighting systems

Lighting > Index

Gewiss-Depliant-Lighting-html.html

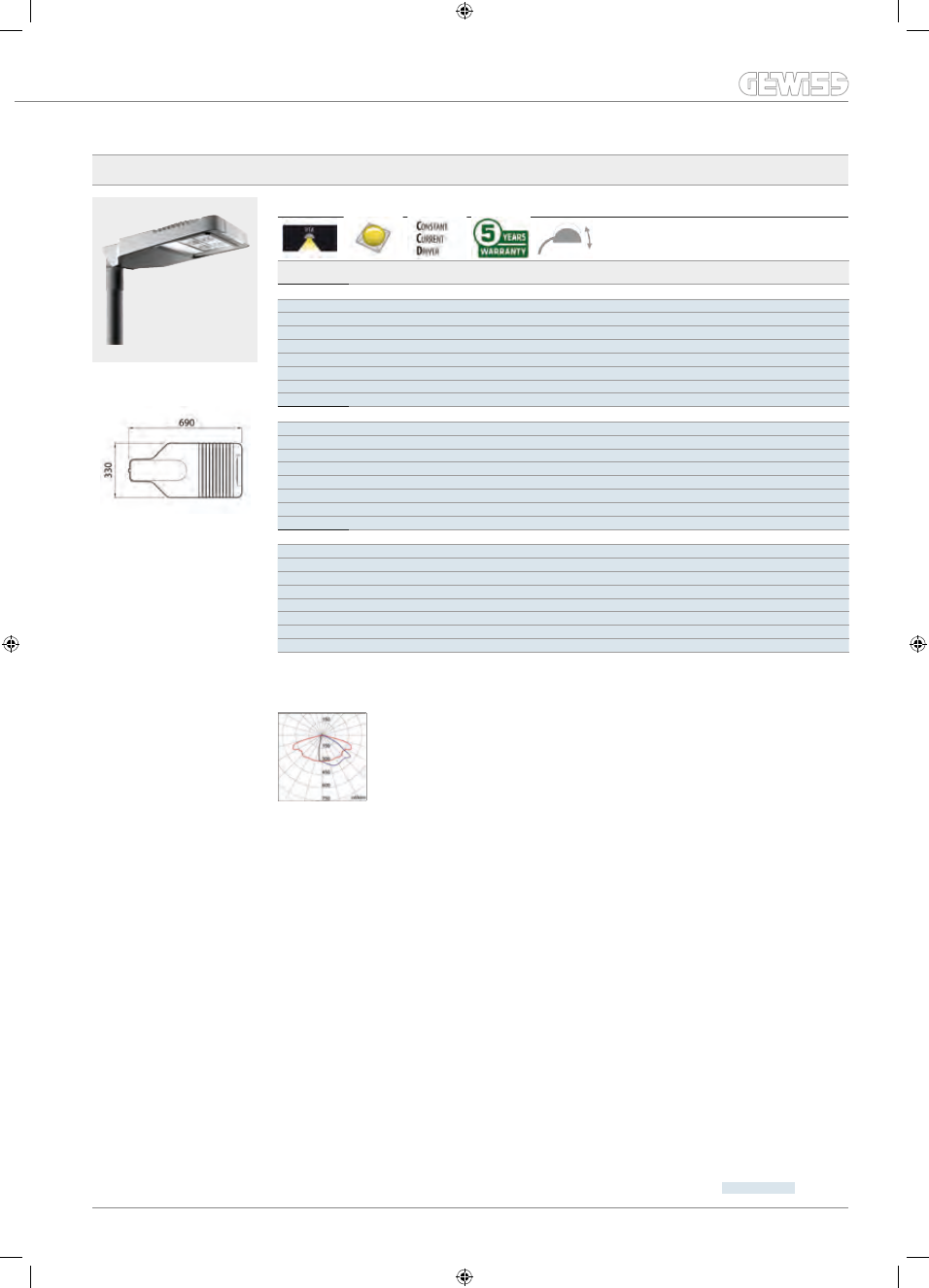

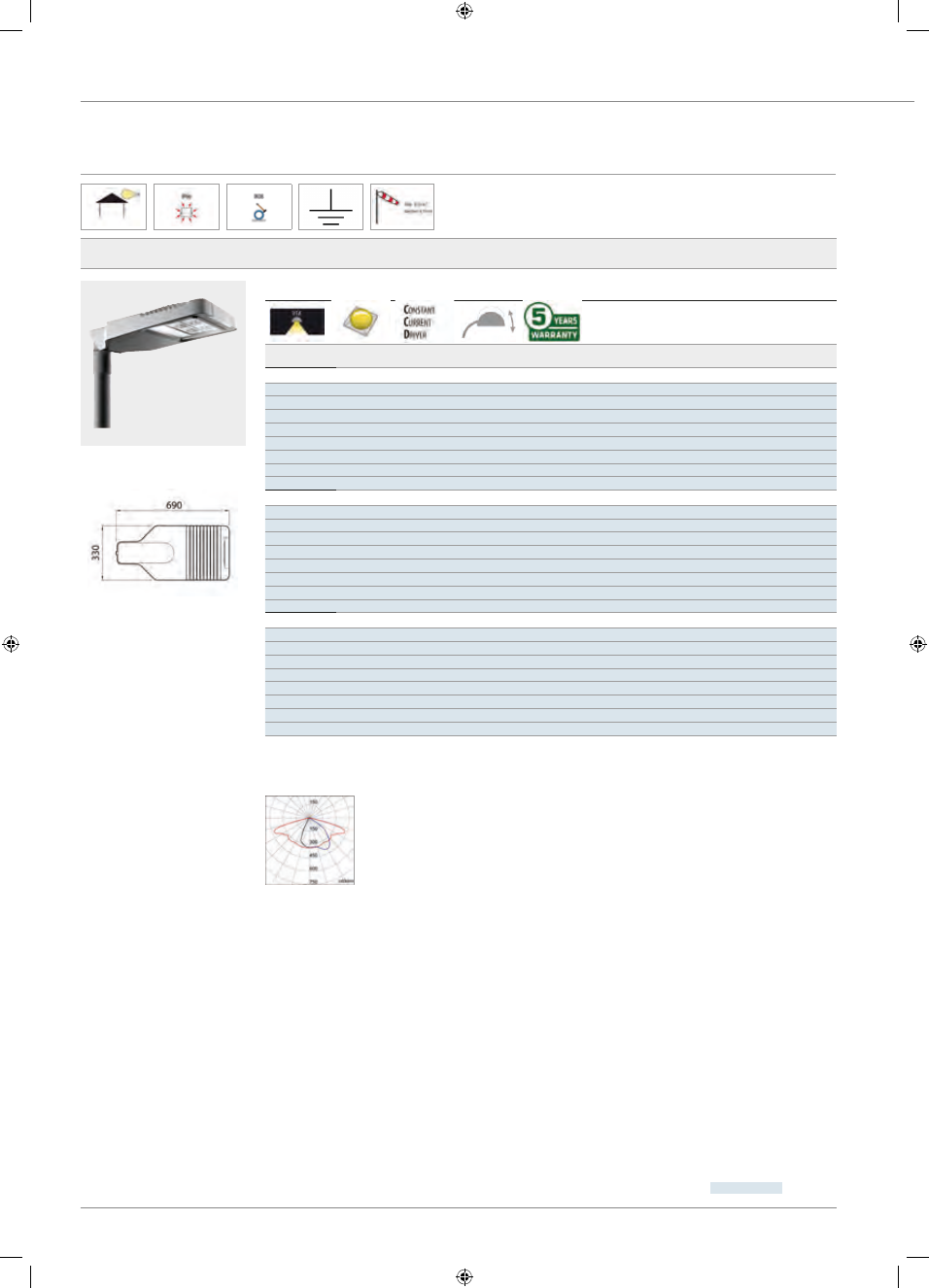

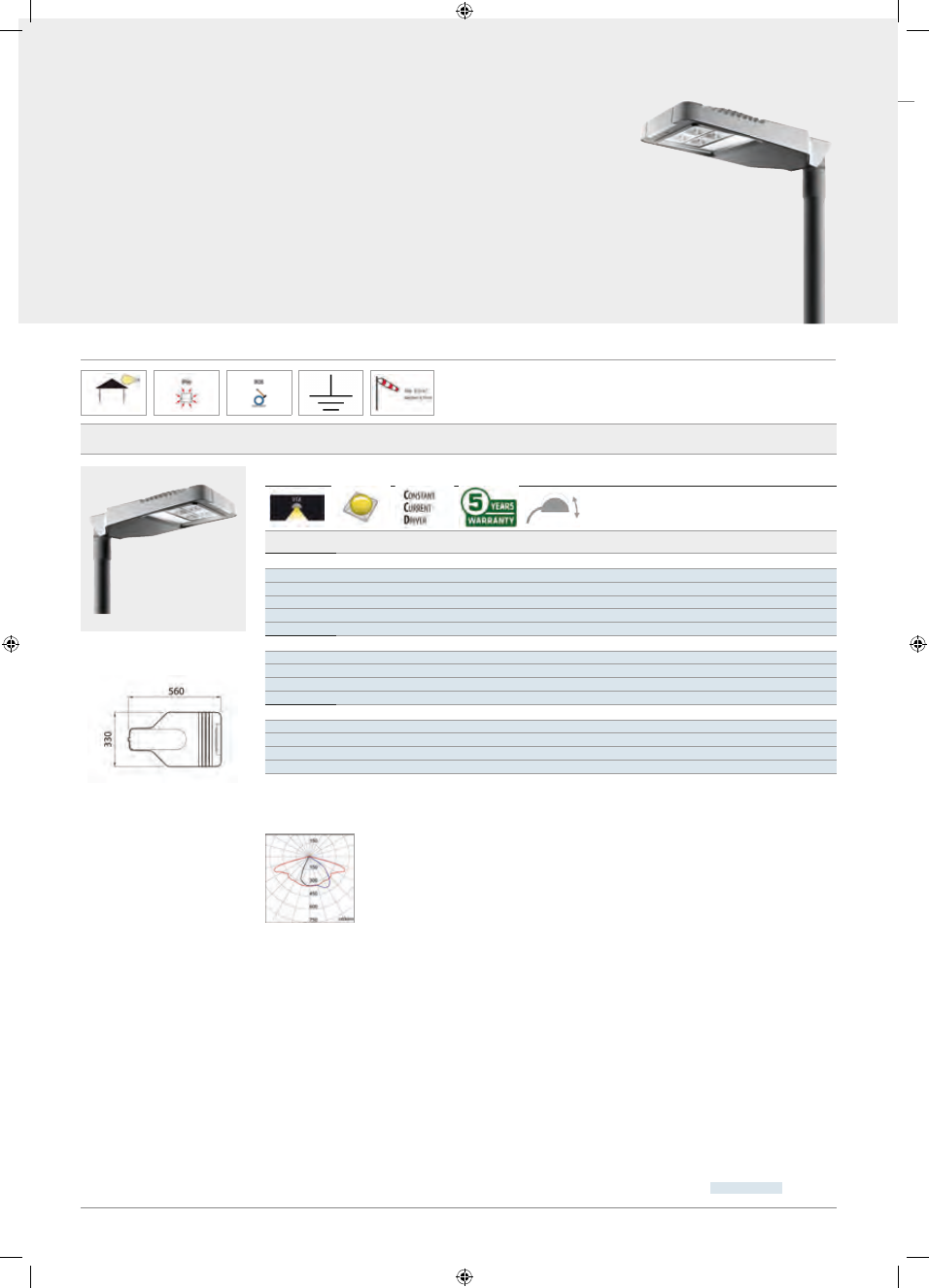

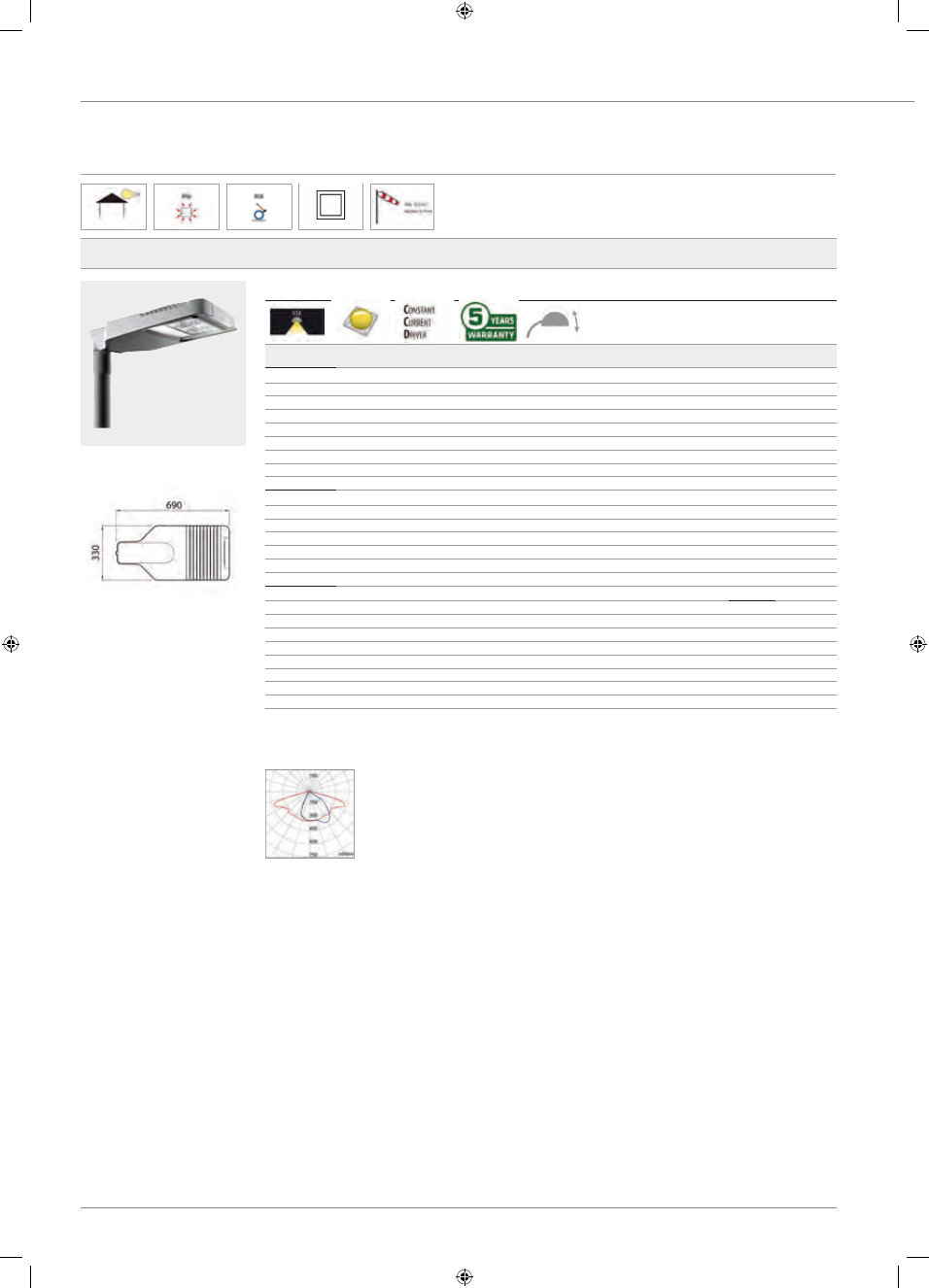

Lighting > Street lighting > ROAD[5] Range

Road [5]

For Special versions please contact our GEWISS Sales Organization

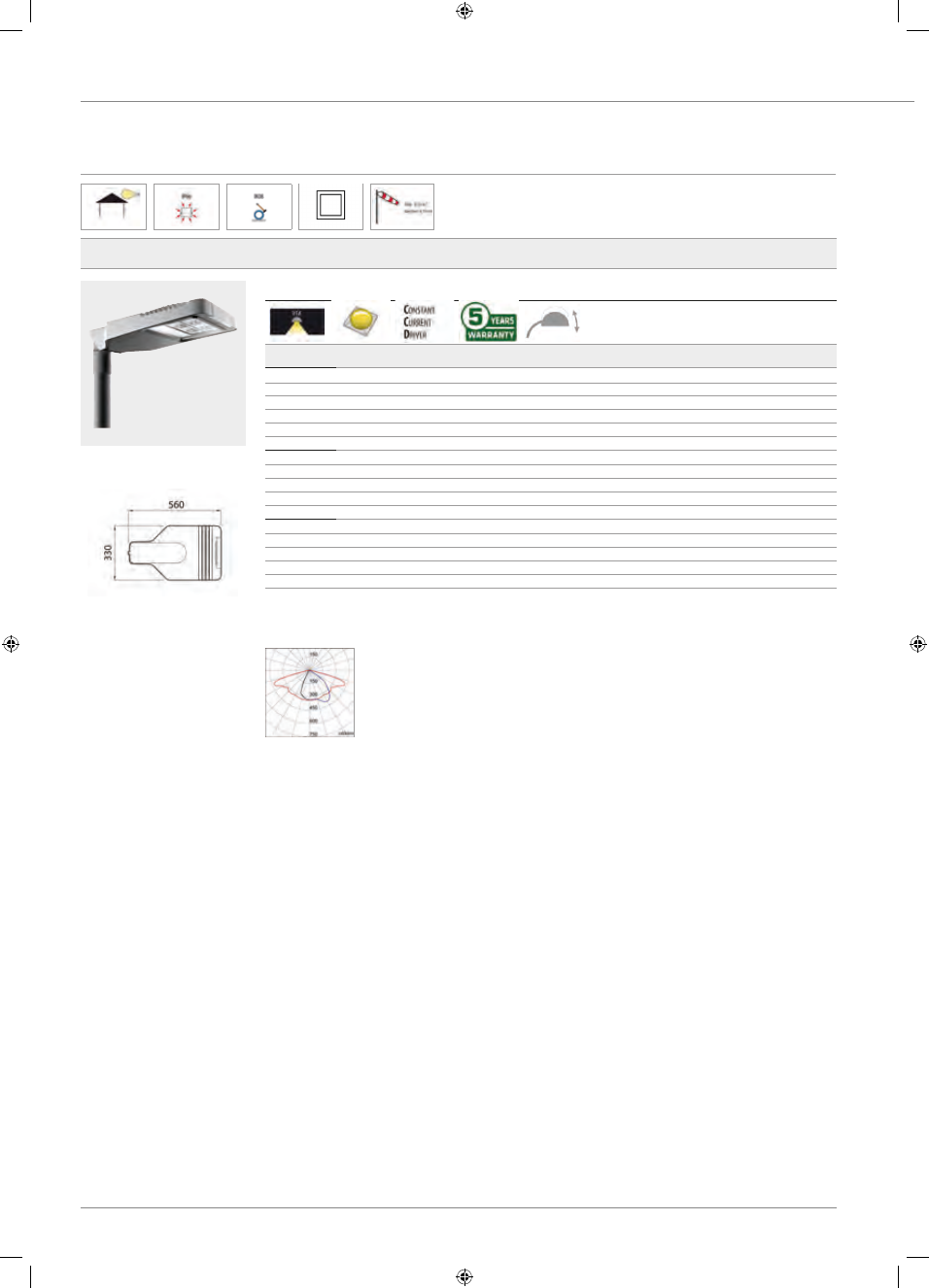

ROAD [5] - MINI - CLASS I

OPTIC WIDE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS I

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 731

1 (1x3 LED)

4000 K (CRI 70)

0.35 A

13 W

1560

1310

6,4

GW R5 771

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2620

6,4

GW R5 711

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3840

6,4

GW R5 772

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

5240

6,6

GW R5 712

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

7680

6,6

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 771 B

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

28 W

3120

2620

6,4

GW R5 711 B

1 (1x3 LED)

4000 K (CRI 70)

1 A

39 W

4770

3840

6,4

GW R5 772 B

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

54 W

6240

5240

6,6

GW R5 712 B

2 (2x3 LED)

4000 K (CRI 70)

1 A

77 W

9540

7680

6,6

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 771 M

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2620

6,4

GW R5 711 M

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3840

6,4

GW R5 772 M

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

5240

6,6

GW R5 712 M

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

7680

6,6

Versions with 3000K (-30K) or 5700K (-57K) LED, and with lower LED current available on demand.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.

Photometric distributions

WIDE optic

GW R5 772

Technical characteristics

page

Road [5] is the new range of LED lighting devices which completes the offer for urban and
road lighting. The new range has been designed to offer better lighting performances,
simplify the installation and the maintenance of the lighting devices and promote the
maximum energy-saving. Road [5] is the ideal solution to all types of urban and interurban
road lighting, round-about, large outdoor areas and parking lots, both for new and already
existing installations.

Street lighting systems

Road [5]

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > ROAD[5] Range

For Special versions please contact our GEWISS Sales Organization

OPTIC HUGE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS I

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 631

1 (1x3 LED)

4000 K (CRI 70)

0.35 A

13 W

1560

1150

6,4

GW R5 671

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2300

6,4

GW R5 611

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3370

6,4

GW R5 672

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

4590

6,6

GW R5 612

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

6730

6,6

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 671 B

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

28 W

3120

2300

6,4

GW R5 611 B

1 (1x3 LED)

4000 K (CRI 70)

1 A

39 W

4770

3370

6,4

GW R5 672 B

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

54 W

6240

4590

6,6

GW R5 612 B

2 (2x3 LED)

4000 K (CRI 70)

1 A

77 W

9540

6730

6,6

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 671 M

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2300

6,4

GW R5 611 M

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3370

6,4

GW R5 672 M

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

4590

6,6

GW R5 612 M

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

6730

6,6

Photometric distributions

HUGE optic

GW R5 672

CYCLE AND PEDESTRIAN OPTIC

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS I

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 871 M

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

2350

1900

6,4

GW R5 872 M

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

4700

3800

6,4

Photometric distributions

Cycle ped.optic

GW R5 871 M

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > ROAD[5] Range

Road [5]

For Special versions please contact our GEWISS Sales Organization

ROAD [5] - MEDIUM - CLASS I

OPTIC WIDE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS I

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 773

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

7860

GW R5 713

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

11520

GW R5 774

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

10480

8,4

GW R5 714

4 (4x3 LED)

4000 K (CRI 70)

1 A

151 W

19080

15360

8,4

GW R5 775

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

13100

8,8

GW R5 715

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

19200

8,8

GW R5 776

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

15730

9,1

GW R5 716

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

23040

9,1

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 773 B

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

81 W

9360

7860

GW R5 713 B

3 (3x3 LED)

4000 K (CRI 70)

1 A

115 W

14310

11520

GW R5 774 B

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

108 W

12480

10480

8,4

GW R5 714 B

4 (4x3 LED)

4000 K (CRI 70)

1 A

153 W

19080

15360

8,4

GW R5 775 B

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

134 W

15600

13100

8,8

GW R5 715 B

5 (5x3 LED)

4000 K (CRI 70)

1 A

191 W

23850

19200

8,8

GW R5 776 B

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

161 W

18720

15730

9,1

GW R5 716 B

6 (6x3 LED)

4000 K (CRI 70)

1 A

229 W

28620

23040

9,1

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 773 M

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

7860

GW R5 713 M

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

11520

GW R5 774 M

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

10480

8,4

GW R5 714 M

4 (4x3 LED)

4000 K (CRI 70)

1 A

113 W

19080

15360

8,4

GW R5 775 M

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

13100

8,8

GW R5 715 M

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

19200

8,8

GW R5 776 M

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

15730

9,1

GW R5 716 M

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

23040

9,1

Photometric distributions

WIDE optic

GW R5 774

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > ROAD[5] Range

For Special versions please contact our GEWISS Sales Organization

OPTIC HUGE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS I

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 673

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

6890

GW R5 613

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

10100

GW R5 674

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

9190

8,4

GW R5 614

4 (4x3 LED)

4000 K (CRI 70)

1 A

151 W

19080

13460

8,4

GW R5 675

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

11480

8,8

GW R5 615

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

16820

8,8

GW R5 676

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

13780

9,1

GW R5 616

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

20190

9,1

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 673 B

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

81 W

9360

6890

GW R5 613 B

3 (3x3 LED)

4000 K (CRI 70)

1 A

115 W

14310

10100

GW R5 674 B

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

108 W

12480

9190

8,4

GW R5 614 B

4 (4x3 LED)

4000 K (CRI 70)

1 A

153 W

19080

13460

8,4

GW R5 675 B

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

134 W

15600

11480

8,8

GW R5 615 B

5 (5x3 LED)

4000 K (CRI 70)

1 A

191 W

23850

16820

8,8

GW R5 676 B

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

161 W

18720

13780

9,1

GW R5 616 B

6 (6x3 LED)

4000 K (CRI 70)

1 A

229 W

28620

20190

9,1

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 673 M

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

6890

GW R5 613 M

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

10100

GW R5 674 M

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

9190

8,4

GW R5 614 M

4 (4x3 LED)

4000 K (CRI 70)

1 A

113 W

19080

13460

8,4

GW R5 675 M

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

11480

8,8

GW R5 615 M

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

16820

8,8

GW R5 676 M

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

13780

9,1

GW R5 616 M

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

20190

9,1

Photometric distributions

HUGE optic

GW R5 674

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > ROAD[5] Range

Road [5]

For Special versions please contact our GEWISS Sales Organization

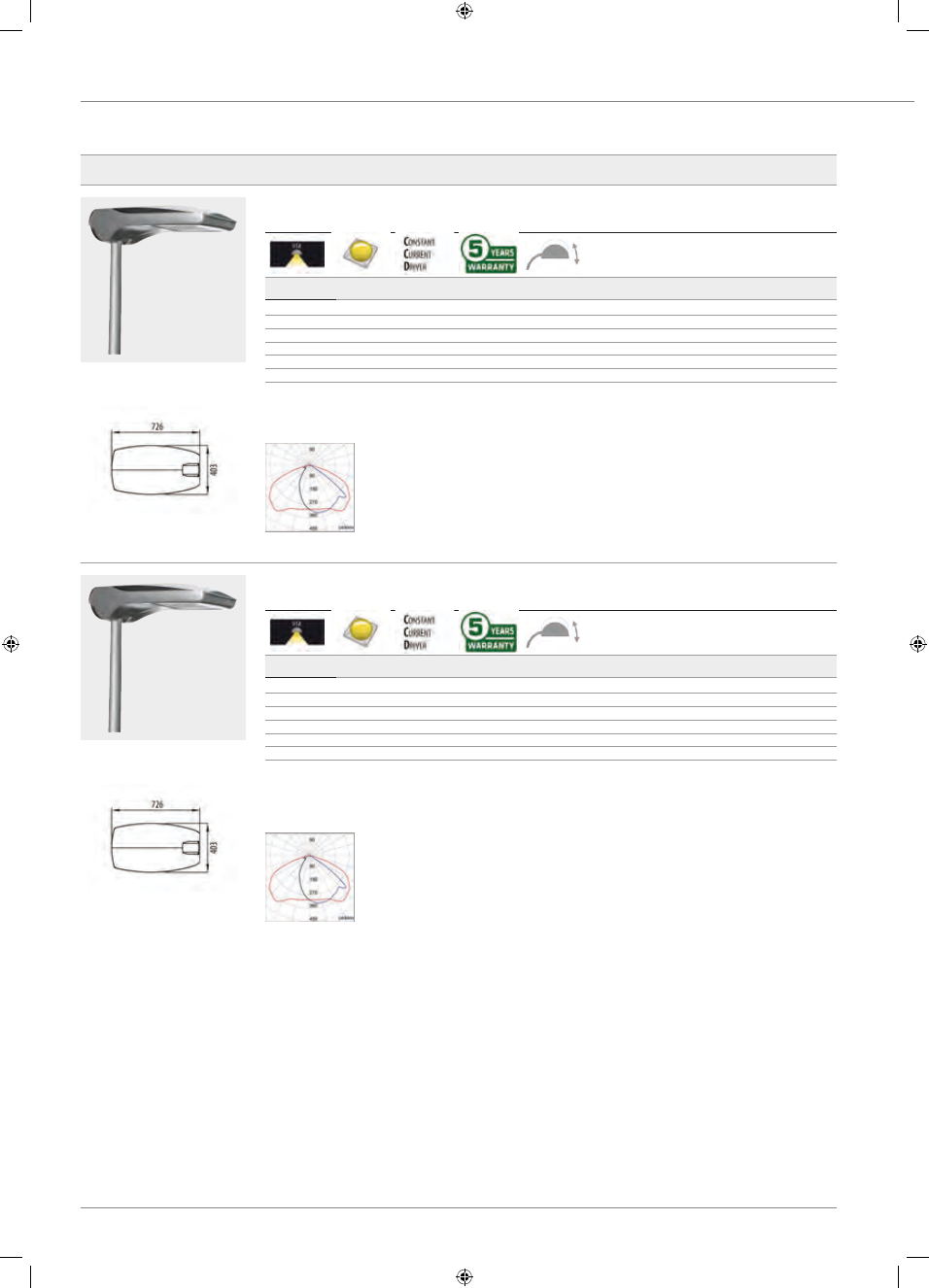

ROAD [5] - MINI - CLASS II

OPTIC WIDE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS II

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 231

1 (1x3 LED)

4000 K (CRI 70)

0.35 A

13 W

1560

1310

6,4

GW R5 271

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2620

6,4

GW R5 211

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3840

6,4

GW R5 272

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

5240

6,6

GW R5 212

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

7680

6,6

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 271 B

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

28 W

3120

2620

6,4

GW R5 211 B

1 (1x3 LED)

4000 K (CRI 70)

1 A

39 W

4770

3840

6,4

GW R5 272 B

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

54 W

6240

5240

6,6

GW R5 212 B

2 (2x3 LED)

4000 K (CRI 70)

1 A

77 W

9540

7680

6,6

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 271 M

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2620

6,4

GW R5 211 M

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3840

6,4

GW R5 272 M

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

5240

6,6

GW R5 212 M

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

7680

6,6

Photometric distributions

WIDE optic

GW R5 272

Gewiss-Depliant-Lighting-html.html

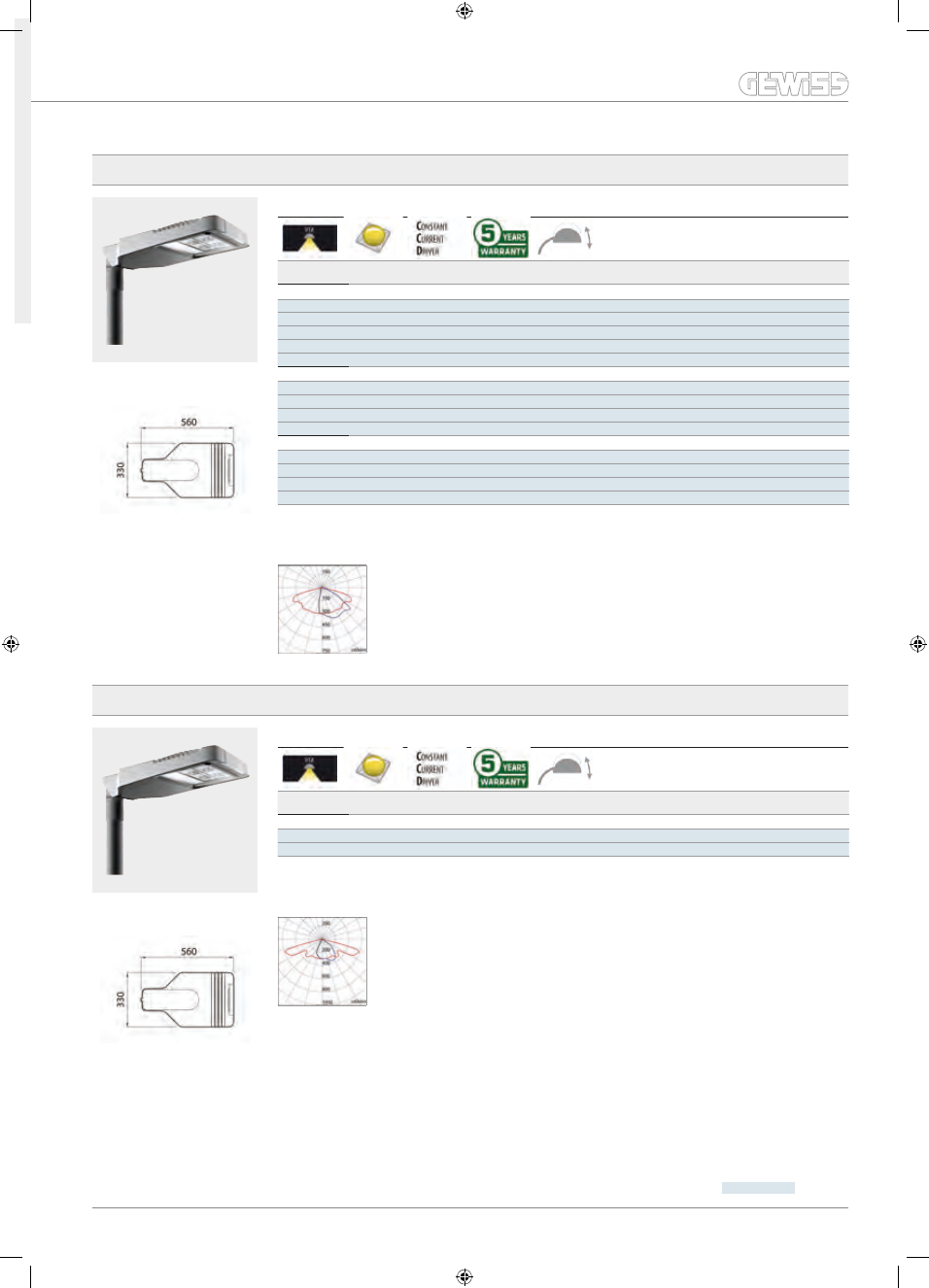

Lighting > Street lighting > ROAD[5] Range

For Special versions please contact our GEWISS Sales Organization

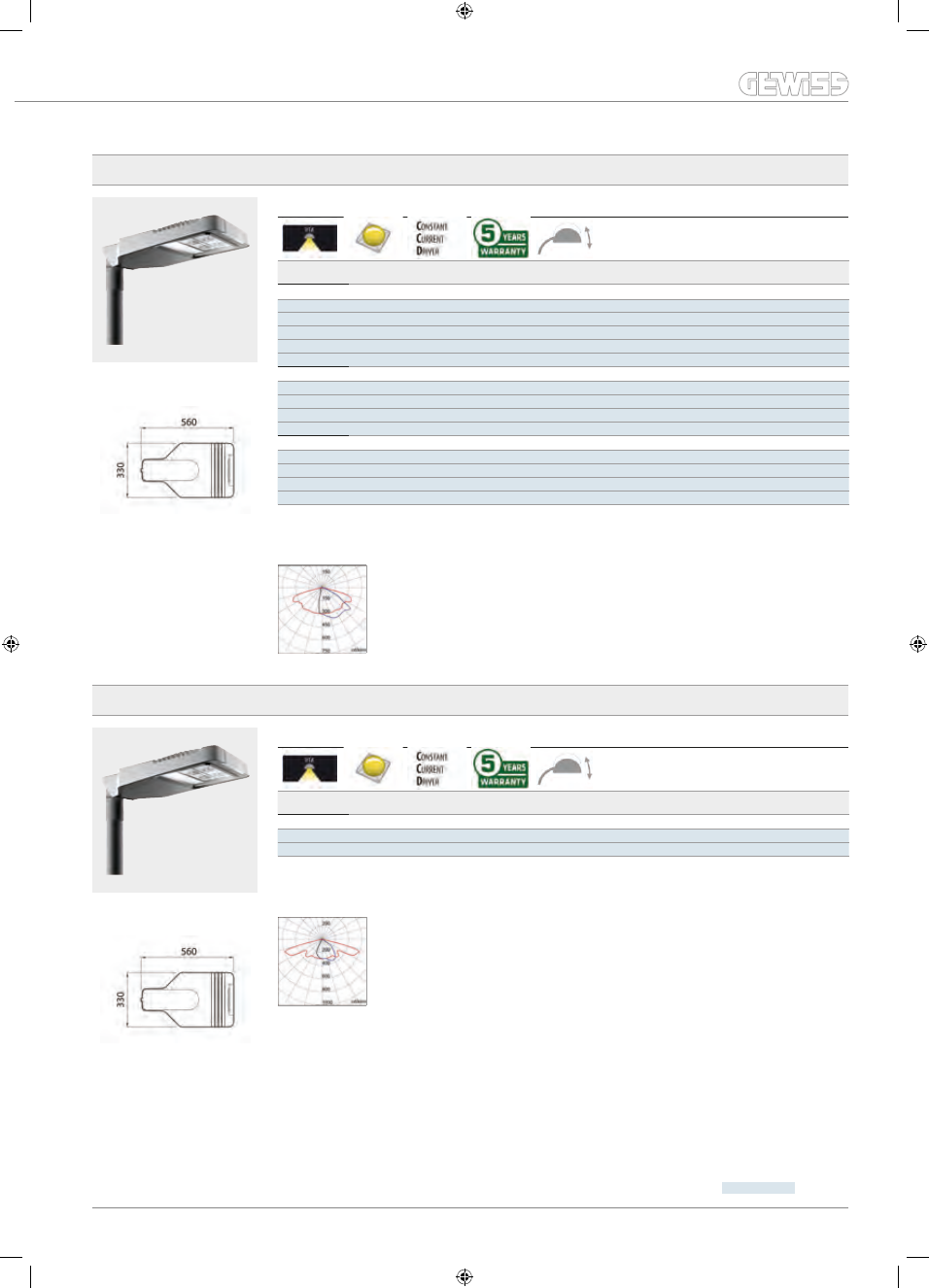

OPTIC HUGE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS II

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 131

1 (1x3 LED)

4000 K (CRI 70)

0.35 A

13 W

1560

1150

6,4

GW R5 171

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2300

6,4

GW R5 111

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3370

6,4

GW R5 172

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

4590

6,6

GW R5 112

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

6730

6,6

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 171 B

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

28 W

3120

2300

6,4

GW R5 111 B

1 (1x3 LED)

4000 K (CRI 70)

1 A

39 W

4770

3370

6,4

GW R5 172 B

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

54 W

6240

4590

6,6

GW R5 112 B

2 (2x3 LED)

4000 K (CRI 70)

1 A

77 W

9540

6730

6,6

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 171 M

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

3120

2300

6,4

GW R5 111 M

1 (1x3 LED)

4000 K (CRI 70)

1 A

38 W

4770

3370

6,4

GW R5 172 M

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

6240

4590

6,6

GW R5 112 M

2 (2x3 LED)

4000 K (CRI 70)

1 A

76 W

9540

6730

6,6

Photometric distributions

HUGE optic

GW R5 172

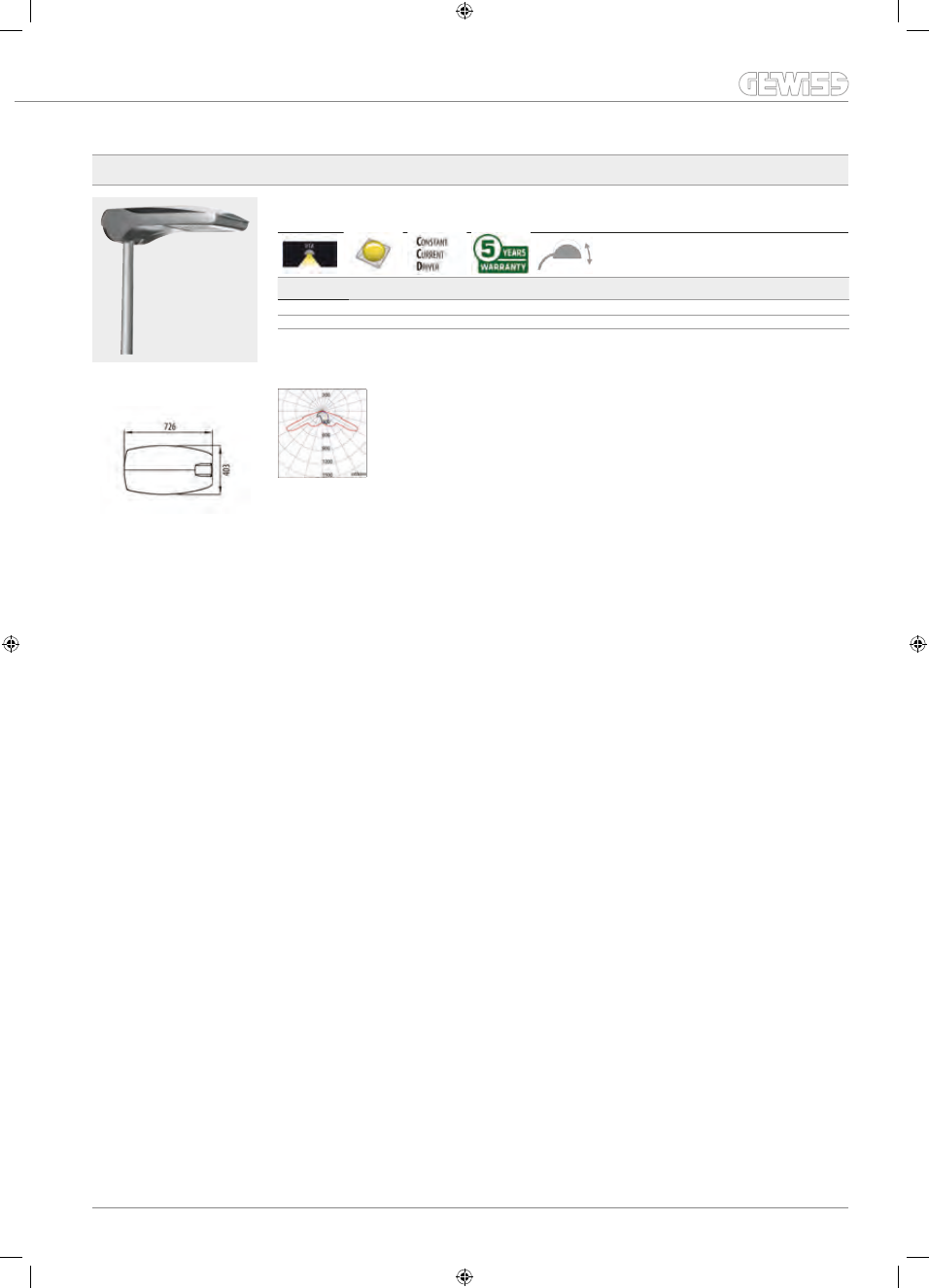

CYCLE AND PEDESTRIAN OPTIC

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS II

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 371 M

1 (1x3 LED)

4000 K (CRI 70)

0.7 A

27 W

2350

1900

6,4

GW R5 372 M

2 (2x3 LED)

4000 K (CRI 70)

0.7 A

53 W

4700

3800

6,6

Photometric distributions

Cycle ped.optic

GW R5 371 M

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > ROAD[5] Range

Road [5]

For Special versions please contact our GEWISS Sales Organization

ROAD [5] - MEDIUM - CLASS II

OPTIC WIDE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS II

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 273

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

7860

GW R5 213

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

11520

GW R5 274

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

10480

8,4

GW R5 214

4 (4x3 LED)

4000 K (CRI 70)

1 A

151 W

19080

15360

8,4

GW R5 275

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

13100

8,8

GW R5 215

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

19200

8,8

GW R5 276

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

15730

9,1

GW R5 216

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

23040

9,1

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 273 B

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

81 W

9360

7860

GW R5 213 B

3 (3x3 LED)

4000 K (CRI 70)

1 A

115 W

14310

11520

GW R5 275 B

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

134 W

15600

13100

8,8

GW R5 215 B

5 (5x3 LED)

4000 K (CRI 70)

1 A

191 W

23850

19200

8,8

GW R5 276 B

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

161 W

18720

15730

9,1

GW R5 216 B

6 (6x3 LED)

4000 K (CRI 70)

1 A

229 W

28620

23040

9,1

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 273 M

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

7860

GW R5 213 M

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

11520

GW R5 274 M

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

10480

8,4

GW R5 214 M

4 (4x3 LED)

4000 K (CRI 70)

1 A

113 W

19080

15360

8,4

GW R5 275 M

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

13100

8,8

GW R5 215 M

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

19200

8,8

GW R5 276 M

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

15730

9,1

GW R5 216 M

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

23040

9,1

Photometric distributions

WIDE optic

GW R5 274

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > ROAD[5] Range

For Special versions please contact our GEWISS Sales Organization

OPTIC HUGE

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66 - FLAT GLASS - CLASS II

Code

Number of

modules

Colour

temperature

LED

current

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW R5 173

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

6890

GW R5 113

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

10100

GW R5 174

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

9190

8,4

GW R5 114

4 (4x3 LED)

4000 K (CRI 70)

1 A

151 W

19080

13460

8,4

GW R5 175

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

11480

8,8

GW R5 115

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

16820

8,8

GW R5 176

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

13780

9,1

GW R5 116

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

20190

9,1

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW R5 173 B

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

81 W

9360

6890

GW R5 113 B

3 (3x3 LED)

4000 K (CRI 70)

1 A

115 W

14310

10100

GW R5 174 B

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

108 W

12480

9190

8,4

GW R5 114 B

4 (4x3 LED)

4000 K (CRI 70)

1 A

153 W

19080

13460

8,4

GW R5 175 B

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

134 W

15600

11480

8,8

GW R5 115 B

5 (5x3 LED)

4000 K (CRI 70)

1 A

191 W

23850

16820

8,8

GW R5 176 B

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

161 W

18720

13780

9,1

GW R5 116 B

6 (6x3 LED)

4000 K (CRI 70)

1 A

229 W

28620

20190

9,1

Voltage: 220/240 V - 50/60 Hz - Dimmerable 1-10 V

GW R5 173 M

3 (3x3 LED)

4000 K (CRI 70)

0.7 A

79 W

9360

6890

GW R5 113 M

3 (3x3 LED)

4000 K (CRI 70)

1 A

113 W

14310

10100

GW R5 174 M

4 (4x3 LED)

4000 K (CRI 70)

0.7 A

106 W

12480

9190

8,4

GW R5 114 M

4 (4x3 LED)

4000 K (CRI 70)

1 A

113 W

19080

13460

8,4

GW R5 175 M

5 (5x3 LED)

4000 K (CRI 70)

0.7 A

132 W

15600

11480

8,8

GW R5 115 M

5 (5x3 LED)

4000 K (CRI 70)

1 A

189 W

23850

16820

8,8

GW R5 176 M

6 (6x3 LED)

4000 K (CRI 70)

0.7 A

159 W

18720

13780

9,1

GW R5 116 M

6 (6x3 LED)

4000 K (CRI 70)

1 A

227 W

28620

20190

9,1

Photometric distributions

HUGE optic

GW R5 174

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Street Lighting > Road [5] Range

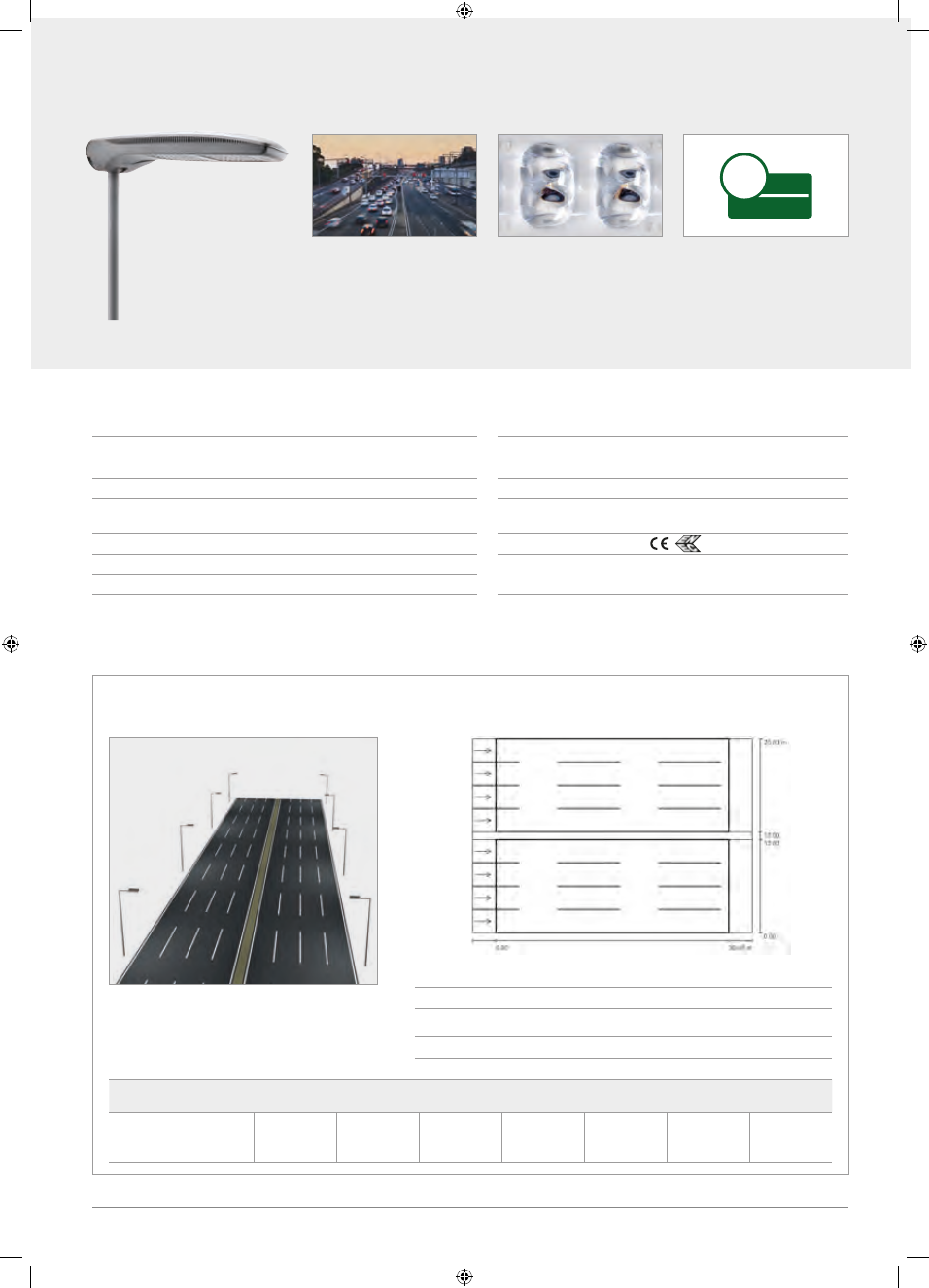

For technical information contact the Technical Assistance Service or visit gewiss.com

The wiring can be done to equipment
already fixed (without opening it use
any tool), reducing considerably the in-
stallation time and making operations
extremely secure.

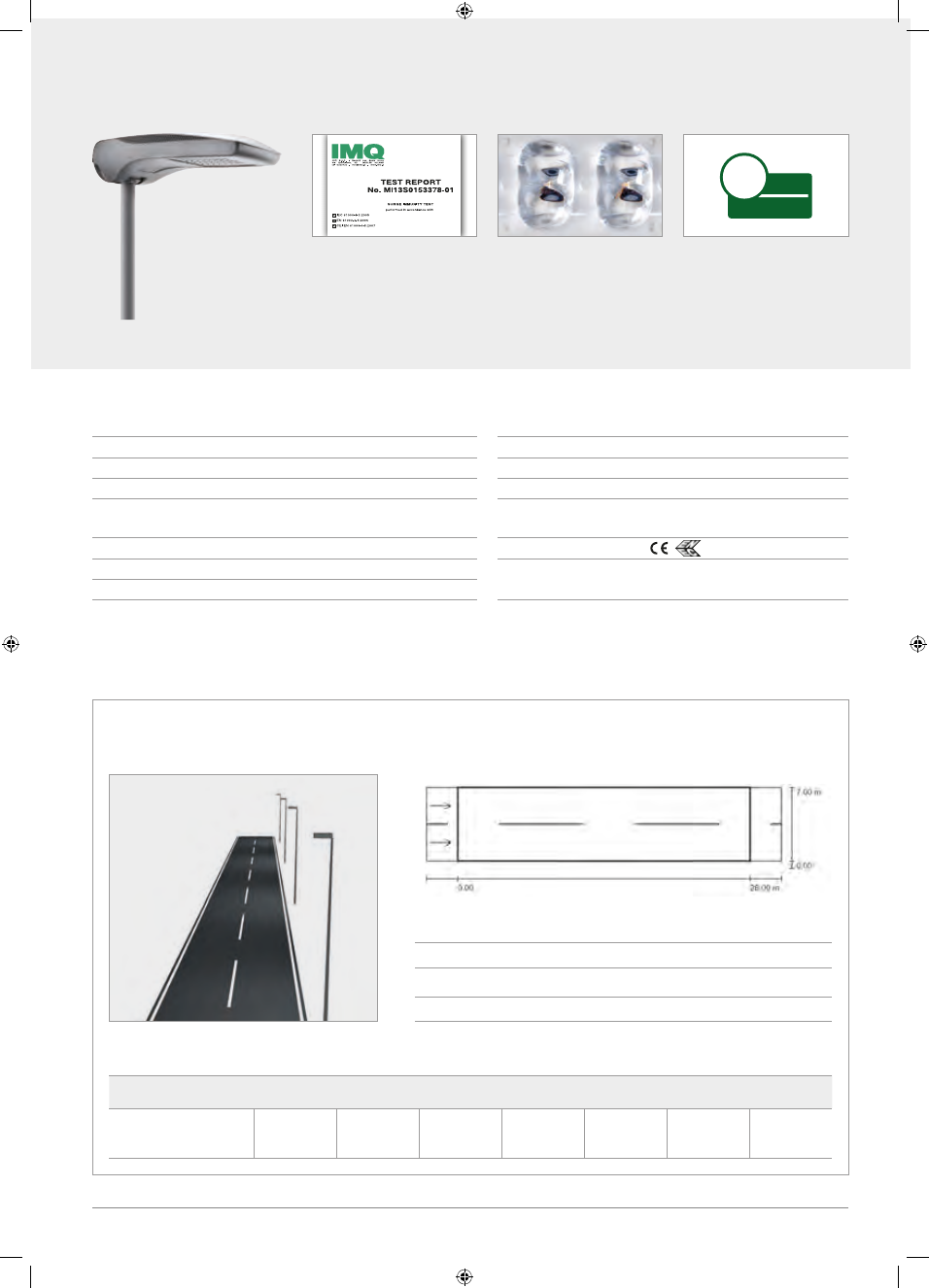

The different types of roads in the en-
vironment urban and suburban require
the availability of different distribu-
tions bright. The appliance Road [5] It
has different types of optics capable of
satisfying all the installation require-
ments.

SIMPLIFIED

INSTALLATION

PERFORMANCE

EXCELLENCE

Road [5]

Commercial
information page 4

The compact design and size contained
in the luminaire are designed to fit in
a balanced and discretion in any urban
center, the big city to small towns.

COMPACTNESS

AND STRENGTH

INSTALLATION

External

DEGREE OF PROTECTION

IP66

COLOUR

Graphite grey and Aluminium grey

IMPACT RESISTANCE

IK08

MATERIALS

INSULATION CLASS

I/II

Body

Die-cast aluminium EN AB 46100

LIFETIME

L80B05@+25°C 77.000h a 0.7A
L80B05@+25°C 120.000h a 1A

Heat sink

Integrated in the cover

MARKS

Reflector

Metallised PC

Shield

Extra-clear flat glass 4 mm

Technical characteristics

Technical solutions

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

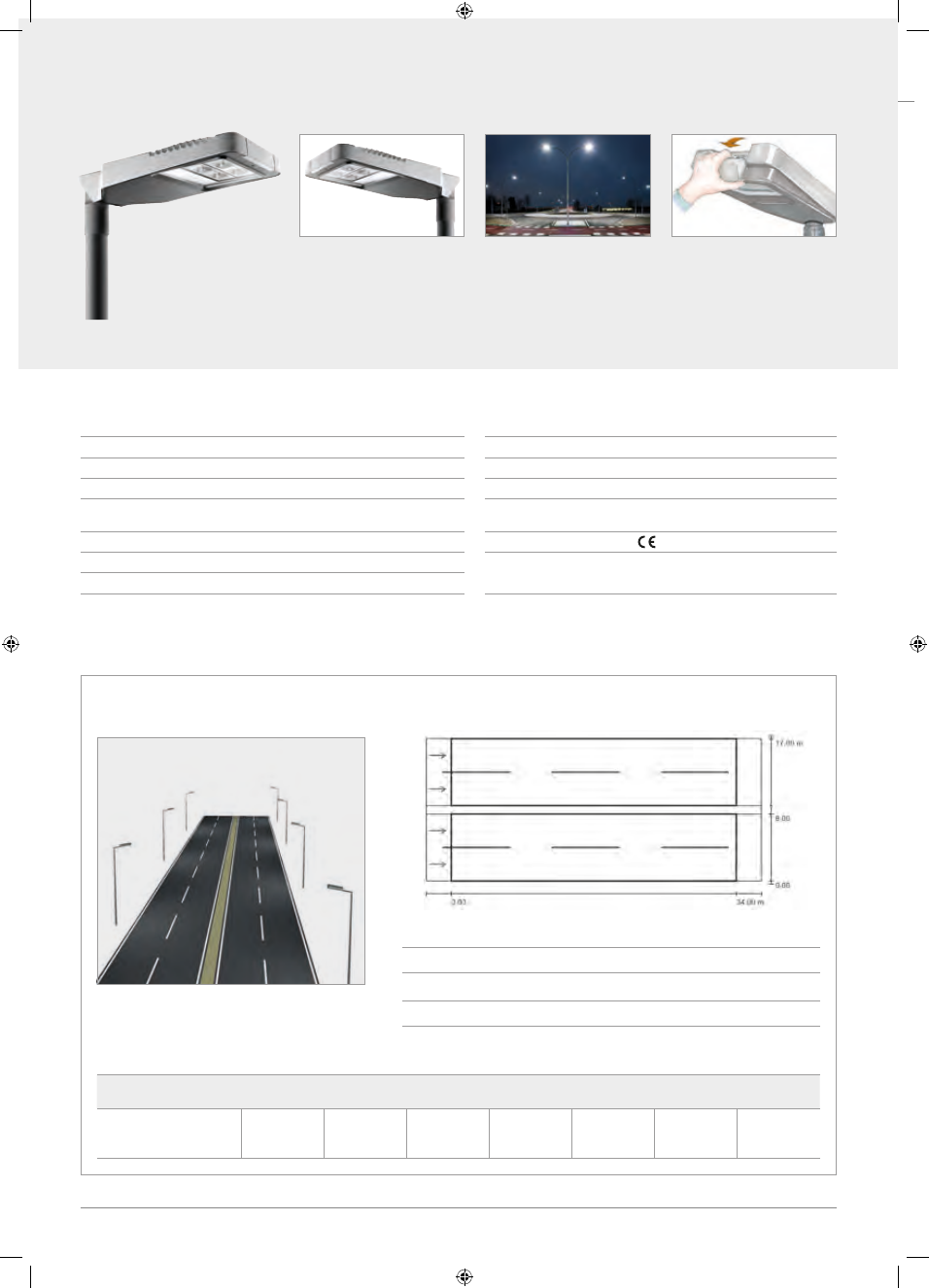

GEWISS GWR5274

ROAD [5] 4(4X3 LED)

4000 K

EN 13201-2

16 metres

9 metres

34 metres

Lm [cd/m²]

fTI [%]

Calculated values

1.51

0.79

0.74

0.79

Required values
according to class

≥ 1.50

≥ 0.40

≥ 0.70

≤10

≥ 0.35

Fulfilled/Not fulfilled

✓

Project: M2 road

Gewiss-Depliant-Lighting-html.html

Lighting > Street Lighting > Road [5] Range

For technical information contact the Technical Assistance Service or visit gewiss.com

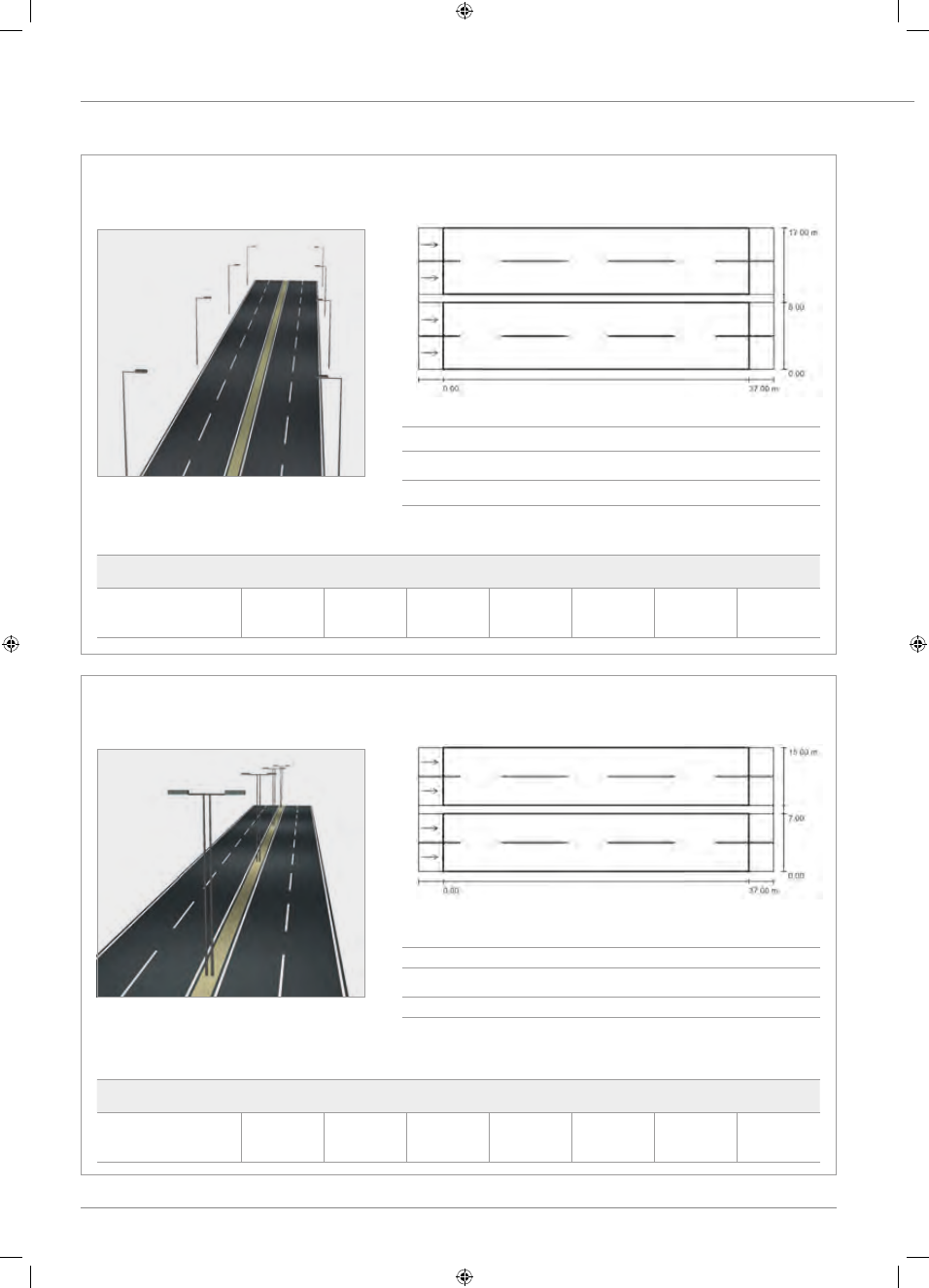

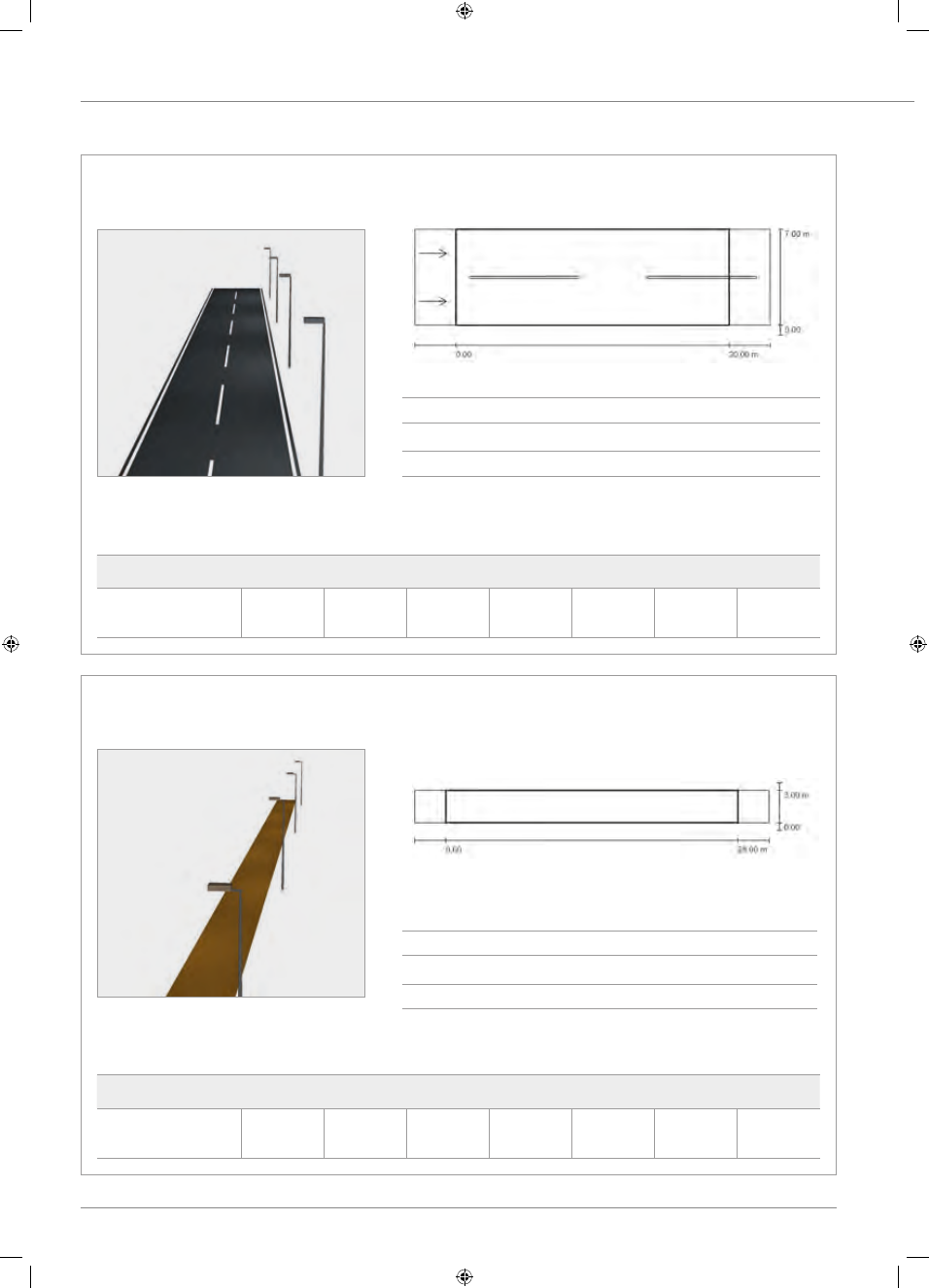

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GWR5273

ROAD [5] 3(3X3 LED)

4000 K

EN 13201-2

7 metres

8 metres

34 metres

Lm [cd/m²]

fTI [%]

Calculated values

1.13

0.51

0.60

0.56

Required values
according to class

≥ 1.00

≥ 0.40

≥ 0.60

≤ 15

≥ 0.30

Fulfilled/Not fulfilled

✓

Project: M3 road

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GWR5271

ROAD [5] 1(1X3 LED)

4000 K

EN 13201-2

6 metres

50 metres

Lm [cd/m²]

fTI [%]

Calculated values

0.51

0.36

0.45

0.51

Required values
according to class

≥ 0.50

≥ 0.35

≥ 0.40

≤ 15

≥ 0.30

Fulfilled/Not fulfilled

✓

Project: M5 road

Gewiss-Depliant-Lighting-html.html

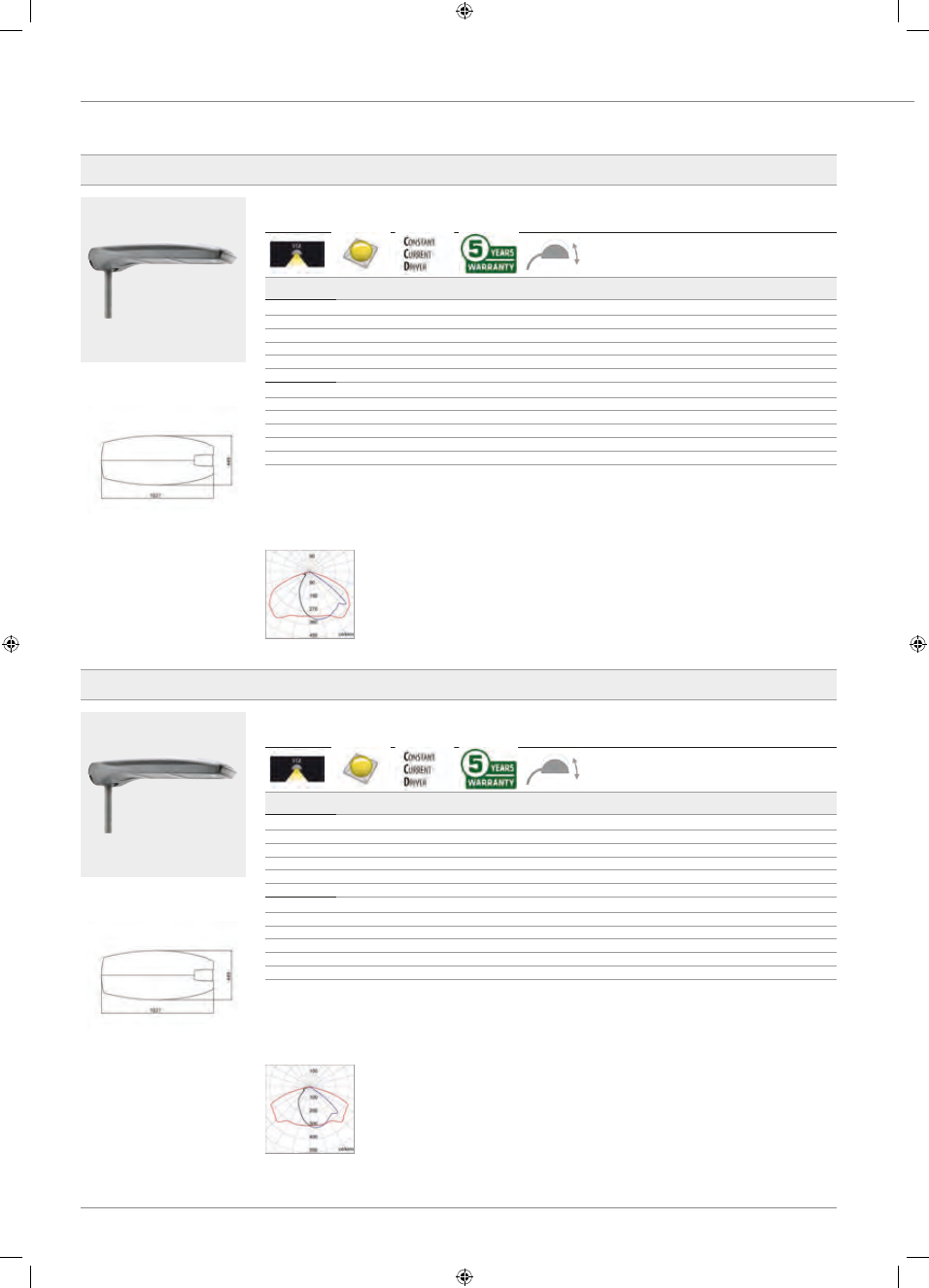

Lighting > Street lighting > STREET [O3] Range

Street [O

]

For Special versions please contact our GEWISS Sales Organization

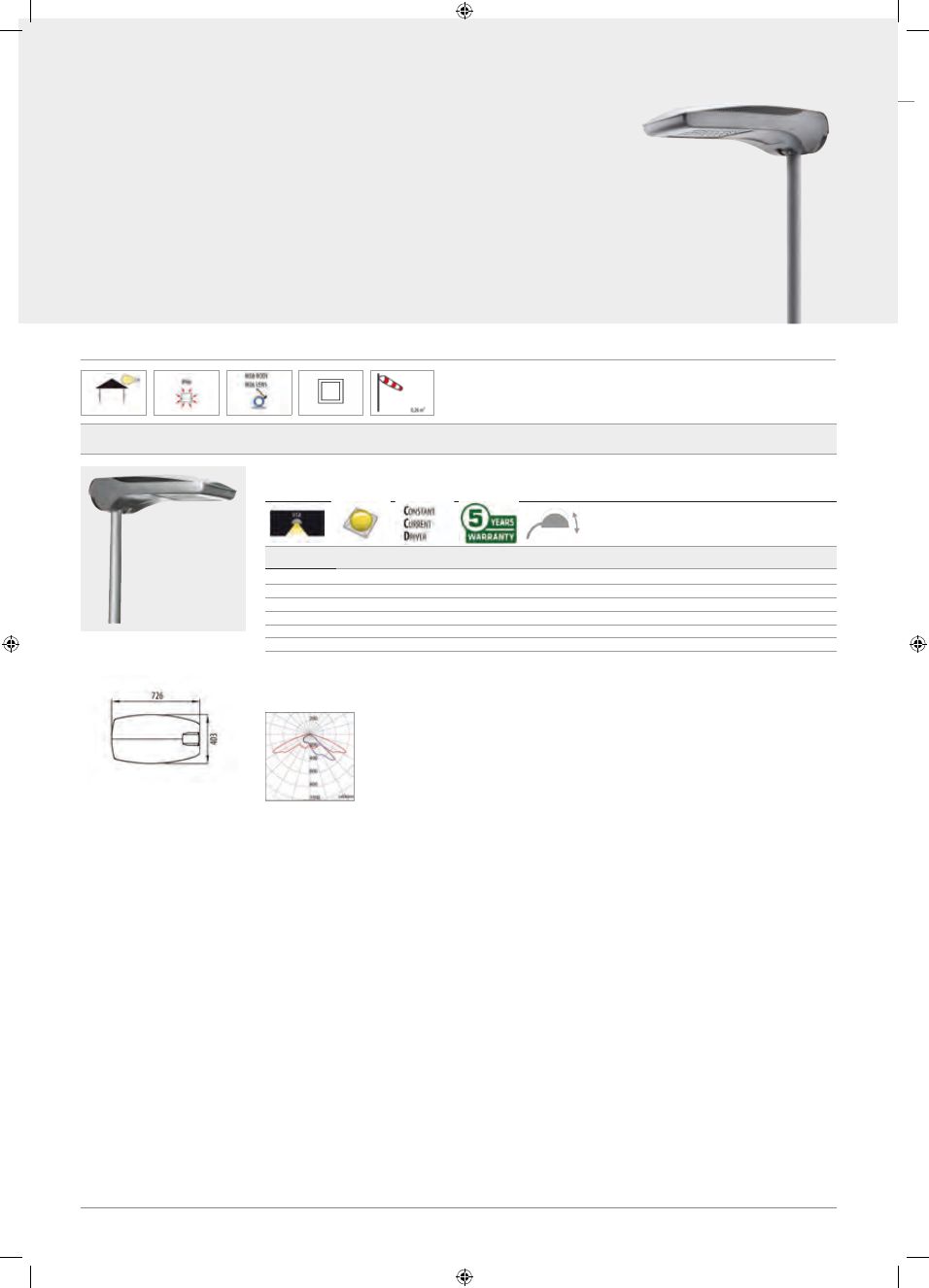

STREET [O3]

LED - OPTIC ST1

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 700 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW 87 410

1 (1x16 LED)

4000 K (CRI 70)

37 W

4140

3470

Graphite/Aluminium

8.5

GW 87 411

2 (2x16 LED)

4000 K (CRI 70)

68 W

8050

6760

Graphite/Aluminium

9.1

GW 87 412

3 (3x16 LED)

4000 K (CRI 70)

99 W

11740

9860

Graphite/Aluminium

9.6

GW 87 413

4 (4x16 LED)

4000 K (CRI 70)

131 W

15370

12900

Graphite/Aluminium

10.3

GW 87 414

5 (5x16 LED)

4000 K (CRI 70)

127 W

16360

13740

Graphite/Aluminium

10.9

NOTE: data refer to 700 mA with the exclusion of the 5 module version, which can be set to max 550 mA. Driver adjustable at different LED current.
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.

Photometric distributions

ST1 optic

GW 87 413

Technical characteristics

page

Street [O

] is an innovative street lighting line for lighting public and private roads, large

outdoor areas and car parks. The modular LED elements and variety of optics produce
different levels of lighting to meet every design need. The [O

] Optical Output Optimize

technology offers great versatility and guarantees high performance results from the device.

Street lighting systems

Street [O

]

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] Range

For Special versions please contact our GEWISS Sales Organization

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW 87 530

1 (1x16 LED)

4000 K (CRI 70)

31 W

3610

3030

Graphite/Aluminium

8.5

GW 87 531

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite/Aluminium

9.1

GW 87 532

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite/Aluminium

9.7

GW 87 533

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite/Aluminium

10.3

GW 87 534

5 (5x16 LED)

4000 K (CRI 70)

129 W

16530

13870

Graphite/Aluminium

10.9

NOTES: the data refer to 550 mA.
due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).

Photometric distributions

ST1 optic

GW 87 533

LED - OPTIC ST1 - FOR PHOTOVOLTAIC SYSTEMS

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 24 V dc - Stand alone

GW 87 571

2 (2x16 LED)

4000 K (CRI 70)

50 W

6750

5660

Graphite/Aluminium

9.1

NOTE: the data refer to 550 mA.
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.

Photometric distributions

ST1 optic

GW 87 571

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] Range

Street [O

]

For Special versions please contact our GEWISS Sales Organization

LED - OPTIC ST2

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 700 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW 87 430

1 (1x16 LED)

4000 K (CRI 70)

37 W

4140

3630

Graphite/Aluminium

8.5

GW 87 431

2 (2x16 LED)

4000 K (CRI 70)

68 W

8050

7060

Graphite/Aluminium

9.1

GW 87 432

3 (3x16 LED)

4000 K (CRI 70)

99 W

11740

10300

Graphite/Aluminium

9.7

GW 87 433

4 (4x16 LED)

4000 K (CRI 70)

131 W

15370

13480

Graphite/Aluminium

10.3

GW 87 434

5 (5x16 LED)

4000 K (CRI 70)

127 W

16360

14350

Graphite/Aluminium

10.9

Photometric distributions

ST2 optic

GW 87 433

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 630

1 (1x16 LED)

4000 K (CRI 70)

31 W

3610

3160

Graphite/Aluminium

8.5

GW S7 631

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

6160

Graphite/Aluminium

9.1

GW S7 632

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8980

Graphite/Aluminium

9.7

GW S7 633

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11760

Graphite/Aluminium

10.3

GW S7 634

5 (5x16 LED)

4000 K (CRI 70)

129 W

16530

14500

Graphite/Aluminium

10.9

NOTES: The data refer to 550 mA.
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).

Photometric distributions

ST2 optic

GW S7 633

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] Range

For Special versions please contact our GEWISS Sales Organization

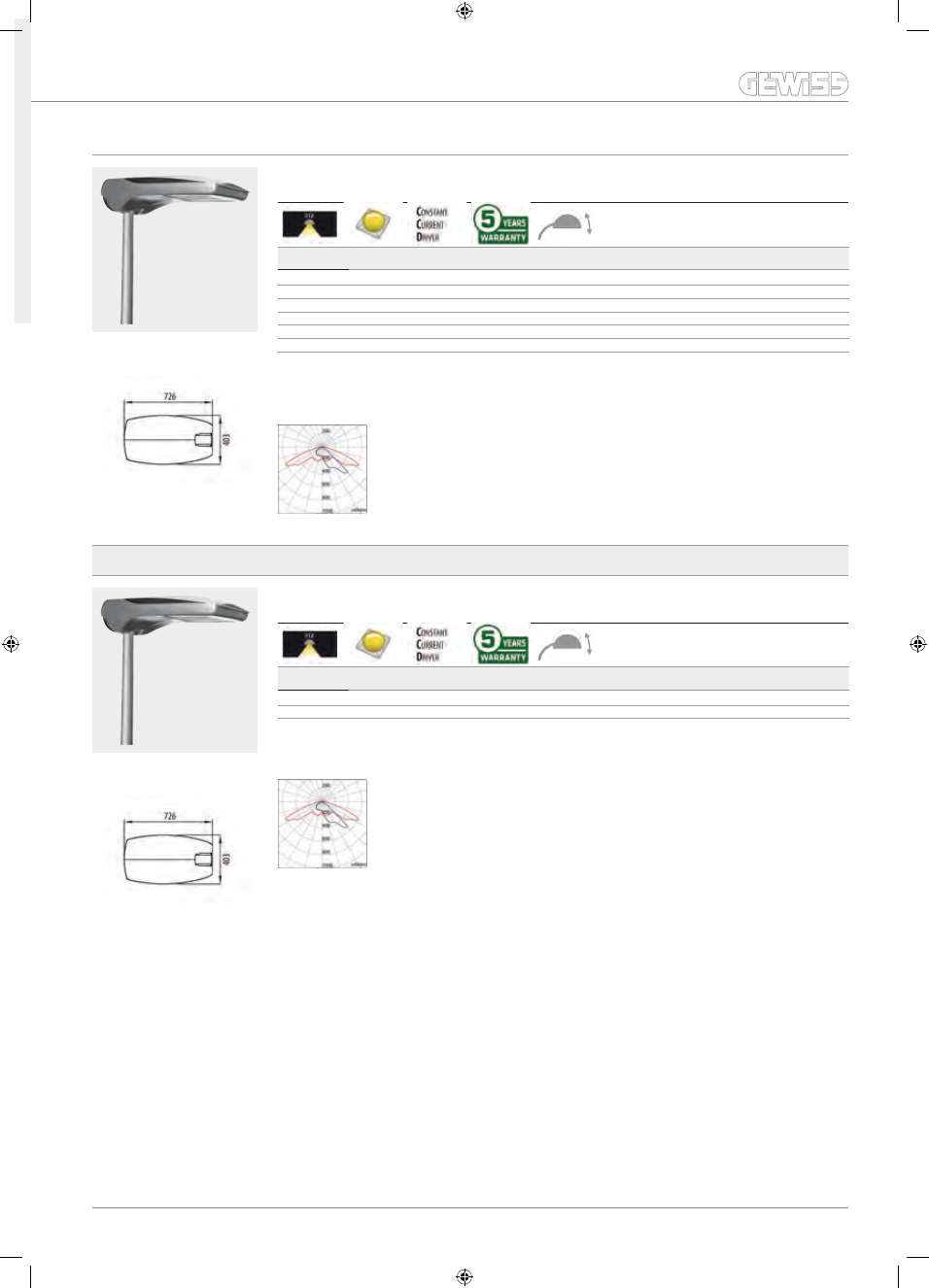

LED - OPTIC ST3

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 700 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW 87 450

1 (1x16 LED)

4000 K (CRI 70)

37 W

4140

3630

Graphite/Aluminium

8.5

GW 87 451

2 (2x16 LED)

4000 K (CRI 70)

68 W

8050

7060

Graphite/Aluminium

9.1

GW 87 452

3 (3x16 LED)

4000 K (CRI 70)

99 W

11740

10300

Graphite/Aluminium

9.7

GW 87 453

4 (4x16 LED)

4000 K (CRI 70)

131 W

15370

13480

Graphite/Aluminium

10.3

GW 87 454

5 (5x16 LED)

4000 K (CRI 70)

127 W

16360

14350

Graphite/Aluminium

10.9

Photometric distributions

ST3 optic

GW 87 453

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 680

1 (1x16 LED)

4000 K (CRI 70)

31 W

3610

3160

Graphite/Aluminium

8.5

GW S7 681

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

6160

Graphite/Aluminium

9.1

GW S7 682

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8980

Graphite/Aluminium

9.7

GW S7 683

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11760

Graphite/Aluminium

10.3

GW S7 684

5 (5x16 LED)

4000 K (CRI 70)

129 W

16530

14500

Graphite/Aluminium

10.9

Photometric distributions

ST3 optic

GW S7 683

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] Range

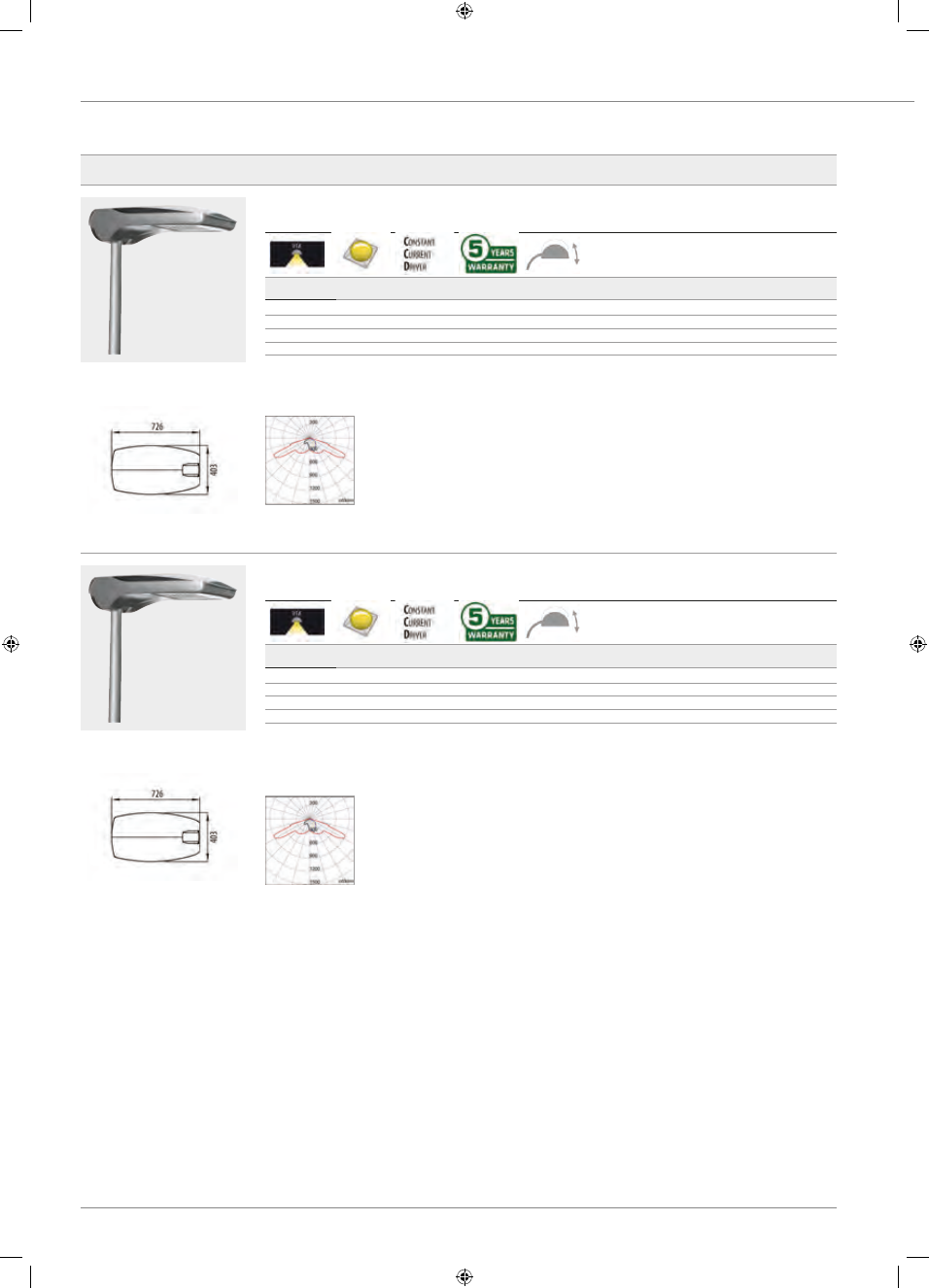

Street [O

]

For Special versions please contact our GEWISS Sales Organization

LED - CYCLE AND PEDESTRIAN OPTIC

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 700 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 110

1 (1x16 LED)

4000 K (CRI 70)

37 W

4140

3260

Graphite/Aluminium

8.5

GW S7 111

2 (2x16 LED)

4000 K (CRI 70)

68 W

8050

6330

Graphite/Aluminium

9.1

GW S7 112

3 (3x16 LED)

4000 K (CRI 70)

99 W

11740

9250

Graphite/Aluminium

9.6

NOTE: the data refer to 700 mA.
Due to the continuous changes with the LED technologies, the technical data can undertake variations. Driver adjustable at different LED current.
The nominal flux is referred to Tj=85°C.

Photometric distributions

Cycle ped.optic

GW S7 112

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 030

1 (1x16 LED)

4000 K (CRI 70)

31 W

3610

2840

Graphite/Aluminium

8.5

GW S7 031

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite/Aluminium

9.1

GW S7 032

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite/Aluminium

9.7

Photometric distributions

Cycle ped.optic

GW S7 033

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] Range

For Special versions please contact our GEWISS Sales Organization

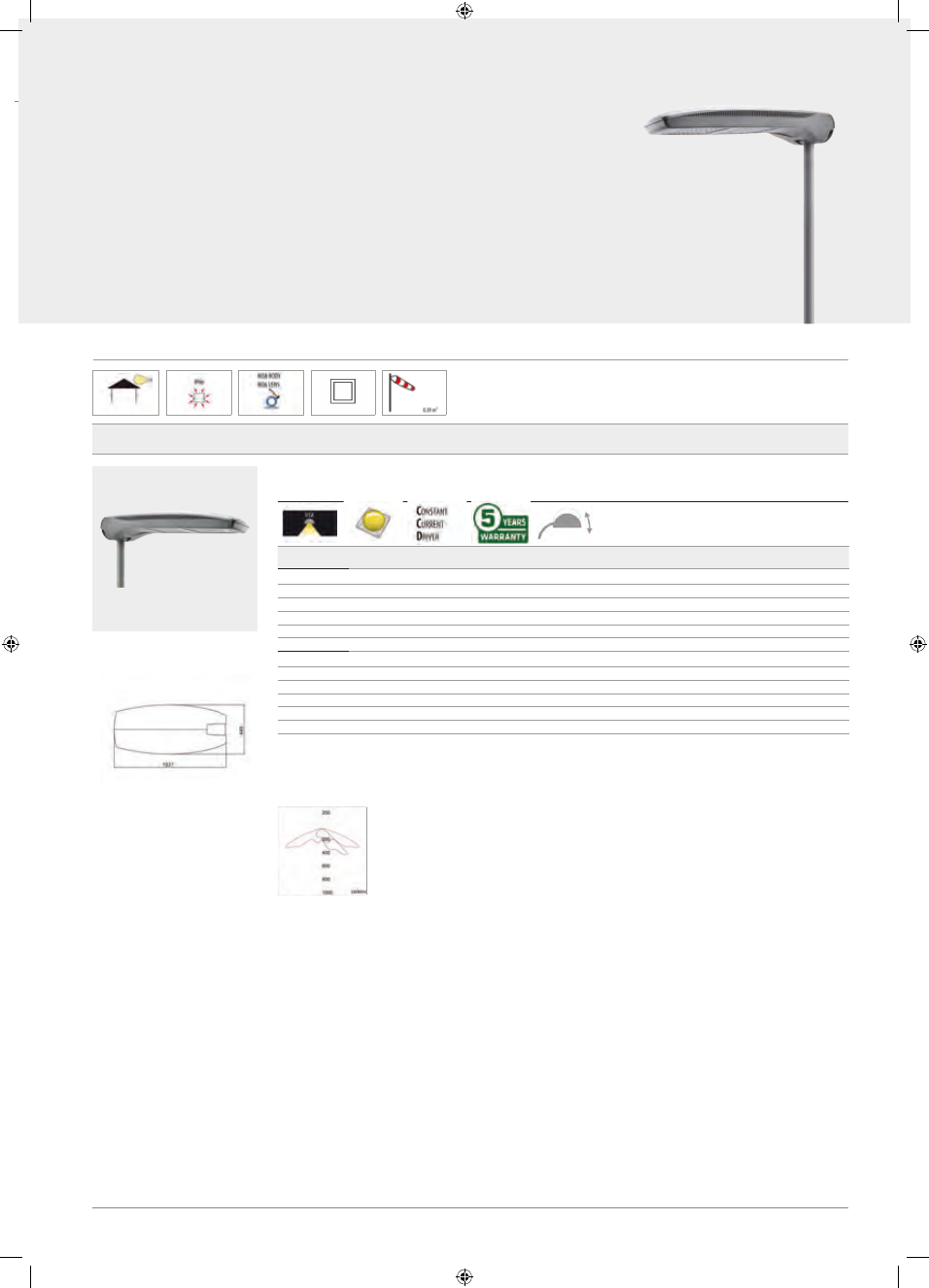

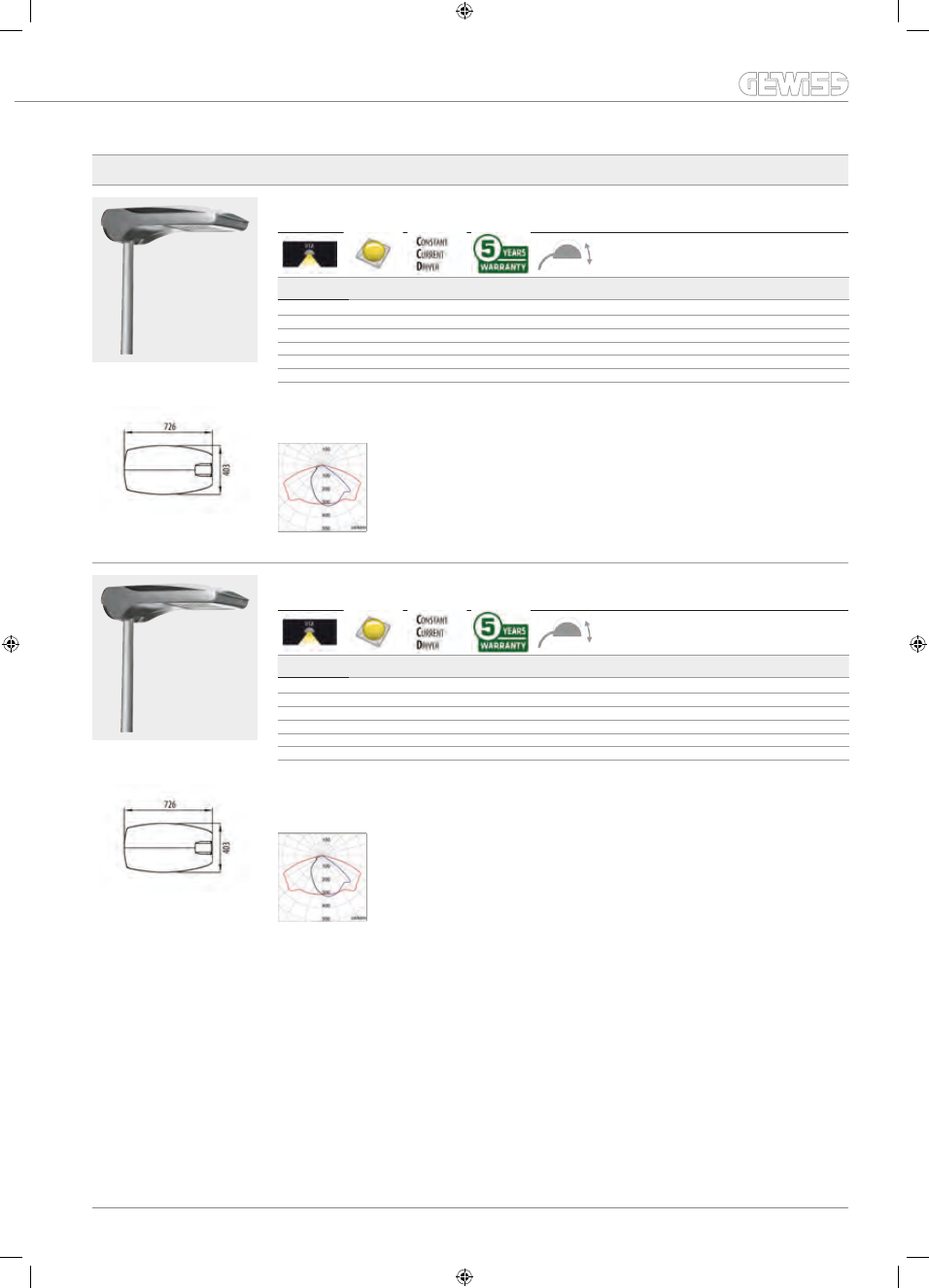

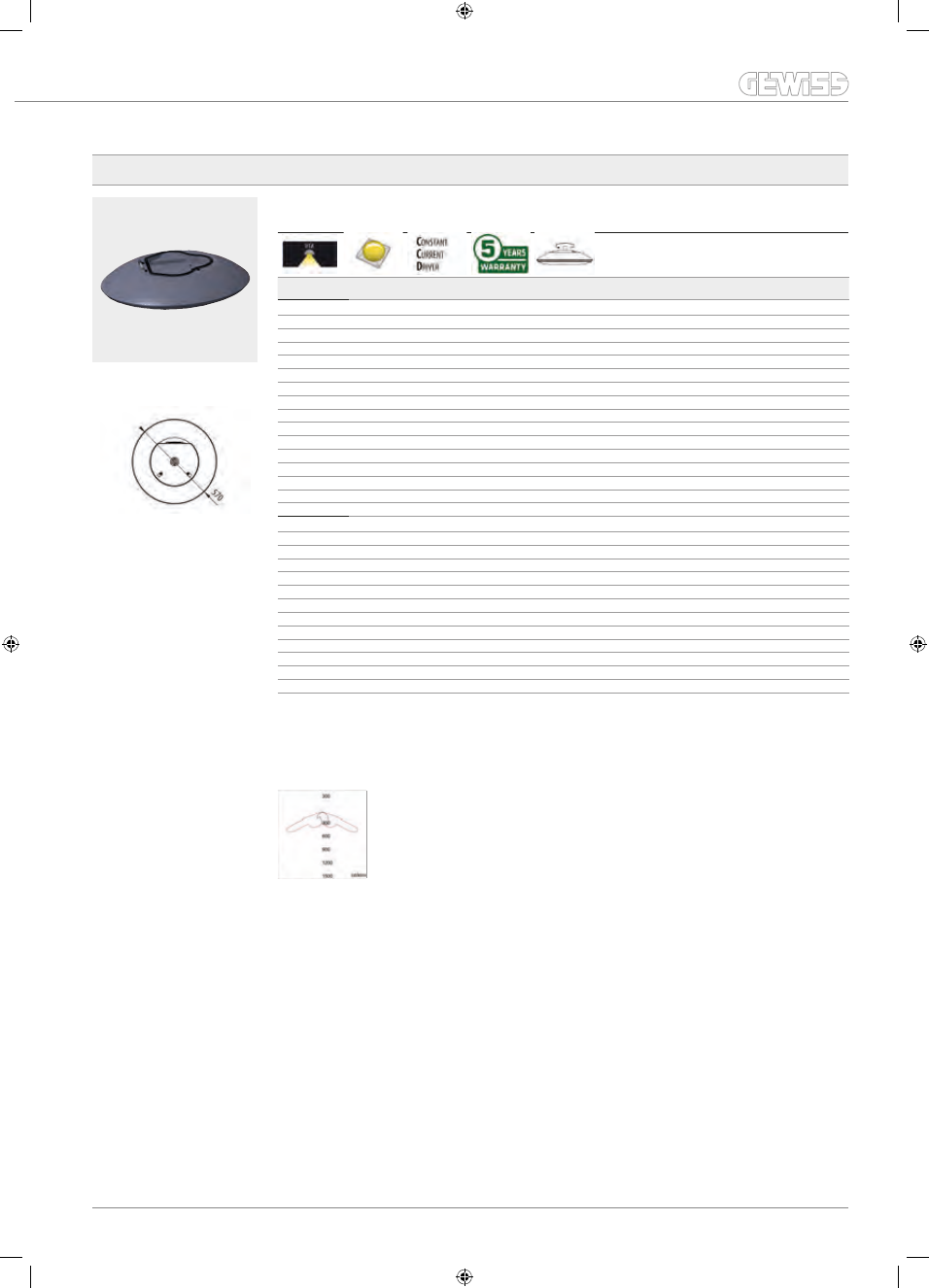

LED - CYCLE AND PEDESTRIAN OPTIC - FOR PHOTOVOLTAIC SYSTEMS

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 mA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 24 V dc - Stand alone

GW S7 071

2 (2x16 LED)

4000 K (CRI 70)

50 W

6750

5310

Graphite/Aluminium

9.1

NOTE: the data refer to 550 mA.
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.

Photometric distributions

Cycle ped.optic

GW S7 071

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] Range

Street [O

]

For Special versions please contact our GEWISS Sales Organization

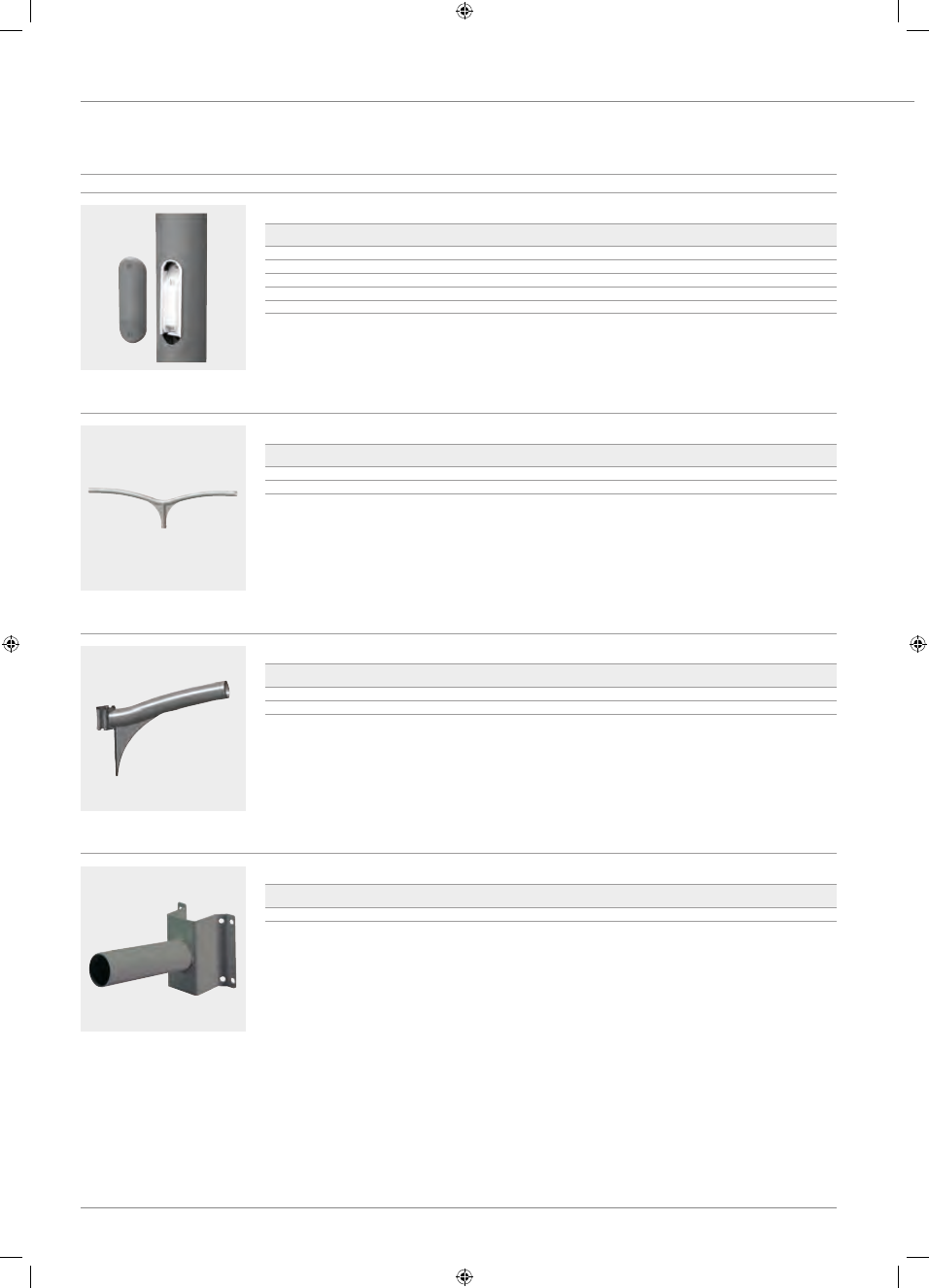

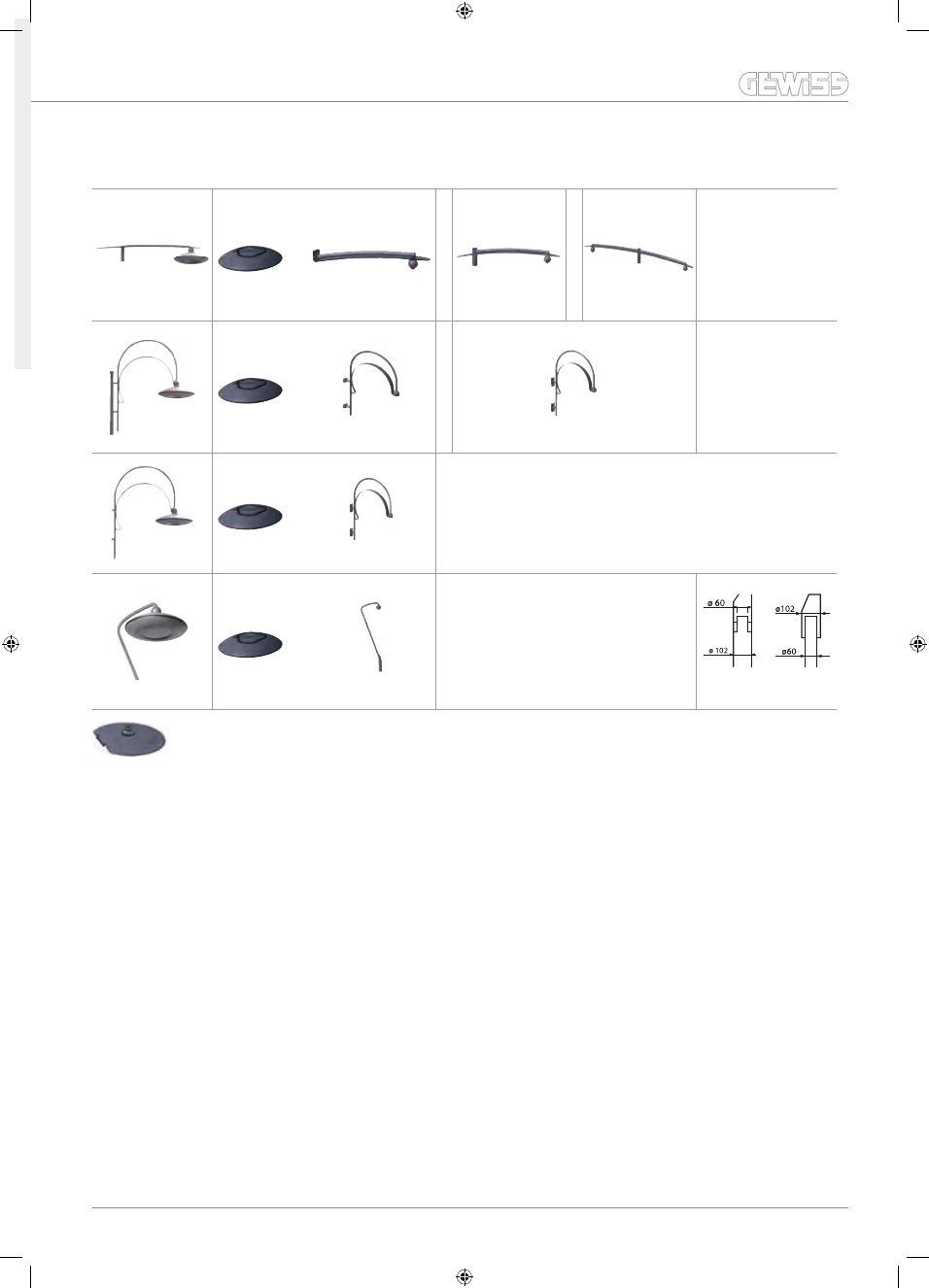

GEWISS POLES AND SIDE BRACKETS

CONICAL POLES PAINTED

Code

Total

length (m)

Planting (m)

Base

diameter (mm)

Top

diameter (mm)

Colour

Weight

(kg)

Pack

Carton

GW 84 096

5.5

0.5

115

Graphite grey

GW 87 591

6.8

0.8

128

Graphite grey

GW 84 097

7.8

0.8

138

Graphite grey

GW 87 592

8.8

0.8

148

Graphite grey

GW 87 593

9.8

0.8

158

Graphite grey

107

NOTE: painted poles in hot galvanised steel complete with a junction terminal block.

GW 84 096

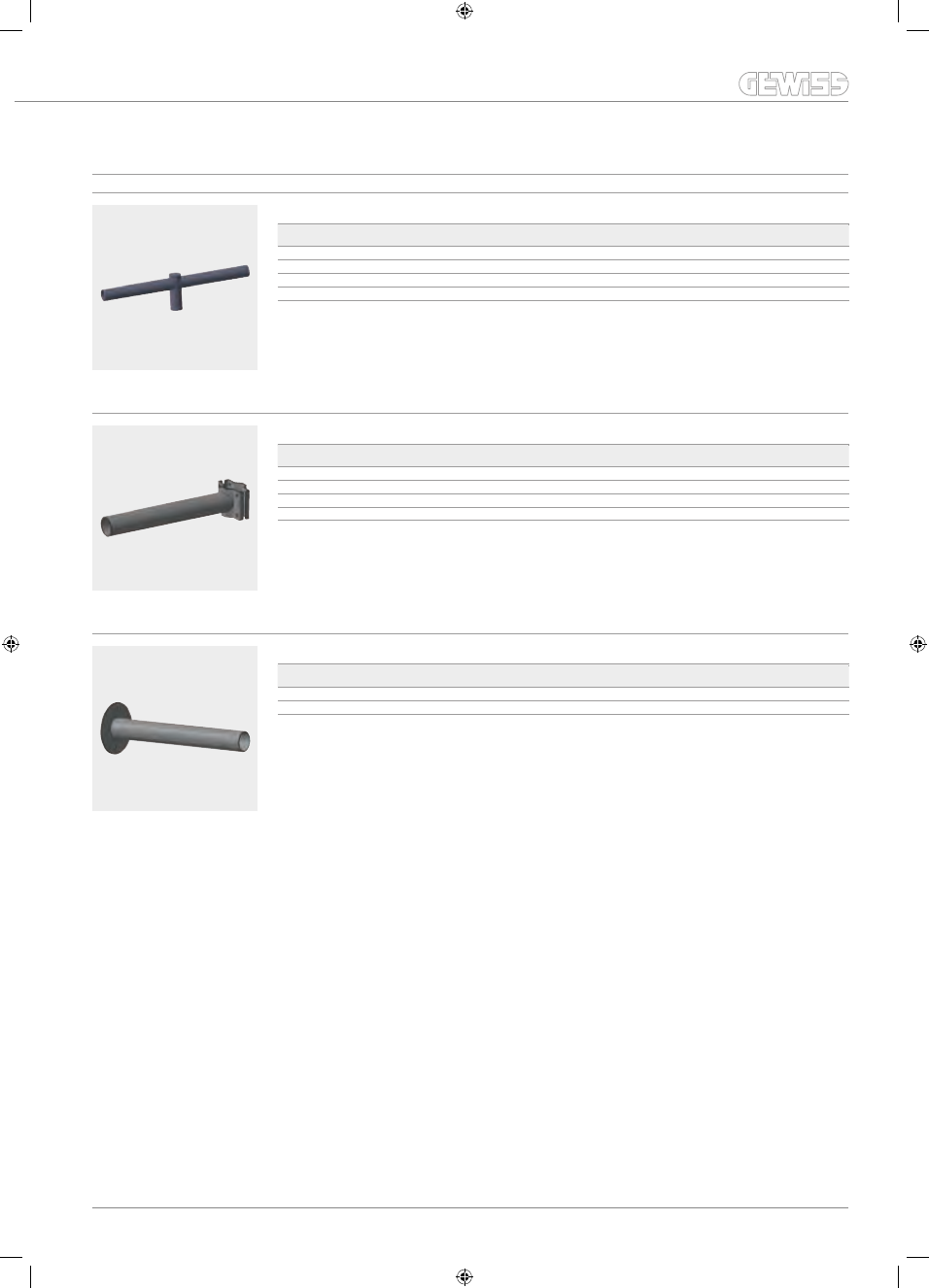

POLE HEAD BRACKETS - Ø 60 MM

Code

Description

Length

Colour

Weight

(kg)

Pack

Carton

GW 87 581

Single pole head bracket

1 m

Graphite grey

GW 87 582

Double pole head bracket

1+1 m

Graphite grey

11.5

GW 87 582

BRACKETS AT VARIABLE HEIGHTS

Code

Description

Length

Colour

Weight

(kg)

Pack

Carton

GW 87 586

Long bracket

1 m

Graphite grey

GW 87 587

Short bracket

0.5 m

Graphite grey

3.5

NOTE: for poles with a diameter from 60 to 75 mm.

GW 87 587

WALL-MOUNTING BRACKET

Code

Description

Outer dim.

LxHxD (mm)

Colour

Weight

(kg)

Pack

Carton

GW 86 167

Wall-mounting bracket

150x160x290

Graphite grey

1.6

APPLICATIONS: allows the installation of the device on the wall and on 90° edges.
CHARACTERISTICS: hot galvanised steel and painted.

GW 86 167

Gewiss-Depliant-Lighting-html.html

Lighting > Street Lighting > Street [O

] Range

For technical information contact the Technical Assistance Service or visit gewiss.com

This Led Lighting Gewiss range

benefit from a full five-year war-

ranty.

The Street [O3] range uses optical
refraction coupled to the source
obtaining a better efficiency and a re-
optimal partition of the luminous flux.
The GEWISS optics have been designed
following the 3D model with the
intent to define the geometries with
maximum precision.

5-YEAR WARRANTY

NEW OPTICS

WARRANTY

YEARS

Street [O

]

Commercial
information page 14

Thanks to the complete separation

of electric / electronic parts from the

device body, the Street [O

] device is

protected against induced overvoltag-

es greater than 12KV in common mode,

in accordance with Standard CEI EN

61000-4-5 (third party certification).

OVERVOLTAGE PROTECTION

INSTALLATION

External

DEGREE OF PROTECTION

IP66

COLOUR

Graphite grey and Aluminium grey

IMPACT RESISTANCE

IK08 / IK06

MATERIALS

INSULATION CLASS

Body

Die-cast aluminium EN AB 46100

LIFETIME

L80B10 @+25°C >100.000h
L90B20 @+25°C >50.000h

Heat sink

Aluminium extrusion - range 6000

MARKS

Lenses

Integrated in the shield

Shield

PMMA

Technical characteristics of LED version

Technical solutions

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GW87432

STREET[O3] 3X16 LED

700 mA 4000 K

EN 13201-2

7 metres

8 metres

30 metres

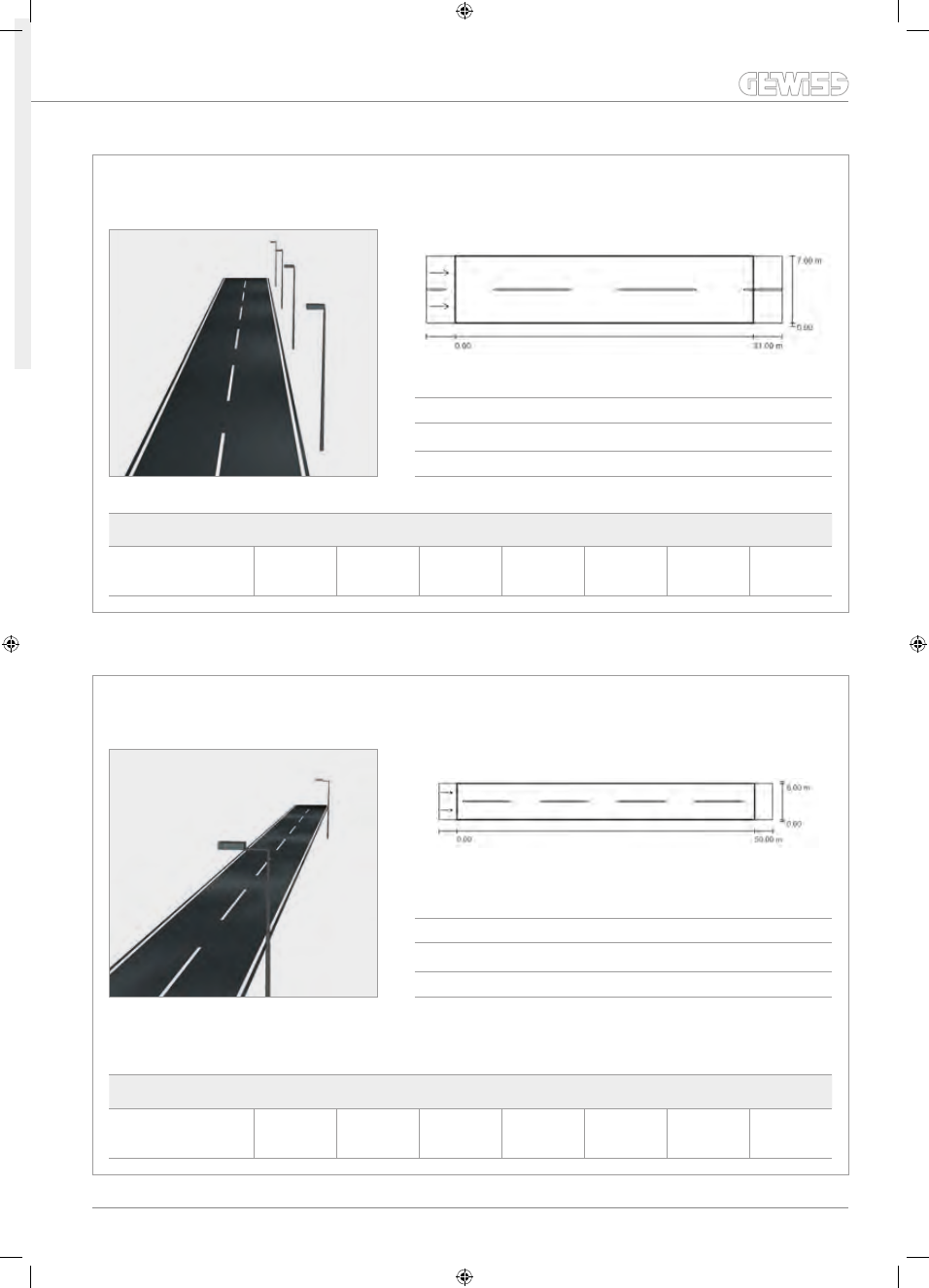

Project: M3 road

Lm [cd/m²]

fTI [%]

Calculated values

1.19

0.50

0.61

0.62

Required values
according to class

≥ 1.00

≥ 0.40

≥ 0.60

≤ 15

≥ 0.30

Fulfilled/Not fulfilled

✓

Gewiss-Depliant-Lighting-html.html

Street [O

]

Lighting > Street Lighting > Street [O

] Range

For technical information contact the Technical Assistance Service or visit gewiss.com

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GWS7681

STREET[O3] 2X16 LED 550

mA 4000 K

EN 13201-2

7 metres

6 metres

24 metres

Lm [cd/m²]

fTI [%]

Calculated values

0.78

0.48

0.60

0.46

Required values
according to class

≥ 0.75

≥ 0.40

≥ 0.60

≤ 15

≥ 0.30

Fulfilled/Not fulfilled

✓

Project: M4 road

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GW87450

STREET[O3] 1X16 LED

700 mA 4000 K

EN 13201-2

3 metres

5 metres

25 metres

Em [lx]

Emin [lx]

Calculated values

15:20

6.14

Required values
according to class

≥ 15.00

≥ 3.00

Fulfilled/Not fulfilled

✓

Project: P1 cycle and pedestrian path

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] MAXI Range

For Special versions please contact our GEWISS Sales Organization

STREET [O3] MAXI

LED - OPTIC ST1

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 801

6 (6x16 LED)

4000 K (CRI 70)

166 W 19680

16530

Graphite/Aluminium

GW S7 802

7 (7x16 LED)

4000 K (CRI 70)

192 W 22960

19310

Graphite/Aluminium

16.7

GW S7 803

8 (8x16 LED)

4000 K (CRI 70)

217 W

26250

22030

Graphite/Aluminium

17.3

GW S7 804

9 (9x16 LED)

4000 K (CRI 70)

242 W 29520

24780

Graphite/Aluminium

GW S7 805

10 (10x16 LED)

4000 K (CRI 70)

268 W 32800

27540

Graphite/Aluminium

18.7

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 821

6 (6x16 LED)

4000 K (CRI 70)

166 W 19680

16530

Graphite/Aluminium

GW S7 822

7 (7x16 LED)

4000 K (CRI 70)

192 W 22960

19310

Graphite/Aluminium

16.7

GW S7 823

8 (8x16 LED)

4000 K (CRI 70)

217 W

26250

22030

Graphite/Aluminium

17.3

GW S7 824

9 (9x16 LED)

4000 K (CRI 70)

242 W 29520

24780

Graphite/Aluminium

GW S7 825

10 (10x16 LED)

4000 K (CRI 70)

268 W 32800

27540

Graphite/Aluminium

18.7

NOTES: the data refer to 550 mA. 1-10 V stand alone and/or dimmerable versions: Adjustable LED current.
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).

Photometric distributions

ST1 optic

GW S7 805

Technical characteristics

page

Street [O

] Maxi is the LED lighting system designed for main and urban roads. The modular

LED elements and variety of optics produce different levels of lighting to meet every design
need. The [O

] Optical Output Optimize technology offers great versatility and guarantees

high performance results from the device.

Street lighting systems

Street [O

] Maxi

Gewiss-Depliant-Lighting-html.html

Lighting > Street lighting > STREET [O3] MAXI Range

Street [O

] Maxi

For Special versions please contact our GEWISS Sales Organization

LED - OPTIC ST2

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 806

6 (6x16 LED)

4000 K (CRI 70)

166 W 19680

17260

Graphite/Aluminium

GW S7 807

7 (7x16 LED)

4000 K (CRI 70)

192 W 22960

20140

Graphite/Aluminium

16.7

GW S7 808

8 (8x16 LED)

4000 K (CRI 70)

217 W

26250

23030

Graphite/Aluminium

17.3

GW S7 809

9 (9x16 LED)

4000 K (CRI 70)

242 W 29520

25900

Graphite/Aluminium

GW S7 810

10 (10x16 LED)

4000 K (CRI 70)

268 W 32800

28780

Graphite/Aluminium

18.7

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 826

6 (6x16 LED)

4000 K (CRI 70)

166 W 19680

17260

Graphite/Aluminium

GW S7 827

7 (7x16 LED)

4000 K (CRI 70)

192 W 22960

20140

Graphite/Aluminium

16.7

GW S7 828

8 (8x16 LED)

4000 K (CRI 70)

217 W

26250

23030

Graphite/Aluminium

17.3

GW S7 829

9 (9x16 LED)

4000 K (CRI 70)

242 W 29520

25900

Graphite/Aluminium

GW S7 830

10 (10x16 LED)

4000 K (CRI 70)

268 W 32800

28780

Graphite/Aluminium

18.7

NOTES: The data refer to 550 mA.
1-10 V stand alone and/or dimmerable versions: Adjustable LED current.
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).

Photometric distributions

ST2 optic

GW S7 810

LED - OPTIC ST3

STREET LIGHTING IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 811

6 (6x16 LED)

4000 K (CRI 70)

166 W 19680

17260

Graphite/Aluminium

GW S7 812

7 (7x16 LED)

4000 K (CRI 70)

192 W 22960

20140

Graphite/Aluminium

16.7

GW S7 813

8 (8x16 LED)

4000 K (CRI 70)

217 W

26250

23030

Graphite/Aluminium

17.3

GW S7 814

9 (9x16 LED)

4000 K (CRI 70)

242 W 29520

25900

Graphite/Aluminium

GW S7 815

10 (10x16 LED)

4000 K (CRI 70)

268 W 32800

28780

Graphite/Aluminium

18.7

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 831

6 (6x16 LED)

4000 K (CRI 70)

166 W 19680

17260

Graphite/Aluminium

GW S7 832

7 (7x16 LED)

4000 K (CRI 70)

192 W 22960

20140

Graphite/Aluminium

16.7

GW S7 833

8 (8x16 LED)

4000 K (CRI 70)

217 W

26250

23030

Graphite/Aluminium

17.3

GW S7 834

9 (9x16 LED)

4000 K (CRI 70)

242 W 29520

25900

Graphite/Aluminium

GW S7 835

10 (10x16 LED)

4000 K (CRI 70)

268 W 32800

28780

Graphite/Aluminium

18.7

Photometric distributions

ST3 optic

GW S7 815

Gewiss-Depliant-Lighting-html.html

INSTALLATION

External

DEGREE OF PROTECTION

IP66

COLOUR

Graphite grey and Aluminium grey

IMPACT RESISTANCE

IK08 / IK06

MATERIALS

INSULATION CLASS

Body

Die-cast aluminium EN AB 46100

LIFETIME

L80B10 @+25°C >100.000h
L90B20 @+25°C >50.000h

Heat sink

Aluminium extrusion - range 6000

MARKS

Lenses

Integrated in the shield

Shield

PMMA

Technical characteristics

Technical solutions

Lm [cd/m²]

fTI [%]

Calculated values

2.28

0.68

0.76

0.73

Required values
according to class

≥ 2.00

≥ 0.40

≥ 0.70

≤10

≥ 0.35

Fulfilled/Not fulfilled

✓

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GWS7809

STREET[O3] MAXI 9X16 LED

550 mA 4000 K

EN 13201-2

24 metres

10 metres

28 metres

Project: M1 road

Lighting > Street Lighting > Street [O

] Maxi Range

For technical information contact the Technical Assistance Service or visit gewiss.com

This Led Lighting Gewiss range

benefit from a full five-year war-

ranty.

5-YEAR WARRANTY

NEW OPTICS

WARRANTY

YEARS

Street [O

] Maxi

Commercial
information page 23

Street [O3] Maxi guarantees a lumen
package of up to 28780lm (10 modules)
for lighting busy extra-urban roads
and, more generally, for all open spaces
requiring efficient lighting.

MORE POWER

FOR LARGER STREETS

Gewiss-Depliant-Lighting-html.html

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GWS7812

STREET[O3] MAXI 7X16 LED

550 mA 4000 K

EN 13201-2

16 metres

10 metres

37 metres

Lm [cd/m²]

fTI [%]

Calculated values

1.50

0.69

0.72

0.78

Required values
according to class

≥ 1.50

≥ 0.40

≥ 0.70

≤10

≥ 0.35

Fulfilled/Not fulfilled

✓

Project: M2 road

Project: M3 road

Lm [cd/m²]

fTI [%]

Calculated values

1.20

0.52

0.62

0.86

Required values
according to class

≥ 1.00

≥ 0.40

≥ 0.60

≤ 15

≥ 0.50

Fulfilled/Not fulfilled

✓

Device

configuration

Reference

standard

Lighting

class

Number of

carriageways

Number of

lanes

Road

width

Pole

height

Interdistance

GEWISS GWS7811

STREET[O3] MAXI 6X16 LED

550 mA 4000 K

EN 13201-2

14 metres

10 metres

40 metres

Street [O

] Maxi

Lighting > Street Lighting > Street [O

] Maxi range

For technical information contact the Technical Assistance Service or visit gewiss.com

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

For Special versions please contact our GEWISS Sales Organization

SMART[4] 2.0 FL -2L - EQUIVALENT TO 35W MT

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 101 GS

Spotlight 10°

4000 K (CRI 80)

25 W

2960

2130

Grey RAL 7037

GW S4 102 GS

Restricted 30°

4000 K (CRI 80)

25 W

2960

2060

Grey RAL 7037

GW S4 103 GS

Medium 60°

4000 K (CRI 80)

25 W

2960

2730

Grey RAL 7037

GW S4 104 GS

Diffused 100°

4000 K (CRI 80)

25 W

2960

2600

Grey RAL 7037

GW S4 105 GS

Elliptical

4000 K (CRI 80)

25 W

2960

2640

Grey RAL 7037

GW S4 106 GS

Asymmetrical

4000 K (CRI 80)

25 W

2960

2540

Grey RAL 7037

GW S4 101 BS

Spotlight 10°

3000 K (CRI 80)

25 W

2750

1980

Midnight blue

GW S4 103 BS

Medium 60°

3000 K (CRI 80)

25 W

2750

2540

Midnight blue

GW S4 104 BS

Diffused 100°

3000 K (CRI 80)

25 W

2750

2420

Midnight blue

GW S4 105 BS

Elliptical

3000 K (CRI 80)

25 W

2750

2450

Midnight blue

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 101 GD

Spotlight 10°

4000 K (CRI 80)

26 W

2960

2130

Grey RAL 7037

GW S4 102 GD

Restricted 30°

4000 K (CRI 80)

26 W

2960

2060

Grey RAL 7037

GW S4 103 GD

Medium 60°

4000 K (CRI 80)

26 W

2960

2730

Grey RAL 7037

GW S4 104 GD

Diffused 100°

4000 K (CRI 80)

26 W

2960

2600

Grey RAL 7037

GW S4 105 GD

Elliptical

4000 K (CRI 80)

26 W

2960

2640

Grey RAL 7037

GW S4 106 GD

Asymmetrical

4000 K (CRI 80)

26 W

2960

2540

Grey RAL 7037

GW S4 101 BD

Spotlight 10°

3000 K (CRI 80)

26 W

2750

1980

Midnight blue

GW S4 103 BD

Medium 60°

3000 K (CRI 80)

26 W

2750

2540

Midnight blue

GW S4 104 BD

Diffused 100°

3000 K (CRI 80)

26 W

2750

2420

Midnight blue

GW S4 105 BD

Elliptical

3000 K (CRI 80)

26 W

2750

2450

Midnight blue

ACCESSORIES SUPPLIED: Fixing bracket and watertight push-in connector.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +50°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 103 GS

Technical characteristics

page

Thanks to the new latest generation LEDs, which are always combined with the
most efficient optic solutions, the Smart[4] 2.0 range guarantees excellent lighting
performance, greater visual comfort and excellent light quality.
The line is completed with the new BlueGreen versions that blend perfectly into the context
of gardens and parks.

Innovative LED Floodlight

Smart [4] 2.0 FL

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

Smart [4] 2.0 FL

For Special versions please contact our GEWISS Sales Organization

COMPLEMENTARY ITEM

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 906

Transparent glass 2L

176 x 82

GW L1 906

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

For Special versions please contact our GEWISS Sales Organization

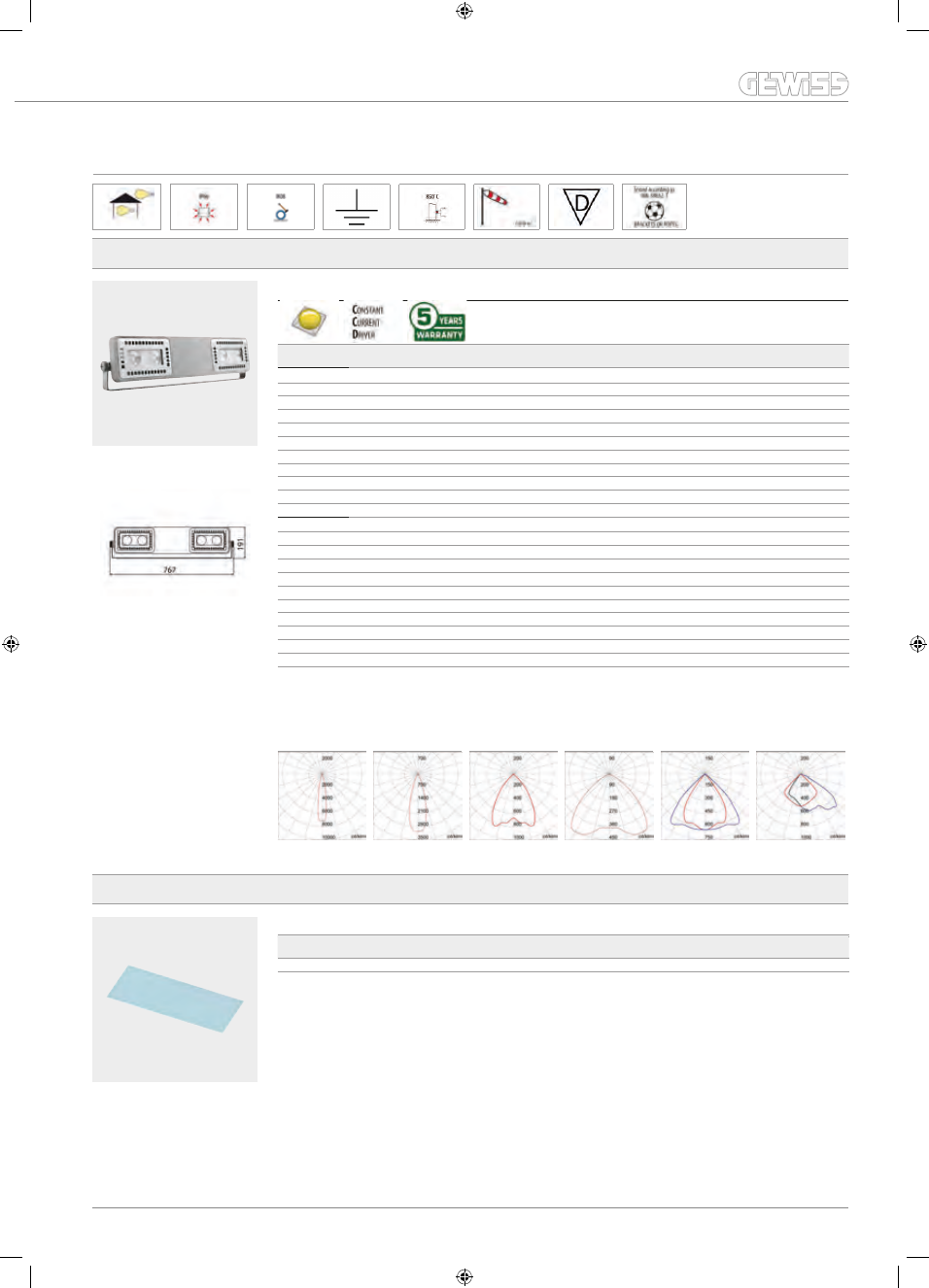

SMART[4] 2.0 FL -2+2L - EQUIVALENT TO 70W MT

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 111 GS

Spotlight 10°

4000 K (CRI 80)

50 W

5910

4250

Grey RAL 7037

5.1

GW S4 112 GS

Restricted 30°

4000 K (CRI 80)

50 W

5910

4120

Grey RAL 7037

5.1

GW S4 113 GS

Medium 60°

4000 K (CRI 80)

50 W

5910

5460

Grey RAL 7037

5.1

GW S4 114 GS

Diffused 100°

4000 K (CRI 80)

50 W

5910

5210

Grey RAL 7037

5.1

GW S4 115 GS

Elliptical

4000 K (CRI 80)

50 W

5910

5280

Grey RAL 7037

5.1

GW S4 116 GS

Asymmetrical

4000 K (CRI 80)

50 W

5910

5080

Grey RAL 7037

5.1

GW S4 111 BS

Spotlight 10°

3000 K (CRI 80)

50 W

5500

3950

Midnight blue

5.1

GW S4 113 BS

Medium 60°

3000 K (CRI 80)

50 W

5500

5070

Midnight blue

5.1

GW S4 114 BS

Diffused 100°

3000 K (CRI 80)

50 W

5500

4840

Midnight blue

5.1

GW S4 115 BS

Elliptical

3000 K (CRI 80)

50 W

5500

4910

Midnight blue

5.1

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 111 GD

Spotlight 10°

4000 K (CRI 80)

51 W

5910

4250

Grey RAL 7037

5.1

GW S4 112 GD

Restricted 30°

4000 K (CRI 80)

51 W

5910

4120

Grey RAL 7037

5.1

GW S4 113 GD

Medium 60°

4000 K (CRI 80)

51 W

5910

5460

Grey RAL 7037

5.1

GW S4 114 GD

Diffused 100°

4000 K (CRI 80)

51 W

5910

5210

Grey RAL 7037

5.1

GW S4 115 GD

Elliptical

4000 K (CRI 80)

51 W

5910

5280

Grey RAL 7037

5.1

GW S4 116 GD

Asymmetrical

4000 K (CRI 80)

51 W

5910

5080

Grey RAL 7037

5.1

GW S4 111 BD

Spotlight 10°

3000 K (CRI 80)

51 W

5500

3950

Midnight blue

5.1

GW S4 113 BD

Medium 60°

3000 K (CRI 80)

51 W

5500

5070

Midnight blue

5.1

GW S4 114 BD

Diffused 100°

3000 K (CRI 80)

51 W

5500

4840

Midnight blue

5.1

GW S4 115 BD

Elliptical

3000 K (CRI 80)

51 W

5500

4910

Midnight blue

5.1

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 112 GS

COMPLEMENTARY ITEM

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 906

Transparent glass 2L

176 x 82

GW L1 906

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

Smart [4] 2.0 FL

For Special versions please contact our GEWISS Sales Organization

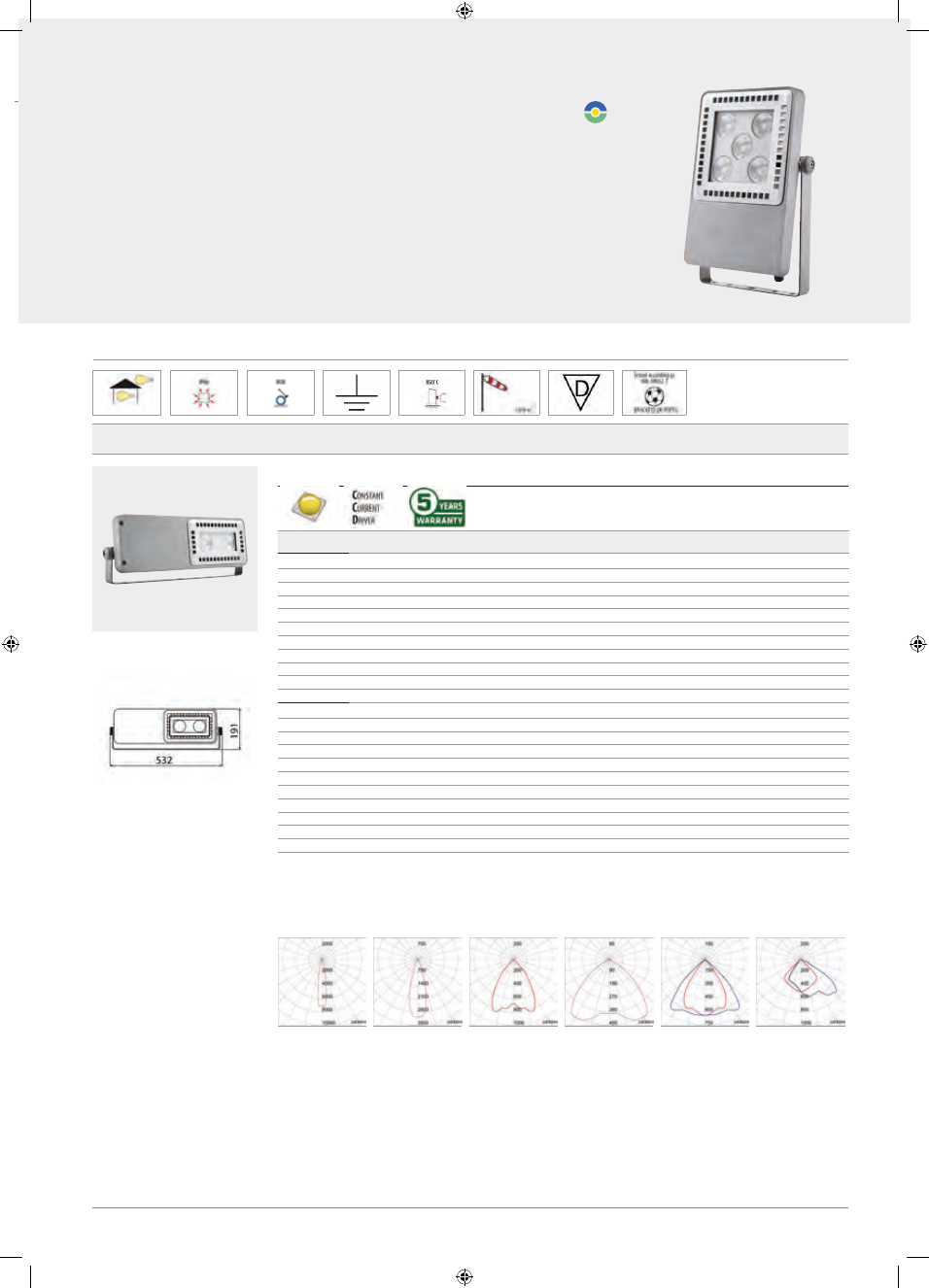

SMART[4] 2.0 FL - 5L - EQUIVALENT TO 100W MT

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 131 GS

Spotlight 10°

4000 K (CRI 80)

60 W

7120

5320

Grey RAL 7037

4.9

GW S4 132 GS

Restricted 30°

4000 K (CRI 80)

60 W

7120

5150

Grey RAL 7037

4.9

GW S4 133 GS

Medium 60°

4000 K (CRI 80)

60 W

7120

6820

Grey RAL 7037

4.9

GW S4 134 GS

Diffused 100°

4000 K (CRI 80)

60 W

7120

6510

Grey RAL 7037

4.9

GW S4 135 GS

Elliptical

4000 K (CRI 80)

60 W

7120

6600

Grey RAL 7037

4.9

GW S4 136 GS

Asymmetrical

4000 K (CRI 80)

60 W

7120

6350

Grey RAL 7037

4.9

GW S4 131 BS

Spotlight 10°

3000 K (CRI 80)

60 W

6610

4940

Midnight blue

4.9

GW S4 133 BS

Medium 60°

3000 K (CRI 80)

60 W

6610

6340

Midnight blue

4.9

GW S4 134 BS

Diffused 100°

3000 K (CRI 80)

60 W

6610

6050

Midnight blue

4.9

GW S4 135 BS

Elliptical

3000 K (CRI 80)

60 W

6610

6130

Midnight blue

4.9

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 131 GD

Spotlight 10°

4000 K (CRI 80)

61 W

7120

5320

Grey RAL 7037

4.9

GW S4 132 GD

Restricted 30°

4000 K (CRI 80)

61 W

7120

5150

Grey RAL 7037

4.9

GW S4 133 GD

Medium 60°

4000 K (CRI 80)

61 W

7120

6820

Grey RAL 7037

4.9

GW S4 134 GD

Diffused 100°

4000 K (CRI 80)

61 W

7120

6510

Grey RAL 7037

4.9

GW S4 135 GD

Elliptical

4000 K (CRI 80)

61 W

7120

6600

Grey RAL 7037

4.9

GW S4 136 GD

Asymmetrical

4000 K (CRI 80)

61 W

7120

6350

Grey RAL 7037

4.9

GW S4 131 BD

Spotlight 10°

3000 K (CRI 80)

61 W

6610

4940

Midnight blue

4.9

GW S4 133 BD

Medium 60°

3000 K (CRI 80)

61 W

6610

6340

Midnight blue

4.9

GW S4 134 BD

Diffused 100°

3000 K (CRI 80)

61 W

6610

6050

Midnight blue

4.9

GW S4 135 BD

Elliptical

3000 K (CRI 80)

61 W

6610

6130

Midnight blue

4.9

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 133 GS

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

For Special versions please contact our GEWISS Sales Organization

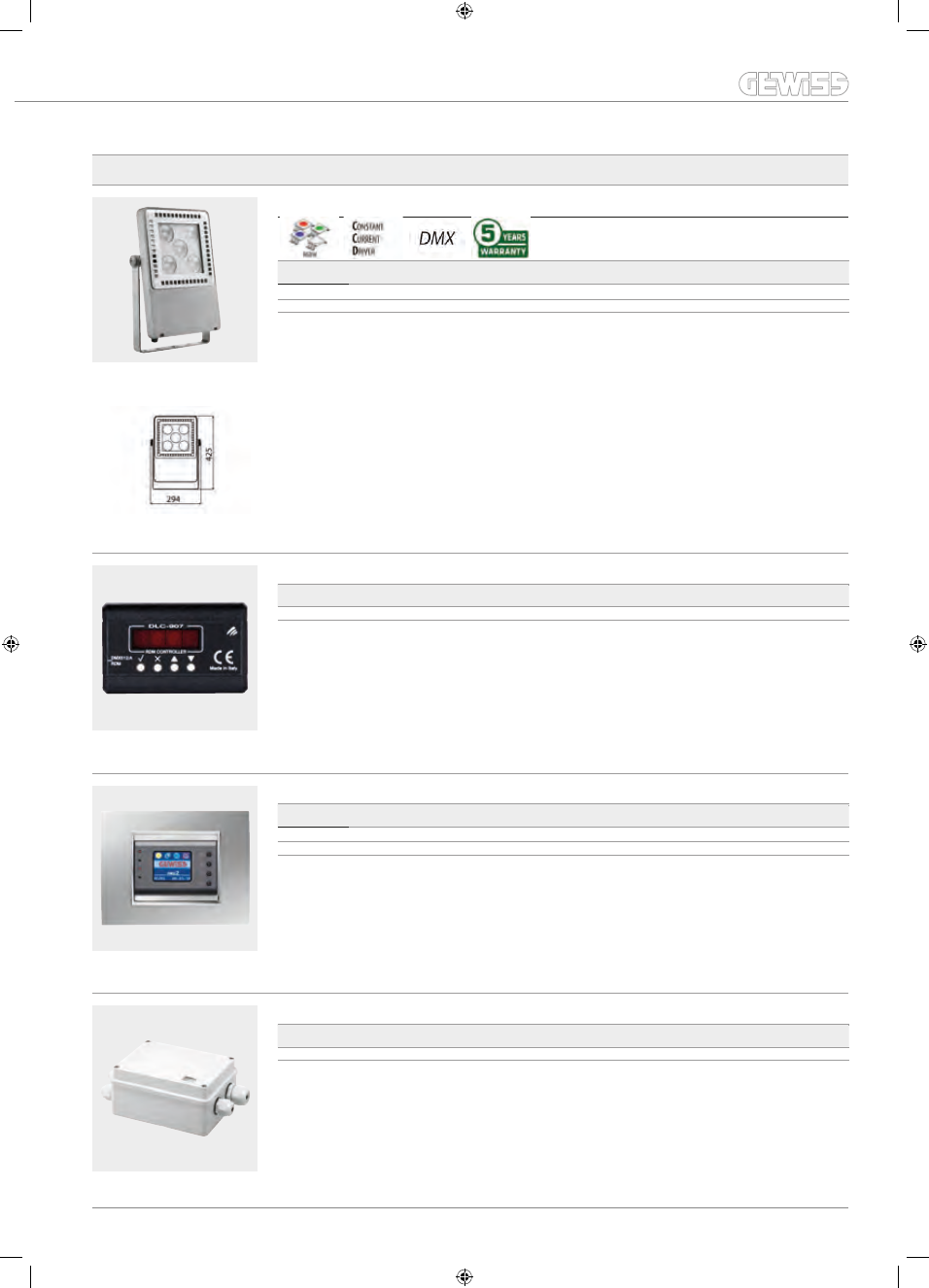

RGBW VERSIONS

WIRED VERSION - IP66 - CLASS I

Code

Optic

System

power

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - Pilot current 1 A - DMX

GW S4 133 GC

Medium 60°

82 W

Grey RAL 7037

5.1

ACCESSORIES SUPPLIED: Fixing bracket and watertight push-in connector. 6 DMX channels: Red; Green; Blue; White; Strobo and Rainbow.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations.

GW S4 133 GC

DONGLE FOR ASSIGNMENT OF DMX ADDRESSES

Code

Power

supply batteries

Display

Weight

(kg)

Pack

Carton

GW L1 908

Two AAA 1.5 V batteries

LED

0.3

NOTE: to be used for addressing and supervising the RGBW equipment.

GW L1 908

RGB CONTROL MODULE

Code

No. of manageable

devices/units

No. Chorus

modules

DMX

Channels

Display

Weight

(kg)

Pack

Carton

Voltage: 12 V - 50/60 Hz

GW 85 691

O-Led

0.5

NOTE: to be installed on a Chorus 3 gang frame GW16803. Using the repeater/splitter GW85692, it is possible to increase the number of devices that can be managed.
For the KNX-DMX interface, refer to the Domotics catalogue.

GW 85 691

COMPLEMENTARY ITEMS FOR THE DMX SYSTEM

Code

Description

Voltage

Number of

outputs

Pack

Carton

GW 85 692

DMX repeater / splitter

100/240 V - 50/60 Hz

GW 85 692

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

Smart [4] 2.0 FL

For Special versions please contact our GEWISS Sales Organization

COMPLEMENTARY ITEM

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

FIXING ACCESSORIE

Code

Description

Pack

Carton

GW L1 933

Fixing spike Smart[4] single

GW L1 933

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

For Special versions please contact our GEWISS Sales Organization

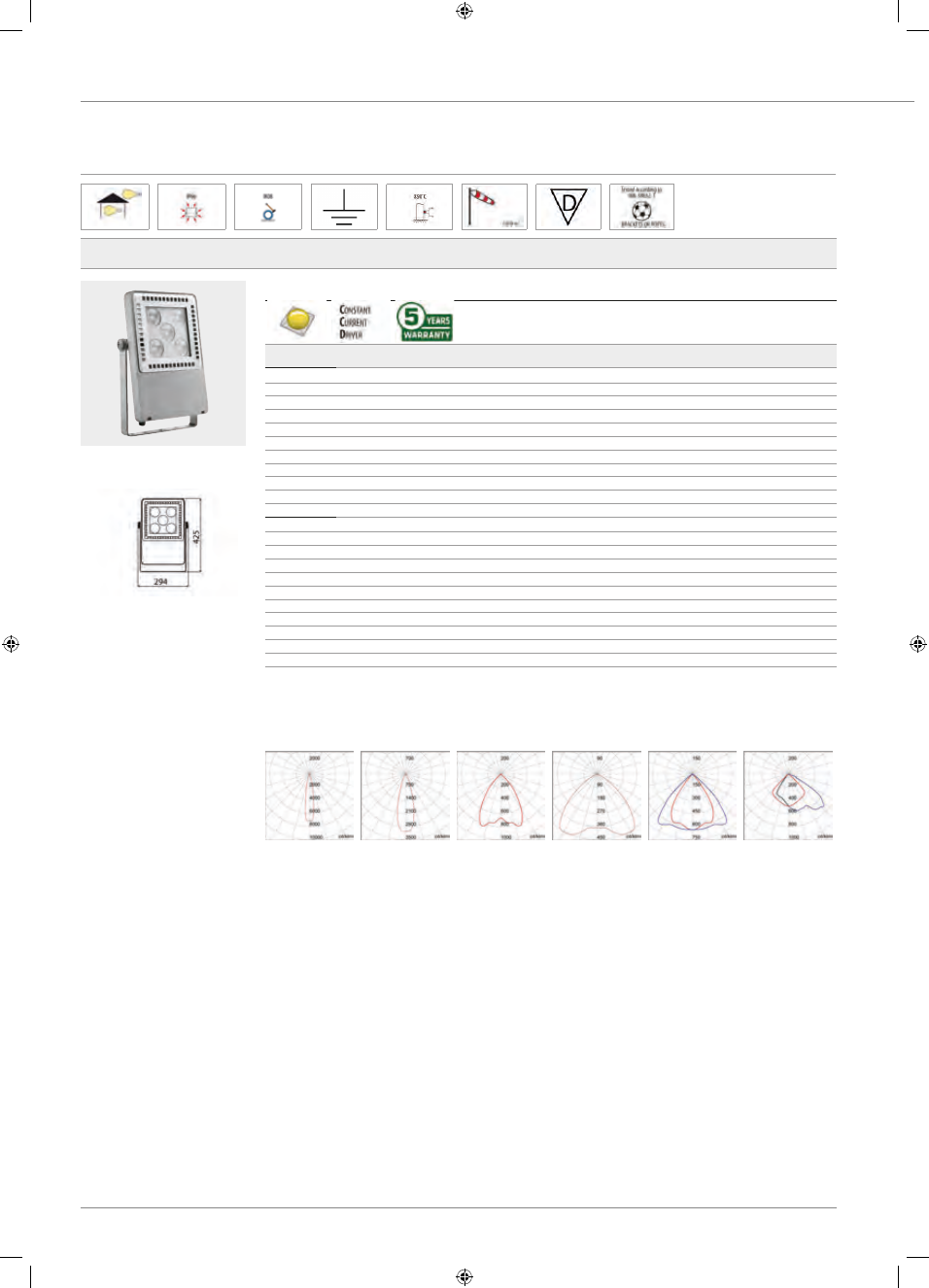

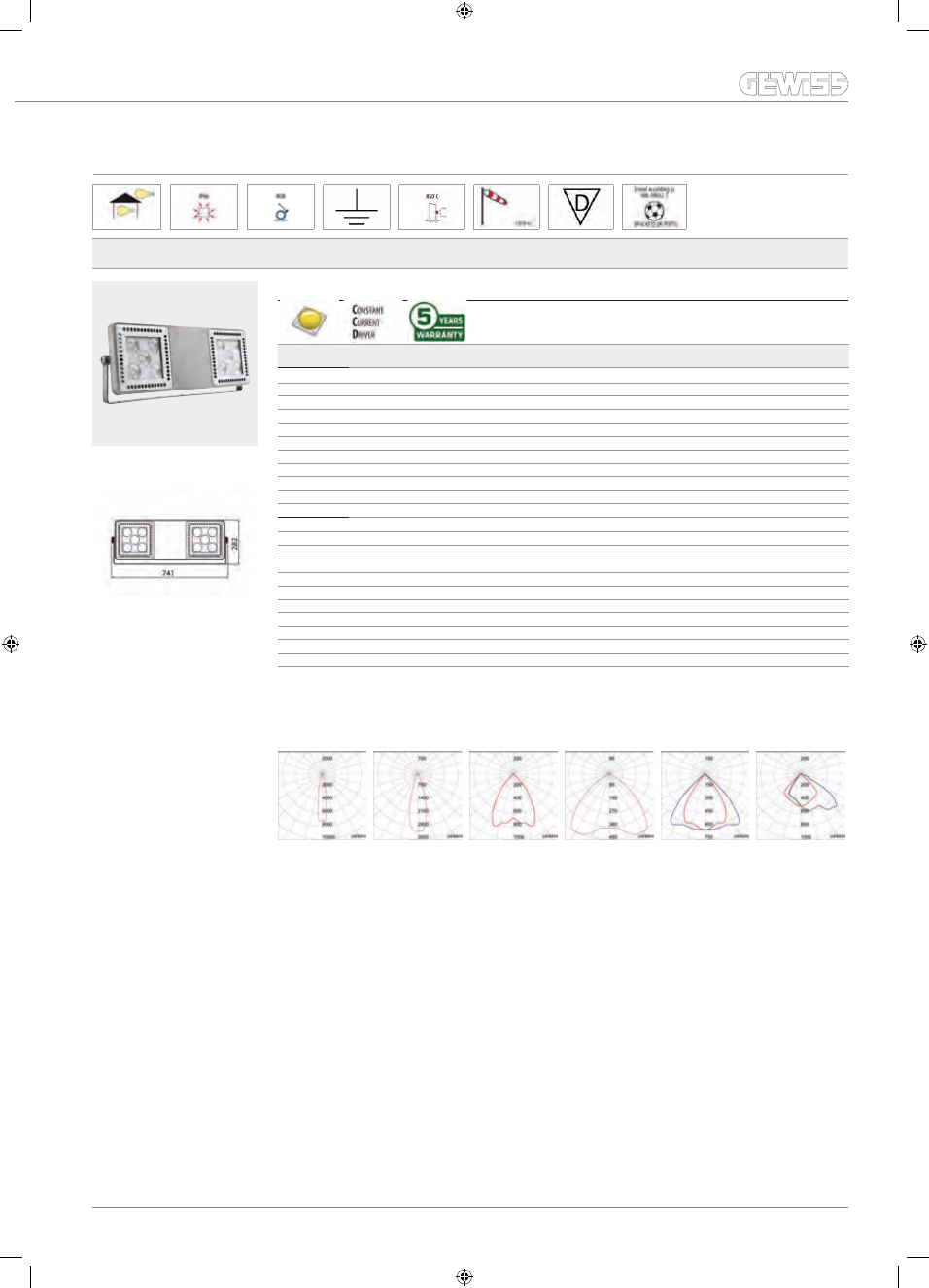

SMART[4] 2.0 FL - 5+5L - EQUIVALENT TO 250W MT

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 151 GS

Spotlight 10°

4000 K (CRI 80)

118 W

14280

10630

Grey RAL 7037

8.5

GW S4 152 GS

Restricted 30°

4000 K (CRI 80)

118 W

14280

10300

Grey RAL 7037

8.5

GW S4 153 GS

Medium 60°

4000 K (CRI 80)

118 W

14280

13650

Grey RAL 7037

8.5

GW S4 154 GS

Diffused 100°

4000 K (CRI 80)

118 W

14280

13020

Grey RAL 7037

8.5

GW S4 155 GS

Elliptical

4000 K (CRI 80)

118 W

14280

13200

Grey RAL 7037

8.5

GW S4 156 GS

Asymmetrical

4000 K (CRI 80)

118 W

14280

12690

Grey RAL 7037

8.5

GW S4 151 BS

Spotlight 10°

3000 K (CRI 80)

118 W

13270

9880

Midnight blue

8.5

GW S4 153 BS

Medium 60°

3000 K (CRI 80)

118 W

13270

12680

Midnight blue

8.5

GW S4 154 BS

Diffused 100°

3000 K (CRI 80)

118 W

13270

12100

Midnight blue

8.5

GW S4 155 BS

Elliptical

3000 K (CRI 80)

118 W

13270

12270

Midnight blue

8.5

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 151 GD

Spotlight 10°

4000 K (CRI 80)

121 W

14280

10630

Grey RAL 7037

8.5

GW S4 152 GD

Restricted 30°

4000 K (CRI 80)

121 W

14280

10300

Grey RAL 7037

8.5

GW S4 153 GD

Medium 60°

4000 K (CRI 80)

121 W

14280

13650

Grey RAL 7037

8.5

GW S4 154 GD

Diffused 100°

4000 K (CRI 80)

121 W

14280

13020

Grey RAL 7037

8.5

GW S4 155 GD

Elliptical

4000 K (CRI 80)

121 W

14280

13200

Grey RAL 7037

8.5

GW S4 156 GD

Asymmetrical

4000 K (CRI 80)

121 W

14280

12690

Grey RAL 7037

8.5

GW S4 151 BD

Spotlight 10°

3000 K (CRI 80)

121 W

13270

9880

Midnight blue

8.5

GW S4 153 BD

Medium 60°

3000 K (CRI 80)

121 W

13270

12680

Midnight blue

8.5

GW S4 154 BD

Diffused 100°

3000 K (CRI 80)

121 W

13270

12100

Midnight blue

8.5

GW S4 155 BD

Elliptical

3000 K (CRI 80)

121 W

13270

12270

Midnight blue

8.5

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 153 GS

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

Smart [4] 2.0 FL

For Special versions please contact our GEWISS Sales Organization

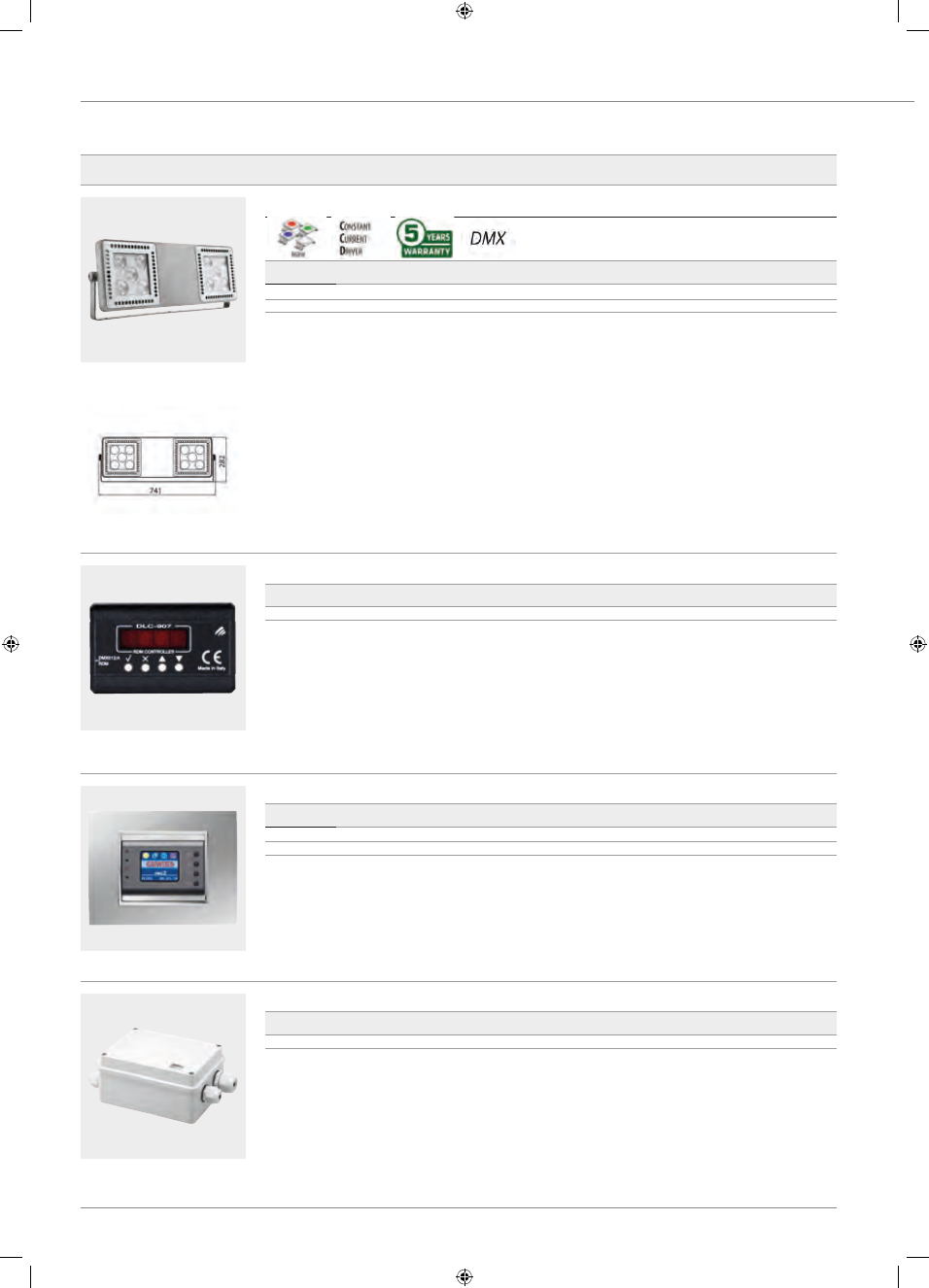

RGBW VERSIONS

WIRED VERSION - IP66 - CLASS I

Code

Optic

System

power

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - Pilot current 1 A - DMX

GW S4 153 GC

Medium 60°

165 W

Grey RAL 7037

GW S4 153 GC

DONGLE FOR ASSIGNMENT OF DMX ADDRESSES

Code

Power

supply batteries

Display

Weight

(kg)

Pack

Carton

GW L1 908

Two AAA 1.5 V batteries

LED

0.3

NOTE: to be used for addressing and supervising the RGBW equipment.

GW L1 908

RGB CONTROL MODULE

Code

No. of manageable

devices/units

No. Chorus

modules

DMX

Channels

Display

Weight

(kg)

Pack

Carton

Voltage: 12 V - 50/60 Hz

GW 85 691

O-Led

0.5

GW 85 691

COMPLEMENTARY ITEMS FOR THE DMX SYSTEM

Code

Description

Voltage

Number of

outputs

Pack

Carton

GW 85 692

DMX repeater / splitter

100/240 V - 50/60 Hz

GW 85 692

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

For Special versions please contact our GEWISS Sales Organization

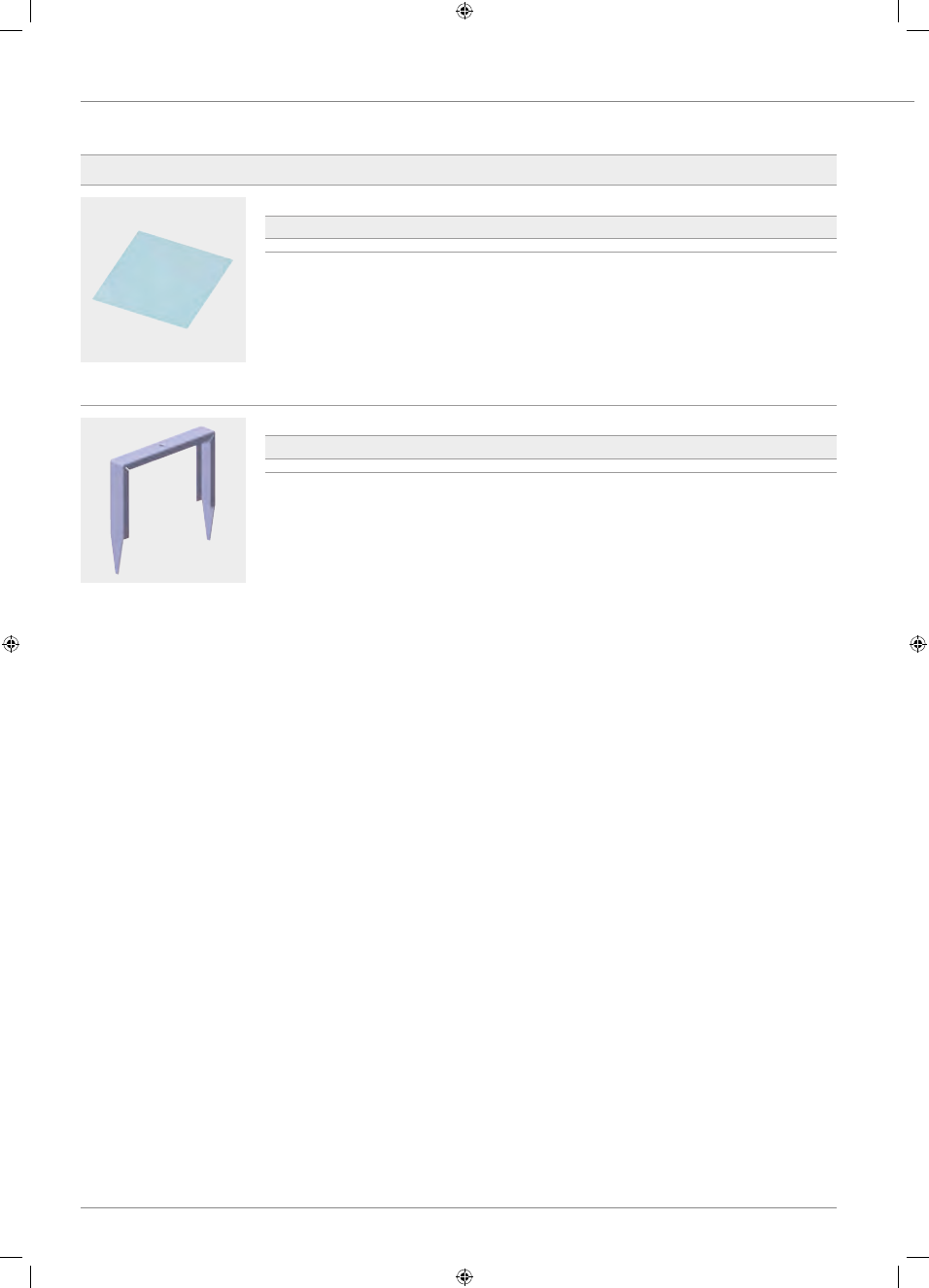

COMPLEMENTARY ITEMS

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

FIXING ACCESSORIE

Code

Description

Pack

Carton

GW L1 934

Fixing spike Smart[4] double

GW L1 934

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[4] 2.0 FL Range

Smart [4] 2.0 FL

For Special versions please contact our GEWISS Sales Organization

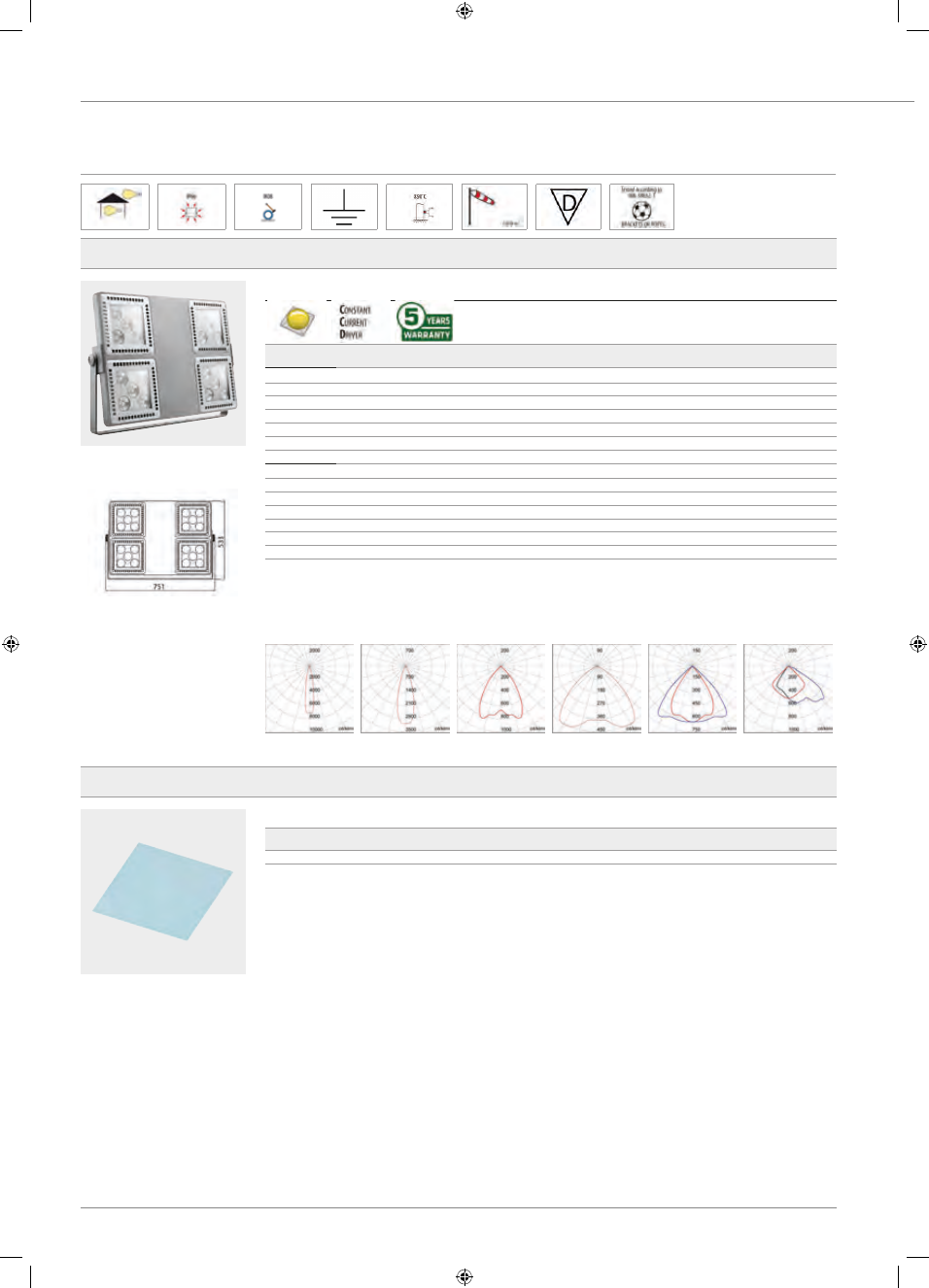

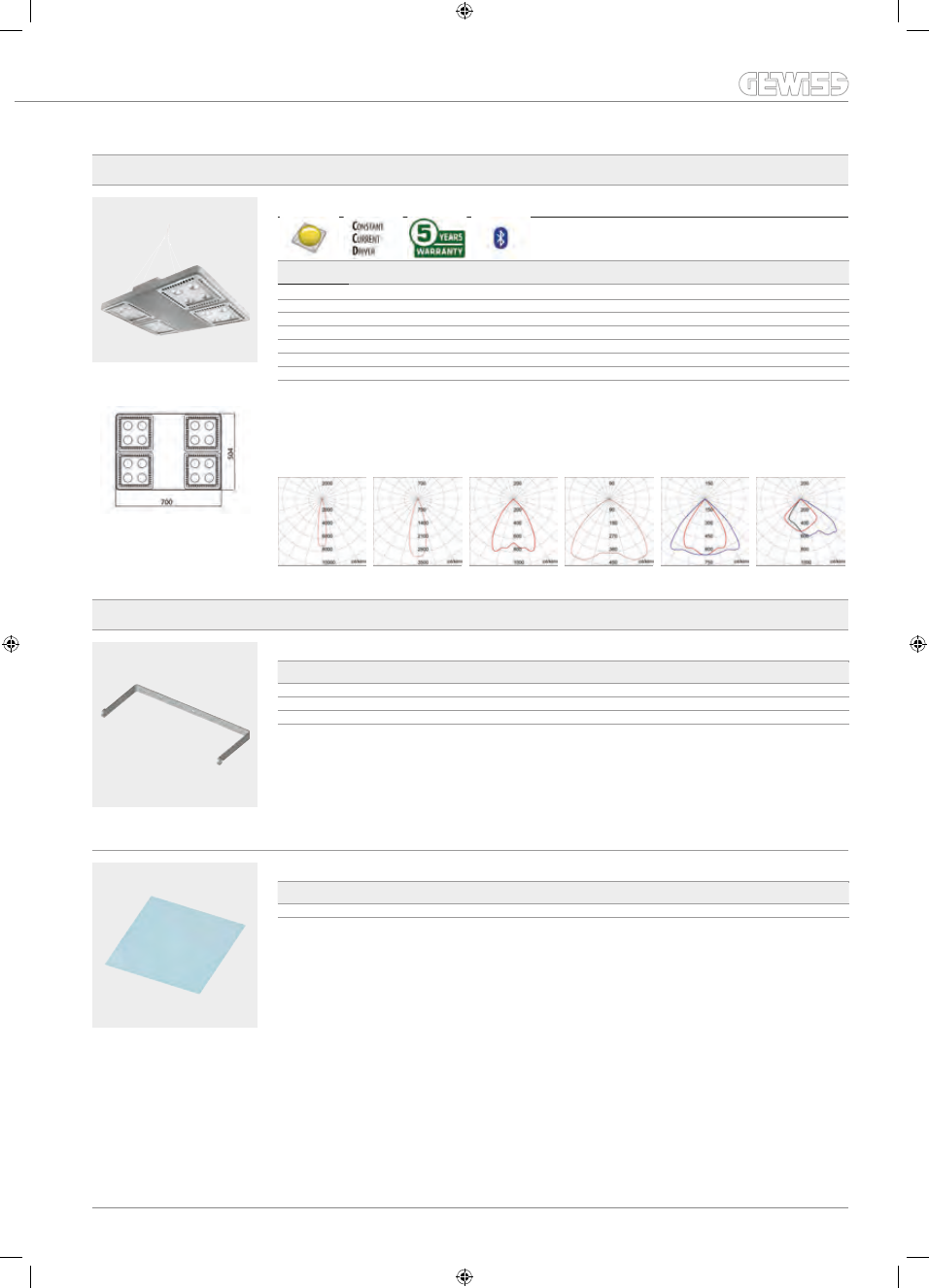

SMART[4] 2.0 FL - 4X5L - EQUIVALENT TO 400W MT

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 171 GS

Spotlight 10°

4000 K (CRI 80)

236 W

28480

21270

Grey RAL 7037

15.9

GW S4 172 GS

Restricted 30°

4000 K (CRI 80)

236 W

28480

20600

Grey RAL 7037

15.9

GW S4 173 GS

Medium 60°

4000 K (CRI 80)

236 W

28480

27290

Grey RAL 7037

15.9

GW S4 174 GS

Diffused 100°

4000 K (CRI 80)

236 W

28480

26040

Grey RAL 7037

15.9

GW S4 175 GS

Elliptical

4000 K (CRI 80)

236 W

28480

26400

Grey RAL 7037

15.9

GW S4 176 GS

Asymmetrical

4000 K (CRI 80)

236 W

28480

25380

Grey RAL 7037

15.9

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 171 GD

Spotlight 10°

4000 K (CRI 80)

245 W

28480

21270

Grey RAL 7037

15.9

GW S4 172 GD

Restricted 30°

4000 K (CRI 80)

245 W

28480

20600

Grey RAL 7037

15.9

GW S4 173 GD

Medium 60°

4000 K (CRI 80)

245 W

28480

27290

Grey RAL 7037

15.9

GW S4 174 GD

Diffused 100°

4000 K (CRI 80)

245 W

28480

26040

Grey RAL 7037

15.9

GW S4 175 GD

Elliptical

4000 K (CRI 80)

245 W

28480

26400

Grey RAL 7037

15.9

GW S4 176 GD

Asymmetrical

4000 K (CRI 80)

245 W

28480

25380

Grey RAL 7037

15.9

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 173 GS

COMPLEMENTARY ITEM

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

Gewiss-Depliant-Lighting-html.html

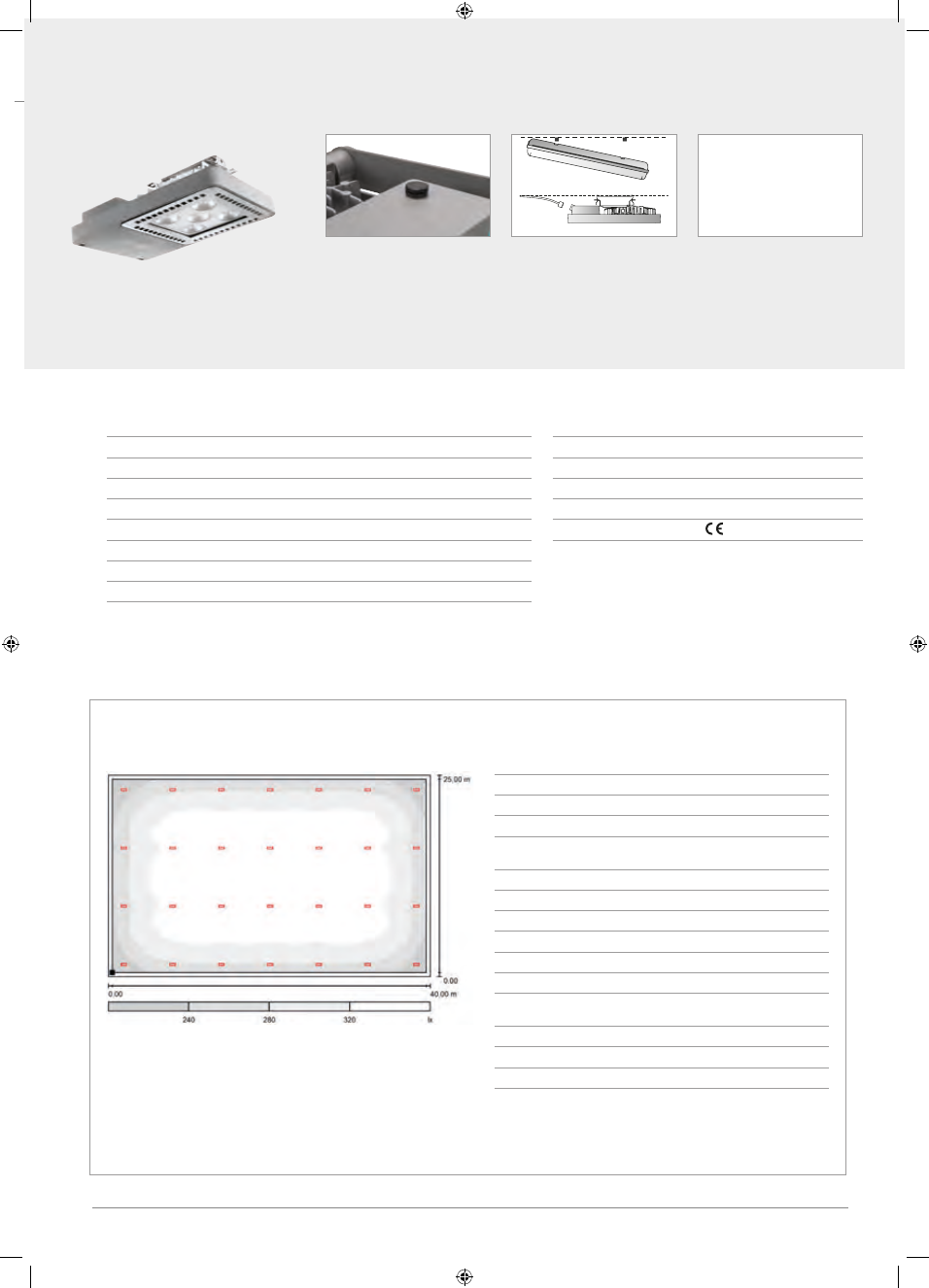

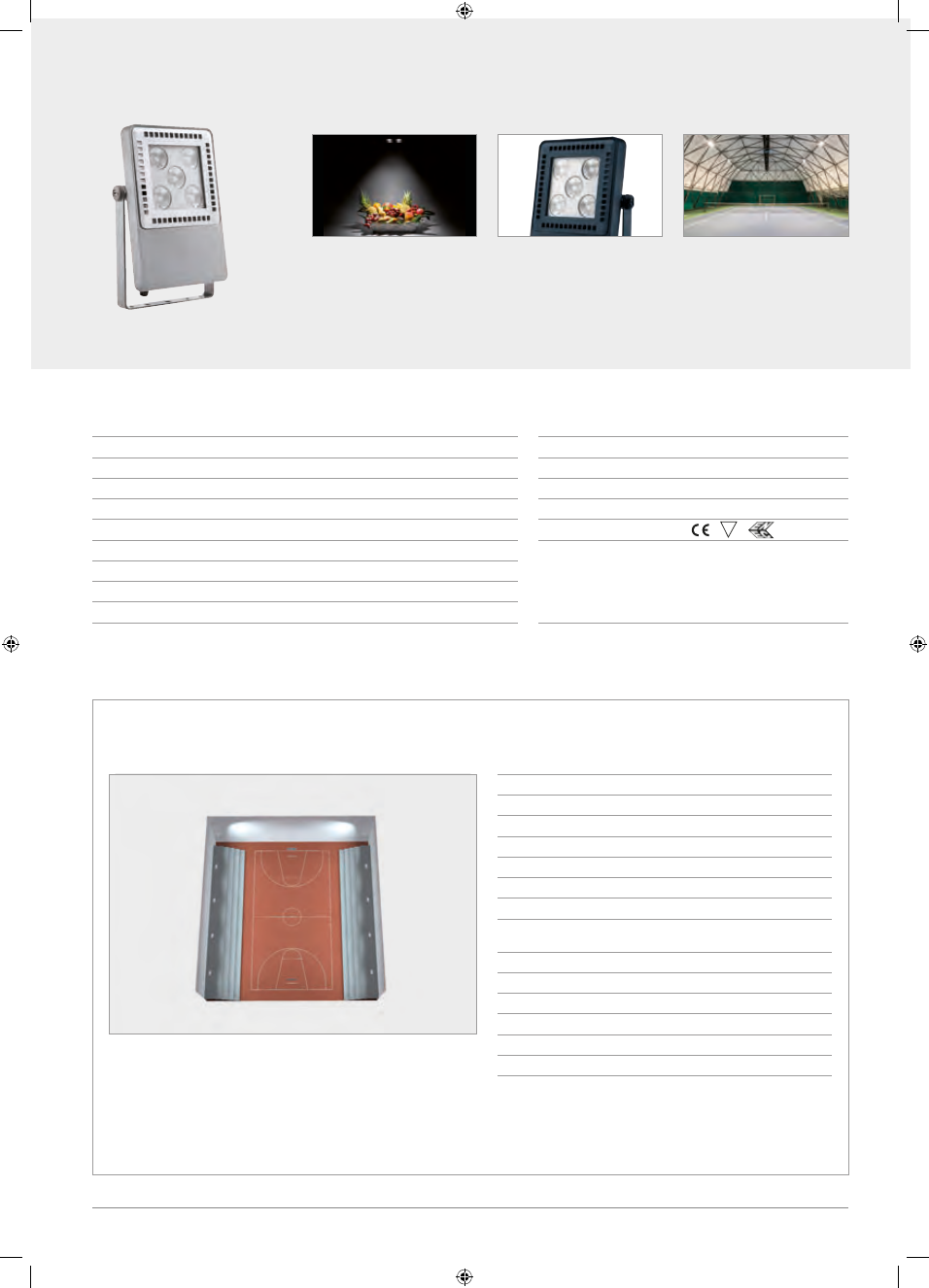

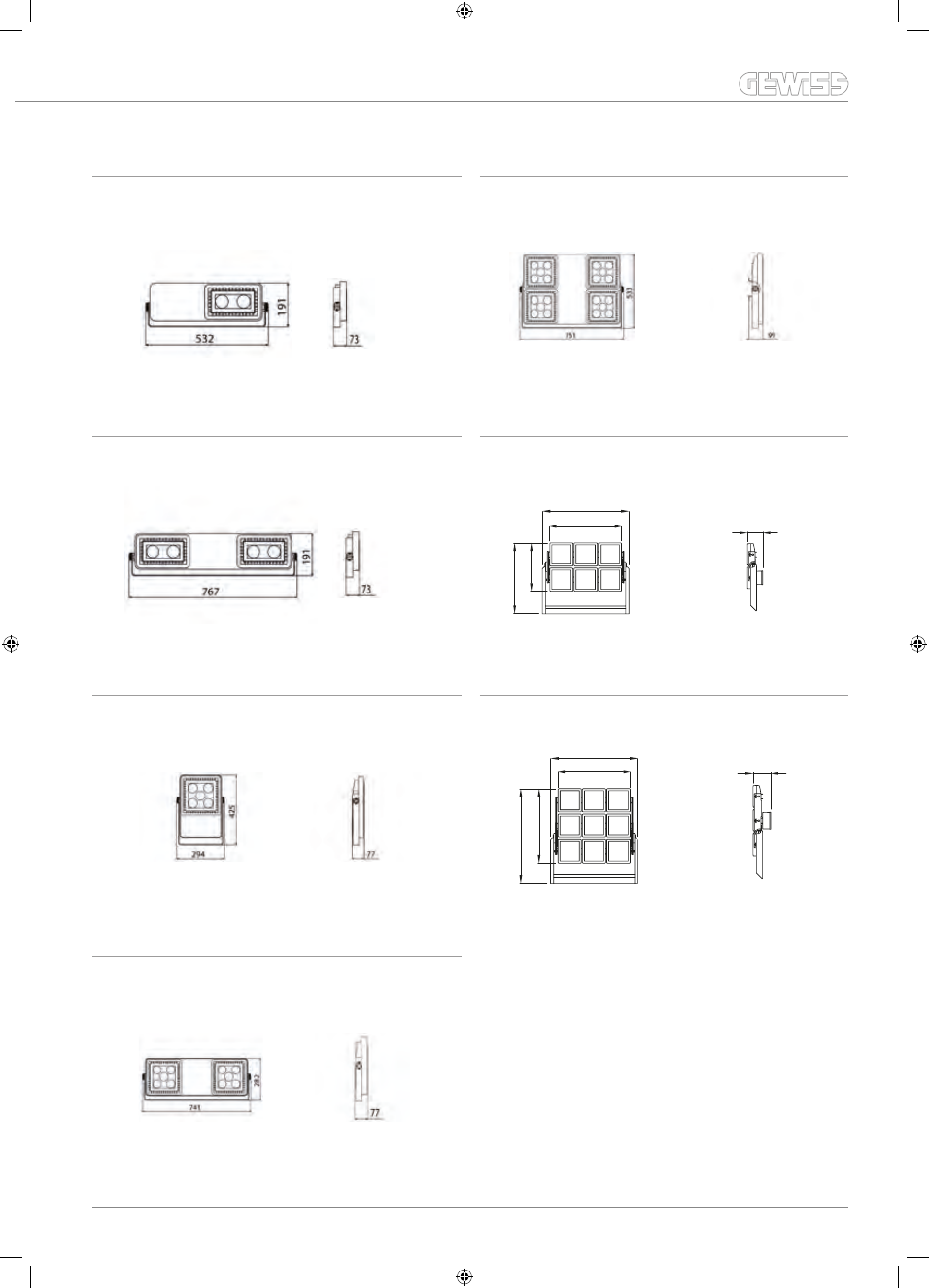

INSTALLATION

Internal / External

DEGREE OF PROTECTION

IP66

COLOUR

Grey RAL7037 / Midnight blue

IMPACT RESISTANCE

IK08

MATERIALS

INSULATION CLASS

Body

Technopolymer PA6.6+GF

LIFETIME

L80B05 @+25°C =120.000h

Heat sink

Die-cast aluminium EN AB 44300 - copper free

MARKS

DIN18032-3

Collimator

Secondary lens

PMMA (where envisaged)

Shield

Extra-clear flat glass 4 mm

Bracket

Painted galvanised steel

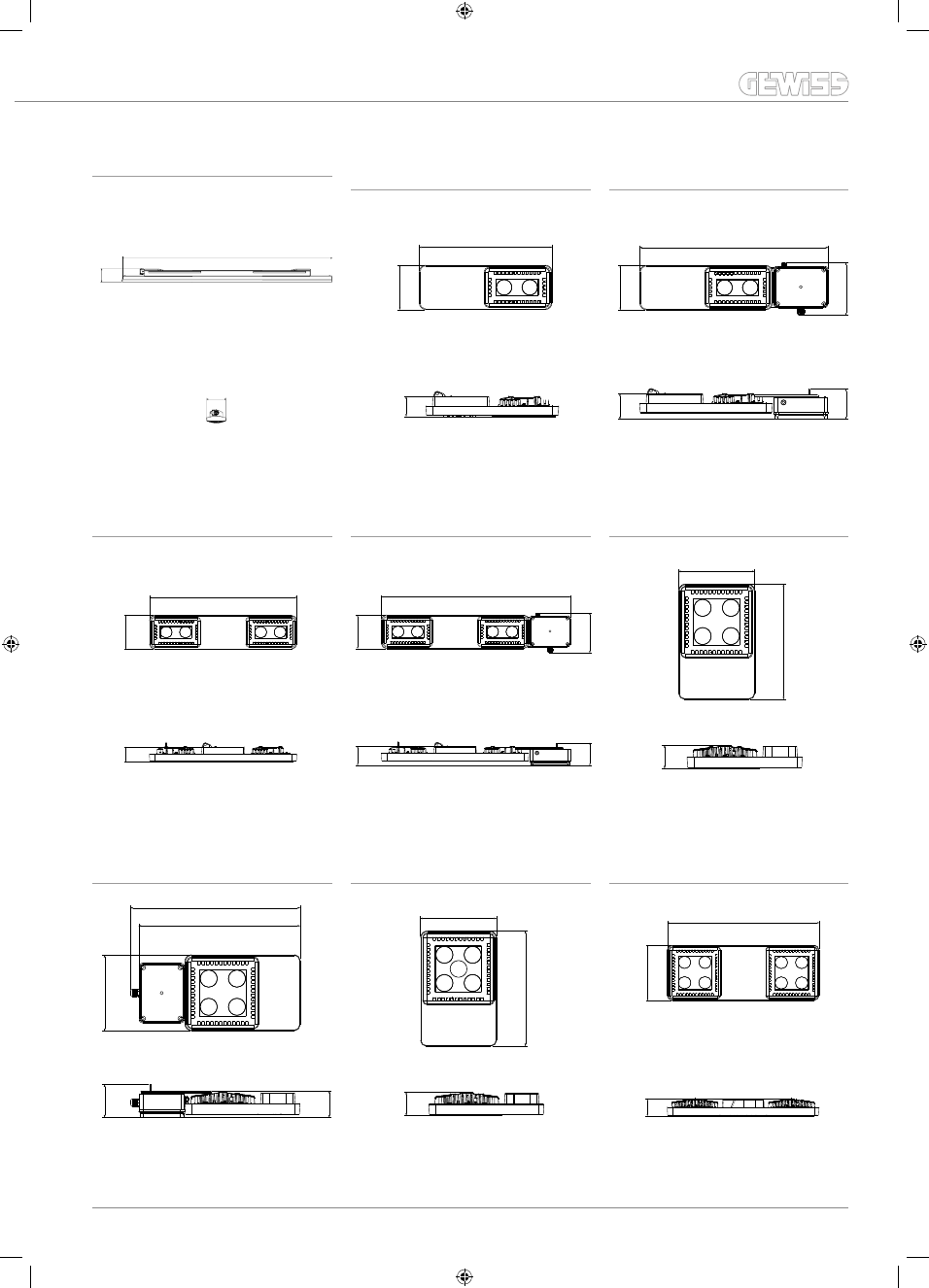

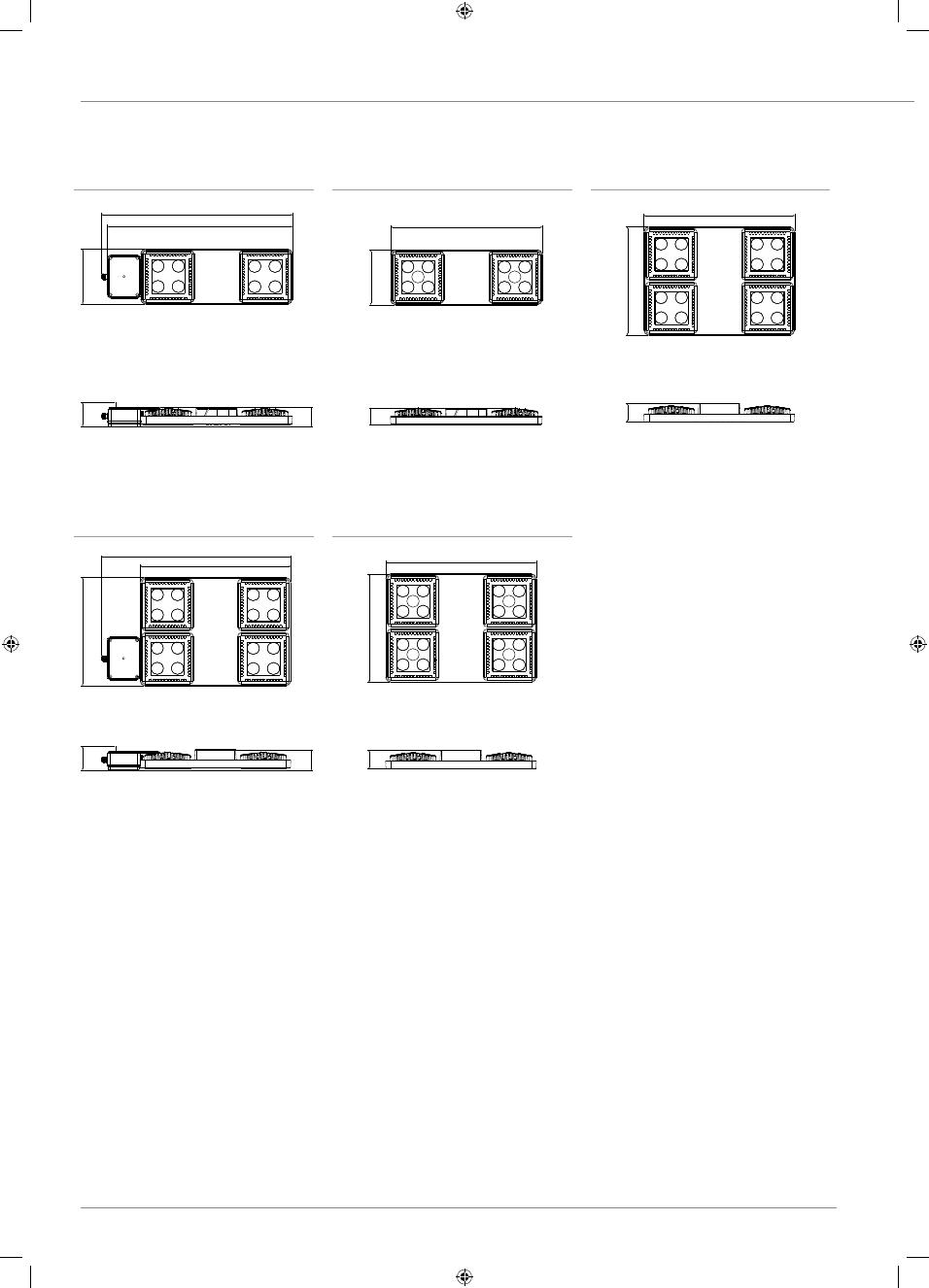

Technical characteristics

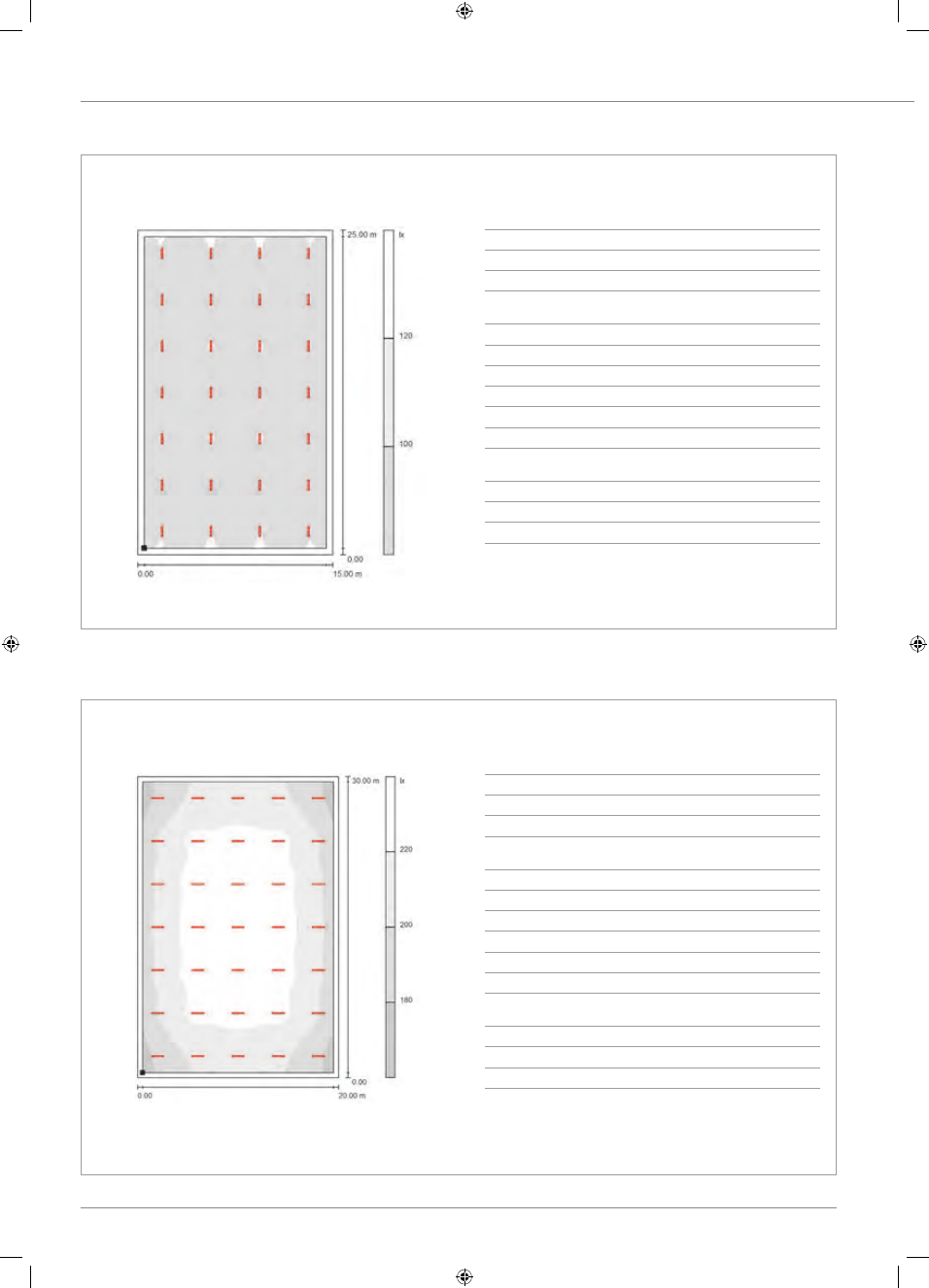

Technical solutions

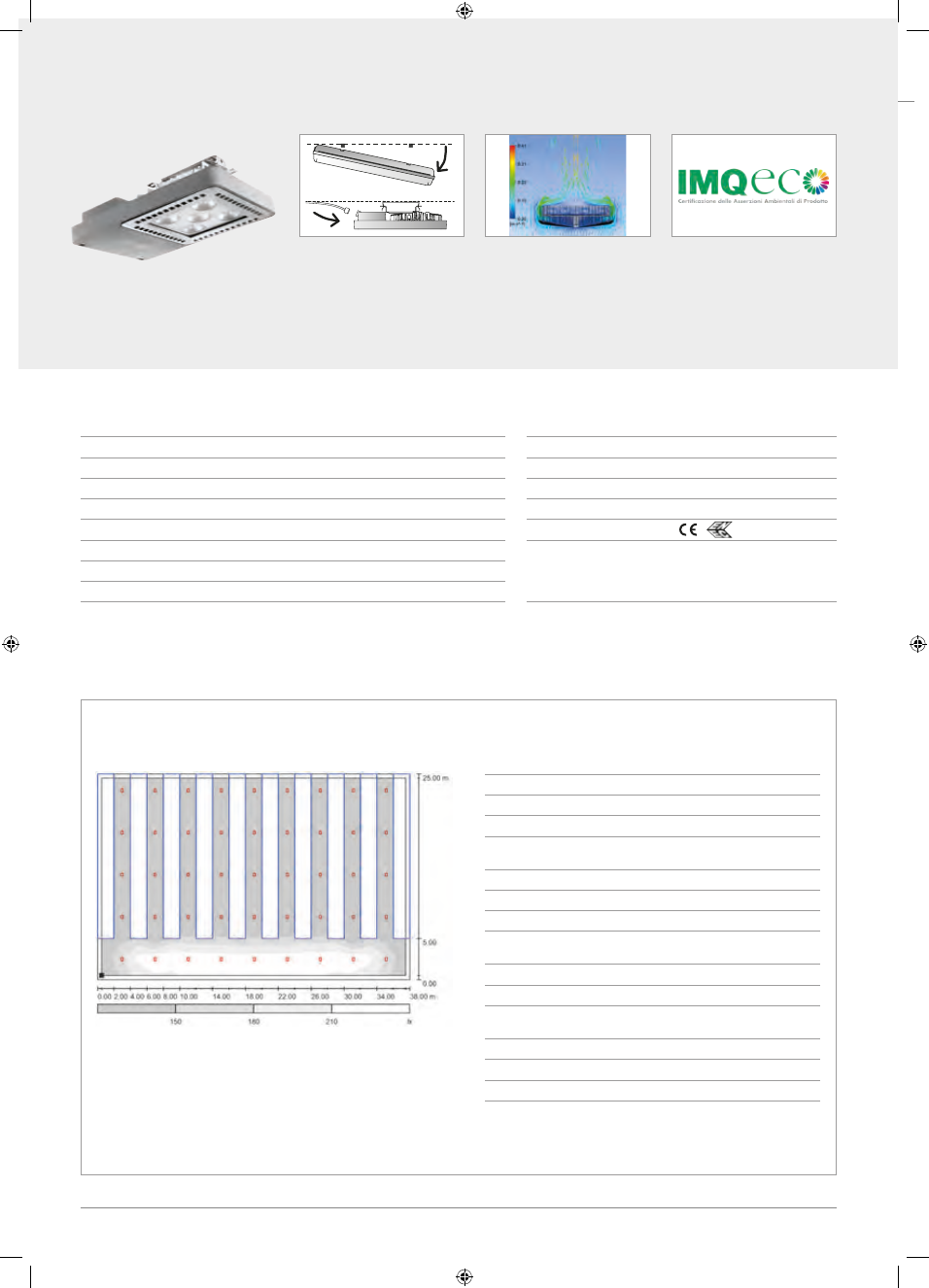

Project: indoor basketball court

Length [m]

Width [m]

Activity

SPORT - indoor basketball

Class

III

Eav [lx]

200

Emin\Eav

0.5

Luminaire

Smart [4] FL 2.0
GWS4173GS

Installation

Ceiling

Luminaire mounting height (m)

Number of floodlights

Number of floodlights per row

Eav [lx]

230

Emin\Eav

0.74

Lighting > Floodlights > Smart [4] 2.0 FL Range

For technical information contact the Technical Assistance Service or visit gewiss.com

The Smart [4] 2.0 versions with a wall
bracket are certified in accordance with
DIN 18032-3. This means they are suit-
able for use in indoor sports facilities
like multi-functional gyms or sports
halls.

The Smart [4] 2.0 range has been ex-
tended with new versions bluegreen
particularly suitable for installation in
gardens and parks where the luminaire
integrates perfectly with the blue of
the night.

SPORTS APPLICATIONS

NEW BLUEGREEN VERSIONS

Smart [4] 2.0 FL

Commercial
information page 27

A single line of six different optics that
ensure excellent lighting performance
in terms of colour yield and light flux
control, according to the specific con-
text.

OPTIC SYSTEM

Gewiss-Depliant-Lighting-html.html

Smart [PRO]

Lighting > Floodlighting > SMART[PRO] Range

For Special versions please contact our GEWISS Sales Organization

SMART[PRO]

HE VERSIONS - HIGH EFFICIENCY

HIGH POWER FLOODLIGHT MADE IN DIE CAST ALUMINIUM - 6M EQIVALENT TO 1000W MT - IP66 - CLASS I

Code

Optic

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Versions: 4000K natural light

GW P1 161 HE

Symmetrical restricted

6 (6x9 LED)

4000 K (CRI 70)

770 W 85860

73780

GW P1 162 HE

Symmetrical diffused

6 (6x9 LED)

4000 K (CRI 70)

770 W 85860

76240

GW P1 163 HE

Restricted circular

6 (6x9 LED)

4000 K (CRI 70)

770 W 85860

65590

GW P1 164 HE

Asymmetrical restricted

6 (6x9 LED)

4000 K (CRI 70)

770 W 85860

66410

GW P1 165 HE

Asymmetrical diffused

6 (6x9 LED)

4000 K (CRI 70)

770 W 85860

57390

Versions: 5700K cold light

GW P1 261 HE

Symmetrical restricted

6 (6x9 LED)

5700 K (CRI 70)

770 W 92340

79350

GW P1 262 HE

Symmetrical diffused

6 (6x9 LED)

5700 K (CRI 70)

770 W 92340

82000

GW P1 263 HE

Restricted circular

6 (6x9 LED)

5700 K (CRI 70)

770 W 92340

70540

GW P1 264 HE

Asymmetrical restricted

6 (6x9 LED)

5700 K (CRI 70)

770 W 92340

71420

GW P1 265 HE

Asymmetrical diffused

6 (6x9 LED)

5700 K (CRI 70)

770 W 92340

61720

NOTE: Must be complete with supply unit. due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C.

Photometric distributions

Symmetrical restricted

Symmetrical diffused

Restricted circular

Asymmetrical restricted Asymmetrical diffused

GW P1 161 HE

New product

Technical characteristics

page

Smart[Pro] is the new range of LED lighting devices for high-power floodlights. It was
designed to offer high lighting performance, simplified installation, reduced maintenance
and top energy savings in both simple and complex systems.
Smart[Pro] is the ideal solution for professional sport, highmast, airport applications,
etc...

Floodlights

Smart[Pro]

NEW

PRODUCT

Gewiss-Depliant-Lighting-html.html

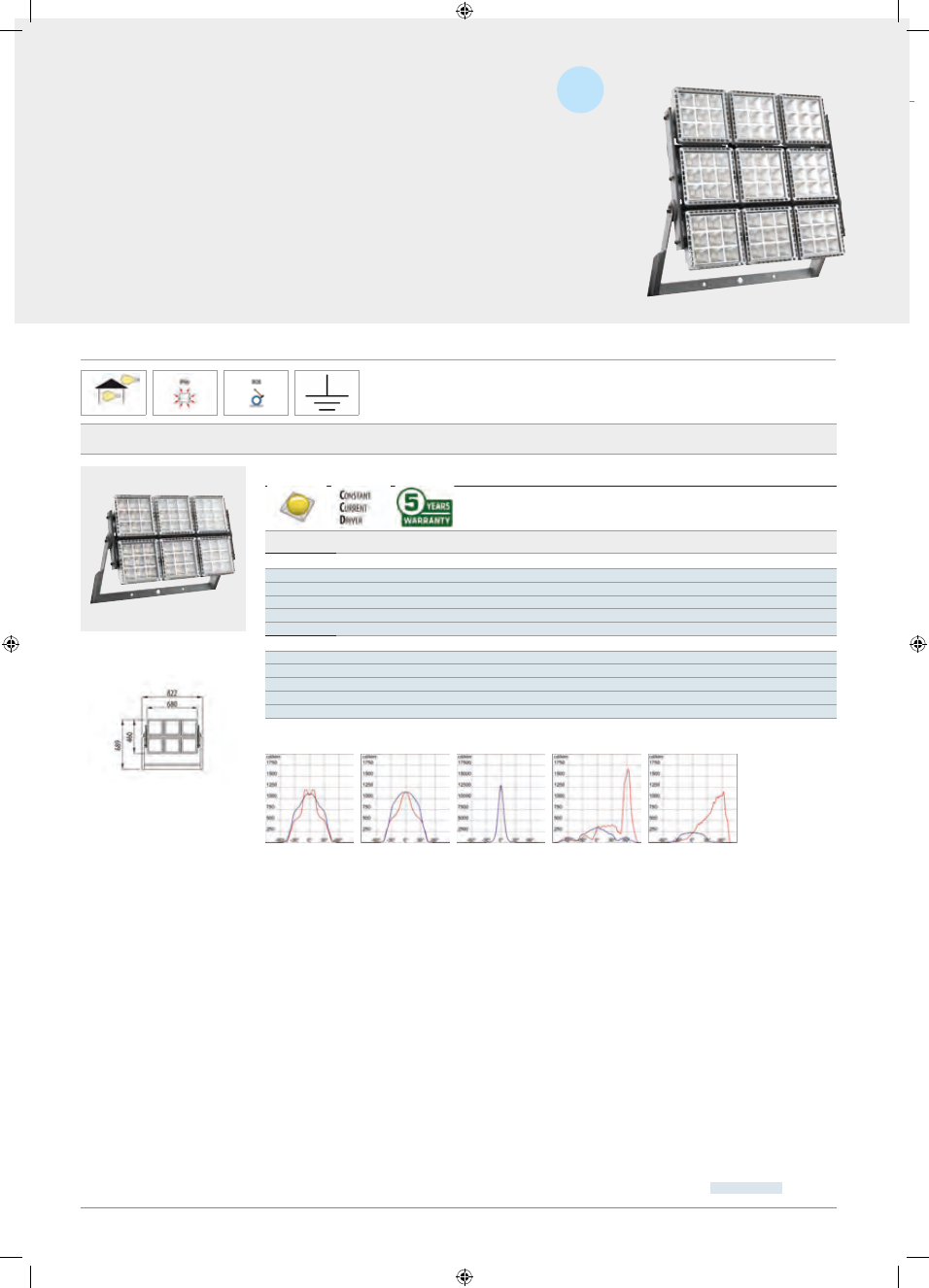

Lighting > Floodlighting > SMART[PRO] Range

For Special versions please contact our GEWISS Sales Organization

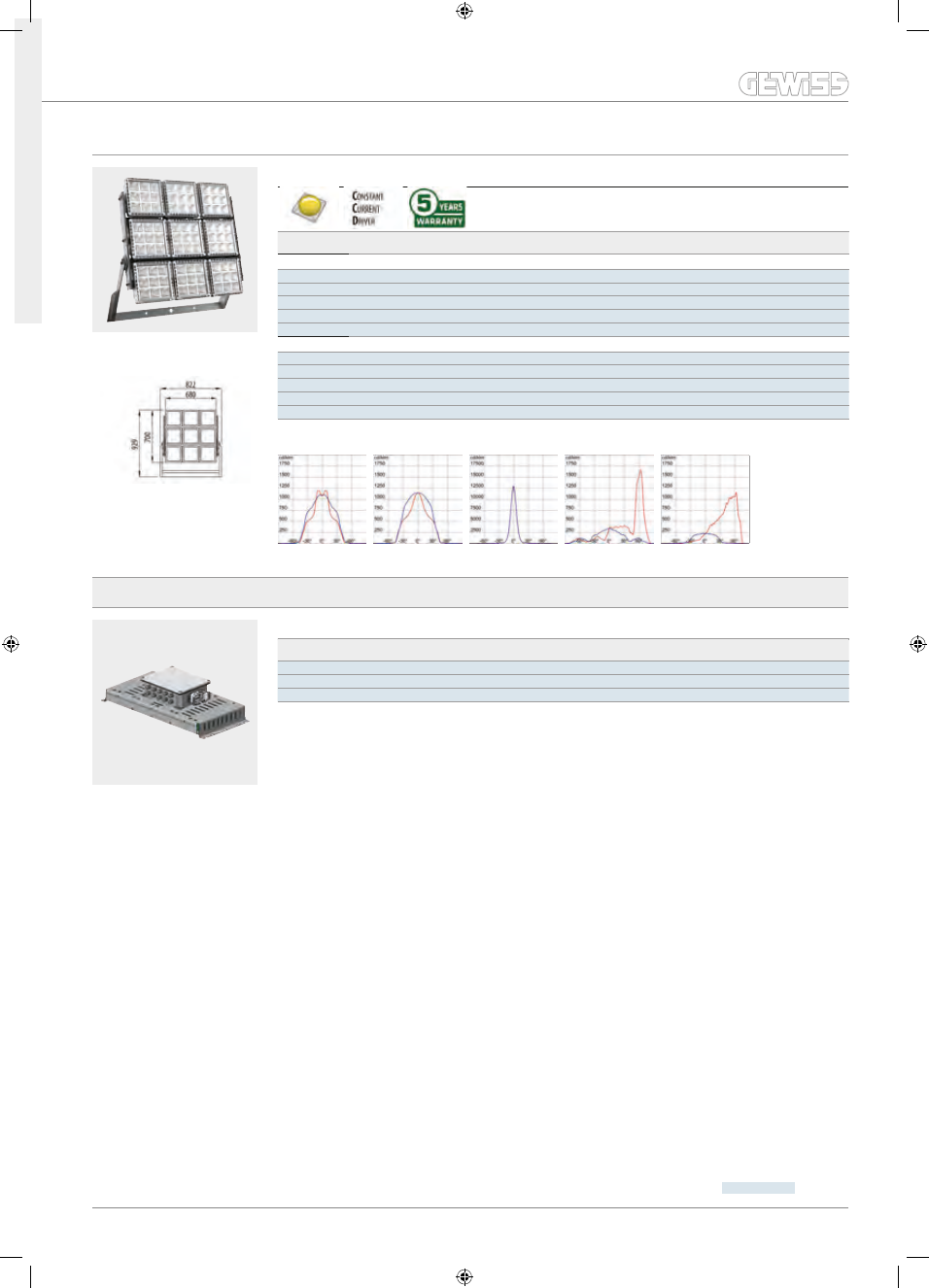

HIGH POWER FLOODLIGHT MADE IN DIE CAST ALUMINIUM - IP66 - 9M EQIVALENT TO 2000W MT - CLASS I

Code

Optic

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Versions: 4000K natural light

GW P1 191 HE

Symmetrical restricted

9 (9x9 LED)

4000 K (CRI 70)

1110 W 128790

110680

GW P1 192 HE

Symmetrical diffused

9 (9x9 LED)

4000 K (CRI 70)

1110 W 128790

114370

GW P1 193 HE

Restricted circular

9 (9x9 LED)

4000 K (CRI 70)

1110 W 128790

98380

GW P1 194 HE

Asymmetrical restricted

9 (9x9 LED)

4000 K (CRI 70)

1110 W 128790

99610

GW P1 195 HE

Asymmetrical diffused

9 (9x9 LED)

4000 K (CRI 70)

1110 W 128790

86080

Versions: 5700K cold light

GW P1 291 HE

Symmetrical restricted

9 (9x9 LED)

5700 K (CRI 70)

1110 W 138510

119030

GW P1 292 HE

Symmetrical diffused

9 (9x9 LED)

5700 K (CRI 70)

1110 W 138510

123000

GW P1 293 HE

Restricted circular

9 (9x9 LED)

5700 K (CRI 70)

1110 W 138510

105800

GW P1 294 HE

Asymmetrical restricted

9 (9x9 LED)

5700 K (CRI 70)

1110 W 138510

107130

GW P1 295 HE

Asymmetrical diffused

9 (9x9 LED)

5700 K (CRI 70)

1110 W 138510

92580

NOTE: Must be complete with supply unit. due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C.

Photometric distributions

Symmetrical restricted

Symmetrical diffused

Restricted circular

Asymmetrical restricted Asymmetrical diffused

GW P1 191 HE

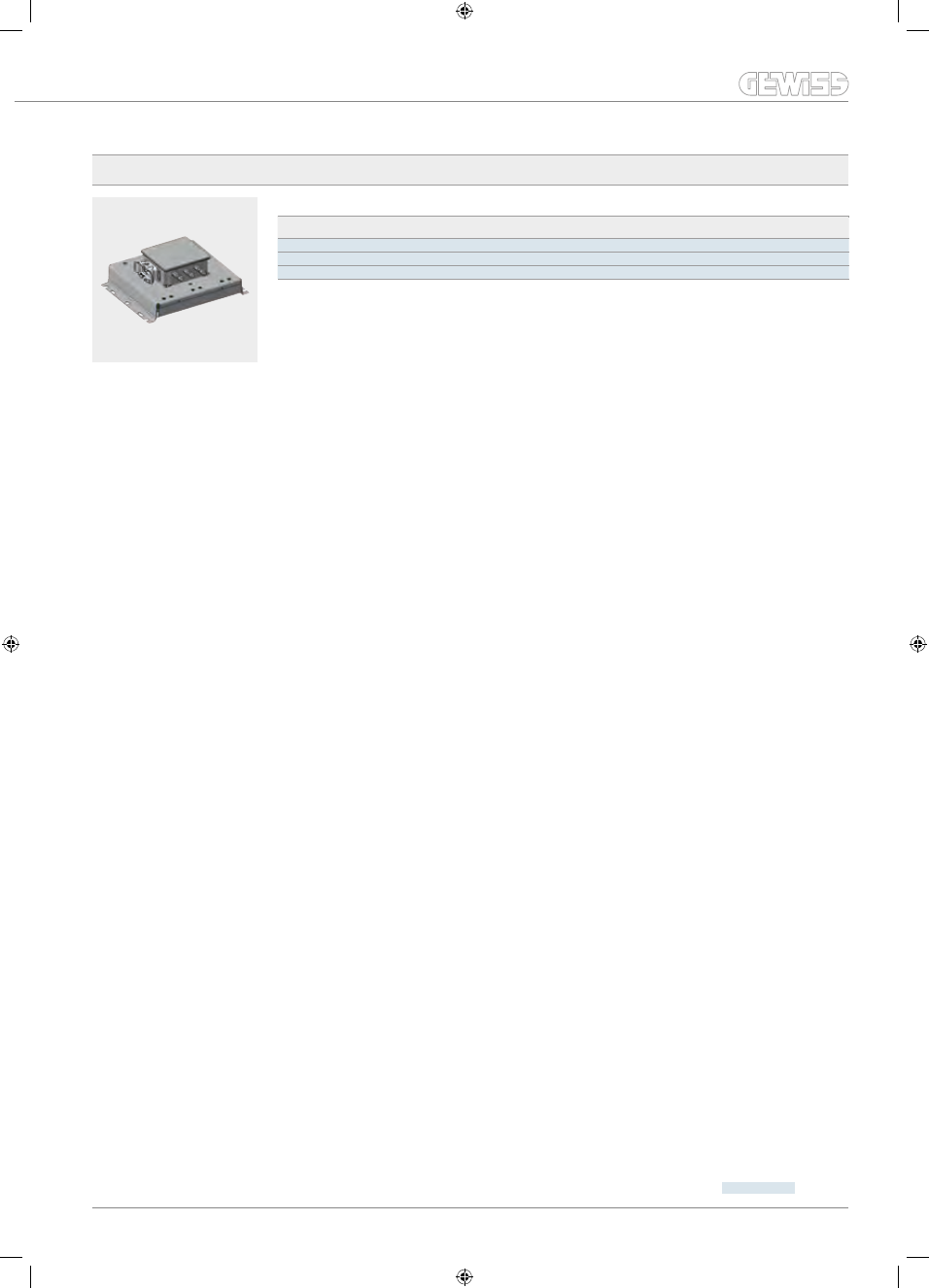

COMPLEMENTARY ITEMS

SUPPLY UNITS

Code

Version

Number of

modules

Supply

voltage

Type

Pack

Carton

GW P1 901 HE

High Efficiency - 1,1A

100-240 V - 50/60 Hz

Stand alone

GW P1 902 HE

High Efficiency - 1,1A

100-240 V - 50/60 Hz

Stand alone

GW P1 903 HE

High Efficiency - 1,1A

270-400 V - 50/60 Hz

Stand alone

GW P1 901 HE

New product

Gewiss-Depliant-Lighting-html.html

Smart [PRO]

Lighting > Floodlighting > SMART[PRO] Range

For Special versions please contact our GEWISS Sales Organization

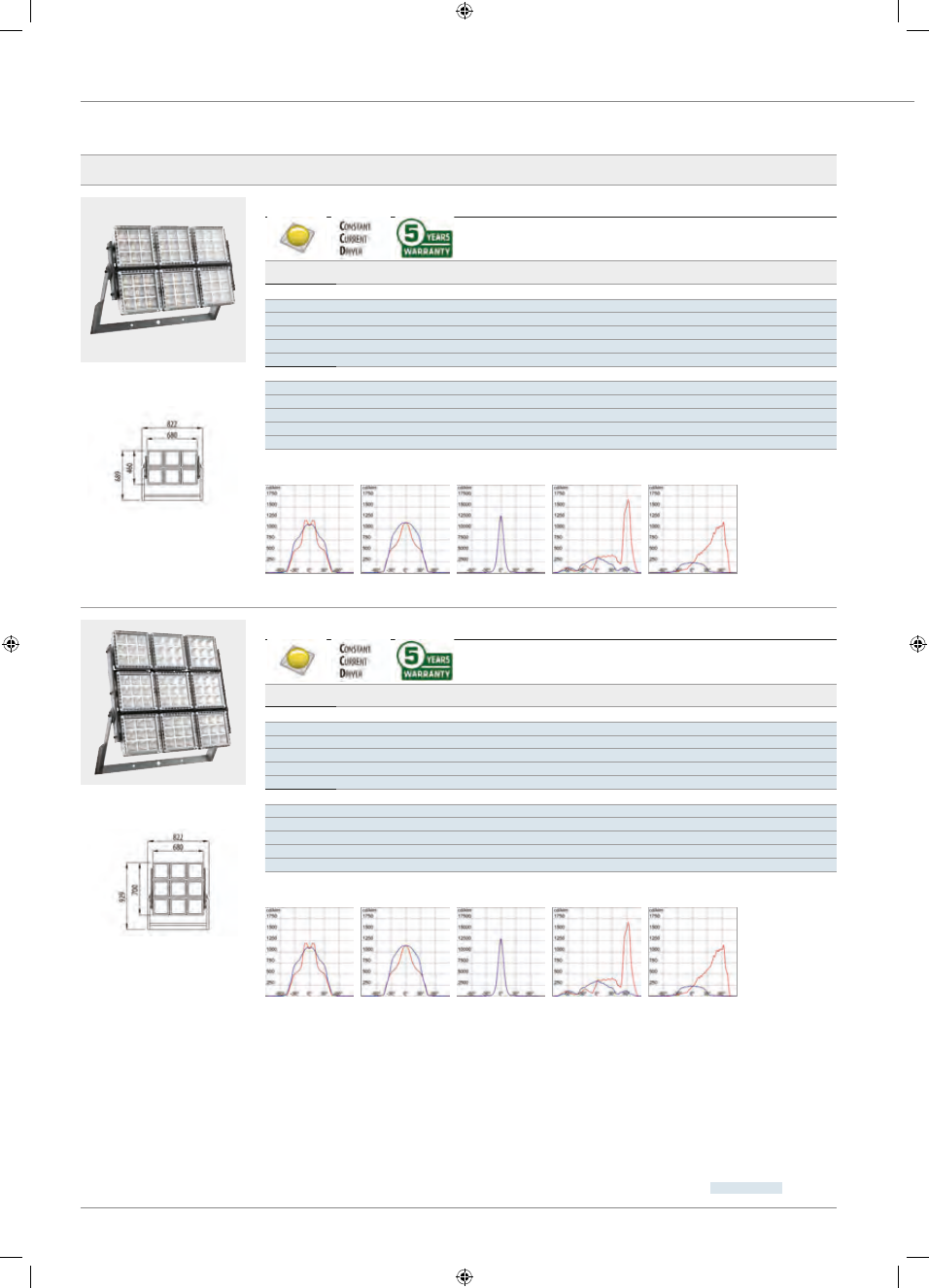

HL VERSIONS - HIGH LUMEN

HIGH POWER FLOODLIGHT MADE IN DIE CAST ALUMINIUM - IP66 - 6M EQIVALENT TO 1000W MT - CLASS I

Code

Optic

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Versions: 4000K natural light

GW P1 161 HL

Symmetrical restricted

6 (6x9 LED)

4000 K (CRI 70)

1020 W 103680

89100

GW P1 162 HL

Symmetrical diffused

6 (6x9 LED)

4000 K (CRI 70)

1020 W 103680

92070

GW P1 163 HL

Restricted circular

6 (6x9 LED)

4000 K (CRI 70)

1020 W 103680

79200

GW P1 164 HL

Asymmetrical restricted

6 (6x9 LED)

4000 K (CRI 70)

1020 W 103680

80190

GW P1 165 HL

Asymmetrical diffused

6 (6x9 LED)

4000 K (CRI 70)

1020 W 103680

69300

Versions: 5700K cold light

GW P1 261 HL

Symmetrical restricted

6 (6x9 LED)

5700 K (CRI 70)

1020 W 111510

95830

GW P1 262 HL

Symmetrical diffused

6 (6x9 LED)

5700 K (CRI 70)

1020 W 111510

99020

GW P1 263 HL

Restricted circular

6 (6x9 LED)

5700 K (CRI 70)

1020 W 111510

85180

GW P1 264 HL

Asymmetrical restricted

6 (6x9 LED)

5700 K (CRI 70)

1020 W 111510

86240

GW P1 265 HL

Asymmetrical diffused

6 (6x9 LED)

5700 K (CRI 70)

1020 W 111510

74530

NOTE: Must be complete with supply unit. due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C.

Photometric distributions

Symmetrical restricted

Symmetrical diffused

Restricted circular

Asymmetrical restricted Asymmetrical diffused

GW P1 161 HL

HIGH POWER FLOODLIGHT MADE IN DIE CAST ALUMINIUM - IP66 - 9M EQIVALENT TO 2000W MT - CLASS I

Code

Optic

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Versions: 4000K natural light

GW P1 191 HL

Symmetrical restricted

9 (9x9 LED)

4000 K (CRI 70)

1510 W 155525

133650

GW P1 192 HL

Symmetrical diffused

9 (9x9 LED)

4000 K (CRI 70)

1510 W 155525

138110

GW P1 193 HL

Restricted circular

9 (9x9 LED)

4000 K (CRI 70)

1510 W 155525

118800

GW P1 194 HL

Asymmetrical restricted

9 (9x9 LED)

4000 K (CRI 70)

1510 W 155525

120290

GW P1 195 HL

Asymmetrical diffused

9 (9x9 LED)

4000 K (CRI 70)

1510 W 155525

103950

Versions: 5700K cold light

GW P1 291 HL

Symmetrical restricted

9 (9x9 LED)

5700 K (CRI 70)

1510 W 167260

143740

GW P1 292 HL

Symmetrical diffused

9 (9x9 LED)

5700 K (CRI 70)

1510 W 167260

148530

GW P1 293 HL

Restricted circular

9 (9x9 LED)

5700 K (CRI 70)

1510 W 167260

127770

GW P1 294 HL

Asymmetrical restricted

9 (9x9 LED)

5700 K (CRI 70)

1510 W 167260

129360

GW P1 295 HL

Asymmetrical diffused

9 (9x9 LED)

5700 K (CRI 70)

1510 W 167260

111800

NOTE: Must be complete with supply unit. due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C.

Photometric distributions

Symmetrical restricted

Symmetrical diffused

Restricted circular

Asymmetrical restricted Asymmetrical diffused

GW P1 191 HL

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Floodlighting > SMART[PRO] Range

For Special versions please contact our GEWISS Sales Organization

COMPLEMENTARY ITEMS

SUPPLY UNITS

Code

Version

Number of

modules

Supply

voltage

Type

Pack

Carton

GW P1 911 HL

High Lumen - 1,4A

100-240 V - 50/60 Hz

Stand Alone - 1/10V

GW P1 912 HL

High Lumen - 1,4A

100-240 V - 50/60 Hz

Stand Alone - 1/10V

GW P1 913 HL

High Lumen - 1,4A

270-400 V - 50/60 Hz

Stand Alone - 1/10V

GW L1 912 HL

New product

Gewiss-Depliant-Lighting-html.html

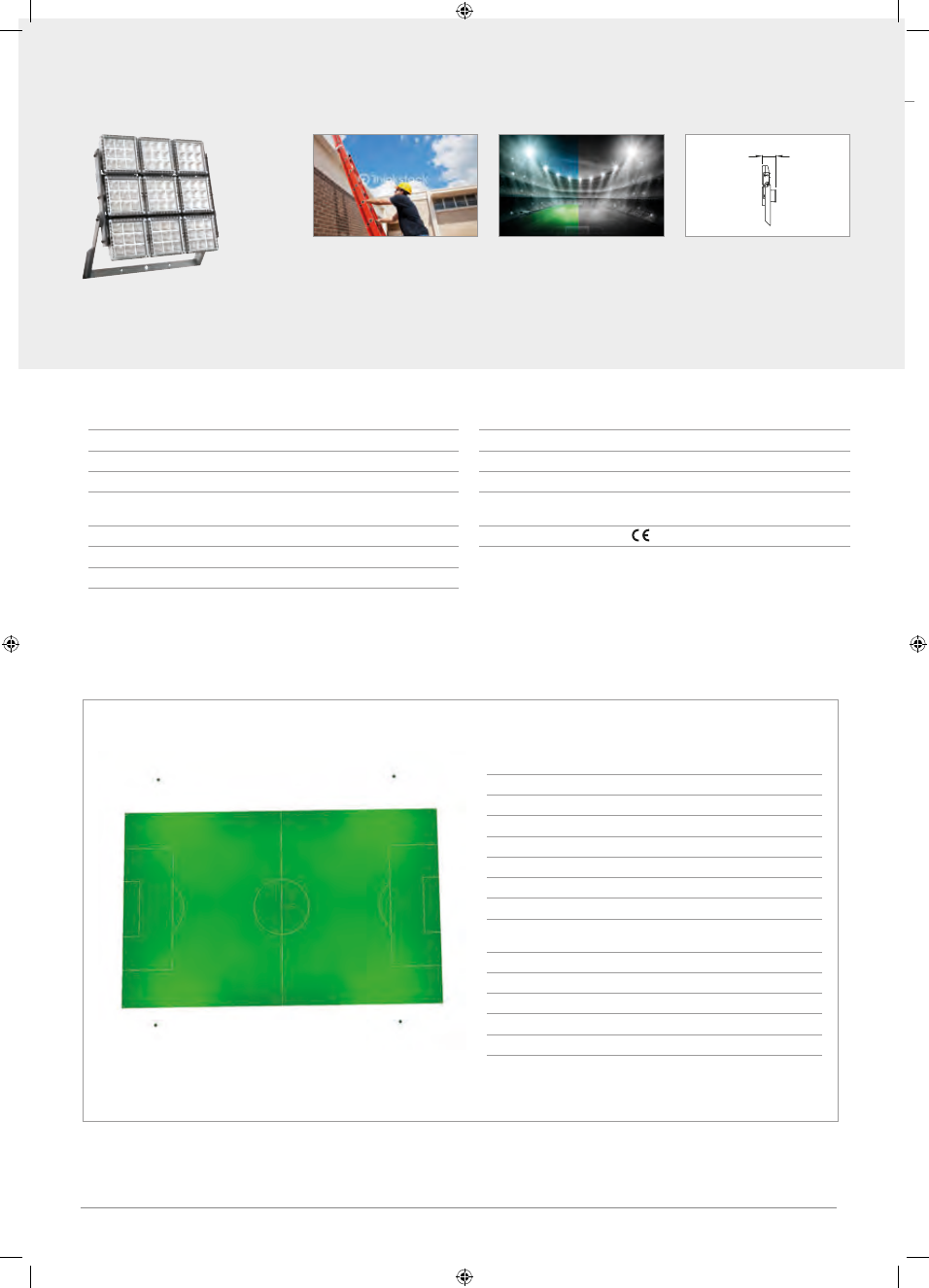

Lighting > Floodlights > Smart [PRO]

For technical information contact the Technical Assistance Service or visit gewiss.com

Thanks to the compact design and in-
stallation flexibility of the lighting body,
they can be used in new systems or in-
serted in existing ones, from large out-
door areas to major sports facilities.

Unlike traditional lamps, they switch
on immediately, for instance in the
case of a temporary blackout, and the
total light flux is available straight
away.

COMPACT AND FLEXIBLE

IMMEDIATE ON

AND OFF

158

Smart Pro

Commercial
information page 38

The average lifetime of a LED device
goes well beyond the average number
of operating hours of traditional lamps,
and at the same time makes it possible
to reduce the amount of maintenance
interventions.

REDUCED MAINTENANCE

Technical characteristics

INSTALLATION

Indoors / outdoors

DEGREE OF PROTECTION

IP66

COLOUR

Graphite Grey

IMPACT RESISTANCE

IK08

MATERIALS

INSULATION CLASS

Structure

Galvanized iron and coated with polyester
powder

LIFETIME

L80B10 =110,000h\L90B10=50,000h for HE versions
L80B10 =75,000h\L90B10=35,000h for HL versions

Heat sink

EN AB 44300 die-cast aluminium

MARKINGS

Shield

Tempered glass 4 mm

Bracket

Galvanized iron and coated with polyester powder

Length [m]

105

Width [m]

Task or job carried out

SPORT - Standard football

Class

Eav [lx]

200

Emin\Eav

0.6

Device

SMART[PRO] GWP1294HL 9M/757 HL
AC

Number of poles

Number of floodlights

Pole height [m]

Eav [lx]

212

Emin\Eav

0.6

Installation solutions

Project: Standard football

Gewiss-Depliant-Lighting-html.html

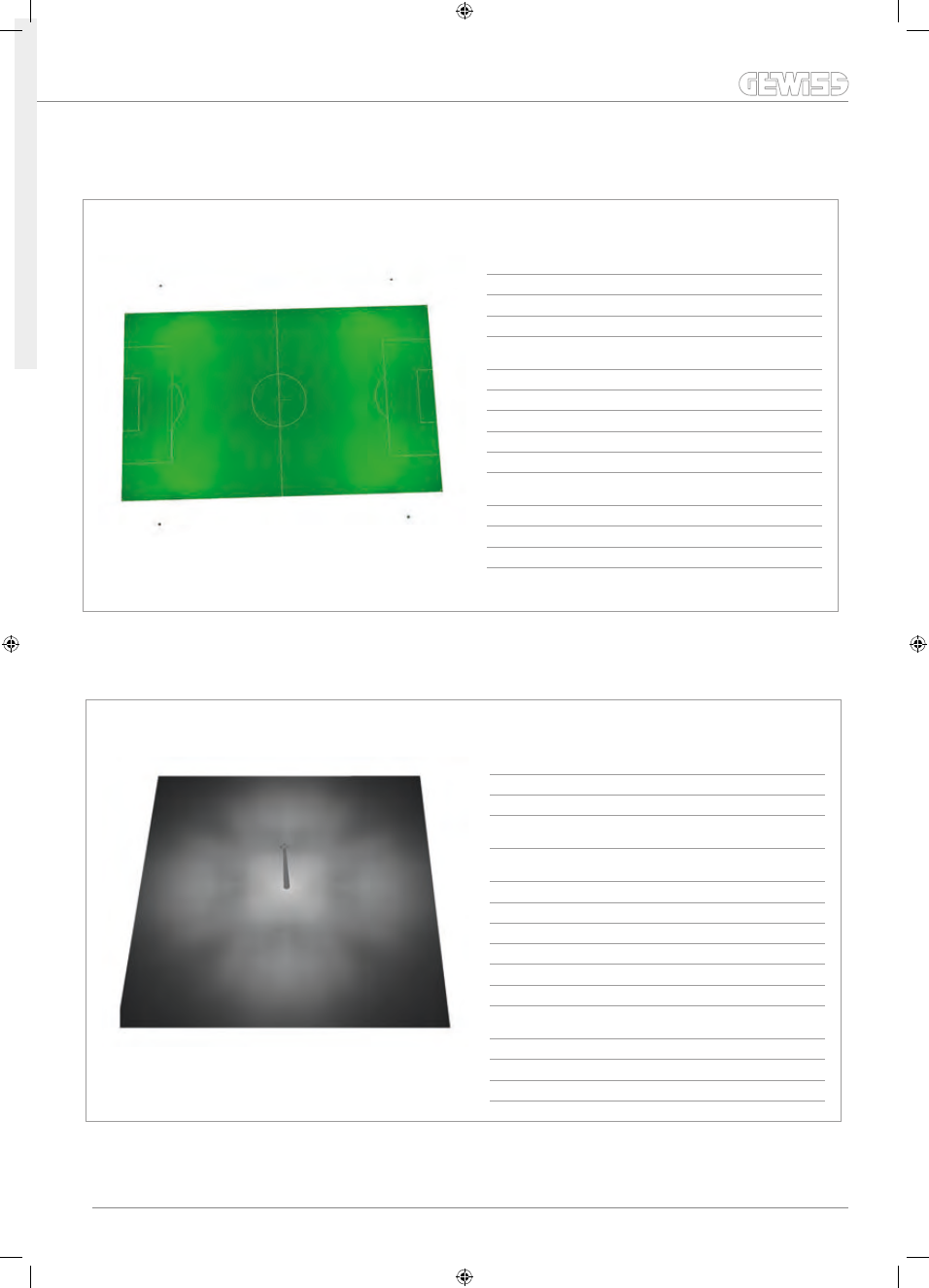

Lighting > Floodlights > Smart [PRO] Range

For technical information contact the Technical Assistance Service or visit gewiss.com

Length [m]

105

Width [m]

Task or job carried out

SPORT - Standard football

Class

III

Eav [lx]

Emin\Eav

0.5

Device

SMART[PRO] GWP1292HL 9M/757 HL SD

Number of poles

Number of floodlights

Pole height [m]

Eav [lx]

103

Emin\Eav

0.6

Installation solutions

Project: Standard football

Standard

EN 12464-2:2014

Reference

5.3.2

Task or job carried out

Areas of construction, transport,
storage and auxiliary activities

Average lighting on the work
surface (Em)

50 lx

Uniformity (Uo)

0.4

Area dimensions

3844 m²

Product code

SMART[PRO] GWP1164HE 6M/740 HE AC

Quantity

Average lighting
on the work surface (Em)

Uniformity (Uo)

0.4

Installed electric power

3kW

Installation solutions

Project: Construction site

Gewiss-Depliant-Lighting-html.html

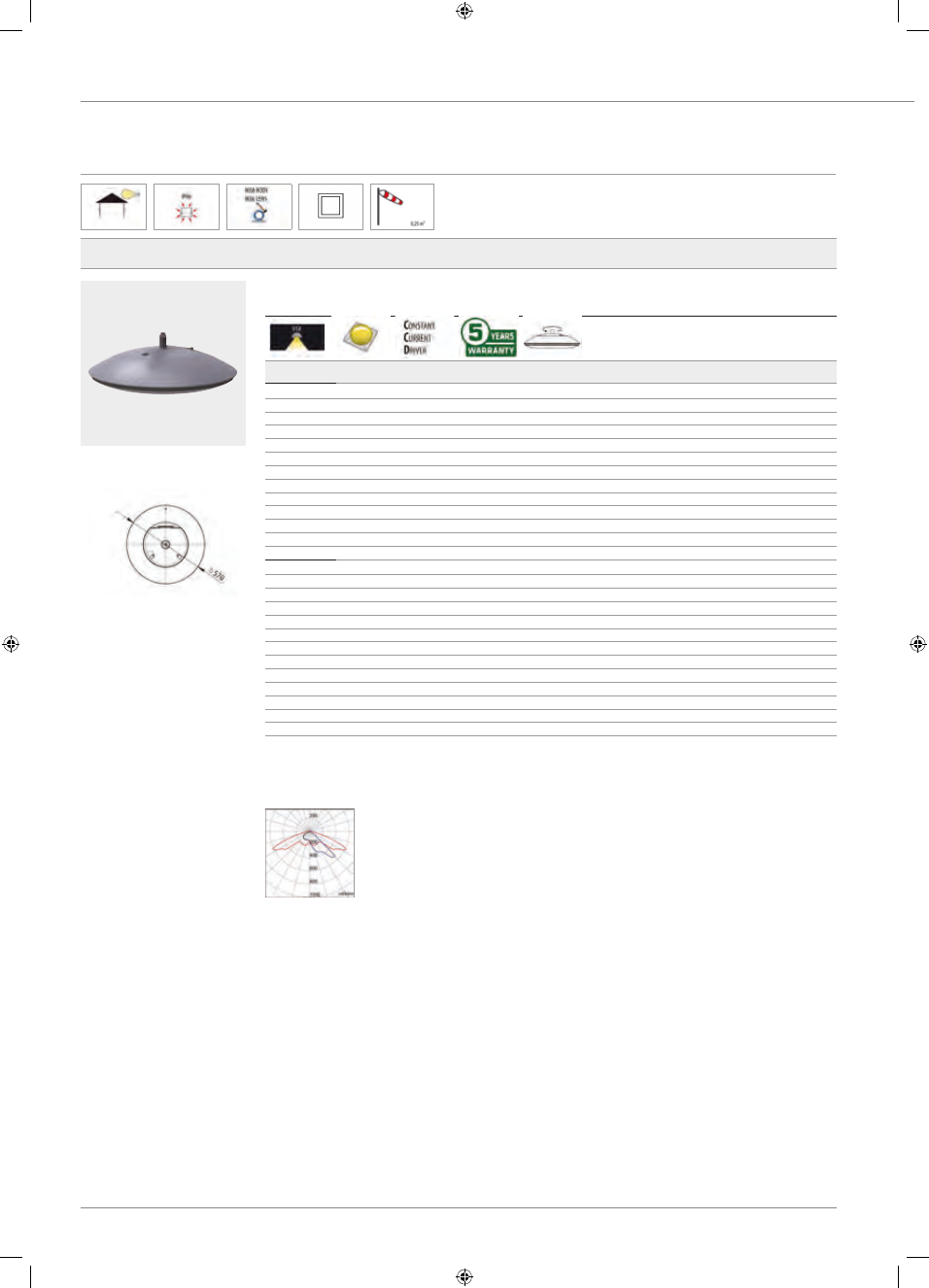

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

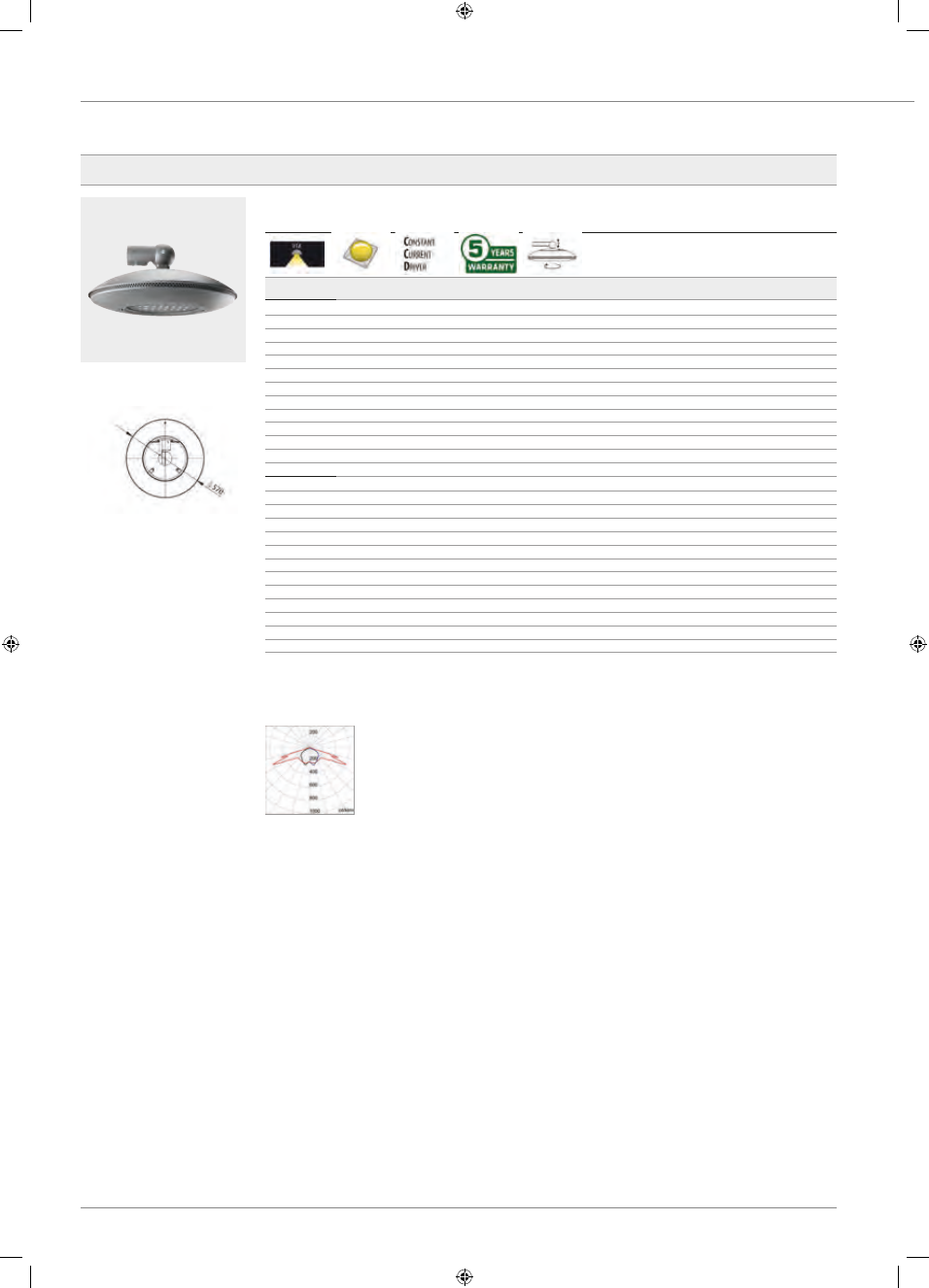

SIDE COUPLING SYSTEMS FOR COMMERCIAL SIDE BRACKETS - LED

LED - ST1 STREET OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW 87 601

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.7

GW 87 602

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.3

GW 87 603

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

GW 87 606

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.7

GW 87 607

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.3

GW 87 608

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

GW 87 611

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.7

GW 87 612

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.3

GW 87 613

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

GW 87 616

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.7

GW 87 617

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.3

GW 87 618

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW 87 621

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.7

GW 87 622

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.3

GW 87 623

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

GW 87 626

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.7

GW 87 627

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.3

GW 87 628

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

GW 87 631

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.7

GW 87 632

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.3

GW 87 633

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

GW 87 636

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.7

GW 87 637

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.3

GW 87 638

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

NOTES: the data refer to 550 mA.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).
due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.

Photometric distributions

ST1 optic

GW 87 601

Technical characteristics

page

Urban [O

] is a modular urban lighting system that’s the perfect combination of design

and innovation. The different installation configurations (pole, pole head, side bracket,
suspension) and the wide range of proposed optics ensure lighting for urban environments
that guarantees energy savings and respect for the environment.
The line is completed with the new BlueGreen versions that blend perfectly into the context
of gardens and parks.

Urban lighting systems

Urban [O

]

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

LED - CYCLE AND PEDESTRIAN OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 201

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

9.7

GW S7 202

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

10.3

GW S7 203

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

GW S7 206

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

9.7

GW S7 207

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

10.3

GW S7 208

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

GW S7 211

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

9.7

GW S7 212

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

10.3

GW S7 213

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

GW S7 216

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

9.7

GW S7 217

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

10.3

GW S7 218

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 221

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

9.7

GW S7 222

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

10.3

GW S7 223

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

GW S7 226

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

9.7

GW S7 227

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

10.3

GW S7 228

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

GW S7 231

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

9.7

GW S7 232

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

10.3

GW S7 233

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

GW S7 236

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

9.7

GW S7 237

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

10.3

GW S7 238

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

NOTES: the data refer to 550 mA.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.

Photometric distributions

Cycle ped.optic

GW S7 201

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

LED - ELLIPTICAL OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 251

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.7

GW S7 252

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.3

GW S7 253

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

GW S7 256

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.7

GW S7 257

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.3

GW S7 258

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

GW S7 261

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.7

GW S7 262

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.3

GW S7 263

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

GW S7 266

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.7

GW S7 267

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.3

GW S7 268

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 271

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.7

GW S7 272

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.3

GW S7 273

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

GW S7 276

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.7

GW S7 277

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.3

GW S7 278

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

GW S7 281

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.7

GW S7 282

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.3

GW S7 283

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

GW S7 286

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.7

GW S7 287

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.3

GW S7 288

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

Photometric distributions

Elliptical optic

GW S7 251

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

FIXING ACCESSORIES

POLE HEAD BRACKETS

Code

Description

Length

Colour

Weight

(kg)

Pack

Carton

GW 87 881

Single

400 mm

Graphite grey

GW 87 882

Double

800 mm

Graphite grey

2.5

GW 87 891

Single

400 mm

Aluminium

GW 87 892

Double

800 mm

Aluminium

2.5

GW 87 882

BRACKETS AT VARIABLE HEIGHTS

Code

Description

Length

Colour

Weight

(kg)

Pack

Carton

GW 87 883

Single intermediate

400 mm

Graphite grey

2.5

GW 87 884

Intermediate single pole with slots

400 mm

Graphite grey

2.5

GW 87 893

Single intermediate

400 mm

Aluminium

2.5

GW 87 894

Intermediate single pole with slots

400 mm

Aluminium

2.5

NOTE: for poles with a diameter from 60 to 75 mm.

GW 87 883

WALL-MOUNTING BRACKETS

Code

Description

Length

Colour

Weight

(kg)

Pack

Carton

GW 87 885

Wall-mounting bracket

450 mm

Graphite grey

GW 87 895

Wall-mounting bracket

450 mm

Aluminium

GW 87 885

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

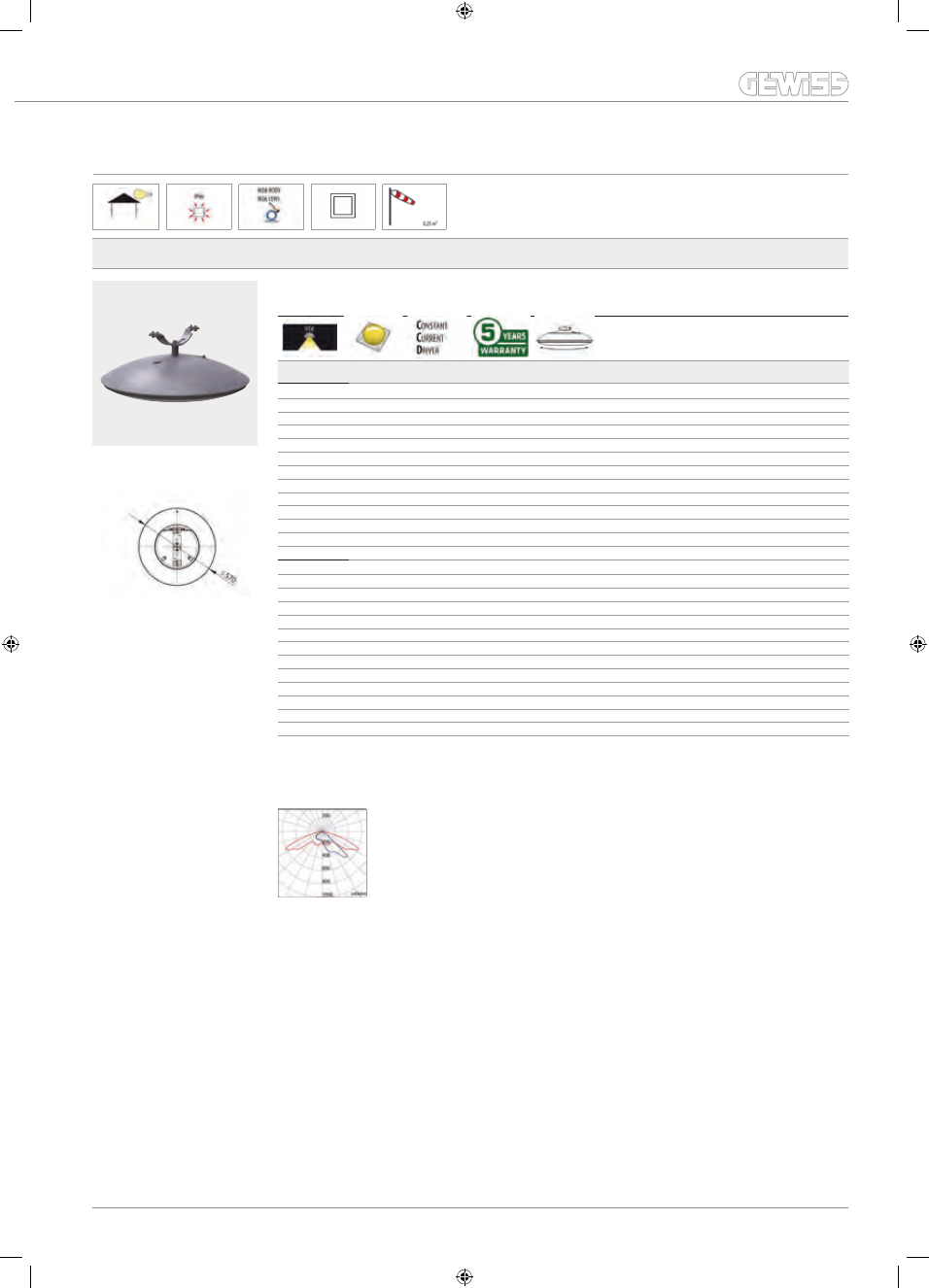

SYSTEMS FOR COMMERCIAL SIDE BRACKETS WITH TOP CONNECTION - LED

LED - ST1 STREET OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW 87 701

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.3

GW 87 702

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

9.9

GW 87 703

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

10.6

GW 87 706

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.3

GW 87 707

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

9.9

GW 87 708

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

10.6

GW 87 711

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.3

GW 87 712

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

9.9

GW 87 713

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

10.6

GW 87 716

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.3

GW 87 717

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

9.9

GW 87 718

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

10.6

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW 87 721

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.3

GW 87 722

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

9.9

GW 87 723

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

10.6

GW 87 726

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.3

GW 87 727

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

9.9

GW 87 728

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

10.6

GW 87 731

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.3

GW 87 732

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

9.9

GW 87 733

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

10.6

GW 87 736

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.3

GW 87 737

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

9.9

GW 87 738

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

10.6

Photometric distributions

ST1 optic

GW 87 701

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

LED - CYCLE AND PEDESTRIAN OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 301

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

9.3

GW S7 302

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

9.9

GW S7 303

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

10.6

GW S7 306

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

9.3

GW S7 307

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

9.9

GW S7 308

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

10.6

GW S7 311

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

9.3

GW S7 312

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

9.9

GW S7 313

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

10.6

GW S7 316

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

9.3

GW S7 317

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

9.9

GW S7 318

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

10.6

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 321

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

9.3

GW S7 322

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

9.9

GW S7 323

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

10.6

GW S7 326

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

9.3

GW S7 327

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

9.9

GW S7 328

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

10.6

GW S7 331

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

9.3

GW S7 332

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

9.9

GW S7 333

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

10.6

GW S7 336

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

9.3

GW S7 337

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

9.9

GW S7 338

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

10.6

Photometric distributions

Cycle ped.optic

GW S7 301

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

LED - ELLIPTICAL OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 351

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.3

GW S7 352

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

9.9

GW S7 353

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

10.6

GW S7 356

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.3

GW S7 357

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

9.9

GW S7 358

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

10.6

GW S7 361

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.3

GW S7 362

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

9.9

GW S7 363

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

10.6

GW S7 366

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.3

GW S7 367

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

9.9

GW S7 368

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

10.6

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 371

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

9.3

GW S7 372

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

9.9

GW S7 373

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

10.6

GW S7 376

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

9.3

GW S7 377

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

9.9

GW S7 378

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

10.6

GW S7 381

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

9.3

GW S7 382

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

9.9

GW S7 383

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

10.6

GW S7 386

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

9.3

GW S7 387

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

9.9

GW S7 388

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

10.6

Photometric distributions

Elliptical optic

GW S7 351

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

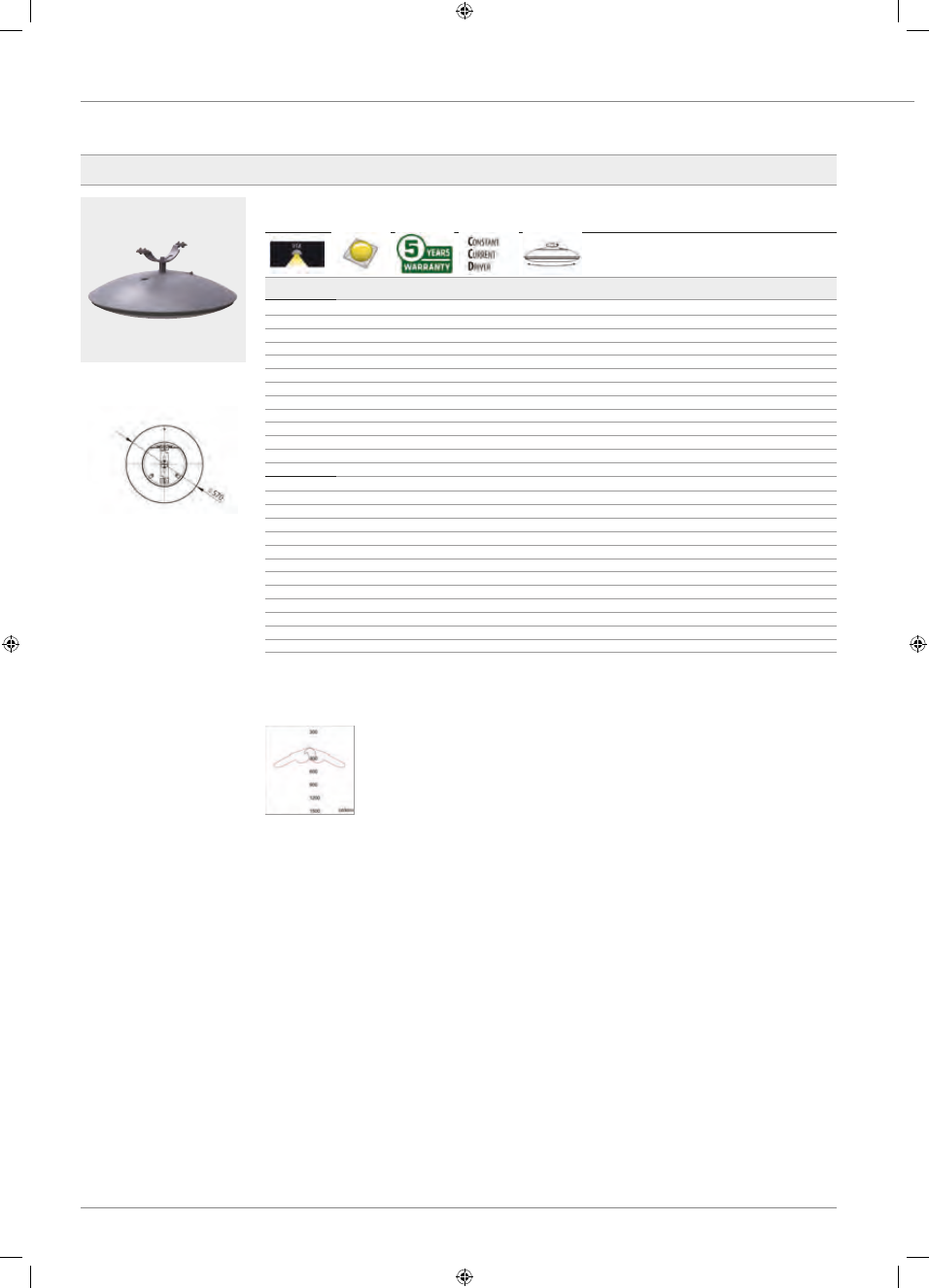

SYSTEMS FOR SUSPENSIONS - LED

LED - ST1 STREET OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW 87 801

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

10.2

GW 87 802

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.8

GW 87 803

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

11.5

GW 87 806

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

10.2

GW 87 807

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.8

GW 87 808

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

11.5

GW 87 811

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

10.2

GW 87 812

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.8

GW 87 813

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

11.5

GW 87 816

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

10.2

GW 87 817

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.8

GW 87 818

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

11.5

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW 87 821

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

10.2

GW 87 822

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.8

GW 87 823

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

11.5

GW 87 826

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

10.2

GW 87 827

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.8

GW 87 828

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

11.5

GW 87 831

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

10.2

GW 87 832

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.8

GW 87 833

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

11.5

GW 87 836

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

10.2

GW 87 837

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.8

GW 87 838

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

11.5

Photometric distributions

ST1 optic

GW 87 801

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

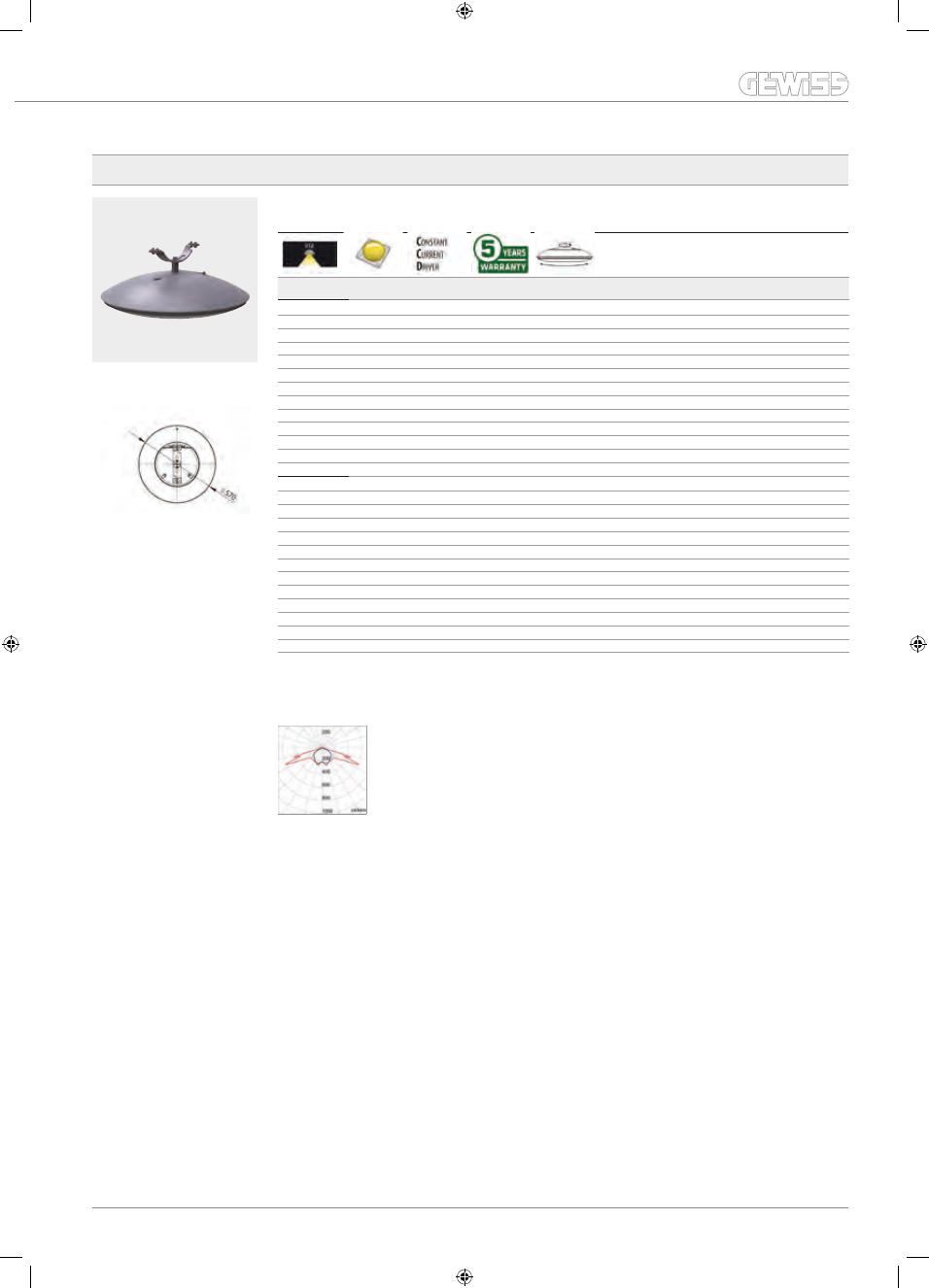

LED - CYCLE AND PEDESTRIAN OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 401

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

10.2

GW S7 402

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

10.8

GW S7 403

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

11.5

GW S7 406

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

10.2

GW S7 407

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

10.8

GW S7 408

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

11.5

GW S7 411

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

10.2

GW S7 412

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

10.8

GW S7 413

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

11.5

GW S7 416

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

10.2

GW S7 417

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

10.8

GW S7 418

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

11.5

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 421

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

10.2

GW S7 422

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

10.8

GW S7 423

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

11.5

GW S7 426

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

10.2

GW S7 427

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

10.8

GW S7 428

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

11.5

GW S7 431

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

10.2

GW S7 432

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

10.8

GW S7 433

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

11.5

GW S7 436

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

10.2

GW S7 437

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

10.8

GW S7 438

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

11.5

Photometric distributions

Cycle ped.optic

GW S7 401

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

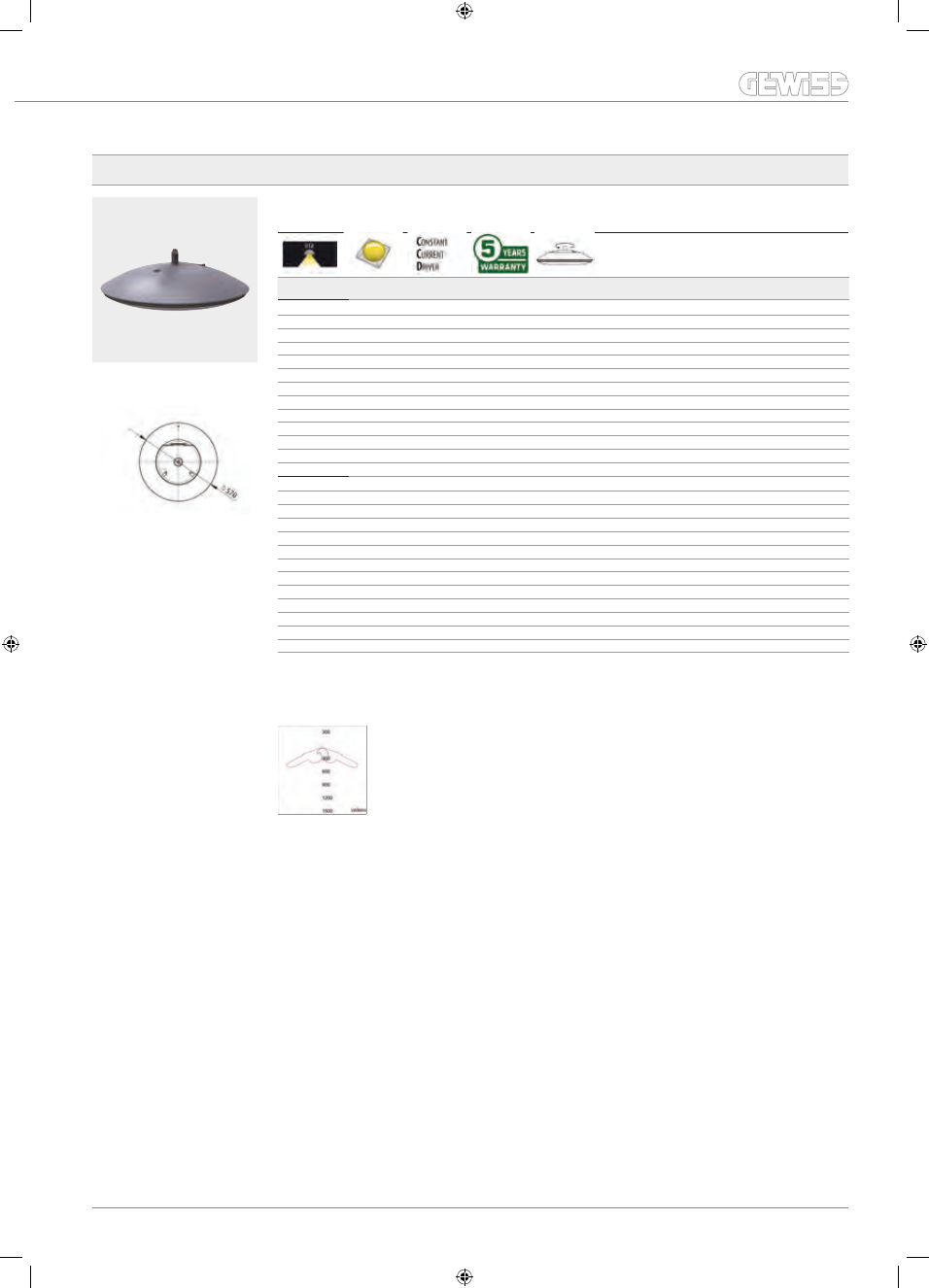

LED - ELLIPTICAL OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 451

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

10.2

GW S7 452

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.8

GW S7 453

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

11.5

GW S7 456

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

10.2

GW S7 457

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.8

GW S7 458

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

11.5

GW S7 461

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

10.2

GW S7 462

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.8

GW S7 463

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

11.5

GW S7 466

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

10.2

GW S7 467

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.8

GW S7 468

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

11.5

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 471

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

10.2

GW S7 472

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

10.8

GW S7 473

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

11.5

GW S7 476

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

10.2

GW S7 477

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

10.8

GW S7 478

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

11.5

GW S7 481

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

10.2

GW S7 482

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

10.8

GW S7 483

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

11.5

GW S7 486

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

10.2

GW S7 487

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

10.8

GW S7 488

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

11.5

Photometric distributions

Elliptical optic

GW S7 451

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

SYSTEMS FOR GEWISS SIDE BRACKETS - LED

LED - ST1 STREET OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW 87 901

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

8.2

GW 87 902

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

8.8

GW 87 903

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

9.5

GW 87 906

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

8.2

GW 87 907

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

8.8

GW 87 908

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

9.5

GW 87 911

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

8.2

GW 87 912

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

8.8

GW 87 913

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

9.5

GW 87 916

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

8.2

GW 87 917

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

8.8

GW 87 918

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

9.5

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW 87 921

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

8.2

GW 87 922

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

8.8

GW 87 923

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

9.5

GW 87 926

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

8.2

GW 87 927

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

8.8

GW 87 928

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

9.5

GW 87 931

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

8.2

GW 87 932

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

8.8

GW 87 933

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

9.5

GW 87 936

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

8.2

GW 87 937

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

8.8

GW 87 938

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

9.5

NB: to be completed with the accessories of the "Gewiss poles and side brackets" section.
NOTES: the data refer to 550 mA.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).
due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.

Photometric distributions

ST1 optic

GW 87 901

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

LED - CYCLE AND PEDESTRIAN OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 501

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

8.2

GW S7 502

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

8.8

GW S7 503

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

9.5

GW S7 506

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

8.2

GW S7 507

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

8.8

GW S7 508

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

9.5

GW S7 511

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

8.2

GW S7 512

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

8.8

GW S7 513

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

9.5

GW S7 516

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

8.2

GW S7 517

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

8.8

GW S7 518

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

9.5

GW S7 501 B

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Midnight blue

8.2

GW S7 502 B

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Midnight blue

8.8

GW S7 503 B

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Midnight blue

9.5

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 521

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Graphite grey

8.2

GW S7 522

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Graphite grey

8.8

GW S7 523

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Graphite grey

9.5

GW S7 526

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Graphite grey

8.2

GW S7 527

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Graphite grey

8.8

GW S7 528

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Graphite grey

9.5

GW S7 531

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3240

Aluminium

8.2

GW S7 532

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

4740

Aluminium

8.8

GW S7 533

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6210

Aluminium

9.5

GW S7 536

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5520

Aluminium

8.2

GW S7 537

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8060

Aluminium

8.8

GW S7 538

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

10560

Aluminium

9.5

NB: to be completed with the accessories of the "Gewiss poles and side brackets" section.
NOTES: the data refer to 550 mA.
1-10 V stand alone and/or dimmerable versions: Driver adjustable at different LED current.
Full prog.driver setted in self learning Bi-power mode (50% reduction from 1 h previous to 4 h after the mid point switch on period).
Due to the continuous changes with the LED technologies, the technical data can undertake variations.
The nominal flux is referred to Tj=85°C.

Photometric distributions

Cycle ped.optic

GW S7 501

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

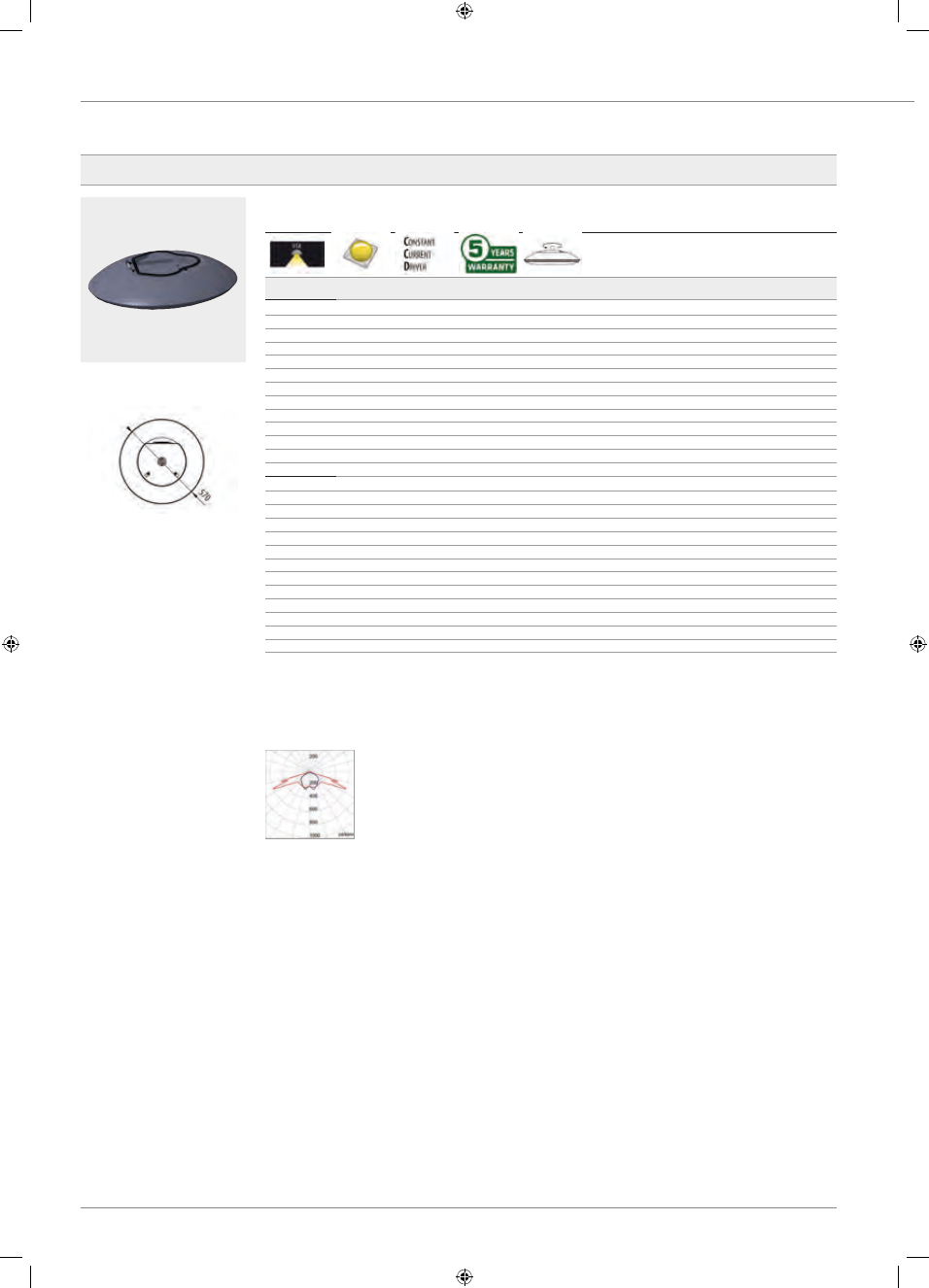

LED - ELLIPTICAL OPTIC

URBAN LIGHTING DEVICES IN DIE-CAST ALUMINIUM - IP66
LED MODULES POWERED AT 550 MA WITH PMMA LENSES

Code

Number of

modules

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone and/or possibility of dimmer 1-10 V

GW S7 551

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

8.2

GW S7 552

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

8.8

GW S7 553

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

9.5

GW S7 556

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

8.2

GW S7 557

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

8.8

GW S7 558

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

9.5

GW S7 561

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

8.2

GW S7 562

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

8.8

GW S7 563

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

9.5

GW S7 566

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

8.2

GW S7 567

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

8.8

GW S7 568

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

9.5

Voltage: 220/240 V - 50/60 Hz - Bi-power with self-learning

GW S7 571

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Graphite grey

8.2

GW S7 572

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Graphite grey

8.8

GW S7 573

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Graphite grey

9.5

GW S7 576

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Graphite grey

8.2

GW S7 577

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Graphite grey

8.8

GW S7 578

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Graphite grey

9.5

GW S7 581

2 (2x16 LED)

3500 K (CRI 85)

54 W

3940

3460

Aluminium

8.2

GW S7 582

3 (3x16 LED)

3500 K (CRI 85)

81 W

5760

5050

Aluminium

8.8

GW S7 583

4 (4x16 LED)

3500 K (CRI 85)

105 W

7540

6610

Aluminium

9.5

GW S7 586

2 (2x16 LED)

4000 K (CRI 70)

54 W

7020

5890

Aluminium

8.2

GW S7 587

3 (3x16 LED)

4000 K (CRI 70)

81 W

10230

8590

Aluminium

8.8

GW S7 588

4 (4x16 LED)

4000 K (CRI 70)

105 W

13400

11240

Aluminium

9.5

Photometric distributions

Elliptical optic

GW S7 551

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

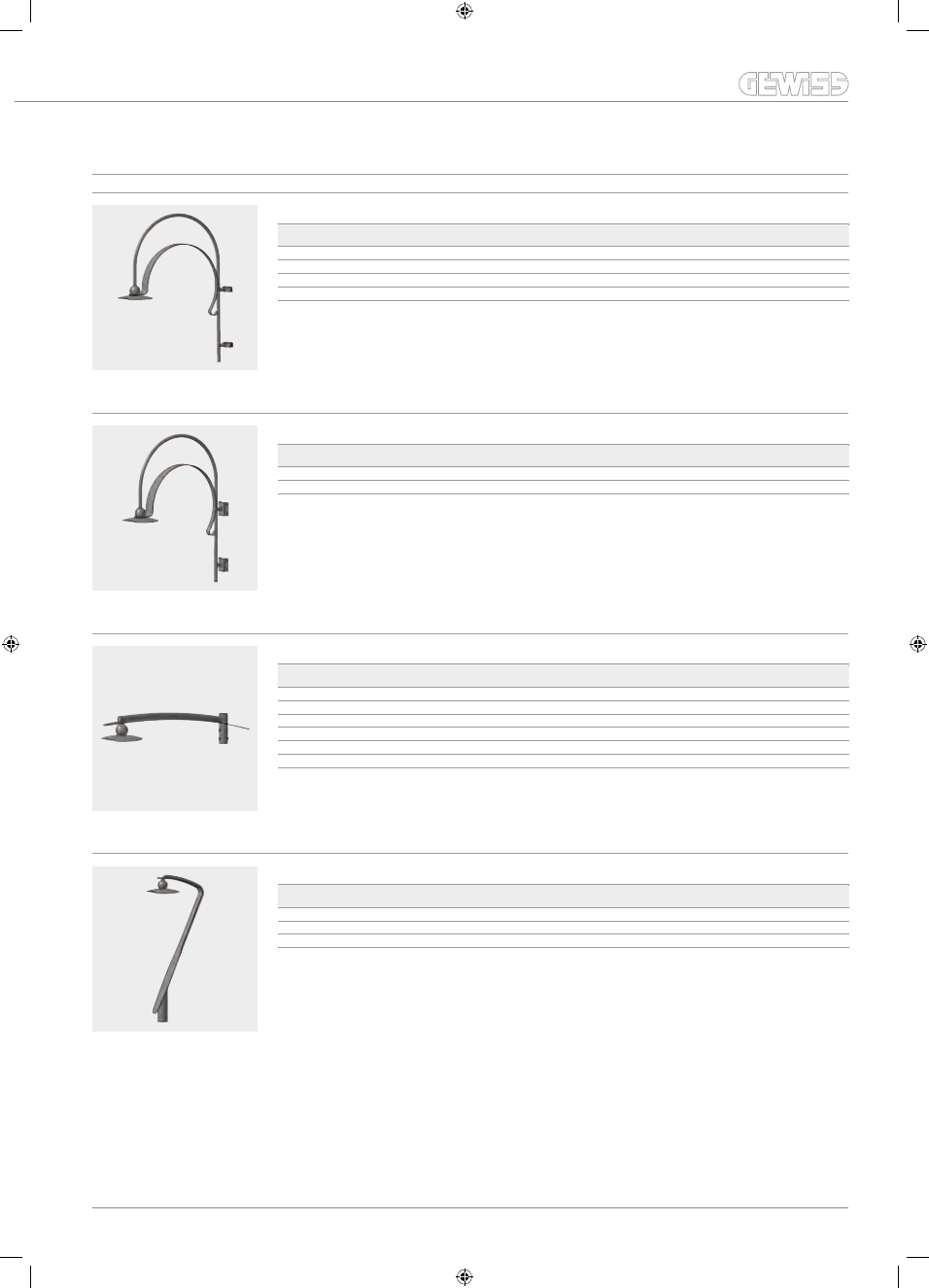

GEWISS POLES AND SIDE BRACKETS

KIT FOR PASTORAL POLE

Code

Description

Colour

Weight

(kg)

Pack

Carton

GW 87 981

Conical pole fixing

Graphite grey

GW 87 982

Fixing on pole with slots

Graphite grey

GW 87 991

Conical pole fixing

Aluminium

GW 87 992

Fixing on pole with slots

Aluminium

GW 87 981

PASTORAL POLE KIT FOR WALL-MOUNTING

Code

Description

Colour

Weight

(kg)

Pack

Carton

GW 87 983

Wall fixing

Graphite grey

GW 87 993

Wall fixing

Aluminium

GW 87 983

POLE HEAD BRACKETS WITH FLAT SIDE BRACKET FOR CONICAL POLES

Code

Description

Length

Colour

Weight

(kg)

Pack

Carton

GW 87 984

Single

1000 mm

Graphite grey

9.5

GW 87 985

Double

2000 mm

Graphite grey

17.5

GW 87 986

Single intermediate

1000 mm

Graphite grey

9.5

GW 87 994

Single

1000 mm

Aluminium

9.5

GW 87 995

Double

2000 mm

Aluminium

17.5

GW 87 996

Single intermediate

1000 mm

Aluminium

9.5

GW 87 984

SUSPENDED POLE HEAD BRACKETS FOR CYLINDRICAL POLES

Code

Description

Colour

Weight

(kg)

Pack

Carton

GW 87 987

Single

Graphite grey

6.5

GW 87 987 B

Single

Midnight blue

6.5

GW 87 997

Single

Aluminium

6.5

GW 87 987

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

Urban [O

]

For Special versions please contact our GEWISS Sales Organization

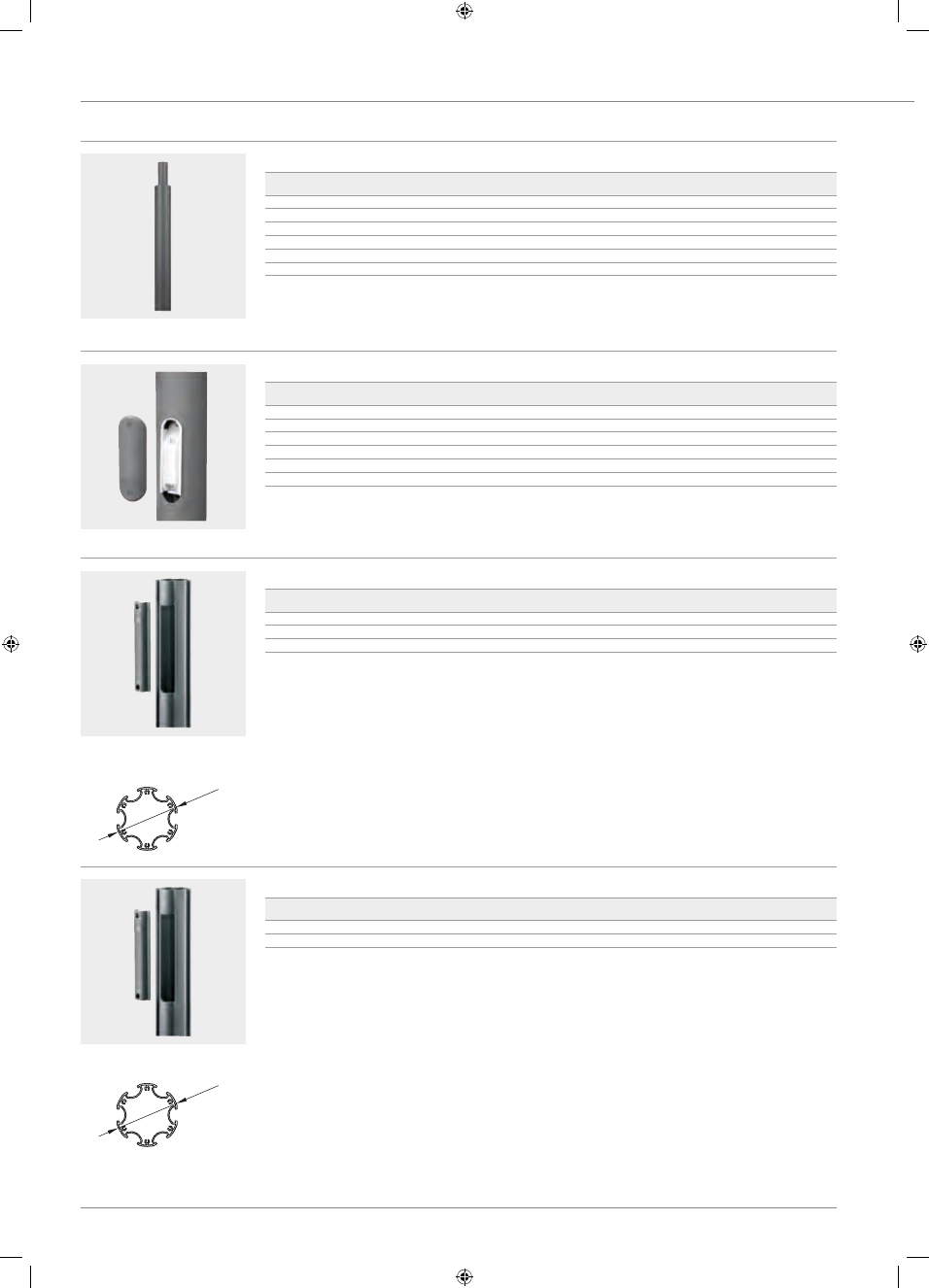

CYLINDRICAL POLES PAINTED

Code

Total

length (m)

Planting (m)

Base

diameter (mm)

Top

diameter (mm)

Colour

Weight

(kg)

Pack

Carton

GW 87 691

0.5

102

Graphite grey

GW 87 692

4.5

0.5

102

Graphite grey

GW 87 696

0.5

102

Aluminium

GW 87 697

4.5

0.5

102

Aluminium

GW 87 691 B

0.5

102

Midnight blue

GW 87 692 B

4.5

0.5

102

Midnight blue

NOTE: painted poles in hot galvanised steel complete with a junction terminal block

GW 87 691

CONICAL POLES PAINTED

Code

Total

length (m)

Planting (m)

Base

diameter (mm)

Top

diameter (mm)

Colour

Weight

(kg)

Pack

Carton

GW 87 591

6.8

0.8

128

Graphite grey

GW 87 592

8.8

0.8

148

Graphite grey

GW 87 593

9.8

0.8

158

Graphite grey

107

GW 87 596

6.8

0.8

128

Aluminium

GW 87 597

8.8

0.8

148

Aluminium

GW 87 598

9.8

0.8

158

Aluminium

NOTE: painted poles in hot galvanised steel complete with a junction terminal block.

GW 87 591

POLES WITH SLOTS FOR PLANTING

Code

Material

Length

(mm)

Planting

recommended

Colour

Weight

(kg)

Pack

Carton

GW 86 527

Extruded aluminium

3500

500 mm

Graphite grey

17.8

GW 86 528

Extruded aluminium

4600

600 mm

Graphite grey

GW 86 529

Extruded aluminium

5800

800 mm

Graphite grey

28.6

NOTES: poles complete with pole terminal and junction terminal block. Poles suited only for private areas.

GW 86 527

POLES WITH SLOTS FOR ASSEMBLY ON AN EXTERNAL BASE

Code

Material

Length

(mm)

Colour

Weight

(kg)

Pack

Carton

GW 86 530

Extruded aluminium

3000

Graphite grey

15.4

GW 86 531

Extruded aluminium

4000

Graphite grey

20.2

NOTES: poles complete with pole terminal and junction terminal block. Poles suited only for private areas.

GW 86 530

ø126

Gewiss-Depliant-Lighting-html.html

Lighting > Urban lighting > URBAN [O3] Range

For Special versions please contact our GEWISS Sales Organization

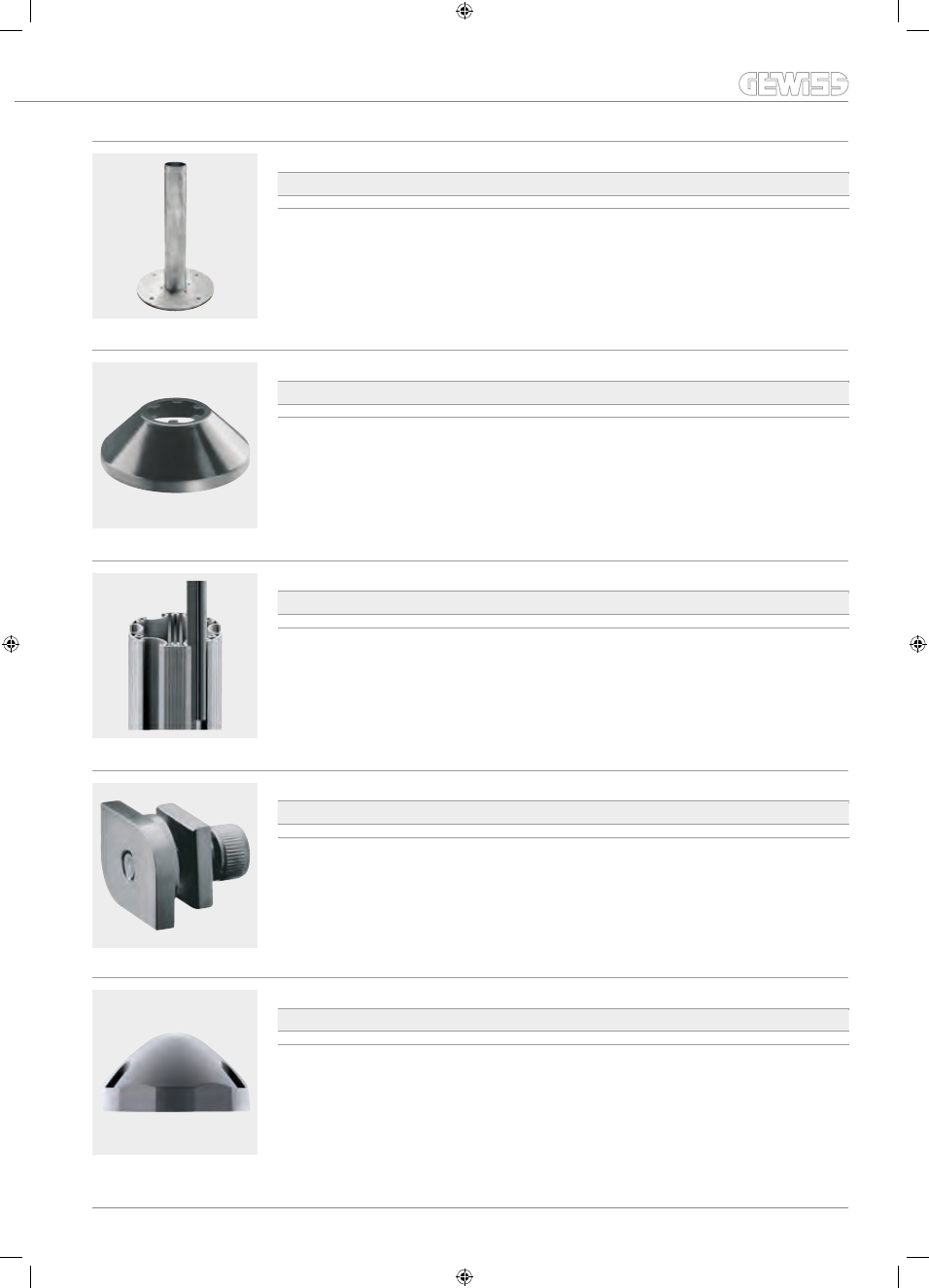

POLE SUPPORT BASE FOR EXTERNAL ASSEMBLY

Code

Material

Weight

(kg)

Pack

Carton

GW 86 533

Galvanised iron

7.2

CHARACTERISTICS: the fixing of the base + pole assembly to the concrete is made either with clamps drowned in the concrete, or with wall plugs with max screw Ø = 12mm.

GW 86 533

ATTRACTIVE POLE-COVERING BASE

Code

Material

Colour

Weight

(kg)

Pack

Carton

GW 86 526

Turn aluminium

Graphite grey

1.5

GW 86 526

CABLES - POLE CLOSING PROFILE

Code

Material

Length

(mm)

Colour

Weight

(kg)

Pack

Carton

GW 86 524

EPDM rubber

3000

Black

0.7

GW 86 524

UNIVERSAL ADAPTER

Code

Material

Weight

(kg)

Pack

Carton

GW 86 523

Black galvanised steel

0.1

1/4

GW 86 523

POLE TERMINAL

Code

Material

Colour

Weight

(kg)

Pack

Carton

GW 86 522

Nylon

Graphite grey

0.2

1/4

GW 86 522

Gewiss-Depliant-Lighting-html.html

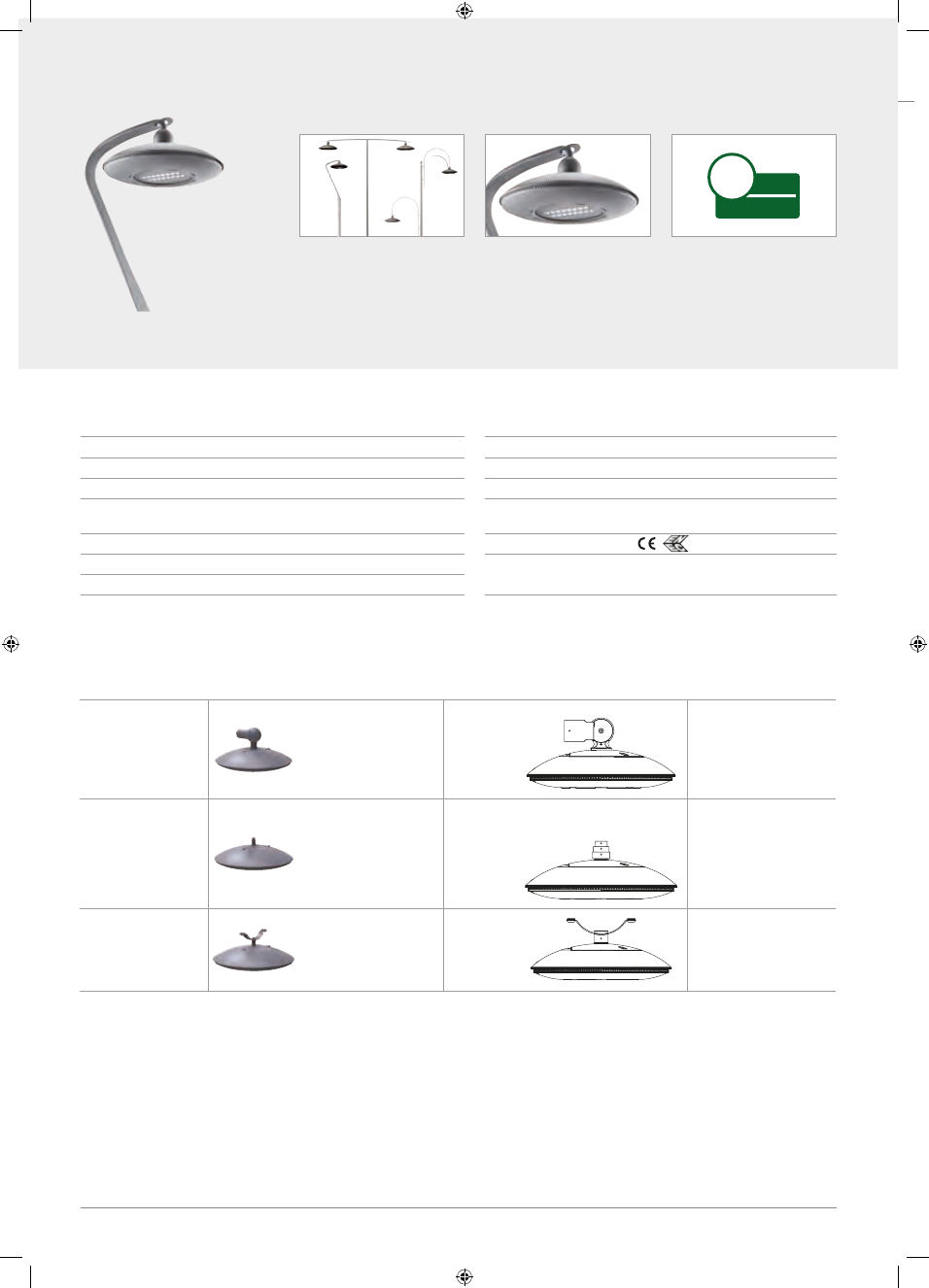

SIDE

COUPLING

Commercial side

brackets

- Ø Min. 55 mm
- Ø Max. 65 mm

Notes

Complete system
for coupling
on commercial poles

UPPER

COUPLING

Commercial side

brackets

- Ø Min. 48 mm
- Ø Max. 60 mm

Notes

Complete system for coupling
on poles with Ø 48 mm or Ø
60 mm

Fixing of poles to the bush
with three holes
Ø 7.5 mm at 120°

SUSPENSION

Metal ropes

Notes

Complete system for
installation on metal ropes

Technical characteristics

Possible compositions for systems for commercial side brackets

INSTALLATION

External

DEGREE OF PROTECTION

IP66

COLOUR

Graphite grey/Aluminium grey/Midnight blue

IMPACT RESISTANCE

IK08 / IK06

MATERIALS

INSULATION CLASS

Body

Die-cast aluminium EN AB 46100

LIFETIME

L80B10 @+25°C >100.000h
L90B20 @+25°C >50.000h

Heat sink

Aluminium extrusion - range 6000

MARKS

Lenses

Integrated in the shield

Shield

PMMA

Lighting > Urban Lighting > Urban [O

] Range

For technical information contact the Technical Assistance Service or visit gewiss.com

This Led Lighting Gewiss range

benefit from a full five-year war-

ranty.

Urban lighting reaches installation
heights that are not too high, and
includes devices that are especially
evident in the visual field. The body
design therefore becomes a part of the
urban lighting.

5-YEAR WARRANTY

DECORATIVE DESIGN

Urban [O

]

Commercial
information

page 44

Urban [O

] can be coordinated with

different supports: single or double
pole head, side bracket or suspension.
Various installation heights are possi-
ble, to suit the particular application
environment.

VERSATILE INSTALLATION

WARRANTY

YEARS

Gewiss-Depliant-Lighting-html.html

* The installation kit includes the fixing component and the cover.

Single intermediate side

bracket

Single pole-head

Double pole-head

Notes

Possibility of completing the
system with Gewiss pole
(Ø 60 mm)

GW 87 901 /

GW 87 968

GW 87 986 *

o GW 87 996 *

GW 87 984 *

o GW 87 994 *

GW 87 985 *

o GW 87 995 *

For conical pole

For Place pole

Notes

Possibility to assemble
dual side bracket solutions.
(GW code x 2)

GW 87 901 /

GW 87 968

GW 87 981 *

o GW 87 991*

GW 87 982 *

o GW 87 992 *

Surface-mounting

GW 87 901 /

GW 87 968

GW 87 983 *

o GW 87 993*

Suspended pole head

Notes

GW 87 901 /

GW 87 968

GW 87 987 *

o GW 87 997*

Gewiss pole
configuration

Commercial pole
configuration

Possible compositions for GEWISS side bracket systems

Lighting > Urban Lighting > Urban [O

] Range

For technical information contact the Technical Assistance Service or visit gewiss.com

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[3] Range

Smart [3]

For Special versions please contact our GEWISS Sales Organization

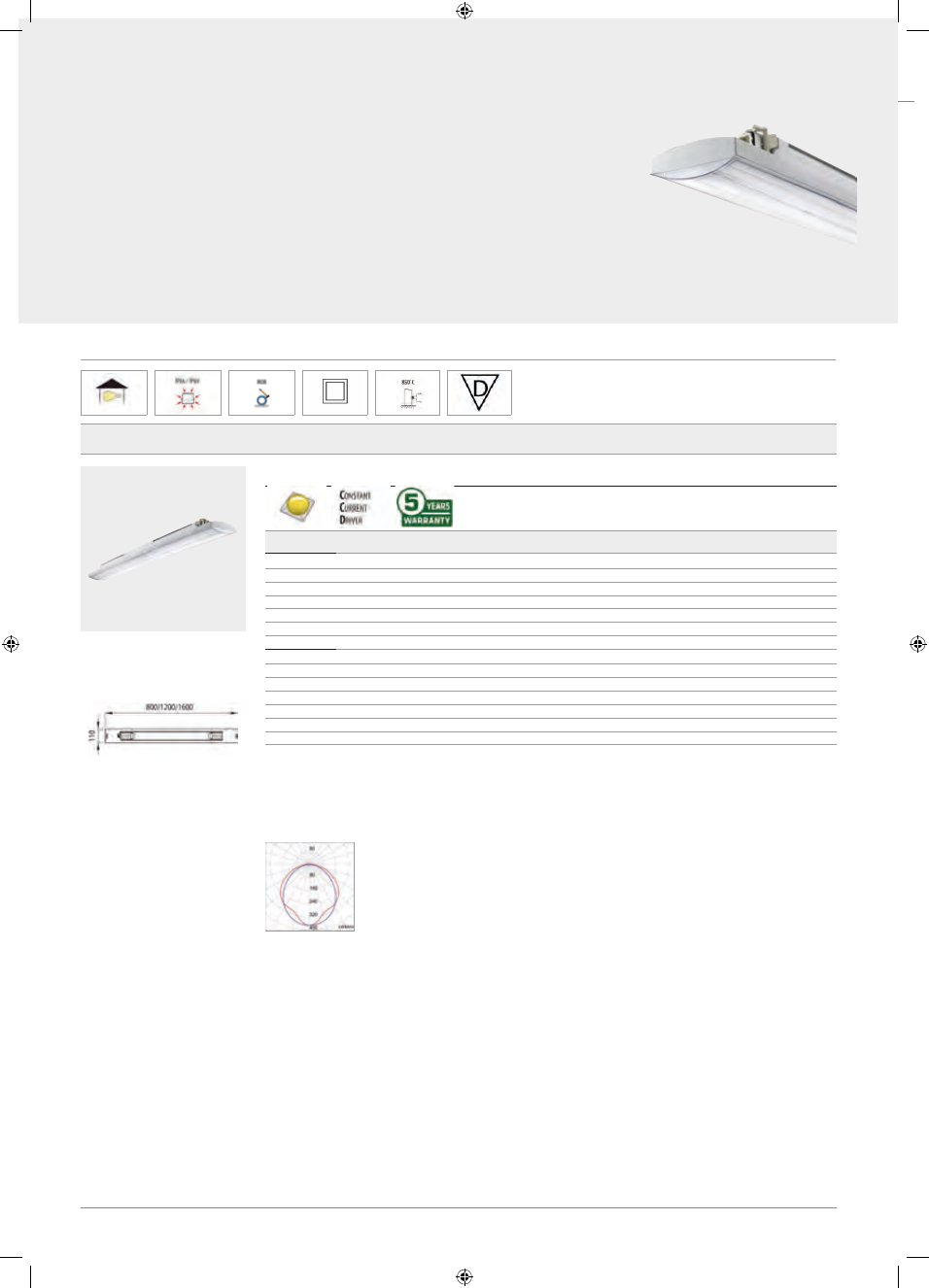

SMART [3]

TRANSPARENT DIFFUSER

WIRED VERSIONS - IP66/IP69 - CLASS II

Code

Length

LED

number

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW S3 118 T

800 mm

4000 K (CRI 80)

15 W

2000

1670

1.5

1/90

GW S3 136 T

1200 mm

4000 K (CRI 80)

20 W

3010

2510

1/90

GW S3 158 T

1600 mm

4000 K (CRI 80)

26 W

4020

3340

2.5

1/90

GW S3 218 T

800 mm

4000 K (CRI 80)

26 W

4140

3450

1.5

1/90

GW S3 236 T

1200 mm

4000 K (CRI 80)

43 W

6200

5180

1/90

GW S3 258 T

1600 mm

4000 K (CRI 80)

53 W

8290

6900

2.5

1/90

Voltage: 220/240 V - 50/60 Hz - DALI

GW S3 118 TD

800 mm

4000 K (CRI 80)

18 W

2000

1670

1.5

1/90

GW S3 136 TD

1200 mm

4000 K (CRI 80)

22 W

3010

2510

1/90

GW S3 158 TD

1600 mm

4000 K (CRI 80)

27 W

4020

3340

2.5

1/90

GW S3 218 TD

800 mm

4000 K (CRI 80)

27 W

4140

3450

1.5

1/90

GW S3 236 TD

1200 mm

4000 K (CRI 80)

45 W

6200

5180

1/90

GW S3 258 TD

1600 mm

4000 K (CRI 80)

55 W

8290

6900

2.5

1/90

Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Suitable for indoor and outdoor uses (if protected to the direct UV rays exposition).
Maximum working temperature: +50°C.
ACCESSORIES SUPPLIED: Female connector (end cap only for through wiring version).

Photometric distributions

Transp.shield

GW S3 236 T

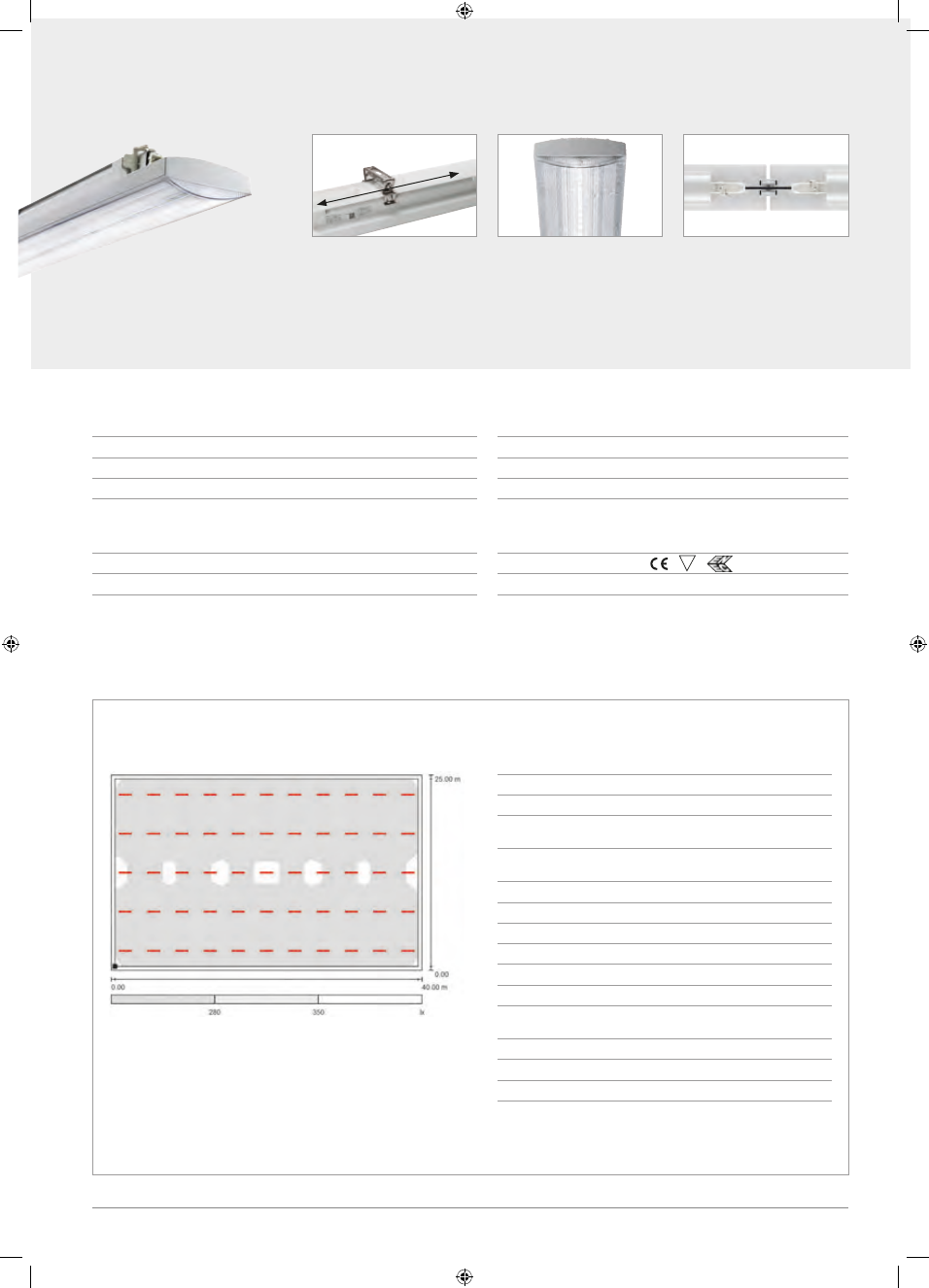

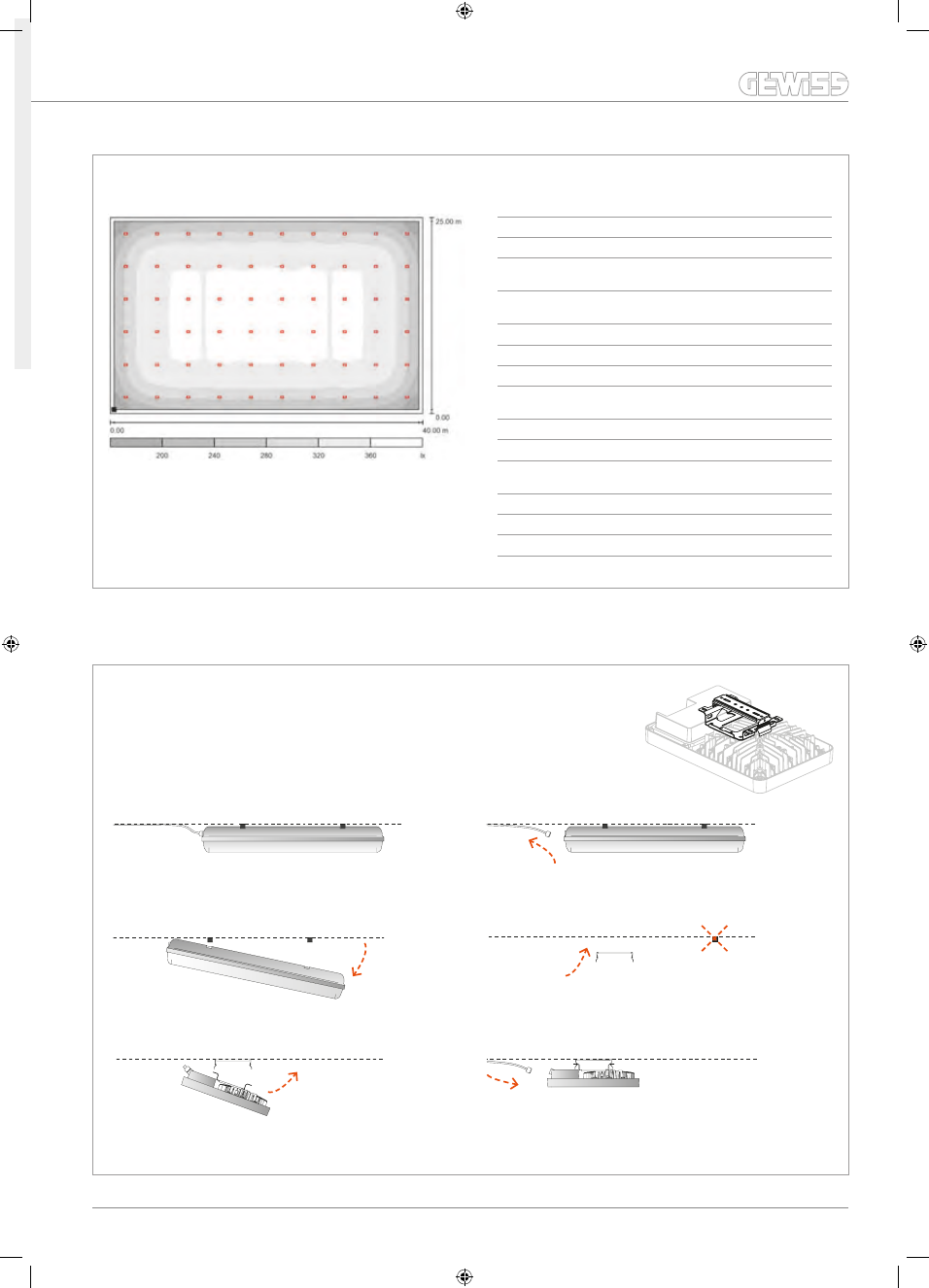

Technical characteristics

page

Smart [3] is the new range of LED watertight luminaires that completes the Smart selection.
Ideal even in installation contexts of limited height (less than 4 metres), they are entirely
designed, developed and produced in Italy. They are distinguished by an elegant design that
highlights the particular features of the new LED technology, their extremely reduced energy
consumption, their high impact resistance and their quick, easy installation.

LED watertight luminaires

Smart [3]

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[3] Range

For Special versions please contact our GEWISS Sales Organization

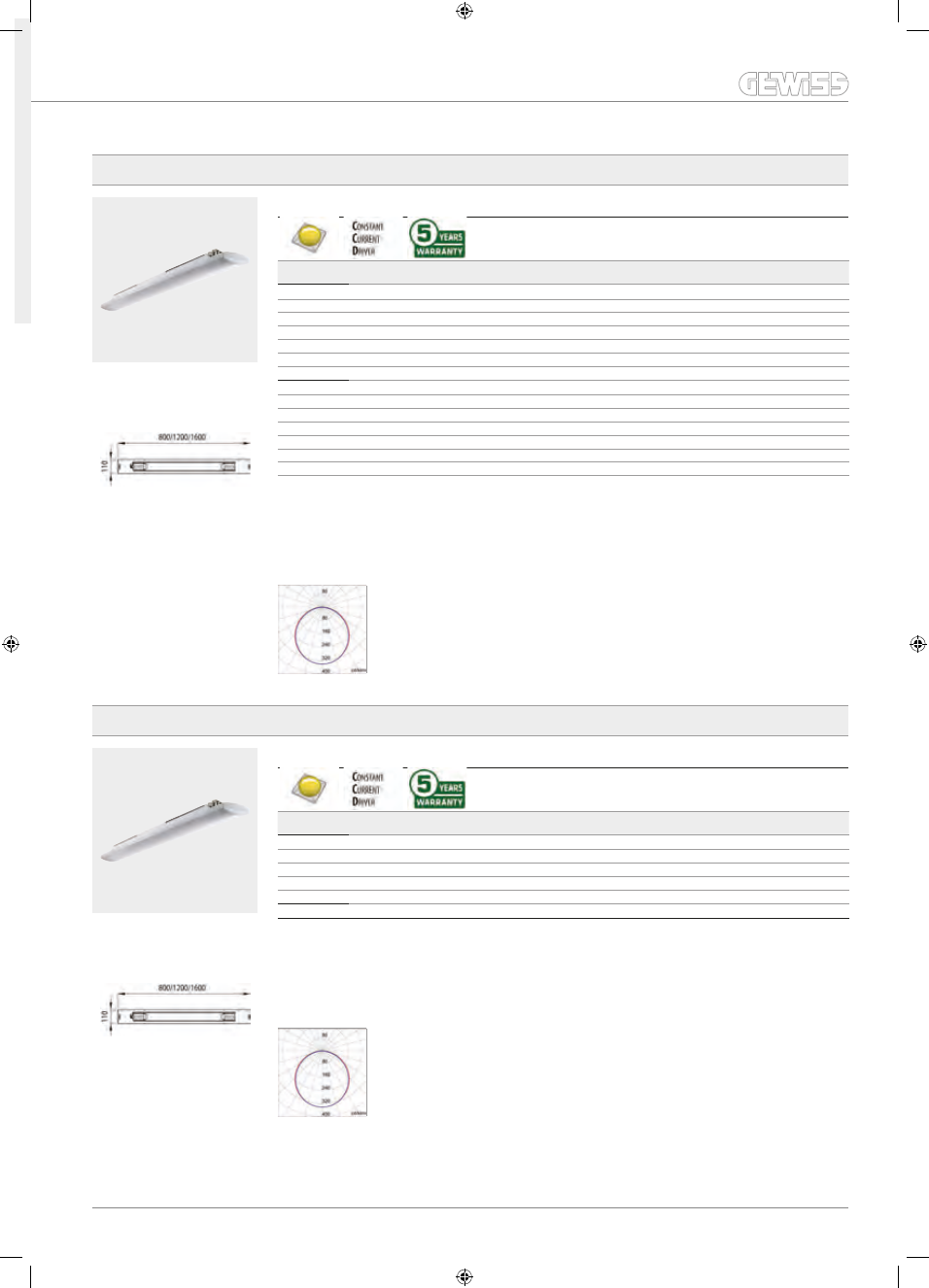

OPAL DIFFUSER

WIRED VERSIONS - IP66/IP69 - CLASS II

Code

Length

LED

number

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW S3 118 P

800 mm

4000 K (CRI 80)

15 W

2000

1540

1.5

1/90

GW S3 136 P

1200 mm

4000 K (CRI 80)

20 W

3010

2320

1/90

GW S3 158 P

1600 mm

4000 K (CRI 80)

26 W

4020

3090

2.5

1/90

GW S3 218 P

800 mm

4000 K (CRI 80)

26 W

4140

3200

1.5

1/90

GW S3 236 P

1200 mm

4000 K (CRI 80)

43 W

6200

4800

1/90

GW S3 258 P

1600 mm

4000 K (CRI 80)

53 W

8290

6400

2.5

1/90

Voltage: 220/240 V - 50/60 Hz - DALI

GW S3 118 PD

800 mm

4000 K (CRI 80)

18 W

2000

1540

1.5

1/90

GW S3 136 PD

1200 mm

4000 K (CRI 80)

22 W

3010

2320

1/90

GW S3 158 PD

1600 mm

4000 K (CRI 80)

27 W

4020

3090

2.5

1/90

GW S3 218 PD

800 mm

4000 K (CRI 80)

27 W

4140

3200

1.5

1/90

GW S3 236 PD

1200 mm

4000 K (CRI 80)

45 W

6200

4800

1/90

GW S3 258 PD

1600 mm

4000 K (CRI 80)

55 W

8290

6400

2.5

1/90

Photometric distributions

GW S3 236 P

OPAL DIFFUSER - QUICK WIRING CONNECTION

WIRED VERSIONS - IP66/IP69 - CLASS II

Code

Length

LED

number

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Stand alone

GW S3 136 PL

1200 mm

4000 K (CRI 80)

20 W

3010

2320

1/90

GW S3 158 PL

1600 mm

4000 K (CRI 80)

26 W

4020

3090

2.5

1/90

GW S3 236 PL

1200 mm

4000 K (CRI 80)

43 W

6200

4800

1/90

GW S3 258 PL

1600 mm

4000 K (CRI 80)

53 W

8290

6400

2.5

1/90

Voltage: 220/240 V - 50/60 Hz - DALI

Photometric distributions

GW S3 236 PL

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[3] Range

Smart [3]

For Special versions please contact our GEWISS Sales Organization

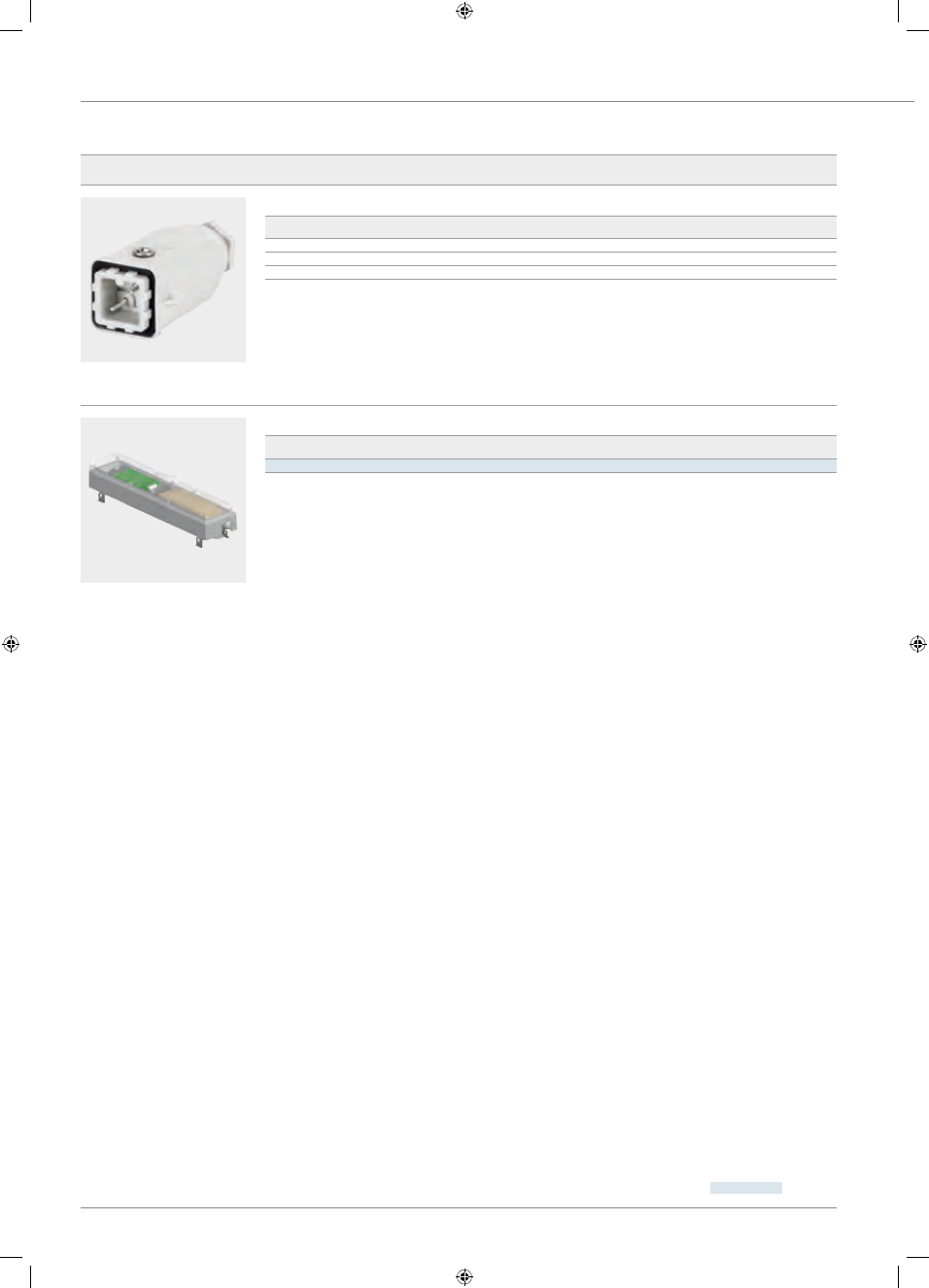

COMPLEMENTARY ITEMS

COMPLEMENTARY ITEMS FOR INSTALLATION

Code

Description

Pack

Carton

GW S3 191

Pair of brackets for fixing to the wall at 30° or 45°

1/10

GW S3 192

2P 10 A male connector

1/10

GW S3 193

Flexible connector for 20 mm pipe

1/10

GW S3 192

EMERGENCY KIT

Code

Description

Autonomy

Pack

Carton

GW S3 195

Emergency kit for SMART[3]

3 h

NOTE: Ni-Mh battery pack. 3h autonomy with 24h recharge. Emergency device suitable only for through wiring version.
ACCESSORIES SUPPLIED: IN supply cable with male and female connector; OUT cable with female connector.

GW S3 195

New product

Gewiss-Depliant-Lighting-html.html

INSTALLATION

Internal / External (if protected against UV rays)

DEGREE OF PROTECTION

IP66 / IP69

COLOUR

Grey RAL7035

IMPACT RESISTANCE

IK08

MATERIALS

INSULATION CLASS

Body

LIFETIME

L80B20 @25°C =60.000h
L80B50 @25°C =80.000h
L70B50 @25°C =100.000h

Reflector

Sheet steel pre-painted white

MARKS

Shield

PC stabilised for UV rays

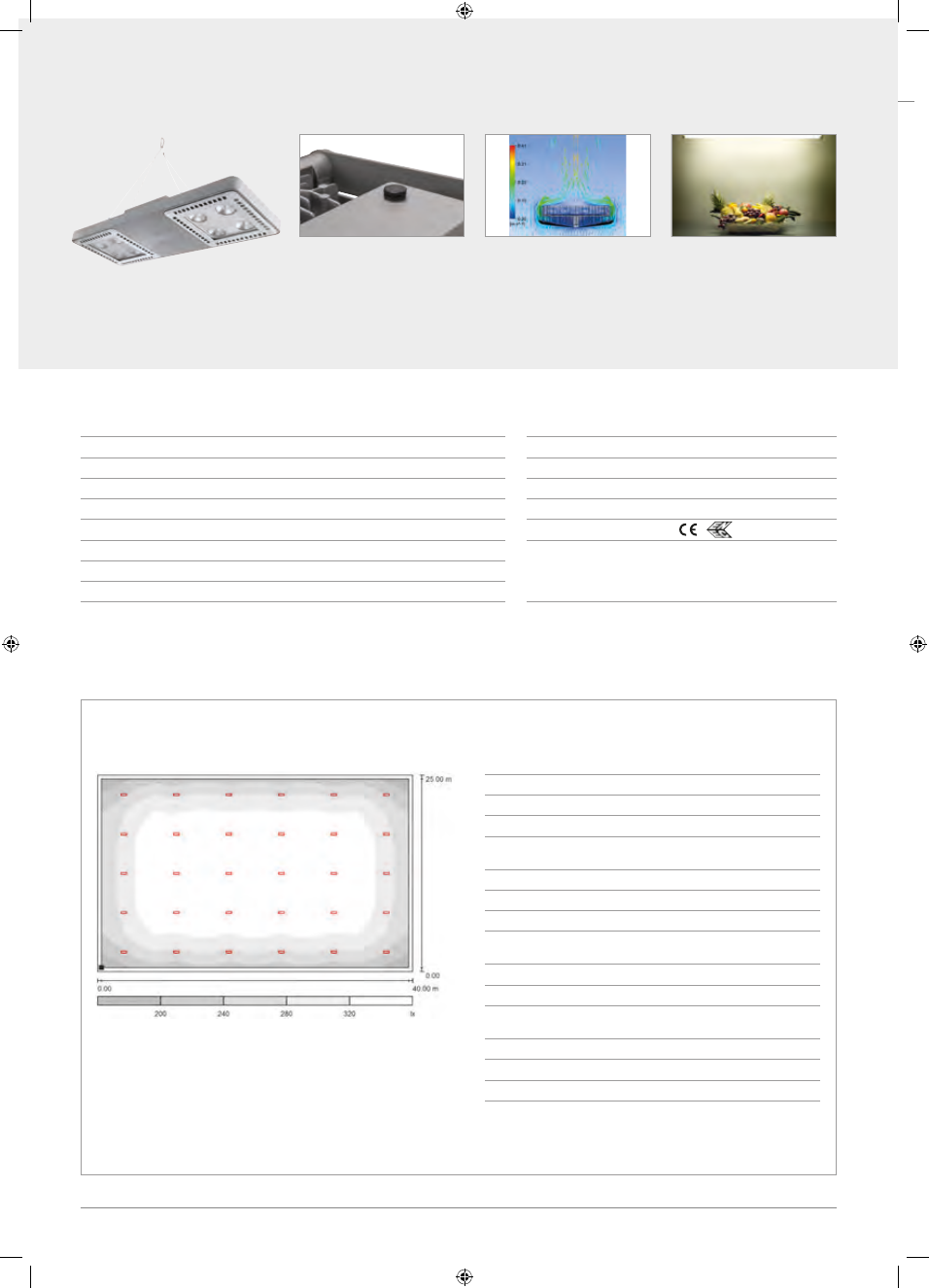

Technical characteristics

Technical solutions

Project: cement-working industry

Reference standard

EN 12464-1:2011

Reference

5.8.4

Activity

Cement
rough moulding

Eave on work plane (Em)

300 lx

Uniformity (Uo)

0.6

Room dimension

40 x 25 x 3m

Product Code

SMART[3] GWS3258T

Quantity

Eave on work plane (Em)

310

Uniformity (Uo)

0.7

Total power system

2.8 kW

For technical information contact the Technical Assistance Service or visit gewiss.com

Lighting > Industrial > Smart [3] Range

The through-wiring versions allow the
installation in a row continues and the
perfect alignment of the ceiling via
special accessory provided standard
with the product.

Smart [3], thanks to its IP rating
IP66/IP69 results to be resistant to
the penetration of high pressure jets
and temperatures (e.g. high-pressure
wash).

THROUGH WIRING

IP66/IP69

Smart [3]

Commercial
information page 62

The wide variable distances clips guar-
antee the return point to point tra-
ditional ceiling using the same fixing
holes and without on the electrical
system.

FIXING DISTANCE

Gewiss-Depliant-Lighting-html.html

Project: Warehouses

Project: Canteen

Reference standard

EN 12464-1:2011

Reference

5.4.1

Activity

Warehouses

Eave on work plane (Em)

100 lx

Uniformity (Uo)

0.4

Room dimension

15 x 25 x 3 m

Product Code

SMART[3] GWS3118P

Quantity

Eave on work plane (Em)

100

Uniformity (Uo)

0.6

Total power system

0.39 kW

Reference standard

EN 12464-1:2011

Reference

5.2.1

Activity

Canteen

Eave on work plane (Em)

200 lx

Uniformity (Uo)

0.4

Room dimension

20 x 30 x 4 m

Product Code

SMART[3] GWS3236P

Quantity

Eave on work plane (Em)

210

Uniformity (Uo)

0.7

Total power system

1.3 kW

Smart [3]

Lighting > Industrial > Smart [3] Range

For technical information contact the Technical Assistance Service or visit gewiss.com

Gewiss-Depliant-Lighting-html.html

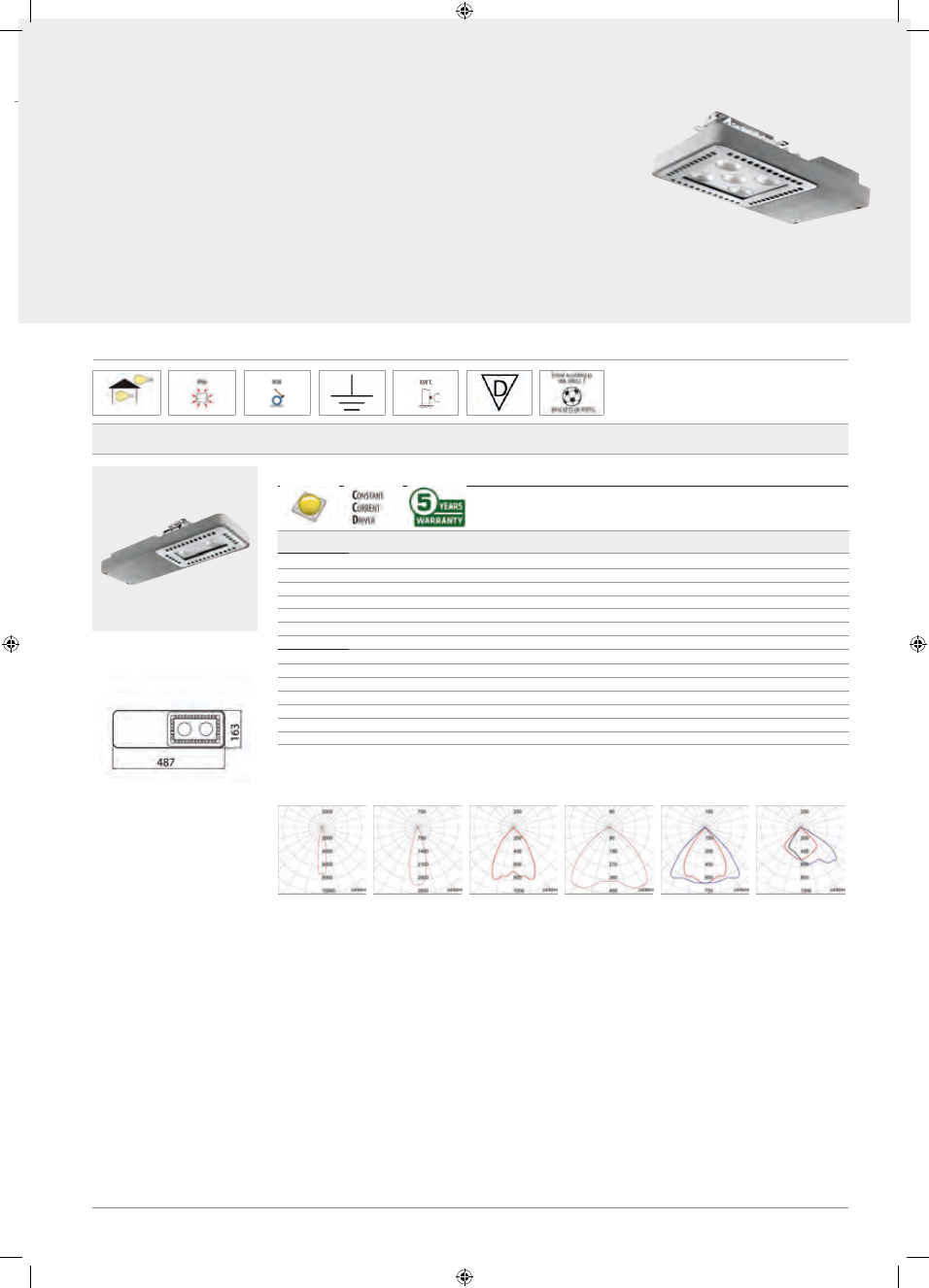

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

SMART[4] 2.0 LB - 2L - EQUIVALENT TO 1X58W FD

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 001 GS

Spotlight 10°

4000 K (CRI 80)

25 W

2960

2130

Grey RAL 7037

GW S4 002 GS

Restricted 30°

4000 K (CRI 80)

25 W

2960

2060

Grey RAL 7037

GW S4 003 GS

Medium 60°

4000 K (CRI 80)

25 W

2960

2730

Grey RAL 7037

GW S4 004 GS

Diffused 100°

4000 K (CRI 80)

25 W

2960

2600

Grey RAL 7037

GW S4 005 GS

Elliptical

4000 K (CRI 80)

25 W

2960

2640

Grey RAL 7037

GW S4 006 GS

Asymmetrical

4000 K (CRI 80)

25 W

2960

2540

Grey RAL 7037

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 001 GD

Spotlight 10°

4000 K (CRI 80)

26 W

2960

2130

Grey RAL 7037

GW S4 002 GD

Restricted 30°

4000 K (CRI 80)

26 W

2960

2060

Grey RAL 7037

GW S4 003 GD

Medium 60°

4000 K (CRI 80)

26 W

2960

2730

Grey RAL 7037

GW S4 004 GD

Diffused 100°

4000 K (CRI 80)

26 W

2960

2600

Grey RAL 7037

GW S4 005 GD

Elliptical

4000 K (CRI 80)

26 W

2960

2640

Grey RAL 7037

GW S4 006 GD

Asymmetrical

4000 K (CRI 80)

26 W

2960

2540

Grey RAL 7037

ACCESSORIES SUPPLIED: Watertight connector, two fixing points for suspension and 45° spring with safety system.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand. Maximum working temperature: +50°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 004 GS

Technical characteristics

page

Industrial devices

Smart [4] 2.0 LB-HB

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

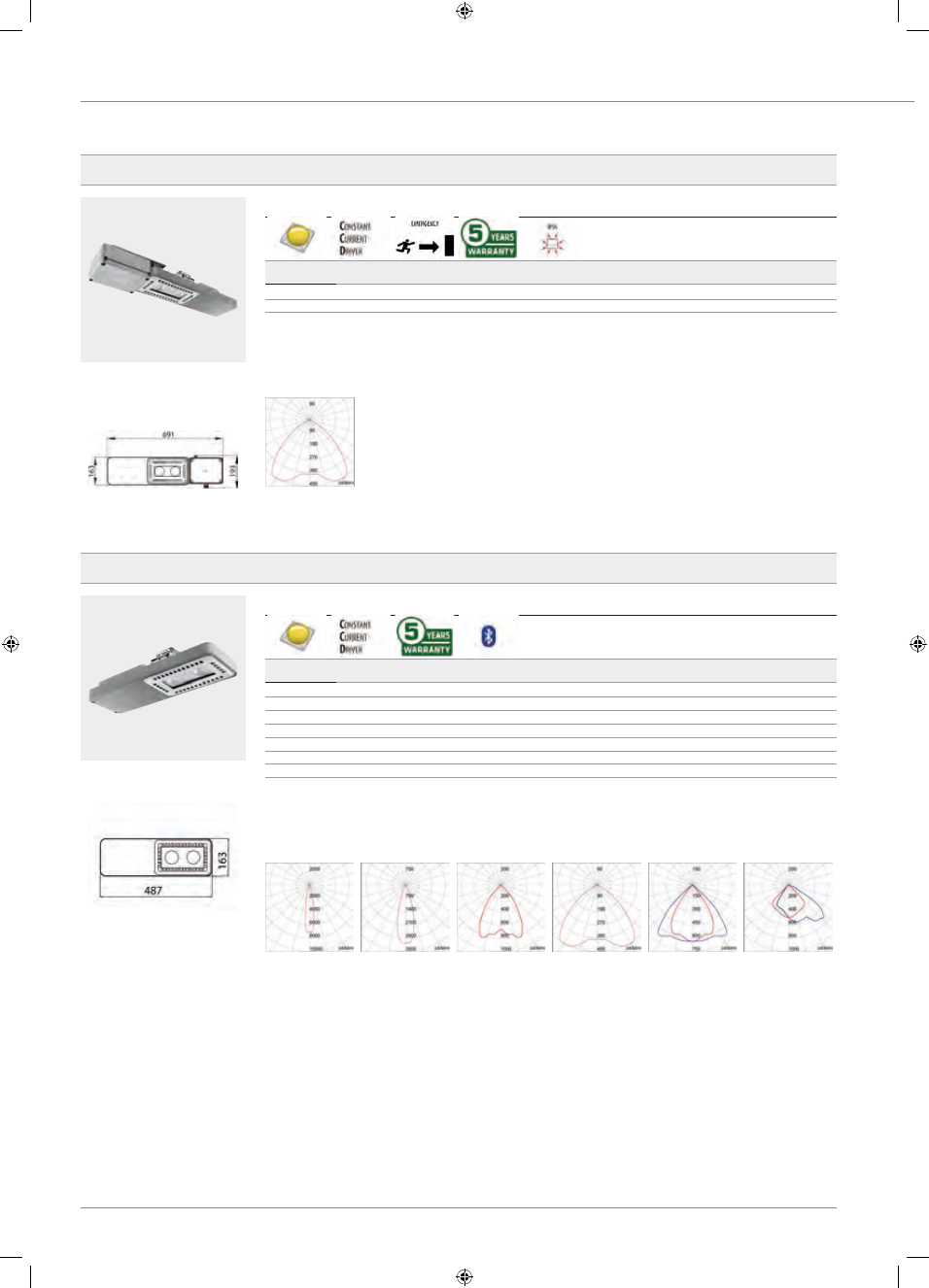

EMERGENCY VERSION

WIRED VERSION - IP56 - CLASS I

Code

Optic

System

power

Lumen

output (lm)

Luminous flux

in emerg. [lm]

Colour

temperature

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 004 GE

Diffused 100°

28 W

2600

260

4000 K (CRI 80)

Grey RAL 7037

NOTE: Ni-Cd battery. 3h autonomy with 24h recharge time.
Version not tested in accordance with DIN 18032-3 for installation in indoor sports facilities.
due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Minimum working temperature: +5 °C.

Photometric distributions

Diffused 100°

GW S4 004 GE

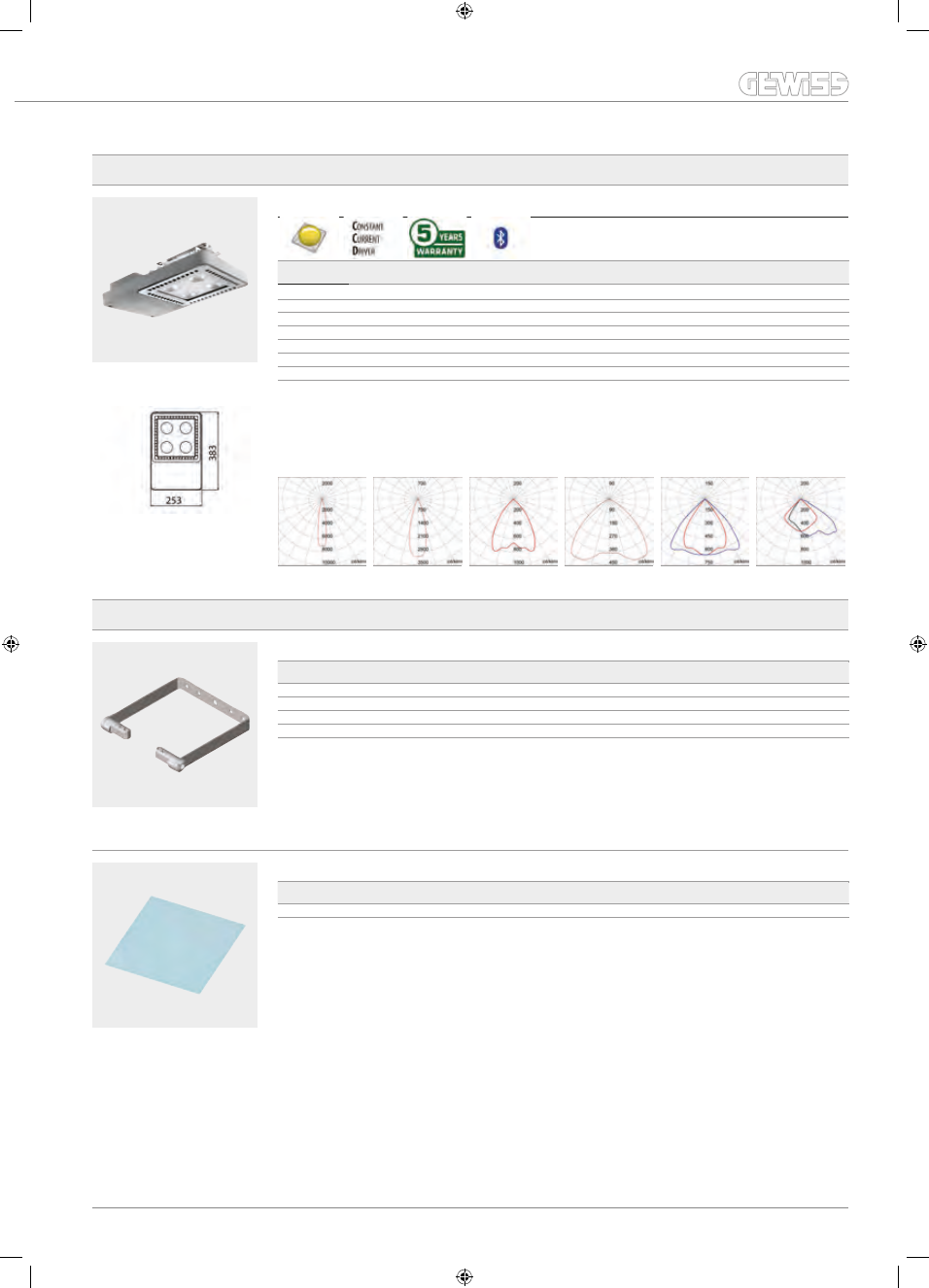

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 001 GR

Spotlight 10°

4000 K (CRI 80)

26 W

2960

2130

Grey RAL 7037

GW S4 002 GR

Restricted 30°

4000 K (CRI 80)

26 W

2960

2060

Grey RAL 7037

GW S4 003 GR

Medium 60°

4000 K (CRI 80)

26 W

2960

2730

Grey RAL 7037

GW S4 004 GR

Diffused 100°

4000 K (CRI 80)

26 W

2960

2600

Grey RAL 7037

GW S4 005 GR

Elliptical

4000 K (CRI 80)

26 W

2960

2640

Grey RAL 7037

GW S4 006 GR

Asymmetrical

4000 K (CRI 80)

26 W

2960

2540

Grey RAL 7037

ACCESSORIES SUPPLIED: Watertight connector, two fixing points for suspension and 45° spring with safety system.
NOTE: Versions managed via application for Android or IOS systems, with Bluetooth version 4.0 or later connectivity.
due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +35°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 004 GR

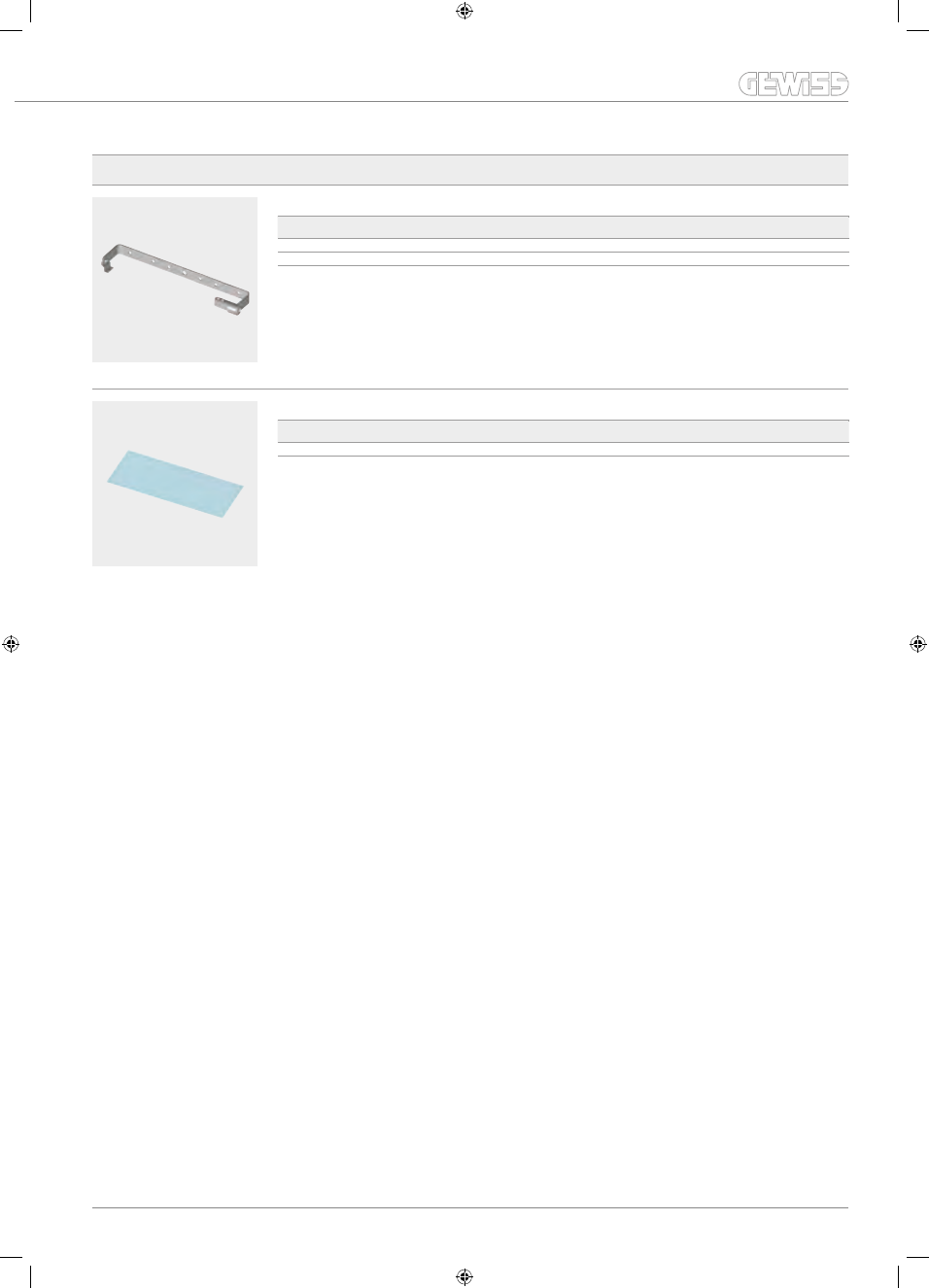

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed

to complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 921

Bracket 2L

GW L1 921

SPARE PART

Code

Description

Pack

Carton

GW L1 906

Transparent glass 2L

GW L1 906

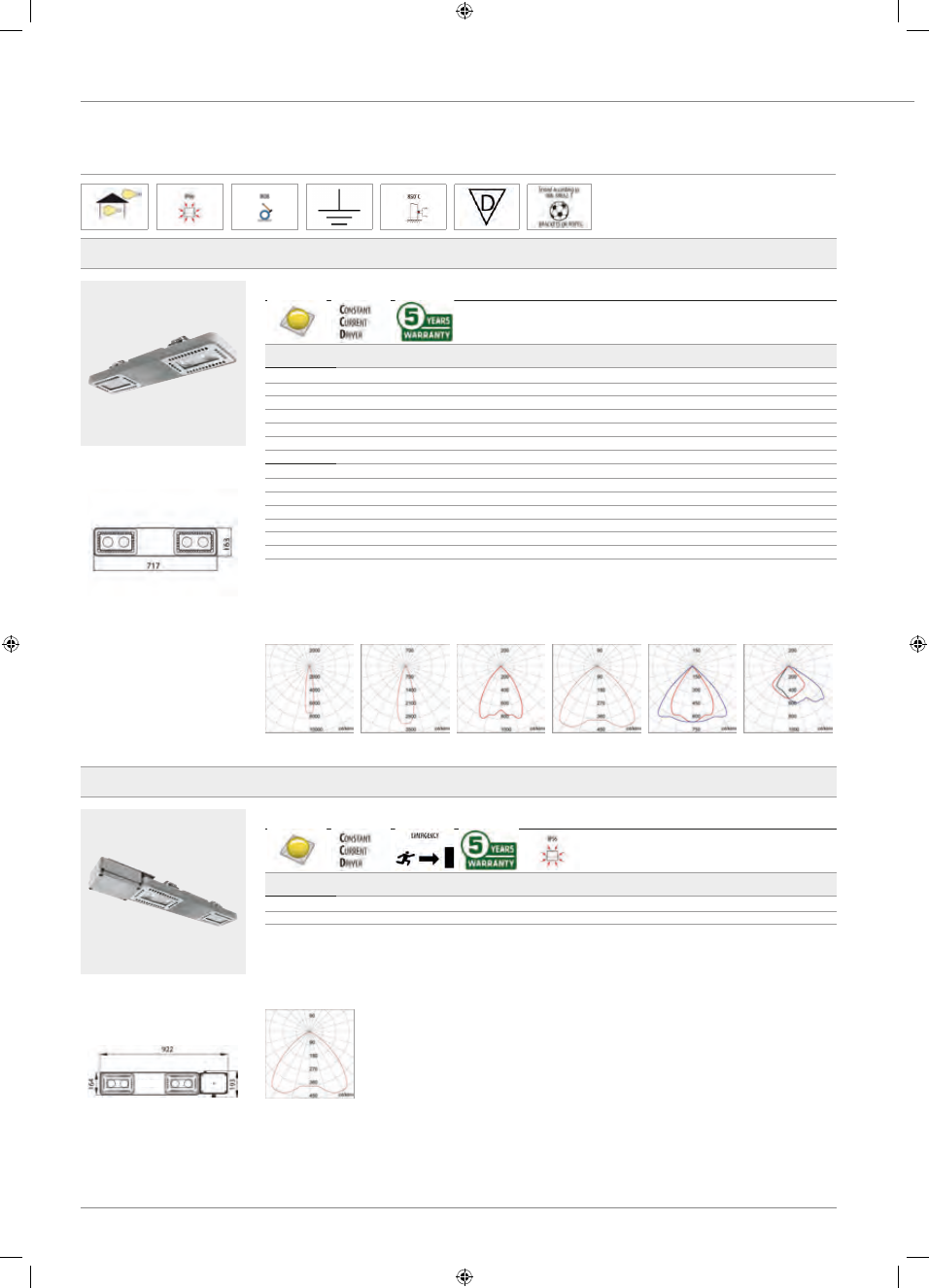

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

SMART[4] 2.0 LB - 2+2L - EQUIVALENT TO 2X58W FD

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 011 GS

Spotlight 10°

4000 K (CRI 80)

50 W

5910

4250

Grey RAL 7037

5.1

GW S4 012 GS

Restricted 30°

4000 K (CRI 80)

50 W

5910

4120

Grey RAL 7037

5.1

GW S4 013 GS

Medium 60°

4000 K (CRI 80)

50 W

5910

5460

Grey RAL 7037

5.1

GW S4 014 GS

Diffused 100°

4000 K (CRI 80)

50 W

5910

5210

Grey RAL 7037

5.1

GW S4 015 GS

Elliptical

4000 K (CRI 80)

50 W

5910

5280

Grey RAL 7037

5.1

GW S4 016 GS

Asymmetrical

4000 K (CRI 80)

50 W

5910

5080

Grey RAL 7037

5.1

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 011 GD

Spotlight 10°

4000 K (CRI 80)

51 W

5910

4250

Grey RAL 7037

5.1

GW S4 012 GD

Restricted 30°

4000 K (CRI 80)

51 W

5910

4120

Grey RAL 7037

5.1

GW S4 013 GD

Medium 60°

4000 K (CRI 80)

51 W

5910

5460

Grey RAL 7037

5.1

GW S4 014 GD

Diffused 100°

4000 K (CRI 80)

51 W

5910

5210

Grey RAL 7037

5.1

GW S4 015 GD

Elliptical

4000 K (CRI 80)

51 W

5910

5280

Grey RAL 7037

5.1

GW S4 016 GD

Asymmetrical

4000 K (CRI 80)

51 W

5910

5080

Grey RAL 7037

5.1

ACCESSORIES SUPPLIED: Watertight connector, two fixing points for suspension and 45° spring with safety system.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +50°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 014 GS

EMERGENCY VERSION

WIRED VERSION - IP56 - CLASS I

Code

Optic

System

power

Lumen

output (lm)

Luminous flux

in emerg. [lm]

Colour

temperature

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 014 GE

Diffused 100°

53 W

5210

520

4000 K (CRI 80)

Grey RAL 7037

5.1

NOTE: Ni-Cd battery. 3h autonomy with 24h recharge time.
Version not tested in accordance with DIN 18032-3 for installation in indoor sports facilities.
due to the continuous changes with the LED technologies, the technical data can undertake variations
Nominal flux referred to Tj=85°C
Minimum working temperature: +5 °C.

Photometric distributions

Diffused 100°

GW S4 014 GE

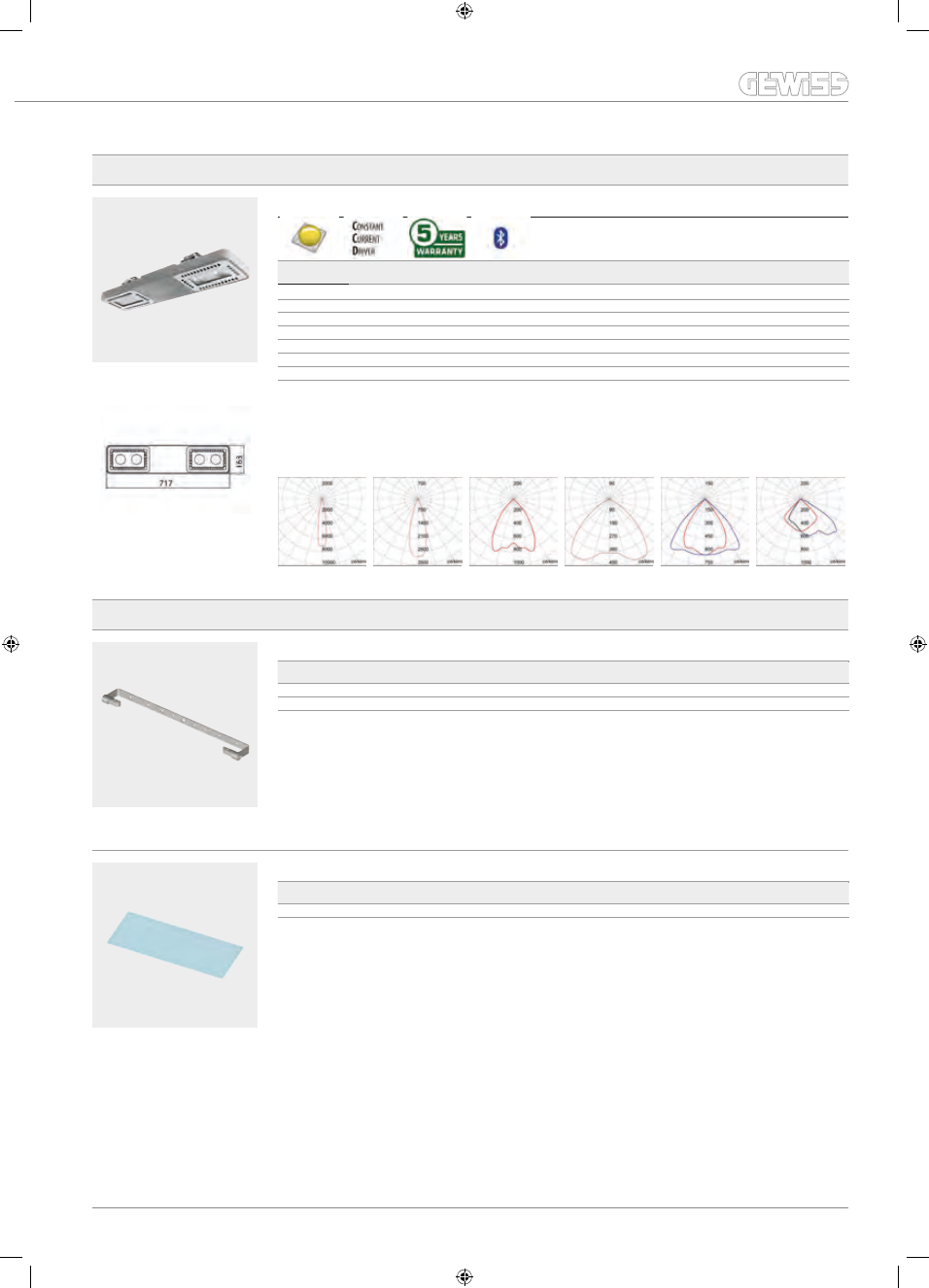

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 011 GR

Spotlight 10°

4000 K (CRI 80)

51 W

5910

4250

Grey RAL 7037

5.1

GW S4 012 GR

Restricted 30°

4000 K (CRI 80)

51 W

5910

4120

Grey RAL 7037

5.1

GW S4 013 GR

Medium 60°

4000 K (CRI 80)

51 W

5910

5460

Grey RAL 7037

5.1

GW S4 014 GR

Diffused 100°

4000 K (CRI 80)

51 W

5910

5210

Grey RAL 7037

5.1

GW S4 015 GR

Elliptical

4000 K (CRI 80)

51 W

5910

5280

Grey RAL 7037

5.1

GW S4 016 GR

Asymmetrical

4000 K (CRI 80)

51 W

5910

5080

Grey RAL 7037

5.1

ACCESSORIES SUPPLIED: Watertight connector, two fixing points for suspension and 45° spring with safety system.
NOTE: Versions managed via application for Android or IOS systems, with Bluetooth version 4.0 or later connectivity.
due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +35°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 014 GR

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed

to complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 922

Bracket 2+2L

GW L1 922

SPARE PART

Code

Description

Pack

Carton

GW L1 906

Transparent glass 2L

GW L1 906

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

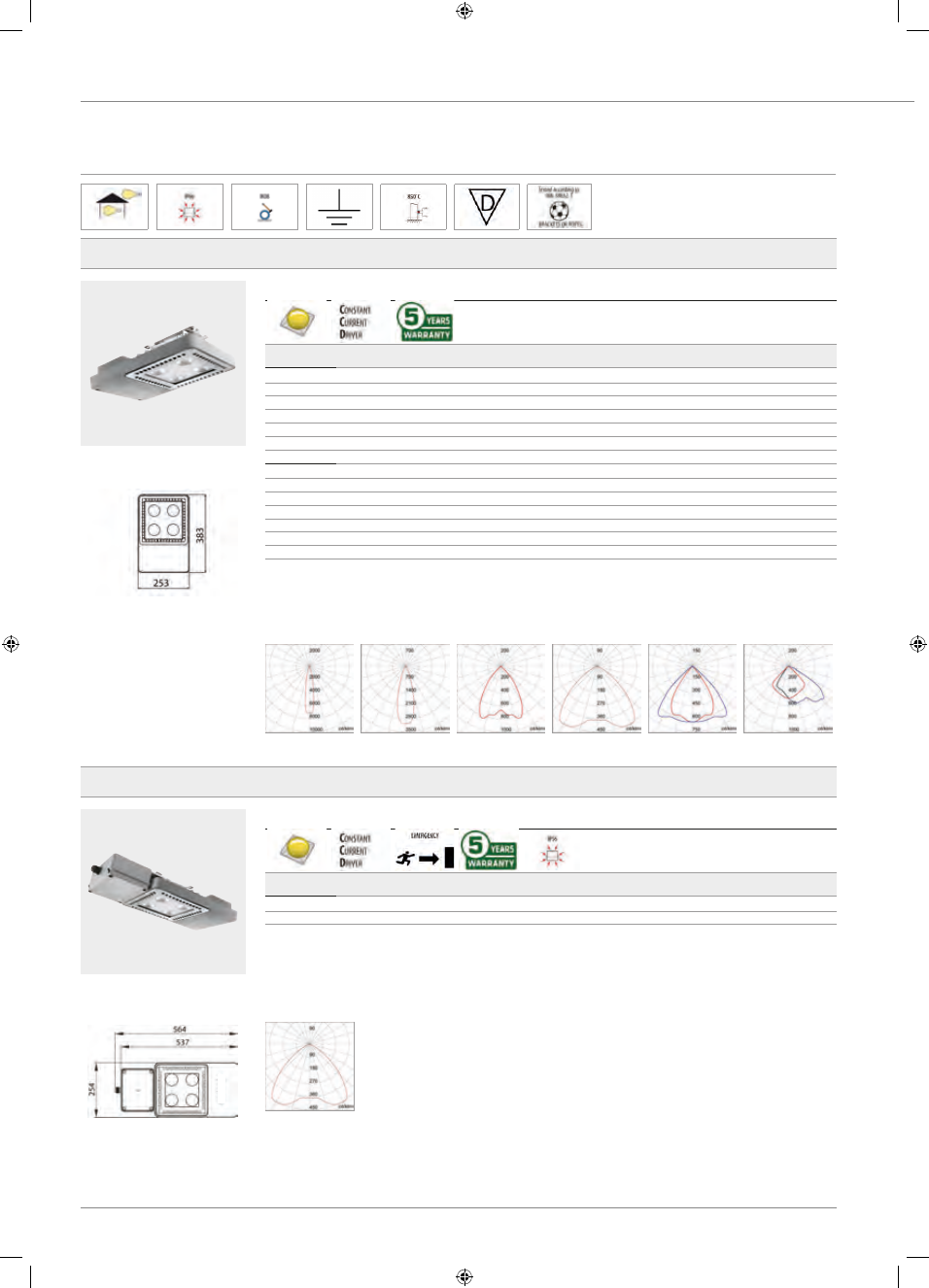

SMART[4] 2.0 LB - 4L - EQUIVALENT TO 2X58W FD

STANDARD VERSIONS

WIRED VERSION - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 021 GS

Spotlight 10°

4000 K (CRI 80)

50 W

5910

4250

Grey RAL 7037

5.1

GW S4 022 GS

Restricted 30°

4000 K (CRI 80)

50 W

5910

4120

Grey RAL 7037

5.1

GW S4 023 GS

Medium 60°

4000 K (CRI 80)

50 W

5910

5460

Grey RAL 7037

5.1

GW S4 024 GS

Diffused 100°

4000 K (CRI 80)

50 W

5910

5210

Grey RAL 7037

5.1

GW S4 025 GS

Elliptical

4000 K (CRI 80)

50 W

5910

5280

Grey RAL 7037

5.1

GW S4 026 GS

Asymmetrical

4000 K (CRI 80)

50 W

5910

5080

Grey RAL 7037

5.1

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 021 GD

Spotlight 10°

4000 K (CRI 80)

51 W

5910

4250

Grey RAL 7037

5.1

GW S4 022 GD

Restricted 30°

4000 K (CRI 80)

51 W

5910

4120

Grey RAL 7037

5.1

GW S4 023 GD

Medium 60°

4000 K (CRI 80)

51 W

5910

5460

Grey RAL 7037

5.1

GW S4 024 GD

Diffused 100°

4000 K (CRI 80)

51 W

5910

5210

Grey RAL 7037

5.1

GW S4 025 GD

Elliptical

4000 K (CRI 80)

51 W

5910

5280

Grey RAL 7037

5.1

GW S4 026 GD

Asymmetrical

4000 K (CRI 80)

51 W

5910

5080

Grey RAL 7037

5.1

ACCESSORIES SUPPLIED: Watertight connector, steel plate with two fixing points for suspension and spring with safety system.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +50°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 024 GS

EMERGENCY VERSION

WIRED VERSION - IP56 - CLASS I

Code

Optic

System

power

Lumen

output (lm)

Luminous flux

in emerg. [lm]

Colour

temperature

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 024 GE

Diffused 100°

53 W

5210

520

4000 K (CRI 80)

Grey RAL 7037

5.1

Photometric distributions

Diffused 100°

GW S4 024 GE

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSION - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 021 GR

Spotlight 10°

4000 K (CRI 80)

51 W

5910

4250

Grey RAL 7037

5.1

GW S4 022 GR

Restricted 30°

4000 K (CRI 80)

51 W

5910

4120

Grey RAL 7037

5.1

GW S4 023 GR

Medium 60°

4000 K (CRI 80)

51 W

5910

5460

Grey RAL 7037

5.1

GW S4 024 GR

Diffused 100°

4000 K (CRI 80)

51 W

5910

5210

Grey RAL 7037

5.1

GW S4 025 GR

Elliptical

4000 K (CRI 80)

51 W

5910

5280

Grey RAL 7037

5.1

GW S4 026 GR

Asymmetrical

4000 K (CRI 80)

51 W

5910

5080

Grey RAL 7037

5.1

ACCESSORIES SUPPLIED: Watertight connector, steel plate with two fixing points for suspension and spring with safety system.
NOTE: Versions managed via application for Android or IOS systems, with Bluetooth version 4.0 or later connectivity.
due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +35°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 024 GR

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed

to complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 923

Bracket 4L / 5L

GW L1 926

Fixing plate to pipe 4L-5L

GW L1 929

SMART[4] 4L-5L metal cover

NOTE: GWL1926 fixing plates on pipe with diameter 40/60 mm.

GW L1 923

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

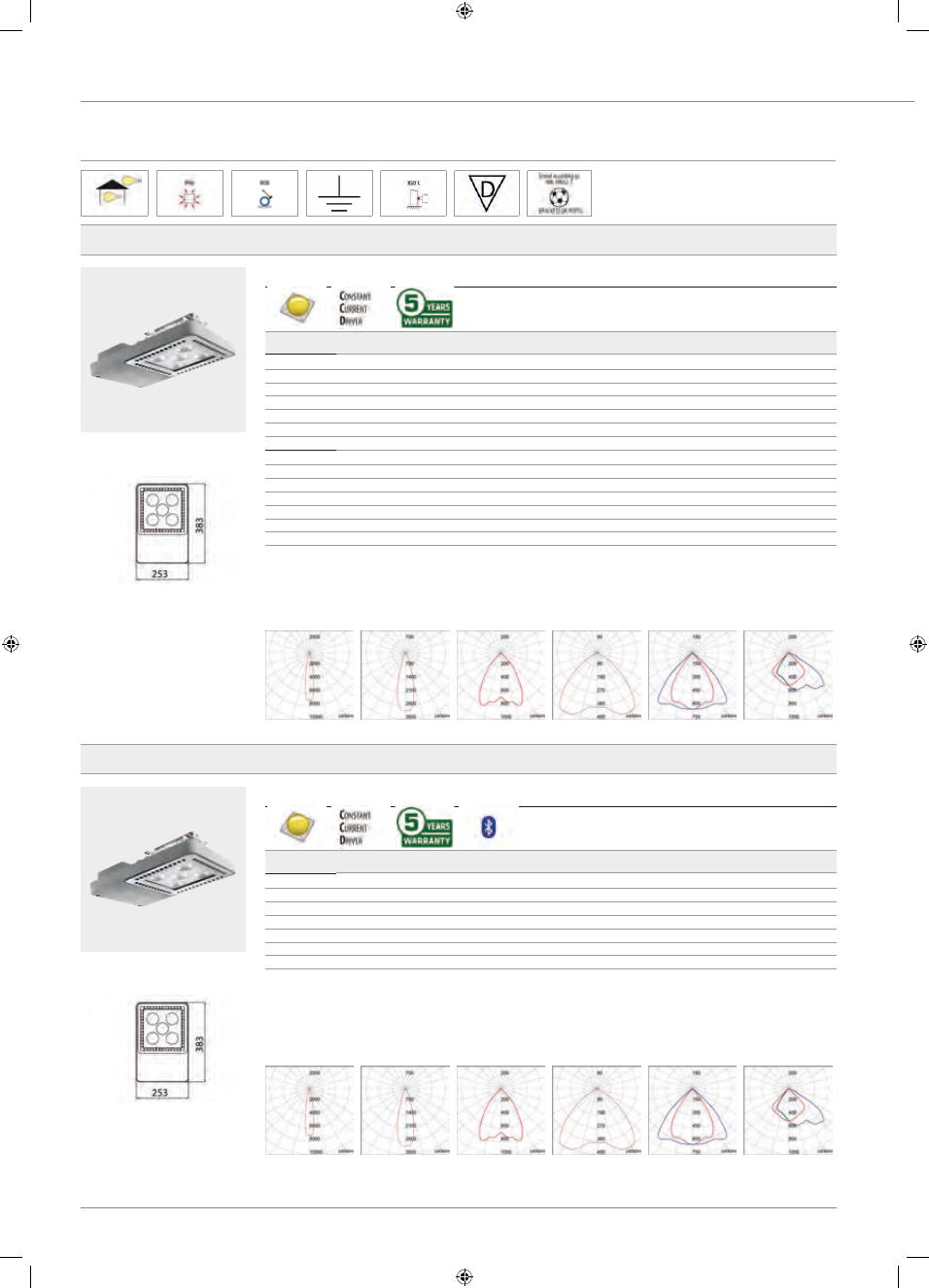

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

SMART[4] 2.0 LB - 5L - EQUIVALENT TO 2X58W FD

STANDARD VERSIONS

WIRED VERSION - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 031 GS

Spotlight 10°

4000 K (CRI 80)

60 W

7120

5320

Grey RAL 7037

4.9

GW S4 032 GS

Restricted 30°

4000 K (CRI 80)

60 W

7120

5150

Grey RAL 7037

4.9

GW S4 033 GS

Medium 60°

4000 K (CRI 80)

60 W

7120

6820

Grey RAL 7037

4.9

GW S4 034 GS

Diffused 100°

4000 K (CRI 80)

60 W

7120

6510

Grey RAL 7037

4.9

GW S4 035 GS

Elliptical

4000 K (CRI 80)

60 W

7120

6600

Grey RAL 7037

4.9

GW S4 036 GS

Asymmetrical

4000 K (CRI 80)

60 W

7120

6350

Grey RAL 7037

4.9

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 031 GD

Spotlight 10°

4000 K (CRI 80)

61 W

7120

5320

Grey RAL 7037

4.9

GW S4 032 GD

Restricted 30°

4000 K (CRI 80)

61 W

7120

5150

Grey RAL 7037

4.9

GW S4 033 GD

Medium 60°

4000 K (CRI 80)

61 W

7120

6820

Grey RAL 7037

4.9

GW S4 034 GD

Diffused 100°

4000 K (CRI 80)

61 W

7120

6510

Grey RAL 7037

4.9

GW S4 035 GD

Elliptical

4000 K (CRI 80)

61 W

7120

6600

Grey RAL 7037

4.9

GW S4 036 GD

Asymmetrical

4000 K (CRI 80)

61 W

7120

6350

Grey RAL 7037

4.9

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 034 GS

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSION - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 031 GR

Spotlight 10°

4000 K (CRI 80)

61 W

7120

5320

Grey RAL 7037

4.9

GW S4 032 GR

Restricted 30°

4000 K (CRI 80)

61 W

7120

5150

Grey RAL 7037

4.9

GW S4 033 GR

Medium 60°

4000 K (CRI 80)

61 W

7120

6820

Grey RAL 7037

4.9

GW S4 034 GR

Diffused 100°

4000 K (CRI 80)

61 W

7120

6510

Grey RAL 7037

4.9

GW S4 035 GR

Elliptical

4000 K (CRI 80)

61 W

7120

6600

Grey RAL 7037

4.9

GW S4 036 GR

Asymmetrical

4000 K (CRI 80)

61 W

7120

6350

Grey RAL 7037

4.9

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 034 GR

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

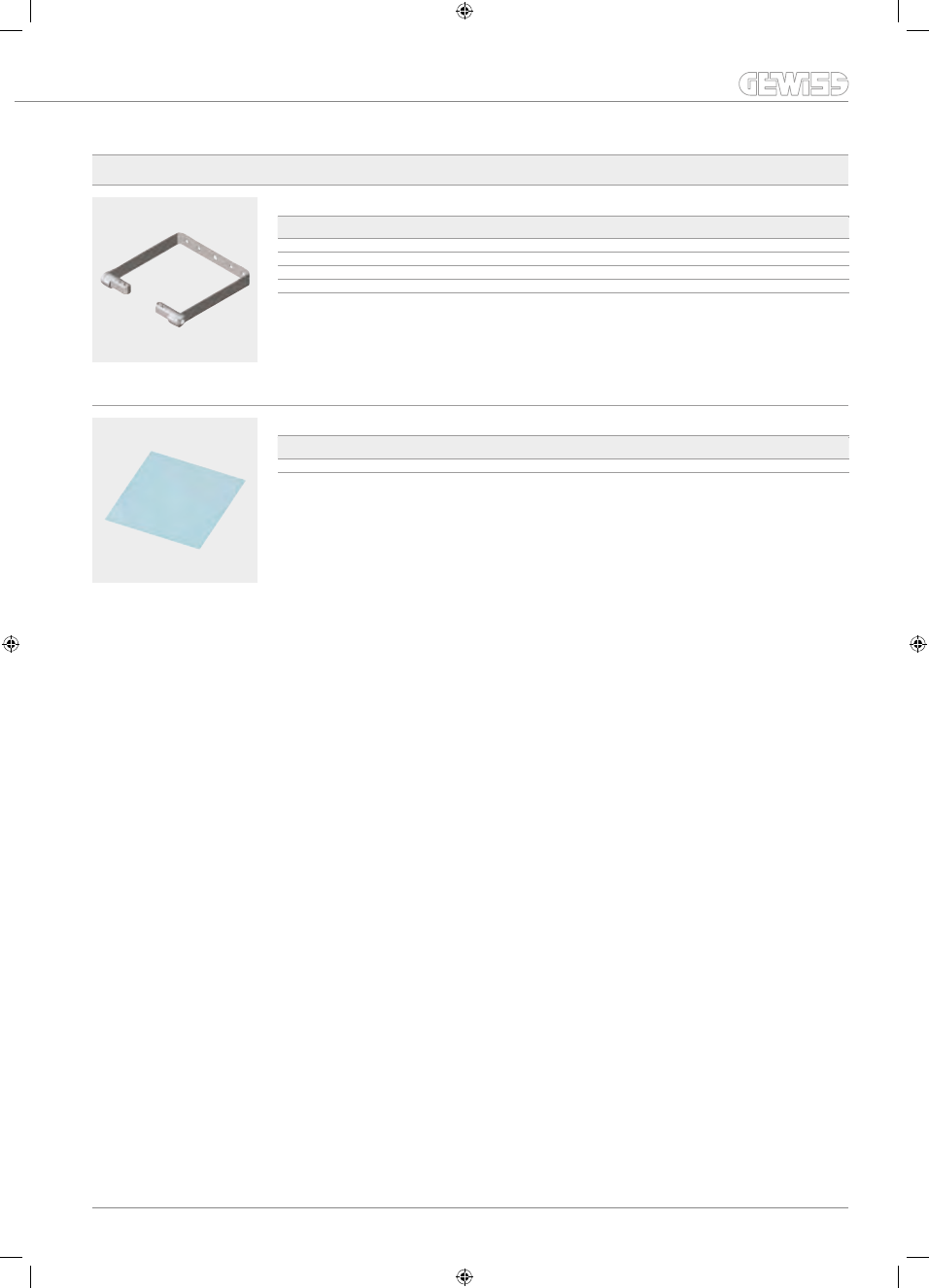

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed

to complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 923

Bracket 4L / 5L

GW L1 926

Fixing plate to pipe 4L-5L

GW L1 929

SMART[4] 4L-5L metal cover

NOTE: GWL1926 fixing plates on pipe with diameter 40/60 mm.

GW L1 923

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

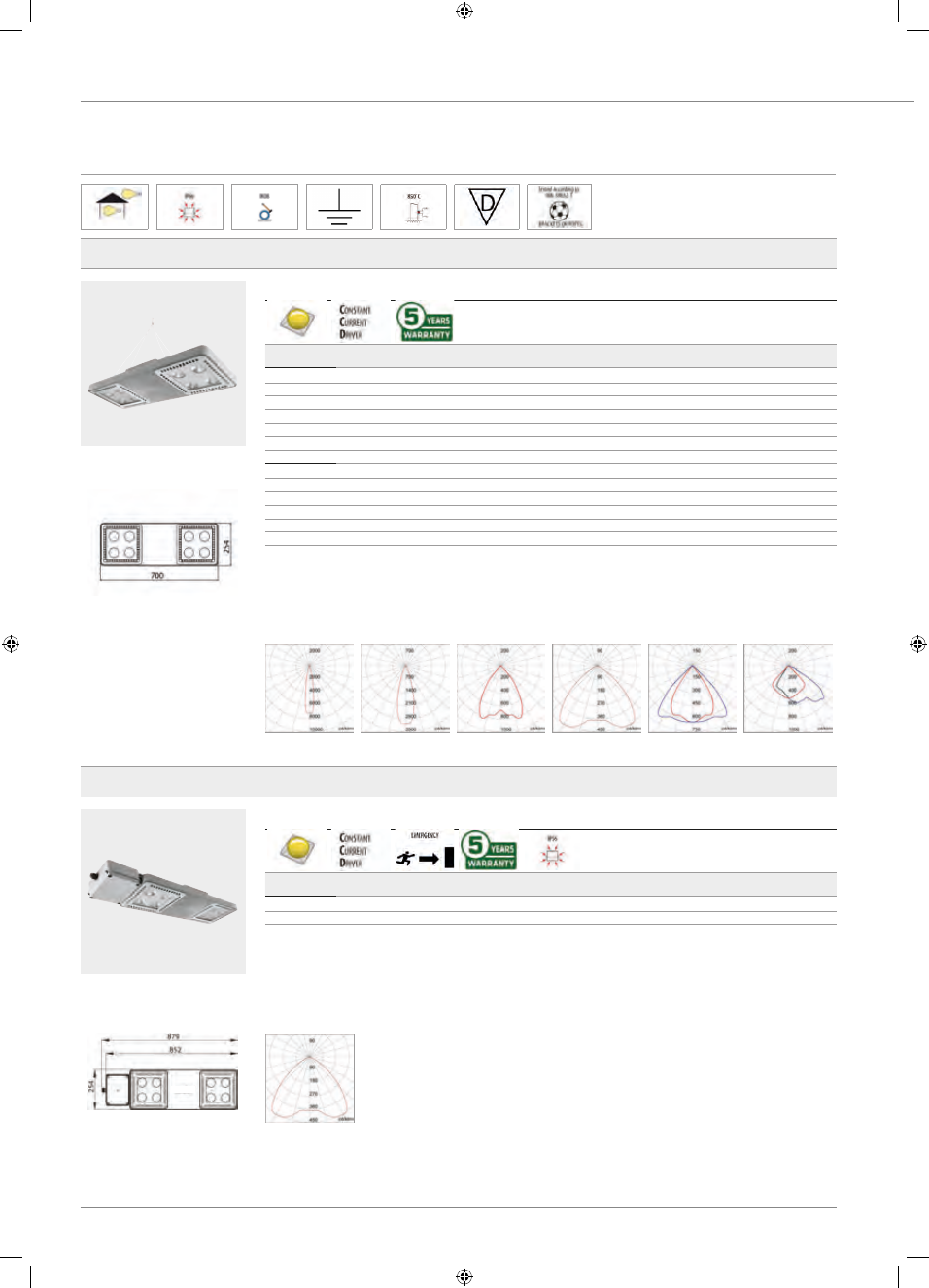

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

SMART[4] 2.0 HB - 4+4L - EQUIVALENT TO 250 W ME

STANDARD VERSIONS

WIRED VERSION - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 041 GS

Spotlight 10°

4000 K (CRI 80)

97 W

11810

8510

Grey RAL 7037

7.4

GW S4 042 GS

Restricted 30°

4000 K (CRI 80)

97 W

11810

8240

Grey RAL 7037

7.4

GW S4 043 GS

Medium 60°

4000 K (CRI 80)

97 W

11810

10920

Grey RAL 7037

7.4

GW S4 044 GS

Diffused 100°

4000 K (CRI 80)

97 W

11810

10420

Grey RAL 7037

7.4

GW S4 045 GS

Elliptical

4000 K (CRI 80)

97 W

11810

10560

Grey RAL 7037

7.4

GW S4 046 GS

Asymmetrical

4000 K (CRI 80)

97 W

11810

10150

Grey RAL 7037

7.4

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 041 GD

Spotlight 10°

4000 K (CRI 80)

100 W

11810

8510

Grey RAL 7037

7.4

GW S4 042 GD

Restricted 30°

4000 K (CRI 80)

100 W

11810

8240

Grey RAL 7037

7.4

GW S4 043 GD

Medium 60°

4000 K (CRI 80)

100 W

11810

10920

Grey RAL 7037

7.4

GW S4 044 GD

Diffused 100°

4000 K (CRI 80)

100 W

11810

10420

Grey RAL 7037

7.4

GW S4 045 GD

Elliptical

4000 K (CRI 80)

100 W

11810

10560

Grey RAL 7037

7.4

GW S4 046 GD

Asymmetrical

4000 K (CRI 80)

100 W

11810

10150

Grey RAL 7037

7.4

ACCESSORIES SUPPLIED: Watertight connector, four eye bolts and two fixed retaining wires for suspension.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +50°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 044 GS

EMERGENCY VERSION

WIRED VERSION - IP56 - CLASS I

Code

Optic

System

power

Lumen

output (lm)

Luminous flux

in emerg. [lm]

Colour

temperature

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 044 GE

Diffused 100°

100 W

10420

520

4000 K (CRI 80)

Grey RAL 7037

7.4

NOTE: Ni-Cd battery. 3h autonomy with 24h recharge time.
In emergency mode, only one LED unit works.
due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Version not tested in accordance with DIN 18032-3 for installation in indoor sports facilities.
Minimum working temperature: +5°C:
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.

Photometric distributions

Diffused 100°

GW S4 044 GE

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

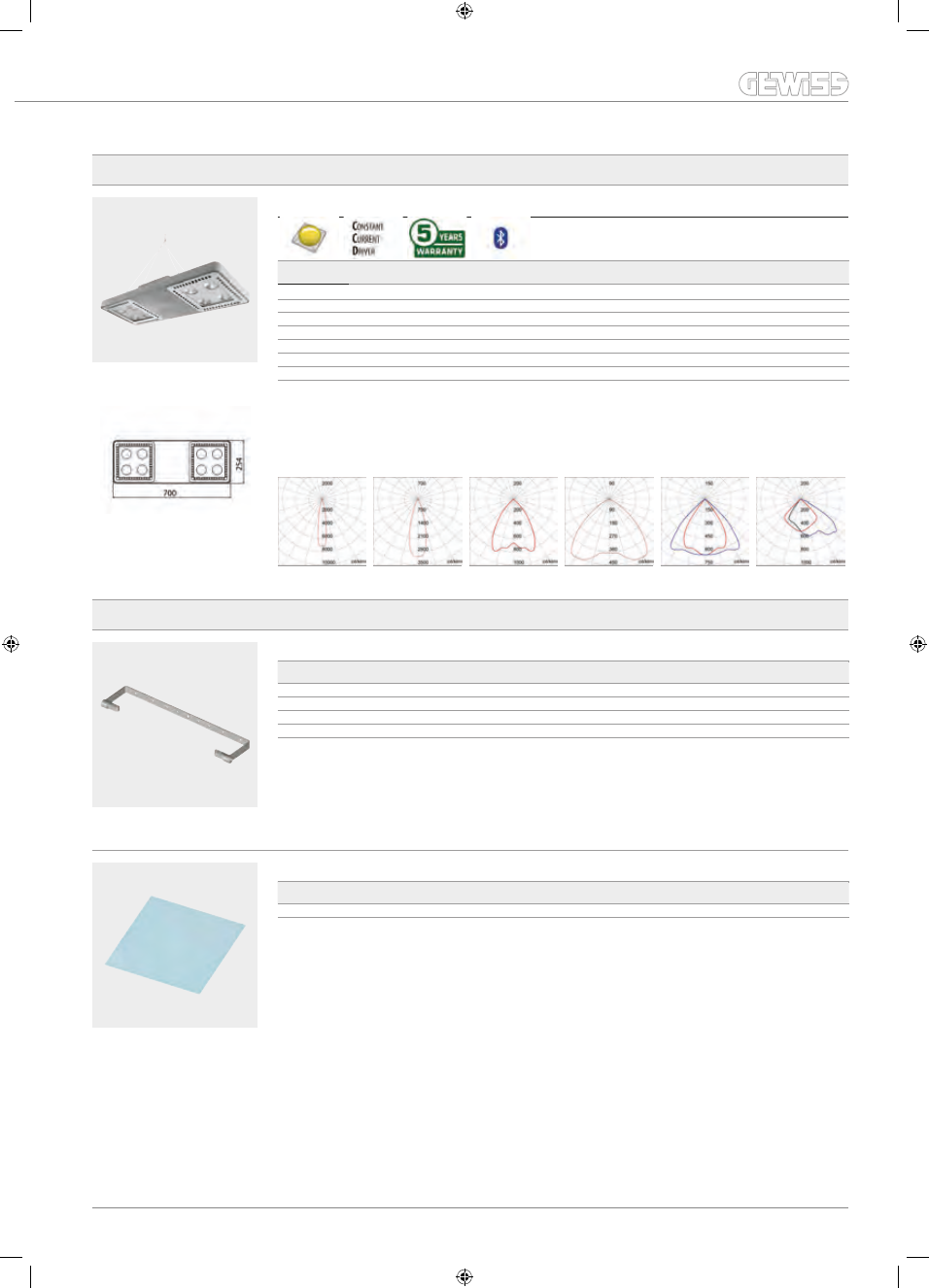

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSION - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 041 GR

Spotlight 10°

4000 K (CRI 80)

100 W

11810

8510

Grey RAL 7037

7.4

GW S4 042 GR

Restricted 30°

4000 K (CRI 80)

100 W

11810

8240

Grey RAL 7037

7.4

GW S4 043 GR

Medium 60°

4000 K (CRI 80)

100 W

11810

10920

Grey RAL 7037

7.4

GW S4 044 GR

Diffused 100°

4000 K (CRI 80)

100 W

11810

10420

Grey RAL 7037

7.4

GW S4 045 GR

Elliptical

4000 K (CRI 80)

100 W

11810

10560

Grey RAL 7037

7.4

GW S4 046 GR

Asymmetrical

4000 K (CRI 80)

100 W

11810

10150

Grey RAL 7037

7.4

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 044 GR

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed to

complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 924

Bracket 4+4L / 5+5L

GW L1 930

Fixing plate kit to pipe 4L-5L

GW L1 927

Wall/ceiling-mounting fixing kit 4+4L-5+5L

NOTE: GWL1930 fixing plates on pipe with diameter 40/60 mm.

GW L1 924

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

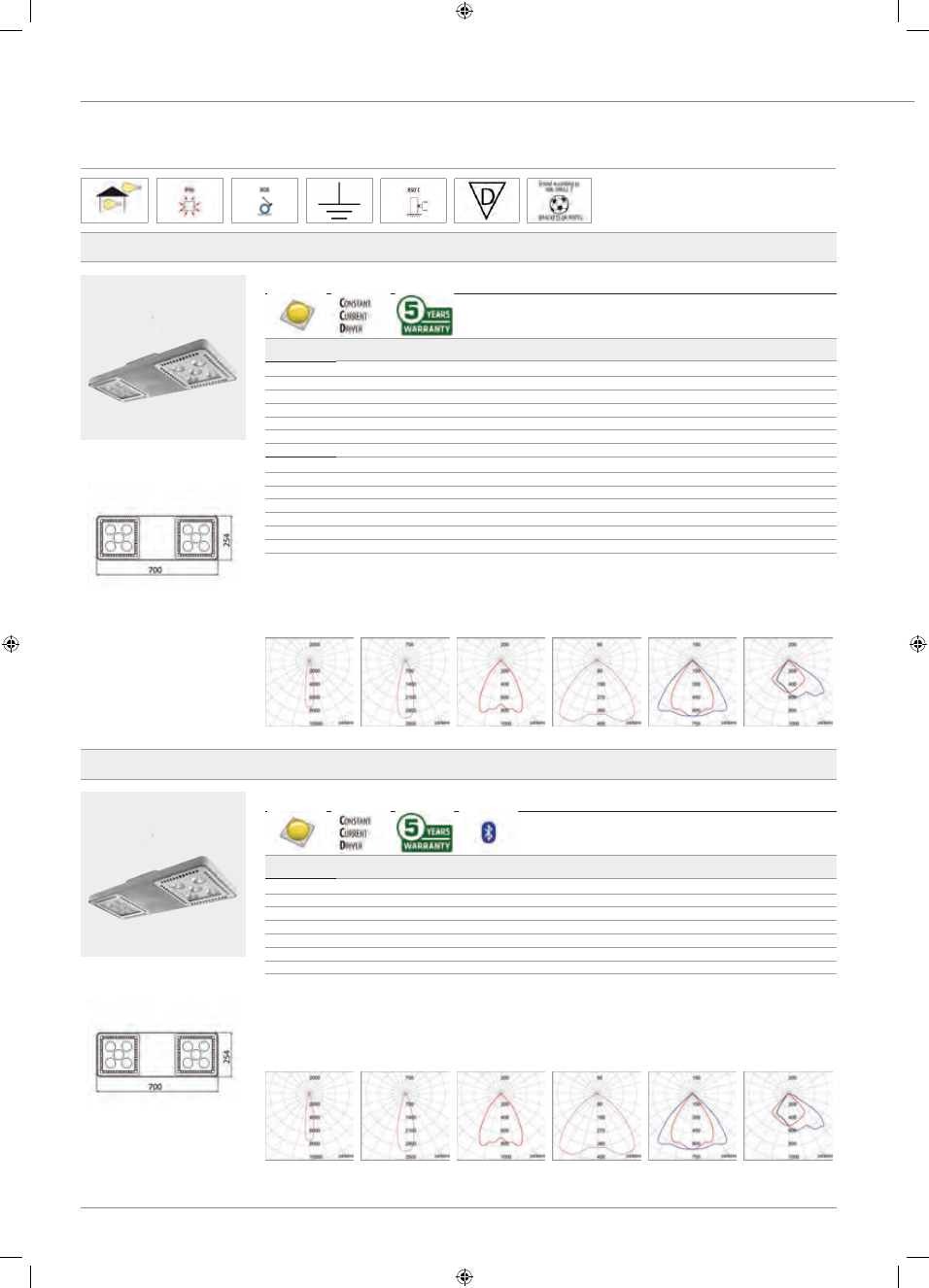

SMART[4] 2.0 HB - 5+5L - EQUIVALENT TO 250W ME

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 051 GS

Spotlight 10°

4000 K (CRI 80)

118 W

14280

10630

Grey RAL 7037

8.5

GW S4 052 GS

Restricted 30°

4000 K (CRI 80)

118 W

14280

10300

Grey RAL 7037

8.5

GW S4 053 GS

Medium 60°

4000 K (CRI 80)

118 W

14280

13650

Grey RAL 7037

8.5

GW S4 054 GS

Diffused 100°

4000 K (CRI 80)

118 W

14280

13020

Grey RAL 7037

8.5

GW S4 055 GS

Elliptical

4000 K (CRI 80)

118 W

14280

13200

Grey RAL 7037

8.5

GW S4 056 GS

Asymmetrical

4000 K (CRI 80)

118 W

14280

12690

Grey RAL 7037

8.5

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 051 GD

Spotlight 10°

4000 K (CRI 80)

121 W

14280

10630

Grey RAL 7037

8.5

GW S4 052 GD

Restricted 30°

4000 K (CRI 80)

121 W

14280

10300

Grey RAL 7037

8.5

GW S4 053 GD

Medium 60°

4000 K (CRI 80)

121 W

14280

13650

Grey RAL 7037

8.5

GW S4 054 GD

Diffused 100°

4000 K (CRI 80)

121 W

14280

13020

Grey RAL 7037

8.5

GW S4 055 GD

Elliptical

4000 K (CRI 80)

121 W

14280

13200

Grey RAL 7037

8.5

GW S4 056 GD

Asymmetrical

4000 K (CRI 80)

121 W

14280

12690

Grey RAL 7037

8.5

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 054 GS

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 051 GR

Spotlight 10°

4000 K (CRI 80)

121 W

14280

10630

Grey RAL 7037

8.5

GW S4 052 GR

Restricted 30°

4000 K (CRI 80)

121 W

14280

10300

Grey RAL 7037

8.5

GW S4 053 GR

Medium 60°

4000 K (CRI 80)

121 W

14280

13650

Grey RAL 7037

8.5

GW S4 054 GR

Diffused 100°

4000 K (CRI 80)

121 W

14280

13020

Grey RAL 7037

8.5

GW S4 055 GR

Elliptical

4000 K (CRI 80)

121 W

14280

13200

Grey RAL 7037

8.5

GW S4 056 GR

Asymmetrical

4000 K (CRI 80)

121 W

14280

12690

Grey RAL 7037

8.5

ACCESSORIES SUPPLIED: Watertight connector, four eye bolts and two fixed retaining wires for suspension.
NOTE: Versions managed via application for Android or IOS systems, with Bluetooth version 4.0 or later connectivity.
due to the continuous changes with the LED technologies, the technical data can undertake variations.
Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand.
Maximum working temperature: +35°C.

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 054 GR

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

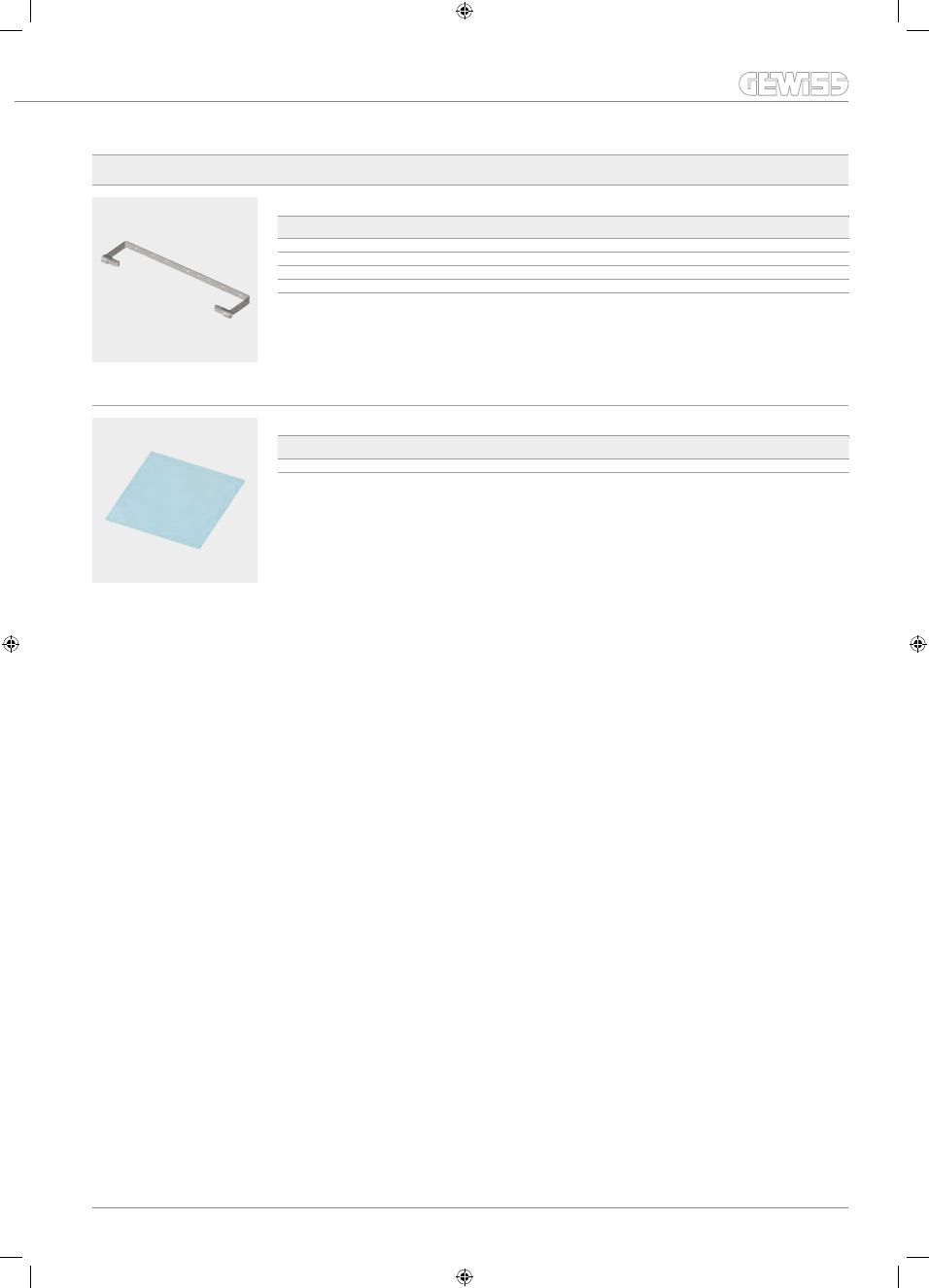

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed to

complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 924

Bracket 4+4L / 5+5L

GW L1 930

Fixing plate kit to pipe 4L-5L

GW L1 927

Wall/ceiling-mounting fixing kit 4+4L-5+5L

NOTE: GWL1930 fixing plates on pipe with diameter 40/60 mm.

GW L1 924

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

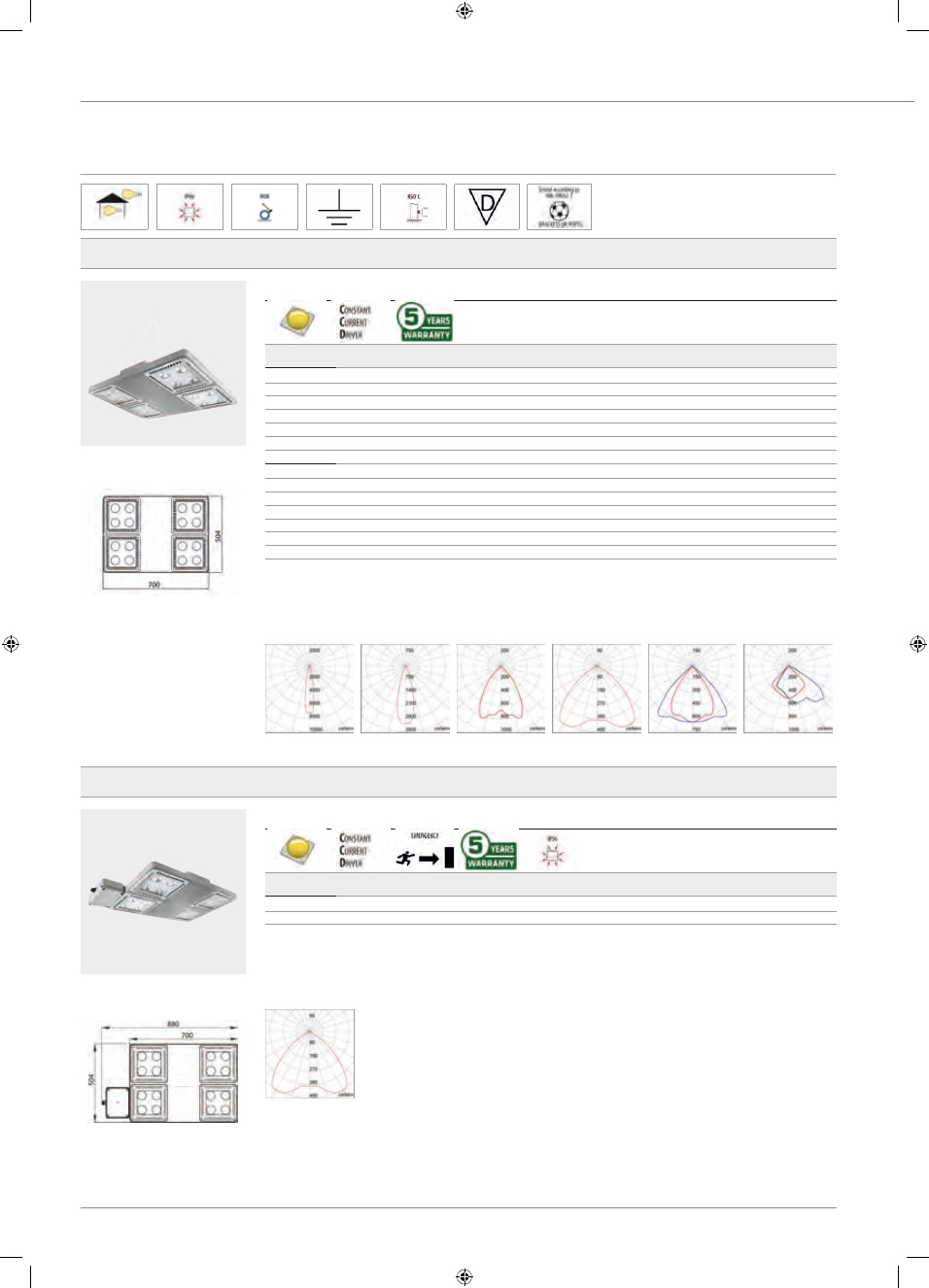

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

SMART[4] 2.0 HB - 4X4L - EQUIVALENT TO 400W ME

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 061 GS

Spotlight 10°

4000 K (CRI 80)

194 W

23630

17010

Grey RAL 7037

13.4

GW S4 062 GS

Restricted 30°

4000 K (CRI 80)

194 W

23630

16480

Grey RAL 7037

13.4

GW S4 063 GS

Medium 60°

4000 K (CRI 80)

194 W

23630

21830

Grey RAL 7037

13.4

GW S4 064 GS

Diffused 100°

4000 K (CRI 80)

194 W

23630

20830

Grey RAL 7037

13.4

GW S4 065 GS

Elliptical

4000 K (CRI 80)

194 W

23630

21120

Grey RAL 7037

13.4

GW S4 066 GS

Asymmetrical

4000 K (CRI 80)

194 W

23630

20300

Grey RAL 7037

13.4

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 061 GD

Spotlight 10°

4000 K (CRI 80)

203 W

23630

17010

Grey RAL 7037

13.4

GW S4 062 GD

Restricted 30°

4000 K (CRI 80)

203 W

23630

16480

Grey RAL 7037

13.4

GW S4 063 GD

Medium 60°

4000 K (CRI 80)

203 W

23630

21830

Grey RAL 7037

13.4

GW S4 064 GD

Diffused 100°

4000 K (CRI 80)

203 W

23630

20830

Grey RAL 7037

13.4

GW S4 065 GD

Elliptical

4000 K (CRI 80)

203 W

23630

21120

Grey RAL 7037

13.4

GW S4 066 GD

Asymmetrical

4000 K (CRI 80)

203 W

23630

20300

Grey RAL 7037

13.4

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 064 GS

EMERGENCY VERSION

WIRED VERSION - IP56 - CLASS I

Code

Optic

System

power

Lumen

output (lm)

Luminous flux

in emerg. [lm]

Colour

temperature

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 064 GE

Diffused 100°

197 W

20830

520

4000 K (CRI 80)

Grey RAL 7037

13.4

NOTE: Ni-Cd accumulators. 3h autonomy with 24h recharge time.
In emergency mode, only one LED unit works.
Version not tested in accordance with DIN 18032-3 for installation in covered sports facilities.
Minimum operating temperaturte +5°C.
Versions with 3000 K (-30K) or 5700 K (-57K) LED available upon request

Photometric distributions

Diffused 100°

GW S4 064 GE

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 061 GR

Spotlight 10°

4000 K (CRI 80)

203 W

23630

17010

Grey RAL 7037

13.4

GW S4 062 GR

Restricted 30°

4000 K (CRI 80)

203 W

23630

16480

Grey RAL 7037

13.4

GW S4 063 GR

Medium 60°

4000 K (CRI 80)

203 W

23630

21830

Grey RAL 7037

13.4

GW S4 064 GR

Diffused 100°

4000 K (CRI 80)

203 W

23630

20830

Grey RAL 7037

13.4

GW S4 065 GR

Elliptical

4000 K (CRI 80)

203 W

23630

21120

Grey RAL 7037

13.4

GW S4 066 GR

Asymmetrical

4000 K (CRI 80)

203 W

23630

20300

Grey RAL 7037

13.4

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 064 GR

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed

to complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 925

Bracket 4X4L / 4X5L

GW L1 928

Kit for ceiling mounting fixing with spring 4x4L / 4x5L

GW L1 925

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

Smart [4] 2.0 LB - HB

For Special versions please contact our GEWISS Sales Organization

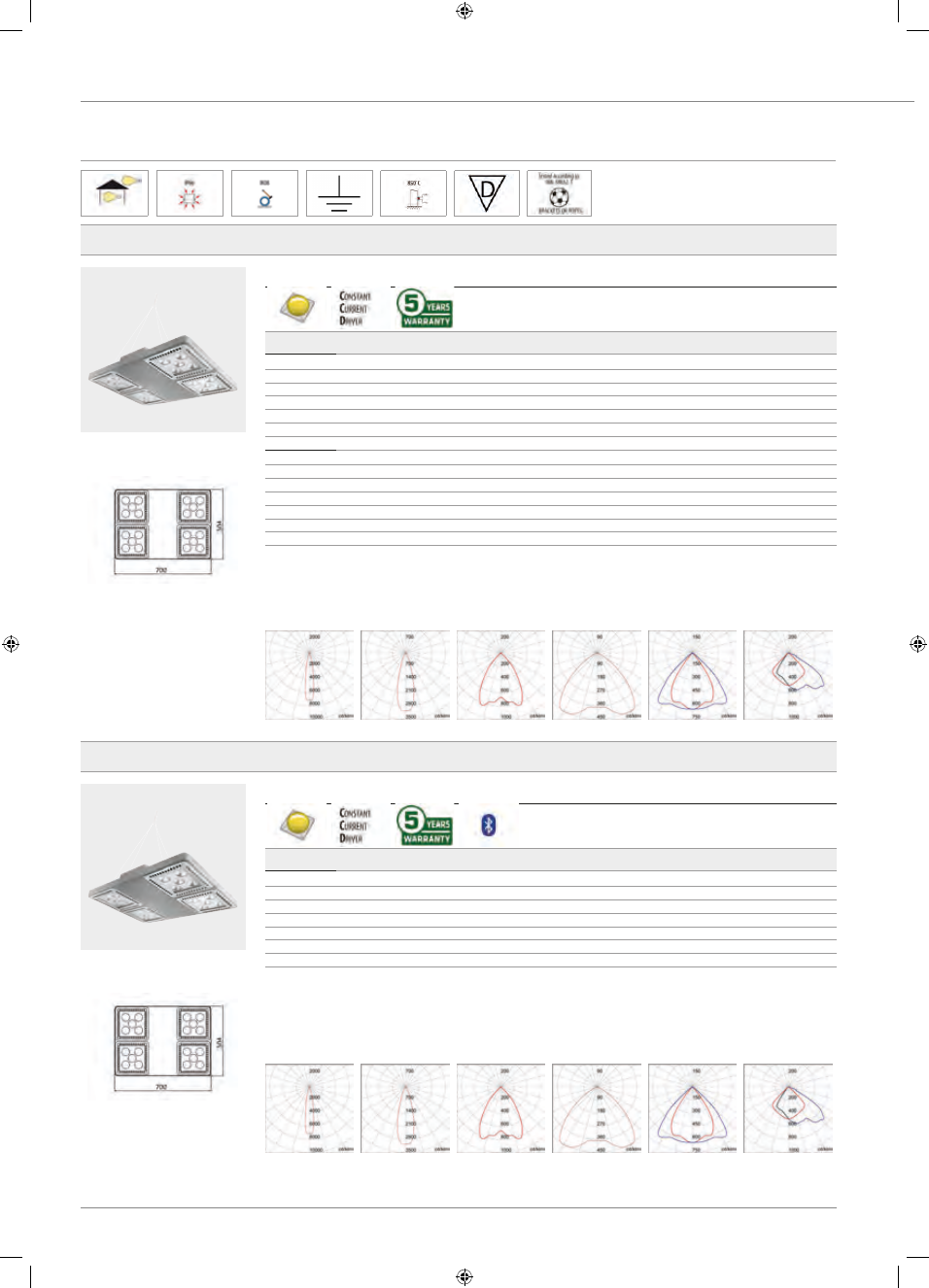

SMART[4] 2.0 HB - 4X5L - EQUIVALENT TO 400W ME

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - Stand alone

GW S4 071 GS

Spotlight 10°

4000 K (CRI 80)

236 W

28480

21270

Grey RAL 7037

15.9

GW S4 072 GS

Restricted 30°

4000 K (CRI 80)

236 W

28480

20600

Grey RAL 7037

15.9

GW S4 073 GS

Medium 60°

4000 K (CRI 80)

236 W

28480

27290

Grey RAL 7037

15.9

GW S4 074 GS

Diffused 100°

4000 K (CRI 80)

236 W

28480

26040

Grey RAL 7037

15.9

GW S4 075 GS

Elliptical

4000 K (CRI 80)

236 W

28480

26400

Grey RAL 7037

15.9

GW S4 076 GS

Asymmetrical

4000 K (CRI 80)

236 W

28480

25380

Grey RAL 7037

15.9

Voltage: 220/240 V - 50/60 Hz - Powered at 1 A - DALI

GW S4 071 GD

Spotlight 10°

4000 K (CRI 80)

245 W

28480

21270

Grey RAL 7037

15.9

GW S4 072 GD

Restricted 30°

4000 K (CRI 80)

245 W

28480

20600

Grey RAL 7037

15.9

GW S4 073 GD

Medium 60°

4000 K (CRI 80)

245 W

28480

27290

Grey RAL 7037

15.9

GW S4 074 GD

Diffused 100°

4000 K (CRI 80)

245 W

28480

26040

Grey RAL 7037

15.9

GW S4 075 GD

Elliptical

4000 K (CRI 80)

245 W

28480

26400

Grey RAL 7037

15.9

GW S4 076 GD

Asymmetrical

4000 K (CRI 80)

245 W

28480

25380

Grey RAL 7037

15.9

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 074 GS

VERSIONS WITH RADIO FREQUENCY MANAGEMENT

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240V - 50/60 Hz - powered at 1 A - Bluetooth

GW S4 071 GR

Spotlight 10°

4000 K (CRI 80)

245 W

28480

21270

Grey RAL 7037

15.9

GW S4 072 GR

Restricted 30°

4000 K (CRI 80)

245 W

28480

20600

Grey RAL 7037

15.9

GW S4 073 GR

Medium 60°

4000 K (CRI 80)

245 W

28480

27290

Grey RAL 7037

15.9

GW S4 074 GR

Diffused 100°

4000 K (CRI 80)

245 W

28480

26040

Grey RAL 7037

15.9

GW S4 075 GR

Elliptical

4000 K (CRI 80)

245 W

28480

26400

Grey RAL 7037

15.9

GW S4 076 GR

Asymmetrical

4000 K (CRI 80)

245 W

28480

25380

Grey RAL 7037

15.9

Photometric distributions

Spotlight 10°

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 074 GR

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.0 LB - HB Range

For Special versions please contact our GEWISS Sales Organization

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pieces needed

to complete the article

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 925

Bracket 4X4L / 4X5L

GW L1 928

Kit for ceiling mounting fixing with spring 4x4L / 4x5L

GW L1 925

SPARE PART

Code

Description

Dimensions

(mm)

Pack

Carton

GW L1 907

Transparent glass 4L-5L

176 x 176

GW L1 907

Gewiss-Depliant-Lighting-html.html

Technical characteristics

Technical solutions

INSTALLATION

Internal / External

DEGREE OF PROTECTION

IP66

COLOUR

Grey RAL 7037

IMPACT RESISTANCE

IK08

MATERIALS

INSULATION CLASS

Body

Technopolymer PA6.6 + GF

LIFETIME

L80B05 @+25°C = 120.000h

Heat sink

Die-cast aluminium EN AB 44300 - copper free

MARKS

Collimator

Secondary lens

PMMA (if envisaged)

Shield

Extra-clear flat glass 4 mm

Project: warehouse with shelving

Reference standard

EN 12464-1:2011

Reference

5.5.2

Activity

warehouse with shelving

Eave on work plane (Em)

150 lx

Uniformity (Uo)

0.4

Room dimension

38 x 25 x 13 m

Product Code

SMART[4] LB 2.0 5L
GWS4033GS

Quantity

Eave on work plane (Em)

180 lx

Uniformity (Uo)

0.7

Total power system

2.6 kW

Lighting > Industrial > Smart [4] 2.0 Range

For technical information contact the Technical Assistance Service or visit gewiss.com

National certification of a voluntary
nature, issued by a third party (IMQ),
affirming the truth and impartiality
of the declarations regarding
environmental, ecological or energy
characteristics obtained thanks to
the high percentage of recyclability of
Smart [4] 2.0 (90.1%).

RESPECT FOR

THE ENVIRONMENT

Smart [4] 2.0 LB

Commercial
information page 67

The entire range of Smart [4] 2.0
products was designed and developed
to make it very easy to install and
retrofit on existing devices in obsolete
systems.

EASY TO INSTALL

Detailed preliminary studies, carried
out with special software, and proven
application experience, guarantee
optimum operating conditions for
which, thanks to the issuing of
ENEC certification, the device has a
maximum operating temperature of
+50°C.

THERMAL SIZING

Gewiss-Depliant-Lighting-html.html

Lighting > Industrial > Smart [4] 2.0 Range

For technical information contact the Technical Assistance Service or visit gewiss.com

Installation

Project: paper making and transformation

Reference standard

EN 12464-1:2011

Reference

5.19.2

Activity

Paper making and transfor-
mation

Eave on work plane (Em)

300 lx

Uniformity (Uo)

0.6

Room dimension

40 x 25 x 8 m

Product Code

SMART[4] LB 2.0 5L
GWS4033GS

Quantity

Eave on work plane (Em)

330 lx

Uniformity (Uo)

0.6

Total power system

3.4 kW

CEILING mounting
Standard kit for Smart[4] LB 2.0
for ceiling mounting

Easy installation/replacement

The point-point replacement is the easiest, most economic and reliable
solution, minimising the cost of the first installation and making it
comparable with a simple relamping

N.B. only one of the existing coupling points will be used

2. Electrical disconnection of device to be replaced

3. Mechanical disassembly of the device to be replaced

1. Device to be replaced

4. Installation of the new Gewiss spring

5. Mechanical connection of Smart [4] LB 2.0

6. Electrical connection of Smart [4] LB 2.0

Gewiss-Depliant-Lighting-html.html

Lighting > Industrial > Smart [4] 2.0 Range

For technical information contact the Technical Assistance Service or visit gewiss.com

Smart[4] 2.0 is equipped with high
quality LED Power which offers a bet-
ter consistency of the light in time.

OPTIMUM COLOUR

PERFORMANCE

Smart [4] 2.0 HB

Commercial
information page 67

Smart [4] 2.0 is supplied with a specif-
ic device with a Gore-Tex® membrane,
designed to prevent condensation and
keep the electronic components inside
in good condition.

INNOVATIVE ANTI-

CONDENSATION DEVICE

Technical characteristics

INSTALLATION

Internal / External

DEGREE OF PROTECTION

IP66

COLOUR

Grey RAL 7037

IMPACT RESISTANCE

IK08

MATERIALS

INSULATION CLASS

Body

Technopolymer PA6.6 + GF

LIFETIME

L80B05 @+25°C = 120.000h

Heat sink

Die-cast aluminium EN AB 44300 - copper free

MARKS

Collimator

Secondary lens

PMMA (if envisaged)

Shield

Extra-clear flat glass 4 mm

Technical solutions

Project: Foundry

Reference standard

EN 12464-1:2011

Reference

5.13.10

Activity

Foundry - Die-casting

Eave on work plane (Em)

300 lx

Uniformity (Uo)

0.6

Room dimension

40 x 25 x 7 m

Product Code

SMART[4] HB 2.0 5+5L
GWS4054GS

Quantity

Eave on work plane (Em)

307 lx

Uniformity (Uo)

0.63

Total power system

3.4 kW

THERMAL SIZING

Gewiss-Depliant-Lighting-html.html

Lighting > Industrial > Smart [4] 2.0 Range

For technical information contact the Technical Assistance Service or visit gewiss.com

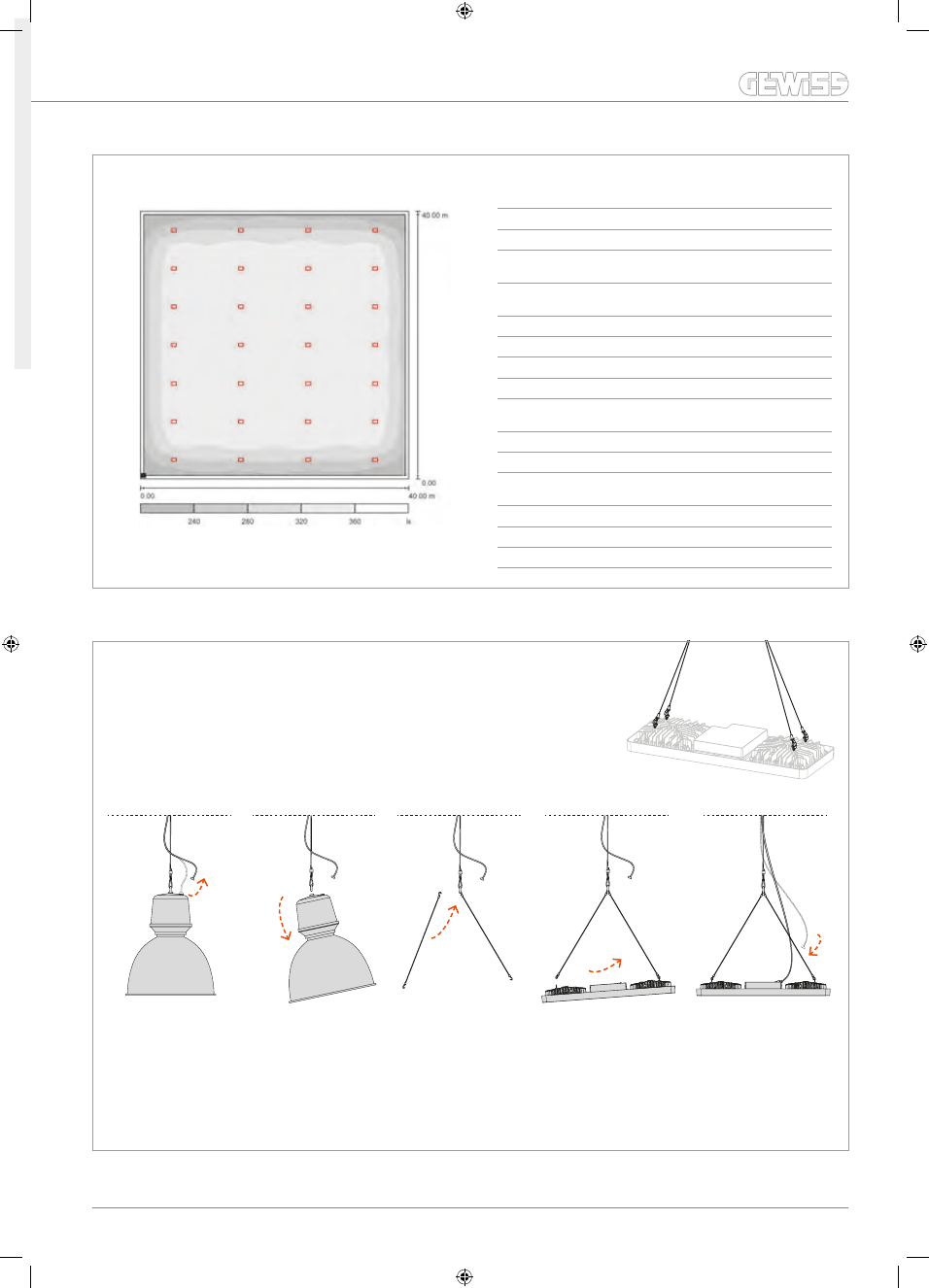

Installation

SUSPENSION fixing
Standard kit for Smart[4] HB 2.0
for suspension fixing

Easy installation/replacement

The point-point replacement is the easiest, most economic and reliable
solution, minimising the cost of the first installation and making it
comparable with a simple relamping

N.B. the accessory is used to position the focuses exactly at the same height as those of the replaced product.

1. Electrical

disconnection
of device to be
replaced

2. Mechanical

disconnection
of device
to be replaced

3. Installation

of Gewiss
suspension
cables

5. Electrical

connection
of Smart [4] 2.0 HB

4. Mechanical

connection
of Smart [4] 2.0 HB

Project: Electrical industry

Reference standard

EN 12464-1:2011

Reference

5.13.10

Activity

Electricity industry
Coil saturation

Eave on work plane (Em)

300 lx

Uniformity (Uo)

0.6

Glare ratio UGR

Room dimension

40 x 40 x 10 m

Product Code

SMART[4] HB 2.0 4X4L
GWS4063GS

Quantity

Eave on work plane (Em)

320 lx

Uniformity (Uo)

0.66

Total power system

5.7 kW

Gewiss-Depliant-Lighting-html.html

Smart [4] 2.1 HLO

Lighting > Low bays > SMART[4] 2.1 HLO Range

For Special versions please contact our GEWISS Sales Organization

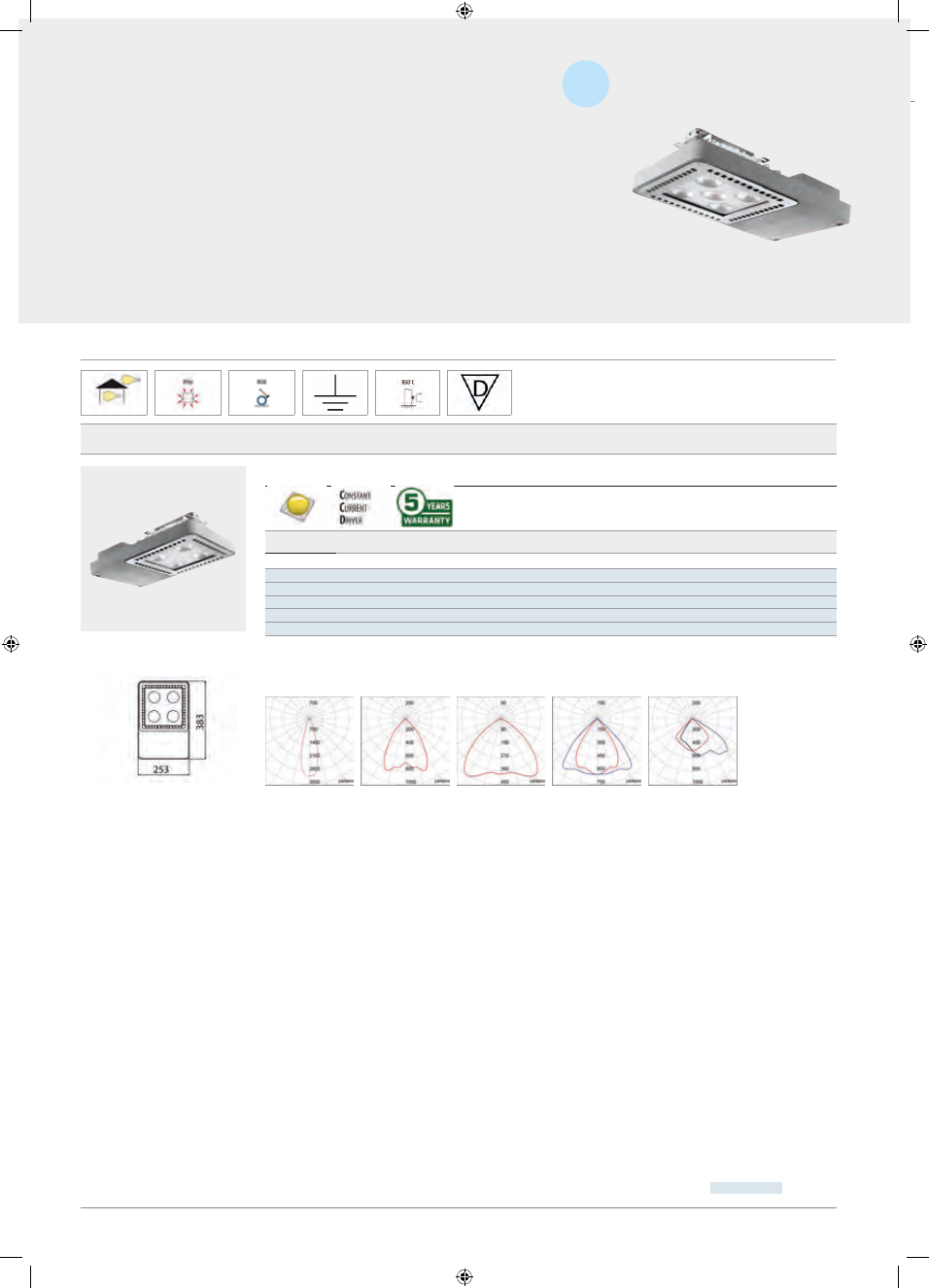

SMART[4] 2.1 HLO - 4L

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1.1 A - Stand alone

GW S4 222 GS

Restricted 30°

4000 K (CRI 80)

58 W

6720

4750

Grey RAL 7037

5.1

GW S4 223 GS

Medium 60°

4000 K (CRI 80)

58 W

6720

6290

Grey RAL 7037

5.1

GW S4 224 GS

Diffused 100°

4000 K (CRI 80)

58 W

6720

6000

Grey RAL 7037

5.1

GW S4 225 GS

Elliptical

4000 K (CRI 80)

58 W

6720

6080

Grey RAL 7037

5.1

GW S4 226 GS

Asymmetrical

4000 K (CRI 80)

58 W

6720

6160

Grey RAL 7037

5.1

ACCESSORIES SUPPLIED: watertight connector, steel plate with two fixing points for suspension and spring with safety system.
NOTE. due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C.
Versions with 3000K (-30K) or 5700K (-57K) LED available on demand. Maximum working temperature: +35°C.

Photometric distributions

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 222 GS

New product

Technical characteristics

page

The Smart[4] range has been expanded with the new Smart[4] 2.1 HLO (High Lumen Output)
versions, which are suitable for applications that require high lighting performance.
New solutions with maximum light emission, maintaining the same design.

Industrial devices

Smart[4] 2.1 HLO

NEW

PRODUCT

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.1 HLO Range

For Special versions please contact our GEWISS Sales Organization

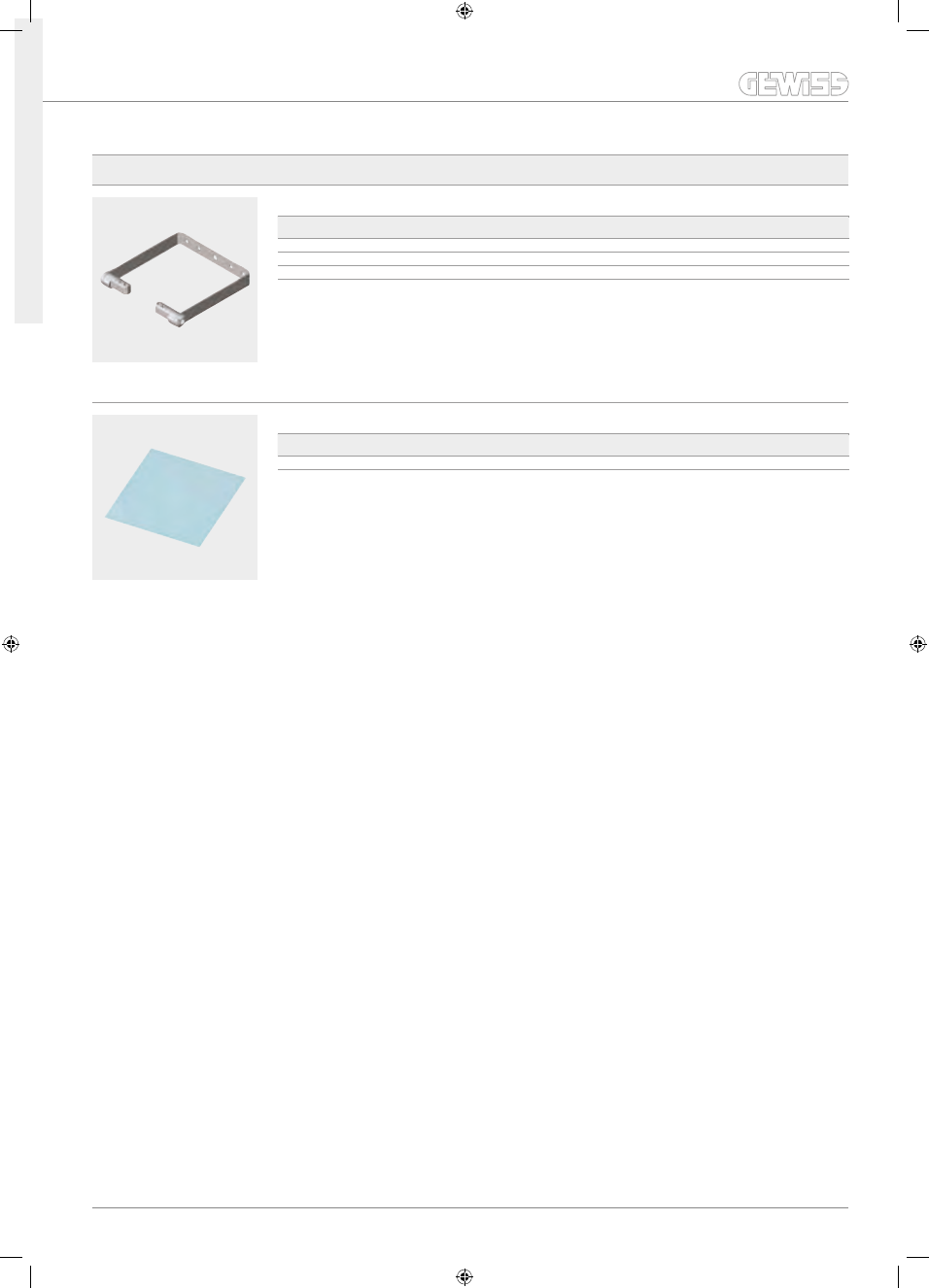

SPARE PART

Code

Description

Pack

Carton

GW L1 907

Transparent glass 4L-5L

GW L1 907

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 923

Bracket 4L / 5L

GW L1 926

Fixing plate to pipe 4L-5L

NOTE: GWL1926 fixing plate for 40\60 mm diameter pipes.

GW L1 923

Gewiss-Depliant-Lighting-html.html

Smart [4] 2.1 HLO

Lighting > Low bays > SMART[4] 2.1 HLO Range

For Special versions please contact our GEWISS Sales Organization

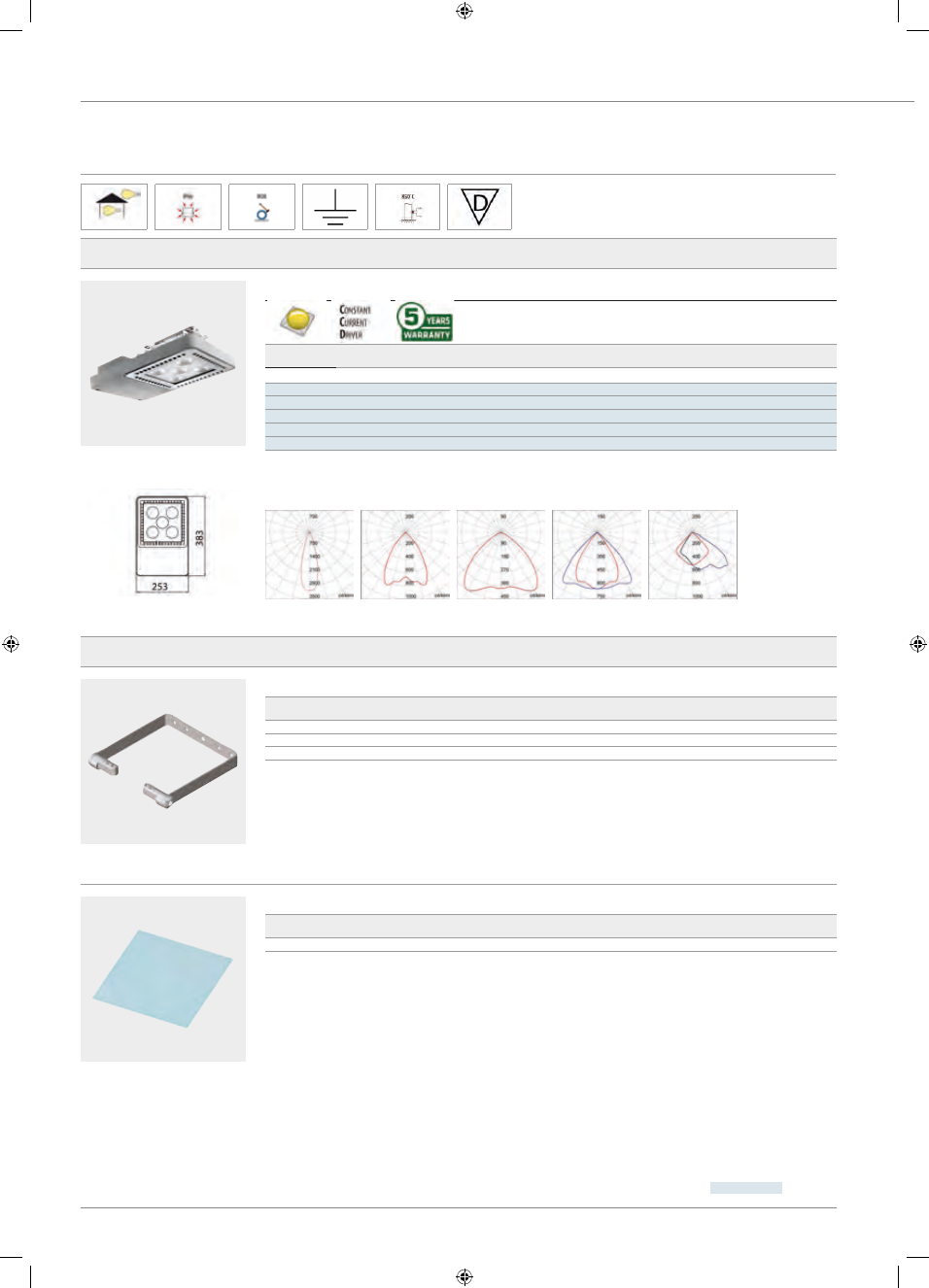

SMART[4] 2.1 HLO - 5L

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1.1 A - Stand alone

GW S4 232 GS

Restricted 30°

4000 K (CRI 80)

71 W

8400

5930

Grey RAL 7037

4.9

GW S4 233 GS

Medium 60°

4000 K (CRI 80)

71 W

8400

7860

Grey RAL 7037

4.9

GW S4 234 GS

Diffused 100°

4000 K (CRI 80)

71 W

8400

7500

Grey RAL 7037

4.9

GW S4 235 GS

Elliptical

4000 K (CRI 80)

71 W

8400

7600

Grey RAL 7037

4.9

GW S4 236 GS

Asymmetrical

4000 K (CRI 80)

71 W

8400

7700

Grey RAL 7037

4.9

ACCESSORIES SUPPLIED: watertight connector, steel plate with two fixing points for suspension and spring with safety system.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C. Versions with 3000K (-30K) or 5700K (-57K) LED
available on demand. Maximum working temperature: +35°C.

Photometric distributions

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 232 GS

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 923

Bracket 4L / 5L

GW L1 926

Fixing plate to pipe 4L-5L

NOTE: GWL1926 fixing plate for 40\60 mm diameter pipes.

GW L1 923

SPARE PART

Code

Description

Pack

Carton

GW L1 907

Transparent glass 4L-5L

GW L1 907

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.1 HLO Range

For Special versions please contact our GEWISS Sales Organization

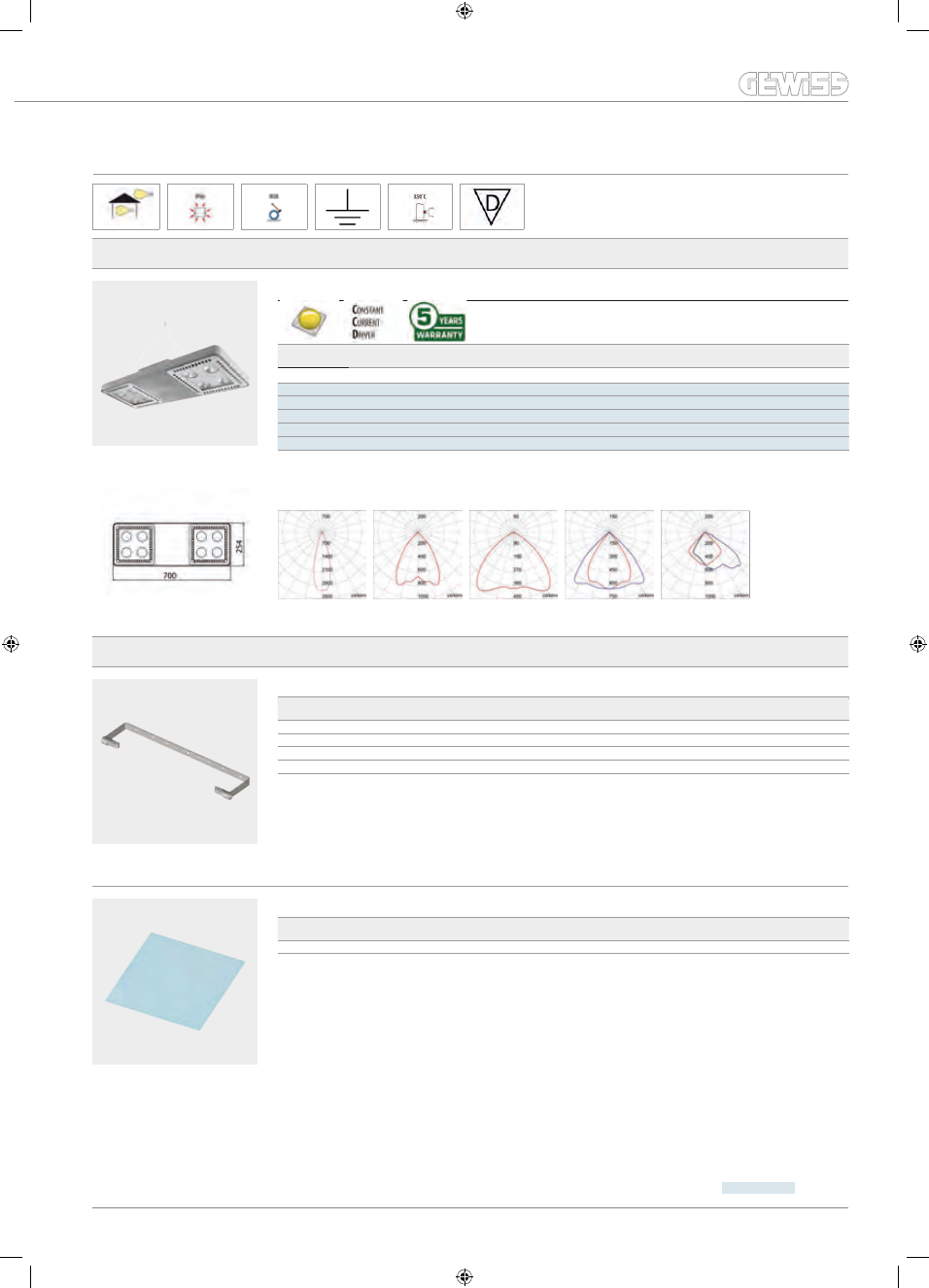

SMART[4] 2.1 HLO - 4+4L

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1.1 A - Stand alone

GW S4 242 GS

Restricted 30°

4000 K (CRI 80)

116 W

13440

9490

Grey RAL 7037

7.4

GW S4 243 GS

Medium 60°

4000 K (CRI 80)

116 W

13440

12580

Grey RAL 7037

7.4

GW S4 244 GS

Diffused 100°

4000 K (CRI 80)

116 W

13440

12000

Grey RAL 7037

7.4

GW S4 245 GS

Elliptical

4000 K (CRI 80)

116 W

13440

12160

Grey RAL 7037

7.4

GW S4 246 GS

Asymmetrical

4000 K (CRI 80)

116 W

13440

12310

Grey RAL 7037

7.4

ACCESSORIES SUPPLIED: watertight connector, Watertight connector, four eye bolts and two fixed retaining wires for suspension.
NOTE: due to the continuous changes with the LED technologies, the technical data can undertake variations. Nominal flux referred to Tj=85°C. Versions with 3000K (-30K) or 5700K (-57K) LED
available on demand. Maximum working temperature: +35°C.

Photometric distributions

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 242 GS

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 924

Bracket 4+4L / 5+5L

GW L1 930

Fixing plate kit to pipe 4L-5L

GW L1 927

Wall/ceiling-mounting fixing kit 4+4L-5+5L

NOTE: GWL1930 fixing plates kit for 40\60 mm diameter pipes.

GW L1 924

SPARE PART

Code

Description

Pack

Carton

GW L1 907

Transparent glass 4L-5L

GW L1 907

New product

Gewiss-Depliant-Lighting-html.html

Smart [4] 2.1 HLO

Lighting > Low bays > SMART[4] 2.1 HLO Range

For Special versions please contact our GEWISS Sales Organization

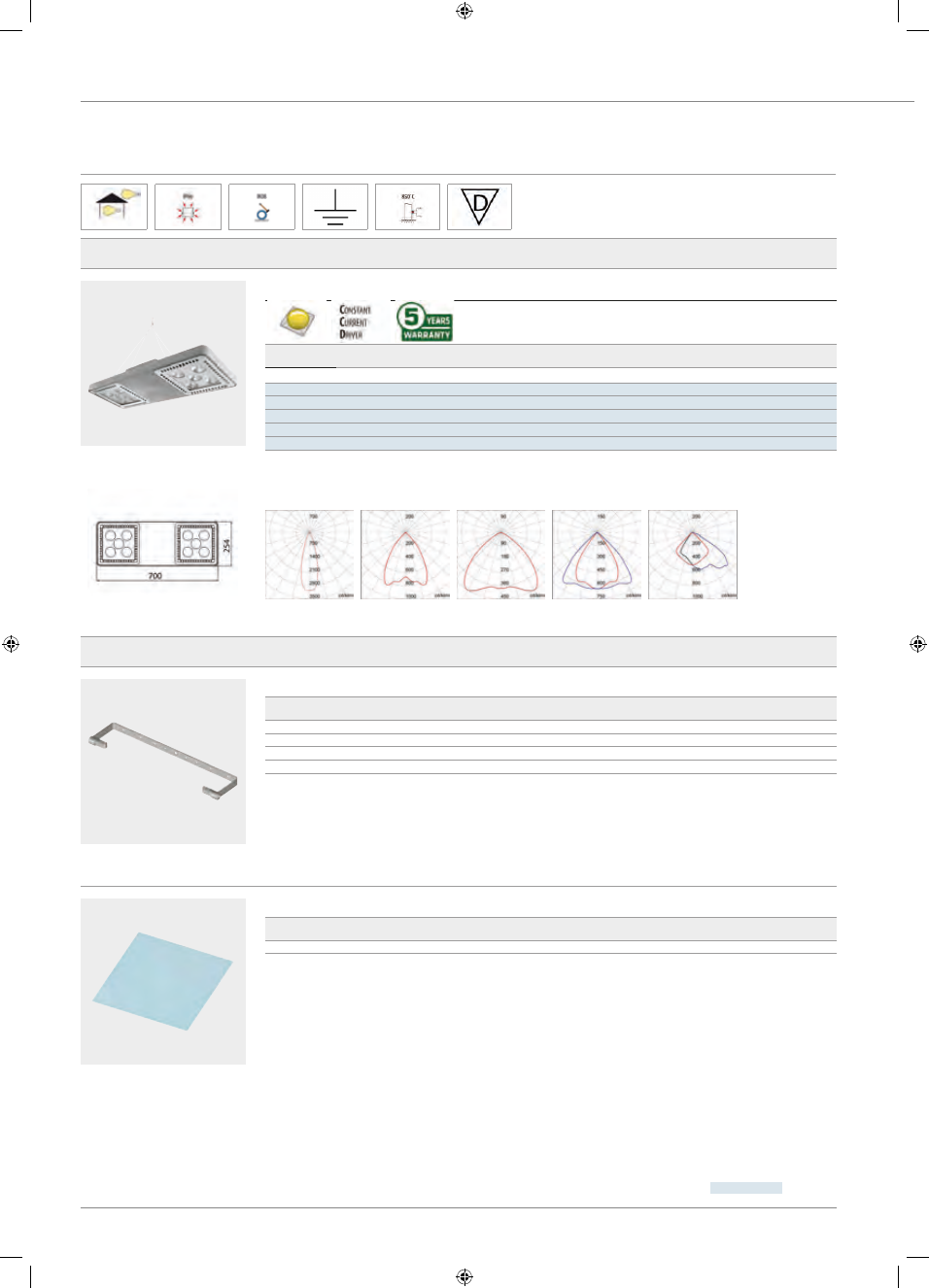

SMART[4] 2.1 HLO - 5+5L

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1.1 A - Stand alone

GW S4 252 GS

Restricted 30°

4000 K (CRI 80)

142 W

16800

11870

Grey RAL 7037

8.5

GW S4 253 GS

Medium 60°

4000 K (CRI 80)

142 W

16800

15720

Grey RAL 7037

8.5

GW S4 254 GS

Diffused 100°

4000 K (CRI 80)

142 W

16800

15000

Grey RAL 7037

8.5

GW S4 255 GS

Elliptical

4000 K (CRI 80)

142 W

16800

15210

Grey RAL 7037

8.5

GW S4 256 GS

Asymmetrical

4000 K (CRI 80)

142 W

16800

15390

Grey RAL 7037

8.5

Photometric distributions

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 252 GS

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 924

Bracket 4+4L / 5+5L

GW L1 930

Fixing plate kit to pipe 4L-5L

GW L1 927

Wall/ceiling-mounting fixing kit 4+4L-5+5L

NOTE: GWL1930 fixing plates kit for 40\60 mm diameter pipes.

GW L1 924

SPARE PART

Code

Description

Pack

Carton

GW L1 907

Transparent glass 4L-5L

GW L1 907

New product

Gewiss-Depliant-Lighting-html.html

Lighting > Low bays > SMART[4] 2.1 HLO Range

For Special versions please contact our GEWISS Sales Organization

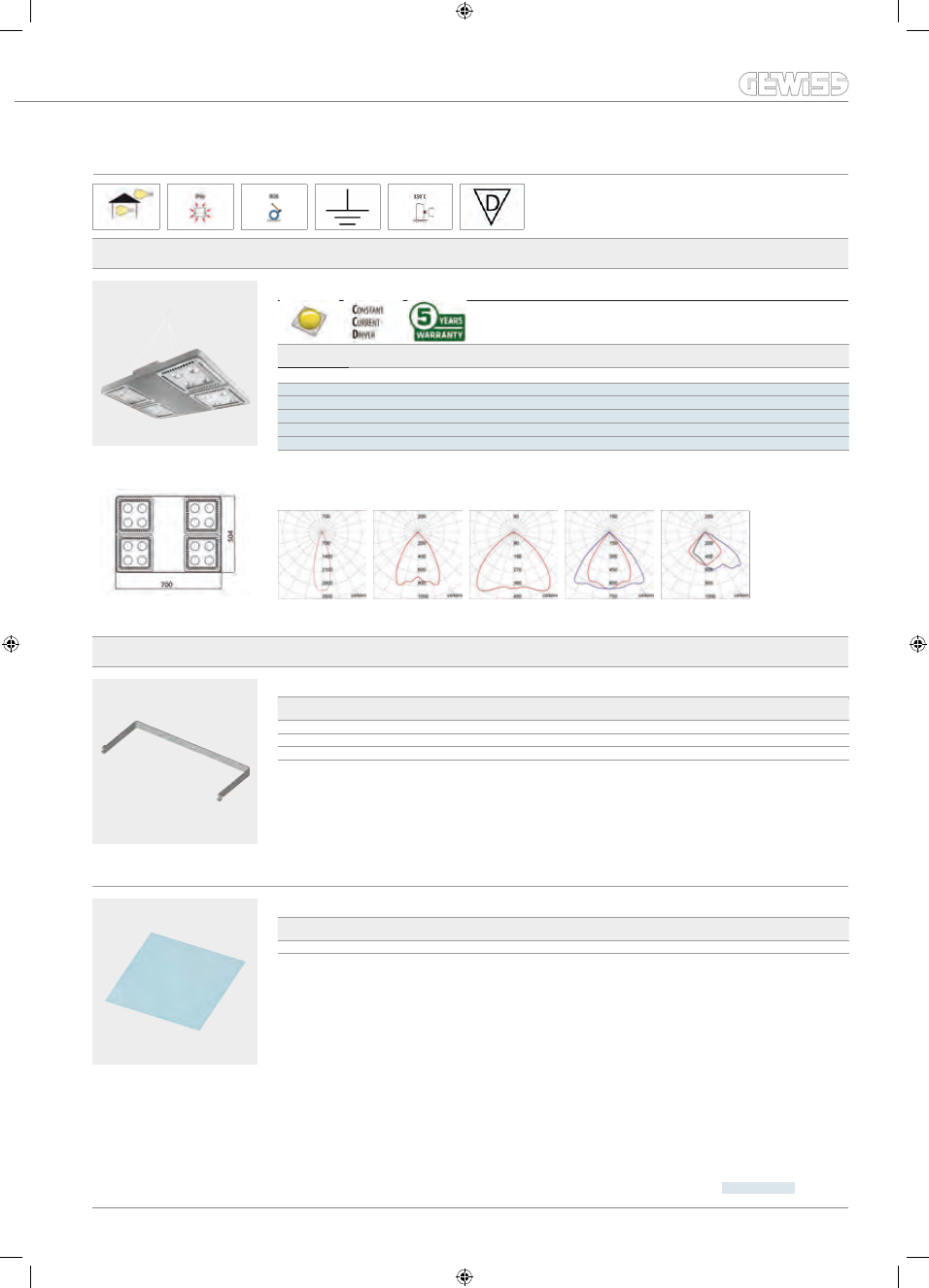

SMART[4] 2.1 HLO - 4X4L

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1.1 A - Stand alone

GW S4 262 GS

Restricted 30°

4000 K (CRI 80)

232 W

26880

18990

Grey RAL 7037

13.4

GW S4 263 GS

Medium 60°

4000 K (CRI 80)

232 W

26880

25150

Grey RAL 7037

13.4

GW S4 264 GS

Diffused 100°

4000 K (CRI 80)

232 W

26880

24000

Grey RAL 7037

13.4

GW S4 265 GS

Elliptical

4000 K (CRI 80)

232 W

26880

24330

Grey RAL 7037

13.4

GW S4 266 GS

Asymmetrical

4000 K (CRI 80)

232 W

26880

24620

Grey RAL 7037

13.4

Photometric distributions

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 262 GS

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 925

Bracket 4X4L / 4X5L

GW L1 928

Kit for ceiling mounting fixing with spring 4x4L / 4x5L

GW L1 925

SPARE PART

Code

Description

Pack

Carton

GW L1 907

Transparent glass 4L-5L

GW L1 907

New product

Gewiss-Depliant-Lighting-html.html

Smart [4] 2.1 HLO

Lighting > Low bays > SMART[4] 2.1 HLO Range

For Special versions please contact our GEWISS Sales Organization

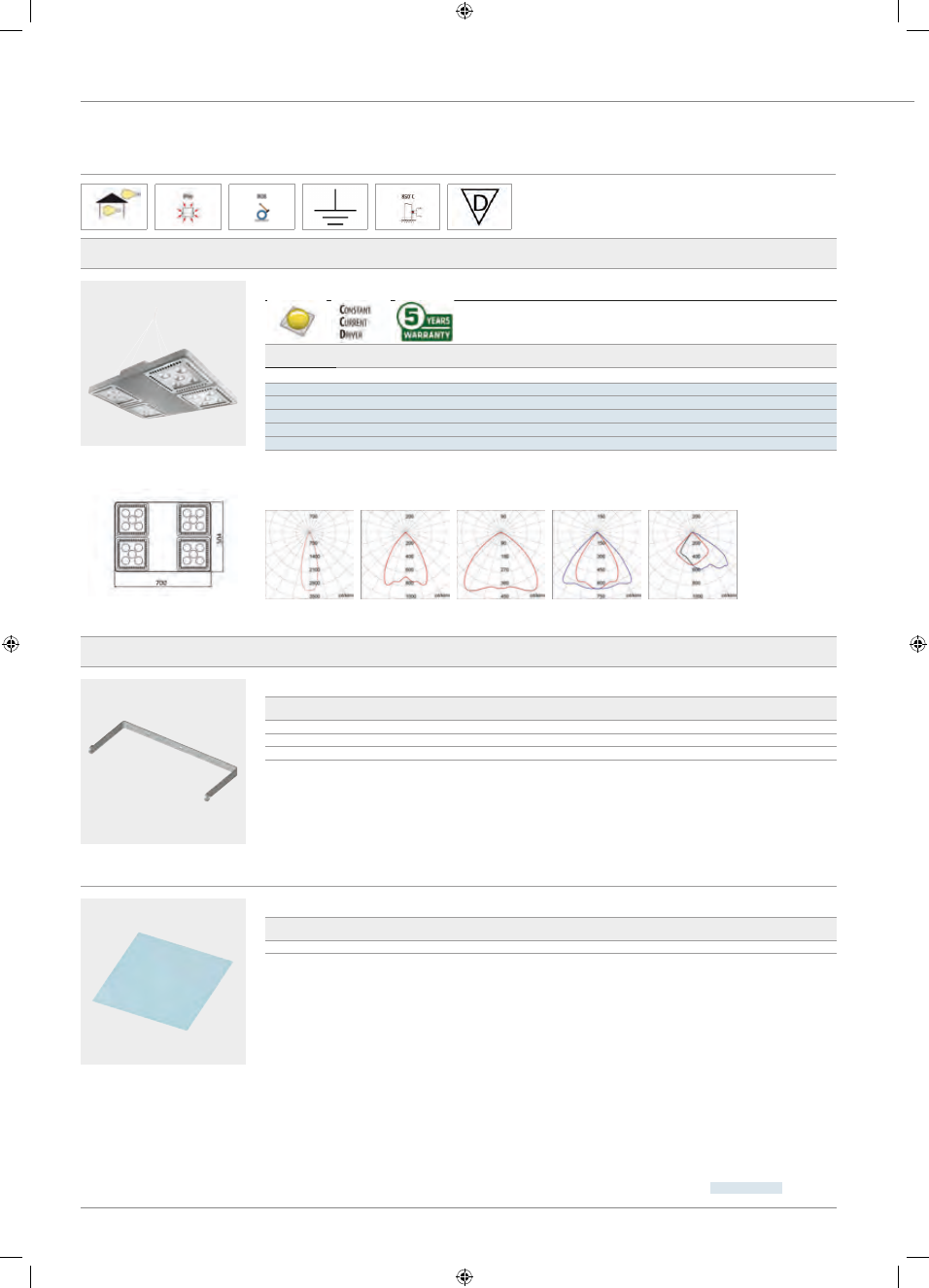

SMART[4] 2.1 HLO - 4X5L

STANDARD VERSIONS

WIRED VERSIONS - IP66 - CLASS I

Code

Optic

Colour

temperature

System

power

Nominal

flux (lm)

Lumen

output (lm)

Colour

Weight

(kg)

Pack

Carton

Voltage: 220/240 V - 50/60 Hz - Powered at 1.1 A - Stand alone

GW S4 272 GS

Restricted 30°

4000 K (CRI 80)

284 W

33600

23730

Grey RAL 7037

15.9

GW S4 273 GS

Medium 60°

4000 K (CRI 80)

284 W

33600

31440

Grey RAL 7037

15.9

GW S4 274 GS

Diffused 100°

4000 K (CRI 80)

284 W

33600

30000

Grey RAL 7037

15.9

GW S4 275 GS

Elliptical

4000 K (CRI 80)

284 W

33600

30410

Grey RAL 7037

15.9

GW S4 276 GS

Asymmetrical

4000 K (CRI 80)

284 W

33600

30780

Grey RAL 7037

15.9

Photometric distributions

Restricted 30°

Medium 60°

Diffused 100°

Elliptical

Asymmetrical

GW S4 272 GS

COMPLEMENTARY ITEMS

COMPLEMENTS FOR INSTALLATION

Code

Description

Pack

Carton

GW L1 901

Kit of adjustable suspension ropes with safety clamp

GW L1 925

Bracket 4X4L / 4X5L

GW L1 928

Kit for ceiling mounting fixing with spring 4x4L / 4x5L

GW L1 925

SPARE PART

Code

Description

Pack

Carton

GW L1 907

Transparent glass 4L-5L

GW L1 907

New product

Gewiss-Depliant-Lighting-html.html

For special versions, contact the GEWISS sales department.

Lighting > Low bays > SMART[4] 2.1 HLO Range

Smart[4] 2.1 HLO guarantees an operat-
ing lifetime of at least 90,000h (L80B05
@+25°C) in standard conditions of use.

The Smart[4] 2.1 HLO range was de-
signed and developed to guarantee
easy installation and permit the indi-
vidual replacement of existing devices
in obsolete systems.

LIFETIME

EASY TO INSTALL

Smart[4] 2.1 HLO

Commercial
information page 88

Smart [4]2.1 HLO is supplied with a
specific device with a Gore-Tex® mem-
brane, designed to prevent condensa-
tion and keep the electronic compo-
nents inside in good condition.

ANTI-CONDENSATION DEVICE

Technical characteristics

INSTALLATION

Indoors / outdoors

DEGREE OF PROTECTION

IP66

COLOUR

Grey RAL 7037

IMPACT RESISTANCE

IK08

MATERIALS

INSULATION CLASS

Body

Technopolymer PA6.6 + FV

LIFETIME

L80B05 @+25°C =90,000h

Heat sink

EN AB 44300 “copper free” die-cast aluminium

MARKINGS

Collimator / high bay

Secondary lens

PMMA (if applicable)

Shield

4mm extra clear flat glass

Standard

EN 12464-1:2011

Reference

5.11.1

Task or job carried out

Cable and wire manufacturing

Average lighting on
the work surface (Em)

300 lx

Uniformity (Uo)

0.6

Room dimensions

40x25x12

Product code

Smart [4] 2.1 HLO GWS4253GS

Quantity

Average lighting at
the work surface (Em)

309

Uniformity (Uo)

0.6

Installed electric power

3.9 KW

Installation solutions

Project: Cable and wire manufacturing

L80B05 @+25°C =90.000h

Gewiss-Depliant-Lighting-html.html

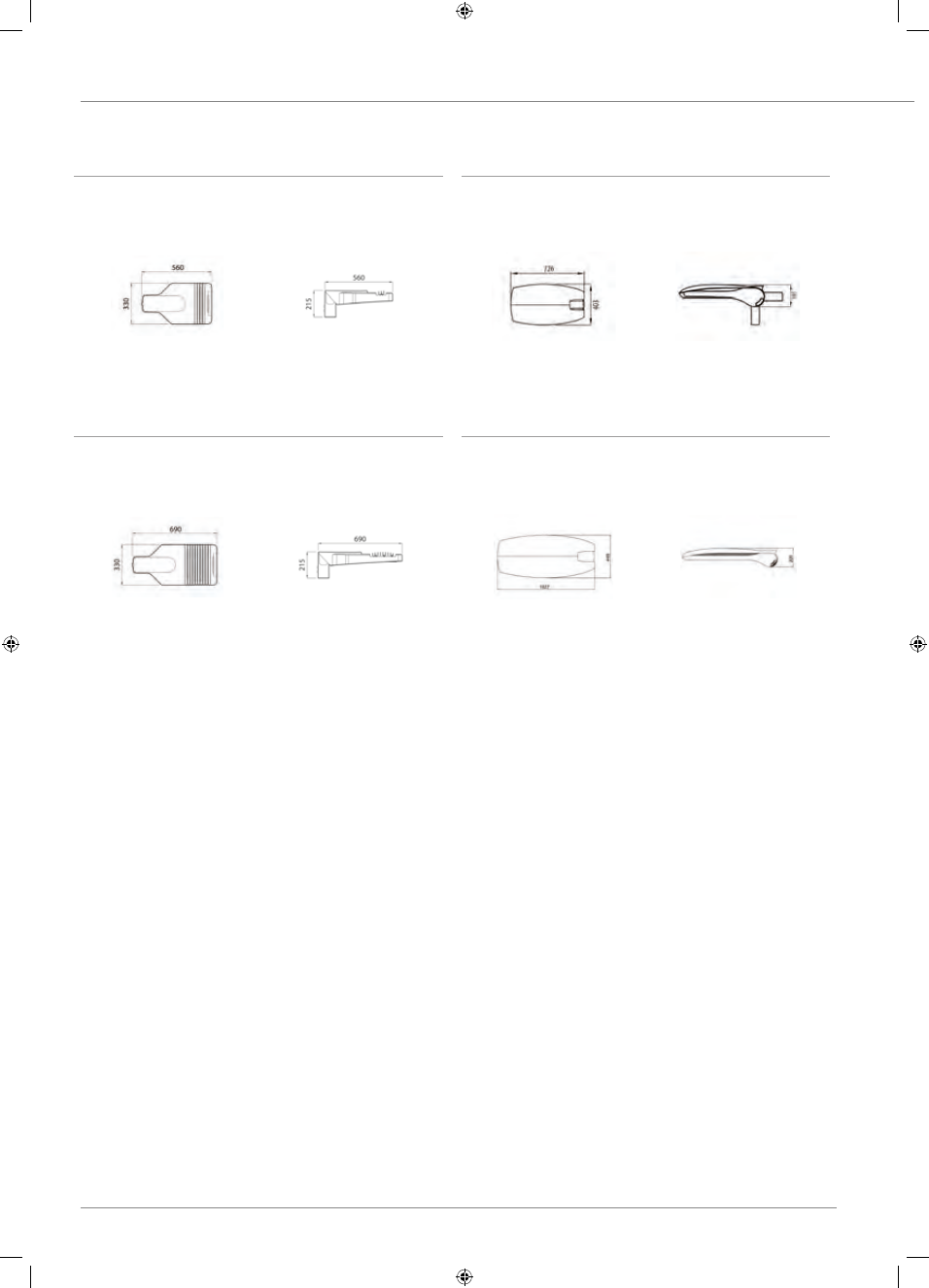

Dimensions

Lighting > Dimensions

ROAD [5] (MINI)

ROAD [5] (MEDIUM)

STREET [O

]

STREET [O

] MAXI

Gewiss-Depliant-Lighting-html.html

Lighting > Dimensions

SMART[4] 2.0 FL - 2L

SMART[4] 2.0 FL - 2+2L

SMART[4] 2.0 FL - 5L

SMART[4] 2.0 FL - 5+5L

SMART[4] 2.0 FL - 4X5L

SMART[PRO] 6M - 1000W MT

SMART[PRO] 9M - 2000W MT

689

460

822
680

929

700

822

680

158

175

Gewiss-Depliant-Lighting-html.html

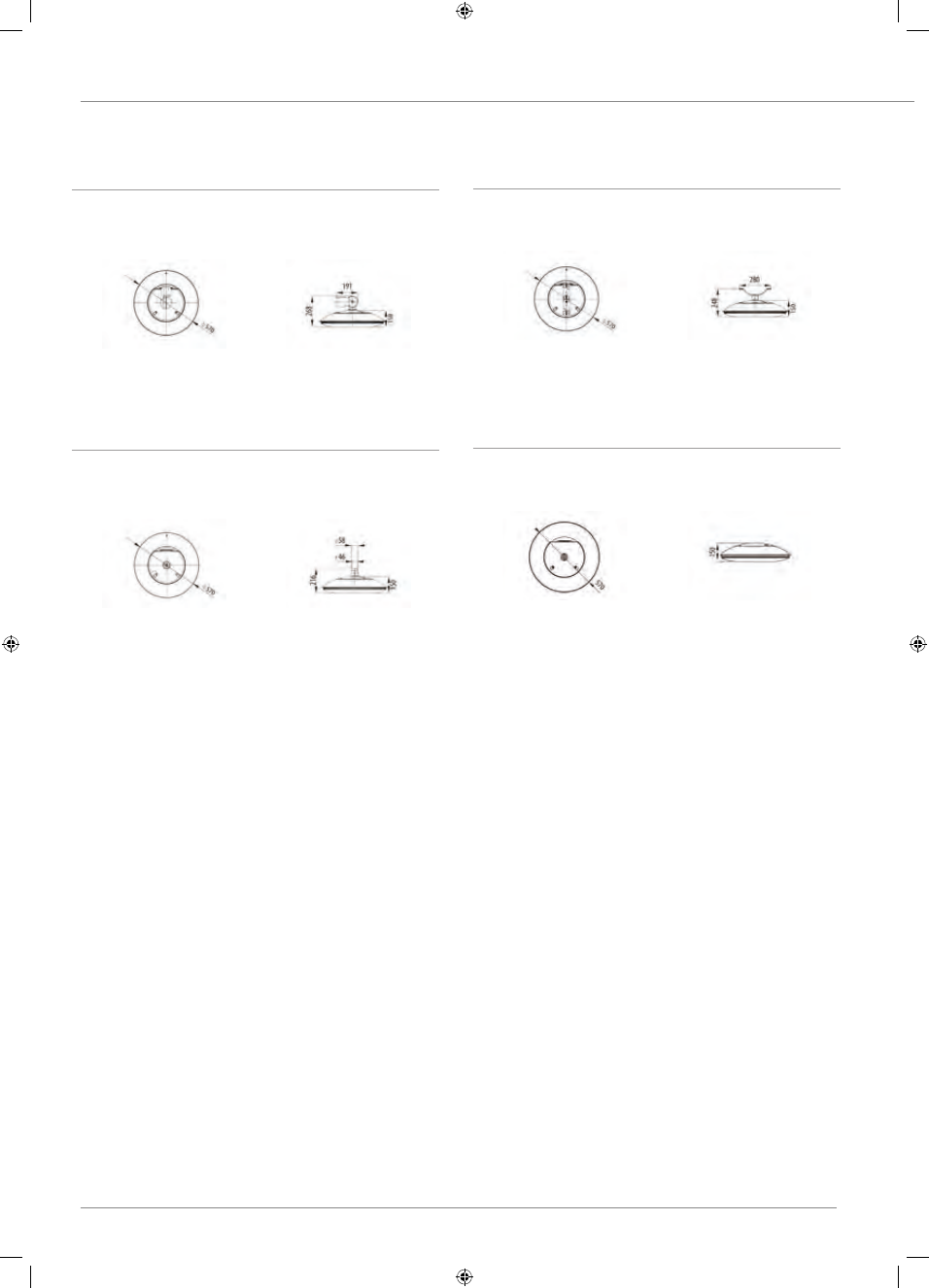

Dimensions

Lighting > Dimensions

URBAN [O

]

(SIDE COUPLING SYSTEMS FOR COMMERCIAL SIDE BRACKETS)

URBAN [O

]

(SYSTEMS FOR COMMERCIAL SIDE BRACKETS WITH TOP CONNECTION)

URBAN [O

]

(SYSTEMS FOR SUSPENSIONS)

URBAN [O

]

(SYSTEMS FOR GEWISS SIDE BRACKETS)

Gewiss-Depliant-Lighting-html.html

Lighting > Dimensions

800/1200/1600

110

7 1 7

5 6 4

5 3 7

9 2 2

6 9 1

4 8 7

2 5 3

383

2 5 3

383

800/1200/1600

110

7 1 7

5 6 4

5 3 7

9 2 2

6 9 1

4 8 7

2 5 3

383

2 5 3

383

SMART[3]

SMART[4]

2.0 LB - 2+2L

SMART[4]

2.0 LB - 4L EMERGENCY VERSION

SMART[4]

2.0 LB - 2L

SMART[4]

2.0 LB - 2+2L EMERGENCY VERSION

SMART[4]

2.0 LB - 5L

SMART[4]

2.0 LB - 2L EMERGENCY VERSION

SMART[4]

2.0 LB - 4L

SMART[4]

2.0 LB - 4+4L

7 0 0

Gewiss-Depliant-Lighting-html.html

100

Dimensions

Lighting > Dimensions

8 7 9

8 5 2

7 0 0

8 8 0

7 0 0

8 7 9

8 5 2

7 0 0

8 8 0

7 0 0

SMART[4]

2.0 LB - 4+4L EMERGENCY VERSION

SMART[4]

2.0 LB - 4X4L EMERGENCY VERSION

SMART[4]

2.0 LB - 5+5L

SMART[4]

2.0 LB - 4X5L

SMART[4]

2.0 LB - 4X4L

7 0 0

Gewiss-Depliant-Lighting-html.html

101

Lighting > Quick Reference

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

GW 87 817

GW 87 818

GW 87 821

GW 87 822

GW 87 823

GW 87 826

GW 87 827

GW 87 828

GW 87 831

GW 87 832

GW 87 833

GW 87 836

GW 87 837

GW 87 838

GW 87 881

GW 87 882

GW 87 883

GW 87 884

GW 87 885

GW 87 891

GW 87 892

GW 87 893

GW 87 894

GW 87 895

GW 87 901

GW 87 902

GW 87 903

GW 87 906

GW 87 907

GW 87 908

GW 87 911

GW 87 912

GW 87 913

GW 87 916

GW 87 917

GW 87 918

GW 87 921

GW 87 922

GW 87 923

GW 87 926

GW 87 927

GW 87 928

GW 87 931

GW 87 932

GW 87 933

GW 87 936

GW 87 937

GW 87 938

GW 87 981

GW 87 982

GW 87 983

GW 87 984

GW 87 985

GW 87 986

GW 87 987

GW 87 987 B

GW 87 991

GW 87 992

GW 87 993

GW 87 994

GW 87 995

GW 87 606

GW 87 607

GW 87 608

GW 87 611

GW 87 612

GW 87 613

GW 87 616

GW 87 617

GW 87 618

GW 87 621

GW 87 622

GW 87 623

GW 87 626

GW 87 627

GW 87 628

GW 87 631

GW 87 632

GW 87 633

GW 87 636

GW 87 637

GW 87 638

GW 87 691

GW 87 691 B

GW 87 692

GW 87 692 B

GW 87 696

GW 87 697

GW 87 701

GW 87 702

GW 87 703

GW 87 706

GW 87 707

GW 87 708

GW 87 711

GW 87 712

GW 87 713

GW 87 716

GW 87 717

GW 87 718

GW 87 721

GW 87 722

GW 87 723

GW 87 726

GW 87 727

GW 87 728

GW 87 731

GW 87 732

GW 87 733

GW 87 736

GW 87 737

GW 87 738

GW 87 801

GW 87 802

GW 87 803

GW 87 806

GW 87 807

GW 87 808

GW 87 811

GW 87 812

GW 87 813

GW 87 816

GW84

GW 84 096

GW 84 097

GW85

GW 85 691

195

GW 85 691

195

GW 85 692

120

GW 85 692

120

GW86

GW 86 167

GW 86 522

1/4

200

GW 86 523

1/4

GW 86 524

110

GW 86 526

GW 86 527

GW 86 528

GW 86 529

GW 86 530

GW 86 531

GW 86 533

GW87

GW 87 410

GW 87 411

GW 87 412

GW 87 413

GW 87 414

GW 87 430

GW 87 431

GW 87 432

GW 87 433

GW 87 434

GW 87 450

GW 87 451

GW 87 452

GW 87 453

GW 87 454

GW 87 530

GW 87 531

GW 87 532

GW 87 533

GW 87 534

GW 87 571

GW 87 581

GW 87 582

GW 87 586

GW 87 587

GW 87 591

GW 87 592

GW 87 593

GW 87 596

GW 87 597

GW 87 598

GW 87 601

GW 87 602

GW 87 603

Gewiss-Depliant-Lighting-html.html

Quick Reference

102

Lighting > Quick Reference

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

GWR5

GW R5 111

GW R5 111 B

GW R5 111 M

GW R5 112

GW R5 112 B

GW R5 112 M

GW R5 113

GW R5 113 B

GW R5 113 M

GW R5 114

GW R5 114 B

GW R5 114 M

GW R5 115

GW R5 115 B

GW R5 115 M

GW R5 116

GW R5 116 B

GW R5 116 M

GW R5 131

GW R5 171

GW R5 171 B

GW R5 171 M

GW R5 172

GW R5 172 B

GW R5 172 M

GW R5 173

GW R5 173 B

GW R5 173 M

GW R5 174

GW R5 174 B

GW R5 174 M

GW R5 175

GW R5 175 B

GW R5 175 M

GW R5 176

GW R5 176 B

GW R5 176 M

GW R5 211

GW R5 211 B

GW R5 211 M

GW R5 212

GW R5 212 B

GW R5 212 M

GW R5 213

GW R5 213 B

GW R5 213 M

GW R5 214

GW R5 214 M

GW R5 215

GW R5 215 B

GW R5 215 M

GW R5 216

GW R5 216 B

GW R5 216 M

GW R5 231

GW R5 271

GW R5 271 B

GW R5 271 M

GW R5 272

GW R5 272 B

GW L1 928

GW L1 929

100

GW L1 929

100

GW L1 930

GW L1 933

GW L1 934

GWP1

GW P1 161 HE

GW P1 161 HL

GW P1 162 HE

GW P1 162 HL

GW P1 163 HE

GW P1 163 HL

GW P1 164 HE

GW P1 164 HL

GW P1 165 HE

GW P1 165 HL

GW P1 191 HE

GW P1 191 HL

GW P1 192 HE

GW P1 192 HL

GW P1 193 HE

GW P1 193 HL

GW P1 194 HE

GW P1 194 HL

GW P1 195 HE

GW P1 195 HL

GW P1 261 HE

GW P1 261 HL

GW P1 262 HE

GW P1 262 HL

GW P1 263 HE

GW P1 263 HL

GW P1 264 HE

GW P1 264 HL

GW P1 265 HE

GW P1 265 HL

GW P1 291 HE

GW P1 291 HL

GW P1 292 HE

GW P1 292 HL

GW P1 293 HE

GW P1 293 HL

GW P1 294 HE

GW P1 294 HL

GW P1 295 HE

GW P1 295 HL

GW P1 901 HE

GW P1 902 HE

GW P1 903 HE

GW P1 911 HL

GW P1 912 HL

GW P1 913 HL

GW 87 996

GW 87 997

GWL1

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 901

312

GW L1 906

285

GW L1 906

285

GW L1 906

285

GW L1 906

285

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 907

150

GW L1 908

GW L1 921

GW L1 922

GW L1 923

112

GW L1 923

112

GW L1 923

112

GW L1 923

112

GW L1 924

GW L1 925

GW L1 926

192

GW L1 926

192

GW L1 926

192

GW L1 926

192

GW L1 927

112

GW L1 927

112

GW L1 927

112

GW L1 927

112

Gewiss-Depliant-Lighting-html.html

103

Lighting > Quick Reference

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

GW S3 258 T

1/90

GW S3 258 TD

1/90

GWS4

GW S4 001 GD

GW S4 001 GR

GW S4 001 GS

GW S4 002 GD

GW S4 002 GR

GW S4 002 GS

GW S4 003 GD

GW S4 003 GR

GW S4 003 GS

GW S4 004 GD

GW S4 004 GE

GW S4 004 GR

GW S4 004 GS

GW S4 005 GD

GW S4 005 GR

GW S4 005 GS

GW S4 006 GD

GW S4 006 GR

GW S4 006 GS

GW S4 011 GD

GW S4 011 GR

GW S4 011 GS

GW S4 012 GD

GW S4 012 GR

GW S4 012 GS

GW S4 013 GD

GW S4 013 GR

GW S4 013 GS

GW S4 014 GD

GW S4 014 GE

GW S4 014 GR

GW S4 014 GS

GW S4 015 GD

GW S4 015 GR

GW S4 015 GS

GW S4 016 GD

GW S4 016 GR

GW S4 016 GS

GW S4 021 GD

GW S4 021 GR

GW S4 021 GS

GW S4 022 GD

GW S4 022 GR

GW S4 022 GS

GW S4 023 GD

GW S4 023 GR

GW S4 023 GS

GW S4 024 GD

GW S4 024 GE

GW S4 024 GR

GW S4 024 GS

GW S4 025 GD

GW S4 025 GR

GW S4 025 GS

GW S4 026 GD

GW S4 026 GR

GW S4 026 GS

GW R5 714 B

GW R5 714 M

GW R5 715

GW R5 715 B

GW R5 715 M

GW R5 716

GW R5 716 B

GW R5 716 M

GW R5 731

GW R5 771

GW R5 771 B

GW R5 771 M

GW R5 772

GW R5 772 B

GW R5 772 M

GW R5 773

GW R5 773 B

GW R5 773 M

GW R5 774

GW R5 774 B

GW R5 774 M

GW R5 775

GW R5 775 B

GW R5 775 M

GW R5 776

GW R5 776 B

GW R5 776 M

GW R5 871 M

GW R5 872 M

GWS3

GW S3 118 P

1/90

GW S3 118 PD

1/90

GW S3 118 T

1/90

GW S3 118 TD

1/90

GW S3 136 P

1/90

GW S3 136 PD

1/90

GW S3 136 PL

1/90

GW S3 136 T

1/90

GW S3 136 TD

1/90

GW S3 158 P

1/90

GW S3 158 PD

1/90

GW S3 158 PL

1/90

GW S3 158 T

1/90

GW S3 158 TD

1/90

GW S3 191

1/10

480

GW S3 192

1/10 1100

GW S3 193

1/10

500

GW S3 195

GW S3 218 P

1/90

GW S3 218 PD

1/90

GW S3 218 T

1/90

GW S3 218 TD

1/90

GW S3 236 P

1/90

GW S3 236 PD

1/90

GW S3 236 PL

1/90

GW S3 236 T

1/90

GW S3 236 TD

1/90

GW S3 258 P

1/90

GW S3 258 PD

1/90

GW S3 258 PL

1/90

GW R5 272 M

GW R5 273

GW R5 273 B

GW R5 273 M

GW R5 274

GW R5 274 M

GW R5 275

GW R5 275 B

GW R5 275 M

GW R5 276

GW R5 276 B

GW R5 276 M

GW R5 371 M

GW R5 372 M

GW R5 611

GW R5 611 B

GW R5 611 M

GW R5 612

GW R5 612 B

GW R5 612 M

GW R5 613

GW R5 613 B

GW R5 613 M

GW R5 614

GW R5 614 B

GW R5 614 M

GW R5 615

GW R5 615 B

GW R5 615 M

GW R5 616

GW R5 616 B

GW R5 616 M

GW R5 631

GW R5 671

GW R5 671 B

GW R5 671 M

GW R5 672

GW R5 672 B

GW R5 672 M

GW R5 673

GW R5 673 B

GW R5 673 M

GW R5 674

GW R5 674 B

GW R5 674 M

GW R5 675

GW R5 675 B

GW R5 675 M

GW R5 676

GW R5 676 B

GW R5 676 M

GW R5 711

GW R5 711 B

GW R5 711 M

GW R5 712

GW R5 712 B

GW R5 712 M

GW R5 713

GW R5 713 B

GW R5 713 M

GW R5 714

Gewiss-Depliant-Lighting-html.html

Quick Reference

104

Lighting > Quick Reference

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

GW S4 114 BD

GW S4 114 BS

GW S4 114 GD

GW S4 114 GS

GW S4 115 BD

GW S4 115 BS

GW S4 115 GD

GW S4 115 GS

GW S4 116 GD

GW S4 116 GS

GW S4 131 BD

GW S4 131 BS

GW S4 131 GD

GW S4 131 GS

GW S4 132 GD

GW S4 132 GS

GW S4 133 BD

GW S4 133 BS

GW S4 133 GC

GW S4 133 GD

GW S4 133 GS

GW S4 134 BD

GW S4 134 BS

GW S4 134 GD

GW S4 134 GS

GW S4 135 BD

GW S4 135 BS

GW S4 135 GD

GW S4 135 GS

GW S4 136 GD

GW S4 136 GS

GW S4 151 BD

GW S4 151 BS

GW S4 151 GD

GW S4 151 GS

GW S4 152 GD

GW S4 152 GS

GW S4 153 BD

GW S4 153 BS

GW S4 153 GC

GW S4 153 GD

GW S4 153 GS

GW S4 154 BD

GW S4 154 BS

GW S4 154 GD

GW S4 154 GS

GW S4 155 BD

GW S4 155 BS

GW S4 155 GD

GW S4 155 GS

GW S4 156 GD

GW S4 156 GS

GW S4 171 GD

GW S4 171 GS

GW S4 172 GD

GW S4 172 GS

GW S4 173 GD

GW S4 173 GS

GW S4 174 GD

GW S4 174 GS

GW S4 175 GD

GW S4 063 GD

GW S4 063 GR

GW S4 063 GS

GW S4 064 GD

GW S4 064 GE

GW S4 064 GR

GW S4 064 GS

GW S4 065 GD

GW S4 065 GR

GW S4 065 GS

GW S4 066 GD

GW S4 066 GR

GW S4 066 GS

GW S4 071 GD

GW S4 071 GR

GW S4 071 GS

GW S4 072 GD

GW S4 072 GR

GW S4 072 GS

GW S4 073 GD

GW S4 073 GR

GW S4 073 GS

GW S4 074 GD

GW S4 074 GR

GW S4 074 GS

GW S4 075 GD

GW S4 075 GR

GW S4 075 GS

GW S4 076 GD

GW S4 076 GR

GW S4 076 GS

GW S4 101 BD

GW S4 101 BS

GW S4 101 GD

GW S4 101 GS

GW S4 102 GD

GW S4 102 GS

GW S4 103 BD

GW S4 103 BS

GW S4 103 GD

GW S4 103 GS

GW S4 104 BD

GW S4 104 BS

GW S4 104 GD

GW S4 104 GS

GW S4 105 BD

GW S4 105 BS

GW S4 105 GD

GW S4 105 GS

GW S4 106 GD

GW S4 106 GS

GW S4 111 BD

GW S4 111 BS

GW S4 111 GD

GW S4 111 GS

GW S4 112 GD

GW S4 112 GS

GW S4 113 BD

GW S4 113 BS

GW S4 113 GD

GW S4 113 GS

GW S4 031 GD

GW S4 031 GR

GW S4 031 GS

GW S4 032 GD

GW S4 032 GR

GW S4 032 GS

GW S4 033 GD

GW S4 033 GR

GW S4 033 GS

GW S4 034 GD

GW S4 034 GR

GW S4 034 GS

GW S4 035 GD

GW S4 035 GR

GW S4 035 GS

GW S4 036 GD

GW S4 036 GR

GW S4 036 GS

GW S4 041 GD

GW S4 041 GR

GW S4 041 GS

GW S4 042 GD

GW S4 042 GR

GW S4 042 GS

GW S4 043 GD

GW S4 043 GR

GW S4 043 GS

GW S4 044 GD

GW S4 044 GE

GW S4 044 GR

GW S4 044 GS

GW S4 045 GD

GW S4 045 GR

GW S4 045 GS

GW S4 046 GD

GW S4 046 GR

GW S4 046 GS

GW S4 051 GD

GW S4 051 GR

GW S4 051 GS

GW S4 052 GD

GW S4 052 GR

GW S4 052 GS

GW S4 053 GD

GW S4 053 GR

GW S4 053 GS

GW S4 054 GD

GW S4 054 GR

GW S4 054 GS

GW S4 055 GD

GW S4 055 GR

GW S4 055 GS

GW S4 056 GD

GW S4 056 GR

GW S4 056 GS

GW S4 061 GD

GW S4 061 GR

GW S4 061 GS

GW S4 062 GD

GW S4 062 GR

GW S4 062 GS

Gewiss-Depliant-Lighting-html.html

105

Lighting > Quick Reference

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

GW S7 363

GW S7 366

GW S7 367

GW S7 368

GW S7 371

GW S7 372

GW S7 373

GW S7 376

GW S7 377

GW S7 378

GW S7 381

GW S7 382

GW S7 383

GW S7 386

GW S7 387

GW S7 388

GW S7 401

GW S7 402

GW S7 403

GW S7 406

GW S7 407

GW S7 408

GW S7 411

GW S7 412

GW S7 413

GW S7 416

GW S7 417

GW S7 418

GW S7 421

GW S7 422

GW S7 423

GW S7 426

GW S7 427

GW S7 428

GW S7 431

GW S7 432

GW S7 433

GW S7 436

GW S7 437

GW S7 438

GW S7 451

GW S7 452

GW S7 453

GW S7 456

GW S7 457

GW S7 458

GW S7 461

GW S7 462

GW S7 463

GW S7 466

GW S7 467

GW S7 468

GW S7 471

GW S7 472

GW S7 473

GW S7 476

GW S7 477

GW S7 478

GW S7 481

GW S7 482

GW S7 483

GW S7 232

GW S7 233

GW S7 236

GW S7 237

GW S7 238

GW S7 251

GW S7 252

GW S7 253

GW S7 256

GW S7 257

GW S7 258

GW S7 261

GW S7 262

GW S7 263

GW S7 266

GW S7 267

GW S7 268

GW S7 271

GW S7 272

GW S7 273

GW S7 276

GW S7 277

GW S7 278

GW S7 281

GW S7 282

GW S7 283

GW S7 286

GW S7 287

GW S7 288

GW S7 301

GW S7 302

GW S7 303

GW S7 306

GW S7 307

GW S7 308

GW S7 311

GW S7 312

GW S7 313

GW S7 316

GW S7 317

GW S7 318

GW S7 321

GW S7 322

GW S7 323

GW S7 326

GW S7 327

GW S7 328

GW S7 331

GW S7 332

GW S7 333

GW S7 336

GW S7 337

GW S7 338

GW S7 351

GW S7 352

GW S7 353

GW S7 356

GW S7 357

GW S7 358

GW S7 361

GW S7 362

GW S4 175 GS

GW S4 176 GD

GW S4 176 GS

GW S4 222 GS

GW S4 223 GS

GW S4 224 GS

GW S4 225 GS

GW S4 226 GS

GW S4 232 GS

GW S4 233 GS

GW S4 234 GS

GW S4 235 GS

GW S4 236 GS

GW S4 242 GS

GW S4 243 GS

GW S4 244 GS

GW S4 245 GS

GW S4 246 GS

GW S4 252 GS

GW S4 253 GS

GW S4 254 GS

GW S4 255 GS

GW S4 256 GS

GW S4 262 GS

GW S4 263 GS

GW S4 264 GS

GW S4 265 GS

GW S4 266 GS

GW S4 272 GS

GW S4 273 GS

GW S4 274 GS

GW S4 275 GS

GW S4 276 GS

GWS7

GW S7 030

GW S7 031

GW S7 032

GW S7 071

GW S7 110

GW S7 111

GW S7 112

GW S7 201

GW S7 202

GW S7 203

GW S7 206

GW S7 207

GW S7 208

GW S7 211

GW S7 212

GW S7 213

GW S7 216

GW S7 217

GW S7 218

GW S7 221

GW S7 222

GW S7 223

GW S7 226

GW S7 227

GW S7 228

GW S7 231

Gewiss-Depliant-Lighting-html.html

Quick Reference

106

Lighting > Quick Reference

Code

Quantity

Page

Pack/carton Pallet

Code

Quantity

Page

Pack/carton Pallet

GW S7 682

GW S7 683

GW S7 684

GW S7 801

GW S7 802

GW S7 803

GW S7 804

GW S7 805

GW S7 806

GW S7 807

GW S7 808

GW S7 809

GW S7 810

GW S7 811

GW S7 812

GW S7 813

GW S7 814

GW S7 815

GW S7 821

GW S7 822

GW S7 823

GW S7 824

GW S7 825

GW S7 826

GW S7 827

GW S7 828

GW S7 829

GW S7 830

GW S7 831

GW S7 832

GW S7 833

GW S7 834

GW S7 835

GW S7 486

GW S7 487

GW S7 488

GW S7 501

GW S7 501 B

GW S7 502

GW S7 502 B

GW S7 503

GW S7 503 B

GW S7 506

GW S7 507

GW S7 508

GW S7 511

GW S7 512

GW S7 513

GW S7 516

GW S7 517

GW S7 518

GW S7 521

GW S7 522

GW S7 523

GW S7 526

GW S7 527

GW S7 528

GW S7 531

GW S7 532

GW S7 533

GW S7 536

GW S7 537

GW S7 538

GW S7 551

GW S7 552

GW S7 553

GW S7 556

GW S7 557

GW S7 558

GW S7 561

GW S7 562

GW S7 563

GW S7 566

GW S7 567

GW S7 568

GW S7 571

GW S7 572

GW S7 573

GW S7 576

GW S7 577

GW S7 578

GW S7 581

GW S7 582

GW S7 583

GW S7 586

GW S7 587

GW S7 588

GW S7 630

GW S7 631

GW S7 632

GW S7 633

GW S7 634

GW S7 680

GW S7 681

Gewiss-Depliant-Lighting-html.html

Icon key

107

Lighting > Icon key

REGULATORY ICONS

TECHNICAL ICONS

Tested according to

HORUS 2 - HORUS 3

DIN 18032-3

Luminaire
for explosion
environments

Ballast with
thermal
protection
integrated

Luminaire
approved for gym

Minimum
distance from the
lighted object

Maximum wind
exposed surface

IP degree of
protection

Impact resistance

Double insulation

Class III

Glow wire test

Device for
flammable
surfaces

Class I

Low surface
temperature
device

Decorative device

Dual power
regime

Street optics
floodlight

Adjustable street
lighting

Transparent beam
optics industrial
high bay

Asymmetrical
beam optics
industrial high
bay

Ground recessed
luminary with
asymmetrical
optic

Wall washer
luminary with
symmetrical optic

Circular optics
floodlight

Variable focus
circular optics
floodlight

Wall recessed
luminary with
symmetrical optic

Asymmetrical
restricted beam
optics floodlight

Restricted beam
optics industrial
high bay

Indirect optics
device

Symmetrical
restricted beam
optics floodlight

Device with
possible dimmer

Indoor/outdoor
device

Indoor device

Wall recessed
luminary with
asymmetrical
optic

Asymmetrical
diffused beam
optics floodlight

Diffused beam
optics industrial
high bay

Ground recessed
luminary with
symmetrical optic

Symmetrical
diffused beam
optics floodlight

Outdoor device

Gewiss-Depliant-Lighting-html.html

Icon key

108

Lighting > Icon key

LUMINAIRE ICONS

Ni - Mh

RGB

PWM

EMERGENCY

DMX

Ni - Cd

Ø 75

< 1%

ø60

Device via PWM
protocol

High bay diameter
470mm

Electromagnetic
Ballast

High bay with flat
glass closure

Emergency device

Installation hole
210 mm

High bay with PC
bowl closure

Device via DMX
protocol

Ni - Cd
accumulator

Installation hole
75 mm

Electronic Ballast

High bay diameter
570mm

High bay with
PMMA bowl
closure

Pole with slots

Not wired

Ni - Mh
accumulator

Adjustable lamp
position

RGB LED version

5 years warranty

5 years warranty
See “plastic
products
warranty”

Non light
polluting device

Reduced light
pollution device

Luminaire
completed with
lamp

Hot re-strike

Auxiliary halogen
lamp

PMMA globe

Fast wiring device

Conical pole

URRENT

ONSTANT

RIVER

Constant current

driver

Gewiss-Depliant-Lighting-html.html

109

Lighting > Energy Labelling

ILCOS CLASSIFICATION

ILCOS represents an international system for coding all lamps, except
for those for vehicles (according to reference standard EN 61231).

The objective of the international coding system is to:
- optimise communication regarding different types of lamps;
- clarify concepts of product interchangeability and compatibility;
- create closer connections between international standards and

manufacturer documentation;

- permit correct lamp replacement;
- be used as complementary marking on lighting devices;
- replace international coding systems.

Complete ILCOS coding consists of a letter section and a numerical
section.

In the letter section, the lamps are identified by two letters.

INCANDESCENT LAMPS

Incandescent

HALOGEN LAMPS

Single coupling halogen

Double coupling halogen

Halogen with dichroic high bay

FLUORESCENT LAMPS

FSD

Two conduit single coupling fluorescent

Double coupling fluorescent

FSQ

4 conduit single coupling fluorescent

FSM

Multiple conduit single coupling fluorescent

Fluorescent with built-in power supply

FSS

Square fluorescent

FBT

Tubular fluorescent

HIGH PRESSURE MERCURY LAMPS

Ellipsoidal mercury

with diffused coating

HIGH PRESSURE SODIUM LAMPS

SE/QE

E27

Diffused ellipsoidal sodium

Clear tubular sodium

Double coupling clear sodium

LOW PRESSURE SODIUM LAMPS

Single coupling sodium

METALLIC IODIDE LAMPS

E27

Ellipsoidal metallic iodides,

diffused coating

Clear tubular metallic iodides

Clear bulb ellipsoidal

metallic iodides

Metallic iodides

with double coupling, clear

X528/Cavo

Metallic iodides with double coupling

without external bulb

LED

LED module

with separate power supply

LED lamp with built-in power supply

The first letter
identifies the lamp
type

Incandescent

Fluorescents

Halogen

Fluorescent

High pressure sodium

Low pressure sodium

High pressure mercury lamps

Metallic iodide lamps

LED

Special lamps

The second letter
defines the main
form characteristic

Tubular

Single coupling

Double coupling

Opal ellipsoidal

Clear

Dichroic high bay

Metallic high bay

power

voltage

coupling

dimensions

GU 10

E27

The numerical section consists of blocks that consist of numbers, each
of which is separated by a dash and that include the characteristic
values:

Gewiss-Depliant-Lighting-html.html

Energy Labelling

110

Lighting > Energy Labelling

ENERGY LABELLING

The Energy Labelling regulation (874/2012) requires that an energy label be created and made available by March 1 2014 for devices intended for private use.
All advertisements, price indications, promotions and offers must indicate all the information included on the label:
- efficiency range of compatible lamps
- if the device contains LED
- if the LED can be replaced or not

When the products referred to in this regulation are sold and displayed in stored, they must be always accompanied by the energy label that can be downloaded
from the Gewiss website.

Code

Power

Compatible

lamps

Coupling

EEL

Compatible light

sources

EEL

Lamp supplied,

if replaceable

GWS3118P

15 W

LED

A ÷ A++

LED - Not replaceable

GWS3118PD

18 W

LED

A ÷ A++

LED - Not replaceable

GWS3118T

15 W

LED

A ÷ A++

LED - Not replaceable

GWS3118TD

18 W

LED

A ÷ A++

LED - Not replaceable

GWS3136P

20 W

LED

A ÷ A++

LED - Not replaceable

GWS3136PD

22 W

LED

A ÷ A++

LED - Not replaceable

GWS3136PL

20 W

LED

A ÷ A++

LED - Not replaceable

GWS3136T

20 W

LED

A ÷ A++

LED - Not replaceable

GWS3136TD

22 W

LED

A ÷ A++

LED - Not replaceable

GWS3158P

26 W

LED

A ÷ A++

LED - Not replaceable

GWS3158PD

27 W

LED

A ÷ A++

LED - Not replaceable

GWS3158PL

26 W

LED

A ÷ A++

LED - Not replaceable

GWS3158T

26 W

LED

A ÷ A++

LED - Not replaceable

GWS3158TD

27 W

LED

A ÷ A++

LED - Not replaceable

GWS3218P

26 W

LED

A ÷ A++

LED - Not replaceable

GWS3218PD

27 W

LED

A ÷ A++

LED - Not replaceable

GWS3218T

26 W

LED

A ÷ A++

LED - Not replaceable

GWS3218TD

27 W

LED

A ÷ A++

LED - Not replaceable

GWS3236P

43 W

LED

A ÷ A++

LED - Not replaceable

GWS3236PD

45 W

LED

A ÷ A++

LED - Not replaceable

GWS3236PL

43 W

LED

A ÷ A++

LED - Not replaceable

GWS3236T

43 W

LED

A ÷ A++

LED - Not replaceable

GWS3236TD

45 W

LED

A ÷ A++

LED - Not replaceable

GWS3258P

53 W

LED

A ÷ A++

LED - Not replaceable

GWS3258PD

55 W

LED

A ÷ A++

LED - Not replaceable

GWS3258PL

53 W

LED

A ÷ A++

LED - Not replaceable

GWS3258T

53 W

LED

A ÷ A++

LED - Not replaceable

GWS3258TD

55 W

LED

A ÷ A++

LED - Not replaceable

GWS4001GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4001GR

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4001GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4002GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4002GR

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4002GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4003GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4003GR

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4003GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4004GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4004GE

28 W

LED

A ÷ A++

LED - Not replaceable

GWS4004GR

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4004GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4005GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4005GR

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4005GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4006GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4006GR

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4006GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4011GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4011GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4011GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4012GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4012GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4012GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4013GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4013GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4013GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4014GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4014GE

53 W

LED

A ÷ A++

LED - Not replaceable

GWS4014GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4014GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4015GD

51 W

LED

A ÷ A++

LED - Not replaceable

Code

Power

Compatible

lamps

Coupling

EEL

Compatible light

sources

EEL

Lamp supplied,

if replaceable

GWS4015GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4015GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4016GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4016GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4016GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4021GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4021GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4021GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4022GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4022GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4022GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4023GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4023GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4023GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4024GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4024GE

53 W

LED

A ÷ A++

LED - Not replaceable

GWS4024GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4024GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4025GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4025GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4025GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4026GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4026GR

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4026GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4031GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4031GR

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4031GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4032GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4032GR

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4032GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4033GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4033GR

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4033GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4034GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4034GR

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4034GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4035GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4035GR

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4035GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4036GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4036GR

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4036GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4041GD

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4041GR

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4041GS

97 W

LED

A ÷ A++

LED - Not replaceable

GWS4042GD

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4042GR

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4042GS

97 W

LED

A ÷ A++

LED - Not replaceable

GWS4043GD

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4043GR

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4043GS

97 W

LED

A ÷ A++

LED - Not replaceable

GWS4044GD

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4044GE

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4044GR

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4044GS

97 W

LED

A ÷ A++

LED - Not replaceable

GWS4045GD

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4045GR

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4045GS

97 W

LED

A ÷ A++

LED - Not replaceable

GWS4046GD

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4046GR

100 W

LED

A ÷ A++

LED - Not replaceable

GWS4046GS

97 W

LED

A ÷ A++

LED - Not replaceable

Gewiss-Depliant-Lighting-html.html

111

Lighting > Energy Labelling

Code

Power

Compatible

lamps

Coupling

EEL

Compatible light

sources

EEL

Lamp supplied,

if replaceable

GWS4051GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4051GR

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4051GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4052GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4052GR

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4052GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4053GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4053GR

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4053GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4054GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4054GR

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4054GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4055GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4055GR

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4055GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4056GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4056GR

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4056GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4061GD

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4061GR

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4061GS

194 W

LED

A ÷ A++

LED - Not replaceable

GWS4062GD

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4062GR

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4062GS

194 W

LED

A ÷ A++

LED - Not replaceable

GWS4063GD

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4063GR

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4063GS

194 W

LED

A ÷ A++

LED - Not replaceable

GWS4064GD

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4064GE

197 W

LED

A ÷ A++

LED - Not replaceable

GWS4064GR

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4064GS

194 W

LED

A ÷ A++

LED - Not replaceable

GWS4065GD

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4065GR

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4065GS

194 W

LED

A ÷ A++

LED - Not replaceable

GWS4066GD

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4066GR

203 W

LED

A ÷ A++

LED - Not replaceable

GWS4066GS

194 W

LED

A ÷ A++

LED - Not replaceable

GWS4071GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4071GR

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4071GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4072GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4072GR

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4072GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4073GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4073GR

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4073GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4074GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4074GR

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4074GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4075GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4075GR

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4075GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4076GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4076GR

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4076GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4101BD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4101BS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4101GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4101GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4102GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4102GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4103BD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4103BS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4103GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4103GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4104BD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4104BS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4104GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4104GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4105BD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4105BS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4105GD

26 W

LED

A ÷ A++

LED - Not replaceable

Code

Power

Compatible

lamps

Coupling

EEL

Compatible light

sources

EEL

Lamp supplied,

if replaceable

GWS4105GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4106GD

26 W

LED

A ÷ A++

LED - Not replaceable

GWS4106GS

25 W

LED

A ÷ A++

LED - Not replaceable

GWS4111BD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4111BS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4111GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4111GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4112GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4112GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4113BD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4113BS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4113GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4113GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4114BD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4114BS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4114GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4114GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4115BD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4115BS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4115GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4115GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4116GD

51 W

LED

A ÷ A++

LED - Not replaceable

GWS4116GS

50 W

LED

A ÷ A++

LED - Not replaceable

GWS4131BD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4131BS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4131GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4131GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4132GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4132GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4133BD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4133BS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4133GC

82 W

LED

A ÷ A++

LED - Not replaceable

GWS4133GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4133GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4134BD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4134BS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4134GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4134GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4135BD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4135BS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4135GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4135GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4136GD

61 W

LED

A ÷ A++

LED - Not replaceable

GWS4136GS

60 W

LED

A ÷ A++

LED - Not replaceable

GWS4151BD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4151BS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4151GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4151GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4152GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4152GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4153BD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4153BS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4153GC

165 W

LED

A ÷ A++

LED - Not replaceable

GWS4153GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4153GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4154BD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4154BS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4154GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4154GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4155BD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4155BS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4155GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4155GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4156GD

121 W

LED

A ÷ A++

LED - Not replaceable

GWS4156GS

118 W

LED

A ÷ A++

LED - Not replaceable

GWS4171GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4171GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4172GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4172GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4173GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4173GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4174GD

245 W

LED

A ÷ A++

LED - Not replaceable

Gewiss-Depliant-Lighting-html.html

Energy Labelling

112

Lighting > Energy Labelling

Code

Power

Compatible

lamps

Coupling

EEL

Compatible light

sources

EEL

Lamp supplied,

if replaceable

GWS4174GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4175GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4175GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4176GD

245 W

LED

A ÷ A++

LED - Not replaceable

GWS4176GS

236 W

LED

A ÷ A++

LED - Not replaceable

GWS4222GS

58 W

LED

A ÷ A++

LED - Not replaceable

GWS4223GS

58 W

LED

A ÷ A++

LED - Not replaceable

GWS4224GS

58 W

LED

A ÷ A++

LED - Not replaceable

GWS4225GS

58 W

LED

A ÷ A++

LED - Not replaceable

GWS4226GS

58 W

LED

A ÷ A++

LED - Not replaceable

GWS4232GS

71 W

LED

A ÷ A++

LED - Not replaceable

GWS4233GS

71 W

LED

A ÷ A++

LED - Not replaceable

GWS4234GS

71 W

LED

A ÷ A++

LED - Not replaceable

GWS4235GS

71 W

LED

A ÷ A++

LED - Not replaceable

GWS4236GS

71 W

LED

A ÷ A++

LED - Not replaceable

GWS4242GS

116 W

LED

A ÷ A++

LED - Not replaceable

GWS4243GS

116 W

LED

A ÷ A++

LED - Not replaceable

GWS4244GS

116 W

LED

A ÷ A++

LED - Not replaceable

Code

Power

Compatible

lamps

Coupling

EEL

Compatible light

sources

EEL

Lamp supplied,

if replaceable

GWS4245GS

116 W

LED

A ÷ A++

LED - Not replaceable

GWS4246GS

116 W

LED

A ÷ A++

LED - Not replaceable

GWS4252GS

142 W

LED

A ÷ A++

LED - Not replaceable

GWS4253GS

142 W

LED

A ÷ A++

LED - Not replaceable

GWS4254GS

142 W

LED

A ÷ A++

LED - Not replaceable

GWS4255GS

142 W

LED

A ÷ A++

LED - Not replaceable

GWS4256GS

142 W

LED

A ÷ A++

LED - Not replaceable

GWS4262GS

232 W

LED

A ÷ A++

LED - Not replaceable

GWS4263GS

232 W

LED

A ÷ A++

LED - Not replaceable

GWS4264GS

232 W

LED

A ÷ A++

LED - Not replaceable

GWS4265GS

232 W

LED

A ÷ A++

LED - Not replaceable

GWS4266GS

232 W

LED

A ÷ A++

LED - Not replaceable

GWS4272GS

284 W

LED

A ÷ A++

LED - Not replaceable

GWS4273GS

284 W

LED

A ÷ A++

LED - Not replaceable

GWS4274GS

284 W

LED

A ÷ A++

LED - Not replaceable

GWS4275GS

284 W

LED

A ÷ A++

LED - Not replaceable

GWS4276GS

284 W

LED

A ÷ A++

LED - Not replaceable

Gewiss-Depliant-Lighting-html.html

LED Warranty

113

Lighting > LED Warranty

This warranty is provided by Gewiss S.p.A. (hereinafter “Gewiss”) in favour of the
purchasers (hereinafter ”Purchasers” or, individually, the “Purchaser”) of Gewiss lighting
products with LED technology (hereinafter “Products” or, individually, the “Product”),
subject to the condition that the Purchaser has bought the Products in new conditions,
in their original package and complete of their handling instructions.

This warranty does not affect, but it is in addition to the guarantee rights provided by
law and by Gewiss general sales conditions, or contractually agreed between Gewiss and
the Purchaser.

This warranty covers the Product defects, which can be demonstrated to be determined
by raw material defects, or by constructive or manufacturing defects, for the period
indicated in the table below, starting from the date of purchase of the Product.

Product

Warranty period

Street lighting ranges: Street, Urban and Road 5 years

Smart[Pro] range

5 years

Smart[4] range

5 years

Smart[3] range

5 years

All other LED products

2 years

Products shall not be considered defective when at least one of the situations indicated
below occurs:
a) less than 20% malfunction LEDs in each Product,
b) a variation of the light flux up to 0,4%/1.000 working hours, that is considered to be
conform to the state of the technology art;
c) a defect of the driver not exceeding the nominal failure rate, which is considered equal
to 0,1%/1.000 working hours, at the average temperature of 25° C, increased of further
0,1%/1.000 working hours per each 10° C of average temperature, exceeding 25° C;
d) Product components subject to wear and tear (such as batteries) and parties subject
to a natural aesthetic decay, which does not affect the functionality or the safety of use
of the Product.

Gewiss, if the Product falls within the scope of this warranty, shall choose – at its sole
discretion – whether to refund the Purchaser of the purchase price of the Product, or
to repair the Product, or replace it with a Product of equivalent price and equivalent
performances.

Gewiss, when it chooses to repair the Product, may use new or reconditioned parts,
guaranteeing in this case that the substitutive components are equivalent to the
substituted ones in terms of performance and reliability. Whatever it is the solution
chosen by Gewiss, none of these options involves the change or extension of the original
warranty term of validity, i.e. starting from the purchase date of the Product.

The Purchaser, subject to forfeiture of the warranty, shall notify the existence of defects
to Gewiss e-mail gestioneresi@gewiss.com no later than thirty days from the discovery
of the defect, providing at the same time: (i) a document proving the purchase date (for
example: purchase invoice) and (ii) the data indicated on the label of
the defected Product, including the production lot. Upon receipt of the notification and
of the documents indicated above, Gewiss can ask the Purchaser to promptly return the
Product directly to Gewiss, or to a sales point authorized by the same.

In any case, the warranty does not apply when the defectiveness of the Product is
determined by:
a) fire, Acts of God, vandalism, negligence, installation not properly set up or installation
carried out by people not adequately qualified, use not allowed or use different than the
purpose for which the Product was intended;
b) improper installation, wrong supply voltage and wrong wiring of the Products;
c) overcoming of the limits foreseen by Gewiss on the Products or packaging labels, on
the instructions sheet or, if they are lacking, by the Regulations EN 60598 and EN 61547
concerning: overvoltage, voltage
fluctuations, included harmonic oscillations and fast transients, electrostatic discharges,
injected power supplies, presence of radio frequency electromagnetic fields, magnetic
fields at mains frequency, voltage pulses, dips and short voltage interruptions, induced
mechanical vibrations, harmonic oscillations and
resonance associated with movements of air circulating around the Product, impacts,
shocks, accelerations, aggressive atmospheres, temperature and its rapid changes,
humidity, atmospheric pressure, presence of
water, presence of sand or dust, solar radiation, thermic irradiation, wind, ice or frost, hail,
condensation, contact with chemicals, presence of flora, presence of fauna, presence of
moulds, vandalism, inadequate storage or transport conditions, or in any case, any other
environmental condition, mechanical, electrical or thermal not expressly permitted;
d) improper or inadequate maintenance, if allowed or prescribed by Gewiss, or
maintenance performed by a person not adequately qualified;
e) Product modification or repair performed by the Purchaser or by its delegate, without
the express written consent by Gewiss.
With reference to the situations mentioned above, the Purchaser, upon Gewiss request,
shall provide appropriate and complete proof about the proper use, the proper installation
and maintenance of the Product, such as about the environmental and the installation
context of the same.

The warranty does not cover the costs incurred for the elimination of the defects, including
– by way of indication only – the costs of disassembly and assembly, transportation or
shipping costs of the defective or repaired Product, the rental costs of any lifting device.

10.

Except to the binding extent required by Law and with the exclusion of wilful misconduct
and gross negligence, in no event Gewiss shall be liable for damages resulting from any
breach, as well as from any direct or indirect damages caused by faults or defects of the
Products, or by their malfunction such as by repairs or replacements,
among which, by way of example, loss of profits, lack of savings, loss of reputation,
loss of goodwill, block of plants in which the Products are destined to work. In any case,
Gewiss liability shall not exceed the purchase price of the defective Product.

11.

Gewiss reserves the right to modify these warranty conditions at any time, by publishing
the new terms on its website www.gewiss.com and on its catalogues.

12.

This warranty is valid for Products purchased starting from the date below.

Effective date: November 1st, 2016

WARRANTY

YEARS

WARRANTY CONDITIONS FOR GEWISS PRODUCTS WITH LED TECHNOLOGY

Gewiss-Depliant-Lighting-html.html

114

Lighting > General sales conditions

General sales conditions

1. DEFINITIONS
1.1 In these General Sales Conditions the terms hereunder
have the meaning as specified for each one of them:
a) “GEWISS”: the company GEWISS S.p.A.;
b) “PURCHASER”: the subject, natural person or legal entity
requesting the purchase of GEWISS products;
c) “PARTY” or “PARTIES”: GEWISS and the PURCHASER
individually or jointly considered;
d) “ORDER” or “ORDERS”: the purchase order or orders
issued by the PURCHASER to GEWISS;
e) “PRODUCTS”: all the products offered by GEWISS and
described in catalogues, drawings, technical sheets or its
brochures;
f) “GENERAL CONDITIONS”: the general sales conditions
hereunder.

2. SCOPE OF APPLICATION
2.1 The GENERAL CONDITIONS apply to all sales made
between GEWISS and the PURCHASER whose subject
matter is the PRODUCTS. As of 01.01.2017 these GENERAL
CONDITIONS replace GEWISS’ previous general sales
conditions.
2.2 The PURCHASER cannot demand or take exception
to conditions other than those contained in the GENERAL
CONDITIONS. Therefore, any conditions set out in writing
by the PURCHASER on the ORDER shall not be valid, or
those in any other phase of the contractual negotiations as
well as after the acceptance or knowledge of the GENERAL
CONDITIONS, as well as any general purchasing conditions
of the PURCHASER. To this end, the performance, even
partial, of the ORDER by GEWISS or fulfilment of any other
obligation in terms of the PURCHASER are not valid and
cannot be interpreted as tacit or implicit acceptance of any
general condition which has not been explicitly signed by
GEWISS.
2.3 The GENERAL CONDITIONS are only valid for contractual
relationships between GEWISS and professional operators,
thus the Italian Legislative Decree no. 206 of 6th September
2005 (Consumer Law) is not applicable.
2.4 In the event of differences, unless otherwise agreed
in writing between the PARTIES (for example in the sales
conditions letter or in a specific contract) these GENERAL
CONDITIONS shall have precedence.

3. PROCEDURE FOR FINALISING THE SALES CONTRACT
3.1 The ORDER sent by the PURCHASER to GEWISS
constitutes an irrevocable contractual proposal which is
binding for 30 days from the time GEWISS learns of it.
3.2 Within this 30 days period GEWISS, at its sole discretion,
reserves the right to accept the ORDER or not, and notify the
PURCHASER of its decision.
3.3 The sales contract shall be considered finalised
following acceptance pursuant to the previous point or
with the performance of the ORDER by GEWISS; in this
case, the PURCHASER cannot cancel the ORDER without
previous written approval from GEWISS and he cannot
refuse the ordered PRODUCTS. Up to the time of finalising
of the sales contract under the above conditions, offers and
estimates made by GEWISS or its agents, representatives
and assistants, shall not be binding for GEWISS.
3.4 In the event that the ORDER confirmation from GEWISS
differs from the ORDER sent by the PURCHASER, for
example but not limited to, the quantity of PRODUCTS,
prices, discounts and delivery terms, such confirmation shall
be considered as a counterproposal from GEWISS, and must
be expressly accepted by the PURCHASER, for the contract
to be considered finalised.
3.5 In any case, it is hereby understood that any oral
agreement with the PURCHASER related to the sale shall
not be binding for GEWISS unless confirmed in writing by

GEWISS.
3.6 In the event that the ORDER is cancelled by the
PURCHASER before it is accepted or performed by GEWISS,
GEWISS may ask the buyer to reimburse any expenses or
charges incurred to perform the ORDER or part of it as well
as compensation for any sustained damages.

4. PRICES
4.1 The prices indicated in GEWISS catalogues and price
lists are considered VAT excluded for goods delivered EXW
Incoterms® 2010 (ex works) of GEWISS, transportation,
insurance, packing and assistance expenses excluded.
4.2 Such prices are merely given as a guideline and are
not binding on GEWISS in any way, who reserves the right
to make changes to the same proportionate to increases
in labour, raw material and other cost items and for other
causes which occur during the catalogue/price list validity
period.

5. DELIVERIES
5.1 Unless otherwise agreed between the PARTIES, the
PRODUCTS ARE delivered to the PURCHASER or third party
assigned by the PURCHASER as per EXW Incoterms® 2010
(ex works) at GEWISS warehouse.
5.2 The delivery conditions indicated in the Order or order
confirmation are not binding for Gewiss.
5.3 GEWISS is not liable for any indemnity or claim for
compensation against GEWISS for direct or indirect damages
due to delays or partial dispatch of the deliveries, as long as
not attributable to fraud or gross negligence by GEWISS.
5.4 In the event that performance of the ORDER is
obstructed by the occurrence of force majeure events, lack
of regular raw material supplies or sub-supplies or other
unpredictable circumstances occurring when the contract is
finalised, the delivery dates shall be considered extended,
without GEWISS being held liable for the delay and new
dates shall be established by the PARTIES. The PURCHASER
shall not have the right to refuse the delivery of the
PRODUCT.
5.5 If, once the PRODUCTS are ready for shipping to the
PURCHASER, and delivery is not made due to circumstances
not attributable to GEWISS or due to force majeure, the
delivery shall be considered performed for all extents and
purposes with a simple notice of goods ready for picking-
up to be notified to the PURCHASER by registered letter,
fax or e-mail. From the day after sending the above notice,
GEWISS shall be due in addition to the agreed upon price, a
fee for storage at GEWISS’ warehouse totalling 2% of the
amount on the invoice for each entire week of delay; in the
event of a delay less than a week the percentage shall be
calculated in proportion to the days of delay. All risks related
to the goods storage period at GEWISS’ warehouse are the
sole responsibility of the PURCHASER. If the PURCHASER’S
refusal to receive the goods lasts for more than 30 days
from the notice of goods ready for picking-up, GEWISS shall
be entitled to terminate the sale contract and claim for
compensation of damages.

6. RISKS
6.1 The risks of the delivery of the PRODUCTS are regulated
by Incoterms® 2010 terms which are agreed by the PARTIES.
6.2 The PURCHASER, at the time of receiving the
PRODUCTS, must always, in their own interest, check the
quantity and conditions before the acceptance and notify the
carrier of any damage immediately and in writing. Otherwise,
every dispute related to the quantity and conditions of the
packed and delivered PRODUCTS shall be refused.

7.QUANTITY AND PACKING
7.1 The ORDERS must comply with the minimum packing

quantities. In the event of ORDERS for lower quantities
GEWISS reserves the right to charge the PURCHASER,
subject to notification, the lump sum of 5 EUR for each line
of bulk PRODUCT ORDER.
7.2 Standard packing are considered included in the sales
price, while the costs for any non-standard packing, unless
otherwise established between the PARTIES, shall be
charged by GEWISS to the PURCHASER.

8. COMPLIANCE WITH PRODUCT STANDARDS
8.1 GEWISS guarantees that all PRODUCTS, which fall
under the scope of application of European Directives and
Regulations, comply with the essentials requirements set
out in them, in order to be put on the market and ordered
in European Union. Compliance with the Directives and
Regulations is indicated by affixing of the graphic symbol
“CE“.
8.2 The exportation in some UE or extra UE Countries
can be forbidden or require specific documents, mark o
certification. The PURCHASE shall contact GEWISS for the
relevant information.

9. MODIFICATIONS TO PRODUCTS
9.1 The indications, measurements, drawings and images of
the PRODUCTS and related components present in GEWISS
catalogues, brochures and websites, and in general all
GEWISS technical and informational documentation are
given as a guideline and example and are not binding in any
way.
9.2 GEWISS, at any time and with no obligation for prior
notice, reserves the right to make all of the modifications
that it, at its sole discretion, feels opportune for improving
the PRODUCT features and performance as well as to meet
its own technological and production needs.
9.3 The quality and certification marks mentioned on
GEWISS paper material shall be considered in force at the
date of the printing of the documents. The updated list of
marks is available on the site www.gewiss.com or through
the Technical Assistance Service. The updated certification
list is available on www.gewiss.com or upon request to the
Technical Assistance Service.

10. QUALITY, WARRANTIES AND COMPLAINTS
10.1 All of the PRODUCTS have the qualities necessary for
the normal uses for which they are intended, as shown in the
technical documentation in effect at the time of sale, which
the PURCHASER declares to know and accept. In addition,
the PRODUCTS are covered by warranty for their correct
operation and warranty for design and manufacturing faults
and/or defects for a period of 24 months from the delivery
date, with the exception of normal wear and tear parts. Once
this period has elapsed the warranty becomes null and void,
even if the PRODUCTS have not be put into operation for any
reason.
10.2 The warranty is effective as long as the malfunctioning,
faults and/or defects are not the result of: assembly or
installation errors, failure to comply with or incorrect
compliance with the technical specifications contained in
the GEWISS catalogue or on any instruction sheets, failure
to perform or incorrect maintenance, natural wear and tear,
faults caused by inexperience or negligence, poor storage
conditions, failure to immediately adopt measures to limit
any malfunctions, overloading compared to the limits in the
technical instruction, unauthorised intervention, tampering
by or requested by the PURCHASER or others, fortuitous
event or force majeure. Moreover, the warranty is not
effective in case of malfunctioning of the software installed
on the PRODUCT, due to overloading, interruption and/or
suspension of electric energy.
10.3 Any complaint due to quality defects, failure to operate

Gewiss-Depliant-Lighting-html.html

115

Lighting > General sales conditions

or faulty operation or design and manufacturing faults and/
or defects of the PRODUCTS must be notified to GEWISS in
writing, subject to forfeiture of the warranty:
- within 8 days from delivery of the PRODUCTS in the event
of clear faults and/or defects;
- within 8 days from discovery of the faults and/or defects
becoming evident following delivery but within two years
from the delivery.
10.4 For the complaint to be accepted, the PURCHASER is
required to prove in writing the validity of the warranty, the
correct storage and installation of the PRODUCT, and to
supply GEWISS with adequate documentation proving the
FAULTS/DEFECTS.
10.5 The warranty is limited, up to the sole discretion of
GEWISS, to replacement of the defective PRODUCTS or
components (both with identical or similar products) or by
repairing the defective PRODUCTS or components. In any
case the accessory expenses of the replacement or repair are
excluded from the warranty.
10.6 Both in the case of replacement and repair of the
defective PRODUCTS the original warranty period will
continue and shall not be considered renewed.
10.7 GEWISS shall not be held liable for any additional
warranty obligation, including implicit, resulting from laws,
whether statutory or not, in favour of the PURCHASER,
including implicit warranties for non-compliance, non-
saleable defects and the suitability of the PRODUCTS for a
special use.

11. LIABILITY
11.1 Without prejudice to mandatory limits set by law
and with the exclusion of fraud and gross negligence,
GEWISS shall not be liablefor damages resulting from
any non-fulfilment, as well as direct and/or indirect
damages resulting from PRODUCT faults or defects, their
malfunctioning or from repairs or replacements, by means
of example and not limited to, loss of profit, loss of savings,
loss of reputation, loss of goodwill and interruption of plants
where the PRODUCTS are intended to be used.
11.2 GEWISS shall not be held liable for PRODUCTS sold
and/or installed in Countries where there are regulations
which do not allow their use, for uses which they are not
intended or for installations and uses not in compliance
with the PRODUCTS technical specifications indicated in the
catalogues and instruction handbooks in effect at the time
of the sale.
11.3 In the event of revision of the technical specifications
and instruction handbook for PRODUCTS already delivered
and/or installed during the warranty period, the PURCHASER
shall not be covered under warranty for correct operation
according to the new technical specifications.
11.4 The PURCHASER agrees to establish in all contracts
regarding the PRODUCTS a clause limiting GEWISS’ liability
substantially identical to that envisaged by this article,
assuming the complete and sole liability for the additional
movement of PRODUCTS supplied by GEWISS.

12. RETURNS
12.1 Return of the PRODUCTS is not allowed without prior
written authorisation from GEWISS, without which the
goods shall be delivered again to the PURCHASER at the
PURCHASER expenses and risks.
12.2 In the event of authorised return, the PRODUCTS shall
be returned carriage paid at the expense and risk of the
PURCHASER to GEWISS warehouses, within the term
indicated by GEWISS. The PURCHASER shall be credited
for the purchase price of the PRODUCTS, minus a minimum
amount of 15% for administrative expenses. However,
GEWISS reserves the right not to accept the return or to
apply a higher percentage for administrative expenses if the

goods are returned after the period indicated above.
12.3 In any case, the return of PRODUCTS not present in the
catalogue in effect at the time of the request to return or for
which significant changes have been made to the technical
specifications is prohibited.

13. PAYMENT OF THE PRICE
13.1 Payments shall be made in compliance with the “Supply
Conditions” in the GEWISS catalogue in effect or according
to what is otherwise agreed between the PARTIES in writing.
13.2 The delay, even partial of the payment of the invoices
beyond their due date shall cause the immediate charging
of interest in accordance with the legal measures in force, in
addition to debiting of any bank expenses and fees.
13.3 Failure to pay for any reason, as well as failure to
fulfil any other obligation by the PURCHASER authorises
GEWISS to suspend the sales and related deliveries, as well
as demand payment for the entire amount due, without
prejudice to its right to withdraw from the ORDER being
performed.
13.4 GEWISS also reserves the right to suspend supplies in
the event of a significant modification in the PURCHASER’S
economic situation, by means of example but not limited to,
receivership, settlement with creditors, bankruptcy, transfer
of the business, or serious financial difficulty.
13.5 Possible collection expenses or stamp duty for payments
received by bank transfer or other forms of payment are at
the PURCHASER charge.
13.6 Any discount agreed upon in writing between the
PARTIES, is subject to complete compliance with payment
due dates. Failure to pay within the agreed due dates shall
result in forfeiture of the discount and the PURCHASER who
unduly withheld it is obligated to reimburse it.
13.7 Any complaint from the PURCHASER including for late
delivery of incomplete supply, shall not give the PURCHASER
the right to suspend or delay payment.
13.8 The PURCHASER cannot claim any non-fulfilment of
GEWISS’, nor claim the warranty as per article 10 above, if
not up to date with payments.

14. INTELLECTUAL PROPERTY
14.1 GEWISS shall remain the sole owner of the patents,
drawings, designs and anything else used to create the
PRODUCTS, which, therefore, the PURCHASER agrees not
the give to third parties, reproduce or use, without prior
authorization of GEWISS. If the creation of the PRODUCTS
is performed by GEWISS based on specific request and
technical documentation of the PURCHASER, GEWISS shall
not be held liable for the violation of industrial property
rights by third parties, which shall be the sole responsibility
of the PURCHASER, who agrees to guarantee and indemnify
and hold GEWISS harmless from any claims made against it.
14.2 The PURCHASER agrees to use GEWISS trademarks
solely for the purposes of identifying, advertising and
selling the PRODUCTS, refraining from registering them of
having them registered without prior written approval from
GEWISS.
14.3 The Purchaser is prevented from registering “gewiss” as
domain name as well as any domain which contains words
which look like or recall GEWISS.
14.4 Possible links to GEWISS’ website and the publication
on the PURCHASER’s website of contents which refer
to GEWISS shall be authorized in writing by the latter
beforehand.

15. CONFIDENTIALITY OBLIGATION
15.1 The sales commercial conditions, particularly regarding
the budget, incentive and discount conditions, as well as all
other documentation or information classified by GEWISS
as confidential, have a strictly confidential nature, therefore,

the PURCHASER agrees not to divulge them or communicate
them to third parties, nor to use them for purposes other
than the finalising and performance of this sales contract,
for the period of 5 years after performance of the ORDER.
15.2 GEWISS reserves the right to pursue, including legally,
any violations of the aforesaid confidentiality obligation.

16. PRIVACY
16.1 GEWISS agrees to collect and process the personal data
it may learn of in compliance with the Italian Legislative
Decree 196/2003, with the purposes connected to performing
this contract and to fulfil all legal requirements including of
a tax or accounting nature. The information is available on
the website www.gewiss.com.

17. GEWISS CODE OF ETHICS AND ORGANIZATION,
MANAGEMENT AND CONTROL MODEL - ANTI-CORRUPTION
POLICY
17.1 The commercial relations governed by the GENERAL
CONDITIONS are based on the principles of legality,
transparency, correctness and fairness, in accordance
with the contents of the Code of Ethics, the Organisation
Management and Control Framework adopted by GEWISS
and with the principles of the Anti-Corruption Policy
available on the website www.gewiss.com. Any notifications
about the violation of the aforesaid Framework may be sent
using the “notification procedure” available on the website,
to the e-mail address ia-odv@gewiss.com.
17.2 If, behaviours are adopted which do not comply with
the aforesaid principles, GEWISS shall be entitled to take
opportune measures, including cancellation of the ORDERS
and request compensation for damages.

18. APPLICABLE LAW, COURT AND LANGUAGE
18.1 All sales contracts finalised by GEWISS, regardless of
the PURCHASER’S nationality and place of destination of
the PRODUCTS, are governed by Italian laws.
18.2 Application of the Vienna Convention on contracts for
the international sale of goods of 11 April 1980 remains
expressly excluded, as well as other statutory Conventions
concerning international sales and governing conflicts
between laws.
18.3 Any dispute arising between the PARTIES shall be
submitted to the Italian court and solely to the Court of
GEWISS’ registered office, without prejudice to GEWISS’
right to act at the PURCHASER’S address.
18.4 If these GENERAL CONDITIONS are drafted in more than
one language, in case of conflicts, the text in Italian shall be
decisive.

Gewiss-Depliant-Lighting-html.html

116

Gewiss-Depliant-Lighting-html.html

117

Gewiss-Depliant-Lighting-html.html

118

Gewiss-Depliant-Lighting-html.html

119

Gewiss-Depliant-Lighting-html.html

120

Gewiss-Depliant-Lighting-html.html

Copyright
In compliance with copyright laws, the Italian Civil Code and further directives in effect in the markets where GEWISS operates,
all information, data, images, photographs, drawings, tables and anything else included in the promotional and descriptive
GEWISS material is the exclusive and sole property of GEWISS which holds all moral, commercial and economical rights to its use.
Therefore, any reproduction of said material, using any means and whether total or partial is strictly prohibited without prior written
authorisation from GEWISS. Any violation of the above will be prosecuted in compliance with law. The indications, measurements,
drawings and photographs of the products and components are shown by way of information only and are not binding since they
may be modified without any notification, safe for errors or omissions.

Gewiss-Depliant-Lighting-html.html

GEWISS S.p.A. Registered office: Via A. Volta, 1 - 24069 CENATE SOTTO (Bergamo) - Italy

Tel. +39 035 946 111 - Fax +39 035 945 222 - gewiss@gewiss.com - w ww.gewiss.com

Sole Shareholder company - Bergamo Register of Companies/ VAT / Tax code (IT) 00385040167
REA 107496 - Share Capital 60,000,000.00 EUR fully paid up

Visit www.gewiss.com and follow us on

PB 11115 EN - 01.17

LIGHTING

NEW

PRODUCTS

2017

CATALOGUE

2016

CATALOGUE

2016

CATALOGUE

2016

LIGHTING

POWER

CATALOGUE

2016
