NOISE SUPPRESSOR RESISTORS

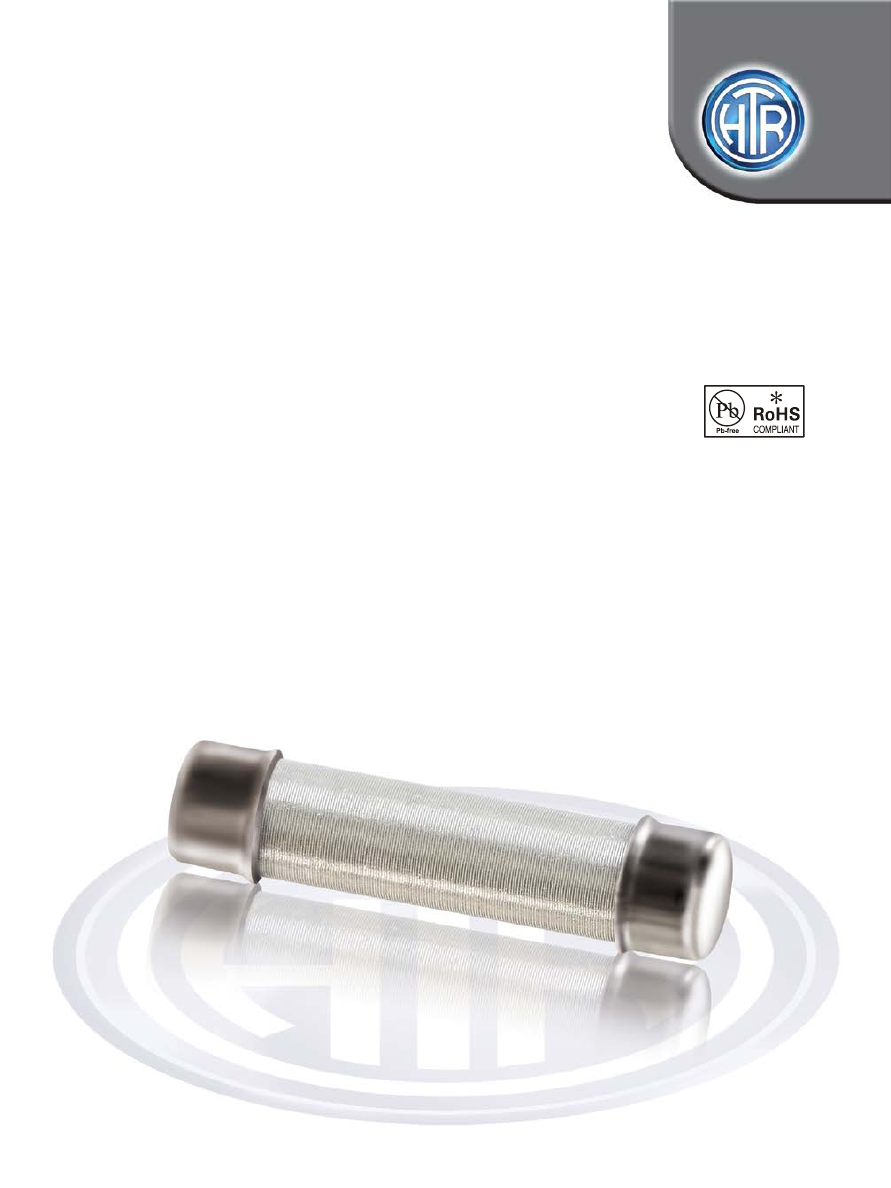

• Noise suppressor wire wound resistor

• Reduces RFI during electrical discharges on petrol

engines in cars and in scooters / motorcycles.

• ROHS compliant (*).

e : info@htr-india.com

www.htr-india.com

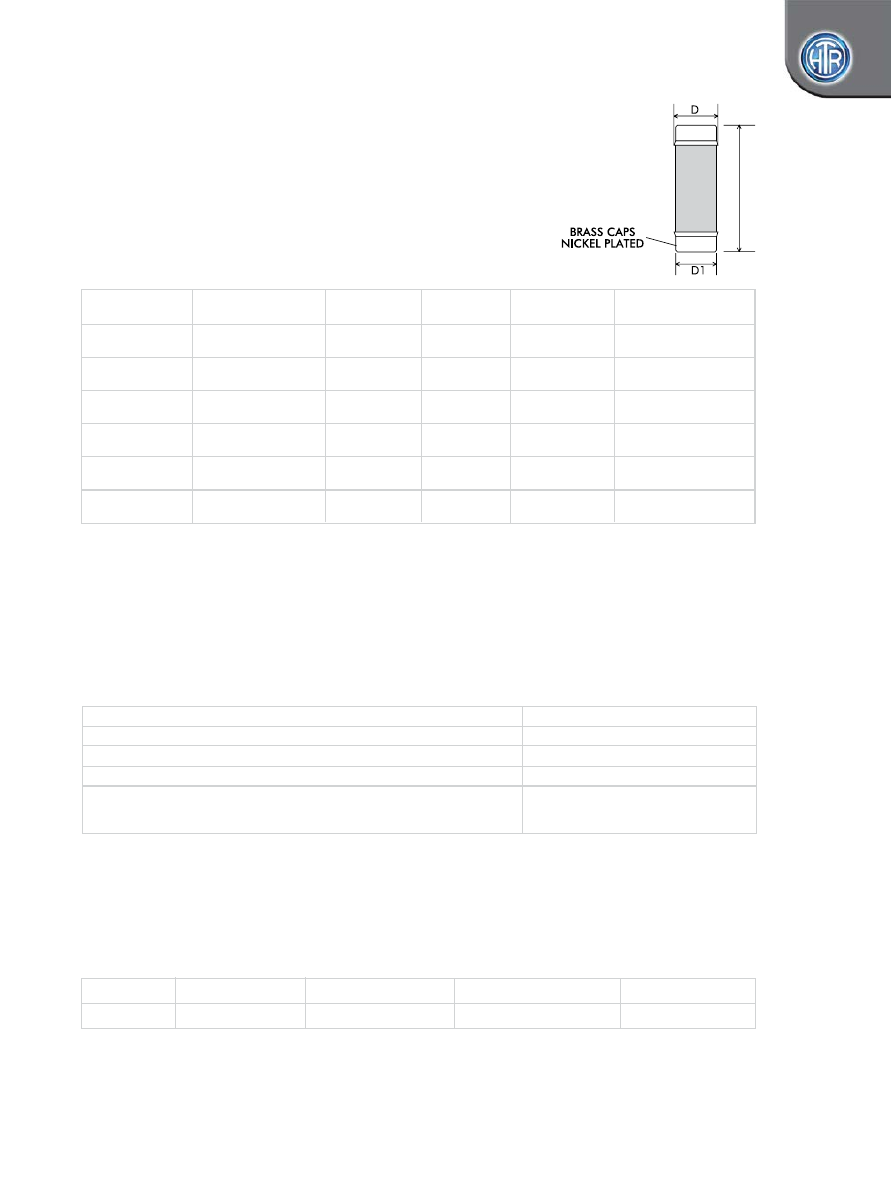

MECHANICAL SPECIFICATION



HTR Type

Resistance Value

L (+/-0.3)

D (max)

D1 (+/-0.1)

Typical Inductance







(mm)

(mm)

(mm)



NS 5K0*

5K0

18.0

4.65

4.35

MIN 15 μH













(at freq. 1 Mhz)



NS 1K125*

1K125

18.0

4.65

4.35

MIN 15 μH













(at freq. 1 Mhz)

  NS 1K125*(24)

1K125

23.7

4.65

 4.35

MIN 15 μH













(at freq. 1 Mhz)



NS 10K*

10K

18.0

4.65

4.35

MIN 15 μH













(at freq. 1 Mhz)



NS 7K5*

7K5

18.0

4.65

4.35

MIN 15 μH













(at freq. 1 Mhz)



NS1K0*

1K0

18.0

4.65

4.35

MIN 15 μH













(at freq. 1 Mhz)

ELECTRICAL SPECIFICATION

Nominal Value

:

NS 5K0* - 5K0





NS 1K125* - 1K125





NS 1K125*(24) - 1K125





NS 10K* - 10K





NS 7K5* - 7K5





NS 1K0* - 1K0

Tolerance

:

± 20% / ± 10% / ± 5%

L

AUTOMOTIVE

RESISTIVE

DEVICES

HANS

2. PERFORMANCE REQUIREMENTS

PARAMETER REQUIREMENTS
Short Term Overload : 5 x Rated Power for 5 sec

ΔR – MAX 2%

Operating Temperature Range

-40°C to 220°C

Temperature Co-efficient (Typical)

± 150 ppm / °C

High Voltage Pulses At High Frequency :

(15 kv to 20 kv continuous pulses – 0.1 sec ON & 0.1

sec OFF in series with spark plug – duration 3 hrs.)

ΔR – MAX 1% (Typical)

TYPICAL APPLICATIONS :

The HANS series has been developed to be introduced in automotive ignition systems to reduce Radio Frequency Interference (RFI),

which are caused during electrical discharges on petrol engines in both cars and motorcycles. In order to meet the current legislation in

force to reduce these disturbances, the introduction of these Noise Suppressor resistors in the rotor of the distributor or the spark plug

leads can ensure compliance.

MARkINg : NO MARKING

PACkINg : 2000 pcs / small box of approx size 200 mm x 150 mm x 70 mm.

ORDERINg INFORMATION



Series

 HTR Type

Packing

Resistance Value

 Tolerance



HANS

NS5K0*

Bulk NS5K0* 5K0 10%
