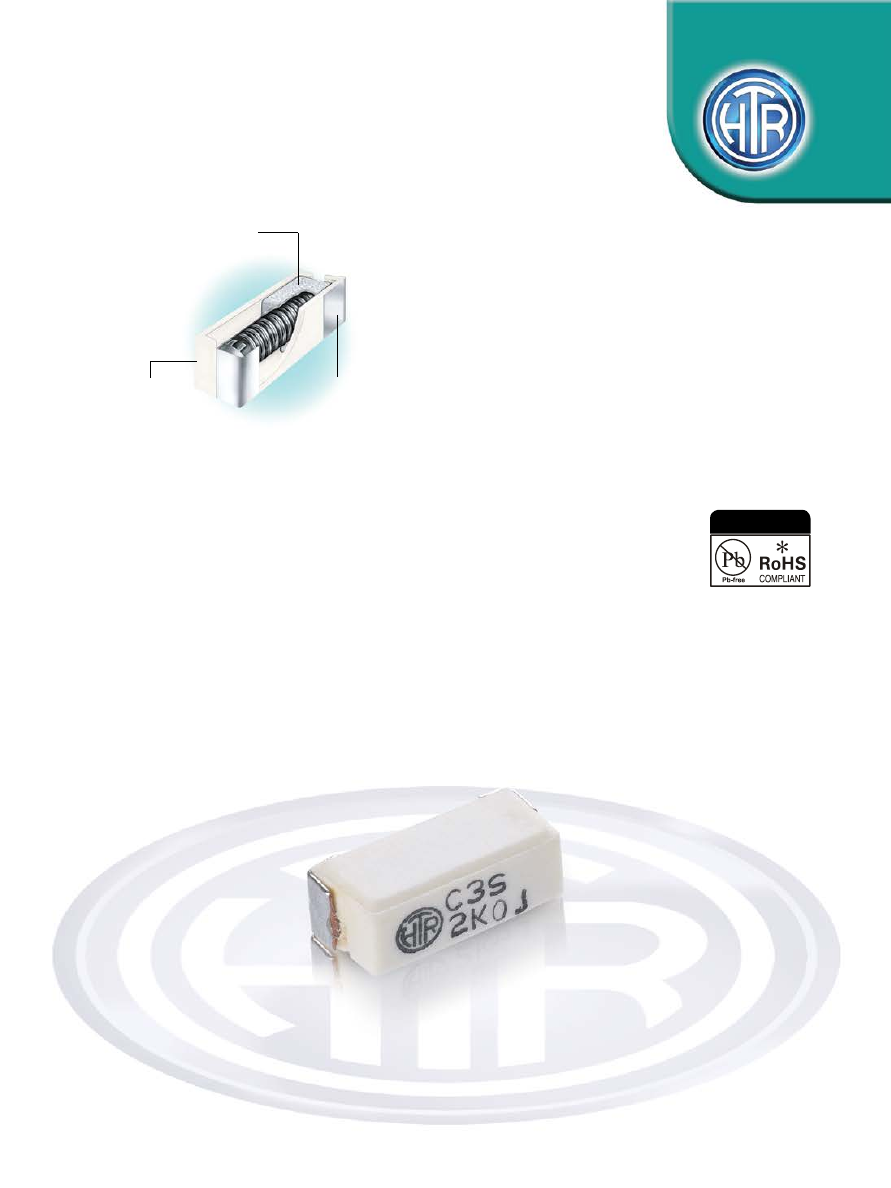

Inorganic Fire Retardant

Encapsulant

Flame Proof

High

Temperature

Ceramic Housing

Terminals Suitable

For Re-Flow

Soldering

• Fusible safety version available

• Tape and Reel packing available

• Non Inductive style with Aryton -

Perry winding available

• 2W to 3W

• R10 to 5K6

SURFACE MOUNT RESISTORS

CERAMIC ENCASED TYPE

HCAS

SERIES

POWER TYPE

Ceramic Encased Wire

Wound Resistors

Surface Mount -

Fire Retardant

e : info@htr-india.com

www.htr-india.com

Rev Date : 22/11/2016

As per  AEC-Q200

C2S

2W

11.0

10.0

5.3

7.0

5.5

2.25

  R10

1K6

0.8

4527

1000





(±0.8)

(±0.7)

(±0.6)

(±0.7)

(±0.3)

(min)

C3S

3W

17.0

16.0

7.8

7.0

5.5

2.5

  R10

5K6

2.0

6927

700





(±0.8)

(±0.7)

(±0.6)

(±0.7)

(±0.3)

(min)

POWER

RATING

70°C

DIMENSIONS (mm)

RESISTANCE

RANGE

PACKING

NO. OF

PCS

PER REEL

min

HTR

TYPE

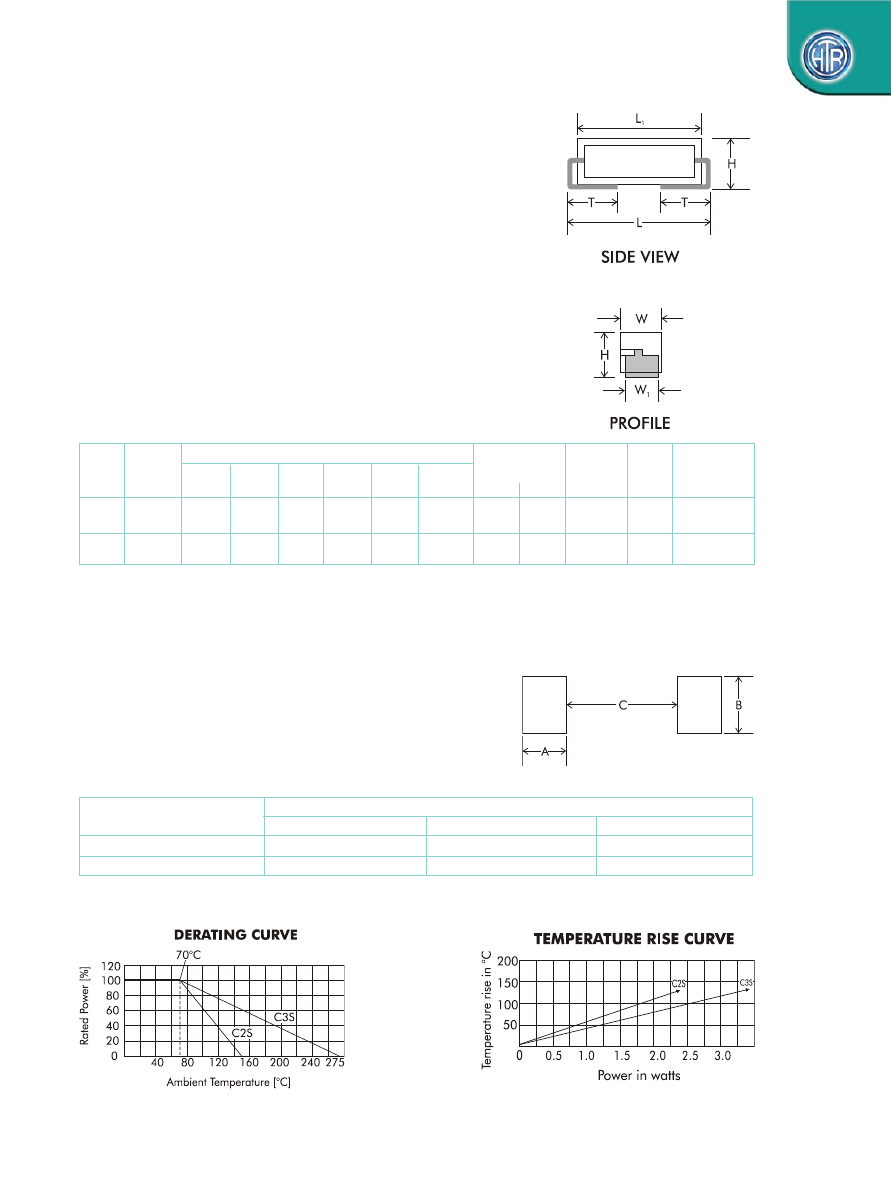

IMPORTANT MOUNTING / ASSEMBLY DATA

For the guidance of the design engineer, our applications laboratory has given the recommended pad size and geometry which is shown
below :

    L

L

1

H

W

W

1

 T

max



HTR



    DIMENSIONS (mm)



TYPE

A

B

C



C2S

3.94

5.84

5.21



C3S

3.94

5.97

11.94

SIZE

TYPICAL

WEIGHT

PER PC

(gms)

• For Non Inductive winding, please reduce maximum resistance to one half of value shown.

SURFACE

MOUNT

RESISTORS

CERAMIC EN-

CASED TYPE

HCAS

PHYSICAL CONFIGURATION

e : info@htr-india.com

www.htr-india.com

Rev Date : 22/11/2016

ELECTRICAL AND ENVIRONMENTAL CHARACTERISTICS / DATA

Power Rating (Rated Ambient Temperature)

Full Power dissipation at 70°C and linearly



derated to zero at 275°C for C3S / C3FS & at







160°C for C2S / C2FS (Refer Derating Curve above)

Resistance Tolerances Available

±10% (K); ±5% (J); ±3% (H); ±2% (G); ±1% (F)

Operating Temperature Range

-55°C to +160°C (C2S / C2SFS) and -55°C to +275°C



(C3S / C3SFS) with suitable derating as per derating curve

Voltage Rating / Limiting Voltage / Max Working Voltage

V=   PxR

Voltage Proof / Dielectric Withstanding Voltage

∆

R ± [0.2% + R05] -

(based on 1000V rms for 60 secs)

No flashover or mechanical damage

Insulation Resistance (MIL STD 202F - Test Method 302)

>1000M (Min)

Short Time Overload (5 x Rated Power for 5 secs)

∆

R ± [0.2% + R05] - Average

Temperature Co-efficient of Resistance

<1R0 ±80 ppm/°C



<100R ±60 ppm/°C



>100R ±90 ppm/°C or ±30 ppm/°C



(Depending on wire selected)

Thermal Shock [-65°C to +125°C, 5 cycles,

∆

R ± [0.2% + R05] - Average

15 min. at each extreme temperature]
Temperature Rise (Ambient 30°C)

Refer Temperature Rise Curve shown above

Moisture Resistance (MIL STD 202F - Test Method 106E

∆

R ± [0.5% + R05] - Average

with step 7b eliminated)
Damp Heat (Steady State) / Humidity

∆

R ± [0.5% + R05] - Typical

(40°C at 95% R.H for 250 hours)
Endurance - Load Life (70°C with limiting voltage -

∆

R ± [1.0% + R05] - Average

1.5 hours on / 0.5 hours off for 1000 hours)
Solvent Resistance [IPA for 60 secs ± 10 secs]

No effect on case filling / marking

PARAMETER/PERFORMANCE TEST & TEST METHOD                            PERFORMANCE REQUIREMENTS

•

At HTR, a special “Safety Version” is available in HCAS series for resistance values

≥

10R wherein the resistor will fuse instantaneously

when mains voltage 220/240V is applied with no flame or explosion.

•

For resistance values <10R, the fusing time and suitability must be tested and validated by the buyer for his particular application.

•

For Tape and Reel packing, add 100% to typical weight per pc given to ascertain gross weight of

 consignment.

Note: The ceramic cases used may be steatite ceramic or corderite ceramic or high alumina ceramic. Hence, the ceramic cases may be

off-white or variations of brown and variations of grey; colours which are inherent to these ceramic materials.

Resistance to Soldering Heat (260°C - 270°C for 4 secs)

 ∆

R ± [0.5% + R05] - Typical

Solderability (MIL STD 202F - Test Method 208F)

 Must meet the requirements laid down (95% satisfactory coverage)

MECHANICAL SPECIFICATIONS

1. For RoHS version - C2S *

2. For Non Inductive type - N C2S

3. For Tape & Reel packing - C2S TR

4. For Fusible Safety Version -  C2S FS

ORDERING INFORMATION

PARAMETER/PERFORMANCE TEST & TEST METHOD

 PERFORMANCE REQUIREMENTS



Series

HTR Type

Packing

Resistance Value

Tolerance



HCAS

C2S / C2S*

Bulk C2S / C2S*

10R

J







Tape & Reel C2STR / C2S*TR

SURFACE

MOUNT

RESISTORS

CERAMIC EN-

CASED TYPE

HCAS

e : info@htr-india.com

www.htr-india.com

Rev Date : 22/11/2016
