MP3

SERIES

Unlytic

®

Polypropylene

Rev. 4

DC Link Filter Capacitor

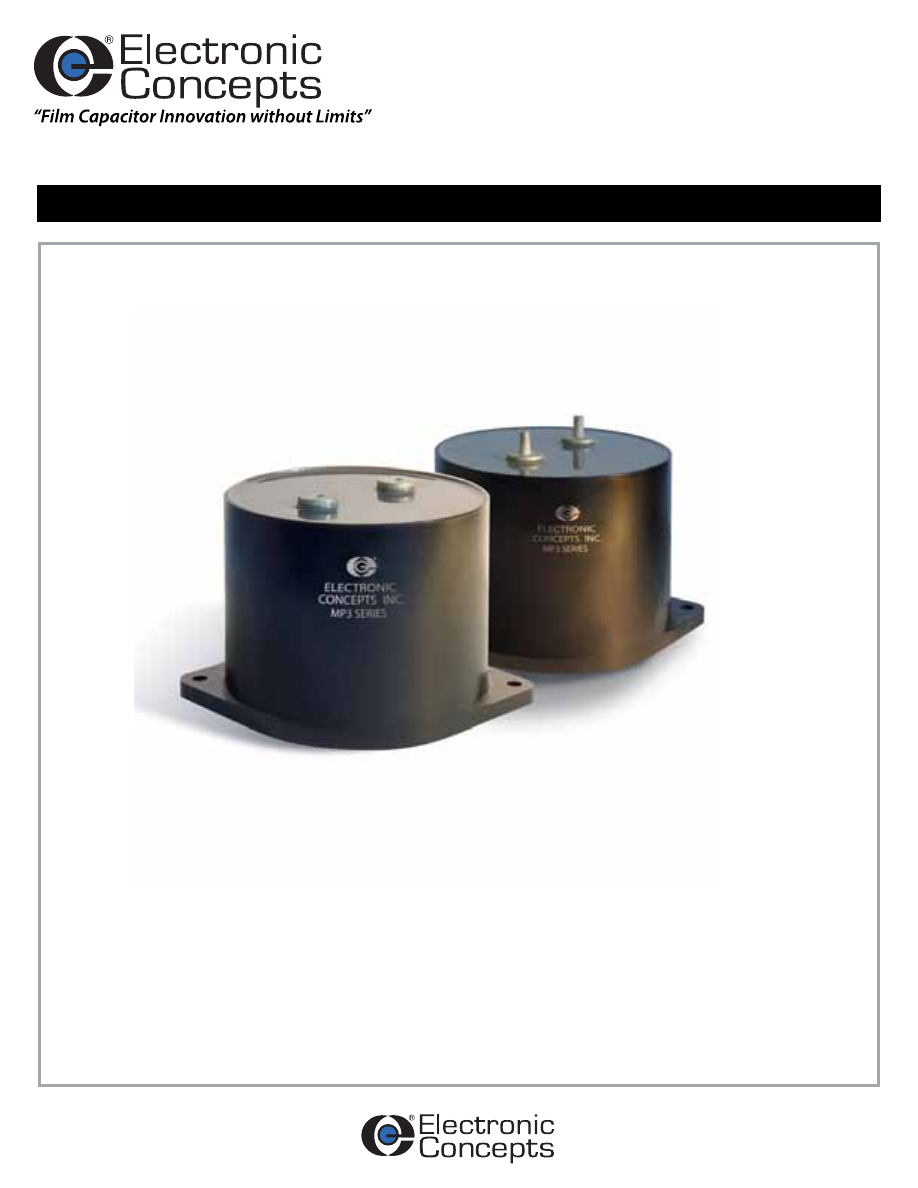

The UNLYTIC

 ®

 MP3 SERIES represent the “best” choice for high power DC filter

applications because of the combination of physical and electrical properties it

offers.

FEATURES

- Long Life: > 100,000 Hours

- Low ESR

- High RMS Current Capability

- High Surge Voltage Capability: 1.5 x VDC

- Integrated Mounting Flange

- Cost effective Design

- Reference MIL-STD 202 & IEC 61071

- Flexible, Dry Film Fully Encapsulated

  construction

- RoHS Compliant

STANDARD CONFIGURATION

- MP31 Male Terminals

- MP32 Female Terminals

Rev. 4

Parameter

Method

Condition

Vibration

204

D

Shock

213

I

Humidity

106

-

Thermal Shock

107

A

Life

108

F

Reference MIL-STD-202

Insulation Resistance vs. Temperature

In

su

la

tio

n

R

es

is

ta

nc

e

(M

Ω

 x

 μ

F

)

Temperature (C)

1

10

100

1,000

10,000

100,000

25

50

75

100

125

150

Dissipation Factor vs. Temperature

D

is

si

pa

tio

n

Fa

ct

or

 (%

)

Temperature (C)

-60 -45 -30 -15 0

15 30 45 60 75 90 105 120 135 150

0.20%

0.00%

0.40%

0.60%

0.80%

1.00%

1.20%

Capacitance Change vs. Temperature

C

ap

ac

ita

nc

e

 C

ha

ng

e

(

%

)

Temperature (C)

-2.5%

-3.0%

-2.0%

-1.5%

-1.0%

-0.5%

0.0%

0.5%

1.0%

1.5%

2.0%

2.5%

-60 -45 -30 -15

0

15

30

45

60

75

90 105 120 135 150

Vr

PROJECTED LIFE vs INTERNAL HOT SPOT

AND VOLTAGE RATIO

HOT SPOT (HS)

TEMPERATURE (°C)

HOURS

47

45

49 51 53 55 57 59 61 63 65 67 69 71 73 75 77 79 81 83 85

400,000
350,000
300,000
250,000
200,000
150,000
100,000

50,000

-

0.9 Vr*

0.8 Vr*

  Specification Summary

  Characteristics

Dissipation Factor

Polypropylene has an intrinsic dissipation factor of

less than 0.00021 over the operating temperature

range and frequencies to 1MHz.

Capacitance Range

70μF to 1100μF

Capacitance Tolerance

Standard capacitance tolerance is ±10%.
(Other tolerances available upon request)

Operating Temperature Range

-40°C to +85°C (+105°C upon special request)
Hot Spot Temperature Calculation: H.S. = Tamb + (I

2

 x ESR) x Rth.

Failure Rate: 100FIT

Enclosure/Construction

Thermal plastic with high current terminals.

Voltage Rating

500 VDC to 2400 VDC

Environmental

Dielectric Strength

Capacitors withstand a DC potential of 120% rated

voltage for one (1) minute without damage or break-

down. Test voltage is applied and discharged through

a resistance of 1 OHM per volt minimum, and at

25°C.

Rev. 4

MP31

Tolerances: ±0.031 (±0.8mm)

0.118

(3mm)

1.969

(50mm)

0.472

(12mm)

0.315

(8mm)

3.937

(100mm)

M6 x 1.0 2PL

5Nm Max

Torque

135°

5.677

(144.2mm)

4.016

(102mm)

Ø 0.700

2PL

(17.8mm)

Ø 0.276

2PL

(7mm)

Ø 4.724

(120mm)

MP3_BA1350
MP3_BC1000
MP3_BG0750
MP3_BL0500
MP3_BN0335
MP3_BR0250
MP3_BT0190
MP3_CA0120
MP3_CB0085

500
600
800

1000
1200
1400
1600
2000
2400

1.7
2.0
2.3
2.8
3.4
3.9
4.5
5.8
6.8

1350
1000

750
500
335
250
190
120

85

50
50
50
50
50
50
50
50
50

14,067
12,157
10,420
8,684
6,982
6,078
5,280
4,168
3,543

40
38
35
32
28
27
25
22
20

2.50
2.48
2.52
2.45
2.51
2.48
2.49
2.51
2.48

67
63
58
53
47
44
41
37
34

86
80
74
68
61
57
53
47
43

10
12
14
17
21
24
28
35
42

19.4
22.5
25.9
31.8
38.9
45.0
51.6
64.9
77.2

102

95
87
81
71
67
62
55
51

PART NUMBER

Max RMS Current (10 kHz)

VDC

ESR

Fres

ESL

nH

Fres

kHz

dv/dt

V/µs

IPEAK

AMPS

CAP

25°C

45°C

65°C

85°C

Rth

°C/W

NOTE: The 4th character of the part number represents the style.

  Detail Data

  Style

Rev. 4

MP32

Tolerances: ±0.031 (±0.8mm)

1.969

(50mm)

0.118

(3mm)

0.315

(8mm)

3.937

(100mm)

4.724

(120mm)

M5 x 0.8 INTERNAL 2PL

4Nm MAX TORQUE

135°

5.677

(144.2mm)

4.016

(102mm)

Ø 0.700

2PL

(17.8mm)

Ø 0.276

2PL

(7mm)

Ø 4.724

(120mm)

Rev. 4

TYPE

Metallized Polypropylene

STYLE

‘1’ Bolt Mount Package, ‘2’ Flat Mount (no bolt)

MP3

1

BC

0105

VOLTAGE

DC Voltage Rating: BA = 500VDC, BC = 600VDC, BG = 800VDC, BL = 1000VDC,

BN = 1200VDC, BR = 1400VDC, BT = 1600VDC, CA = 2000VDC, CB = 2400VDC
CAPACITANCE IN MICROFARADS

Capacitance in µF (e.g. 0105 = 105µF)

Marking And Date Code

All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type MP3, capacitance, tolerance, rated

DC working voltage and date code. The first two digits of the date code represent the year, the second two digits the week, i.e., 1252 is the

52nd week of 2012, 1202 is the second week of 2012.

Quality Assurance

Major emphasis is placed on quality assurance. EC is an ISO 9001 and AS9100 Certified Company. Raw material inspection and the use of

SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the EC Quality Control Manual.

Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology, compact capacitor designs and

establishing reliability procedures.

The  MP3  capacitor  series  further  enhances  the  existing  UL3  product  offering.    The  MP3  incorporates  the  established

UNLYTIC

®

 film technology with new cost effective packaging, which provides higher storage capacity and voltage creepage

protection.  The capacitor is isolated from the outer case, allowing for simple package and connection mounting.  The product

series is well suited for bulk DC storage, especially useful in DC link converter/inverter applications.
