AC APPliCAtionS

BECAUSE only RoBUSt SolUtionS

MEEt thE toUghESt dEMAndS.

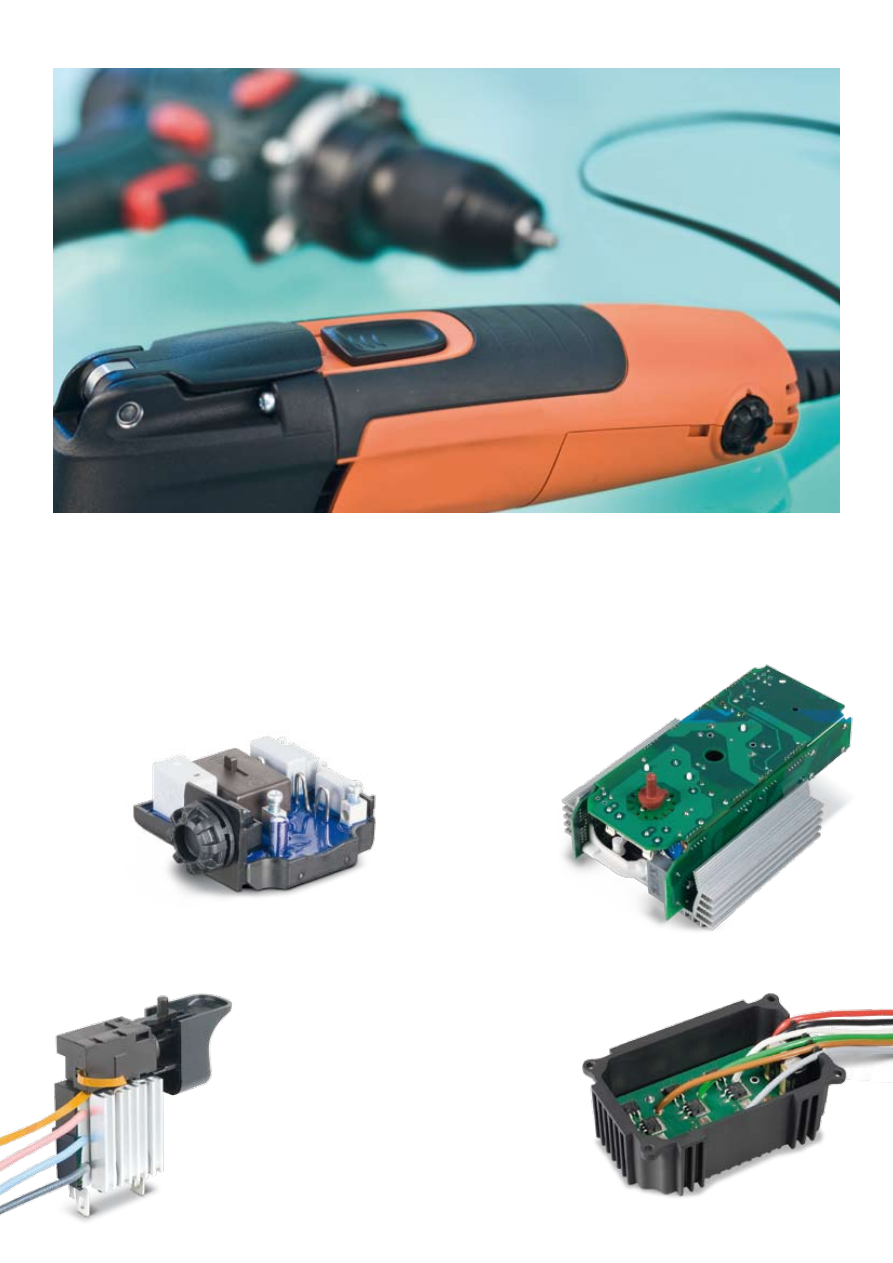

Electronic switch 2508

Full-wave speed control with current feedback (micro controller)

Rating up to 10.5 A 127 V AC

Soft start and overload cutoff

End-programmable at the device manufacturer on the line

Additional programmable inputs / outputs

Integrated reversing switch

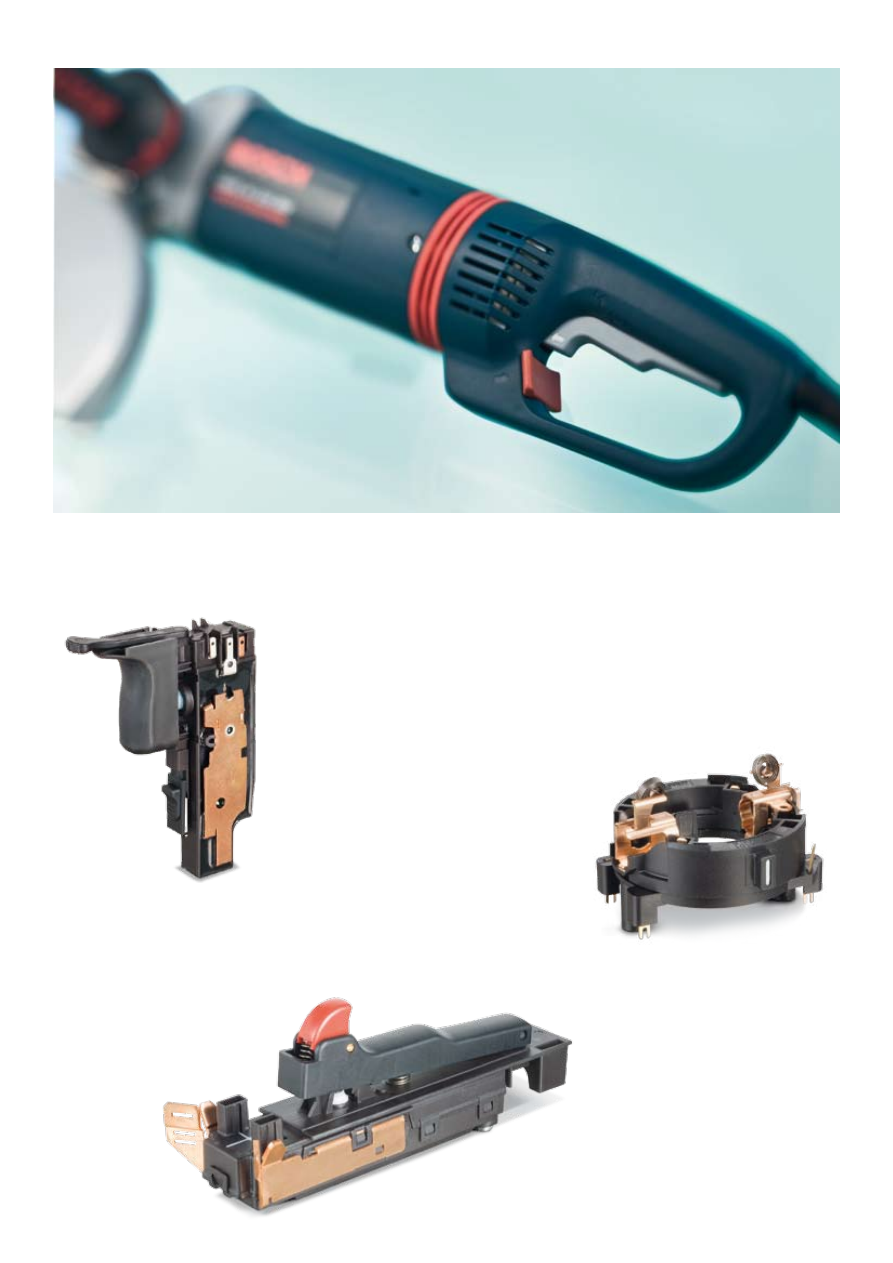

Mechatronic switch 2267 for large angle grinders

Double-pole contact system for safe switch-off

Integrated full-wave electronics (micro controller)

Restart protection through zero voltage detection

For tools with input power up to 2.7 kW

Overload and blocking protection

High dust protection

Reversible brush ring 2015

Carbon brush holder with changeover
function for optimum brush / collector
positioning during left / right rotation

Long life endurance of the carbon,
minimum radio interference even in the
left rotation, low system costs due to
reduced cabling expenditure

Definite end position due to snapping
actuation

High dust protection due to narrow part
tolerances

dC APPliCAtionS

whEn thE SwitCh BECoMES

thE CEntRAl Unit.

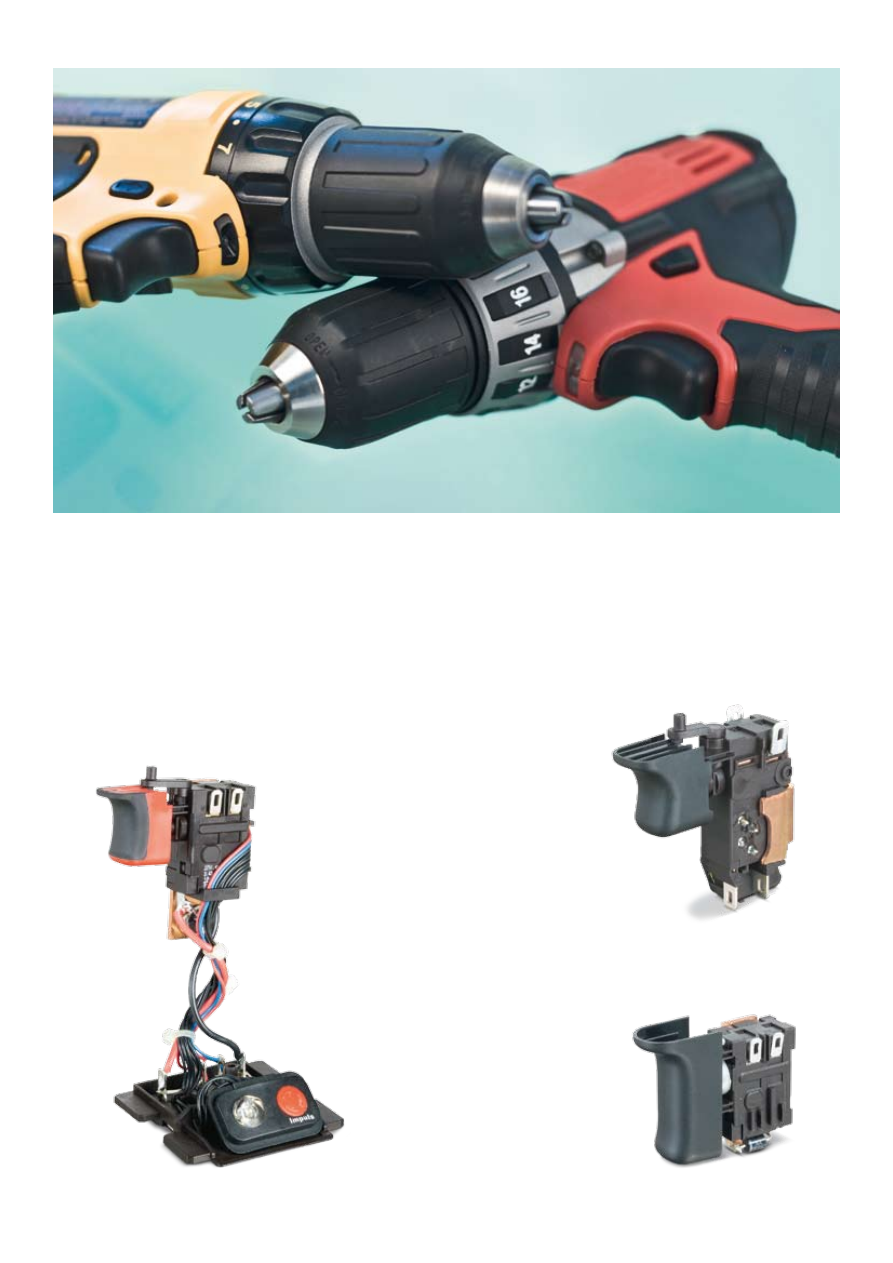

High power switch for electric tools with Li-ion battery

Rating up to 36 V / 25 A

With integrated battery management

Current and temperature monitoring for battery / motor

Dust and vibration protection

Module 2711

With control panel, working LED and battery adapter

Electronic switch 2711

Programmable at the customer site on the line

Electronic switch 2717

Extreme vibration resistance, ideal
for impact wrench applications

Communication with battery pack
(“switch me off” function)

EC And AC ElECtRoniC ModUlES

whERE high QUAlity

FACilitAtES PRoFESSionAliSM.

EC control 2800 for cordless power tools

Control electronics for brushless motors

Compact design

Integrated reversing switch

EC control 2810

For truck fan motors

Overload and temperature cutoff

AC module 2074

Full-wave speed control (micro controller)

Speed setting via potentiometer

Integrated mains slide switch

Compact design

EC control 2810

For applications up to 1.5 kW

Variable speed setting

Individual adaptation of software and mechanics

Integrated interference suppressors

Electric  power  tools  make  tough  de-
mands on the quality, performance, life
endurance, robustness as well as dust
and  vibration  protection  of  the  inte-
grated  switching  systems.  Apart  from
standard products, there is a growing
need  for  tailored,  customer-specific
solutions.

Marquardt offers a broad spectrum of
standard products. This range is sup-
plemented  by  mechanical  ON / OFF
switches  and  AC  and  DC  switches
with integrated electronic controls. The
modular structure of many of the series
allows a lot of flexibility, thus enabling
us  to  fulfill  varied  customer  wishes.
For  example,  our  switching  systems
offer  highly-integrated,  mechatronic
solutions which can take up the com-
plete  management  of  the  lithium-ion
batteries.

We  maintain  a  holistic  approach  and
operate  in  the  market  for  the  market.
Based on our decade-long experience
and  vast  know-how,  we  manufacture
top-level  products,  which  prove  our
position  as  the  world  market  leader
time and again.

BECAUSE

CUtting-EdgE

tEChnology

iS BASEd on

KnowlEdgE And

ingEnUity.

The Marquardt group was established
in  1925  and,  in  spite  of  becoming  a
Global  Player,  has  remained  an  inde-
pendent  family  enterprise.  With  its
two business areas – Automotive and
Switches,  Sensors  &  Controls,  the
Marquardt  group  of  companies  is
active  all  over  the  world  in  all  the
important  markets  and  has  offices  at
11  locations  with  more  than  4500
employees in all.

Every year, we invest more than seven
percent  of  our  turnover  in  research
and development – not to mention the
use  of  modern  development  tools,
simultaneous engineering and an effi-
cient  testing  system.  Moreover,  our
corporate  culture  offers  ample  scope
for  unfolding  the  inventive  genius  of
our employees. As a result, new ideas
come  up  time  and  again,  which  are
materialized  into  marketable  cutting
edge technologies.

The Switches, Sensors & Controls divi-
sion  develops,  produces  and  sells  its
products in a number of industries and
applications.  Apart  from  industrial
applications, our products are used in
power  tools,  household  appliances,
cleaning  systems,  drive  technology,
heating and air-conditioning technolo-
gy as well as off-road vehicles. We have
the necessary technical know-how, in-
novative  strength,  long-term  experi-
ence and comprehensive manufactur-
ing expertise required in these fields.

This yields innovative and reliable prod-
ucts  that  feature  promising  designs
tuned to individual requirements. Our
products  range  from  the  standard
switch  to  complex  customer-specific
systems. They are suitable for small-
scale and large-scale production. With
distinct production engineering, world-
wide  manufacturing  options,  high
quality standards and durability of our
products, we achieve customer satis-
faction  and  thereby  ensure  our  com-
petitive ability.

These  customer-  and  market-specific
solutions  have  made  Marquardt  a
strong  partner  of  the  power  tool  and
electrical  industry  and  a  technology
leader. We are at your service in all the
international markets.

B BB
