Plug-In

Relays

Sockets

PCB

Relays

Power

Relays

Solid

State

Relays

Time

Delay

Relays

Latching

Relays

Over 50 Years of Innovation...

Magnecraft is proud to be recognized as the most innovative and quality-conscious name in

the industry. We stay ahead by creating the most cost-effective, highest-rated and feature-rich

relays and sockets available.

Electrical control panels often require modification, which can be

time consuming, difficult and unsafe. Our quality parts are designed

to work together as a complete system to save time and energy. The

Plug-In Relay/Socket System is built to upgrade and simplify outdated

control panels.

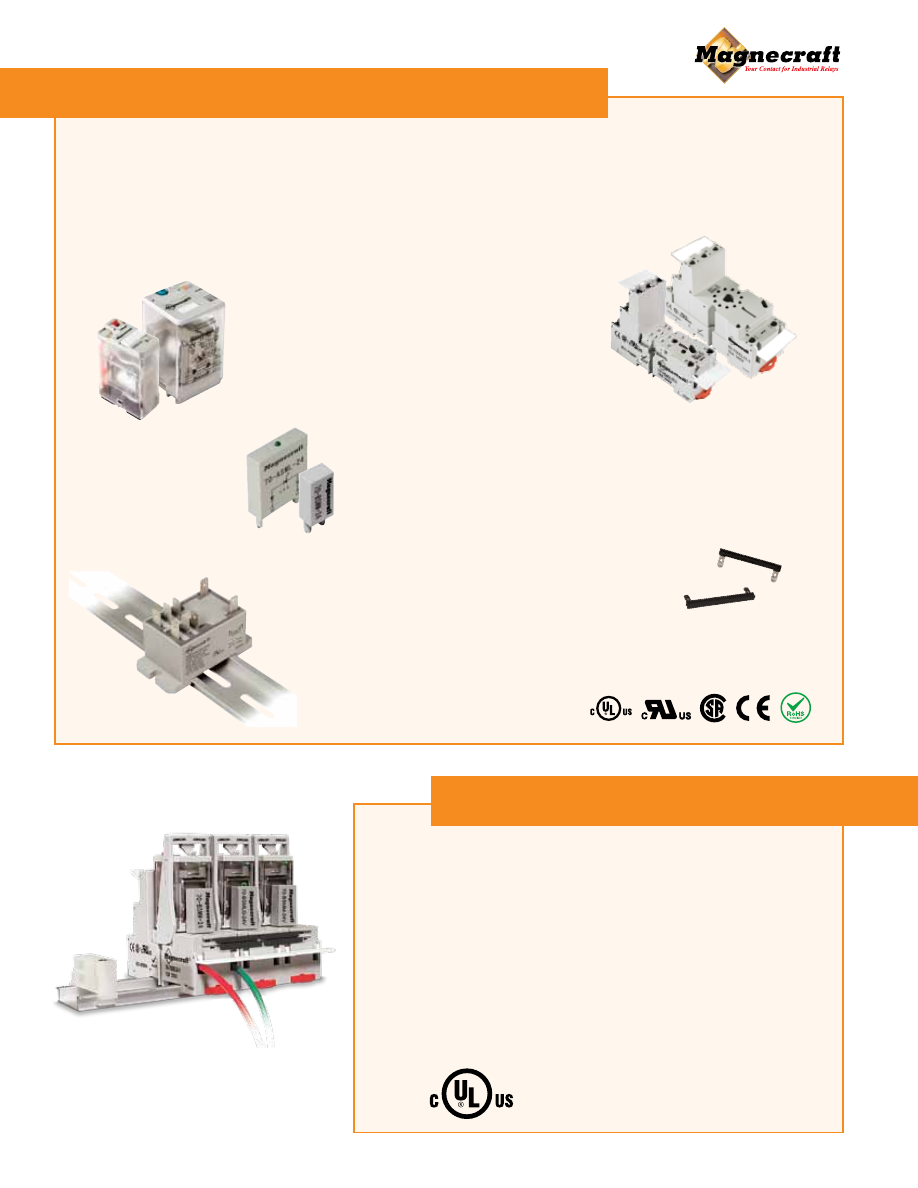

Complete System Solution (Relay, Socket and Accessories)

Relay System is UL Listed, eliminating the

need for users to self-certify their system.

A Complete System:

relays, sockets,

modules, bus jumpers, ejector clips

and ID tags.



z

Most products are UL registered or listed, CSA approved,

CE certified and RoHS compliant.



z

Upgraded sockets with finger-safe,

logic-style design for a cleaner panel layout.



z

Full-featured plug-in relays which are faster

and easier to troubleshoot.

Product Offering Includes:



z

Relays with DIN mount capability.

Why Magnecraft?

Complete Relay System



z

Added functionality or protection with new socket

modules including:



z

LED Status



z

Surge Protection



z

Diode Protection



z

Socket bus jumpers which allow connections to

adjacent sockets without additional wiring.



z

Saves time on installation



z

Increases productivity



z

Increases reliability



z

Reduces downtime due to malfunction

WHITE

Applications:

• Computers
• Business machines
• Consumer appliances

Applications:



• Building automation
• Pumps & fans
• Heating & cooling

Applications:



• Pumps & fans
• Solar powered circuits
• Mining equipment

General Purpose Relays

 are available in many

different package styles such as full-featured, plain

cover and flange mount. Most are compatible with

a choice of sockets and accessories.

Latching & Sequencing Relays

 utilize impulses to

control switching and/or to conserve energy. When the

control power is removed, the contacts remain in the

closed state. This means they consume energy only for

a moment while switching.

Printed Circuit Board Relays

 are compact

devices used for power management on

printed circuit boards (PCBs).

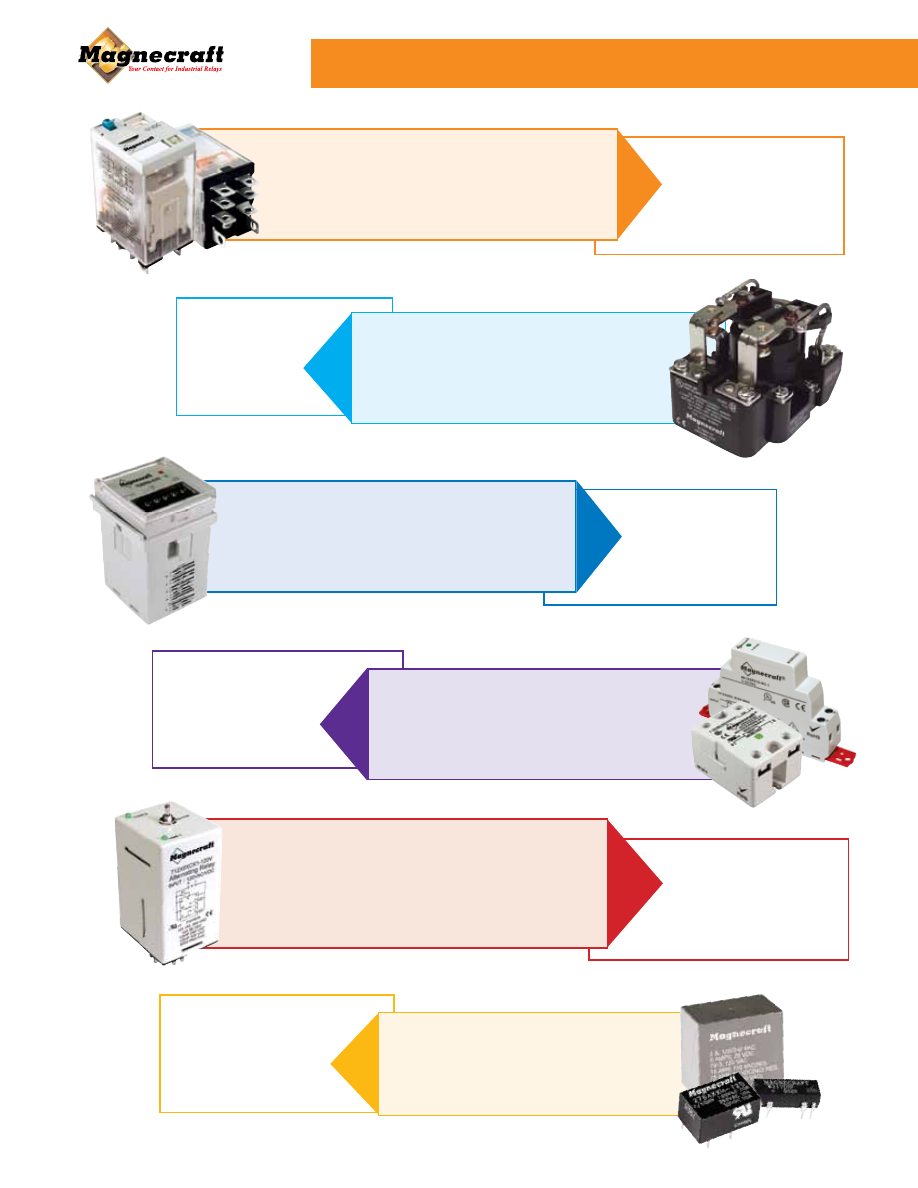

Relay Categories

Applications:



• Security/Alarms
• Lighting
• Circuit protection

Applications:



• Packaging equipment
• Hospital
• Flashing lights

Solid State Relays

 are electronic control devices

that have no moving parts. They are suitable

for applications that have high cycle rates and

require reliable and silent operations.

Timing & Sensing Relays

 are used to control and

monitor circuits. The purpose of a time delay relay

is to control an event based on time. Sensing relays

monitor and react to a voltage or current.

Applications:

• Lighting
• Motors
• Machinery

Power Relays

 are used to control circuits

that exceed 10 amps. They are capable of

switching high voltage DC loads and multiple

HP motors.

Does the application require a high cycle rate (multiple operations per minute)?

A solid state relay is appropriate.

Which mounting style is required?

➔

 DIN Mount -

Includes integrated heat sink.

➔

 Panel Mount -

Requires heat sink.

An electromechanical relay is appropriate.

A. Will the relay be mounted on a printed circuit board?

A printed circuit board (PCB) relay is required.

An industrial purpose relay is appropriate.

Is the load current greater than 16 Amps?

A power relay is required.

A general purpose relay is adequate.



B. Is a customized reaction to control power required?

A time delay or sensing relay is required

.

What is the type of reaction?

➔

 Duration of circuit response -

 A time delay relay is required.

➔

 Reaction to system power levels -

 A voltage or current-sensing

relay is required.

C. Does the relay need to be controlled with an electrical pulse, i.e. energy conservation applications?

A latching or sequencing relay is required.

How To Choose A Type Of Relay

 www.magnecraft.com

YES

NO

YES

YES

YES

NO

NO

YES

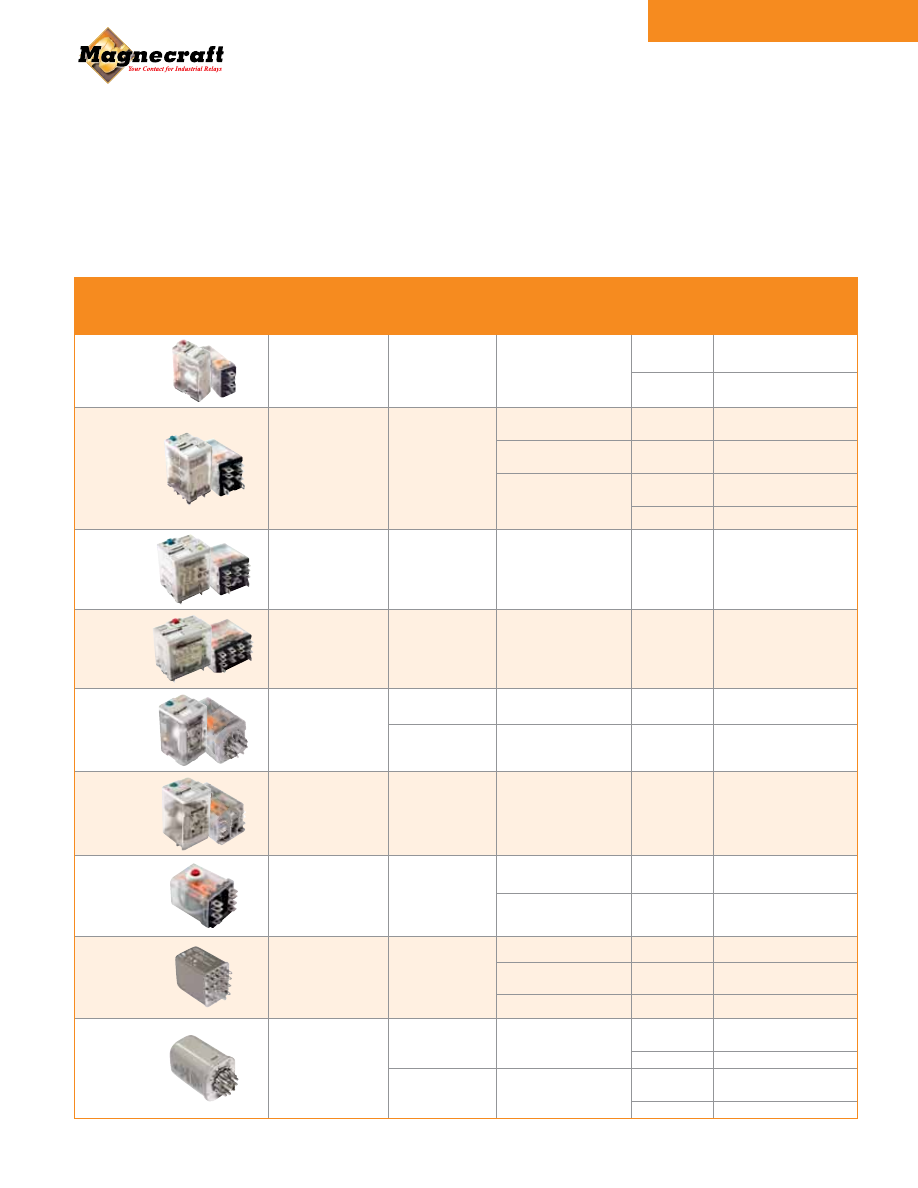

Series

Style

Terminals

Contact

Configuration

Output

Current

Horsepower

Rating

781

Ice Cube Power &

Low-Level

Blade

SPDT

15 A

1/2 HP at 120 Vac

1 HP at 277 Vac

3 A

–

782

Ice Cube Power &

Low-Level

Blade

SPDT

20 A

1/2 HP at 120 Vac

1 HP at 250 Vac

DPDT

15 A

1/2 HP at 120 Vac

1 HP at 250 Vac

DPDT, 3PDT & 4PDT

10 A

1/3 HP at 120 Vac

1 HP at 277 Vac

3 A

1/16 HP at 120 Vac

783

Ice Cube Power

Blade

3PDT

15 A

1/2 HP at 120 Vac

3/4 HP at 250 Vac

784

Ice Cube Power

Blade

4PDT

15 A

1/2 HP at 120 Vac

3/4 HP at 250 Vac

750

Ice Cube Power

Octal (8 Pin)

SPDT & DPDT

16 A

1/3 HP at 120 Vac

1/2 HP at 250 Vac

Octal (11Pin)

3PDT

16 A

1/3 HP at 120 Vac

1/2 HP at 250 Vac

788

Ice Cube Power

Blade

SPDT, DPDT & 3PDT

16 A

1/3 HP at 120 Vac

1/2 HP at 230 Vac

388J

Ice Cube Power

Blade

DPDT

16 A

1/3 HP at 120 Vac

1/2 HP at 600 Vac

3PDT

16 A

1/2 HP at 120 Vac

3/4 HP at 230 Vac

782H

Hermetically Sealed

Quick Connect

DPDT & 4PDT

5 A

–

DPDT & 4PDT

3 A

1/16 HP at 120 Vac

1/10 HP at 230 Vac

DPDT & 4PDT

1 A

–

750H

Hermetically Sealed

Octal (8 Pin)

DPDT

12 A

1/3 HP at 120 Vac

1/2 HP at 230 Vac

3 A

–

Octal (11 Pin)

3PDT

12 A

1/3 HP at 120 Vac

1/2 HP at 230 Vac

3 A

–



z

Direct replacement for MRO



z

Hermetically sealed versions for
hazardous locations



z

Socket compatible



z

Multiple feature & operation
combinations available



z

Optional accessories

General Purpose Relays

 www.magnecraft.com

Sockets & Accessories

Relay

Style

Relay

Series

Socket

Rated

Amps

Sample


Pins Terminals

Terminal

Layout

Finger

Safe

ACCESSORIES

Module

Clip

Bus

Jumper

ID Tag/

Label

Control

ICE-Cube

Relay

782XBX1(2, 3)

70-782EL8-1

12 A

8

Spade

Logic

✔

✔

✔

✔

✔

782XCX

70-782EL11-1

10 A

11

Spade

Logic

✔

✔

✔

✔

✔

782XDX

TDR782

70-782D14-1

10 A

14

Spade

Mixed

✔

✔

✔

✘

✘

70-782E14-1

10 A

14

Spade

Logic

✔

✔

✔

✘

✔

70-461-1

10 A

14

Spade

Mixed

✘

✘

✔

✘

✘

70-782EL14-1

10 A

14

Spade

Logic

✔

✔

✔

✔

✔

Power

ICE-Cube

Relay

781XAX

70-781D5-1A

20 A

5

Spade

Mixed

✔

✔

✔

✘

✘

782XAX

782XBX

70-782D8-1A

16 A

8

Spade

Mixed

✔

✔

✔

✘

✘

70-459-1

10 A

8

Spade

Mixed

✘

✘

✔

✘

✘

783XCX

70-783D11-1

16 A

11

Spade

Mixed

✔

✔

✔

✘

✘

784XDX

70-784D14-1A

16 A

14

Spade

Mixed

✔

✔

✔

✘

✘

Square Base

Power Relay

725

70-725-1

30 A

6

Spade

Mixed

✔

✔

✔

✘

✘

788

388J

389F

TDRSRXB

70-788EL11-1

25 A

11

Spade

Logic

✔

✔

✔

✔

✔

70-463-1

15 A

11

Spade

Mixed

✘

✘

✔

✘

✘

Octal Relay

(8 Pin)

750XAX

750XBX

TDRPRO5101(2)

TDRSOXP

70-169-1

15 A

8

Octal

Mixed

✘

✘

✘

✘

✘

70-464-1

15 A

8

Octal

Mixed

✘

✘

✔

✘

✘

70-750DL8-1

16 A

8

Octal

Logic

✔

✔

✔

✘

✘

70-750E8-1

12 A

8

Octal

Mixed

✔

✔

✔

✘

✔

70-750EL8-1

16 A

8

Octal

Mixed

✔

✔

✔

✔

✔

Octal Relay

(11 Pin)

750XCX

TDRPRO5100

TDRSRXP

70-170-1

15 A

11

Octal

Mixed

✘

✘

✘

✘

✘

70-465-1

15 A

11

Octal

Mixed

✘

✘

✔

✘

✘

70-750DL11-1

16 A

11

Octal

Logic

✔

✔

✔

✘

✘

70-750E11-1

12 A

11

Octal

Mixed

✔

✔

✔

✘

✔

70-750EL11-1

16 A

11

Octal

Logic

✔

✔

✔

✔

✔

Note: Additional Panel Mount and Printed Circuit Sockets available for most spade terminal relays.

The Complete

System Solution!

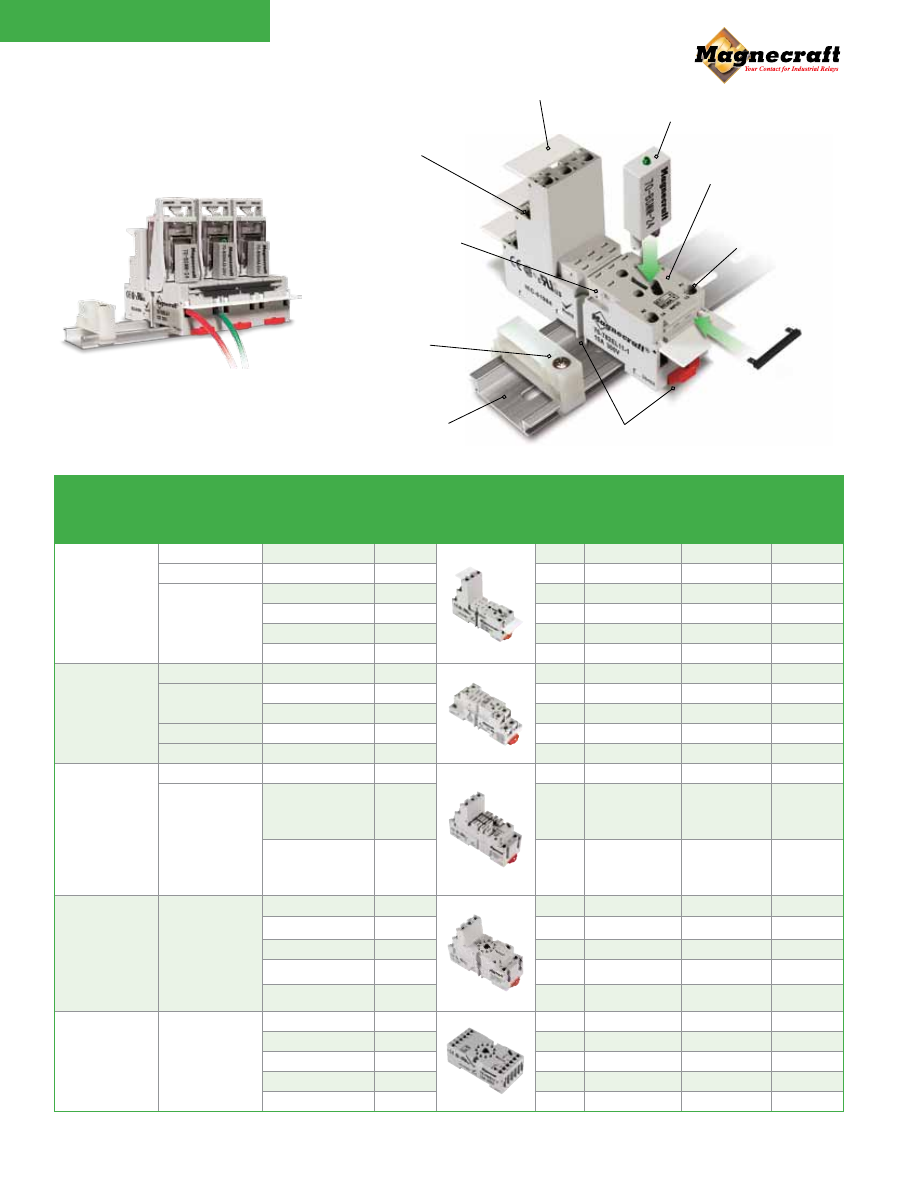

Isolated Input & Output Terminals

Separates control circuits from

load circuits.

Finger-Safe

Protects from live circuits.

2-Way Mounting System

Retrofits to existing panel

mounting and 35mm DIN rail.

Mating Hold-Down Clips

Secures relay to socket.

Slim Design

Minimizes space on DIN rail.

Modules

Protects circuits or indicates status.

I.D. Tag/Write-On Plastic Label

Used for custom identification of circuits.

DIN Rail End Clip

Secures and eliminates

sliding sockets on DIN rail.

Coil Bus Jumper System

Connects adjacent sockets

without additional wiring.

Aluminum DIN Rail

Pre-punched for quick

installation.

 www.magnecraft.com

Relay

Style

Relay

Series

Socket

Rated

Amps

Sample


Pins Terminals

Terminal

Layout

Finger

Safe

ACCESSORIES

Module

Clip

Bus

Jumper

ID Tag/

Label

Control

ICE-Cube

Relay

782XBX1(2, 3)

70-782EL8-1

12 A

8

Spade

Logic

✔

✔

✔

✔

✔

782XCX

70-782EL11-1

10 A

11

Spade

Logic

✔

✔

✔

✔

✔

782XDX

TDR782

70-782D14-1

10 A

14

Spade

Mixed

✔

✔

✔

✘

✘

70-782E14-1

10 A

14

Spade

Logic

✔

✔

✔

✘

✔

70-461-1

10 A

14

Spade

Mixed

✘

✘

✔

✘

✘

70-782EL14-1

10 A

14

Spade

Logic

✔

✔

✔

✔

✔

Power

ICE-Cube

Relay

781XAX

70-781D5-1A

20 A

5

Spade

Mixed

✔

✔

✔

✘

✘

782XAX

782XBX

70-782D8-1A

16 A

8

Spade

Mixed

✔

✔

✔

✘

✘

70-459-1

10 A

8

Spade

Mixed

✘

✘

✔

✘

✘

783XCX

70-783D11-1

16 A

11

Spade

Mixed

✔

✔

✔

✘

✘

784XDX

70-784D14-1A

16 A

14

Spade

Mixed

✔

✔

✔

✘

✘

Square Base

Power Relay

725

70-725-1

30 A

6

Spade

Mixed

✔

✔

✔

✘

✘

788

388J

389F

TDRSRXB

70-788EL11-1

25 A

11

Spade

Logic

✔

✔

✔

✔

✔

70-463-1

15 A

11

Spade

Mixed

✘

✘

✔

✘

✘

Octal Relay

(8 Pin)

750XAX

750XBX

TDRPRO5101(2)

TDRSOXP

70-169-1

15 A

8

Octal

Mixed

✘

✘

✘

✘

✘

70-464-1

15 A

8

Octal

Mixed

✘

✘

✔

✘

✘

70-750DL8-1

16 A

8

Octal

Logic

✔

✔

✔

✘

✘

70-750E8-1

12 A

8

Octal

Mixed

✔

✔

✔

✘

✔

70-750EL8-1

16 A

8

Octal

Mixed

✔

✔

✔

✔

✔

Octal Relay

(11 Pin)

750XCX

TDRPRO5100

TDRSRXP

70-170-1

15 A

11

Octal

Mixed

✘

✘

✘

✘

✘

70-465-1

15 A

11

Octal

Mixed

✘

✘

✔

✘

✘

70-750DL11-1

16 A

11

Octal

Logic

✔

✔

✔

✘

✘

70-750E11-1

12 A

11

Octal

Mixed

✔

✔

✔

✘

✔

70-750EL11-1

16 A

11

Octal

Logic

✔

✔

✔

✔

✔

Note: Additional Panel Mount and Printed Circuit Sockets available for most spade terminal relays.

 www.magnecraft.com

Sockets & Accessories

Clips

Clips colored green

for better viewing.

Plastic Ejector Clips

 firmly

secure and easily eject relays.

Stainless Steel Hold-Down

Clips



are ideal for use in

harsh environments.

I.D. Clips

 allow easy identification

of circuits in multi-relay applications.

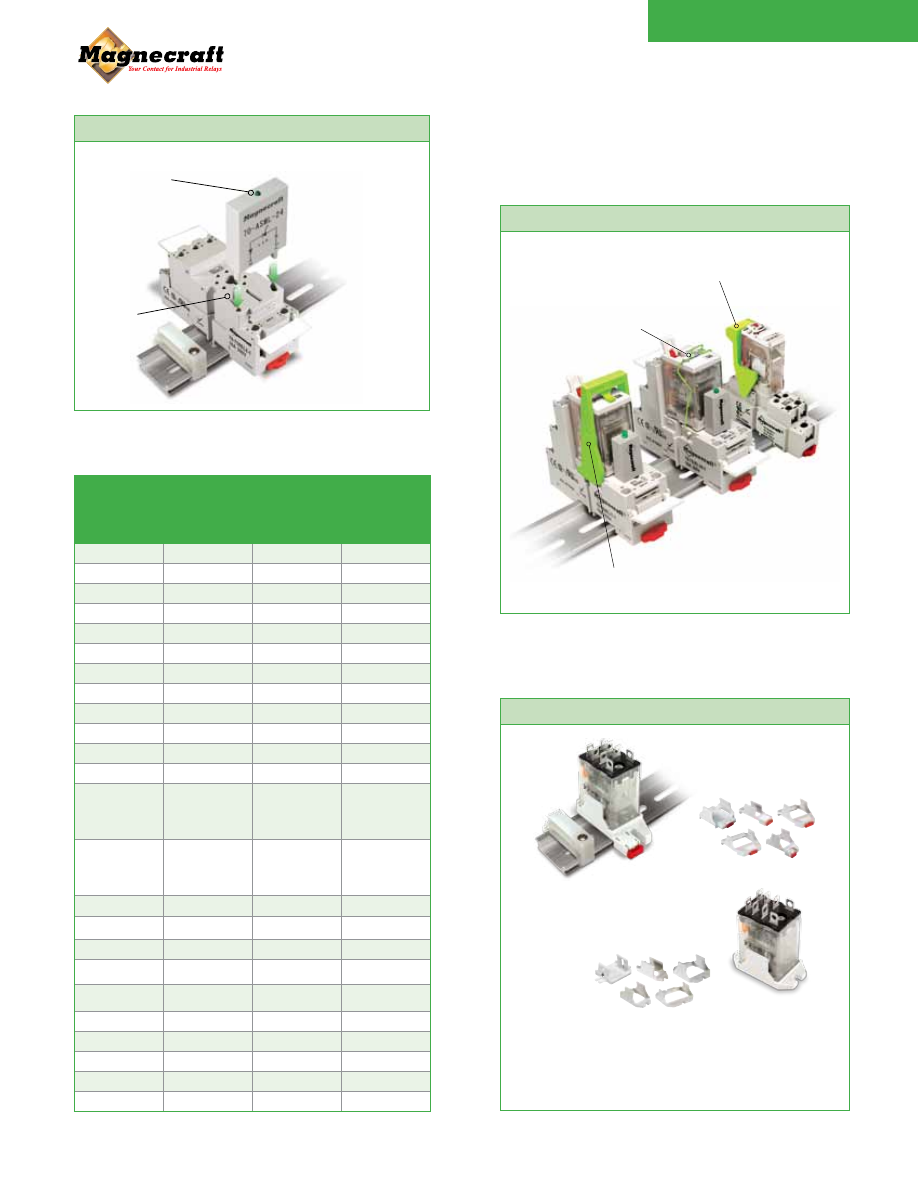

Modules

LED Circuit

Verifies that power

is being supplied

to the coil.

Optimized

Size

No wider

than the

socket.

Metal Oxide Varistor

(MOV) Circuit

Protects from

damaging electrical

spikes.

RC Circuit

Snubs back

EMF of relay

coil.

Diode Circuit

Protects from

inductive

voltages.

Protection Modules:

Relay Adapters

Flange Adapters

 allow

relays to be mounted

directly on a panel.

DIN Adapters

 allow

relays to be mounted

directly on a DIN rail.



z

No socket needed



z

Plastic construction



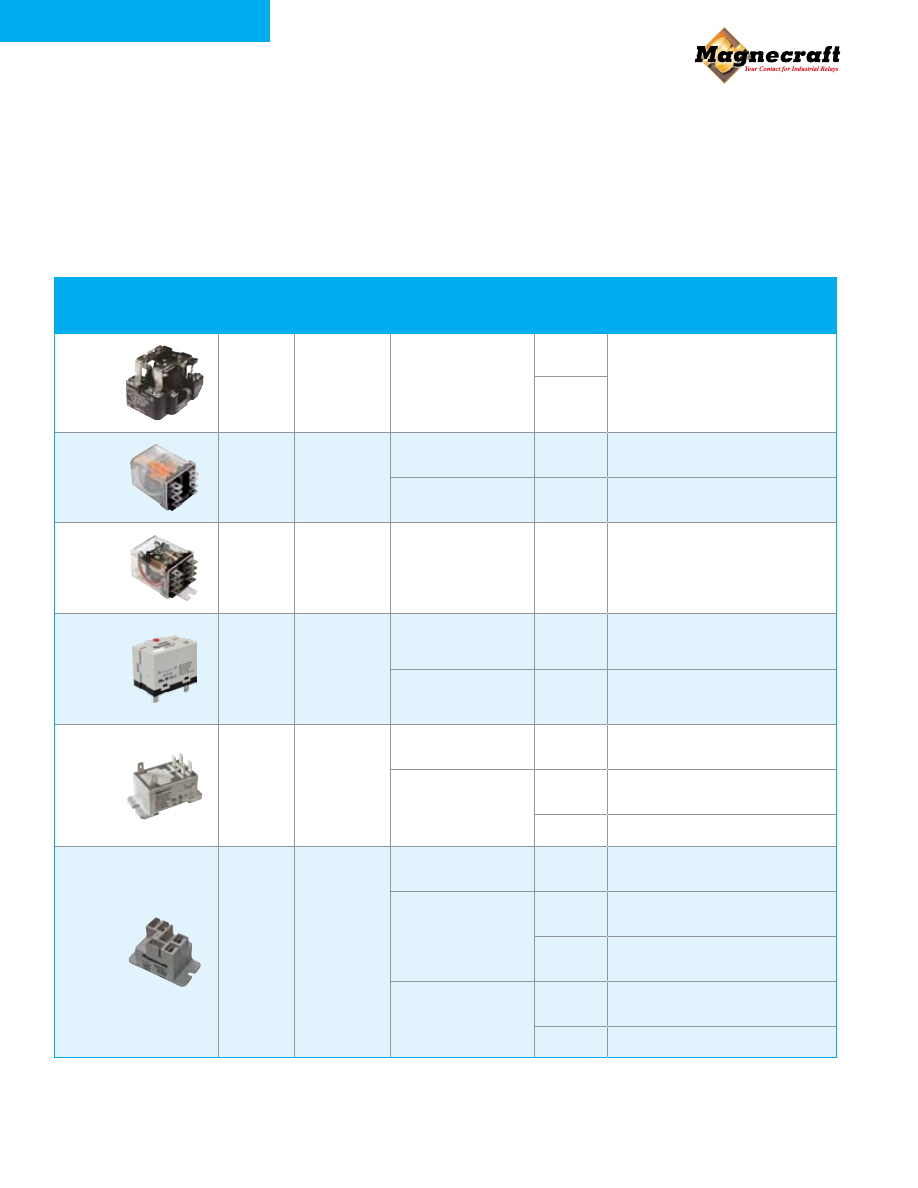

z

Light weight



z

Low cost



z

Low profile



z

Narrow mounting



z

Easy termination

Series

Style

Terminals

Contact

Configuration

Output

Current Horsepower Rating

W199

Open

Screw

SPST, SPDT, DPST, DPDT,

SPST-DM,

SPST-DB

40 A

1.5 HP at 120/240/250/277/600 Vac

50 A

389F

Ice Cube

Quick Connect

SPST-NO-DM, SPDT-DM-

DB, SPST-NC-DB

30 A

1 HP at 120 Vac

1.5 HP at 240/250/277/600 Vac

SPST, SPDT, DPST, DPDT

25 A

1.5 HP at 240 Vac

1  HP at 600 Vac

300

Ice Cube

Quick Connect

SPST, SPDT, DPST, DPDT,

SPST-NO-DM, SPST-NC-

DB, SPST-DM-DB

30 A

1 HP at 120 Vac

2 HP at 240/250/277/600 Vac

725

Ice Cube

Quick Connect

& Screw

SPST-NO

30 A

1.5 HP at 120 Vac

3.0 HP at 277 Vac

DPST-NO

25 A

1.0 HP at 120 Vac

2.0 HP at 277 Vac

W92

Mini Power

Quick Connect

SPST-NO

30 A

1 HP at 120 Vac

3 HP at 240 Vac

DPDT-NO

DPDT-NC

30 A

1 HP at 120 Vac

3 HP at 240 Vac

3 A

–

W9A

Mini Power

Quick Connect

SPST-NO

30 A

1 HP at 120 Vac

2 HP at 240 Vac

SPDT

30 A

1 HP at 120 Vac

2 HP at 240 Vac

15 A

1/4 HP at 120 Vac

1/2 HP at 240 Vac

DPDT-NO

DPDT-NC

30 A

1 HP at 120 Vac

3 HP at 240 Vac

3 A

 –



z

Rated up to 50 Amps



z

Socket compatible versions



z

Epoxy sealed versions available



z

Optional blowout magnet for high
DC switching



z

Several mounting, feature & operation
combinations to fit multiple applications

 www.magnecraft.com

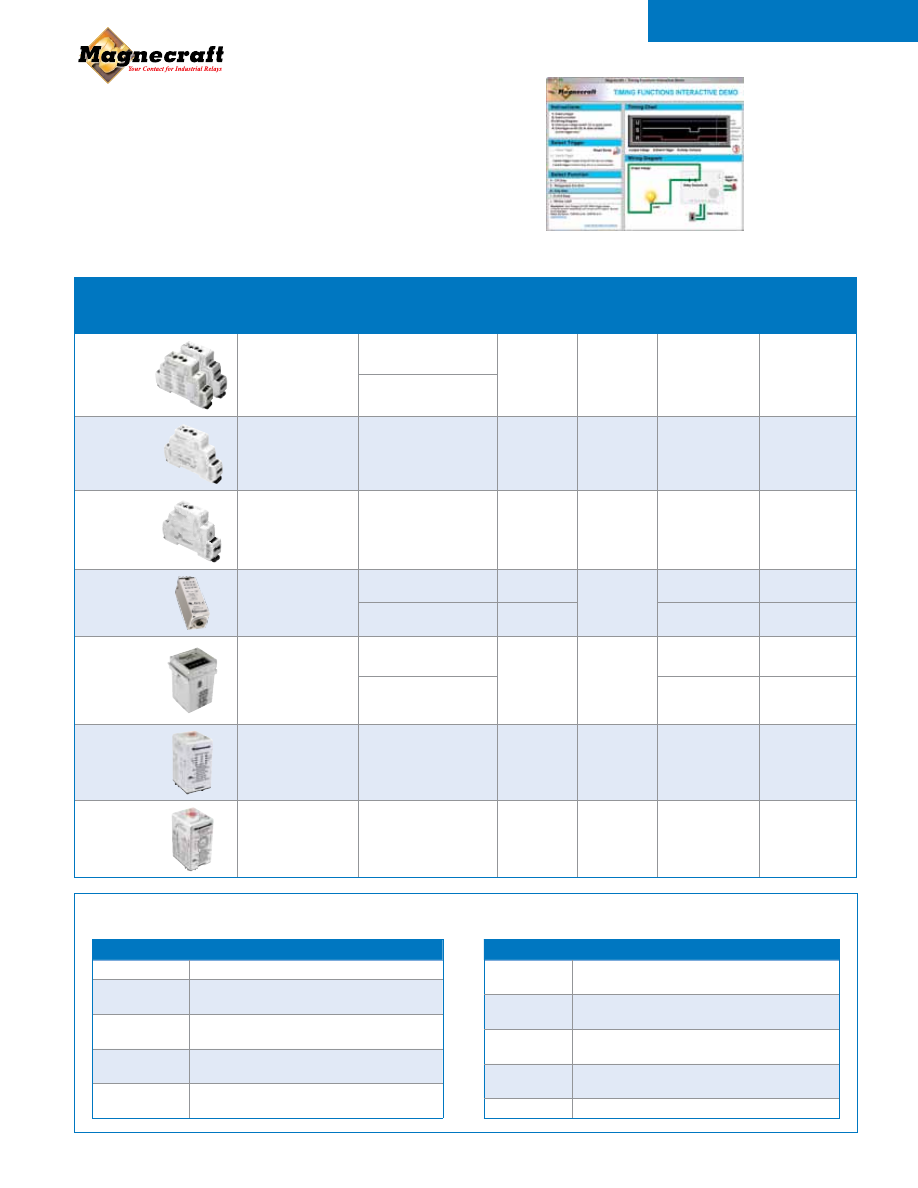

Power Relays

Timing & Sensing Relays

Series

Style

Contact

Configuration

Output

Current

Timing

Range

Number of

Functions

Function

Type

820

Time delay relay

Mini-DIN mount

SPDT (821)

15 A

100 ms to

10 Days

10

All

DPDT (822)

831

Voltage sensing

mini-DIN mount

relay

SPDT

15 A

100 ms to

10 Sec

1

On Delay

841

Current sensing

mini-DIN mount

relay

SPDT

15 A

100 ms to

10 Sec

1

On Delay

TDR782

Time delay relay

Mini Plug-in w/Dial

DPDT

5 A

100 ms to

10 Hrs

1

On Delay

4PDT

3 A

1

On Delay

TDRPRO

Time delay relay

1/4 DIN Panel

Plug-in w/5 Digit

Thumbwheel

SPDT (TDRPRO-5101)

DPDT (TDRPRO-5100)

12 A

100 ms to

10 Hrs

10

All

DPDT (TDRPRO-5102)

3

On Delay

Repeat Cycle

On Interval

TDRSOX

Time delay relay

Plug-in w/Dial &

DIP switches

DPDT

12 A

100 ms to

10 Hrs

2

On Delay

Interval

TDRSRX

Time delay relay

Plug-in w/Dial &

DIP switches

DPDT

12 A

100 ms to

10 Hrs

2

Off Delay

Retriggerable



z

Up to 10 timing functions



z

Switching up to 4 pole (4PDT)



z

Timing ranges up to 10 days



z

DIN or panel mounting styles

Time Delay Function Definitions

Function

Description

On Delay

Contacts transfer after pre-set time.

Repeat Cycle

(Starting Open)

Contacts wait for pre-set time before cycling.

Interval

Contacts transfer immediately, and release after

pre-set time.

Repeat Cycle

(Starting Closed)

Contacts transfer immediately and start repeat

cycle.

Pulse Generator

Contacts transfer for a 0.5 pulse after pre-set

time.

Function

Description

Off Delay

Contacts transfer when trigger is closed. Timing

function begins after trigger is released.

Retriggerable

One Shot

Contacts transfer when trigger is closed and

timing function begins. Re-set any time.

One Shot

Contacts transfer when trigger is closed and

timing function begins. Ignores re-set attempts.

On/Off Delay

Contacts transfer after pre-set time when trigger is

closed; then transfer back after same time length.

Memory Latch

Contacts transfer each time trigger closes.

Power Trigger

Switch Trigger

Interactive

Timing Demo

 visit www.magnecraft.com/timer-demo.php

 www.magnecraft.com

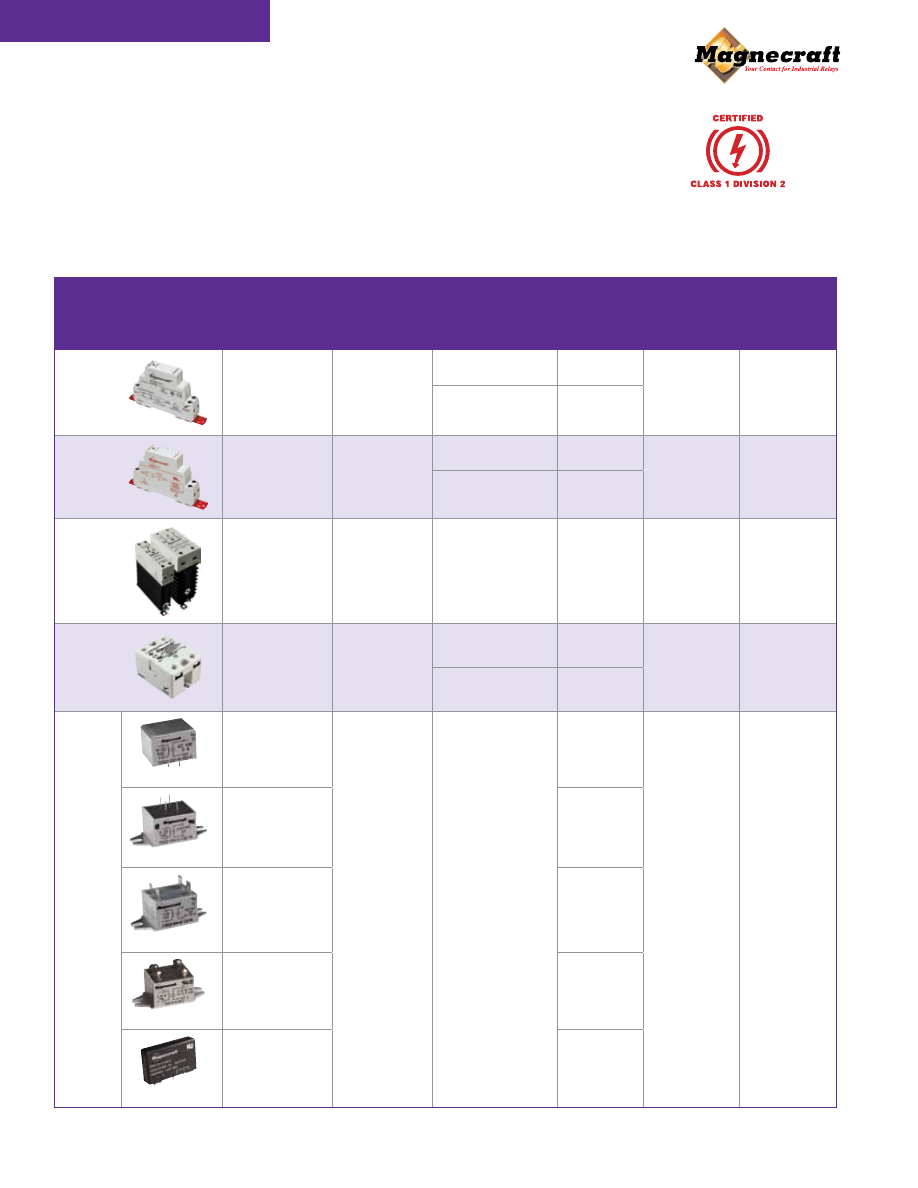

Solid State Relays

Series

Style

Integrated

Heat Sink

Contact

Configuration

Output

Current

Range

Input

Voltage

Range

Output

Voltage

Range

861

Mini-DIN mount

✔

SPST-NO

8 to 10 A

3 to 32 Vdc

90 to 280 Vac

3 to 150 Vdc

24 to 480 Vac

SPST-NO

SPST-NC

15 A

861H

Mini-DIN mount

Class 1, Division 2

Certified

✔

SPST-NO

8 to 10 A

3 to 32 Vdc

90 to 280 Vac

3 to 150 Vdc

24 to 480 Vac

SPST-NO

SPST-NC

15 A

SSRDIN

DIN mount

✔

SPST-NO

10 to 45 A

4 to 32 Vdc

90 to 280 Vac

0 to 60 Vdc

24 to 660 Vac

Class 6

Puck style

Panel mount

–

SPST-NO

10 to 75 A

3 to 32 Vdc

90 to 280 Vac

3 to 200 Vdc

24 to 480 Vac

DPST-NO

10 to 25 A

70S2

70S2 (F)

PCB mount

Solder terminals

–

SPST-NO

4 A

3 to 32 Vdc

3 to 60 Vdc

8 to 280 Vac



70S2 (M)

Panel mount

Solder terminals

10 A



70S2 (N)

Panel mount

Blade terminals

5 to 12 A



70S2 (S)

Panel mount

Screw terminals

5 to 25 A

70S2 (V)

PCB mount

Solder terminals

3 to 5 A



z

100% solid state design



z

Industry-first design (861 &
861H Series)



z

Integral heat sinks available



z

Modern appearance &
enhanced features



z

Several styles to fit multiple
applications

 www.magnecraft.com

861H relays are Class 1, Division 2

certified for use in hazardous locations

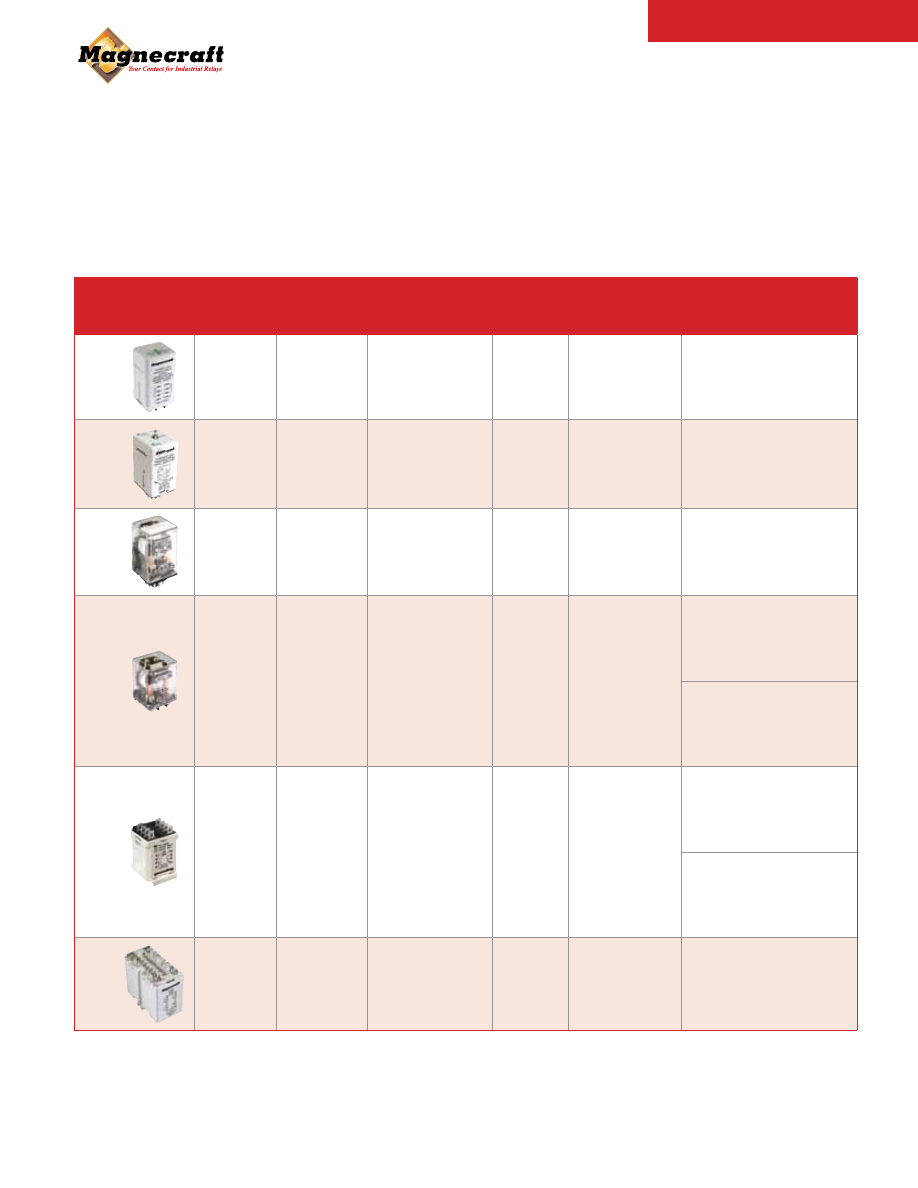

Latching Relays

Series

Style

Terminals Contact

Configuration

Output

Current

Horsepower

Rating

Features

711

Impulse

Sequencing

Relay

Blade (8)

DPDT

12 A

1/3 HP at

120/240 Vac

Unidirectional pulse will

set and reset magnetically

latched contacts - ie. “flip-

flop”

712

Alternating

Relay

Pin (8 to 11)

SPDT

DPDT

12 A

1/3 HP at

120/240 Vac

Toggle switch locks contacts

into single state or allows the

relay to alternate between

two loads.

755

Magnetic

Latching

Octal Relay

Pin (8)

DPDT

16 A

1/3 HP at

120/240 Vac

Single coil control allows a 2

or 3 wire control circuit; the

contacts transfer and reset

when a polarity sensitive

voltage is applied to the coil.

785

Magnetic

Latching

Square Base

Relay

Spade (8)

DPDT

16 A

1/3 HP at

120/240 Vac

Single coil control allows a

2 wire control circuit; the

contacts transfer and reset

when a polarity sensitive

voltage is applied to the coil.

Dual coil controls allows a

4 wire control circuit, the

contacts transfer and reset

when voltage is directed to

specific coils.

303

Magnetic

Latching

Power Relay

Spade (8)

SPDT

DPST

DPDT

30 A

1 HP at 120 Vac

2 HP at 208 Vac

Single coil control allows a

2 wire control circuit; the

contacts transfer and reset

when a polarity sensitive

voltage is applied to the coil.

Dual coil control allows a

4 wire control circuit, the

contacts transfer and reset

when voltage is directed to

specific coils.

385

Mechanical

Latching

Relay

Spade (8)

DPDT

4PDT

6PDT

15 A

1/3 HP at

120/240 Vac

Dual coil construction controls

up to 6 poles.  The contacts

are mechanically latched



z

Ideal for energy conservation



z

Single & dual coil control



z

Switching up to 6 pole (6PDT)



z

Optional LED indicator



z

Several styles to fit multiple
applications

 www.magnecraft.com

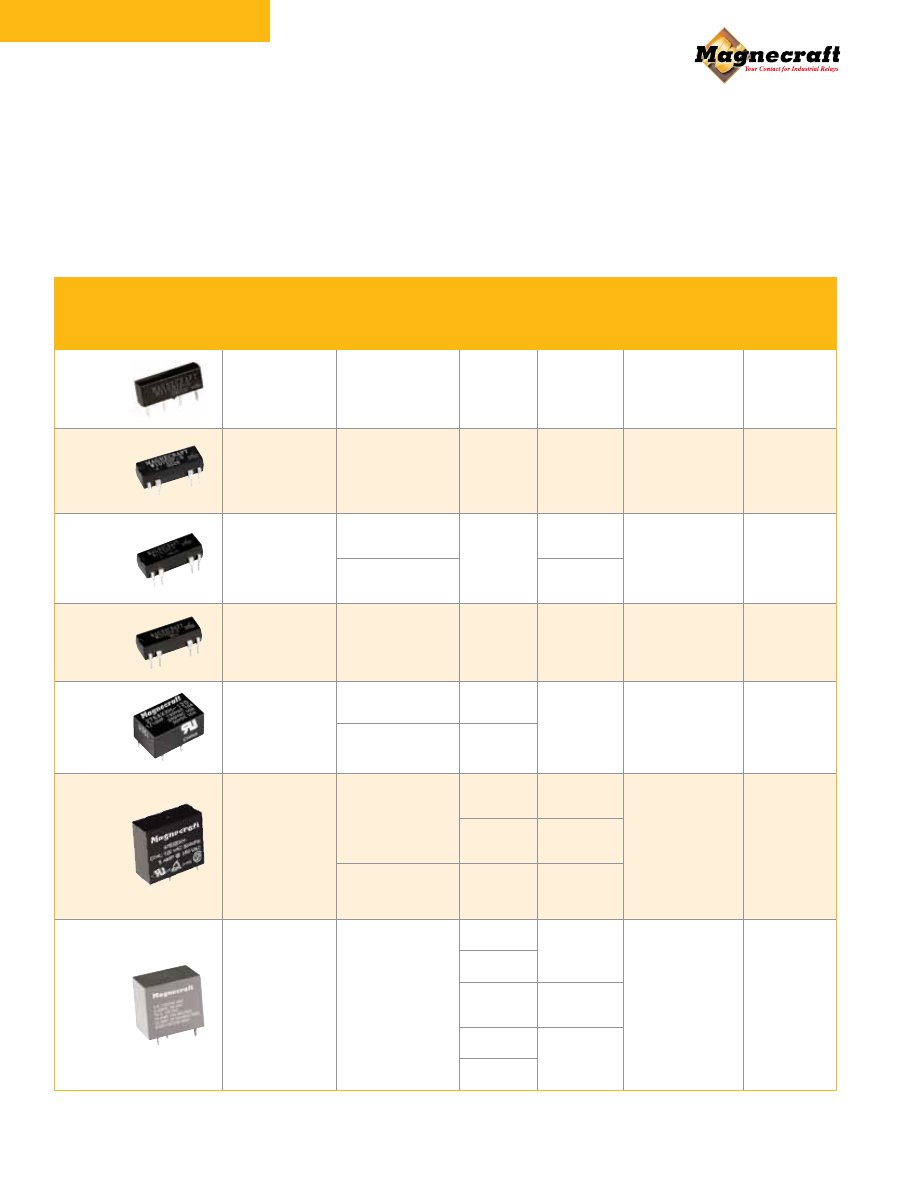

PCB Relays

Series

Style

Contact

Configuration

Output

Current

Output

Voltage

Minimum

Switching

Requirement

Response

Time

117SIP

Miniature

Reed Relay

SPST

0.25 to

0.5 A

120 Vac

200 Vdc

10 mA

0.45 ms

107DIP

Miniature

Reed Relay

SPST

0.25 to

0.5 A

120 Vac

100 Vdc

10 mA

1 ms

171DIP

Miniature

Reed Relay

DPST

0.25 to

0.5 A

120 Vac

100 Vdc

10 mA

1 ms

SPST

60 Vac

100 Vdc

172DIP

Miniature

Reed Relay

SPDT

DPDT

0.25 to

0.35 A

60 Vac

100 Vdc

10 mA

1 ms

276

Electromechanical

Relay

SPDT

7 A

240 Vac

30 Vdc

100 mA

10 ms

SPST

10 A

976

Electromechanical

Relay

SPST

12 A

240 Vac

30 Vdc

100 mA

10 ms

20 A

240 Vac

48 Vdc

DPDT

5 A

240 Vac

30 Vdc

49

Electromechanical

Relay

SPDT

15 A

277 Vac

28 Vdc

100 mA

25 ms

10 A

5 A

120 Vac

28 Vdc

15 A

150 Vac

28 Vdc

3 A



z

Space saving package design



z

Single & Double pole switching



z

Ratings from 0.25 to 20 Amps



z

Wave solderable



z

Sealed for wash-down process

 www.magnecraft.com
