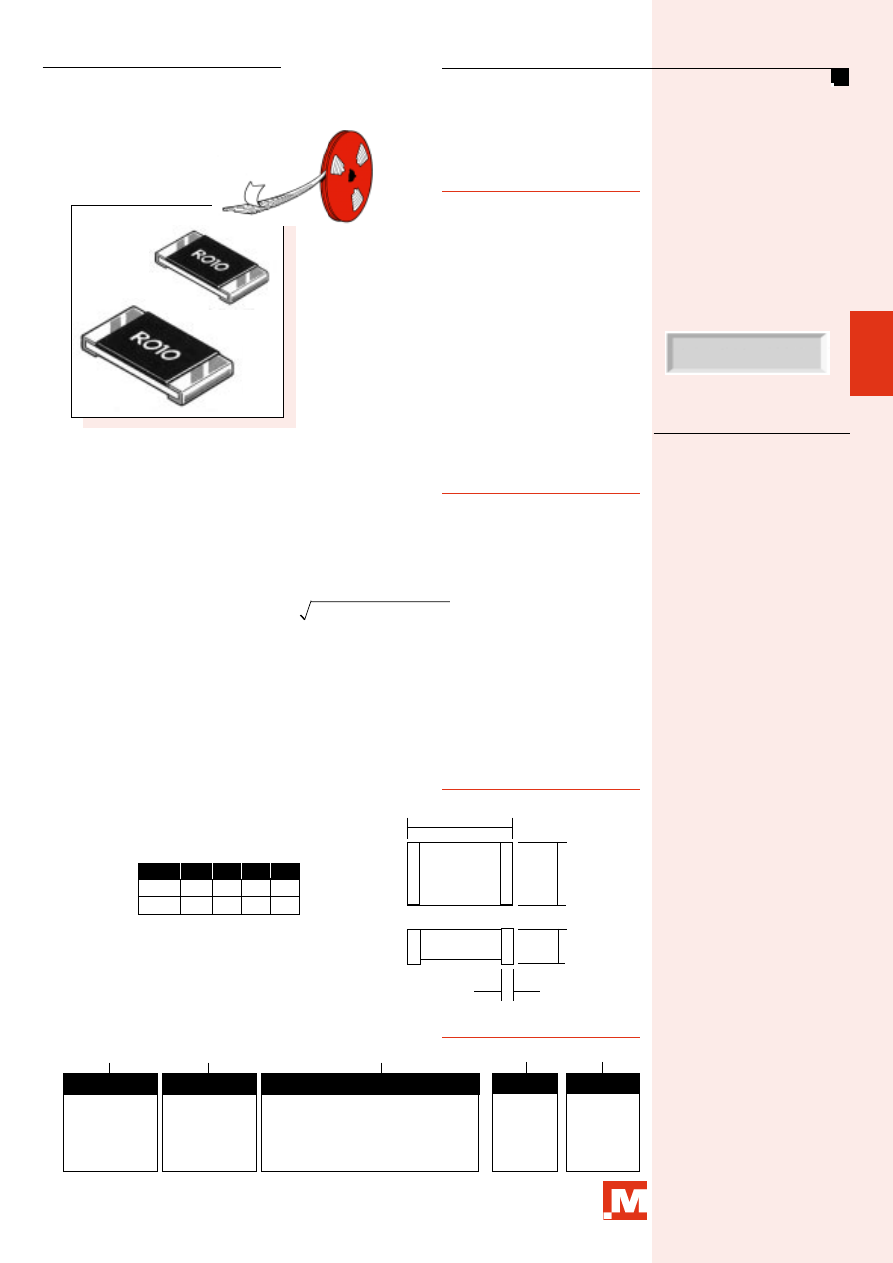

Meggitt CGS
Low Ohmic Resistor SMD
Key features
Specification
How to Order
low thermal emf
•
non inductive
•
up to 1 watt dissipation at 70°C
•
designed for current sensing
•
fully automated manufacture
•
ideal for volume applications
•
wide value range R01 to 1R0
•
new technology
•
for current sense - epoxy coated
Please Request Full Data
Sheet F0735
Electrical
Resistance Value Range:
Resistance Value Grid:
Resistance Tolerances:
Power Rating @ 70°C:
Maximum Operating Voltage:
Inductance:
Temperature Coefficient:
Short Time Overload:
R01 - R50 (higher by special order)
E24
±1%
1 Watt derating to zero at 170°C
Power x Resistance
< 5 nanohenries
75ppm/°C
5 times rated power for 5 seconds
type TL series
Meggitt Electronics are pleased
to offer this unique High Power,
metal chip resistor for current
sensing. It has a special solid
metal resistive element.
Development of a range of IC's
for battery charge management
and low voltage power
supplies need the TL to satisfy
the demand for a low ohmic
shunt resistor to act as a
current sensor it has particular
applications in the automotive
industry for sensing in EMU's.
Packaging:
TL2B - 4000 Pieces (7" Reel)
TL3A - 2000 Pieces (7" Reel)
Tolerance
J
J - ±5%
F - ±1%
Pack Style
TE
TE - Taped
4000/Reel
Resistance Value
R005
0.005 ohm (5 milli ohms)
R005
0.05 ohm (50 milli ohms)
R05
Package Size
3A
Common Part
TL
TL - Standard
Part
2B - 12:06
3A - 25:12
Mechanical
Body Construction:
Terminations:
Coating:
Fully Welded Element
60/40 Tinned Copper
Epoxy
Dimensions
▼
▼
▼
D
▼
C
▼
▼
A
▼
▼
B
Type
TL2B
TL3A
A
3.2
6.4
D
0.5
0.8
C
0.6
0.6
B
1.6
3.2
