GWconnect

®

  Modular  System  has  been  created  to  fulfill  the  needs  of  the

Heavy Duty Connectors end users, who now can design and assemble their
own connector according to their specific requirements.

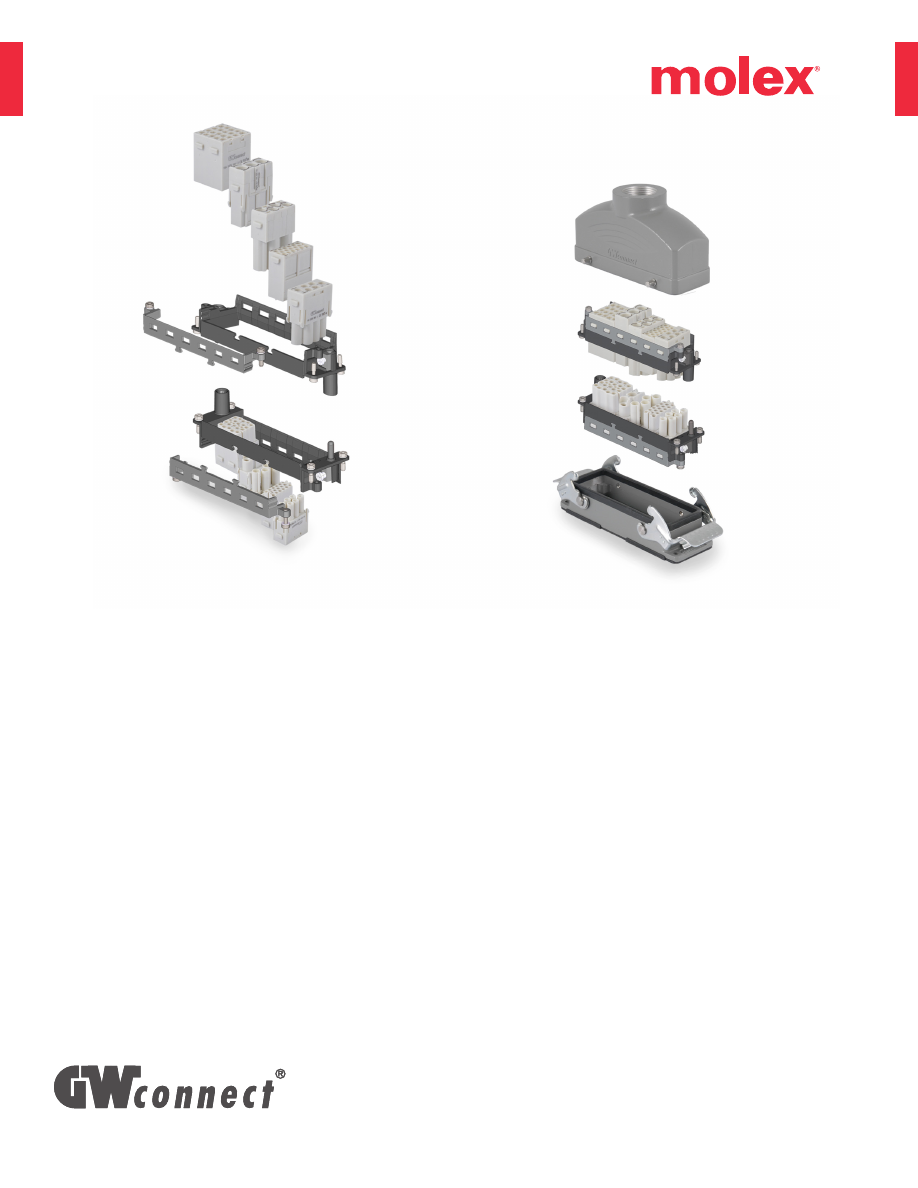

The GWconnect Modular System is made of a
support frame and a mobile element to block
the  modular  inserts.  Specific  holes  in  the
support frame allows the insertion of single
and double modules, and the mobile element
allows a steady fastening of the modules with
a lateral scrolling. Captive screws allow the
modular connector to become a monoblock
structure resistant to impacts and vibrations,
and resistant to compression and traction when
coupling male and female inserts.




The GWconnect Modular System is the only one
which is intermateable with the market leader
and it is compatible with all the Heavy Duty
Connector enclosures and DIN rail supports.
It is available in frame size 10A, 6B, 10B,
16B, 24B 32B (2x16B) and 48B (2x24B). The
large selection of available modular inserts is
constantly expanded, the end user can combine
modules for power, signal and pneumatic for air
and liquids.

Modular solutions for your needs!

MODULAR SYSTEM
