GWconnect

®

  Push  In  technology  offers  the  quickest  wiring  time  of  Heavy

Duty Connectors, as the end user does not need any tool to wire the contacts
or open the clamps.

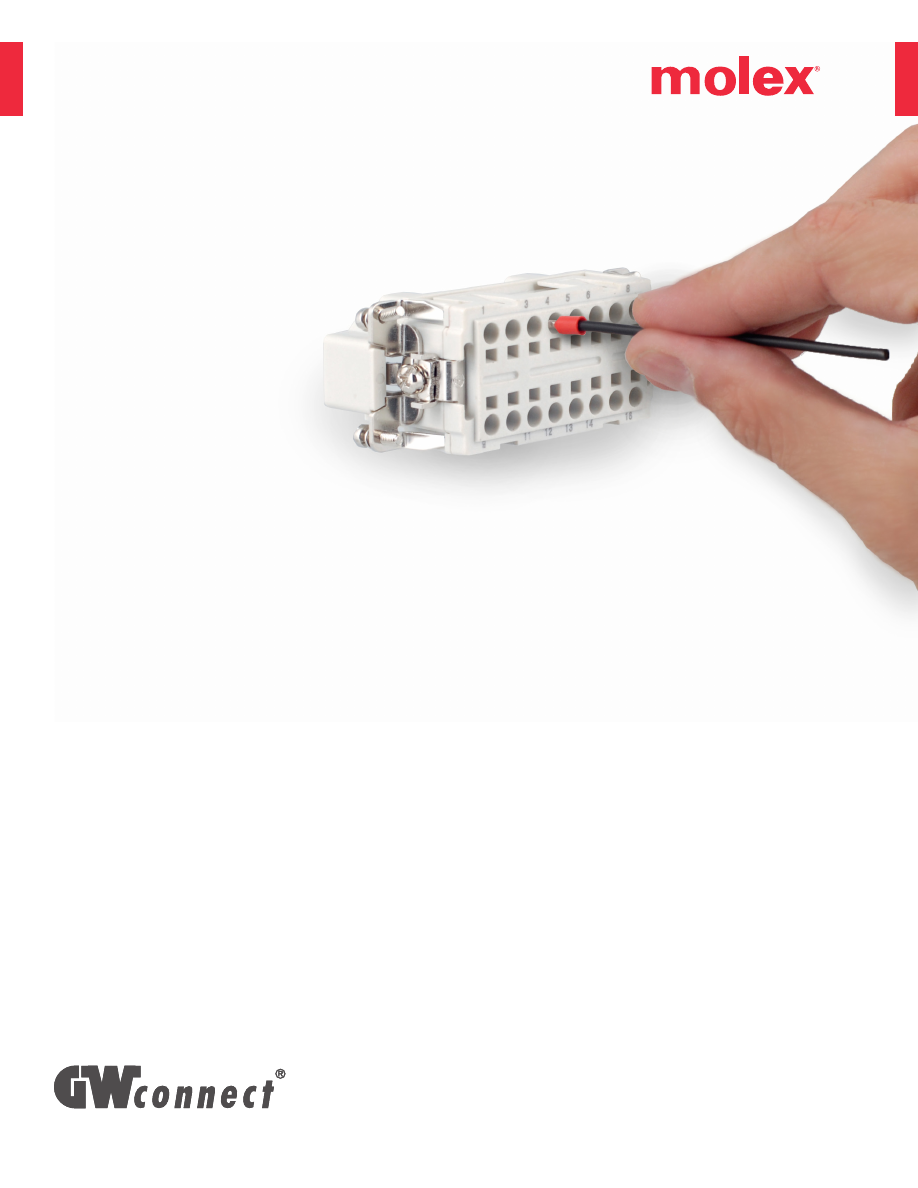

Save your time and costs with the GWconnect
Push In inserts. You just have to insert the
wire into the clamp hole and the connection
is completed. No tool or leaning-surface is
needed for the wiring and the connection is
reliable, strong and vibration-proof. Up to 80%
of assembling time is saved in comparison with
the standard screw type inserts.

The clamping point in the front allows wiring,
maintenance and electrical tests without
releasing the insert from the Heavy Duty
Connector enclosure. The high contact force
between the conductor and the current bar is

guaranteed by a stainless steel compression
clamp, which gives a 100% safe connection.

The Push In insert series is available for the
complete range of sizes from 6B to 48B and
is suitable for both solid and stranded wires
with bush terminals. For wires from 1.5mm

2



the connection is possible also without bush
terminals.

Less time. More performance. Just push the
wire in!

PUSH IN
