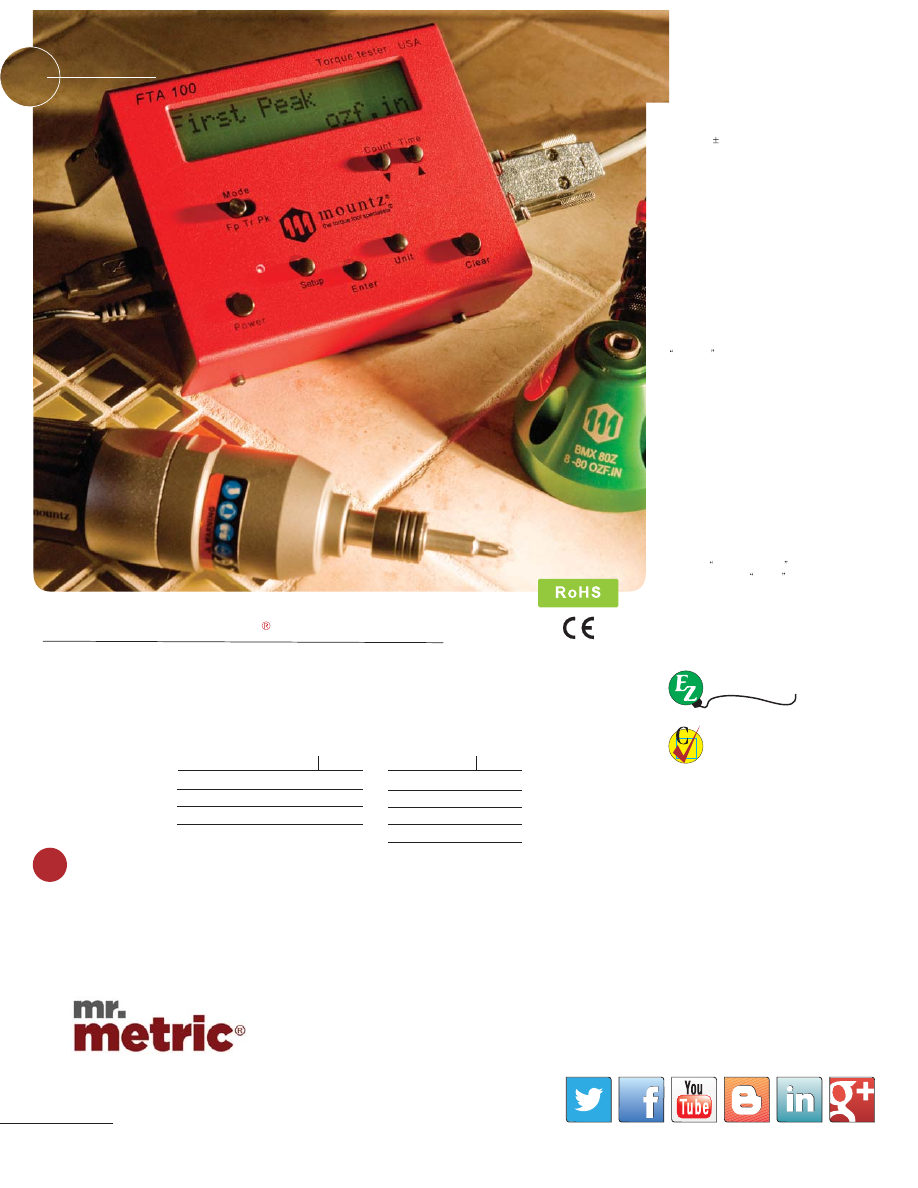

TorqueMate
FTA-100

01.1

Torque
Analyzers

Recommended for all pulse tools, hand

screwdrivers, torque wrenches and power

tools.

KEY FEATURES

Monitors torque and pulse count. Unit

displays both the peak torque & the number of

pulses performed during a preset time frame

to reach the final torque value.

Selection of three operation modes: Track,

Peak, and First Peak

Seven units of torque measurements:

ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm

Easy to use menu structure.

Eight-digit display.

Mountz Data Manager

software for

collecting & analyzing data.

Small and lightweight.

Includes NimH batteries and universal charger

100-240 VAC.

Over Current Protection (OCP) protects unit

from damage or malfunction.

Accuracy 0.5% of reading from

10% to 100% of full scale.

Provides EZ-Plug & Play with Mountz torque

sensors. Features ARCII technology, an

instant auto-recognition system of the sensors

connected to the FTA-100.

USB interface to download readings in

real time .

Menu prompting calibration process.

Auto filter frequency selection based upon tool

type being used in Peak mode.

Torque Analyzer with ARCII Technology

TorqueMate

FTA-100

NOTE!

Since a tester cannot always duplicate actual joint characteristics, the torque reading displayed

on the FTA may vary from the actual torque that a tool will apply to a joint. When critical

assemblies are involved, the torque output of the power tool being used should be verified on

the actual assembly using a calibrated measuring torque tool.

Torque Sensor

BMX

MTX

SDX

RTSX

ETX

CABLE CHART

072002
072003
072004
072005
072006

Item #

Mr. Metric is the leading metric fastener specialist

in North America. Well regarded as experts in

metric. Mr. Metric is known for hard to find metric

items at competitive prices. Visit

www.mrmetric.com

Follow Mountz

Keep informed about our torque tool products, events and
industry news. Select your favorite social media site to catch
the latest news from Mountz.

Linkedin Google Plus

FTA-100

Item #072990

Universal Charger (100-240VAC)

USB Cable

Case

Battery

ACCESSORIES INCLUDED

Description

701210
770319
600729
708005

Item #

PLUG & PLAY

Supplied with

Free

ISO 17025

Certification of Calibration.

CERTIFIED

EZ-TorQ II

Torque Analyzer

Torque
Analyzers

SPRING RUN DOWN
ADAPTERS

Provides consistent and
reliable torque readings for
use with power driven torque
control tools.

See Page 01.16

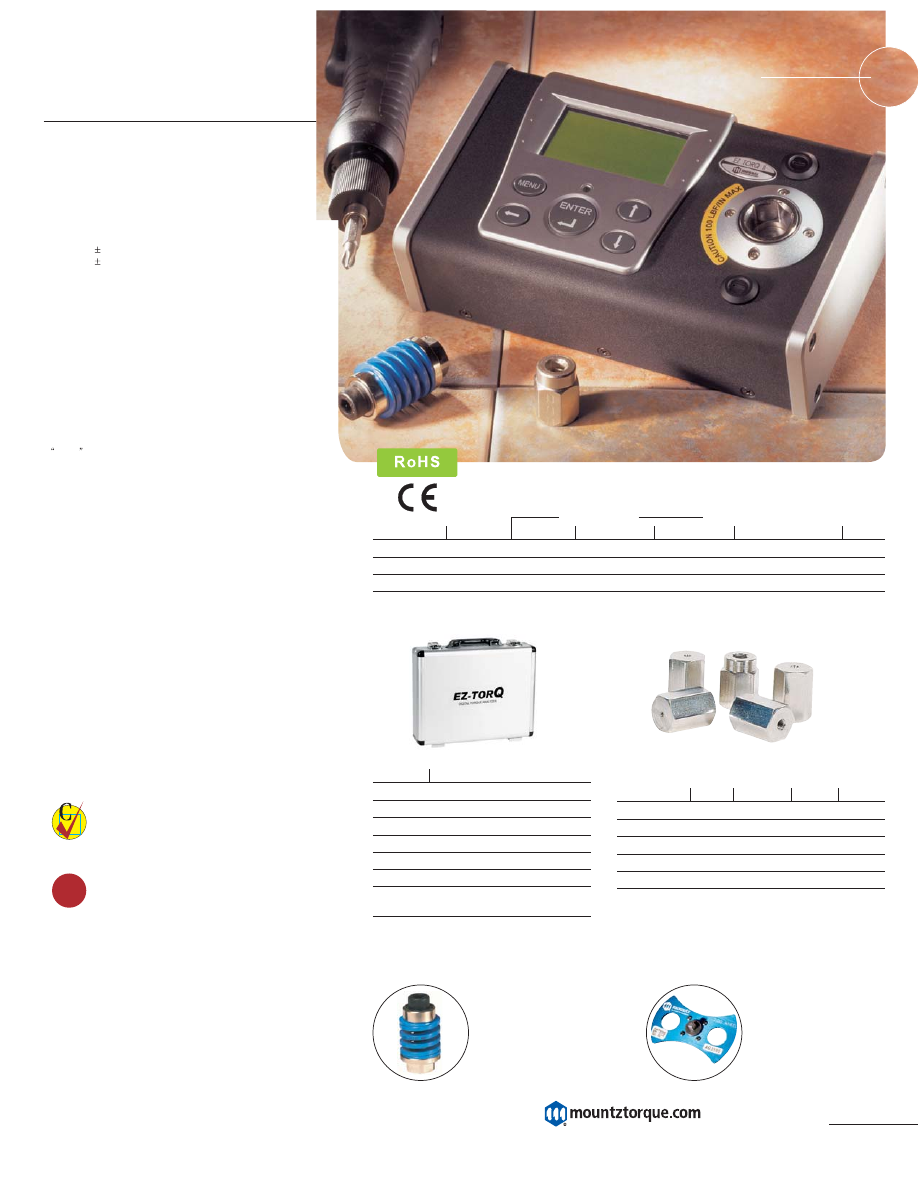

EZ-TorQ

01.2

Recommended for hand screwdrivers, most wrenches and

power tools (Not for use in testing Impact or Pulse type tools).

KEY FEATURES

EZ-TorQ II 10i

EZ-TorQ II 50i

EZ-TorQ II 100i

EZ-TorQ II 150i

Torque Ranges

11.3 - 113

56.5 - 565

113 - 1130

169.5 - 1695

cN.m

1 - 10

5 - 50

10 - 100

15 - 150

lbf.in

Model

1.2 - 11.5

5.8 - 57.6

11.5 - 115

17.3 - 173

Item #

070800

070801

070802

070803

17mm Female/Hex*

Drive Size

4.5 lbs.

Weight

kgf.cm

* Each model includes a 1/4" Female/Hex Sq. Drive Adapter and a Spring Run Down Adapter for testing power tools.

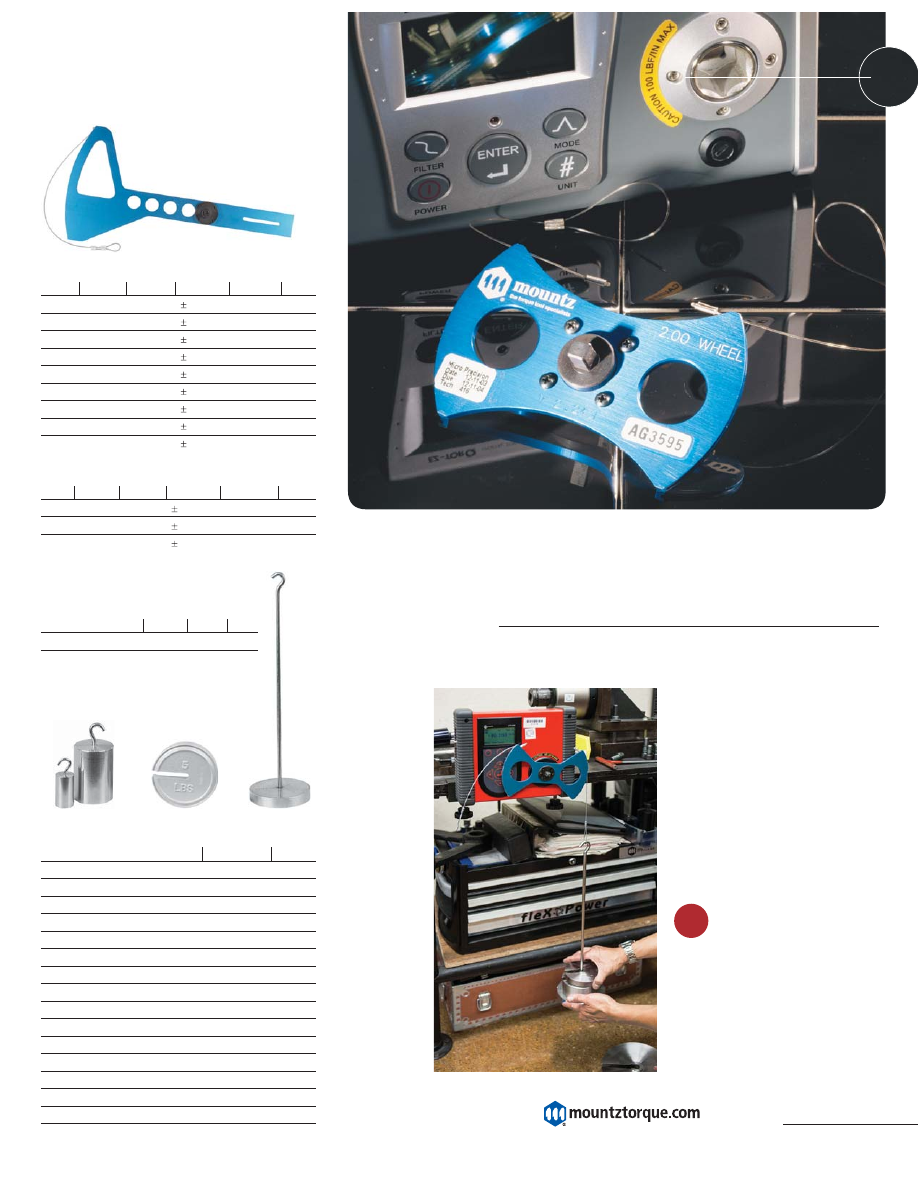

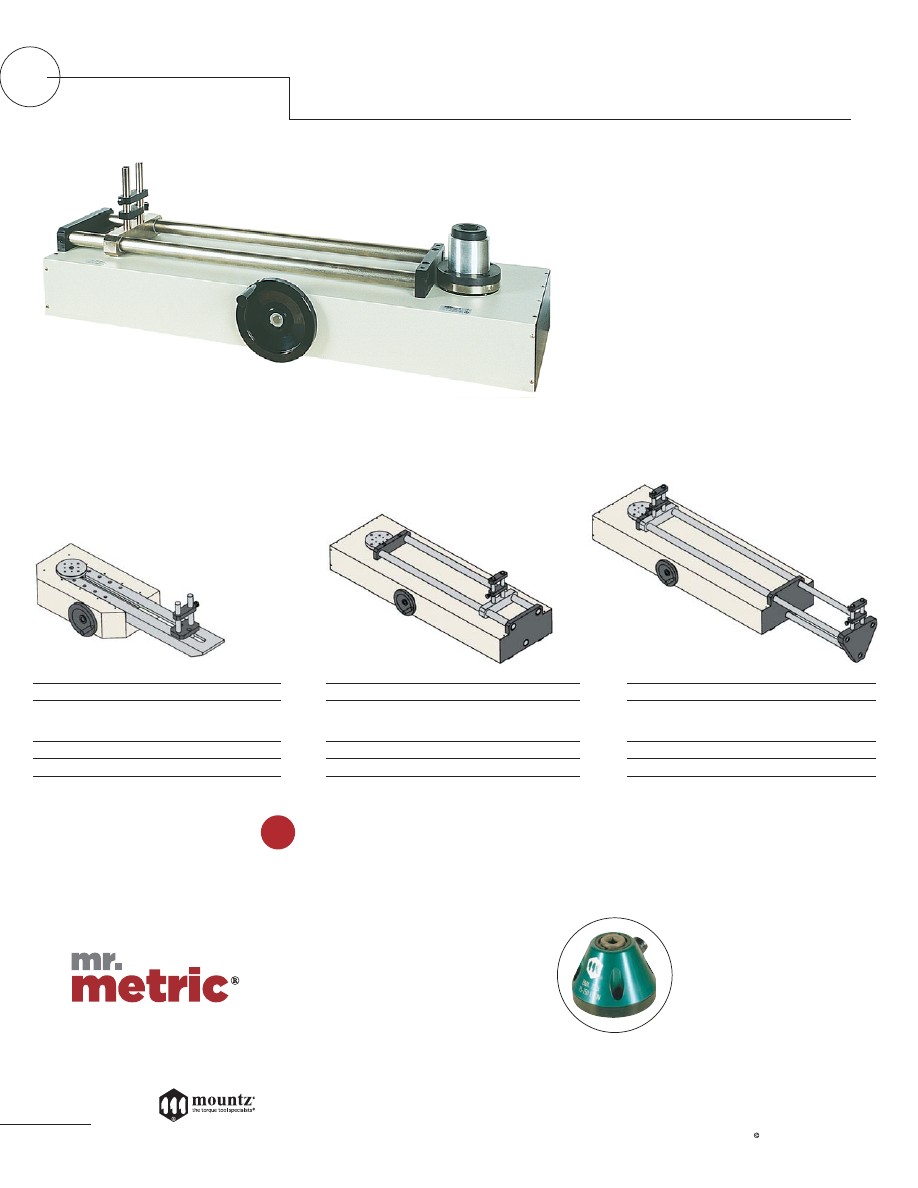

CALIBRATION TEST
EQUIPMENT

Calibrated Dead Weight and
length are the official means
by which Analyzers are
traced to NIST, ISO etc.

See Page 01.14

NOTE!

Since a tester cannot always duplicate actual joint
characteristics, the torque reading displayed on
the EZ-TorQ may vary from the actual torque that
a tool will apply to a joint. A run down adapter
that simulates a variety of different joint
characteristics is provided with the EZ-TorQ.
When critical assemblies are involved, the torque
output of the power tool being used should be
verified on the actual assembly using a calibrated
measuring torque tool.

600728-1*

600728-2*

600728-3*

600728-4*

600734-18*

600734-20*

Item #

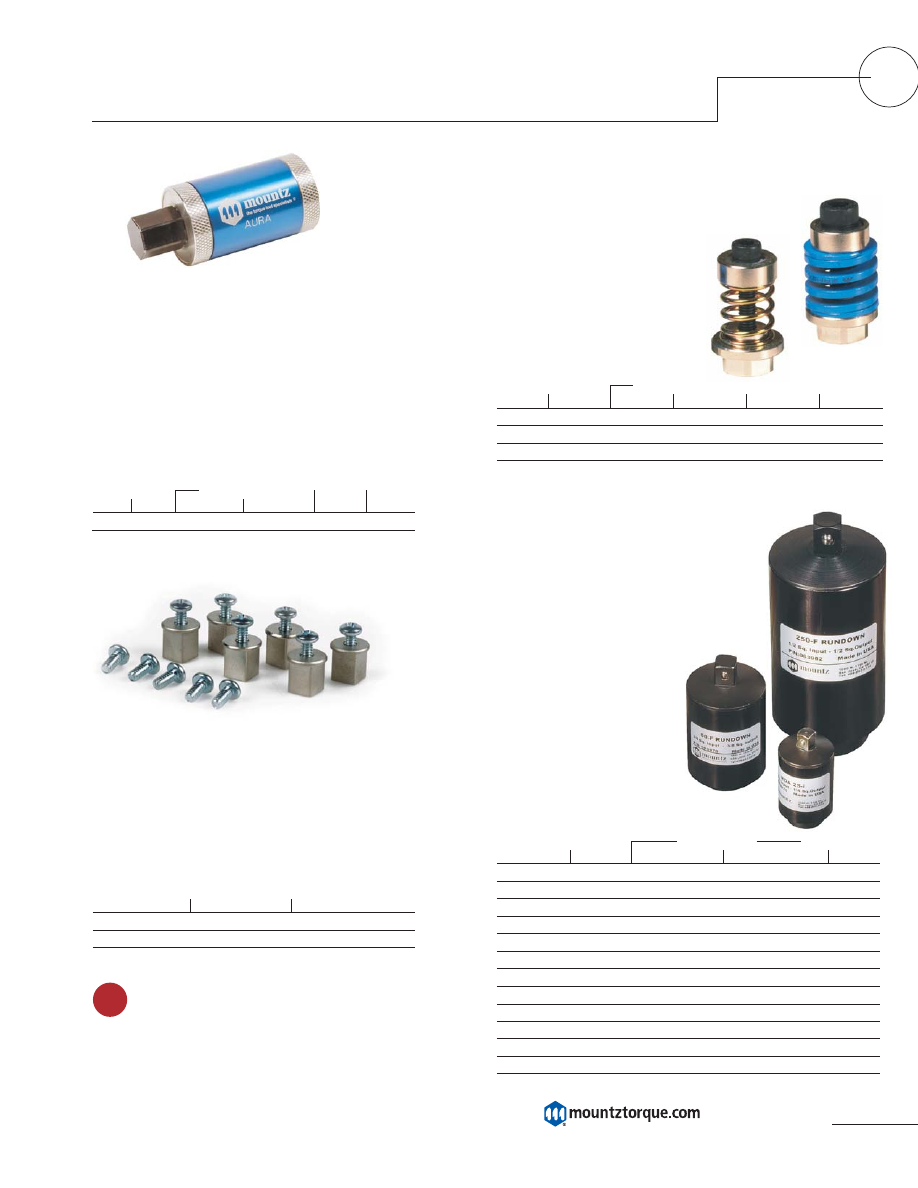

SCREW RUN DOWN ADAPTERS

RDA

Model

2 - 56

4 - 40

6 - 32

8 - 32

5/16 - 18

1/4 - 20

American

M2x.4

M3x.5

M4x.7

M5x.8

Metric

Quantity

* Hardware Kit # 1 for these RDA units
(includes Washer and Screws), Item #

061237

See EZ-TorQ manual for a list of items that are
included in the Hardware Kit.

ACCESSORIES OPTIONAL

Accuracy 0.5% of reading from 20% to 100%

Accuracy 1% of reading from 10% to 20%

Dimensions: (L x W x H): 7 1/4" x 4 1/3" x 2"

Selection of three operating modes:

Track, Peak and First Peak

Seven units of torque measurements:

ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm

Features built-in Quick Test operation.

PC Windows based software program:

Mountz EZ-TorQ II Interface Program

- to conduct

Quick Tool Tests, Data Logging and Sensor Calibration.

Easy to use Menu Structure.

Six-digit display.

Ability to download readings to PC via RS-232 or via USB.

Real time output via RS-232.

High Capacity Li-Ion Batteries for long life.

The unit will store a total of up to 150 data points.

Real time graph of torque vs. time using associated PC

Windows software.

Features Go / No Go LEDs that illuminate when high or low

tolerance setting is achieved or out of tolerance.

Three low-pass filter settings: 130, 150 and 500 Hz.

Includes a Spring Run Down Adapter.

Includes a case, Universal Charger, 1/4 F/Hex Sq. Dr. Adapter,

USB Adapter & RS232 Cable Adapter.

Flash memory allows upgrades to be done by the user in

the field & internet through the RS-232 port.

Item #

ACCESSORIES INCLUDED

770300

600729

603107

14-501830

773064

773069

Universal Charger (

For EZ-TorQ II)

Case (Pictured Above)

Battery Pack (

For EZ-TorQ II)

Brush Cap

RS-232 Cable

Serial to USB Adapter

Description

1/4 F/Hex Sq. Dr. Adapter
(17mm F/Hex)

600727

120143

Square Dr. Adapter
(1/4 Sq. Dr x 1/4 Hex x 2" OAL)

ISO 9001and ISO 17025 Company

Supplied with

Free

ISO 17025

Certification of Calibration.

CERTIFIED

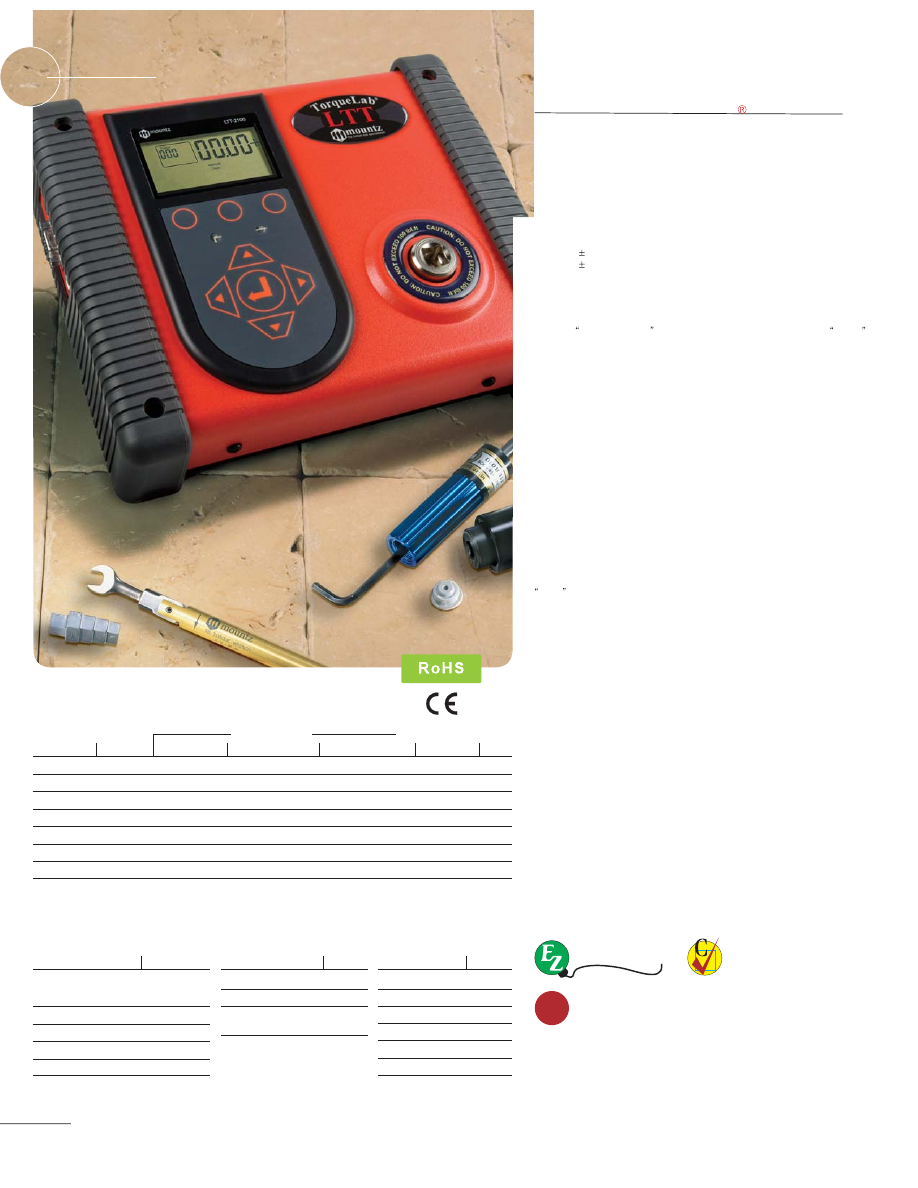

LTT Series

Torque, Angle & Force Analyzer
with ARCII Technology

TorqueLab

LTT

01.3

Torque
Analyzers

Recommended for all hand screwdrivers, wrenches, or power tools.

KEY FEATURES

Features a built-in transducer and can connect to an external torque sensor.

LTT10i

LTT25i

LTT50i

LTT100i

LTT250i

LTT50F

LTT100F

LTT250F

Torque Ranges

Item #

11.3 - 113 cN.m

28.25 - 282.5 cN.m

56.5 - 565 cN.m

113 - 1130 cN.m

282.5 - 2825 cN.m

6.8 - 67.8 N.m

13.56 - 135.6 N.m

33.9 - 339 N.m

S.I.

1 - 10 lbf.in

2.5 - 25 lbf.in

5 - 50 lbf.in

10 - 100 lbf.in

25 - 250 lbf.in

5 - 50 lbf.ft

10 - 100 lbf.ft

25 - 250 lbf.ft

American

Model

068400

068401

068402

068403

068404

068405

068406

068407

1.2 - 11.5 kgf.cm

2.9 - 28.8 kgf.cm

5.8 - 57.6 kgf.cm

11.5 - 115 kgf.cm

28.8 - 288 kgf.cm

0.7 - 6.9 kgf.m

1.4 - 13.8 kgf.m

3.5 - 34.5 kgf.m

1/4" F/Sq

3/8" F/Sq

1/2" F/Sq

Drive Size

8 lbs.

Wt.

Metric

NOTE!

Since a tester cannot always duplicate actual joint

characteristics, the torque reading displayed on the LTT may

vary from the actual torque that a tool will apply to a joint.

When critical assemblies are involved, the torque output of the

power tool being used should be verified on the actual

assembly using a calibrated measuring torque tool.

Selection of six operation modes:

Track, Peak, First Peak, Audit, Spindle Audit, and Torque + Angle

Seven units of torque measurements:

ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm

Two units of force measurement: lbf and kN

Features built-in Tool Tests operation.

Three PC Windows based software programs:

Mountz Torque Meter Interface Program

for sensor calibrations, meter calibration and tool tests.

Torque Meter Bootloader

for updating the LTT operating systems.

Excel Add-In

for Real-Time data collection into an Excel spreadsheet.

It provides statistics calculations.

Five low-pass filters: 3000, 2000, 1500, 500, and 200Hz

Six-digit display and easy to read menu structure.

Real Time Clock for time stamping of readings.

USB interface to download readings to PC.

High Capacity Li-ion Batteries for long life (30 hours with standard torque

sensors and 16 hours with brushless rotary sensors).

Can connect to most mv/v sensors and can store calibration data for up to

50 non-smart torque sensors.

The 5VDC capability allows unit to be used with a brushless rotary torque

sensor for testing pulse tools and high RPM tools.

Features Go / No Go LEDs that illuminate when high or low setting is

achieved.

Real time graph of torque vs. time using associated PC Windows software.

Stores a total of 5000 data points.

Torque and Angle data is displayed simultaneously when used with torque

and angle sensors, up to 8000 RPM for angle measurement.

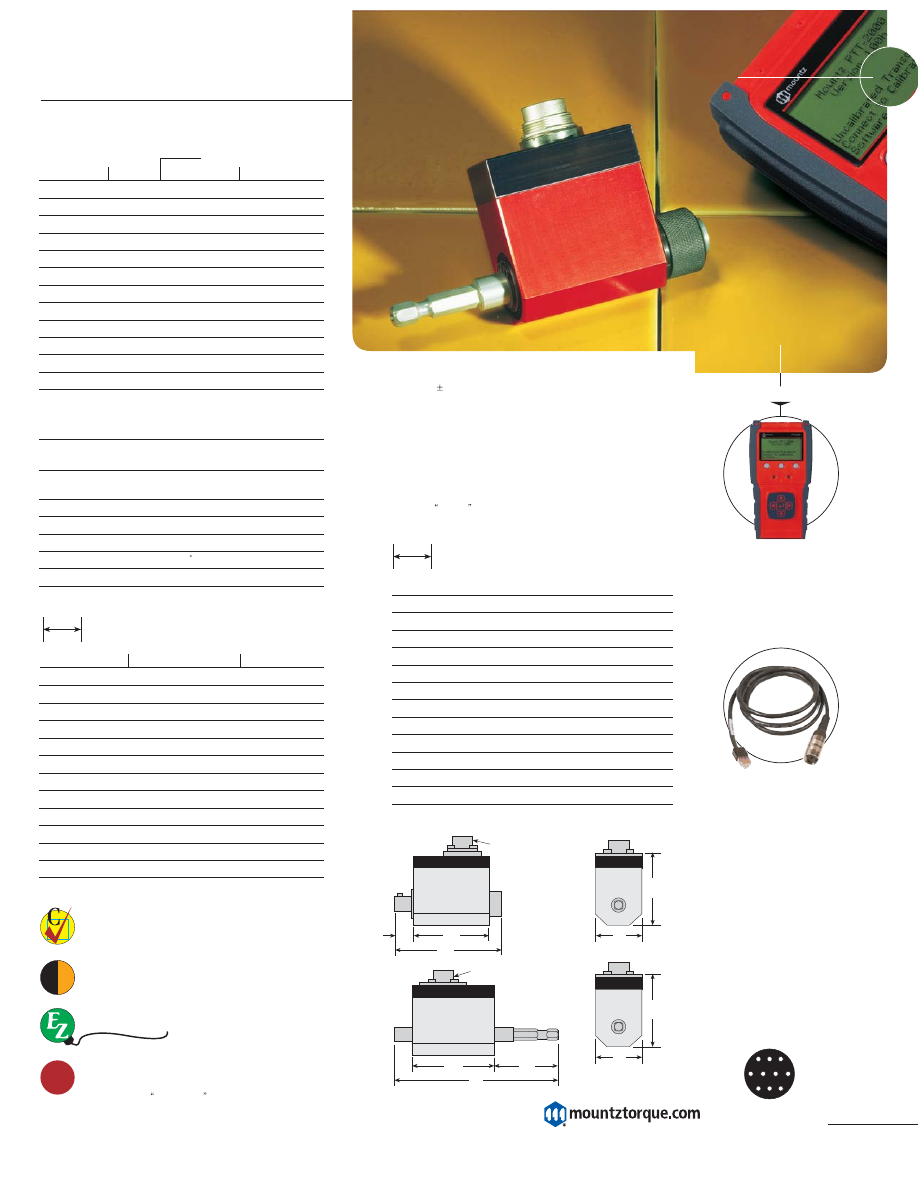

Torque Sensor

RTSX-A

All BLRTSX models

BMX

MTX

SDX

RTSX

ETX

CABLE CHART

072000

072001

072002

072003

072004

072005

072006

Item #

Accuracy 0.5% of reading from 20% to 100% of full scale.

Accuracy 1% of reading from 10% to 20% of full scale.

Provides EZ-Plug & Play with Mountz torque sensors. Features ARCII

technology, an instant auto-recognition system of the sensors connected to

the LTT.

Flash memory allows upgrades to be done by the user in the field &

internet through the USB port.

Item #

072998

072997

ACCESSORIES
OPTIONAL

Multiplexer

Bar Code Reader

Description

Mounting Bracket
(for LTT model 10i-50F)

072608

Mounting Bracket
(for all LTT models)

072606

ACCESSORIES
INCLUDED

USB Cable

Run Down Adapter

Mountz Software Progams

Case

Battery Pack

Description

770300

770319

See Pg. 01.16

072605-2

072506

Item #

Universal Charger
(100-240VAC)

PLUG & PLAY

Supplied with

Free

ISO 17025

Certification of Calibration.

CERTIFIED

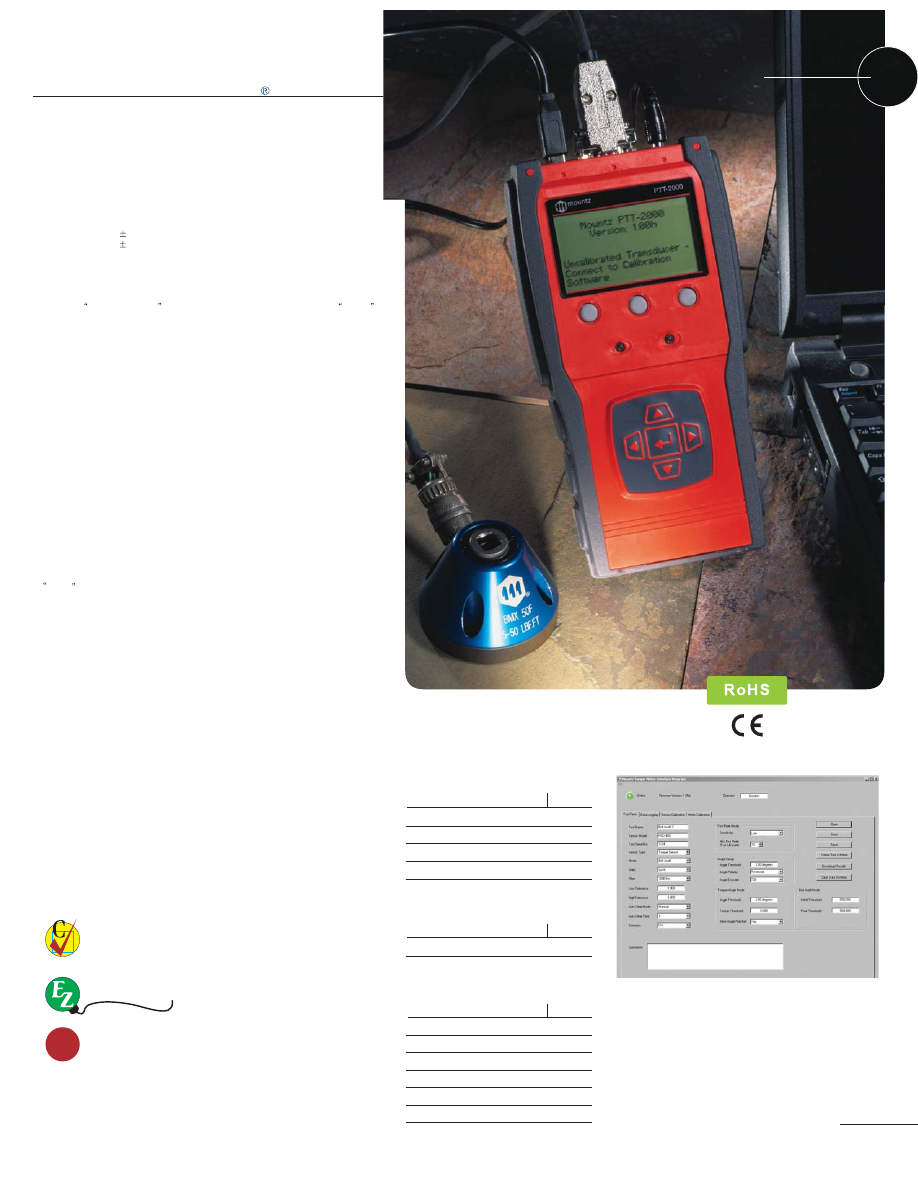

PTT Series

Torque, Angle & Force Analyzer
with ARCII Technology

TorqueMate

01.4

NOTE!

Since a tester cannot always duplicate actual joint characteristics,
the torque reading displayed on the PTT may vary from the
actual torque that a tool will apply to a joint. When critical
assemblies are involved, the torque output of the power tool
being used should be verified on the actual assembly using a
calibrated measuring torque tool.

Operates with Torque & Force sensors.

Recommended for all hand screwdrivers, wrenches or power tools.

Seven units of torque measurements:

ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm

Two units of force measurement: lbf and kN

Features built-in Tool Tests operation.

Three PC Windows based software programs:

Mountz Torque Meter Interface Program

for sensor calibrations, meter calibration, and tool tests.

Torque Meter Bootloader

for updating the PTT operating systems.

Excel Add-In

for Real-Time data collection into an Excel spreadsheet.

It provides statistic calculations.

Five low-pass filters: 3000, 2000, 1500, 500, and 200Hz

Six-digit display and easy to read menu structure.

Real Time Clock for time stamping of readings.

USB interface to download readings to PC.

High Capacity Li-ion Batteries for long life (30 hours with standard

torque sensors and 16 hours with brushless rotary sensors).

Can connect to most mv/v sensors and can store calibration data for

up to 50 non-smart torque sensors.

The 5VDC capability allows unit to be used with a brushless rotary

sensors for testing pulse tools and high RPM tools.

Features Go / No Go LEDs that illuminate when high or low setting is

achieved.

Real time graph of torque vs. time using associated PC Windows software.

Stores a total of 5000 data points.

Torque and Angle data is displayed simultaneously when used with torque

and angle sensors, up to 8000 RPM for angle measurement.

Multiplexer

Bar Code Reader

ACCESSORIES OPTIONAL

Description

072998

072997

Item #

PTT-2000

Item #072999

PTT

Tool Tests & Graphing

The PTT allows you to set up and create tool tests and

save the readings so you can export the data to a PC for

documentation. It is the ideal solution for organizing and

storing test data for ISO and SPC documentation.

The ability to graph a dynamic rundown allows joint

analysis. Great resource to evaluate, create or confirm a

torque specification or tool being used in production.

KEY FEATURES

System Accuracy 0.5% of reading from 20% to 100% of full scale.

System Accuracy 1% of reading from 10% to 20% of full scale.

Provides EZ-Plug & Play with Mountz torque sensors. Features ARCII

technology, an instant auto-recognition system of the sensor connected to the

PTT.

Flash memory allows upgrades to be done by the user in the field

& internet through the USB port.

Torque

Analyzers

Selection of six/seven operation modes:

Track, Peak, First Peak, Audit, Bolt Audit*, Spindle Audit, Torque + Angle.

*The Bolt Audit Mode is an additional feature that is only

available with PTT Bold Audit Model (

Item #072995

PTT-2000 Bolt Audit Model

(for HSD Multipliers) - Item #072995

RTSX-A

All BLRTSX Models

BMX

MTX

SDX

RTSX

ETX

CABLE CHART

Torque Sensor

072000

072001

072002

072003

072004

072005

072006

Item #

Universal Charger (100-240VAC)

USB Cable

Mountz Software Progams

Case

Battery Pack

ACCESSORIES INCLUDED

Description

770300

770319

072509

072506

Item #

PLUG & PLAY

Supplied with

Free

ISO 17025

Certification of Calibration.

CERTIFIED

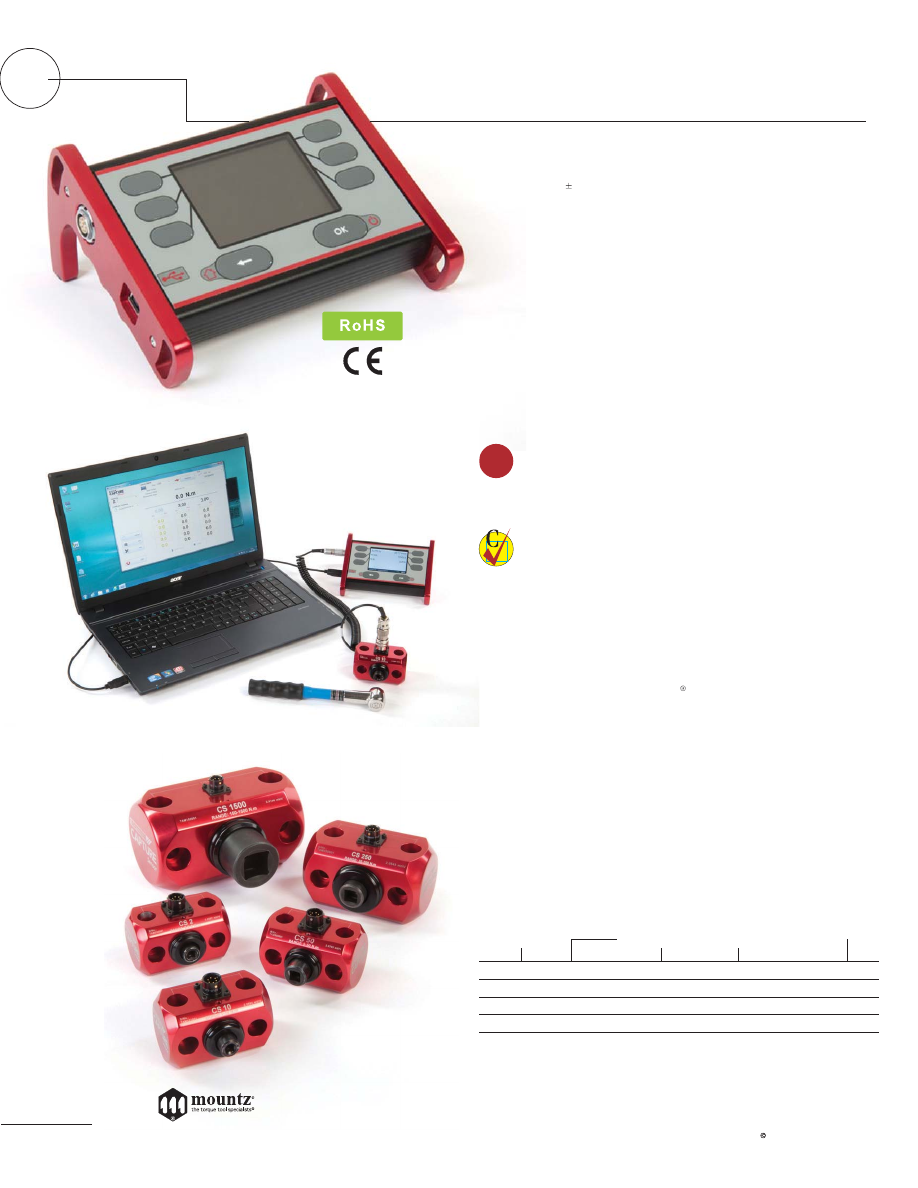

Capture

01.5

Capture

Torque Analyzer

CAPTURE DISPLAY

Item #020665

Torque Sensor

System accuracy 0.5% of reading from 10-100% of full scale.

800.456.1828

Enables calibration and analysis of hand and power torque tools.

Selection of three operation modes: Track, Peak & First Peak

Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm).

Real time clock for time stamping of readings.

USB interface to download readings to PC.

Easy to use menu system.

Five-digit display.

High capacity Li-ion batteries for long life and universal charger (100-240 VAC).

Color display that features clear visual warnings for the operator:
Go / No Go and sensor overload.

Tool Database - stores up to 500 tools.

Reading database - stores up to 2000 readings.

CAPTURE MANAGER PC SOFTWARE

Item #020666

The optional software extends the capability of the Capture Display as it manages and
archives the saved torque readings.

Seamless transfer data results to Microsoft Excel. The software allows for quick and
easy access to the stored data.

Expands the storage capacity of the tool database and data readings, which can be
uploaded and downloaded to Capture Display.

Ability to test and produce customized tool Calibration Certificates to ISO 6789.

For connecting CS torque sensors to Capture Display

CABLE

Item # 020672

Torque
Analyzers

NOTE!

Since a tester cannot always duplicate actual joint characteristics, the torque
reading displayed on the Capture may vary from the actual torque that a tool will
apply to a joint. When critical assemblies are involved, the torque output of the
power tool being used should be verified on the actual assembly using a
calibrated measuring torque tool.

CAPTURE TORQUE SENSORS

These torque sensors are used in conjunction with the Capture torque analyzer.

Various models that range from 1.8 lbf.in to 1,107 lbf.ft.

Flexible sensor can be mounted horizontally or vertically.

Quick set up when used with a Capture display due to the imbedded Quicktec technology,
which passes all the sensor information to the display.

0.2 - 2 N.m

1 - 10 N.m

5 - 50 N.m

25 - 250 N.m

150 - 1500 N.m

1.8 - 17.7 lbf.in

8.9 - 88.5 lbf.in

3.7 - 37 lbf.ft

18.5 - 184.5 lbf.ft

110.7 - 1107 llbf.ft

CS 2

CS 10

CS 50

CS 250

CS 1500

020667

020668

020669

020670

020671

Item #

S.I.

American

Model

Torque Ranges

2-1/2" x 3-1/3" x 2-1/2"

3-1/4" x 4-3/4" x 3-1/2"

4" x 6-1/3" x 5-1/4"

H x W x D

1/4"

3/8"

1/2"

Drive
Size

Supplied with

Free

ISO 17025 Certification of Calibration.

CERTIFIED

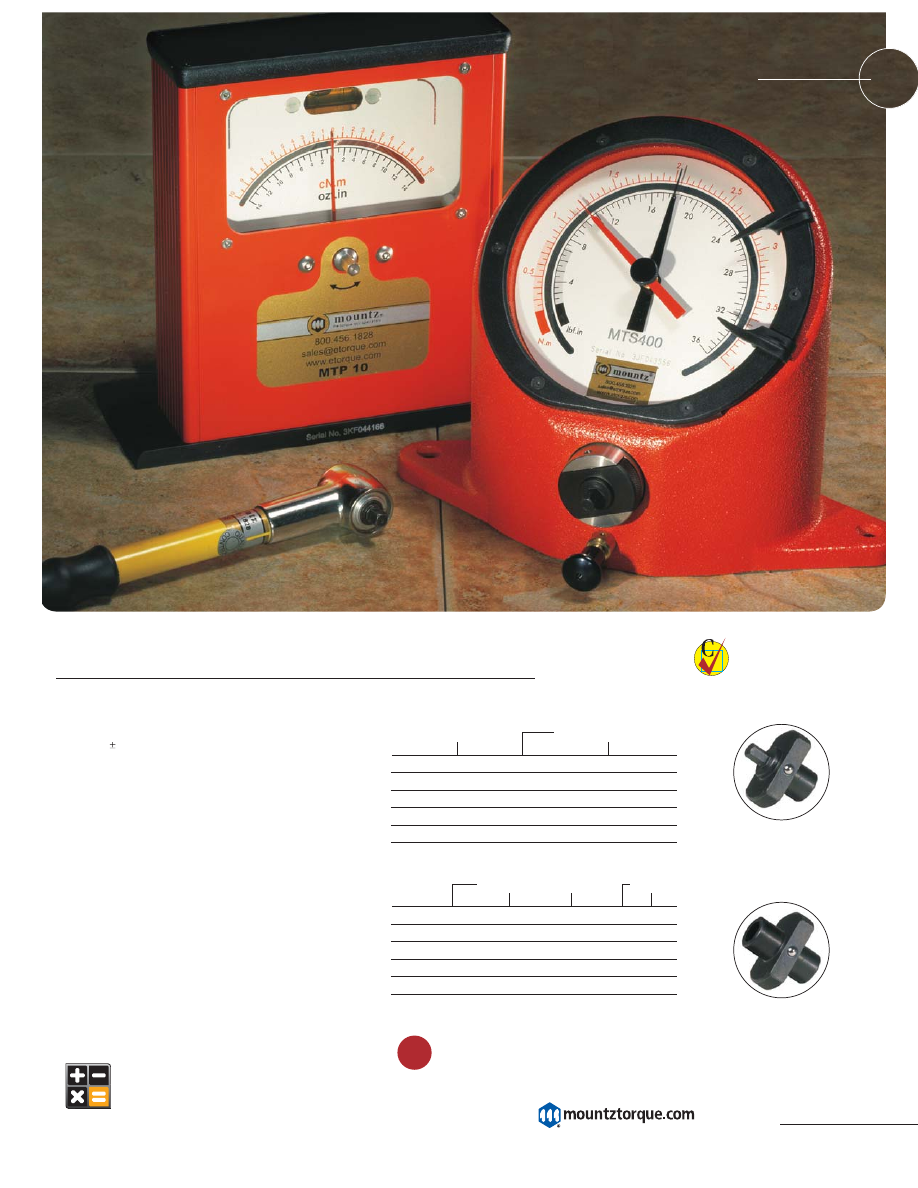

DIAL ANALYZER

01.6

Dial Analyzers

Hand Tool Torque Analyzers

Torque
Analyzers

KEY FEATURES

Easy to read dual scale (Metric & American).

Bench mount style.

Memory style master pointer retains maximum readings.

Designed for all types of hand torque wrenches and screwdrivers.

Clockwise direction only (MTS models).

Reversible drive adapters provide two drive options per model

(MTS models).

0 - 10 cN.m

7 - 35 cN.m

26 - 130 cN.m

0.8 - 4 N.m

2.4 - 12 N.m

5 - 25 N.m

0 - 14 ozf.in

10 - 50 ozf.in

36 - 180 ozf.in

7 - 36 lbf.in

24 - 120 lbf.in

44 - 220 lbf.in

MTP 10

MTS 35

MTS 130

MTS 400

MTS 1200

MTS 2500

020000

020001

020002

020003

020004

020005

Item #

S.I.

American

Model

Torque Ranges

0.5 cN.m

2 cN.m

0.05 N.m

0.2 N.m

0.5 N.m

1 ozf.in

0.5 ozf.in

2 ozf.in

0.5 lbf.in

2 lbf.in

5 lbf.in

MTP 10

MTS 35

MTS 130

MTS 400

MTS 1200

MTS 2500

Model

S.I.

American

Graduation

Single

Memory

Pointer

kg.

lbs.

Weight

2.16

7.1

0.98

3.2

NOTE!

Do not use with electric or pneumatic tools.

For models: MTS 35, 130, 400

REVERSIBLE ADAPTER
1/4" M/HEX & 1/4" F/SQ.

For models: MTS 1200, 2500

REVERSIBLE ADAPTER
1/4" F/SQ. & 3/8" F/SQ.

Robust and modern design includes angled dial for easy viewing

(MTS models).

Spindle lock eliminates the need to remove tool from drive

during torque adjustment (MTS models).

Input drive shock absorder protects from tool kick back (MTS

models).

Bi-directional & fitted with 1/4" Male hex drive (MTP model).

Dial mirror eliminates parallex error. Uses pendulum effect to

measure the applied torque (MTP model).

Accuracy 2% of reading from 20% to 100% of full scale.

Mountz Torque Conversion Calculator

Quickly convert torque measurement from
one type of unit measurement to another.
Visit www.mountztorque.com/calculator

ISO 9001and ISO 17025 Company

Supplied with

Free

ISO 17025

Certification of Calibration

CERTIFIED

Accessories

MTX

01.7

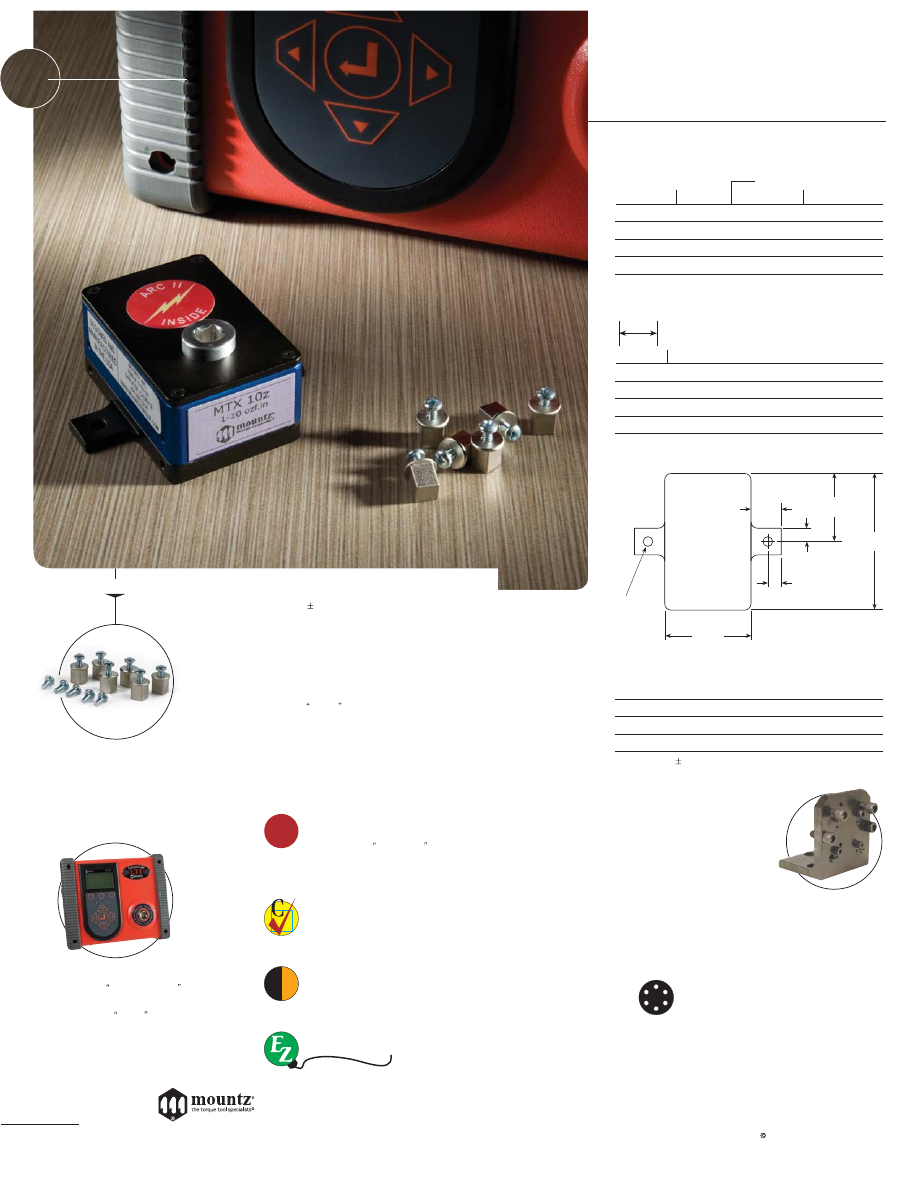

MTX

Low Torque Reaction Sensor
with ARC II Technology

KEY FEATURES

0.7 - 7.1 cN.m

1.5 - 14 cN.m

2.9 - 28.2 cN.m

5.7 - 56.5 cN.m

11.3 - 113 cN.m

1 - 10 ozf.in

2 - 20 ozf.in

4 - 40 ozf.in

8 - 80 ozf.in

16 - 160 ozf.in

MTX10z

MTX20z

MTX40z

MTX80z

MTX160z

079007

079008

079009

079010

079011

Item #

S.I.

American

Model

Torque Ranges

Torque Sensors

1/4 Female Square

MTX10z

MTX20z

MTX40z

MTX80z

MTX160z

DRIVE SIZE & DIMENSIONS

inches

1.6

Width

Length

2.55

For calibrating low torque hand screwdrivers,

wrenches, and power tools.

1/4

female square drive.

Bi-directional.

Various models that range from 1-160 ozf.in.

Mountable.

The low profile design makes it ideal for

calibrating robotic drivers on the assembly line.

SPECIFICATIONS

Drive Size

RUN DOWN ADAPTERS

Provides consistent and reliable
torque readings for use with
power driven torque control tools.

See Page 01.16

Model

Always use a run down adapter
when testing power tools.

WARNING!

MTX CABLE

For connecting to
FTA-100, PTT or LTT

Item #072003

CONNECTION

1 = Signal (+)
2 = Signal (-)
3 = Excitation (-)
4 = Excitation (+)
5 = Ground
6 = Data

MOUNTING
BRACKET

Model: MB-1
Dimensions:
4" x 3" x 4"

Item #062109

Rated Output: 2mv/v Nominal

Safe Overload: 125% of Rated Output

Bridge Resistance: 350 Ohms Nominal

Nonlinearity: 0.1% of Rated Output

Accuracy 0.25% of full scale.*

Features ARCII technology, an instant auto-recognition

system of the MTX connected to the FTA-100, PTT or LTT.

800.456.1828

Width

0.172 THRU

.25

.57

Length

1.27

LTT

See Page 01.3

Offers EZ-Plug & Play with
instant auto recognition with
Mountz ARCII torque sensors.

Height

PLUG & PLAY

Supplied with

Free

ISO 17025 Certification

of Calibration.

CERTIFIED

NOTE!

*This is the stand alone accuracy for the torque sensor.
When the torque sensor is coupled with a Mountz
torque analyzer, there is a system accuracy. Review the
system accuracy listed with each torque analyzer.

Torque Sensors

077000
077001
077002
077003
077004
077005
077006
077007
077008
077009
077010
077011
077012
077013
077014
077015
077016
077017
077018

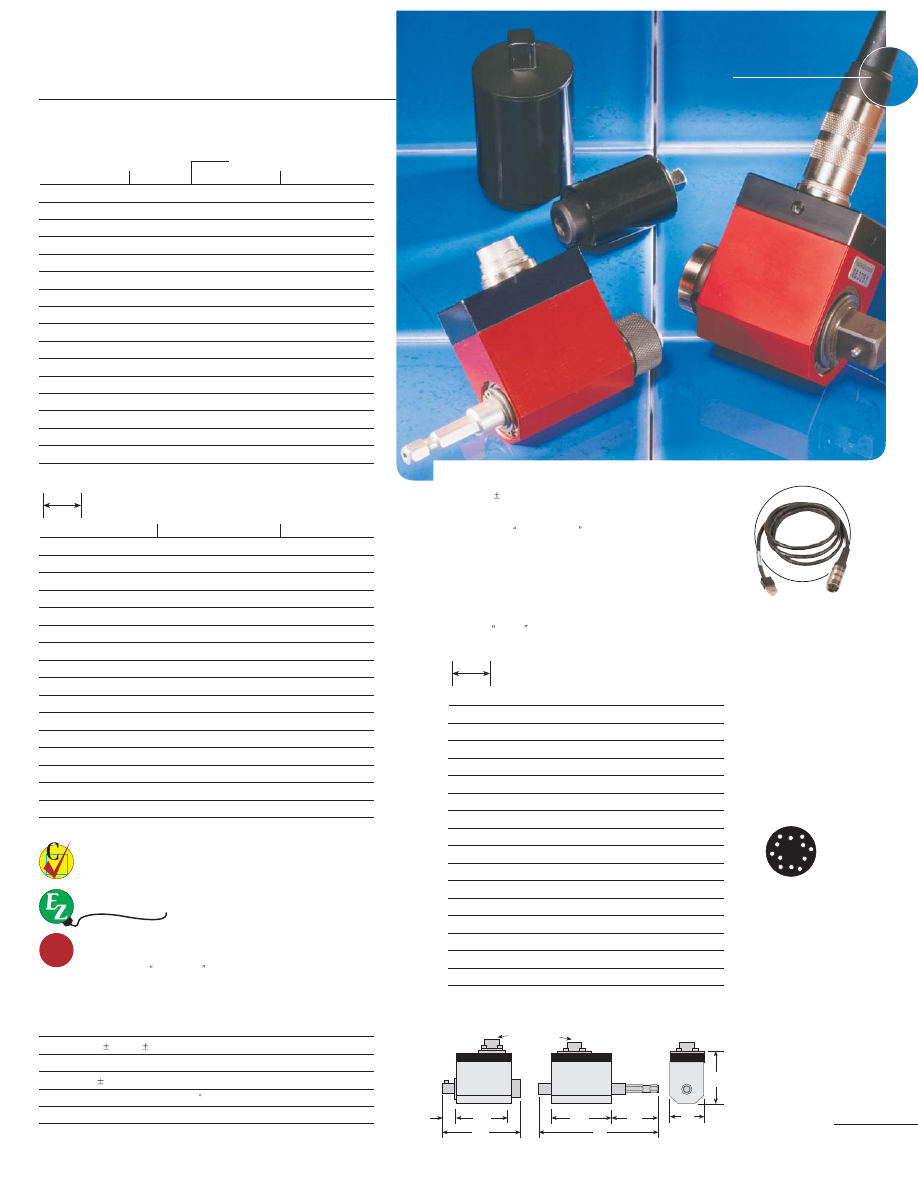

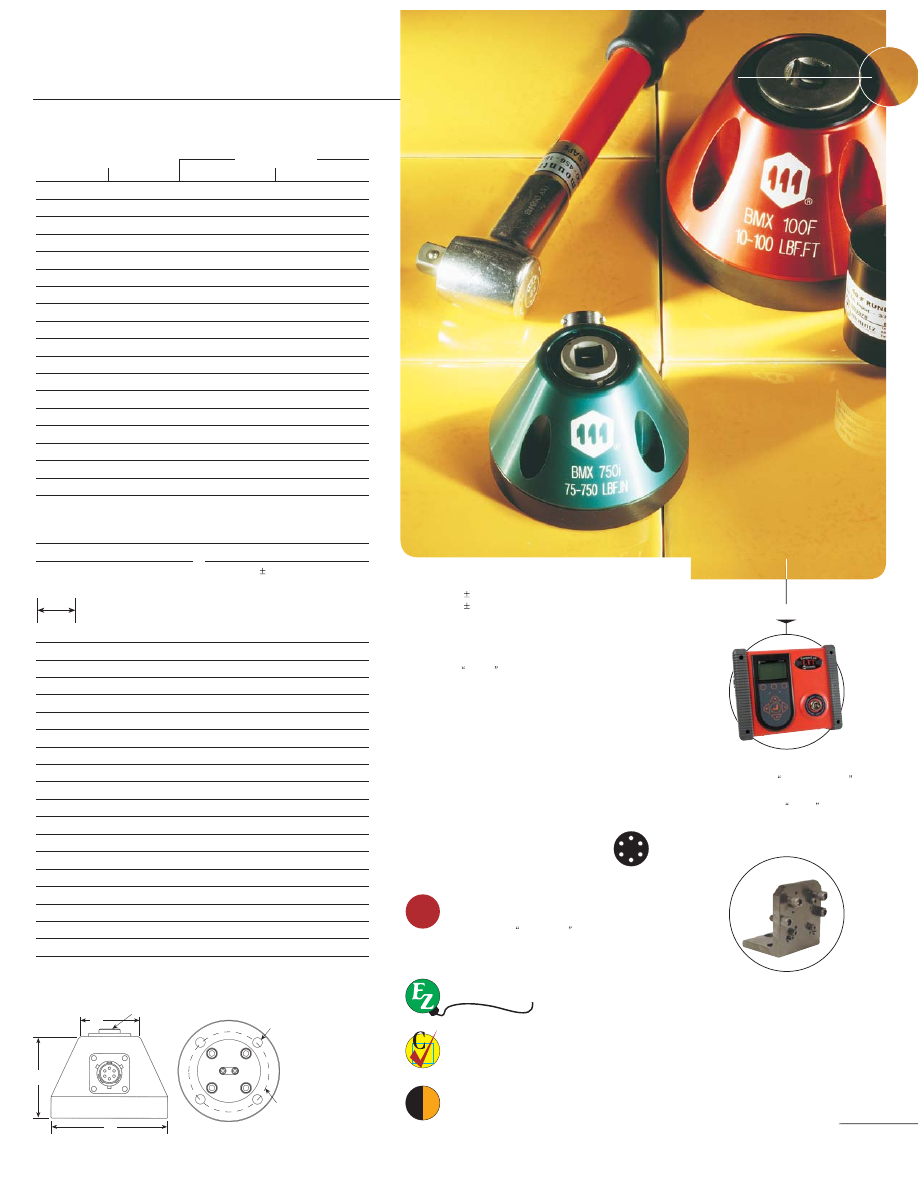

BMX

01.8

BMX

Torque Reaction Sensor

with ARCII Technology

BMX20z

BMX40z

BMX80z

BMX10i

BMX25i

BMX50i

BMX100i

BMX250i

BMX500i

BMX750i

BMX50F

BMX100F

BMX250F

BMX500F

BMX1000F

BMX2500F

BMX5000F

BMX10000F

BMX20000F

1.5 - 14 cN.m

2.9 - 28.2 cN.m

5.7 - 56.5 cN.m

11.3 - 113 cN.m

28 - 282.5 cN.m

56.5 - 565 cN.m

113 - 1130 cN.m

282.5 - 2825 cN.m

565 - 5650 cN.m

847 - 8473 cN.m

6.8 - 67.8 N.m

13.6 - 135.6 N.m

33.9 - 339 N.m

67.8 - 678 N.m

135.6 - 1355 N.m

339 - 3389 N.m

678 - 6779 N.m

1335 - 13558 N.m

2711 - 27116 N.m

Torque Ranges

Item #

S.I.

2 - 20 ozf.in

4 - 40 ozf.in

8 - 80 ozf.in

1 - 10 lbf.in

2.5 - 25 lbf.in

5 - 50 lbf.in

10 - 100 lbf.in

25 - 250 lbf.in

50 - 500 lbf.in

75 - 750 lbf.in

5 - 50 lbf.ft

10 - 100 lbf.ft

25 - 250 lbf.ft

50 - 500 lbf.ft

100 - 1000 lbf.ft

250 - 2500 lbf.ft

500 - 5000 lbf.ft

1000 - 10000 lbf.ft

2000 - 20000 lbf.ft

American

Model

2.75

10.5

1/4

3/8

1/2

3/4

1/2

Drive

Size

BMX20z

BMX40z

BMX80z

BMX10i

BMX25i

BMX50i

BMX100i

BMX250i

BMX500i

BMX750i

BMX50F

BMX100F

BMX250F

BMX500F

BMX1000F

BMX2500F

BMX5000F

BMX10000F

BMX20000F

2.1

2.75

3.75

4.65

10.5

1.7

1.75

2.25

2.4

2.38

3.88

6.5

0.25

0.413

0.406

0.531

0.781*

2.175

4.75

8.875

DIMENSIONS

inches

Model

Rated Output: 2mv/v Nominal

Safe Overload: 125% of Rated Output

SPECIFICATIONS

Bridge Resistance: 350 Ohms Nominal

Nonlinearity: 0.1% of Rated Output

For calibrating hand screwdrivers, wrenches,

and power tools.

Female square drive.

Bi-directional.

KEY FEATURES

Various models that range from 2 ozf.in to 20000 lbf.ft.

Mountable.

BMX CABLES

For connecting
to FTA-100,
LTT or PTT

Item #072002

A = Excitation (+)
B = Excitation (-)
C = Signal (-)
D = Signal (+)
E = N/A
F = N/A

CONNECTION

Connect With A:

LTT

See Page 01.3

MOUNTING BRACKET

See Page 01.17

Accuracy 0.25% of full scale*

Accuracy 0.5% of full scale (BMX10000F, 20000F)*

Features ARCII technology, an instant auto-recognition

system of the BMX connected to the FTA-100, LTT and PTT.

Offers EZ-Plug & Play with
instant auto recognition with
Mountz ARCII transducers.

*Models have 8 mounting holes.

NOTE!

*This is the stand alone accuracy for the torque sensor.
When the sensor is coupled with a Mountz torque
analyzer, there is a system accuracy. Review the system
accuracy listed with each torque analyzer.

PLUG & PLAY

Drive Size F/Square

D (Mounting Holes)

E (Dia.)

Always use a run down adapter when testing power tools.
Not recommended for impact wrenches.

WARNING!

Supplied with

Free

ISO 17025 Certification of Calibration.

CERTIFIED

RTSX

01.9

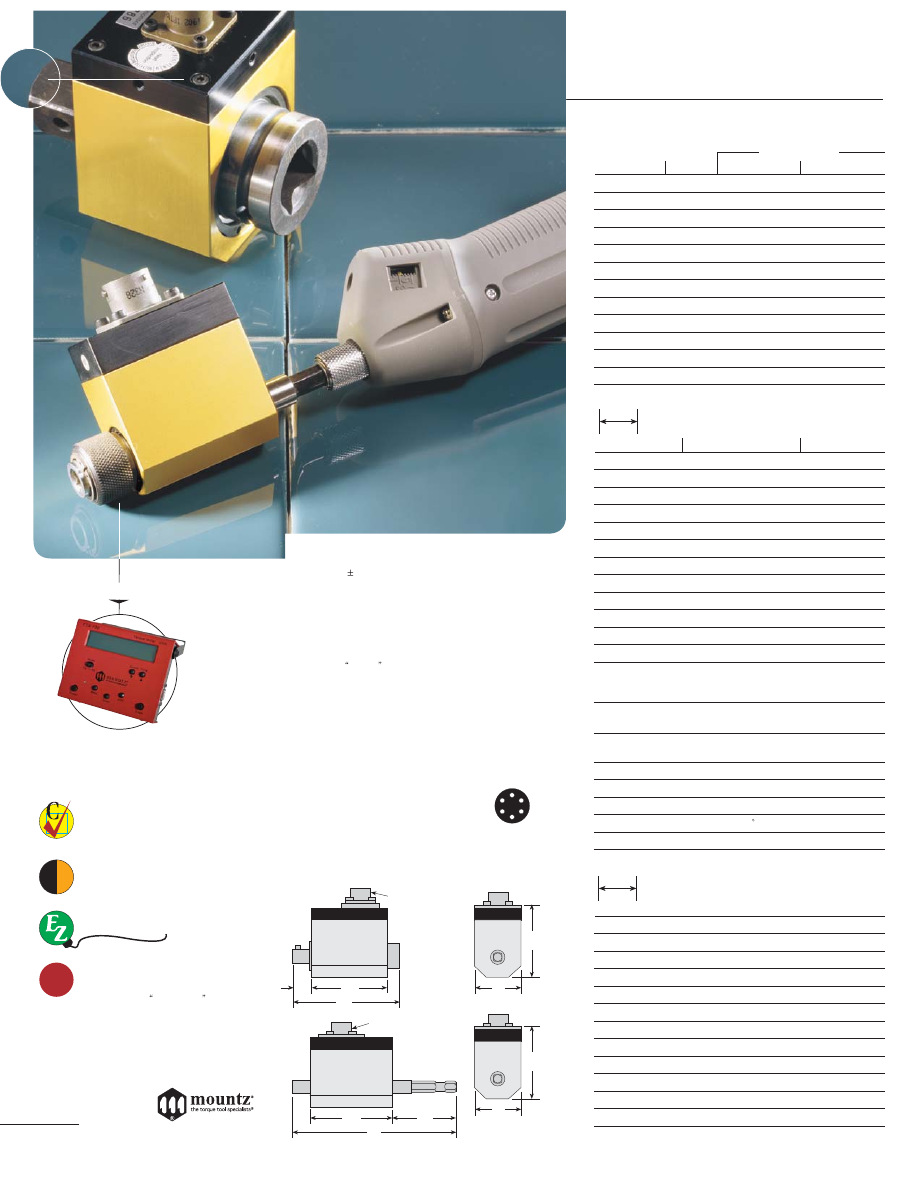

RTSX

Rotary Torque Sensor
with ARCII Technology

Torque Sensors

11.3 - 113 cN.m

56.5 - 565 cN.m

113 - 1130 cN.m

226 - 2260 cN.m

6.8 - 67.8 N.m

13.6 - 135.6 N.m

54.2 - 542.4 N.m

100 - 1000 N.m

203.3 - 2033 N.m

1 - 10 lbf.in

5 - 50 lbf.in

10 - 100 lbf.in

20 - 200 lbf.in

5 - 50 lbf.ft

10 - 100 lbf.ft

40 - 400 lbf.ft

74 - 738 lbf.ft

150 - 1500 lbf.ft

RTSX10i-H

RTSX10i

RTSX50i-H

RTSX50i

RTSX100i-H

RTSX100i

RTSX200i-H

RTSX200i

RTSX50F

RTSX100F

RTSX400F

RTSX738F

RTSX1500F

170200

170201

170202

170203

170204

170205

170206

170207

170208

170209

170210

170211

170212

Item #

S.I.

American

Model

Torque Ranges

RTSX10i-H

RTSX10i

RTSX50i-H

RTSX50i

RTSX100i-H

RTSX100i

RTSX200i-H

RTSX200i

RTSX50F

RTSX100F

RTSX400F

RTSX738F

RTSX1500F

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

3/8 Female/Square

1/2 Female/Square

3/4 Female/Square

1 Female/Square

1/2

Female/Square

Input

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

3/8 Male/Square

1/2 Male/Square

3/4 Male/Square

1 Male/Square

1/2

Male Square

Output

DRIVE SIZE

inches

RTSX10i-H

RTSX10i

RTSX50i-H

RTSX50i

RTSX100i-H

RTSX100i

RTSX200i-H

RTSX200i

RTSX50F

RTSX100F

RTSX400F

RTSX738F

RTSX1500F

DIMENSIONS

101

74.5

112

165

8.5

22.5

34.5

110

126

SPECIFICATIONS

Model

800.456.1828

Output at Rated Capacity: </= 6 Nm[53 lbf.in] rated torque 1 mV/V

> 6 Nm[53 lbf.in] rated torque 2 mV/V

Interchangeability: Matched for mv/v and
shunt calibration + 0.3% FS

Nonlinearity: + 0.2% FS

Excitation Recommended: 10V DC or AC RMS

Bridge Resistance: 350 Ohms

Usable Temperature Range: 41 - 122 F

Mating Connector: Bendix PT06A-10-65 (SR)

Safe Overload: 125% of Rated Output

Accuracy 0.25% of full scale*.

Use with most hand tools, power tools, or rotational

measurement applications.

Connects between the power tool and the joint.

Monitors actual torque being applied from the driver

to the fastener.

Bi-directional.

KEY FEATURES

Connect With A:

ANALYZER

FTA-100 (shown)

See Page 01.1

Connector

i & F

Models

i-H

Models

BLK

RTSX CABLES

For connecting
to FTA-100,
PTT or LTT

Item #072005

Item #072000

For connecting
FTA-100, PTT or
LTT to RTSX1500F

CONNECTION

A = Excitation (+)
B = Excitation (-)
C = Output (-)
D = Output (+)
E = Shield
F = 100% control

(full scale)

Features ARCII technology, an instant auto-

recognition system of the RTSX connected to the

FTA-100, PTT or LTT.

NOTE!

*This is the stand alone
accuracy for the torque sensor.
When the sensor is coupled with
a Mountz torque analyzer, there
is a system accuracy. Review the
system accuracy listed with each
torque analyzer.

PLUG & PLAY

Supplied with

Free

ISO 17025

Certification of Calibration.

CERTIFIED

Not recommended for impact
wrenches.

WARNING!

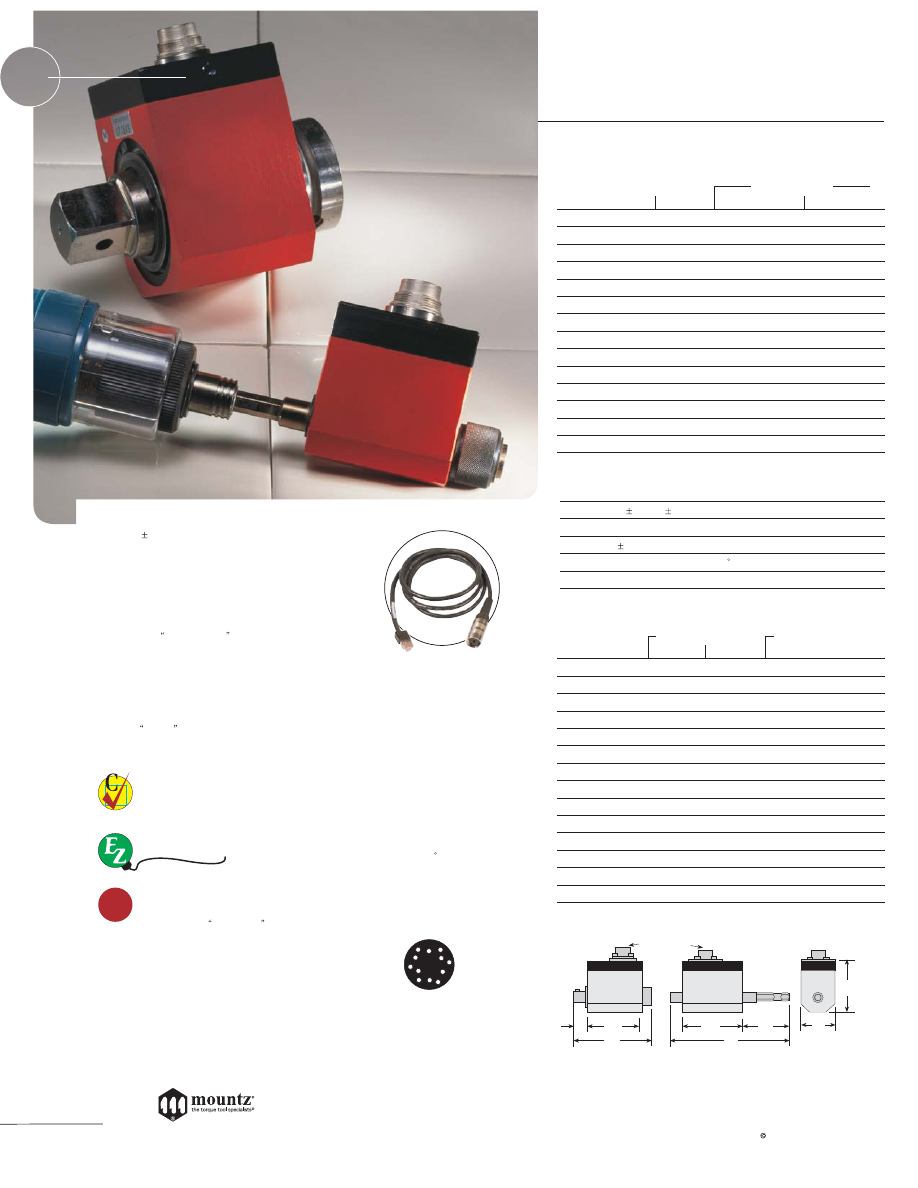

Rotary Torque & Angle Sensor
with ARCII Technology

RTSX-A

01.10

Torque Sensors

RTSX10i-HA

RTSX10i-A

RTSX50i-HA

RTSX50i-A

RTSX100i-HA

RTSX100i-A

RTSX200i-HA

RTSX200i-A

RTSX50F-A

RTSX100F-A

RTSX400F-A

RTSX800F-A

RTSX1500F-A

11.3 - 113 cN.m

56.5 - 565 cN.m

113 - 1130 cN.m

226 - 2260 cN.m

6.8 - 67.8 N.m

13.6 - 135.6 N.m

54.2 - 542.4 N.m

108.4 - 1084 N.m

203.3 - 2033N.m

1 - 10 lbf.in

5 - 50 lbf.in

10 -100 lbf.in

10 - 100 lbf.in

20 - 200 lbf.in

5 - 50 lbf.ft

10 - 100 lbf.ft

40 - 400 lbf.ft

80 - 800 lbf.ft

150 - 1500 lbf.ft

Torque Ranges

Item #

S.I.

American

Model

170213

170214

170215

170216

170217

170218

170219

170220

170221

170222

170223

170224

170282

Ability to measure the rotation angle of a fastener.

Joint rate and breakaway torque can be measured too.

Bi-directional.

KEY FEATURES

Angle Output: 2 channel quadrature, 360 pulses per rotation.

For use with most power tools or rotational measurement

applications.

DRIVE SIZE

inches

SPECIFICATIONS

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

1/4 Female/Square

3/8 Female/Square

1/2 Female/Square

3/4 Female/Square

1 Female/Square

1 1/2 Female/Square

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

1/4 Male/Square

3/8 Male/Square

1/2 Male/Square

3/4 Male/Square

1 Male/Square

1 1/2 Male/Square

RTSX10i-HA

RTSX10i-A

RTSX50i-HA

RTSX50i-A

RTSX100i-HA

RTSX100i-A

RTSX200i-HA

RTSX200i-A

RTSX50F-A

RTSX100F-A

RTSX400F-A

RTSX800F-A

RTSX1500F-A

Input

Output

Model

Connector

i-A, F-A

Models

Not recommended for impact wrenches.

WARNING!

Connector

i-HA

Models

DIMENSIONS

101

106

135

177

165

8.5

21.5

57.5

RTSX10i-HA

RTSX10i-A

RTSX50i-HA

RTSX50i-A

RTSX100i-HA

RTSX100i-A

RTSX200i-HA

RTSX200i-A

RTSX50F-A

RTSX100F-A

RTSX400F-A

RTSX800F-A

RTSX1500F-A

110

126

Model

RTSX-A CABLE

For connecting to
PTT or LTT

Item #072000

Torque Output

A = Bridge Voltage (+)
B = Bridge Voltage (-)
C = Measured Signal (+)
D = Measured Signal (-)
E = Ground (Angle Voltage)
F = +5V (Angle Voltage)

Angle Output

G = Channel A (Load)
H = Channel B (Lag)
I = N/A
K = 100% Control (Full Scale)

CONNECTION

Connect With A:

PTT

Ability to document and
save torque readings.
Ideal for SPC testing and
ISO testing.

See Page 01.4

Accuracy 0.25% of full scale*.

Features ARCII technology, an instant auto-recognition

system of the RTSX-A connected to the PTT or LTT.

Output at Rated Capacity: </= 6 Nm[53 lbf.in] rated torque 1 mV/V

> 6 Nm[53 lbf.in] rated torque 2 mV/V

Interchangeability: Matched for mv/v and
Shunt Calibration + 0.3% FS

Nonlinearity: + 0.2% FS

Excitation Recommended: 12V DC or AC RMS

Bridge Resistance: 350 Ohms

Usable Temperature Range: 41 - 122

Mating Connector: Bendix PT06A-12

Safe Overload: 125% of Rated Output

ISO 9001and ISO 17025 Company

NOTE!

PLUG & PLAY

Supplied with

Free

ISO 17025 Certification of Calibration.

CERTIFIED

BLRTSX-A

01.11

BLRTSX-A

Brushless Rotary Torque & Angle Sensor
with ARCII Technology

Torque Sensors

Non-contact signal transfer and maintenance free.

The common brush bounce that plagues the accuracy

testing of pulse tools is cured when using a brushless

rotary transducer.

Compact design & bi-directional.

KEY FEATURES

For use with most power tools, high RPM tools, or

rotational measurement applications.

7 - 20 cN.m

7 - 49 cN.m

18 - 98.8 cN.m

22.5 - 203 cN.m

56.5 - 565 cN.m

113 - 1130 cN.m

180 - 1807 cN.m

5 - 50 N.m

10 - 100 N.m

16 - 160 N.m

25 - 250 N.m

50 - 500 N.m

100 - 1000 N.m

10 - 28 ozf.in

10 - 70 ozf.in

25 - 140 ozf.in

2 - 18 lbf.in

5 - 50 lbf.in

10 - 100 lbf.in

16 - 160 lbf.in

4 - 36 lbf.ft

8 - 73 lbf.ft

12 - 118 lbf.ft

19 - 184 lbf.ft

37 - 368 lbf.ft

74 - 738 lbf.ft

BLRTSX28z-HA

BLRTSX70z-HA

BLRTSX140z-HA

BLRTSX18i-HA

BLRTSX50i-HA

BLRTSX100i-HA

BLRTSX100i-A

BLRTSX160i-HA

BLRTSX160i-A

BLRTSX36F-A

BLRTSX73F-A

BLRTSX118F-A

BLRTSX184F-A

BLRTSX368F-A

BLRTSX738F-A

170283

170246

170247

170248

170249

170250

170251

170252

170253

170254

170255

170256

170257

170258

170259

Item #

S.I.

American

Model

Torque Ranges

101

106

135

177

8.5

21.5

57.5

1/4 M/Hex

1/4 F/Sq

1/4 M/Hex

1/4 F/Sq

3/8 F/Sq

1/2 F/Sq

3/4 F/Sq

1 F/Sq

1/4 F/Hex

1/4 M/Sq

1/4 F/Hex

1/4 M/Sq

3/8 M/Sq

1/2 M/Sq

3/4 M/Sq

1 M/Sq

BLRTSX28z-HA

BLRTSX70z-HA

BLRTSX140z-HA

BLRTSX18i-HA

BLRTSX50i-HA

BLRTSX100i-HA

BLRTSX100i-A

BLRTSX160i-HA

BLRTSX160i-A

BLRTSX36F-A

BLRTSX73F-A

BLRTSX118F-A

BLRTSX184F-A

BLRTSX368F-A

BLRTSX738F-A

Input

Output

Connector

i-A & FA Models

z-HA, i-HA Models

D
A

Model

Angle Output: 2-channel quadrature, 360 pulses per

rotation.

Ability to measure the rotation angle of a fastener.

Joint rate & breakaway torque can be measured too.

Drive Size (inches)

Dimensions (mm)

Accuracy 0.2% of full scale*.

Features ARCII technology, an instant auto-recognition

system of the BLRTSX-A connected to the PTT or LTT.

Rated Output: 5VDC 0.2% FS

Excitation Recommended: 11VDC to 26VDC (pole secure)

Nonlinearity: 0.2% FS

Usable Temperature Range 41 to 122 F

Mating Connector: Tuchel Series 581 (98-2030-09-12)

Safe Overload: 150% of Rated Output

SPECIFICATIONS

BLRTSX-A CABLE

For connecting to
PTT or LTT.

Item #072001

CONNECTION

A = Ground (Shunt Calibration)
B = Angle 1 Speed
C = Torque Output
D = Ground (Torque Output)
E = Ground (Supply)
F = Supply, 11-26 VDC, 1 W
G = Angle 2
(90 running after Angle 1)
H = +5V (Angle Voltage)
K = Shunt Calibration
M = Shield
J & L = N/A

800.456.1828

Threads for mounting M4, 6mm depth.

NOTE!

*This is the stand alone accuracy for the
torque sensor. When the sensor is coupled
with a Mountz torque analyzer, there is a
system accuracy. Review the system accuracy
listed with each torque analyzer.

PLUG & PLAY

Supplied with

Free

ISO 17025 Certification

of Calibration.

CERTIFIED

BLRTSX

Brushless Rotary Torque Sensor
with ARC II Technology

BLRTSX

01.12

Torque Sensors

Non-contact signal transfer and maintenance free.

Bi-directional.

KEY FEATURES

Compact design.

For use with most power tools, high RPM tools, or

rotational measurement applications.

BLRTSX28z-H

BLRTSX70z-H

BLRTSX140z-H

BLRTSX18i-H

BLRTSX50i-H

BLRTSX50i

BLRTSX100i-H

BLRTSX100i

BLRTSX160i-H

BLRTSX160i

BLRTSX18F

BLRTSX36F

BLRTSX73F

BLRTSX118F

BLRTSX184F

BLRTSX368F

BLRTSX738F

DIMENSIONS

101

74.5

112

8.5

22.5

34.5

Connector

i & F Models

z-H, i-H Models

D
A

Model

Accuracy 0.2% of full scale*.

Features ARCII technology, an instant auto-recognition

system of the BLRTSX connected to the PTT or LTT.

The common brush bounce that plagues the accuracy

testing of pulse tools is cured when using a BLRTSX.

BLRTSX CABLE

For connecting to
PTT or LTT

Item #072001

CONNECTION

A = Ground
(Shunt Calibration)
C = Torque Output
D = Ground (Torque Output)
E = Ground (Supply)
F = Supply, 11-26 VDC, 1 W
K = Shunt Calibration
M = Shield
B/G/H/J/L = N/A

7 - 20 cN.m

7 - 49 cN.m

18 - 98.8 cN.m

22.5 - 203 cN.m

56.5 - 565 cN.m

113 - 1130 cN.m

180 - 1807 cN.m

2.5 - 25 N.m

5 - 50 N.m

10 - 100 N.m

16 - 160 N.m

25 - 250 N.m

50 - 500 N.m

100 - 1000 N.m

10 - 28 ozf.in

10 - 70 ozf.in

25 - 140 ozf.in

2 - 18 lbf.in

5 - 50 lbf.in

10 - 100 lbf.in

16 - 160 lbf.in

2 - 18 lbf.ft

4 - 36 lbf.ft

8 - 73 lbf.ft

12 - 118 lbf.ft

19 - 184 lbf.ft

37 - 368 lbf.ft

74 - 738 lbf.ft

BLRTSX28z-H

BLRTSX70z-H

BLRTSX140z-H

BLRTSX18i-H

BLRTSX50i-H

BLRTSX50i

BLRTSX100i-H

BLRTSX100i

BLRTSX160i-H

BLRTSX160i

BLRTSX18F

BLRTSX36F

BLRTSX73F

BLRTSX118F

BLRTSX184F

BLRTSX368F

BLRTSX738F

170225

170226

170227

170228

170229

170230

170231

170232

170233

170234

170235

170236

170237

170238

170239

170240

170241

Item #

S.I.

American

Model

Torque Ranges

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

1/4 Female/Square

1/4 Male/Hex

1/4 Female/Square

3/8 Female/Square

1/2 Female/Square

3/4 Female/Square

1 Female/Square

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

1/4 Male/Square

1/4 Female/Hex

1/4 Male/Square

3/8 Male/Square

1/2 Male/Square

3/4 Male/Square

1 Male/Square

BLRTSX28z-H

BLRTSX70z-H

BLRTSX140z-H

BLRTSX18i-H

BLRTSX50i-H

BLRTSX50i

BLRTSX100i-H

BLRTSX100i

BLRTSX160i-H

BLRTSX160i

BLRTSX18F

BLRTSX36F

BLRTSX73F

BLRTSX118F

BLRTSX184F

BLRTSX368F

BLRTSX738F

Input

Output

DRIVE SIZE

inches

Model

SPECIFICATIONS

Rated Output: 5VDC 0.2% FS

Excitation Recommended: 11VDC to 26VDC (pole secure)

Nonlinearity: 0.2% FS

Usable Temperature Range 41 - 122 F

Mating Connector: Tuchel Series 581 (98-2030-09-12)

Safe Overload: 150% of Rated Output

NOTE!

*This is the stand alone accuracy for the torque sensor. When
the sensor is coupled with a Mountz torque analyzer, there is a
system accuracy. Review the system accuracy listed with each
torque analyzer.

PLUG & PLAY

Supplied with

Free

ISO 17025 Certification of Calibration.

CERTIFIED

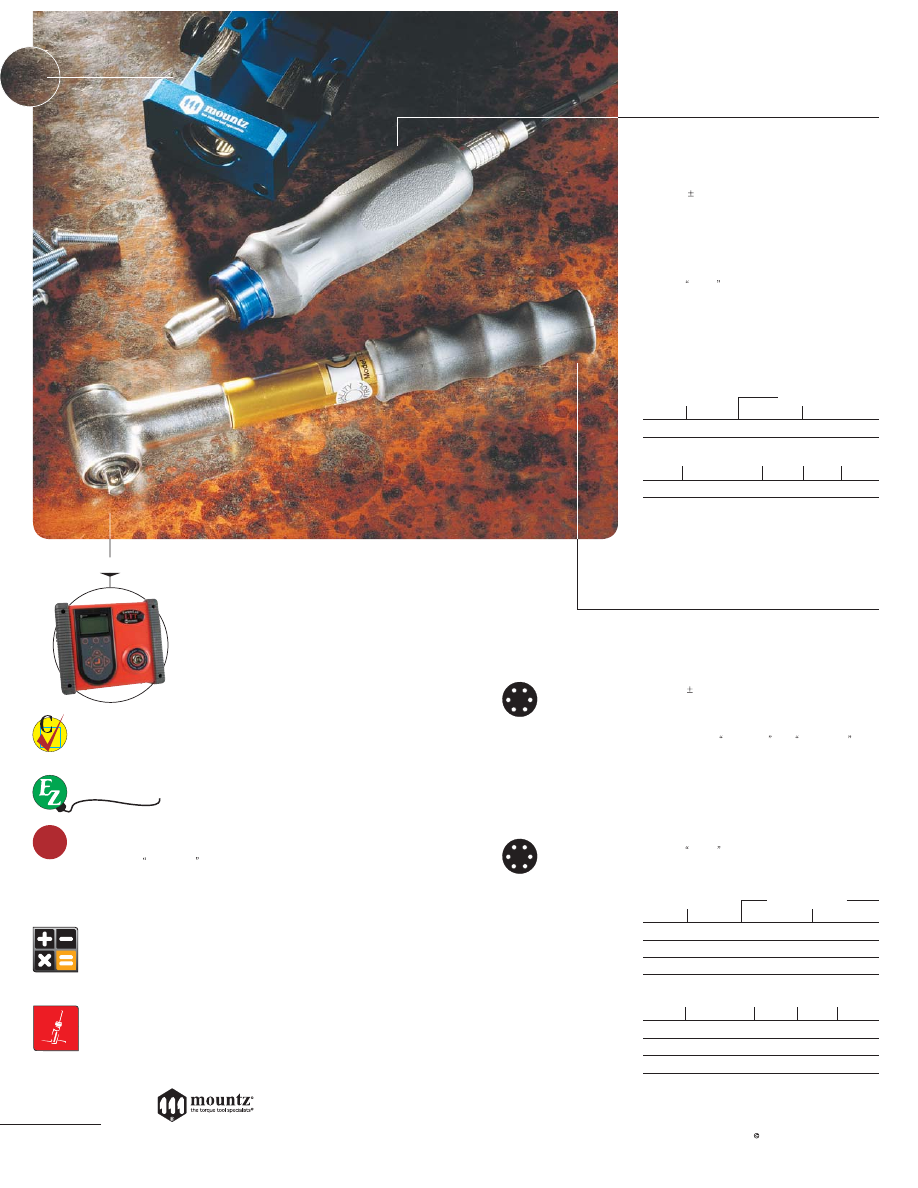

Torque Sensors

SDX

Torque Screwdriver Sensor

with ARCII Technology

Torque sensor for auditing or tightening fasteners to

a specified torque when mated with a torque

analyzer.

Ergonomic rubber grip and stainless steel

Female/Hex bit holder.

KEY FEATURES - SDX

800.456.1828

SDX & ETX

01.13

SDX10i

SDX50i

11.3 - 113 cN.m

56.5 - 565 cN.m

Torque Ranges

Item #

S.I.

1 - 10 lbf.in

5 - 50 lbf.in

American

Model

078000

078001

SDX10i

SDX50i

Model

Drive Size

1/4" Female/Hex

Length

Width

1/2

Weight

0.5 lbs.

ETX

Torque Wrench Sensor

with ARCII Technology

Connect to a torque analyzer to monitor, test or

audit a fastener.

Safe Overload: 125% of Rated Output.

CABLE - SDX

For connecting to FTA-100,
PTT or LTT

Item #072004

A = Signal (+)
B = Signal (-)
C = Excitation (-)
D = Excitation (+)
E/F = N/A

SDX CONNECTION

Designed for monitoring, testing, and auditing

fasteners.

Bi-directional.

KEY FEATURES - ETX

Non-length dependent.

Robust design and fixed head.

Safe Overload: 125% of Rated Output.

Connect With A:

LTT

Connect to a torque analyzer to
monitor, test or audit a fastener.

See Page 01.3

ETX10

ETX30

ETX100

ETX300

1 - 10 N.m

3 - 30 N.m

10 - 100 N.m

30 - 300 N.m

Torque Ranges

Item #

S.I.

9 - 89 lbf.in

2.5 - 22 lbf.ft

8 - 75 lbf.ft

22 - 220 lbf.ft

American

Model

020176

020177

020178

020179

ETX10

ETX30

ETX100

ETX300

Model

Square Drive

1/4"

3/8"

1/2"

Length

1/2

26"

Width

1/4

5/8

Weight

9 oz.

1.5 lbs.

2.4 lbs.

CABLE - ETX

For connecting to FTA-100,
PTT or LTT

Item #072006

A = Signal (-)
B = Signal (+)
C = Excitation (-)
D = Excitation (+)
E = Memory Circuit Digital Clock
F = Memory Circuit Digital I/O

ETX CONNECTION

Accuracy 0.25% of full scale*.

Features ARCII technology, an instant auto-

recognition system of the SDX connected to the

FTA-100, PTT or LTT.

Accuracy 1% of full scale.

Features ARCII technolog y, an instant auto-

recognition system of the ETX connected to the

FTA-100, PTT or LTT.

Can be used for Just Move and Breakaway

torque tests.

Mountz Tool Selector

Easy to navigate, a guide that assists engineers
in selecting the proper tool for the application.
Visit www.mountztorque.com/torque-tool-selector.

Mountz Torque Conversion Calculator

Quickly convert torque measurement from
one type of unit measurement to another.
Visit www.mountztorque.com/calculator

NOTE!

PLUG & PLAY

Supplied with

Free

ISO 17025 Certification of Calibration.

CERTIFIED

Calibration Test

For Torque Analyzers & Torque Sensors

Calibration Equipment

Calibration

Test Equipment

01.14

Step 2:

Select Hanger

2 lbs.

5 lbs.

Stainless Steel (Class F)

110044

110043

Item #

Weight

Model

1/4

16"

Stem

Step 3:

Select Weights

0.25 oz.

0.50 oz.

1 oz.

2 oz.

4 oz.

8 oz.

16 oz.

32 oz.

40 oz.

0.5 lbs.

1 lb.

2 lbs.

5 lbs.

10 lbs.

20 lbs.

50 lbs.

Stainless Steel Hook (Class 3)

Stainless Steel Slotted (Class F)

110050

110051

110052

110053

110054

110055

110056

110057

110058

110047

110046

110045

110041

110042

110070

110071

Item #

Weight

Model

Calibrated Dead Weights are the official means by which

torque analyzers and transducers are traced to the National

or International Standards such as NIST, ISO, and others.

There are 3 components that compose of a Dead Weight

Test Set: (1) Segment Arm or Wheel, (2) Hanger, and

(3) Weights.

25 lbs.

75 lbs.

100 lbs.

75 lbs.

100 lbs.

125 lbs.

250 lbs.

125 lbs.

300 lbs.

S-10

S-12

S-24

S-48

061106

060094

060056

060052

060093

060091

060053

060090

060054

Item #

Max Wt.

Model

.005

.006

.012

.024

Tolerance

1/4"

3/8"

1/2"

3/8"

1/2"

3/4"

Input Dr.

10"

12"

24"

48"

Length

SEGMENT ARMS

Step 1:

Select either:
Segment Arm
or Wheel

50 oz.

20 lbs.

65 lbs.

1.0*

2.0**

4.0**

061587

060095

060064

Item #

Max Wt.

Model

.0005

.001

.002

Tolerance

1/4"

1/4" & 3/8"

Input Dr.

Radius

WHEELS

(pictured upper right photo)

*Shape: Circular

**Shape: Butterfly

Hook Weight

Slotted Weight

Hanger

Equipment

ISO 9001and ISO 17025 Company

TOTAL WEIGHT

Weights are placed upon the

Hanger, which is hung from the

Segment Arm or Wheel. The

amount of

total weight

needed is

determined by the maximum torque

range of the analyzer or sensor

being calibrated and the length of

the Segment Arm or Wheel.

NOTE!

Total weight

includes

both the Hanger and the

Stainless Steel

Weight(s).

Calibration Equipment

Loading Bench

Calibrating Wrenches

A calibration system designed to ensure accurate calibration of

torque wrenches.

The laboratory grade instrument assures accurate torque

calibration and pre-setting, independent of human influence or

transducer side and end load factors.

KEY FEATURES

Built for durable use, the Loading Bench reduces the operator

effort required to attain and sustain torque during the

calibration process.

Models that range from 0 - 2000 lbf.ft

BMX TORQUE SENSOR

For calibrating manual or power
tools or special applications.
A wide torque range selection,
from 2 ozf.in to 20,000 lbf.ft.

See Page 01.8

Torque Range: Max. 250 lbf.ft (3000 lbf.in).

Reaction Position:
Horizontally: 4" to 28" from the center of the turn-table.
Vertically: 1" to 4" from the turn-table base.

Weight: 53 lbs.

Size: 37.5" W x 12" H x 10.75" D

Item #063302

LB250F

LOADING
BENCH

01.15

Large wheel for smooth manual loading.

Operates in both clockwise and counterclockwise directions.

Torque Range: Max. 750 lbf.ft (9000 lbf.in).

Reaction Position:
Horizontally: 4.87" to 41.25" from the center of the turn-table.
Vertically: 1.87" to 5.4" from the turn-table base.

Weight: 130 lbs.

Size: 50" W x 15" H x 15.5" D

Item #063301

LB750F

Torque Range: Max. 2000 lbf.ft (24000 lbf.in).

Reaction Position:
Horizontally: 4.87" to 75.5" from the center of the turn-table.
Vertically: 1.87" to 5.4" from the turn-table base.

Weight: 160 lbs.

Size: 84.75" W x 15" H x 15.5" D

Item #063300

LB2000F

The drive system assures the load application, eliminating the

operator induced test error.

Use with a Mountz BMX torque sensor and torque analyzer.

Mountable for bench or a cabinet.

NOTE!

It is recommended that the Loading Bench be fastened to a bench top.

LB750F

(BMX Torque Sensor not included)

Adjustable to fit the size of wrench being tested. Load applied

easily and slowly for accurate calibration.

800.456.1828

Mr. Metric is the leading metric fastener specialist

in North America. Well regarded as experts in

metric. Mr. Metric is known for hard to find metric

items at competitive prices. Visit

www.mrmetric.com

Run Down Adapters

Torque Analyzers and Sensors

Accessories

RDA

01.16

Designed to provide consistent and

reliable torque readings for use with

power driven torque control tools.

Adapter is mounted in-line between

tool drive and the torque sensor.

Hardened thread components

increase accuracy and life.

Non-rotating body for improved safety.

Square drives conform to ASME

B107 standards for proper fit.

Compact size and lightweight.

Operates in clockwise direction only.

After each run down, the RDA

should be completely backed-up.

11.3 - 113 cN.m

28 - 282.5 cN.m

56.5 - 565 cN.m

113 - 1130 cN.m

282.5 - 2825 cN.m

6.8 - 67.8 N.m

847 - 8473 cN.m

13.6 - 135.6 N.m

33.9 - 339 N.m

67.8 - 678 N.m

135.6 - 1355 N.m

339 - 3389 N.m

678 - 6779 N.m

1 - 10 lbf.in

2 - 25 lbf.in

5 - 50 lbf.in

10 - 100 lbf.in

25 - 250 lbf.in

5 - 50 lbf.ft

75 - 750 lbf.in

10 - 100 lbf.ft

25 - 250 lbf.ft

50 - 500 lbf.ft

100 - 1000 lbf.ft

250 - 2500 lbf.ft

500 - 5000 lbf.ft

RDA-10i

RDA-25i

RDA-50i

RDA-100i

RDA-250i

RDA-50F

RDA-750i

RDA-100F

RDA-250F

RDA-500F

RDA-1000F

RDA-2500F

RDA-5000F

063970

063971

063972

063973

063974

063978

063977

063981

063982

063983

063991

063990

063992

Item #

Sq. Drive

American

Model

Torque Ranges

1/4

3/8

1/2

3/4

1/2

RUN DOWN ADAPTERS

S.I.

Ideal for testing and recording the results of power tools with a

torque analyzer or sensor. Not recommended for pulse tools.

Operates in clockwise direction only. Once the tool shuts off, the

AURA automatically unwinds for the next run down. Eliminates the

need to back it out.

Designed to provide consistent and reliable torque readings for use

with power driven torque control tools.

Adapter is mounted in-line between tool drive and the torque sensor.

Compact size and lightweight.

Includes two springs to cover the torque range 1 - 50 lbf.in

25 - 50 lbf.in

1 - 25 lbf.in

AURA

063292

063293

Item #

Heavy Spring

Light Spring

Model

Torque Ranges

1/4" F/Sq.

17mm Hex

1/4 M/Sq.

AURA ADAPTER

(Auto Reversing Run Down Adapter)

Drive
Output

Drive
Input

11.3 - 113

56.5 - 565

113 - 1130

169.5 - 1695

1 - 10

5 - 50

10 - 100

15 - 150

RDA

070600

070605

070610

070615

Item #

Drive Output

lbf.in

Model

Torque Ranges

17mm Hex

cN.m

Drive Input

5mm Hex

6mm Hex

Designed to provide consistent and reliable torque readings for

use with power driven torque control tools.

Adapter is mounted in-line between tool

drive and a transducer.

Compact size and lightweight.

SPRING RUN DOWN ADAPTERS for EZ-TorQ

Operates in clockwise direction only.

Compatible with only the

EZ-TorQ Analyzer.

The mini RDA unit with fastener is designed for low torque sensors

(BMX20z - BMX10i and MTX models).

Designed to provide consistent and reliable torque readings for use

with low torque power tools.

MINI RUN DOWN ADAPTERS

The mini RDAs allow a close simulation of actual joints.

Adapter is mounted in-line between tool drive an the torque sensor.

Operates in clockwise direction only.

The kit includes 5 mini RDA units along with 10 fasteners.

PH Phil 2-56 x 1/4 SS

Mini RDA2

Mini RDA4

Mini RDA6

061229-2

061229-4

061229-6

Item #

Screws

Model

ISO 9001and ISO 17025 Company

NOTE!

Change screws when thread wear occurs.
(Recommended - approximately every 25 run downs).

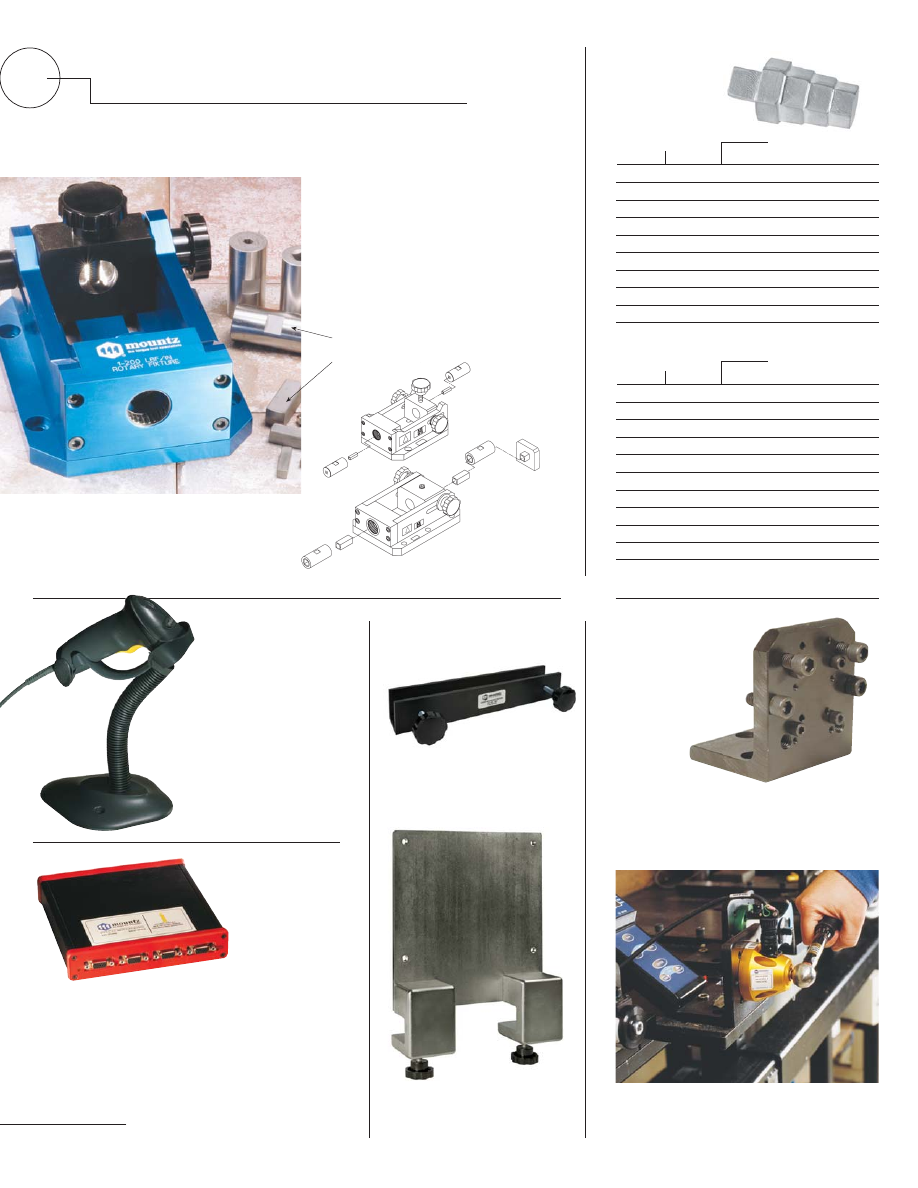

01.17

Accessories

The stand keeps the rotary sensor in a stable

position for the calibration process.

Supplied with Pin Adapters and In/Out Adapters.

ROTARY FIXTURE
CALIBRATION STAND

Calibration Wheel(s), Hanger(s), Weight(s), and

a Torque Analyzer are required for calibration of

a rotary sensor. See Page 01.14

Model: RFS-200

Torque Range: 1 - 200 lbf.in
Dimensions:
5

1/2

x 7

1/4

x 2

3/4

Item #060234

Model: RFS-500

Torque Range: 5 - 500 lbf.ft
Dimensions:
8" x 11" x 4

1/4

Item #062032

Model: MB-1

Works with:
BMX20z - BMX500F
MTX 10z - 160z
All EZ-TorQ Models
Dimensions: 4" x 3" x 4"

Item #062109

Model: MB-3

Works with:
BMX1000F - BMX5000F
Dimensions: 8" x

7/8

x 8"

Item #062128

A BMX torque sensor is securely mounted for calibrating a
torque wrench using a Mounting Bracket. Keeping the sensor
in a stable position ensures the accuracy of the torque
measurement during operation.

Torque Analyzers and Torque Sensors

MOUNTING
BRACKETS

IN/OUT ADAPTERS

PIN ADAPTERS

Model: RFS-200

Model: RFS-500

Connects 1-4 sensors to the Torque Analyzer and switches between the

sensors manually or automatically.

Eliminates the need to plug and unplug sensors.

When the PTT or LTT is connected to the Multiplexer it reviews

the Multiplexer (Mux) to determine what sensors are connected and

downloads the identity and calibration data for each of the attached

sensors.

Size (W x L x H):
6

3/4

" x 6

3/4

" x 1

3/8

Weight: 1.3 lbs.

Item #072998

Designed to scan Bar Codes

on tools and start Tool Tests

automatically.

Reduces operational time for

users with a large number of

Tool Tests stored in the

analyzer.

The PTT or LTT are

designed to work with this

bar code reader.

Item #072997

BAR CODE READER

for LTT and PTT

MULTIPLEXER

for LTT and PTT

11/16

7/16

3/8

7/32

17mm

12mm

8mm

7mm

6mm

5mm

3/4

1/2

1/4

19mm

13mm

9mm

8mm

5.5mm

American

Metric

061500

061501

061527

061502

061503

061504

061505

061529

061528

061506

Item #

Model

Dimensions

CALIBRATION
HEX STEP
ADAPTERS

5/8

3/8

”

1/4

3/16

16mm

11mm

7mm

5mm

4mm

4.5mm

9/16

5/16

1/8

14mm

10mm

6mm

3mm

2mm

4mm

7/8

11/16

7/16

7/32

17mm

15mm

14mm

12mm

8mm

5mm

3/4

9/16

1/2

1/4

19mm

17mm

16mm

13mm

9mm

5.5mm

American

Metric

061537

061524

061531

061525

061530

061543

061542

061541

061540

061539

061538

Item #

Model

3/4

5/8

5/16

3/8

3/16

16mm

13mm

12mm

11mm

7mm

4.5mm

5/8

9/16

3/16

5/16

1/8

14mm

11mm

10mm

6mm

4mm

3/8

Square Dr.

1/4

Square Dr.

Dimensions

Item #072608
For LTT Model: 10i-50F

MOUNTING BRACKETS

for LTT Torque Analyzer

Item #072606
For All LTT Models

Torque Measurement

CERTIFICATION

All Mountz torque analyzers and sensors are supplied with
a

Free

ISO 17025 Certification of Calibration.

Calibration Services

Mountz Inc. features an experienced calibration and repair staff. Our trained technicians can
calibrate and repair most any tool. Mountz provides rapid service with quality that you can
trust as we offer two state-of-the-art calibration lab and repair facilities that can calibrate up
to 20,000 lbf.ft. All calibrations are performed using NIST-Traceable standards, and meet
the requirements of ANSI/NCSL Z540.

Quality Standards

To meet customer requirements, we begin with compliance to stringent, world-class quality
standards.
- Mountz is an ISO 9001 certified and ISO 17025 accredited company.
- Design and testing of all hand tools conforms to requirements of ISO 6789, as specified.
- Laboratory operations and calibrations meet the requirements of ANSI/NCSL Z540-1.

Header

Identifies name and location of laboratory issuing certificate, as well as certificate number.

Equipment Tested

Easy identification of tool type, maximum capacity, serial number, and accuracy. Also indicates arrival condition of tool, service performed, calibration date, interval,
and due date.

Standards Used

Identifies procedure and equipment used to perform the calibration, as well as test accuracy ratio.

Certification

Section for approval of certificate content by authorized signatories. Also includes statement of compliance with relevant calibration standards and NIST-Traceability.

This symbol identifies the products that are
supplied with a

Free

ISO 17025 Certification

of Calibration.

CERTIFICATE OF CALIBRATION

Torque

Measurement

and Calibration

01.18

CALIBRATION INTERVALS

A tool must be properly calibrated and maintained on a preventative maintenance and calibration schedule. In order to maintain accuracy, it is crucial that a
torque tool and measuring equipment be calibrated regularly. Some organizations may recommend six (6) month calibration intervals, while others may schedule
it at twelve (12) months. However, it is the organization that owns the tool that must determine a suitable calibration frequency that meets their needs based
upon many factors, such as history of equipment performance, application, degree of usage, and management objectives.

CERTIFICATION EXPLANATION

Torque tools go out of calibration with use. To maintain consistent accuracy, torque tools must be checked
periodically for wear or defective parts. A power or hand torque tool is a measuring tool that must be
properly calibrated and maintained. Regular torque calibration and re-calibration guarantees repeatable
accuracy and adherence to international standards. Torque testing also ensures torque equipment is
operating to peak performance and can highlight potential tooling problems before they arise perhaps due
to tool wear or broken components.

TORQUE MEASUREMENT

A torque analyzer or a torque sensor are a finely tuned instrument designed for testing and monitoring
torque applications. Designed for torque evaluation and verification, a torque analyzer and sensor are a
laboratory grade instruments commonly used for quality control, R&D and calibration applications. These
instruments can be used to calibrate or test hand screwdrivers, pneumatics screwdrivers, torque wrenches,
electric screwdrivers, pulse tools, cordless screwdrivers, torque multipliers and other torque tools. Using
a quality torque tester or sensor are key for many companies to ensure that the proper torque is being
applied. Testing torque is literally a science and not something that can be left to chance.

Controlling torque is essential for companies to ensure their product s quality, safety and reliability isn t
compromised. The failure of a three-cent fastener that isn t properly tightened can lead to catastrophic
or latent failures. Fasteners that are insufficiently torqued can vibrate loose and excessive torque can strip
threaded fasteners. Torque measurement should occur in three facets of the assembly process: 1) Prior
to Assembly 2) During Assembly 3) After Assembly.

and Calibration

ISO 9001and ISO 17025 Company
