ETALDOC 840/1

Page 1 of 3

October 2003

PRODUCT DATA SHEET

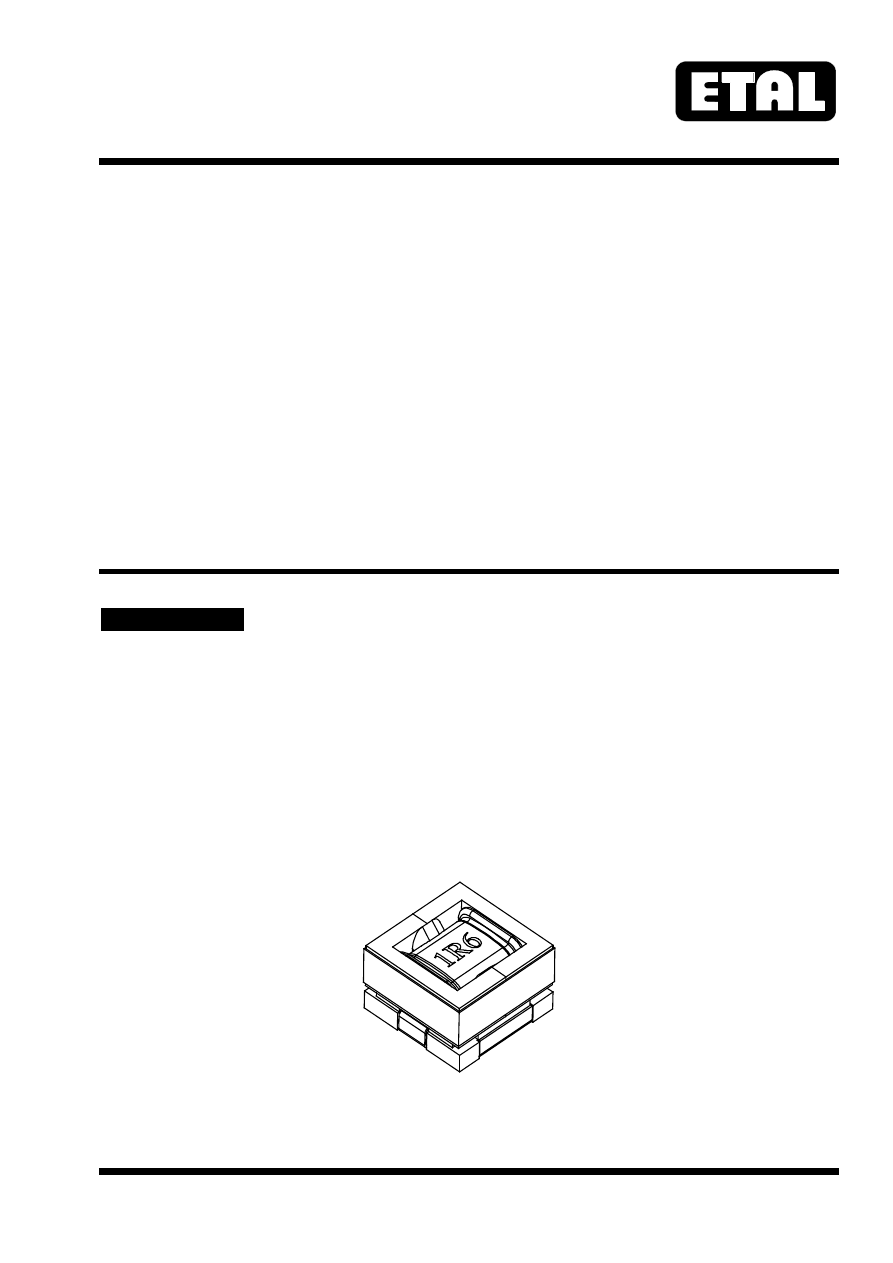

ULTRA HIGH POWER INDUCTOR

P7608

Family

Features

Applications

∗

  Ultra High Current (to 30A)

∗

 DC-DC Converters

∗

  Very Low DCR (to 1m

Ω

)

∗

  Voltage Regulator Modules

∗

 Foil windings

∗

 Distributed Power

∗

  Closed magnetic circuit

∗

  MPU power supplies

∗

 Pb-free

∗

 Servers

∗

 Workstations

∗

 Telecom equipment

∗

  Notebook and handheld equipment





DESCRIPTION

The P7608 family comprises high-energy-density
surface mount inductors.  The family employs
copper foil windings, giving excellent DC
resistance, thermal efficiency and high frequency
performance. The core is a closed magnetic circuit
to afford magnetic shielding.

Components are supplied with Pb-free
terminations in tape and reel packaging, and are
suitable for Pb-free and conventional placement
and reflow.

P7608

ETALDOC 840/1

Page 2 of 3

October 2003

SPECIFICATIONS

Electrical

Part Number

Inductance (µH)

 (1)

DCR (m

Ω

)



Max

Rated Current I

DC

(A)

(2)

P7608-R56Y

0.56±30%

1.0

30

P7608-1R0M

1.0±20%

1.2

22

P7608-1R6M

1.6±20%

1.5

18

P7608-2R2M

2.2±20%

1.9

15



Notes

1.  Inductance measured at 100kHz, 1V.
2.  Rated current, I

DC,

 is the current at which the temperature rise is 40ºC (max) or the DC current at which

the zero-current inductance drops by 25% (max) whichever is less.

3.  Operating temperature -25ºC to +85ºC.
4.  For non-standard inductance values, please contact Profec.

5

10

15

20

25

30

35

DC CURRENT (A)

0.5

1.0

1.5

2.0

2.5

0

INDU

C

TAN

C

E (

µH

)

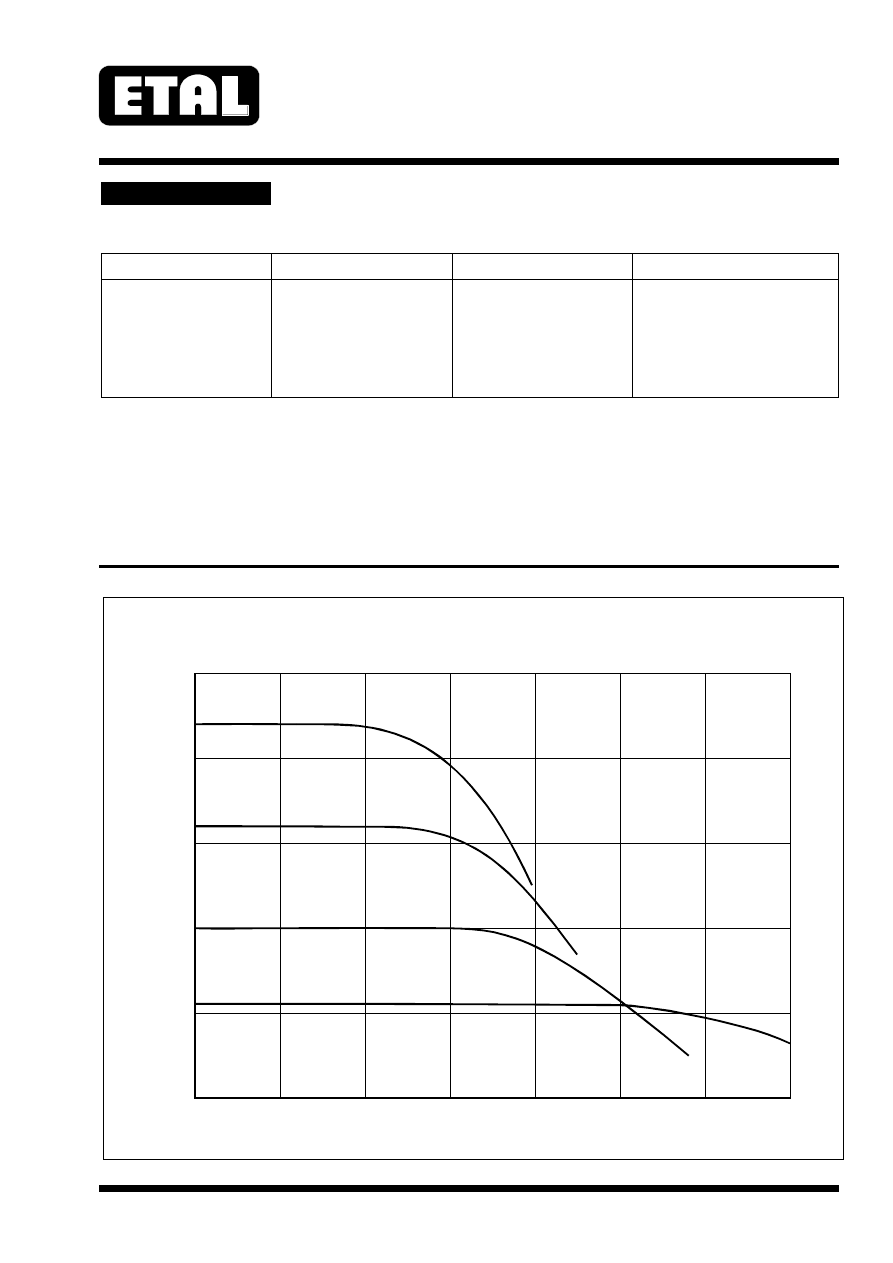

Fig. 1

Effect of DC Current on Inductance (typical)

P7608

ETALDOC 840/1

Page 3 of 3

October 2003

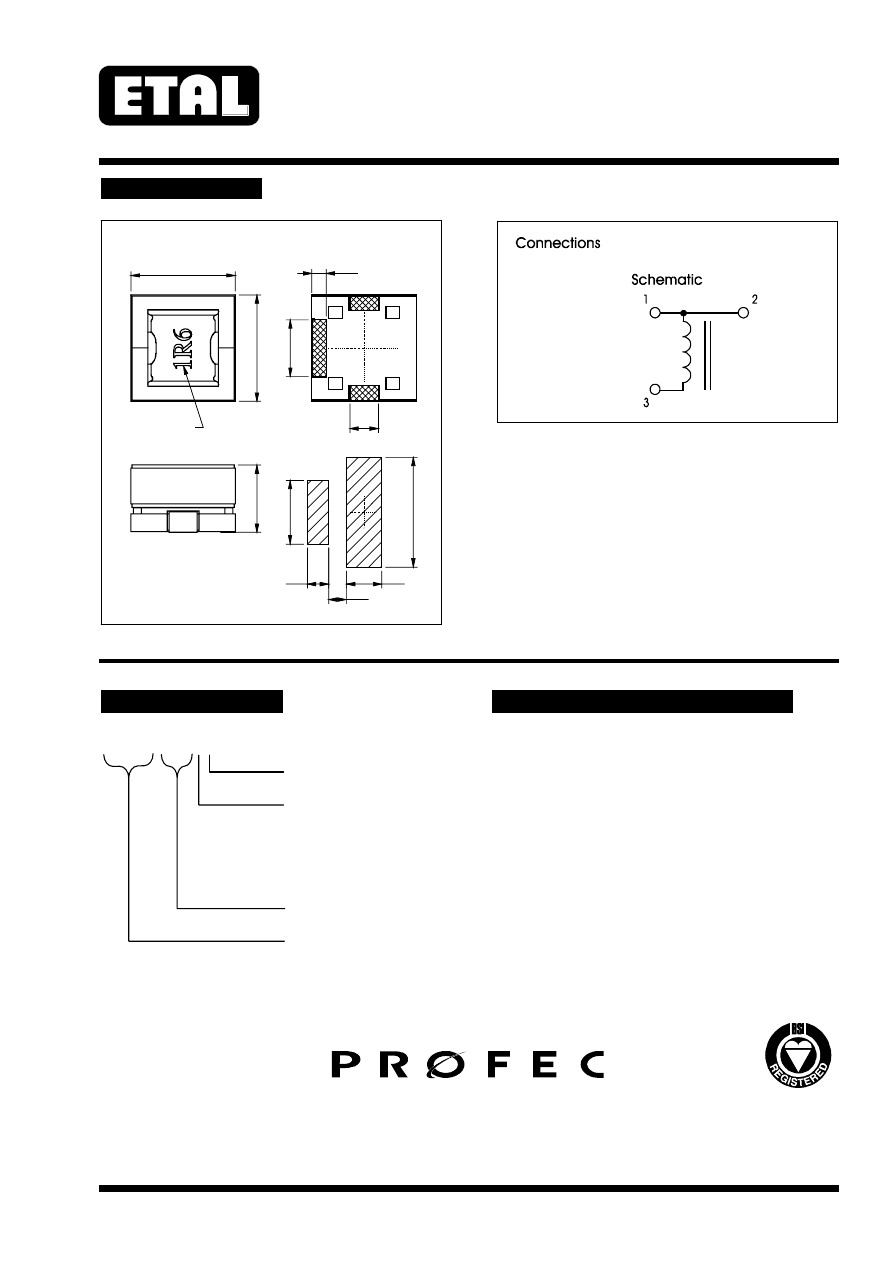

CONSTRUCTION

Dimensions shown are in millimetres
Terminal plating is pure tin (Sn).
Recommended reflow solder profile:
2 minutes (min) @ 100-150ºC,
10 seconds (max) @ 230ºC;
time above 200ºC 30 seconds maximum.

ORDERING CODE

ABSOLUTE MAXIMUM RATINGS

Storage temperature

-40ºC to
+105ºC

Operating temperature

-25ºC to
+85ºC

P7608-

ÿððð

T

Tape and Reel

Tolerance:
  M = ±20%
  Y = ±30%

See tabulated values
for correct tolerance.

Inductance code

Type code

Soldering temperature profile peak

260ºC 10s
