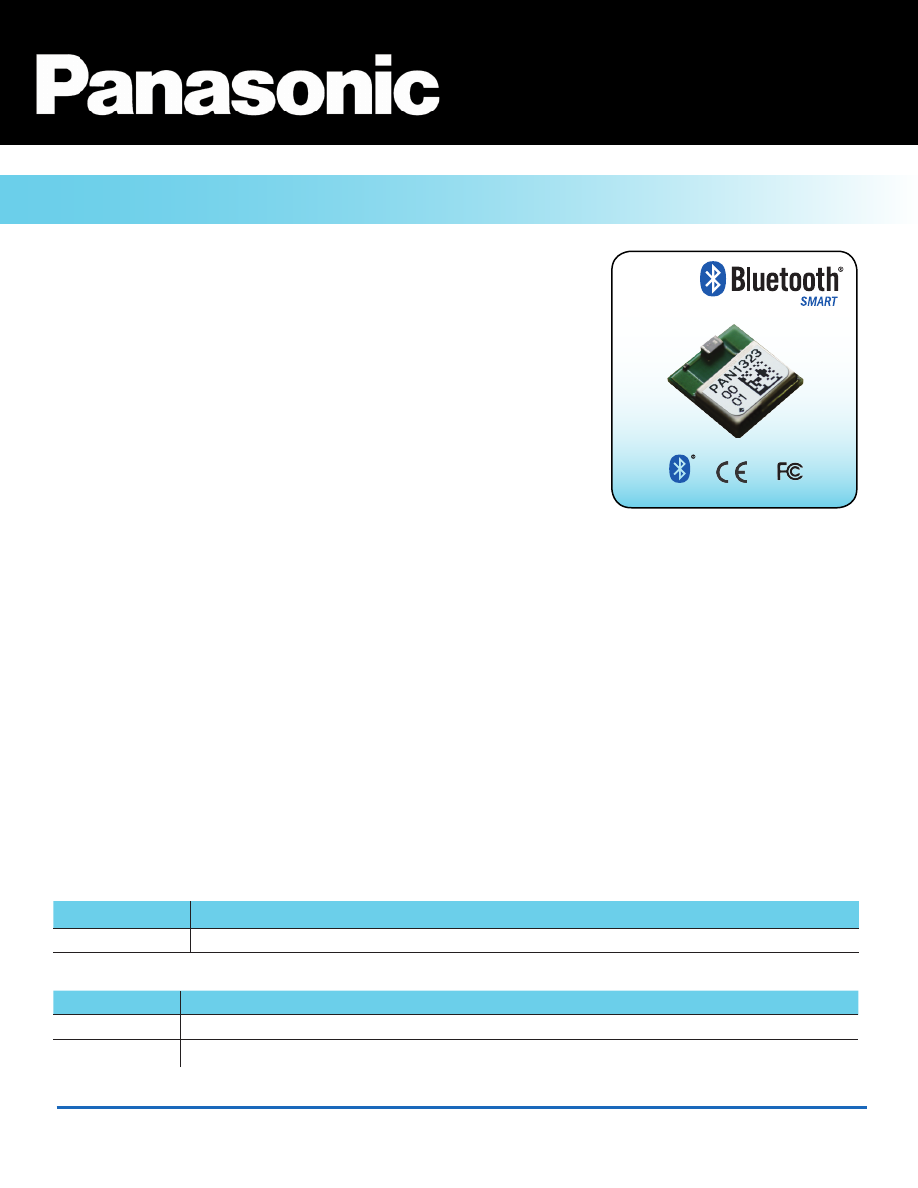

One highly flexible RF Module, three popular standards: Bluetooth Classic,
Bluetooth Low Energy and ANT™. Panasonic introduces the
NEW PAN1323
Series Triple Mode RF Module
with embedded antenna. The
PAN1323 Series
provides easily integrated Bluetooth Version 4.0 and ANT connectivity into new
and current designs by removing RF design and certification barriers from the
development of the application.
Gain unprecedented access using this three
mode gateway module that can connect 14 Million ANT nodes to over 3 Billion
Bluetooth nodes.
Use Bluetooth EDR to manage large data requirements while
taking advantage of extraordinary battery life using ultra lower network technology
found in Bluetooth Low Energy and ANT for small data loads.
Designers can reduce the size and cost of applications using Panasonic’s unique,
tiny footprint technology. Just 85.5 mm
2
, this family of modules are designed to
accommodate PCBs with pad pitch of 1.3mm with as little as two layers for easy
implementation and manufacturing.
PAN1323 Series
Modules have a Bluetooth
subsystem, FCC, CE, (ETSI) and IC certifications.
The NEW
PAN1323 Series

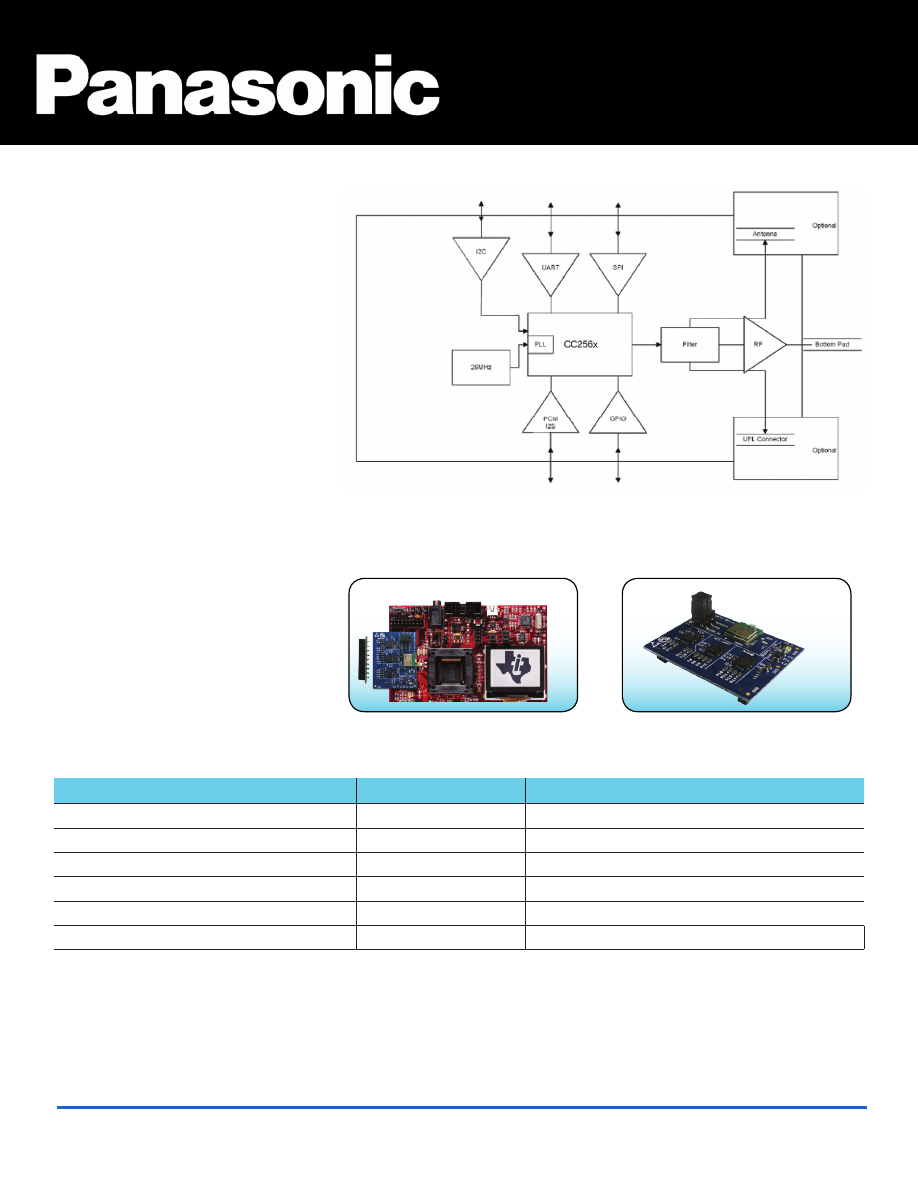

is based upon Texas Instrument’s CC256x integrated circuits and uses a host controlled interface
(HCI), a cost effective and flexible means to implement a Bluetooth network. HCI reduces BOM cost by eliminating redundant
processing capacity and giving designers the flexibility to work with a controller of their choosing, as the stacks reside
and execute on the application’s host processor. The
PAN1323 Series
is pad compatible with Panasonic’s PAN1325A,
PAN1326 and PAN1327 Series. A single PCB layout allows the flexibility of different protocol functionality implemented with
only firmware.
Product Performance:
• A Single Module for Three Standards: Bluetooth Classic,
Bluetooth Low Energy and ANT™.
o Bluetooth Version 4.0
o ANT™ is a wireless sensor network protocol
designed for ultra-low power applications
o Bluetooth Low Energy average power consumption
is about 1 uA.
• Cost Effective and Flexible HCI Interface
• Extraordinary Range with10 dbm of Tx Power
• Easily Integrates to Texas Instruments’ MSP430
and Stellaris ARM7 Controllers
• Small Footprint: 9mm x 9.5mm x 1.8mm
• Fully Certified, Bluetooth v4.0, FCC, CE and IC
• Complete Development Environment
• 100% Footprint Compatible with PAN13xx Series
• Industrial Temperature Rating -40
º
C to +85
º
C
• Supports All Bluetooth Profiles
• Compatible with 14 Million Deployed ANT Nodes
PAN1323 Part Number:
Part Numbers
Description
ENW–89842A2KF
Bluetooth
, PAN1323 , Triple Mode with Antenna
Development and Evaluation Part Numbers:
Part Numbers
Description
ENW-89825A2JF
PAN1323ETU, Development Module for PAN1315, PAN1316, PAN1317, PAN1325, PAN1326, PAN1327
EVAL_PAN1323
EVAL_PAN1323, Development Kit for PAN1315, PAN1316, PAN1317, PAN1325, PAN1326, PAN1327
New
Product
Introduction
NEW!
PAN1323
SERIES
BLUETOOTH
®
HIGH TEMPERATURE MODULES
Three Standards, One Small Module!
P
i
Design and Specifications are subject to change without notice. Ask the factory for technical specifications before purchase and/or use. If there is any doubt
regarding the safety of this product, kindly inform us immediately for technical consultation.
PAN1450 Rev. A
W
IRELESS
M
ODULES
The PAN1450 provides wireless interface per the BT 1.2
specification. Interoperability and BT compliance testing have
been completed for the BT Chip ZV4301 from Zeevo, Inc. to
facilate rapid time-to-market.
The BT Chip incorporates a widely popular 32-bit ARM7TDMI
TM
CPU core with sufficient bandwidth to support a wide range of
embedded µController applications and the module provides
full ARM7 software development access.
The PAN1450 is manufactured in a 13,4 x 18,7 x 2,2 mm³
SMD package and the only external component needed is an
50 ohm antenna.
Any customizations for the software can be handled
with our recommended partners.
Overview
- Inquiry results with RSSI (1.2)
- Adaptive frequency hopping (AFH) enabled (1.2)
- High throughput (>600 kbps)
- Hold-, Park- and Sniffmode
- Up to 128 bit encryption
- Audio capability on an SCO channel
- Support for very low power modes - sleep and deep sleep
- All bluetooth data rates (up to 57,6/723,2Kbps)
User Interfaces
- Full-speed USB version 2.0 compliant
- Programmable baud rate UART (9,6 Kbps - 921,6 Kbps)
- Debug UART (DUART)
- 16 General Purpose I/O‘s (interruptible)
- PCM audio (1 channel)
- SPI and JTAG interface
Radio Features
- High sensitivity design (-86 dBm typ.)
- Integrated RF shield
- Class 2 module (0dBm typ. output power)
- One antenna port
FEATURES
OUTLINES - ENW89803J
P R O D U C T
QUAL
IFIE
D
BL
UE
TO
OTH
B01839
Bluetooth-Module PAN1450
Cut the Cable
TM
The
Bluetooth®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation of North America is under license. Other trademarks and trade names are those of their respective owners.
www.panasonic.com/rfmodules
industrial@us.panasonic.com
1-800-344-2112
Copyright © 2013 Panasonic Corporation of North America.
All Rights Reserved. Specifications are subject to change without notice.
PAN13xx High Temp Line Extension, FY12-160-XXX
