Introducing Panasonic’s newest breakthrough in wireless networking, the
PAN1327/1317 Series RF Modules featuring both Dynastream’s ANT wireless
protocol and Bluetooth connectivity. This powerful new technology combination
creates a low cost, ultra-low power wireless networking solution for short range
applications.
The ANT protocol is perfectly suited for low data rate sensor network topologies
in personal area networks (PANs) and practical wireless sensor networks
(WSN’s). The PAN1327/1317 provides a building block for ANT+™ devices,
allowing the creation of interoperable products through implementation of ANT+
device profiles. ANT+ managed network software facilitates the collection,
automatic transfer and tracking of sensor data for monitoring personal wellness
information. ANT applications are most commonly found in sports and low
power medical devices.

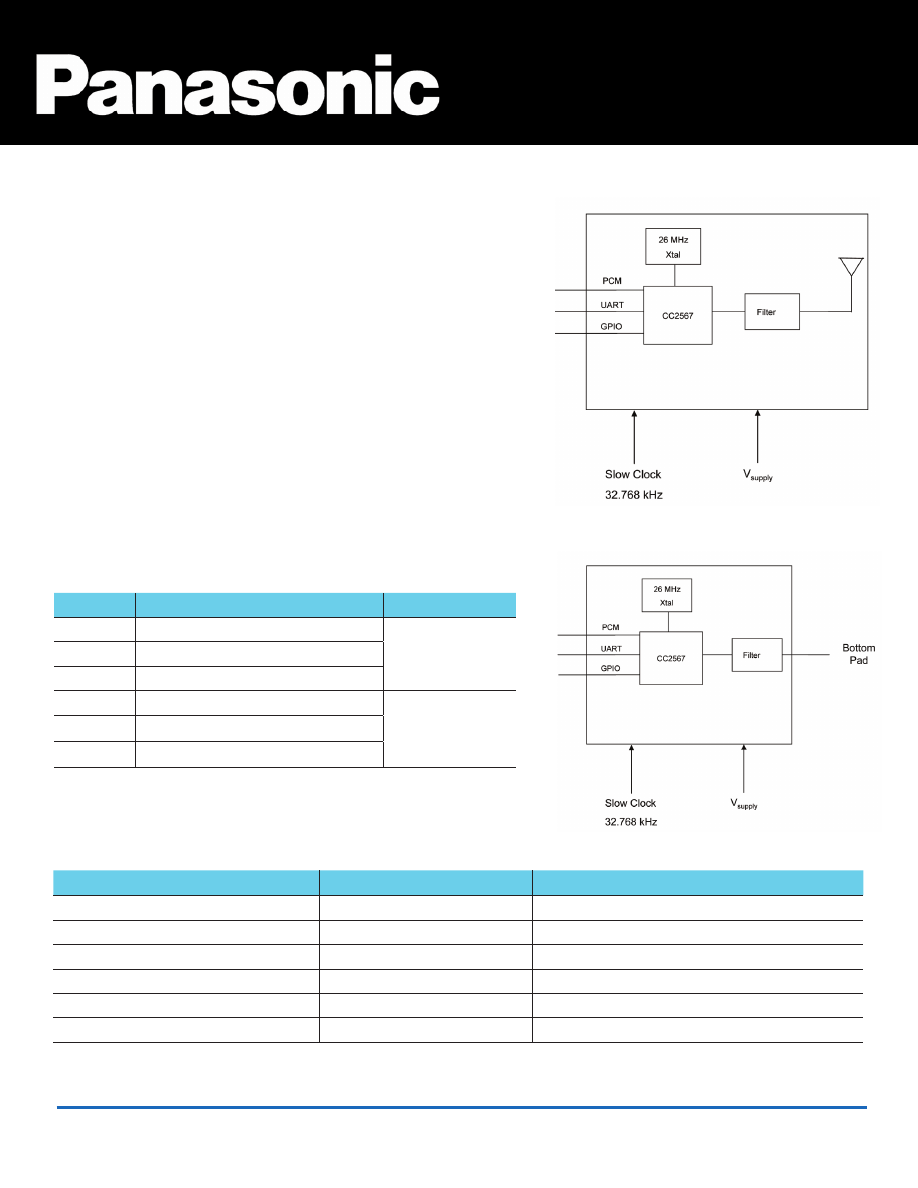

The PAN1327/1317 Host Controlled Interface (HCI) Series also brings Texas
Instrument’s CC2567, to an easy-to-use module format. Panasonic’s tiny
footprint technology offers a module of only 85.5 mm
2
including antenna. The
modules are designed to accommodate PCBs pad pitch of 1.3mm and as little
as two layers for easy implementation and manufacture.
Product Performance:
•
Best-in-class Bluetooth RF performance
(Tx power, Rx sensitivity, blocking)
•
Fully Qualified Bluetooth v4.0 EDR
•
Dimensions PAN1327: 9mm x 9.5mm x 1.8mm}
(width x length x height)
•
Dimensions PAN1317: 6.5mm x 9mm x 1.7mm
(width x length x height)
•
Certifications: Bluetooth, FCC, IC and CE
•
Operating Temperature Range: -40ºC to +85ºC
•
Supply Voltage Range: 1.7 - 4.8V
•
Profiles: SPP, A2DP and AVRCP
•
Based upon TI’s CC2567
•
Integrates with TI’s ultra low-power MSP430
microprocessor
•
Very fast algorithm for both ACL and eSCO
•
Supports Extended Range Tx power with 10dBm
typical output
•
Low power scan method for page and inquiry scans
at 1/3rd normal power
PAN1327 and 1317
Part Numbers:
Part Numbers
Description
ENW-89827A2KF
PAN1327, CC2567, Bluetooth & ANT, HCI module, antenna
ENW-89827C2KF
PAN1317, CC2567, Bluetooth & ANT, HCI module, no antenna
Development and Evaluation Part Numbers:
Part Numbers
Description
ENW-89825A2JF
PAN1323ETU, Development Module for PAN1315, PAN1316, PAN1317, PAN1325, PAN1326, PAN1327
EVAL_PAN1323
EVAL_PAN1323, Development Kit for PAN1315, PAN1316, PAN1317, PAN1325, PAN1326, PAN1327
New
Product
Introduction
NEW!
PAN1327/1317
SERIES
BLUETOOTH
® HIGH TEMPERATURE MODULES
Dual-Mode ANT
™
and Wireless
Bluetooth
®
Connectivity
P
i
Design and Specifications are subject to change without notice. Ask the factory for technical specifications before purchase and/or use. If there is any doubt
regarding the safety of this product, kindly inform us immediately for technical consultation.
PAN1450 Rev. A
W
IRELESS
M
ODULES
The PAN1450 provides wireless interface per the BT 1.2
specification. Interoperability and BT compliance testing have
been completed for the BT Chip ZV4301 from Zeevo, Inc. to
facilate rapid time-to-market.
The BT Chip incorporates a widely popular 32-bit ARM7TDMI
TM
CPU core with sufficient bandwidth to support a wide range of
embedded µController applications and the module provides
full ARM7 software development access.
The PAN1450 is manufactured in a 13,4 x 18,7 x 2,2 mm³
SMD package and the only external component needed is an
50 ohm antenna.
Any customizations for the software can be handled
with our recommended partners.
Overview
- Inquiry results with RSSI (1.2)
- Adaptive frequency hopping (AFH) enabled (1.2)
- High throughput (>600 kbps)
- Hold-, Park- and Sniffmode
- Up to 128 bit encryption
- Audio capability on an SCO channel
- Support for very low power modes - sleep and deep sleep
- All bluetooth data rates (up to 57,6/723,2Kbps)
User Interfaces
- Full-speed USB version 2.0 compliant
- Programmable baud rate UART (9,6 Kbps - 921,6 Kbps)
- Debug UART (DUART)
- 16 General Purpose I/O‘s (interruptible)
- PCM audio (1 channel)
- SPI and JTAG interface
Radio Features
- High sensitivity design (-86 dBm typ.)
- Integrated RF shield
- Class 2 module (0dBm typ. output power)
- One antenna port
FEATURES
OUTLINES - ENW89803J
P R O D U C T
QUAL
IFIE
D
BL
UE
TO
OTH
B01839
Bluetooth-Module PAN1450
Cut the Cable
TM
www.panasonic.com/rfmodules
industrial@us.panasonic.com
1-800-344-2112
Copyright © 2013 Panasonic Corporation of North America.
All Rights Reserved. Specifications are subject to change without notice.
PAN13xx High Temp Line Extension, FY12-160-XXX
