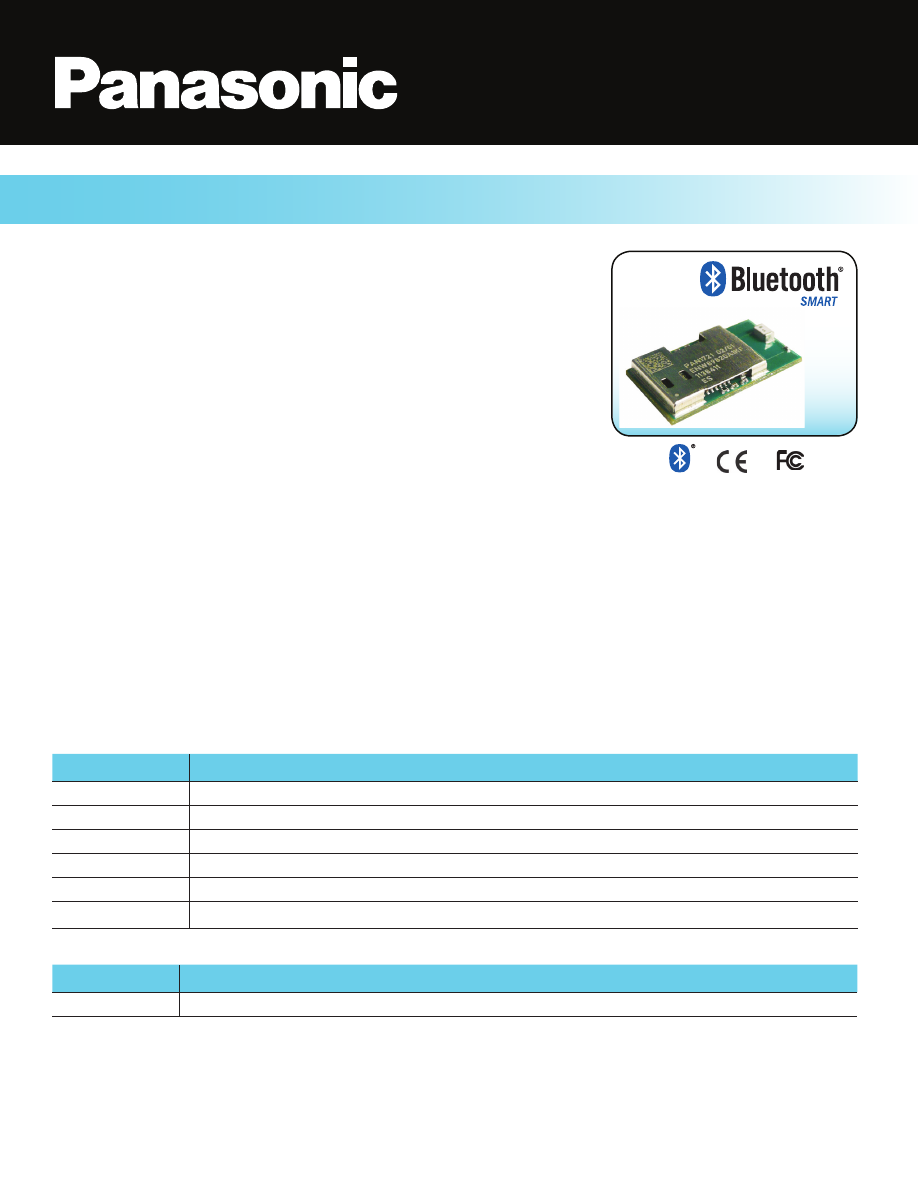

Introducing the
PAN1721
, a complete power optimized
Bluetooth
v4.0 Low Energy
(BLE) solution, this module includes an embedded processor, antenna and BLE
stack. The
PAN1721
is engineered for
ultra
low power consumption applications.
The
PAN1721
is a cost-effective, ultra low-power, system-on-chip (SoC) for
Bluetooth
Low Energy applications. The module includes an eight channel, twelve
bit analog-to-digital converter, 19 GPIOs plus battery and temperature sensors.
A single device for both BLE master or slave nodes. The
PAN1721
combines an
excellent RF transceiver with a high performance low power 8051 microcontroller,
in-system programmable fl ash memory, 8-KB RAM, and many other powerful
supporting features and peripherals.
The
PAN1721
is an ideal choice for applications where battery life is a critical
application requirement, using only 500 nA in sleep mode. Short transition times
between operating modes–3 uS Wake-Up – and power effi cient hardware further reduce current consumption.
Panasonic offers
Bluetooth
Low Energy protocol stacks and applications from Texas Instruments and
Blue
Radios™.
The BlueRadios stack enables rapid and low cost development using an AT command set without the need for
a compiler. Additional advantages include UART programming, over-the-air-updates, easy integration “C” library
framework, serial streaming of data, and smart phone libraries and applications.
Product Performance:
•
Bluetooth
4.0 Compliant and
Bluetooth
Low Energy
• Dimensions:
14.5x 8.2 x 3 mm
• Supports User Developed Applications
• Texas Instruments’ Stack or Optional
Blue
Radios Stack
• 256K Flash, 8K RAM
• Supports 1 Mbps Data Rate
• Temperature Range -40°C to +85°C
• Eight Channel 12-Bit ADC
• 19 GPIOs
• Battery Monitor and Temperature Sensor

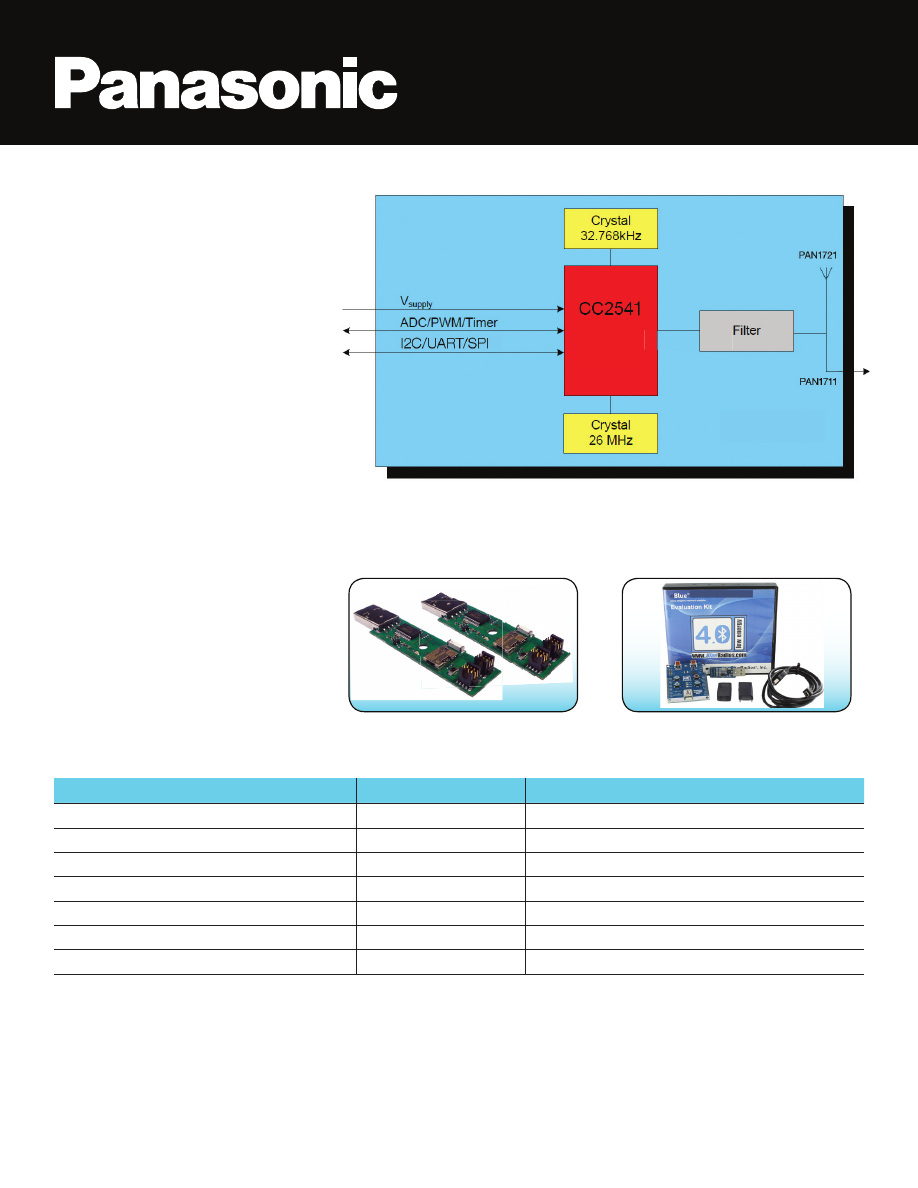

PAN1721/1711 Part Numbers:
Part Numbers
Description
ENW-89835A1KF
PAN1721, CC2541
Bluetooth
Low Energy with 8051 Controller, Texas Instruments Stack
ENW-89835A3KF
PAN1721, CC2541
Bluetooth
Low Energy with 8051 Controller,
Blue
Radios Stack
ENW-89835C1KF
PAN1711, CC2541
Bluetooth
Low Energy with 8051 Controller, Texas Instruments Stack
ENW-89835C3KF
PAN1711, CC2541
Bluetooth
Low Energy with 8051 Controller,
Blue
Radios Stack
EVAL_PAN1720
Bluetooth
, PAN1720, Evaluation Kit, Includes Two PAN1720 USB Development Modules
EVAL_PAN1720BR
Bluetooth
, PAN1720, Evaluation Kit, Includes Two PAN1720 USB Development Modules,
Blue
Radios FW
Alternative Low Energy Device:
Part Numbers
Description
ENW-89823A2JF
PAN1326, CC2564,
Bluetooth
&
Bluetooth
Low Energy, HCI Module, Antenna
New
Product
Introduction
New
Product
Introduction
NEW!
PAN1721
SERIES
BLUETOOTH
®
LOW ENERGY
Ultra Low Power,
Bluetooth
Low Energy Module
P
i
Design and Specifications are subject to change without notice. Ask the factory for technical specifications before purchase and/or use. If there is any doubt
regarding the safety of this product, kindly inform us immediately for technical consultation.
PAN1450 Rev. A
W
IRELESS
M
ODULES
The PAN1450 provides wireless interface per the BT 1.2
specification. Interoperability and BT compliance testing have
been completed for the BT Chip ZV4301 from Zeevo, Inc. to
facilate rapid time-to-market.
The BT Chip incorporates a widely popular 32-bit ARM7TDMI
TM
CPU core with sufficient bandwidth to support a wide range of
embedded µController applications and the module provides
full ARM7 software development access.
The PAN1450 is manufactured in a 13,4 x 18,7 x 2,2 mm³
SMD package and the only external component needed is an
50 ohm antenna.
Any customizations for the software can be handled
with our recommended partners.
Overview
- Inquiry results with RSSI (1.2)
- Adaptive frequency hopping (AFH) enabled (1.2)
- High throughput (>600 kbps)
- Hold-, Park- and Sniffmode
- Up to 128 bit encryption
- Audio capability on an SCO channel
- Support for very low power modes - sleep and deep sleep
- All bluetooth data rates (up to 57,6/723,2Kbps)
User Interfaces
- Full-speed USB version 2.0 compliant
- Programmable baud rate UART (9,6 Kbps - 921,6 Kbps)
- Debug UART (DUART)
- 16 General Purpose I/O‘s (interruptible)
- PCM audio (1 channel)
- SPI and JTAG interface
Radio Features
- High sensitivity design (-86 dBm typ.)
- Integrated RF shield
- Class 2 module (0dBm typ. output power)
- One antenna port
FEATURES
OUTLINES - ENW89803J
P R O D U C T
QUAL
IFIE
D
BL
UE
TO
OTH
B01839
Bluetooth-Module PAN1450
Cut the Cable
TM
Copyright© 2012 Panasonic Corporation of North America.
All Rights Reserved. Specifi cations are subject to change without notice.
PAN1721NPI, Rev 1.2 FY12-089-XXX
