Pulse Electronics is the electronic components partner that helps customers build the next great product by providing the
needed technical solutions. Pulse has a long operating history of innovation in magnetics, antennas and connectors, as
well as the ability to ramp quickly into high-quality, high-volume production. Pulse collaborates with customers to leverage
its design and manufacturing expertise of innovative products to ensure products are delivered on time and on budget.
Working closely with third-party manufacturers around the world, Pulse ensures the quality and performance of the latest
technology used in its products.
Pulse supports a multinational customer base with local design centers in North America, Europe and Asia. Strategically
located support centers enable Pulse’s design, marketing, and sales teams to better understand and more readily serve
customers’ requirements. Product diversity and individual product line growth positions Pulse as one of the largest
resources for catalog and custom components, subassembly design, and manufacturing for electronic OEMs, contract
manufacturers, and ODMs.
The Company has multiple product lines, ranging from passive components that cover power and signal products used in
computing, networking and communications, power conversion, defense, aerospace, automotive, and consumer electronics,
home networking; and, antennas for wireless electronic devices, automobiles, and security equipment.
Other products include antennas for mobile devices, discrete connectors, couplers, delay lines, power transformers and
inductors for automobiles, as well as for value-added custom assemblies. These products support an array of technical
applications and platforms such as Ethernet to 10GBase-T, DSL/HPN/Cable, PoE, VoIP, RF, MIL-STD-1553, AC/DC and DC/
DC Power Conversion, wireless telecommunications, Fibre Channel, T1, T3, ISDN, IPTV, CCTV and mobile TV. Pulse markets
products through component distributors, regional sales representatives and direct sales managers.
Pulse actively participates in industry standards organizations and alliances such as IEEE, IFF, OIF, CommNexus, MoCA, HD
BaseT, MGBase-T and NBase-T. Through ongoing research and development, Pulse continues to receive patents for new and
innovative products as well as unique manufacturing processes.
This publication contains an overview of our extensive collection of various catalog products. Help with creating custom
and semi-custom designs for all product lines is also available. To help you easily find the parts you need, Pulse offers a
Parts Index Search feature and “Application Based Product Selection” on the home page. Access to catalog datasheets,
product overviews, and selection guides are available by visiting the Pulse website: www.PulseElectronics.com.

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

Antennas

For External Applications . . . . . . . . . . . . . . . . . . . . . . 2

Other External Alternative Solutions . . . . . . . . 3

Embedded Surface Mount Applications . . . . . . . . 4-5

Ceramic, Helical, Composite. . . . . . . . . . . . . . . . 5

For Internal Applications . . . . . . . . . . . . . . . . . . . . . . 6

Printed Circuit Board Solutions . . . . . . . . . . . . 6

Near Field Communications . . . . . . . . . . . . . . . . 6

Das Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PIM

inator

Product Family

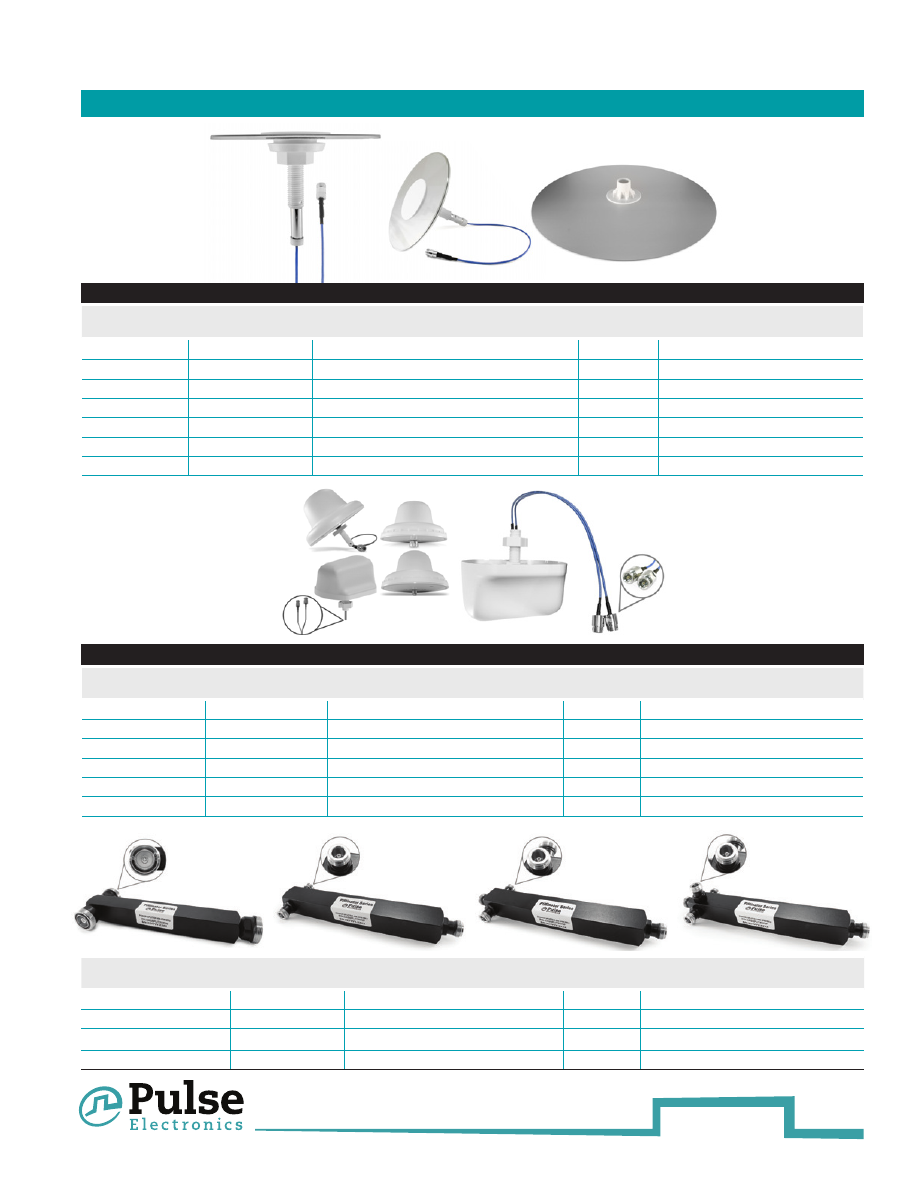

Ceiling Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 7

Power Splitters . . . . . . . . . . . . . . . . . . . . . . . . . . 7

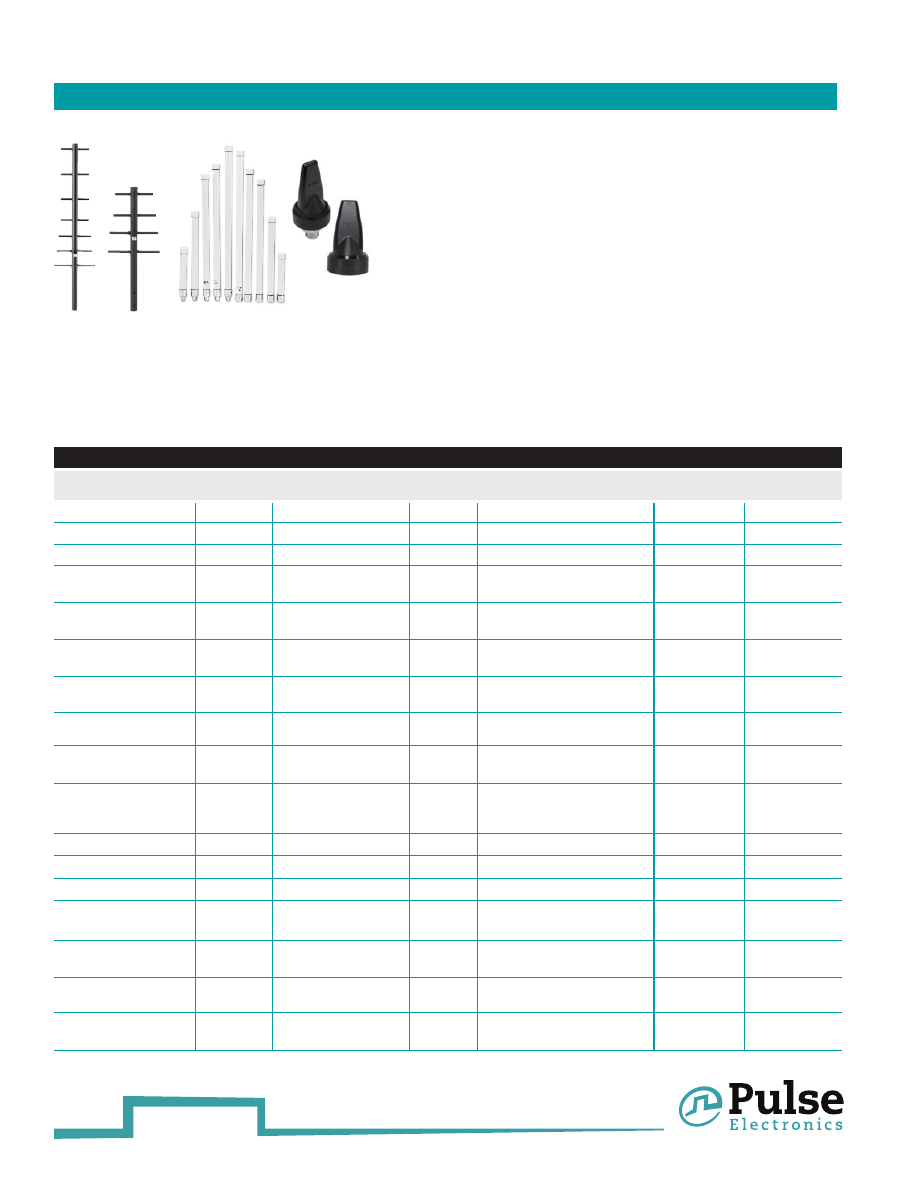

For Outdoor Applications . . . . . . . . . . . . . . . . . . .8-10

Infrastructor Solutions . . . . . . . . . . . . . . . . . . . . 8

Single Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Vehicular Antenna Solutions . . . . . . . . . . . . . . 10

NMO Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . 10

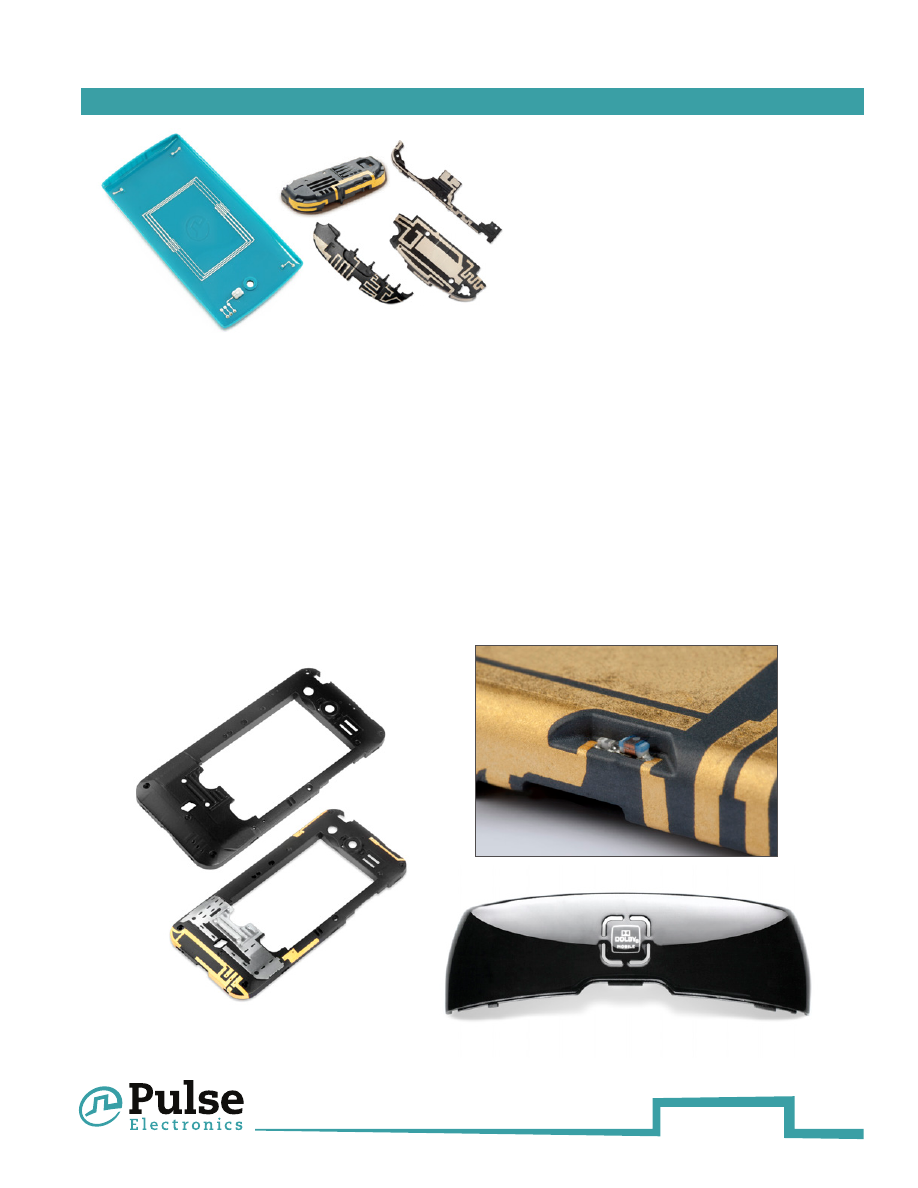

Solutions For Mobile Devices . . . . . . . . . . . . . . . . . . . 11

Ethernet Magnetic Modules . . . . . . . . . . . . . . . . . . . . . . 12-13

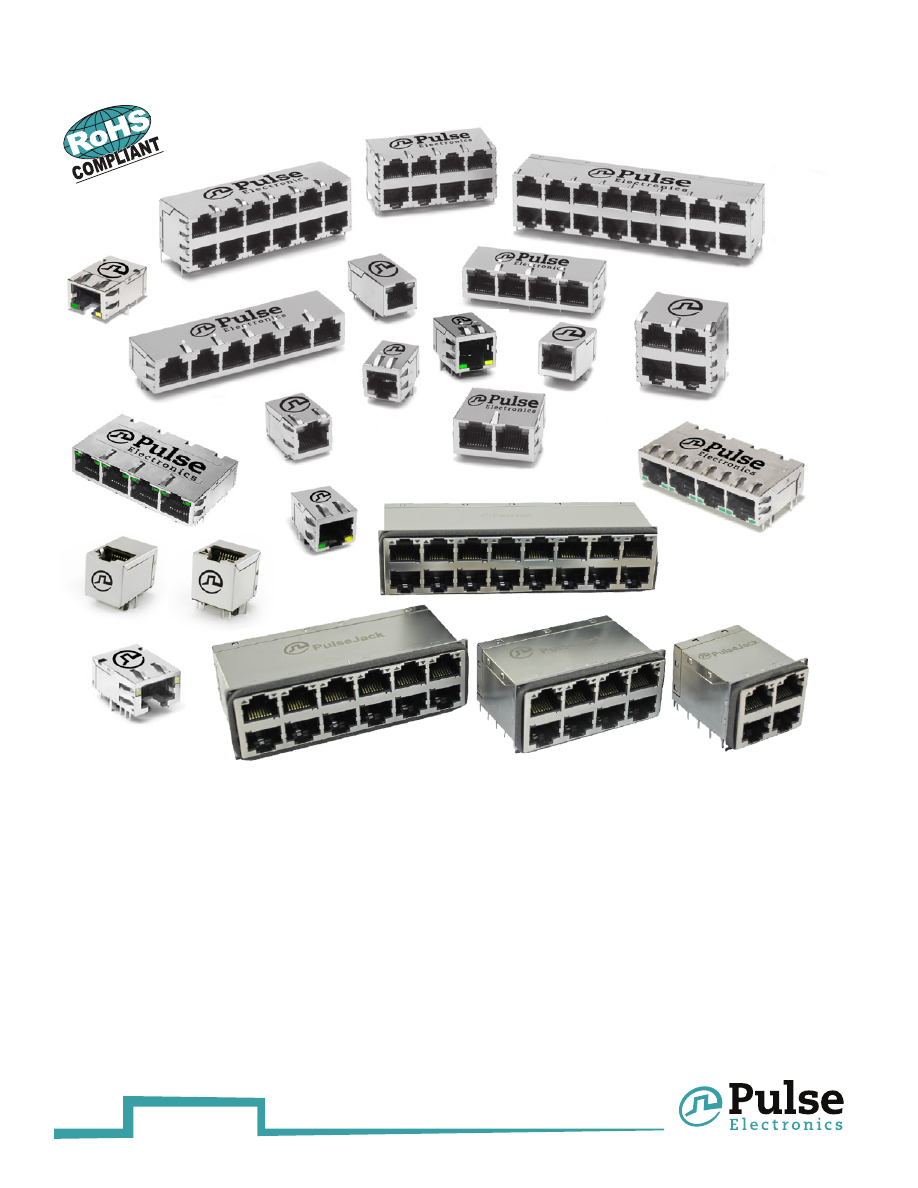

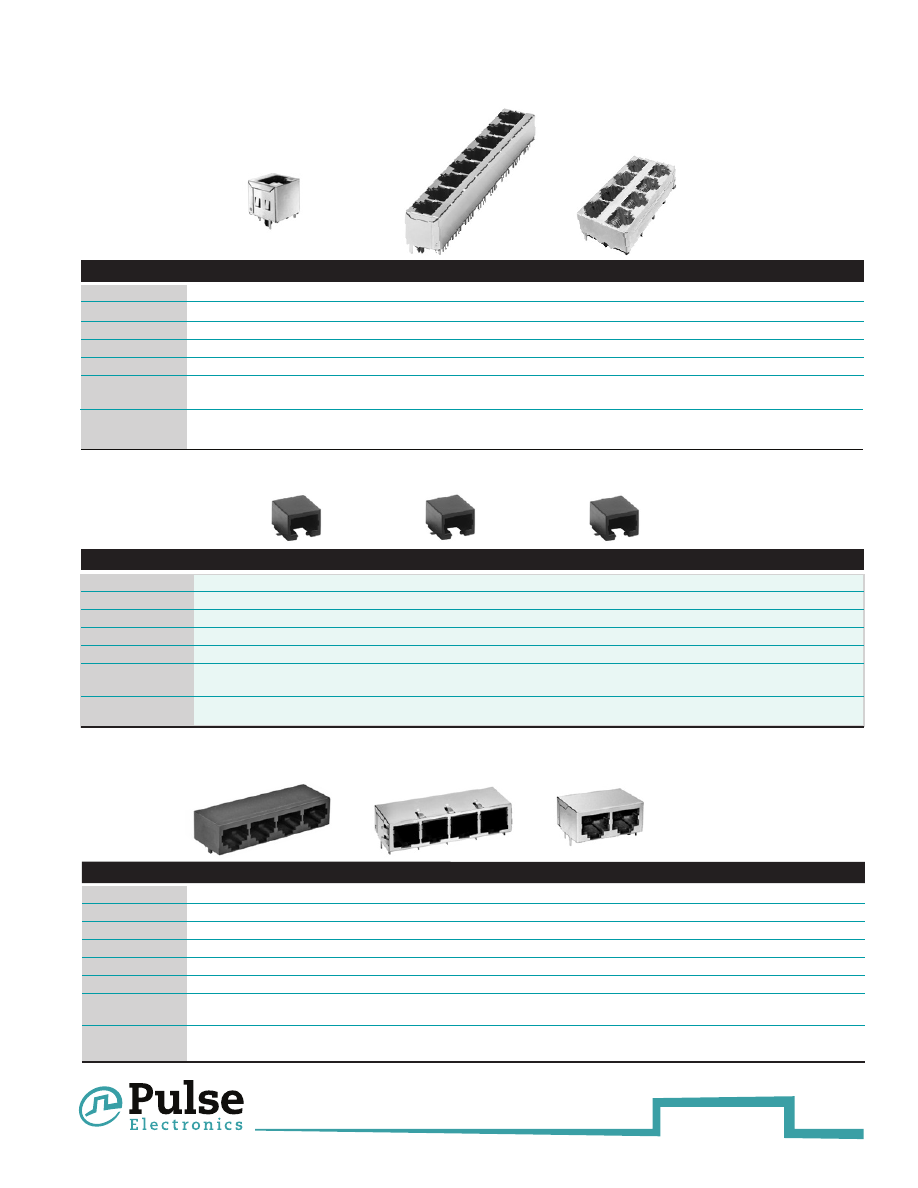

RJ45 Intergrated Connector Modules (ICM) . . . . . . . . 14-17

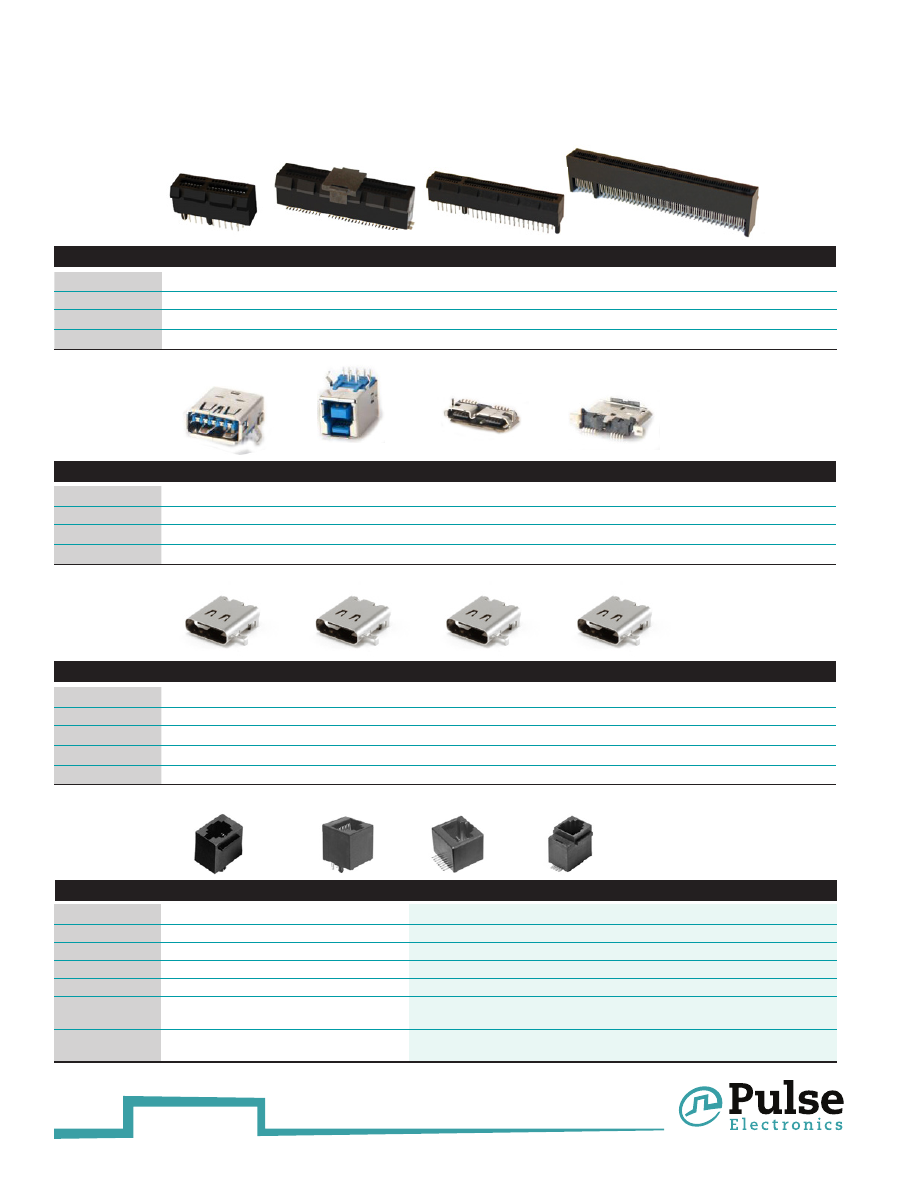

Connector Products

SFP/SFP+ Cage and Connector,

RJ, USB3.0/3.1, PCI Express . . . . . . . . . . . . 18-22

Telecommunications

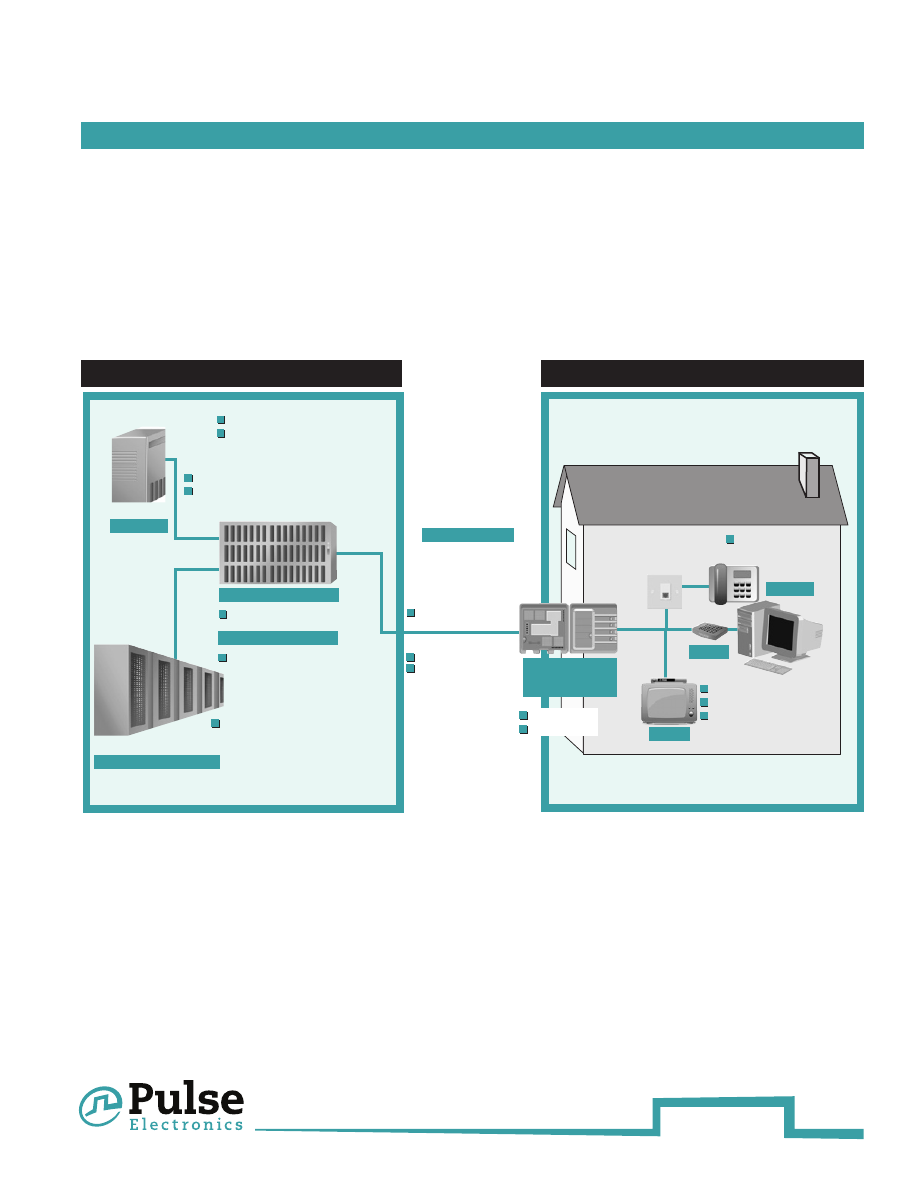

Media Network Architecture Page Guide . . . . . . . 23

RF Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

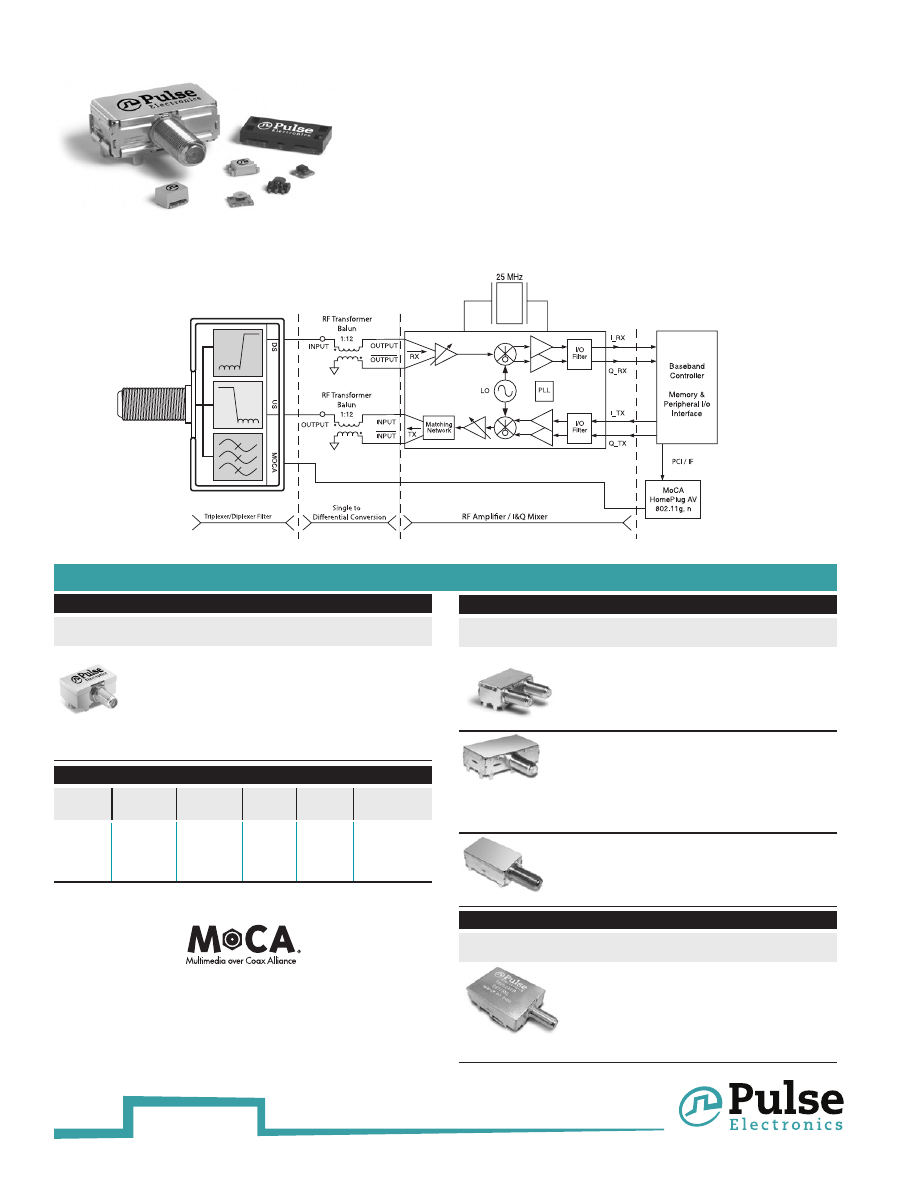

RF, Broadband, CATV TELCO,

TV Applications . . . . . . . . . . . . . . . . . . . . . . 24-25

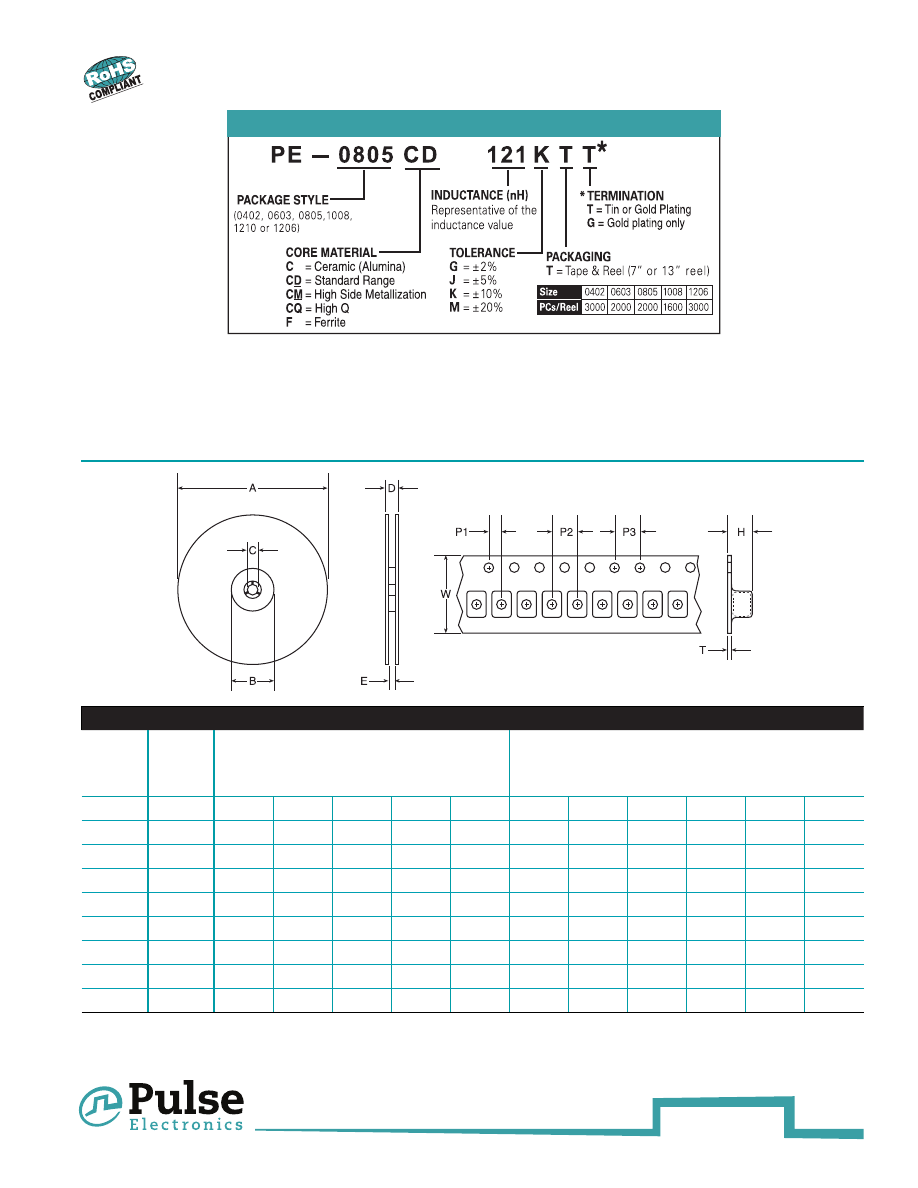

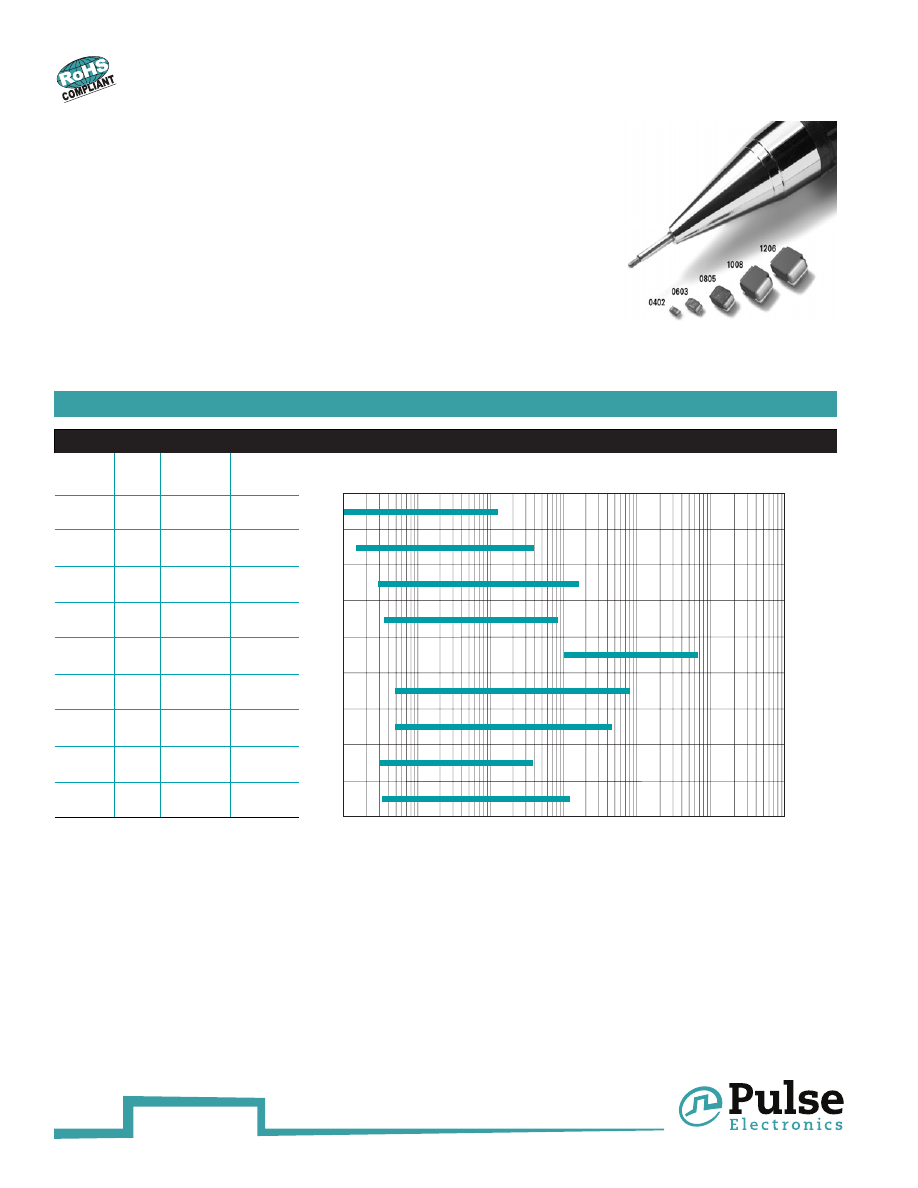

RF Chip Inductors

Competitive Cross Reference, Ordering Guide,

General Information & Sample Kits,

RF Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

0402CD Series . . . . . . . . . . . . . . . . . . . . . . . . . 27

0603CD Series . . . . . . . . . . . . . . . . . . . . . . . . . 27

0805CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . 27

0805CM Series. . . . . . . . . . . . . . . . . . . . . . . . . . 27

0805FT Series . . . . . . . . . . . . . . . . . . . . . . . . . . 27

1008CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . 27

1008CM Series . . . . . . . . . . . . . . . . . . . . . . . . . . 27

1008CQ Series . . . . . . . . . . . . . . . . . . . . . . . . . . 27

1206CD Series . . . . . . . . . . . . . . . . . . . . . . . . . . 27

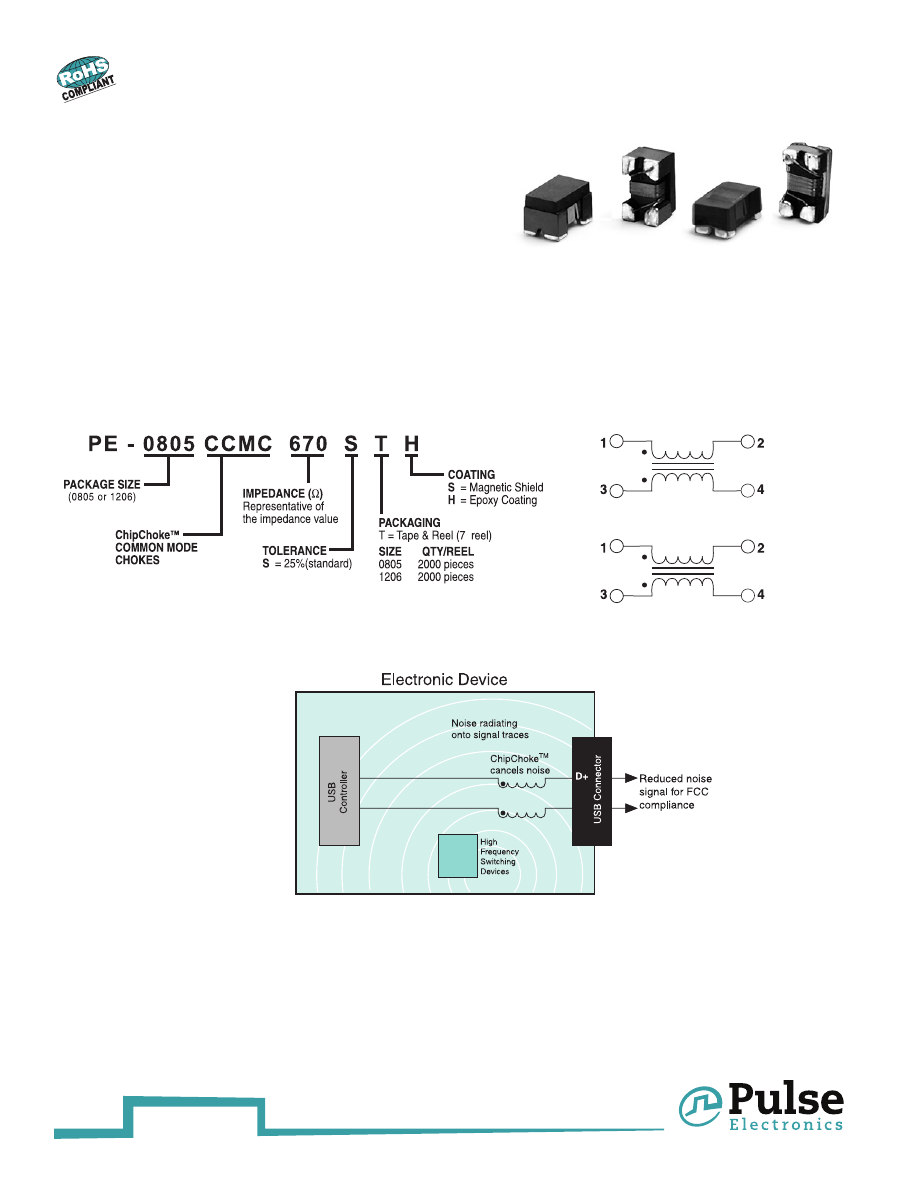

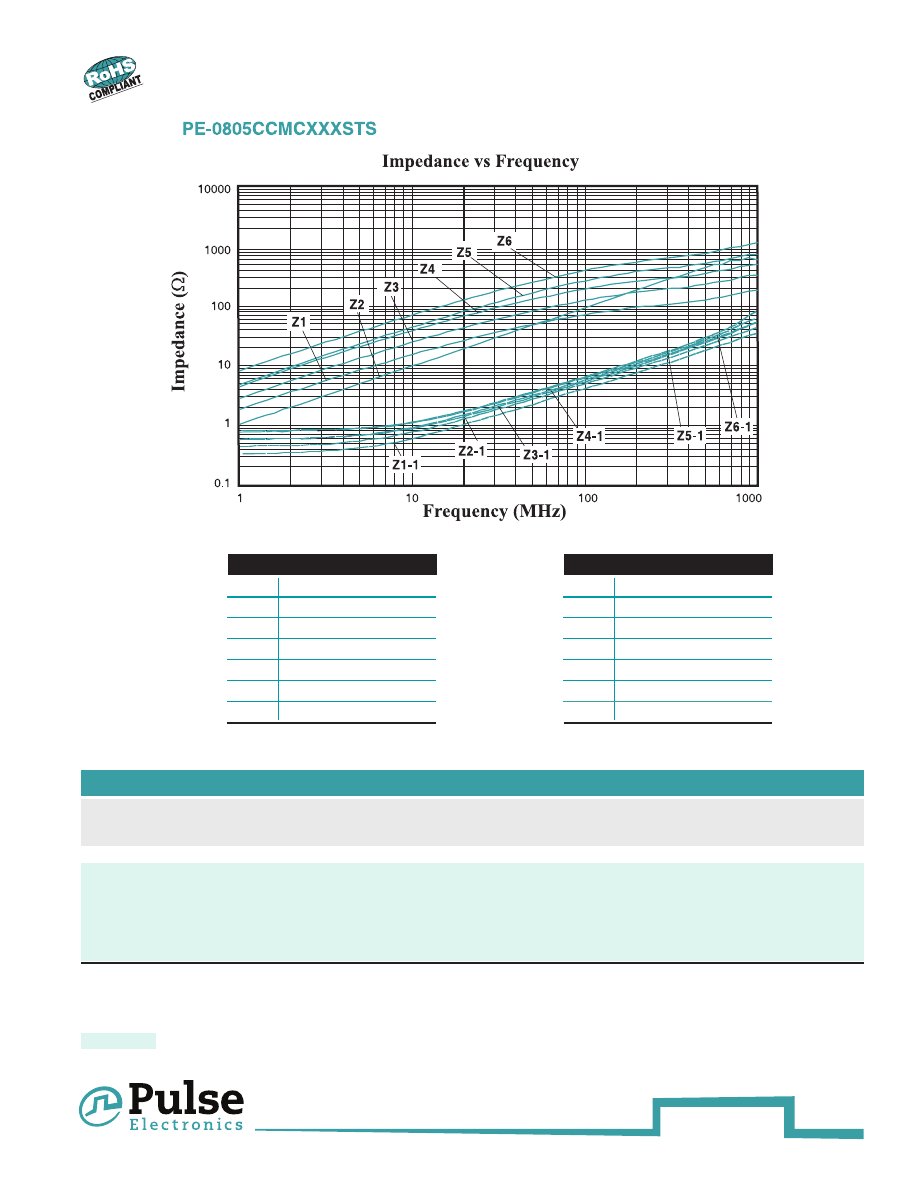

ChipChoke™ CCMC Series

for USB and LVDS . . . . . . . . . . . . . . . . . . . . .28-31

xDSL & HPN Products

Home Networking, Common Mode Chokes . 32

VDSL Transformers . . . . . . . . . . . . . . . . . . . . . . 33

ADSL Transformers, Inductors . . . . . . . . . 34-35

HDSL2/G.SHDSL . . . . . . . . . . . . . . . . . . . . . . . . 35

Customer Premise Equipment . . . . . . . . . . . . 35

CO & CPE Products

Central Office (CO) DSL Splitter Circuits for

Telecom Applications, CO and CPE Splitter

Filter Modules . . . . . . . . . . . . . . . . . . . . . . . . . . 36

CPE Products

ADSL & ADSL2+ Micro Filters, ADSL2+ &

VDSL2 Video Grade Splitters, MDU &

HPNA Products . . . . . . . . . . . . . . . . . . . . . . 37-38

Telecommunications Products

IC Cross References: ISDN S- & U-Interface, Digital

Audio/Single, DDS/Switched 56, Sonet/SDH

(STM-1/E4/CMI), T3/DS3/E3/STS-1,

T1/E1/CEPT/ISDN-Pri . . . . . . . . . . . . . . . . . .39-41

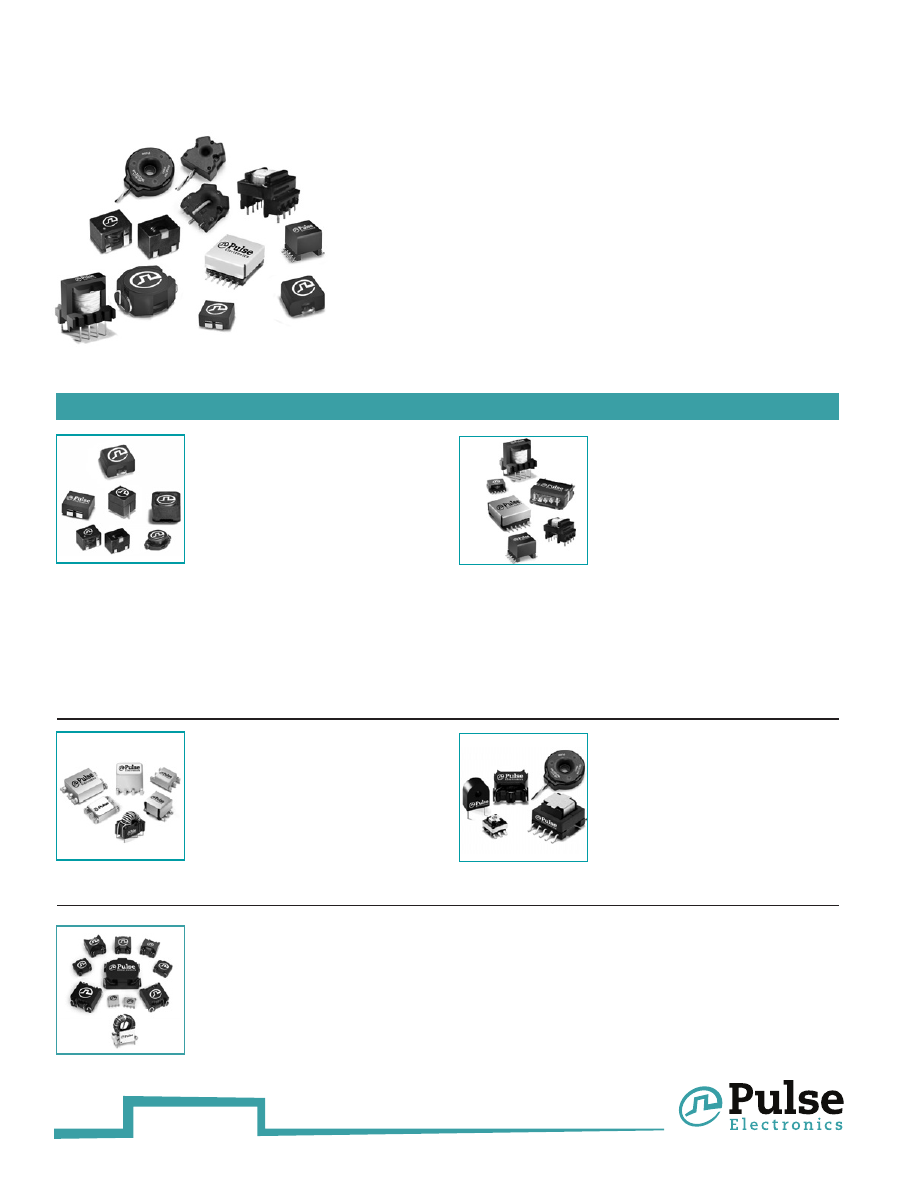

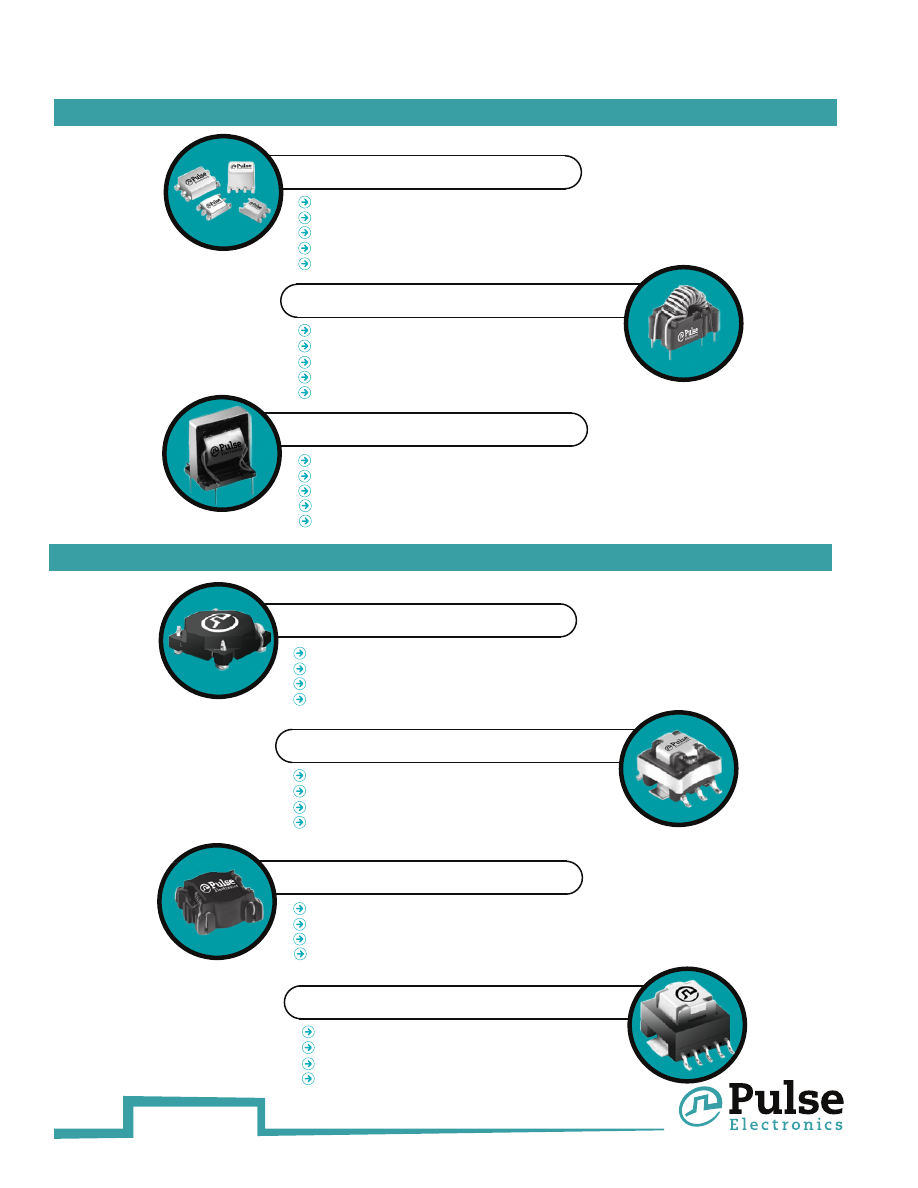

Power Magnetics

Overview: Pulse Power Magnetics . . . . . . . . . . . . . 42

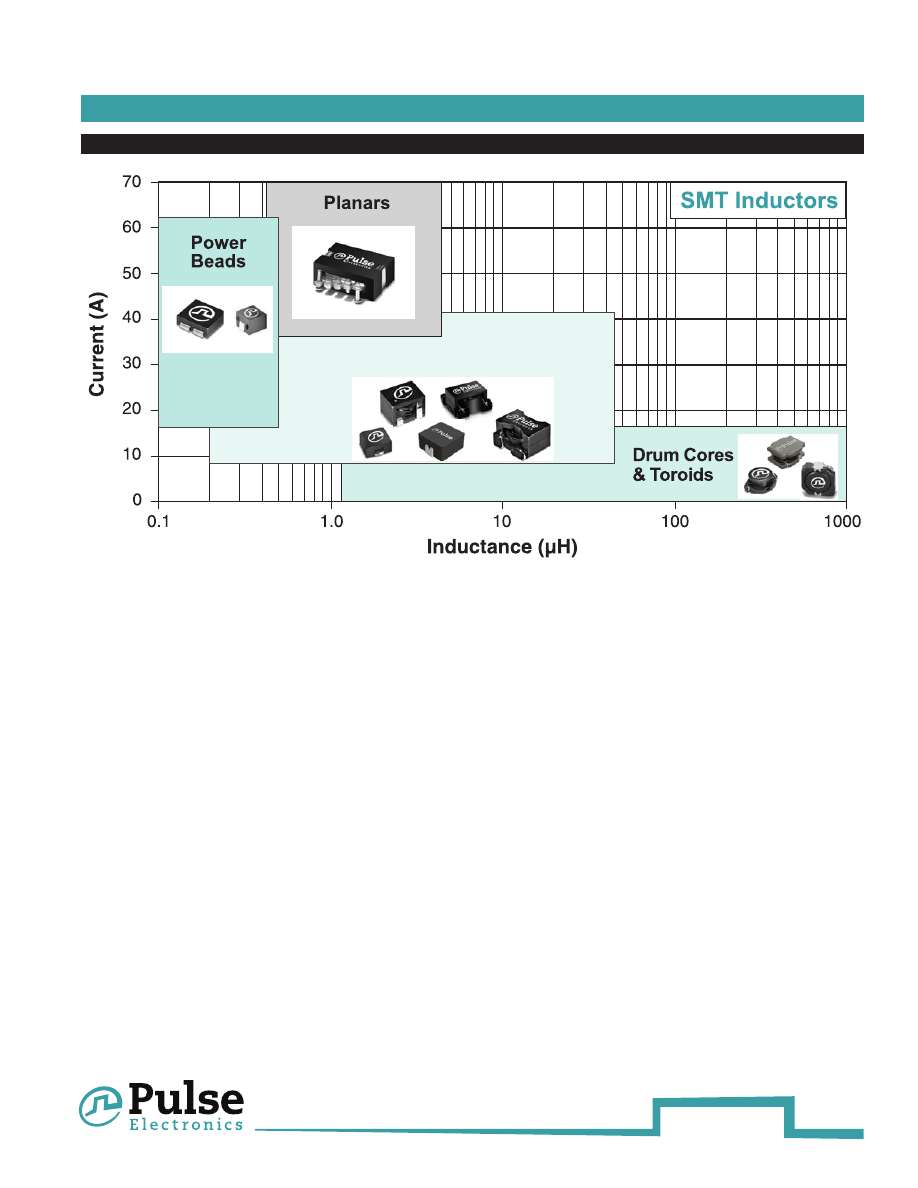

SMT, THT Selection Charts . . . . . . . . . . . . . . . 43

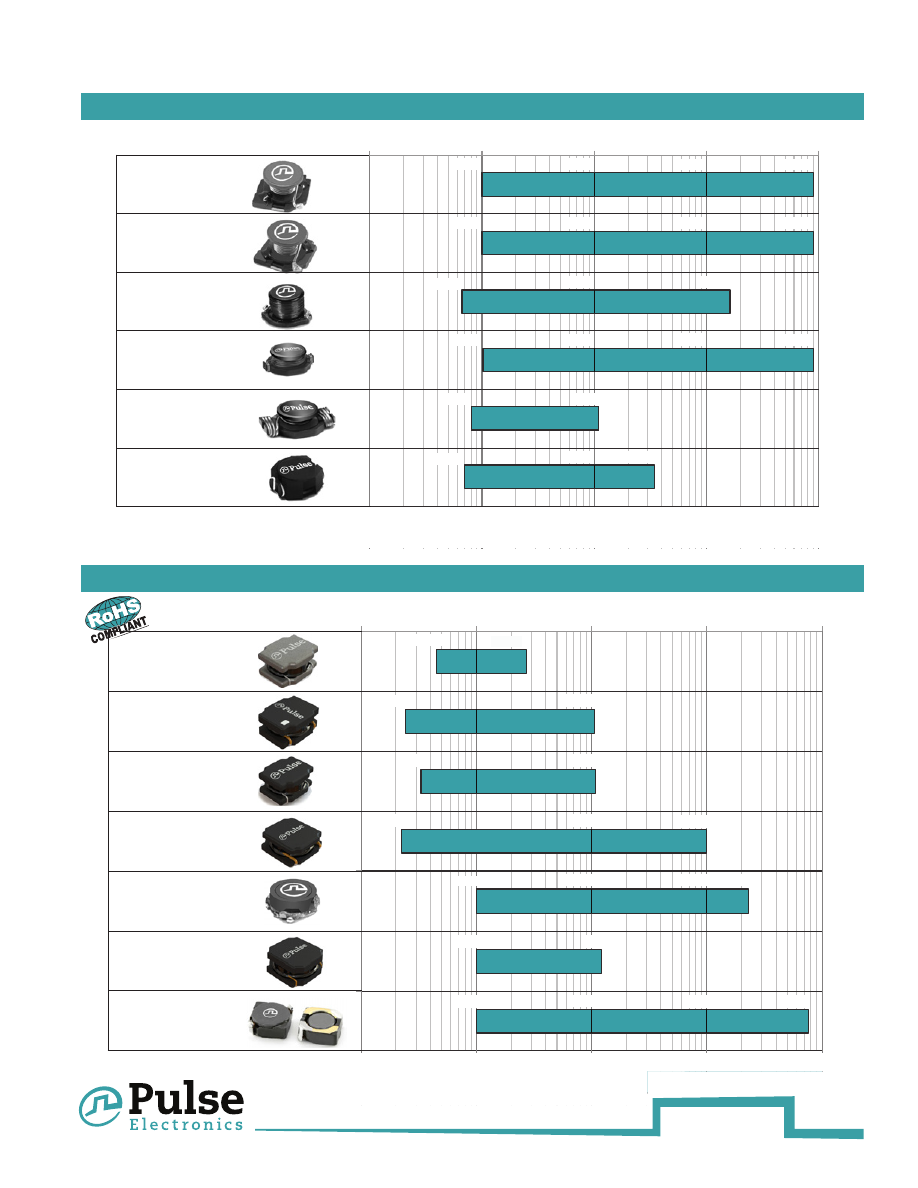

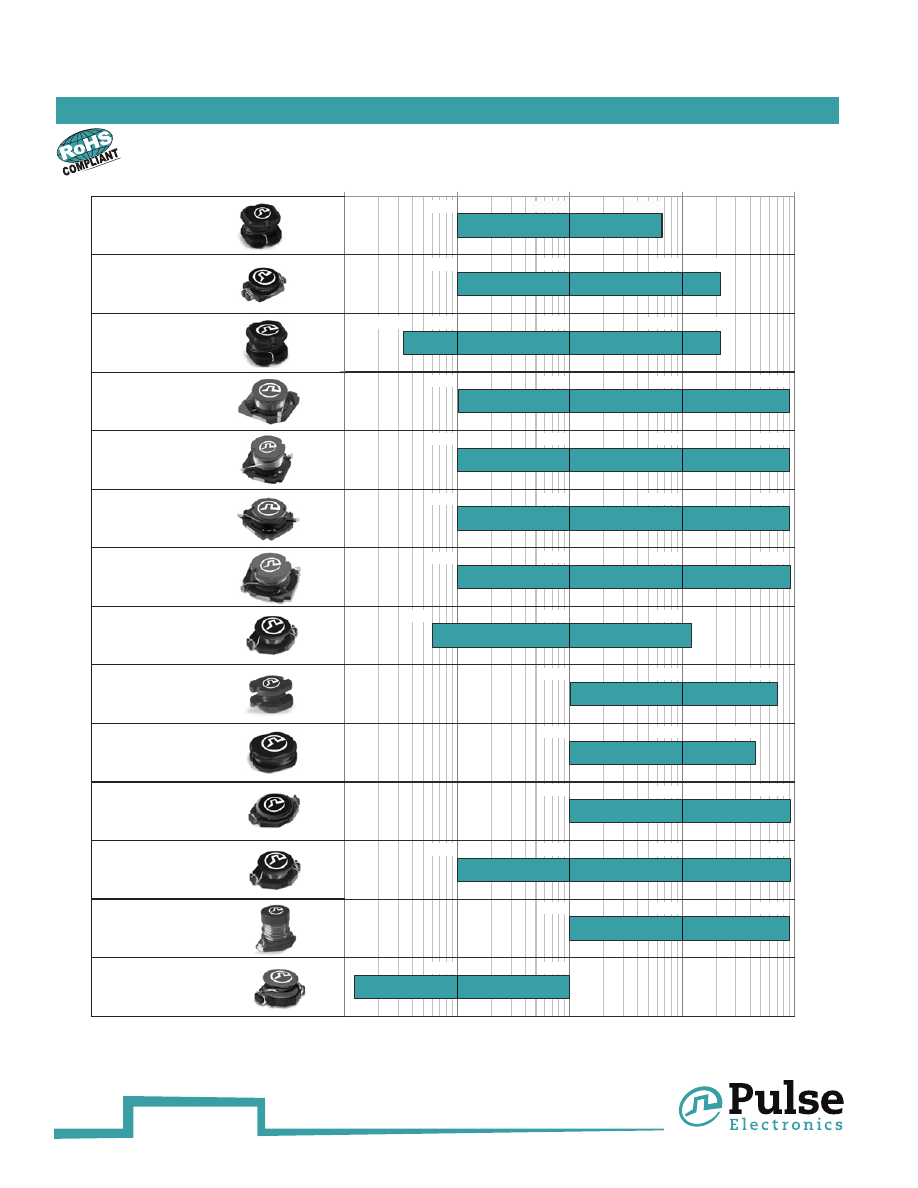

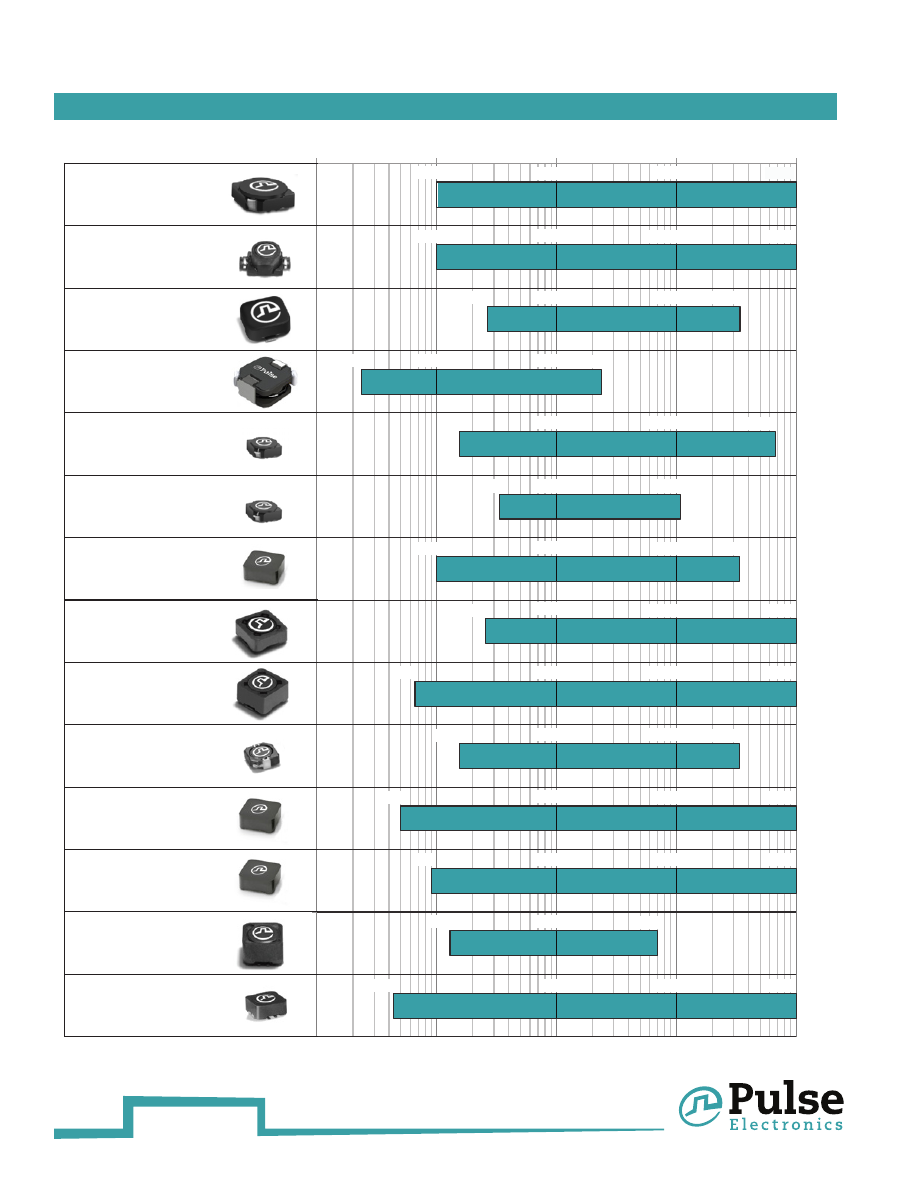

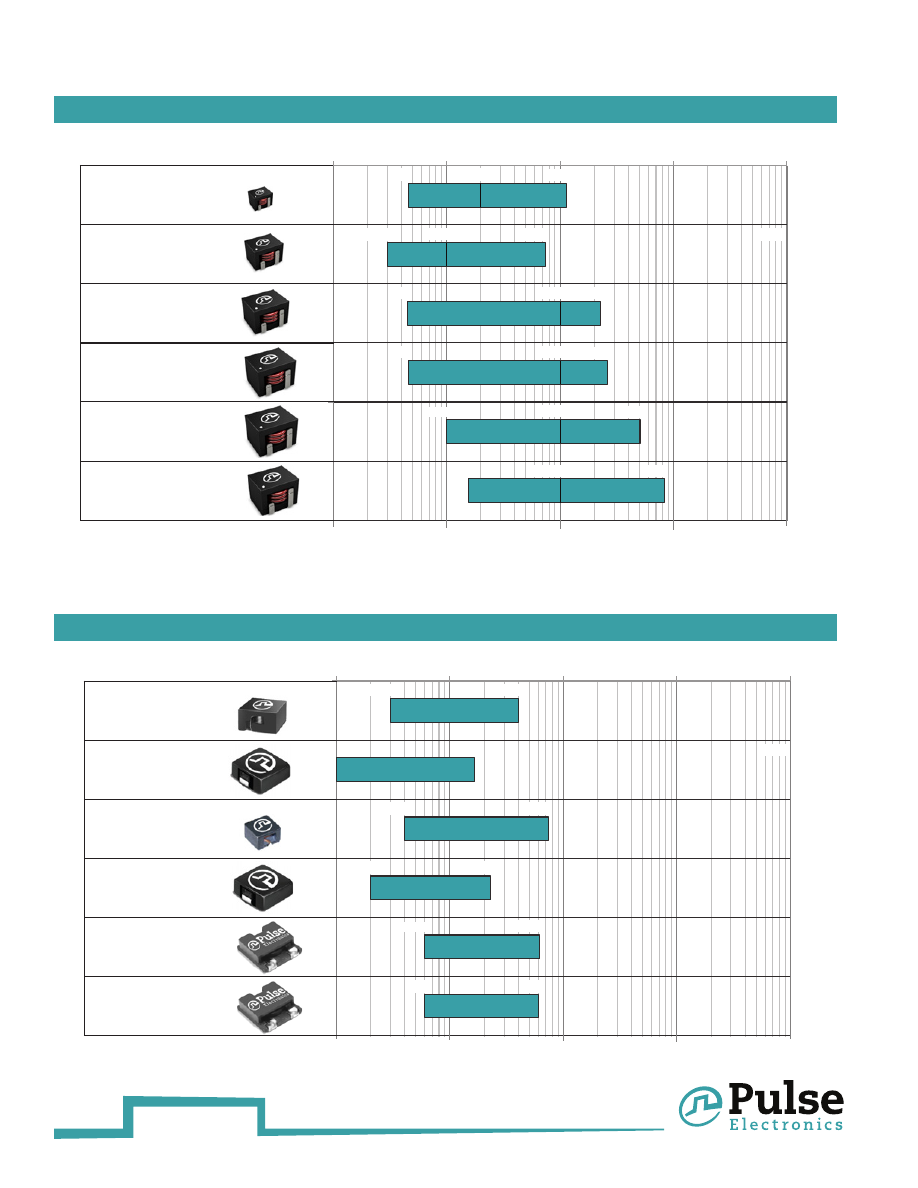

Shielded/Unshielded Drum Core Inductor . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-47

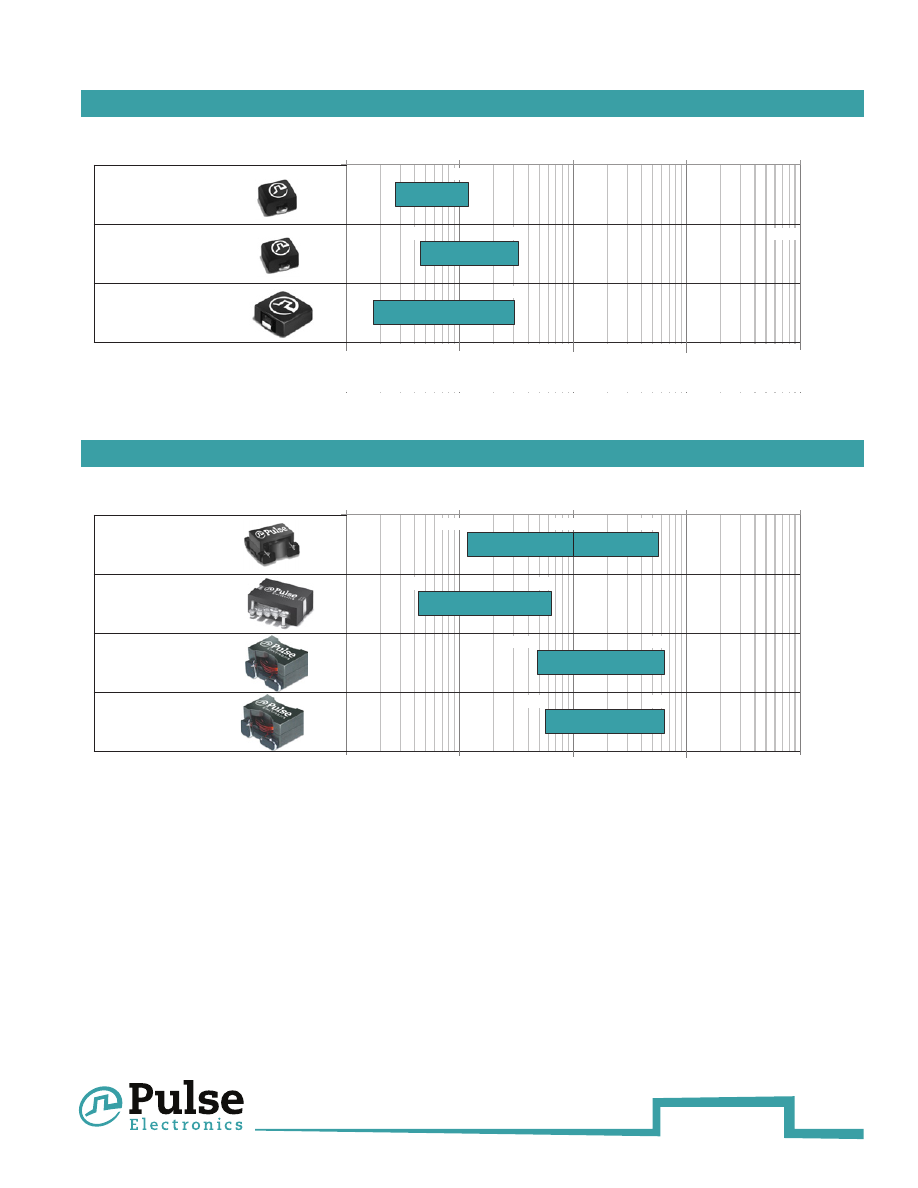

SMT Round/SMT Flat Coil Inductors/SMT

Planar & Wirewound Inductors . . . . . . . . 48-49

SMT Toroid Inductors . . . . . . . . . . . . . . . . . . . . 50

SMT/THT Transformers . . . . . . . . . . . . . . . . . . 50

SMT Power Beads . . . . . . . . . . . . . . . . . . . . 51-52

Product Overview

SMT Power & Isolation Transformers . . . . . . 53

Platform Overview

Through-hole Power Transformers . . . . . . . . 54

SMT & THT Common Mode Chokes . . . . . . . 55

SMT & THT Gate Drive Transformers . . . . . . 56

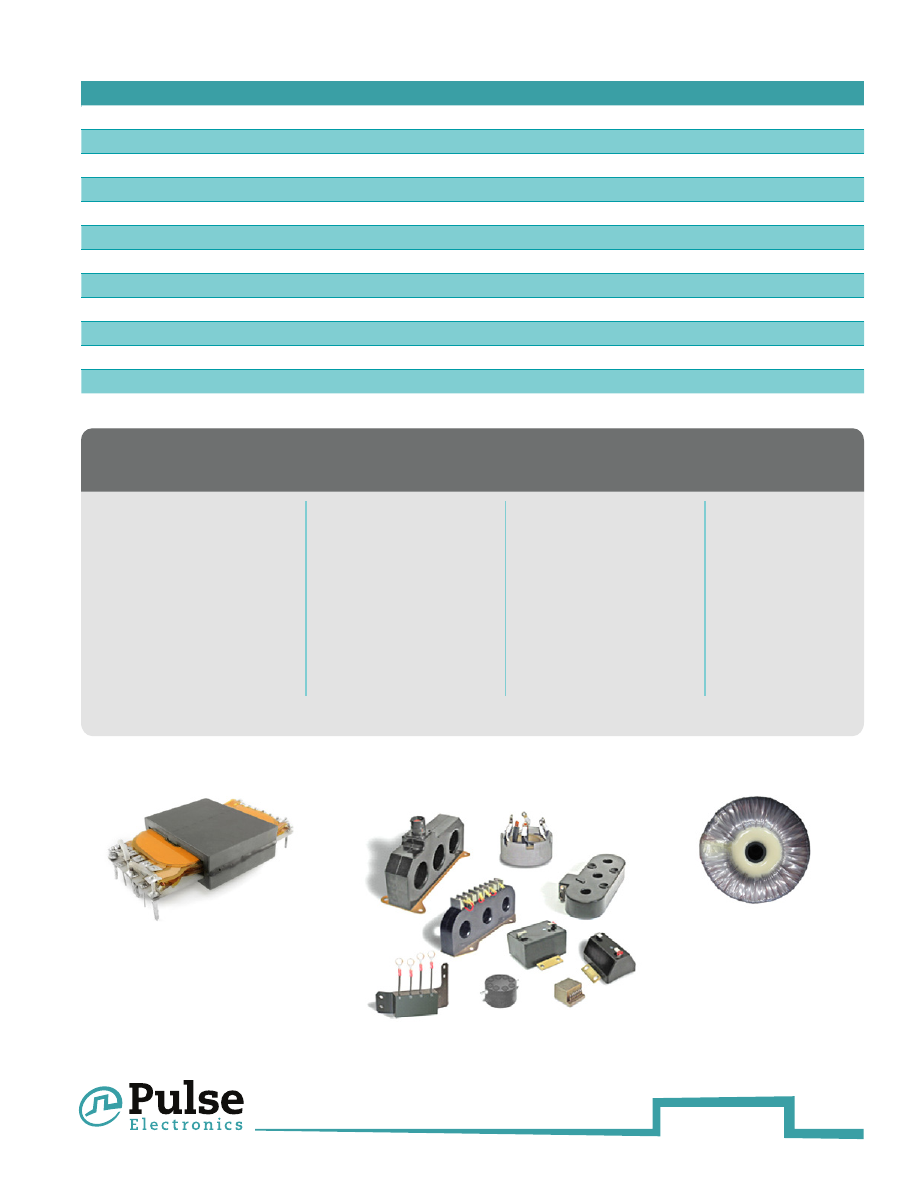

THT Current Sense Magnetics . . . . . . . . . . . . 57

Product Overview

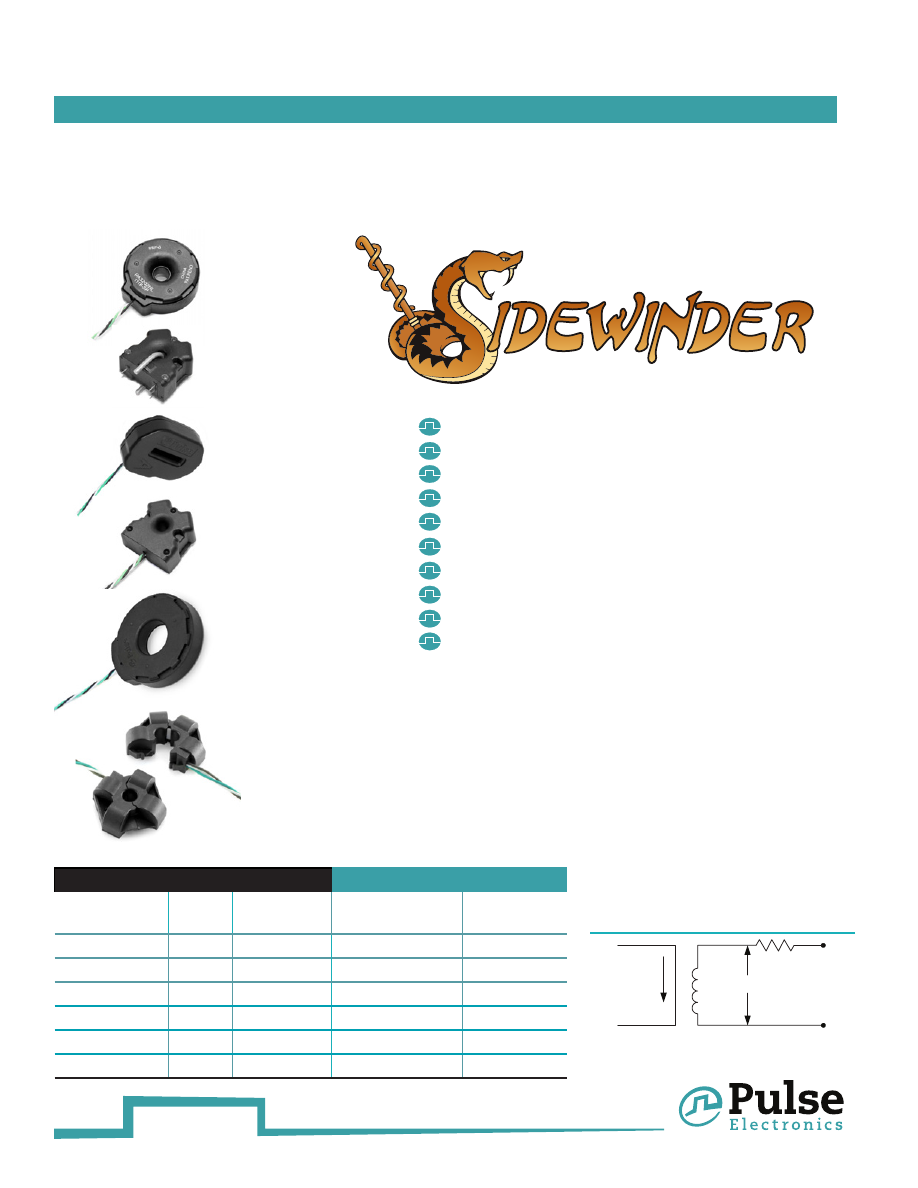

Current Sense Magnetics (Sidewinder) . . . . . 58

Automotive Products

Overview: Pulse Automotive Products . . . . . . . . . . 59

Coils, Automotive Coils, Coil Assemblies . . . 60

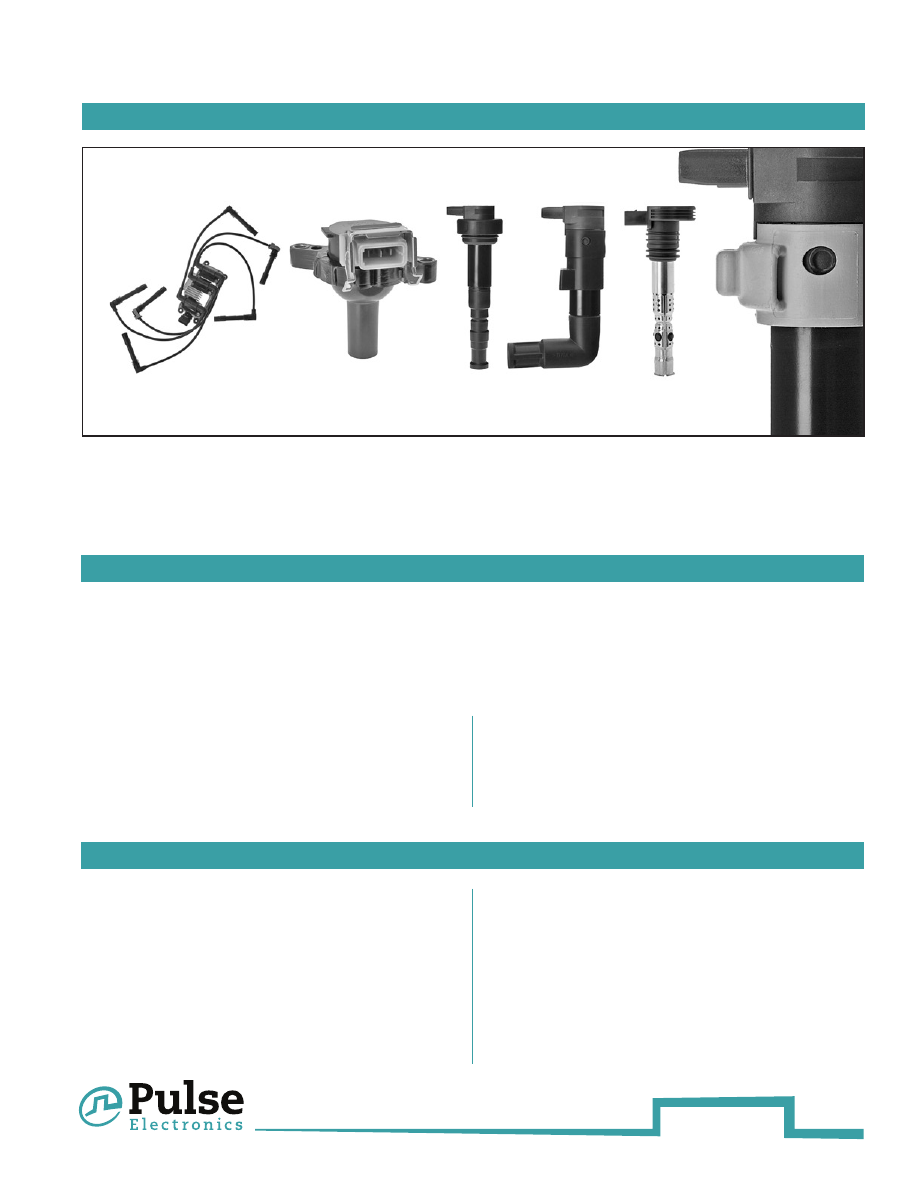

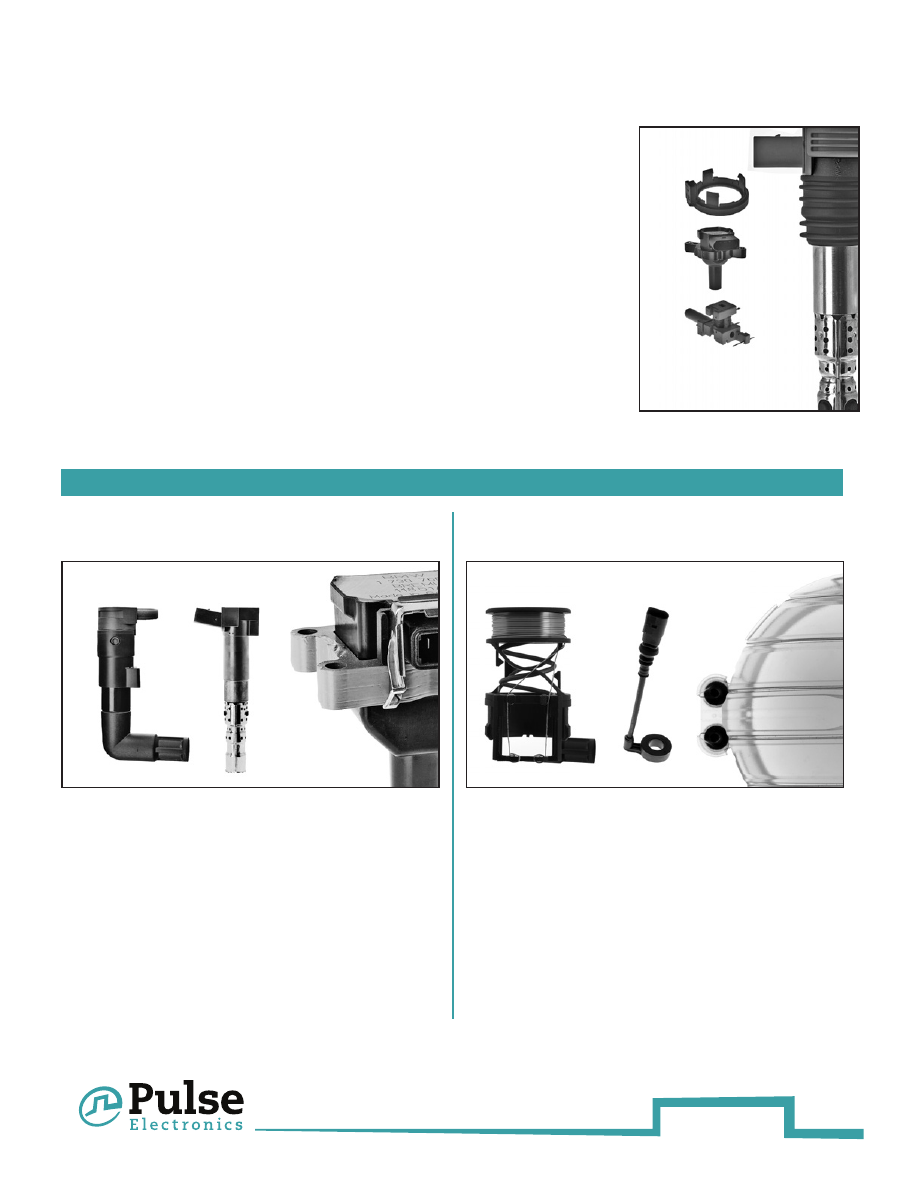

Ignition Coils, Automotive/Motorcycle,

The Future of Ignition . . . . . . . . . . . . . . . . . . . . .61

Military/Aerospace Products

High Speed Data Bus, Cooperhead Series . . 62

IEEE 1394B Firewire & High Frequency

Balun Adapters . . . . . . . . . . . . . . . . . . . . . . . . . 63

Military/Aerospace: AFDX, 10/100 & Gigabit

Ethernet (Military Grade) . . . . . . . . . . . . . . . . . 64

MIL-STD 1553: QPL, Non-QPL, COTS,

Low Profile Miniature . . . . . . . . . . . . . . . . . 65-66

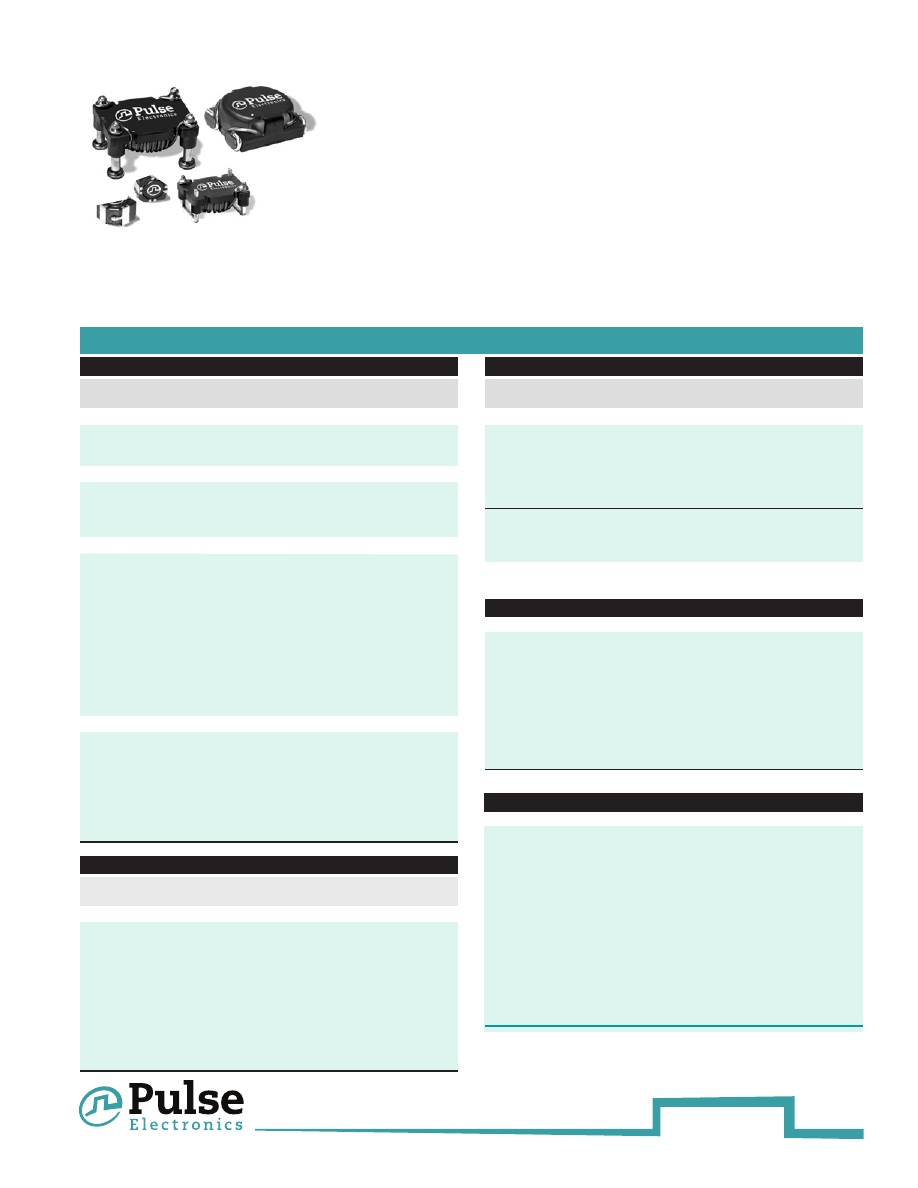

Off-the-Shelf Power Inductors & Chokes

(Military Grade) . . . . . . . . . . . . . . . . . . . . . . 67-70

Planar Tranformers & Custom

Capabilities

. . . . . . . . . . . . . . . . . . . . . . . . . .70-71

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

ANTENNAS

Pulse/Larsen is a leading global antenna and wireless solution supplier. As the demand for wireless connectivity flourishes Pulse/
Larsen is here with the needed solutions. We offer a unique far-reaching understanding of antenna and RF technology and have
become the partner of choice for leading industry innovators. Pulse offers excellent value and outstanding quality products delivered
from our high-volume production facilities We offer a wide array of antennas covering 2G/3G/4G LTE , WLAN (WiFi), Zigbee,
Bluetooth, GPS/Glonass/Compass, ISM, VHF/UHF, satellite radios, DECT, NFC and other custom applications.

You can rely on Pulse/Larsen to be your trusted antenna partner. We have been in the antenna business over 50 years and have
exceeded over 2 Billion antennas shipped during that time. We supply consistent high-quality products by owning and fully controlling
our own factories in both China and the United States. On the following pages you will find a sampling of our more popular antennas.
For a complete view of our offering visit our website at www.pulseelectronics.com/products/antennas or contact us for a copy of our
Antenna Sourcebook catalog.

Pulse’s new line of wireless access point antennas offers flexible and economical solutions for wireless device OEMs. These

antennas offer superior transmission and reception between wireless access points. They are compatible with IEEE 802.11a/b/g/n/

ac, Bluetooth, 3G/4G LTE, ZigBee and ISM frequency band applications. All wireless access point antennas are RoHS compliant. For

high-volume orders, Pulse can custom design antennas for OEMs. This includes alternative frequencies and a variety of cable and

connector options for antenna assemblies. Pulse also manufactures build-to-print internal antennas that feature a variety of stamped

metal and PCB configurations.

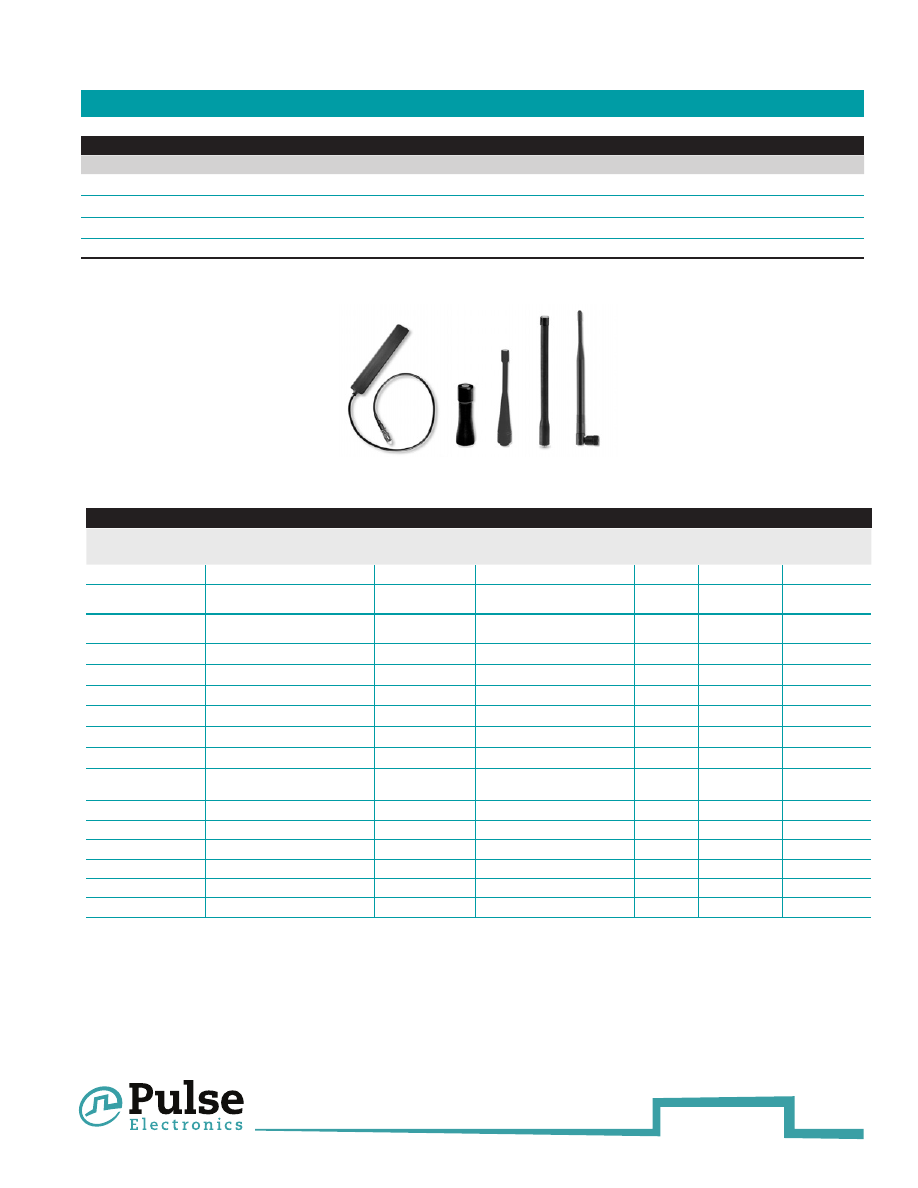

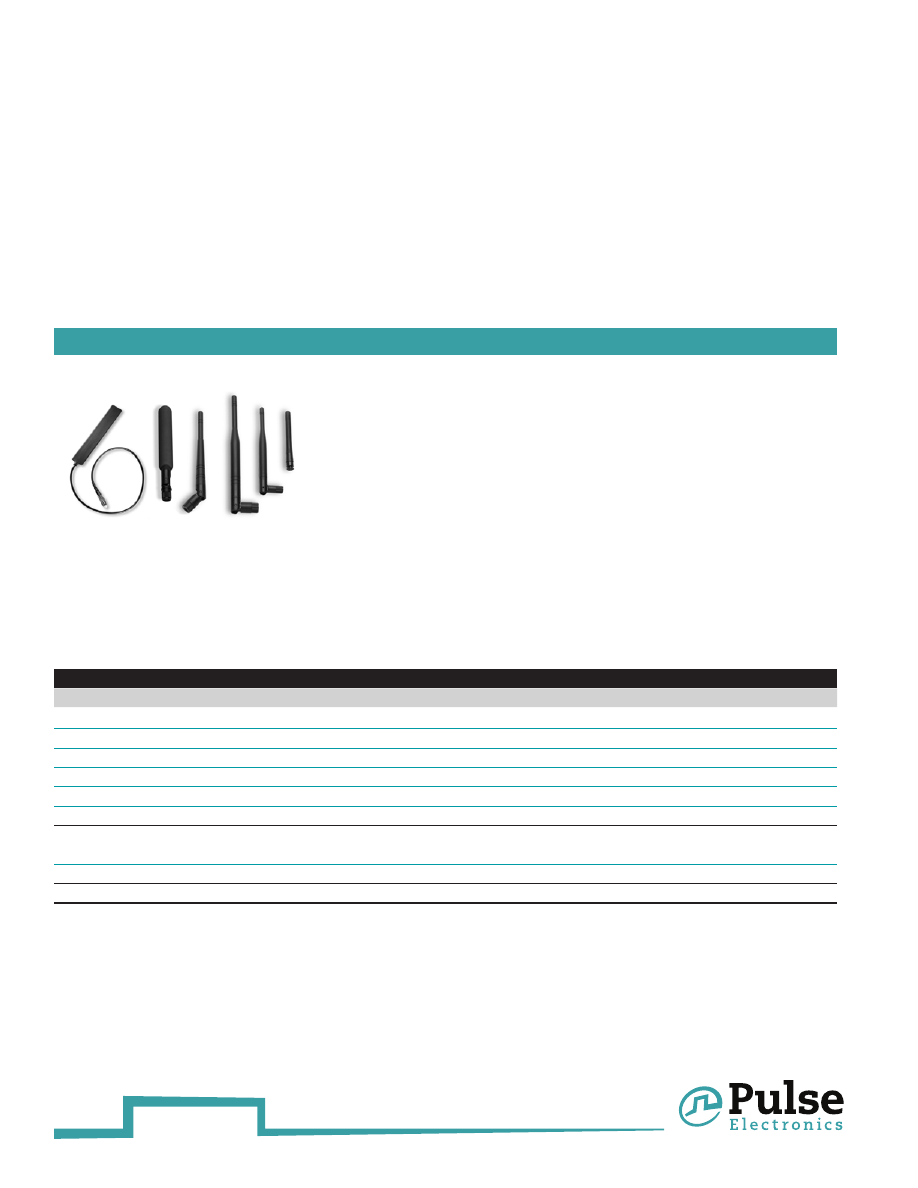

ANTENNAS FOR EXTERNAL APPLICATIONS

WiFi (WLAN) Antennas

1,2

Part Number

Frequency

Max Gain (dBI)

Length (inches/mm)

Application/Standard

W1063

900 MHz

3.0

6.65 /169

ISM 868 & 915 MHz

W1010

2.4 GHz

2.0

3.3/83

802.11b/g/n, Bluetooth, ZigBee

W1030

2.4 GHz

2.0

3.25/82.5

802.11b/g/n, Bluetooth, ZigBee

W1037

2.4 GHz

3.2

6.65/169

802.11b/g/n, Bluetooth, ZigBee

W1038

2.4 GHz

4.9

6.65/169

802.11b/g/n, Bluetooth, ZigBee

W1027

2.4 GHz

3.2

4.88/124

802.11b/g/n, Bluetooth, ZigBee

SB24003

2.4 GHz

2.14

2.5/132

802.11b/g/n, Bluetooth, ZigBee

W1043

2.4 & 5.8 GHz

2.0

4.59/117

802.11b/g/n, Bluetooth, ZigBee

W1028B

5.15 & 5.85 GHz

2.0

4.88/124

802.11a/b/g/n/ac, ISM 5.8 GHz

SPDA17RP2400/5900

2.4 & 4.9 GHz

1.6/5

7/182

ISM 5.8 GHz, Public Safety, 4.9 GHz, 802.11a/b/g/n/ac

1. Antennas

come standard with R-SMA male connectors, unless otherwise specified.

2. These

part numbers are lead-free and RoHS compliant. No additional suffix or identifier is required.

3. SMA

male connector

*Antennas for External Applications table is continued on next page

•  Radome included - cosmetics may matter.
•  Not for outdoor weatherproof environments
•  Technology: Dipoles, blades, external patches.
•  Cable assemblies or connector options.
•  Frequencies: WLAN, 3G/4G LTE, ISM, GPS, Multi-bands.
•  Typical applications: Access points, industrial controls, utilities,

Internet of Things, M2M, telemedicine, handheld devices, point-of-
sale equipment, sensors, lighting, transportation and other devices.

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

ANTENNAS

ANTENNAS FOR EXTERNAL APPLICATIONS

(continued)

Single-Band External Antennas with I-PEX

Part Number

Frequency

Mechanical Length

Cable Length

Application/Standard

W1049B030

2.4GHz

3.25/82.5

3/76

802.11b/g/n, Bluetooth, ZigBee

W1049B050

2.4GHz

3.25/82.5

5/127

802.11b/g/n, Bluetooth, ZigBee

W1049B090

2.4GHz

3.25/82.5

9/229

802.11b/g/n, Bluetooth, ZigBee

W1049B120

2.4GHz

3.25/82.5

12/305

802.11b/g/n, Bluetooth, ZigBee

1. These

part numbers are lead-free and RoHS compliant. No additional suffix or identifier is required.

2. Inches

/millimeters

3. Max

Gain (2dBi)

Pulse offers a wide variety of alternative wireless solutions for applications including machine-to-machine, public safety, hand-held
radios, and telematics.

Part Number

Frequency

(MHz)

Gain
(dBi)

Description

Length

(in/mm)

Coax

Connector

SPDA24918

863-973

Swivel Mount Dipole

8 / 202

N/A

SMA Male

W1900; W1902

824-960/ 1710-1990/ 1920-2170

1 / 2 / 2.5

Penta Rt Angle Stubby

2.1 / 49.5

N/A

SMA Male /

RP-SMA Male

W1910; W1911

824-960/ 1710-1990 / 1920-2170

1 / 2 / 2.5

Penta Band Stubby

2 / 49

N/A

SMA Male /

RP-SMA Male

W4000G197

1.574 GHz

1.5 dBic / 26dB LNA

GPS Ultra Thin

n/a

200 / 5meter

SMA Male

SPDA17RP2400/5900

2400-2500/4900-5900

1.6/5

Swivel Mount Dipole

7/182

N/A

RPTNC

SB450FME3

450-470

2.14

Stealth Blade

10/254

3’ RG-174

FME

SB8003

806-896

2.14

Stealth Blade

2.5/132

3’ RG-174

No Conn

SB9003

890-960

2.14

Stealth Blade

2.5/132

3’ RG-174

No Conn

SPDA24850/1900

824-894/1850-1990

0/1.2

Swivel Mount Dipole

6.75/171

N/A

SMA

SPDA24700/2700

698-960 / 1710-2710 / 2500-2700

.6/1.5/3.4

LTE Swivel Mount Dipole

9 / 228

N/A

SMA Male

SPWB23150

136-174

-4.5

Wideband

6.75/171

N/A

SMA F T3

SPWH23832

782-882

Whip, Standard, ¼ Wave

3/76

N/A

SMA F T3

SPHS24832

800-864

Helical, Standard, ¼ Wave

3/76

N/A

SMA F T2

SPDA17806/2170LAR

806-960/1710-2170

.5/.5

Pentaband Swivel Mount Dipole

7.5/190.5

N/A

TNC Male

W1920G0915

806-960/1710-2170

1.5

Stealth Blade

4.3/110

3’ RG-174

SMA Male

W1920G3658

806-960/1710-2170

1.5

Stealth Blade

4.3/110

9’ RG-174

SMA Male

UHF and VHF portable/terminal antennas also available. See full-line Antenna SourceBook Catalog.

3G/4G LTE, ISM, UHF, VHF, GPS

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

ANTENNAS

Pulse offers a wide range of surface mount antennas (SMD) for wireless device applications. Pulse ceramic technology results in
robust antenna designs that have outstanding performance. These antennas have an inherent immunity to surrounding antenna
signals and hand-effect, which makes them exceptionally suitable solutions for small hand-held or wall-mount devices with multiple
antennas. Pulse helical antenna technology provides high-performance antennas in a small package that can be easily deployed. Our
composite antennas offer the most frequency bands per embedded technology. These ceramic, helical, and composite antennas
require minimal ground plane removal for operation, which means saved board space and economical implementation. The SMD
compatibility of Pulse’s antenna products makes them simple and easy to mount.

ANTENNAS FOR EMBEDDED SURFACE MOUNT APPLICATIONS

Embedded onto / soldered to PCB

• Antenna Technology: Ceramic monopoles, ceramic PIFA,

ceramic patch, helical; stamped metal, composite.

• Frequencies: WLAN(Wi-Fi), Zigbee, Bluetooth, ISM, GPS, 3G/4G

LTE, Multi bands.

• Applications: OEM equipment, medical devices, security

systems, tracking and monitoring devices, handhelds, meter
reading, smart devices, sensors, wearables, fitness, beacons,
and more.

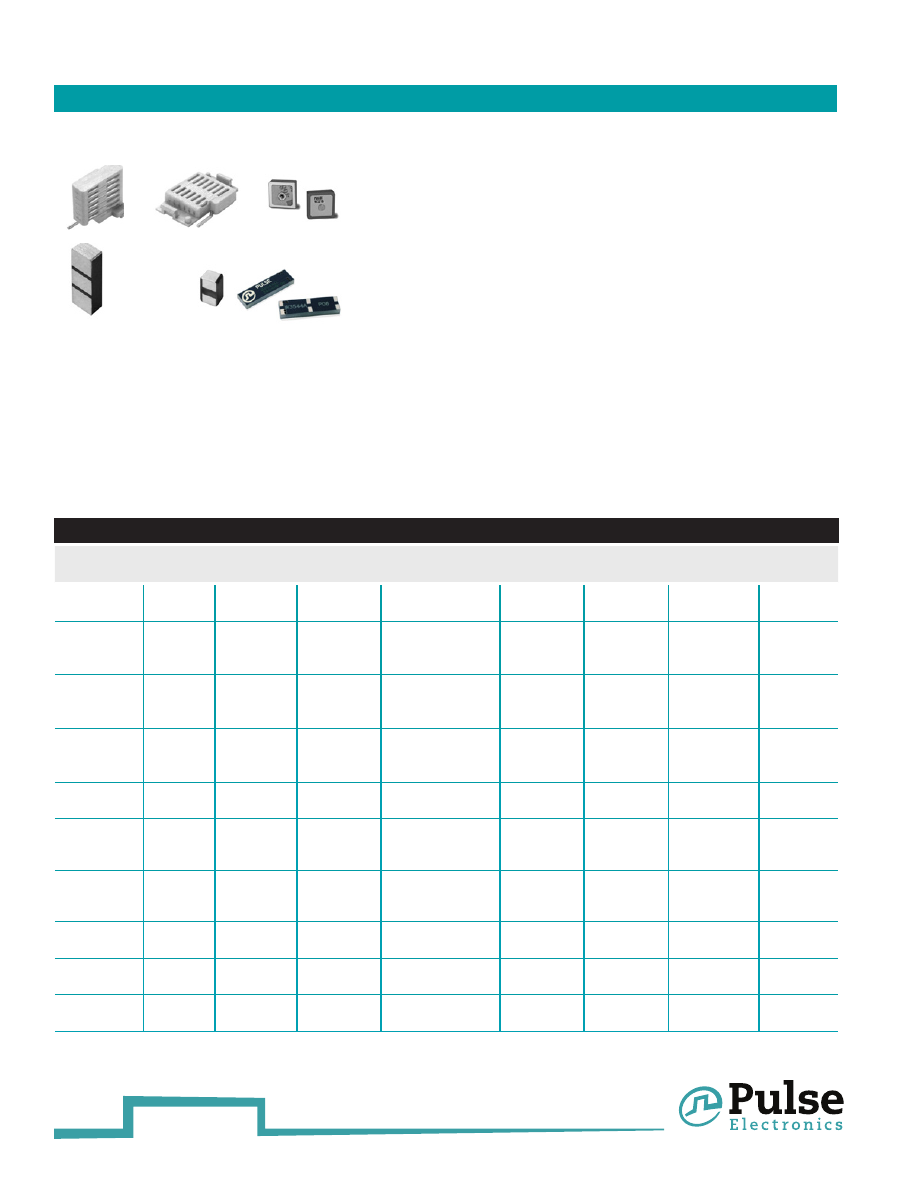

Helical Antennas

Ceramic Antennas

Ceramic Patch

CERAMIC

Application

Part No.

Size

(mm)/

Type

Mount Type

(mm)

Frequency

Range (MHz)

RHCP Gain

(dBic)

Max Gain

(dBi)

Efficiency

(%/dB)

Return Loss

(dB MIN)

Zigbee, ISM

Monopole

W3001

10x3.2x4mm

Ceramic

SMD, GC

10.8x6.25

2400 and other

N/A

1.5 (peak)

75/-1.25

-6

WLAN

Dualband

W3006

10.0x3.2x1.5

Ceramic

SMD,

GC area

11.60x6.00

2400–2483.5

5150–5850

N/A

3,2 (peak)
4,2 (peak)

70/-1,55 (peak)
80/-0,95 (peak)

-8

-10

Bluetooth/

WLAN/WiFi

W3008C

3.2x1.6x1.1

Ceramic

SMD,

GC area

4.00x6.25

2400–2483.5

N/A

2,2 (peak)

75/-1,3 (peak)

-11

GPS

W3009

10.0x3.2x4.0

Ceramic

SMD,

GC area

10.80x6.25

1575.42 ±10

0.7 (peak)

0.3 (band edges)

3 (peak)

80/-1,25 (peak)

-10

ISM

W3013

10x3.2x4 /

Ceramic

GC area

10.8x8.25

868-870

1.5

-11

WiFi & GPS

W3056

10x3.2x1.5 /

Ceramic

GC area

10.8x6.25

(Notch)

2400-2483.5 /

1575.42

3.2 / 2.5

80 / 75

-8 / -10

WiFi & GPS

W3064C

10x3.2x1.5 /

Ceramic

GC area

10.8x6.4

(Divided)

2400-2483.5 /

1575.42

-0.7 / -1

80 / 70

-11 / -15

GPS

W3213

13x13x4 /

Patch

1575.42

-1.5

-13

GPS

W3216

13x13x5 /

Patch

1575.42

-2

-7

GPS

W3099

25x25x4/

Patch

1575.42

3.5

-14

1. All

antennas are RoHS Compliant

2. Impedance

, operating temperature -40°C to +85°C

3. GC

= Ground Clearance, mm

Millimeters

(mm)

5. Monopole

antenna performance is linked to different tuning circuit recommendations for the variety of applications. Consult the data sheet for more information

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

ANTENNAS

ANTENNAS FOR EMBEDDED SURFACE MOUNTING APPLICATIONS

(continued)

CERAMIC (continued)

Application

Part No.

Size (mm)/

Type

Mount Type

(mm)

Frequency

Range (MHz)

RHCP Gain

(dBic)

Max Gain

(dBi)

Efficiency

(%/dB)

Return Loss

(dB MIN)

GPS/

Glonass &

Beidou

W3062A

7X1.6X1.6 /

Ceramic

GC area 7.8x5.25

1559-1591 &

1598-1610

2.5

80 / -1

-10

Dual Band

(EU)

W3070

10x3.2x2/

Ceramic

GC area 40x10

880-960 /

1710-1880

1.2 / 2.5

65 / 60

-5.1 / -5.7

Dual WiFi

W3078

3.2x1.6x1.1 /

ceramic

GC area 11.15x6.4

2400-2483.5 /

4950-5850

1.7 / 4.3

65 / 80

-10 / -6

WiFi & GPS

W3095

10x3.2x1.5 /

Ceramic

GC area 17.8x6.45

2400-2483.5

/ 4950-5850 /

1559-1610.5

2.7/3.7/1.7

85/53/62

-10/-6/-8

ISM, or GPS,

or GPS/

Glonass/BD

W3000

7x1.6x1.6

/ tuneable

monopole

See

datasheet

868-870;

1559-1591 &

1598-1610;

1575.4

See

datasheet

See

datasheet

See

datasheet

See

datasheet

GPS

W3010

10.0x3.2x2.0

Ceramic

SMD,

GC area 10.80x6.25

1575.42 ±10

-0,2 (peak)

2,8 (peak)

75/-1,25

(peak)

-18

GPS

W3011/A

3.2x1.6x1.1

Ceramic

SMD

4x4.25/6.25

1575.42 ±10

0.85 (peak)

3.4 (peak)

85/-0.7 (peak)

-12

ISM 900

W3012

10x3.2x4

Ceramic

SMD

GC area 10.80x8.25

868-870

N/A

2 (peak)

70/- 1.55

(peak)

-6

ISM 900

Monopole

W3014

10x3.2x1.5

Ceramic

SMD

GC area 40x16

868-870

N/A

1.55 (peak) 45/- 4.5 (peak)

-6

Zigbee, ISM

Monopole

W3043

3.2x1.6x1.1

Ceramic

SMD

GC area, 17x20

2400,

1575 and

other

N/A

4 (peak)

70/-1.55

(peak)

-12

HELICAL

Application Part No.

Size (mm)/

Type

Mount Type

(mm)

Frequency

Range (MHz)

RHCP Gain

(dBic)

Max Gain

(dBi)

Efficiency

(%/dB)

Return Loss

(dB MIN)

WiFi

W3108

5.0x2.5x5.5

Helical

SMD,

GC area 7.50x5.50

2400–2483.5

N/A

1.5

50/-3

-8

GPS

W3110

5.0x2.5x5.5

Helical

SMD,

GC area 7.50x5.50

1575.42 ±10

-2,1 (peak)

-2,4 (band

edges)

1,3 (peak)

0,7 (band

edges)

47/-3,3 (peak)

43/-3,7 (band edges)

-16

ISM

W3112A

2.5x8.0x8.0

Helical

SMD,

GC area 6.00x11.00

902–928

N/A

0.9 (peak)

-0.3 (band

edges)

67/-1.7 (peak)

50/-3 (band edges)

-10

ISM

W3113

12.4x8.0x2.5

Helical

SMD,

GC area 8.00x40.00

902–928

N/A

0.8 (peak)

-0.3 (band

edges)

66 /-1.8 (peak)

51/-2.9(band edges)

-10

ISM (315)

W3126

35.35x9.90 /

Helical

GC area 8x40

315

N/A

-5

-10

ISM (433)

W3127

35.35x9.90 /

Helical

GC area 8x40

433-435

N/A

-2.9

-15

COMPOSITE

Application

Part No.

Size (mm)/

Type

Mount Type

(mm)

Frequency

Range (MHz)

RHCP Gain

(dBic)

Max Gain

(dBi)

Efficiency

(%/dB)

Return Loss

(dB MIN)

2G/3G

W3544A/B

26x7.65x3

Composite

SMD

824-960/1710-2170

N/A

-1

50%

-6 ave

2G/3G

W3073

10x3.2x4

Composite

SMD

824-894/1710-2170 or

880-960/1710-2170

N/A

2.9

50%

-6 ave

3G / 4G LTE

W3796

40 x 7 x 3

GC area 15

x 40

698 - 2700

N/A

1.5 / 2/ 5.5

55 / 70

-6

1. All

antennas are RoHS Compliant

2. Impedance

, operating temperature -40°C to +85°C

3. GC

= Ground Clearance, mm

Millimeters

(mm)

5. Monopole

antenna performance is linked to different tuning circuit

recommendations for the variety of applications. Consult the data sheet for more information

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

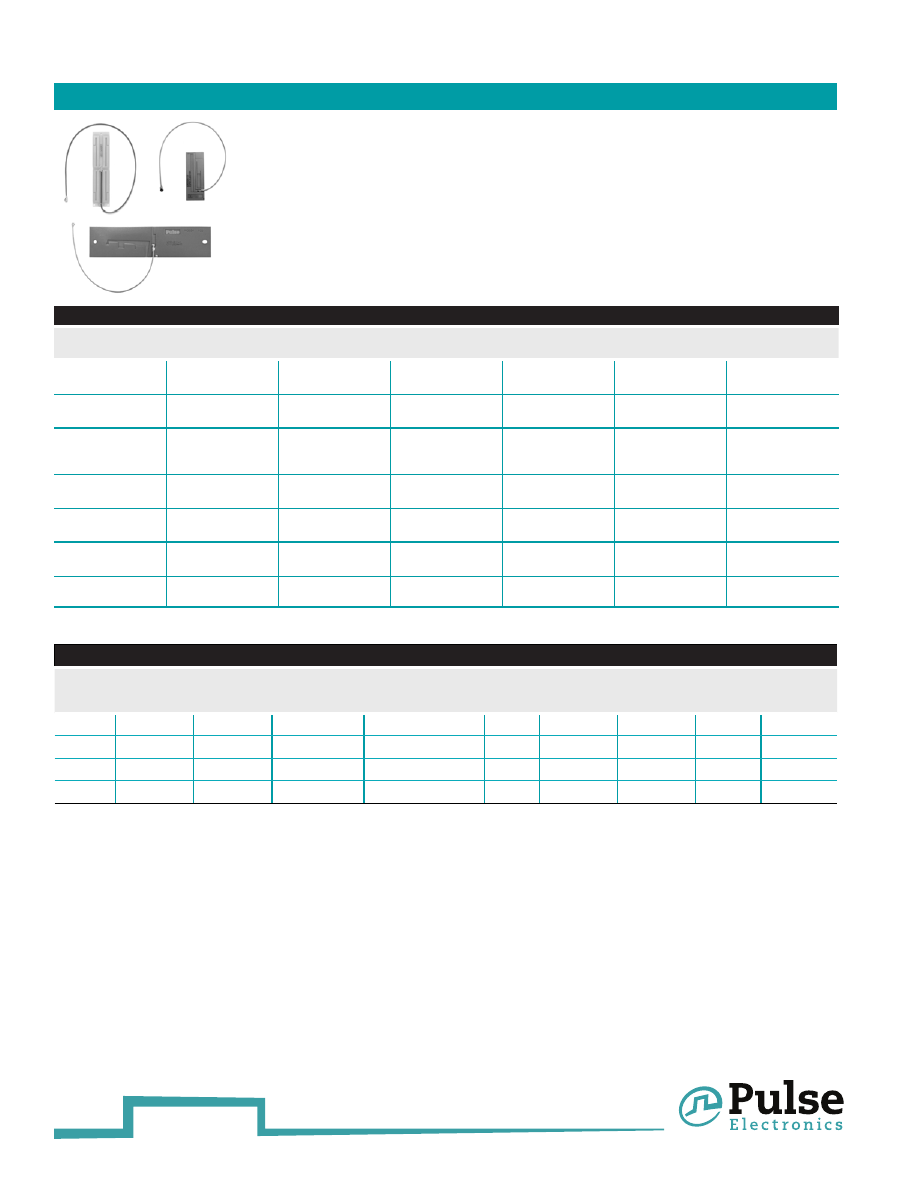

ANTENNAS FOR INTERNAL APPLICATIONS

ANTENNAS

Printed Circuit Board Antenna Solutions

Application

Frequency

Part

Number

Mechanical

Dimensions (in/mm)

Cable Length (mm)

/Connector Type

Gain

(dBi)

Efficiency

(%/B)

2G / 3G

850/900/1800/1900

W3501

0.98 x 3.43 x .008

25 x 87 x 0.2

56/

I-PEX Connector

1.5 / 1.5 / 3.5 / 3.5

50 to 55 %

2G / 3G

850/900/1800/1901

W3502

1.69 x 0.67 x 0.02

43 x 17 x 0.5

27.5/

I-PEX Connector

2 / 1 / 1 / 2

40 to 60 %

WiFi

2.4 GHz

W3525Bxxx

0.42 x 1.88 x .031

10.7 x 47.7 x 0.8

Various cable

lengths/

I-PEX Connector

70%

WiFi

2.4 & 5 GHz

W3513

0.63 x 2.76 x 0.04

16 x 70 x 0.9

250/

I-PEXConnector

50 to 72 %

WiFi

2.4 & 5 GHz

W3315B0100

0.23 x 1.8in / 6x45

100, IPEX, MHF

Series

-3.5 / -2.5

3G 4G LTE

698-960 / 1710-2710

/ 2300-2700

W3554B0140

120 x 30 x 0.2

143 / IPX

2.5

60%

5 GHz Dipole

4900-5850

W3593B0100

45 x 7 x 0.8

109mm / IPX

50%

Antennas for Near Field Communications

Frequency

(MHz)*

Part

Number

Impedance

(

Read Distance

(mm)*

Size

(mm)

SRF

(MHz)**

Inductance

(μH)**

Resistance

(

)**

Q **

Matched Q

***

13.56

W3579

50 / 80

35 x 50 x 0.30

1.6

3.6

37.8

5-30

13.56

W7001

51 / 80

25 x 25 x 0.12

100

0.9

1.55

5-30

13.56

W7002

52 / 80

94.6 x 56.8 x 3.65

0.65

0.95

5-30

13.56

W7013

53 / 80

25 x 30 x 0.23

* With Matching Network
** Coil Without Matching Network
*** With Matching Network (adjustable range)

•  Located inside the device.
•  Often connected by a short cable assembly to customer PCB.
•  Technology: Flexible printed circuit (FPC), PCB, patch.
•  Frequencies: WLAN, Bluetooth, Zigbee, ISM, GPS, 3G/4G LTE,

Multi bands.

• Typical applications: Access points, industrial controls, utilities,

Internet of Things, M2M, telemedicine, handheld devices, point-of-
sale equipment, sensors, lighting, transportation and other devices.

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

ANTENNAS

PIMinator

Product Family

Antennas

Pulse Part Number

Freq.

(MHz)

PIM Rating

(dBc)

Connector / Cable

MIMO Ceiling Mount

DASLTE500NFMIMO

698-960/1710-2170/2300-2700/4900-5900

-155

N Female / 500mm (2x)

MIMO Ceiling Mount

DAS500MDMIMO

698-960/1710-2170/2300-2700/4900-5900

-155

4.1-9.5 Mini-Din Female / 500mm

SISO Ceiling Mount

DASLTE500NF

698-960/1710-2170/2300-2700/4900-5900

-155

N Female / 500mm

SISO Ceiling Mount

DASLTENF

698-960/1710-2170/2300-2700/4900-5900

-155

N Female / 500mm

SISO Ceiling Mount

DASLTEMINIDIN

698-960/1710-2170/2300-2700/4900-5900

-155

4.1-9.5 Mini-Din Female / 500mm

SISO Ceiling Mount

DASLTEDIN

698-960/1710-2170/2300-2700/4900-5900

-155

DIN 7-16

RF Splitters

Pulse Part Number

Freq.

(MHz)

PIM Rating

(dBc)

Connector

Power Splitter, 2-Way, 300W

DASSPLIT2WDIN

698-2700

-155

DIN

Power Splitter, 2-Way, 300W

DASSPLIT2WNF

698-2700

-155

N Female

Power Splitter, 3-Way, 300W

DASSPLIT3WNF

698-2700

-155

N Female

Power Splitter, 4-Way, 300W

DASSPLIT4WNF

698-2700

-155

N Female

DAS PRODUCTS

PIMinator

Product Family

Ultra-Thin Clear

Ceiling Antennas

Pulse Part Number

Freq.

(MHz)

PIM Rating,

dBc

Connector / Cable

Clarity Family

DASUTCC500NF

608-960/1695-2200/2300-2700MHz, Antenna Only

-155

N Female / 500mm

Clarity Family

DASUTCCR500NF

608-960/1695-2200/2300-2700MHz, with Reflector

-155

N Female / 500mm

Clarity Family

DASUTCC500MD

608-960/1695-2200/2300-2700MHz, Antenna Only

-155

4.1-9.5 Mini-Din Female / 500mm

Clarity Family

DASUTCCR500MD

608-960/1695-2200/2300-2700MHz, with Reflector

-155

4.1-9.5 Mini-Din Female / 500mm

Clarity Family

DASUTCC5004310

608-960/1695-2200/2300-2700MHz, Antenna Only

-155

4.3 -10 Female / 500mm

Clarity Family

DASUTCCR5004310

608-960/1695-2200/2300-2700MHz, with Reflector

-155

4.3 -10 Female / 500mm

Clarity Family

DASUTCCACC1

Reflector

N/A

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

Pulse offers some of most reliable antennas on the market today. Pulse antennas combine premium materials with high-efficiency
designs to deliver antennas with superior mechanical durability and electrical performance. UV, chemical and impact resistant plastic
resins help ensure the highest performance for all your mobile applications. “Traditional-style” mobile antennas are available from
27 MHz to 5.9 GHz, as well as many “multi-band” designs. Whether you need communication interoperability, radio communication,
data transmission, increased 3G / 4G LTE coverage or GPS tracking, these antennas are the solution.

• Weatherproof (IP65/67)
• Technology: radome omni, monopole, dipole, Yagi, base station,

panel.

•  Different mounting options.
•  Optional cable assemblies.
•  Frequencies: WLAN, ISM, GPS, 3G, 4G, LTE, UHF/VHF, Multi

bands.

• Applications: Mesh networks, security smart devices, utilities,

tracking, wireless communication, oil & gas exploration,

transportation, railroad, and vending.

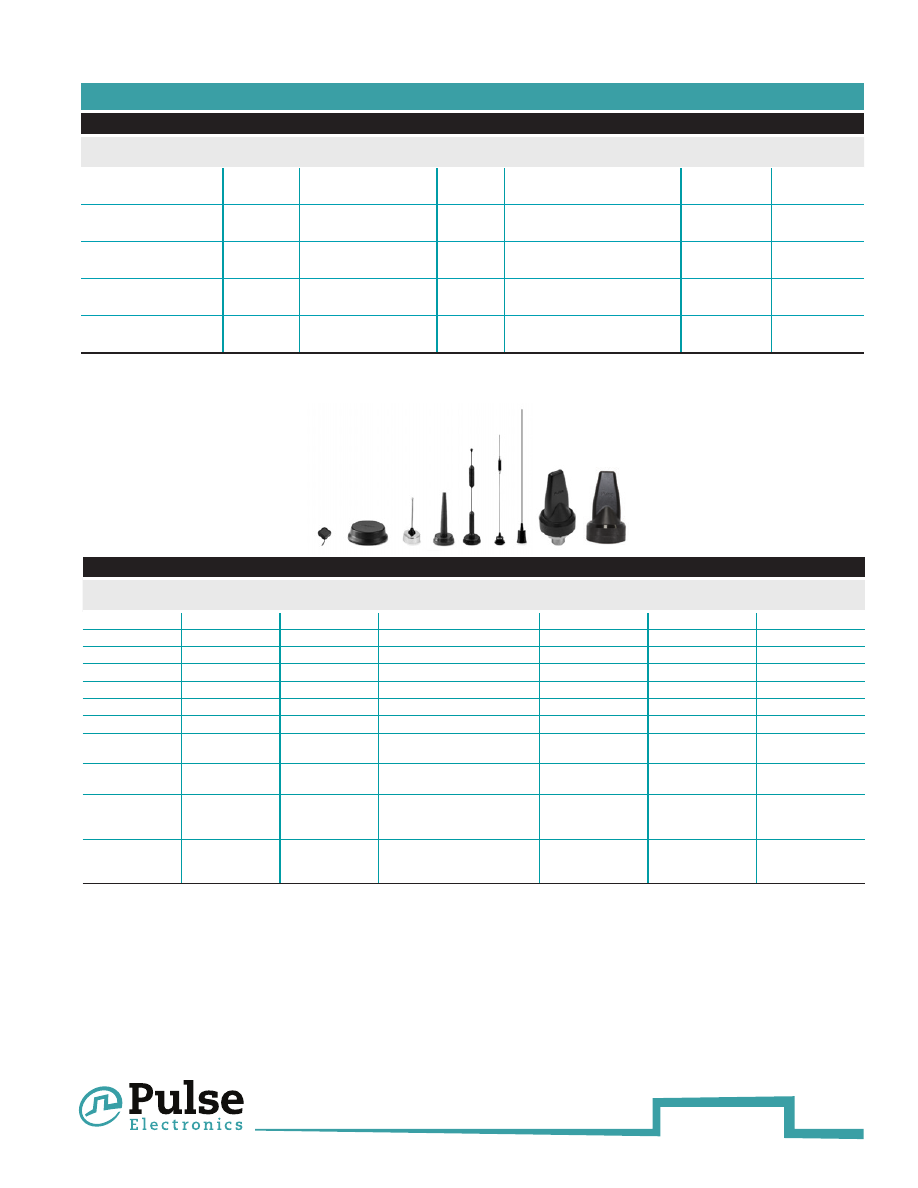

ANTENNAS FOR OUTDOOR APPLICATIONS

ANTENNAS

* Table for Infrastructure Solutions, continued on next page.

➔

1. Variety

of Coax available. Order separately.

Infrastructure Solutions

Application

Frequency

(MHz)

Part

Number

Gain

(dBi)

Description

Length

(in/mm)

Connector

Cellular/ISM

890 - 960

YA6900W

Fully welded four element Yagi

17.5/444.5

N Female

WiFi

2400 - 2500

RO2408NM

Radome Omni

20/508

N Male

Public Safety

4940 - 4990

RO4910NF

Radome Omni

18/457

N Female

Upper WiFi ; Amateur

Radio

5725 - 5875

RO5810NM

Radome Omni

16.5/419

N Male

Upper WiFi; Amateur

Radio

5725 - 5875

RO5810NF

Radome Omni

16.5/419

N Female

Various

740-806

YA5740W

9 / 11

Fully welded seven element

Yagi

32.75 / 831.85

N Female

Various

806-866

YA5800W

9 / 11

Fully welded seven element

Yagi

32.75 / 831.85

N Female

2G / 3G

806-960 /

1710-2170

RO8063 / 21704NM

3/4.5

Radome Omni

16.5 / 419.1

Male

2G / 3G

2400-2500 /

4900-5900

SLPT2400 / 5900DMN

4.3 / 5.5

Direct Mount Antenna

3 / 76.2

N Female

2G/3G; WiFi

698-960 /

1710-2170/
2400-2700

SLPT698 / 2170DMN

4.5 / 5.6 / 4

Mount Antenna

3 / 76.2

N Female

WiFi

2.4 GHz

W5001

1.5

IP65 , Fixed Right Angle Dipole

5.04 / 128

RP-SMA (male)

WiFi

2.4 GHz

W5010

1.5

IP65 , Straight Dipole

5.1 / 130

RP-SMA (male)

WiFi

2.4 GHz

W5011

1.5

IP65 , Straight Dipole

5.1 / 130

SMA (male)

WiFi

2.4 GHz,

5.x Ghz

W5028

2.7 / 3.0

IP65, Fixed Right Angle, Dipole

5.04 / 128

RP-SMA (male)

WiFi

2.4 GHz,

5.x Ghz

W5030

4 / 6

Radome Omni

6.8 / 173

N Male

ISM, 868/915, SRD860

868 - 928

MHz

W5012

IP65, Straight Dipole

7.0 / 179

RP-SMA (male)

ISM, 868/915, SRD860

868 - 928

MHz

W5017

IP65, Straight Dipole

7.0 / 179

SMA (male)

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

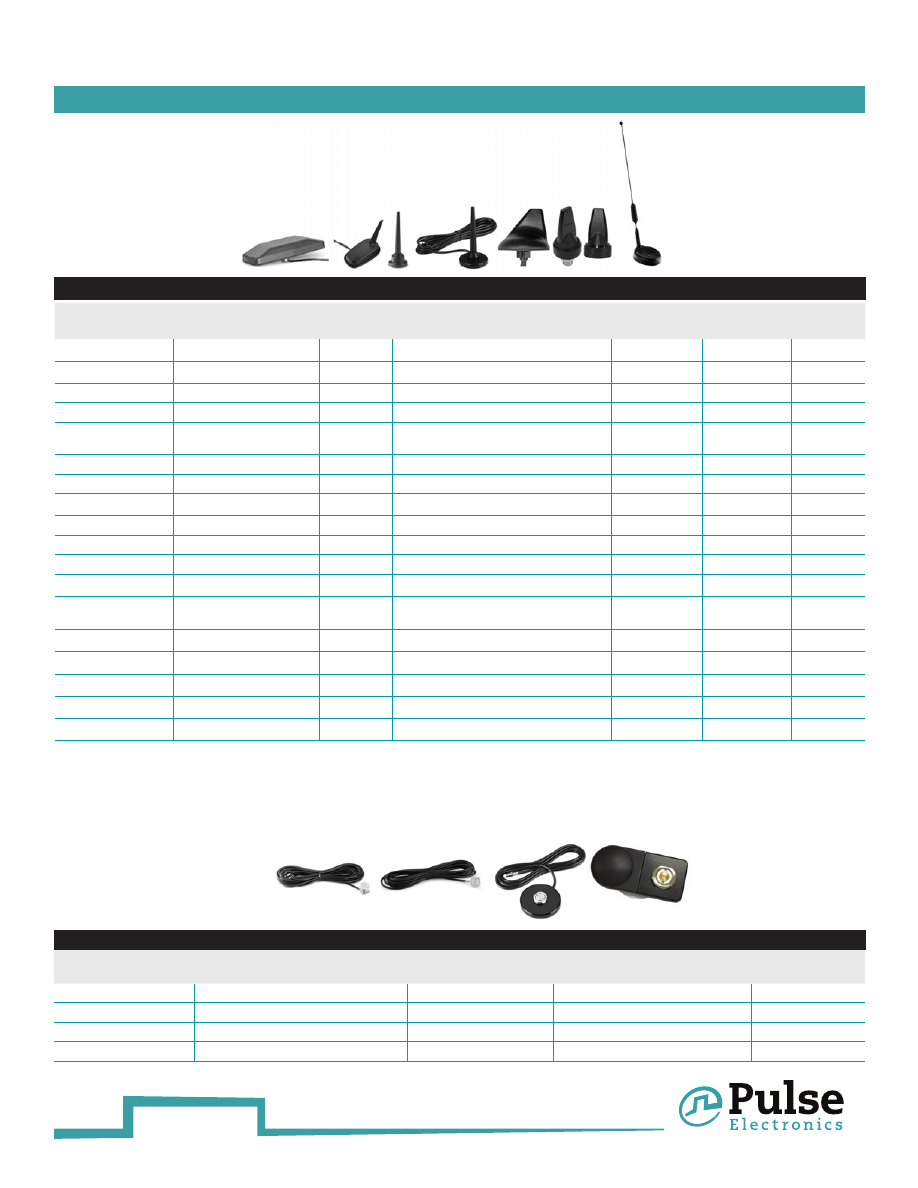

ANTENNAS FOR OUTDOOR APPLICATIONS (continued)

ANTENNAS

Vehicular Antenna Solutions

Part Number

Frequency (MHz)

Gain (dBi)

Description

Length (in/mm)

Coax

Connector

NMOWB150C

135-174

NMO Wide Band

51.75 /1314

N/A

NMO

NMO450C

450-750

5.6

NMO UHF Field Tunable

33/838

N/A

NMO

LP800NMO

806-960

NMO Low Profile

1.25/32

N/A

NMO

GPSNMO

1575.4

5 dBic

GPS NMO Mount

2.9 dia/73.66

N/A

NMO

EF2405NMO

2400-2500

NMO Mount Elevated Feed

13/260.4

N/A

NMO

EF4905NMO

4900-5000

NMO Mount Elevated Feed

10/254

N/A

NMO

NMO5E2400B

2400-2500

NMO Whip

8.54/ 217

N/A

NMO

GPSGMSMA

1575.42

Active GPS Glass

Mount Antenna

1.18/30

16' 4" RG-174

SMA Male

SLPT698/960NMO

698-960

4.5

LTE External Vehicle or

Enclosure NMO Mounted Antenna

3/7.62

N/A

NMO

SLPT2400NMOHF

2400-2500

4.3

2.4 GHz LTE External Vehicle or

Enclosure

NMOHF Mount Antenna

3/7.62

N/A

NMO

SLPT2400DMN

2400-2500

4.3

2.4 GHz LTE External Vehicle or

Enclosure

Direct Mount Antenna

3/7.62

N/A

N - Female

1. Antennas

available in multiple frequencies and mounting options.

3. Variety

of connectors available. Order separately.

2. Variety

of coax available. Order separately.

4. All

NMO antennas require an NMO mount for installation.

Infrastructure Solutions

Application

Frequency

(MHz)

Part

Number

Gain

(dBi)

Description

Length

(in/mm)

Connector

ISM

433, 868-930

MHz

RO3ISMNM

2.0 / 2.5

Radome Omni

21 / 540

N Male

GPS

1.574 GHz

GPSDM02

5 dBic /

28dB LNA

GPS direct feed; 5/8 inch hole

200 / 5 meter

MCX

GPS (Magnet Mt)

1.574 GHz

GPS0010

5 dBic /

26dB LNA

GPS with Magnet Mount

200 / 5 meter

SMA

2G / 3G

1710 - 2170

MHz

RO17102NM

Radome Omni

4.5 / 115

N Male

GPS 2G/3G

806-960/1710-

2170/1574

W4120GG3000

2.5 / 2.5 / 2

GPS 2G/3G Blade

118 / 3 meter

SMA Male

1. Variety

of Coax availble. Order separately.

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

ANTENNAS

ANTENNAS FOR OUTDOOR APPLICATIONS

(continued)

NMO Mounting

Part Number

Description

Cable Length

Coax Type

Connector

NMOKHFUD

NMO Low

High Frequency Mount

5.18

RG-58

U Dual Shield,

Low Loss Cablew

NO CONN

NMOKHFUDTHK

NMO Low

High Frequency Thick Mount

5.18

RG-58

U Dual Shield,

Low Loss Cable

NO CONN

NMOMMRNOCONN

NMO Low

High Frequency Magnetic Mount

3.66

RG-58 A

U cable

NO CONN

NMOHFGPSNOCONN

Any NMO mount antenna plus GPS

202

5130.8

RG-58

RG-174(GPS)

NO CONN

1. All

NMO mounting kits are available with a variety of cables and connectors.

Part Number

Frequency

(MHz)

Gain
(dBi)

Description

Length

(in/mm)

Coax

Connector

GPSDM700/5800SSS

698-960 / 1710-2170 /

2300-2700 / 1575

3 / 6

LTE Multi-band, WiFi, Active GPS

3.5 / 88

17 ft RG58; 17 ft

RG58; 17 ft RG174 SMA, SMA, SMA

GPSMB501

Multi-band (See Datasheet)

5 / 5 / 1.5 (31dB

LNA)

"MIMO LTE, MIMO WIFI,

GPS/Glonass"

"6.0 x6.5 x 3 inch

152 x 165 x 76 mm" RG58, RG58, RG174

SMA (see

datasheet)

GPSMBMM

N/A

Mag Mount for GPSMB501

N/A

NMO150/450/800

50-165/450-470/806-940

-7/0/1

NMO Tri Band

16.5/419

N/A

MMC/P3EFME

824-960/1850-1990

4/4

Dual Band Magnetic Mount

5/127

RG-58 Low Loss

Dual Shield

FME

NMOC/P3E

824-960/1850-1990

4/4

Dual Band NMO Mount

4.7/119

N/A

GPSCW1502

136-174/1575.4

2.14/5 dBic

Direct Feed Dual Band VHF/GPS Combi Whip

22/558.8

RG-174

SMA/SMB

GPSCW4501/GPWCW4502

406-512/1575.4

2.14/5 dBic

Direct Feed Dual Band UHF/GPS Combi Whip

6.5/165.1

RG-174

SMA/SMA

SMA/SMB

GPSCW3E800

806-896/175.4

5/5 dBic

Direct Feed Dual Band GSM/GPS Combi Whip

11.5/292.1

RG-174

N/A

GPSCPXX

824-960/1710-2170/1575.42

2/2/5 dBic

Direct Feed GPS Tri Band

7.6/193

RG-174

Various

GPSCWCPXX

824-960/1710-2170/1575.42

2/2/5 dBic

Roof Mount GPS Tri Band

3.9/99

RG-174

Various

NMOHFGPSXXX

Any NMO mount antenna plus GPS Dependent on

antenna/5dBic

Direct Feed NMO Mount with GPS

202/5130.8

RG-58/RG-174 (GPS)

Various

GPSDM700/2500FFS

698-960/1710-2170/2300-

2700/1575.72

3/6

LTE Multi Band/Active

GPS Roof Mount Antenna

3.5/88.3

17'RG-58/17'RG-58

/17R-174

FME Female/

FME Female/SMA

Male (GPS)

WA700/2700XXX

700-960/1710-1990/2110-

2170/2500-2700

2.5/3.5

Omnidiectional Wireless LTE/MIMO Antenna

5.85/149

19.7'RG-174

Various

SLPT698/2170NMOHF

698-906/1710-2170/2400-2700

4.5/5.6/4

LTE Multi Band External Vehicle or Enclosure

NMOHF Mount Antenna

3/76.2

N/A

SLPT2400/5900NMOHF

2400-2500/4900-5900

4.3/5.5

2.4/4.9 GHz Multi Ban External Vehicle or Enclosure

NMOHF Mount Antenna

3/76.2

N/A

SLPT698/2170DMN

698-960/1710-2170/2400-2700

4.5/5.6/4

LTE Multi Band External Vehicle or Enclosure

Direct Mount Antenna

3/76.2

N/A

N Female

SLPT2400/5900DMN

2400-2500/4900-5900

4.3/5.5

2.4/4.9 GHz Multi Band External Vehicle or Enclosure

Direct Mount Antenna

3/76.2

N/A

N Female

1. Antennas

available in multiple frequencies and mounting options.

3. Variety

of connectors available. Order separately.

2. Variety

of coax available. Order separately.

4. All

NMO antennas require an NMO mount for installation

Vehicular Antenna Solutions

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

SOLUTIONS FOR MOBILE DEVICES

Pulse Mobile Device Antennas
Delight End Users

Pulse Electronics boosts appealing mobile devices by providing intelligent antenna design and manufacturing solutions for handsets,
tablets, laptops and wearable devices.

Our aim is to optimize antenna radiator and mechanics designs for complex multi-radio environments under all circumstances without
limiting the industrial design. The carefully developed Pulse solutions truly delight end users.
Pulse has track-record of delivering antenna solutions to all mobile device segments and categories. Pulse understands fully customers'
specific needs and is capable to offer the most suitable total solution to each customized design.
Our wide product range covers standalone antennas, standalone antenna modules and antenna integration to structural and visual
mechanics. Pulse utitlizes manufacturing technologies such as Printing on 3D, LDS, Flex, Sheet Metal and Ceramics.

More information: http://www.pulseelectronics.com/products/mobile_device_antennas

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

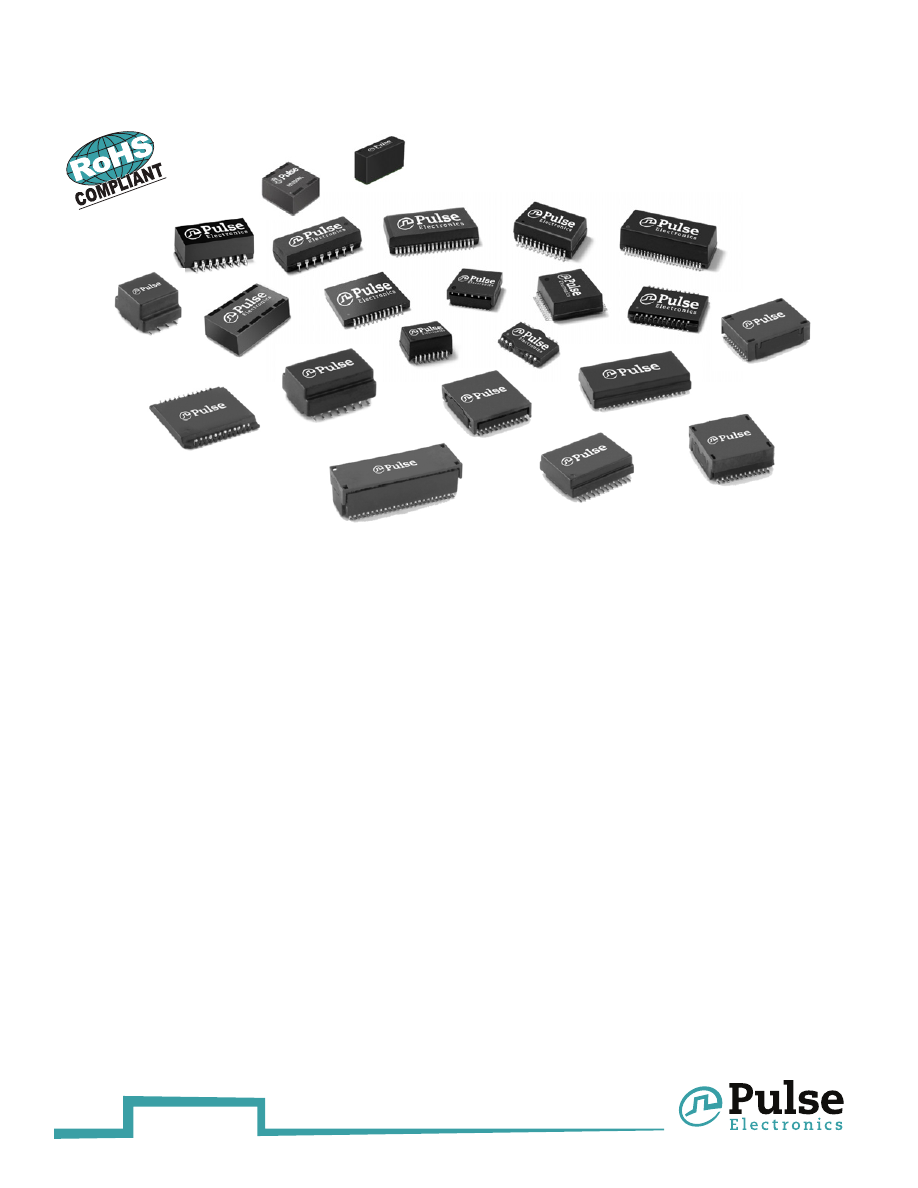

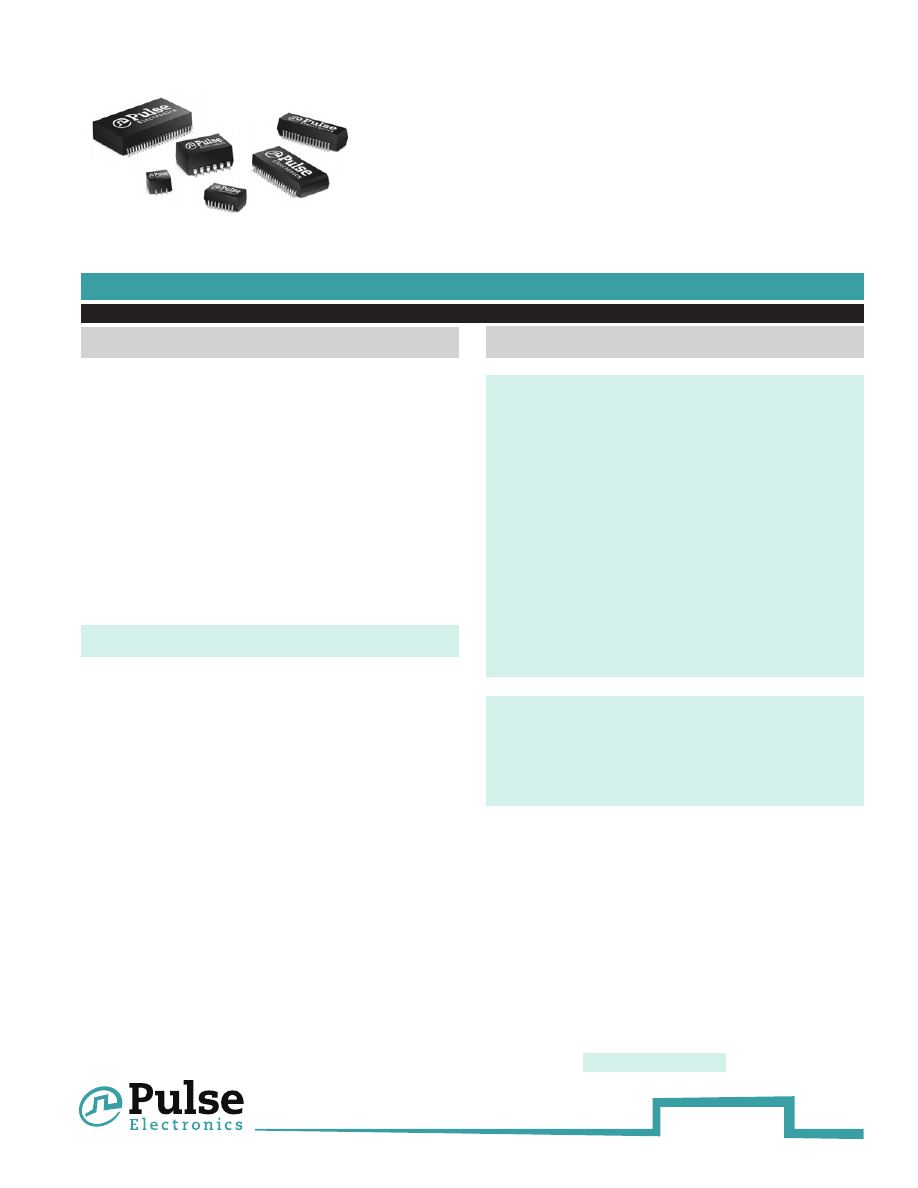

Pulse Ethernet Magnetic Modules

Pulse offers comprehensive line of Ethernet Magnetic Modules. Pulse 100/1000/10GBASE-T Modules are optimized for all major LAN
transceivers. All modules provide electrical circuit isolation that meets IEEE 802.3, while maintaining signal integrity needed for the
most demanding applications. These products are qualified at major PHY suppliers. Pulse manufactures the broadest selection of
packaging options, from through hole (THT) SIL devices to the smallest available surface mount (SMT) solution at .078” (1.98 mm).
Pulse offers full line of RoHS compliant products.
NOTE: This catalog section serves as an overview to the LAN discrete modules. For detailed data sheets, IC Cross Reference and a
complete list of LAN discrete modules, go to the Pulse website home page at www.pulseelectronics.com/product/lan

ETHERNET MAGNETIC MODULES

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

DISCRETE SMT TRANSFORMER MODULES

Number of

Ports

Single

Dual

Quad

Data Rate 100Base-TX

1GBase-T

HDBaseT

10GBase-T 100Base-TX

1GBase-T

10GBase-T

100Base-TX 1GBase-T

10GBase-T

H0013NL (LP)

H5004NL

HD8004FNL (PoH 60W) H7008NL (4C)

H1174NL

H5012NL

***

H1060NL

H5400NL (BGA)

***

H0068ANL (LP)

H5007ENL

HD8005FNL (PoH 100W) H7018NL (4C)

H1200NL

H5014NL

H1062NL

H5401NL (BGA)

H1012NL

H5007NL

H7019NL (4C)

H1270NL

H5020NL

H1164NL

H6400NL (PoE+, BGA)

H1081NL

H5008NL

H7028NL

H2009NL (PoE)

H5089NL

H1259NL

HX5400NL (X, BGA)

H1100NL

H5015NL

H7029NL (4C)

H2305NL (PoE)

H5200NL (PoE, BGA)

H1664NL

HX5401NL (X, BGA)

H1102NL

H5019EFNL (LP)

H7137NL (5C)

H6096NL (PoE+)

H5201NL (BGA)

HX1234NL (X)

H1112NL

H5062NL

H6600NL (PoE+, BGA) H6080NL (PoE)

HX1259NL (X)

H1197NL

H5084NL

HX1294NL (X)

H6101FNL (PoE+)

H1260NL

H5120NL (LP)

HX1305NL (X)

HX5012NL (X)

H1302NL

H5143NL

HX2305NL (X, PoE)

HX5014NL (X)

H2019NL (PoE)

H5149NL

HX6096NL (X, PoE+)

HX5020NL (X)

H2260NL (PoE)

H5578NL

HX6098NL (X, PoE+)

HX5200NL (X, PoE, BGA)

HM1188NL (X, AE)

H5610NL (BGA)

HX5201NL (X, PoE)

HM1225NL (X, AE)

H6062NL (PoE)

HX6080NL (X, PoE)

HX0068ANL (LP)

H6096NL (PoE+)

HX6101NL (X, PoE+)

HX1098NL (X)

H6600NL (PoE+, BGA)

HX1148NL (X)

HX5004NL (X)

HX1188NL (X)

HX5008NL (X)

HX1198NL (X)

HX5009NL (X)

HX1217NL (X, IP)

HX5019FNL (X, LP)

HX1224NL (X, 4KV)

HX5062NL (X)

HX1260NL (X)

HX5084NL (X)

HX1302NL (X)

HX5120NL (X, LP)

HX1324NL (X)

HX5149NL (X)

HX2019NL (X, PoE)

HX5610NL (X, BGA)

HX2260NL (X, PoE)

HX6062NL (X, PoE)

HX2326NL (X,PoE+)

HX6096NL (X, PoE+)

HX5181NL (X)

HX5224NL (X,4KV)

ETHERNET MAGNETIC MODULES

Abbreviations: LP = Low Profile, X = Extended Temperature, PoE = Power over Ethernet, PoE+ = Power over Ethernet Plus, 4C = 4Channel, 5C = 5Channel, BGA = Bump Grid Array
IP = Industrial Protocol, AE = AEC-Q200 Qualified, PoH = Power over HDBaseT, HD = HDBaseT
*** Contact Pulse for availability

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

PulseJack

Integrated Connector Modules

Pulse offers a broad selection of PulseJack RJ45 filtered connectors that integrate ethernet magnetics into RJ45 connectors. In
addition to connectivity, they provide signal conditioning, signal isolation, and EMI suppression. All ICM's are designed to meet IEEE
802.3 specification and are qualified at major PHY suppliers. The PulseJack connectors offer a complete family of single and multi-port
solutions for high-speed applications, including 100/1000/10GBASE-T, PoE, PoE+ and 4P PoE. Pulse offers full line of RoHS compliant
products.

NOTE:

This catalog section serves as an overview to the PulseJack Integrated Connector Modules. For detailed data sheets, IC Cross

Reference and a complete list of PulseJack ICM's, go to the Pulse website at www.pulseelectronics.com/product/lan.

RJ45 INTEGRATED CONNECTOR MODULES (ICM)

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

RJ45 INTEGRATED CONNECTOR MODULES (ICM)

RJ45 Filtered Connectors

Number of Ports

1x1

Locking Taps (Up/Down)

Down

PCB Mounting Type

SMT

THT

SMT

THT

Data Rate

100Base-TX

1GBase-T

10GBase-T

100Base-TX

1GBase-T

10GBase-T

J3011G21DNL (LED, BST, EMI)

J0G-0007NL (LED, BST, EMI)

J0G-0001NL (LED, BST, EMI)

JT7-1104NL (5C, LED, BST, EMI, 4P PoE) J0C-0003NL

J00-0014NL (BST)

JKM-0001NL (LED, BST, EMI)

JT3-1101NL (5C, LED, BST, EMI)

J3026G01DNL (LED, BST,)

J1006F01PNL (LED)

J0G-0003NL (LED, BST)

JT7-1115NL (5C, LED, BST, EMI, 4P PoE) J0C-0004NL (EMI)

J00-0045NL (LED, BST)

JKM-0003NL (BST, EMI)

JT3-1125NL (5C, LED, BST, EMI)

J3026G21DNL (LED, BST, EMI) J1006F21NL (EMI)

J0G-0009NL (LED, BST, EMI)

J0C-0005NL(BST)

J00-0061NL (BST, EMI)

JKM-0004NL (LED, BST, EMI) JT4-1108HL (5C, LED, BST, EMI)

JX30-0005DNL (LED, BST, EMI) J1011F01PNL (LED)

J1L-0103NL (O, LED, BST, EMI)

J0C-0006NL (BST,EMI) J00-0065NL (LED, BST, EMI)

JKM-0004NL (X, LED, BST, EMI) JT4-1109HL (5C, LED, BST, EMI)

J1011F21PNL (LED, EMI)

JD1-0001NL (LED, BST, EMI)

JV006I21NL (EMI)

J00-0213NL (LED, BST, EMI)

JKM-0013NL (LED, BST, EMI)

JT4-1120HL (4C, LED, BST, EMI)

J1012F01CNL (LED)

JD1-0002NL (LED, BST, EMI)

JV011I21NL (BST,EMI) JKM-0008NL (LED, BST, EMI)

JKM-0013NL (X, LED, BST, EMI) JT4-1121HL (4C, LED, BST, EMI)

J1012F21CNL (LED, EMI)

JK0-0114NL (LED, EMI)

JV026I21NL (BST,EMI) JKM-0009NL (LED, BST)

JT4-1121HL (LED, BST, EMI)

JT4-1173HL (4C, LED, BST, EMI)

J1012F21KNL (LED, EMI)

JK0-0116NL (LED, EMI)

JKM-0010NL (BST, EMI)

JTH-0020NL (LED, BST, EMI)

J1012F21RNL (LED, EMI)

JK0-0117NL (BST, EMI)

JKM-0011NL (BST)

JTH-0024NL (LED, BST, EMI)

J1026F01NL (LED)

JK0-0133NL (BST, EMI, PoE)

JKM-0200NL (LED, BST, EMI, PoE+)

J1026F01PNL (LED, EMI)

JK0-0136NL (LED, BST, EMI)

JKM-0201NL (LED, BST, EMI, 4P PoE+)

J1026F21CNL (LED, EMI)

JK0-0145NL (LED, BST, EMI, PoE)

JX0011D21BNL (X, LED, BST, EMI)

JD1-0003NL (BST)

JK0-0161NL (BST, EMI, PoE)

JX0011D21NL (X, BST, EMI)

JD1-0004NL (LED, BST, EMI)

JK0-0177NL (LED, BST, EMI, PoE+)

JX0026D21BNL (LED, BST, EMI)

JK0-0120NL (LED, EMI)

JK0-0187NL (LED, BST, EMI,)

JX0026D21NL (X, BST, EMI)

JK0-0125NL (LED, EMI, PoE)

JK0-0193NL (LED, BST, EMI, PoE)

JXR0-0001NL (BST, EMI)*

JK0-0144BNL (EMI, PoE)

JXD1-0001NL (X, LED, BST, EMI)

JXR0-0005NL (BST)*

JK0-0144NL (LED, EMI, PoE)

JXD1-0002NL (X, LED, BST, EMI)

JXR0-0011NL (LED, BST, EMI)*

JX10-0045NL (X, LED, BST, EMI) JXK0-0136NL (LED, BST, EMI)

JXR0-0015NL (LED, BST)*

JXD1-0005NL (X, BST, EMI, POE) JXK0-0190NL (LED, BST, EMI, PoE+)

JXR1-0001NL (EMI)*

JXR1-0005NL*

JXR1-0011NL (LED, EMI)*

JXR1-0015NL (LED)*

Abbreviations: LED = Light-Emitting Diode, BST = Bob Smith Termination, EMI = Electromagnetic Interference Shield Tabs, X = Extended Termperature, PoE = Power over Ethernet, PoE+ = Power
over Ethernet Plus, LP = Light-Pipe, 4C = 4Channel, 5C = 5Channel, 4P PoE = 4-Pair Power over Ethernet, O = offset, SC = Shield Collar
* Pin-in-Past Capable

Part Numbers

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

RJ45 Filtered Connectors

Number of Ports

1X1

PCB Mounting Angle

Vertical Mount (Top Entry)

PCB Mounting Type

THT

Data Rate

100Base-TX

1GBase-T

Part Numbers

JD2-0010NL (LED, BST)

JD3-0001NL

JD2-0011NL (LED, BST)

JD3-0002NL (LED)

JXD2-0010NL (X, LED, BST)

JXD3-0001NL (X)

JXD2-0011NL (X, LED, BST)

JXD3-0002NL (X, LED)

JXD3-0003NL (X, BST, PoE)

JXD3-0004NL (X, PoE)

RJ45 INTEGRATED CONNECTOR MODULES (ICM)

RJ45 Filtered Connectors

Number of Ports

1xN (2, 4, 6, 8)

Locking Taps (Up/Down)

Down

PCB Mounting Type

THT

Data Rate

100Base-TX

1GBase-T

10GBase-T

100Base-TX

1GBase-T

10GBase-T

Part Numbers

J1N-0011NL (1x4, PoE, BST, EMI)

J1N-0003NL (1x4,PoE+,LED,BST,EMI)

JT6-1473NL (1x4, 4C, LED, BST, EMI)

J8064D628ANL (1x2, LED, BST, EMI)

J0N-0011NL (1x4, LED, EMI)

Contact Pulse for availability

J1N-0012NL (1x4, EMI)

J1N-0004NL (1x4, PoE+, BST, EMI)

JT6-1480NL (1x4, 4C, 4P PoE, LED, BST, EMI) J8064D648ANL (1x4, LED, BST, EMI)

J0N-0012NL (1x4, LED, PoE, EMI)

J1N-0013NL (1x4, LED, BST, EMI)

J1N-0005NL (1x4, PoE+, BST, EMI)

J8064D668ANL (1x6, X, LED, BST, EMI) J0N-0015NL (1x4, LED, PoE+, EMI)

JG0-0031NL (1x2, PoE, LED, BST, EMI) J1N-0006NL (1x4, BST, EMI)

J8064D688ANL (1x8, LED, BST, EMI)

JG0-0032NL (1x4, PoE, LED, BST, EMI) J1N-0007NL (1x4, PoE, BST, EMI)

J8064E62NL (1x2, BST, EMI)

J1N-0008NL (1x4, PoE, LED, BST, EMI)

J8064E64NL (1x4, BST, EMI)

JG0-0023NL (1x2, LED, EMI)

J8064E66NL (1x6, BST, EMI)

JG0-0024NL (1x2, LED, EMI)

J8064E68NL (1x8, BST, EMI)

JG0-0025NL (1x4, LED, EMI)

JX80-0019NL (1x2, LED, BST, EMI)

JG0-0026NL (1x4, LED, EMI)

JX80-0022NL (1x4, X LED, BST, EMI)

JG0-0027NL (1x6, LED, EMI)

JX8064D668ANL (1x6, X, LED, BST, EMI)

JG0-0028NL (1x8, LED, EMI)

JX8064D688ANL (1x8, X, LED, BST, EMI)

JG0-0035NL (1x4, LED, BST, EMI)

JG0-0098NL (1x4, LED, BST, EMI)

JGL-0001NL (1x2, LED, BST, EMI)

JGL-0004NL (1x2, LED, BST, EMI)

JX1N-0033NL (1x4, X, PoE+, LED, BST, EMI)

JXGO-0098NL (1x4, X, LED, BST, EMI)

JXGO-0129NL (1x2, X, LED, BST, EMI)

Abbreviations: LED = Light-Emitting Diode, BST = Bob Smith Termination, EMI = Electromagnetic Interference Shield Tabs, X = Extended Termperature, PoE = Power over Ethernet,
PoE+ = Power over Ethernet Plus, LP = Light-Pipe, 4C = 4Channel, 5C = 5Channel, 4P PoE = 4-Pair Power over Ethernet, O = offset, SC = Shield Collar
* Pin-in-Past Capable

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

RJ45 INTEGRATED CONNECTOR MODULES (ICM)

RJ45 Filtered Connectors

Number of Ports

Locking Taps (Up/Down)

Up/Down

PCB Mounting Type

THT

Data Rate

100Base-TX & BST

1GBase-T & BST

10GBase-T

1GBase-T

10GBase-T

J20-0013NL (2x2, LED, EMI)

J0B-0364NL (2x4, PoE)

JT5-2270NL (2x2, 4c, LP, SC)

Contact Pulse for availability

JT5-2210NL (2x2, 4c, LP, SC)

J20-0114NL (2x4, LED, EMI)

J0B-0366NL (2x4, PoE)

JT5-2470NL (2x4, 4c, LP, SC)

JT5-2410NL (2x4, 4c, LP, SC)

J20-0115NL (2x6, LED, EMI)

J0B-0368NL (2x4, PoE)

JT5-2670NL (2x6, 4c, LP, SC)

JT5-2610CNL (2x6, 4c, LP, SC)

J20-0116NL (2x8, LED, EMI)

J0B-0384NL (2x4, PoE+)

JT5-2853NL (2x8, 5c, LP, SC)

JT5-2801NL (2x8, 5c, LP, SC)

JOB-0479NL (2x4, PoE, EMI)

J0B-0386NL (2x6, PoE+)

JT5-2870NL (2x8, 4c, LP, SC)

JT5-2810NL (2x8, 4c, LP, SC)

JOB-3561NL (2x2, PoE, EMI)

J0B-0388NL (2x8, PoE+)

JX20-0037NL (2x2, X, LED, EMI) JC0-0131NL (2x4)

JX20-0114NL (2x4, X, LED, EMI)

JC0-0132NL (2x6)

JX20-0115NL (2x6, X, LED, EMI)

JC0-0133NL (2x8)

JX20-0116NL (2x8, X, LED, EMI)

JC0-0351NL (2x2, LED)

JC0-1011NL (2x1, LED)

JC0-1015NL (2x1)

JXB-3041NL (2x4, X, PoE+, LED, EMI)

JXCO-0182NL (2x4, X, LED, EMI)

JXCO-0351NL (2x2, X, LED, EMI)

JXCO-1011NL (2x1, X, LED, EMI)

JXCO-1015NL (2x1, X, EMI)

Abbreviations: LED = Light-Emitting Diode, BST = Bob Smith Termination, EMI = Electromagnetic Interference Shield Tabs, X = Extended Termperature, PoE = Power over Ethernet,
PoE+ = Power over Ethernet Plus, LP = Light-Pipe, 4C = 4Channel, 5C = 5Channel, 4P PoE = 4-Pair Power over Ethernet, O = offset, SC = Shield Collar
* Pin-in-Past Capable

2xN (1, 2, 4, 6, 8)

Part Numbers

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

CONNECTOR PRODUCTS

Pulse Connectors

Pulse is a leader in the design and manufacturing of RJ45, RJ11 and CAT5e connectors. Pulse offers an extensive range of
connectors that support a wide variety of applications: networking (SFP+ and SFP cage and connector), server and PC (PCIe, USB,
thunderbolt connectors).
Pulse offers design support for OEM and ODM customers which reduces development time and ensures seamless integration of
design, development, production, and time-to-market. With manufacturing sites throughout Asia and a global network of sales offices.
Pulse understands the importance of performance and time-to-market and provides excellent worldwide logistics and technical
support for local and international customers.
For more information and detailed product data sheets, go to the Pulse website at

http://www.pulseelectronics.com/connectors

contact your local Pulse sales representative.

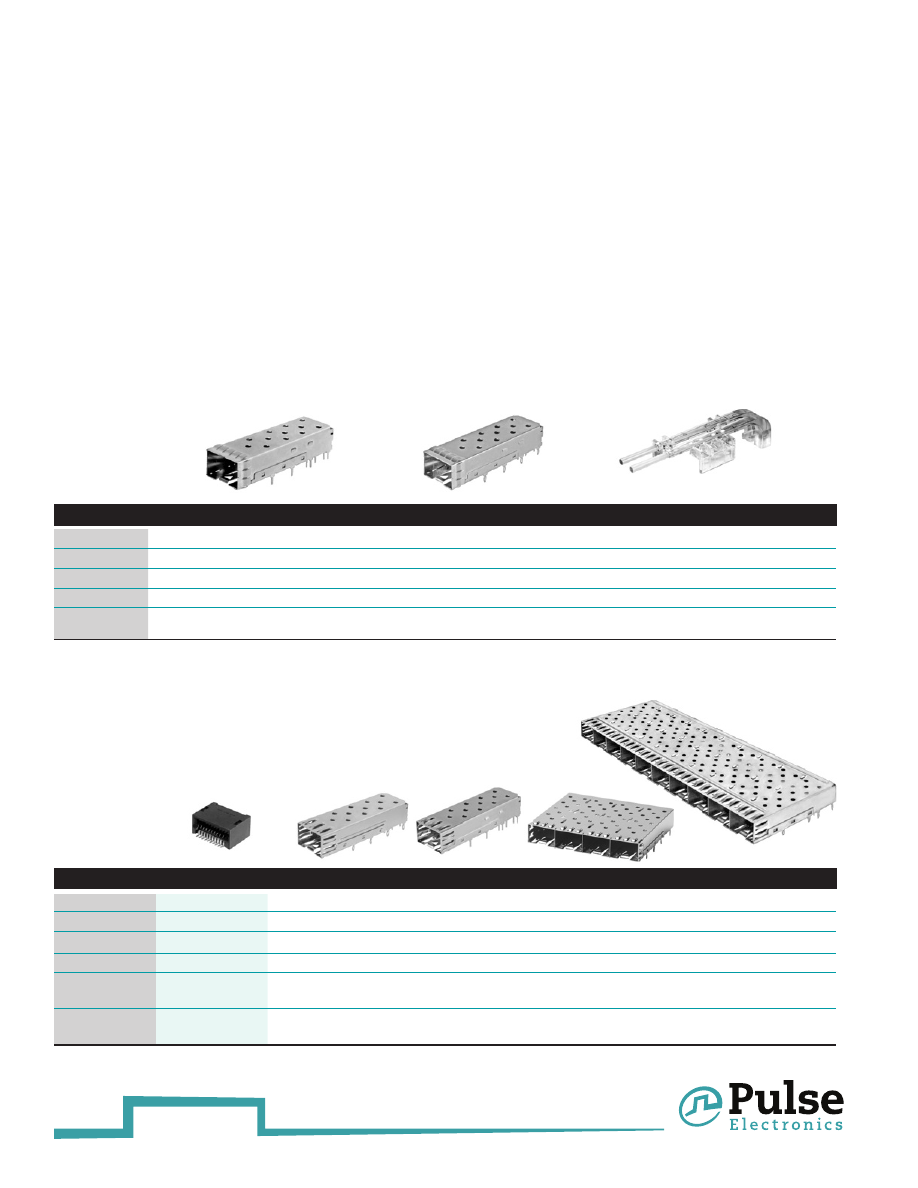

SFP+ Cage

Part Number

SFPP-1130-L

SFPP-1110-L

SFPLP001-L

Number of Ports

1X1

Connector Type

SFP+ Cage

Light Pipe for SFP+/SFP Cage

Package

Through Hole

Press Fit

—

For PCI (1° tilt)

Option

For PCI

Not for PCI

SFP Single and Ganged Cages and SFP Connector

Part Number

SFPC-2000-L

SFP0-1000-L

SFP0-1010-L

E81M0-WCYJEB-L

SFPCAGE006-L

Number of Ports

1X1

1X4

1X10

Connector Type

SFP Connector

SFP Cage

Package

SMT

Press Fit

THT

Press Fit

Solder
Temperature

255°C to 265°C

5-10 Seconds

—

255°C to 265°C

5-10 Seconds

—

Contact Mating
Area Plating

Gold 15 µ”

—

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

CONNECTOR PRODUCTS

SFP 2XN Stacked

Part Number

SFP0-3047-L

SFP0-3033-L

SFP0-3020-L

SFP0-3013-L

SFP0-3000-L

Number of Ports

2X1

2X2

2X4

2X6

2X8

Connector Type

SFP Cage & Connector

Package

Press Fit

Light Pipe Option

Without Light Pipes

With Light Pipes

Without Light Pipes

With Light Pipes

SFP+ 2XN Stacked

Part Number

SFPP-3140-L

SFPP-3131-L

SFPP-3120-L

SFPP-3110-L

SFPP-3100-L

Number of Ports

2X1

2X2

2X4

2X6

2X8

Connector Type

SFP+ Cage & Connector

Package

Press Fit

Light Pipe Option

With Light Pipes

With Inner Light Pipes

With Light Pipes

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

CONNECTOR PRODUCTS

USB 3.0

Part Number

E8199-002-01

E8199-030-01

E8110-001-01

E8110-032-01

Connector Type

A Type

B Type

Micro-AB

Micro-B

Package

THT

SMT

PCB Mount Angle

Vertical

Right Angle

Vertical

RJ Connectors, Single Port, Top Entry, No Shield

Part Number

E5266-000032-L

E5288-300042-L

E5288-P00B74-L

E5288-7007S2-L

Number of Positions

Number of Contacts

Package

THT

SMT

Panel Stop

YES

Contact Mating

Gold 6 µ”

Gold 30 µ”

Gold 6 µ”

Area Plating
Solder Temperature

230°C to 240°C

255°C to 265°C

5-10 Seconds

PCI Express

Part Number

E9001-001-01

E9002-002-01

E9001-003-01

E9003-004-02

Number of Pins

164

Package

THT

SMT

THT

PCB Mount Angle

Vertical

Right Angle

USB 3.1 Type C Receptical

Part Number

E8124-001-01

E8124-010-01

E8124-011-01

E8124-015-01

Data Rate

10G

Mid or Top Mount

Mid-Mount

Top-Mount

Package

SMT

SMT + THT

PCB Mount Angle

Right-Angle

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

CONNECTOR PRODUCTS

RJ Connectors, Shielded, Top Entry

Part Number

E5288-320044-L

E5288-32G145-L

E5288-YCCB01-L

Number of Positions

Number of Contacts

Number of Ports

1X1

1X8

2X4

Package

THT

RJ Connectors, Single Port, Side Entry, Surface Mount (SMT)

Part Number

E5344-002-03-L

E5366-FH05Y4-L

E5388-EH05Y2-L

Number of Positions

Number of Contacts

Tab

Down

Shield Option

No Shield

Contact Mating

Gold 30 µ”

Gold 6 µ”

Area Plating
Solder Temperature

255°C to 265°C

5-10 Seconds

5-10 Second

5-10 Seconds

Contact Mating
Area Plating

Solder Temperatue

Gold 30

”

230

�

C to 240

�

5-10 Seconds

230

�

C to 240

�

5-10 Seconds

230

�

C to 240

�

5-10 Seconds

Gold 50

”

Gold 3

”

RJ Connectors, Multi-Port, 1XN, Side Entry, Through Hole (THT)

Part Number

E5608-00C062-L

E5608-25C345-L

E5908-15A2J4-L

Number of Positions

Number of Contacts

Number of Ports

1X4

1X2

Tab

Down

Shield Option

No Shield

Nickel Shield

Contact Mating

Gold 6 µ”

Gold 50 µ”

Gold 30 µ”

Area Plating

Solder Temperature 230°C to 240°C

230°C to 240°C 230°C to 240°C

5-10 Seconds

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

CONNECTOR PRODUCTS

RJ Connectors, Multi-Port, 2XN, Side Entry, Through Hole (THT)

Part Number

E5908-0T0343-L

E5908-1VA143-L

E5908-0TG3U4-L

Number of Positions

Number of Contacts

Number of Ports

2X1

2X2

2X8

Shield Option

No Shield

Nickel Shield

No Shield

Contact Mating

Gold 15 µ”

Gold 30 µ”

Area Plating

Solder Temperature

255°C to 265°C

230°C to 240°C 255°C to 265°C

5-10 Seconds

RJ Connectors, Side Entry with LEDs, Through Hole (THT)

Part Number

E5J88-34L022-L E5J88-44AJ22-L

E5J88-14CJD2-L

E5J88-A4LJB4-L

E5J88-C4C2B2-L

Number of Positions

Number of Contacts

Number of Ports

1X1

1X2

1X4

2X1

LED Option

Green & Yellow

Green/Yellow

Yellow & Green

Green & Green

Green & Yellow

& Green/Yellow

Tab

Up Up Up

—

Shield Option

Nickel Shield

Contact Mating

Gold 6 µ”

Gold 30 µ”

Gold 6 µ”

Area Plating
Solder Temperature 230°C to 240°C 255°C to 265°C 255°C to 265°C

255°C to 265°C

230°C to 240°C

5-10 Seconds

RJ Connectors, CAT. 5, Through Hole (THT)

Part Number

E6588-200124-L

E6588-600P22-L

E6588-WA0B44-L

E6588-G5P124-L

E6588-A79124-L

Number of Positions

Number of Contacts

Number of Ports

1X1

2X2

2X4

LED Option

No LEDs

Green & Yellow

Green/Yellow & Green

No LEDs

Shield Option

No Shield

Nickel Shield

Contact Mating

Gold 30 µ”

Gold 6 µ”

Gold 30 µ”

Area Plating

Solder Temperature

230°C to 240°C

255°C to 265°C

5-10 Seconds

5-1 0 Seconds

5-10 Seconds

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

DSLAM

TELEPHONE SWITCH

CUSTOMER PREMISES

CENTRAL OFFICE OR REMOTE TERMINAL

LOCAL LOOP

CUSTOMER

DEMARCATION

POINT

XDSL

PHONE

xDSL INDUCTORS & TRANSFORMERS: 32-35
SPLITTER/FILTER MODULES: 36

TWISTED COPPER PAIR

VDSL2 SPLITTERS: 36

CO POTS SPLITTER

MODULAR SOLUTIONS: 36

BALUNS/COMBINER/SPLITTER: 24-25

CABLE HEAD-END

TELECOMMUNICATIONS

FIBER OPTICS
FTTx

MEDIA NETWORK ARCHITECTURE: PAGE GUIDE

RF INDUCTORS: 26-27
COMMON MODE CHOKES: 28-31

T1/E1 & T3/E3 TRANSFORMERS: 39 -41

SPLITTERS: 36

DIPLEXERS: 24

INDUCTORS: 26-27
DIPLEXER / TRIPLEXER: 24
COMMON MODE CHOKES:
28 -31

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

Pulse offers a comprehensive line of RF magnetic components for use in CATV/
Hybrid Fiber Coax applications for set-top boxes and gateway devices, for TELCO
TV in gateway devices, and FTTP ONT (optical network termination) units as well as
emerging in-home networking products. RF components are also used in medical
and industrial devices and equipment.
Platforms consist of filters that can also include integrated F-connectors,
transformers/baluns, single-stage filters, directional couplers and RF splitter/
combiners. Pulse provides both surface mount and through hole components that

have minimal insertion loss and excellent return loss to ease the development and manufacturing of today’s RF network equipment.

RF COMPONENTS

DIPLEX FILTERS with Integrated F-Connectors

Part

Low Pass

High Pass

Data

Number

(MHz)

Sheet

DOCSIS System

C6036NL

10-55

90-770

C236

C6086NL

5-65

108-860

C236

MoCA Application

C6131SNL

5-1002

1125-1525

C250

C6058NL

975-1025

1125-1525

C252

C6141NL

975-1025

1125-1525

C252

C6262NL

5-1002

1125-1675

C6262NL

CX6155NL

5-870

975-1525

C253

DIPLEX FILTERS with Integrated F-Connectors

Part

Low Pass

High Pass

Data

Number

(MHz)

Sheet

IC House RF Front End Baseband Triplexer Diplexer RF Transformer

Controller

Balun

MoCA IC Cross Reference

EN2x10

C6058NL

Entropic EN1010

EN2x11

C6113NL CX6155NL CX2163LNL

EN3x30

C6131SNL

EN3x11

Pulse has been a participating member

Since 2003

TRIPLEX FILTERS with Integrated F-Connectors

Part

Low Pass

Band Pass

High Pass

Data

Number

(MHz)

Sheet

C6113NL

5-42

1125-1675

C257

C6224NL

5-42

1125-1675

C6224NL

RF, BROADBAND, CATV, TELCO TV APPLICATIONS

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

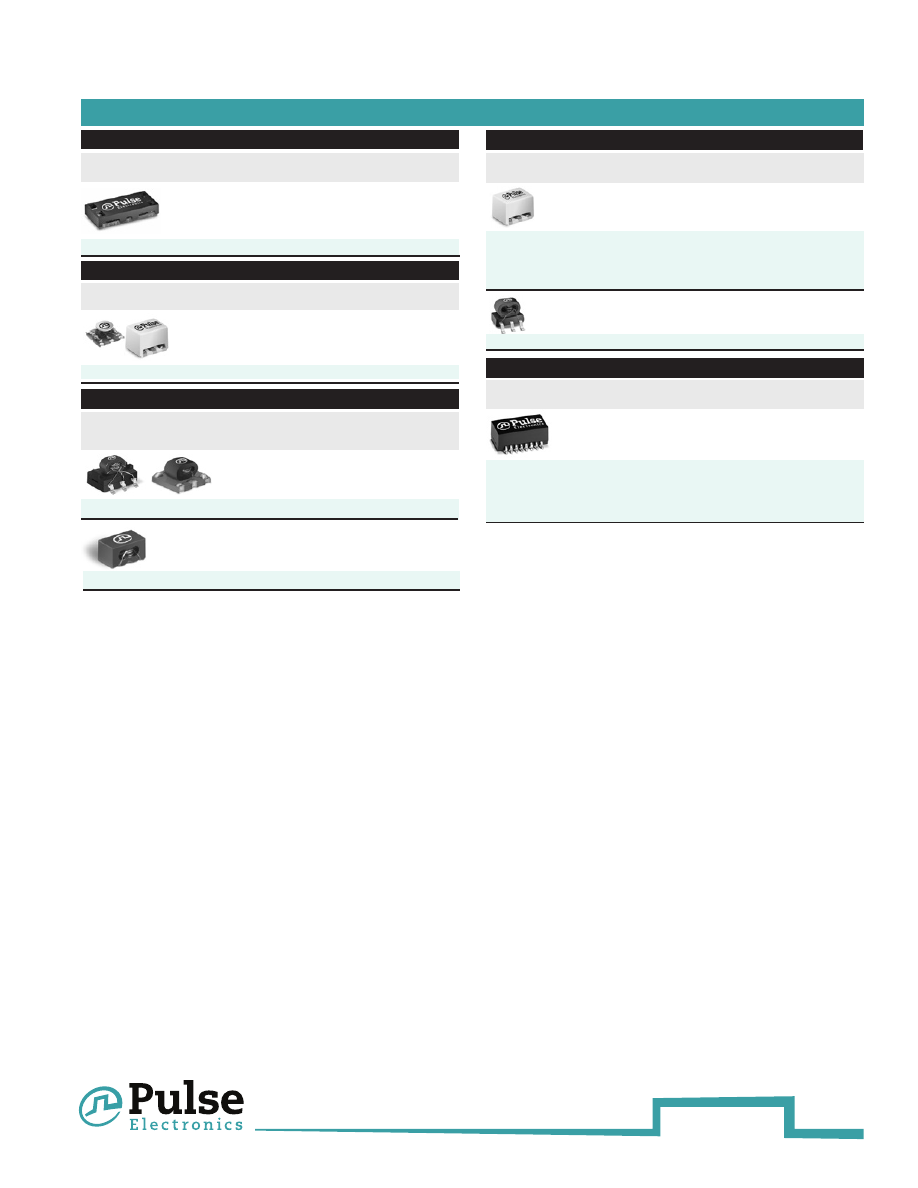

RF COMPONENTS

RF Splitter/Combiners: 2-Way, 0°

C4036NL 5-1000

0.48

C241

Part

Frequency Isolation Return Loss Insertion Loss Data

Number

(MHz)

(dB TYP)

(TYP)

(dB TYP)

Sheet

RF, BROADBAND, CATV, TELCO TV APPLICATIONS

Diplexer Filters

CX6020NL 5-42/54-864

1.5

14/9

SMT

C248

Part

Frequency

Insertion Loss Return Loss Package Data

Number

(MHz)

(dB)

Style Sheet

Directional Couplers

A5807LNL

5-900

10.0

1.1

A102

A5808LNL

5-900

7.5

1.6

A102

A5809LNL

5-900

12.0

0.9

A102

A5816LNL

5-900

16.0

0.8

C3027NL

5-900

16.0

0.6

C207

Part

Frequency

Coupling Nom. Mainline Loss Data

Number

(MHz)

(

)

(dB ± 0.5)

(dB TYP)

Sheet

Fibre Channel (SAN), Dual Serial Data Interface Transformers

Part

Turns

Package

Data

Number

Ratio

Style

L/W/H (in.)

Sheet

A6801NL

1CT:1CT

16-pin SOIC

.500/.295/.220

A100

A6802NL

1:1

16-pin SOIC

.500/.295/.220

A100

C2267NL

1:1

16-pin SOIC

.500/.270/.220

C2267NL

C2268NL

1:1

16-pin SOIC

.500/.270/.220

C2268NL

1. SOIC

= 50 mil pitch lead spacing

2. NL =

Lead-free

C2139NL

1:1

—

5-1000

C244

Part

Impedance

Bandwidth (MHz TYP)

Data

Number

Ratio

3 dB

2 dB

1 dB

Sheet

CX2163LNL

1:1 800-1900 — 900-1400

C203

RF Transformers/Baluns

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

RF Chip Inductors

Miniature, Wirewound Components

Pulse RF chip inductors provide high-quality filtering in mobile phones, wireless applications,

digital cameras, disk drives and audio equipment. The inductors are also used in multi-purpose

RF modules for telecom, automotive and consumer electronic applications. These RF chip

inductors use wirewound technology with ceramic or ferrite cores in industry standard|

sizes and footprints.
From the ultra-small, low-profile 0402 series, which helps high-density layouts, to the

1206 series with up to 68 µH inductance, Pulse is able to meet all your needs in a

wide range of applications. These series are matched in performance to industry

competition with full compatibility and operating frequency ranges.

SELECTION GUIDE

Electrical Specifications

Part

Number

Size

Construction

Inductance

(nH)

CD Series:

Standard 100% compatible with other market leaders.

CM Series:

Offers improved electrical performance or alternative inductance values to Pulse CD series.

CQ Series:

Offers high Q and high Idc series.

FT Series:

Ferrite core offers higher inductance values.

0402CD

0603CD

0805CD

0805CM

0805FT

1008CD

1008CM

1008CQ

1206CD

0402

0603

0805

1008

1206

Wirewound

1.0 to 120

1.6 to 390

2.8 to 1500

3.3 to 820

1000 to 68000

9.7 to 8200

10 to 4700

4.1 to 390

3.3 to 1200

100

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

Wire-Wound RF Chip Inductors

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Series

Parts per

Reel

0402CD

3000

178

14.4

8.4

1.1

0.3

0603CD

2000

178

14.4

8.4

1.7

0.3

0805CD

2000

178

14.4

8.4

2.1

0.3

0805CM

2000

178

14.4

8.4

2.1

0.3

0805FT

2000

178

14.4

8.4

2.1

0.3

1008CD

1600

178

14.4

8.4

2.6

0.3

1008CM

1600

178

14.4

8.4

2.6

0.3

1008CQ

1600

178

14.4

8.4

2.6

0.3

1206CD

3000

330

101

18.4

12.4

2.0

0.4

Notes:

P1, P2 and P3 are same for all chip inductor series. Keeping the same dimensions for guide hole and pocket pitch (P1), pocket pitch (P2), guide hold pitch (P3)

and tape width (8mm) for all series, enables the packaging machine to maintain the same settings while changing models. The only difference between the series are
the parts per reel which contributes to a different length of tapes/reel per model.

Tape and Reel Specifications

Reels Dimensions (mm)

Tape Dimensions (mm)

1. To

order directly from Pulse, there are local Pulse addresses and telephone numbers

listed on the web at http://www.pulseelectronics.com/index.php?415.

2. Find

a Pulse authorized distributor or representative in your area on the Pulse

website at:

http://www.pulseelectronics.com/index.php?415

3. Part

numbers shown in this section are RoHS compliant. No additional suffix or

identifier is required.

PART NUMBER ORDERING GUIDE

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

ChipChokes

ChipChoke

™

CCMC Series for USB and LVDS

Pulse ChipChokes are designed to eliminate virtually all common mode noise
in high-speed, differential mode signal transmission applications such as USB
2.0, IEEE1394 and LVDS (Low Voltage Differential Signaling).
These dual-wound ChipChokes have an industry standard footprint and low
DC resistance. They are available in nine impedance values to meet your
specific requirements.
To select the appropriate common mode choke (ChipChokes) for your application, “2-Line Chip-type Common Mode Chokes” data
sheet, W712, is available at

http://www.pulseelectronics.com/index.php?848

. Then choose the title “RF Inductors” and a list will

appear below it. Locate the W712 link and the PDF will download.

Part Number Legend

Schematic

D-

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

0805CCMCXXXSTS - Magnetic Shield - 0805 Size

PE-0805CCMC670STS

0.25

400

125

PE-0805CCMC900STS

0.35

330

125

PE-0805CCMC121STS

120

0.30

370

125

PE-0805CCMC181STS

180

0.35

330

125

PE-0805CCMC261STS

260

0.40

300

125

PE-0805CCMC361STS

360

0.45

280

125

1. ChipChoke

part numbers are RoHS compliant. No additional suffix or identifier is required.

2. These

parts are found on data sheet W712 on the Pulse website: www.pulseelectronics.com. Locate the data sheet link on the home page.

Part Number

1, 2

Common Mode

DC Resistance Rated Voltage Rated Current

Withstanding

Insulation

Standard

Impedance

(

MAX)

(

)

(mA MAX)

Voltage (

)

Resistance

Tolerance (25%)

@ 100 MHz (

)

MIN)

ChipChokes CCMC SERIES FOR USB and LVDS

(Low Voltage Differential Signaling)

NOTE:

Referenced part is Standard Tolerance, 10% (K). To order parts with optional tolerances, see the Part Number Ordering Guide on the first page of this section.w

Surface Mount

ITEM

PART NUMBER

Z-1

PE-0805CCMC670STS

Z-2

PE-0805CCMC900STS

Z-3

PE-0805CCMC121STS

Z-4

PE-0805CCMC181STS

Z-5

PE-0805CCMC261STS

Z-6

PE-0805CCMC361STS

Common Mode

ITEM

PART NUMBER

Z-1-1

PE-0805CCMC670STS

Z-2-1

PE-0805CCMC900STS

Z-3-1

PE-0805CCMC121STS

Z-4-1

PE-0805CCMC181STS

Z-5-1

PE-0805CCMC261STS

Z-6-1

PE-0805CCMC361STS

Differential Mode

10000

1000

100

1000

100

0.1

ChipChokes

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

1206CCMCXTS - Magnetic Shield - 1206 Size

PE-1206CCMC900STS

0.30

370

125

PE-1206CCMC161STS

160

0.40

340

125

PE-1206CCMC261STS

260

0.50

310

125

PE-1206CCMC601STS

600

0.80

260

125

PE-1206CCMC102STS

1000

1.00

230

125

PE-1206CCMC222STS

2200

1.20

200

125

1. All

ChipChoke part numbers are RoHS compliant. No additional suffix or identifier is required.

2. These

parts are found on data sheet W712 on the Pulse website: www.pulseelectronics.com. Locate the data sheet link on the home page.

Part Number

1, 2

Common Mode

DC Resistance

Rated Voltage

Rated Current

Withstanding

Insulation

Standard

Impedance

(

MAX)

)

(mA MAX)

Voltage (V

)

Resistance

Tolerance (25%)

@ 100 MHz (

)

(MW MIN)

ChipChokes CCMC SERIES FOR USB and LVDS

(Low Voltage Differential Signaling)

NOTE:

Referenced part is Standard Tolerance, 10% (K). To order parts with optional tolerances, see the Part Number Ordering Guide on the first page of this section.

Surface Mount

ITEM

PART NUMBER

Z-1

PE-1206CCMC900STS

Z-2

PE-1206CCMC161STS

Z-3

PE-1206CCMC261STS

Z-4

PE-1206CCMC601STS

Z-5

PE-1206CCMC102STS

Z-6

PE-1206CCMC222STS

Common Mode

ITEM

PART NUMBER

Z-1-1

PE-1206CCMC900STS

Z-2-1

PE-1206CCMC161STS

Z-3-1

PE-1206CCMC261STS

Z-4-1

PE-1206CCMC601STS

Z-5-1

PE-1206CCMC102STS

Z-6-1

PE-1206CCMC222STS

Differential Mode

10000

1000

100

0.1

1000

100

ChipChokes

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

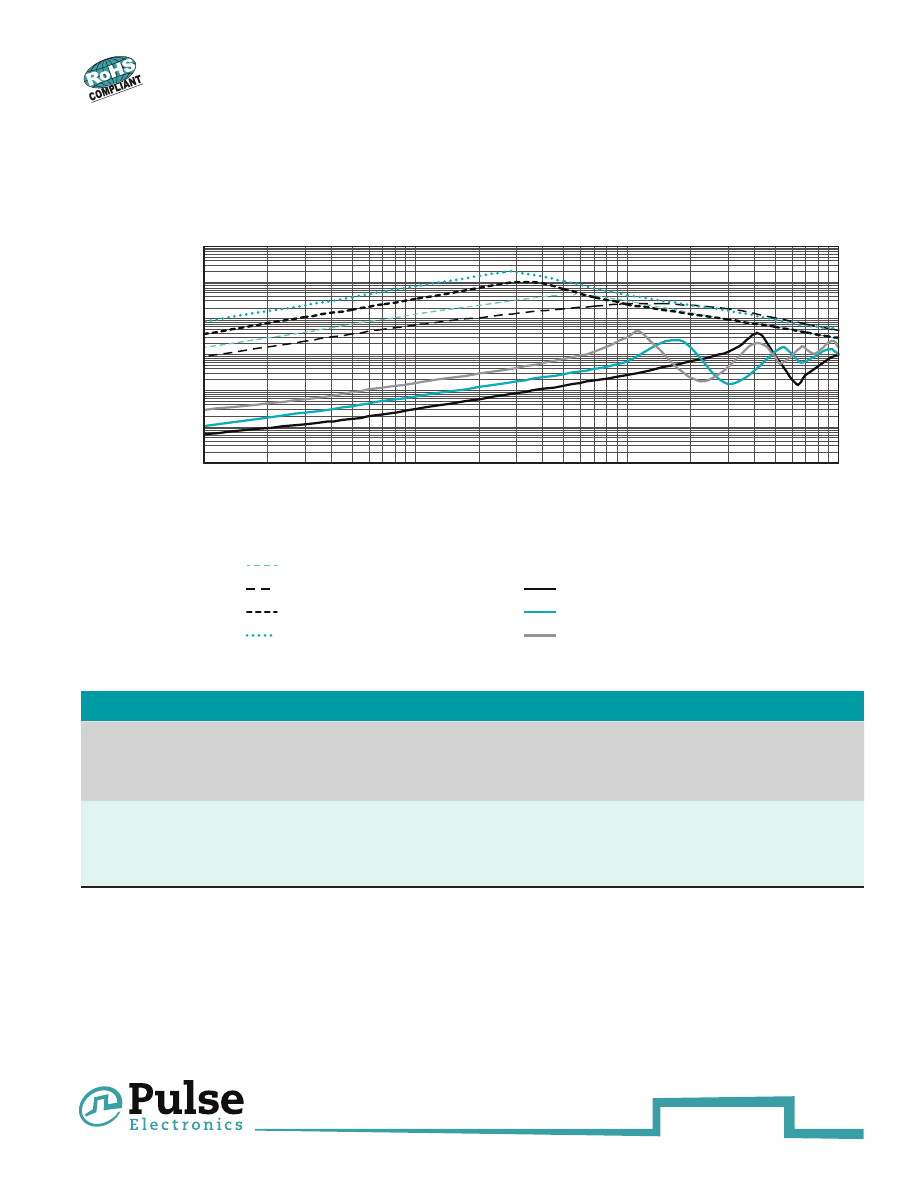

ChipChokes

PE-1812ACCXXXSTS

0.1

100

1000

10000

100000

100

1000

Frequency (MHz)

danc

(

Ω)

PE-1812ACC220STS Commom Mode

PE-1812ACC220STS Differenal Mode

PE-1812ACC110STS Commomn Mode

PE-1812ACC110STS Differenal Mode

PE-1812ACC510STS Common Mode

PE-1812ACC510STS Differenal Mode

PE-1812ACC101STS Common Mode

PE-1812ACC101STS Differenal Mode

Impedance vs. Frequency

ChipChokes ACC Series For CAN BUS application

Part Number

Common mode Impedance

(10MHZ)

Inductance

(uH)

Standard

Tolerance

RDC

(

Max)

IDC

(mA MAX)

Min

Typ

PE-1812ACC110STS

300

600

+50/-30%

0.5

0.36

PE-1812ACC220STS

600

1200

+50/-30%

0.6

0.31

PE-1812ACC510STS

1500

3500

+50/-30%

1.0

0.23

PE-1812ACC101STS

3000

7500

100

+50/-30%

2.0

0.20

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

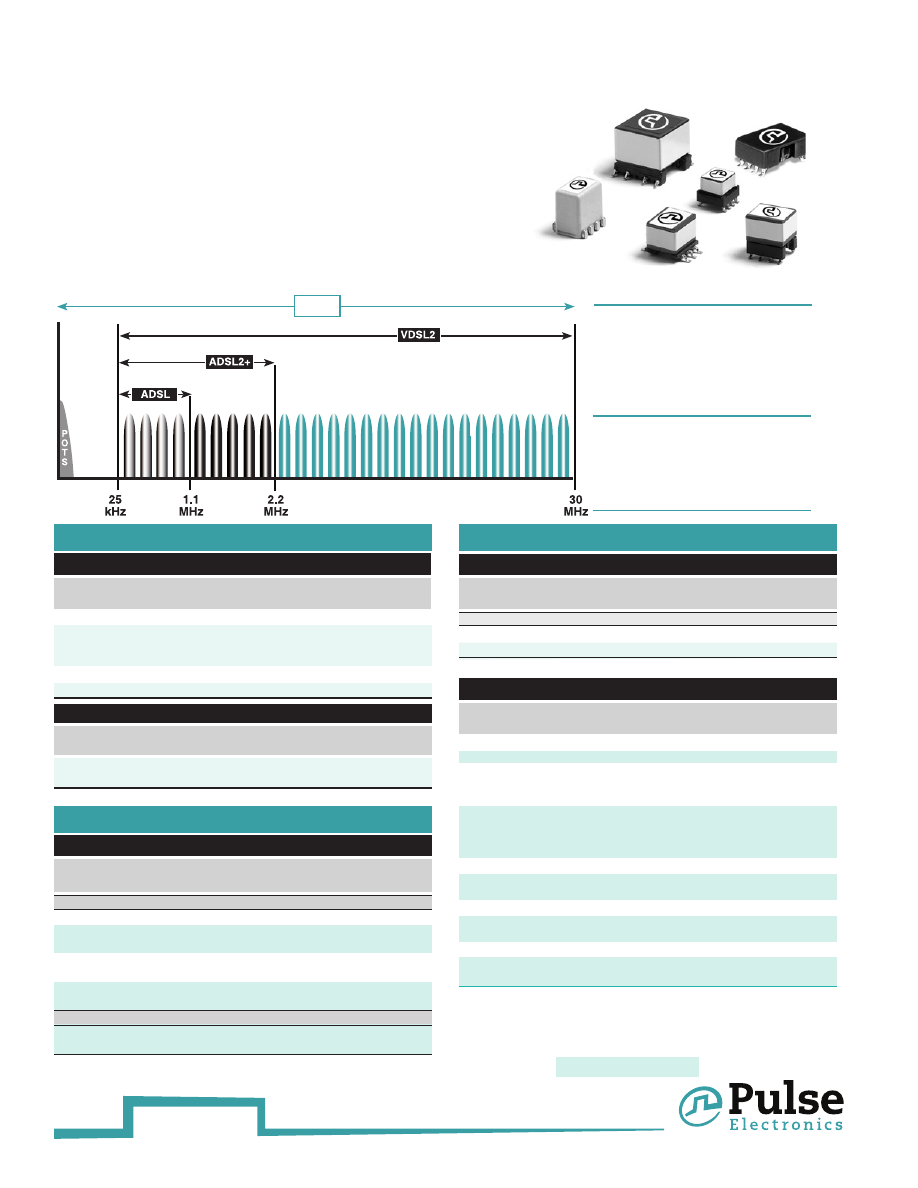

ADSL uses frequencies up to 1.1 MHz.
But, later variations ADSL2+ and VDSL2
make use of a wider frequency band in
order to achieve higher data rates. Use of
these higher frequencies requires higher
performance components.

VDSL2 Vectoring technology will easily
provide speeds of 75-100Mbps.
G.Fast technology targets speeds of
150Mbps to 1Gbps, dependent on loop
length.

Broadband has come a long way in the past few years. Pulse continues to lead the way
with a broad range of components that enable twisted-pair copper, fiber and coaxial cable
to deliver high-speed services to homes and businesses. Pulse components are also used
in cable modems and the consumer electronics that provide home networking services.

Our high-performance transformers, inductors and splitter filter modules support ADSL,
VDSL, Vectored VDSL, GFast, VoIP, CO/CPE splitters, and home phoneline and power line
networks. These transformers are designed to exceed ANSI and ETSI standards, and have
excellent THD performance and small footprints. Surface mount models are available upon
request.Our splitter/filter modules are part of the SMART™ family, offering convenient and
cost effective design solutions.

HOME NETWORKING PRODUCTS

Part

Primary

Secondary

Isolation

Data

Number

Application

Voltage

Sheet

Filters

CopperGate HPNA3 Chipset

B6104NL

HPNA

—

1500

B891

B6105NL

HPNA

—

1500

B891

B6106NL HPNA

—

1500 B891

Entropic: c.LINK™

C6039

MoCA

—

— C250

PE-68629

UPA/PLC

1:1

3000

T606

B6080

HomePlug

1:1

250

2000

B805

Part

Application Turns Inductance Isolation Data

Number

Ratio

(μH MIN)

Voltage (

) Sheet

Transformers

500 kHz

1 MHz

10 MHz

B2005NL

1500

B902

B2013NL

1500

B902

BX8213NL

500

B829

B4001NL

1500

B912

B4003NL

35 1500 B912

BX4053NL

1500 B912

PE-65885NL

500

T626

30 kHz

1 MHz

2 MHz

BX8191NL 30

1500 B824

BX8192NL

1500 B824

1. To reduce

common mode noise from AM or HAM radio

2. Dual

For ADSL/VDSL

Part

Common Mode

Isolation

Data

Number

Attenuation (dB TYP)

Voltage (

rms

) Sheet

COMMON MODE CHOKES

VDSL TRANSFORMERS

100 kHz - 20 MHz 300 kHz - 30 MHz

TX RX

Broadcom: BCM 6010 Chipset

Turns Ratios

B4008

—

0.50

2000

2:1

1:1

B925

VDSL Hybrid Transformers

Part

Insertion Loss

Isolation

Impedance

Data

Number

(dB MAX)

Voltage

rms

)

(

)

Sheet

xDSL & HPN PRODUCTS

Part Inductance Isolation Voltage Turns Ratio Data

Number

(μH ±10%)

rms

)

TX RX Sheet

General Use

B4004

—

1500

1CT:1CS

—

B975

B4006

—

3000

1:1

—

B975

B4023

—

3000

1:1CT

—

B975

Broadcom: BCM 6315 Chipset

B4020

190

3000

1CT:1CT

—

B981

B4021

190

1500

1CT:1CT

—

B981

BX4055

190

1500

1:1

—

B981

BX4056

190

1500

1:1.16

—

B981

Broadcom: VDSL2 BCM 6505 Chipset

BX4157L

420

1500

1:2

—

B894

BX4167L

100

1500

1:2

—

B894

Conexant: VDSL2 Accelity Chipset

BX4131W

800

1500

2:1

—

B877

BX4120L

800

1500

1.1:1

—

B877

Ikanos: SmartLeap Chipset

BX4052W

1.30

1500

3:1 — B831

BX4082W

1.30

1500

3:1 — B831

1. BX4052W

supplementary insulation;

BX4082W

operational insulation per

IEC 950 250 V

r ms

VDSL Line Transformers & Chipsets

xDSL

SMT -

Surface Mount Package

THT -

Through Hole Package

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

xDSL & HPN PRODUCTS

Part Inductance Isolation Voltage Turns Ratio Data

Number

(μH ±10%)

rms

)

TX RX Sheet

Ikanos: VDSL Chipset

BX4154L

340

1500

1.5:1

—

B887

BX4185L

340

1500

1.86:1

—

B887

BX4187L

100

1500

1.86:1

—

B887

BX4197L

470

1500

1.86:1

—

B887

Infineon: VDSL5000i and 6000i CO/CPE* Chipsets

BX4102W

2000

1500

4:3

—

B874

BX4104W

770

1500

1:1.16

—

B875

BX4107

800

1500

4:3

—

B876

Infineon: VDSL2 Chipsets

BX4175WNL 270

1500

4:3 — B875

Metalink: VDSL Chipset

B4033

1000

1500

1:3

2:3

B998

B4034

1600

1500

1:3.5

2:3.5

B998

Metalink: MTV9141 Chipset

B4064

1130

1500

1:3.6

2:3.6

B846

Metalink: MTV9142 Chipset

BX4081W

280

1500

1:3

2:3.6

B846

Texas Instruments TNETD8000 Chipset

B4020

190

3000

1CT:1CT

—

B981

B4021

190

1500

1CT:1CT

—

B981

VDSL Line Transformers & Chipsets

VDSL TRANSFORMERS

(continued)

Part

Passband Insertion Return Impedence

Data

Number Frequency Loss Loss (

)

Sheet

(dB MAX)

(dB MIN)

VDSL Filter Solutions

Quadport CO Filter Modules for 2-band, 10Base-S Infineon Chipsets

BX4037

1 MHz–7.9 MHz

1.5

270 B809

BX4038

1 MHz–7.9 MHz

1.5

270 B809

Single Port CPE Filter Modules for PEB22811/12/22 Infineon Chipsets

BX4039

1 MHz–7.9 MHz

1.0

270 B819

BX4040

1 MHz–7.9 MHz

1.0

270 B819

Quadport CO Filter Modules for 4-band Plan 998 Infineon Chipsets

BX4041A

0.9 MHz–11.9 MHz

—

270 B832

BX4044

0.9 MHz–11.9 MHz

—

270 B832

Single Port CPE Filter Modules for 4-band Plan 998 Infineon Chipsets

BX4042

0.13 MHz–11.9 MHz

—

270 B833

BX4045

0.13 MHz–11.9 MHz

—

270 B833

1. BX4037

for ADSL over ISDN,

BX4038

for Smartphone applications

2. Including

HPF splitter, hybrid transformer, TX & RX separation filters and

common mode chokes

3. Including

HPF splitter, hybrid transformer, TX & RX separation filters

4. BX4039

for over ISDN,

BX4040

for Smartphone applications

VECTORED VDSL TRANSFORMERS

Vectored VDSL Transformers & Chipsets

Part

Number

Application

Isolation

Voltage

RMS

)

Turns Ratio

Chip-Line

Inductance

(μH ±10%)

Data

Sheet

Broadcom: BCM65x00 Chipset family

BX4285LNL

1500

1.4:1

430

T696

BX4286LNL

1500

1.4:1

100

T696

Lantiq: Vinax V3 Chipset Class AB Line Driver

BX4290LNL

1500

1.25:1

470

T697

Lantiq: Vinax V3 Chipset Class H Line Driver

BX4289LNL

1500

1.4:1

470

T698

G.FAST TRANSFORMERS

G.Fast Transformers & Chipsets

Part

Number

Application

Isolation

Voltage

RMS

)

Turns Ratio

Chip-Line

Inductance

(μH)

Data

Sheet

Sckipio: SCK1001/DFE, SCK1002/AFE

BX4503NL

CPE

1500

1.25:1

60 Min

B1010

BX4504NL

CPE

1500

1.25:1

60 Min

B1010

Broadcom: BCM652xx, BCM659xx, And Microsemi Le8728 Chipsets

BX4500LNL

1500

1:1

10 +/-10%

T709

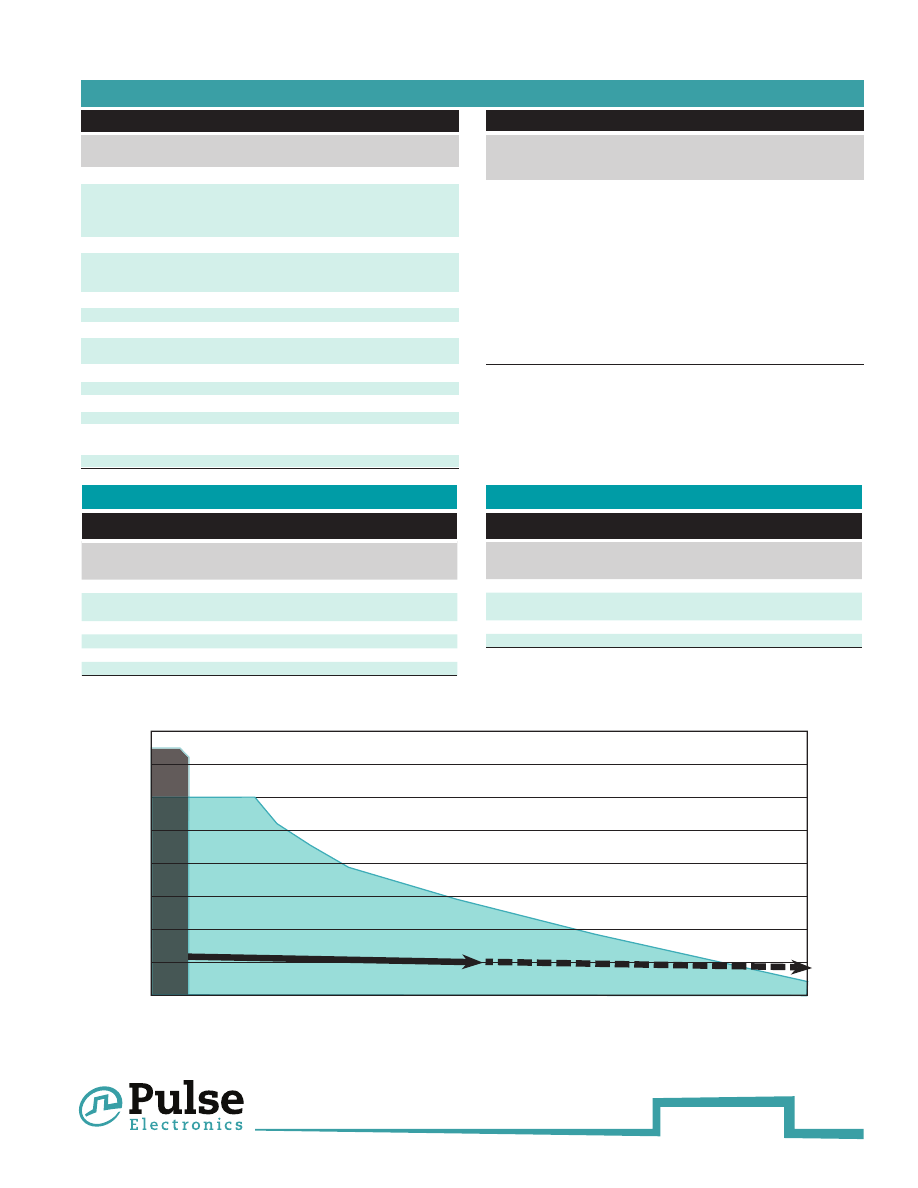

VDSL 2 vectored

G.fast vectored

106

212

Spec

tral efficienc

y (incl. overhead) (Bits/s/H

More bandwidth

Frequency (MHz)

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

Analog Devices: AD20msp910/AD20msp918 ADSL Chipsets

B2031

CO/CPE

1500

1:1

5000

B906

B2032

CO/CPE 1500

1:1 5000 B906

B2104

CO/CPE

1500

1:1.27

2000

B950

B2105

CO/CPE 1500 1:1.27 2000 B950

Analog Devices: AD20msp930 ADSL Chipset

B2136

1500

1:1.1

1750

B955

B2137

CO 1500 1:1.1 1750 B955

B2162

CO 1500 1:1.1 1750 B957

B2168

ADSL/ISDN CO

1500

1:1

100

B955

B2188

ADSL/ISDN CO

1500

1:1

100

B955

Analog Devices: Eagle I & Eagle II

BX2506J

CPE

1500 1:2.29 1200 B840

Broadcom: BCM6410/20 - ADSL Bladerunner Chipsets

BX2303WA

ADSL/ISDN CO 1500

1:1.41

100

B811

BX2302WA

1500

1:1.41

410

B811

BX2619W

1500

1:2

420

B811

BX2644L

1599

1:2

420 B811

Broadcom: BCM6335 and BCM6345

BX2483W

CPE

1500

1:2

410

B847

Broadcom: BCM6335 and BCM6338

BX2542L

CPE

1500 1:4.25/1:1 400 B848

BX2606LNL

ADSL/ISDN CPE 1500

1:4.25/1:1

100

B848

Centillium: CT-L50SC04/CT-L50ST81, CT-L21SC08/CT-L41SC04 ADSL Chipsets

B2178

CO 1500 1:1 450 B979

B2189

CO/CPE 1500

1:1.8

450 B979

Centillium: CT-L21ST30, CT-L22Sx15/30, CT-L4xSx15/30, CT-L5/L6xSx81 ADSL Chipsets

BX2353

CPE

1500 1:2.13 5000 B999

BX2358

CPE

1500

1:1

5000 B999

BX2511L

1500

1:0.9

1000 B862

BX2512J

1500

1:0.9

1000 B862

1. When

ordering

Tape & Reel on SMT parts, add a“T” suffix to the part number.

3. Alternative

footprint options are on the data sheet.

ADSL TRANSFORMERS

ADSL Transformers & Chipsets

Part

Application* Isolation Turns Ratio Inductance

Data

Number

Voltage (V

r ms

) Chip-Line

(μH ±10%)

Sheet

ADSL Transformers & Chipsets

Part

Application* Isolation Turns Ratio Inductance

Data

Number

Voltage (V

r ms

) Chip-Line

(μH ±10%)

Sheet

Centillium: Palladia CPT73X01 CPE ADSL Chipsets

BX2460

CPE 1500

1:2.5 5000 B828

BX2462

CPE 1500

1:1 5000 B828

Centillium: CT-L53/63/73SC08 ADSL Chipsets

BX2347

1500

1:1

850

B994

BX2348

CO 1500

1:1

850 B994

BX2380

1500

1:1.8

850

B994

BX2349

CO 1500 1:1.8 850 B994

Centillium: MAXIMUS ADSL Chipsets

BX2349

CO 1500 1:1.8 850 B994

BX2538L

1500

1:1.2

850 B839

Conexant: ADSL G7000 DMT Chipset

BX2564W

1500

1:0.92

850 B867

B2139

CPE

1875

1:1

407

B958

Conexant: Titanium Forte ADSL Chipsets

BX2367

CO 1500

1:2

474 B997

BX2369JB/WA

1500

1:1.41

474

B991

BX2372JB/WA

1500

1:1.15

474

B991

Conexant: Jupiter, Saturn G16, G18, Octane ADSL Chipsets

B2414JB

1500

1:0.95

750

B991

Conexant: Octane, G24 ADSL Chipsets with Intersil Drivers

B2517JB

1500

1:0.95 760 B836

BX2485L

1500

1:0.9 1000 B836

BX2575L

1500

1:0.9 1000 B864

Conexant: Octane Plus ADSL Chipsets with Intersil Drivers

BX2511L

1500

1:0.9 1000 B862

BX2512J

1500

1:0.9 1000 B862

1. When

ordering

Tape & Reel on SMT parts, add a“T” suffix to the part number.

Continued on next page

SMT -

Surface Mount Package

THT -

Through Hole Package

*CO

- Central Office,

CPE

- Customer Premises Equipment

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

xDSL & HPN PRODUCTS

ADSL TRANSFORMERS

(continued)

ADSL Transformers & Chipsets

(continued)

Part

Application* Isolation Turns Ratio Inductance

Data

Number

Voltage (V

r ms

) Chip-Line

(μH ±10%)

Sheet

Conexant: Octane, G24 ADSL Chipsets with Legerity Drivers

BX2510W

1500

1:0.408

750

B855

BX2516W

1500

1:0.408 1100 B855

BX2572W

ADSL/ISDN CO 1500 1:0.408 100 B854

Conexant: Viking and Café CPE ADSL Chipsets

BX2577L

CPE

1500

1:4/1:2

700

B841

Infineon: PEB22716 - GEMINAX ADSL Chipset

BX2274J

CO 1500 1.33:1 1400 B812

BX2569L

1500

1.31:1 1400 B895

Infineon: Amazon ADSL Chipset

BX2913LNL

CPE

1500

1:4.2/1:2

1400

B889

BX2917LNL

ADSL/ISDN CPE 1500 1:3/6/1:1.85 200

B889

Texas Instruments: TNETD4000C ADSL Chipset

B2132

CO 1500 1:1.95 1500 B954

Texas Instruments: TNETD4500x ADSL Chipset

B2243

CO 1500 1:2 400 B823

B2133

ADSL/ISDN CO

1500

1:2

B823

Texas Instruments: AC5, AC6 Chipset

B2205

1500

1:1.9

400

B985

BX2375

ADSL/ISDN CO

1500

1:1.9

92.5

B985

Texas Instruments: AC7 CO Chipset

BX2513W

1500

1:1.11

400

B873

Texas Instruments: AP5, AR5, and AU5 Chipsets

BX2361

CPE

1500

1:2

1500

B988

BT2361

CPE

1500

1:2

1500

B806

BX2382

CPE

1500

1:2

1500

B988

Texas Instruments: AP7, AR7, and AU7 Chipsets

BX2479H CPE

1500

1:2

1500 B834

BX2479W

CPE

1500

1:2

1500

B834

BX2243H ADSL/ISDN CPE

1500

1:2

400

B834

1. When

ordering

Tape & Reel on SMT parts, add a“T” suffix to the part number.

2. ±5%

3. Alternative

footprint options are on the data sheet.

ADSL INDUCTORS

Inductors for use in ADSL Filters

B2023

6.0 mH ±5%

4.0

1500

THT

B902

B2024

4.0 mH ±5%

3.0

1500

THT

B902

B2025

3.0 mH ±5%

2.5

1500

THT

B902

B2026

10.0 mH ±5%

6.0

1500

THT

B902

B2086

4.0 mH ±10%

3.6

1500

SMT

B902

B2113

2.25 mH ±10%

2.25

500

THT

B902

B2114 1.425 mH ±10%

2.25

500

THT

B902

B2116

1.65 mH ±10%

2.25

500

THT

B902

B2117

1.35 mH ±10%

2.25

500

THT

B902

B2118

0.8 mH ±10%

2.0

500

THT

B902

B2184

91.0 µH ±7%

3.13

500

SMT

B843

B2198

74.06 µH ±7%

5.0

500

SMT

B843

BX2128

500 µH ±7%

12.0

500

SMT

B843

BX8082 140.0 µH ±7%

6.0

500

SMT

B843

Inductors for use with STMicroelectronics DynaMiTe Chipset

B2061

282.5 µH ±5%

1.0

500

THT

B963

B2062

238.5 µH ±5%

0.76

500

THT

B963

B2099

500.5 µH ±10%

2.10

500

THT

B963

B2100

91.0 µH ±10%

0.85

500

THT

B963

B2101

96.0 µH ±5%

0.42

500

THT

B963

BX8115

500 µH ±7%

9.0

500

SMT

B843

BX8118

282 µH ±7%

9.0

500

SMT

B843

BX8153

5.0 µH ±7%

0.7

500

SMT

B843

BX8253W

185 µH ±7%

4.75

500

SMT

B843

BX8254W

110 µH ±7%

2.5

500

SMT

B843

Inductors for use with Centillium CT-L50SC04 Chipset

B2208

170.0 µH ±7%

4.0

500

SMT

B843

B2209

300.0 µH ±7%

7.0

500

SMT

B843

B2210

455.0 µH ±7%

9.0

500

SMT

B843

Inductors for use with GlobespanVirata Chipset

B2125A

50.0 µH ±7%

2.0

500

SMT

B843

B2126A

170.0 µH ±7%

6.5

500

SMT

B843

B2127A

340.0 µH ±7%

7.5

500

SMT

B843

B2155

205.0 µH ±7%

6.0

500

SMT

B843

BX8195

102.5 µH ±5%

6.0

500

SMT

B843

Inductors for use with Infineon IVD Chipset

BX8027W 6.8 mH ±5%

5.0

500

SMT

B869

Inductors for use with Legerity CO Chipset

BX8266L

32 mH ±10%

600

SMD

B804

BX8267L

16 mH min

600

SMD

B804

Part

Inductance DC Resistance

Isolation

Mounting Data

Number

(

Max 2 pair) Voltage (V

rms

) Sheet

ADSL Inductors: Filters & Chipsets

*CO

- Central Office,

CPE

- Customer Premises Equipment

HDSL2/G.SHDSL

Part

Matched to:

Turns Ratio

Inductance

Data

Number

Chip-Line (±3%)

Line Side

Sheet

Infineon Chipsets

PEB22622

B1093

PEF22623/24622

3.2:1:1

3.00

B993

PEB22622

B1063

PEF22623/24622

3.2:1:1

3.00

B993

BX1196L

Socrates

4.5:1

3.00

B888

BX1194W

PEB22622

3.2:1:1 3.00 B835

PEF22623/24622

Conexant Chipsets

B1074B

Orion

1:5.4

3.00

B803

Transformers

CUSTOMER PREMISE EQUIPMENT

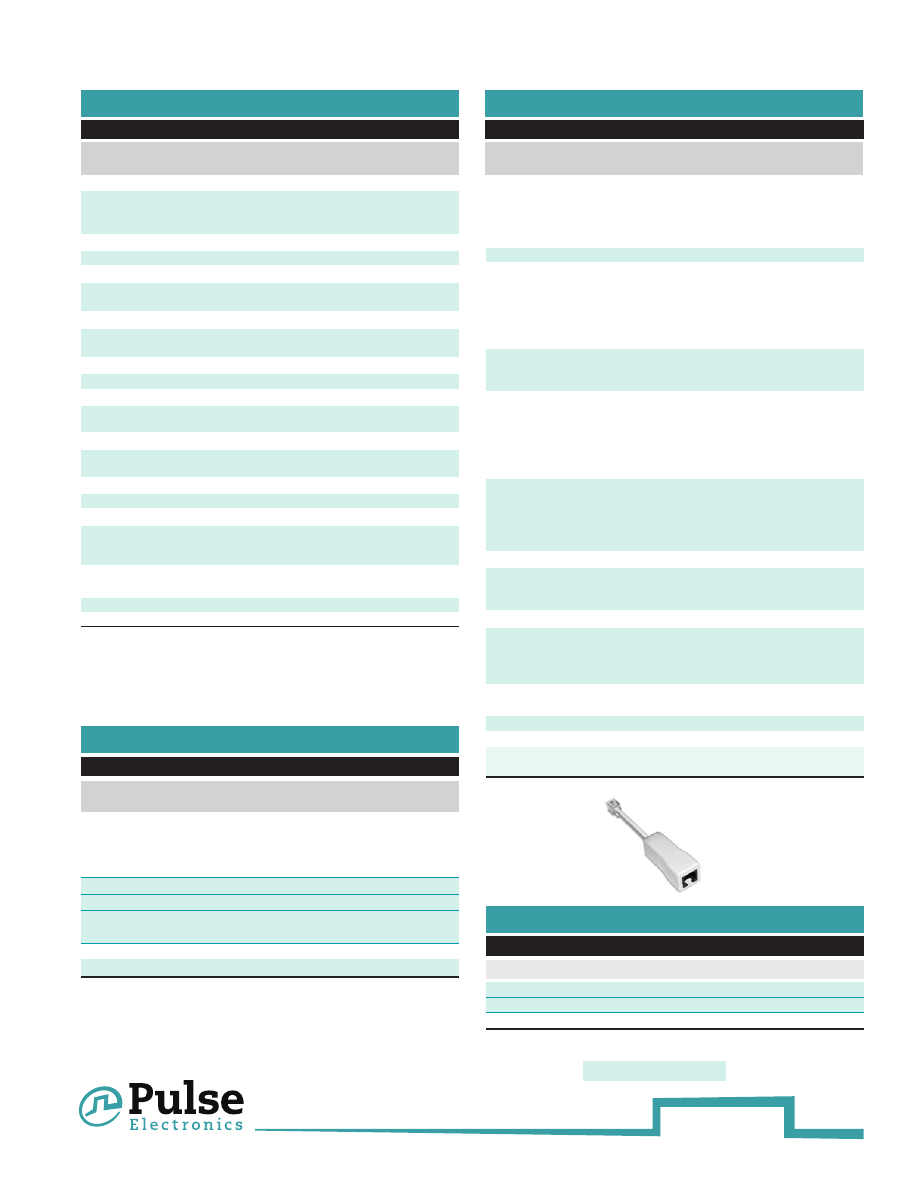

DSL Microfilters

Z-330PJ

ANSI T1.421

North America

Z-369LS

Anatel Approved

Latin America

Z-470P2J

ETSI TS 101 952-1-5

Europe

NOTE:

See CPE section for additional products and applications.

Part Number

Specification

Region

SMT -

Surface Mount Package

THT -

Through Hole Package

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

CENTRAL OFFICE (CO*) DSL SPLITTER CIRCUITS FOR TELECOM APPLICATIONS

CO*& CPE* SPLITTER FILTER MODULES

Our comprehensive line of CO splitter designs can be customized for various types of installations,
including DSLAMs, rack-mount cards, cross-connect blocks, and main distribution frame (MDF) cards.

•

Innovative, high-density designs, like the SmartER series, result in components that are

one third the size of a typical design for this application.

•

Delivers more channels on smaller cards.

•

Scalable capacity from single-line to 96-lines.

•

Customized solutions can be developed quickly, saving OEMs time and development costs.

•

VDSL2 designs support TelcoTV and IPTV applications.

For assistance with a custom design, e-mail Pulse’s Telecom Division at:

prodinfo_telecom@pulseelectronics.com

B8802NL

XDSL/POTS ATIS TRQ.10.2009 Type A & C CO short loop and CPE

B703

B8813NL

XDSL/POTS ATIS TRQ.10.2009 Type A CO short and long loops

B706

B8817NL

XDSL/POTS China MII YD/T1187

relaxed spec

B704

B8841NL

XDSL/POTS 600 R ETSI A&B 12KHz, 16KHz billing tone B898

B8842NL

XDSL/ISDN 2B1Q/4B3T

— B705

B8845NL

XDSL/ISDN 4B3T + POTS DT complex

— B708

B8846NL

XDSL/POTS ETSI B complex

— B899

and BT SIN-346 complex

B8849NL

XDSL/POTS ETSI A complex

— B893

B8859NL XDSL/POTS ETSI A complex 12 kHz billing tone B701
B8891NL ADSL2+/POTS China MII YD/T1187

B709

B8887NL

XDSL/POTS China MII

B900

1. Contact

Pulse for custom CO splitter or MDF board

RoHS

Part Number

Standard/Applications

Note/Comment

Data Sheet

SmartER

Series: ADSL, ADSL2+, VDSL

VDSL2 Low Pass Filter Modules for CO and CPE

CO & CPE Products

SmartER

xDSL

High-density, Low Pass,

Splitter/Filter Modules

• Common pinout 12mm

11mm (0.472”

0.433”

)

• Surface Mount available
• Integrated Protection available
• Contact Pulse for custom CO Splitter Modules or
Single/Multichannel MDF boards.

SMART

xDSL, Low Pass,

Splitter/Filter Modules

Common pinout 44.70mm

10mm (1.760”

0.394”)

SMART

Series: xDSL, Low Pass, Filter Modules

for CO and CPE

Part

Number

RoHS

Standard/Applications

Note/Comment

Data

Sheet

—

B8041NL

ETSI 600 W-ADSL/ POTS

—

B881

—

B8042NL

ETSI Ann B-ADSL/ ISDN 2B1Q

—

B815

—

B88046NL UK Complex BT SIN-346-ADSL/ POTS

relaxed spec*

B810

—

B8049NL

ETSI Complex option A-ADSL/ POTS

compliant

B826

B8049E

B8049ENL ETSI Complex option A-ADSL/ POTS

compliant/low profile

B882

B8120

—

ANSI-ADSL/ POTS

—

B827

B8120A

—

ANSI-ADSL/ POTS

w/signature circuit

B827

B8216

B8216NL

UK Complex BT SIN-346-ADSL/ POTS

w/protections (K20

basic)

B883

B8245

B8245NL

ETSI Ann B - ADSL/ POTS/ ISDN 4B3T

compliant

B879

B8546

—

B8546E

B8546ENL UK Complex BT SIN-346-ADSL/ POTS

compliant/low profile

B707

BX8214

BX8214NL ANSI-ADSL/POTS

low profile

B878

BX8214V BX8214VNL ANSI-ADSL/VDSL2/POTS

VDSL2 compliant/low

profile

B886

—

BX8270NL ITU G992.1-ADSL/ POTS + VoIP

CPE for Korea/Asia

B872

—

BX8296NL ANSI-ADSL/ POTS + VoIP

CPE for North America

B871

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

Pulse provides high-quality DSL filters, splitters, and accessories for broadband Internet access over
conventional telephone lines. Customers include DSL end-users, telephone companies, equipment
providers, and Internet service providers worldwide. Various splitter and filter types, such as inline,
wall-mount, dual-line, tri-jack, dynamic and even alarm panel filters, meet the demanding ETSI, ITU
and ANSI specifications.
For years Pulse has been providing innovative DSL splitters, filter transformers, and inductors for
customer premises (CPE) and central office (CO) applications worldwide. Now our CPE product line
has expanded to offer video-grade splitters for error-free performance on TelcoTV netwroks.

•

Error-free and jitter-free performance that maintains high-quality signals in the customer premises

•

VDSL2 versions support TelcoTV and IPTV applications

•

On-site system testing for xDSL environments, from DSLAM’s to customer premises

Contact Pulse for custom Central/Master splitter solutions.

CPE PRODUCTS

ADSL and ADSL2+ Micro Filters

Part Number:

Z-321NF

Z-321NFW

Z-301LS

Z-230PJ

Z-330P2J

Z-330TJA

Z-321P2J

Z-A431PJ31X-A

Z-A431EU

Filter Type:

Distributed DSL Filters

Connector

RJ11

RJ31X

Screw

Impedence

600

Ω

Region

Asia & Europe

North America

Specification

—

ANSI T1.421

—

Certification

CE, FCC Part 68

UL 60950

ADSL and ADSL2+ Micro Filters

Part Number:

CP-V413WT

Z-401TJ11

CP-V501TJ

CP-V503TJ

CP-404TJ45

CP-421SE

Filter Type:

Distributed DSL Filters

wConnector

Screw

RJ11

RJ45

Swedish

Region

—

Europe

Sweden

Specification

ANSI T1.413

ETSI 952-1-1

ETSI 952-2-1

ETSI 952-2-3

ETSI 952-1-4

ANSI T1.421

Certification

FCC Part 68, UL 60950

Surge Protection

ITU K.21

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

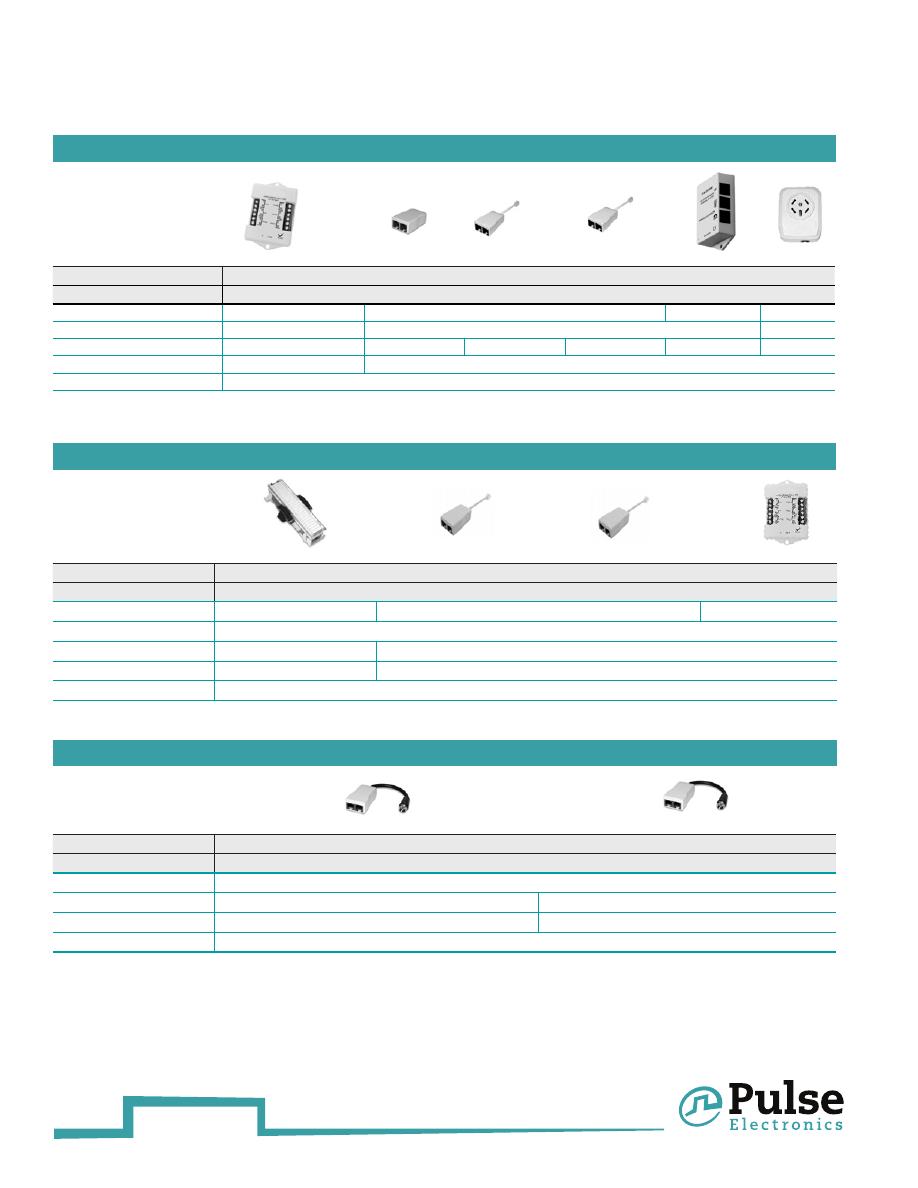

CPE PRODUCTS

HPNA Products

Part Number:

BZ-H175S

BZ-H175S-44

Filter Type:

In-Line Balun with HPN Band Pass Filter

Connector

Twisted Pair (RJ11) to Coaxial

Impedence

100

balun

600

Ω

HPN Frequency

12 MHz - 28 MHz

12 MHz - 44 MHz

Certification

FCC Part 68, UL 60950

ADSL2+ and VDSL2 Video Grade Splitters

Part Number:

CP-V413WT

Z-401TJ11

CP-V501TJ

CP-V503TJ

CP-404TJ45

CP-421SE

Filter Type:

Distributed DSL Filters

Connector

Screw

RJ11

RJ45

Swedish

Region

—

Europe

Sweden

Specification

ANSI T1.413

ETSI 952-1-1

ETSI 952-2-1

ETSI 952-2-3

ETSI 952-1-4

ANSI T1.421

Certification

FCC Part 68, UL 60950

Surge Protection

ITU K.21

Part Number:

KHZ-023-6625FF

Z-D250P2J

Z-D250CWA

CP-V413WT

Filter Type:

Central/Master Splitters

Connector

Punch-down

RJ11

Screw

Impedence

600

Ω

Mounting Style

66 Punch-down Block

Wall Mount

Ports

Certification

FCC Part 68, UL 60950

MDU Products

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

1.5 kV Isolation, Standard Temperature Range, BH Package, SMT

PE-65861NL

1CT:2CT & 1CT:2CT

.505/.375/.245

T608

PE-65866NL

1:1/1.26 & 1CT:2CT

.505/.375/.245

T608

PE-65870NL

1CT:1.15CT & 1CT:1.15CT

.505/.375/.245

T608

PE-68678NL

1CT:1CT & 1CT:2CT

.505/.375/.245

T608

PE-68786NL

1CT:1.41CT & 1CT:1.41CT

.505/.375/.245

T608

T1023NL

1CT:1.41CT & 1CT:1.41CT

.505/.375/.245

T608

T1137NL

1CT:2.42CT & 1CT: 2.42CT

.505/.375/.245

T651

T1021NL

2CT:1/1.26 & 2CT:1/1.26

.505/.375/.245

T637

T1090NL

1CT:2CT & 1CT:2CT

.505/.375/.245

T608

T1091NL

1CT:2CT & 1:1.36CT

.505/.375/.245

T608

T1076NL

1:1.15CT & 1CT:2CT

.505/.375/.245

T608

TT1094NL

1CT:1CT & 1CT:2CT

.505/.375/.245

T608

T1144NL

1CT:1CT & 1CT:2.4CT

.505/.375/.245

T608

T1096NL

1CT:1.41CT & 1CT:1.41CT

.505/.375/.245

T608

T1146NL

1:2/2.4 & 1:0.79/1

.505/.375/.245

T608

TX1089NL

1CT:1CT & 1CT:1CT

.505/.375/.245

T608

TX1099NL

1CT:1:0.8 & 1CT:1:0.8

.505/.375/.245

T608

TX1287NL

1CT:2.42CT & 1CT: 2.42CT

.505/.375/.245

T608

TX1188NL

1CT:2CT & 1CT:2CT

.505/.375/.245

T608

TX1467NL

1CT:1:1 & 1CT:1:1

.505/.375/.245

T608

1.5 kV Isolation, Standard Temperature Range, ANTE Package, SMT

PE-68864NL

1CT:2CT & 1:1

.675/.600/.340

T608

PE-68836NL

1:1/1.26 & 1:1/1.26

.675/.600/.340

T608

PE-68822NL

1CT:2CT & 1:1.36CT

.675/.600/.340

T608

PE-68826NL

1:1/1.26 & 1:2CT

.675/.600/.340

T608

PE-68828NL

1CT:1CT & 1CT:1CT

.675/.600/.340

T608

PE-68841NL

1CT:2CT & 1CT:2CT

.675/.600/.340

T608

PE-68877NL

1CT:1CT & 1CT:2CT

.675/.600/.340

T608

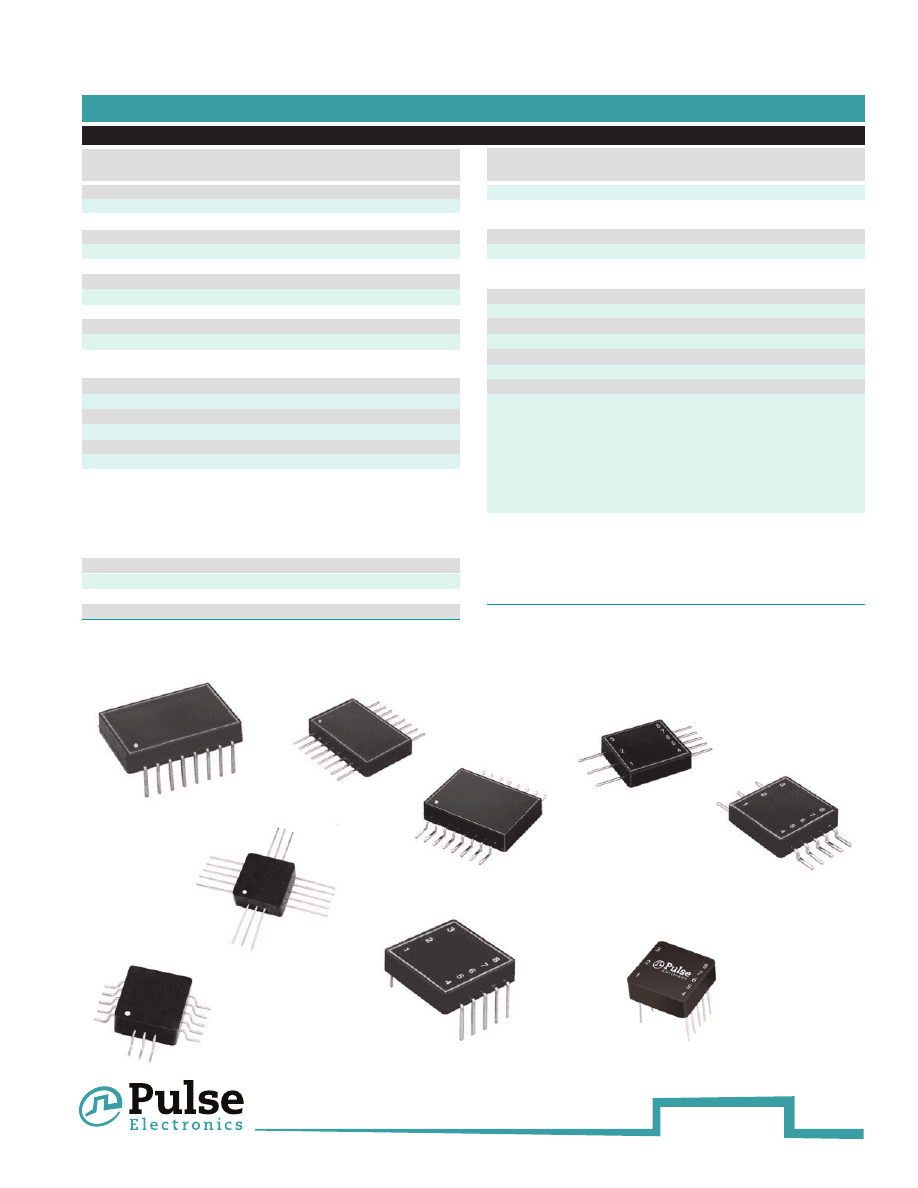

TELECOMMUNICATIONS PRODUCTS

Part

Turns Ratio

Package Data

Number

L/W/H (in.)*

Sheet

Part

Turns Ratio

Package Data

Number

L/W/H (in.)*

Sheet

SINGLE, DUAL TRANSFORMERS

T1/E1/CEPT/ISDN-Pri—SINGLE, DUAL

SINGLE TRANSFORMERS
1.5 kV Isolation, Standard Temperature Range, THT

PE-64931NL

1:1:1 (1:2CS)

.350/.500/.250

T608

PE-64934NL

1:1

.350/.500/.250 T608

PE-64936NL

1CT:1

.350/.500/.250

T608

PE-64937NL

1:1.36

.350/.500/.250 T608

PE-65351NL

1:2CT

.350/.500/.250 T608

PE-65363NL

1:4CT

.350/.500/.250

T608

PE-65388NL

1:1.15CT

.350/.500/.250 T608

PE-65389NL

1:1:1.266

.350/.500/.250

T608

PE-65415NL

1CT:2CT

.350/.500/.250 T608

1.5 kV Isolation, Extended Temperature Range, THT

PE-65770NL

1:1.15CT

.350/.500/.250 T608

PE-65771NL

1CT:2CT

.350/.500/.250

T608

PE-65778NL

1CT:1CT

.350/.500/.250

T608

TX1252NL

1CT:1

.350/.500/.250 T608

1.5 kV Isolation, Extended Temperature Range, SMT

TX1281

1CT:1

.220/.305/.200 T669

TX1315NL

1CT:1CT

.300/.390/.250 T678

3.0 kV – Reinforced Insulation per IEC 950, THT

PE-65832NL 1:1.36CT .558/.558/.400 T608

PE-65833NL

1CT:2CT

.558/.558/.400 T608

PE-65834NL

1:1

.558/.558/.400 T608

PE-65835NL

1CT:2CT

.558/.558/.400

T608

PE-65839NL 1:1:1.266 .558/.558/.400 T608

*L/W/H

is measured on surface mount parts tip to tip (height includes wash area).

SMT -

Surface Mount Package

THT -

Through Hole Package

Pulse is a leading provider of magnetics for telecom infrastructure equipment,
customer premises equipment, and audio interface applications. Our broad portfolio of
transformers and integrated transformer modules support T1/E1/ISDN-PRI, T3/E3/STS-1,
ISDN-S, ISDN-U, Digital Audio, and DDS.

Package options include surface mount, through hole, single, dual, quad and octal,
covering standard and extended temperature ranges. Many parts meet ANSI, ITU, and

ETSI requirements, and many are recognized by UL, TUV, Austel and/or CSA. Numerous models incorporate our Interlock Base
construction, ensuring high reliability. The Datasheets are available at www.PulseElectronics.com

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

*L/W/H

is measured on surface mount parts tip to tip (height includes wash area).

SMT -

Surface Mount Package

THT -

Through Hole Package

TELECOMMUNICATIONS PRODUCTS

TRANSFORMERS DUAL, QUAD, OCTAL, TRANSFORMER/CHOKE INTERFACE MODULES

T1/E1/CEPT/ISDN-Pri—DUAL, QUAD, OCTAL

OCTAL TRANSFORMERS (eight transformers per package)

(continued)

1.5 kV Isolation, Standard Temperature Range, SMT

T1114NL

1:2CT 1CT:2

1.125/.640/.230 T622

T1231NL

1:2.4

1:1

1.125/.640/.230

T622

TX1262NL

1:2

1.125/.640/.230 T622

TX1266NL

1:2

1:1

1.125/.640/.230 T622

TX1344NL

1:1

1:2

1.000/.425/.295

T671

TX1470NL

1:1.41

1.000/.425/.295 T671

TX1472NL

1: 2.4

1:1

1.000/.425/.295

T671

TX1473NL

1:2

1:1

1.000/.425/.295

T671

TX1471NL 1:1 1:1 1.000/.425/.295 T671

OCTAL TRANSFORMER/CHOKE INTERFACE MODULES
1.5 kV Isolation, Extended Temperature Range, SMT

TX1263NL

1:2 1:2 1.125/.640/.285 T682

TX1267NL

1:2 1:1 1.125/.640/.285 T682

16 CHANNEL T1/E1 TRANSFORMER BGA INTERFACE MODULES
1.5 kV Isolation, Extended Temperature Range

TX1680NL

1:2CT 1CT:2

1.125/.680/.440

T695

TX1681NL

1:1CT 1CT:1

1.125/.680/.440

T695

TX1682NL

1:2CT 1CT:2

1.125/.680/.440

T695

Part

Turns Ratio

Package

Data

Number

L/W/H (in.)*

Sheet

Part

Turns Ratio

Package Data

Number

L/W/H (in.)*

Sheet

DUAL TRANSFORMER/CHOKE INTERFACE MODULES

1.5 kV Isolation, Extended Temperature Range, SMT

T1212NL

1CT:1CT & 1CT:2CT

.675/.600/.340

T660

T1215NL

1CT:1.41CT & 1CT:1.41CT

.675/.600/.340

T660

T1217NL

1CT:2.42CT & 1CT:2.42CT

.675/.600/.340

T660

T1219NL

1CT:2.4CT & 1CT:1CT

.675/.600/.340

T660

QUAD TRANSFORMER/CHOKE INTERFACE MODULES

1.5 kV Isolation, Extended Temperature Range, SMT

T1176NL

1CT:2.4CT & 1CT:1CT

.690/.630/.225

T662

TX1193NL

1CT:2CT & 1CT:1CT

.690/.630/.225

T662

QUAD TRANSFORMERS (four transformers per package)

1.5 kV Isolation, Extended Temperature Range, SMT

TX1323NL

1CT:2CT & 1CT:1CT

.690/.630/.225

T662

1.5 kV Isolation, Standard Temperature Range, SMT

T1064NL

1:1.14

1:1.14CT

1.125/.640/.230

T622

T1065NL

1:2CT

1.125/.640/.230 T622

T1068NL

1:2CT 1:1CT

1.125/.640/.230

T622

T1073NL

1:2

1.125/.640/.230

T622

T1124NL

1:2CT

1CT:2

1.125/.640/.230

T622

T1142NL

1:2.4 1:1

1.125/.640/.230 T622

T1145NL

1:2/2.4

1:0.79/1

1.125/.640/.230

T622

1.5 kV Isolation, Extended Temperature Range, SMT

T1108NL

1:2CT 1:1CT

1.125/.640/.230

T622

SONET/SDH (STM-1/E4/CMI)

Part

Turns Ratio

Package

Data

Number

L/W/H (in.)*

Sheet

Part

Number

Turn

Ratio

Primary

Inductance

OCL (μH MIN)

Package

L/W/H (in.)

Data

Sheet

DUAL, SMT

ST6200QNL

1CT:CT

.455/.375/.225

ST6200QNL

1. SOIC

= 50 mil pitch leads. Length and width are MAX package dimensions.

Height dimensions include the wash area.

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

TRANSFORMERS, TRANSFORMER MODULES - SINGLE, DUAL, OCTAL, TWELVE

T3/DS3/E3/STS-1—Single, Dual, Triple, Quad, Six Port

Part

Turns Ratio

Primary Inductance

Package

Data

Number

OCL (μH MIN)

L/W/H (in.)*

Sheet

SINGLE TRANSFORMERS, THT

PE-68629NL 1:1

.350/.500/.250 T606

PE-65966NL

1:1

.300/.280/.250

T606

PE-65969NL

1:2CT

.300/.280/.250

T606

PE-65779NL 1:4CT

200

.300/.400/.250 T606

SMT

PE-65967NL

1:1

.300/.390/.250

T606

PE-65968NL

1:2CT

.300/.390/.250

T606

Extended Temperature Range, SMT

T3001NL

1:1

100

.300/.390/.250

T619

T3002NL

1:2CT

.300/.390/.250

T619

T3011NL

1:1

100

.300/.390/.250 T619

T3012NL

1:2CT

.300/.390/.250

T619

T3027NL

1CT:1CT

.300/.390/.250 T619

T3029NL

1:1.15CT

.300/.390/.250

T619

DUAL TRANSFORMERS, Extended Temperature Range, SMT,

T3020NL

1:2CT & 1:1

40 & 100

.505/.375/.245 T655

T3023NL

1:1 & 1:1

40 & 40

.505/.375/.245

T655

TWELVE TRANSFORMERS (Six Port) Extended Temperature Range, SMT

TX3051NL

1:1

1.120/.630/.280

T668

T1/E1 Protection Modules

Part

Turns Ratio

Primary Inductance Package

Data

Number

TX RX

OCL (μH MIN)

L/W/H (in.)*

Sheet

OCTAL TRANSFORMER MODULES, 1.5 kV Isolation

Extended Temperature Range, Line Side Protection, SMT

T9030NL 1CT:2

1CT:1

1.2

1.255/.852/.305

T656

IC Side Protection, SMT

TX9025NL 1:2CT

1:2

1.2

1.125/.640/.285 T686

TELECOMMUNICATIONS PRODUCTS

Part

Turns

Primary Inductance

Package

Data

Number

Ratio

OCL (mH MIN)

L/W/H (in.)*

Sheet

ISDN S-Interface — Single, Dual

SINGLE TRANSFORMERS, 2.0 kV ISOLATION THT

PE-64995NL 1:2

.560/.560/.400 T604

SMT

PE-65793ANL 1:1 & 1:1

.950/.720/.390

T604

Low Profile, SMT

T5008NL

1:1 & 1:1

.950/.720/.295

T613

*L/W/H

is measured on surface mount parts tip to tip (height includes wash area).

SMT -

Surface Mount Package

THT -

Through Hole Package

TRANSFORMERS, TRANSFORMER/CHOKE MODULES

Digital Audio, Single

Part

Number

Turn

Ratio

Primary

Inductance

OCL (μH MIN)

Package

L/W/H (in.)

Data

Sheet

THT

PE-65612NL

1:1

2.5

.350/.500/.250

T601

SMT

PE-65512NL

1:1

2.5

.480/.600/.340

PE-65512NL

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

Pulse offers a complete range of magnetics for both high-frequency switching
power supply applications, as well as 50/60Hz current sense applications. The
switching power magnetics include power inductors, power transformers, current
sense magnetics, gate drive transformers and common mode chokes. For complete
product information, visit www.pulseelectronics.com/power
Pulse also designs and manufactures a wide array of custom and application specific
magnetics. Contact Pulse Power Business Unit for more information.
In the Americas: Prodinfo_power@pulseelectronics.com
In Europe and Africa: Power-Apps-Europe@pulseelectronics.com
In Asia: Power-Apps-Asia@pulseelectronics.com

NOTE:

For additional listings of Pulse Power magnetics, locate other Power data

sheets at this URL:

http://www.pulseelectronics.com/power

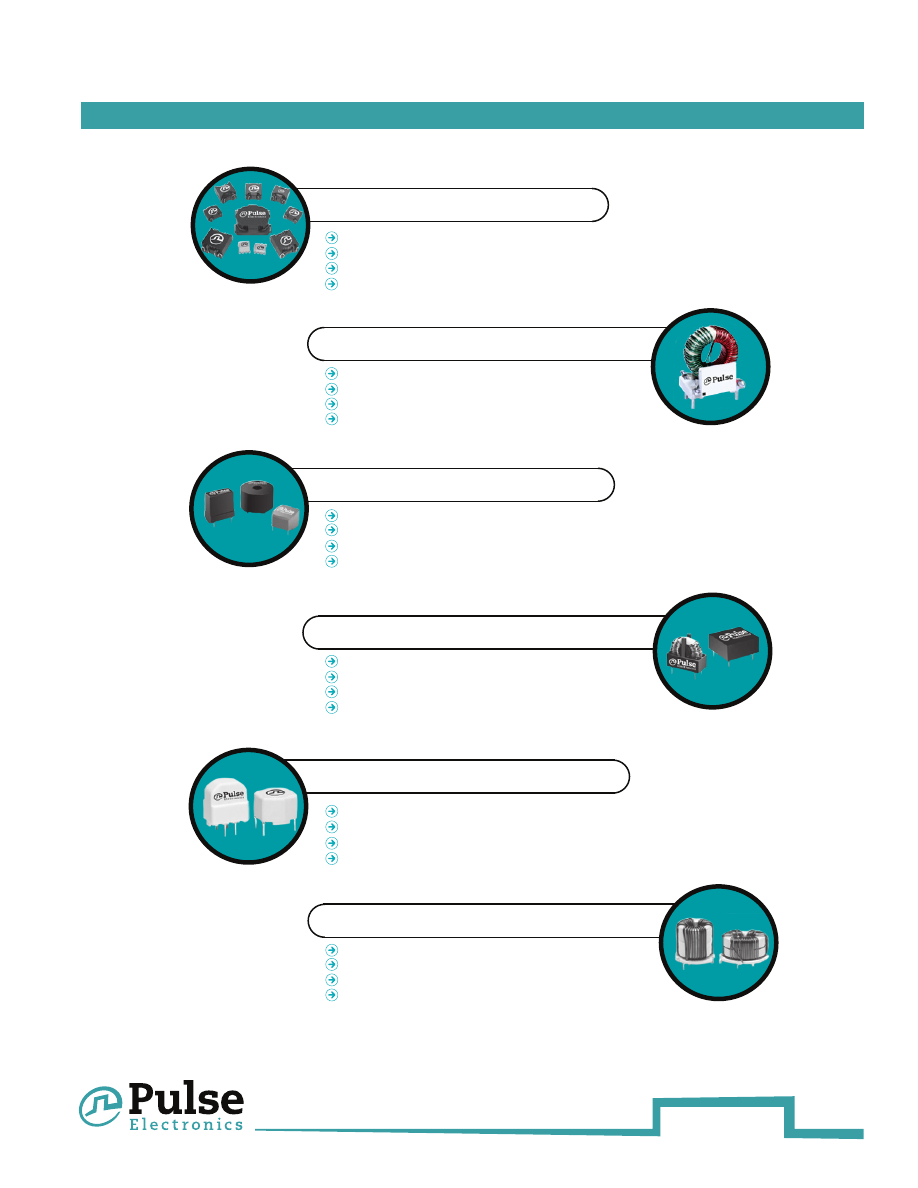

POWER MAGNETICS

Power Inductors

Surface Mount (SMT)

•

Unshielded Drum Core Inductors

(up to 30 A)

•

Shielded Drum Core Inductors
(up to 17 A)

•

Power Bead Inductors (up to 71 A)

•

Molded Powder Inductors (up to 55 A)

•

Flat Coil Inductors (up to 40 A)

•

Planar and Round Wire Coil Inductors
(up to 73 A)

•

Toroid Inductors (up to 40 A)

Through Hole (THT)

•

Toroid Inductors (up to 48 A)

•

Power Cube Inductors (up to 50 A)

•

Power Bead Inductors (up to 80 Apk)

OVERVIEW: PULSE POWER MAGNETICS

Gate Drive Transformers

Surface Mount (SMT)

•

Operational and Basic Insulation for

DC/DC applications >1500 V

rms

)

Through Hole (THT)

•

Reinforced Insulation for AC/DC

applications (3000

Vrms

)

Common Mode Chokes

Surface Mount (SMT)

•

Up to 14 A

•

500 V

rms

and 1500 V

rms

Isolation

•

Over 10 package sizes available

•

Customer designs available upon request

Through Hole (THT)

•

Up to 23 A

•

3000 V

rms

Isolation

•

Multiple package sizes available

Current Sense Magnetics

Surface Mount (SMT)

•

Operational Insulation (500 V

rms

)

•

Five platforms (4 A, 10 A, 15 A, 20 A, 35 A)

Through Hole (THT)

•

Reinforced Insulation (3000 V

rms

)

•

Multiple platforms (up to 30 A)

50/60Hz AC Current Sensing

•

Sidewinder Product Line (1000A+)

High-Frequency Switch Mode

Transformers

Surface Mount (SMT)

•

Planar Transformers (30 W, 75 W,
150 W, 300 W)

•

Wirewound Transformers
(Up to 200 W)

•

High Isolation Transformers (up to 5kVrms)

•

Custom transformers available upon
request

Through Hole (THT)

•

Wirewound Transformers
(Up to 500 W)

•

Custom transformers available
upon request

Application Information, Modelling and Reliability Data

•

Visit the Pulse Electronics website to view a wide range of technical

papers

•

Spice Models, 3D Step Files, Qualification Data and Reliability
Numbers are all available upon request

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

POWER MAGNETICS

PRODUCT OVERVIEW: SMT POWER INDUCTORS

Unshielded Drum Core Inductors

- typically for lower current application and less efficiency sensitive designs

Shielded Drum Core Inductors

- typically for lower current applications, shielded designs helps with EMI

Toroid Inductors

- versatile multi-use platforms for single and dual winding applications

Wire-wound Inductors

- high-inductance (>5 µH) - mid to high current (15-40 A) applications

Molded Powder Inductors

- mid-inductance (0.2 to 20 uH), wide current (5-55A), high saturation

Round Wire Coil Inductors

- mid-inductance, high-efficiency inductors (0.4 to 20uH) up to 40A

Power Bead Inductors

- low-inductance (<0.5uH), high current (>25A) applications for single and multi-phase applications

Planar Inductors

- mid-inductance (0.5 to 4uH), high current (>25A) applications

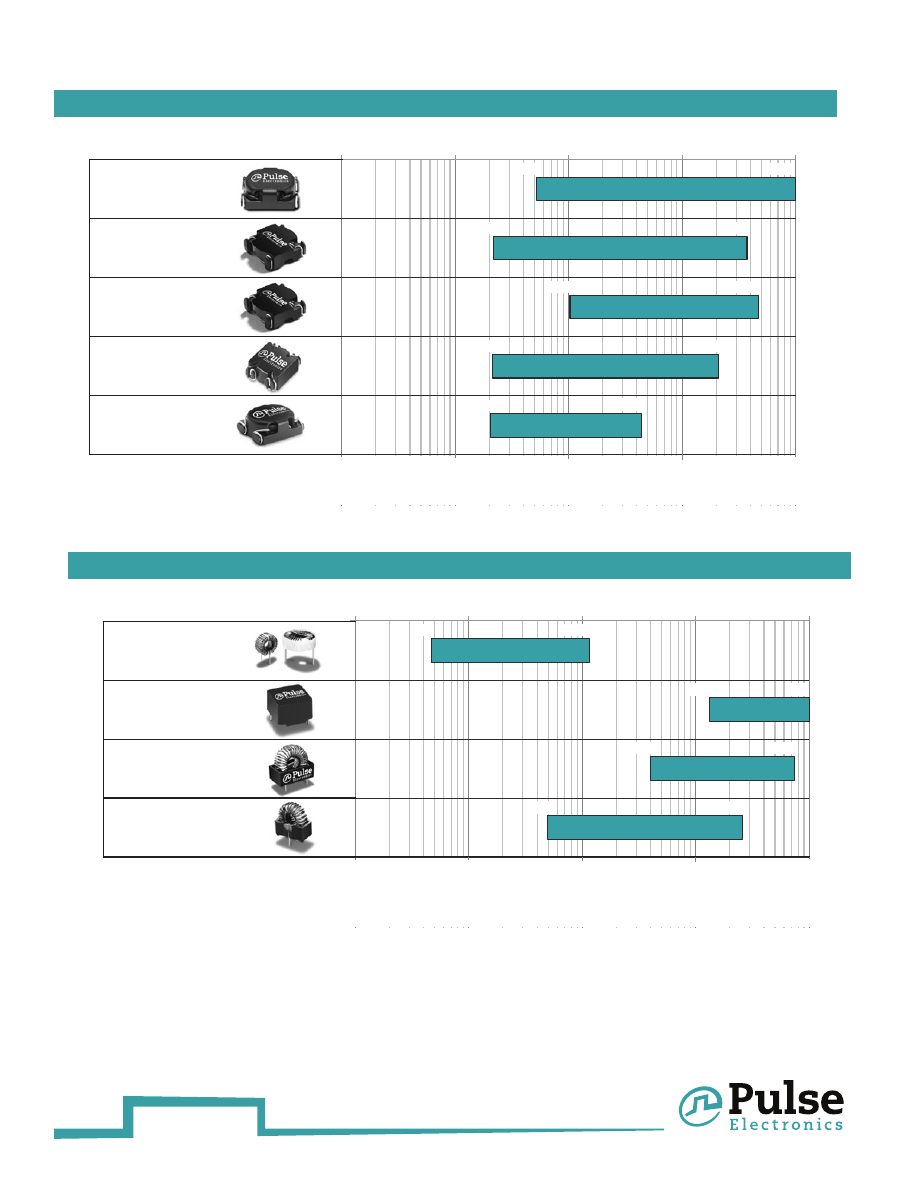

Power Inductor Selection Charts, Surface Mount and Through-Hole

Molded Powder, Round Wire Coils and

Wound Inductors

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

(6.6 x 4.5 x2.9 mm Max)

(6 x 5.4 x 4.85 mm Max)

(6.3 x 6.3 x 3.2 mm Max)

(7.3 x 7.3 x 3.1 mm Max)

(7.3 x 7.3 x 4.8 mm Max)

(8.9 x 6.1 x 5.1 mm Max)

(10.2 x 9.3 x 5.6 mm Max)

(10.3 x 9.3 x 4.4 mm Max)

(13 x 9.4 x 3 mm Max)

(13 x 9.4 x 5.5 mm Max)

(13 x 9.4 x 11 mm Max)

(13 x 9.9 x 6.4 mm Max)

(7.3 x 7.3 x 3.5 mm Max)

POWER MAGNETICS

PRODUCT OVERVIEW: SMT UNSHIELDED DRUM CORE INDUCTORS

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

3.1A

2.9A

8.5A

4.5A

1.5A

6.1A

2.1A

5.9A

2.8A

7.5A

4.3A

12A

6.0A

1.5A

2.6A

0.97A

0.76A

2.5A

0.32A

2.0A

0.6A

6.8A

3.8A

4.9A

17A

10A

3.7A

0.2A

1.5A

1.2A

0.3A

0.05A

0.24A

3.6A

1.3A

0.47A

0.22A

0.75A

0.3A

1.0A

0.41A

1.1A

0.2A

0.3A

1.1A

0.35A

0.52A

0.65A

0.2A

(4.7 x 4.2 x 3.5 mm Max)

PF0580

P0770

PG0016

PA4305

PA4306

PA4307

PA4308

PA0390

PG0015

PF0581

P0762

P0751/P0752

PF0382 or PF0698

PF0638

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

(12.8 x 12.8 x 8 mm Max)

(18.5 x 15.2 x 11.4 mm Max)

(18.6 x 15.2 x 7.4 mm Max)

(22.3 x 15.1 x 7.5 mm Max)

(23.9 x 20.8 x 10.2 mm Max)

POWER MAGNETICS

PRODUCT OVERVIEW: SMT UNSHIELDED DRUM CORE INDUCTORS

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

20A

2.0A

12A

20A

7.1A

8.6A

15A

30A

12.6A

6.5A

6.0A

4.3A

3.5A

1.0A

11A

3.5A

1.1A

2.0A

1.8A

0.56A

0.1

100

1000

Inductance (uH)

(12.8 x 12.8 x 6 mm Max)

PA4309

PA4310

PF0504

P0250

P1252

PB2020

(2.2 x 1.8 x 1 mm Max)

(2.7 x 2.2 x 1.2 mm Max)

(3.2 x 3.2 x 1.2 mm Max)

(4.1 x 4.1 x 1.8 mm Max)

(4.2 x 4.2 x 2 mm Max)

(6.1 x 6.1 x 3 mm Max)

PA4330

PA4335

PA4331

PA4334

PG0085

PA4332

PA4300

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

3.1A

4.1A

4.2A

1.0A

0.55A

1.5A

5.8A

1.3A

3.5A

1.2A

0.8A

3.0A

0.28A

0.34A

2.0A

1.1A

0.19A

3.0A

14A

1.2A

4.5A

1.7A

2.6A

17A

7.5A

3.0A

1.0A

0.5A

0.65A

2.0A

0.54A

0.19A

0.07A

0.17A

0.4A

0.36A

0.06A

0.13A

0.18A

1.7A

0.85A

0.21A

0.6A

0.1

100

1000

Inductance (uH)

PRODUCT OVERVIEW: SMT SHIELDED DRUM CORE INDUCTORS

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

(6.2 x 6.2 x 2 mm Max)

(6.7 x 6.4 x 2.8 mm Max)

(6.9 x 6.5 x 3 mm Max)

(7.4 x 6.8 x 3.2 mm Max)

(7.2 x 7.2 x 3 mm Max)

(7.2 x 7.2 x 4 mm Max)

(7.5 x 7.5 x 5.6 mm Max)

(7.6 x 7.6 x 4.8 mm Max)

(10.4 x 10.4 x 4 mm Max)

(12.2 x 12.2 x 4.5 mm Max)

(12.2 x 12.2 x 6 mm Max)

(12.2 x 12.2 x 8 mm Max)

(12.5 x 12.5 x 6 mm Max)

(7.6 x 7.6 x 3.8 mm Max)

PG0087

P1174

PF0601

PA4333

PF0464, PA4301

PF0465

PA4302

P1167

PF0560

P1168, P1169, PA4303

P1170, P1171, PA4304

P1172, P1173

PF0552

P1166

POWER MAGNETICS

PRODUCT OVERVIEW: SMT SHIELDED DRUM CORE INDUCTORS (CON'T)

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

3.5A

0.36A

1.2A

3.0A

2.0A

1.1A

0.34A

0.19A

14A

9.5A

1.7A

4.5A

2.0A

0.65A

2.6A

3.0A

7.5A

5.5A

1.6A

2.0A

3.5A

0.63A

1.25A

6.5A

3.8A

0.52A

3.6A

14A

1.2A

0.4A

13A

4.4A

14A

14.2A

2.2A

0.65A

2.1A

5.2A

1.4A

0.46A

0.19A

0.5A

1.0A

0.56A

0.15A

0.19A

0.54A

0.06A

0.8A

0.28A

0.07A

1.2A

3.0A

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

(12.5 x 12.5 x 8 mm Max)

PF0553

POWER MAGNETICS

PRODUCT OVERVIEW: SMT SHIELDED DRUM CORE INDUCTORS (CON'T)

PRODUCT OVERVIEW: SMT MOLDED POWDER INDUCTORS

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

17A

2.0A

12A

20A

7.1A

8.6A

15A

30A

12.6A

6.5A

6.0A

4.3A

1.9A

0.61A

3.5A

1.1A

2.0A

1.8A

0.56A

0.1

100

1000

Inductance (uH)

0.1

100

1000

Inductance (uH)

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

18A

23A

32.5A

3.5A

1.75A

11A

43A

10A

30A

55A

16.5A

5.3A

52A

1.3A

3.5A

1.2A

0.8A

3.0A

0.28A

0.34A

2.0A

1.1A

0.19A

3.0A

14A

1.2A

4.5A

1.7A

2.6A

17A

7.5A

3.0A

1.0A

0.5A

0.65A

2.0A

0.54A

0.19A

0.07A

0.17A

0.4A

0.36A

0.06A

6.5A

5.5A

2.75A

1.6A

7.1A

18A

0.1

100

1000

Inductance (uH)

(6 x 5.4 x 2 mm Max)

(6 x 5.4 x 3 mm Max)

(7.6 x 6.9 x 3 mm Max)

(11.5 x 10.3 x 4 mm Max)

(14 x 12.8 x 6.5 mm Max)

(17.2 x 17.2 x 7.0 mm Max)

PA4345

PA4340

PA4341

PA4342

PA4343

PA4344

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

17.5A

4.5A

34.5A

20A

6.0A

30A

8.2A

28.3A

23A

0.28A

13A

0.1

100

1000

Inductance (uH)

POWER MAGNETICS

PRODUCT OVERVIEW: SMT ROUND WIRE COIL INDUCTORS

PRODUCT OVERVIEW: SMT FLAT COIL INDUCTORS

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

24A

17.5A

4.7A

42.5A

44A

14A

40A

17.5A

40A

24.5A

8.5A

50A

7.4A

26A

8.5A

0.28A

14A

0.1

100

1000

Inductance (uH)

(8 x 7 x 6.4 mm Max)

(6.8 x 6.8 x 4.2 mm Max)

(11 x 9 x 8 mm Max)

(7.5 x 7 x 3.2 mm Max)

(13 x 13 x 8 mm Max)

(7.9 x 7.6 x 5 mm Max)

(18 x 17 x 10 mm Max)

(11.5 x 10.3 x 4 mm Max)

(22 x 22 x 12.5 mm Max)

(13 x 12.8 x 4.8 mm Max)

(26 x 26 x 14.5 mm Max)

(13.4 x 13.3 x 6 mm Max)

PG0871

PG0083

PG0702

PG0426

PG0926

PG0642

PG0936

PG0255

PG1083

PG0138

PG1096

PG0006

Inductance (uH)

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

40A

24A

45A

58A

19A

0.28A

0.1

100

1000

Inductance (uH)

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

15.4A

7.6A

3.4A

73A

16.4A

5.1A

5.0A

14.4A

0.1

100

1000

Inductance (uH)

POWER MAGNETICS

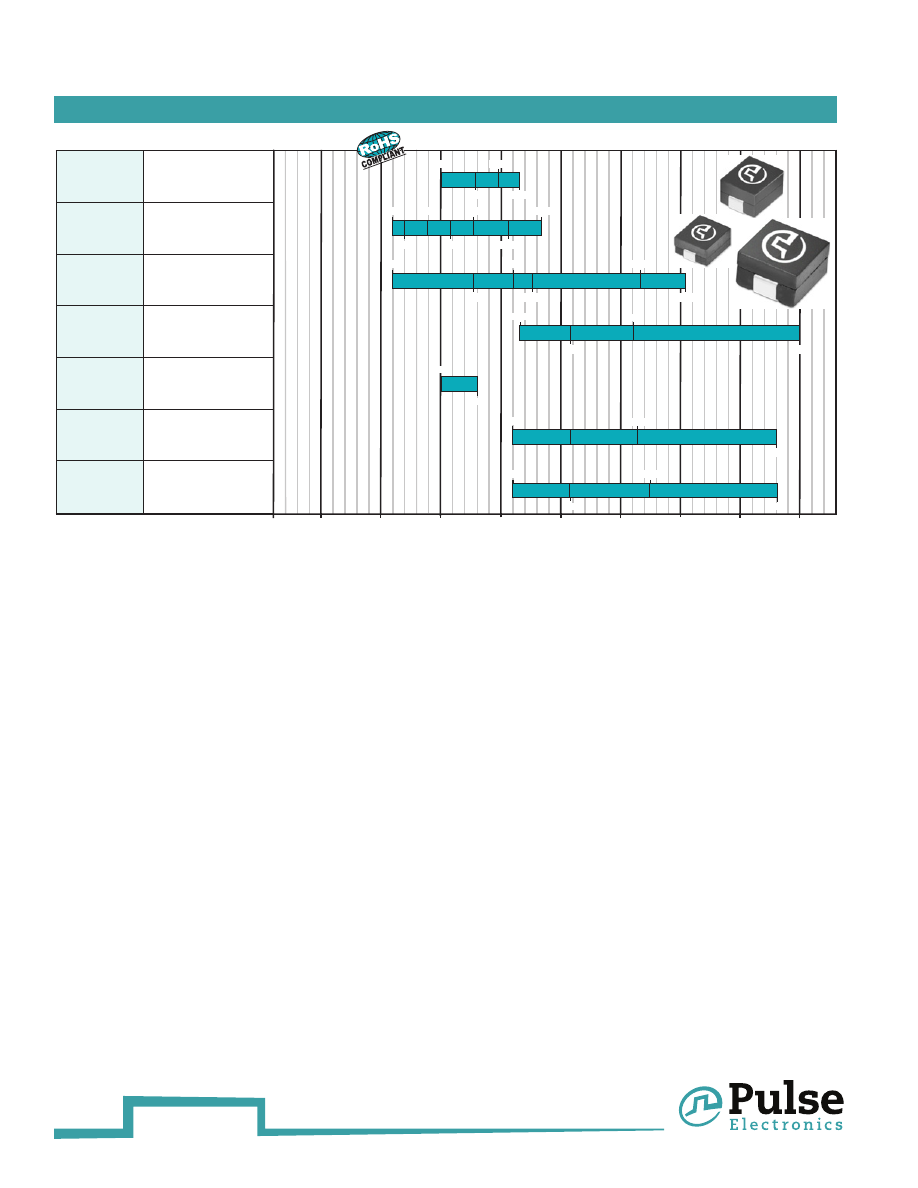

PRODUCT OVERVIEW: SMT FLAT WIRE COIL INDUCTORS (CON'T)

PRODUCT OVERVIEW: SMT PLANAR AND WIRE WOUND COIL INDUCTORS

(14.5 x 13 x 4.4 mm Max)

(16.2 x 16 x 8.2 mm Max)

(14.5 x 13 x 6.5 mm Max)

(19.8 x 19.6 x 7.4 mm Max)

(14.5 x 13 x 6.5 mm Max)

(22.2 x 19.1 x 12.2 mm Max)

PG0084

PD0120

PG0077, PG0277, PG0377

PA1x9x

PG0434

PA2729

PA2050

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

POWER MAGNETICS

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

15.4A

0.71A

8.3A

3.8A

0.53A

1.77A

14.4A

38A

9.5A

0.64A

0.1

100

1000

Inductance (uH)

0.1

0.23

220

0.1

9.9

820

0.1

9.9

560

0.1

0.9

1000

0.1

0.02

0.1

0.58

150

0.1

0.58

0.1

100

1000

Inductance (uH)

0.1

100

1000

48A

20.5A

1.7A

17A

3.6A

1.5A

0.5A

0.1

100

1000

Inductance (uH)

PRODUCT OVERVIEW: SMT TOROID INDUCTORS

PRODUCT OVERVIEW: SMT THT INDUCTORS

(multiple packages)

(Various Sizes)

(12.7 x 12.7 x 5.5 mm Max)

(Various Sizes)

(12.7 x 12.7 x 5.5 mm Max)

(Various Sizes)

(18.2 x 15 x 7.6 mm Max)

(Various Sizes)

(31 x 25.4 x 12.7 mm Max)

SLIC (PE-536xxNL)

Bare Coil (PA043xLNL)

Polecat (P017xNL, P018xNL)

Low Profile (PE-526xxNL)

Bobcat (P014xNL, PO15xNL)

Boat Header (PE-515xxNL)

Tomcat (P039xNL, P040xNL)

Klip Mount (PE-921xxNL, P084xNL)

HCCI-80 (P059xNL)

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

POWER MAGNETICS

PRODUCT OVERVIEW: SMT POWER BEAD INDUCTORS

107A

75A

93A

58A

63A

83A

64A

61A

55A

46A

48A

41A

36A

34A

32A

70A

37A

34A

45A

75A

43A

75A

46A

35A

32A

26A

30A

74A

52A

66A

94A

67A

41A

76A

48A

35A

86A

46A

65A

93A

94A

72A

84A

94A

80A

64A

42A

74A

48A

29A

50A

30A

94A

67A

85A

94A

48A

43A

32A

The peak currents listed are at 25

�

C. The complete datasheet for a given series should be reviewed to determine peak currents at other ambient temperatures.

450nH

400nH

350nH

300nH

250nH

200nH

150nH

100nH

50nH

0nH

29.5A

PA2983

(0.33m

+/- 10%)

4.0 x 5.0 x 4.0 mm Max

PA1682

(0.5m

+/- 8%)

8.0 x 7.0 x 4.0 mm Max

PA0512

(0.32m

+/- 9.4%)

PA1212

(0.46m

+/- 6.5%)

7.0 x 7.0 x 5.0 mm Max

PA2083

(0.60m

+/- 8%)

7.6 x 7.4 x 7.0 mm Max

PA2509

(0.35m

+/- 8.5%)

7.0 x 8.5 x 8.0 mm Max

PA3288

(0.29m

+/- 5%)

9.6 x 6.4 x 8.0 mm Max

PA4025

(0.29m

+/- 10%)

10.0 x 6.8 x 12.3 mm Max

PA4390

(0.185m

+/- 10%)

10.0 x 7.0 x 10.0 mm Max

PA511

(0.29m

+/- 5%)

PA1211

(0.55m

+/- 7.3%)

10.2 x 7.0 x 5.0 mm Max

PA3784

(0.18m

+/- 5%)

10.0 x 8.0 x 8.0 mm Max

PA2607

(0.29m

+/- 7%)

(+/- 5%

also available

)

10.4 x 7.9 x 7.5 mm Max

PA1320

(0.48m

+/- 8%)

10.4 x 8.0 x 6.5 mm Max

PA4060

(0.29m

+/- 5%)

10.4 x 8.0 x 7.5 mm Max

PA3779

(0.35m

+/- 8.6%)

11.4 x 7.0 x 8.0 mm Max

PA2982

(0.35m

+/- 8.6%)

11.0 x 8.0 x 5.0 mm Max

PA4085

(0.18m

+/- 5%)

11.0 x 8.2 x 9.2 mm Max

PA4272

(0.2m

+/- 10%)

12.8 x 7.3 x 10.1 mm Max

Pulse PN Series

Electrical Specifications

Dimensions (LxWxH mm Max)

75A

52A

70A

40A

33A

72A

62A

37A

75A

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

POWER MAGNETICS

PRODUCT OVERVIEW: SMT POWER BEAD INDUCTORS (CON'T)

85A

56A

68A

80A

64A

84A

53A

34A

38A

43A

64A

53A

26A

34A

60A

45A

67A

71A

50A

35A

50A

30A

40A

47A

30A

The peak currents listed are at 25

�

C. The complete datasheet for a given series should be reviewed to determine peak currents at other ambient temperatures.

450nH

400nH

350nH

300nH

250nH

200nH

150nH

100nH

50nH

0nH

98A

PA3790

(0.29m

+/- 5%)

12.5 x 8.0 x 8.0 mm Max

PA3136

(0.23m

+/- 10%)

13.8 x 8.0 x 4.0 mm Max

PA2202

(0.48m

+/- 6.5%)

12.1 x 10.0 x 6.0 mm Max

PA0515

(0.63m

+/- 9.5%)

11.2 x 11.2 x 9.0 mm Max

PA4228

(0.13m

+/- %)

12.8 x 8.3 x 9.0 mm Max

PA0513

(0.32m

+/- 9.4%)

PA1513

(0.53m

+/- 11.3%)

13.5 x 13.0 x 8.0 mm Max

PA2891

(0.22m

+/- 10 %)

13.7 x 13.0 x 8.0 mm Max

Pulse PN Series

Electrical Specifications

Dimensions (LxWxH mm Max)

73A

84A

63A

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

PRODUCT OVERVIEW: SMT POWER & ISOLATION TRANSFORMERS

POWER MAGNETICS

Pulse offers custom transformer designs using standard cores and bobbins on the following SMT platforms. Refer

to datasheets for below listed parts on Pulse website for further details. 10Kpcs annual demand typically required

for custom development. Please contact the Pulse Power Business Unit for your specific needs where we can also

offer a wide range of high efficiency magnetics for computing, data-communications and industrial applications.

Planar Platforms - ER19, ER25 and ER25 Plus

EFD Platforms - EFD15, EFD20, EFD25 and EFD30

EP Platforms - EP7, EP10, EP13 and EP13 Plus

ER Platforms - ER9.5, ER11 and ER14.5

Functional Insulation Toroid Isolation Platform

Reinforced Insulation EP7 Isolation Platform

Extended Creepage Sidecar Isolation Platform

Up to 800W Forward and Full Bridge

1500Vdc Galvanic Isolation

PH0801NL, PH0910.003CNL, PH9278NL

Up to 150W Forward and Flyback

Functional and Basic Insulation

PA1646NL, PA2398NL, PA2459NL, PA3524NL

Up to 70W Forward and Flyback

Functional and Basic Insulation

PA1130NL, PA1133NL, P1136NL, PA3855

Up to 10W Push-Pull and Flyback

Functional Insulation

PA0663NL, PA1032NL, PA1026NL

2500Vrms Isolation, Class B insulation

Communications interface applications

PH9085

TUV Certified to EN60950, Class F insulation

8mm creepage/5000Vrms Isolation

PH9185

12mm Creepage in 7mm and 14mm heights

5000Vrms Isolation

PH9385 and PA3965

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

PLATFORM OVERVIEW: THROUGH-HOLE POWER TRANSFORMERS

POWER MAGNETICS

Pulse offers custom transformer designs using standard cores and bobbins on the following THT platforms.

Refer to datasheets for below listed parts on Pulse website for further details.

EE10 Platform - 8 Pins, THT, Vertical

EE13 Platform - 9 Pins, THT, Horizontal, Offset

EE13 Platform

- 10 Pins, THT, Vertical, Offset

EE16 Platform - 10 Pins, THT, Horizontal, Offset

EE16 Platform

- 10 Pins, THT, Vertical

EE19 Platform - 10 Pins, THT, Vertical

EF20 Platform - 8 Pins and 10 Pins, THT, Horizontal

EF20 Platform

- 14 Pins, THT, Horizontal, Offset

EF25 Platform - 10 Pins, THT, Vertical

PQ2016 Platform - 14 Pins, THT, Vertical

Typical Power Level: 5W (100kHz, Flyback)

Size: 11.0 x 11.0 x 12.0 mm Max

Custom part numbers available

Typical Power Level: 10W (100kHz, Flyback)

Size: 19.5 x 13.5 x 15.0 mm Max

PA2718NL

Typical Power Level: 15W (100kHz, Flyback)

Size: 18.2 x 13.8 x 17.5 mm Max

PA3050NL, PA2621NL

Typical Power Level: 20W (100kHz, Flyback)

Size: 21.0 x 16.50 x 24.0 mm Max

Custom part numbers available

Typical Power Level: 25W (100kHz, Flyback)

Size: 21.6 x 21.6 x 15.8 mm Max

PA2872NL, PA2959NL, PA2979NL

Typical Power Level: 40W (100kHz, Flyback)

Size: 28.5 x 18.8 x 30.5 mm Max

PA2380NL, PA2942NL

Typical Power Level: 40W (100kHz, Flyback)

Size: 23.5 x 23.5 x 18.7 mm Max

Custom part numbers available

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

PLATFORM OVERVIEW: SMT AND THT COMMON MODE CHOKES

POWER MAGNETICS

SMT Common Mode Chokes

THT PA3747.xxxNL Series

THT PE-961xxNL Series

THT PE-62xxxNL Series

THT FE 2X Series

THT FE 3X Series

9.1 x 8.9 x 3.8 mm to 31.0 x 25.4 x 12.7 mm Max

0.5Arms (13.2mH) to 14Arms (0.20mH)

Hi-pot Voltage: 1500Vrms

P0502NL, PA2741NL, PE-53912NL

19.3x18.2x22.9 mm Max

0.75A to 5.0A

Hi-pot Voltage: 1500Vrms

PA3747.105NL

33.0x18.3x34.0 mm to 43.2x43.2x26.2 mm Max

0.5Arms (33mH) to 15Arms(1mH)

Hi-pot Voltage: 2500Vrms

PE-96161NL

29.2x14.2x10.2 mm to 38.1x20.3x32.5 mm Max

1.8Arms (10mH) to 7.5Arms (2mH)

Hi-pot Voltage: 2500Vrms

PE-62891NL

17.9x17.9x12.9 mm to 43.4x42.4x25.4 mm Max

0.4Arms (47mH) to 8Arms (3.3mH)

Hi-pot Voltage: 1500Vrms

FE2X03-3-2NL

17.9x17.9x12.9 mm to 43.4x42.4x25.4 mm Max

0.4Arms (47mH) to 8Arms (3.3mH)

Hi-pot Voltage: 1500Vrms

FE3X050-10-7NL

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

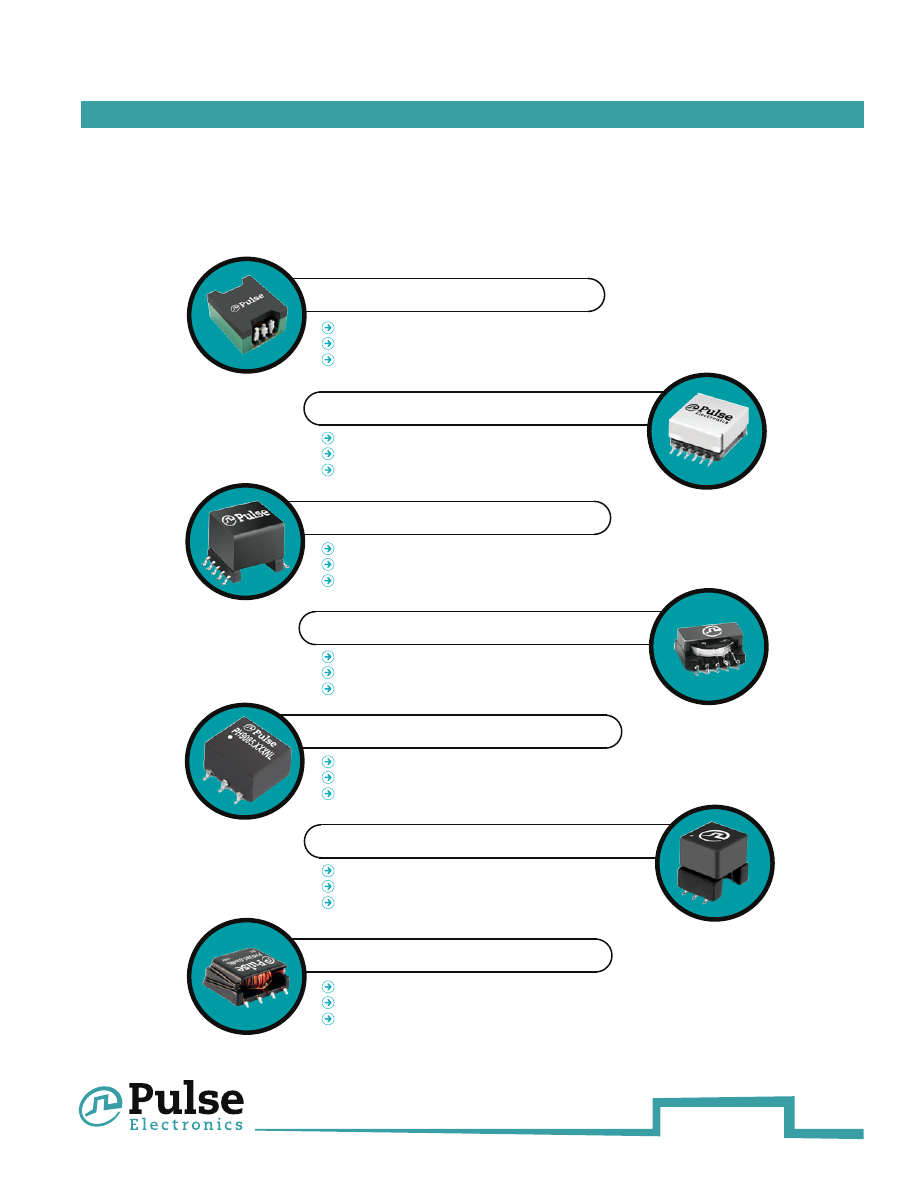

PLATFORM OVERVIEW: SMT AND THT GATE DRIVE TRANSFORMERS

PLATFORM OVERVIEW: SMT CURRENT SENSE MAGNETICS (FOR SWITCHING POWER SUPPLIES)

POWER MAGNETICS

SMT Gate Drive Transformers

SMT PA0368.xxxNL Series

THT P058xxNL Series

SMT PA1005.xxxNL Series

SMT PB002xNL Series

THT PE-6388xNL Series

SMT PE-68xxxNL Series

8.6mm x 6.7x2.5mm to 11.8mm x 8.8x4.0mm Max

Functional and Basic Insulation

Multiple Winding Configurations and Sizes

Hi-pot Voltage: 1500Vrms

PE-68386NL, PA2001NL

8.4mm x 8.4mm x 3.3mm Max

Turns Ratio: 1:50 up to 1:125

RMS current: 4Arms

Hi-pot Voltage: 500Vrms

20.6mm x 12.2mm x 19.1 mm Max

UL, C-UL, and TUV Approved Components

Turns Ratio: 1:1:1 and 1:1:1:1:1

Hi-pot Voltage: 4250Vrms

P0584NL

8.4mm x 7.2mm x 5.1mm Max

Turns Ratio: 1:20 up to 1:125

RMS current: 20Arms

Hi-pot Voltage: 500Vrms

(higher current version of P82xNL series)

19.9mm x 14.5mm x 10.0mm Max

Turns Ratio: 1:50 up to 1:200

RMS current: 35Arms

Hi-pot Voltage: 500Vrms

27.7mm x 27.4mm x 30.5mm Max

VDE Approved

Multiple Winding Configurations

Hi-pot Voltage: 3750Vrms

PE-63885NL

18.2mm x 15.0mm x 7.6mm Max

Turns Ratio: 1:1:50 up to 1:1:200

RMS current: 15Arms

Hi-pot Voltage: 500Vrms

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

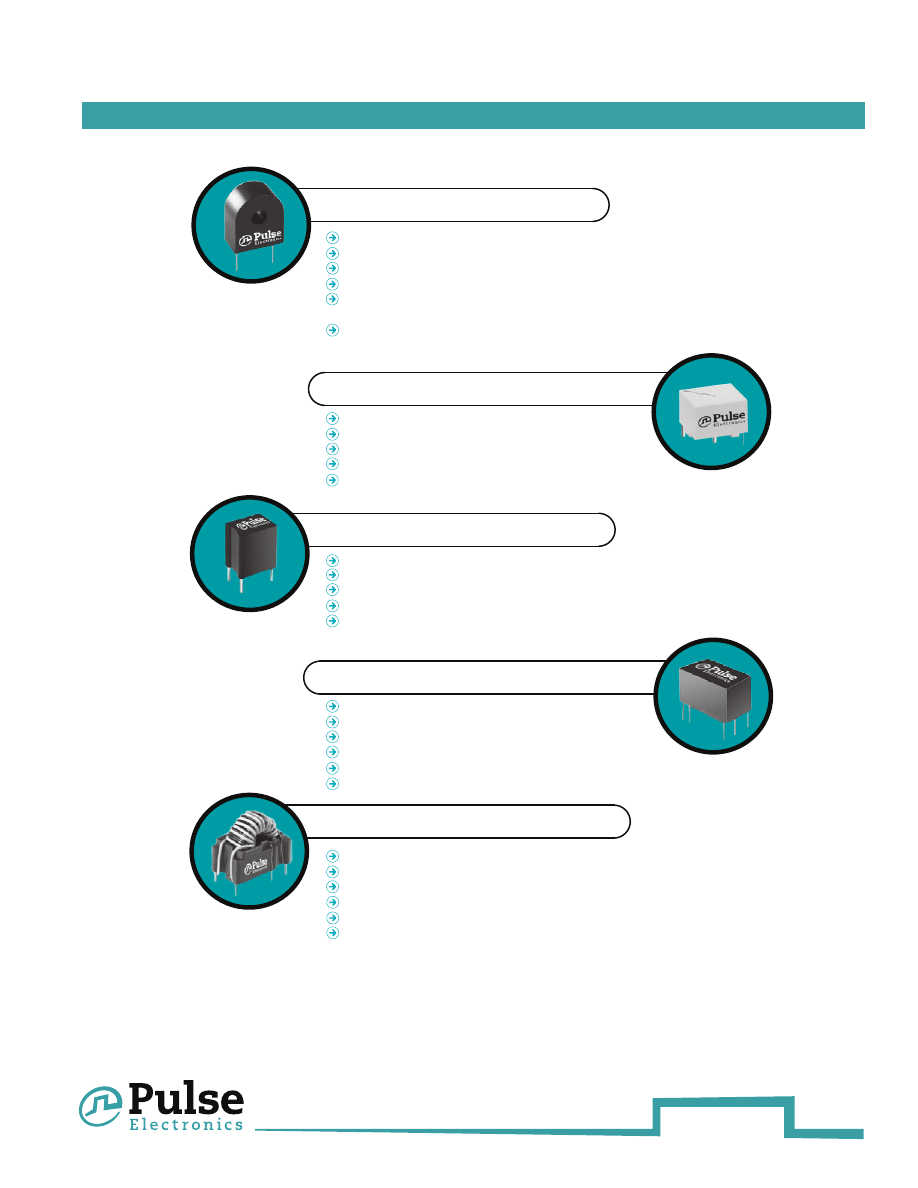

PLATFORM OVERVIEW: THT CURRENT SENSE MAGNETICS (FOR SWITCHING POWER SUPPLIES)

POWER MAGNETICS

THT PE-51xxxNL Series

THT FIS 1x5NL Series

THT PE-67xxxNL Series

THT PE-6xxxxNL Series

THT P058xNL Series

17.1mm x 9.9mm x 20.4mm Max

VDE recognized component

Turns Ratio: 50T to 200T CT

RMS current: 20Arms

Hi-pot Voltage: 3000Vrms

(available also as FIS1x1 Series)

PE-51688NL, FIS101NL

17.6mm x 15.0mm x 12.0mm Max

Turns Ratio: 1:50 up to 1:500

RMS current: 25Arms

Hi-pot Voltage: 4000Vrms

FIS105NL

19.1mm x 14.4mm x 19.1mm Max

Turns Ratio: 1:50 up to 1:300

RMS current: 35Arms

Hi-pot Voltage: 500Vrms

PE-67050NL

22.9mm x 17.8mm x 17.8mm Max

VDE Approved

Turns Ratio: 1:50 up to 1:300

RMS current: 20Arms

Hi-pot Voltage: 3000Vrms

PE-63586NL

20.6mm x 14.7mm x 19.1mm Max

UL/C-UL recognized component

Turns Ratio: 1:1:50 up to 1:1:200

RMS current: 35Arms

Hi-pot Voltage: 3000Vrms

P0581NL

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

POWER MAGNETICS

PRODUCT OVERVIEW: CURRENT SENSE MAGNETICS (SIDEWINDER FOR 50/60HZ AC)

50/60 Hz, Single Phase, AC Current Sensor
Dynamic Range from 0.1 to 1000 Amps
For ANSI C12.20 Smart Meters
For IEC 62053-22 Smart Meters
Phase error < 0.05 degree
Bandwidth 300KHz
Immune to external AC magnetic fields
Immune to DC current & DC magnetic field
Very low temperature coefficient
Patent pending

Electrical Specifications at 25°C Temp Range -40°C to 130°C

Actual Secondary Output Voltage (Vsa)

Part Number

Accuracy

Class

(

Ω/

Hz typ)

@ 60 Hz (

V/A)

Curent Range

PA3202NL

0.2

8.33

500

200

PA3206NL

0.2

7.66

460

100

PA3207NL

0.2

7.66

460

200

PA3208NL

0.2

7.66

460

100

PA3209NL

0.2

7.66

460

1000

PA3828NL

1.0

6.12

372

100

Low Frequency Equivalent Circuit

PA3206NL

PA3202NL

PA3207NL

PA3208NL

PA3209NL

PA3828NL

Vout

Vsa = K

SRF

Vsa

Go to www.pulseelectronics.com/SIDEWINDER
For more information, including product data sheets, Sidewinder
Overview, Sidewinder Reliability Report, IC Cross Reference List,
and Metering Application Notes.

The Pulse Sidewinder© products are the ultimate evolution of the Rogowski Coil principle for AC current sensing applications. Pulse'
patent pending winding technique has been engineered to provide highly linear output voltage over a very wide dynamic range from
1.0 to 1000 Amperes (A), making them especially suited for applications such as distributed power generation, renewable energy and
storage, load balancing, power monitoring, advanced metering infrastructure (AMI), circuit breaker panels, and smart meters.

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

AUTOMOTIVE PRODUCTS

Pulse’s Automotive Division has designed, developed, and manufactured coils and ignition
transformers for the automotive industry for more than ten years. Pulse meets or beats
the challenges of the stringent requirements of the international automotive industry with
mature quality procedures, savvy research and development, the latest in production
technology, and competitive pricing. This results in products that are “intelligent solutions”
at competitive maFrket prices.
Worldwide automotive teams manage customer projects with detailed attention to defined
standards and procedures. Engineering teams work together to resolve customer problems,
develop concepts, and manage research and development. Once developed and ready for
manufacturing, products are manufactured in some of the most technologically advanced
production facilities in the world.

OVERVIEW: PULSE AUTOMOTIVE PRODUCTS

Ignition Coils

Coils

Ignition coils from Pulse are designed, developed,

and sold to several automotive OEMs (original

equipment manufacturers) and the IAM

(international after-market).
Benefits:

Experienced product development

Technologically advanced development centers

Customer-specified designs

Superior process capability

State-of-the-art production facilities

Fine-wire coils are found in automotive parts

and coil assemblies. They are used in various

applications that increasingly include safety and

comfort devices for the automobile.

Benefits:

Custom designs

Superior process capability

High-quality materials

A mature “quality” system

State-of-the-art production facilities

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

COILS

Custom coils, developed by Pulse, are wound on state-of-the-art, semi- and fully-automatic machines. A selection of fine wires,
from 0.028mm to 0.095mm and standard wires, up to 0.75mm, are used. A variety of plastics, such as thermoplastics, duroplastics,
and specialty plastics, designed for use in high-temperature applications in an engine compartment, can be selected for use as the coil
body, depending on electrical, temperature and mechanical specifications.

COIL ASSEMBLIES

Target Applications

Operating Principles

Product Benefits

Toothbrush Charging Unit

An inductive charging unit for electric toothbrushes

Heat-resistant plastic, highly-integrated coil

Manufacturing Technology

Directional control valve within a pneumatic application

Highly robust, wear-and-tear resistant

AUTOMOTIVE COILS

Target Applications

Operating Principles

Product Benefits

Sensor Coils for:

Shock Absorber

Measures the stroke so the data can be used to

Highly-integrated assembly consisting of an over-

regulate the characteristics of the shock absorber

molded coil combined with the cable and connector

Positioning Sensor

A magneto-strictive displacement sensor used in

Highly-robust, wear-and-tear resistant

various applications

Actuator Coils for:

Climate Control Systems

Steers the hatches within the system

A very robust coil, sheathed in a metal frame

Automatic Gearbox

Controls hydraulic valves in an automatic transmission

Highly integrated assembly, heat-resistant coil with

metal housing

Antenna Coils for:

Body and Security System

Active communication between key and vehicle

Flexible cabling approach a variety of options:

(immobilizer)

over-molded assembly for robustness, tight tolerances

on inductance, and DC resistance

AUTOMOTIVE PRODUCTS

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

AUTOMOTIVE PRODUCTS

AUTOMOTIVE/MOTORCYCLE

Pencil Coils

Pulse’s ignition coils, for both automobiles and motorcycles, are well known for reliability, as well as being a perfect fit for each
customer’s engine application. Custom coils are designed and manufactured by Pulse’s rigorous design processes and production
lines that are scalable to any required volume, high or low. Pulse uses accumulated knowledge and long-term practical experience
with design and material selection to address specifications for thermal, mechanical, electrical and chemical ambient conditions.

Essential Features

Lock-in-place for spark plugs with SAE-adapter

Plug-in assembly spark plug shaft

Integrated semiconductor power switch (IGBT)

Soft shut-down

TT L - Level control input

Integrated EMC

High-ignition energy and voltage capability

Over-voltage protection

Coil over-current limiting

Active ECU-interface

THE FUTURE OF IGNITION

The

OBD Spark

is a new development in the field of ignition.

It’s a diagnostic-capable, inductive, high-energy, rod-ignition
transformer with wideband sensing.

Product Highlights

Diagnostic capability through ion sensing

Spark and combustion diagnostics

Knock detection

Active spark control

Misfire detection

The

Transformer Plug Unit

is a combination of an ignition

transformer and a spark plug. The unit is a smaller part. Thus,
it reduces the component count.

Product Highlights

Fewer components

Adjustable abrasion resistance

Water-resistant

Age-resistant bobbin

IGNITION COILS

Pulse is a leading manufacturer of ignition transformers for use in passenger cars and motor sports. The ignition is the heart of the
engine. For over 70 years, Pulse’s developers (formerly part of BREMI) have been involved in producing products that address every
aspect of ignition technology. The invention of the pencil-ignition transformer is a technology breakthrough in modern ignition concepts.

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

Pulse is one of the leading manufacturers of magnetic interface transformers,
data bus couplers, delay lines, ethernet transformers, and custom electronic
components for Military/Aerospace applications. Both catalog and custom designs
include a comprehensive range of high-performance solutions and packaging for

QPL and non-QPL MIL-STD-1553 interface transformers, various MIL -STD-1553

Data Bus Couplers and QPL and non-QPL active and passive delay lines. In

addition, Copperhead transformers and transceivers support a variety of high-

speed applications that includes Fibre Channel, Gigabit Ethernet, SONET, HDTV,

IEEE1394B, SMTPE, Ethernet and AFDX buses.

Pulse’s Military/Aerospace products are designed to meet the most demanding requirements for

military, aerospace and industrial applications. For catalog and/or custom designed products, contact Pulse’s Military/Aerospace
Division at 215-781-6400 or find an authorized distributor or representative on the Pulse website: www.pulseelectronics.com.

MILITARY/AEROSPACE PRODUCTS

Copperhead

High Speed Dual Transformers

1. Web:

http://www.pulseelectronics.com home page, click on “DATA SHEETS.” Then select Military Aerospace, “CopperHead™ High Speed Dual Transformers” (M105.pdf).

2. Dual Transformers

designed specifically for Point-to-Point Coupling to 150

Twinax Cable

Withstands

infrared and vapor phase soldering;

Military Temp Range

-55°C to +125°C;

Weight

= 1.0 grams;

Surface Mount

= pick-and-place compatible.

Applications:

Fibre Channel, Gigabit Ethernet, SONET, HDTV, IEEE 1394B, SMTPE.

3. Parts

can be ordered RoHS by adding a suffix "

" to the part number (i.e. T-330SCT

4. Tape&Reel

packaging is available by adding a suffix "

" to the part number (i.e. T-330SCT

)

Application Notes

: These isolation transformers protect the station from static charges that may develop on the cable and prevent ground loop currents from being

transferred between stations. They have also been designed to provide common mode rejection within the transmission band, reducing EMI.

High Speed Data and Communications over
100+ Meters of Copper

Withstands infrared and vapor phase

soldering

Military temperature range -55°C to +125°C

Low transmit/receive jitter

Low power dissipation; 450 mW typical

ECL logic interface

Surface mount – pick-and-place compatible

1800V Isolation Voltage

Applications:

Fibre Channel, Gigabit Ethernet,

SONET, HDTV, IEEE 1394B, SMTPE

Copperhead

Series Transceiver Line Interface Modules

Surface Mount

Part

Number

Package

L/W/H

Turns Ratio

(

5%)

Primary Inductance

(

H MIN)

Rise Time

(ps MAX @ 20-80%)

DC Resistance

(

Ω

MAX)

Hipot

RMS

MIN)

Insertion Loss

(dB MAX)

Application Nominal

Bit Rate (Mbaud)

T-330SCT .500/.435/.180

1CT:1CT

26.0 @ 1.0 V

RMS,

100 kHz

350

0.2

1500

-1.5

(15-165 MHz)

265.625

(quarter speed)

T-1062SCT .500/.435/.180

1CT:1CT

3.75 @ 1.0 V

RMS,

100 kHz

280

0.2

1500

-2.0

(100-625 MHz)

1062.50

(full speed)

T-1250SCT .500/.435/.180

1CT:1CT 3.75

280

0.2

1500

-2.0

1250

T-1485SCT .500/.435/.180

1CT:1CT 3.75

280

0.2

1500

-2.0

1485

(SMPTE)

T-3200SCT .500/.375/.235

1:1

0.70

200

0.2

1500

-4.50

3200

T-531SCT .500/.435/.180

1CT:1CT

7.5 @ 1.0 V

RMS,

100 kHz

325

0.2

1500

-2.0

(50-265 MHz)

531

(half speed)

Ordering Information

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

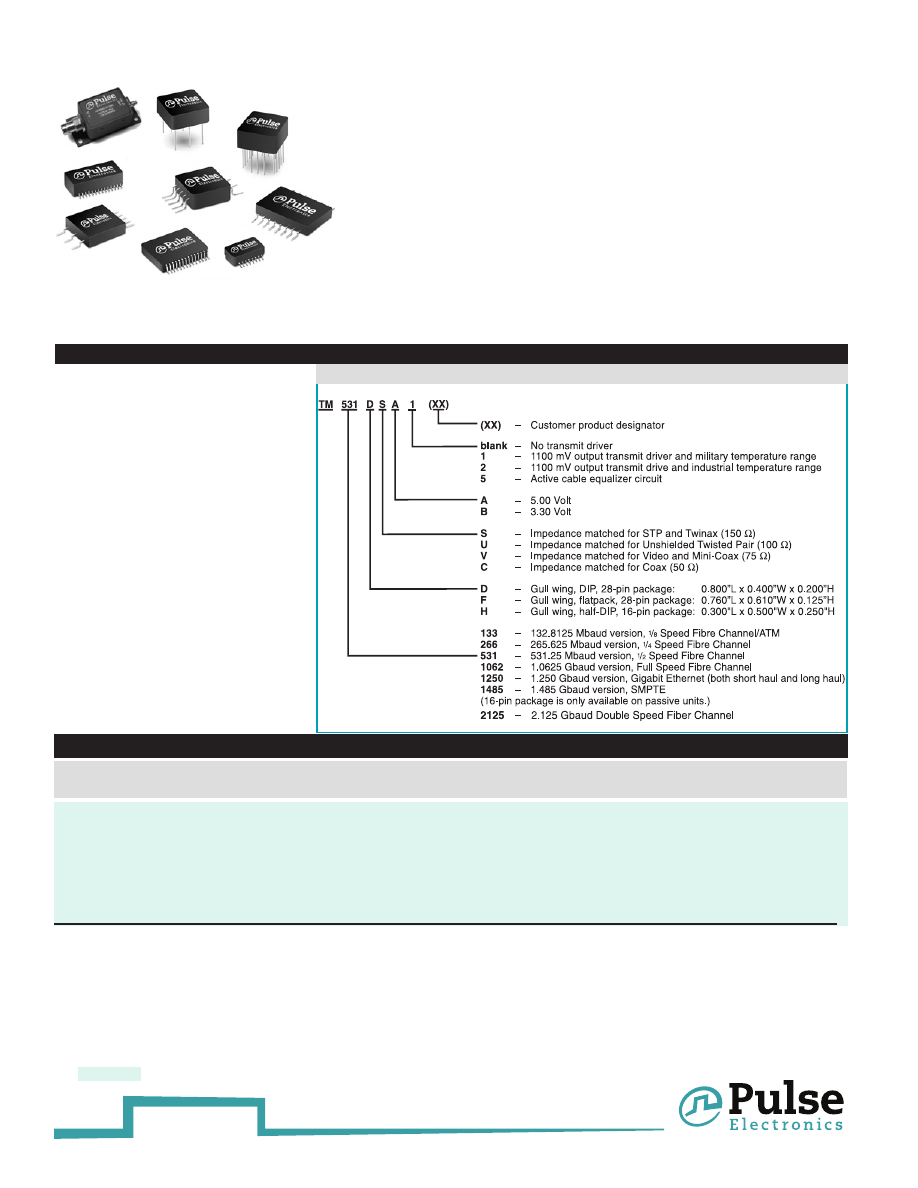

IEEE 1394B FIREWIRE 1.062GB TRANSCEIVER LINE

TM1062TXDUA 246 1062 1200 1300 1500 232 1:1 4.5 -2 MAX -12 MIN .800 / .400 / .200 M103
TM1062TXHUA 246 1062 1200 1300 1500 232 1:1 4.5 -2 MAX

-12 MIN .510 / .300 / .140 M103

TM1062TX3DUA 246 1062 1200 1300 1500 700 1:1 4.5 -2 MAX

-12 MIN .800 / .400 / .185 M103

TM125TXHUA 98 246 1200 1300 1500 232 1:1 40 -2 MAX

-12 MIN .510 / .300 / .140 M186

TM1062DUXB 246 1062 1200 1300 1500 232 1:1 4.5 -2 MAX

-12 MIN .800 / .400 / .200 M186

TM1062HUXB 246 1062 1200 1300 1500 232 1:1 4.5 -2 MAX

-12 MIN .510 / .300 / .140 M186

Part

Transmit/Receive Transmit Differential Total Power Receive

Receive Primary

Receive Insertion Transmit/Receive Package Data

Number Data Rate (Mb/s) Signal Level - Vout Dissipation (mW) Turns Ratio

Inductance - Lm (uH)

Loss (dB) Return Loss L/W/H (in.) Sheet

MIN MAX MIN TYP MAX TYP TYP MIN (dB)

Part

Impedance

Insertion Loss

Jitter Dj

Datasheet

Number

Unbalanced

Balanced

dB MAX

pSec. MAX

1.485GBs 1.485GBs, P7

Part

Impedance

Insertion Loss

Return Loss

Datasheet

Number

Unbalanced

Balanced

dB MAX

(dB MIN)

1.485GBs 1.0MHz - 1.2 GHz

MILITARY/AEROSPACE PRODUCTS

continued next page

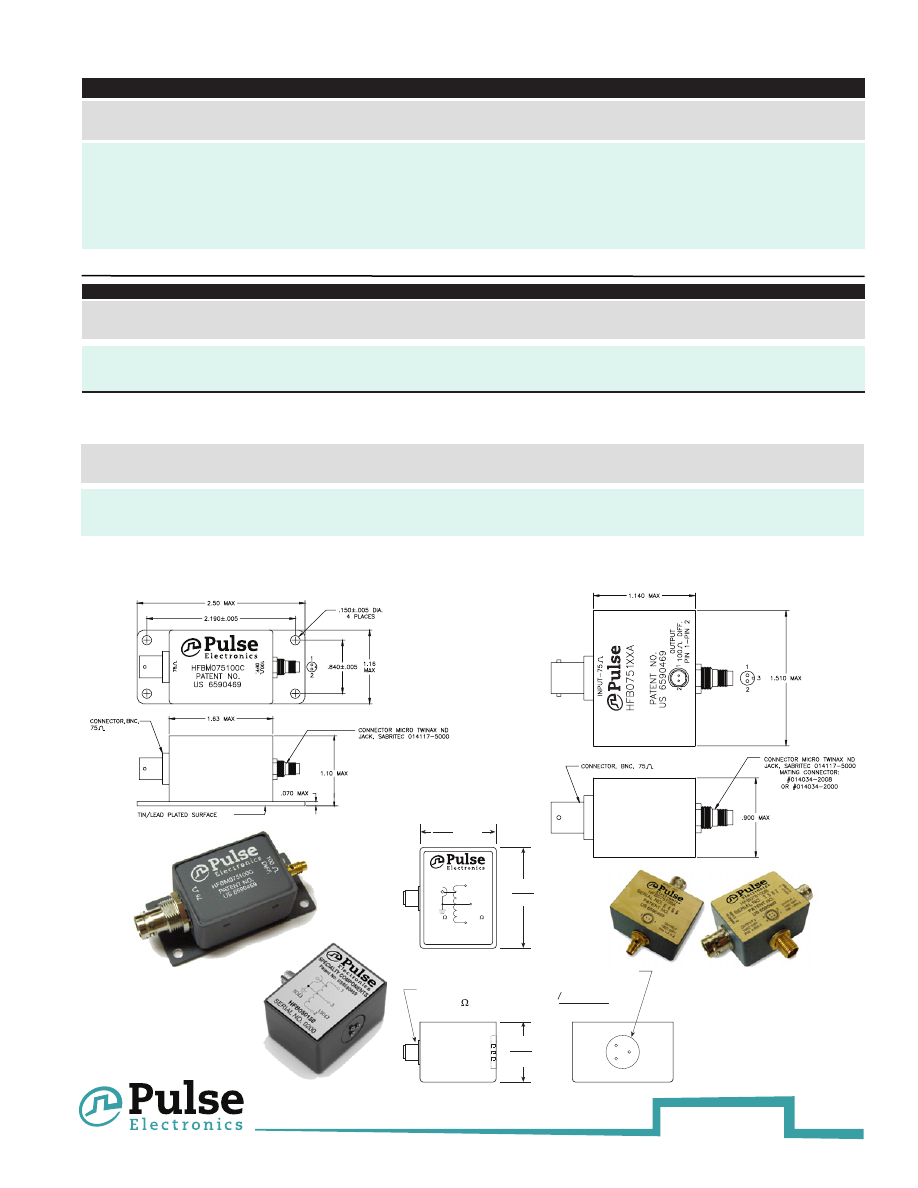

HFBM075100C* 75   100 -2.0   110.0 M147
HFB075100A 75 100 -2.0 110.0    M146
HFB075100B 75 100 -2.0 110.0    M146

HFB050150 50   150 -2 15 M100
HFB050100 50 100 -2 15     M100
HFB050078 50 78 -2 15    M100

Transforms 100

Ω

balanced differential signal to 75

Ω

, Grounded unbalanced signal. Designed for SMPTE-292M HDTV application at 1.485GBs data rate.

*Designed for M21038 Environmental, EMI requirements.

Transforms a balanced differential signal to a 50

Ω

, grounded, unbalanced signal for testing different cable.

Designed for standard test equipment with SMA connectors. Wide bandwidth- 1.0MHz - 1.2GHz

SPECIALTY COMPONENTS

PATENT No. US6590469

HFB050XXX

SERIAL NO.

1.140 MAX

28,96

1.510 MAX

38,35

.900 MAX

22,86

CONNECTOR,
SMA, 50

CONNECTOR, HEADER

3 SOCKETS

FITS o.025 - .035 PINS

0,64 - 0,89

150

Note: Parts listed on datasheet M103 are manufacured in the UnitedStates; Datasheet M186 contains part manufactured in China.

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

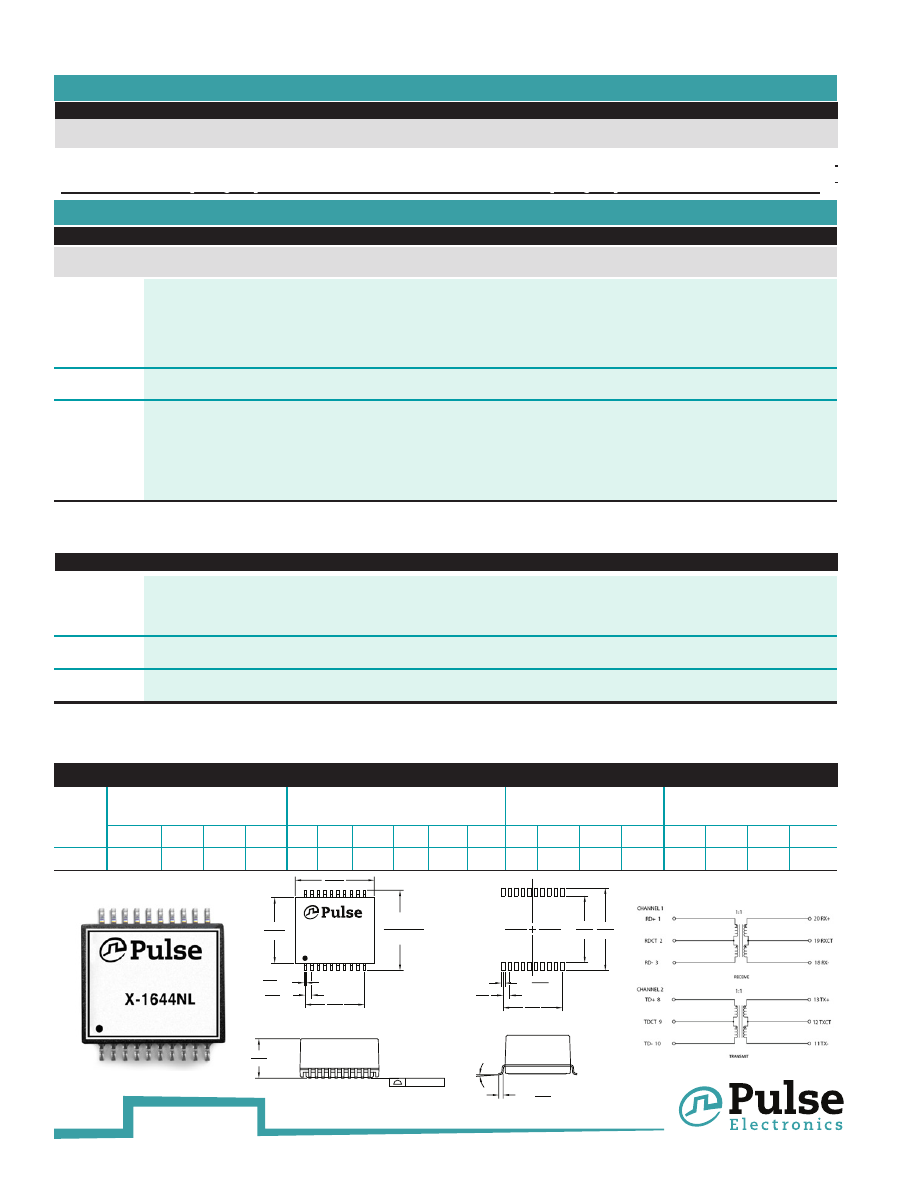

MILITARY/AEROSPACE PRODUCTS

continued next page

HIGH SPEED DATA TRANSFORMER

Number

Part

Turns

Configuration

Package Data

of Ports

Number

Ratio

RX TX

Style

Size L/W/H (in.)

Sheet

100B-1001F

1CT:1CT

T, C, S

T,C

12-pin SMT

.630/.470/.185

M101

100B-1001FX

1CT:1CT

T, C, S

T,C

12-pin SMT

.630/.470/.185

M101

100B-1003

1CT:1CT

T,C

16-pin SOIC

.500/.265/.235

M101

100B-1003X

1CT:1CT

T,C

16-pin SOIC

.500/.265/.235

M101

100B-1018F

1CT:1CT

T,C

T,C,S

12-pin SMT

.583/.470/.180

M189

100B-1018FX

1CT:1CT

T,C

T,C,S

12-pin SMT

.583/.470/.180

M189

Dual

100B-2002F

1CT:1CT

T, C

T,C

24-pin SMT

.518/.595/.241

M110

100B-2002FX

1CT:1CT

T, C

T,C

24-pin SMT

.518/.595/.241

M110

100B-4005F

1CT:1CT

T,C

40-pin SOIC

1.125/.480/.280

M203

100B-4005FX

1CT:1CT

T,C

40-pin SOIC

1.120/.480/.280

M203

100B-4009F

1CT:1CT

T,C

40-pin SMT

1.125/.480/.280

M190

100B-4009FX

1CT:1CT

T,C

40-pin SMT

1.125/.480/.280

M190

100B-4011F

1CT:1CT

T,C

40-pin SMT

1.125/.480/.280

M151

100B-4011FX

1CT:1CT

T,C

40-pin SMT

1.125/.480/.280

M151

1. “10/100Base-TX

Single-Port Transformer Modules - Military/Aerospace Grade” (M101.pdf)

or “10/100Base-TX Quad-Port Transformer Modules - Military/

Aerospace Grade” (M102.pdf) at www.pulseelectronics.com.

Parts can be ordered Non-Lead by adding

"NL"

to the part number (i.e. 100B-1001F

10/100

1000B-5001F

1CT:1CT

T, C, S

24-pin SOIC

.695/.635/.230

M106

Single

1000B-5001FX

1CT:1CT

T, C, S

24-pin SOIC

.695/.635/.230

M106

1000B-5002F

1CT:1CT

T, C, S

24-pin SOIC

.695/.635/.230

M106

1000B-5002FX

1CT:1CT

T, C, S

24-pin SOIC

.695/.635/.230

M106

1000B-5003F

1CT:1CT

T, C

50-pin SOIC

1.095/.430/.340

M106

1000B-5003FX

1CT:1CT

T, C

50-pin SOIC

1.095/.430/.340

M106

1000B-5012F

1CT:1CT

T, C, S

24-pin SMT

.595/.518/.241

M187

1000B-5012FX

1CT:1CT

T, C, S

24-pin SMT

.595/.518/.241

M187

3
3

Dual

Single

1. Web:

www.pulseelectronics.com home page, pick data sheets” 10/100/1000Base-T Single Port Transformer Modules -- Military/ space grade” (M106.pdf).

2. T

= Transformer,

= Choke,

= Shunt inductor,

SMT

= 50 mil pitch leads

, SOIC

= 100 mil pitch leads

3. 0.99mm

(0.39”) pitch leads

Quad

Single

10/100/1000

T1/E1/CEPT/ISDN-PRI SMT TRANSFORMER

PL1374

1CT:1CT

1.2

1-3

.275 / .275 / .250 M119

Part

Turns Ratio

OCL Pri@25 deg C

Cww

DCR PRi

Primary

Package

Datasheet

Number

Pri: Sec: ±2%

(μH MIN)

(pf MAX)

(

MAX)

Pins

L/W/H

High Isolation Ethernet (10KV)

Part

Number

Insertion Loss (dB MAX)

Return Loss (dB MIN)

Crosstalk (dB MIN)

Differential to Common Mode

Rejection (dB MIN)

0.1-30MHz 60MHz 80MHz 100MHz 5MHz 30MHz 50MHz 60MHz 80MHz 100MHz 1MHz 30MHz 60MHz 100MHz 30MHz 60MHz 100MHz 200MHz

X-1644NL

-1

-2

-2.5

-3.5

-18

-9

-6

-5

-3

-2

-45

-30

-27

-25

-36

-32

-30

-25

20X 0-8˚

.035

0.89

20 SURFACES

.004/0.10

.300

7.62

SUGGESTED LAND PATTERN

.510

12.95

.625

15.88

.050

1.27

.450

11.43

.018

0.46

.050

1.27

.450

11.43

.600

15.24

.500

12.70

.600

X-1644NL

DATE CODE CTRY OF MFG

+.005

-.007

20X

10X

.030

0.76

20X

18X

20X

15.24 +0.127

-0.178

10/100/1000:

Standard Operating Tempterature: -40ºC to +85ºC Extended Operating Temperature (X): -55ºC to +125ºC

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

MILITARY/AEROSPACE PRODUCTS

Non-QPL, Low Profile and Stacked

Part

Turns Ratio

Impedance

Package

Data

Number

(±3%) (

MIN)

L/W/H (in.)

Sheet

FL1553-1

1CT:1CT/1CT:.707CT

4,000

.630/.630/.155

M227

2, 3

GL1553-1

1CT:1CT/1CT:.707CT

4,000

.630/.630/.155

M227

2, 3

TL1553-1

1CT:1CT/1CT:.707CT

4,000

.630/.630/.155

M226

2, 3

FL1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.155

M227

2, 3

GL1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.155

M227

2, 3

TL1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.155

M226

2, 3

FL1553-3

1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.155

M227

2, 3

GL1553-3

1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.155

M227

2, 3

TL1553-3

1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.155

M226

2, 3

FL1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.155

M227

2, 3

GL1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.155

M227

2, 3

TL1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.155

M226

2, 3

FL1553-45

1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.155

M227

2, 3

GL1553-45

1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.155

M227

2, 3

TL1553-45

1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.155

M226

2, 3

DFL1553-1

1CT:1CT/1CT:.707CT

4,000

.930/.630/.155

M227

2, 3

DGL1553-1

1CT:1CT/1CT:.707CT

4,000

.930/.630/.155

M227

2, 3

DTL1553-1

1CT:1CT/1CT:.707CT

4,000

.930/.630/.155

M228

2, 3

DFL1553-2

1.4CT:1CT/2CT:1CT

7,200

.930/.630/.155

M229

2, 3

DGL1553-2

1.4CT:1CT/2CT:1CT

7,200

.930/.630/.155

M229

2, 3

DTL1553-2

1.4CT:1CT/2CT:1CT

7,200

.930/.630/.155

M228

2, 3

DFL1553-3

1.25CT:1CT/1.66CT:1CT 4,000

.930/.630/.155

M229

2, 3

DGL1553-3 1.25CT:1CT/1.66CT:1CT 4,000

.930/.630/.155

M229

2, 3

DTL1553-3

1.25CT:1CT/1.66CT:1CT 4,000

.930/.630/.155

M228

2, 3

DFL1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.930/.630/.155

M229

2, 3

DGL1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.930/.630/.155

M229

2, 3

DTL1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.930/.630/.155

M228

2, 3

DFL1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.930/.630/.155

M229

2, 3

DGL1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.930/.630/.155

M229

2, 3

Part

Turns Ratio

Impedance

Package

Data

Number

(±3%) (

MIN)

L/W/H (in.)

Sheet

DTL1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.930/.630/.155

M228

2, 3

STQ1553-1

1CT:1CT/1CT:.707CT

4,000

.630/.630/.340

M230

2, 3

Q1553-70

1CT:3CT/1CT:2.15CT

4000

.625 / .625 / .250

M128

STQ1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.340

M230

2, 3

STQ1553-3 1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.340

M230

2, 3

STQ1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.340

M230

2, 3

STQ1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.340

M230

2, 3

SFQ1553-1

1CT:1CT/1CT:.707CT

4,000

.630/.630/.340

M231

2, 3

SGQ1553-1

1CT:1CT/1CT:.707CT

4,000

.630/.630/.340

M231

2, 3

SFQ1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.340

M231

2, 3

SGQ1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.340

M231

2, 3

SFQ1553-3 1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.340

M231

2, 3

SGQ1553-3 1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.340

M231

2, 3

SFQ1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.340

M231

2, 3

SGQ1553-5

1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.340

M231

2, 3

SFQ1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.340

M231

2, 3

SGQ1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.340

M231

2, 3

SLQG1553-1

1CT:1CT/1.4CT:1CT

4,000

.630/.630/.280

M234

SLQG1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.280

M234

SLQG1553-3 1.25CT:1CT/1.66CT:1CT 4,000

.6 30/.630/.280

M234

SLQG1553-5 1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.280

M234

SLQG1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.280

M234

SLQT1553-1

1CT:1CT/1.4CT:1CT

4,000

.630/.630/.280

M234

SLQT1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.280

M234

SLQT1553-3 1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.280

M234

X-1584

1CT:1.79CT

3,000

.500/.350/.172

M157

X-1596

1CT:2.5CT

3,000

.500/.350/.173

M157

SMQT1553-70 1CT:3CT/1CT:2.15CT

4,000

.625/.625/.251

M128

1. Designed

and built to conform to MIL-PRF-21038/27

2. Web :

http://productfinder.pulseelectronics.com/products/datasheets/M128.pdf

MIL-STD-1553 INTERFACE TRANSFORMERS

continued next page

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

MILITARY/AEROSPACE PRODUCTS

X1553-1

1CT:1CT/1CT:.707CT

4,000

.625/.625/.250

M223

X1553-2

1.4CT:1CT/2CT:1CT

7,200

.625/.625/.250

M223

X1553-3

1.25CT:1CT/1.66CT:1CT 4,000

.625/.625/.250

M223

X1553-5

1CT:2.12CT/1.5CT:1CT

4,000

.625/.625/.250

M223

X1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.625/.625/.250

M223

1. Designed

and built to conform to MIL-PRF-21038/27

2. Prefix/Operating Temperature: C/

0°Cto +70°C;

/-40°C to +85°C;

TQ/

-55°C to +125°C

3. Web:

http://productfinder.pulseeng.com/products/datasheets

Interface Transformers — COTS Series

1, 2

Part

Turns Ratio

Impedance

Package

Data

Number

(±3%)

(

MIN)

(L/W/H) in.

Sheet

SMG1553-60

1.25CT:1CT

4,000

.400/.400/.185

M112

SMG1553-61

1.66CT:1CT

4,000

.400/.400/.185

M112

SMG1553-62

1.41CT:1CT

7,200

.400/.400/.185

M112

SMG1553-63

2CT:1CT

7,200

.400/.400/.185

M112

SMG1553-65

1CT:1.79CT

4,000

.400/.400/.185

M112

SMG1553-66

1CT:2.7CT

4,000

.400/.400/.185

M112

Interface Transformers — Low Profile Miniature Series

Part

Turns Ratio

Impedance

Package

Data

Number

(±3%)

(

MIN)

(L/W/H) in.

Sheet

MIL-STD-1553

(continued)

SLQT1553-5 1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.280

M234

SLQT1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.280

M234

SLQF1553-1

1CT:1CT/1.4CT:1CT

4,000

.630/.630/.280

M234

SLQF1553-2

1.4CT:1CT/2CT:1CT

7,200

.630/.630/.280

M234

SLQF1553-3 1.25CT:1CT/1.66CT:1CT 4,000

.630/.630/.280

M234

SLQF1553-5 1CT:2.12CT/1CT:1.5CT

4,000

.630/.630/.280

M234

SLQF1553-45 1CT:2.5CT/1CT:1.79CT

4,000

.630/.630/.280

M234

1. Designed

and built to conform to MIL-PRF-21038/27

2. http://

www.pulseelectronics.com: home page, pick DATA SHEETS “Non-QPL MIL-

STD-1553 Interface Transformers” (N_QPL_Cat2_links.pdf) or “MIL-STD-1553

InterfaceTransformers - Low profile/Stacked/Dual Ratio” (M234.pdf).

Non-QPL, Low Profile and Stacked

(continued)

Part

Turns Ratio

Impedance

Package

Data

Number

(± 3%)

(

MIN)

L/W/H (in.)

Sheet

QPL Series — Qualified to MIL-PRF-21038/27

Part

Military Turns Ratio Impedance Package Data

Number Designation

(±3%)

L/W/H (in.) Sheet

Number

(

MIN)

Q1553-20 M21038/27-05

1:1.41

3,000 .500/.350/.250 M223

Q1553-21

M21038/27-06

1CT:1CT

3,000 .500/.350/.250

M223

Q1553-22

M21038/27-07

1CT:1.41CT

3,000 .500/.350/.250

M223

Q1553-23

M21038/27-08

1CT:1.66CT

3,000 .500/.350/.250

M223

Q1553-24

M21038/27-09

1CT:2CT

3,000 .500/.350/.250

M223

Q1553-25

M21038/27-28

1CT:1.5CT

3,000 .500/.350/.250

M223

Q1553-51

M21038/27-29

1CT:1.79CT

3,000 .500/.350/.250

M223

Q1553-52

M21038/27-30

1CT:2.5CT

3,000 .500/.350/.250

M223

Q1553-1

M21038/27-01 1CT:1CT/1CT:.707CT 4,000 .625/.625/.250

M224

Q1553-2

M21038/27-02 1.4CT:1CT/2CT:1CT 7,200 .625/.625/.250

M224

Q1553-3

M21038/27-03 1.25CT:1CT/1.66CT:1CT 4,000 .625/.625/.250

M224

Q1553-5

M21038/27-10 1CT:2.12CT/1CT:1.5CT 4,000 .625/.625/.250

M224

Q1553-45

M21038/27-26 1CT:2.5CT/1CT:1.79CT 4,000 .625/.625/.275

M224

Q1553-81

M21038/27-21 1CT:1CT/1CT:.707CT 4,000 .625/.625/.275

M224

Q1553-82

M21038/27-22 1.4CT:1CT/2CT:1CT 7,200 .625/.625/.275

M224

Q1553-83

M21038/27-23 1.25CT:1CT/1.66CT:1CT 4,000 .625/.625/.275

M224

Q1553-84

M21038/27-24 1CT:2.12CT/1CT:1.5CT 4,000 .625/.625/.275

M224

Q1553-85

M21038/27-25 1CT:2.5CT/1CT:1.79CT 4,000 .625/.625/.275

M224

FPQ1553-6 M21038/27-16 1CT:1CT/1CT:.707CT 4,000 .625/.625/.250

M225

SMQ1553-6 M21038/27-11 1CT:1CT/1CT:.707CT 4,000 .625/.625/.250

M225

FPQ1553-7 M21038/27-17 1.4CT:1CT/2CT:1CT 7,200 .625/.625/.250

M225

SMQ1553-7 M21038/27-12 1.4CT:1CT/2CT:1CT 7,200 .625/.625/.250

M225

FPQ1553-8 M21038/27-18 1.25CT:1CT/1.66CT:1CT 4,000 .625/.625/.250

M225

SMQ1553-8 M21038/27-13 1.25CT:1CT/1.66CT:1CT 4,000 .625/.625/.250

M225

FPQ1553-10 M21038/27-20 1CT:2.12CT/1CT:1.5CT 4,000 .625/.625/.250

M225

SMQ1553-10 M21038/27-15 1CT:2.12CT/1CT:1.5CT 4,000 .625/.625/.250

M225

FPQ1553-45 M21038/27-31 1CT:2.5CT/1CT:1.79CT 4,000 .625/.625/.250

M225

SMQ1553-45 M21038/27-27 1CT:2.5CT/1CT:1.79CT 4,000 .625/.625/.250 M225
Q1553-70 M21038 1CT:3CT/1CT:2.15CT 4,000 .625/.625/.250 M128
SMQ1553-70 M21038 1CT:3CT/1CT:2.15CT   4,000 .625/.625/.250 M128
GL1553-71 M21038 1CT:3.54CT/1CT:2.50CT   4,000 .630/.630/.155 M128
DGL1553-71 M21038 1CT:3.54CT/1CT:2.5CT   4,000 .930/.630/.155 M128
TQ1553-71 M21038

1CT:3.54CT/1CT:2.5CT 4,000 .625/.625/.250 M128

1. Part number options:

C and T level QPL testing (xxQC1553-xx, xxQT1553-xx,

M21038/27-xxC, M21038/27-xxT).

2. Web: Web:

Go to

www.pulseelectronics.com home page, select “DATA SHEETS”

on the right-hand navigation bar and from the menu select Military/Aerospace.

3. Summary Performance Specifications:

Droop

= 20%

Overshoot

= ±1 V MAX;

Common Mode Rejection

= 45 dB

Frequency Range

(no load) = 75 kHz to 1 MHz

Operating Temperature Range

= -55°C to +130°C

Weight

= 5 grams

Insulation Resistance

= 10 kM

@ 250 V

Dielectric Withstanding Voltage

= 100 V

rms

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

MILITARY/AEROSPACE PRODUCTS

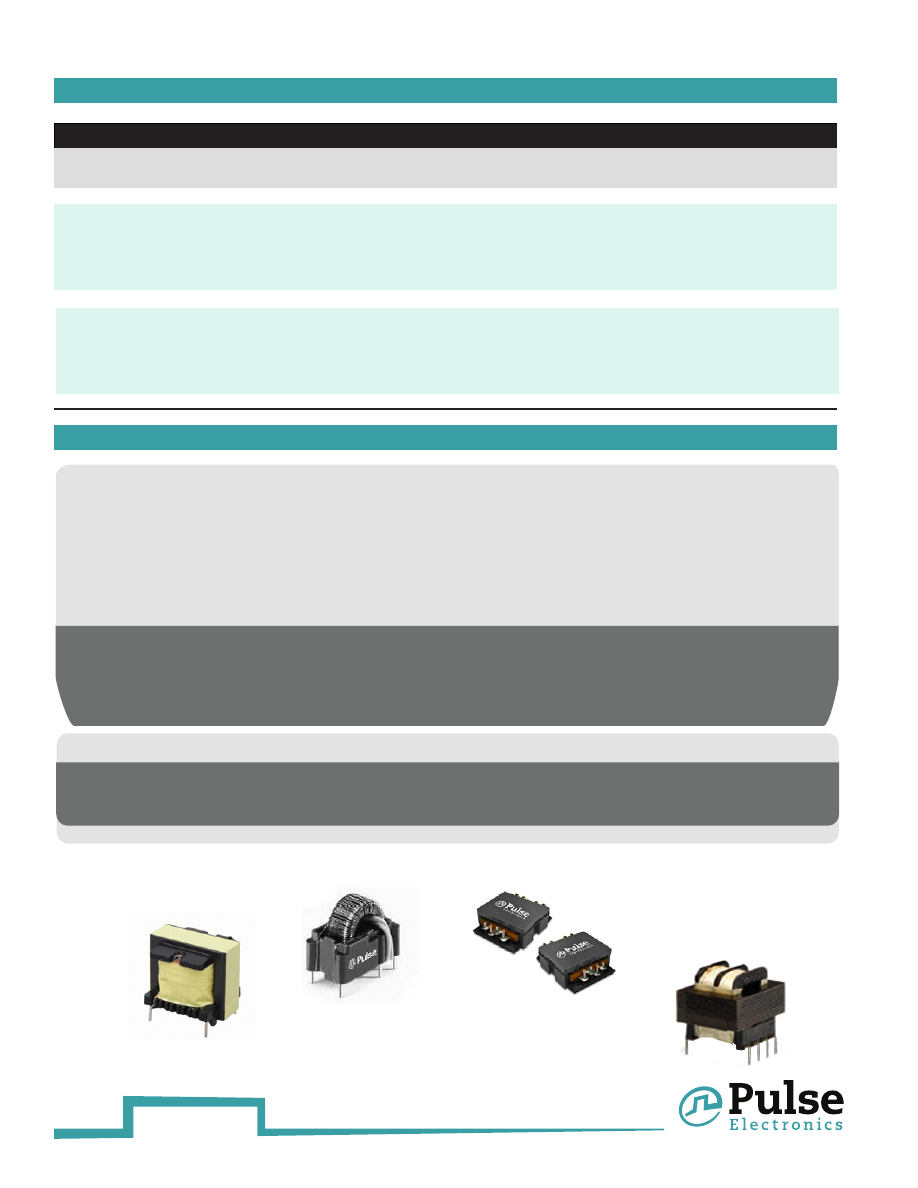

OFF-THE-SHELF POWER INDUCTORS & CHOKES

Toroid Power Inductors - SLED Series

Part

@ I

rated

DCR

Inductance

Package*

Data

Number

(μH)

(A) (m

MAX) @0A

(μH)

L/W/H (in.)

Sheet

SLED 20

PL8100

1.01

3.40

1.1

.400/.345/.250 M107

PL8101

6.2

1.40

.400/.345/.250 M107

PL8102

17.6

1.00

125

22.7

.400/.345/.250 M107

SLED 30

PL8110

3.8

4.80

17.3

5.2

.625/.525/.400 M107

PL8111 9.4 2.80 43.4

12.3

.625/.525/.400 M107

PL8112

29.7

1.40

166

35.3

.625/.525/.400 M107

PL8113

114

0.94

380

167

.625/.525/.400 M107

SLED 40

PL8120

2.5

8.00

8.3

3.8

.725/.575/.410 M107

PL8121

5.1

5.40

17.7

7.5

.725/.575/.410 M107

PL8122

16.2

2.70

21.9

.725/.575/.410 M107

PL8123

58.1

1.30

290

.725/.575/.410 M107

PL8124

192

0.90

560

292

.725/.575/.410 M107

PL8125

383

0.72

862

672

.725/.575/.410 M107

PL8130

4.9

7.80

12.4

7.9

.725/.575/.410 M107

PL8131

5.50

.725/.575/.410 M107

PL8132

29.1

2.70

100

40.5

.725/.575/.410 M107

PL8133

645

0.74

1250

1134

.725/.575/.410 M107

PL8150

0.81

14.30

2.5

1.25

.725/.575/.410 M107

PL8151

1.32

11.50

4.0

2.1

.725/.575/.410 M107

SLED 50

PL8140

9.3

7.20

18.7

.900 /.690/.520 M107

PL8141

16.1

5.10

32.0

25.9

.900/.690/.520 M107

PL8142

2.60

133

72.9

.900/.690/.520 M107

PL8143

x1070

0.71

1700

1950

.900/.690/.520 M107

PL8160

1.68

13.90

3.6

2.8

.900/.690/.520 M107

PL8161

2.5

11.40

5.4

4.2

.900/.690/.520 M107

PL8170

3.5

12.40

6.6

6.5

.900/.690/.520 M107

PL8171

4.7

10.40

8.3

8.4

.900/.690/.520 M107

SMT Common Mode Chokes: SLIC Series

Part

Inductance

rated

DCR

Package*

Data

Number

(mH ±35%)

(A)

MAX)

L/W/H (in.)

Sheet

SLIC Series, Common Mode Chokes

PL8200 0.47

14.0

1.220/1.000/.500 M108

PL8201

0.63

11.6

1.220/1.000/.500

M108

PL8202

0.81

9.70

1.220/1.000/.500

M108

PL8203

0.53

7.20

1.110/1.00/395

M108

PL8204

0.59

5.60

.770/.670/.395

M108

PL8205

0.77

4.70

.770/.670/.395

M108

PL8206

0.22

3.30

.770/.670/.390

M108

PL8207

1.32

3.30

.770/.670/.395

M108

PL8208

1.47

2.80

.770/.670/.395

M108

PL8209

0.88

1.63

110

.500/.500/.215

M108

PL8210

1.17

1.22

200

.500/.500/.215

M108

SMT Power Inductors: Toroid, SLED Series

SLED 25

PL8500

9.4

3.8

10.4

.625/.525/.310 M113

PL8501

13.3

3.2

14.6

.625/.525/.310 M113

PL8502

2.4

.625/.525/.310 M113

PL8503

1.6

135

.625/.525/.310 M113

PL8504

1.3

220

.625/.525/.310 M113

PL8505

1.2

285

100

.625/.525/.310 M113

PL8506

137

425

152

.625/.525/.310 M113

PL8507

200

.82

673

220

.625/.525/.310 M113

PL8508

305

.66

972

331

.625/.525/.310 M113

PL8509

439

.56

1520

472

.625/.525/.310 M113

SMT Power Inductors: Toroid, POGO Series

POGO

PL8600

2.0 8.30

7.6

2.2

.625/.525/.310 M114

PL8601

2.4 7.20 10.9

2.6

.625/.525/.310 M114

PL8602

5.0 5.20 19.0

5.5

.625/.525/.310 M114

PL8600

7.0 4.16 16.0

8.75

.625/.525/.310 M114

PL8603

9.3 3.80 29.8

10.4

.625/.525/.310 M114

PL8601

8.4 3.78 21.8

10.4

.625/.525/.310 M114

PL8604

14.1 3.10 45.3

15.7

.625/.525/.310 M114

PL8605

19.8 2.6

66.3

22.1

.625/.525/.310 M114

PL8602

17.9 2.6

38.0

22.45

.625/.525/.310 M114

PL8606

29.3 2.20 106

32.8

.625/.525/.310 M114

PL8603

33.8 1.89

41.7

.625/.525/.310 M114

PL8607

42.6 1.80 151

47.6

.625/.525/.310 M114

PL8604

50.9 1.54

62.8

.625/.525/.310 M114

PL8608

61.3 1.50 224

67.5

.625/.525/.310 M114

PL8605

71.5 1.30 133

88.2

.625/.525/.310 M114

1. Connection: P = Parallel, S = Series

(continued next page)

SMT Power Inductors: SLIC (HCCI-80) Series

SLIC (HCCI) Series

PL8304

1.1

1.3

2.1

1.220/1.000/.500 M109

PL8303

1.6

3.5

1.220/1.000/.500 M109

PL8302

2.45

2.5

5.1

1.2 20/1.000/.500 M109

PL8301

3.2

3.5

7.2

1.220/1.000/.500 M109

PL8300

4.52

4.8

9.5

1.220/1.000/.500 M109

PL8300

18.1

9.5 19.3

38.0

1.220/1.000/.500 M109

1. Connection: P

= Parallel,

= Series

Part

@ I

rated

DCR

Inductance

Package*

Data

Number

(μH)

(A) (m

MAX) @0A

(μH)

L/W/H (in.)

Sheet

Pulse offers off-the-shelf inductors and transformers for modern military and aerospace power
applications: the SLED™, the SLIC, and the POGO™ series. The SLED series consists of rail-mount
inductors with a ruggedized header for durable board connections, utilizing two rails for board mounting
and cores bonded to high temperature headers for durability and mechanical strength. The SLIC series,
self-leaded transformers and inductors, has ruggedized construction. The structural header is bonded to

the cores and lead wires, increasing mechanical durability. The POGO series is made up of pad-mounted inductors
with open construction for robust board mounting and rugged pins used for both surface board mounting and
electrical connection.

Pulse also offers shielded drum core inductors, including ruggedized mounting hardware to improve board mounting

performance
for enhanced mechanical durability. These inductors eliminate the use of pure tin plating for compliance with military and aerospace requirements. A
variety of inductances and current capacity is offered in five different physical sizes to meet the majority of system performance requirements.

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

OFF-THE-SHELF POWER INDUCTORS

(continued)

PL8901

0.80

4.0

1.0

14 .413/.413/.280 M117

PL8902

1.20

6.0

1.5

13 .413/.413/.280 M117

PL8903

2.1

9.0

7.3

2.7

11 .413/.413/.280 M117

PL8904

2.9

8.0

8.5

3.7

9.2 .413/.413/.280 M117

PL8905

3.7

7.3

9.5

4.7

8.2 .413/.413/.280 M117

PL8906

4.8

6.0 16.5

6.0

6.9 .413/.413/.280 M117

PL8907

5.5 18.5

7.6

6.2 .413/.413/.280 M117

PL8908

5.0 21.8

5.5

.413/.413/.280 M117

PL8909

9.6

4.5 29.0

5.1

.413/.413/.280 M117

PL8910

4.1 35.4

4.4

.413/.413/.280 M117

PL8911

14.4

4.0 37.0

4.3

.413/.413/.280 M117

PL8912

17.6

3.8 42.0

3.8

.413/.413/.280 M117

PL8913

21.6

3.4 45.9

3.4

.413/.413/.280 M117

PL8914

26.4

3.0 64.8

3.0

.413/.413/.280 M117

PL8915

31.2

2.7 81.5

2.8

.413/.413/.280 M117

PL8916

37.6

2.6 89.0

2.6

.413/.413/.280 M117

PL8917

54.4

2.1 135.0

2.1

.413/.413/.280 M117

PL9101

0.96

10.5 4.5

1.0

12.7 .413/.413/.248 M121

PL9102

1.52

9.5

5.5

1.8

10.1 .413/.413/.248 M121

PL9103

2.34

7.8

2.7

8.4 .413/.413/.248 M121

PL9104

3.27

6.7 11.0

3.9

7.2 .413/.413/.248 M121

PL9105

4.39

5.6 15.6

5.1

6.3 .413/.413/.248 M121

PL9106

5.54

5.2 18.0

6.8

5.6 .413/.413/.248 M121

PL9107

6.73

5.0 20.0

8.2

5.1 .413/.413/.248 M121

PL9108

8.19

4.6

.413/.413/.248 M121

PL9109

9.9

4.2

.413/.413/.248 M121

PL9110

13.4

3.6

.413/.413/.248 M121

PL9111

15.4

3.4

.413/.413/.248 M121

PL9112

17.6

3.2

.413/.413/.248 M121

PL9113

22.5

2.8

.413/.413/.248 M121

PL9114

28.5

2.5

.413/.413/.248 M121

PL9115

31.4

2.4

.413/.413/.248 M121

PL9116

38.4

2.2 100

2.2

.413/.413/.248 M121

PL9117

48.3

1.9 110

1.9

.413/.413/.248 M121

PL9118

55.9

1.8 120

68.0

1.8

.413/.413/.248 M121

PL9119

67.6

1.7 178

82.0

1.7

.413/.413/.248 M121

PL9120

86.1

1.4 230

100.0

1.4

.413/.413/.248 M121

PL9121

103

1.3 253

120.0

1.3

.413/.413/.248 M121

PL9122

121

1.2 280

150.0

1.2

.413/.413/.248 M121

PL9123

149

1.1 310

180.0

1.1

.413/.413/.248 M121

PL9124

186

1.0 400

220.0

1.0

.413/.413/.248 M121

PL9125

224

0.91 460

270

0.91 .413/.413/.248 M121

PL9126

279

0.82 690

330

0.82 .413/.413/.248 M121

PL9127

335

0.72 760

390

0.72 .413/.413/.248 M121

PL9128

398

0.68 850

470

0.68 .413/.413/.248 M121

PL9129

464

0.63 1060

560

0.63 .413/.413/.248 M121

PL9130

563

0.57 1200

680

0.57 .413/.413/.248 M121

PL9131

681

0.52 1550

820

0.52 .413/.413/.248 M121

PL9132

879

0.46 1750

1000

0.46 .413/.413/.248 M121

PL9201

0.95

8.7

5.7

1.0

11 .413/.413/.201 M122

PL9202

1.55

7.4

7.9

1.6

8.8 .413/.413/.201 M122

PL9203

2.32

6.6 10.0

2.7

7.3 .413/.413/.201 M122

PL9204

3.24

5.5 14.5

3.6

6.3 .413/.413/.201 M122

1. The rated

current as listed is either the saturation current or the heating current

depending on which value is lower.

2. Inductance

at 0A

tolerance is ±30%. The tolerance is ±20% on all other parts.

Optional

Tape & Reel packaging can be ordered by adding a

“T”

suffix to the end

of the part number.

Part

Inductance

rated

dCr

Inductance

Saturation

Package* Data

N umber

rated

(A)

@0A

Current

L/W/H (in.) Sheet

(μH TYP)

MAX)

(μH)

@25°C

SMT Power Inductors: Shielded Drum Core

SMT Common Mode Inductors: Toroid, POGO Series

Part

Inductance I

rated

DCR

SRF Impedance Package*

Data

Number (mH ±30%) (A) (m

) MAX (MHz)

Curve

L/W/H (in.)

Sheet

POGO

PL8801

1.5

1.50

.725/.575/.380 M116

PL8803

10.0

1.00

450

0.5

.725/.575/.380 M116

PL8804

22.0

0.50

850

0.3

.725/.575/.380 M116

POGO

PL8800

1.0

3.60

.910/.700/.510 M116

PL8802

3.0

2.50

2.2

.910/.700/.510 M116

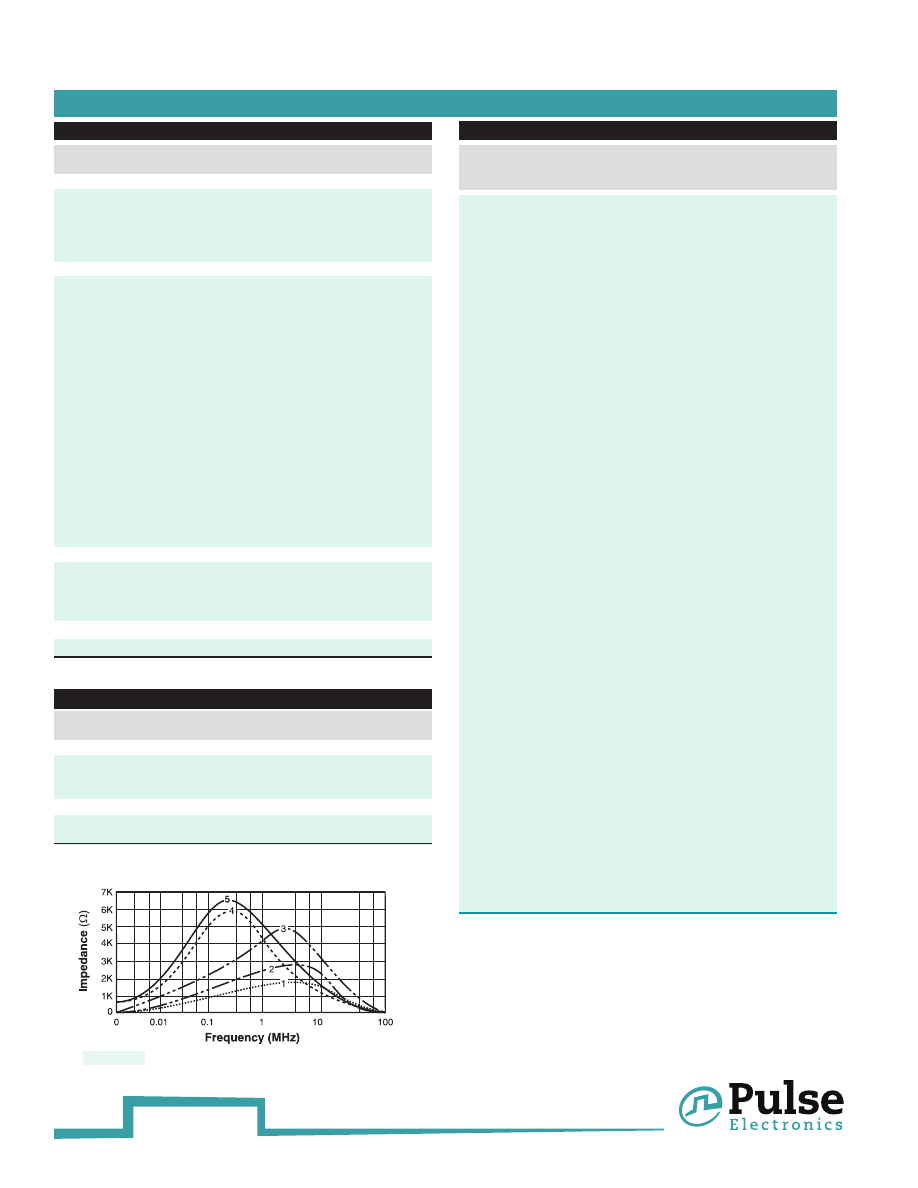

1. See

graph below.

continued on the next page

*SM

Surface Mount

SMT Power Inductors: Toroid, POGO Series

(continued)

POGO 25

(continued)

PL8609

84.2 1.20 324

91.0

.625/.525/.310 M114

PL8606

106.1 1.07 202

131.0

.625/.525/.310 M114

PL8607

154.2 0.89 302

190.3

.625/.525/.310 M114

PL8608

218.9 0.74 444

270.2

.625/.525/.310 M114

PL86 09

295.0 0.64 636

364.0

.625/.525/.310 M114

POGO 40

PL8400

43.6 1.1 309

.725/.575/.380

M111

PL8700

1.5 14.40 4.41

2.2 .725/.600/.380 M115

PL8701

2.4 11.20 6.54

3.5 .725/.600/.380 M115

PL8702

4.2 8.20 10.47

5.9 .725/.600/.380 M115

PL8703

5.8 6.80 14.94

7.9 .725/.600/.380 M115

PL8700

6.1 7.20 17.60

9.0 .725/.600/.380 M115

PL8704

7.6 5.70 20.99

10.1 .725/.600/.380 M115

PL8701

9.7 5.60 26.20

14.0 .725/.600/.380 M115

PL8705

12.1 5.40 23.24

18.5 .725/.600/.380 M115

PL8702

17.0 4.10 41.90

23.7 .725/.600/.380 M115

PL8706

18.0 4.40 38.15

27.4 .725/.600/.380 M115

PL8703

23.1 3.40 59.70

31.5 .725/.600/.380 M115

PL8707

27.0 3.54 53.21

40.5 .725/.600/.380 M115

PL8704

30.6 2.85 84.00

40.5 .725/.600/.380 M115

PL8708

34.8 3.00 73.89

50.5 .725/.600/.380 M115

PL8705

48.5 2.70 93.00

74.1 .725/.600/.380 M115

PL8706

72.0 2.20 152.60 109.8 .725/.600/.380 M115

PL8708

139.1 1.50 295.60 202.2 .725/.600/.380 M115

PL8707

108.0

1.77

212.80

161.8

.725/.600 /.380 M115

POGO 50

PL8401

21.9 2.7 90.5 39.5

.910/.700/.510 M111

PL8402

4.025 6.4 23

6.575

.910/.700/.510 M111

PL8403

0.53 23.8 3

0.88

.910/.700/.510 M111

PL8404

1.1 21 2.5

2.1

.910/.700/.510

M111

POGO 60

PL8405

2.1 22.4 3.4

4 1.280/1.070/.510

M111

1. Connection: P

= Parallel,

= Series

Part

@ I

rated

DCR

Inductance

Package*

Data

Number

(μH)

(A) (m

MAX) @0A

(μH)

L/W/H (in.)

Sheet

MILITARY/AEROSPACE PRODUCTS

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

MILITARY/AEROSPACE PRODUCTS

OFF-THE-SHELF POWER INDUCTORS

(continued)

SMT Power Inductors: Shielded Drum Core

(continued)

*SM

Surface Mount

PL9205

4.26

5.1 16.5

4.5

5.5 .413/.413/.201 M122

PL9206

5.64

4.4

6.0

4.9 .413/.413/.201 M122

PL9207

7.17

4.2

7.6

4.4 .413/.413/.201 M122

PL9208

9.3

3.6

4.0

.413/.413/.201 M122

PL9209

10.8

3.3

3.7

.413/.413/.201 M122

PL9210

13.4

3.0

3.4

.413/.413/.201 M122

PL9211

17.5

2.7

2.9

.413/.413/.201 M122

PL9212

19.4

2.6

2.8

.413/.413/.201 M122

PL9213

24.2

2.2

2.4

.413/.413/.201 M122

PL9214

30.6

2.1

2.2

.413/.413/.201 M122

PL9215

38.5

1.8

126

2.0

.413/.413/.201 M122

PL9216

46.1

1.7

140

1.8

.413/.413/.201 M122

PL9217

53.2

1.6

157

1.7

.413/.413/.201 M122

PL9218

63.1

1.45 202

68.0

1.6

.413/.413/.201 M122

PL9219

76.6

1.36 232

82.0

1.4

.413/.413/.201 M122

PL9220

1.29 270

100.0

1.3

.413/.413/.201 M122

PL9221

112

1.07 316

120.0

1.2

.413/.413/.201 M122

PL9222

135

1.02 456

150.0

1.05

.413/.413/.201 M122

PL9223

132

0.87 497

180.0

0.96

.413/.413/.201 M122

PL9224

198

0.82 681

220.0

0.86

.413/.413/.201 M122

PL9225

237

0.78 775

270

0.79

.413/.413/.201 M122

PL9226

296

0.66 955

330

0.71

.413/.413/.201 M122

PL9227

355

0.58 1087

390

0.66

.413/.413/.201 M122

PL9228

445

0.54 1403

470

0.59

.413/.413/.201 M122

PL9229

495

0.53 1623

560

0.54

.413/.413/.201 M122

PL9230

610

0.49 1824

680

0.49

.413/.413/.201 M122

PL9231

702

0.43 2355

820

0.45 .413/.413/.201 M122

PL9232

890

0.40 2850

1000

0.41

.413/.413/.201 M122

PL9301

0.62

7.60 5.5 0.68 ±25%

.410/.410/.157 M120

PL9302

1.2

7.10 7.3 1.3 ±25%

.410/.410/.157 M120

PL9303

1.9

5.80 10.9 2.2 ±25%

6.15

.410/.410/.157 M120

PL9304

2.8

5.20 13.3 3.3 ±25%

5.8

.410/.410/.157 M120

PL9305

4.0

4.70 19.6 4.7 ±25%

5.4

.410/.410/.157 M120

PL9306

5.4

3.70 27.0 6.0 ±25%

4.5

.410/.410/.157 M120

PL9307

6.9

3.50 30.8 7.6 ±25%

.410/.410/.157 M120

PL9308

8.0

3.40 33.2 10 ±20%

3.8

.410/.410/.157 M120

PL9309

3.00 45.2 12 ±20%

3.4

.410/.410/.157 M120

PL9310

2.80 49.4 15±20%

3.1

.410/.410/.157 M120

PL9311

2.30 77.2 22 ±20%

2.8

.410/.410/.157 M120

PL9312

2.10 89.1 27 ±20%

2.3

.410/.410/.157 M120

PL9313

1.65 141.9 47 ±20%

2.1

.410/.410/.157 M120

PL9314

1.32 212.0 68 ±20%

1.5

.410/.410/.157 M120

PL9315

1.10 327.9 100 ±20%

1.35

.410/.410/.157 M120

PL9316

123

0.88 499.9 150 ±20%

1.15

.410/.410/.157 M120

PL9317

178

0.73 738.6 220 ±20%

0.92

.410/.410/.157 M120

PL9318

278

0.60 1132.8 330 ±20%

0.7

.410/.410/.157 M120

Part

Inductance

rated

dCr

Inductance

Saturation

Package* Data

Number

rated

(A)

@0A

Current

L/W/H (in.) Sheet

(μH TYP)

MAX)

(μH)

@25°C

PL9401

0.67

8.50 4.4 0.68 ±25%

8.50

.410/.410/.132 M123

PL9402

1.3

6.10 6.4 1.5 ±25%

6.10

.410/.410/.132 M123

PL9403

2.1

5.70 10.4 2.2 ±25%

5.70

.410/.410/.132 M123

PL9404

3.1

4.80 15.6 3.3 ±25%

4.80

.410/.410/.132 M123

PL9405

4.5

4.10 21.2 4.7 ±25%

4.10

.410/.410/.132 M123

PL9406

5.8

3.60 25.2 6.2 ±25%

3.60

.410/.410/.132 M123

PL9407

7.0

3.30 27.8 6.8 ±25%

3.30

.410/.410/.132 M123

PL9408

9.4

3.00 39.5 8.2 ±30%

3.00

.410/.410/.132 M123

PL9409

2.70 42.9 10 ±20%

2.70

.410/.410/.132 M123

PL9410

2.40 50.0 12 ±20%

2.40

.410/.410/.132 M123

PL9411

2.25 65.2 15 ±20%

2.25

.410/.410/.132 M123

PL9412

1.85 86.1 22 ±25%

1.85

.410/.410/.132 M123

PL9413

1.40 125.6 33 ±20%

1.40

.410/.410/.132 M123

PL9414

1.25 187.7 47 ±20%

1.25

.410/.410/.132 M123

PL9415

1.15 207.9 56 ±20%

1.15

.410/.410/.132 M123

PL9416

1.05 279.5 68 ±20%

1.05

.410/.410/.132 M123

PL9417

0.94 317.3 82 ±20%

0.94

.410/.410/.132 M123

PL9418

106

0.88 357.8 100 ±20%

0.88

.410/.410/.132 M123

PL9419

129

0.80 477.9 120 ±20%

0.80

.410/.410/.132 M123

PL9420

157

0.70 545.4 150 ±20%

0.70

.410/.410/.132 M123

PL9421

238

0.58 837.0 220 ±20%

0.58

.410/.410/.132 M123

PL9422

325

0.45 1198.8 330 ±20%

0.45

.410/.410/.132 M123

PL9501

2.15

2.60 17.6

2.5

2.6

.256/.256/.122 M124

PL9502

2.58

2.30 20.3

3.3

2.3

.256/.256/.122 M124

PL9503

3.43

2.10 27.0

2.1

.256/.256/.122 M124

PL9504

4.63

1.85 31.1

1.85

.256/.256/.122 M124

PL9505

5.22

1.70 41.9

1.7

.256/.256/.122 M124

PL9506

6.57

1.50 49.9

1.5

.256/.256/.122 M124

PL9507

8.65

1.30 54.0

1.3

.256/.256/.122 M124

PL9508

9.78

1.20 72.0

1.2

.256/.256/.122 M124

PL9509

12.13

1.10 82.0

1.1

.256/.256/.122 M124

PL9510

15.23

1.05 102.0

1.05

.256/.256/.122 M124

PL9511

18.7

0.95 119.0

0.95

.256/.256/.122 M124

PL9512

21.54

0.85 146.0

0.85

.256/.256/.122 M124

PL9513

27.71

0.76 183.0

0.76

.256/.256/.122 M124

PL9514

33.57

0.68 210.0

0.68

.256/.256/.122 M124

PL9515

40.15

0.60 230.0

0.6

.256/.256/.122 M124

PL9516

49.68

0.55 305.0

0.55

.256/.256/.122 M124

PL9517

60.66

0.48 351.0

0.48

.256/.256/.122 M124

PL9518

74.71

0.45 419.0

0.45

.256/.256/.122 M124

PL9519

85.39

0.40 520.0

100

0.4

.256/.256/.122 M124

1. The rated

current as listed is either the saturation current or the heating current

depending on which value is lower.

2. Inductance

at 0A

tolerance is ±30%. The tolerance is ±20% on all other parts.

Optional

Tape and Reel packaging can be ordered by adding a

“T”

suffix to the end

of the part number.

Part

Inductance

rated

dCr

Inductance

Saturation

Package* Data

Number

rated

(A)

@0A

Current

L/W/H (in.) Sheet

(μH TYP)

MAX)

(μH)

@25°C

SMT CURRENT SENSE TRANSFORMER

PL1961

1:1:200

15.00 59.200 2.3

4200

500

.575 / .575 / .280 M150

Part

Turns Ratio Current Rating Secondary DCR Primary DCR Secondary

Hipot

Package

Datasheet

Number (A) Inductance (1,3-2,4)

(5-6)

L/W/H

(μH MIN) (

MAX) (

MAX)

SMT GATE DRIVE TRANSFORMER

PL1960

1:1

1500.00 9.7 785.0 .46 .60 .60 .265 / .340 / .140 M149

Part Turns Ratio Pri-Sec Primary Leakage DCR DCR Package

Datasheet

Number Insulation MAX Inductance Inductance Primary Secondary L/W/H

(Vdc) (v* usec) (μH MAX) (μH MAX)

Pulse_Final_web-html.html

www.pulseelectronics.com

G003.BC (11/15)

Pulse Jack

E l e c t r o n i c s

MILITARY/AEROSPACE PRODUCTS

PLANARS TRANSFORMERS

CUSTOM CAPABILITIES

Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C

(µH ±15%)

�

C 100

�

C Current

(A)

Sheet

Heating Data

Saturation Current

Inductance @

DCR (m

)

Inductance @

Part

0 A

Number Irated

(µH ±15%) Irated (ADC) TYP MAX

2-Turn (Low Loss

2-Turn Series

3-Turn and 4-Turn Series also available.

PL10100 0.45 73 0.38 0.48 0.45 95 80 73 M194

PL10106 0.45 52 0.78 0.98 0.45 95 80 52 M194

PL10101 0.63 54 0.38 0.48 0.65 63 53 73 M194

PL10107 0.63 52 0.78 0.98 0.65 63 53 52 M194

PL10102 0.85 39 0.38 0.48 0.91 46 37 73 M194

PL10108 0.85 39 0.78 0.98 0.91 46 37 52 M194

PL10103 1.05 30 0.38 0.48 1.1 35 30 73 M194

PL10109 1.05 30 0.78 0.98 1.1 35 30 52 M194

PL10104 1.25 25 0.38 0.48 1.3 29 26 73 M194

PL10110 1.25 25 0.78 0.98 1.3 29 26 52 M194

PL10105 1.45 21 0.38 0.48 1.5 24 22 73 M194

PL10111 1.45 21 0.78 0.98 1.5 24 22 52 M194

Height: 7.4mm Max Footprint: 19.8mm x 19.6mm Max Inductance Range: .405

H to 6.2

Space Development/Testing/Validation Capabilities

• MIL-STD-981
• NASA EEE-INST-002
• NASA-STD 8739.3
• IPC-STD-001DS

• MIL-PRF-21038
• MIL-PRF-27
• MIL-STD-202
• ECSS-Q-ST-70-38C

• AEC-Q200
• MIL-STD-883
• Custom Power
• Signal Design/Build

Program Participation

Bobbin Winding

Toroid Winding

AS9100C Quality Syste

Manufacturing Capabilities

ISS Orion World View III MagEIS HPCA James Webb Telescope

Space Station GPS III GBD

Pulse_Final_web-html.html

G003.BC (11/15)

www.pulseelectronics.com

Pulse Jack

E l e c t r o n i c s

MILITARY/AEROSPACE PRODUCTS

CUSTOM CAPABILITIES

(continued)

Product Capability

PACKAGING

MAXIMUM POWER

MAXIMUM CURRENT

FREQUENCY

SINGLE INDUCTORS/ SPLIT DIFFERENTIAL

Lamination, Toroidal, Tape Wound

4KVA

15- 2MHz

COMMON MODE CHOKES 1/3 Phase

Lamination, Toroidal, Tape Wound

500A

15 - 2400Hz

CHOKES 3 PHASE (LINE FILTERING)

Lamination, Tape Wound

500A

15 - 2400Hz

POWER TRANSFORMERS 1 Phase

Lamination, Toroidal, Tape Wound

10KVA

15 - 1200Hz

TRANSFORMERS Laminated 3 Phase

Lamination, Toroidal, Tape Wound

10KVA

15 - 1200Hz

TRANSFORMERS - Switchmode

Planar, Bobbin Wound, Toroidal

1KVA

20K- 1MHz

INDUCTORS - Switchmode Buck/Boost

Toroidal, Bobbin Wound

500VA

20K- 1MHz

TRANSFORMERS - Current Sense

Toroidal, Bobbin Wound

4KVA (burden)

15- 1MHz

TRANSFORMER MODULES -Current Sense 1/3 PHASE

Toroidal, Bobbin Wound

4KVA (burden)

15- 1MHz

TRANSFORMERS Gate Drive

Toroidal, Bobbin Wound

20KHz- 1MHz

HALL EFFECT SENSORS

Lamination, Toroidal, Tape Wound

10KVA

15 - 1200Hz

Testing Services

• Inductance with or without DC

• Turns Ratio

• HI-POT - Vac up to 5kv, Vdc up to 6kV

• Insulation Resistance

• Distortion

• Pulse Testing

• Thermal Rise

• Impedance

• Q (up to 1 Mhz)

• DCR

• SRF (up to 3Ghz)

• Leakage Inductance

• Voltage Ratio

• Insertion Loss

• Humidity (to 90% RH)

• Moisture Resistance

• Thermal Shock

• Thermal Cycling

• High/Low Temperature Storage

• Steam Aging

• Mechanical Shock

• Mechanical Vibration

• Solderability

• Resistance to Soldering

• X-Ray Imaging

• Real Time X-ray

• Plating composition

analysis

• Detailed Inspection Plans

• First Article Inspection to

AS9102

Testing capabilities for product qualification and design validation

ELECTRICAL

MECHANICAL

ENVIRONMENTAL

ANALYTICAL

Note:

Magnetics for high temp requirement at +200

�
