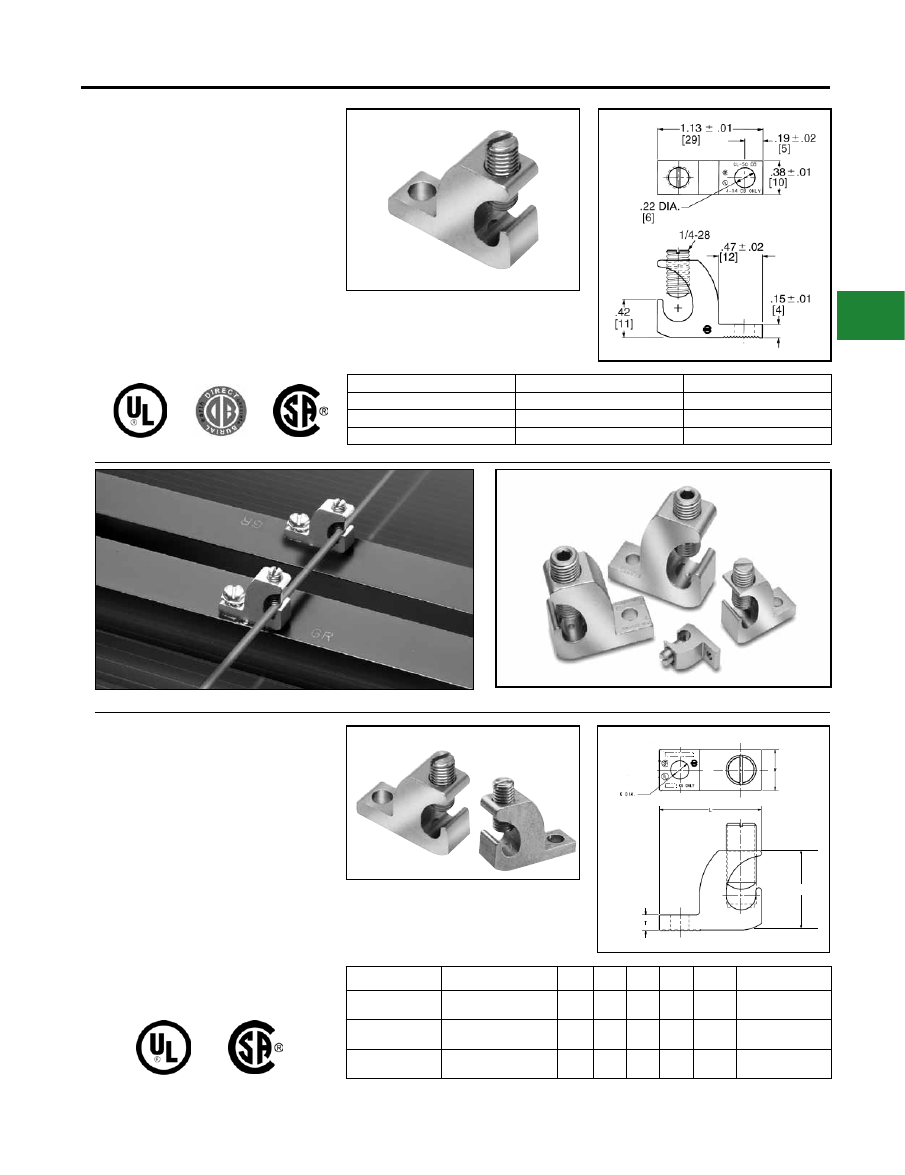

TYPE CL50-1 & CL50-1TN
COPPER LAY-IN QIKLUG™
For Copper
The Lay-In QIKLUG™ is manufactured from
high strength pure electrolytic copper to ensure
maximum strength and conductivity. UL467
Listed for direct burial in earth or concrete. The
open-faced design allows for fast lay-in of the
conductor without the need for cutting or breaking.
Stainless steel screws used for excellent corrosion
resistance.
Catalog
Number
Conductor
Range

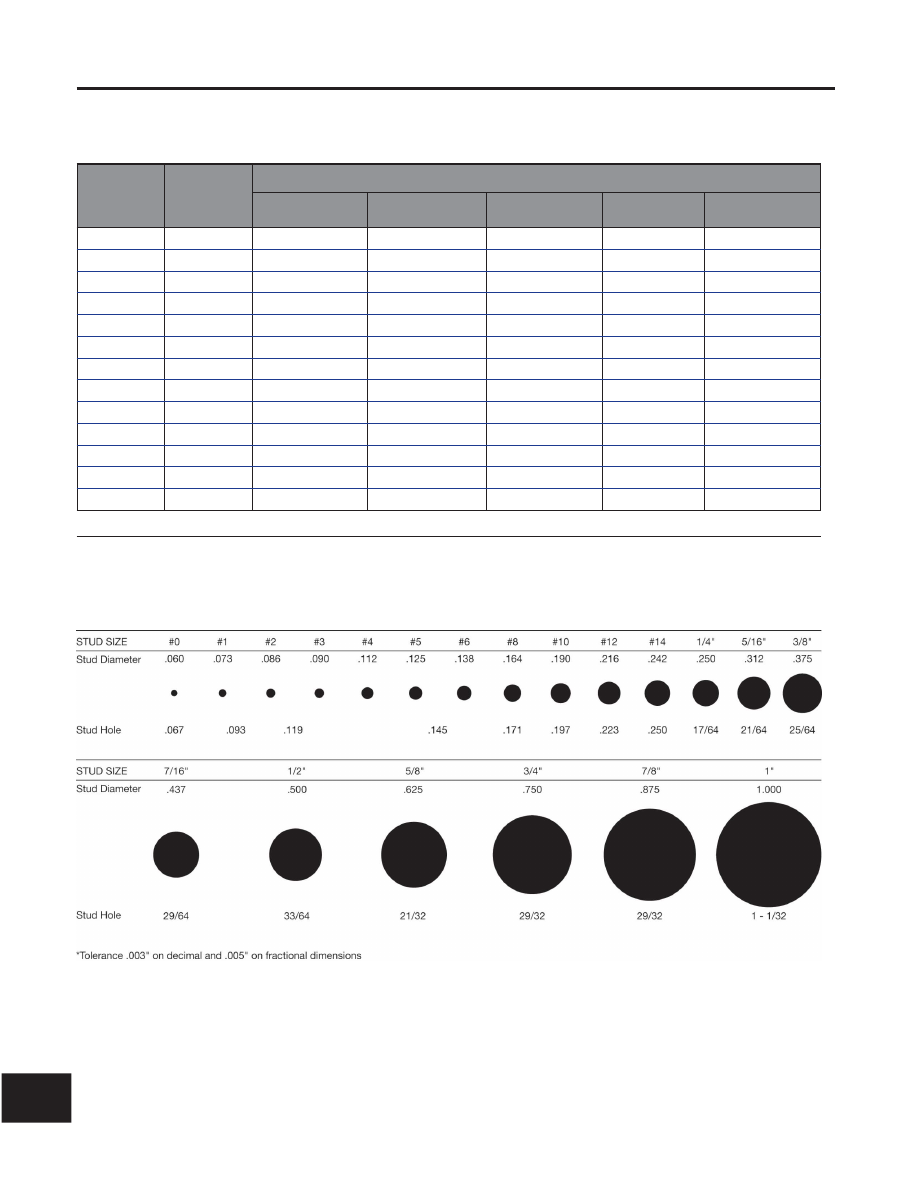

Stud
Hole
CL50-1
14 AWG-4 AWG
#10
CL50-1TN
14 AWG-4 AWG
#10
TYPE CL
COPPER LAY-IN QIKLUG™
For Copper
Manufactured for maximum strength and
conductivity, these lay-in lugs allow for continuous
runs of conductor and are well suited as
terminations as well. Tin-plated, set screw style
connectors, three sizes cover a range from
#14AWG to 250 kcmil. CL3/0-516TN and CL250-
516TN are UL Listed and CSA certified. CL1/0-
14TN UL Listed for grounding and CSA certified.
90° C rated. Suitable for copper conductors only.

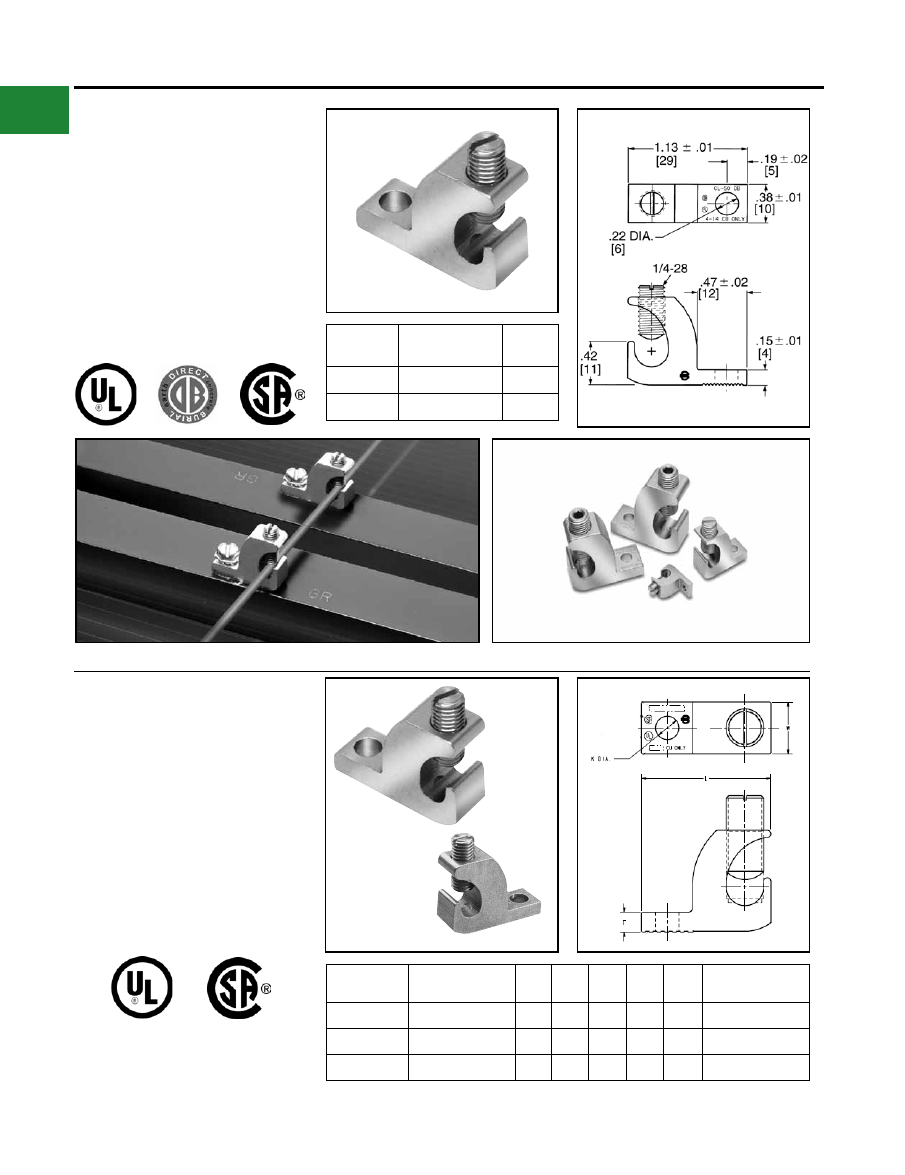

Photo above shows a typical solar panel installation using CL50-1 connectors.
Catalog
Number
Wire Range
Copper
H
W
L
T
K
Dia
Hex Size
CL1/0-14TN
#14 - 1/0 AWG
1.17 0.60 1.50 0.22 0.27
7/16-20 (Slotted)
CL3/0-516TN
#6 - 3/0 AWG
1.56 0.80 2.00 0.30 0.33
9/16-18 (0.25 Hex)
CL250-516TN
#6 AWG - 250 kcmil 1.79 0.80 2.20 0.30
0.33
9/16-18 (0.25 Hex)
