TT Electronics’ brand AB Connectors specialises in the design, test and manufacture of
high performance electronic connectors and interconnect solutions, supplying a range
of global customers in aerospace, defence, rail and industrial markets.

Our broad product portfolio which includes miniature connectors, high power
connectors, soldier systems, harness assemblies and box systems typically serve within
key applications such as signalling, communication and power distribution.

experience in designing a range of product configurations to meet customer specific requirements for the

most demanding environments.

From plant layout to production line set-up and quick changeover processes, we offer the ideal service, with
a flexible manufacturing environment and accredited facilities.

Quality systems and approvals include ISO9001 along with various product and market sector approvals

including the military Mil-std 790 and mass transit IRIS certifications and environmental approval to
ISO14001. As a result of these qualifications AB Connectors has been awarded several major customer

approvals and accreditations.

AB Connectors total commitment to providing customers with high levels of service, cost effectiveness,

quality and innovative solutions in interconnection products make it the ideal first choice supply partner.

Company Profile

TT Electronics’ brand AB Connectors specialises in the design, test and manufacture of high
performance electronic connectors and interconnect solutions, supplying a range of global
customers in aerospace, defence, rail and industrial markets.

Our broad product portfolio which includes miniature connectors, high power connectors, soldier
systems, harness assemblies and box systems typically serve within key applications such as
signalling, communication and power distribution.

Operating from the principle site in Abercynon, South Wales, our research and development teams
have an excellent track record for developing innovative industry solutions and our engineers have
extensive experience in designing a range of product configurations to meet customer specific
requirements for the most demanding environments.

From plant layout to production line set-up and quick changeover processes, we offer the ideal
service, with a flexible manufacturing environment and accredited facilities.

Quality systems and approvals include ISO9001 along with various product and market sector

approvals including the military Mil-std 790 and mass transit IRIS certifications and environmental

approval to ISO14001. As a result of these qualifications AB Connectors has been awarded several

major customer approvals and accreditations.

AB Connectors total commitment to providing customers with high levels of service, cost

effectiveness, quality and innovative solutions in interconnection products make it the ideal first

choice supply partner.

TT Electronics’ brand AB Connectors specialises in the design, test and manufacture of high
performance electronic connectors and interconnect solutions, supplying a range of global
customers in aerospace, defence, rail and industrial markets.

Our broad product portfolio which includes miniature connectors, high power connectors, soldier
systems, harness assemblies and box systems typically serve within key applications such as
signalling, communication and power distribution.

From plant layout to production line set-up and quick changeover processes, we offer the ideal
service, with a flexible manufacturing environment and accredited facilities.

Quality systems and approvals include ISO9001 along with various product and market sector

approvals including the military Mil-std 790 and mass transit IRIS certifications and environmental

approval to ISO14001. As a result of these qualifications AB Connectors has been awarded several

major customer approvals and accreditations.

AB Connectors total commitment to providing customers with high levels of service, cost

effectiveness, quality and innovative solutions in interconnection products make it the ideal first

choice supply partner.

Rolling stock

Bogies

Engine

Brakes

Inter-car connections

Train communication systems

Drivers cabin equipment

Data storage & record

Doors, ramps & access devices

Screens & audio systems

Lighting

Phone & communications

Infrastructure

Signalling & level crossing

Warning systems

Location systems

Detection, measurement & control

Safety & detection equipment

Video surveillance

Control, operation & communication

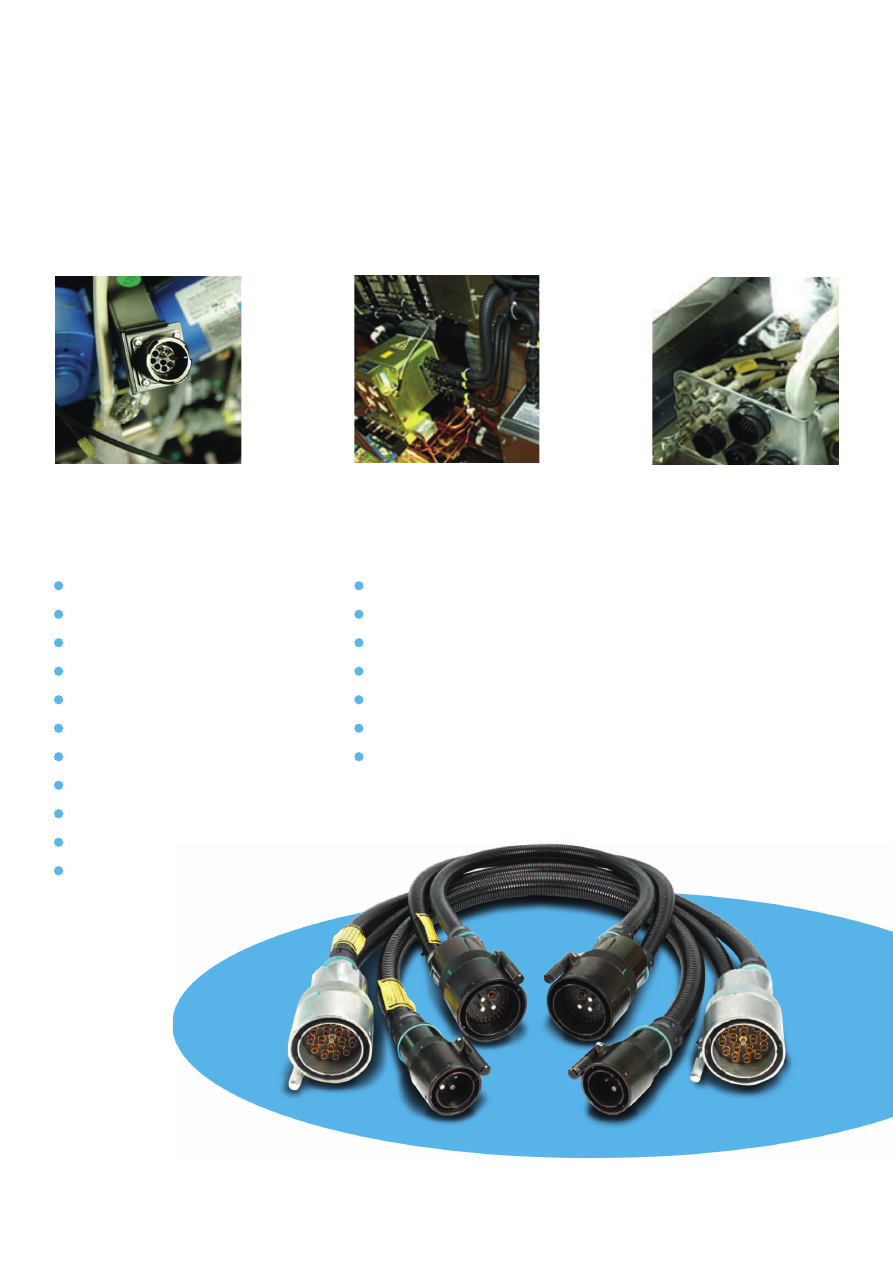

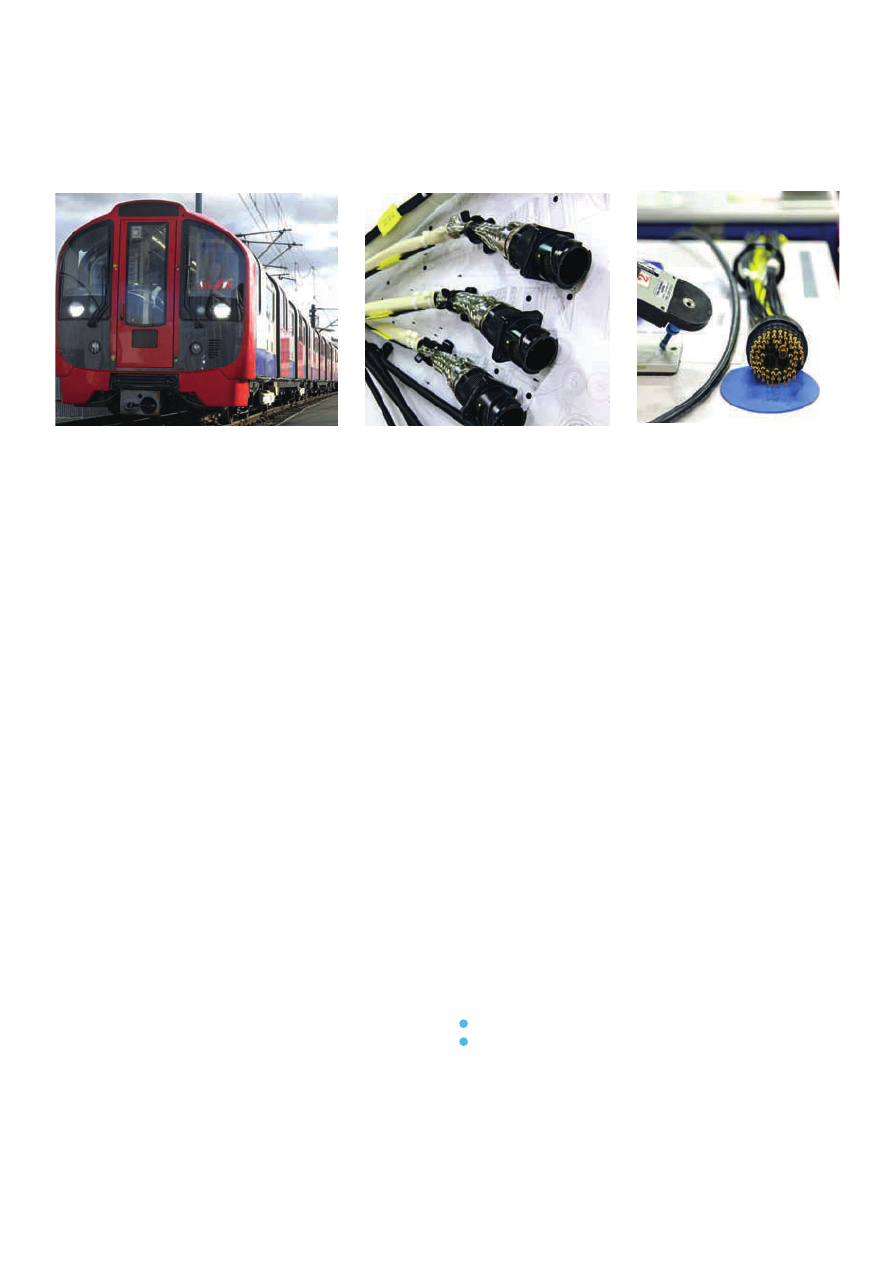

Rail Vehicles

TT electronics’ products can be found in all areas of the rail vehicle
in power, control and communications systems.

Application Areas

Rail Vehicles

project team, the Connectors Business Unit developed
a customrugged inter-car jumper system designed to
meet the signal requirements and harsh environmental
conditions of the project.

“TT electronics has become a valued supplier,
instrumental in enabling us to deliver this complex

and challenging project on time. Prior knowledge
and experience of the standards required by the Rail

industry was a key consideration for us when selecting
design partners and the team at the Connectors

Business Unit ticked all the boxes.”

ProgrammeManager

– RollingStock, InterfleetTechnology Ltd.

The ERTMS programme enables the speed and
movement of trains to be continuously monitored
and automatically controlled by signalling staff if

required. The project required Interfleet Technology to
fit a 19”cabinet housing the European Vital Computer

(EVC), a touch screen driver-machine interface, Doppler
radar, Euroblaise antennas, roof mounted GSM-R GPS
and Data antennas. These complex systems are
connected utilising a pre-tested, plug and play harness
assembly designed by the team at TT electronics to
reduce the vehicle downtime.

TT electronics was selected by Interfleet Technology

for its proven track record in supplying and supporting

the rail industry.Working closely with the Interfleet

Case Studies

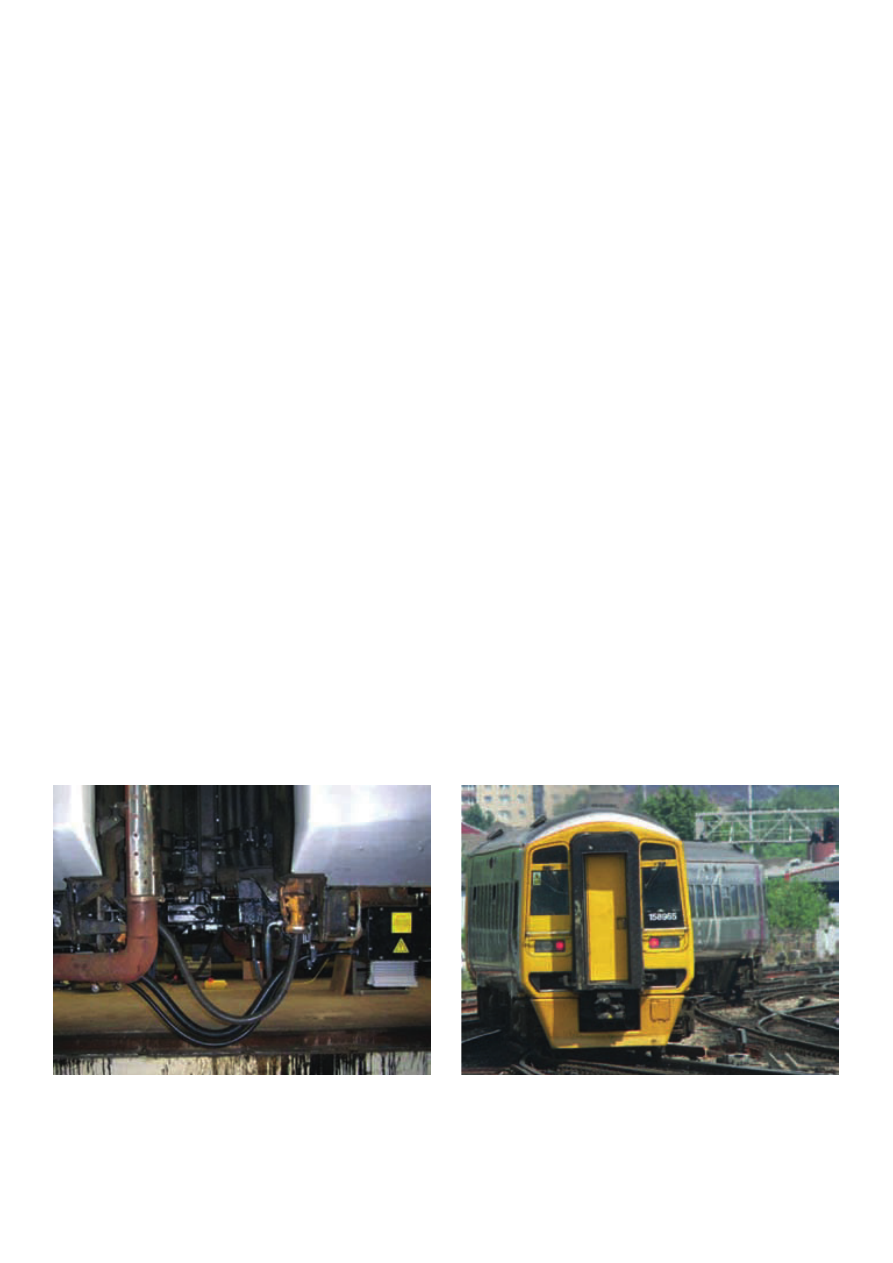

Interﬂeet Technology–Class 158ERTMS upgrade

When Interfleet Technology was awarded the contract for the vehicle integration design
and fleet fitment of the European Rail Traffic Management System (ERTMS) tothe Class
158 Cambrian fleet, it turned to TT electronics Connectors Business Unit for bespoke
jumper and cable harness solutions.

The innovative connector features a low fire hazard

thermoplastic insulator,which is removable for
repositioning and can withstand operational

temperatures from-55˚C to +125˚C. The connector’s

IP67 rating alongside BSEN61373 Cat 1 Class A shock

and vibration classification meant it was the ideal

solution for several Petards passenger train upgrade

projects in 2011.

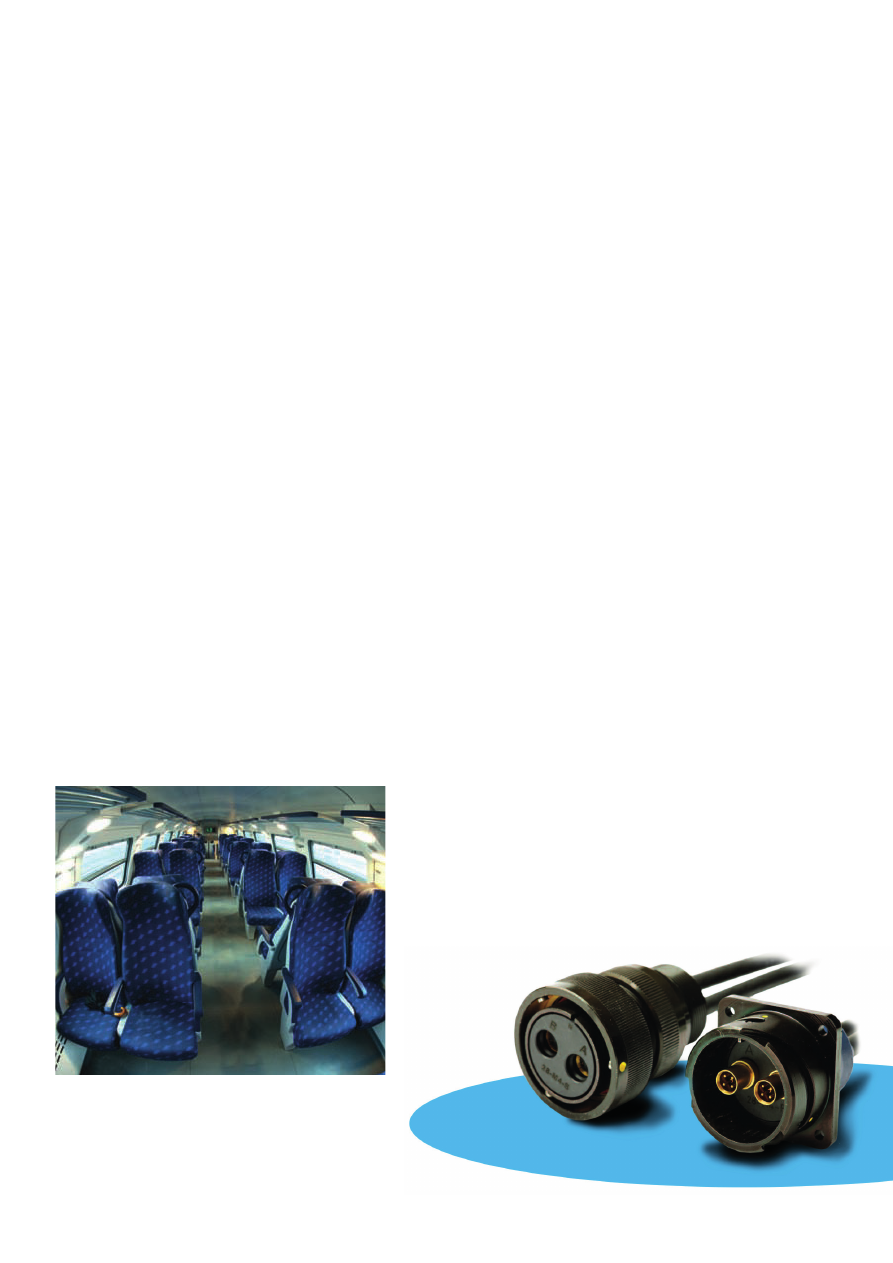

Effective transport surveillance systems have been
shown to increase passenger security by deterring
crime and anti-social behaviour. The installed systems

need to remain operational in fluctuating temperatures

and during extreme vibration conditions whilst
providing instant high resolution images direct to the
driver and storing them.

The team at TT electronics was able to meet these

design challenges head-on with a flexible product

offering that met the exacting standards of the rail
industry. The AB Multipole high speed & signal data
connector was selected by Petards for its simple yet
robust characteristics.

PetardseyeTrainon-trainsurveillance

Rail Vehicles

The development of any CCTV surveillance system demands high quality reliable
components matched with superior build quality. This is especially true when the

surveillance system is mounted in a challenging passenger train environment. When
Petards, the market leader in on-train CCTV solutions secured contracts for their high
performance eyeTrain digital surveillance system, they turned to the engineering
team at TT electronics for support.

Rail Vehicles

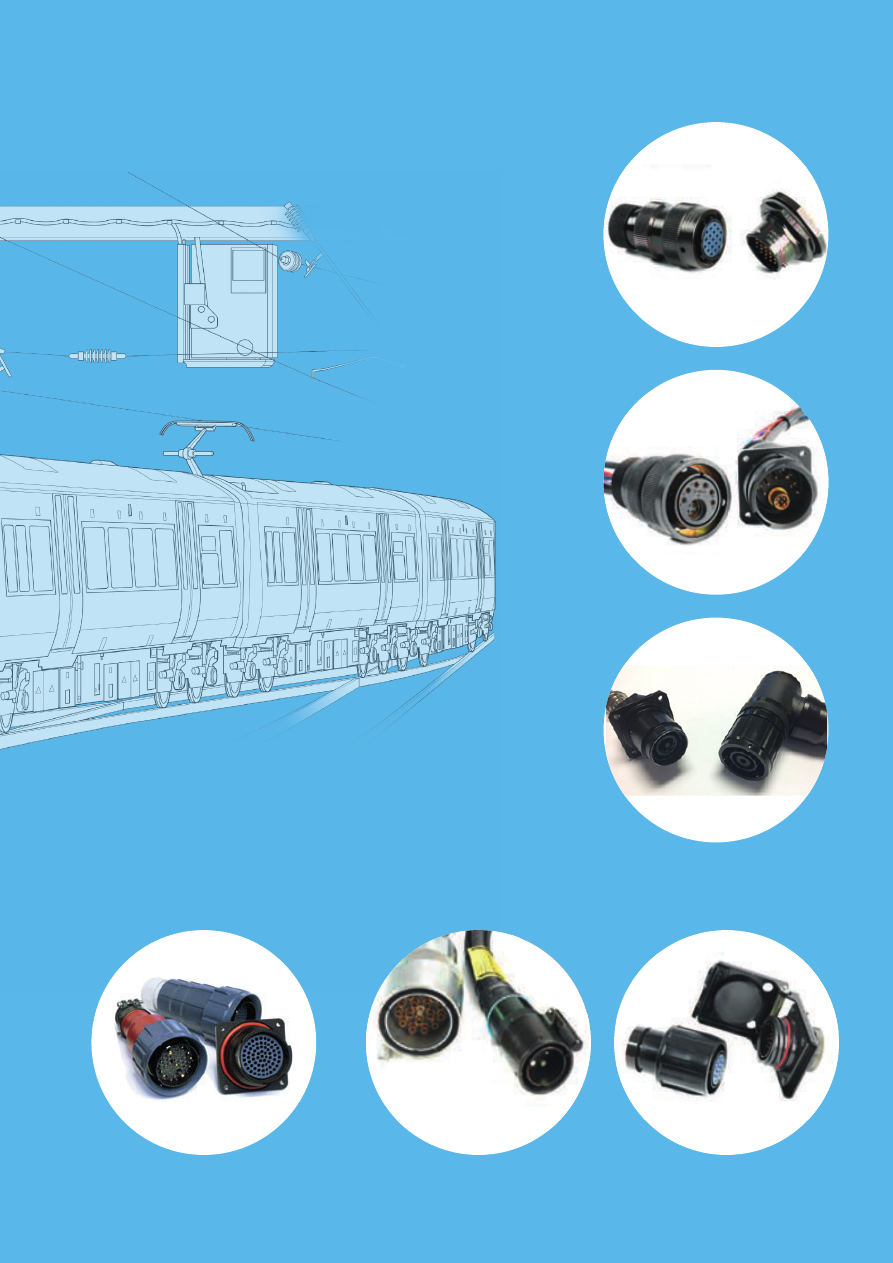

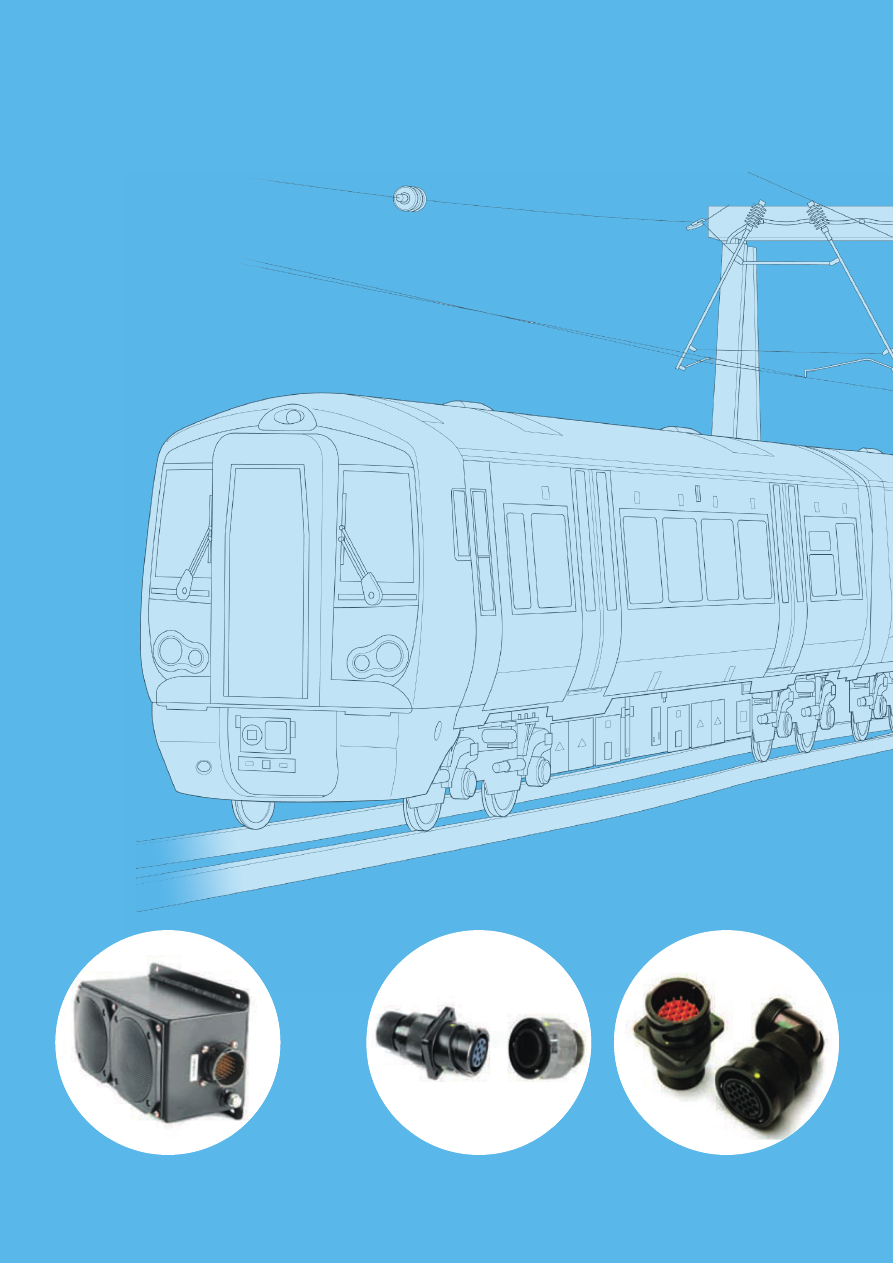

ABCIRH

Mil-

C-5015 style conforming to VG95234 and LUL standard.

Reverse bayonet coupling connect or with low fire hazard/ halogen

free rubber inserts. Contact rating from7.5 amps to 500 amps;

temperature rating from-55°C to+200°C; contact configuration

from 1 to 95 ways.

Bespoke inserts are available to support specific customer
requirements; power, signal and communication (Co-ax, Twinax

and Quadrax).

ABCIRP

Mil-C-5015 style conforming to VG95234. Reverse bayonet
coupling connector approved to NF-F-61-030 by SNCF, RATP,

AlstomTransport and Bombardier meeting LUL standards. Lowfire
hazard thermoplastic inserts with metal clip retained

contacts. Contact rating from10 amps to 42 amps; temperature

rating from-55°C to +125°C; contact configuration from 7 to 60

ways.

AB05H

Mil-C-26482 Series I style conforming to BS9522 F00017, CECC
75201003. Miniature bayonet coupling connector with halogen
free rubber inserts. Contact rating from7.5 amps to 13 amps;

temperature rating from -55°C to +125°C; contact configuration

from 2 to 61 contacts

ABBMS

Mil-C-5015 style conforming to BS9522-F0032 and VG95234.
Reverse bayonet coupling connector with polychloroprene inserts.
Contact rating from 7.5 amps to 500 amps; temperature rating

from -55°C to +125°C; contact configuration from 1 to 61 ways.

UKAN

Mil-C-5015 style conforming to DEF5321. Fine screwcoupling
connector with silicone rubber inserts. Contact rating from 12

amps to 100 amps; temperature rating from-55°C to +190°C plus
high temperature option with rating from-55°C to +1100°C (for 20
minutes); contact configuration from1 to 48 ways.

Pola Power

Single Pole Power

Whether it’s for power distribution for electric drive vehicles or air
conditioning units, TT Electronics makes the connection.

With a finger proof design and quick disconnection, Pola PowerTM
provides solutions for engineers who require a small, light connector

which has the capability of delivering big power (upto 1,000 amps)

to applications. Temperature rating from -55°C to +150°C.

ABPF

Three start threaded coupling connector conforming to CECC
75-201-007 with robust plastic body and anti-vibration feature.

Lowfire hazard/halogen free inserts. Contact rating from 7.5 amps
to 500 amps on shell sizes 18, 22 and 28 with contact configuration

from 2 to 37 ways.

ABIC (inter-car)

Unique rev

erse bayonet coupling connector for high dynamic

inter-car applications designed with a leaver handle for convenient
coupling and secondary locking. Bespoke inserts are available

to support specific customer requirements; power, signal and

communication (Co-ax,Twin-ax, Tri-ax and Quadrax). Temperature

rating from-65°C to +125°C.

ABMP

Mil-C-5015 style conforming to BS9522-F0032 and VG95234.

Reverse bayonet coupling connector with lowfire hazard

thermoplastic inserts. Tested for high speed data applications:

100 Base-Tx on Cat 5e: Single Quadrax;
1000 Base-Tx on Cat 5e: 2 x Quadrax.

Bespoke inserts are available to support specific customer
requirements; signal and communication (Co-ax, Twin-ax,
Tri-ax and Quadrax). Temperature rating from-55°C to +125°C.

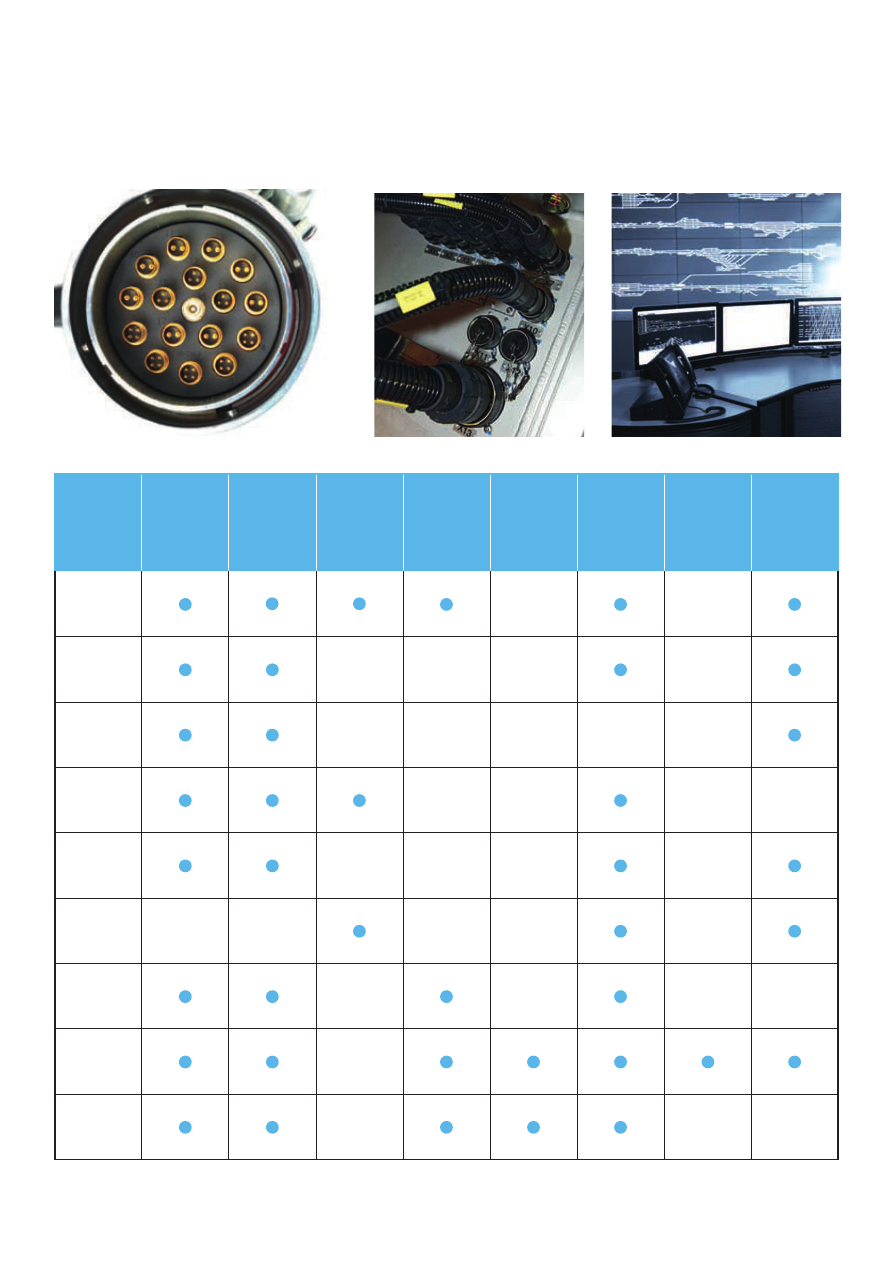

Technical Details

Rail Vehicles

Control

10A to 135A

Signal

Power

Over 135A

High

Speed

Co-ax &Twin-ax

High

Speed

Tri-ax & Quadrax

Inter-Car

Jumper

Inter-Car

Jumper

High dynamic

application

Fire

Barrier

Testing

ABCIRH

ABCIRP

ABO5H

ABBMS

UKAN

Pola

Power

ABPF

ABIC

ABMP

The world’s demand for electronics is increasing as new technologies, with a higher dependence on complex components,
are being adopted by a broader customer base. This growth provides TT electronics an assured future as we focus on efforts

to deliver excellence in customer service and quality products to these markets. From our strong UK base, the company has

achieved truly global reach. We have established technical and manufacturing facilities in strategic countries maintaining the

successful formula of close liaison with our customers in all major overseas markets.

In addition, through strategic relationships with Original Equipment Manufacturers around the world, we are now in the
enviable position where we gain double benefit - from growth in their markets and from the increase in the electronic content

of end products.
