DATA SHEET
Ametherm, Inc
. 3111 N. Deer Run Road #4 Carson City, NV 89701
Telephone: (800) 808-2434 (775) 884-2434 Fax: (775) 884-0670
www.ametherm.com
Part Number: SL05 12101
Ordering Different Lead Types:
For example: to order an inside kinked lead use part number SL05 12101
-A
Electrical
Specifications:
Mechanical
Specifications:
Revision Date: March 19, 2003
Inside Kinked Leads
Use
-A
after Ametherm’s part #
Outside Kinked Leads
Not Available
Resistance @ 25°C
120.0
Ω
±
20%
Resistance @ 0°C/ Resistance @ 50°C
5.6
±
1%
Resistance @ 25°C/ Resistance @ 125°C
14.1
±
2%
Beta
3169
±
0.87%
Temp Coefficient of Resistance @ 25°C
-3.42%/°C
Max Steady State Current Up to 65°C
1.0 A
Resistance @ Max Steady State Current
2.70
Ω
Maximum Instantaneous Energy
1.5 J
Dissipation Constant
3.0mW/°C
Thermal Time Constant
20.0 Seconds
Operating Temperature Range
-50°C
±
150°C
Material Type
“I”
D
5.5
±
0.5 mm
T
2.7
±
0.4 mm
Lead Diameter
0.5 mm Nom
S
6.0 mm Nom
L
38.0 mm Min
Coating Material
Flame retarded Silicone resin

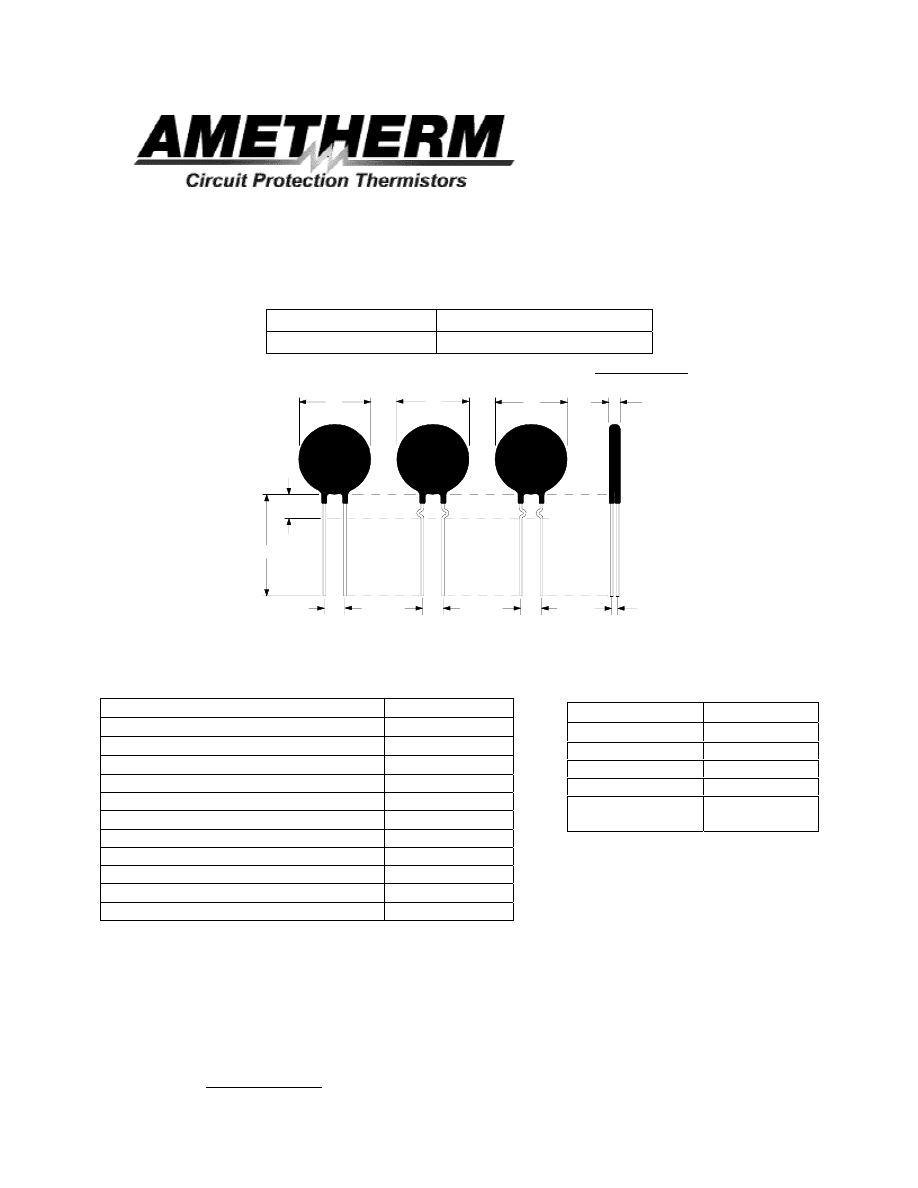

L
OUTSIDE
KINKED LEADS
S
STRAIGHT
LEADS
B
INSIDE
KINKED LEADS
S
S
D
D
D
C
T
