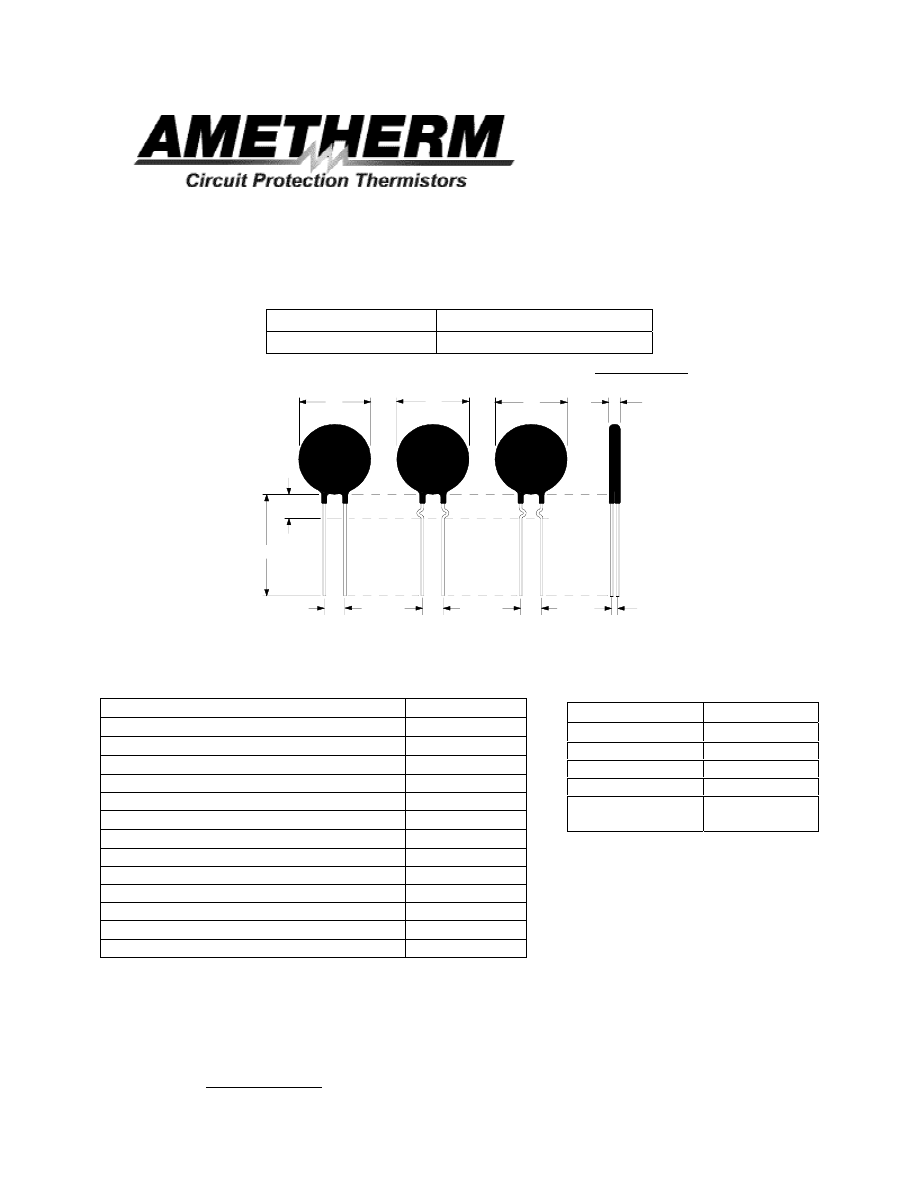

DATA SHEET
Ametherm, Inc
. 3111 N. Deer Run Road #4 Carson City, NV 89701
Telephone: (800) 808-2434 (775) 884-2434 Fax: (775) 884-0670
www.ametherm.com
Part Number: SL05 22101
Ordering Different Lead Types:
For example: to order an inside kinked lead use part number SL05 22101
-A
Electrical
Specifications:
Mechanical
Specifications:
Revision Date: March 19, 2003
Inside Kinked Leads
Use
-A
after Ametherm’s part #
Outside Kinked Leads
Not Available
Resistance @ 25°C
220.0
Ω
±
20%
Resistance @ 0°C/ Resistance @ 50°C
5.6
±
1%
Resistance @ 25°C/ Resistance @ 125°C
14.1
±
2%
Beta
3650
±
0.87%
Temp Coefficient of Resistance @ 25°c
-3.42% /°C
Max Steady State Current Up to 65°c
1.0 A
Resistance @ Max Steady State Current
3.20
Ω
Resistance @50% of Max Steady State Current
12.0
Ω
Maximum Instantaneous Energy (Joules)
3.0 J
Actual Failure Point of Energy (Joules)
6.50 J
Dissipation Constant
3.0 Mw/°C
Thermal Time Constant
20 Seconds
Operating Temperature Range
-50°C
±
150 °C
Material Type
“M”
D
5.5
±
0.5 mm
T
2.7
±
0.4 mm
Lead Diameter
0.5 mm Nom
S
6.0 mm Nom
L
38.0 mm Min
Straight Leads
Flame retarded Silicone resin
L
OUTSIDE
KINKED LEADS
S
STRAIGHT
LEADS
B
INSIDE
KINKED LEADS
S
S
D
D
D
C
T
