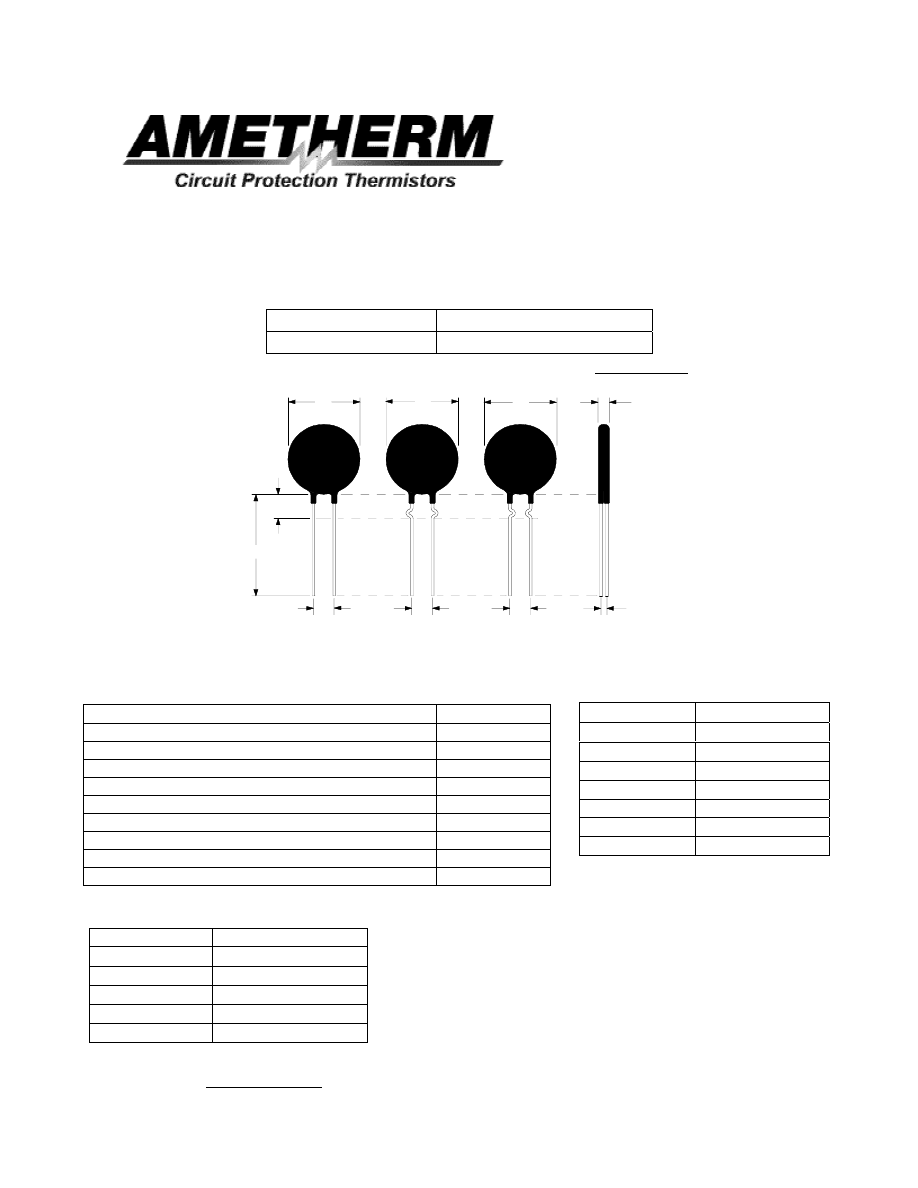

DATA SHEET
Ametherm, Inc
. 3111 N. Deer Run Road #4 Carson City, NV 89701
Telephone: (800) 808-2434 (775) 884-2434 Fax: (775) 884-0670
www.ametherm.com
Part Number: SL08 60002
Ordering Different Lead Types:
For example: to order an inside kinked lead use part number SL08 60002
-A
Electrical
Specifications:
Mechanical
Specifications:
Current vs. Hot Resistance Table:
Current
Hot R /Body Temp
0.25 A
8.27
Ω
, 63.2°C
0.50 A
3.73
Ω
, 88°C
0.75 A
2.14
Ω
, 103°C
1.00 A
1.00
Ω
, 122°C
2.00 A
0.60
Ω
, 149°C
CSA File #: CA 118061
Revision Date: March 19, 2003
Inside Kinked Leads
Use
-A
after Ametherm’s part #
Outside Kinked Leads
Not Available
Resistance @ 25°C
60.0
Ω
±
20%
Max Steady State Current Up to 65°C
2.0 A
Max Recommended Energy Rating (Joules)
18.0 J
Actual Failure Point of Instantaneous Energy (Joules)
30.0 J
Body Temperature @ 100% Current Rating
149 °C
Dissipation Constant
5.2mW/°C
Thermal Time Constant
67 seconds
Material Type
“H”
Max Recommended Capacitance @ 120VAC/240VAC
900µF/225µF
Power Consumption @ Max Current
0.990 watts
D
8.0
±
0.3 mm
T
3.5
±
0.3 mm
Lead Diameter
0.5
±
0.1 mm
S
6.35
±
0.6 mm
L
9.90
±
0.90 mm
Marking 100
S
B
5.0
±
0.50 mm
C
2.82
±
0.5 mm
L
OUTSIDE
KINKED LEADS
S
STRAIGHT
LEADS
B
INSIDE
KINKED LEADS
S
S
D
D
D
C
T
