Part Number: SL32 2R025
Ordering Different Lead Types:
For example: to order an inside kinked lead use part number SL32 2R025-
B
Electrical
Specifications:
Mechanical
Specifications:
UL File Number: #E209153
Revision Date: March 19, 2003
Inside Kinked Leads
Not Available
Outside Kinked Leads
Use
-B
after Ametherm’s part #
Resistance @ 25°C
2.0
Ω
±
15%
Max Steady State Current Up to 65
°
C
25.0 A
Max Recommended Energy Rating (Joules)
300.0 J
Actual Failure Point of Instantaneous Energy (Joules)
548.0 J
Resistance @ 100% of Max Current
0.024
Ω
Resistance @ 50% of Max Current
0.055
Ω
Body Temperature @ 100% Current Rating
236 °C
Dissipation Constant
45.4mW/°C
Thermal Time Constant
194 seconds
Material Type
“G”
Maximum Capacitance @ 120VAC/240VAC/440VAC
20000
µ
F/
5000
µ
F/1500
µ
F
D
30.0
±
2.5 mm
T
6.35.
±
0.4 mm
Lead Diameter
1.0
±
0.1 mm
S
7.8
±
2.0 mm
L
38.0
±
9.0 mm

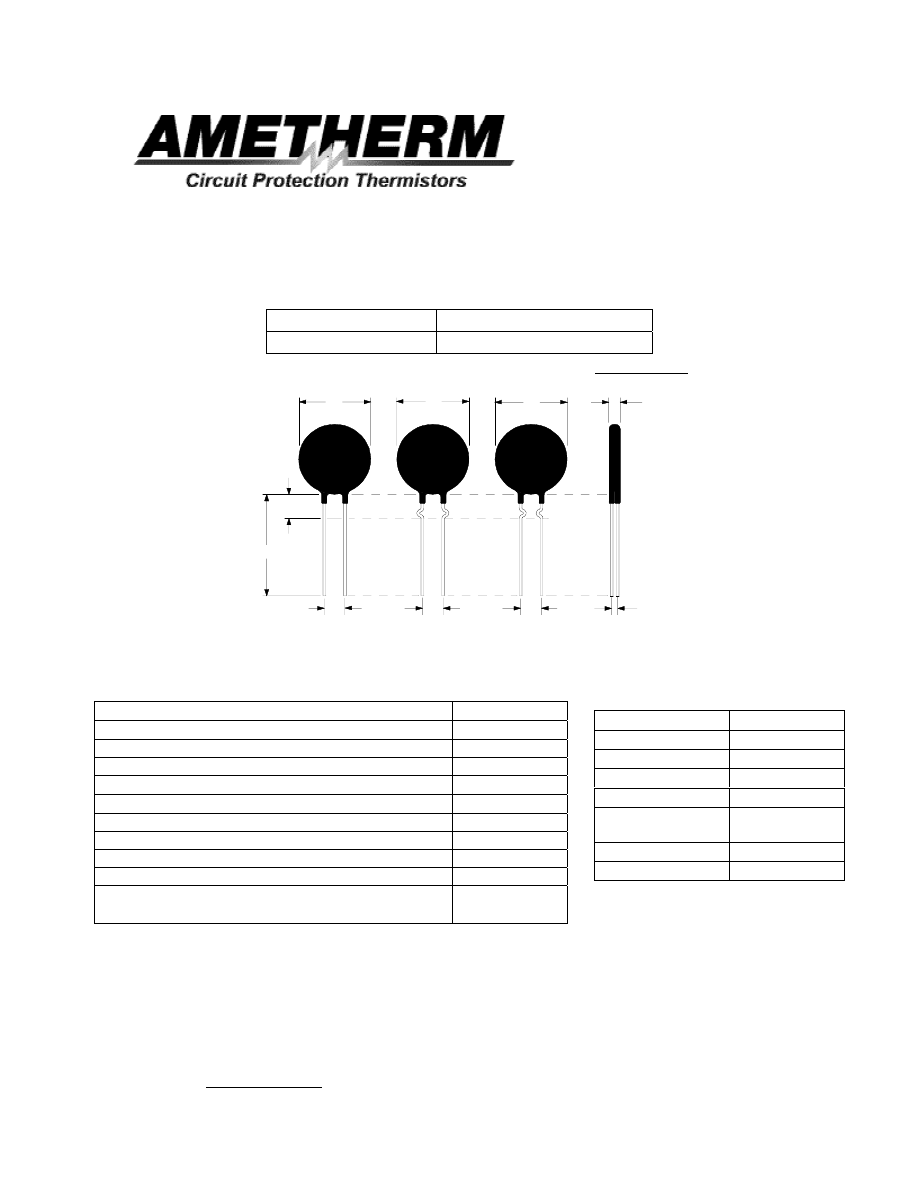

Straight Leads
Coating Run Down
5.0
±
1.0 mm
B
9.35
±
0.85 mm
C
3.82
±
1.0 mm
L
OUTSIDE
KINKED LEADS
S
STRAIGHT
LEADS
B
INSIDE
KINKED LEADS
S
S
D
D
D
C
T
