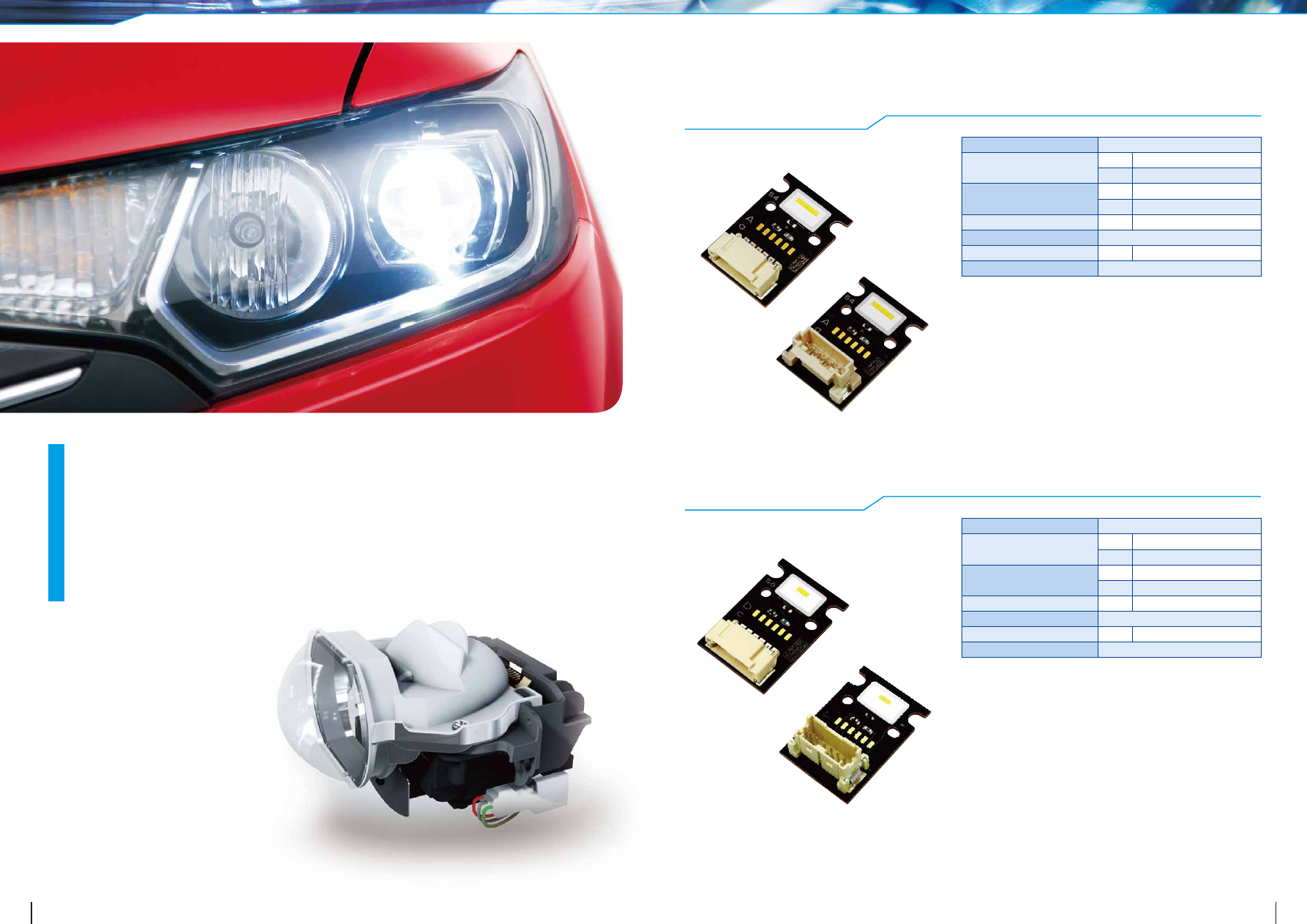

Head Lamp

Highly efficient COB type LED with high heat dissipation technology

and connector-type power supply.

We are available for consultation regarding connectors.

提高散热性，高效率 COB 型器件
接电方法采用了连接器方式，我司可以提供连接器

前大灯

BUA1054A

BUA1054A-T

BUA1056A

BUA1056A-T

For two lens Low beam unit /

single lens High beam unit

For single lens Low beam unit /

single lens High beam unit.

31.5 21.0 7.73

Size(mm)

Typ.

2,350 lm

1,800 mA

0.325

0.335

Typ.

12.7 V

Luminous Flux

Chromaticity

Coordinates

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-b)

Typ.

0.7 K/W

-40℃〜120℃

Operating Temperature

31.5 21.0 7.9

Size(mm)

Typ.

1,290 lm

1,800 mA

0.325

0.335

Typ.

7.0 V

Luminous Flux

Chromaticity

Coordinates

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-b)

Typ.

0.7 K/W

-40℃〜120℃

Operating Temperature

Head lamp unit

HCNW115AJTE

HCNW125DJTE

HCXW115CATE

DRL/Position Lamp

High-flux, ceramic type LED package.

This device is most advantageous to

optical design using light guide, etc.

High power SMD type LED; also supports

assembly with resistors, connectors, etc.

mounted on metal PCB.

For further details, please contact our sales

offices or refer to our website.

高功率SMD型LED，還能夠支持安裝在金屬
PCB上的電阻器、連接器等的組裝。
欲了解更多詳細內容，請聯繫我們的銷售辦事
處或參閱我們的網站。

高功率的贴片型陶瓷封装
有利于导光方式等光学设计的点光源器件

日间行车灯 / 位置灯

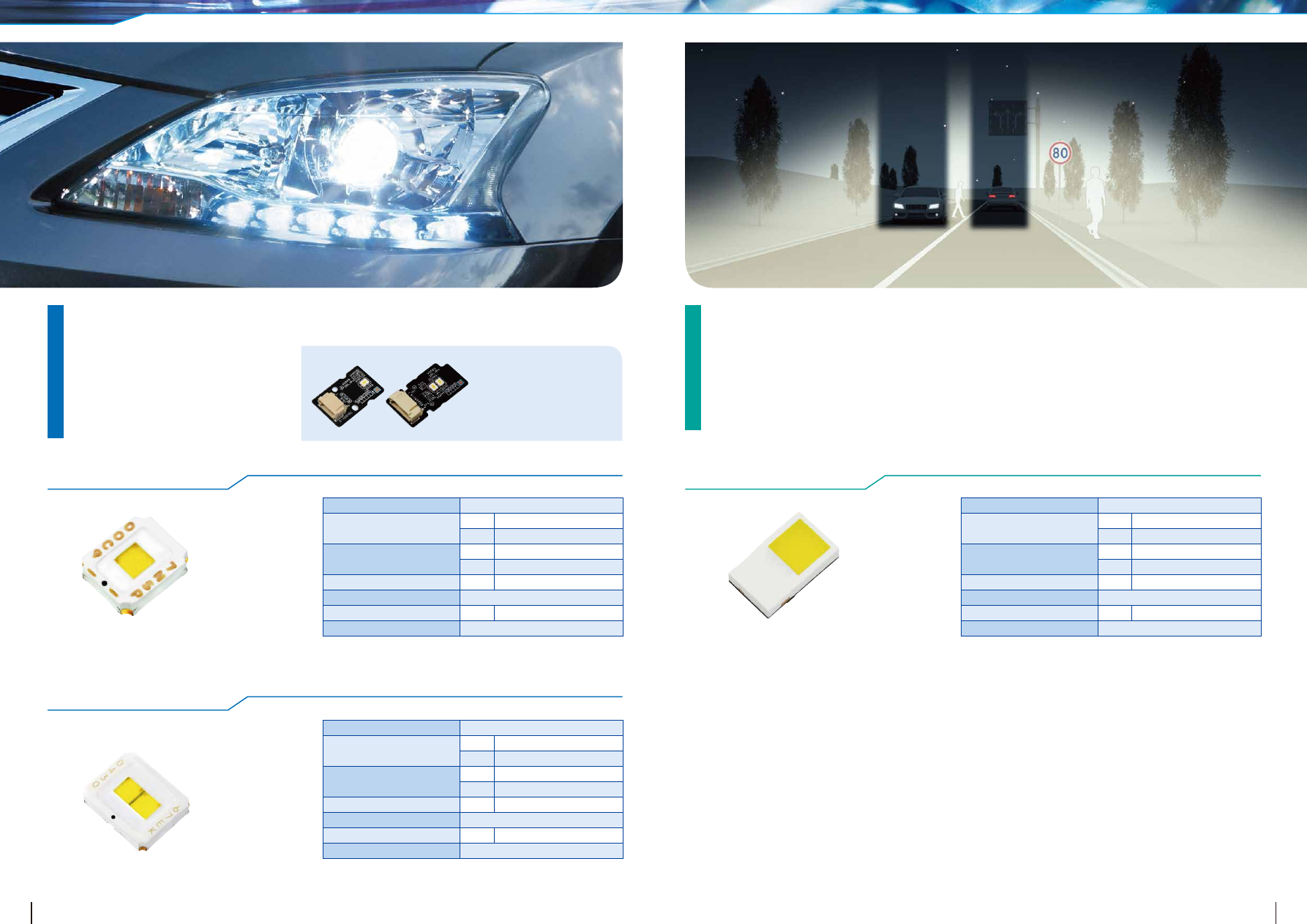

ADB Head Lamp

Compact, high-flux SMD type LED package.

Ideal for high-density mounting in narrow spaces.

高功率小型贴片封装最适用在狭窄空间的贴片，及 LED 的紧接配置的应用

ADB 系统前大灯

3.0 2.5 0.77

Size(mm)

Typ.

315 lm

1,000 mA

0.326

0.335

Typ.

3.25 V

Luminous Flux

Chromaticity

Coordinates

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-s)

Typ.

3.0 K/W

-40℃〜125℃

Operating Temperature

4.0 3.2 0.77

Size(mm)

Typ.

620 lm

1,000 mA

0.326

0.335

Typ.

6.5 V

Luminous Flux

Chromaticity

Coordinates

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-s)

Typ.

1.8 K/W

-40℃〜125℃

Operating Temperature

1.28 2.18 0.57

Size(mm)

Typ.

310 lm

1,000 mA

0.326

0.335

Typ.

3.2 V

Luminous Flux

Chromaticity

Coordinates

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-s)

Typ.

2.7 K/W

-40℃〜125℃

Operating Temperature

HFT

□

1108GS

HFZ

□

111AJTE

HCNY115AJTE

HCNY125DJTE

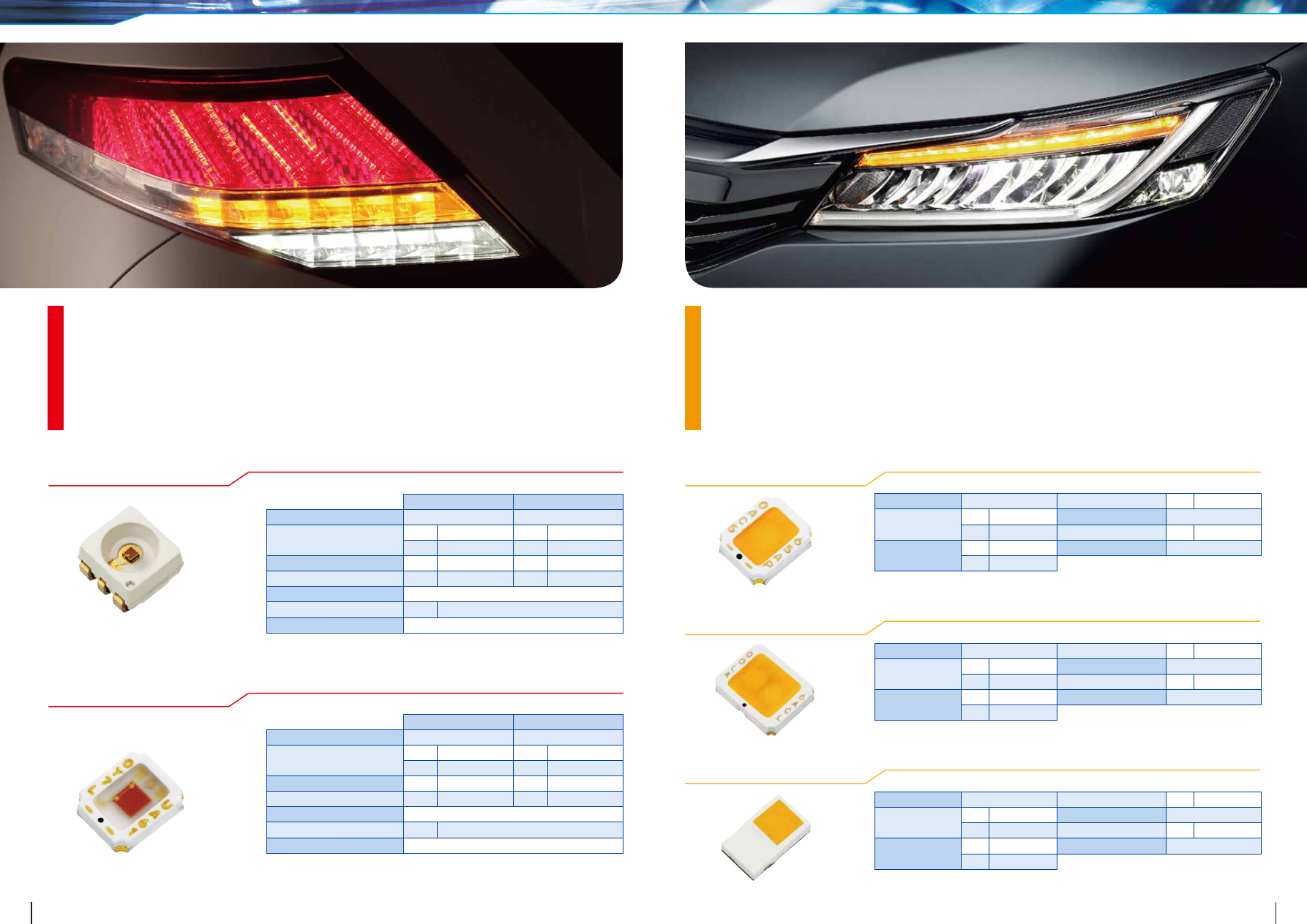

Rear Lamp

Red SMD package for tail and stop lamp.

Two levels of brightness are available in accordance with the rear lamp design.

尾灯及刹车灯用的红色贴片封装
提供两种类型的亮度产品贴合灯体的设计

后组合灯

Turn Indicator

High-flux, ceramic type LED package.

This device is most advantageous to optical design using light guide, etc.

高功率的贴片陶瓷封装
有利于导光方式等光学设计的点光源器件

转向灯

HFZV111AJTE

HFZR111AJTE

3.0 2.5 0.77

Size(mm)

Dominant Wavelength

64 lm

32 lm

Typ.

350 mA

Typ.

2.1 V

Luminous Flux

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-s)

4.0 K/W

-40℃〜125℃

Operating Temperature

617 nm

633 nm

HCXY115CATE

HFTV1108GS

HFTR1108GS

※

3.4 3.3 1.9

Size(mm)

Dominant Wavelength

8,000 mcd

4,000 mcd

Typ.

140 mA

Typ.

2.15 V

2.1 V

Liminous Intensity

Forward Voltage

Junction Temperature

125 ℃

Thermal Resistance / Rth(j-s)

30.0 K/W

-40℃ 〜110℃

Operating Temperature

617 nm

630 nm

※ HFTR1108GS

Under development

3.0 2.5 0.77

Size(mm)

Typ.

71 lm

350 mA

0.566

0.423

Luminous Flux

Chromaticity

Coordinates

Typ.

2.95 V

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-s)

Typ.

4.0 K/W

-40℃〜125℃

Operating Temperature

4.0 3.2 0.77

Size(mm)

Typ.

246 lm

700 mA

0.566

0.423

Luminous Flux

Chromaticity

Coordinates

Typ.

6.0 V

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-s)

Typ.

2.0 K/W

-40℃〜125℃

Operating Temperature

1.28 2.18 0.57

Size(mm)

Typ.

125 lm

700 mA

0.566

0.423

Luminous Flux

Chromaticity

Coordinates

Typ.

3.0 V

Forward Voltage

Junction Temperature

150 ℃

Thermal Resistance / Rth(j-s)

Typ.

2.2 K/W

-40℃〜125℃

Operating Temperature

□

N1105MS

□

N1106MS

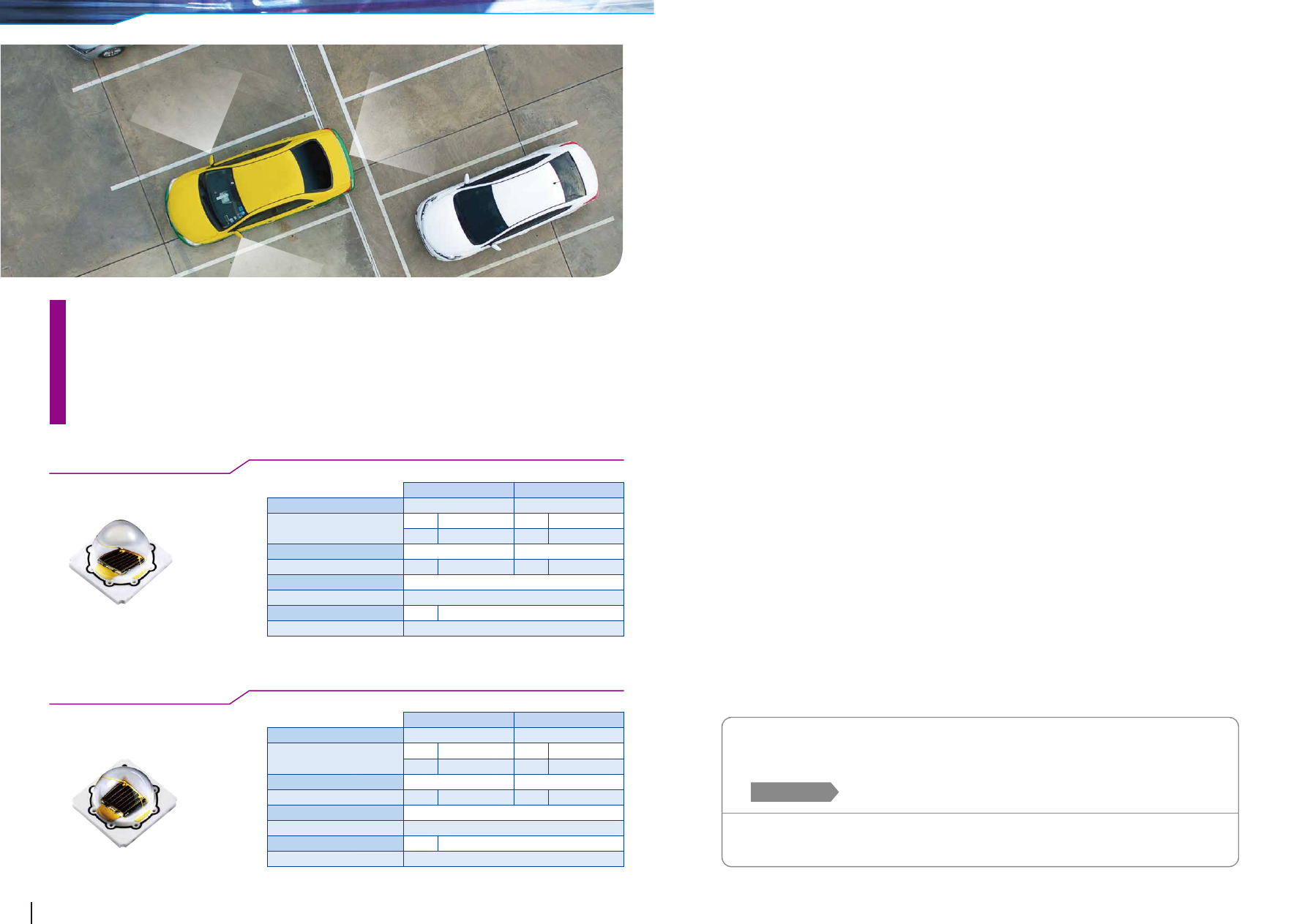

Infrared Light

Infrared light source for sensing applications inside and outside the vehicle and for camera monitoring.

Two types of wavelength and spatial distribution lineups in accordance with each application.

用于车内车外传感，摄像头监控的红外光源
根据用途提供两种类型的波长和发光角度的产品

红外

MGN1105MS

MFN1105MS

3.8 3.8 2.8

Size(mm)

Peak Wavelength

530 mW/sr

440 mW/sr

Typ.

1,000 mA

Typ.

1.8 V

1.5 V

Radiant Intensity

Forward Voltage

Half Intensity Angle

60 deg.

Junction Temperature

125 ℃

-40℃〜125℃

Thermal Resistance / Rth(j-s)

Operating Temperature

855 nm

945 nm

5.0 K/W

MGN1106MS

MFN1106MS

3.8 3.8 2.1

Size(mm)

Peak Wavelength

280 mW/sr

230 mW/sr

Typ.

1,000 mA

Typ.

1.8 V

1.5 V

Radiant Intensity

Forward Voltage

Half Intensity Angle

120 deg.

Junction Temperature

125 ℃

-40℃〜125℃

Thermal Resistance / Rth(j-s)

Operating Temperature

855 nm

945 nm

5.0 K/W
