2

1-800-526-2324 • www.us.lambda.tdk.com

Revision C1.2: Jun 2020

Applications

Features

  Factory automation

  Solar power generation

  PV solar monitoring equipment

  Industrial ovens

  Motor drive controls

  Panel builders

  Food processing

  Oil extraction controllers

  LED architectural lighting

  Process I/O controllers

  Solar inverter controllers

  Easy to install

  Wide temperature range

  Wide input range

  High quality

  Industrial certifi cation

  Parallelable

  Isolated

DIN Rail

AC-DC DIN Rail Products

TDK-Lambda-Din_Rail_Brochure-html.html
background image

3

1-800-526-2324 • www.us.lambda.tdk.com

Revision C1.2: Jun 2020

Easy Mounting



DPP15-100

Single Phase

  DPP120-960

Single or 3 Phase

  DSP10-100

Single Phase

  DRB15-480

Single Phase

  DRF120-960

Single Phase

  DRL10-100

Single Phase

AC Input Power Supplies



AC Input Power Supplies





Output Power (W)

  Series

Input

10

15

25/30

50/60

100

120

240

480

960

TDK-Lambda-Din_Rail_Brochure-html.html
background image

4

1-800-526-2324 • www.us.lambda.tdk.com

Revision C1.2: Jun 2020

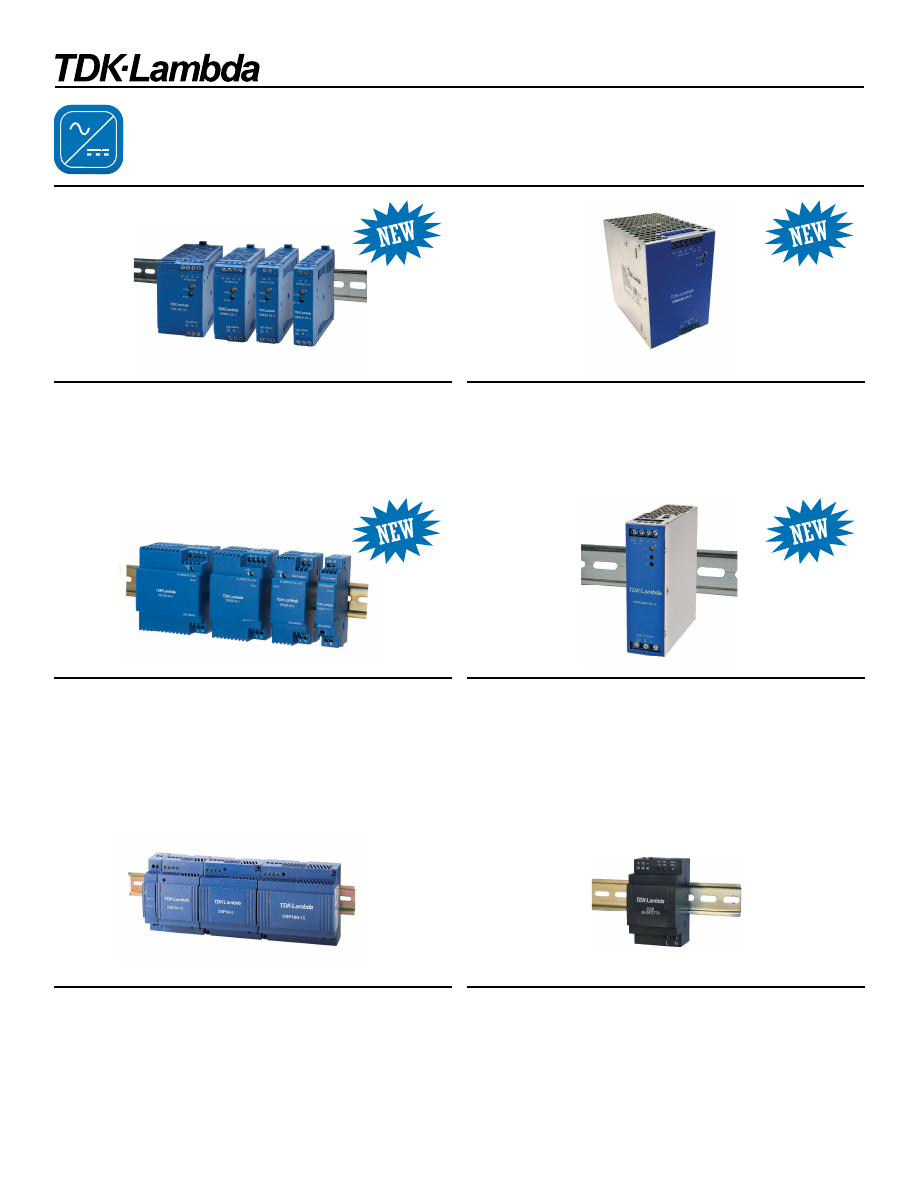

DRB120-480 Series

480W DIN Rail Mount Power Supply

 Compact Size, Narrow Width

 12V, 24V, or 48V Output

 High Effi  ciency (>93% at 230VAC)

 Conservatively Rated Electrolytic Capacitors

 Curve B EMC

 Three Year Warranty

DRL Series

10-100W Low Profi le DIN Rail Mount Power Supplies

 Low Profi le for Building Automation

 12V, 15V, or 24V Outputs

 Class II Double Insulation

 High Effi  ciency (Up to 90%)

 Low No-load Power Consumption

 Class 2 Models to UL1310

 SEMI F47 Compliant

DRB15-100 Series

15-100W DIN Rail Mount Power Supplies

 Compact Size

 5V, 12V, 15V, 24V, or 48V Outputs

 High Effi  ciency (Up to 91%)

 Low No-load Power Consumption

 Class 2 Models to UL1310

 Class 1 Div 2 for Hazardous Locations

DRF Series

120-960W DIN Rail Mount Power Supplies

 Very Compact Size

 24V Output

 High Effi  ciency (Up to 95%)

 150% Peak Power Capability for 4s

 ErP Compliant Design

 Low Standby Power Draw

 Remote On/Off

 Remote Voltage Adjustment

 Hazardous Location Option (/HL)

DSP Series

7.5-100W Low Profi le DIN Rail Mount Power Supplies

 Low Profi le for Building Automation

 5V, 12V, 15V, or 24V Outputs

 Wide Range AC Input

 UL1310 Class 2

 Class II Double Insulation

 -25 to +71°C Operation

DSP30-244/277A2

30W 90-304VAC Input DIN Rail Power Supply

 Low Profi le for Building Automation

 24V Output

 Wide Range AC Input (90-304VAC)

 Evaluated to NEC NFPA70 Class 2 Output

 Class II Double Insulation

 AC Line Frequency Sync Signal

 -25 to +71°C Operation

AC-DC Power Supplies

TDK-Lambda-Din_Rail_Brochure-html.html
background image

5

1-800-526-2324 • www.us.lambda.tdk.com

Revision C1.2: Jun 2020

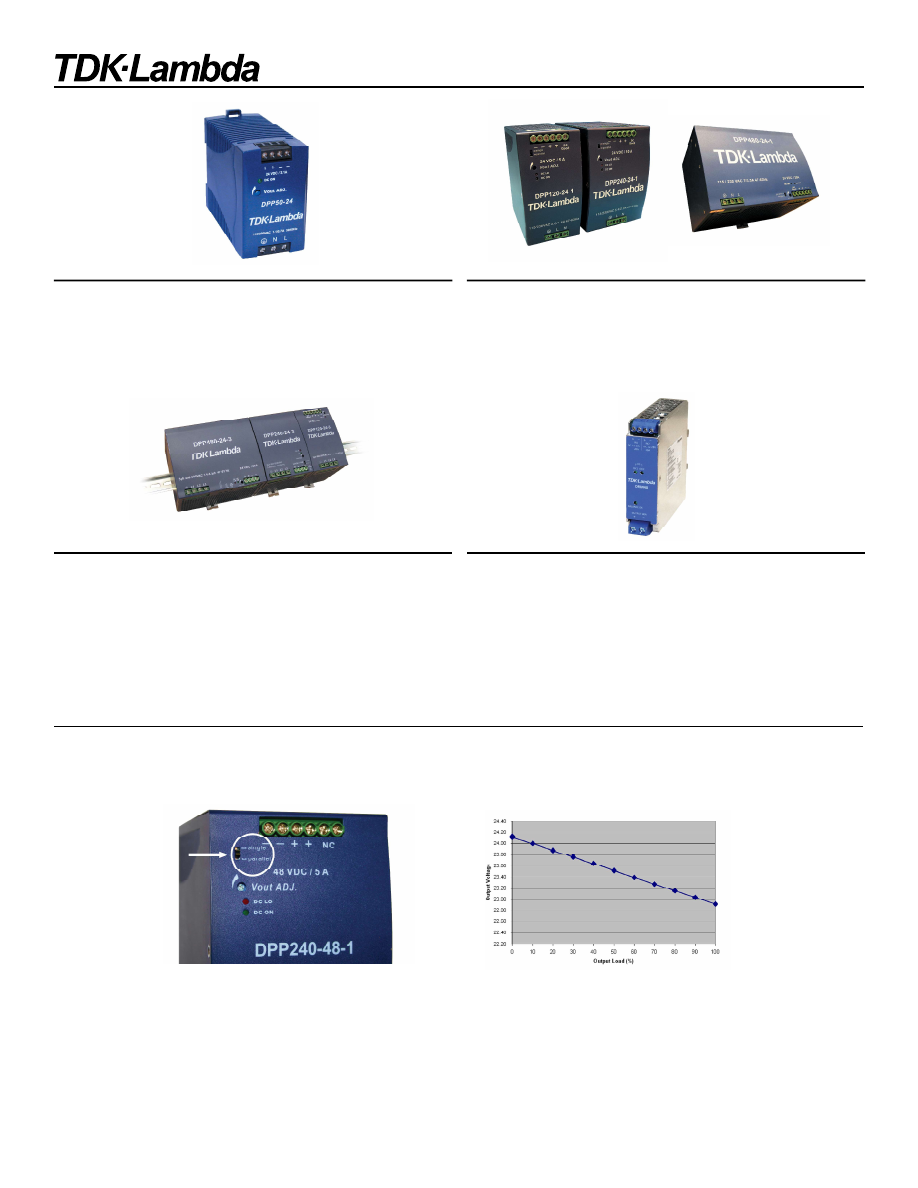

DIN Rail Product Overview

DPP120-960 Series

120W, 240W, 480W & 960W 3 Phase DIN Rail Mount Power Supplies

 Low Cost

 12V, 24V or 48V Outputs

 Wide Range 340 to 575VAC Input

 Parallel Function Switch (240 & 480W)

 Current Share (960W)

 -40 to +71°C Operation

DRM40 Series

Din Rail Redundancy Module

 40A Maximum Output Current

 150% Peak Load (60A)

 Dual Input (2 x 20A)

 Reverse Input Protection

 Current Balancing / DC OK LED’s

 Five Year Warranty

DPP120-480 Series

120W-480W Din Rail Mount Power Supplies

 Low Cost

 12V, 24V or 48V Outputs

 Wide Range AC Input

 Parallel Function Switch

 UL508 Listed

 -40 to 71°C Operation

DPP15-100 Series

15-100W, DIN Rail Mount Power Supplies

 Low Cost

 5V, 12V, 15V, 24V, or 48V Outputs

 Universal Input

 NEC NFPA70 Class 2

 UL508 Listed

 Class 1, Division 2 (ISA 12.12)

 -10 to +71°C Operation

Droop Mode Current Sharing

If two or more supplies are to be connected together to produce more power or share the load, then a parallel-capable

model should be selected.  TDK-Lambda’s DPP100, 120, 240 and 480 models are all parallel-capable.
On the front of each power supply is a small black switch. For parallel operation, this switch should be set to “parallel” (Fig.1).

In single mode, the load regulation (the amount the output voltages changes with load) is minimal, with the diff erence be-

ing less than 0.24V from zero load to full load for a 24V output power supply.

In parallel mode, that load regulation is artifi cially increased to 1.2V using internal circuitry (Fig. 2).

The extra voltage drop, or “droop,”  is proportional to the load drawn, so that when two or more power supplies are connect-

ed in parallel, the output load is shared between the power supplies.  If one of the paralleled power supplies provides more

current, its output will droop slightly, and the other supplies will balance.
For optimal performance, all power supplies should have their outputs set to the same voltage.

Figure 1

Figure 2

TDK-Lambda-Din_Rail_Brochure-html.html
background image

6

1-800-526-2324 • www.us.lambda.tdk.com

Revision C1.2: Jun 2020

DC-DC DIN Rail Products

Applications

Features

  Factory automation

  Ground radar

  Wireless hubs

  Digital signage

  Utility substation back-up

  Geological surface test equipment

  Paint spraying equipment

  Battery management

  Amplifi ers

  Solar inverters

  Test & measurement

  Panel builders

  Hospital power monitoring

  Programmable logic controllers

  Imaging systems

  Yacht control systems

  Oil fi eld controllers

  Fork lift camera systems

  Remote monitoring systems

  Solar arrays

  Smart building automation

  Automated doors

  High temperature metal furnaces

  Single, dual and triple output models.

  Six-sided EMI shielding

  Isolated

DIN Rail

TDK-Lambda-Din_Rail_Brochure-html.html
background image

7

1-800-526-2324 • www.us.lambda.tdk.com

Revision C1.2: Jun 2020

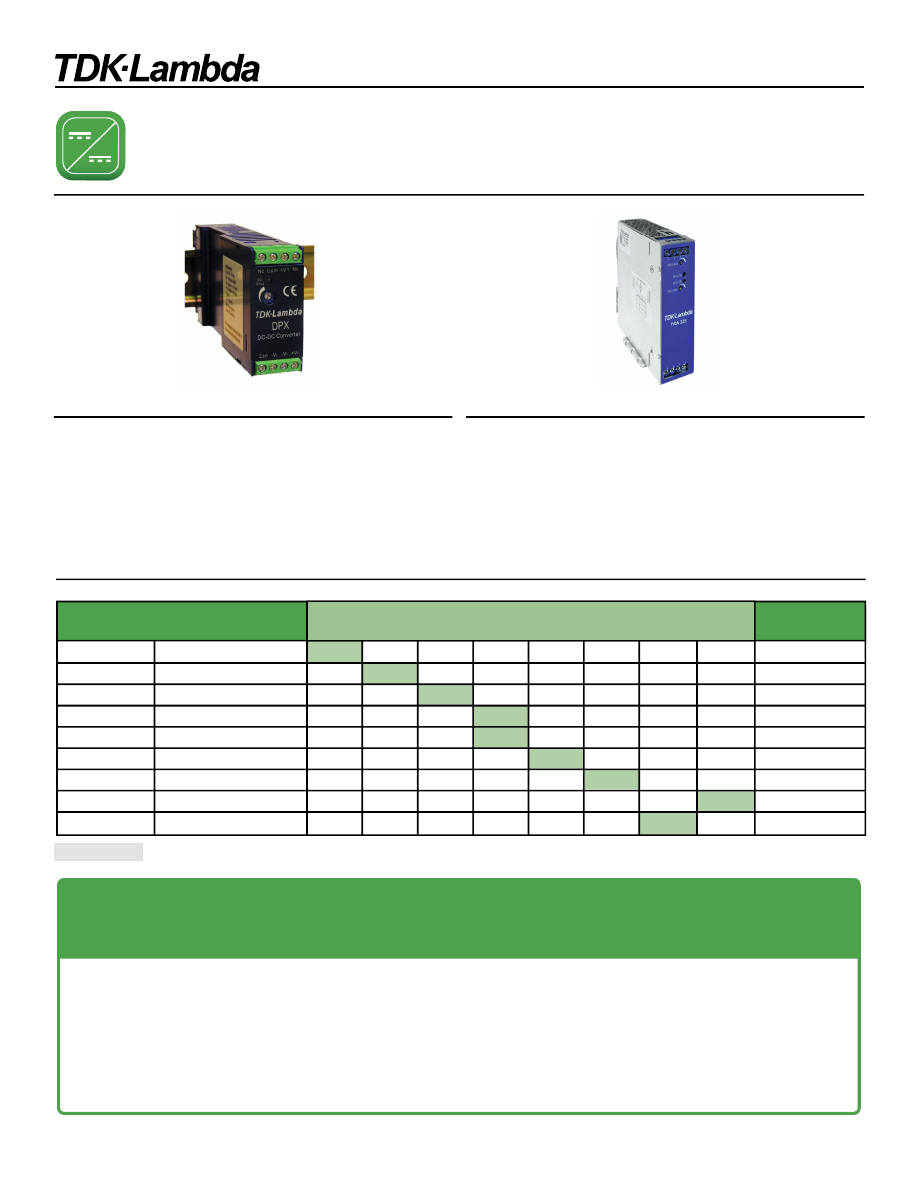

DPX Series

(isolated)

40-60W Single, Dual & Triple Output DIN Mount DC-DC Converters



 DIN Rail Mount Version of TDK-Lambda’s PX Series

 1600VDC Input to Output Isolation

 Wide Operating Temperature Range

 Internally Protected

 All In One Package

DDA Series

(non-isolated)

250-500W Single & Dual Output Din Mount DC-DC Converters

 250W Single Output, 325W and 500W Dual Output Power Levels

 High Effi  ciency up to 95%









 Wide Range Input 9 up to 53V









 Wide  3.3 to 24V Output Adjustment







 Narrow 36.5mm Width

*Special order

DC-DC Power Supplies

 Please call

1-800-LAMBDA-4 (1-800-526-2324)

 to speak to our inside technical support team,

  or email

powersolutions@us.tdk-lambda.com

 TDK-Lambda’s Field Application Engineers are available for unlimited support at your facility.

  Please contact your local TDK-Lambda salesperson to schedule a visit.

Want Engineering Support?

DC Input Power Supplies



DC Input Power Supplies





        Output Power (W)







 # of

 Series

Input

15

20

30

40

60

250

325

500

Outputs



DPX15W

*



9.5-36V or 18-75V













1 or 2

 DPX20W

*



9.5-36V or 18-75V













1 or 2

 DPX30W

*



10-40V or 18-75V













1 or 2



DPX40W

9.5-36V or 18-75V













1 or 2

 DPX40

9.5-18V, 18-36V or 36-75V













3

 DPX60

18-36V or 36-75V













1

 DDA250N-S1PX

9-53V













1 (pos)

 DDA500N-D2PP

9-53V













2 (pos)

 DDA325N-D2PN

9-40V













2 (neg)
