SPACE RATED CONNECTORS

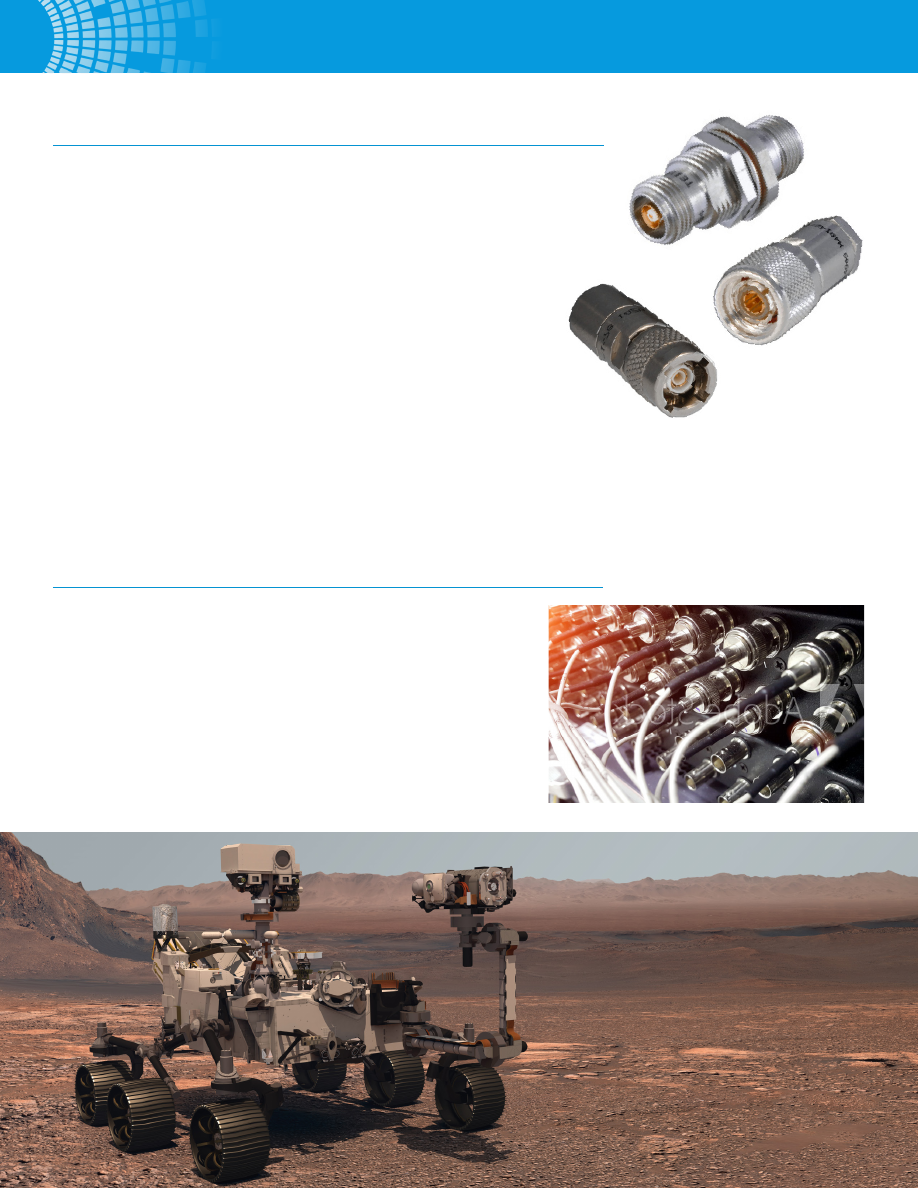

Trompeter has a long and proud history of servicing space applications.

Applications include communications satellites, Navigation (GPS) satellites, and
even the Mars Rover. Each of these applications share the common requirement
of world class reliability in these very demanding conditions.

When placed in a vacuum and subjected to heat, non-metal materials are subject
to outgassing, and some of its constituents are volatized. One of the bi-products
of outgassing is that the material loses a portion of its mass (total mass loss: TML).
Another effect is that the outgassed matter will condense and collect on a surface.
This material is known as Collectable Volatile Condensable Material (CVCM).

These phenomena can lead to complications and even equipment failure.

Outgassed materials are nothing but contaminants, and Trompeter mitigates
these effects through proper material selection and design practices.

Trompeter tests these conditions using ASTM E595, and the limits are:
Total Mass Loss (TML): less than 1.0%
Collected Volatile Condensed Materials (CVCM): less than 0.10%

Patching systems are often implemented in ground based systems. This
architecture offers maximum flexibility. Trompeter is a key supplier of patching
panels and the required patch cables. Panels can be fully loaded with the
desired patch jacks.

Patching Panels

Space Rated Connectors and Accessories

SPACE RATED CONNECTORS

Test Name

Sample Size

Visual and Mechanical Dimensions

100%

Plating Thickness

5 pcs

Solderability

5 pcs

Plating Adhesion

5 pcs

Contact Captivation

100%

Rotational Contact Retention

6 pcs

Axial Contact Retention

6 pcs

Proof Torque

100%

Contact Engaging Force

100%

Contact Separating Force

100%

Test Name

Method

Sample Size

3.1.1 Visual and Mechanical Inspection

4.1

100%

3.1.2 Hermetic Seal*

4.2

100%

3.1.3 Leakage*

4.3

100%

3.1.4 Dielectric Withstanding Voltage

4.4

100%

Test Name

Method

Sample Size

3.2.1 Outgassing Verification

4.5

Dependent on lot size

3.2.1 Force to Engage/Disengage

4.6

Dependent on lot size

3.2.2 Coupling Proof Torque*

4.7

Dependent on lot size

3.2.3 Mating Characteristics

4.8

Dependent on lot size

3.2.4 Permeability of Nonmagnetic Materials

4.9

3.2.5 Insulation Resistance

4.10

Test Name

Sample Size

Vibration

Defined by Customer

Shock

Defined by Customer

Moisture Resistance

Defined by Customer

Electrical Characteristics

Defined by Customer

Resistance to Solvents

Defined by Customer

In-Process Inspections

Group A Inspections

Group B Inspections

Group C Inspections

Group A Inspection shall consist of the inspections specified in the table, performed in the order shown. Any defective units found shall not be delivered.

* Pressurized connectors only

Group B Inspection shall consist of the inspections specified in the table, performed in the order shown. Group B units shall be randomly selected once
the lot has passed Group A Inspection. Any defects discovered during Group B tests shall be screened from the entirety of the lot.

* Threaded connectors only

Trompeter’s space qualified products are manufactured to individual specifications and testing, as per the below example:

Testing Procedures

SPACE RATED CONNECTORS

Commercial Part Number

Description

Vacuum Ready Part Number

Space Ready Part Number

PLR3155AC/S SPECIAL HEX CPLG Plug

305-1243

5-0097

BJ3150/S

Bulkhead Jack

305-1228

5-0002

TNTM1/TNTMS1 W/ 2W resistor

305-1580

5-0003

CJ3150AC

Cable Jack

305-1497

5-0013

BJ3157

Bulkhead Jack

305-1227

5-0014

PL3155AC/S

Plug

305-1370

5-0015

TNTM1/TNTMS1

305-1469

5-0029

PL155

Plug

305-1609

5-0036

BJ3158

Bulkhead Jack

305-1532

5-0037

PL3155AC/SPL, HEX COUPLING

Plug

5-0045

PLR3155AC

Plug

5-0050

CJ3150

Cable Jack

5-0056

BJ3159

Bulkhead Jack

5-0057

TNTM1, SHIELD COMMON

5-0060

BJ3150HS/S

Bulkhead Jack

305-1486

5-0071

TNTMF1 SPECIAL

5-0074

TNTMF1

5-0075

CBJ3157 SPECIAL LONG LEG

5-0076

BJ3157F SPECIAL BeCu SHIELD

Bulkhead Jack

5-0082

CBJ3157

305-1649

5-0084

CBJ3157

305-1487

5-0084

CBJ3157 SPECIAL SHORT LEG

5-0084

BJ3155

Bulkhead Jack

305-1627

5-0089

CBBJR3159 SPECIAL

Circuit Board Bulkhead Jack

5-0094

BJ3157F SPECIAL (305-0960)

Bulkhead Jack

5-0095

TNTMF1 W/ 3 RESISTORS

5-0098

BJ3154

Bulkhead Jack

5-0099

BJ3154AC

Bulkhead Jack

5-0100

CBJ3157 SPECIAL (5-0076)

5-0102

CBJ3157 SPECIAL (5-0084)

5-0103

TTM Series (Subminiature Threaded Connectors)

Commercial Part Number

Description

Vacuum Ready Part Number

Space Ready Part Number

CBBJR379

Circuit Board Bulkhead Jack

5-0032

BJ377

Bulkhead Jack

305-1480

5-0044

BJ379/BR

Bulkhead Jack

305-1573

5-0063

PL375

Plug

305-1574

5-0064

RFI375

RFI Cap

305-1602

5-0068

TNT1/TNTS1

Terminator

305-1468

5-0070

CJ370C

Cable Jack

5-0091

TRT Series (Miniature Threaded Connectors)

Ordering Information

SPACE RATED CONNECTORS

Commercial Part Number

Description

Vacuum Ready Part Number

Space Ready Part Number

BJ78HS

Bulkhead Jack

305-1539

5-0009

ADBJ77-A1PL3155

Adapter

5-0010

PL75C

Plug

305-1241

5-0011

ADRMF70/TL/370/4L

Adapter

5-0017

PLR75C

Right Angle Plug

305-1512

5-0019

CBJ70/TL/FL/370

Cable Jack

5-0020

BJ76

Bulkhead Jack

305-1238

5-0023

ADBJ77/POLAR TO PL75 POLAR

Adapter

305-1317

5-0025

BJ79

Bulkhead Jack

305-1518

5-0026

BJ79C

Bulkhead Jack

305-1309

5-0027

PL74/PL74BR

Plug

305-1600

5-0028

CBBJR79/A

PCB Jack

305-1473

5-0031

PL375C/S

Plug

305-1484

5-0033

PL75

Plug

305-1240

5-0038

PL75CFL

Plug

305-1324

5-0039

PL75FL/BR

Plug

305-1242

5-0040

CBBJR79FL

PCB Jack

5-0043

BJ76FL

Bulkhead Jack

305-1239

5-0053

BJ78

Bulkhead Jack

305-1565

5-0054

BJ78FL

Bulkhead Jack

305-1564

5-0055

CBBJ79/TL/FL/379

PCB Jack

305-1601

5-0065

PLR70C WITH DSN312702

Plug

5-0067

RFI75

RFI Cap

5-0069

CJ70

Cable Jack

305-1519

5-0072

CJ70FL/BR

Cable Jack

305-1572

5-0073

BJ376

Bulkhead Jack

5-0085

BJ76HS

Bulkhead Jack

5-0086

TNG1/FL1/TL1

Terminator

305-1445

5-0108

ADBJ77/TL/FL/377 TO 70 SERIES

Adapter

305-1306

5-0024

TRB Series (Miniature Bayonet Connectors)

SPACE RATED CONNECTORS

Commercial Part Number

Description

Vacuum Ready Part Number

Space Ready Part Number

BJ157

Bulkhead Jack

5-0034

BJ3157F SPECIAL

Bulkhead Jack

305-1549

5-0005

PL155AC

Plug

305-1310

5-0219

CBBJ3159

Circuit Board Bulkhead Jack

305-1581

5-0008

BJ159AC

Bulkhead Jack

305-1311

5-0012

PL3155/S

Plug

305-1507

5-0016

305-0525 (150 SERIES ADAPTER)

305-1579

5-0018

TNGBJM1/TNTBJM1/TNGBJMFL1

305-1496

5-0030

BJ150

Bulkhead Jack

5-0046

BJ158

Bulkhead Jack

5-0047

PLR155AC

Plug

5-0049

PL155FL

Plug

305-1609

5-0058

CJ150

Cable Jack

5-0059

BJ159

Bulkhead Jack

5-0061

CJ150FL

Cable Jack

5-0062

BJ150FL

Bulkhead Jack

5-0080

PL3155 W/ 14" of cable

Plug

305-1488

5-0083

CJ150AC

Cable Jack

305-1381

5-0087

BJ155

Bulkhead Jack

305-1628

5-0090

PL155ACFL

Plug

5-0092

BJ3150HS/S SPECIAL

Bulkhead Jack

305-1053

5-0093

BJ3159AC/S

Bulkhead Jack

305-1559

5-0101

BJ3159AC/S WITH 100% A&B TEST

Bulkhead Jack

5-0106

RFI155(FL)/RFI3155

RFI Cap

305-1475

5-0022

TRS Series (Subminiature Bayonet Connectors)

Commercial Part Number

Description

Vacuum Ready Part Number

Space Ready Part Number

BJ3450/P/S

Bulkhead Jack

305-1500

5-0001

PLR3455AC/P/S

Right Angle Plug

305-1597

5-0004

CJ3450AC/P/S

Cable Jack

305-1542

5-0006

CBBJ3459/P/S SPL

PCB Jack

5-0021

PL3455ACP/S

Plug

305-1535

5-0041

BJ450

Bulkhead Jack

305-1231

5-0048

PL455AC

Plug

305-1236

5-0051

PLR455AC

Right Angle Plug

5-0052

BJ3459AC/P/S

Bulkhead Jack

305-1534

5-0077

PL3455AC/SPL, HEX COUPLING

Plug

305-1621

5-0088

PL3455ACP/S (POGO PIN)

Plug

5-0096

PL3455AC

Plug

5-0104

BJ3450P/S WITH 100% A&B TEST

Bulkhead Jack

5-0105

RFI455/FL/3455

RFI Cap

305-1368

5-0107

450 Series (Micro Miniature Connectors)
