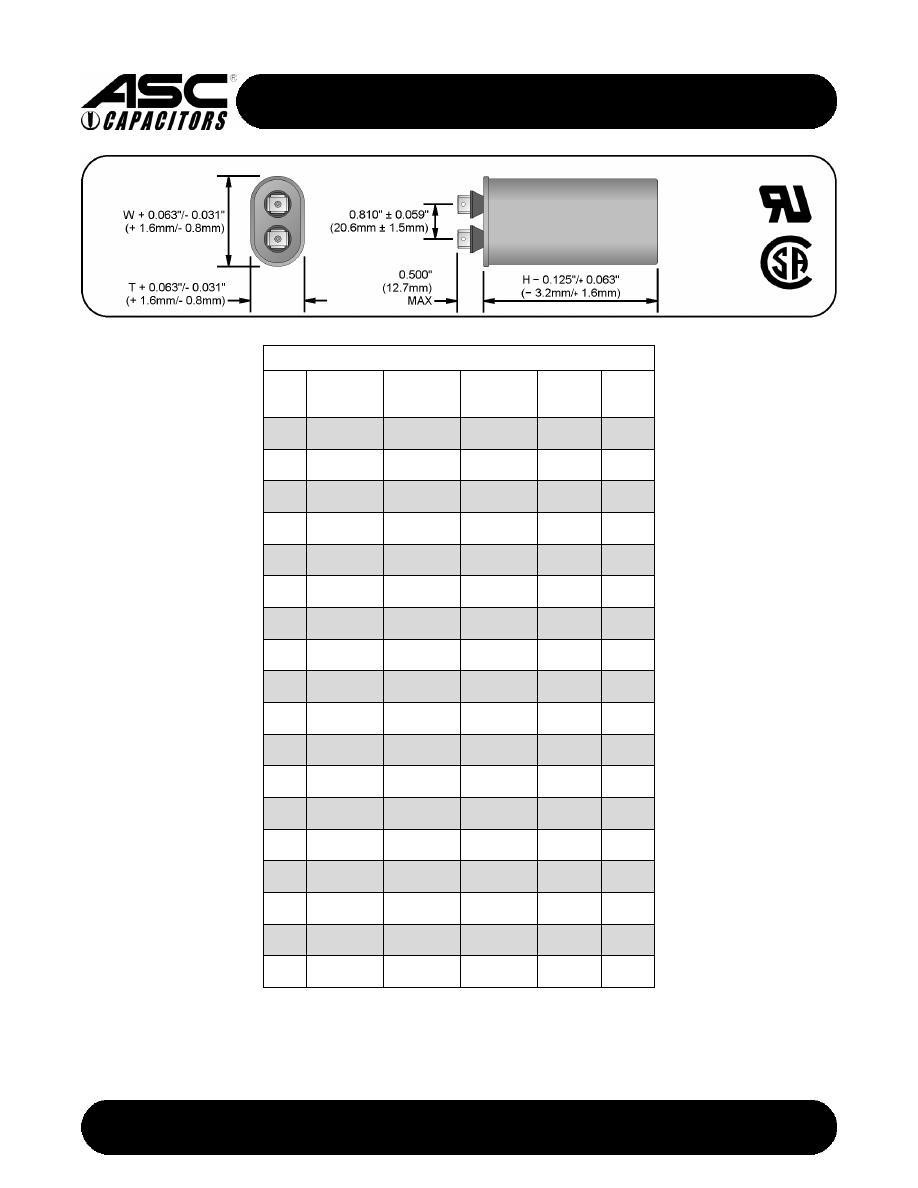

X387S

301  WEST  O  STREET

•

  OGALLALA, NE  69153

Phone:  (308) 284-3611

e-mail:  sales@ascapacitor.com

Fax:  (308) 284-8324

web:  www.ascapacitor.com

330VAC

CAP

(µF)

T

W

H

EIA

CASE

SHAPE

EIA

CASE

TYPE

3.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

4.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

5.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

6.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

7.5

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

10.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.875"

(73.0mm)

1.25

OVAL

A

12.5

1.310"

(33.3mm)

2.160"

(54.9mm)

3.875"

(98.4mm)

1.25

OVAL

A

15.0

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

17.5

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

20.0

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

25.0

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

30.0

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

35.0

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

40.0

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

45.0

1.910"

(48.5mm)

2.910"

(73.9mm)

4.750"

(120.7mm)

1.75

OVAL

C

50.0

1.910"

(48.5mm)

2.910"

(73.9mm)

4.750"

(120.7mm)

1.75

OVAL

C

55.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

60.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

PAGE 1 OF 4

METALLIZED POLYPROPYLENE
OIL FILLED MOTOR RUN

X387S

301  WEST  O  STREET

•

  OGALLALA, NE  69153

Phone:  (308) 284-3611

e-mail:  sales@ascapacitor.com

Fax:  (308) 284-8324

web:  www.ascapacitor.com

370VAC

CAP

(µF)

T

W

H

EIA

CASE

SHAPE

EIA

CASE

TYPE

3.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

4.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

5.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

6.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.875"

(73.0mm)

1.25

OVAL

A

7.5

1.310"

(33.3mm)

2.160"

(54.9mm)

2.875"

(73.0mm)

1.25

OVAL

A

10.0

1.310"

(33.3mm)

2.160"

(54.9mm)

3.875"

(98.4mm)

1.25

OVAL

A

12.5

1.310"

(33.3mm)

2.160"

(54.9mm)

3.875"

(98.4mm)

1.25

OVAL

A

15.0

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

17.5

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

20.0

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

25.0

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

30.0

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

35.0

1.910"

(48.5mm)

2.910"

(73.9mm)

4.750"

(120.7mm)

1.75

OVAL

C

40.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

45.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

50.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

55.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

60.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

PAGE 2 OF 4

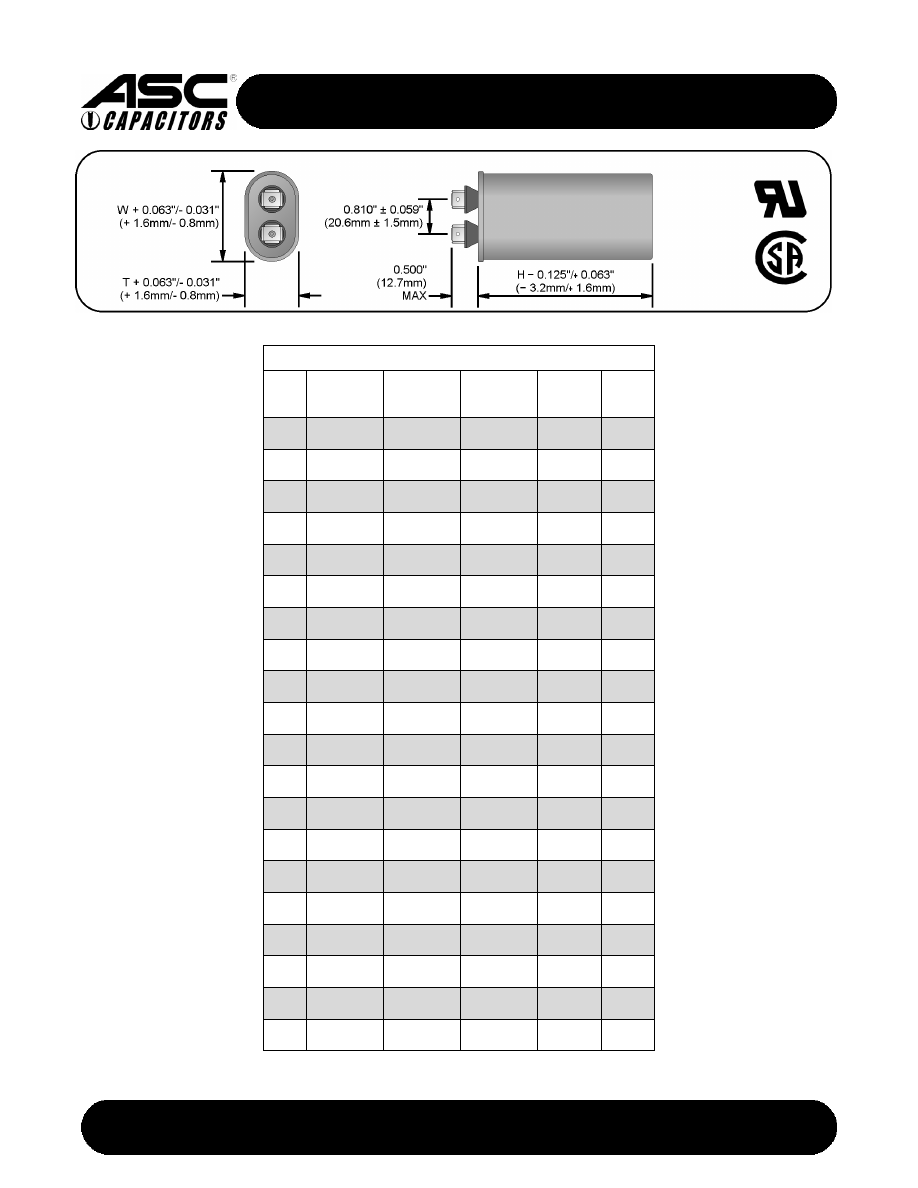

METALLIZED POLYPROPYLENE
OIL FILLED MOTOR RUN

X387S

301  WEST  O  STREET

•

  OGALLALA, NE  69153

Phone:  (308) 284-3611

e-mail:  sales@ascapacitor.com

Fax:  (308) 284-8324

web:  www.ascapacitor.com

440VAC

CAP

(µF)

T

W

H

EIA

CASE

SHAPE

EIA

CASE

TYPE

1.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

2.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

3.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

4.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.375"

(60.3mm)

1.25

OVAL

A

5.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.875"

(73.0mm)

1.25

OVAL

A

6.0

1.310"

(33.3mm)

2.160"

(54.9mm)

2.875"

(73.0mm)

1.25

OVAL

A

7.5

1.310"

(33.3mm)

2.160"

(54.9mm)

3.875"

(98.4mm)

1.25

OVAL

A

10.0

1.310"

(33.3mm)

2.160"

(54.9mm)

3.875"

(98.4mm)

1.25

OVAL

A

12.5

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

15.0

1.910"

(48.5mm)

2.910"

(73.9mm)

2.875"

(73.0mm)

1.75

OVAL

C

17.5

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

20.0

1.910"

(48.5mm)

2.910"

(73.9mm)

3.875"

(98.4mm)

1.75

OVAL

C

25.0

1.910"

(48.5mm)

2.910"

(73.9mm)

4.750"

(120.7mm)

1.75

OVAL

C

30.0

1.910"

(48.5mm)

2.910"

(73.9mm)

4.750"

(120.7mm)

1.75

OVAL

C

35.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

40.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

45.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

50.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

55.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

60.0

1.970"

(50.0mm)

3.660"

(93.0mm)

4.750"

(120.7mm)

2.00

OVAL

D

PAGE 3 OF 4

METALLIZED POLYPROPYLENE
OIL FILLED MOTOR RUN

X387S

301  WEST  O  STREET

•

  OGALLALA, NE  69153

Phone:  (308) 284-3611

e-mail:  sales@ascapacitor.com

Fax:  (308) 284-8324

web:  www.ascapacitor.com

PAGE 4 OF 4

GENERAL SPECIFICATIONS

PHYSICAL CHARACTERISTICS

CONSTRUCTION:

 NON-INDUCTIVE WOUND METALLIZED POLYPROPYLENE.

CASE:

  NON-CORROSIVE SEAMLESS CAN WITH DOUBLE ROLL LOCK COVER, SUITABLE FOR

OUTDOOR APPLICATIONS.

LEAD MATERIAL:

  4-TINE AMP250 QUICK DISCONNECT TERMINALS STANDARD, ALSO AVAILABLE

WITH 2 OR 3 TINES AND/OR WITH A BLEEDER RESISTOR UPON REQUEST.

DIMENSIONS:

 AS SPECIFIED IN TABLES.  CAN BODY DIMENSIONS ("T" AND "W") TYPICALLY 0.125"

(3.2mm) LESS THAN CAN SEAM DIMENSIONS SPECIFIED IN TABLES.

ELECTRICAL CHARACTERISTICS

CAPACITANCE:

  AS SPECIFIED IN TABLES ± REQUESTED TOLERANCE WHEN MEASURED AT OR

REFERRED TO 60 ± 5 HZ AND 25 ± 5 °C.  OTHER CAPACITANCE VALUES AVAILABLE UPON REQUEST.

TOLERANCE:

  ±3%, ±5%, ±6%, AND ±10% AVAILABLE.  OTHER TOLERANCES AVAILABLE UPON

REQUEST.

DISSIPATION FACTOR:

  SHALL NOT BE GREATER THAN 0.1% WHEN MEASURED AT OR REFERRED TO

60 ± 5 HZ AND 25 ± 5 °C.

DIELECTRIC STRENGTH:

  TERMINAL TO TERMINAL - 180% RATED VOLTAGE FOR 1 SECOND AT

25 ± 5 °C.  TERMINAL TO CASE - 200% RATED VOLTAGE + 1000VAC FOR 1 SECOND AT 25 ± 5 °C.

RATED VOLTAGE:

  330VAC, 370VAC, AND 440VAC AVAILABLE.  ALL RATINGS ARE FOR 50/60 HZ

OPERATION ONLY.  OTHER VOLTAGE RATINGS AVAILABLE UPON REQUEST.

TEMPERATURE:

  -40 °C TO +70 °C AT FULL RATED VOLTAGE OPERATIONAL TEMPERATURE.

ADDITIONAL INFORMATION

ORDERING INFORMATION:

  ALL ASC CAPACITORS ARE ORDERED BY "FAMILY CAP-TOL-VOLT"

DESIGNATION.  (I.E.  TO ORDER AN X387S 20.0µF, ±10%, 440VAC CAPACITOR, REQUEST PART NUMBER
"X387S 20-10-440")

SEE ALSO:

  "GENERAL INFORMATION - POLYPROPYLENE CAPACITORS" DOCUMENT FOR ADDITIONAL

PHYSICAL, ELECTRICAL, AND PERFORMANCE CHARACTERISTICS NOT MENTIONED IN THIS FILE.

AGENCY APPROVALS:

RECOGNIZED FOR 10,000 AFC UNDER THE FOLLOWING AGENCIES:

UL810, FILE NUMBER E83671
CSA STANDARD C22.2 NUMBER 190, FILE NUMBER LR68148

WARNING:

  INFORMATION ON THIS FILE IS SUBJECT TO CHANGE WITHOUT NOTICE AT ASC'S

DISCRETION.

LAST MODIFIED:  09/26/01

METALLIZED POLYPROPYLENE
OIL FILLED MOTOR RUN
