Circuit
Protection
Components
Established in 1977, the Yageo Corporation has become
the world's leading total service provider of passive
components with capabilities on a global scale, including
production and sales facilities in Asia, Europe and the
Americas. Yageo has a strong global footprint 37 sales/
service offices in 17 countries, 11 manufacturing sites, 6
JIT logistic hubs and 6 R&D centers worldwide.
The corporation provides one-stop-shopping, offering its
complete product portfolio of resistors, capacitors and
wireless components to meet the diverse requirements
of customers.
Yageo’s broad product offerings are targeting at key
vertical markets, including applications for consumer
electronics, computers & peripherals, industrial/power,
alternative energy, telecommunication and automotive.
We serve diversified leading global customers, such as
EMS, ODM, OEM and distributors.
About Yageo
Cir
cuit Pr
otection Components
3

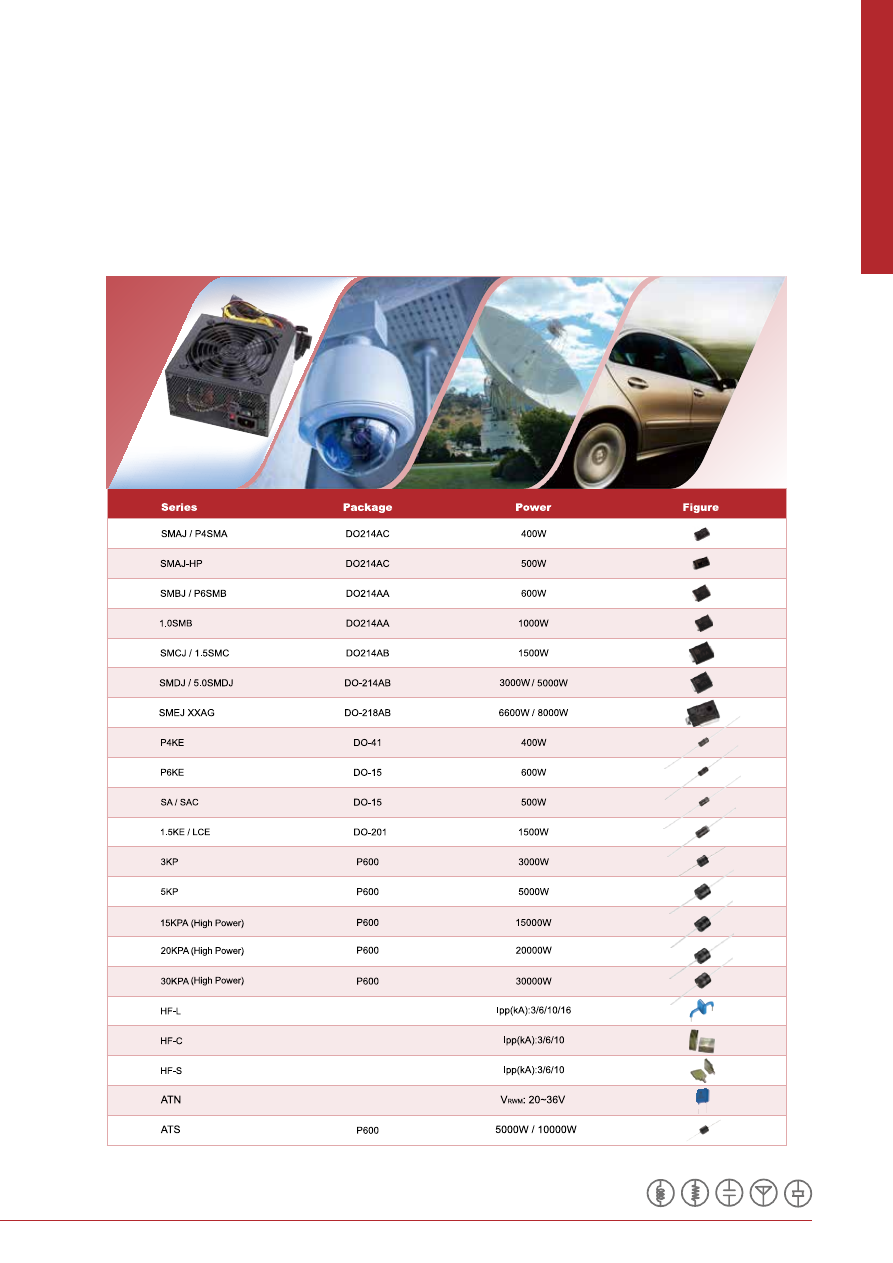

TVS (Transient Voltage Suppressors)
TVS has fast response speed to against overvoltage spikes. It has low dynamic internal resistance and excellent
clamping capability. Yageo offers different packages in TVS products and the working voltage of TVS diodes
are from 3.3 to 600V(and can be even higher). TVS diodes are used in unidirectional or bidirectional of data
transmission lines in electronic circuits.
Applications
• DC power supply • Security surveillance • Telecom • Automotive
Cir
cuit Pr
otection Components
4

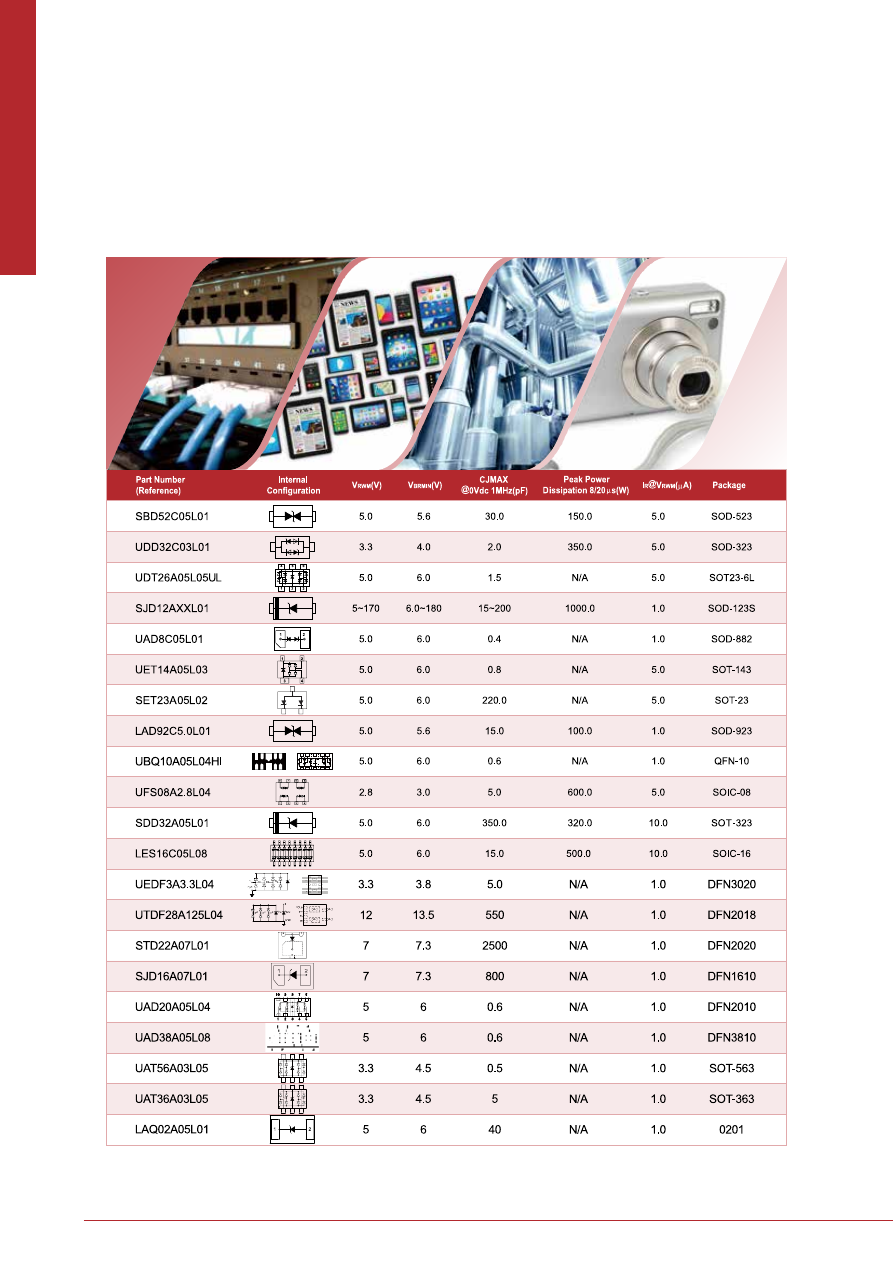

ESD (Electrostatic Discharge Protection Devices)
ESD is also known as TVS array. It has excellent clamping capability and low capacitance (under 1pF) which can
meet the quality requirement of application in high speed data interface. Yageo provides high design flexibility
for capacitance, configuration, and pulse load capability in ESD solutions for the usage in different applications.
Applications
• High speed networking • Smart phone • Industrial • Consumer
Cir
cuit Pr
otection Components
5

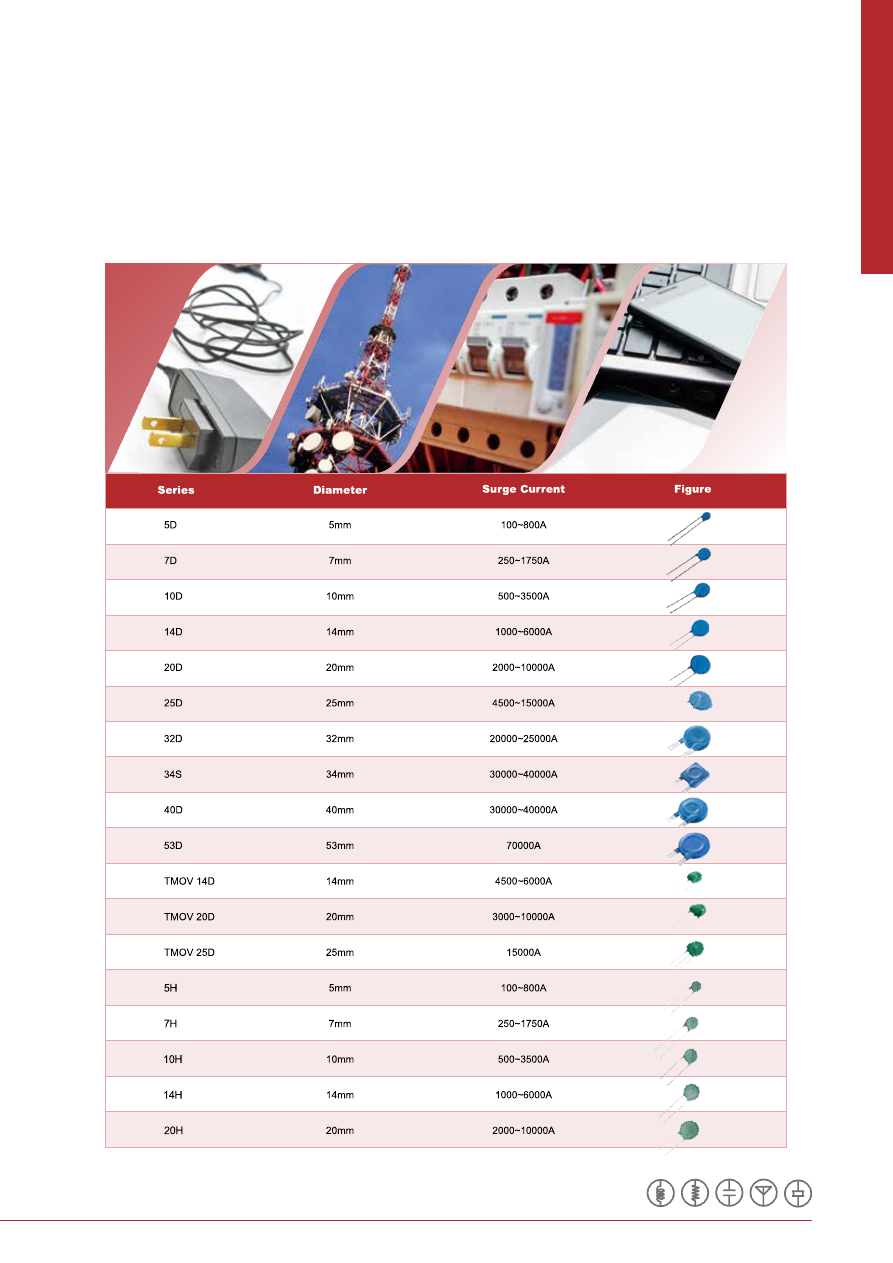

MOV (Metal Oxide Varistors)
MOV has fast response speed to against overvoltage spikes and good surge energy absorption capability. It is
usually used in lightning surge protection in the input of AC power lines.
Applications
• AC power supply • Telecom • Circuit breaker • Consumer • SPD (Surge Protection Devices)
• LED driver • Smart meter
Cir
cuit Pr
otection Components
6

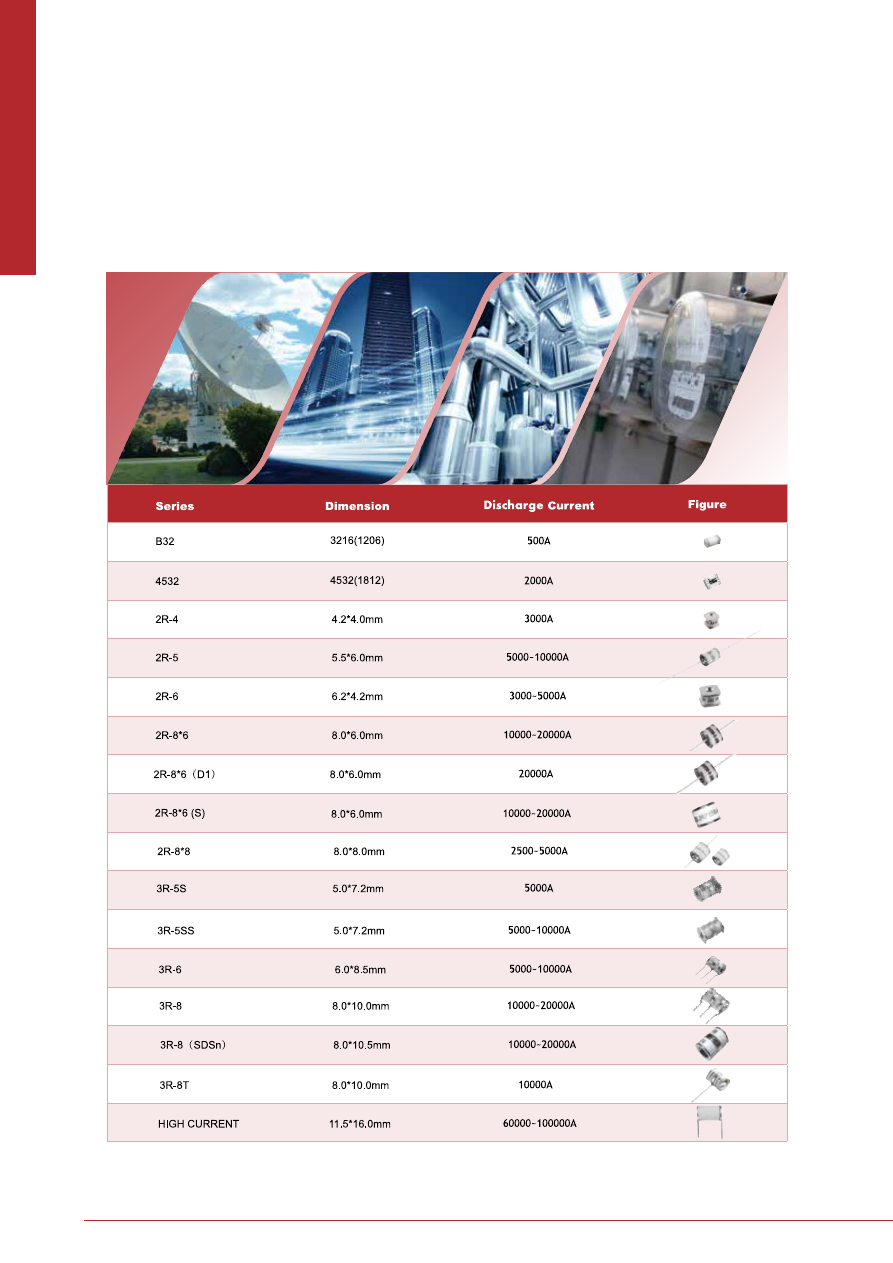

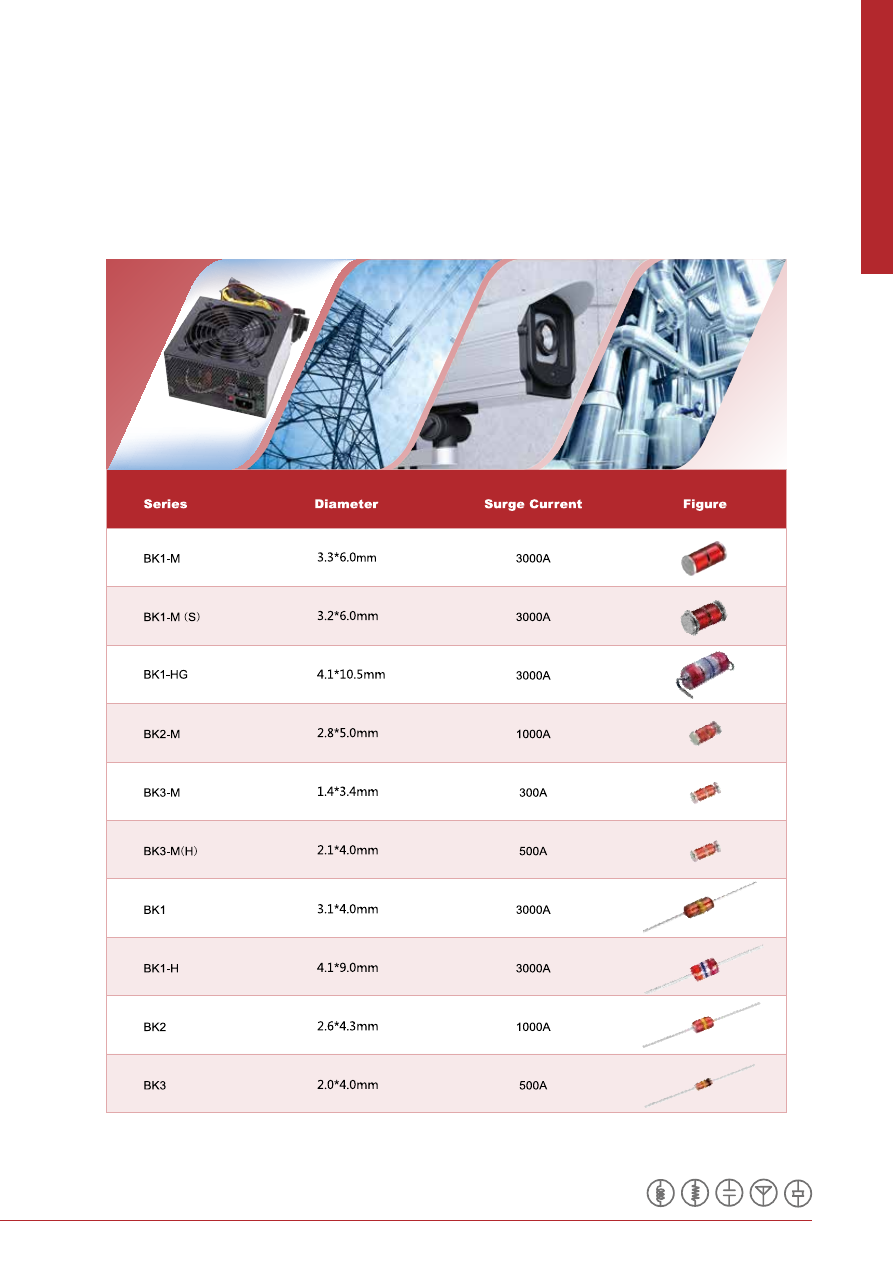

GDT (Gas Discharge Tubes)
GDT is a good solution for surge protection. The insulation resistance of GDT is over 1GΩ, which achieves low
degradation speed and high reliability. Yageo offers different packages including SMD and DIP type GDT. GDT
with two-electrode, three- electrode are both available.
Applications
• Telecom • High speed networking (e.g. coaxial cable, Ethernet connection) • Industrial • Power Supply
Cir
cuit Pr
otection Components
7
SPG (SPark Gap Protectors)
SPG has low junction capacitance (< 2pF) which can meet the quality requirement of application in
telecommunication. SPG has faster response speed (GDT ≤ 100nS, SPG ≤ 1nS) than GDT. Yageo offers SPG
products in both SMD and DIP type package for different application requirements.
Applications
• Power supply • Telecom • Safety surveillance • Industrial
Cir
cuit Pr
otection Components
8

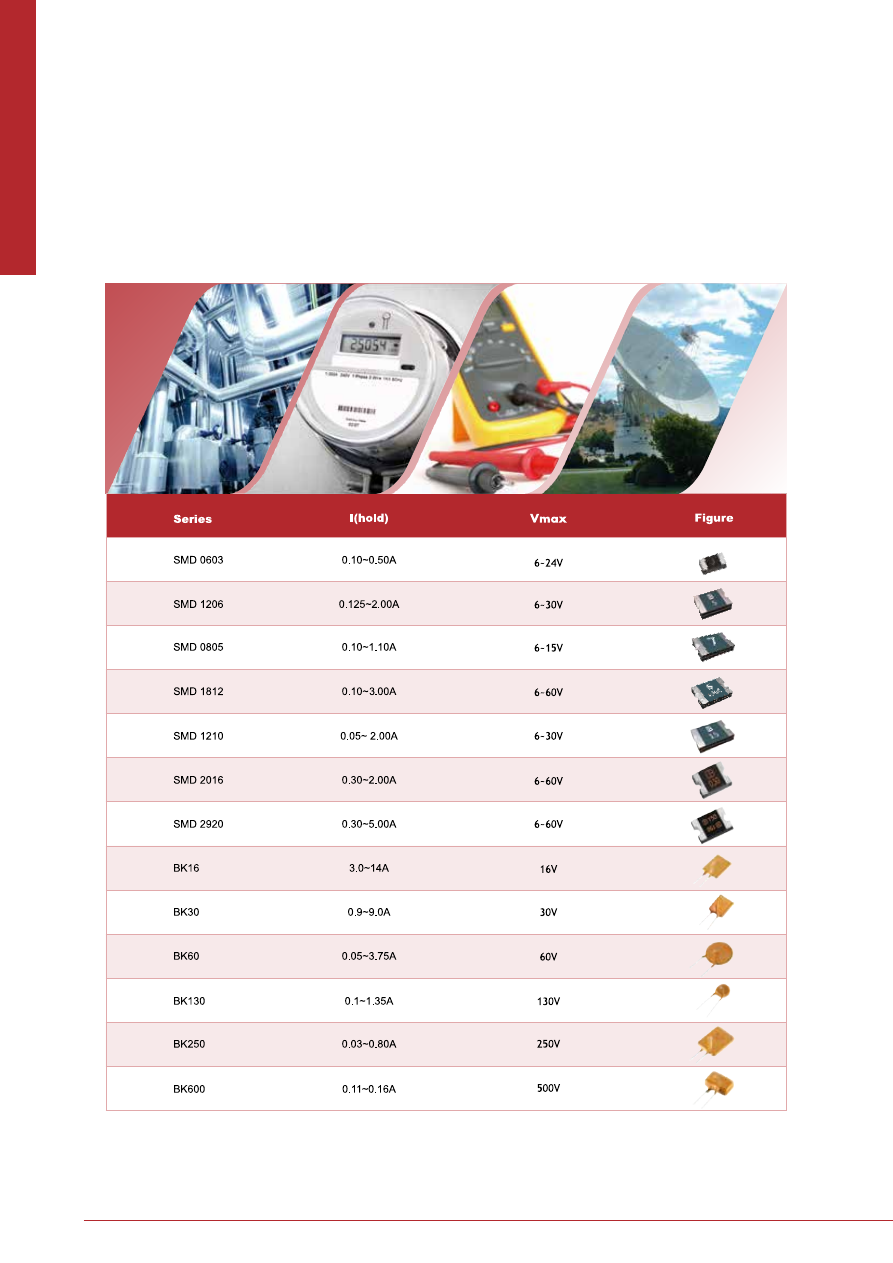

PPTC (Polymeric Positive Temperature Coefficient Thermistor)
PPTC is also known as resettable fuse. It has very low resistance under normal working status, no impact on
the working circuit. The response speed of PPTC is from few dozen ms to few seconds level. It is proportional
to the current value. Yageo provides SMD (case size: 0603 ~ 2920) and DIP package types for the usage in
different applications.
Applications
• Industrial • Smart meter • Measuring instrument • Telecom
Cir
cuit Pr
otection Components
9

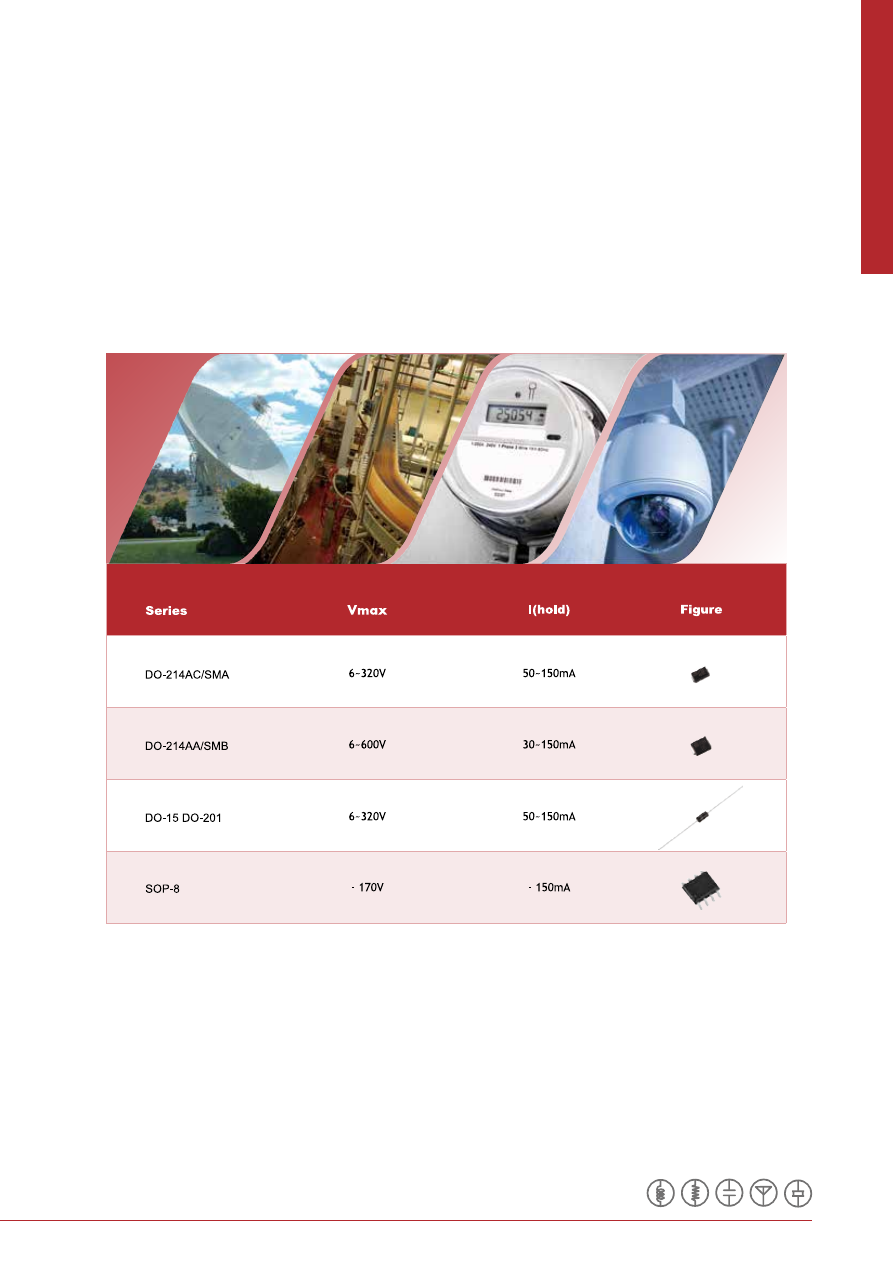

TSS (Thyristor Surge Suppressors)
TSS has fast response speed and excellent clamping capability to against overvoltage spikes. Low leak current
(in mA~100μA level) and junction capacitance (in 10~100pF level) features can meet the quality requirement in
data transmission and low power consumption circuits. Yageo offers various packages in SMD and DIP types for
different application requirements.
Applications
• Telecom
• Industrial
• Smart meter
• Security surveillance
Cir
cuit Pr
otection Components
10

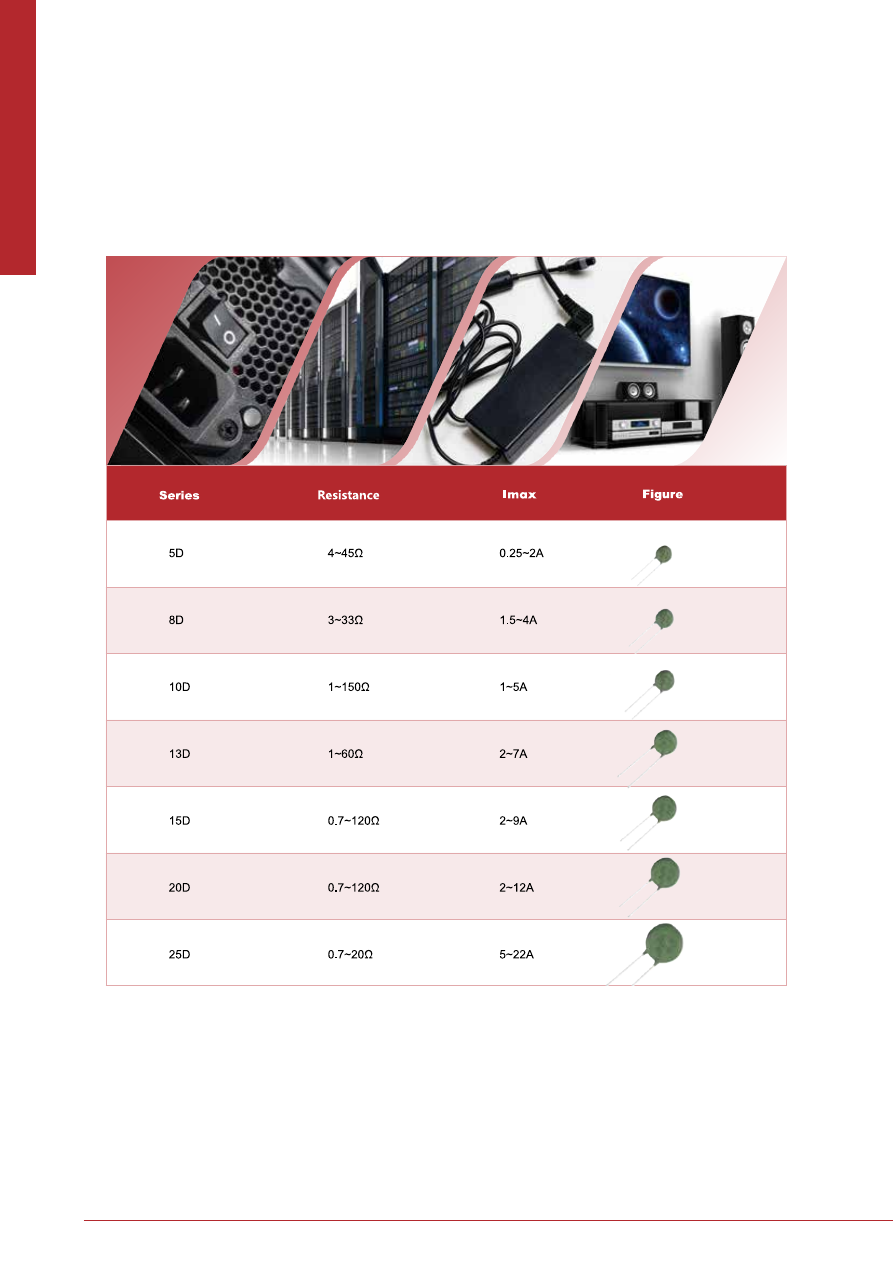

NTC (Negative Temperature Coefficient Thermistor)
Yageo NTC products have excellent thermal cycle endurance and provide high capability of surge current
protection. Yageo offers radial leaded NTC in diameter from 5mm to 25mm.
Applications
• Switch mode power supply • UPS • Transformer • Home appliance
