Diotec Semiconductor AG



79423 Heitersheim

Tel.: +49-7634-5266-0

mail@diotec.com

Kreuzmattenstr. 4

Germany

Fax: +49-7634-5266-61

www.diotec.com



Version 2005-11-03

Diotec

 Products

 for

Telecommunication

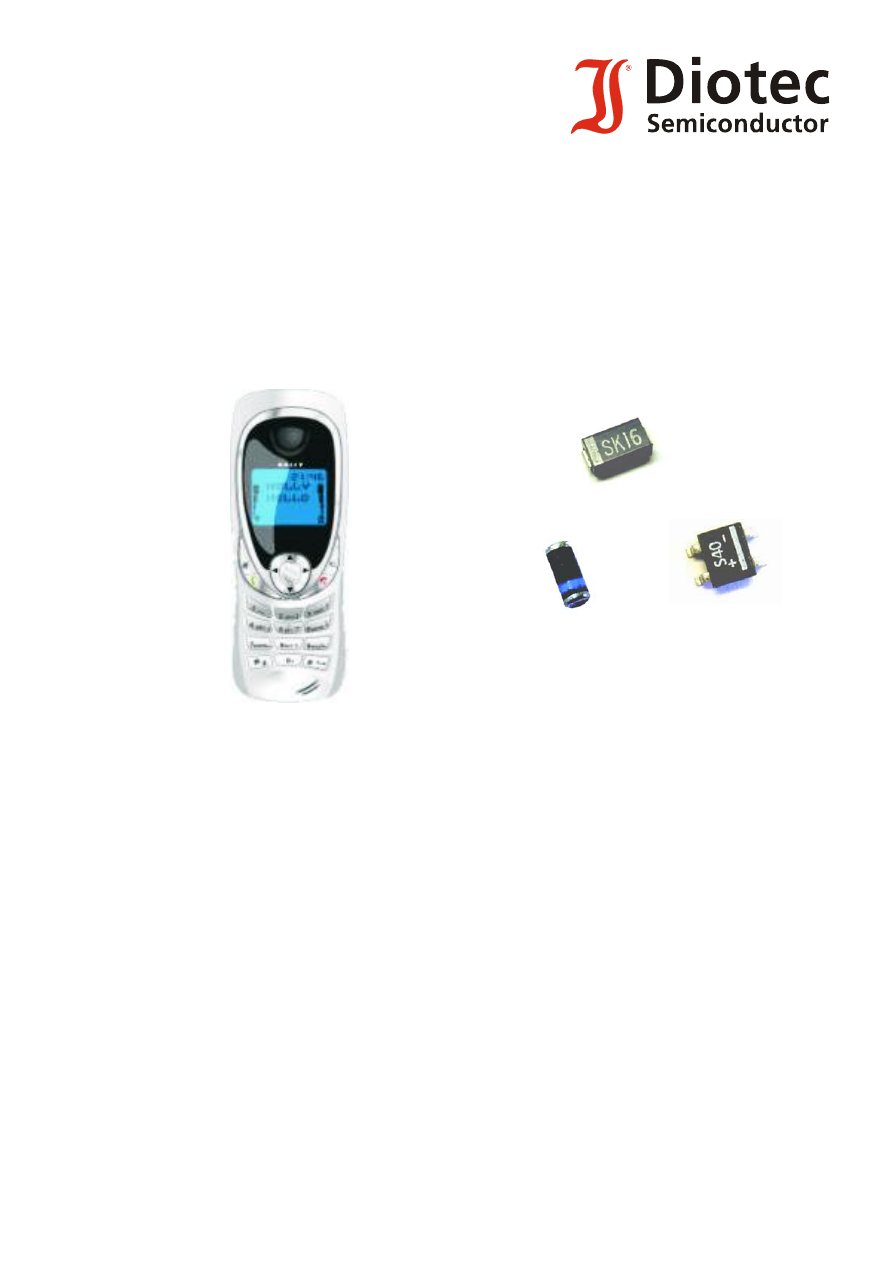

Typical Applications:
Handsets, Mobile Chargers, Modems, Interfaces, Power Supplies,
Equipment and Line Cards




















Handsets

Î

 SMD

Schottky

Diodes





Mobile Chargers

Î

 Bridge

Rectifiers:





MiniDIL,

MicroDIL





DC/DC-Converter

Î

 Schottky

Diodes,

Superfast-/





Ultrafast-Rectifiers





Protection

Î



TVS-Diodes, SDA2/4AK (Low Cj),





(Fast) Bridge Rectifiers





Voltage Regulation

Î

 Zener

Diodes



OR-ing Diodes

Î

 Schottky

Diodes,

Standard





Rectifiers















Diotec Products for

Telecommunication



www.diotec.com

 11/2005

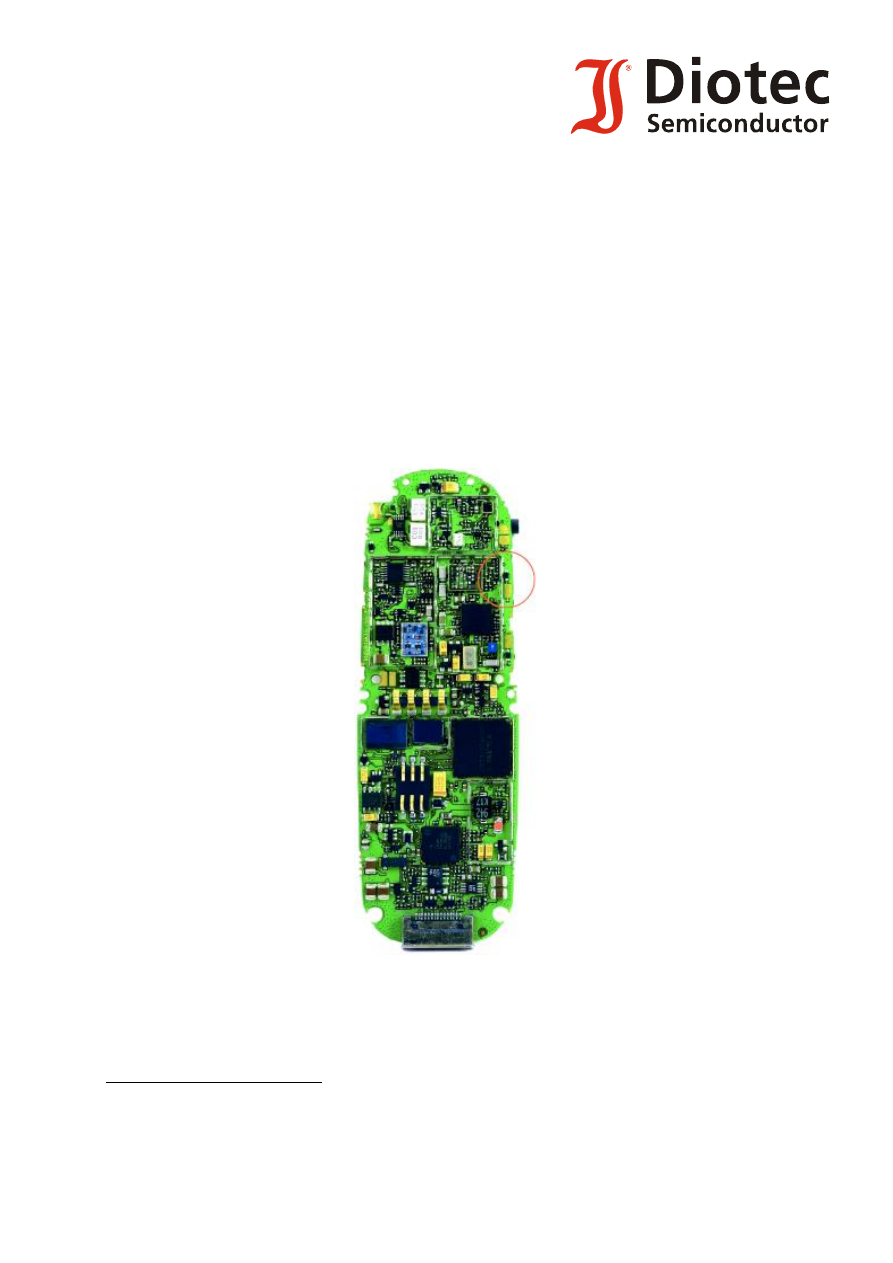

Handsets, Mobile Phones



Schottky

 Diodes for Polarity Protection



Connected between the battery of the mobile phone (or any other portable device) and the contacts to
the external charger. They protect the battery of unwanted reverse current if contacts are short cut and
also against charging with wrong polarity. Low forward voltage drop of a Schottky rectifier leads to
small power losses during charging. The SGL34 and SGL1 in the MiniMELF package use minimal
space on a PCB.



Types

1



SMD:



SGL34-20…100,

 SGL1-20…100, SMS120…1100, SMS220…2100, SMS320…3100;

SK12…110, SK32SMA…310SMA, SK52…510, SK82…810;



(0.5 to 8 A!)












1



Preferred types are

bold

; colours according to Diotec Selection Guide













Diotec Products for

Telecommunication



www.diotec.com

 11/2005



Mobile Chargers / DC-DC Converters




















Overvoltage Protection:

TVS-Diodes

/

Zenerdiodes

1





TGL34-… , TGL41-…, P4SMA…,  P6SMB…, 1.5SMC…;

 (150 bis 1500 W peak;

up to 550 V!

)

ZMM…,



ZMD…

, ZMY...,

SMZ1...,



SZ3C…, Z1SMA…, Z2SMB…, Z3SMC…;

 (0.5 bis 3 W continous)




Input Rectification:

Bridge Rectifiers

1




0.5 to 2 A
SMD:

MYS40…380, MS40…500,



S40…500, B40…500S

,

B

B

4

4

0

0

…

…

3

3

8

8

0

0

F

F

S

S





(

(

F

F

a

a

s

s

t

t

)

)

,

,



CS10…50S (Schottky)



trough hole:

B40…500D

,

B

B

4

4

0

0

…

…

3

3

8

8

0

0

F

F

D

D





(

(

F

F

a

a

s

s

t

t





r

r

e

e

c

c

o

o

v

v

e

e

r

r

y

y

)

)

,

,



CS10…50D (Schottky),

 B40…500R (round)






Clamping Network:

TVS-/

F

F

a

a

s

s

t

t

-Diode

1





TGL34-…

 ,

TGL41-…,



P4SMAJ…,  P6SMBJ…, 1.5SMCJ…;

 (150 bis 1500 W peak;

up to 550 V!

)

R

R

G

G

L

L

3

3

4

4

…

…

,

,





R

R

G

G

L

L

1

1

…

…

,

,





S

S

A

A

1

1

5

5

4

4

…

…

1

1

6

6

0

0

,

,





F

F

R

R

1

1

…

…

,

,





F

F

R

R

2

2

…

…

,

,





F

F

R

R

3

3

…

…

;

;





(

(

0

0

.

.

5

5





t

t

o

o





3

3





A

A

)

)








Output Rectification:

Schottky

 Diodes

1





SGL34-20…100, SGL1-20…100, SMS120…1100, SMS220…2100, SMS320…3100;

SK12…110, SK32SMA…310SMA, SK52…510, SK82…810; (0.5 bis 8 A!)





1



Preferred types are

bold

; colours according to Diotec Selection Guide. Datasheets see

www.diotec.com, “Products”. More detailed information see application note “Diotec Products for Power
Supplies”. Though devices mentioned here are mostly SMD types for space and weight saving there are
also equivalent leaded versions available.



R

t



C

L

~

~

+

-

Available as single device

on request













Diotec Products for

Telecommunication



www.diotec.com

 11/2005





Telecom Equipment Lightning Protection



T

R

TNI

RD






Rectifier bridges are commonly used in telecommunications equipment, such as Analogue Line Cards,
Customer Premises Equipment (CPE – phones, modems, faxes and PABX), High Speed
Transmission equipment such as ADSL, SHDSL, ISDN or E1/T1. Rectifiers can be used as clamping /
steering diodes or to build common protection among multiple lines.


Recommend products

1

:



Space Saving




MYS40, MS40



– offer space savings when having multiple lines per board (package only 3x3 mm²!)






Standard bridge rectifier





S40, B40S

– for standard solutions





Fast recovery bridges





S

S

4

4

0

0

F

F

,

,





B

B

4

4

0

0

F

F

S

S



– offer a cost effective advantage of a faster recovery time during the Vf overshoot and as such reduce
the let through energy



Schottky bridges


CS30S, CS50S



– Schottky bridges offer the lowest clamping



1



C

olours according to Diotec Selection Guide. Datasheets see www.diotec.com, “Products”. Though devices mentioned here

are SMD types for space and weight saving there are also equivalent leaded versions available.













Diotec Products for

Telecommunication



www.diotec.com

 11/2005



2.

5

5.

0



0.

5

0.

5

Ty

p

e

Ty

p

Data Line Protection








TVS-Diodes

Available as unidirectional and bidirectional version (add suffix “C” resp. “B” at BZW-types).
Bidirectional devices clamp both positive and negative voltage spikes.
Dimensioning: the maximum occuring signal voltage must not exceed the stand-off voltage V

WM

 of

the device. At a maximum current of I

PPM

 and 10/1000 µs pulse shape (see datasheet) the maximum

clamping voltage is V

C

. The circuits (input, output) to protect should withstand at least this voltage.



Types

1



Leaded: BZW04-…,

 P4KE…,

BZW06-…,

 P6KE…, 1.5KE… , 5KP…; (400 to 5000 W; up to 520 V!)

SMD:

TGL34-… , SDA2/4AK, TGL41-…, P4SMA…,  P6SMB…, 1.5SMC… ; (150 to 1500 W; up to 550 V!)






SDA2/4AK series: low capacitance protection


Special protection devices are the SDA4AK and the SDA2AK types. They consist of antiparallel
switched standard rectifiers in a single MELF (DO-213AB) package (see below). By this a nominal
clamping voltage of 2 respectively 1 V is achieved, allowing peak pulse currents as high as 40 A. On
request, also higher clamping voltages can be offered.
The resulting capacitance of these parts are in the lower pF range, allowing for protection of high
frequency data lines. Furthermore, these devices can be put in series to other protection devices to
reduce their capacitance to extremely low values.






 SDA4AK





SDA2AK






1



Preferred types are

bold

; colours according to Diotec Selection Guide. Datasheets see www.diotec.com, “Products”.













Diotec Products for

Telecommunication



www.diotec.com

 11/2005

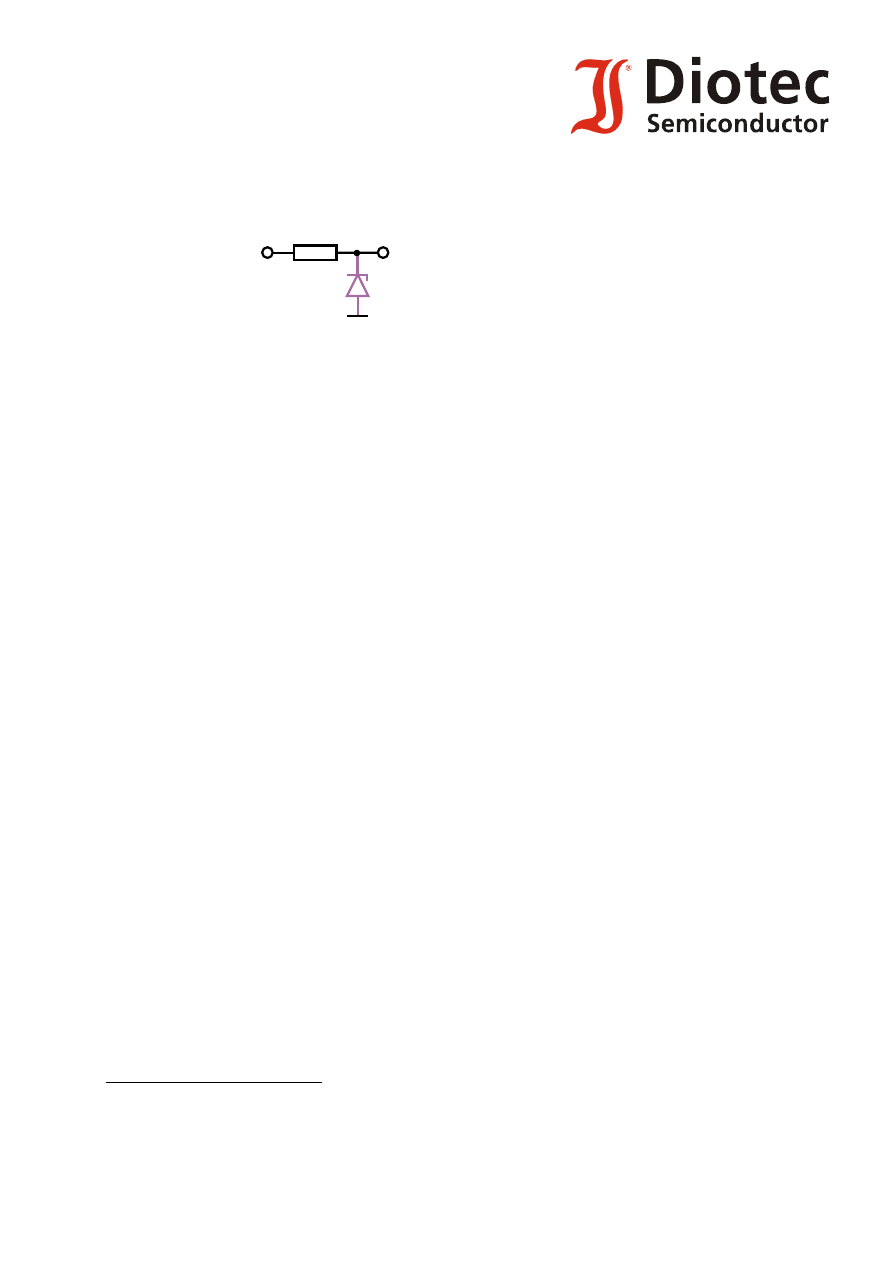

Voltage Regulation















Zener diodes

 for simple voltage regulation

A simple method to provide stabilized voltages from an unregulated voltage source. The resistor has
to be choosen so that maximum allowable zener current I

Zmax

 (see datasheet) at the maximum

occuring input voltage and at no load at the output is not exceeded. If voltage source is formed by a
transformer, the series resistance of the windings may be enough to provide this resistor. Power
dissipation of below devices ranges up to 5 W (leaded) and 3 W (SMD) respectively. For higher power
needs series connection of zener diodes can be used.
Tolerance is graded to E24 standard (approximately +/- 5%), if tighter limits are required parts with
+/- 2% tolerance are available on request.



Types

1



Leaded:

ZPD…,

 ZPY…,

ZY…, 3EZ…,



1N53..B

; (0.5 to 5 W)

SMD:

BZX84C…,

 2BZX84C…,

ZMM…, ZMD…,

 ZMY...,

SMZ1..., SZ3C…, Z1SMA, Z2SMB…,

 Z3SMC…;

 (0.2 to 3 W)






Reliable operation when lightning strikes …

Small signal diodes like ZPD/ZMM or BZX84 are using small area, planar chips inside. Contacts are
made either by pressure contact (glass packaged ZPD/ZMM) or wire bonds (BZX84). They provide a
low cost solution for voltage regulation, but are more sensitive against overvoltages caused by
lightning etc (there is always some let through energy from the primary/secondary protection when
lightning strikes!). Power zener diodes like the ZY, ZMD, Z1SMA etc series are manufactured using
rugged non-planar chips that have a bigger die area, and are contacted by using robust solder joints.
They are the preferred solution for high reliability circuits.





1



Preferred types are

bold

; colours according to Diotec Selection Guide. Datasheets see www.diotec.com, “Products”.



Unregulated
DC voltage

Regulated
DC voltage











Diotec Products for

Telecommunication



www.diotec.com

 11/2005






OR-ing Diodes




















Decoupling of voltage sources:

Standard



or

Schottky

Diodes



If low power losses are required and DC voltage is below 100 V Schottky diodes can be used. Special
diodes (on request) offer beside

low forward voltage drop

 also

low leakage currents

. Standard diodes

are suitable for higher voltages, for high current applications the usage of press-fit packages is
possible. The D30V.. series is a

common cathode configuration

 of standard diodes within a square

bridge package.



Types

1



Leaded:



1N4001…7, 1N5391…99, 1N5400K…08K,

1N5400…08

,

BY251…55

, BY550-…,



P600…,



P1000…, P1200…;



(1 to 12 A)



SB120…1100

,

SB220…2100, SB320…3100, SB520…5100, SB820…8100;



(1 to 8 A)

SMD:

GL34…,

GL1…,



SM4001…7

, SM5059…63, SM5400…08,

S1…, S2…, S3…, S5…;

 (0.5 to 5 A)

SMS120…1100, SMS220…2100, SMS32…310; SK12…110, SK32SMA…310SMA, SK52…510;
SK82…810 (1 to 8 A!)

Pressfit:

BYP25…, BYP35…, BYP60…, KYW25…, KYW35…, KYZ25…, KYZ35…; (25 to 60 A)

Square with Fast-on or Wire leads:

D30VC20…80; (2x15 A)

DC

Source

1

DC

Source

2
