Contents

Chapter Revision Dates  ........................................................................... xi

About This Handbook ............................................................................  xiii

How to Contact Altera .......................................................................................................................... xiii
Typographic Conventions .................................................................................................................... xiii

Section I. Cyclone II Device Family Data Sheet

Revision History .................................................................................................................................... 1–1

Chapter 1. Introduction

Introduction ............................................................................................................................................ 1–1

Low-Cost Embedded Processing Solutions .................................................................................. 1–1
Low-Cost DSP Solutions ................................................................................................................. 1–1

Features ................................................................................................................................................... 1–2
Referenced Documents ......................................................................................................................... 1–9
Document Revision History ................................................................................................................. 1–9

Chapter 2. Cyclone II Architecture

Functional Description .......................................................................................................................... 2–1
Logic Elements ....................................................................................................................................... 2–2

LE Operating Modes ........................................................................................................................ 2–4

Logic Array Blocks ................................................................................................................................ 2–7

LAB Interconnects ............................................................................................................................ 2–8
LAB Control Signals ......................................................................................................................... 2–8

MultiTrack Interconnect ..................................................................................................................... 2–10

Row Interconnects .......................................................................................................................... 2–10
Column Interconnects .................................................................................................................... 2–12
Device Routing ............................................................................................................................... 2–15

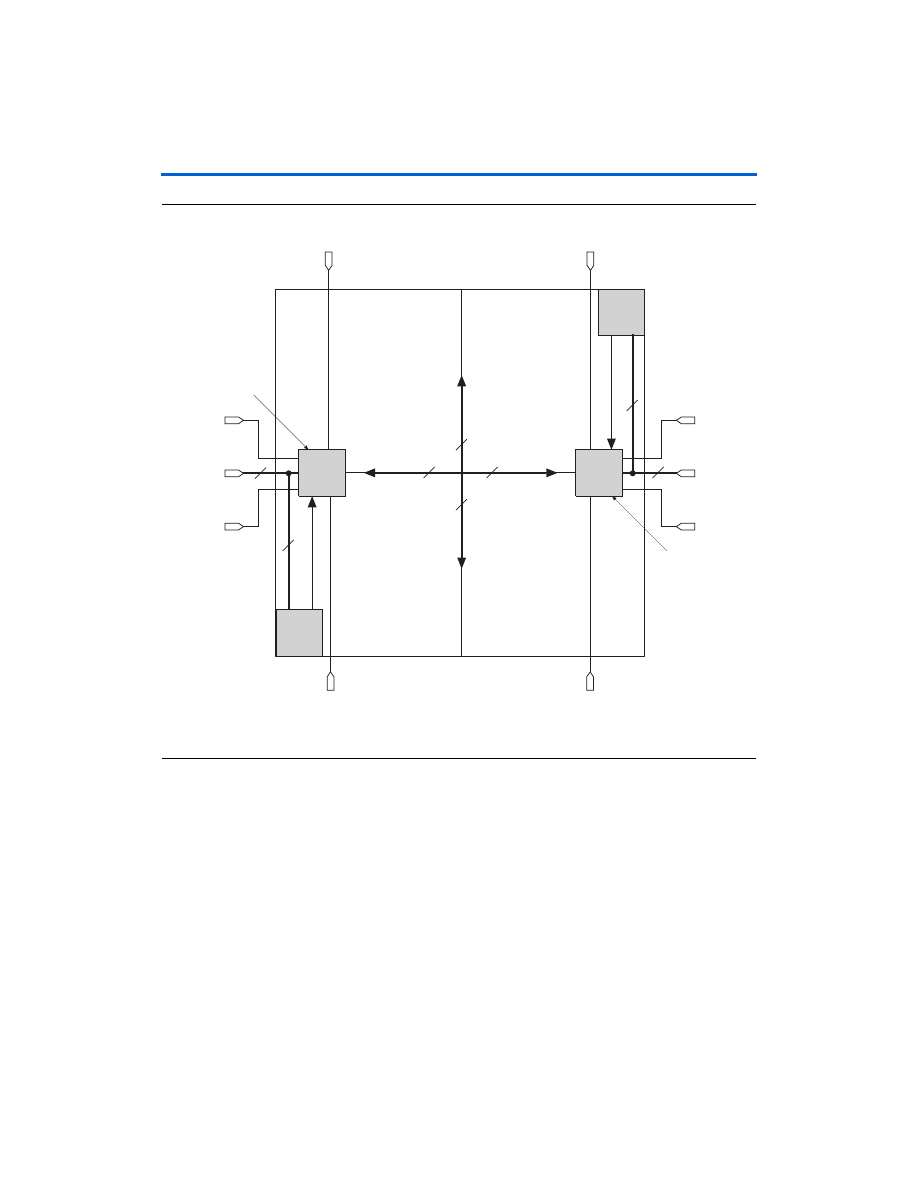

Global Clock Network & Phase-Locked Loops ............................................................................... 2–16

Dedicated Clock Pins ..................................................................................................................... 2–20
Dual-Purpose Clock Pins .............................................................................................................. 2–20
Global Clock Network ................................................................................................................... 2–21
Global Clock Network Distribution ............................................................................................ 2–23
PLLs .................................................................................................................................................. 2–25

Embedded Memory ............................................................................................................................. 2–27

Memory Modes ............................................................................................................................... 2–30
Clock Modes .................................................................................................................................... 2–31
M4K Routing Interface .................................................................................................................. 2–31

iv

Altera Corporation

Cyclone II Device Handbook, Volume 1

Contents

Embedded Multipliers ........................................................................................................................ 2–32

Multiplier Modes ............................................................................................................................ 2–35
Embedded Multiplier Routing Interface ..................................................................................... 2–36

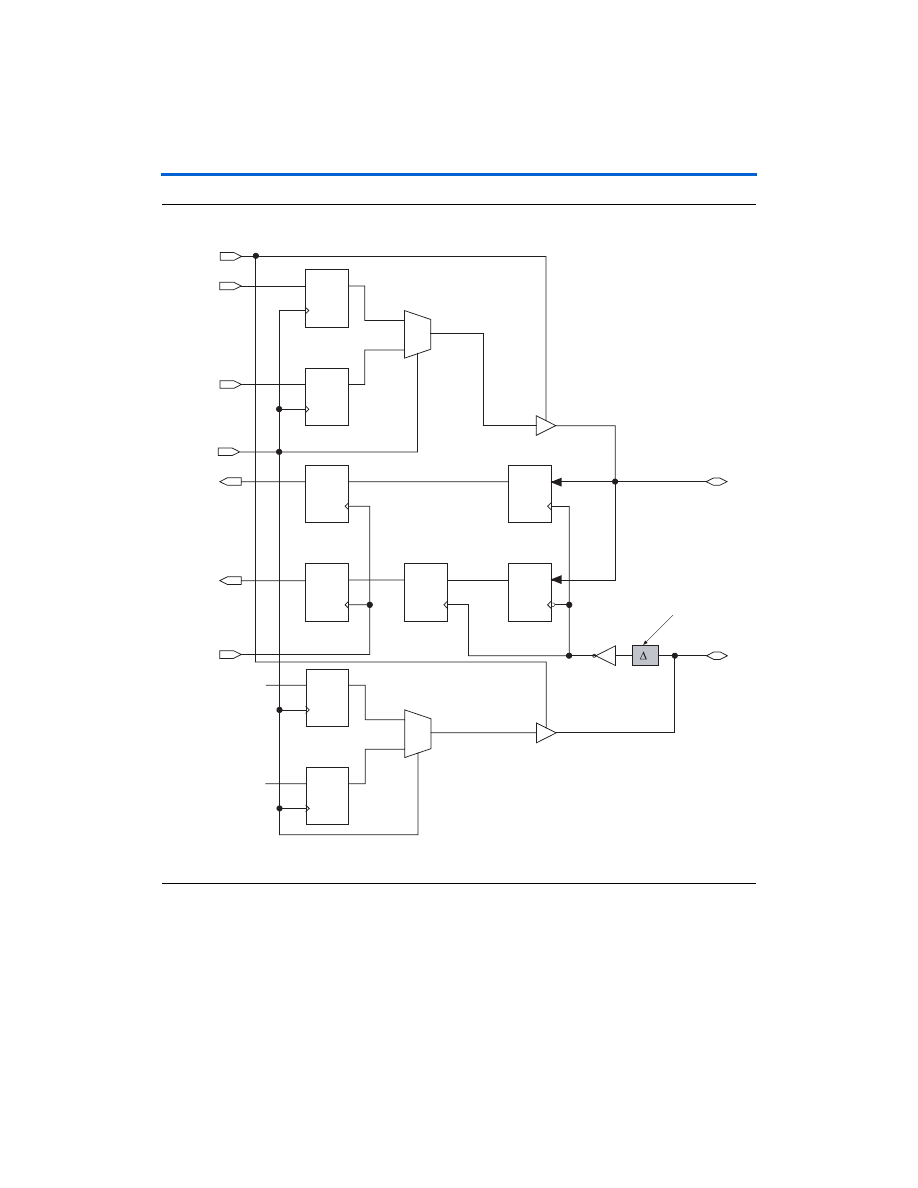

I/O Structure & Features .................................................................................................................... 2–37

External Memory Interfacing ....................................................................................................... 2–44
Programmable Drive Strength ..................................................................................................... 2–49
Open-Drain Output ........................................................................................................................ 2–50
Slew Rate Control ........................................................................................................................... 2–51
Bus Hold .......................................................................................................................................... 2–51
Programmable Pull-Up Resistor .................................................................................................. 2–51
Advanced I/O Standard Support ................................................................................................ 2–52
High-Speed Differential Interfaces .............................................................................................. 2–53
Series On-Chip Termination ......................................................................................................... 2–55

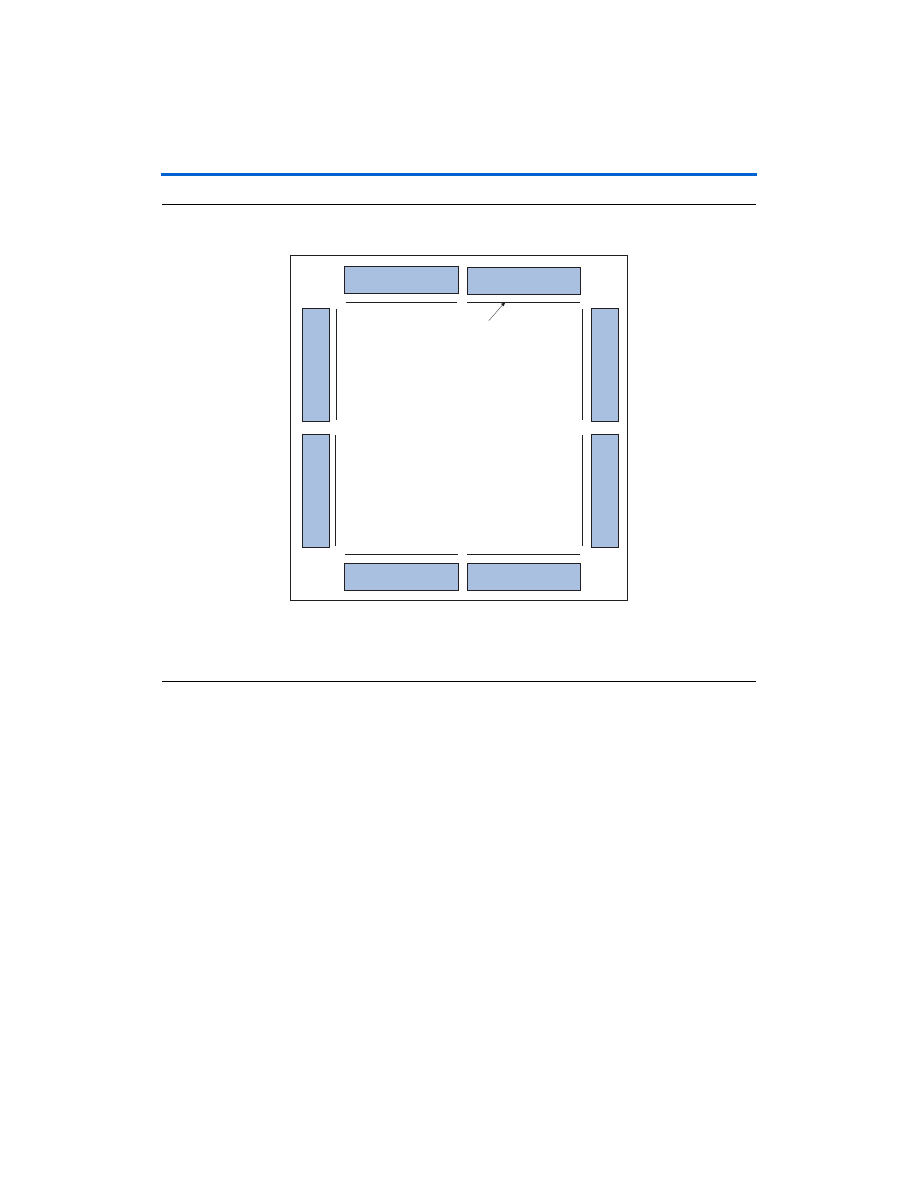

I/O Banks ........................................................................................................................................ 2–57
MultiVolt I/O Interface ................................................................................................................. 2–60

Chapter 3. Configuration & Testing

IEEE Std. 1149.1 (JTAG) Boundary Scan Support ............................................................................. 3–1
Configuration ......................................................................................................................................... 3–5
Operating Modes ................................................................................................................................... 3–5
Configuration Schemes ......................................................................................................................... 3–6
Cyclone II Automated Single Event Upset Detection ...................................................................... 3–7

Custom-Built Circuitry .................................................................................................................... 3–7
Software Interface ............................................................................................................................. 3–7

Document Revision History ................................................................................................................. 3–8

Chapter 4. Hot Socketing & Power-On Reset

Introduction ............................................................................................................................................ 4–1
Cyclone II Hot-Socketing Specifications ............................................................................................ 4–1

Devices Can Be Driven before Power-Up ..................................................................................... 4–2
I/O Pins Remain Tri-Stated during Power-Up ............................................................................ 4–2

Hot-Socketing Feature Implementation in Cyclone II Devices ....................................................... 4–3
Power-On Reset Circuitry .................................................................................................................... 4–5

"Wake-up" Time for Cyclone II Devices ....................................................................................... 4–5

Conclusion .............................................................................................................................................. 4–7
Document Revision History ................................................................................................................. 4–7

Chapter 5. DC Characteristics and Timing Specifications

Operating Conditions ........................................................................................................................... 5–1

Single-Ended I/O Standards .......................................................................................................... 5–5
Differential I/O Standards .............................................................................................................. 5–7

DC Characteristics for Different Pin Types ..................................................................................... 5–11

On-Chip Termination Specifications ........................................................................................... 5–12

Power Consumption ........................................................................................................................... 5–13
Timing Specifications .......................................................................................................................... 5–14

Preliminary and Final Timing Specifications ............................................................................. 5–14

Performance .................................................................................................................................... 5–

15

Altera Corporation

v

Cyclone II Device Handbook, Volume 1

Contents

Internal Timing ............................................................................................................................... 5–18
Cyclone II Clock Timing Parameters ........................................................................................... 5–23
Clock Network Skew Adders ....................................................................................................... 5–29
IOE Programmable Delay ............................................................................................................. 5–30
Default Capacitive Loading of Different I/O Standards .......................................................... 5–31
I/O Delays ....................................................................................................................................... 5–33
Maximum Input and Output Clock Rate .................................................................................... 5–46
High Speed I/O Timing Specifications ....................................................................................... 5–55
External Memory Interface Specifications .................................................................................. 5–63
JTAG Timing Specifications .......................................................................................................... 5–64
PLL Timing Specifications ............................................................................................................ 5–66

Duty Cycle Distortion ......................................................................................................................... 5–67

DCD Measurement Techniques ................................................................................................... 5–68

Referenced Documents ....................................................................................................................... 5–74
Document Revision History ............................................................................................................... 5–74

Chapter 6. Reference & Ordering Information

Software .................................................................................................................................................. 6–1
Device Pin-Outs ..................................................................................................................................... 6–1
Ordering Information ........................................................................................................................... 6–1
Document Revision History ................................................................................................................. 6–2

Section II. Clock Management

Revision History .................................................................................................................................... 6–1

Chapter 7. PLLs in Cyclone II Devices

Introduction ............................................................................................................................................ 7–1
Cyclone II PLL Hardware Overview .................................................................................................. 7–2

PLL Reference Clock Generation ................................................................................................... 7–6

Clock Feedback Modes ....................................................................................................................... 7–10

Normal Mode .................................................................................................................................. 7–10
Zero Delay Buffer Mode ................................................................................................................ 7–11
No Compensation Mode ............................................................................................................... 7–12
Source-Synchronous Mode ........................................................................................................... 7–13

Hardware Features .............................................................................................................................. 7–14

Clock Multiplication & Division .................................................................................................. 7–14
Programmable Duty Cycle ........................................................................................................... 7–15
Phase-Shifting Implementation .................................................................................................... 7–16
Control Signals ................................................................................................................................ 7–17
Manual Clock Switchover ............................................................................................................. 7–20

Clocking ................................................................................................................................................ 7–21

Global Clock Network ................................................................................................................... 7–21
Clock Control Block ....................................................................................................................... 7–24
Global Clock Network Clock Source Generation ...................................................................... 7–26
Global Clock Network Power Down ........................................................................................... 7–28

vi

Altera Corporation

Cyclone II Device Handbook, Volume 1

Contents

clkena signals .................................................................................................................................. 7–29

Board Layout ........................................................................................................................................ 7–30

VCCA & GNDA ............................................................................................................................. 7–31
VCCD & GND ................................................................................................................................. 7–33

Conclusion ............................................................................................................................................ 7–33

Section III. Memory

Revision History .................................................................................................................................... 7–1

Chapter 8. Cyclone II Memory Blocks

Introduction ............................................................................................................................................ 8–1
Overview ................................................................................................................................................. 8–1

Control Signals .................................................................................................................................. 8–3
Parity Bit Support ............................................................................................................................. 8–4
Byte Enable Support ........................................................................................................................ 8–4
Packed Mode Support ..................................................................................................................... 8–6
Address Clock Enable ...................................................................................................................... 8–6

Memory Modes ...................................................................................................................................... 8–8

Single-Port Mode .............................................................................................................................. 8–9
Simple Dual-Port Mode ................................................................................................................. 8–10
True Dual-Port Mode ..................................................................................................................... 8–12
Shift Register Mode ........................................................................................................................ 8–14
ROM Mode ...................................................................................................................................... 8–16
FIFO Buffer Mode ........................................................................................................................... 8–16

Clock Modes ......................................................................................................................................... 8–16

Independent Clock Mode .............................................................................................................. 8–17
Input/Output Clock Mode ........................................................................................................... 8–19
Read/Write Clock Mode ............................................................................................................... 8–22
Single-Clock Mode ......................................................................................................................... 8–24
Power-Up Conditions & Memory Initialization ........................................................................ 8–27

Read-During- Write Operation at the Same Address .................................................................... 8–28

Same-Port Read-During-Write Mode .......................................................................................... 8–28
Mixed-Port Read-During-Write Mode ........................................................................................ 8–29

Conclusion ............................................................................................................................................ 8–30
Referenced Documents ....................................................................................................................... 8–30

Chapter 9. External Memory Interfaces

Introduction ............................................................................................................................................ 9–1
External Memory Interface Standards ................................................................................................ 9–2

DDR & DDR2 SDRAM .................................................................................................................... 9–2
QDRII SRAM ..................................................................................................................................... 9–5

Cyclone II DDR Memory Support Overview .................................................................................... 9–9

Data & Data Strobe Pins ................................................................................................................ 9–10
Clock, Command & Address Pins ............................................................................................... 9–14
Parity, DM & ECC Pins ................................................................................................................. 9–14

Altera Corporation

vii

Cyclone II Device Handbook, Volume 1

Contents

Phase Lock Loop (PLL) .................................................................................................................. 9–15
Clock Delay Control ....................................................................................................................... 9–15
DQS Postamble ............................................................................................................................... 9–16
DDR Input Registers ...................................................................................................................... 9–18
DDR Output Registers ................................................................................................................... 9–21
Bidirectional DDR Registers ......................................................................................................... 9–22

Conclusion ............................................................................................................................................ 9–24
Document Revision History ............................................................................................................... 9–25

Section IV. I/O Standards

Revision History .................................................................................................................................... 9–1

Chapter 10. Selectable I/O Standards in Cyclone II Devices

Introduction .......................................................................................................................................... 10–1
Supported I/O Standards ................................................................................................................... 10–1

3.3-V LVTTL (EIA/JEDEC Standard JESD8-B) .......................................................................... 10–3
3.3-V LVCMOS (EIA/JEDEC Standard JESD8-B) ..................................................................... 10–4
3.3-V (PCI Special Interest Group [SIG] PCI Local Bus Specification Revision 3.0) ............. 10–4
3.3-V PCI-X ...................................................................................................................................... 10–6
Easy-to-Use, Low-Cost PCI Express Solution ............................................................................ 10–6
2.5-V LVTTL (EIA/JEDEC Standard EIA/JESD8-5) ................................................................. 10–7
2.5-V LVCMOS (EIA/JEDEC Standard EIA/JESD8-5) ............................................................ 10–7
SSTL-2 Class I and II (EIA/JEDEC Standard JESD8-9A) ......................................................... 10–7
Pseudo-Differential SSTL-2 ........................................................................................................... 10–8
1.8-V LVTTL (EIA/JEDEC Standard EIA/JESD8-7) ................................................................. 10–9
1.8-V LVCMOS (EIA/JEDEC Standard EIA/JESD8-7) .......................................................... 10–10
SSTL-18 Class I and II .................................................................................................................. 10–10
1.8-V HSTL Class I and II ............................................................................................................ 10–11
Pseudo-Differential SSTL-18 Class I and Differential SSTL-18 Class II ............................... 10–12
1.8-V Pseudo-Differential HSTL Class I and II ........................................................................ 10–13
1.5-V LVCMOS (EIA/JEDEC Standard JESD8-11) .................................................................. 10–14
1.5-V HSTL Class I and II ............................................................................................................ 10–14
1.5-V Pseudo-Differential HSTL Class I and II ........................................................................ 10–15
LVDS, RSDS and mini-LVDS ..................................................................................................... 10–16
Differential LVPECL .................................................................................................................... 10–17

Cyclone II I/O Banks ........................................................................................................................ 10–18
Programmable Current Drive Strength .......................................................................................... 10–24

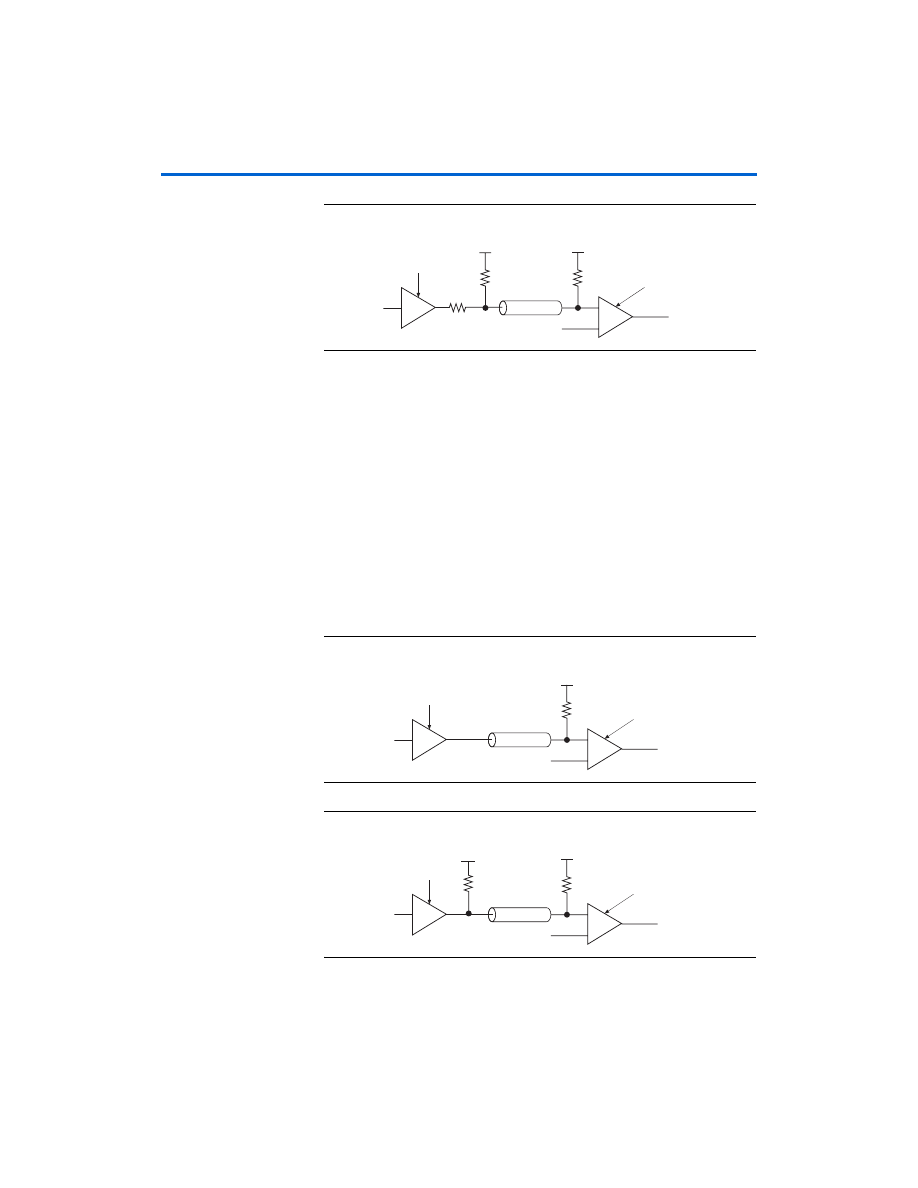

Voltage-Referenced I/O Standard Termination ...................................................................... 10–26

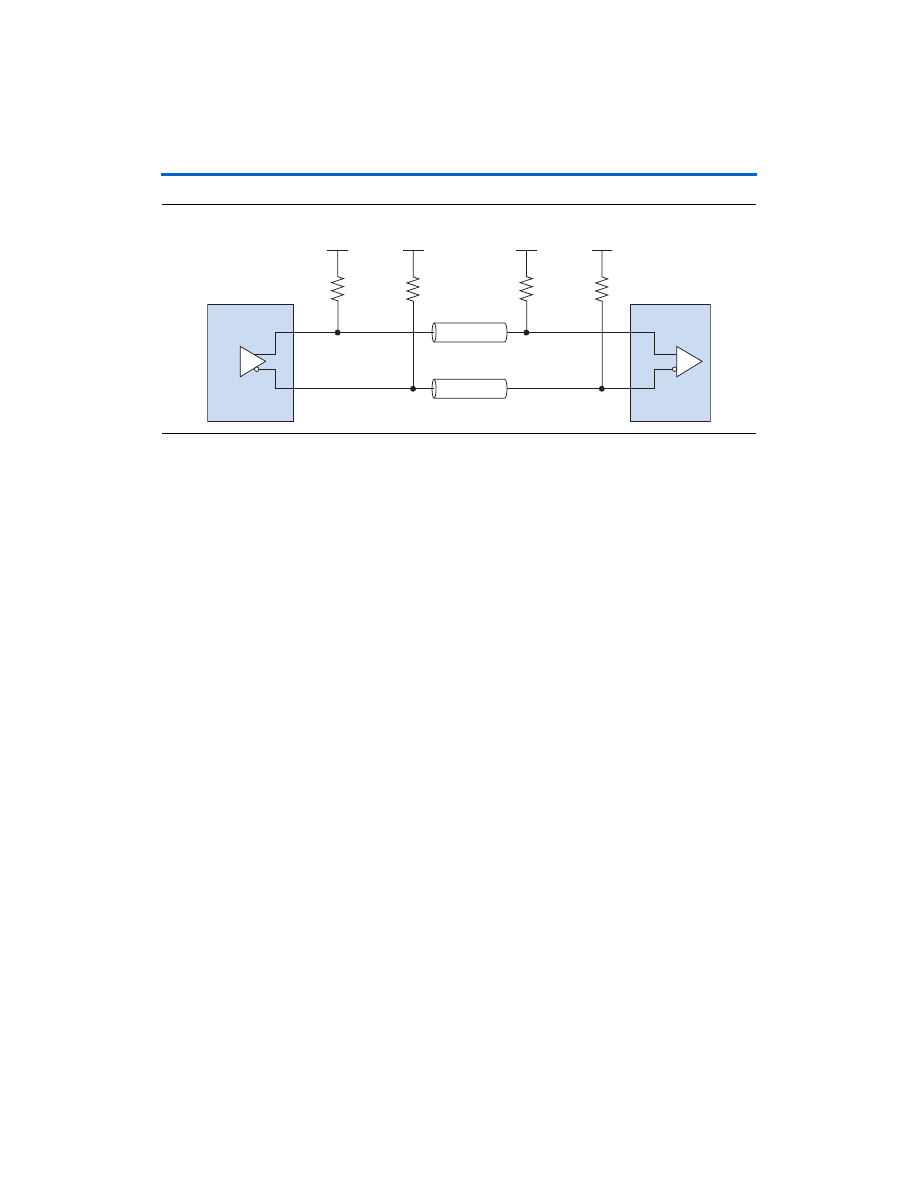

Differential I/O Standard Termination .................................................................................... 10–26
I/O Driver Impedance Matching (R

S

) and Series Termination (R

S

) ..................................... 10–27

Pad Placement and DC Guidelines ................................................................................................. 10–27

Differential Pad Placement Guidelines ..................................................................................... 10–28
V

REF

 Pad Placement Guidelines ................................................................................................. 10–29

DC Guidelines ............................................................................................................................... 10–32

5.0-V Device Compatibility .............................................................................................................. 10–34

viii

Altera Corporation

Cyclone II Device Handbook, Volume 1

Contents

Conclusion .......................................................................................................................................... 10–36
References ........................................................................................................................................... 10–37
Referenced Documents ..................................................................................................................... 10–38
Document Revision History ............................................................................................................. 10–38

Chapter 11. High-Speed Differential Interfaces in Cyclone II Devices

Introduction .......................................................................................................................................... 11–1

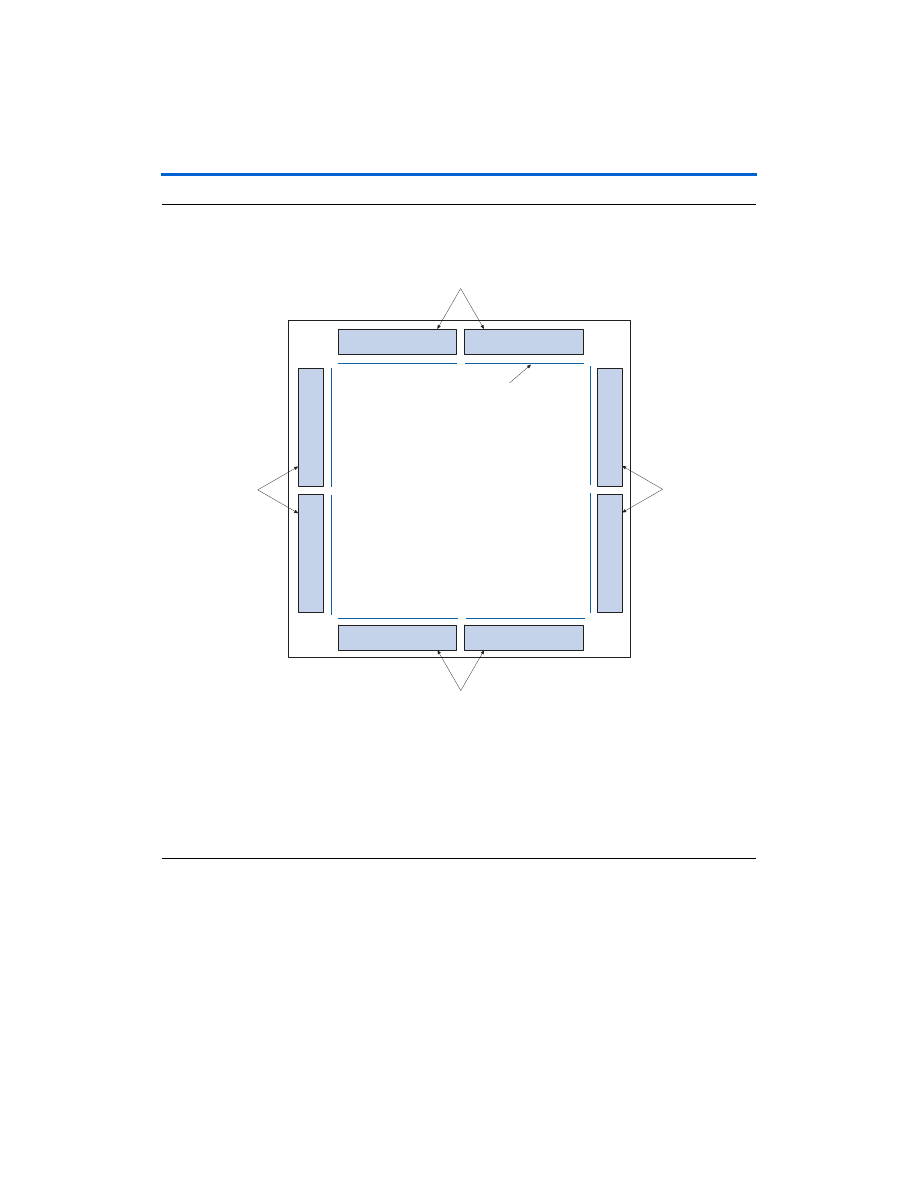

Cyclone II High-Speed I/O Banks .................................................................................................... 11–1
Cyclone II High-Speed I/O Interface ............................................................................................... 11–3
I/O Standards Support ....................................................................................................................... 11–4

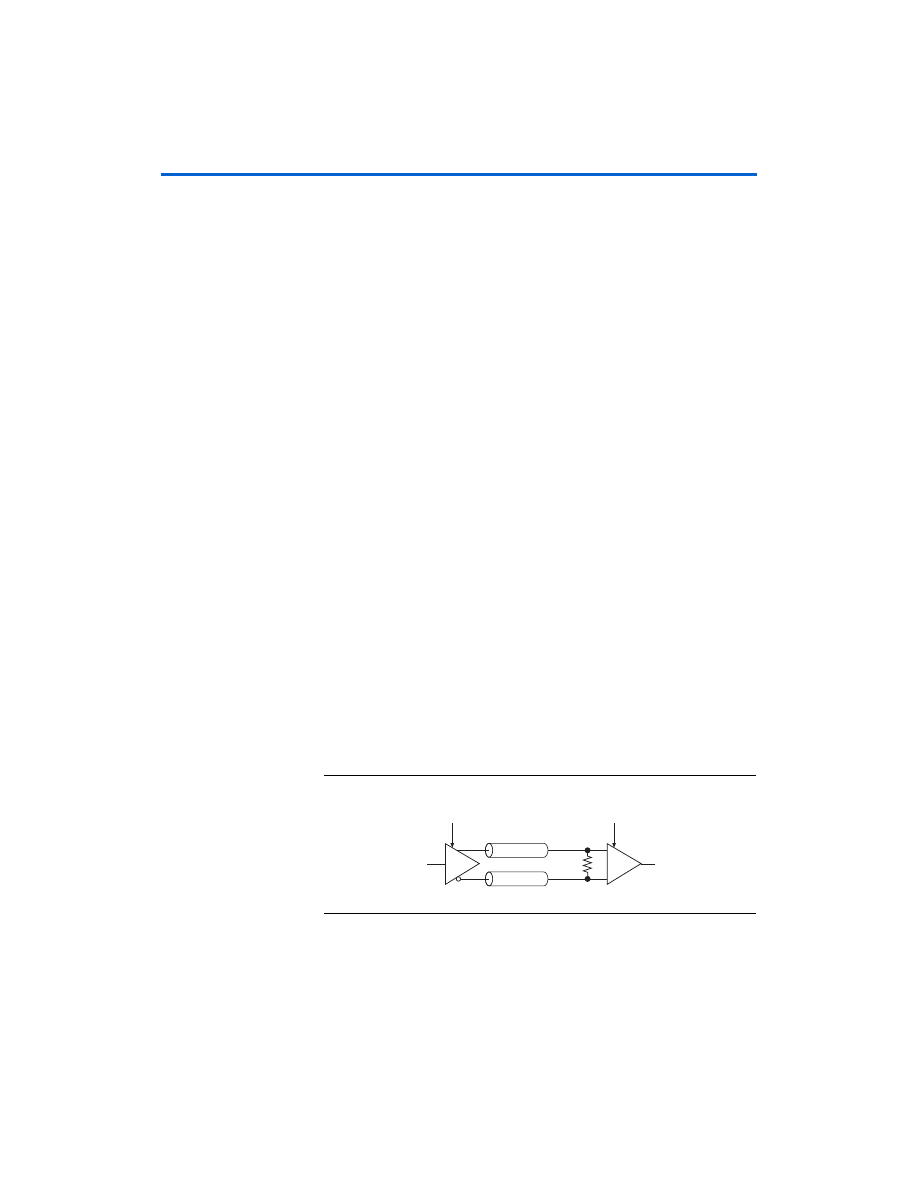

LVDS Standard Support in Cyclone II Devices ......................................................................... 11–4
RSDS I/O Standard Support in Cyclone II Devices .................................................................. 11–7
mini-LVDS Standard Support in Cyclone II Devices ................................................................ 11–9
LVPECL Support in Cyclone II .................................................................................................. 11–11
Differential SSTL Support in Cyclone II Devices ..................................................................... 11–12
Differential HSTL Support in Cyclone II Devices ................................................................... 11–13

High-Speed I/O Timing in Cyclone II Devices ............................................................................. 11–14
Design Guidelines ............................................................................................................................. 11–16

Differential Pad Placement Guidelines ..................................................................................... 11–16
Board Design Considerations ..................................................................................................... 11–16

Conclusion .......................................................................................................................................... 11–17

Section V. DSP

Revision History .................................................................................................................................. 11–1

Chapter 12. Embedded Multipliers in Cyclone II Devices

Introduction .......................................................................................................................................... 12–1
Embedded Multiplier Block Overview ............................................................................................ 12–2
Architecture .......................................................................................................................................... 12–4

Input Registers ................................................................................................................................ 12–4
Multiplier Stage .............................................................................................................................. 12–5
Output Registers ............................................................................................................................. 12–6

Operational Modes .............................................................................................................................. 12–6

18-Bit Multipliers ............................................................................................................................ 12–7
9-Bit Multipliers .............................................................................................................................. 12–7

Software Support ................................................................................................................................. 12–9
Conclusion ............................................................................................................................................ 12–9

Section VI. Configuration & Test

Revision History .................................................................................................................................. 12–1

Chapter 13. Configuring Cyclone II Devices

Introduction .......................................................................................................................................... 13–1

Altera Corporation

ix

Cyclone II Device Handbook, Volume 1

Contents

Cyclone II Configuration Overview ................................................................................................. 13–1
Configuration File Format .................................................................................................................. 13–3
Configuration Data Compression ..................................................................................................... 13–3
Active Serial Configuration (Serial Configuration Devices) ......................................................... 13–6

Single Device AS Configuration ................................................................................................... 13–7

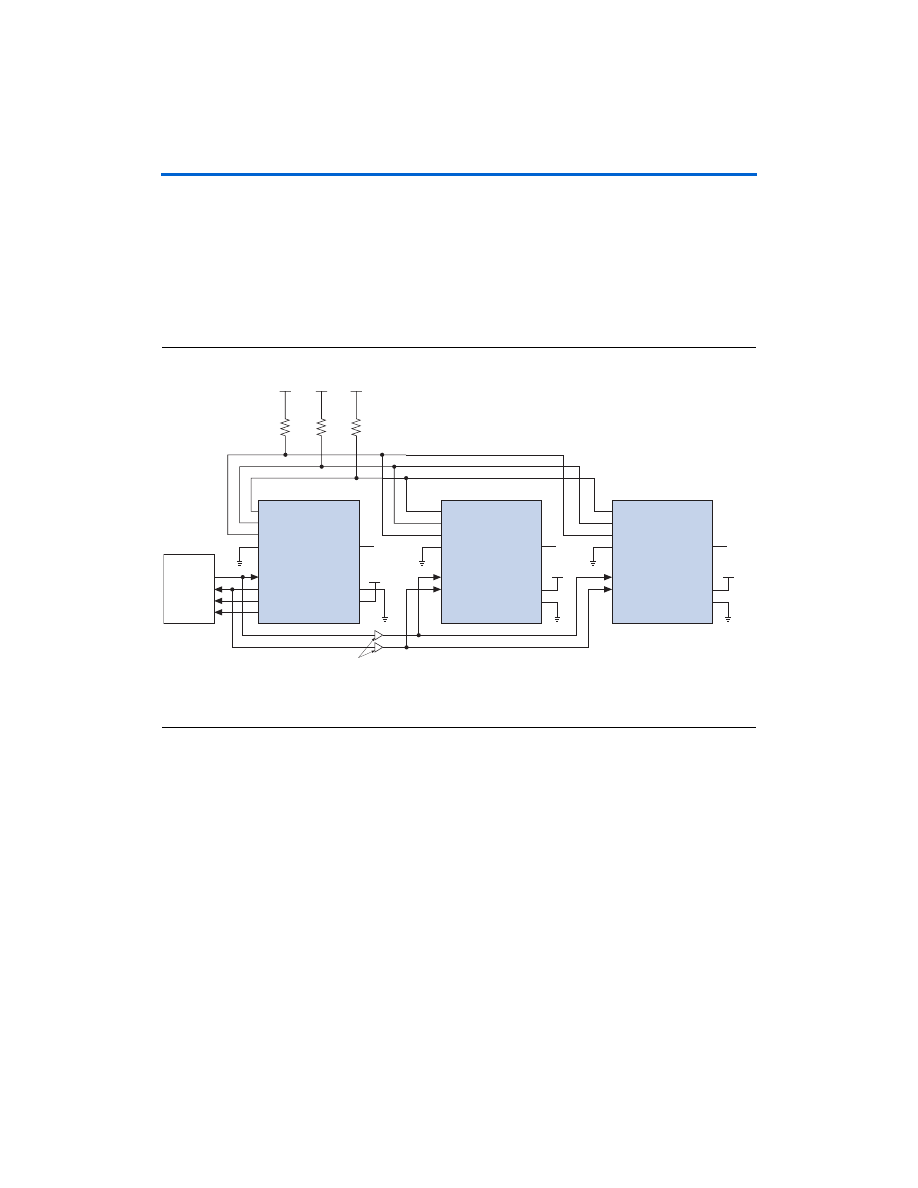

Multiple Device AS Configuration ............................................................................................ 13–12
Configuring Multiple Cyclone II Devices with the Same Design ......................................... 13–15
Estimating AS Configuration Time ........................................................................................... 13–18
Programming Serial Configuration Devices ............................................................................ 13–19

PS Configuration ................................................................................................................................ 13–22

Single Device PS Configuration Using a MAX II Device as an External Host .................... 13–22
Multiple Device PS Configuration Using a MAX II Device as an External Host ................ 13–26
PS Configuration Using a Microprocessor ............................................................................... 13–31
Single Device PS Configuration Using a Configuration Device ............................................ 13–32
Multiple Device PS Configuration Using a Configuration Device ....................................... 13–37
PS Configuration Using a Download Cable ............................................................................. 13–48

JTAG Configuration .......................................................................................................................... 13–53

Single Device JTAG Configuration ............................................................................................ 13–55
JTAG Configuration of Multiple Devices ................................................................................. 13–58
Jam STAPL .................................................................................................................................... 13–60
Configuring Cyclone II FPGAs with JRunner .......................................................................... 13–60
Combining JTAG & Active Serial Configuration Schemes .................................................... 13–61
Programming Serial Configuration Devices In-System Using the JTAG Interface ............ 13–61

Device Configuration Pins ............................................................................................................... 13–64
Conclusion .......................................................................................................................................... 13–70

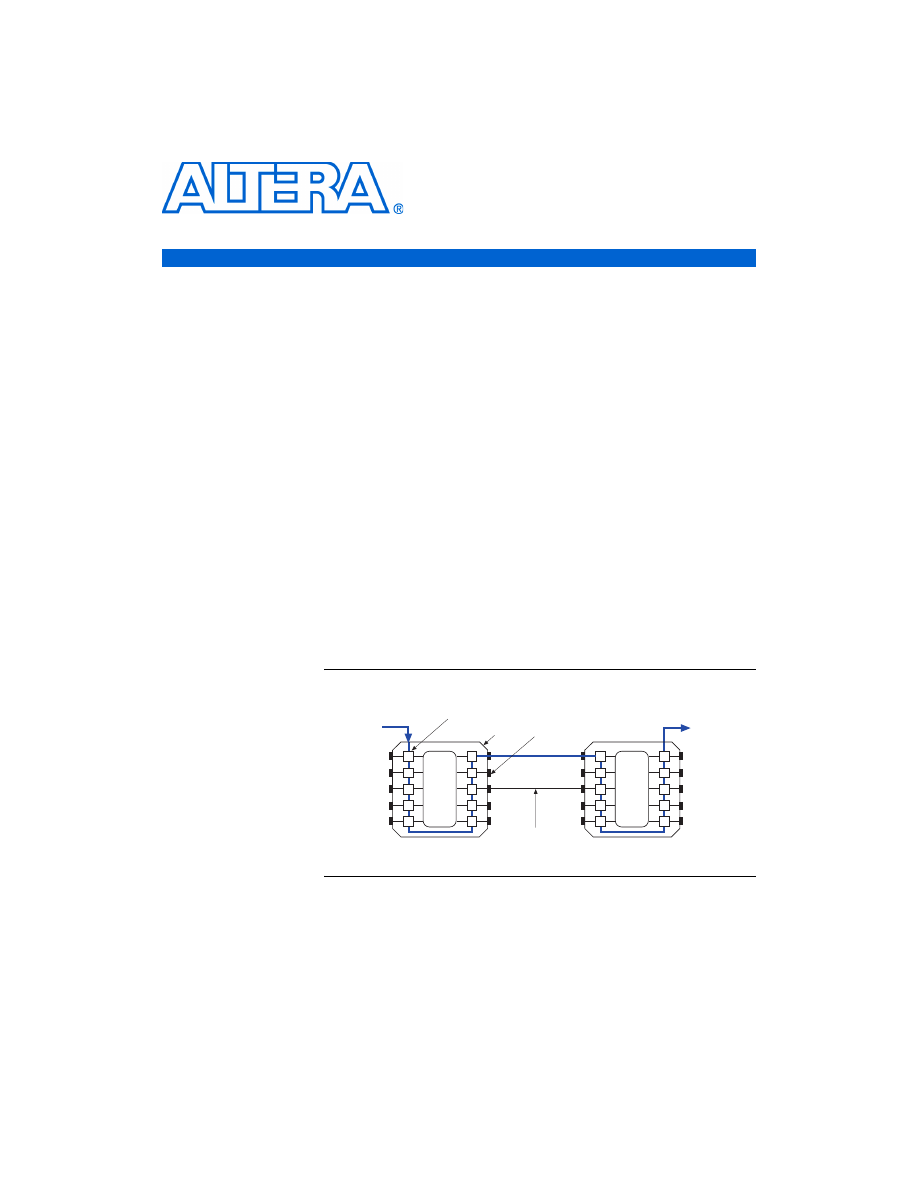

Chapter 14. IEEE 1149.1 (JTAG) Boundary-Scan Testing for Cyclone II Devices

Introduction .......................................................................................................................................... 14–1
IEEE Std. 1149.1 BST Architecture .................................................................................................... 14–2
IEEE Std. 1149.1 Boundary-Scan Register ........................................................................................ 14–4

Boundary-Scan Cells of a Cyclone II Device I/O Pin ............................................................... 14–4

IEEE Std. 1149.1 BST Operation Control .......................................................................................... 14–6

SAMPLE/PRELOAD Instruction Mode ..................................................................................... 14–9
Capture Phase ............................................................................................................................... 14–10
Shift & Update Phases ................................................................................................................. 14–10
EXTEST Instruction Mode .......................................................................................................... 14–11
Capture Phase ............................................................................................................................... 14–12
Shift & Update Phases ................................................................................................................. 14–12
BYPASS Instruction Mode .......................................................................................................... 14–13
IDCODE Instruction Mode ......................................................................................................... 14–14
USERCODE Instruction Mode ................................................................................................... 14–14
CLAMP Instruction Mode .......................................................................................................... 14–14
HIGHZ Instruction Mode ........................................................................................................... 14–15
I/O Voltage Support in JTAG Chain ......................................................................................... 14–15

Using IEEE Std. 1149.1 BST Circuitry ............................................................................................. 14–16
BST for Configured Devices ............................................................................................................. 14–17
Disabling IEEE Std. 1149.1 BST Circuitry ....................................................................................... 14–18

x

Altera Corporation

Cyclone II Device Handbook, Volume 1

Contents

Guidelines for IEEE Std. 1149.1 Boundary-Scan Testing ............................................................. 14–18
Boundary-Scan Description Language (BSDL) Support .............................................................. 14–19
Conclusion .......................................................................................................................................... 14–19
References ........................................................................................................................................... 14–19
Document Revision History ............................................................................................................. 14–20

Section VII. PCB Layout Guidelines

Revision History .................................................................................................................................. 14–1

Chapter 15. Package Information for Cyclone II Devices

Introduction .......................................................................................................................................... 15–1
Thermal Resistance .............................................................................................................................. 15–2
Package Outlines ................................................................................................................................. 15–4

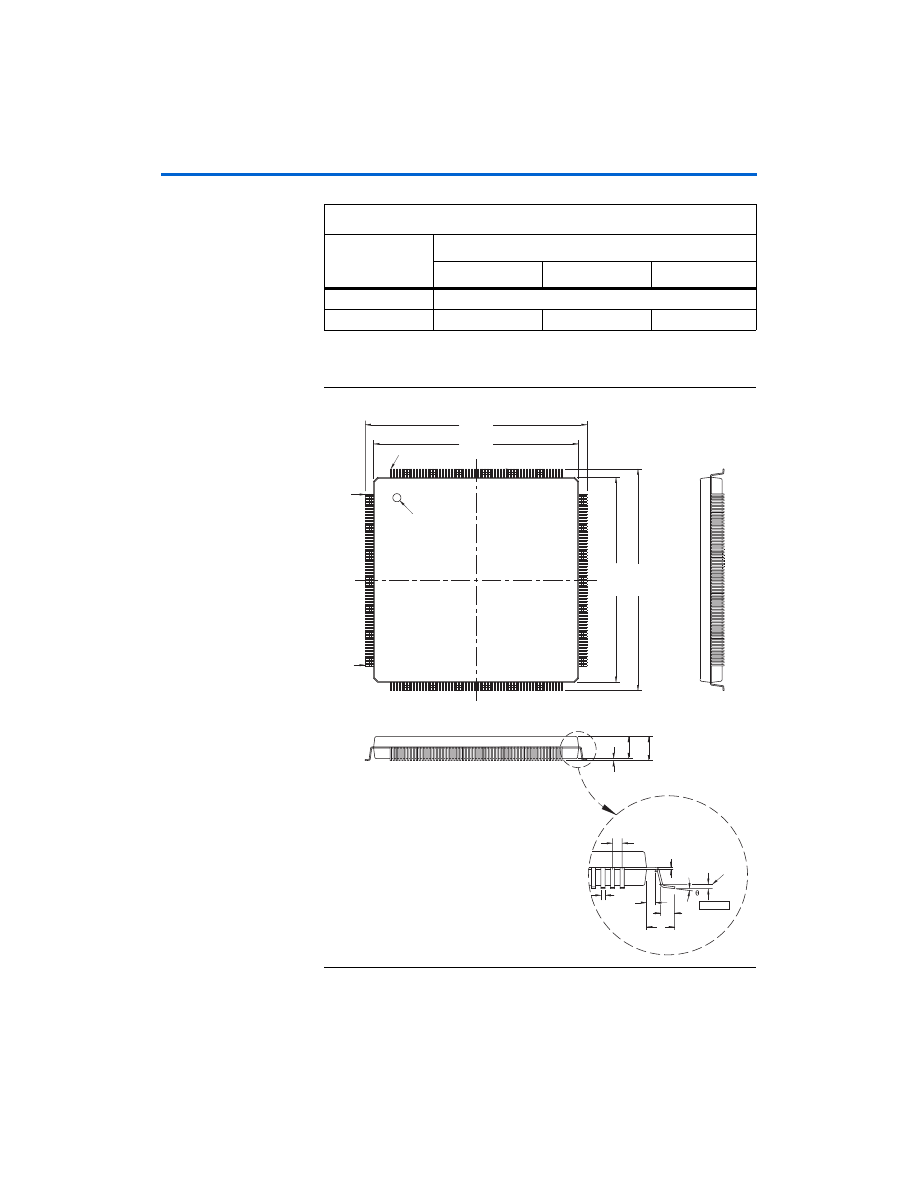

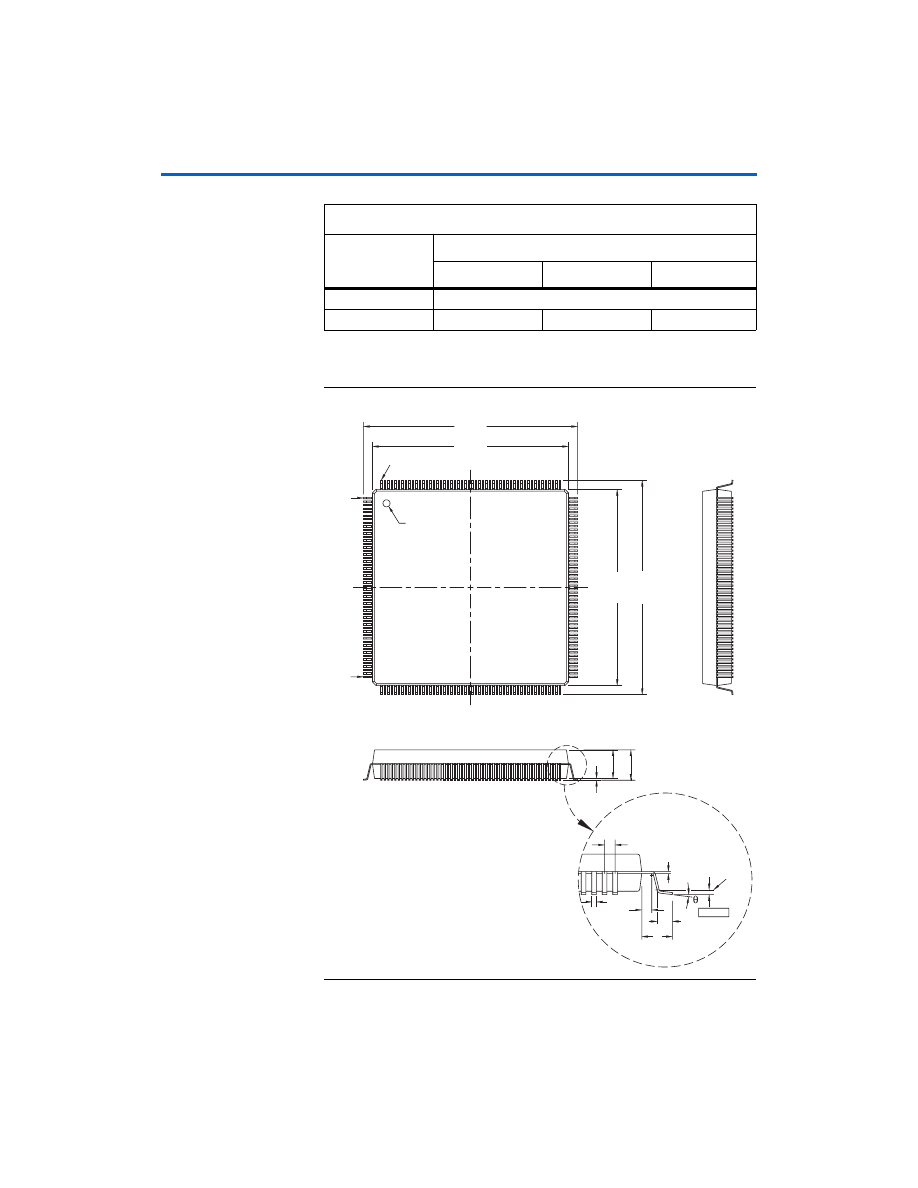

144-Pin Plastic Thin Quad Flat Pack (TQFP) – Wirebond ........................................................ 15–4
208-Pin Plastic Quad Flat Pack (PQFP) – Wirebond ................................................................. 15–7
240-Pin Plastic Quad Flat Pack (PQFP) ....................................................................................... 15–9
256-Pin FineLine Ball-Grid Array, Option 2 – Wirebond ....................................................... 15–11
484-Pin FineLine BGA, Option 3 – Wirebond .......................................................................... 15–13
484-Pin Ultra FineLine BGA – Wirebond ................................................................................. 15–15
672-Pin FineLine BGA Package, Option 3 – Wirebond ........................................................... 15–17
896-Pin FineLine BGA Package – Wirebond ............................................................................ 15–19

Altera Corporation



xi



Chapter Revision Dates

The chapters in this book,

Cyclone II Device Handbook, Volume 1

, were revised on the following dates.

Where chapters or groups of chapters are available separately, part numbers are listed.

Chapter 1. Introduction

Revised:

February 2008

Part number:

CII51001-3.2

Chapter 2. Cyclone II Architecture

Revised:

February 2007

Part number:

CII51002-3.1

Chapter 3. Configuration & Testing

Revised:

February 2007

Part number:

CII51003-2.2

Chapter 4. Hot Socketing & Power-On Reset

Revised:

February 2007

Part number:

CII51004-3.1

Chapter 5. DC Characteristics and Timing Specifications

Revised:

February 2008

Part number:

CII51005-4.0

Chapter 6. Reference & Ordering Information

Revised:

February 2007

Part number:

CII51006-1.4

Chapter 7. PLLs in Cyclone II Devices

Revised:

February 2007

Part number:

CII51007-3.1

Chapter 8. Cyclone II Memory Blocks

Revised:

February 2008

Part number:

CII51008-2.4

Chapter 9. External Memory Interfaces

Revised:

February 2007

Part number:

CII51009-3.1

xii

 Altera

Corporation



Chapter Revision Dates

Cyclone II Device Handbook, Volume 1

Chapter 10. Selectable I/O Standards in Cyclone II Devices

Revised:

February 2008

Part number:

CII51010-2.4

Chapter 11. High-Speed Differential Interfaces in Cyclone II Devices

Revised:

February 2007

Part number:

CII51011-2.2

Chapter 12. Embedded Multipliers in Cyclone II Devices

Revised:

February 2007

Part number:

CII51012-1.2

Chapter 13. Configuring Cyclone II Devices

Revised:

February 2007

Part number:

CII51013-3.1

Chapter 14. IEEE 1149.1 (JTAG) Boundary-Scan Testing for Cyclone II Devices

Revised:

February 2007

Part number:

CII51014-2.1

Chapter 15. Package Information for Cyclone II Devices

Revised:

February 2007

Part number:

CII51015-2.3

Altera Corporation



xiii

Cyclone II Device Handbook, Volume 1

About This Handbook

This handbook provides comprehensive information about the Altera

®



Cyclone

®

II family of devices.

How to Contact
Altera

For the most up-to-date information about Altera products, refer to the
following table.

Typographic
Conventions

This document uses the typographic conventions shown below.

Contact

(1)

Contact
Method

Address



Technical support

Website

www.altera.com/support

Technical training

Website

www.altera.com/training

Email

custrain@altera.com

Product literature

Website

www.altera.com/literature



Altera literature services

Email

literature@altera.com

Non-technical support (General)

(Software Licensing)

Email

nacomp@altera.com



Email

authorization@altera.com

Note to table:

(1)

You can also contact your local Altera sales office or sales representative.

Visual Cue

Meaning

Bold Type with Initial
Capital Letters



Command names, dialog box titles, checkbox options, and dialog box options are
shown in bold, initial capital letters. Example:

Save As

 dialog box.

bold type



External timing parameters, directory names, project names, disk drive names,
filenames, filename extensions, and software utility names are shown in bold
type. Examples:

f

MAX

, \qdesigns

 directory,

d:

 drive,

chiptrip.gdf

 file.

Italic Type with Initial Capital
Letters



Document titles are shown in italic type with initial capital letters. Example:

AN

75: High-Speed Board Design.

xiv

Altera Corporation

Cyclone II Device Handbook, Volume 1

Typographic Conventions

Italic type



Internal timing parameters and variables are shown in italic type.
Examples:

t

PIA

,

n

 + 1.

Variable names are enclosed in angle brackets (< >) and shown in italic type.
Example:

<file name>

,

<project name>

.pof

 file.

Initial Capital Letters

Keyboard keys and menu names are shown with initial capital letters. Examples:
Delete key, the Options menu.

“Subheading Title”

References to sections within a document and titles of on-line help topics are
shown in quotation marks. Example: “Typographic Conventions.”

Courier type



Signal and port names are shown in lowercase Courier type. Examples:

data1

,

tdi

,

input.

 Active-low signals are denoted by suffix

n

, e.g.,

resetn

.

Anything that must be typed exactly as it appears is shown in Courier type. For
example:

c:\qdesigns\tutorial\chiptrip.gdf

. Also, sections of an

actual file, such as a Report File, references to parts of files (e.g., the AHDL
keyword

SUBDESIGN

), as well as logic function names (e.g.,

TRI

) are shown in

Courier.

1., 2., 3., and
a., b., c., etc.

Numbered steps are used in a list of items when the sequence of the items is
important, such as the steps listed in a procedure.

■

●

•



Bullets are used in a list of items when the sequence of the items is not important.

v



The checkmark indicates a procedure that consists of one step only.

1



The hand points to information that requires special attention.

c

The caution indicates required information that needs special consideration and
understanding and should be read prior to starting or continuing with the
procedure or process.

w

The warning indicates information that should be read prior to starting or
continuing the procedure or processes

r



The angled arrow indicates you should press the Enter key.

f



The feet direct you to more information on a particular topic.

Visual Cue

Meaning

Altera Corporation



Section I–1

Preliminary

Section I. Cyclone II

Device Family Data Sheet

This section provides information for board layout designers to
successfully layout their boards for Cyclone

®

II devices. It contains the

required PCB layout guidelines, device pin tables, and package
specifications.

This section includes the following chapters:

■

Chapter 1. Introduction

■

Chapter 2. Cyclone II Architecture

■

Chapter 3. Configuration & Testing

■

Chapter 4. Hot Socketing & Power-On Reset

■

Chapter 5. DC Characteristics and Timing Specifications

■

Chapter 6. Reference & Ordering Information

Revision History

Refer to each chapter for its own specific revision history. For information
on when each chapter was updated, refer to the Chapter Revision Dates
section, which appears in the complete handbook.

Section I–2



Altera Corporation

Preliminary

Revision History

Cyclone II Device Handbook, Volume 1

Altera Corporation



1–1

February 2008

1. Introduction

Introduction

Following the immensely successful first-generation Cyclone

®

 device

family, Altera

®

 Cyclone II FPGAs extend the low-cost FPGA density

range to 68,416 logic elements (LEs) and provide up to 622 usable I/O
pins and up to 1.1 Mbits of embedded memory. Cyclone II FPGAs are
manufactured on 300-mm wafers using TSMC's 90-nm low-k dielectric
process to ensure rapid availability and low cost. By minimizing silicon
area, Cyclone II devices can support complex digital systems on a single
chip at a cost that rivals that of ASICs. Unlike other FPGA vendors who
compromise power consumption and performance for low-cost, Altera’s
latest generation of low-cost FPGAs—Cyclone II FPGAs, offer 60% higher
performance and half the power consumption of competing 90-nm
FPGAs. The low cost and optimized feature set of Cyclone II FPGAs make
them ideal solutions for a wide array of automotive, consumer,
communications, video processing, test and measurement, and other
end-market solutions. Reference designs, system diagrams, and IP, found
at

www.altera.com

, are available to help you rapidly develop complete

end-market solutions using Cyclone II FPGAs.

Low-Cost Embedded Processing Solutions

Cyclone II devices support the Nios II embedded processor which allows
you to implement custom-fit embedded processing solutions.  Cyclone II
devices can also expand the peripheral set, memory, I/O, or performance
of embedded processors.  Single or multiple Nios II embedded processors
can be designed into a Cyclone II device to provide additional
co-processing power or even replace existing embedded processors in
your system.  Using Cyclone II and Nios II together allow for low-cost,
high-performance embedded processing solutions, which allow you to
extend your product's life cycle and improve time to market over
standard product solutions.

Low-Cost DSP Solutions

Use Cyclone II FPGAs alone or as DSP co-processors to improve
price-to-performance ratios for digital signal processing (DSP)
applications. You can implement high-performance yet low-cost DSP
systems with the following Cyclone II features and design support:

■

Up to 150 18 × 18 multipliers

■

Up to 1.1 Mbit of on-chip embedded memory

■

High-speed interfaces to external memory

CII51001-3.2

1–2

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2008

Features

■

DSP intellectual property (IP) cores

■

DSP Builder interface to The Mathworks Simulink and Matlab
design environment

■

DSP Development Kit, Cyclone II Edition

Cyclone II devices include a powerful FPGA feature set optimized for
low-cost applications including a wide range of density, memory,
embedded multiplier, and packaging options. Cyclone II devices support
a wide range of common external memory interfaces and I/O protocols
required in low-cost applications. Parameterizable IP cores from Altera
and partners make using Cyclone II interfaces and protocols fast and easy.

Features

The Cyclone II device family offers the following features:

■

High-density architecture with 4,608 to 68,416 LEs

●

M4K embedded memory blocks

●

Up to 1.1 Mbits of RAM available without reducing available
logic

●

4,096 memory bits per block (4,608 bits per block including 512
parity bits)

●

Variable port configurations of ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32,
and ×36

●

True dual-port (one read and one write, two reads, or two
writes) operation for ×1, ×2, ×4, ×8, ×9, ×16, and ×18 modes

●

Byte enables for data input masking during writes

●

Up to 260-MHz operation

■

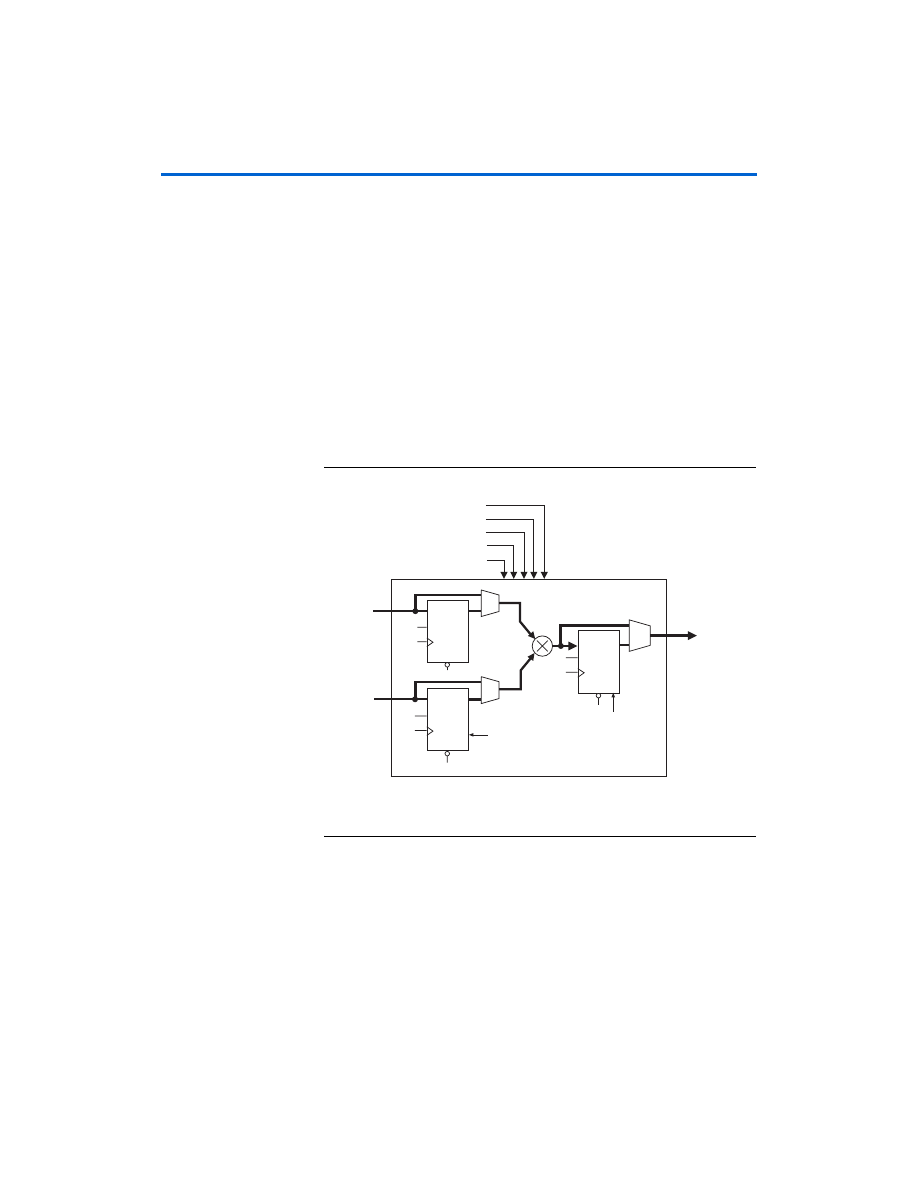

Embedded multipliers

●

Up to 150 18- × 18-bit multipliers are each configurable as two
independent 9- × 9-bit multipliers with up to 250-MHz
performance

●

Optional input and output registers

■

Advanced I/O support

●

High-speed differential I/O standard support, including LVDS,
RSDS, mini-LVDS, LVPECL, differential HSTL, and differential
SSTL

●

Single-ended I/O standard support, including 2.5-V and 1.8-V,
SSTL class I and II, 1.8-V and 1.5-V HSTL class I and II, 3.3-V PCI
and PCI-X 1.0, 3.3-, 2.5-, 1.8-, and 1.5-V LVCMOS, and 3.3-, 2.5-,
and 1.8-V LVTTL

●

Peripheral Component Interconnect Special Interest Group (PCI
SIG)

PCI Local Bus Specification, Revision 3.0



compliance for 3.3-V

operation at 33 or 66 MHz for 32- or 64-bit interfaces

●

PCI Express with an external TI PHY and an Altera PCI Express
×1 Megacore

®

 function

Altera Corporation

1–3

February 2008

Cyclone II Device Handbook, Volume 1

Introduction

●

133-MHz PCI-X 1.0 specification compatibility

●

High-speed external memory support, including DDR, DDR2,
and SDR SDRAM, and QDRII SRAM supported by drop in
Altera IP MegaCore functions for ease of use

●

Three dedicated registers per I/O element (IOE): one input
register, one output register, and one output-enable register

●

Programmable bus-hold feature

●

Programmable output drive strength feature

●

Programmable delays from the pin to the IOE or logic array

●

I/O bank grouping for unique VCCIO and/or VREF bank
settings

●

MultiVolt

™

 I/O standard support for 1.5-, 1.8-, 2.5-, and

3.3-interfaces

●

Hot-socketing operation support

●

Tri-state with weak pull-up on I/O pins before and during
configuration

●

Programmable open-drain outputs

●

Series on-chip termination support

■

Flexible clock management circuitry

●

Hierarchical clock network for up to 402.5-MHz performance

●

Up to four PLLs per device provide clock multiplication and
division, phase shifting, programmable duty cycle, and external
clock outputs, allowing system-level clock management and
skew control

●

Up to 16 global clock lines in the global clock network that drive
throughout the entire device

■

Device configuration

●

Fast serial configuration allows configuration times less than
100 ms

●

Decompression feature allows for smaller programming file
storage and faster configuration times

●

Supports multiple configuration modes: active serial, passive
serial, and JTAG-based configuration

●

Supports configuration through low-cost serial configuration
devices

●

Device configuration supports multiple voltages (either 3.3, 2.5,
or 1.8 V)

■

Intellectual property

●

Altera megafunction and Altera MegaCore function support,
and Altera Megafunctions Partners Program (AMPP

SM

)

megafunction support, for a wide range of embedded
processors, on-chip and off-chip interfaces, peripheral
functions, DSP functions, and communications functions and

1–4

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2008

Features

protocols. Visit the Altera IPMegaStore at

www.altera.com

 to

download IP MegaCore functions.

●

Nios II Embedded Processor support

The Cyclone II family offers devices with the Fast-On feature, which
offers a faster power-on-reset (POR) time. Devices that support the
Fast-On feature are designated with an “A” in the device ordering code.
For example, EP2C5A, EP2C8A, EP2C15A, and EP2C20A. The EP2C5A is
only available in the automotive speed grade. The EP2C8A and EP2C20A
are only available in the industrial speed grade. The EP2C15A is only
available with the Fast-On feature and is available in both commercial
and industrial grades. The Cyclone II “A” devices are identical in feature
set and functionality to the non-A devices except for support of the faster
POR time.

f

Cyclone II A devices are offered in automotive speed grade. For more
information, refer to the Cyclone II section in the

Automotive-Grade Device

Handbook

.

f

For more information on POR time specifications for Cyclone II A and
non-A devices, refer to the

Hot Socketing & Power-On Reset



chapter in the

Cyclone II Device Handbook

.

Table 1–1

 lists the Cyclone II device family features.

Table 1–2

 lists the

Cyclone II device package offerings and maximum user I/O pins.

Table 1–1. Cyclone II FPGA Family Features (Part 1 of 2)

Feature

EP2C5

(2)

EP2C8

(2)

EP2C15

(1)

EP2C20

(2)

EP2C35

EP2C50

EP2C70

LEs

4,608

8,256

14,448

18,752

33,216

50,528

68,416

M4K RAM blocks (4
Kbits plus
512 parity bits

26

36

52

52

105

129

250

Total RAM bits

119,808

165,888

239,616

239,616

483,840

594,432

1,152,00

0

Embedded
multipliers

(3)

13

18

26

26

35

86

150

PLLs

2

2

4

4

4

4

4

Altera Corporation

1–5

February 2008

Cyclone II Device Handbook, Volume 1

Introduction

Maximum user
I/O pins

158

182

315

315

475

450

622

Notes to

Table 1–1

:

(1)

The EP2C15A is only available with the Fast On feature, which offers a faster POR time. This device is available in
both commercial and industrial grade.

(2)

The EP2C5, EP2C8, and EP2C20 optionally support the Fast On feature, which is designated with an “A” in the
device ordering  code. The EP2C5A is only available in the automotive speed grade. The EP2C8A and EP2C20A
devices are only available in industrial grade.

(3)

This is the total number of 18

×

 18 multipliers. For the total number of 9

×

 9 multipliers per device, multiply the

total number of 18

×

 18 multipliers by 2.

Table 1–1. Cyclone II FPGA Family Features (Part 2 of 2)

Feature

EP2C5

(2)

EP2C8

(2)

EP2C15

(1)

EP2C20

(2)

EP2C35

EP2C50

EP2C70

1–6

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2008

Features

Cyclone II devices support vertical migration within the same package
(for example, you can migrate between the EP2C35, EPC50, and EP2C70
devices in the 672-pin FineLine BGA package). The exception to vertical
migration support within the Cyclone II family is noted in

Table 1–3

.

Table 1–2. Cyclone II Package Options & Maximum User I/O Pins

Notes (1)



(2)

Device

144-Pin

TQFP

(3)

208-Pin

PQFP

(4)

240-Pin

PQFP

256-Pin

FineLine

BGA

484-Pin

FineLine

BGA

484-Pin

Ultra

FineLine

BGA

672-Pin

FineLine

BGA

896-Pin

FineLine

BGA

EP2C5

(6)



(8)

89

142

—

158

(5)

—

—

—

—

EP2C8

(6)

85

138

—

182

—

—

—

—

EP2C8A

(6)

,

(7)

—

—

—

182

—

—

—

—

EP2C15A

(6)

,

(7)

—

—

—

152

315

—

—

—

EP2C20

(6)

—

—

142

152

315

—

—

—

EP2C20A

(6)

,

(7)

—

—

—

152

315

—

—

—

EP2C35

(6)

—

—

—

—

322

322

475

—

EP2C50

(6)

—

—

—

—

294

294

450

—

EP2C70

(6)

—

—

—

—

—

—

422

622

Notes to

Table 1–2

:

(1)

Cyclone II devices support vertical migration within the same package (for example, you can migrate between the
EP2C20 device in the 484-pin FineLine BGA package and the EP2C35 and EP2C50 devices in the same package).

(2)

The Quartus

®

 II software I/O pin counts include four additional pins,

TDI

,

TDO

,

TMS

, and

TCK

, which are not

available as general purpose I/O pins.

(3)

TQFP: thin quad flat pack.

(4)

PQFP: plastic quad flat pack.

(5)

Vertical migration is supported between the EP2C5F256 and the EP2C8F256 devices. However, not all of the DQ
and DQS groups are supported. Vertical migration between the EP2C5 and the EP2C15 in the F256 package is not
supported.

(6)

The I/O pin counts for the EP2C5, EP2C8, and EP2C15A devices include 8 dedicated clock pins that can be used
for data inputs. The I/O counts for the EP2C20, EP2C35, EP2C50, and EP2C70 devices include 16 dedicated clock
pins that can be used for data inputs.

(7)

EP2C8A, EP2C15A, and EP2C20A have a Fast On feature that has a faster POR time. The EP2C15A is only available
with the Fast On option.

(8)

The EP2C5 optionally support the Fast On feature, which is designated with an “A” in the device ordering code.
The EP2C5A is only available in the automotive speed grade. Refer to the Cyclone II section in the

Automotive-Grade

Device Handbook

.

Altera Corporation

1–7

February 2008

Cyclone II Device Handbook, Volume 1

Introduction

Vertical migration means that you can migrate to devices whose
dedicated pins, configuration pins, and power pins are the same for a
given package across device densities.

1

When moving from one density to a larger density, I/O pins are
often lost because of the greater number of power and ground
pins required to support the additional logic within the larger
device. For I/O pin migration across densities, you must cross
reference the available I/O pins using the device pin-outs for all
planned densities of a given package type to identify which I/O
pins are migratable.

To ensure that your board layout supports migratable densities within
one package offering, enable the applicable vertical migration path
within the Quartus II software (go to Assignments menu, then Device,
then click the

Migration Devices

 button). After compilation, check the

information messages for a full list of I/O, DQ, LVDS, and other pins that
are not available because of the selected migration path.

Table 1–3

 lists the

Cyclone II device package offerings and shows the total number of
non-migratable I/O pins when migrating from one density device to a
larger density device.

Table 1–3. Total Number of Non-Migratable I/O Pins for Cyclone II Vertical Migration Paths

Vertical

Migration Path

144-Pin TQFP

208-Pin

PQFP

256-Pin

FineLine BGA

(1)

484-Pin

FineLine BGA

(2)

484-Pin Ultra

FineLine BGA

672-Pin

FineLine BGA

(3)

EP2C5 to
EP2C8

4

4

1

(4)

—

—

—

EP2C8 to
EP2C15

—

—

30

—

—

—

EP2C15 to
EP2C20

—

—

0

0

—

—

EP2C20 to
EP2C35

—

—

16

—

—

EP2C35 to
EP2C50

—

—

—

28

28

(5)

28

EP2C50 to
EP2C70

—

—

—

—

28

28

Notes to

Table 1–3

:

(1)

Vertical migration between the EP2C5F256 to the EP2C15AF256 and the EP2C5F256 to the EP2C20F256 devices is
not supported.

(2)

When migrating from the EP2C20F484 device to the EP2C50F484 device, a total of 39 I/O pins are non-migratable.

(3)

When migrating from the EP2C35F672 device to the EP2C70F672 device, a total of 56 I/O pins are non-migratable.

(4)

In addition to the one non-migratable I/O pin, there are 34 DQ pins that are non-migratable.

(5)

The pinouts of 484 FBGA and 484 UBGA are the same.

1–8

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2008

Features

Cyclone II devices are available in up to three speed grades: –6, –7, and
–8, with –6 being the fastest.

Table 1–4

 shows the Cyclone II device

speed-grade offerings.

Table 1–4. Cyclone II Device Speed Grades

Device

144-Pin

TQFP

208-Pin

PQFP

240-Pin

PQFP

256-Pin

FineLine

BGA

484-Pin

FineLine

BGA

484-Pin

Ultra

FineLine

BGA

672-Pin

FineLine

BGA

896-Pin

FineLine

BGA

EP2C5

(1)

–

6,

–

7,

–

8

–

7,

–

8

—

–

6,

–

7,

–

8

—

—

—

—

EP2C8

–

6,

–

7,

–

8

–

7,

–

8

—

–

6,

–

7,

–

8

—

—

—

—

EP2C8A

(2)

—

—

—

–

8

—

—

—

—

EP2C15A

—

—

—

–

6,

–

7,

–

8

–

6,

–

7,

–

8

—

—

—

EP2C20 —

—

–

8

–

6,

–

7,

–

8

–

6,

–

7,

–

8

—

—

—

EP2C20A

(2)

—

—

—

–

8

–

8

—

—

—

EP2C35 —

—

—

—

–

6,

–

7,

–

8

–

6,

–

7,

–

8

–

6,

–

7,

–

8

—

EP2C50 —

—

—

—

–

6,

–

7,

–

8

–

6,

–

7,

–

8

–

6,

–

7,

–

8

—

EP2C70

—

—

—

—

—

—

–

6,

–

7,

–

8

–

6,

–

7,

–

8

Notes to

Table 1–4

:

(1)

The EP2C5 optionally support the Fast On feature, which is designated with an “A” in the device ordering code.
The EP2C5A is only available in the automotive speed grade. Refer to the Cyclone II section in the

Automotive-Grade

Device Handbook



for detailed information.

(2)

EP2C8A and EP2C20A are only available in industrial grade.

Altera Corporation

1–9

February 2008

Cyclone II Device Handbook, Volume 1

Introduction

Referenced
Documents

This chapter references the following documents:

■

Hot Socketing & Power-On Reset

 chapter in

Cyclone II Device Handbook

■

Automotive-Grade Device Handbook



Document
Revision History

Table 1–5

 shows the revision history for this document.

Table 1–5. Document Revision History

Date &

Document

Version

Changes Made

Summary of Changes

February 2008
v3.2

●

Added

“Referenced Documents”

.

●

Updated

“Features”

 section and

Table 1–1

,

Table 1–2

,

and

Table 1–4

 with information about EP2C5A.

—

February 2007
v3.1

●

Added document revision history.

●

Added new

Note (2)

 to

Table 1–2

.

Note to explain difference
between I/O pin count
information provided in

Table 1–2

 and in the Quartus II

software documentation.

November 2005
v2.1

●

Updated Introduction and Features.

●

Updated

Table 1–3

.

—

July 2005 v2.0

●

Updated technical content throughout.

●

Updated

Table 1–2

.

●

Added

Tables 1–3

 and

1–4

.

—

November 2004
v1.1

●

Updated

Table 1–2

.

●

Updated bullet list in the

“Features”

 section.

—

June 2004 v1.0

Added document to the Cyclone II Device Handbook.

—

1–10

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2008

Document Revision History

Altera Corporation



2–1

February 2007

2. Cyclone II Architecture

Functional
Description

Cyclone

®

II devices contain a two-dimensional row- and column-based

architecture to implement custom logic. Column and row interconnects
of varying speeds provide signal interconnects between logic array
blocks (LABs), embedded memory blocks, and embedded multipliers.

The logic array consists of LABs, with 16 logic elements (LEs) in each
LAB. An LE is a small unit of logic providing efficient implementation of
user logic functions. LABs are grouped into rows and columns across the
device. Cyclone II devices range in density from 4,608 to 68,416 LEs.

Cyclone II devices provide a global clock network and up to four
phase-locked loops (PLLs). The global clock network consists of up to 16
global clock lines that drive throughout the entire device. The global clock
network can provide clocks for all resources within the device, such as
input/output elements (IOEs), LEs, embedded multipliers, and
embedded memory blocks. The global clock lines can also be used for
other high fan-out signals. Cyclone II PLLs provide general-purpose
clocking with clock synthesis and phase shifting as well as external
outputs for high-speed differential I/O support.

M4K memory blocks are true dual-port memory blocks with 4K bits of
memory plus parity (4,608 bits). These blocks provide dedicated true
dual-port, simple dual-port, or single-port memory up to 36-bits wide at
up to 260 MHz. These blocks are arranged in columns across the device
in between certain LABs. Cyclone II devices offer between 119 to
1,152 Kbits of embedded memory.

Each embedded multiplier block can implement up to either two 9 × 9-bit
multipliers, or one 18 × 18-bit multiplier with up to 250-MHz
performance. Embedded multipliers are arranged in columns across the
device.

Each Cyclone II device I/O pin is fed by an IOE located at the ends of LAB
rows and columns around the periphery of the device. I/O pins support
various single-ended and differential I/O standards, such as the 66- and
33-MHz, 64- and 32-bit PCI standard, PCI-X, and the LVDS I/O standard
at a maximum data rate of 805 megabits per second (Mbps) for inputs and
640 Mbps for outputs. Each IOE contains a bidirectional I/O buffer and
three registers for registering input, output, and output-enable signals.
Dual-purpose DQS, DQ, and DM pins along with delay chains (used to

CII51002-3.1

2–2

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Logic Elements

phase-align double data rate (DDR) signals) provide interface support for
external memory devices such as DDR, DDR2, and single data rate (SDR)
SDRAM, and QDRII SRAM devices at up to 167 MHz.

Figure 2–1

 shows a diagram of the Cyclone II EP2C20 device.

Figure 2–1. Cyclone II EP2C20 Device Block Diagram

The number of M4K memory blocks, embedded multiplier blocks, PLLs,
rows, and columns vary per device.

Logic Elements

The smallest unit of logic in the Cyclone II architecture, the LE, is compact
and provides advanced features with efficient logic utilization. Each LE
features:

■

A four-input look-up table (LUT), which is a function generator that
can implement any function of four variables

■

A programmable register

■

A carry chain connection

■

A register chain connection

■

The ability to drive all types of interconnects: local, row, column,
register chain, and direct link interconnects

■

Support for register packing

■

Support for register feedback

PLL

PLL

IOEs

PLL

PLL

IOEs

IOEs

Logic
Array

Logic
Array

Logic
Array

Logic
Array

IOEs

M4K Blocks

M4K Blocks

Embedded
Multipliers

Altera Corporation

2–3

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Figure 2–2

 shows a Cyclone II LE.

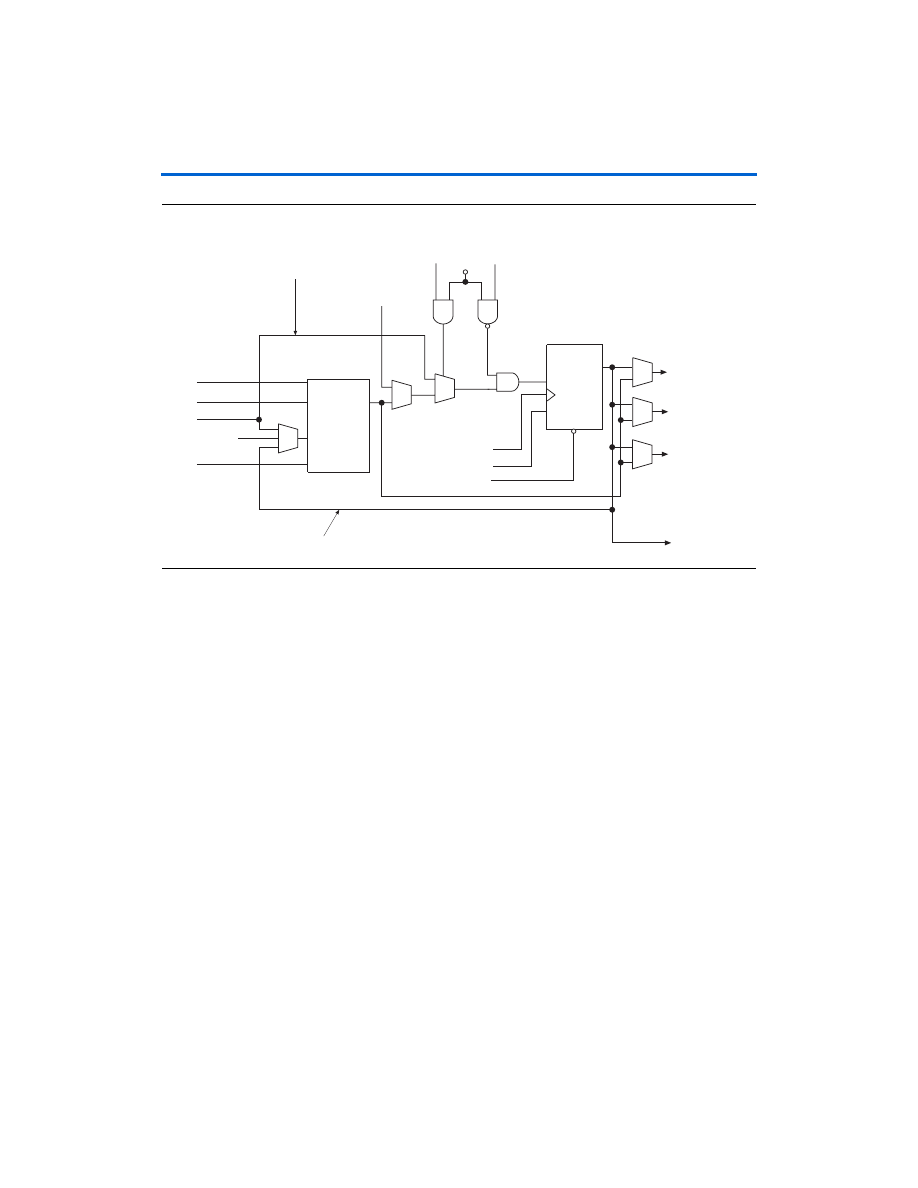

Figure 2–2. Cyclone II LE

Each LE’s programmable register can be configured for D, T, JK, or SR
operation. Each register has data, clock, clock enable, and clear inputs.
Signals that use the global clock network, general-purpose I/O pins, or
any internal logic can drive the register’s clock and clear control signals.
Either general-purpose I/O pins or internal logic can drive the clock
enable. For combinational functions, the LUT output bypasses the
register and drives directly to the LE outputs.

Each LE has three outputs that drive the local, row, and column routing
resources. The LUT or register output can drive these three outputs
independently. Two LE outputs drive column or row and direct link
routing connections and one drives local interconnect resources, allowing
the LUT to drive one output while the register drives another output. This
feature, register packing, improves device utilization because the device
can use the register and the LUT for unrelated functions. When using
register packing, the LAB-wide synchronous load control signal is not
available. See

“LAB Control Signals” on page 2–8

 for more information.

labclk1

labclk2

labclr2

LAB Carry-In

Clock &

Clock Enable

Select

LAB Carry-Out

Look-Up

Table
(LUT)

Carry

Chain

Row, Column,
And Direct Link
Routing

Row, Column,
And Direct Link
Routing

Programmable
Register

CLRN

D

Q

ENA

Register Bypass

Packed
Register Select

Chip-Wide

Reset

(DEV_CLRn)

labclkena1

labclkena2

Synchronous

Load and

Clear Logic

LAB-Wide

Synchronous

Load

LAB-Wide

Synchronous

Clear

Asynchronous

Clear Logic

data1
data2
data3

data4

labclr1

Local Routing

Register Chain
Output

Register
Feedback

Register Chain
Routing From
Previous LE

2–4

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Logic Elements

Another special packing mode allows the register output to feed back into
the LUT of the same LE so that the register is packed with its own fan-out
LUT, providing another mechanism for improved fitting. The LE can also
drive out registered and unregistered versions of the LUT output.

In addition to the three general routing outputs, the LEs within an LAB
have register chain outputs. Register chain outputs allow registers within
the same LAB to cascade together. The register chain output allows an
LAB to use LUTs for a single combinational function and the registers to
be used for an unrelated shift register implementation. These resources
speed up connections between LABs while saving local interconnect
resources. See

“MultiTrack Interconnect” on page 2–10

 for more

information on register chain connections.

LE Operating Modes

The Cyclone II LE operates in one of the following modes:

■

Normal mode

■

Arithmetic mode

Each mode uses LE resources differently. In each mode, six available
inputs to the LE—the four data inputs from the LAB local interconnect,
the LAB carry-in from the previous carry-chain LAB, and the register
chain connection—are directed to different destinations to implement the
desired logic function. LAB-wide signals provide clock, asynchronous
clear, synchronous clear, synchronous load, and clock enable control for
the register. These LAB-wide signals are available in all LE modes.

The Quartus

®

II software, in conjunction with parameterized functions

such as library of parameterized modules (LPM) functions, automatically
chooses the appropriate mode for common functions such as counters,
adders, subtractors, and arithmetic functions. If required, you can also
create special-purpose functions that specify which LE operating mode to
use for optimal performance.

Normal Mode

The normal mode is suitable for general logic applications and
combinational functions. In normal mode, four data inputs from the LAB
local interconnect are inputs to a four-input LUT (see

Figure 2–3

). The

Quartus II Compiler automatically selects the carry-in or the

data3



signal as one of the inputs to the LUT. LEs in normal mode support
packed registers and register feedback.

Altera Corporation

2–5

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Figure 2–3. LE in Normal Mode

Arithmetic Mode

The arithmetic mode is ideal for implementing adders, counters,
accumulators, and comparators. An LE in arithmetic mode implements a
2-bit full adder and basic carry chain (see

Figure 2–4

). LEs in arithmetic

mode can drive out registered and unregistered versions of the LUT
output. Register feedback and register packing are supported when LEs
are used in arithmetic mode.

data1

Four-Input

LUT

data2

data3
cin (from cout
of previous LE)

data4

clock (LAB Wide)

ena (LAB Wide)

aclr (LAB Wide)

CLRN

D

Q

ENA

sclear

(LAB Wide)

sload

(LAB Wide)

Register chain

connection

Register
chain output

Row, Column, and
Direct Link Routing

Row, Column, and
Direct Link Routing

Local routing

Register Feedback

Packed Register Input

2–6

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Logic Elements

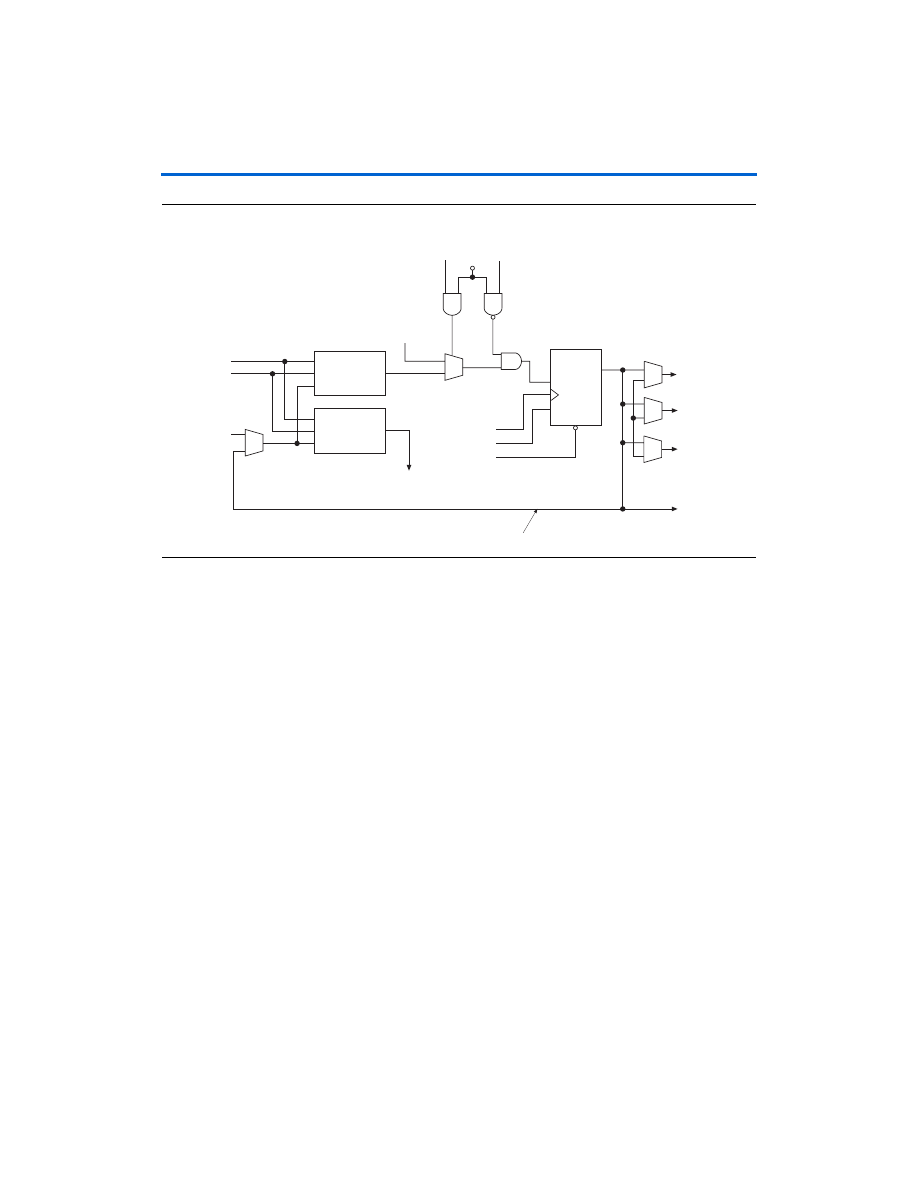

Figure 2–4. LE in Arithmetic Mode

The Quartus II Compiler automatically creates carry chain logic during
design processing, or you can create it manually during design entry.
Parameterized functions such as LPM functions automatically take
advantage of carry chains for the appropriate functions.

The Quartus II Compiler creates carry chains longer than 16 LEs by
automatically linking LABs in the same column. For enhanced fitting, a
long carry chain runs vertically, which allows fast horizontal connections
to M4K memory blocks or embedded multipliers through direct link
interconnects. For example, if a design has a long carry chain in a LAB
column next to a column of M4K memory blocks, any LE output can feed
an adjacent M4K memory block through the direct link interconnect.
Whereas if the carry chains ran horizontally, any LAB not next to the
column of M4K memory blocks would use other row or column
interconnects to drive a M4K memory block. A carry chain continues as
far as a full column.

clock (LAB Wide)

ena (LAB Wide)

aclr (LAB Wide)

CLRN

D

Q

ENA

Register chain

connection

sclear

(LAB Wide)

sload

(LAB Wide)

Register
chain output

Row, column, and
direct link routing

Row, column, and
direct link routing

Local routing

Register Feedback

Three-Input

LUT

Three-Input

LUT

cin (from cout

of previous LE)

data2

data1

cout

Altera Corporation

2–7

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Logic Array
Blocks

Each LAB consists of the following:

■

16 LEs

■

LAB control signals

■

LE carry chains

■

Register chains

■

Local interconnect

The local interconnect transfers signals between LEs in the same LAB.
Register chain connections transfer the output of one LE’s register to the
adjacent LE’s register within an LAB. The Quartus II Compiler places
associated logic within an LAB or adjacent LABs, allowing the use of
local, and register chain connections for performance and area efficiency.

Figure 2–5

 shows the Cyclone II LAB.

Figure 2–5. Cyclone II LAB Structure

Direct link
interconnect
from adjacent
block

Direct link
interconnect
to adjacent
block

Row Interconnect

Column
Interconnect

Local Interconnect

LAB

Direct link
interconnect
from adjacent
block

Direct link
interconnect
to adjacent
block

2–8

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Logic Array Blocks

LAB Interconnects

The LAB local interconnect can drive LEs within the same LAB. The LAB
local interconnect is driven by column and row interconnects and LE
outputs within the same LAB. Neighboring LABs, PLLs, M4K RAM
blocks, and embedded multipliers from the left and right can also drive
an LAB’s local interconnect through the direct link connection. The direct
link connection feature minimizes the use of row and column
interconnects, providing higher performance and flexibility. Each LE can
drive 48 LEs through fast local and direct link interconnects.

Figure 2–6



shows the direct link connection.

Figure 2–6. Direct Link Connection

LAB Control Signals

Each LAB contains dedicated logic for driving control signals to its LEs.
The control signals include:

■

Two clocks

■

Two clock enables

■

Two asynchronous clears

■

One synchronous clear

■

One synchronous load

LAB

Direct link
interconnect
to right

Direct link interconnect from
right LAB, M4K memory
block, embedded multiplier,
PLL, or IOE output

Direct link interconnect from

left LAB, M4K memory

block, embedded multiplier,

PLL, or IOE output

Local

Interconnect

Direct link

interconnect

to left

Altera Corporation

2–9

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

This gives a maximum of seven control signals at a time. When using the
LAB-wide synchronous load, the

clkena

 of

labclk1

 is not available.

Additionally, register packing and synchronous load cannot be used
simultaneously.

Each LAB can have up to four non-global control signals. Additional LAB
control signals can be used as long as they are global signals.

Synchronous clear and load signals are useful for implementing counters
and other functions. The synchronous clear and synchronous load signals
are LAB-wide signals that affect all registers in the LAB.

Each LAB can use two clocks and two clock enable signals. Each LAB’s
clock and clock enable signals are linked. For example, any LE in a
particular LAB using the

labclk1

 signal also uses

labclkena1

. If the

LAB uses both the rising and falling edges of a clock, it also uses both
LAB-wide clock signals. De-asserting the clock enable signal turns off the
LAB-wide clock.

The LAB row clocks [5..0] and LAB local interconnect generate the LAB-
wide control signals. The MultiTrack

™

 interconnect’s inherent low skew

allows clock and control signal distribution in addition to data.

Figure 2–7



shows the LAB control signal generation circuit.

Figure 2–7. LAB-Wide Control Signals

LAB-wide signals control the logic for the register’s clear signal. The LE
directly supports an asynchronous clear function. Each LAB supports up
to two asynchronous clear signals (

labclr1

 and

labclr2

).

labclkena1

labclk2

labclk1

labclkena2

labclr1

Dedicated
LAB Row
Clocks

Local
Interconnect

Local
Interconnect

Local
Interconnect

Local
Interconnect

syncload

synclr

labclr2

6

2–10

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

MultiTrack Interconnect

A LAB-wide asynchronous load signal to control the logic for the
register’s preset signal is not available. The register preset is achieved by
using a NOT gate push-back technique. Cyclone II devices can only
support either a preset or asynchronous clear signal.

In addition to the clear port, Cyclone II devices provide a chip-wide reset
pin (

DEV_CLRn

) that resets all registers in the device. An option set before

compilation in the Quartus II software controls this pin. This chip-wide
reset overrides all other control signals.

MultiTrack
Interconnect

In the Cyclone II architecture, connections between LEs, M4K memory
blocks, embedded multipliers, and device I/O pins are provided by the
MultiTrack interconnect structure with DirectDrive™ technology. The
MultiTrack interconnect consists of continuous, performance-optimized
routing lines of different speeds used for inter- and intra-design block
connectivity. The Quartus II Compiler automatically places critical paths
on faster interconnects to improve design performance.

DirectDrive technology is a deterministic routing technology that ensures
identical routing resource usage for any function regardless of placement
within the device. The MultiTrack interconnect and DirectDrive
technology simplify the integration stage of block-based designing by
eliminating the re-optimization cycles that typically follow design
changes and additions.

The MultiTrack interconnect consists of row (direct link, R4, and R24) and
column (register chain, C4, and C16) interconnects that span fixed
distances. A routing structure with fixed-length resources for all devices
allows predictable and repeatable performance when migrating through
different device densities.

Row Interconnects

Dedicated row interconnects route signals to and from LABs, PLLs, M4K
memory blocks, and embedded multipliers within the same row. These
row resources include:

■

Direct link interconnects between LABs and adjacent blocks

■

R4 interconnects traversing four blocks to the right or left

■

R24 interconnects for high-speed access across the length of the
device

Altera Corporation

2–11

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

The direct link interconnect allows an LAB, M4K memory block, or
embedded multiplier block to drive into the local interconnect of its left
and right neighbors. Only one side of a PLL block interfaces with direct
link and row interconnects. The direct link interconnect provides fast
communication between adjacent LABs and/or blocks without using
row interconnect resources.

The R4 interconnects span four LABs, three LABs and one M4K memory
block, or three LABs and one embedded multiplier to the right or left of a
source LAB. These resources are used for fast row connections in a four-
LAB region. Every LAB has its own set of R4 interconnects to drive either
left or right.

Figure 2–8

 shows R4 interconnect connections from an LAB.

R4 interconnects can drive and be driven by LABs, M4K memory blocks,
embedded multipliers, PLLs, and row IOEs. For LAB interfacing, a
primary LAB or LAB neighbor (see

Figure 2–8

) can drive a given R4

interconnect. For R4 interconnects that drive to the right, the primary
LAB and right neighbor can drive on to the interconnect. For R4
interconnects that drive to the left, the primary LAB and its left neighbor
can drive on to the interconnect. R4 interconnects can drive other R4
interconnects to extend the range of LABs they can drive. Additionally,
R4 interconnects can drive R24 interconnects, C4, and C16 interconnects
for connections from one row to another.

Figure 2–8. R4 Interconnect Connections

Notes to

Figure 2–8

:

(1)

C4 interconnects can drive R4 interconnects.

(2)

This pattern is repeated for every LAB in the LAB row.

Primary
LAB (2)

R4 Interconnect

Driving Left

Adjacent LAB can
Drive onto Another
LAB's R4 Interconnect

C4 Column Interconnects (1)

R4 Interconnect
Driving Right

LAB

Neighbor

LAB

Neighbor

2–12

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

MultiTrack Interconnect

R24 row interconnects span 24 LABs and provide the fastest resource for
long row connections between non-adjacent LABs, M4K memory blocks,
dedicated multipliers, and row IOEs. R24 row interconnects drive to
other row or column interconnects at every fourth LAB. R24 row
interconnects drive LAB local interconnects via R4 and C4 interconnects
and do not drive directly to LAB local interconnects. R24 interconnects
can drive R24, R4, C16, and C4 interconnects.

Column Interconnects

The column interconnect operates similar to the row interconnect. Each
column of LABs is served by a dedicated column interconnect, which
vertically routes signals to and from LABs, M4K memory blocks,
embedded multipliers, and row and column IOEs. These column
resources include:

■

Register chain interconnects within an LAB

■

C4 interconnects traversing a distance of four blocks in an up and
down direction

■

C16 interconnects for high-speed vertical routing through the device

Cyclone II devices include an enhanced interconnect structure within
LABs for routing LE output to LE input connections faster using register
chain connections. The register chain connection allows the register
output of one LE to connect directly to the register input of the next LE in
the LAB for fast shift registers. The Quartus II Compiler automatically
takes advantage of these resources to improve utilization and
performance.

Figure 2–9

 shows the register chain interconnects.

Altera Corporation

2–13

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Figure 2–9. Register Chain Interconnects

The C4 interconnects span four LABs, M4K blocks, or embedded
multipliers up or down from a source LAB. Every LAB has its own set of
C4 interconnects to drive either up or down.

Figure 2–10

 shows the C4

interconnect connections from an LAB in a column. The C4 interconnects
can drive and be driven by all types of architecture blocks, including
PLLs, M4K memory blocks, embedded multiplier blocks, and column
and row IOEs. For LAB interconnection, a primary LAB or its LAB
neighbor (see

Figure 2–10

) can drive a given C4 interconnect. C4

interconnects can drive each other to extend their range as well as drive
row interconnects for column-to-column connections.

LE 1

LE 2

LE 3

LE 4

LE 5

LE 6

LE 7

LE 8

LE 9

LE 10

LE 11

LE 12

LE13

LE 14

LE 15

LE 16

Carry Chain

Routing to

Adjacent LE

Local

Interconnect

Register Chain
Routing to Adjacent
LE's Register Input

Local Interconnect
Routing Among LEs
in the LAB

2–14

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

MultiTrack Interconnect

Figure 2–10. C4 Interconnect Connections

Note (1)

Note to

Figure 2–10

:

(1)

Each C4 interconnect can drive either up or down four rows.

C4 Interconnect
Drives Local and R4
Interconnects
Up to Four Rows

Adjacent LAB can

drive onto neighboring
LAB's C4 interconnect

C4 Interconnect
Driving Up

C4 Interconnect
Driving Down

LAB

Row
Interconnect

Local

Interconnect

Primary

LAB

LAB

Neighbor

Altera Corporation

2–15

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

C16 column interconnects span a length of 16 LABs and provide the
fastest resource for long column connections between LABs, M4K
memory blocks, embedded multipliers, and IOEs. C16 column
interconnects drive to other row and column interconnects at every
fourth LAB. C16 column interconnects drive LAB local interconnects via
C4 and R4 interconnects and do not drive LAB local interconnects
directly. C16 interconnects can drive R24, R4, C16, and C4 interconnects.

Device Routing

All embedded blocks communicate with the logic array similar to
LAB-to-LAB interfaces. Each block (for example, M4K memory,
embedded multiplier, or PLL) connects to row and column interconnects
and has local interconnect regions driven by row and column
interconnects. These blocks also have direct link interconnects for fast
connections to and from a neighboring LAB.

Table 2–1

 shows the Cyclone II device’s routing scheme.

Table 2–1. Cyclone II Device Routing Scheme (Part 1 of 2)

Source

Destination

Register

 Chain

Loca

l Inter

connect

Direct Link

Interconnect

R4 Interconn

ect

R2

4 Interconnect

C4 Intercon

nect

C16 Interconnect

LE

M4K RAM Bloc

k

Embe

dded Multiplier

PLL

Col

u

mn IO

E

Ro

w I

O

E

Register
Chain

v

Local
Interconnect

v

v

v

v

v

v

Direct Link
Interconnect

v

R4
Interconnect

v

v

v

v

v

R24
Interconnect

v

v

v

v

C4
Interconnect

v

v

v

v

v

C16
Interconnect

v

v

v

v

2–16

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Global Clock Network & Phase-Locked Loops

Global Clock
Network &
Phase-Locked
Loops

Cyclone II devices provide global clock networks and up to four PLLs for
a complete clock management solution. Cyclone II clock network features
include:

■

Up to 16 global clock networks

■

Up to four PLLs

■

Global clock network dynamic clock source selection

■

Global clock network dynamic enable and disable

LE

v

v

v

v

v

M4K memory
Block

v

v

v

v

Embedded
Multipliers

v

v

v

v

PLL

v

v

v

Column IOE

v

v

Row IOE

v

v

v

v

Table 2–1. Cyclone II Device Routing Scheme (Part 2 of 2)

Source

Destination

Register Chain

Local Inte

rconn

ect

Direct Link

Interconnect

R4 Interco

nnect

R24 Interconnect

C4 Interconnect

C16 Inter

connect

LE

M4K

 R

A

M

Bl

ock

Embedded Multiplier

PL

L

Col

u

mn IO

E

Row IO

E

Altera Corporation

2–17

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Each global clock network has a clock control block to select from a
number of input clock sources (PLL clock outputs,

CLK[]

 pins,

DPCLK[]



pins, and internal logic) to drive onto the global clock network.

Table 2–2



lists how many PLLs,

CLK[]

 pins,

DPCLK[]

 pins, and global clock

networks are available in each Cyclone II device.

CLK[]

 pins are

dedicated clock pins and

DPCLK[]

 pins are dual-purpose clock pins.

Figures 2–11

 and

2–12

 show the location of the Cyclone II PLLs,

CLK[]



inputs,

DPCLK[]

 pins, and clock control blocks.

Table 2–2. Cyclone II Device Clock Resources

Device

Number of

PLLs

Number of

CLK Pins

Number of

DPCLK Pins

Number of

Global Clock

Networks

EP2C5

2

8

8

8

EP2C8

2

8

8

8

EP2C15

4

16

20

16

EP2C20

4

16

20

16

EP2C35

4

16

20

16

EP2C50

4

16

20

16

EP2C70

4

16

20

16

2–18

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Global Clock Network & Phase-Locked Loops

Figure 2–11. EP2C5 & EP2C8 PLL, CLK[], DPCLK[] & Clock Control Block Locations

Note to

Figure 2–11

:

(1)

There are four clock control blocks on each side.

PLL 2

CLK[7..4]

DPCLK7

DPCLK6

CLK[3..0]

DPCLK0

DPCLK1

DPCLK10

DPCLK8

DPCLK2

GCLK[7..0]

GCLK[7..0]

DPCLK4

PLL 1

8

8

8

8

Clock Control

Block (1)

Clock Control

Block (1)

4

4

4

4

Altera Corporation

2–19

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Figure 2–12. EP2C15 & Larger PLL, CLK[], DPCLK[] & Clock Control Block Locations

Notes to

Figure 2–12

:

(1)

There are four clock control blocks on each side.

(2)

Only one of the corner

CDPCLK

 pins in each corner can feed the clock control block at a time. The other

CDPCLK

 pins

can be used as general-purpose I/O pins.

PLL 4

PLL 3

PLL 2

CLK[7..4]

DPCLK7

CDPCLK5

CDPCLK4

DPCLK6

CLK[3..0]

DPCLK0

CDPCLK0

CDPCLK1

DPCLK1

CDPCLK7

DPCLK[9..8]

DPCLK[11..10]

CLK[11..8]

GCLK[15..0]

GCLK[15..0]

PLL 1

CDPCLK6

CDPCLK2

DPCLK[5..4]

DPCLK[3..2]

CLK[15..12]

CDPCLK3

Clock Control

Block (1)

Clock Control

Block (1)

16

16

16

16

2

2

4

4

4

4

4

2

2

4

(2)

(2)

(2)

(2)

4

4

3

3

3

3

2–20

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Global Clock Network & Phase-Locked Loops

Dedicated Clock Pins

Larger Cyclone II devices (EP2C15 and larger devices) have 16 dedicated
clock pins (

CLK[15..0]

, four pins on each side of the device). Smaller

Cyclone II devices (EP2C5 and EP2C8 devices) have eight dedicated clock
pins (

CLK[7..0]

, four pins on left and right sides of the device). These

CLK

 pins drive the global clock network (GCLK), as shown in

Figures 2–11

 and

2–12

.

If the dedicated clock pins are not used to feed the global clock networks,
they can be used as general-purpose input pins to feed the logic array
using the MultiTrack interconnect. However, if they are used as general-
purpose input pins, they do not have support for an I/O register and
must use LE-based registers in place of an I/O register.

Dual-Purpose Clock Pins

Cyclone II devices have either 20 dual-purpose clock pins,

DPCLK[19..0]

 or 8 dual-purpose clock pins,

DPCLK[7..0]

. In the

larger Cyclone II devices (EP2C15 devices and higher), there are
20

DPCLK

 pins; four on the left and right sides and six on the top and

bottom of the device. The corner

CDPCLK

 pins are first multiplexed before

they drive into the clock control block. Since the signals pass through a
multiplexer before feeding the clock control block, these signals incur
more delay to the clock control block than other

DPCLK

 pins that directly

feed the clock control block. In the smaller Cyclone II devices (EP2C5 and
EP2C8 devices), there are eight

DPCLK

 pins; two on each side of the device

(see

Figures 2–11

 and

2–12

).

A programmable delay chain is available from the

DPCLK

 pin to its fan-

out destinations. To set the propagation delay from the

DPCLK

 pin to its

fan-out destinations, use the

Input Delay from Dual-Purpose Clock Pin

to Fan-Out Destinations

 assignment in the Quartus II software.

These dual-purpose pins can connect to the global clock network for
high-fanout control signals such as clocks, asynchronous clears, presets,
and clock enables, or protocol control signals such as

TRDY

 and

IRDY

 for

PCI, or DQS signals for external memory interfaces.

Altera Corporation

2–21

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Global Clock Network

The 16 or 8 global clock networks drive throughout the entire device.
Dedicated clock pins (

CLK[]

), PLL outputs, the logic array, and

dual-purpose clock (

DPCLK[]

) pins can also drive the global clock

network.

The global clock network can provide clocks for all resources within the
device, such as IOEs, LEs, memory blocks, and embedded multipliers.
The global clock lines can also be used for control signals, such as clock
enables and synchronous or asynchronous clears fed from the external
pin, or DQS signals for DDR SDRAM or QDRII SRAM interfaces. Internal
logic can also drive the global clock network for internally generated
global clocks and asynchronous clears, clock enables, or other control
signals with large fan-out.

Clock Control Block

There is a clock control block for each global clock network available in
Cyclone II devices. The clock control blocks are arranged on the device
periphery and there are a maximum of 16 clock control blocks available
per Cyclone II device. The larger Cyclone II devices (EP2C15 devices and
larger) have 16 clock control blocks, four on each side of the device. The
smaller Cyclone II devices (EP2C5 and EP2C8 devices) have eight clock
control blocks, four on the left and right sides of the device.

The control block has these functions:

■

Dynamic global clock network clock source selection

■

Dynamic enable/disable of the global clock network

In Cyclone II devices, the dedicated

CLK[]

 pins, PLL counter outputs,

DPCLK[]

 pins, and internal logic can all feed the clock control block. The

output from the clock control block in turn feeds the corresponding
global clock network.

The following sources can be inputs to a given clock control block:

■

Four clock pins on the same side as the clock control block

■

Three PLL clock outputs from a PLL

■

Four

DPCLK

 pins (including

CDPCLK

 pins) on the same side as the

clock control block

■

Four internally-generated signals

2–22

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Global Clock Network & Phase-Locked Loops

Of the sources listed, only two clock pins, two PLL clock outputs, one

DPCLK

 pin, and one internally-generated signal are chosen to drive into a

clock control block.

Figure 2–13

 shows a more detailed diagram of the

clock control block. Out of these six inputs, the two clock input pins and
two PLL outputs can be dynamic selected to feed a global clock network.
The clock control block supports static selection of

DPCLK

 and the signal

from internal logic.

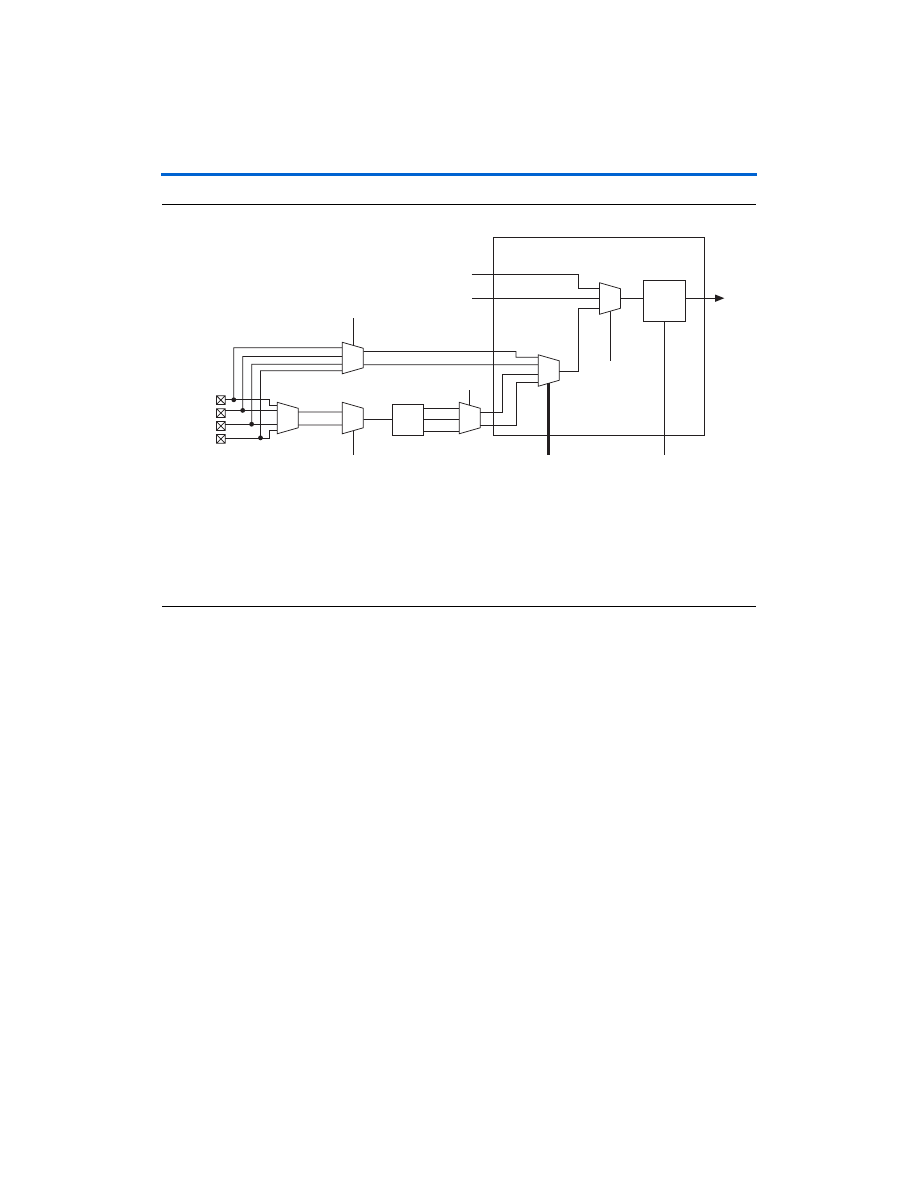

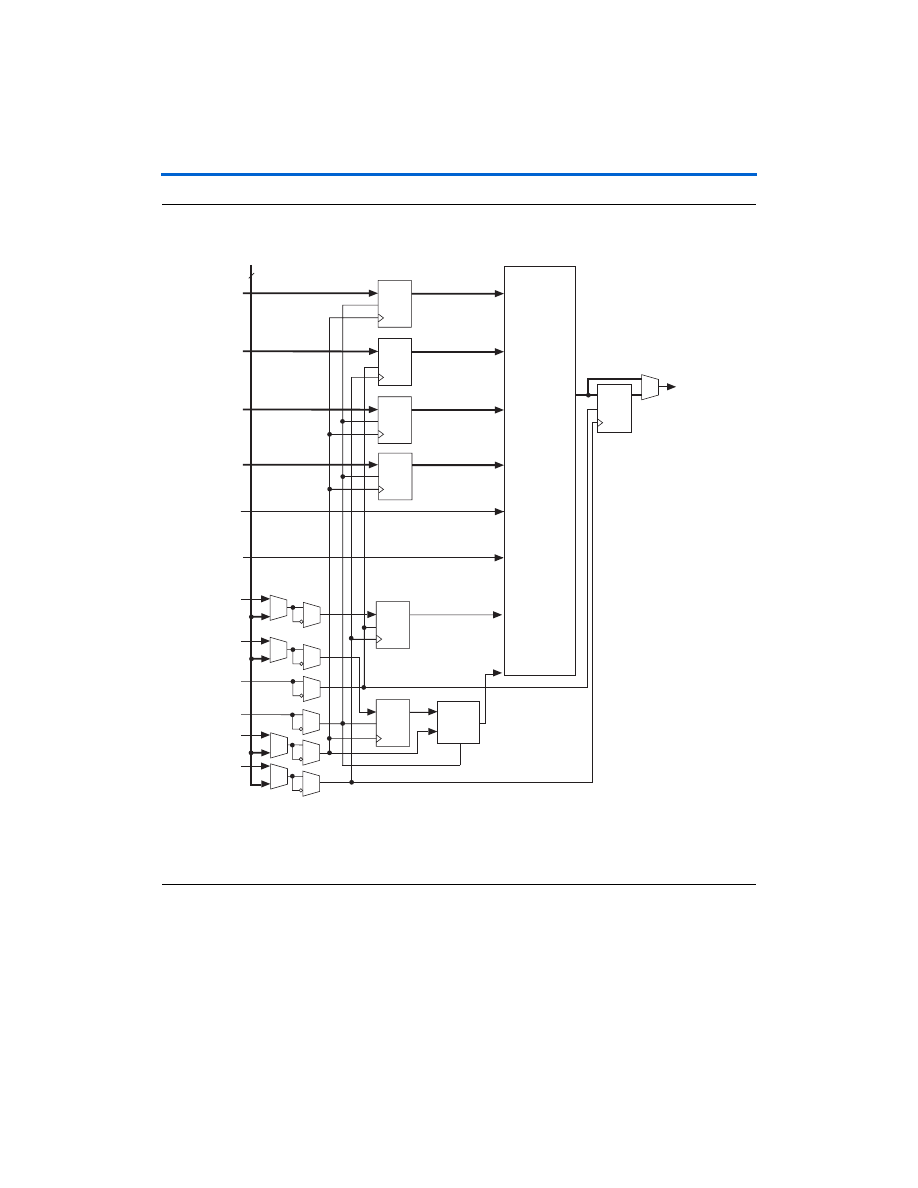

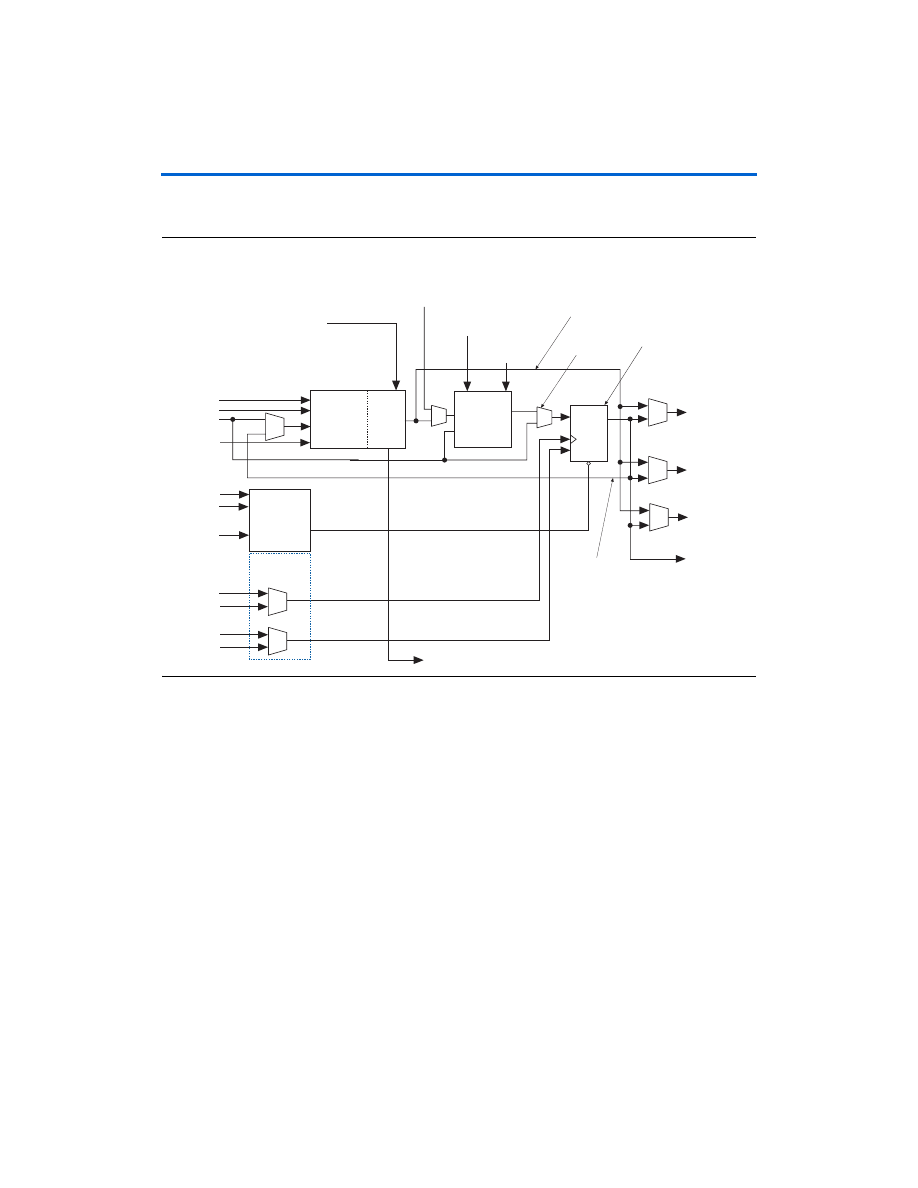

Figure 2–13. Clock Control Block

Notes to

Figure 2–13

:

(1)

The

CLKSWITCH

 signal can either be set through the configuration file or it can be dynamically set when using the

manual PLL switchover feature. The output of the multiplexer is the input reference clock (f

IN

) for the PLL.

(2)

The

CLKSELECT[1..0]

 signals are fed by internal logic and can be used to dynamically select the clock source for

the global clock network when the device is in user mode.

(3)

The static clock select signals are set in the configuration file and cannot be dynamically controlled when the device
is in user mode.

(4)

Internal logic can be used to enabled or disabled the global clock network in user mode.

CLKSWITCH

(1)

Static Clock Select

(3)

Static Clock

Select

(3)

Internal Logic

Clock Control Block

DPCLK or

CDPCLK

CLKSELECT[1..0]

(2)

CLKENA

(4)

inclk1
inclk0

CLK[

n

 + 3]

CLK[

n

 + 2]

CLK[

n

 + 1]

CLK[

n

]

f

IN

C0
C1
C2

PLL

Global
Clock

Enable/
Disable

(3)

Altera Corporation

2–23

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Global Clock Network Distribution

Cyclone II devices contains 16 global clock networks. The device uses
multiplexers with these clocks to form six-bit buses to drive column IOE
clocks, LAB row clocks, or row IOE clocks (see

Figure 2–14

). Another

multiplexer at the LAB level selects two of the six LAB row clocks to feed
the LE registers within the LAB.

Figure 2–14. Global Clock Network Multiplexers

LAB row clocks can feed LEs, M4K memory blocks, and embedded
multipliers. The LAB row clocks also extend to the row I/O clock regions.

IOE clocks are associated with row or column block regions. Only six
global clock resources feed to these row and column regions.

Figure 2–15



shows the I/O clock regions.

Clock [15 or 7..0]

Row I/O Region
IO_CLK [5..0]

Column I/O Region
IO_CLK [5..0]

LAB Row Clock
LABCLK[5..0]

Global Clock

Network

2–24

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Global Clock Network & Phase-Locked Loops

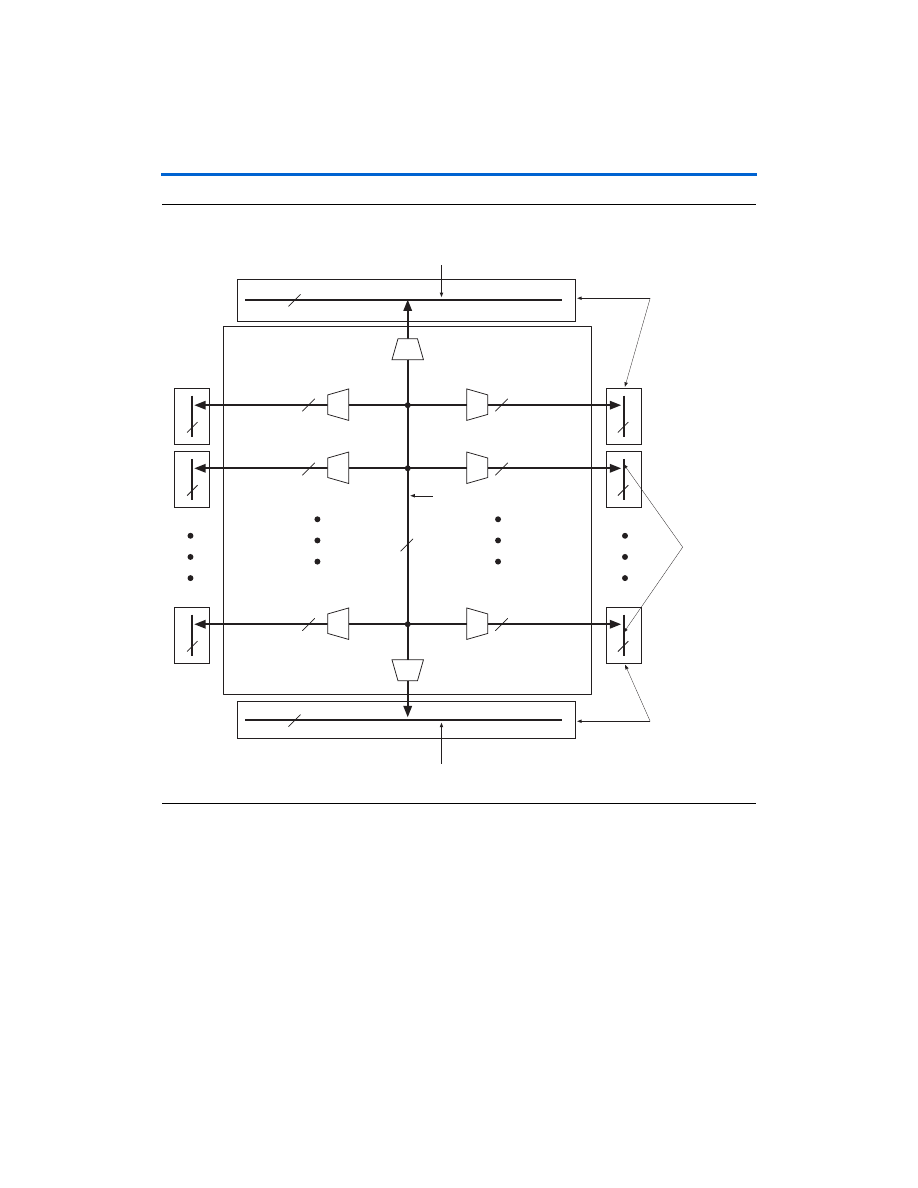

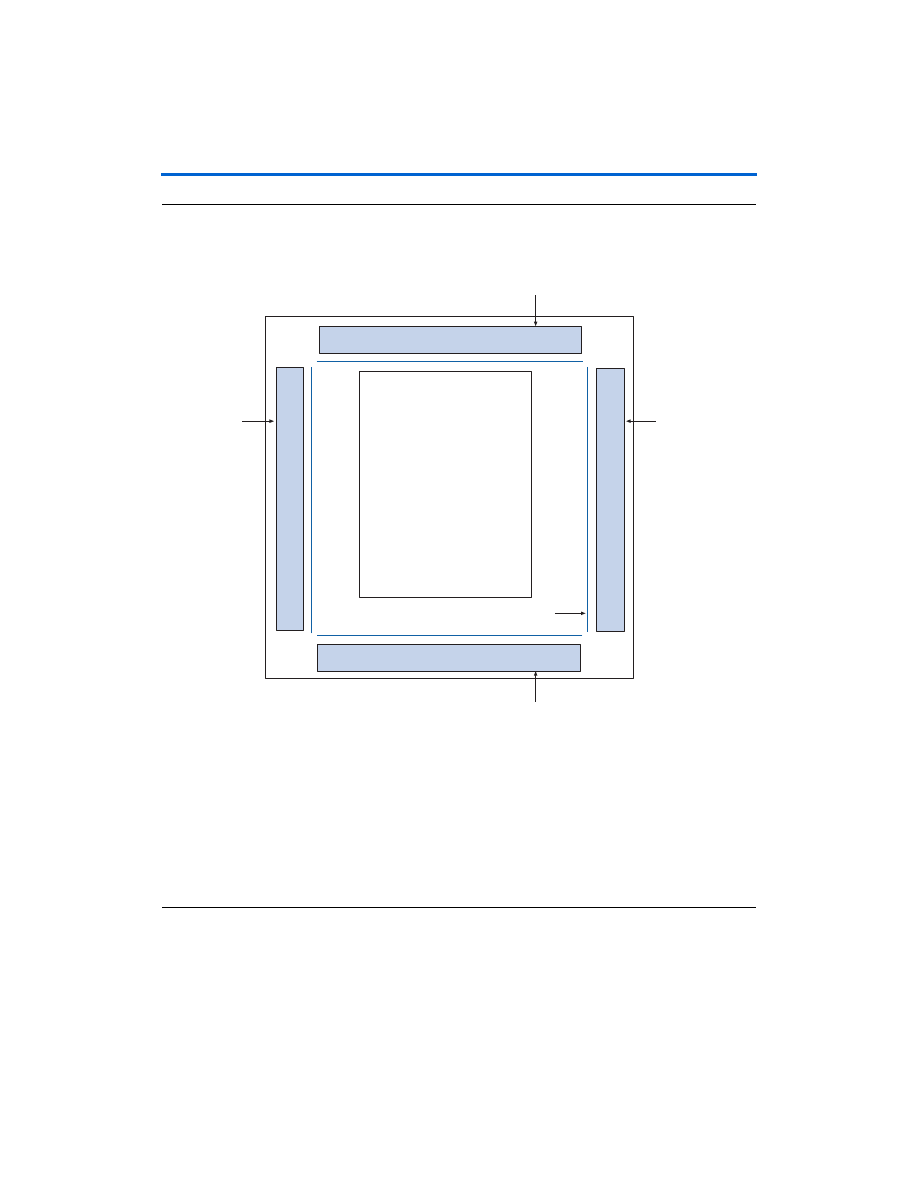

Figure 2–15. LAB & I/O Clock Regions

f

For more information on the global clock network and the clock control
block, see the

PLLs in Cyclone II Devices

 chapter in Volume 1 of the

Cyclone II Device Handbook

.

Column I/O Clock Region

IO_CLK[5..0]

Column I/O Clock Region

IO_CLK[5..0]

6

6

I/O Clock Regions

I/O Clock Regions

8 or 16

Global Clock
Network

Row I/O Clock
Region
IO_CLK[5..0]

Cyclone Logic Array

6

6

LAB Row Clocks

labclk[5..0]

LAB Row Clocks

labclk[5..0]

LAB Row Clocks

labclk[5..0]

LAB Row Clocks

labclk[5..0]

LAB Row Clocks

labclk[5..0]

LAB Row Clocks

labclk[5..0]

6

6

6

6

6

6

6

6

6

6

Altera Corporation

2–25

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

PLLs

Cyclone II PLLs provide general-purpose clocking as well as support for
the following features:

■

Clock multiplication and division

■

Phase shifting

■

Programmable duty cycle

■

Up to three internal clock outputs

■

One dedicated external clock output

■

Clock outputs for differential I/O support

■

Manual clock switchover

■

Gated lock signal

■

Three different clock feedback modes

■

Control signals

Cyclone II devices contain either two or four PLLs.

Table 2–3

 shows the

PLLs available for each Cyclone II device.

Table 2–3. Cyclone II Device PLL Availability

Device

PLL1

PLL2

PLL3

PLL4

EP2C5

v

v

EP2C8

v

v

EP2C15

v

v

v

v

EP2C20

v

v

v

v

EP2C35

v

v

v

v

EP2C50

v

v

v

v

EP2C70

v

v

v

v

2–26

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Global Clock Network & Phase-Locked Loops

Table 2–4

 describes the PLL features in Cyclone II devices.

Table 2–4. Cyclone II PLL Features

Feature

Description

Clock multiplication and division

m

 / (

n

 × post-scale counter)

m

 and post-scale counter values (C0 to C2) range from 1 to 32.

n

 ranges

from 1 to 4.

Phase shift

Cyclone II PLLs have an advanced clock shift capability that enables
programmable phase shifts in increments of at least 45°. The finest
resolution of phase shifting is determined by the voltage control oscillator
(VCO) period divided by 8 (for example, 1/1000 MHz/8 = down to 125-ps
increments).

Programmable duty cycle

The programmable duty cycle allows PLLs to generate clock outputs with
a variable duty cycle. This feature is supported on each PLL post-scale
counter (C0-C2).

Number of internal clock outputs

The Cyclone II PLL has three outputs which can drive the global clock
network. One of these outputs (C2) can also drive a dedicated

PLL

<

#

>

_OUT

 pin (single ended or differential).

Number of external clock outputs

The C2 output drives a dedicated

PLL

<

#

>

_OUT

 pin. If the C2 output is not

used to drive an external clock output, it can be used to drive the internal
global clock network. The C2 output can concurrently drive the external
clock output and internal global clock network.

Manual clock switchover

The Cyclone II PLLs support manual switchover of the reference clock
through internal logic. This enables you to switch between two reference
input clocks during user mode for applications that may require clock
redundancy or support for clocks with two different frequencies.

Gated lock signal

The lock output indicates that there is a stable clock output signal in phase
with the reference clock. Cyclone II PLLs include a programmable counter
that holds the lock signal low for a user-selected number of input clock
transitions, allowing the PLL to lock before enabling the locked signal.
Either a gated locked signal or an ungated locked signal from the locked
port can drive internal logic or an output pin.

Clock feedback modes

In zero delay buffer mode, the external clock output pin is phase-aligned
with the clock input pin for zero delay.
In normal mode, the PLL compensates for the internal global clock network
delay from the input clock pin to the clock port of the IOE output registers
or registers in the logic array.
In no compensation mode, the PLL does not compensate for any clock
networks.

Control signals

The

pllenable

 signal enables and disables the PLLs.

The

areset

 signal resets/resynchronizes the inputs for each PLL.

The

pfdena

 signal controls the phase frequency detector (PFD) output

with a programmable gate.

Altera Corporation

2–27

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

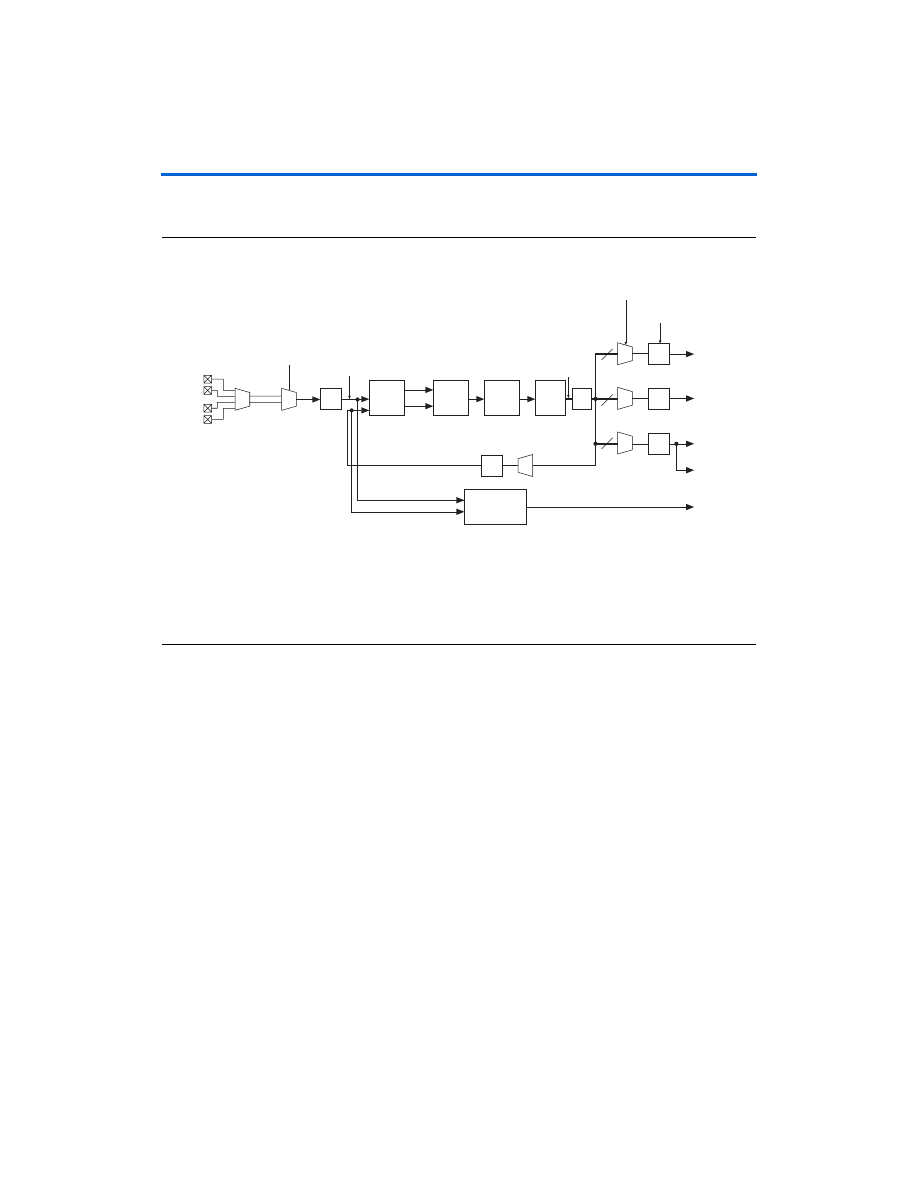

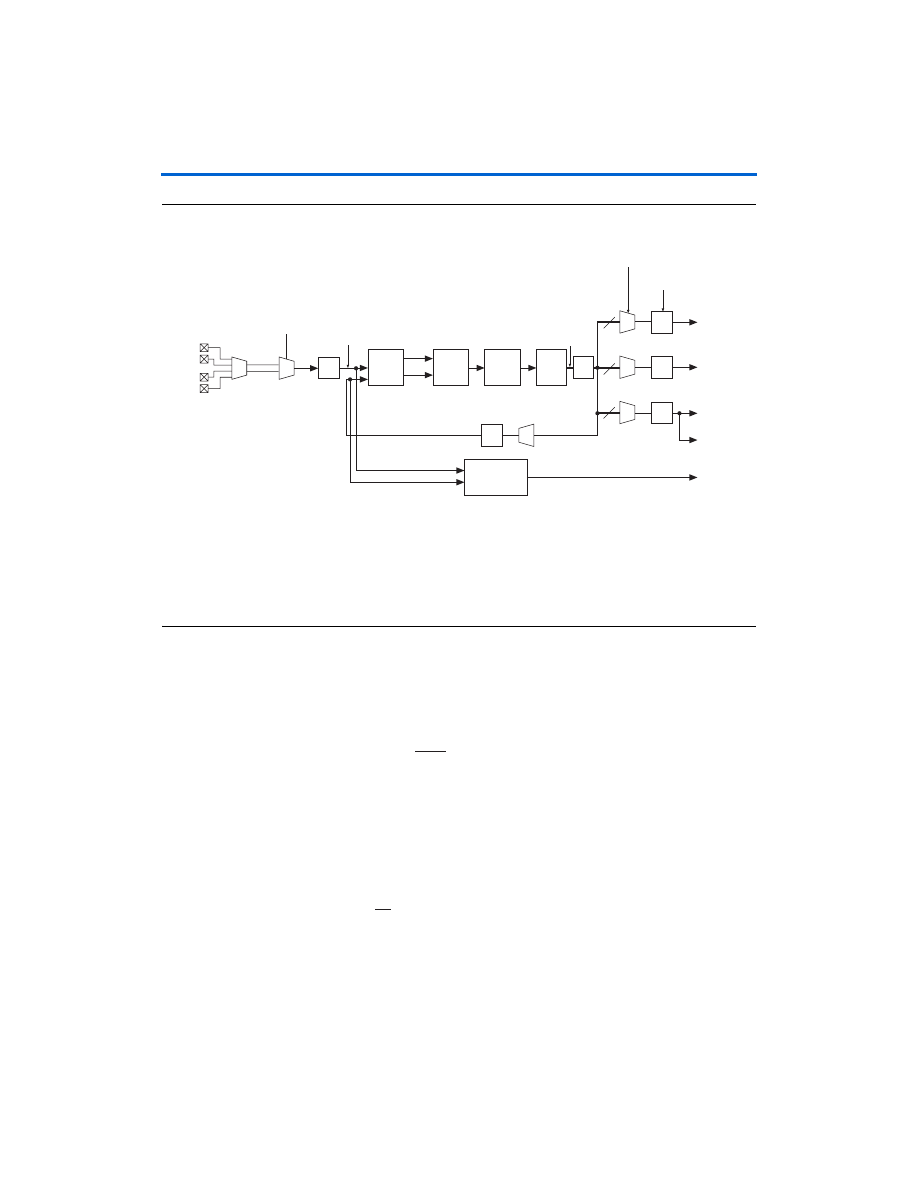

Figure 2–16

 shows a block diagram of the Cyclone II PLL.

Figure 2–16. Cyclone II PLL

Note (1)

Notes to

Figure 2–16

:

(1)

This input can be single-ended or differential. If you are using a differential I/O standard, then two

CLK

 pins are

used. LVDS input is supported via the secondary function of the dedicated

CLK

 pins. For example, the

CLK0

 pin’s

secondary function is

LVDSCLK1p

 and the

CLK1

 pin’s secondary function is

LVDSCLK1n

. If a differential I/O

standard is assigned to the PLL clock input pin, the corresponding

CLK(n)

 pin is also completely used. The

Figure 2–16

 shows the possible clock input connections (

CLK0

/

CLK1

) to PLL1.

(2)

This counter output is shared between a dedicated external clock output I/O and the global clock network.

f

For more information on Cyclone II PLLs, see the PLLs in the

Cyclone II

Devices

 chapter in Volume 1 of the

Cyclone II Device Handbook

.

Embedded
Memory

The Cyclone II embedded memory consists of columns of M4K memory
blocks. The M4K memory blocks include input registers that synchronize
writes and output registers to pipeline designs and improve system
performance. The output registers can be bypassed, but input registers
cannot.

PFD

Loop
Filter

Lock Detect

& Filter

VCO

Charge

Pump

÷c0

÷c1

÷c2

÷

m

÷

n

Global
Clock

Global
Clock

Global
Clock

To I/O or
general routing

PLL<

#

>_OUT

Post-Scale

Counters

VCO Phase Selection

Selectable at Each

PLL Output Port

CLK1

CLK3

CLK2

(1)

CLK0

(1)

inclk0

inclk1

up

down

8

8

8

f

VCO

f

FB

f

IN

Reference

Input Clock

f

REF

 = f

IN

/

n

(2)

Manual Clock

Switchover

Select Signal

÷k

(3)

2–28

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Embedded Memory

Each M4K block can implement various types of memory with or without
parity, including true dual-port, simple dual-port, and single-port RAM,
ROM, and first-in first-out (FIFO) buffers. The M4K blocks support the
following features:

■

4,608 RAM bits

■

250-MHz performance

■

True dual-port memory

■

Simple dual-port memory

■

Single-port memory

■

Byte enable

■

Parity bits

■

Shift register

■

FIFO buffer

■

ROM

■

Various clock modes

■

Address clock enable

1

Violating the setup or hold time on the memory block address
registers could corrupt memory contents. This applies to both
read and write operations.

Table 2–5

 shows the capacity and distribution of the M4K memory blocks

in each Cyclone II device.

Table 2–5. M4K Memory Capacity & Distribution in Cyclone II Devices

Device

M4K Columns

M4K Blocks

Total RAM Bits

EP2C5

2

26

119,808

EP2C8

2

36

165,888

EP2C15

2

52

239,616

EP2C20

2

52

239,616

EP2C35

3

105

483,840

EP2C50

3

129

594,432

EP2C70

5

250

1,152,000

Altera Corporation

2–29

February 2007

Cyclone II Device Handbook, Volume 1

Cyclone II Architecture

Table 2–6

 summarizes the features supported by the M4K memory.

Table 2–6. M4K Memory Features

Feature

Description

Maximum performance

(1)

250 MHz

Total RAM bits per M4K block (including parity bits)

4,608

Configurations supported

4K × 1
2K × 2
1K × 4
512 × 8
512 × 9
256 × 16
256 × 18
128 × 32 (not available in true dual-port mode)
128 × 36 (not available in true dual-port mode)

Parity bits

One parity bit for each byte. The parity bit, along with
internal user logic, can implement parity checking for
error detection to ensure data integrity.

Byte enable

M4K blocks support byte writes when the write port has
a data width of 1, 2, 4, 8, 9, 16, 18, 32, or 36 bits. The
byte enables allow the input data to be masked so the
device can write to specific bytes. The unwritten bytes
retain the previous written value.

Packed mode

Two single-port memory blocks can be packed into a
single M4K block if each of the two independent block
sizes are equal to or less than half of the M4K block
size, and each of the single-port memory blocks is
configured in single-clock mode.

Address clock enable

M4K blocks support address clock enable, which is
used to hold the previous address value for as long as
the signal is enabled. This feature is useful in handling
misses in cache applications.

Memory initialization file (

.mif

)

When configured as RAM or ROM, you can use an
initialization file to pre-load the memory contents.

Power-up condition

Outputs cleared

Register clears

Output registers only

Same-port read-during-write

New data available at positive clock edge

Mixed-port read-during-write

Old data available at positive clock edge

Note to

Table 2–6

:

(1)

Maximum performance information is preliminary until device characterization.

2–30

Altera Corporation

Cyclone II Device Handbook, Volume 1

February 2007

Embedded Memory

Memory Modes

Table 2–7

 summarizes the different memory modes supported by the

M4K memory blocks.

1

Embedded Memory can be inferred in your HDL code or
directly instantiated in the Quartus II software using the
MegaWizard

®

 Plug-in Manager Memory Compiler feature.

Table 2–7. M4K Memory Modes

Memory Mode

Description

Single-port memory

M4K blocks support single-port mode, used when
simultaneous reads and writes are not required.
Single-port memory supports non-simultaneous
reads and writes.

Simple dual-port memory

Simple dual-port memory supports a
simultaneous read and write.

Simple dual-port with mixed
width

Simple dual-port memory mode with different
read and write port widths.

True dual-port memory

True dual-port mode supports any combination of
two-port operations: two reads, two writes, or one
read and one write at two different clock
frequencies.

True dual-port with mixed
width

True dual-port mode with different read and write
port widths.
