Table of Contents

Please select your product. Click on the logo to return to the table of contents.

Title

Home
Philosophy

1 | AC/DC DIN-Rail 1phase 10W ... 1500W

LCR-Series
HPW00601 Low Inrush 700mA
HSW00751
HSW00901
HPW02401
HSE01201
HSE01201CC constant current DC source
HSE03201LIRC
HSR03201LIRC Redundant O-Ring
HSE04801
HPV04801
CPS-EC480
HSE06001
HSE07201
HSE10001
HPV10001
CPS-EC1000
CPS-EC1500
RED00202 1000W Redundant Module

2 | AC/DC DIN-Rail 3phase 480W ... 1000W

HSD04801
HSD10001

3 | AC/DC Programmable Laboratory Power Supply 480W ... > 100kW

HSEureg04801 480W Lab Power
HSEuireg04801 480W Lab Power
HSEureg07201 720W Lab Power
HSEuireg07201 720W Lab Power
HSEureg10001 1000W Lab Power
HSEuireg10001 1000W Lab Power
CPS-i1500 1500W Lab Power
CPS-i2000 2000W Lab Power
CPS-i3000 3000W Lab Power
USB2.0 UI.Drive-Interface HSEUIreg-Series

4 | AC/DC Embedded & Scalabel Power Supply 2kW ... >100kW

CPS-EP2000
CPS-EP3000

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 3 von 144

CPS-EX2000
CPS-EX3000

5 | DC-UPS / Battery Charger 480W ... >100kW

HSE01201CC DIN-Rail
CPS-EC480 DIN-Rail
CPS-EC1000 DIN-Rail
CPS-EC1500 DIN-Rail
DCUPS2U
GL1800 / RM1800

6 | AC/DC Rack Mount Power Supply 19 Inch

PSM00803
PSM01502
PSR01801 Redundant O-Ring
PSM02202

7 | AC/DC Chassis Mount Power Supply

APW00803S Baseplate
APW01502 Baseplate
APW02202 Baseplate

8 | AC/DC Open Frame Power Supply

OSW00301
OSW00751 Baseplate
OSW00901 Baseplate
OSE01201 Baseplate

9 | ESB AC Inrush Current Limiter 3,6kW ... 48kW

ESB101
ESB201.LED
ESB00351
ESB00163 (3PH)
ESB00323 (3PH)

10 | UMS DC FET-Relay Wearless 600W...2,4kW

UMS00025 600W
UMS00050 1200W
UMS00100 2400W
APW01303

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 4 von 144

CAMTEC - Pro-Power Made in Germany

CAMTEC engineers and manufactures .

The product range comprises AC/DC Power and for , , and . Camtec fabricates Programmable for the Test
Automation, similar to a Laboratory Power Supply.

Our portfolio includes Unbreakable Power Supplies, ,, up to 60KW. CSE provides Redundant-Modules, and for
the Automation Powertrain.

All our products are Made in Germany. Our FAB is regularly inspected  by the German TÜV. The Camtec
production is .

A Camtec Switch Mode Power Supply SMPS is designed for pro-applications like infrastructure, railway, traffic
control or military use. Our products provide oustanding data. Camtec power products achieve CE, RoHS and
REACH, as well as the new European (Energy-Using Products) EuP Eco-Design Directive.







camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 5 von 144

Product philosophy

Camtec Power Supplies provide safety and extended life-time.

Advanced Design...

Size ratio and power are standing well-balanced. Aware of physical headroom and high energy reserves,
CAMTEC power supplies are not trimmed tiny. Our engineers design pro-power products with emphasis on
ultimate lifetime and all-out product reliability. Connectors are mechanical oversized and electrical robust.
Cabling connections are located in cool area.

Solid Mechanical Design

The mechanical size and the power are well-balanced. Our design consciously features life-time and reliability
before a few cubic centimeters of volume savings. All mechanical and all power connections are robust and
electrical oversized. Power connections remain in cool operation areas. Our elaborate temperature design
protects sensitive parts from wear out. Endangered parts are fixed against shock and vibration, preferred
flexible substructure.

Variable Inputs...

Camtec power supplies are made for worldwide operation. The input filter dimension and the typical
hold-up-time healthy exceed standard requirements and the norms. The Camtec reliability and the rugged
design set the benchmark.

Complex Loads? ...consequently No! to the Fuse-Breaker-Design

Camtec power supplies provide a stable control loop and a very low ripple and noise. Huge energy resources
cover extended load changes. We consequently avoid excessive designs like the overpowered Fuse-Breaker
technology. Instead of an uncontrolled and imperiling power-boost we count on stored high energy buffer,
cyberspeed control loop and a controlled and continuous energy supply. A very long C/V chart without foldback
provides safe start-up of critical loads. In the process the control circuit masters the power supply safely even
under extreme operation conditions. The connected load is protected against damage and contrawise the load
can be as complex as conceivable - the Camtec power supplies are built to bear each challenge.

High Efficiency...

Camtec product efficiency plays top-class. Most of our products meet the 90%+ Green Power Standard. It
assures compact shape, lower heat emission, extended product lifetime and a high Meantime Between Failure
(MTBF). Our product standard approves -20°C bis +60°C full load over the complete AC-input range and very
moderate derating up to +70°C.

Quality is no Offer - it is a Promise: Life-Time made for 24/7

The efficiency of the Camtec power supplies belongs to the world top level. Lower power losses ensure lower

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 6 von 144

heat dissipation. This results in higher life time of all involved components and devices.
Regardless if prototype or a series production - each Camtec switch mode power supply is subject to our strict
quality control. The life time (MTTF Mean Time To Failure @ +40°C ambient) of our products, mostly exceed
160.000 hours. This fact comes to more than 18 years of 24/7 operation. The statistic MTTF (Mean Time
Between Failure) results in an upper level. Quality means to be consequent - even more concerning the
manufacturing base. Camtec Power Supplies GmbH designs and manufactures all products in its own
fabrication in Germany. The Camtec understands itself as a manufactory and a specialist - our staff lives quality.
In fact it already begins with the feasibility study. ISO9001:2008, Ul-certified fabrication, traceability and the
100% test of each product are no statistic luxury. For us it is the impression of a corporate culture that has just
one target in focus - customer satisfaction. Our statistic over a 10 years time period 2003 to 2013 showed a
failure rate of 0,004% of all Camtec products sold into the field. Selected sales partners in more than 50
countries locally support our customers.

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 7 von 144

Category:

AC/DC DIN-Rail 1phase 10W ... 1500W

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 8 von 144

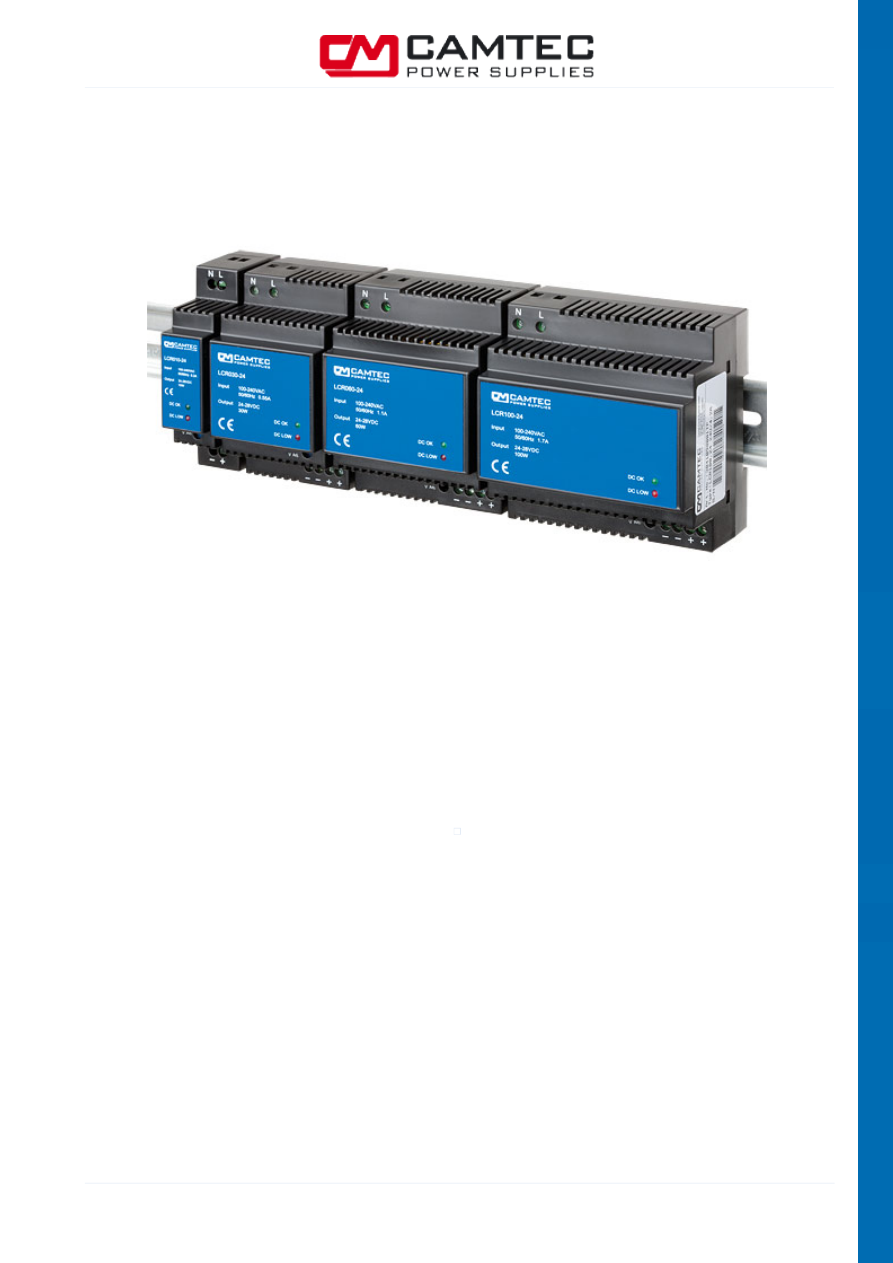

LCR-Series

Low Cost Industrial Class Switch Mode Power Supply

Fits into VDE0603 Sub-Distribution Switchbox





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 9 von 144

LCR Series

Model

LCR010.24 LCR030.24 LCR060.24 LCR100.24

Nominal Power

10W

30W

60W

100W

AC Nominal Input

100... 240Vac

AC Input Voltage

90... 264Vac

DC Input Voltage

140... 340Vdc

AC Frequency

47... 63Hz

Hold-Up Time

90ms

160ms

80ms

80ms

Inrush Current

41A

41A

81A

52A

Start

softstart

Output Voltage

24V

24V

24V

24V

Adjust Range

24 ... 28V

24 ... 28V

24 ... 28V

24 ... 28V

Ripple P-P

7mV

7mV

7mV

8mV

DC Nominal Current

420mA

1,25A

2,5A

4,2A

Load Regulation dyn.

±0,02%

Load Regulation Time

4,4ms

5,8ms

4,2ms

4,5ms

Efficiency 230Vac typ.

82%

85%

85%

86%

Base Load

none required

Short Circuit

continous protected

Ambient Operation

-10 bis +60°C

Cooling

natural

Temperature Control

yes, Hiccup, auto-recovery

Housing

VDE0603 for CB boxes

Type Class

IP20

Burn Proof Class

UL94V-0

Safety Norms

IEC60950-1/UL60950-1, EN60204

Safety IEC

EN60950-1 EN50178

Safety Class PELV

II A

Input- /Output Isolation

3000Vac

Humidity Operation

20 ... 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709 [h]

299T

287T

250T

248T

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 10 von 144







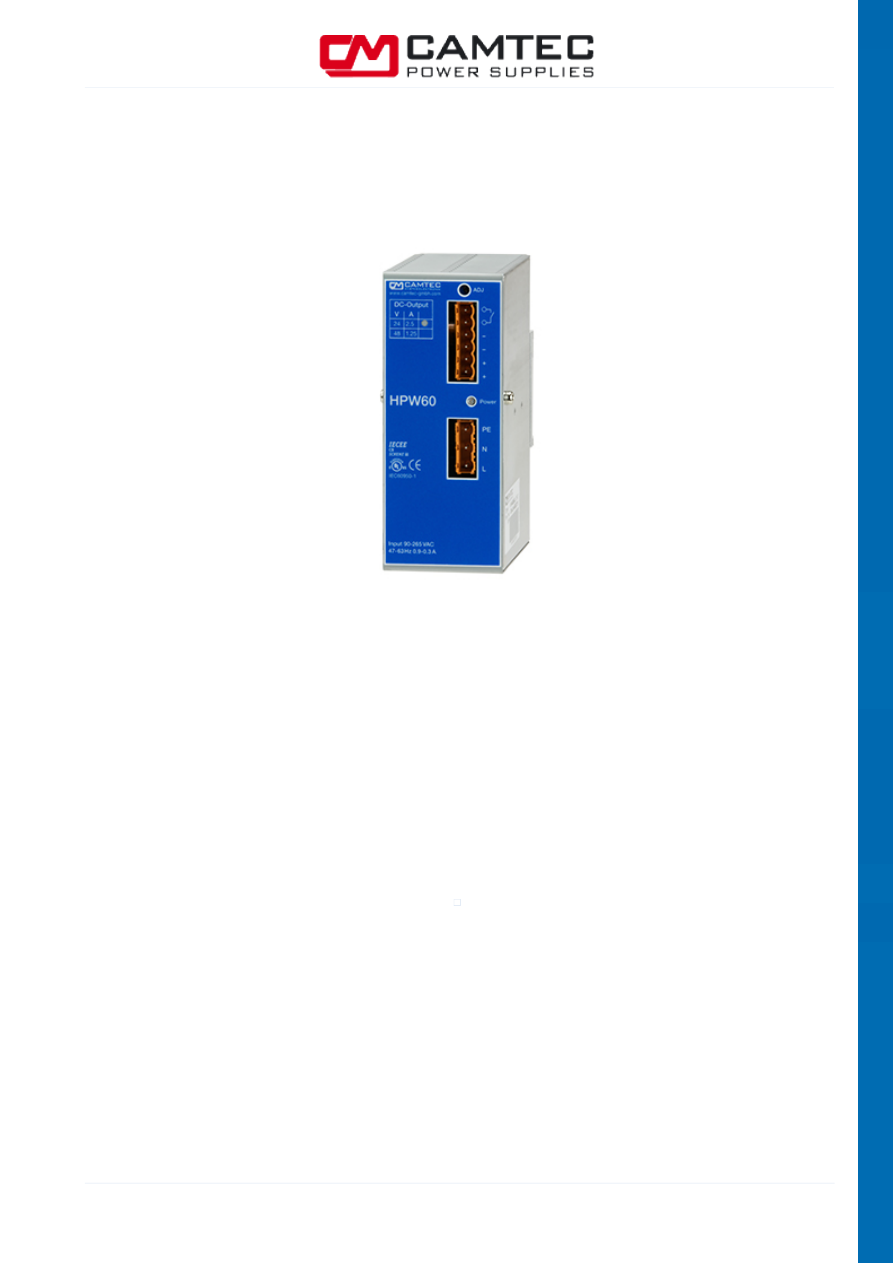

HPW00601

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Active Inrush Current Protection 0,7Apeak/0,5Arms

Active PFC

Temperature Control

Clean C/V chart without foldback, ideal for dc drives and dc-UPS





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 11 von 144

HPW00601

Model

HPW00601

Power

60W

Nominal AC Input

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

120... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current Protection

495mAeff / 700mApeak active protection ±5%

Autostart

Soft start

Output Voltage

24V

48V

Adjust Range Uout

22,5... 28,5V

40,5... 50,7V

Ripple & Noise mVss

20mV

40mV

Nominal Output Current

2,5A

1.25A

Power Boost <=60°C/60s

10%

Stability at Load Switch

±0,5%

Transient Time



Efficiency

86%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-15°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

50x124x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2D

EMS

EN61000-6-2,3

MTBF IEC61709

600000h

Power Good Relay

galvanic insulated 60Vdc

Sense operation

No

Remote Shutdown

No

Features

Active PFC

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 12 von 144







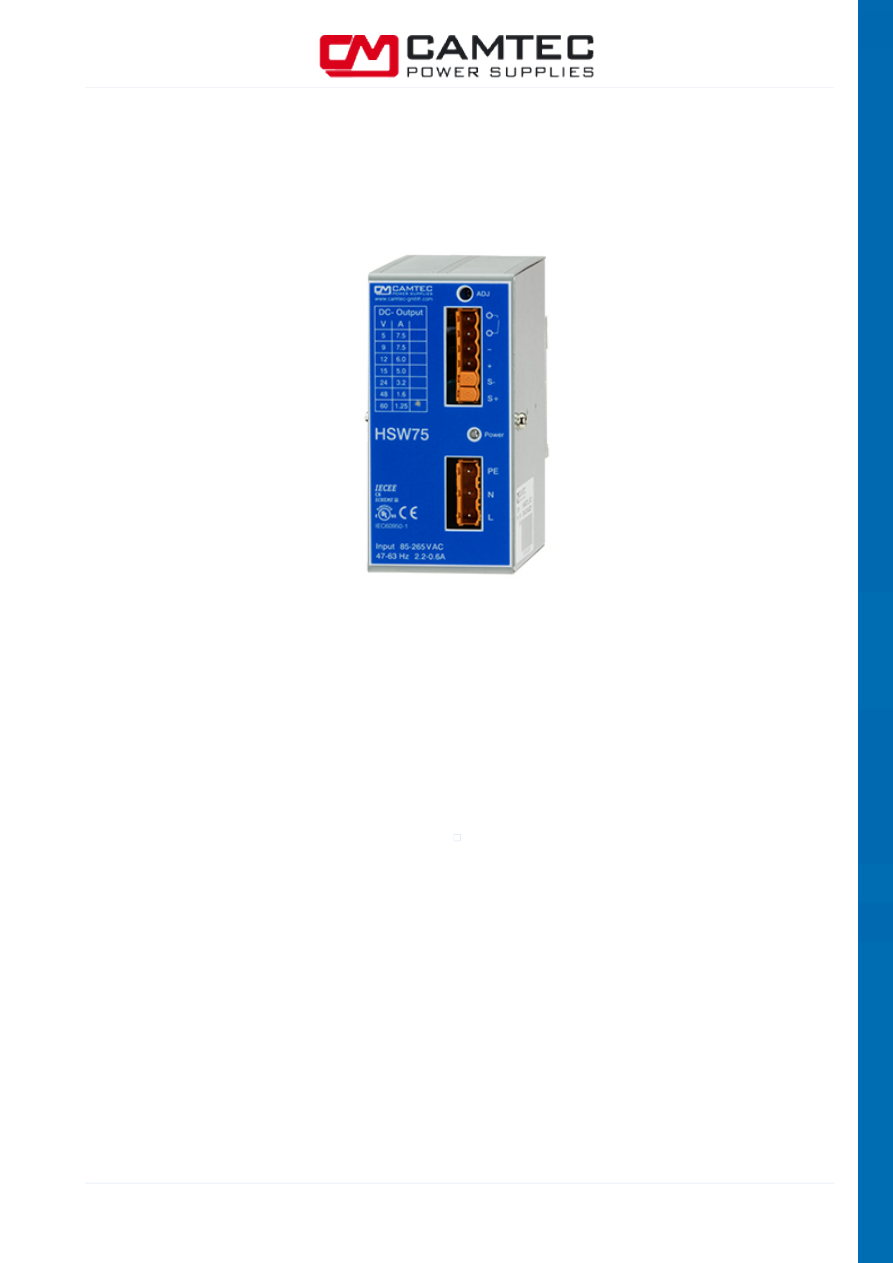

HSW00751

DIN-Rail 1phase Fixed Output TS35mm DIN EN 50022





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 13 von 144

HSW00751

Model

HSW00751

Power

75W

Nominal AC Input

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

110... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

NTC <32A

Autostart

Soft start 50ms

Output Voltage

5V

9V

12V

15V

24V

Adjust Range Vout

4,9... 5,5V 8,6... 9,9V 11,4... 13,2V 14,3... 16,5V 22,5... 28,5V

Ripple & Noise mVpp

15mV

15mV

20mV

20mV

50mV

Nominal Output Current

7,5A

7,6A

6A

5A

3,2A

Power Boost <=60°C/60s

9A

9,1A

7,2A

6A

3,8A

Stability at Load Switch

±0,1%

±0,5%

±0,3%

±0,2%

±0,1%

Transient Time

< 1ms

Efficiency

90%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Upon request

Dimensions (WxHxD)

50x102x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Galvanic insulated 60Vdc

Sense operation

Yes 5V-model ±200mV

Remote Shutdown

No

Ordering options

Protective Coating

Options

see Datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 14 von 144







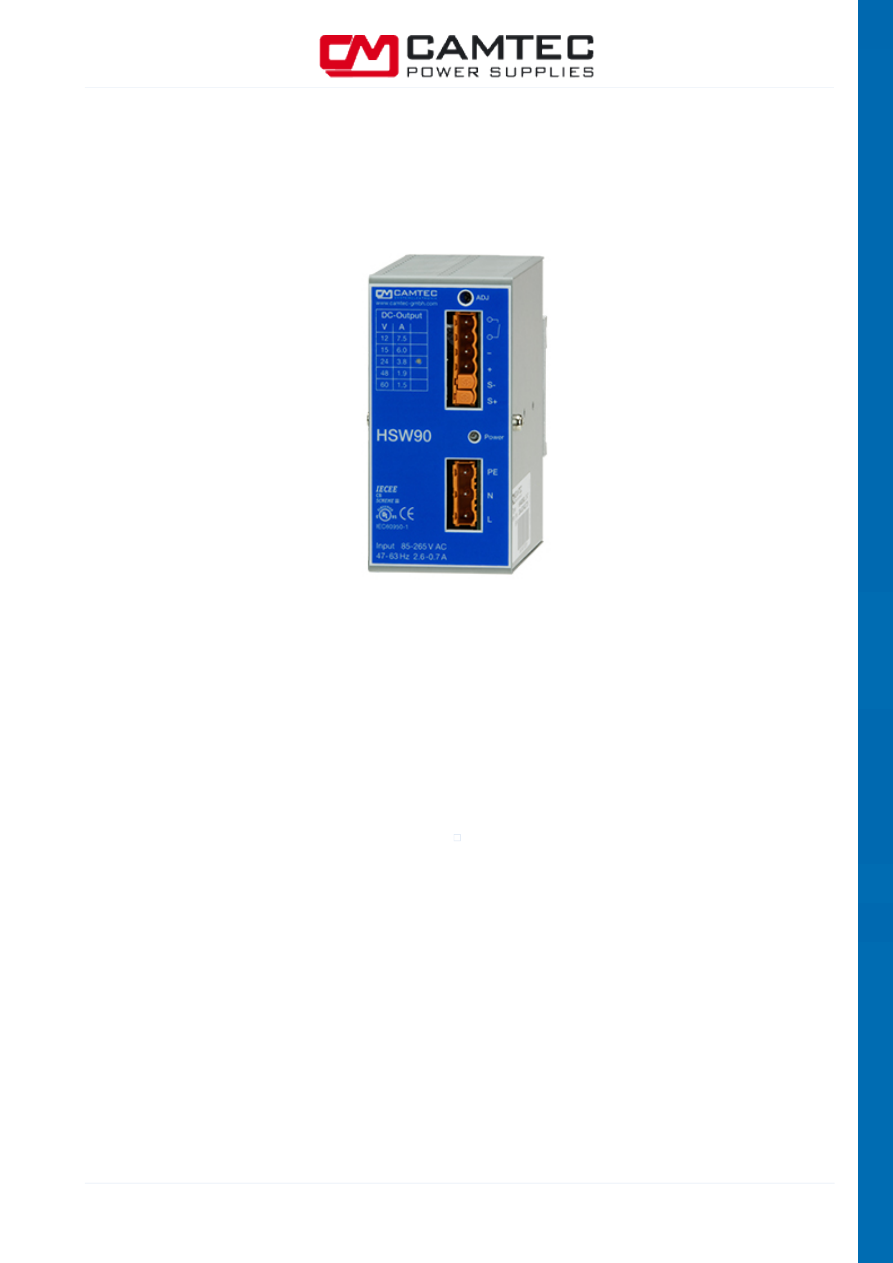

HSW00901

DIN-Rail 1phase Fixed Output TS35mm DIN EN 50022





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 15 von 144

HSW00901

Model

HSW00901

Power

90W

Nominal AC Input

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

110... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

NTC < 32A

Autostart

Soft start

Output Voltage

24V

36V

48V

60V

72V

140V

Adjust Range Vout

22,5... 28,5V 34,2... 39,6V 45,6... 52,8V 57... 66V 68... 68V 133... 155V

Ripple & Noise mVpp

50mV

50mV

60mV

100mV

120mV

120mV

Nominal Output Current

3,8A

2,5A

1,9A

1,5A

1,3A

640mA

Power Boost <=60°C/60s

4,6A

3,0A

2,7A

1,8A

1,6A

770mA

Stability at Load Switch

±0,1%

±0,1%

±0,1%

±0,1%

±0,3%

±0,5%

Transient Time

< 1ms

Efficiency

90%

Basic load

Idling-proof

Short Circuit Protection

Short circuit protected

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural Convection

Temperature Monitoring

Upon request

Dimensions (WxHxD)

50x102x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

galvan. insulated 60Vdc

Ordering options

Protective Coating

Options

see Datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 16 von 144







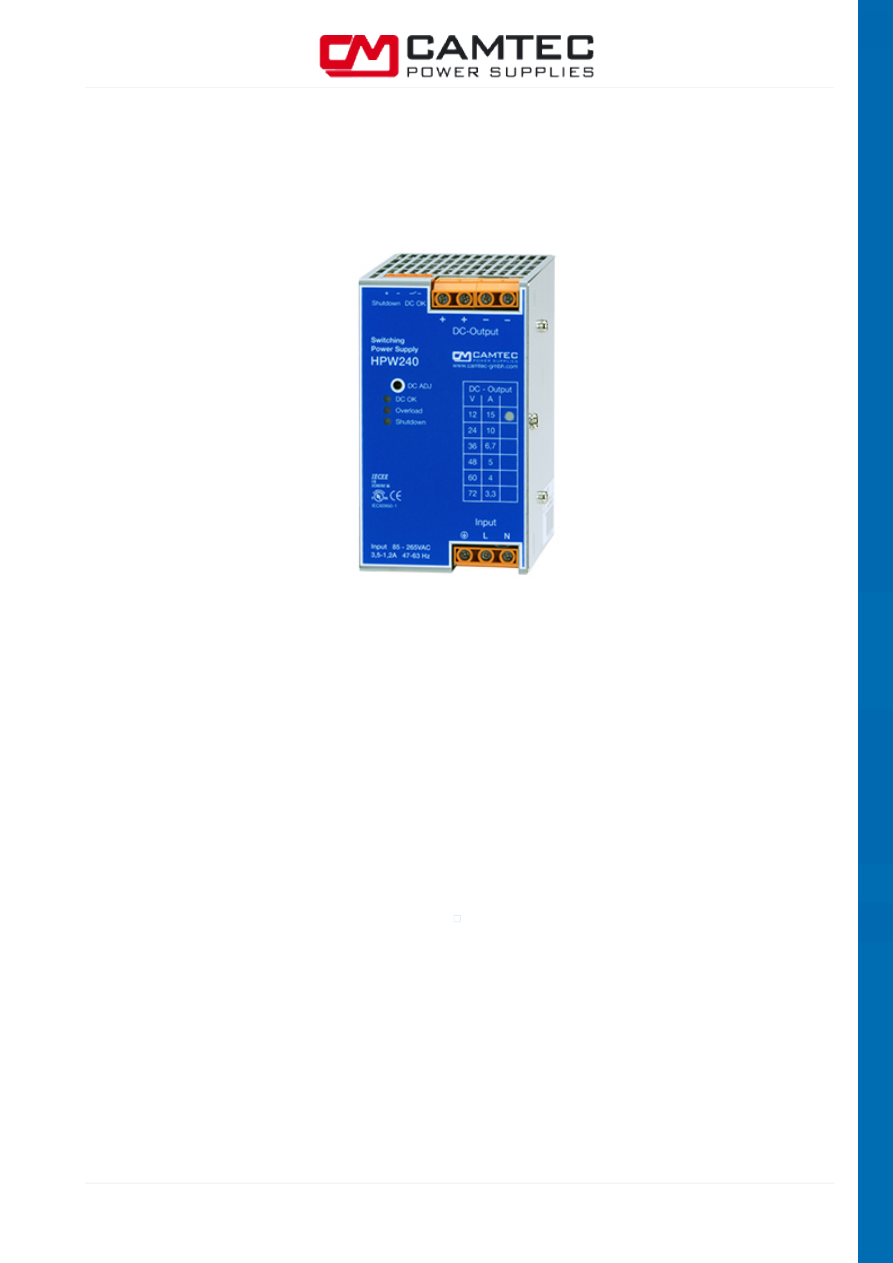

HPW02401

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Active Inrush Current Protection

Active PFC (Power Faktur Correktion)

Remote Shutdown

Temperature Control

Clean C/V chart without foldback, ideal for dc drives and dc-UPS





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 17 von 144

HPW02401

Model

HPW02401

Power

240W/312W

Nominal AC Input

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

120... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

5Aeff / 7Apeak electronic protection ±6%

Autostart

Soft start / Soft start 50ms

Output Voltage

12V

24V

36V

48V

60V

72V

Adjust Range Vout

9... 18V 18... 30V 30... 43V 43... 53V 53... 72V 68... 86V

Ripple & Noise mVpp

30mV

30mV

60mV

50mV

50mV

60mV

Nominal Output Current 40°/60°C 15/19A

10/13A

6,7/8,7A

5/6,8A

4.0/5.2A 3,3/4,3A

Power Boost <=60°C/60s

18A

12A

8A

6A

5,,2A

4,3A

Stability at Load Switch

±0,5%

±0,2%

±0,2%

±0,2%

±0,2%

±0,2%

Transient Time

< 1ms

Efficiency

0,92

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

yes

Dimensions (WxHxD)

75x130x115mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Yes

Remote Shutdown

Yes

Features

Active PFC

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 18 von 144







HSE01201

DIN-Rail 1phase Fixed Output TS35mm DIN EN 50022

Ideal vertically C/V chart for complex loads



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 19 von 144

HSE01201

Model

HSE01201

Power

120W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC < 16A

Autostart

Soft start

Output Voltage

12V

24V

36V

48V

60V

72V

110V

Adjust Range Vout

11,4..13,2V 22,5... 28,5V 34,2V... 39,6V 45,6... 42,8V 57... 66V 68... 86V 100... 120V

Ripple & Noise mVpp

50mV

65mV

65mV

100mV

120mV

120mV

200mV

Nominal Output Current

8A

5A

3,3A

2,5A

2A

1,7A

1,1A

Power Boost <=60°C/60s

9,6A

6A

4A

3A

2,4A

2A

1,3A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Upon request

Dimensions (WxHxD)

50x124x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

600000h

Power Good Relay

galvan. insulated 60Vdc

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 20 von 144







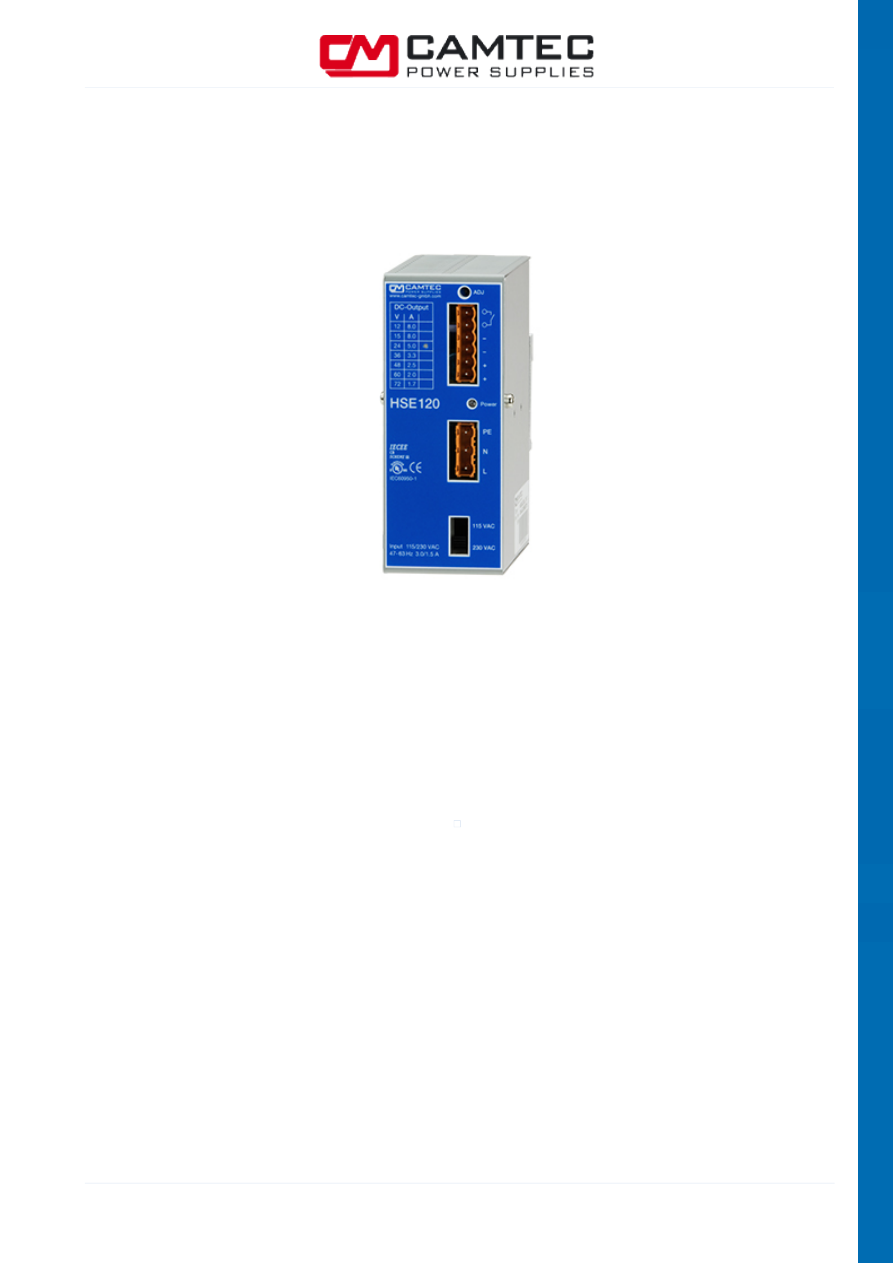

HSE01201CC constant current DC source

Constant Current Battery Charger

LED Driver

Ideal vertically C/V chart



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 21 von 144

HSE01201CC

Model

HSE01201CC

Power

120W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

110... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC < 16A

Autostart

Soft start

Output Voltage

57,4V (other voltages upon request)

Adjust Range Vout

factory set current limiting

Ripple & Noise mVpp

120mV

Nominal Output Current

2A

Power Boost <=60°C/60s

-

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

89%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

-

Dimensions (WxHxD)

50x124x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

589000h

Power Good Relay

galvan. insulated 60Vdc

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 22 von 144







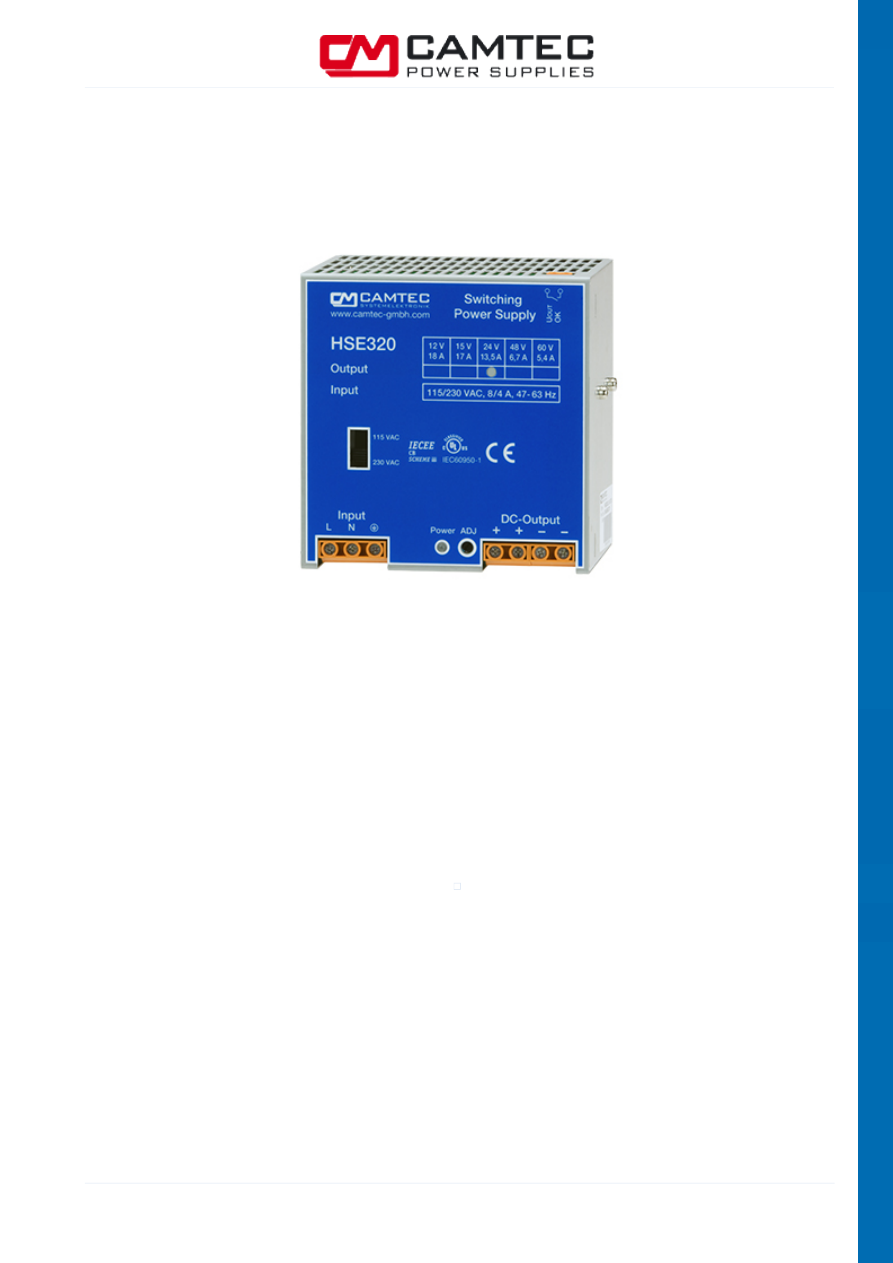

HSE03201LIRC

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Active Inrush Current Protection

Temperature Control

Clean C/V chart without foldback, ideal for dc drives and dc-UPS





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 23 von 144

HSE03201LIRC

Model

HSE03201LIRC

Power

320W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

10,6Aeff / 15Apeak active protection ±6%

Autostart

Soft start 20ms

Output Voltage

12V

15V

24V

36V

48V

60V

Adjust Range Vout

11,4... 14,4V 14,2... 18V 22,5... 28,5V 34,2... 43,2V 45,6... 57,6V 57... 72V

Ripple & Noise mVpp

30mV

30mV

20mV

30mV

50mV

50mV

Nominal Output Current

18A

17A

13,5A

8,9A

6,7A

5,4A

Power Boost <=60°C/60s

21,6A

20,4A

16,2A

10,7A

8A

6,5A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

120x124x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

600000h

Power Good Relay

Galvanic insulated 60Vdc

Features

Low Inrush Curtrent Limiter

Ordering options

Protective Coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 24 von 144







HSR03201LIRC Redundant O-Ring

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Active Inrush Current Protection

Temperature Control

Clean C/V chart without foldback, ideal for dc drives and dc-UPS

Redundant Power Supply

Built in O-ring diode





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 25 von 144

HSR03201LIRC Redundant

Model

HSR03201LIRC Redundant

Power

320W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

10,6Aeff / 15Apeak active protection ±6%

Autostart

Soft start 20ms

Output Voltage

24V

48V

60V

Adjust Range Vout

22,5... 28,8V

45,6... 52,8V

57... 66V

Ripple & Noise mVpp

20mV

50mV

50mV

Nominal Output Current

13,5A

6,7A

5,4A

Power Boost <=60°C/60s

16,2A

8A

6,5A

Stability at Load Switch

±0,3%

±0,1%

±0,1%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

120x124x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

600000h

Power Good Relay

Yes

Features

Built-in redundant O-ring diode, low inrush current

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 26 von 144







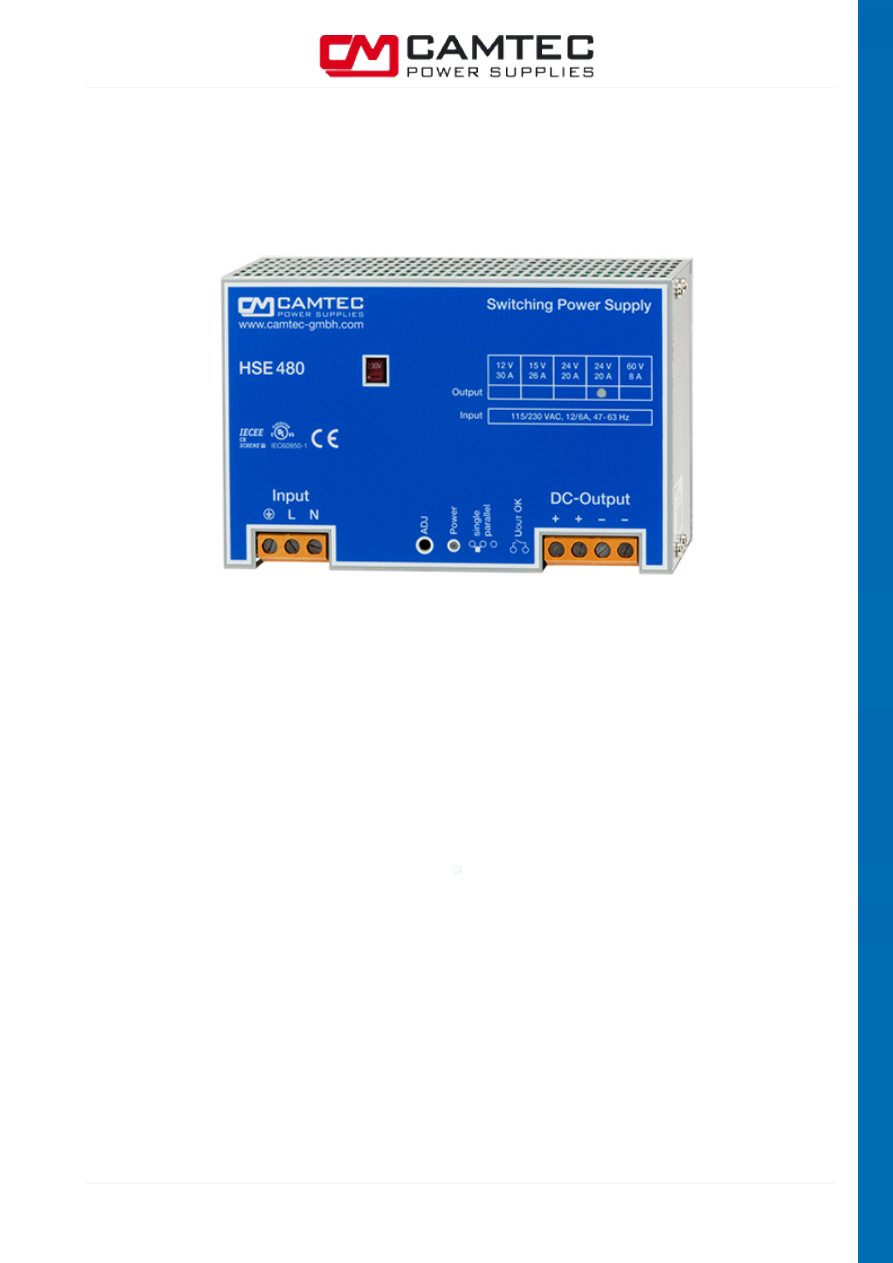

HSE04801

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Temperature Control

Clean C/V chart without foldback, ideal for dc drives





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 27 von 144

HSE04801

Model

HSE04801

Power

480W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

NTC <40A

Autostart

Soft start 20ms

Output Voltage

12V

15V

24V

36V

48V

Adjust Range Vout

11,4... 14,4V 14,2... 18V 22,8... 28,8V 34,2... 43,2V 45,6... 52,8V

Ripple & Noise mVpp

40mV

50mV

50mV

100mV

100mV

Nominal Output Current

30A

26A

20A

13,3A

10A

Power Boost <=60°C/60s

33A

28,6A

22A

14,6A

11A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Short circuit protected

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Yes

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 28 von 144







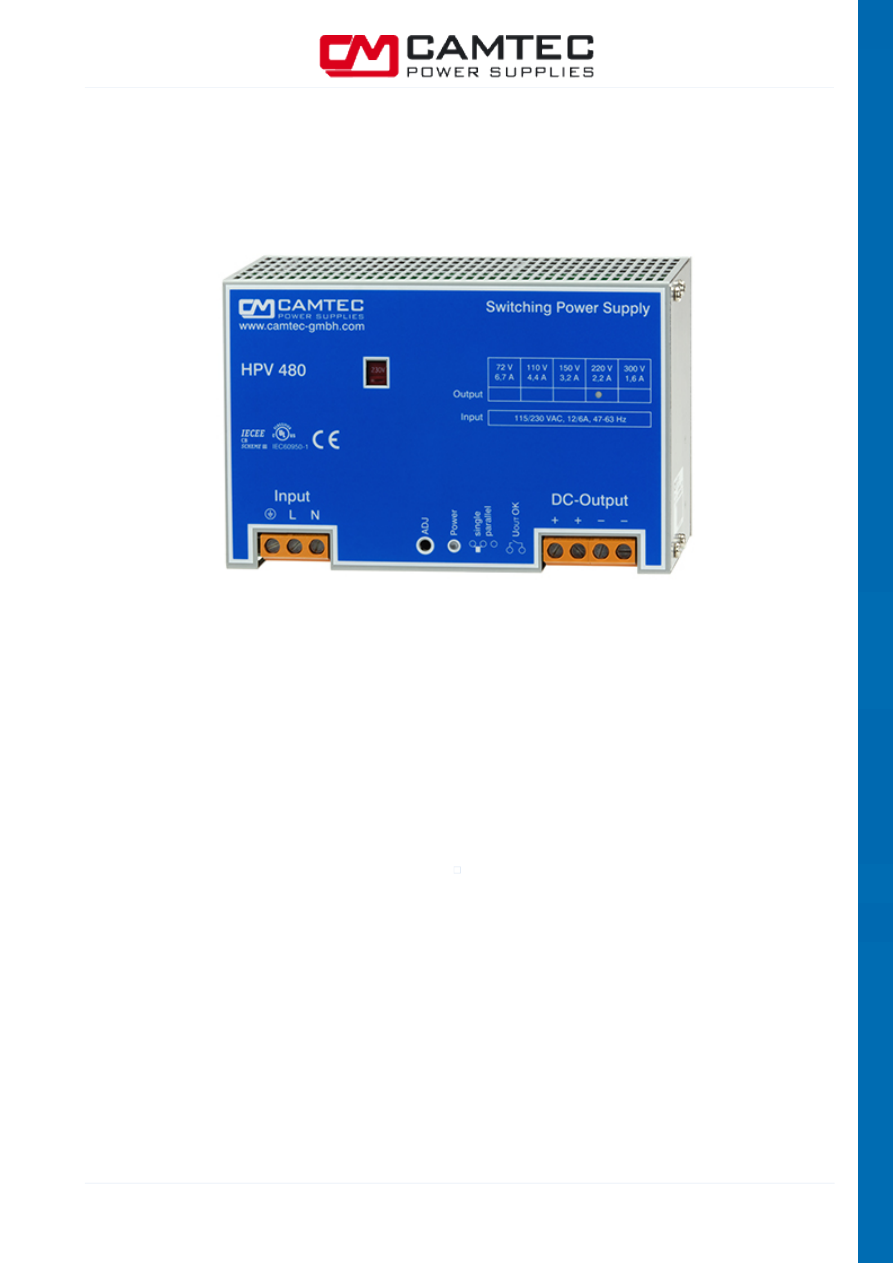

HPV04801

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Temperature Control

Clean C/V chart without foldback, ideal for dc drives





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 29 von 144

HPV04801

Model

HPV04801

Power

480W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

 NTC <40A

Autostart

Soft start 20ms

Output Voltage

72V

110V

150V

240V

Adjust Range Vout

58... 86V 86... 132V 132... 180V 180... 240V

Ripple & Noise mVpp

150mV

200mV

200mV

300mV

Nominal Output Current

6,7A

4,4A

3,2A

2,2A

Power Boost <=60°C/60s

7,2A

5,3A

3,8A

2,6A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

93 %

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural Convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Power Good Relay

Yes, Option

Ordering options

Protective coating, Power Good Relay (PG)

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 30 von 144







CPS-EC480 DIN-Rail Battery Charger & Industrial
Precision Power

C/V pricesely adjustable

Current Monitor Imon

Perfect C/V chart with no Foldback

Power Good Relay AC & DC

Remote Shutdown

Inhibit (Interlock) Function

Sense

Natural Cooling



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 31 von 144

Model

CPS-EC480

Power

480W

Nominal AC Input

115/230Vac

Input Range AC

90..115Vac/186..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current

Electronic Inrush Current Limiter 9,8Arms

Autostart

Soft start 100ms

Output Voltage

24V

36V

48V

60V

72V

110V

150V

220V

300V

Output Current

20A

13,3A

10A

8A

6,7A

4,4A

3,2A

2,2A

1,6A

DC Voltage Setting

24-30V 36-45V 48-58V 60-75V 72-90V 110-137,5V 132-180V 220-264V 264-360V

DC Current Setting

10-21A 6,6-14A 5-10,5A 4-8,4A 3,4-7A

2,2-4,6A

1,6-3,3A

1,1-2,3A

0,8-1,7A

Ripple & Noise mVpp

40mV

40mV

100mV 150mV 200mV

300mV

400mV

400mV

400mV

Load Regulation

 ±0,05% 0-100%

Load Change

Response < 1ms 10-100% 100-10%

Efficiency

up to 92%

Base load

non, continuous open circuit proof

Short Circuit Protection

Continuous

Ambient Temperature

-20°C... +70°C Operation

Cooling

natural cooling

Temperature Control

Yes

Dimensions

(WxHxD) 200x130x114,5mm IP20

Safety Norms

CSA UL CE in accordance to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1, UL classified in accordance to EN60950

Safety Class 1(A)

VDE0100 VDE0805

Input/Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI/EMS

EN55022B / EN61000-6-2,3

EMS

EN61000-6-2,3

MTBF / MTTF IEC61709

400000h / 148312h

Power Good Relay

AC & DC low voltage detection, isolated

Features

Current-Monitoring, External Shutdown, Inhibit (Interlock), Sense Compensation

Options

Protective Coating, Baseplate cooler for hardmount

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 32 von 144







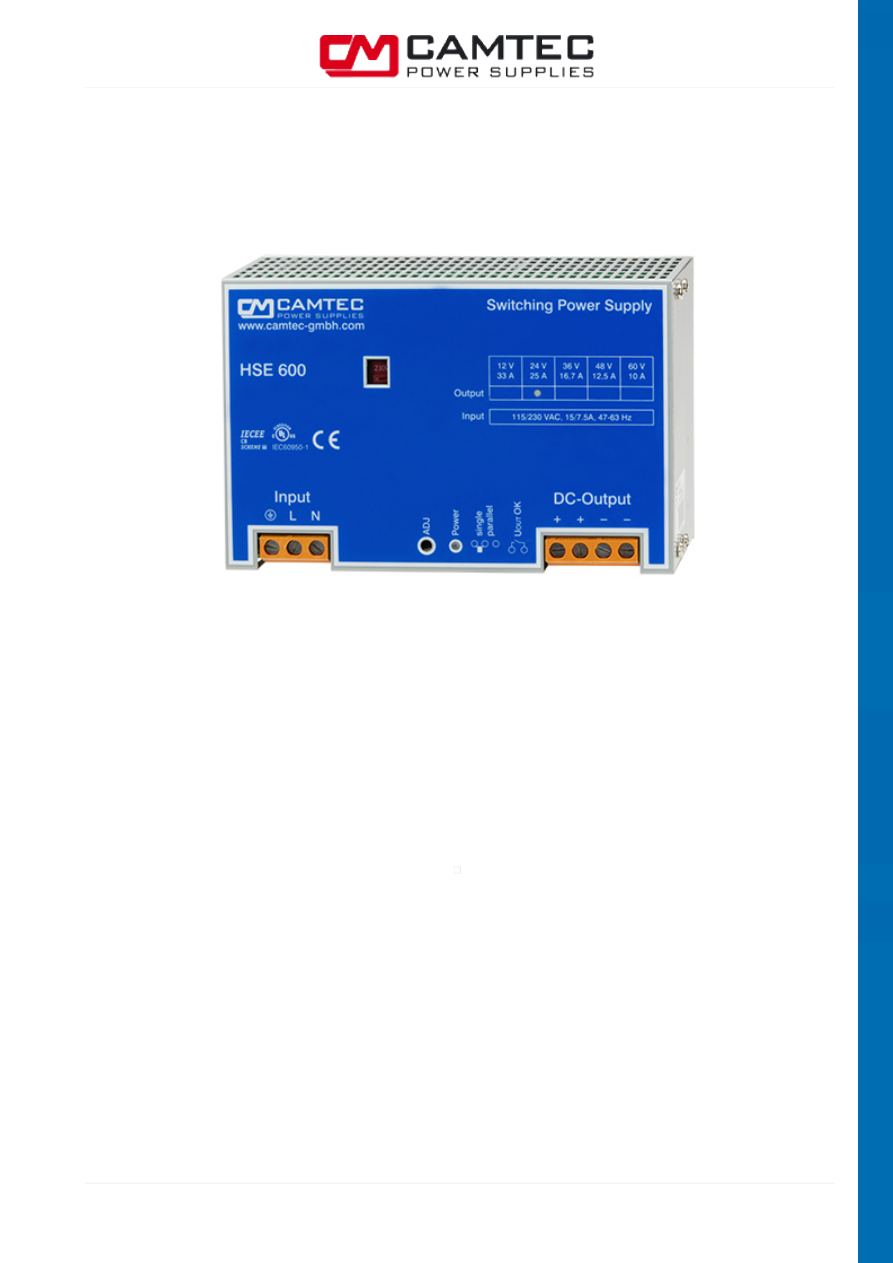

HSE06001

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Temperature Control

Clean C/V chart without foldback, ideal for dc drives





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 33 von 144

HSE06001

Model

HSE06001

Power

600W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC <81A

Autostart

Soft start 20ms

Output Voltage

24V

36V

48V

Adjust Range Vout

22,8... 28,8V 34,2... 43,2V 45,6... 52,8V

Ripple & Noise mVpp

50mV

100mV

100mV

Nominal Output Current

25A

16,7A

12,5A

Power Boost <=60°C/60s

27,5A

18,4A

13,8A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

yes

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 34 von 144







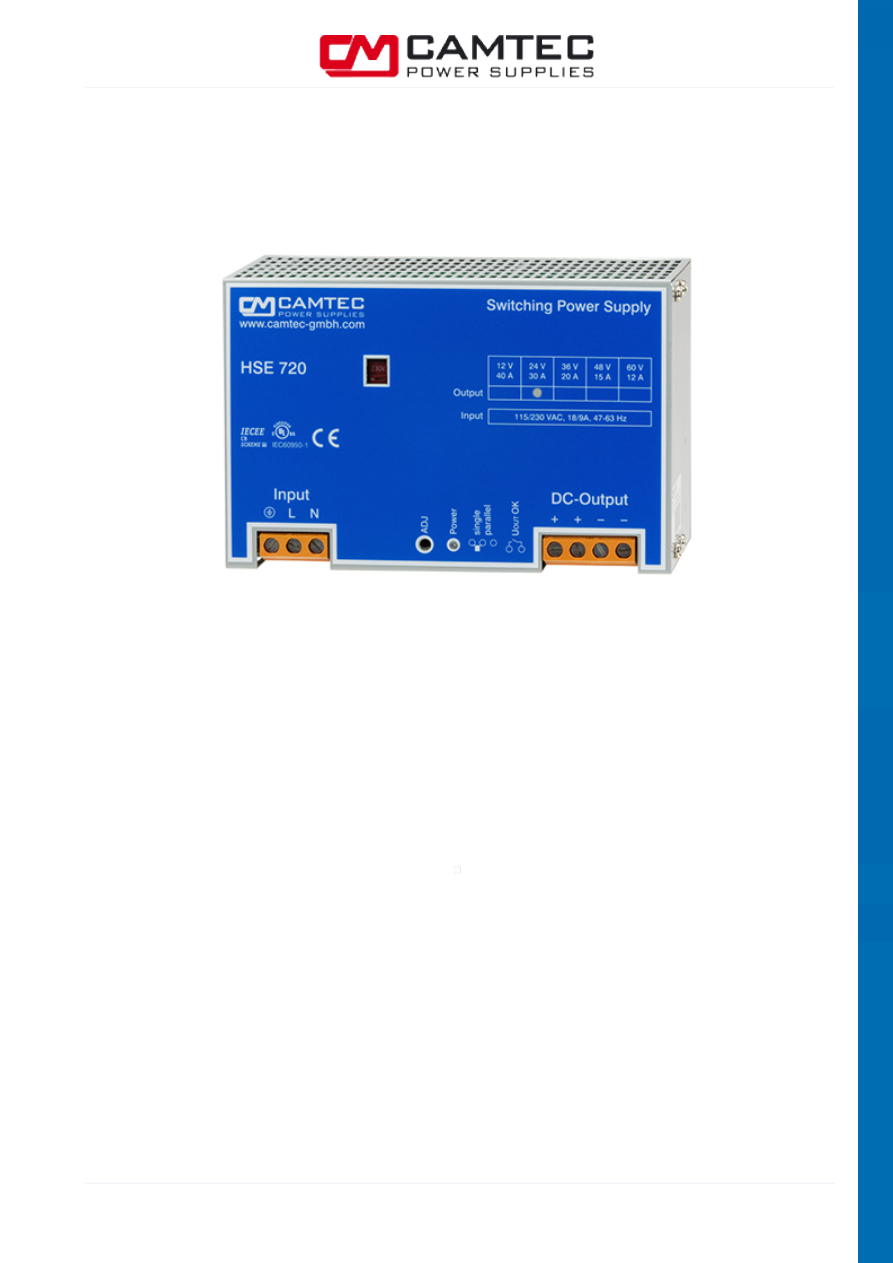

HSE07201

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Temperature Control

Clean C/V chart without foldback, ideal for dc drives





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 35 von 144

HSE07201

Model

HSE07201

Power

720W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC < 81A (MCB 16C)

Autostart

Soft start

Output Voltage

12V

24V

36V

48V

60V

Adjust Range Vout

11,4... 14,4V 22,8... 28,8V 34,2... 43,2V 45,6... 52,8V 57V... 66V

Ripple & Noise mVpp

50mV

50mV

100mV

100mV

120mV

Nominal Output Current

40A

30A

20A

15A

12A

Power Boost <=60°C/60s

44A

33A

22A

16,5A

13,2A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Galvanic insulated 60Vdc

Features

48V model with 4,2KV input to output insulation

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 36 von 144







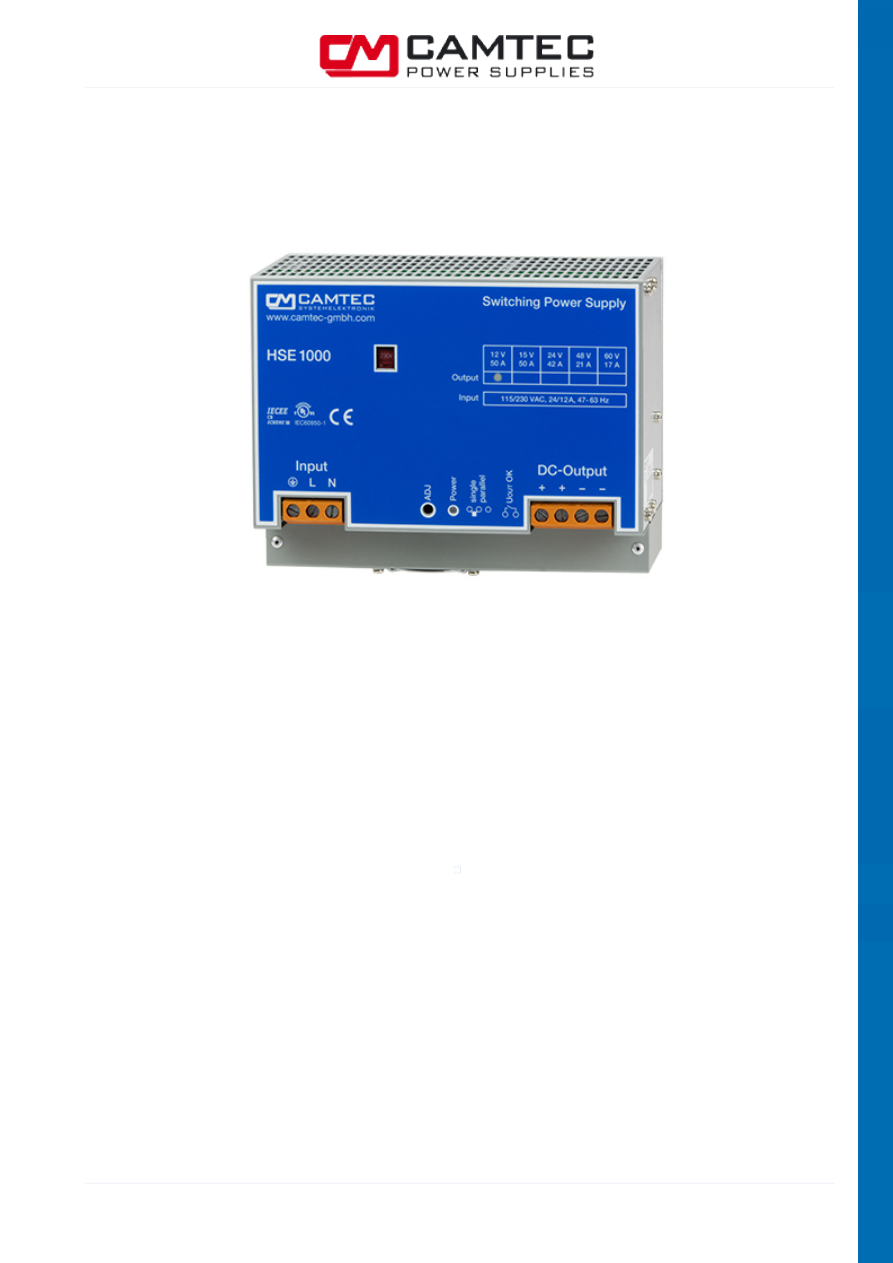

HSE10001

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Temperature Control

Clean C/V chart without foldback, ideal for dc drives





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 37 von 144

HSE10001

Model

HSE10001

Power

1008W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

< 81A

Autostart

Soft start 100ms

Output Voltage

12V

15V

24V

36V

48V

Adjust Range Vout

11,4... 14,4V 14,2... 18V 22,8... 28,8V 34,2... 43,2V 45,6... 52,8V

Ripple & Noise mVpp

50mV

50mV

50mV

100mV

120mV

Nominal Output Current

50A

50A

42A

28A

21A

Power Boost <=60°C/60s

55A

55A

46,2A

31A

23A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection & controlled fan from Papst

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x156x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Galvanic insulated 60Vdc

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 38 von 144







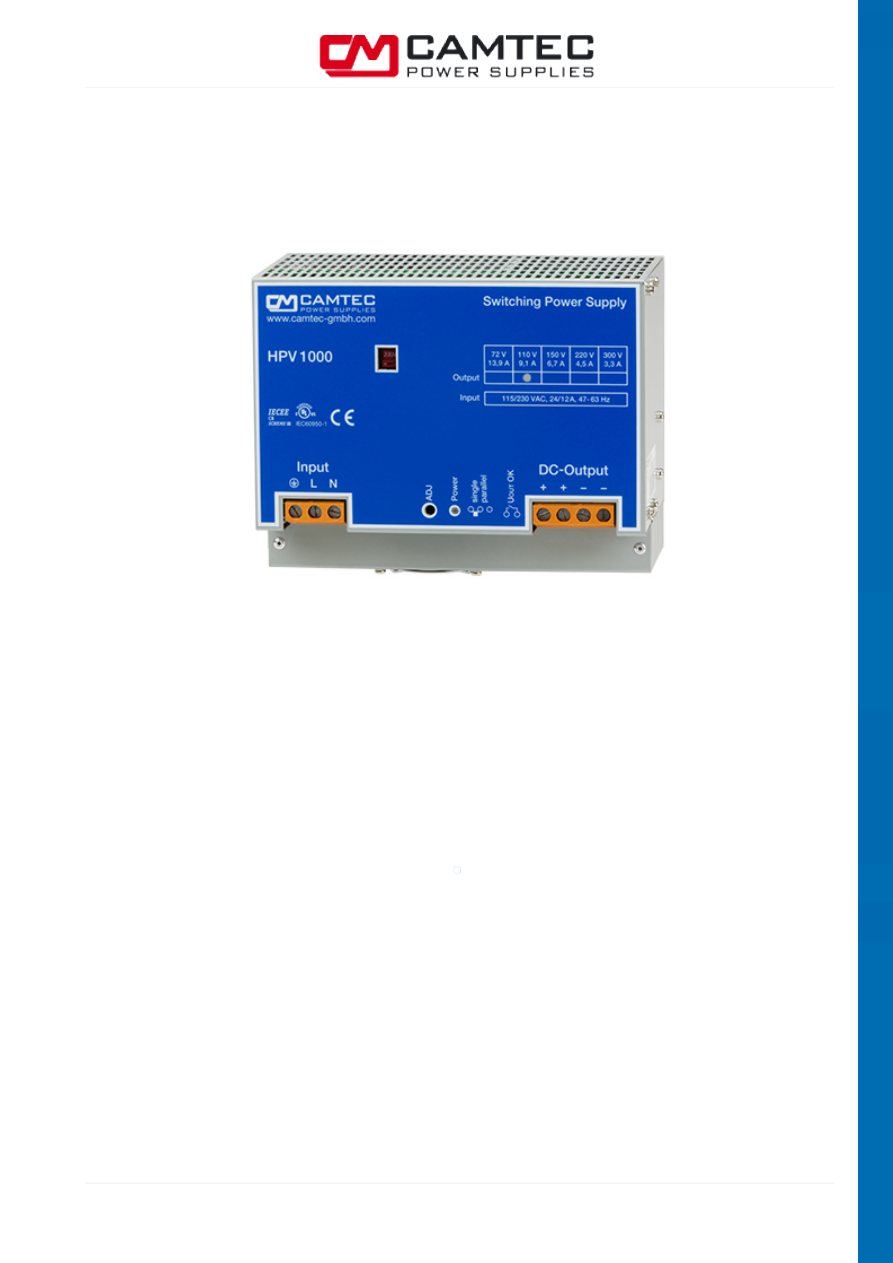

HPV10001

DIN-Rail Power Supply 1phase fix output TS35mm DIN EN 50022

Temperature Control

Clean C/V chart without foldback, ideal for dc drives





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 39 von 144

HPV10001

Model

HPV10001

Power

1008W

Nominal AC Input

115/230Vac

Input Range AC

90..115Vac/186..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC < 84A

Autostart

Soft start 100ms

Output Voltage

72V

110V

150V

240V

Adjust Range Vout

58... 86V 86... 132V 132... 180V 180... 240V

Ripple & Noise mVpp

200mV

250mV

250mV

300mV

Nominal Output Current

13,9A

9,1A

6,7A

4,6A

Power Boost <=60°C/60s

15,3A

10A

7,4A

5A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

0,93

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection + controlled fan from Papst

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x156x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Yes, Option

Ordering options

Protective coating, Popwer Good Relais (PG)

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 40 von 144







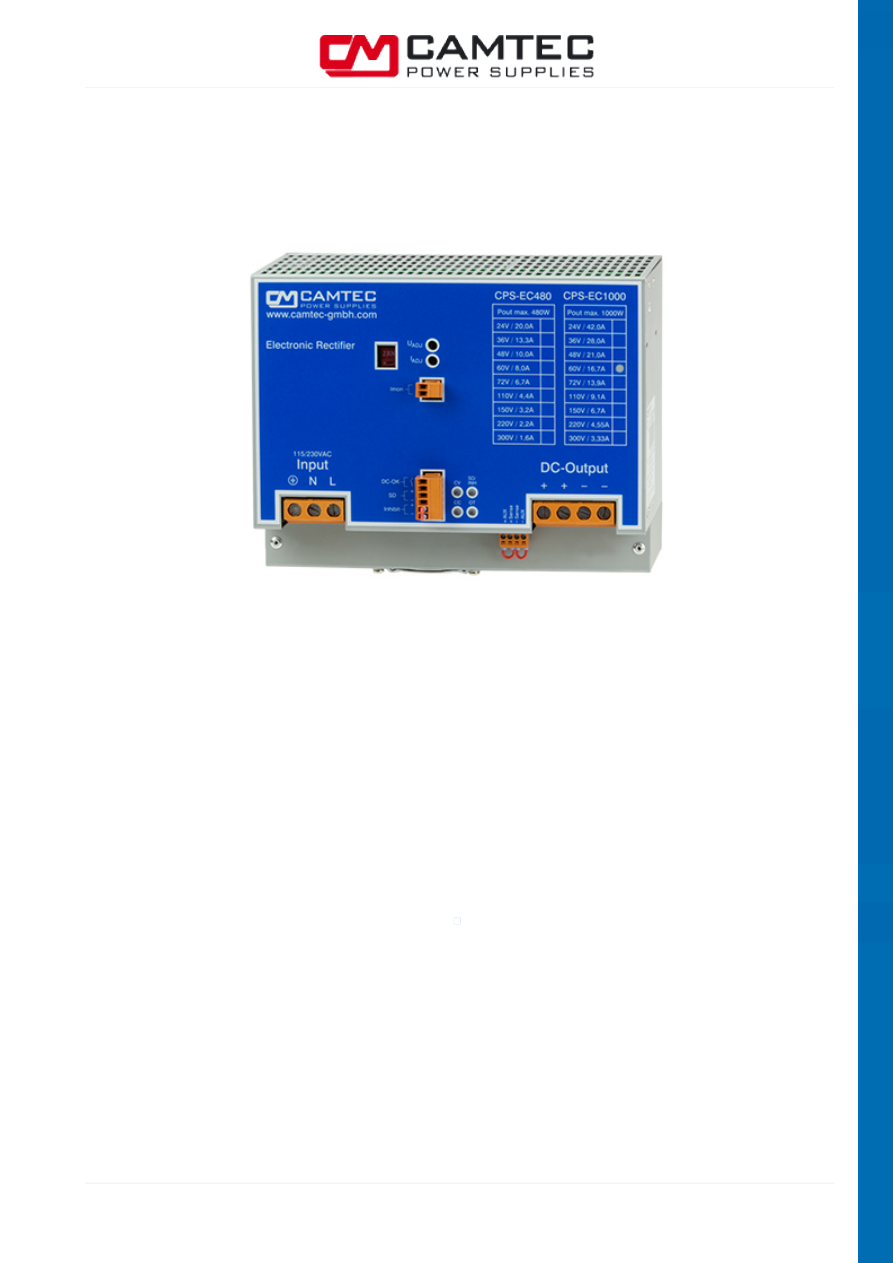

CPS-EC1000 DIN-Rail Battery Charger & Industrial
Precision Power

C/V pricesely adjustable

Current Monitor Imon

Perfect C/V chart with no Foldback

Power Good Relay AC & DC

Remote Shutdown

Inhibit (Interlock) Function

Sense



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 41 von 144

Model

CPS-EC1000

Power

1008W

Nominal AC Input

115/230Vac

Input Range AC

90..115Vac/186..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current

Electronic Inrush Current Limiter 9,8Arms

Autostart

Soft start 100ms

Output Voltage

24V

36V

48V

60V

72V

110V

150V

220V

300V

Output Current

42A

28A

21A

16,7A

13,9A

9,1A

6,7A

4,55A

3,33A

DC Voltage Setting

24-30V

36-45V

48-58V

60-75V 72-90V 110-137,5V 132-180V 220-264V 264-360V

DC Current Setting 21-44,1A 14-29,4A 10,5-22A 8-17,6A 7-14,6A

4,6-9,6A

3,4-7A

3,3-4,8A

1,7-3,5A

Ripple & Noise PP

40mV

40mV

100mV

150mV 200mV

300mV

400mV

400mV

400mV

Load Regulation

±0,05% 0-100%

Load Change

Response

Efficiency

up to 92%

Base load

non, continuous open circuit proof

Short Circuit

Continuous Protection

Ambient

-20°C... +70°C Operation Temperature

Cooling

controlled fan from EBM Papst (Germany)

Temp. Control

Yes

Dimensions

(WxHxD) 200x156x114,5mm IP20

Safety Norms

CSA UL CE in accordance to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1, UL classified in accordance to EN60950

Safety Class 1(A)

VDE0100 VDE0805

 Isolation

3000Vac Input/Output

Climatic Class

3k3, Humidity 95% non condensing

EMI/EMS

EN55022B / EN61000-6-2,3

EMS

EN61000-6-2,3

MTBF / MTTF

389000h / 143036h (IEC61709)

Power Good Relay

AC & DC low voltage detection, isolated

Features

Current-Monitoring, External Shutdown, Inhibit (Interlock), Sense Compensation

Options

Protective Coating, Baseplate cooler for hardmount

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 42 von 144







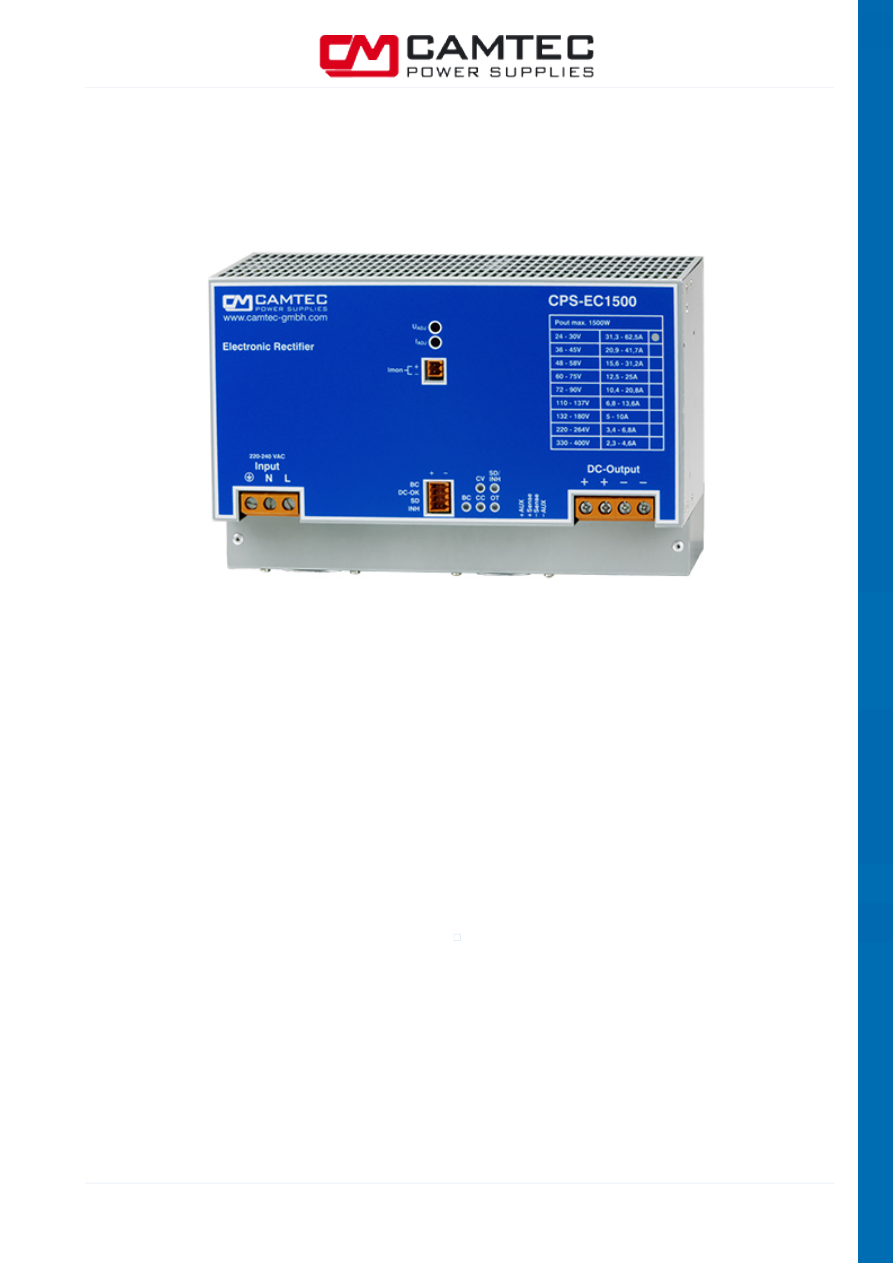

CPS-EC1500 DIN-Rail Battery Charger & Industrial
Precision Power

C/V pricesely adjustable

Boost Charge Mode

Current Monitor Imon

Perfect C/V chart with no Foldback

Power Good Relay AC & DC

Remote Shutdown

Inhibit (Interlock) Function

Sense



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 43 von 144

Model CPS-EC1500

Model

CPS-EC1500

Power

1500W

Nominal AC Input

230Vac

Input Range AC

186..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

20ms

Inrush Current

Electronic Inrush Current Limiter 9,8Arms

Autostart

Soft start 100ms

Output Voltage

24V

36V

48V

60V

72V

110V

150V

220V

400V

Output Current

62,5A

41,7A

31,2A

25A

20,8A

13,6A

10A

6,8A

4,6A

DC Voltage Setting

24-30V

36-45V

48-58V

60-75V

72-90V

110-137,5V 132-180V 220-264V 330-400V

DC Current Setting 31,3-62,5A 20,9-41,7A 15,6-31,2A 12-25A 10,4-20,8A

6,8-13,6A

5-10A

3,4-6,8A

2,3-4,6A

Ripple & Noise PP

40mV

40mV

120mV

150mV

200mV

300mV

400mV

400mV

400mV

Load Regulation

±0,05% 0-100%

Load Change

Response

Efficiency

up to 94%

Base load

non, continuous open circuit proof

Short Circuit

Continuous Protection

Ambient

-20°C... +70°C Operation Temperature

Cooling

controlled fan from EBM Papst (Germany)

Temp. Control

Yes

Dimensions

(WxHxD) 250x156x114,5mm IP20

Safety Norms

CSA UL CE in accordance to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1, UL classified in accordance to EN60950

Safety Class 1(A)

VDE0100 VDE0805

 Isolation

3000Vac Input/Output

Climatic Class

3k3, Humidity 95% non condensing

EMI/EMS

EN55022B / EN61000-6-2,3

EMS

EN61000-6-2,3

MTBF / MTTF

400000h / 144006h (IEC61709)

Power Good Relay

AC & DC low voltage detection, isolated

Features

Current-Monitoring, External Shutdown, Inhibit (Interlock), Sense Compensation, Boost Charge Mode

Options

Protective Coating, Baseplate cooler for hardmount, Protected Inhibit Module acc. with SIL03

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 44 von 144







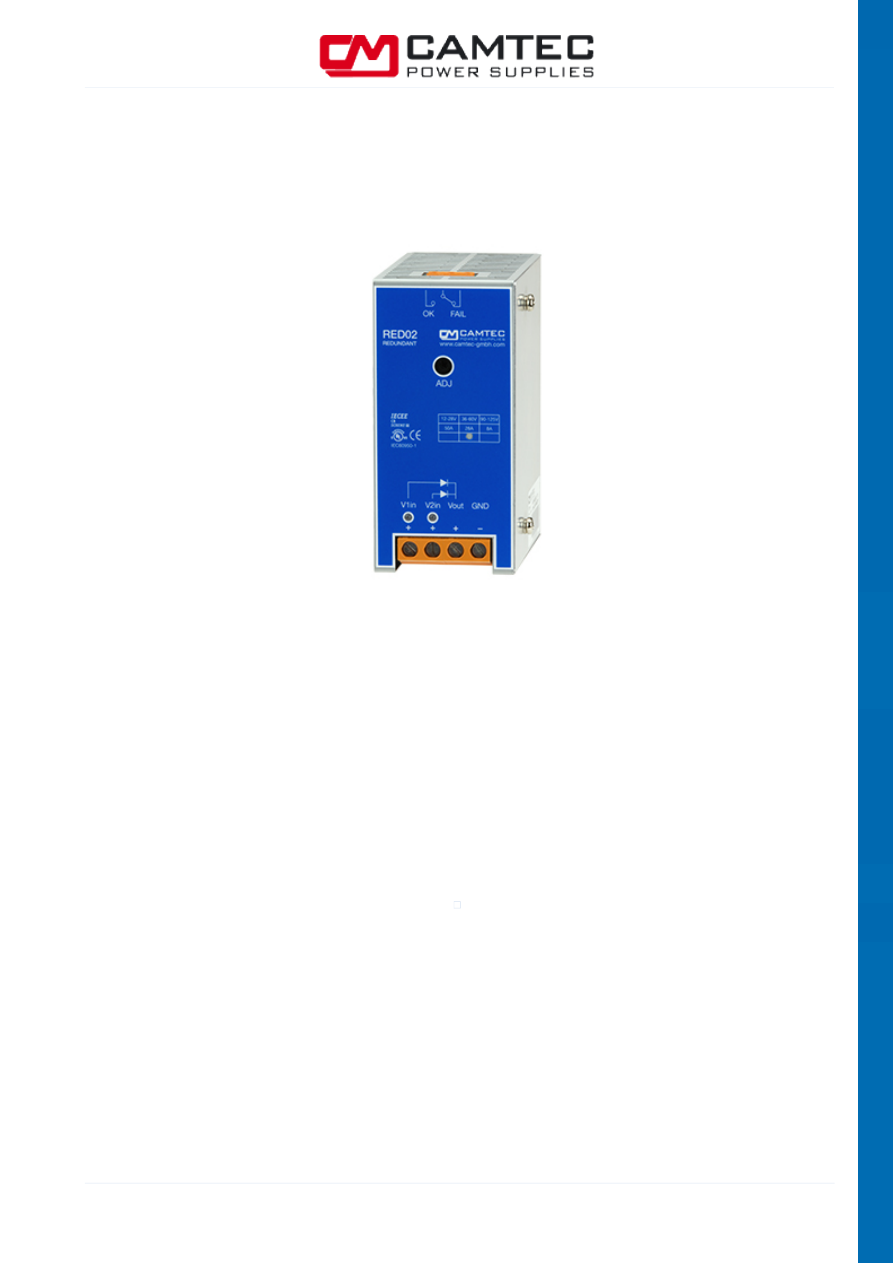

RED00202 Redundant O-Ring Modul 1000W
Continuous Load

N+1 Power Redundant Module DIN-Rail TS35mm

2x 1000W Inputs, 1x 1000W Output

Lower voltage margin adjustable

Input & Output = floating

Decoupling Diode = fast Schottky

Voltage Drop typ. 500mV



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 45 von 144

RED00202A

Model

RED00202A

Maxmum Current

Up to 2x50A per connection

V1in/V2in

+ 12 up to 28Vdc (36V) 2x 50A

LED

Control-LED

Monitoring Relay

Integrated (floating)

Cooling

Natural convection

Efficiency

> 97% (24Vdc)

Load connection

Screw-type terminal

Alarm contact

Screw-type terminal plug-in

Ambient temperature

-20°C ... +70°C

Dimensions WxHxD

62 x 130 x 115mm

Special Features

High reliable



Compact outline



Reverse polarity protection



Alarm monitoring loss of U1/U2

RED00202B

Model

RED00202B

Maximum Current

Up to 2x 28A per connection

V1in/V2in

+ 36Vdc up to 60Vdc (75V) 2x 28A

LED

Control-LED

Monitoring Relay

Integrated (floating)

Cooling

Natural convection

Efficiency

> 97% (48Vdc)

Load connection

Screw-type terminal

Alarm contact

Screw-type terminal plug-in

Ambient temperature

-20°C ... +70°C

Dimensions WxHxD

62 x 130 x 115mm

Special Features

High reliable



Compact outline



Reverse polarity protection



Alarm monitoring loss of U1/U2

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 46 von 144

RED00202C

Model

RED00202C

Maximum Current

Up to 2x 9,1A per connection

V1in/V2in

+ 90Vdc up to 125Vdc (140Vdc) 2x 9,1A

LED

Control-LED

Monitoring Relay

Integrated (floating)

Cooling

Natural convection

Efficiency

> 97% (110Vdc)

Load connection

Screw-type terminal

Alarm contact

Screw-type terminal plug-in

Ambient temperature

-20°C ... +70°C

Dimensions WxHxD

62 x 130 x 115mm

Special Features

High reliable



Compact outline



Reverse polarity protection



Alarm monitoring loss of U1/U2

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 47 von 144

Category:

AC/DC DIN-Rail 3phase 480W ... 1000W

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 48 von 144







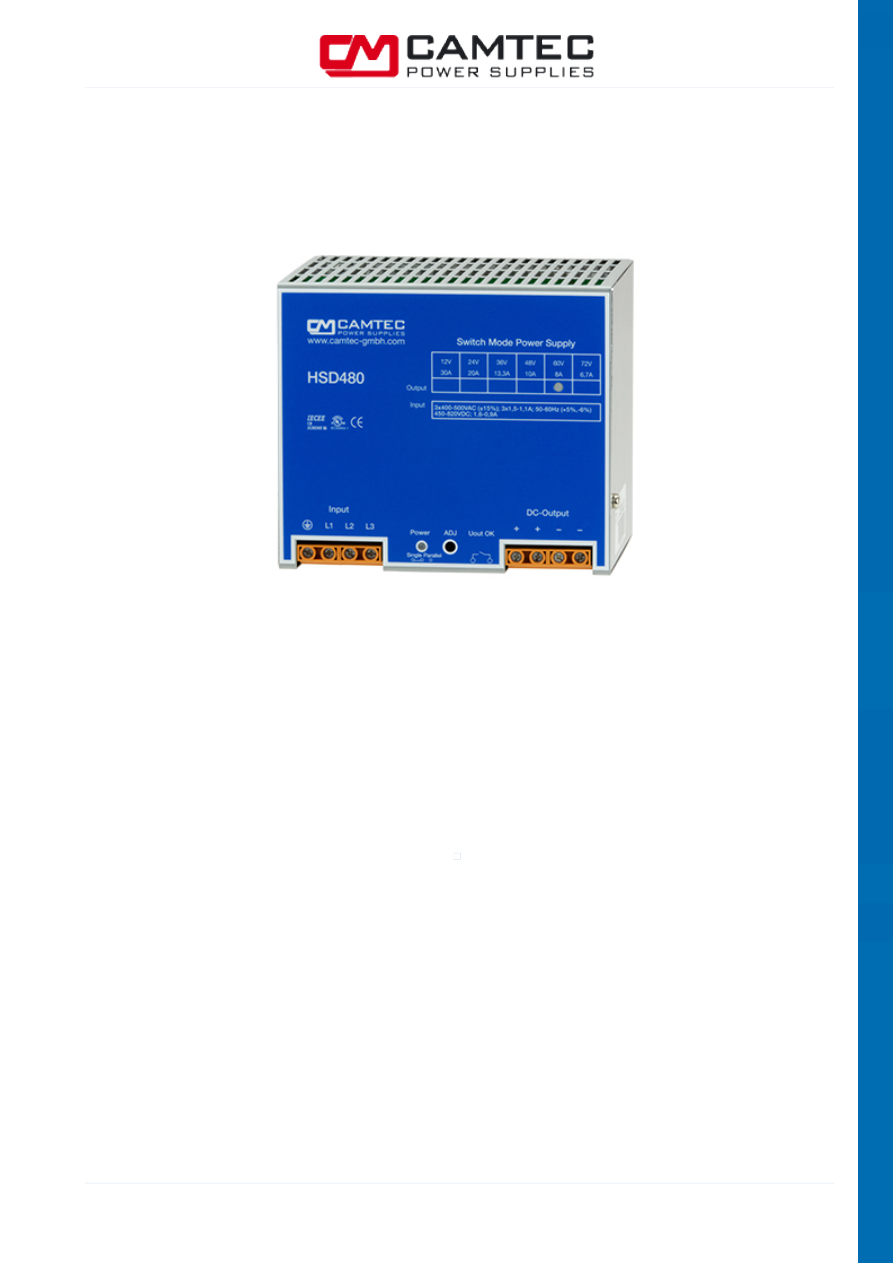

HSD04801

DIN-Rail Power Supply 3phase fix output TS35mm DIN EN 50022

Active Inrush Current Protection

Active PFC

Temperature Control

Clean C/V chart without foldback, ideal for dc drives and dc-UPS



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 49 von 144

HSD04801

Model

HSD04801

Power

480W

Nominal AC Input

3PH 400... 500Vac

Input Range AC

3PH 340... 575Vac

Input Range DC

450... 820Vdc

Input Frequency

47... 63Hz

Hold-Up Time

12ms

Inrush Current Protection

3,5Aeff / 5Apeak active protection ±6%

Autostart

Soft start 5ms

Output Voltage

12V

24V

36V

48V

60V

72V

Adjust Range Vout

11,6... 13,8V 22,5... 28,5V 32,8... 38V 45,6... 52,8V 57... 66V 68... 86V

Ripple & Noise mVpp

50mV

50mV

100mV

100mV

120mV

150mV

Nominal Output Current

30A

20A

13,3A

10A

8A

6,7A

Power Boost <=60°C/60s

36A

24A

16A

12A

9,6A

8A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

92,50%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

yes

Dimensions (WxHxD)

150x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

600000h

Power Good Relay

Yes

Features

PFC, 2phase Operation

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 50 von 144







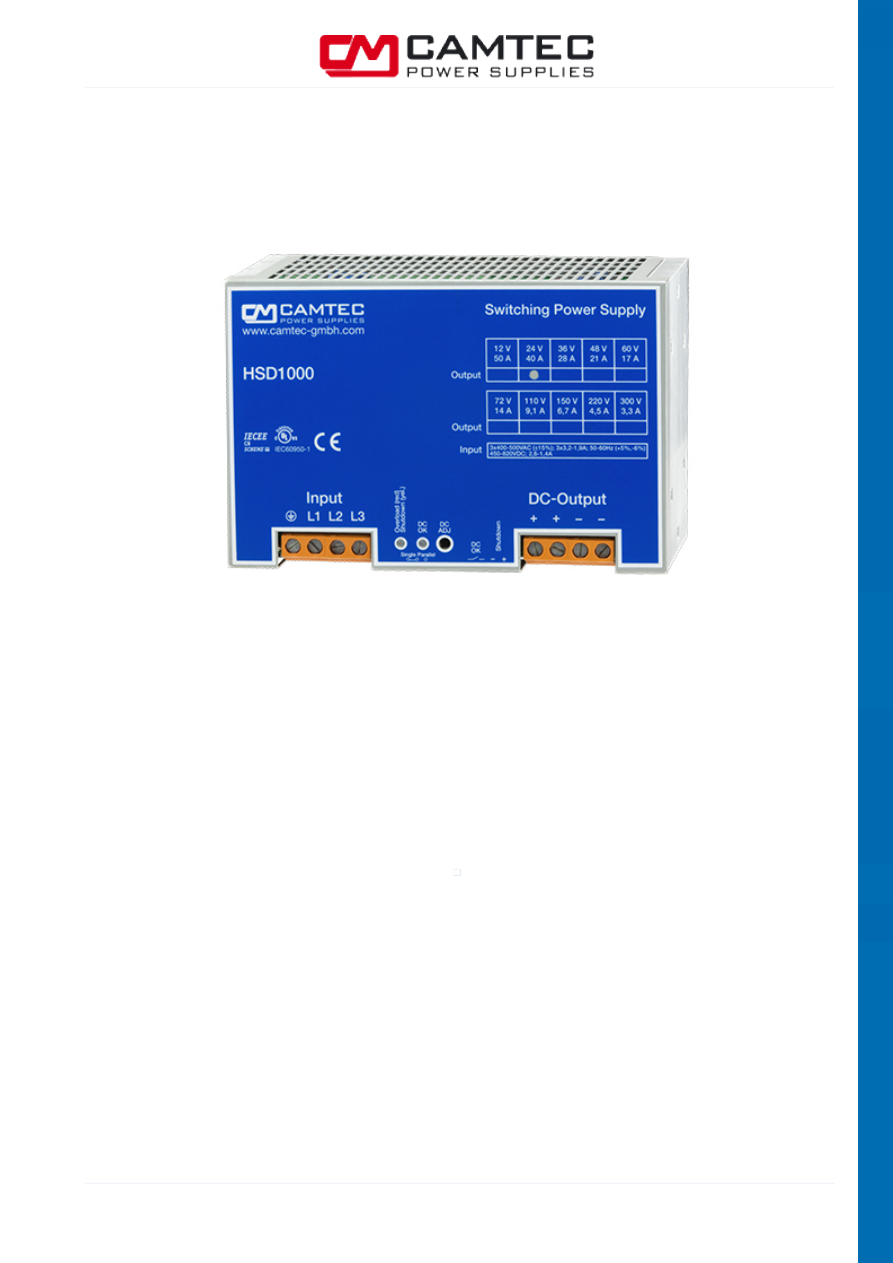

HSD10001

DIN-Rail Power Supply 3phase fix output TS35mm DIN EN 50022

Active Inrush Current Protection

Active PFC

Temperature Control

Clean C/V chart without foldback, ideal for dc drives and dc-UPS

Remote Shutdown



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 51 von 144

HSD10001

Model

HSD10001

Power

960W/1080W

Nominal AC Input

3PH 400... 500Vac

Input Range AC

3PH 340... 575Vac

Input Range DC

450... 820Vdc

Input Frequency

47... 63Hz

Hold-Up Time

12ms

Inrush Current Protection

14,2Aeff / 20Apeak active protection ±6%

Autostart

Soft start 50ms

Output Voltage

12V

24V

36V

48V

60V

72V

Adjust Range Vout

10,,, 17V 22... 30V 32... 43V 43... 53V 53... 72V 68... 86V

Ripple & Noise mVpp

50mV

50mV

80mV

100mV

100mV

150mV

Nominal Output Current 60°/40°C

50/55A

40/44A

28/31A

21/23A

17/18A

14/15A

Power Boost <=60°C/60s

55A

44A

30,8A

23,1A

18,7A

15,4A

Stability at Load Switch

±0,5%

±0,2%

±0,2%

±0,2%

±0,2%

±0,2%

Transient Time

< 1ms

Efficiency

92,50%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x131,5x124mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Yes

Remote Shutdown

Yes

Features

Active PFC, 2phase operation

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 52 von 144

100kW" level="0" >

 100kW3">

Category:

AC/DC Programmable Laboratory Power Supply

480W ... > 100kW

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 53 von 144







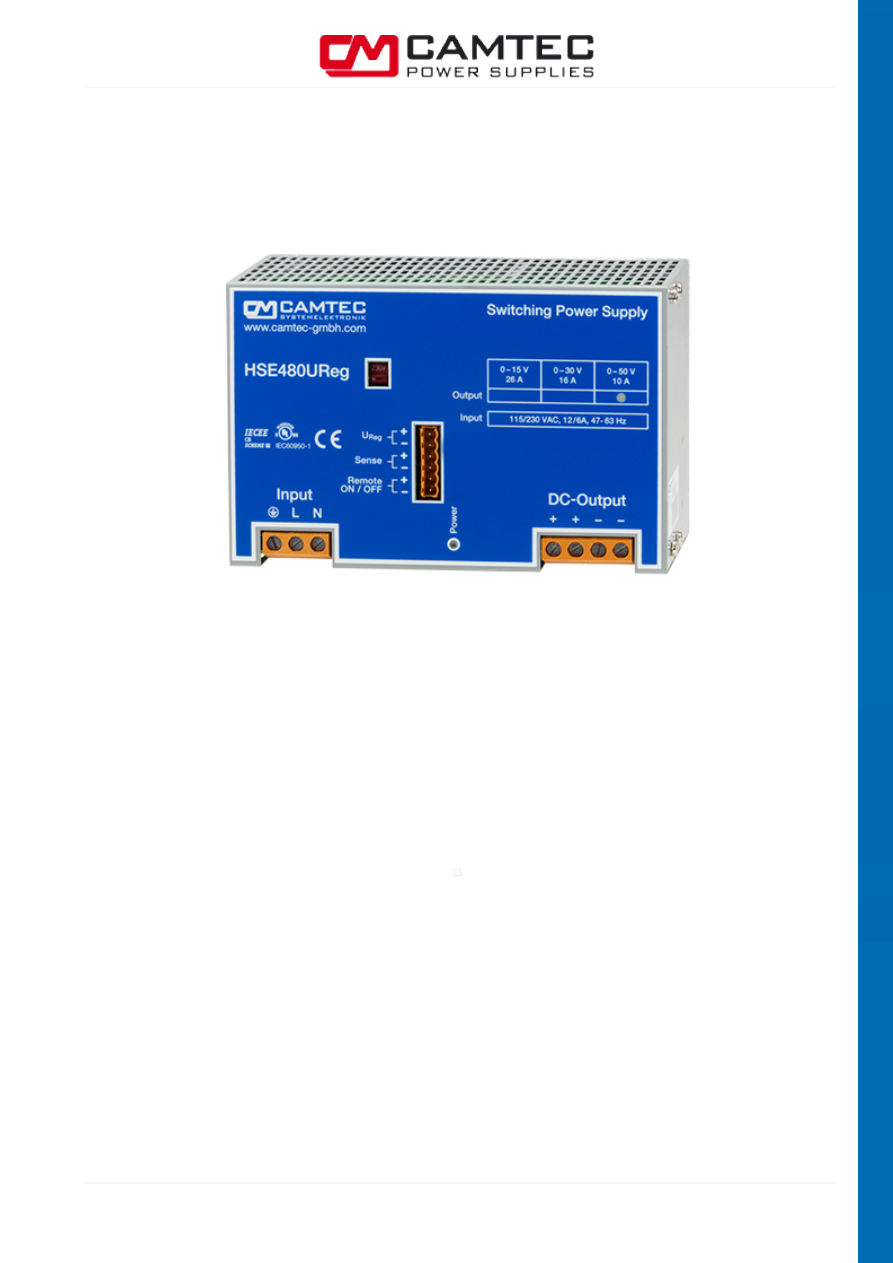

HSEureg04801 Lab Power Supply DIN-Rail, 2.6W/CUI
free air

Cost effective 480W V-programmable, Laboratory Power Supply scalable for test bench

Multifunctional analogue Interface 0-10V/0-20mA

Remote Shutdown

Sensing



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 54 von 144

HSEureg04801

Model

HSEUreg04801

Power

480W

Nominal Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current Protection

NTC <41A

Autostart

Soft start 100ms

Programmable Output Voltage

0-15V

0-30V

0-50V

0-90V

0-130V

0-180V

Continuous Current (fix)

26A

16A

10A

5,3A

3,7A

2,7A

Ripple & Noise mVpp

40mV

50mV

100mV

150mV

200mV

300mV

Powerboost

28,6A

17,6A

11A

5,8A

4,1A

3A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Programming Interface Voltage

0... 10Vdc, 0-20mA

Programming Interface Current

No

Monitoring Interface Voltage

No

Monitoring Interface Current

No

Power Good Relay

No

Sense Operation

Yes

Remote Shutdown

Yes

Reference Voltage

No

Ordering Options

Protective coating, 4-20mA interface

Options

Isolating transformer for analogue interface, wall mount

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 55 von 144







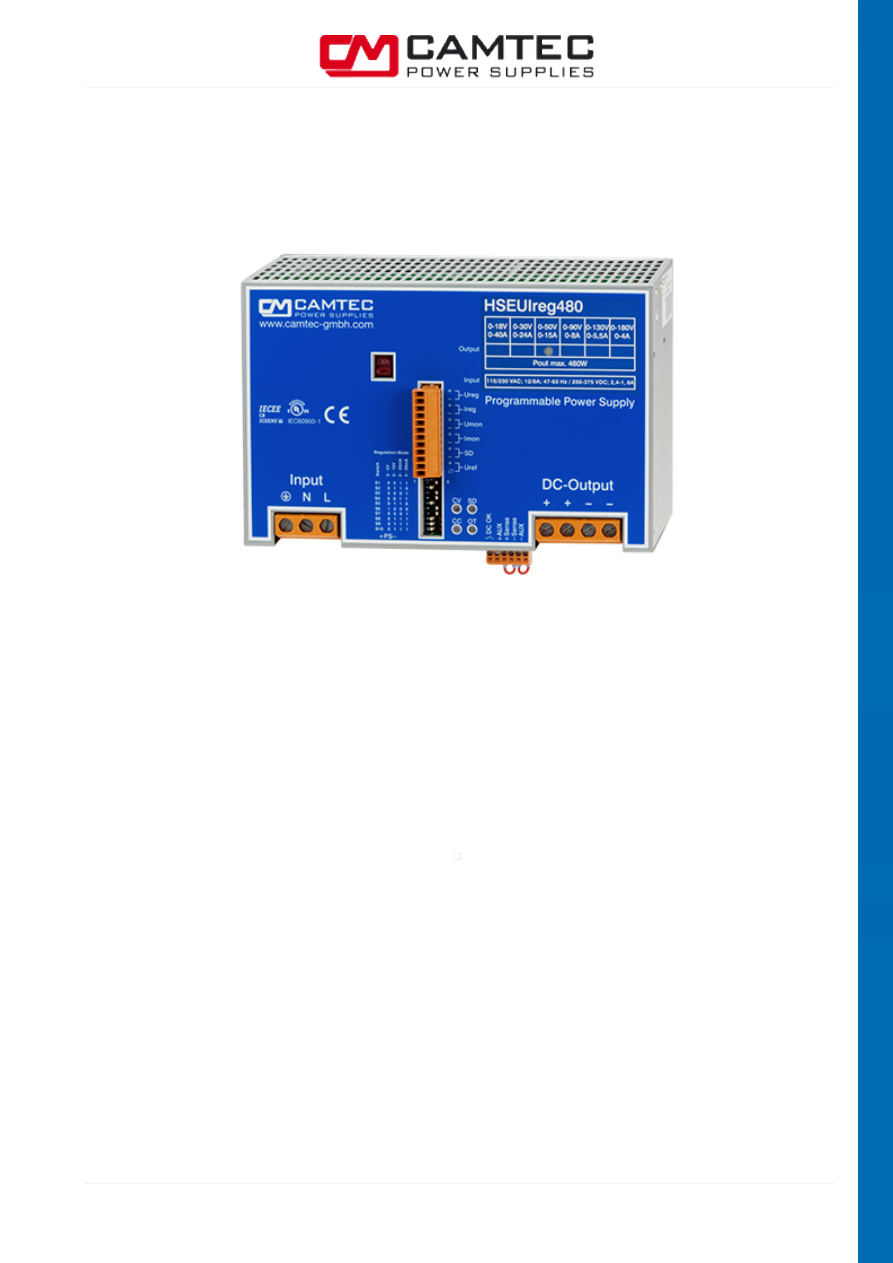

HSEuireg04801 Lab Power Supply DIN-Rail, 2.6W/CUI
free air

480W C/V programmable, Laboratory Power Supply scalable for test bench

Multifunctional analogue Interface 0-5V/0-10V/0-20mA/4-20mA

Real Time Monitoring



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 56 von 144

HSEuireg04801

Model

HSEUIreg04801

Power

480W

Nominal Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current Protection

9,8Aeff / 13,8Apeak active limiter ±6%

Autostart

Soft start

Programmable Output Voltage

0-18V

0-30V

0-50V

0-90V

0-130V

0-180V

0-240V

Programmable Output Current

0-40A

0-24A

0-15A

0-8A

0-5,5A

0-4A

0-3A

Ripple & Noise mVpp

40mV

40mV

100mV

150mV

200mV

300mV

400mV

Stability at Load Switch

±0,2%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Programming Interface Voltage

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Programming Interface Current

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Monitoring Interface Voltage

0... 5Vdc, 0... 10Vdc

Monitoring Interface Current

0... 5Vdc, 0... 10Vdc

Power Good Relay

Yes

Sense Operation

Yes

Remote Shutdown

Yes

Reference Voltage

Yes

Ordering Options

Protective coating

Options

Isolating transformer for analogue interface, wall mount, USB interface

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 57 von 144







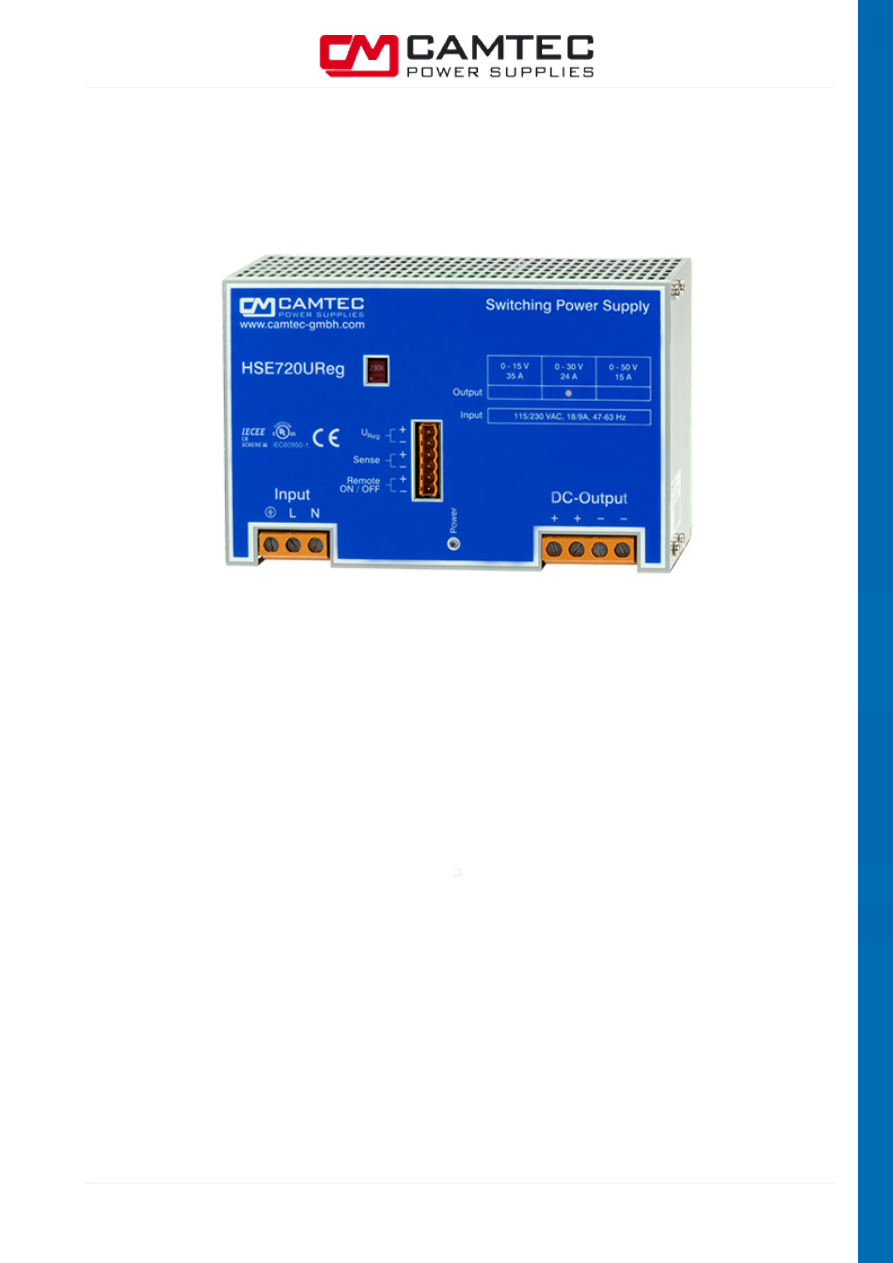

HSEureg07201 Lab Power Supply DIN-Rail, 4W/CUI
free air

Cost effective 720W V-programmable, Laboratory Power Supply scalable for test bench

Multifunctional analogue Interface 0-10V/0-20mA

Remote Shutdown

Sensing



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 58 von 144

HSEureg07201

Model

HSEUreg07201

Power

720W

Nominal Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

NTC

Autostart

Soft start 100ms

Programmable Output Voltage

0-15V

0-30V

0-50V

0-90V

0-130V

0-180V

Continuous Current (fix)

35A

24A

15A

8A

5,5A

4A

Ripple & Noise mVpp

40mV

50mV

100mV

150mV

200mV

200mV

Powerboost

38,5A

26,4A

16,5A

8,8A

6,1A

4,4A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Programming Interface Voltage

0... 10Vdc, 0-20mA

Programming Interface Current

No

Monitoring Interface Voltage

No

Monitoring Interface Current

No

Power Good Relay

No

Sense Operation

Yes

Remote Shutdown

Yes

Reference Voltage

No

Ordering Options

Protective coating, 4-20mA interface

Options

Isolating transformer for analogue interface, wall mount

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 59 von 144







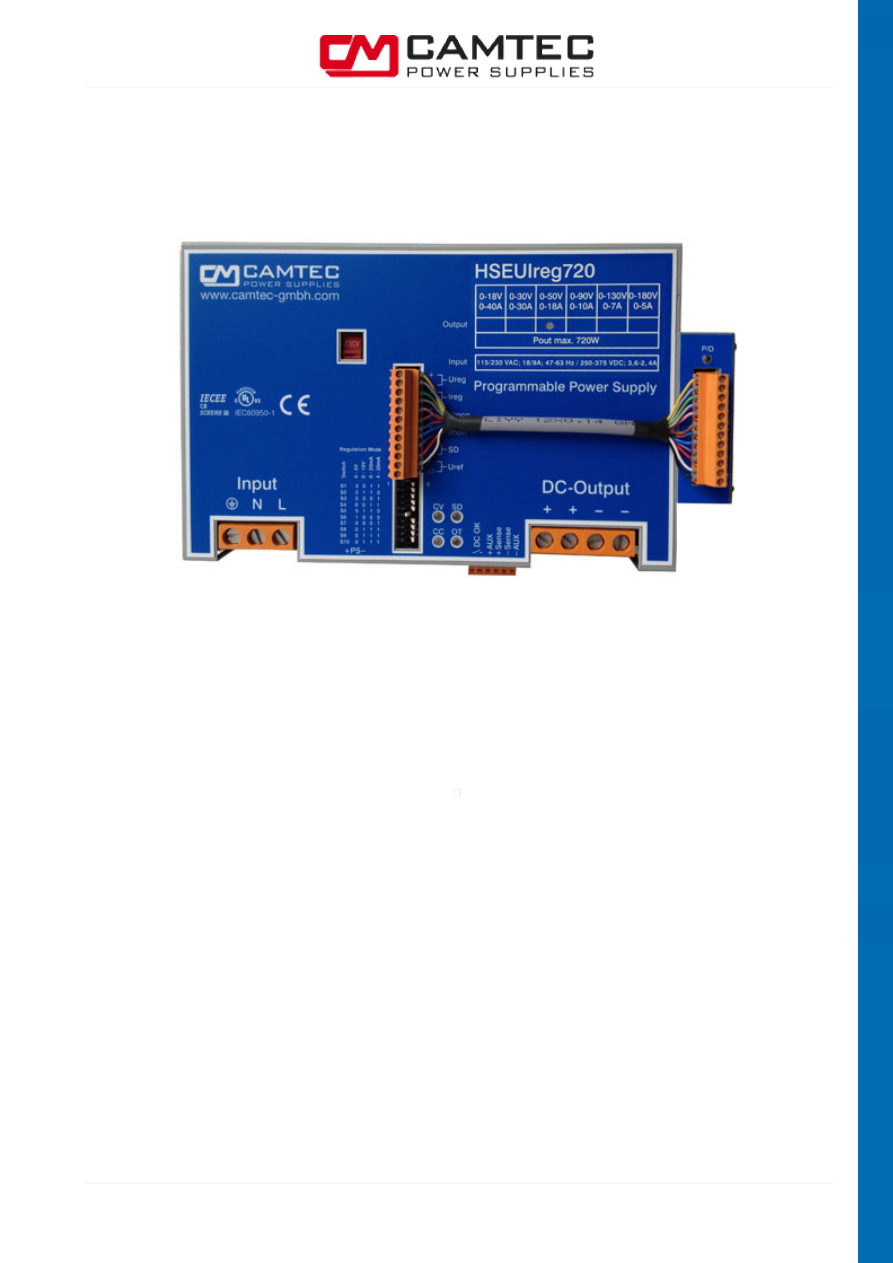

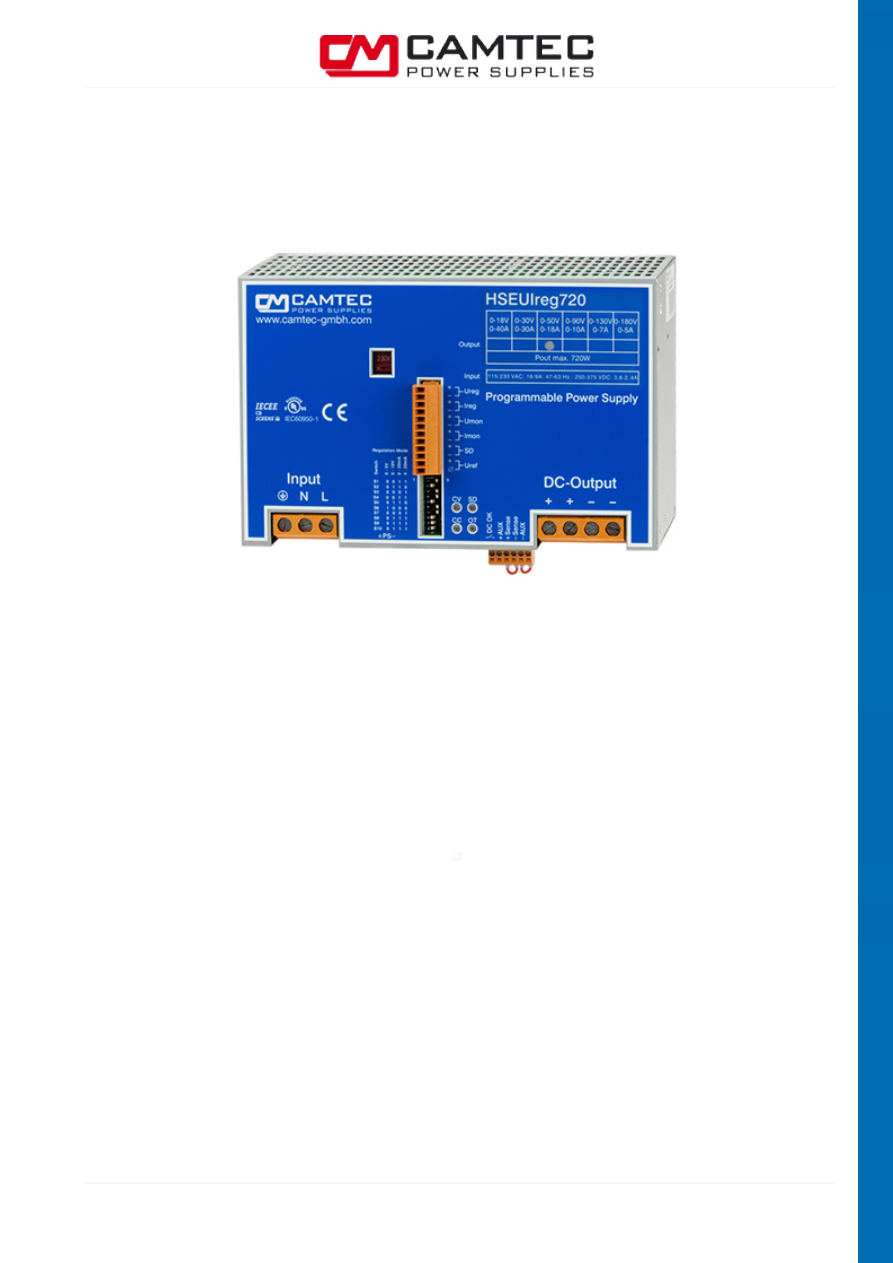

HSEuireg07201 Lab Power Supply DIN-Rail, 4W/CUI
free air

720W C/V programmable, Laboratory Power Supply scalable for test bench

Multifunctional analogue Interface 0-5V/0-10V/0-20mA/4-20mA

Real Time Monitoring



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 60 von 144

HSEuireg07201

Model

HSEUIreg07201

Power

720W

Nominal Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

9,8Aeff / 13,8Apeak active limiter ±6%

Autostart

Soft start

Programmable Output Voltage

0-18V 0-30V

0-50V

0-60V

0-90V

0-130V 0-180V 0-240V

Programmable Output Current

0-40A 0-30A

0-18A

0-15A

0-10A

0-7A

0-5A

0-3,8A

Ripple & Noise mVss

40mV 50mV 100mV 120mV 150mV

200mV

200mV

320mV

Powerboost

See datasheet

Stability at Load Switch

±0,2%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x130x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Programming Interface Voltage

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Programming Interface Current

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Monitoring Interface Voltage

0... 5Vdc, 0... 10Vdc

Monitoring Interface Current

0... 5Vdc, 0... 10Vdc

Power Good Relay

Yes

Sense Operation

yes

Remote Shutdown

yes

Reference Voltage

yes

Ordering Options

Protective coating

Options

Isolating transformer for analogue interface, wall mount, USB interface

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 61 von 144







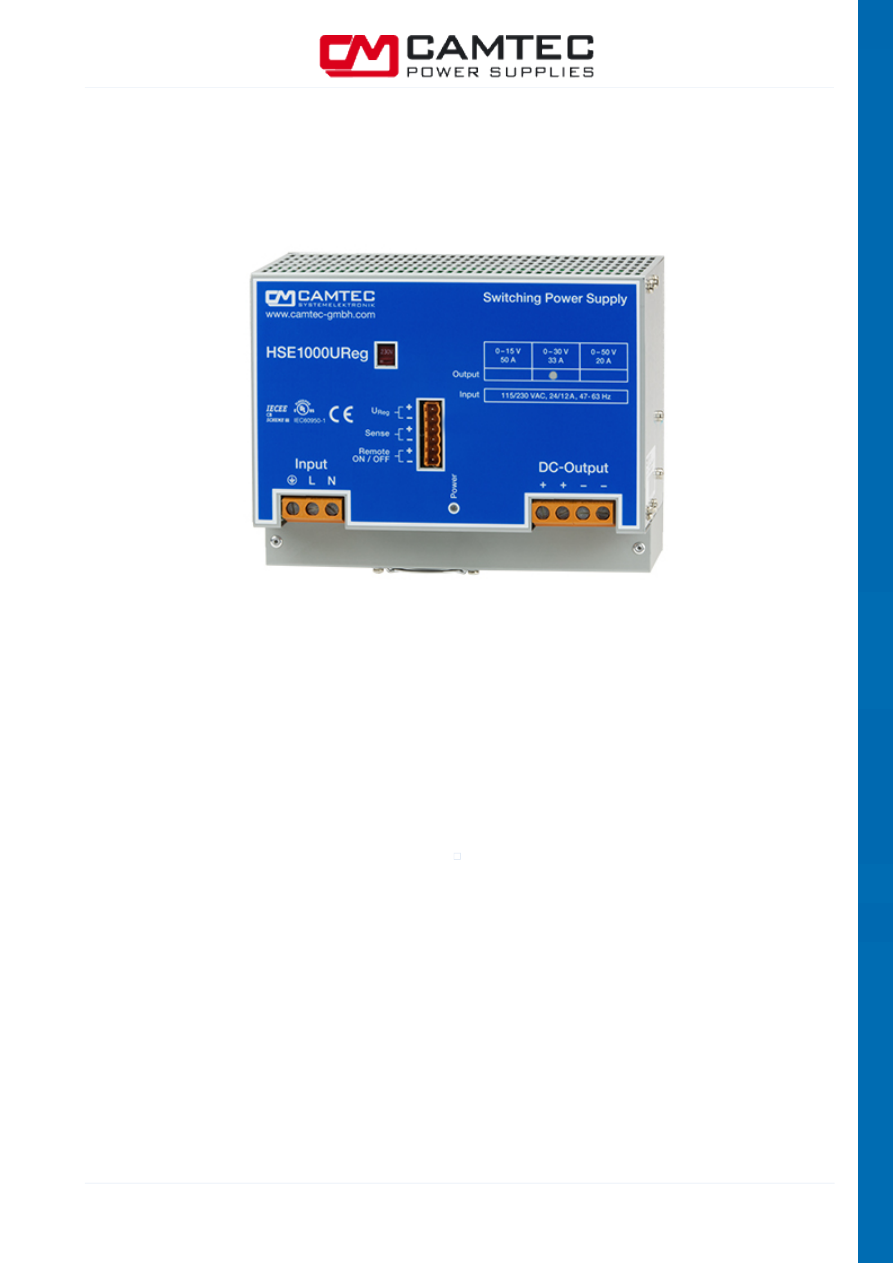

HSEureg10001 Lab Power Supply DIN-Rail, 5W/CUI

Cost effective 1000W V programmable, 5W/Cubic-Inch High Density Laboratory Power Supply scalable for
test bench

Multifunctional analogue Interface 0-10V/0-20mA

Remote Shutdown

Sensing



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 62 von 144

HSEureg10001

Model

HSEUreg10001

Power

1008W

Nominal Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC < 81A ( recommended MCB=C16A)

Autostart

Soft start 100ms

Programmable Output Voltage

0-15V

0-30V

0-50V

0-90V

0-130V

0-180V

Continuous Current (fix)

50A

33A

20A

11,2A

7,8A

5,6A

Ripple & Noise mVss

50mV

50mV

100mV

200mV

250mV

250mV

Powerboost

55A

36,8A

22A

12,3A

8,6A

8,1A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection & controlled fan from Papst

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x156x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Programming Interface Voltage

0... 10Vdc, 0-20mA

Programming Interface Current

No

Monitoring Interface Voltage

No

Monitoring Interface Current

No

Power Good Relay

No

Sense Operation

Yes

Remote Shutdown

Yes

Reference Voltage

No

Ordering Options

Protective coating, 4-20mA interface

Options

Isolating transformer for analogue interface, wall mount

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 63 von 144







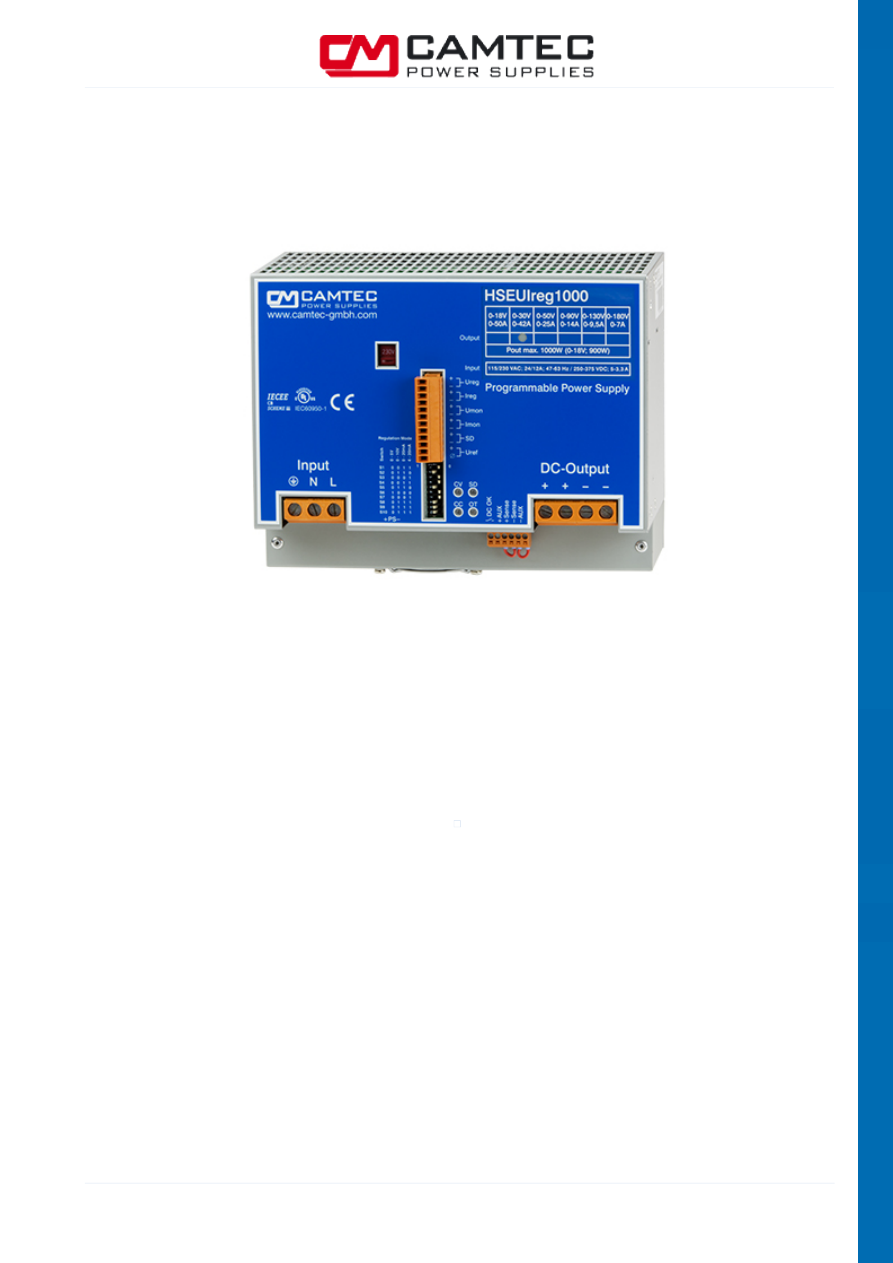

HSEuireg10001 Lab Power Supply DIN-Rail, 5W/CUI

1000W C/V programmable, 5W/Cubic-Inch High Density Laboratory Power Supply scalable for test bench

Multifunctional analogue Interface 0-5V/0-10V/0-20mA/4-20mA

Real Time Monitoring



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 64 von 144

HSEuireg10001

Model

HSEUIreg10001

Power

1008W

Nominal Input

115/230Vac slelect

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

9,8Aeff / 13,8Apeak active limiter ±6%

Autostart

Soft start

Programmable Output Voltage

0-18V 0-30V

0-50V

0-90V

0-130V 0-180V 0-240V 0-400V

Programmable Output Current

0-50A 0-42A

0-25A

0-14A

0-9,5A

0-7A

0-5,3A

0-3,2A

Ripple & Noise mVss

40mV 40mV 120mV 150mV

200mV

300mV

400mV

400mV

Powerboost

See datasheet

Stability at Load Switch

±0,2%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection & controlled fan from Papst

Temperature Monitoring

Yes

Dimensions (WxHxD)

200x156x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Programming Interface Voltage

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Programming Interface Current

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Monitoring Interface Voltage

0... 5Vdc, 0... 10Vdc

Monitoring Interface Current

0... 5Vdc, 0... 10Vdc

Power Good Relay

Yes

Sense Operation

yes

Remote Shutdown

yes

Reference Voltage

yes

Ordering Options

Protective coating

Options

Isolating transformer for analogue interface, wall mount, USB interface

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 65 von 144







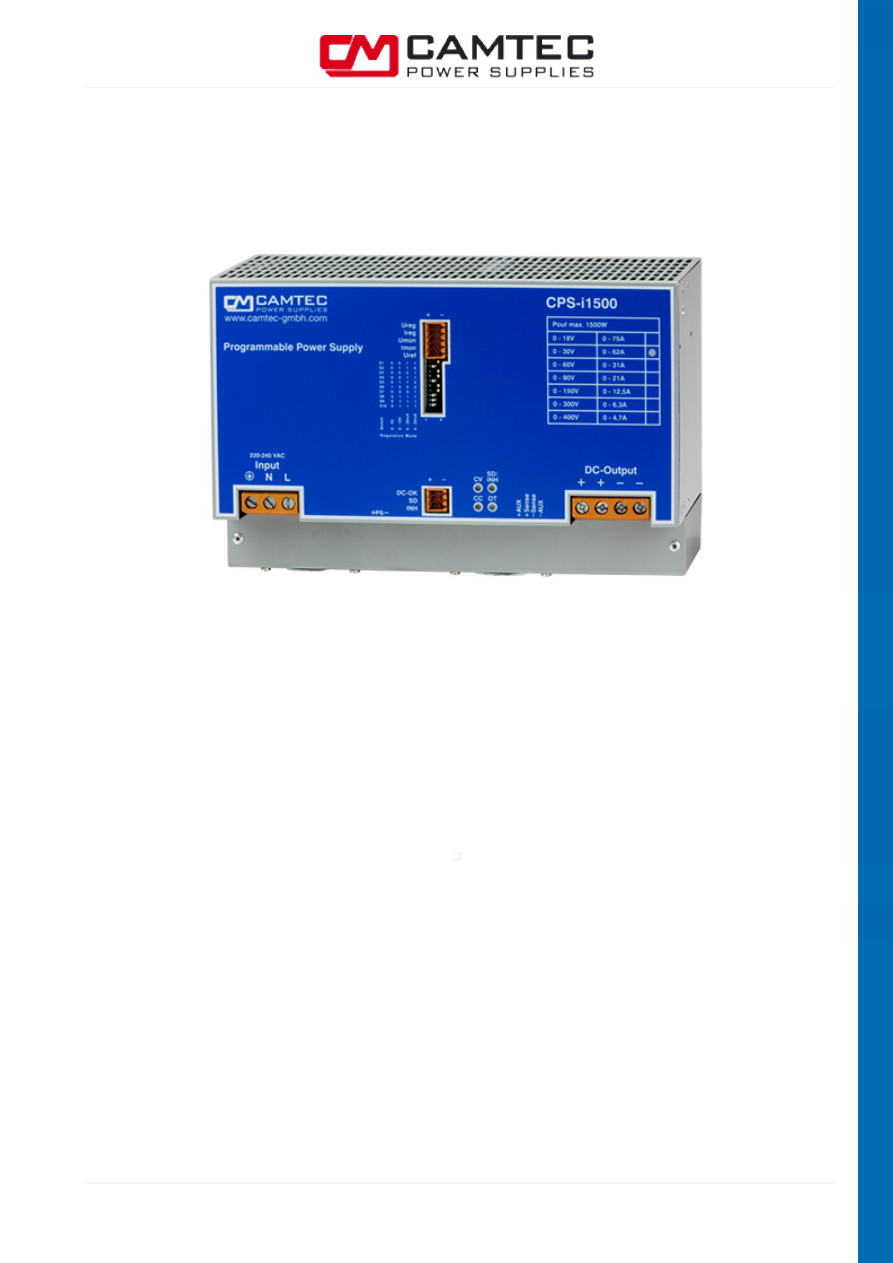

CPS-i1500 Laboratory Power Supply DIN-Rail,
7.2W/CUI

1500W C/V programmable High Density Laboratory Power Supply scalable for test bench

Multifunctional analogue Interface 0-5V/0-10V/0-20mA/4-20mA

Real Time Monitoring



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 66 von 144

CPS-i1500

Model

CPS-i1500

Power

1500W

Nominal Input

230Vac slelect

Input Range AC

184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

20ms

Inrush Current Protection

9,8Aeff / 13,8Apeak active limiter ±6%

Autostart

Soft start

Programmable Output Voltage

0-18V

0-30V

0-60V

0-90V

0-150V

0-300V

0-400V

Programmable Output Current

0-75A

0-62A

0-31A

0-21A

0-12,5A

0-6,3A

0-4,7A

Ripple & Noise mVss

40mV

40mV

120mV

150mV

200mV

300mV

400mV

Stability at Load Switch

±0,2%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection & controlled fan from Papst

Temperature Monitoring

Yes

Dimensions (WxHxD)

250x156x114,5mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

400000h

Programming Interface Voltage

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Programming Interface Current

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Monitoring Interface Voltage

0... 5Vdc, 0... 10Vdc

Monitoring Interface Current

0... 5Vdc, 0... 10Vdc

Power Good Relay

Yes

Sense Operation

yes

Remote Shutdown

yes

Reference Voltage

yes

Inhibit Contact

yes

Ordering Options

Protective coating

Power Sink Module

Protected Inhibit Module acc. with SIL03

Options

Isolating transformer for analogue interface, USB2.0 interface with software

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 67 von 144







CPS-i2000 Laboratory Power Supply Embedded &
Wallmount, 8W/CUI, PFC0.99

3D-HD (3D Heat Dissipation) performs 360° mount in the 3-dimensional room

0-max. C/V Programmable & Real Value monitoring

N+1 Parallel Operation

Maste - Slave

Current Share Bus

Constant Current / Constant Voltage

Fuse Mode & Continuous Mode

Sensing

Remote Shutdown

Inhibit (Interlock)

Temperature Alarm & Monitor, Fan Fail

Aux +12V 500mA

Option Quick Downprogramming Powersink

6KW in a 2U & aup to 9KW in a 3U subframe



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 68 von 144

CPS-i2000

Model

CPS-i2000

Continuous Power

2000W

Nominal Input Voltage

230Vac

Input Voltage Range AC

184..265Vac

Input Voltage Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-up Time

30ms

Inrush Current AC

14,6A RMS / 20,7A peak active electronic protection ±6%

Startautomatic

Softstart 100ms

Programmable Output Voltage

0-18V

0-30V

0-60V

0-90V

0-150V

Programmable Output Current

0-165A

0-100A

0-50A

0-33A

0-20A

Ripply & Boise mVpp

35mV

35mV

100mV

150mV

200mV

Stability Loadstwitch

±0,05% 0-100%

Respose

< 1ms 10-100%

Effeciency

92-94%

Power Faktor

PFC0,99

Load Free Operation

Continuous

Short Cicuit Protection

Continuous

Ambient Operations

-20°C... +60°C

Cooling

Stepless controlled fans from EBM-Papst flow front-to-rear, FanFail Monitor

Temperature Control

Power reduction & Monitoring

Dimensions (WxHxD)

126,4x84x444mm, 2U or 3U Embedded or hard mount in 90° steps

IP Housing

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input- /Output Isolation

3000Vac

Climatic Calss, Humidity

3k3, 90% non-condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Interface Voltage Programming

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Interface Current Programming

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Interface Voltage Monitoring

0... 5Vdc, 0... 10Vdc

Interface Current Monitoring

0... 5Vdc, 0... 10Vdc

Inhibit (Interlock)

Message

O-Ring Current Share

Optional

Power Good Relais

Open/Center/Close

Sense

2V per load line

Remote Shutdown

Monitor

Reference Voltage

+12V 500mA

Options

Protective coating, Internal Powersink

Accessory

2U & 3U Frontpanel, 2U & 3U Subframe, Hard-Mount-Kit, RS385, TCP/IP

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 69 von 144







CPS-i3000 Laboratory Power Supply Embedded &
Wallmount, 12W/CUI, PFC0.99

3D-HD (3D Heat Dissipation) performs 360° mount in the 3-dimensional room

0-max. C/V Programmable & Real Value monitoring

N+1 Parallel Operation

Maste - Slave

Current Share Bus

Constant Current / Constant Voltage

Fuse Mode & Continuous Mode

Sensing

Remote Shutdown

Inhibit (Interlock)

Temperature Alarm & Monitor, Fan Fail

Aux +12V 500mA

Option Quick Downprogramming Powersink

Option Intewrnal O-Ring Diode

9KW in a 2U & up to 15KE in a 3U subframe, >100KW per system



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 70 von 144

CPS-i3000

Model

CPS-i3000

Continuous Power

3000W

Nominal Input Voltage

230Vac

Input Voltage Range AC

184..265Vac

Input Voltage Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-up Time

30ms

Inrush Current AC

14,6A RMS / 20,7A peak active electronic protection ±6%

Startautomatic

Softstart 100ms

Programmable Output Voltage

0-18V

0-30V

0-60V

0-90V

0-150V

0-300V

Programmable Output Currrent

0-185A

0-125A

0-62,5A

0-41,5A

0-25A

0-12,5A

Ripply & Boise mVpp

35mV

35mV

100mV

150mV

200mV

300mV

Stability Loadswitch

±0,2% 0-100%

Response

< 1ms 10-100%

Effeciency

92-94%

Power Faktor

PFC 0,99

Load Free Operation

Continuous

Short Cicuit Protection

Continuous

Ambient Operations

-20°C... +60°C

Cooling

Stepless controlled fans from EBM-Papst flow front-to-rear, Fan Fail Monitor

Temperature Control

Power reduction & Monitor

Dimensions (WxHxD)

126,4x84x444mm, 2U or 3U Embedded or hard mount in 90° steps

IP Housing

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input- /Output Isolation

3000Vac

Climatic Calss, Humidity

3k3, 90% non-condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Interface Voltage Programming

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Interface Current Programming

0... 5Vdc, 0... 10Vdc, 0-20mA, 4-20mA

Interface Voltage Monitoring

0... 5Vdc, 0... 10Vdc

Interface Current Monitoring

0... 5Vdc, 0... 10Vdc

Inhibit (Interlock)

Message

O-Ring Current Share

Option

Power Good Relais

Open/Center/Close

Sense

2V load line

Remote Shutdown

Monitor

Reference Voltage

+12V 500mA

Options

Protective coating, Internal Powersink

Accessory

2U & 3U Frontpanel, 2U & 3U Subframe, Hard-Mount-Kit, RS485, TCP/IP

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 71 von 144







USB2.0 UI.Drive-Interface HSEUIreg-Series

UI.Drive-Interface including UI.Drive-Software
for MS Windows 2000/XP/7



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 72 von 144

UI.Drive Interface USB2.0

Model

UI.Drive Interface USB2.0

Supply Voltage

+5V USB-Port

Current Consumption

115mV typ.

Isolation USB / DC-Output

3000Vac / 4300Vdc

Isolation USB / PE

500Vdc

Isolation DC-Output / PE

2000Vac / 2900Vdc

Resolution AD/DA Converter

12 Bit

Accuracy AD Converter

± 0,05% 15ppm/°C

Accuracy Monitoring Output

± 0,5% max.

Accuracy Control Input U/I

± 0,8% max.

Data Flow Control/Monitor

400ms interval

Remote On/Off

forced directly

Install Space

22,1mm windth (mounted)





UI.Drive Software

Microsoft Windows® 2000/XP/Win7

Quantity Power Supplies

10 pcs configurable

U / I / Monitoring / Remote

manual and automatic via ToolMonitor

Data Logger

available

Data Record

Logfile, customized setup

Script Engine

.DLL / .NET Framework

Visualisation

Customized window design

COM Server (DCOM/.NET)

UI.Drive -Software controllable via 3rd party software:



e.g. LabView, MCD Test Manager CE, MS Excel, Open Office, others

Export Log File

HTML, PDF, E-Mail, Printer

Programming Language

MS Visual Studio, C#, C++, Visual Basic





Scope of Delivery

USB2.0 UI.Drive-Interface Hardware



UI.Drive-Software Licence



USB2.0 AB cable 5m / 16,4 ft.



Interface Link Cable HSEUIreg-Power Supply



Installation Kit



Installation Guide

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 73 von 144

100kW" level="0" >

100kW4">

Category:

AC/DC Embedded & Scalabel Power Supply 2kW

... >100kW

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 74 von 144







CPS-EP2000 Embedded & Wallmount PFC0,99

Current Share Bus for N+1 parallel operation

O-Ring Diode optional

Sense Mode

AUX +12V 500mA

Current Monitoringt

Remote Shutdown

DC & AC Power Good Relay Open/Center/Close

Fan Fail Monitoring

Temperature Warning & Alarm

Temperature Shutdown Alarm

6KW in a 2U or 10KW in a 3U subframe

Hard mount in 90° steps



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 75 von 144

CPS-EP2000

Model

CPS-EP2000

Continuous Power

2000W

Nominal Input Voltage

230Vac

Input Voltage Range AC

184..265Vac

Input Voltage Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-up Time

30ms

Inrush Current AC

14,6A RMS / 20,7A peak active electronic protection ±6%

Startautomatic

Softstart 100ms

Vout

24V

36V

48V

72V

110V

220V

Vout prog. poti

24-30V

30-45V

45-58V

58-90V

90-150V

200-300V

Aout

83A

55A

42A

27,8A

18,2A

9,1A

Ripply & Boise mVpp

35mV

35mV

100mV

150mV

200mV

300mV

Stability Loadswitch

±0,05% 0-100%

Response

< 1ms 10-100%

Effeciency

92-94%

Power Faktor

PFC 0,99

Load Free Operation

Continuous

Short Cicuit Protection

Continuous

Ambient Operations

-20°C... +60°C

Cooling

Stepless controlled fans from EBM-Papst flow front-to-rear, Fan Fail Message

Temperature Control

ÜPower reduction and message

Dimensions (WxHxD)

126,4x84444mm, 2U or 3U Embedded or hard mount in 90° steps

IP Housing

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input- /Output Isolation

3000Vac

Climatic Calss, Humidity

3k3, 90% non-condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Interface Current Monitoring

0-5Vdc

O-Ring Diode

Optional

Power Good Relay

OPen/Center/Close

Sense Mode

2V per load line

Remote Shutdown

Message

Options

Protective coating

Accessory

2U & 3U Frontpanel, 2U & 3U Subframe, Hard-Mount-Kit

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 76 von 144







CPS-EP3000 Embedded & Wallmount, PFC0.99

Current Share Bus for N+1 parallel operation

O-Ring Diode optional

Sense Mode

AUX +12V 500mA

Current Monitoring

Remote Shutdown

DC & AC Power Good Relay Open/Center/Close

Fan Fail Monitoring

Temperature Warning & Alarm

Temperature Shutdown Alarm

9KW in a 2U or 15KW in a 3U subframe, >100KW scalable poiwer system

Hard mount in 90° steps



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 77 von 144

CPS-EP3000

Model

CPS-EP3000

Continuous Power

3000W

Nominal Input Voltage

230Vac

Input Voltage Range AC

184..265Vac

Input Voltage Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-up Time

30ms

Inrush Current AC

14,6A RMS / 20,7A peak active electronic protection ±6%

Startautomatic

Softstart 100ms

Vout

12V

24V

36V

48V

72V

110V

220V

Vout range poti

12-15V

24-30V

30-45V

45-58V

58-90V

90-150V

200-300V

Aout

200A

125A

83A

62,5A

41,7A

27,3A

13,6A

Ripply & Boise mVpp

35mV

35mV

35mV

100mV

150mV

200mV

300mV

Stability Loadswitch

±0,05% 0-100%

Response

< 1ms 10-100%

Effeciency

92-94%

Power Faktor

PFC 0,99

Load Free Operation

Continuous

Short Cicuit Protection

Continuous

Ambient Operations

-20°C... +60°C

Cooling

Stepless controlled fans from EBM-Papst flow front-to-rear, Fan Fail message

Temperature Control

Power reduction, message

Dimensions (WxHxD)

126,4x84x444mm, 2U or 3U Embedded or hard mount in 90° steps

IP Housing

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input- /Output Isolation

3000Vac

Climatic Calss, Humidity

3k3, 90% non-condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Interface Current Monitoring

0-5Vdc

O-Ring Diode

Optional

Power Good Relay

OPen/Center/Close

Sense Mode

2V per load line

Remote Shutdown

Message

Options

Protective coating

Accessory

2U & 3U Frontpanel, 2U & 3U Subframe, Hard-Mount-Kit

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 78 von 144







CPS-EX2000 Embedded & Wallmount, programmable,
PFC0.99

C/V programming interface

C/V programming internal potis

Current Mode

Fuse Mode

OCP & OVP message

Current Share Bus for N+1 parallel operation

O-Ring Diode option

Sense Mode

AUX +12V 500mA

Current Monitoring

Remote Shutdown

Inhibit (Interlock)

DC & AC Power Good Relay open/center/close

Fan Monitoring

Temperature warning & alarm

6KW in a 2U & 10KW in a 3U subframe

Hard mount in 90° steps



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 79 von 144

CPS-EX2000

Model

CPS-EX2000

Continuous Power

2000W

Nominal Input Voltage

230Vac

Input Voltage Range AC

184..265Vac

Input Voltage Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-up Time

30ms

Inrush Current AC

14,6A RMS / 20,7A peak active electronic protection ±6%

Startautomatic

Softstart 100ms

Vout

24V

36V

48V

72V

110V

220V

Vout prog. range 0-5V/poti

24-30V

30-45V

45-58V

58-90V

90-150V

200-300V

Aout

83A

55A

42A

27,8A

18,2A

9,1A

Iout prog. range 0-5V/poti

66-83A

44-55A

33-42A

22,2-27,8A

14-18,2A

7,3-9,1A

Ripply & Boise mVpp

35mV

35mV

100mV

150mV

200mV

300mV

Stability Loadswitch

±0,05% 0-100%

Resüonse

< 1ms 10-100%

Effeciency

92-94%

Power Faktor

PFC 0,99

Load Free Operation

Continuous

Short Cicuit Protection

Continuous

Ambient Operations

-20°C... +60°C

Cooling

Stepless controlled fans from EBM-Papst flow front-to-rear, Fan Fail Monitor

Temperature Control

Power reduction, Monitor

Dimensions (WxHxD)

126,4x8444mm, 2U or 3U Embedded or hard mount in 90° steps

IP Housing

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input- /Output Isolation

3000Vac

Climatic Calss, Humidity

3k3, 90% non-condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Interface Voltage Programming

0-5Vdc / Poti

Interface Current Monitoring

0-5Vdc / Poti

O-Ring Diode

Option

Power Good Relay

Opern/Center/Close

Remote Shutdown

Monitoring

Inhibit (Interlock)

Monitoring

Options

Protective coating

Accessory

2U & 3U Frontpanel, 2U & 3U Subframe, Hard-Mount-Kit

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 80 von 144







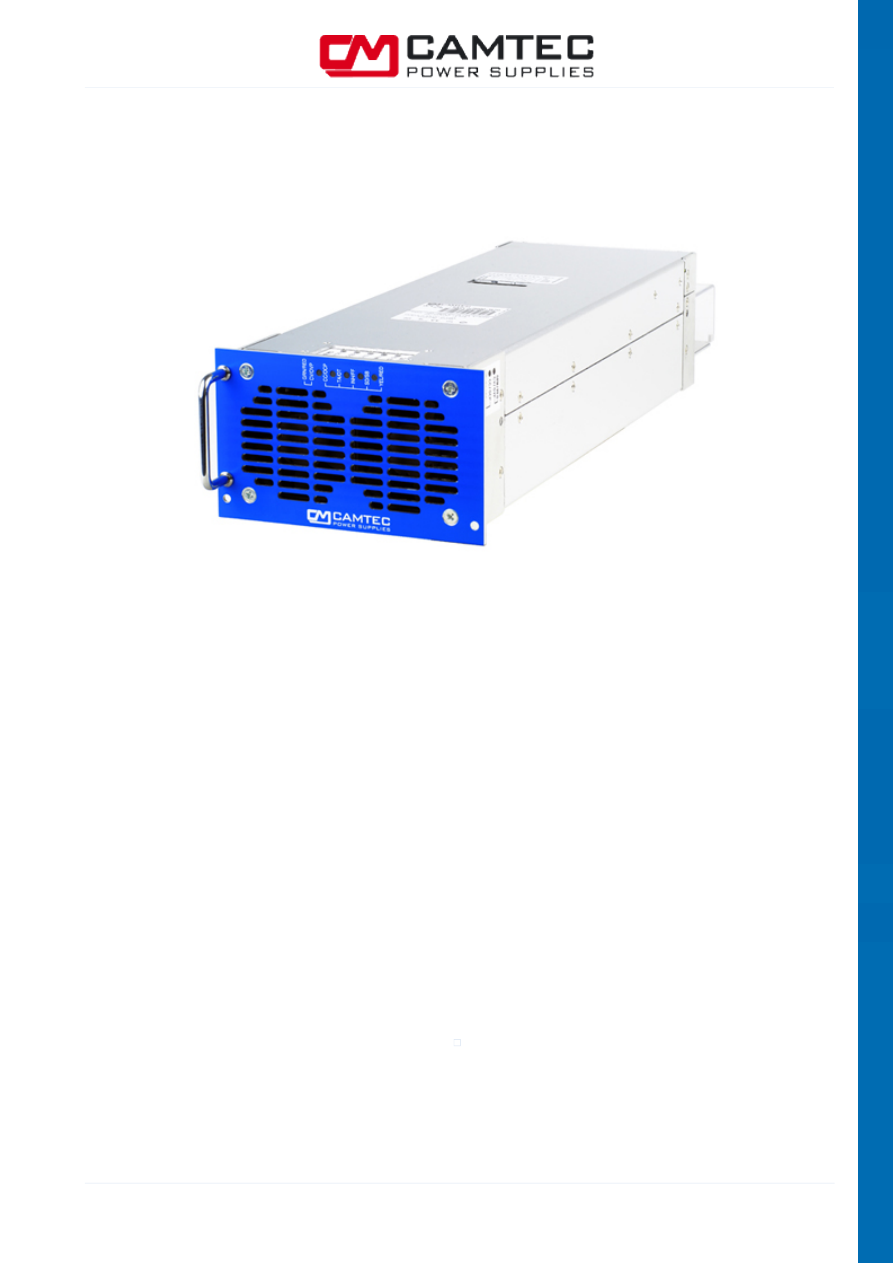

CPS-EX3000 Embedded & Wallmount, programmable,
PFC0.99

C/V programming interface

C/V programming internal potis

Current Mode

Fuse Mode

OCP & OVP message

Current Share Bus for N+1 parallel operation

O-Ring Diode option

Sense Mode

AUX +12V 500mA

Current Monitoring

Remote Shutdown

Inhibit (Interlock)

DC & AC Power Good Relay open/center/close

Fan Monitoring

Temperature warning & alarm

9KW in a 2U & 15KW in a 3U subframe, >100KW scalable power system

Hard mount in 90° steps



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 81 von 144

CPS-EX3000

Model

CPS-EX3000

Continuous Power

3000W

Nominal Input Voltage

230Vac

Input Voltage Range AC

184..265Vac

Input Voltage Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-up Time

20ms

Inrush Current AC

14,6A RMS / 20,7A peak active electronic protection ±6%

Startautomatic

Softstart 100ms

Vout

12V

24V

36V

48V

72V

110V

220V

Vout prog. range 0-5V/poti

12-

15V

24.-
30V

30-

45V

45-

58V

58-

90V

90-

150V

200-

300V

Aout

200A

125A

83A

62,5A

41,7A

27,3A

13,6A

Iout prog. range poti

180-

200A

100-

125A

66,4-

83A

50-

62,5A

33,4-

41,7A

21,8-

27,3A

10,9-

15,6A

Ripply & Boise mVpp

35mV

35mV

35mV

100mV

150mV

200mV

200mV

Stability Loadswitch

±0,05% 0-100%

Response

< 1ms 10-100%

Effeciency

92-94%

Power Faktor

PFC 0,99

Load Free Operation

Continuous

Short Cicuit Protection

Continuous

Ambient Operations

-20°C... +60°C

Cooling

Stepless controlled fans from EBM-Papst flow front-to-rear, Fan Monitoring

Temperature Control

Power reduction, Monitoring

Dimensions (WxHxD)

126,4x84x444mm, 2U or 3U Embedded or hard mount in 90° steps

IP Housing

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input- /Output Isolation

3000Vac

Climatic Calss, Humidity

3k3, 90% non-condensing

EMI

EN55022B

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Interface Voltage Programming

0-5Vdc / Poti

Interface Current Monitoring

0-5Vdc / Poti

Current Monitoring

0-5Vdc

O-Ring Diode

Optional

Sense Mode

2V per load line

Remote Shutdwon

Monitor

Inhibit (Interlock)

Monitor

Options

Protective coating

Accessory

2U & 3U Frontpanel, 2U & 3U Subframe, Hard-Mount-Kit

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 82 von 144

100kW" level="0" >

100kW5">

Category:

DC-UPS / Battery Charger 480W ... >100kW

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 83 von 144







HSE01201CC 120W Battery Charging Rectifier &
Constant Current DC-Source

Constant Current Battery Charger

Ideal vertically C/V chart



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 84 von 144

HSE01201CC

Model

HSE01201CC

Power

120W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

110... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC < 16A

Autostart

Soft start

Output Voltage

57,4V (other voltages upon request)

Adjust Range Vout

factory set current limiting

Ripple & Noise mVpp

120mV

Nominal Output Current

2A

Power Boost <=60°C/60s

-

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

89%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

-

Dimensions (WxHxD)

50x124x96mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

589000h

Power Good Relay

galvan. insulated 60Vdc

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 85 von 144







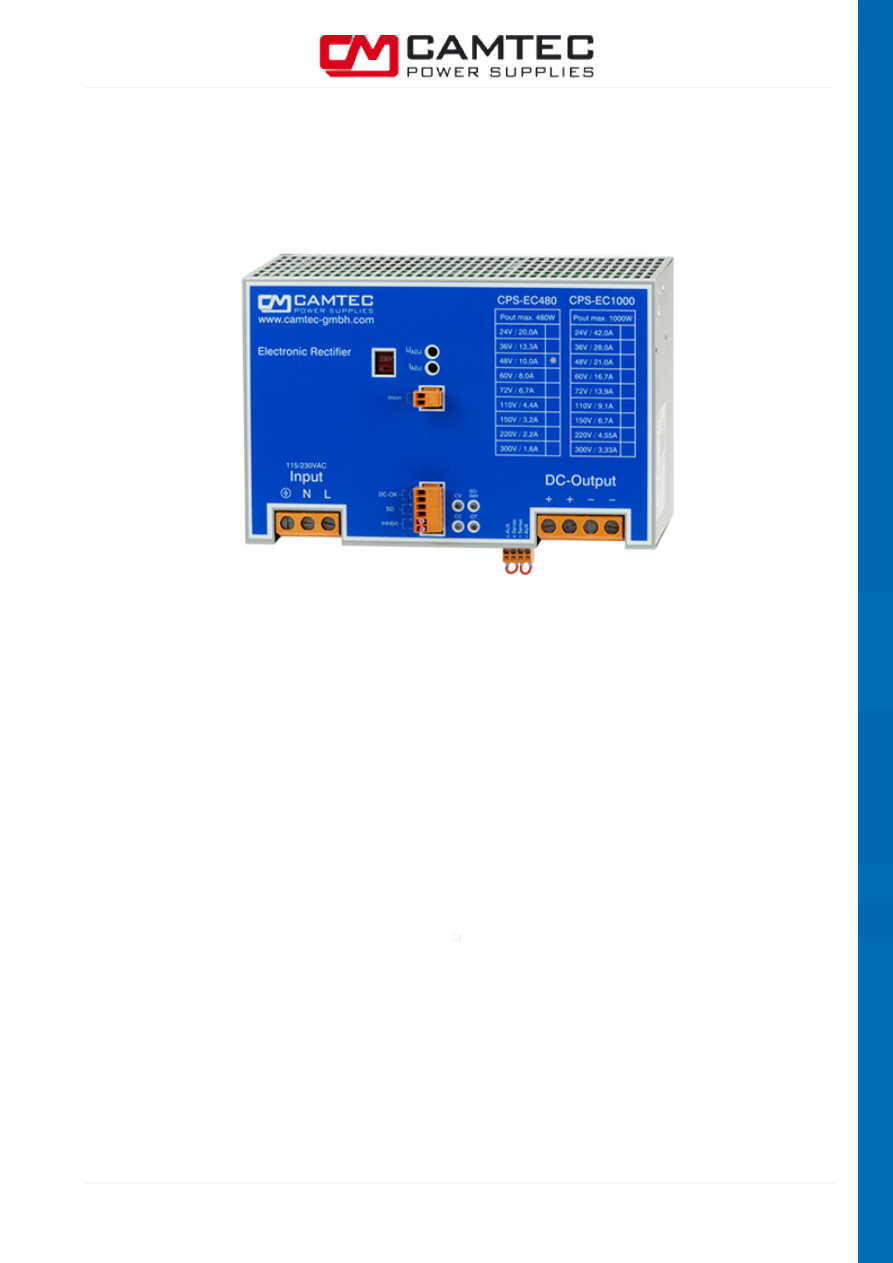

CPS-EC480 DIN-Rail Battery Charger & Industrial
Precision Power

C/V pricesely adjustable

Current Monitor Imon

Perfect C/V chart with no Foldback

Power Good Relay AC & DC

Remote Shutdown

Inhibit (Interlock) Function

Sense

Natural Cooling



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 86 von 144

CPS-EC480

Model

CPS-EC480

Power

480W

Nominal AC Input

115/230Vac

Input Range AC

90..115Vac/186..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current

Electronic Inrush Current Limiter 9,8Arms

Autostart

Soft start 100ms

Output Voltage

24V

36V

48V

60V

72V

110V

150V

220V

300V

Output Current

20A

13,3A

10A

8A

6,7A

4,4A

3,2A

2,2A

1,6A

DC Voltage Setting

24-30V 36-45V 48-58V 60-75V 72-90V 110-137,5V 132-180V 220-264V 264-360V

DC Current Setting

10-21A 6,6-14A 5-10,5A 4-8,4A 3,4-7A

2,2-4,6A

1,6-3,3A

1,1-2,3A

0,8-1,7A

Ripple & Noise mVpp

40mV

40mV

100mV 150mV 200mV

300mV

400mV

400mV

400mV

Load Regulation

±0,05% 0-100%

Load Change

Response < 1ms 10-100% 100-10%

Efficiency

up to 92%

Base load

non, continuous open circuit proof

Short Circuit Protection

Continuous

Ambient Temperature

-20°C... +70°C Operation

Cooling

natural cooling

Temperature Control

Yes

Dimensions

(WxHxD) 200x130x114,5mm IP20

Safety Norms

CSA UL CE in accordance to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1, UL classified in accordance to EN60950

Safety Class 1(A)

VDE0100 VDE0805

Input/Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI/EMS

EN55022B / EN61000-6-2,3

EMS

EN61000-6-2,3

MTBF / MTTF IEC61709

400000h / 148312h

Power Good Relay

AC & DC low voltage detection, isolated

Features

Current-Monitoring, External Shutdown, Inhibit (Interlock), Sense Compensation

Options

Protective Coating, Baseplate cooler for hardmount

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 87 von 144







CPS-EC1000 DIN-Rail Battery Charger & Industrial
Precision Power

C/V pricesely adjustable

Current Monitor Imon

Perfect C/V chart with no Foldback

Power Good Relay AC & DC

Remote Shutdown

Inhibit (Interlock) Function

Sense



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 88 von 144

CPS-EC1000

Model

CPS-EC1000

Power

1008W

Nominal AC Input

115/230Vac

Input Range AC

90..115Vac/186..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current

Electronic Inrush Current Limiter 9,8Arms

Autostart

Soft start 100ms

Output Voltage

24V

36V

48V

60V

72V

110V

150V

220V

300V

Output Current

42A

28A

21A

16,7A

13,9A

9,1A

6,7A

4,55A

3,33A

DC Voltage Setting

24-30V

36-45V

48-58V

60-75V 72-90V 110-137,5V 132-180V 220-264V 264-360V

DC Current Setting 21-44,1A 14-29,4A 10,5-22A 8-17,6A 7-14,6A

4,6-9,6A

3,4-7A

3,3-4,8A

1,7-3,5A

Ripple & Noise PP

40mV

40mV

100mV

150mV 200mV

300mV

400mV

400mV

400mV

Load Regulation

±0,05% 0-100%

Load Change

Response

Efficiency

up to 92%

Base load

non, continuous open circuit proof

Short Circuit

Continuous Protection

Ambient

-20°C... +70°C Operation Temperature

Cooling

controlled fan from EBM Papst (Germany)

Temp. Control

Yes

Dimensions

(WxHxD) 200x156x114,5mm IP20

Safety Norms

CSA UL CE in accordance to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1, UL classified in accordance to EN60950

Safety Class 1(A)

VDE0100 VDE0805

 Isolation

3000Vac Input/Output

Climatic Class

3k3, Humidity 95% non condensing

EMI/EMS

EN55022B / EN61000-6-2,3

EMS

EN61000-6-2,3

MTBF / MTTF

389000h / 143036h (IEC61709)

Power Good Relay

AC & DC low voltage detection, isolated

Features

Current-Monitoring, External Shutdown, Inhibit (Interlock), Sense Compensation

Options

Protective Coating, Baseplate cooler for hardmount

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 89 von 144







CPS-EC1500 DIN-Rail Battery Charger & Industrial
Precision Power

C/V pricesely adjustable

Boost Charge Mode

Current Monitor Imon

Perfect C/V chart with no Foldback

Power Good Relay AC & DC

Remote Shutdown

Inhibit (Interlock) Function

Sense



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 90 von 144

Model CPS-EC1500

Model

CPS-EC1500

Power

1500W

Nominal AC Input

230Vac

Input Range AC

186..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

20ms

Inrush Current

Electronic Inrush Current Limiter 9,8Arms

Autostart

Soft start 100ms

Output Voltage

24V

36V

48V

60V

72V

110V

150V

220V

400V

Output Current

62,5A

41,7A

31,2A

25A

20,8A

13,6A

10A

6,8A

4,6A

DC Voltage Setting

24-30V

36-45V

48-58V

60-75V

72-90V

110-137,5V 132-180V 220-264V 330-400V

DC Current Setting 31,3-62,5A 20,9-41,7A 15,6-31,2A 12-25A 10,4-20,8A

6,8-13,6A

5-10A

3,4-6,8A

2,3-4,6A

Ripple & Noise PP

40mV

40mV

120mV

150mV

200mV

300mV

400mV

400mV

400mV

Load Regulation

±0,05% 0-100%

Load Change

Response

Efficiency

up to 94%

Base load

non, continuous open circuit proof

Short Circuit

Continuous Protection

Ambient

-20°C... +70°C Operation Temperature

Cooling

controlled fan from EBM Papst (Germany)

Temp. Control

Yes

Dimensions

(WxHxD) 250x156x114,5mm IP20

Safety Norms

CSA UL CE in accordance to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1, UL classified in accordance to EN60950

Safety Class 1(A)

VDE0100 VDE0805

 Isolation

3000Vac Input/Output

Climatic Class

3k3, Humidity 95% non condensing

EMI/EMS

EN55022B / EN61000-6-2,3

EMS

EN61000-6-2,3

MTBF / MTTF

400000h / 144006h (IEC61709)

Power Good Relay

AC & DC low voltage detection, isolated

Features

Current-Monitoring, External Shutdown, Inhibit (Interlock), Sense Compensation, Boost Charge Mode

Options

Protective Coating, Baseplate cooler for hardmount, Protected Inhibit Module acc. with SIL03

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 91 von 144







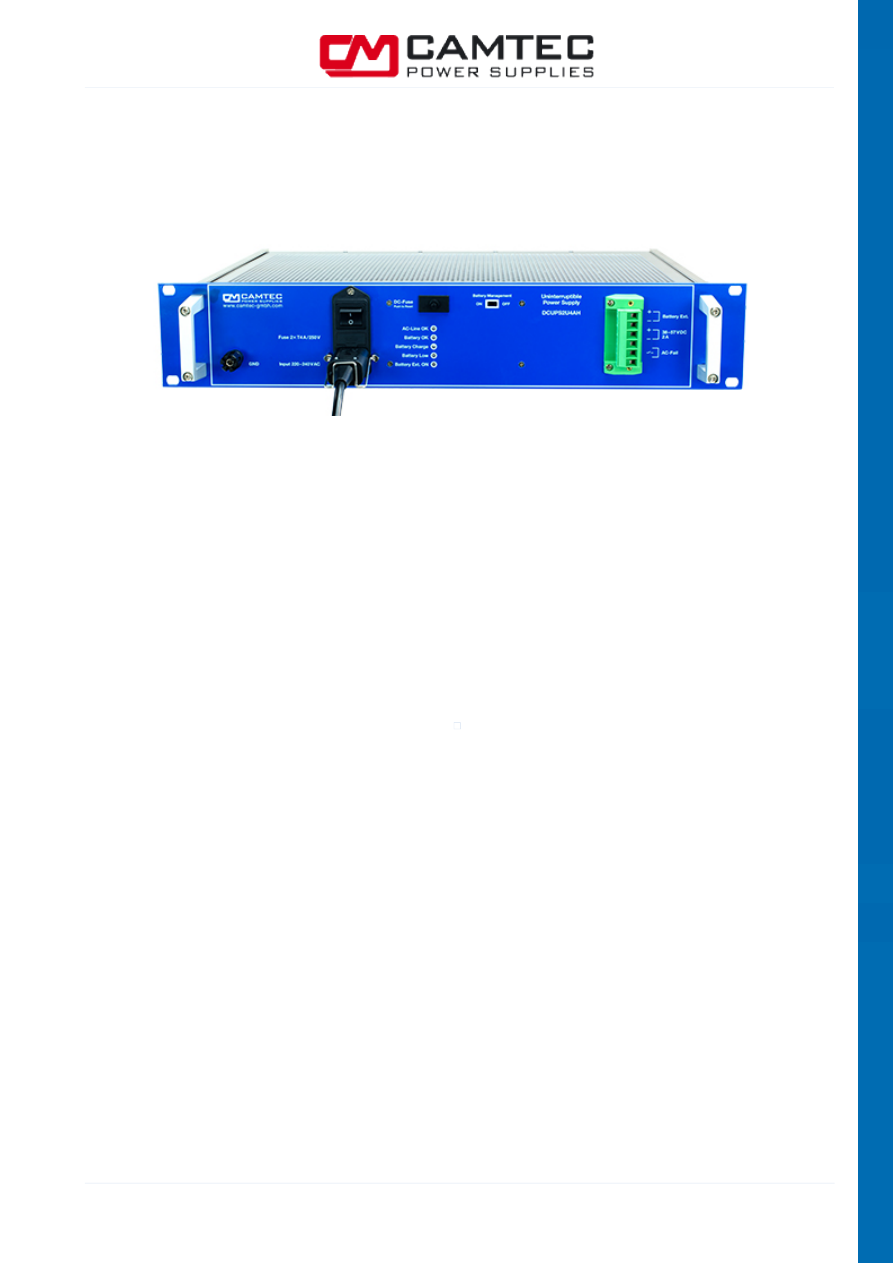

DCUPS2U

Unbreakable DC Power Supply (UPS), Subrack, 2U 84HP D=280mm

Integrated Battery Pack

2 internal, independent Power Supplies for Continuous Operation and Battery Charging

Zero voltage drop at powerswitch between mains supply and battery supply

AC-Fail, DC-Fail Charger und Main Power Supply, O-Ring





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 92 von 144

DCUPS2U

Model

DCUPS2U

Power

114W

Master-slave operation

Slave-Units for modular capacity expansion available

Master Vout

12V

24V

48V

Continous Current

8A

4A

2A

Backup Capacity

16Ah

8Ah

4Ah

'19''-Subframe'

2U 84HP 280mm

Mains Input

184... 265Vac (230Vac) 47-63Hz

Mains Input Connector

Inlet connector male with Lock

Monitoring

Relay, piezo-sound interval

AC Power Fail

yes

Battery Low Voltage

Signaling for relay

Battery O.K.

LED & signal

Battery Charger

Integrated

Monitoring Battery Charger

Relay, Sub-D

Power Supply

Active during mains operation for load

Monitoring Power Supply

Relay, Sub-D

Short Circuit Protection DC for Battery

Thermic fuse, manual resettable

Cooling

Natural convection

Efficiency

>90% continuous operation

Operating Temperature

+10°C... +40°C, IEC60068-2-1

Connection Output

Phoenix Power Combicon, screw-lock

Battery Type

Built-in, type Panasonic LCR124R5P for cycle operation

GND-Type DC

Plus connected GND

PE Connection

Additional for front screw terminals

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 93 von 144







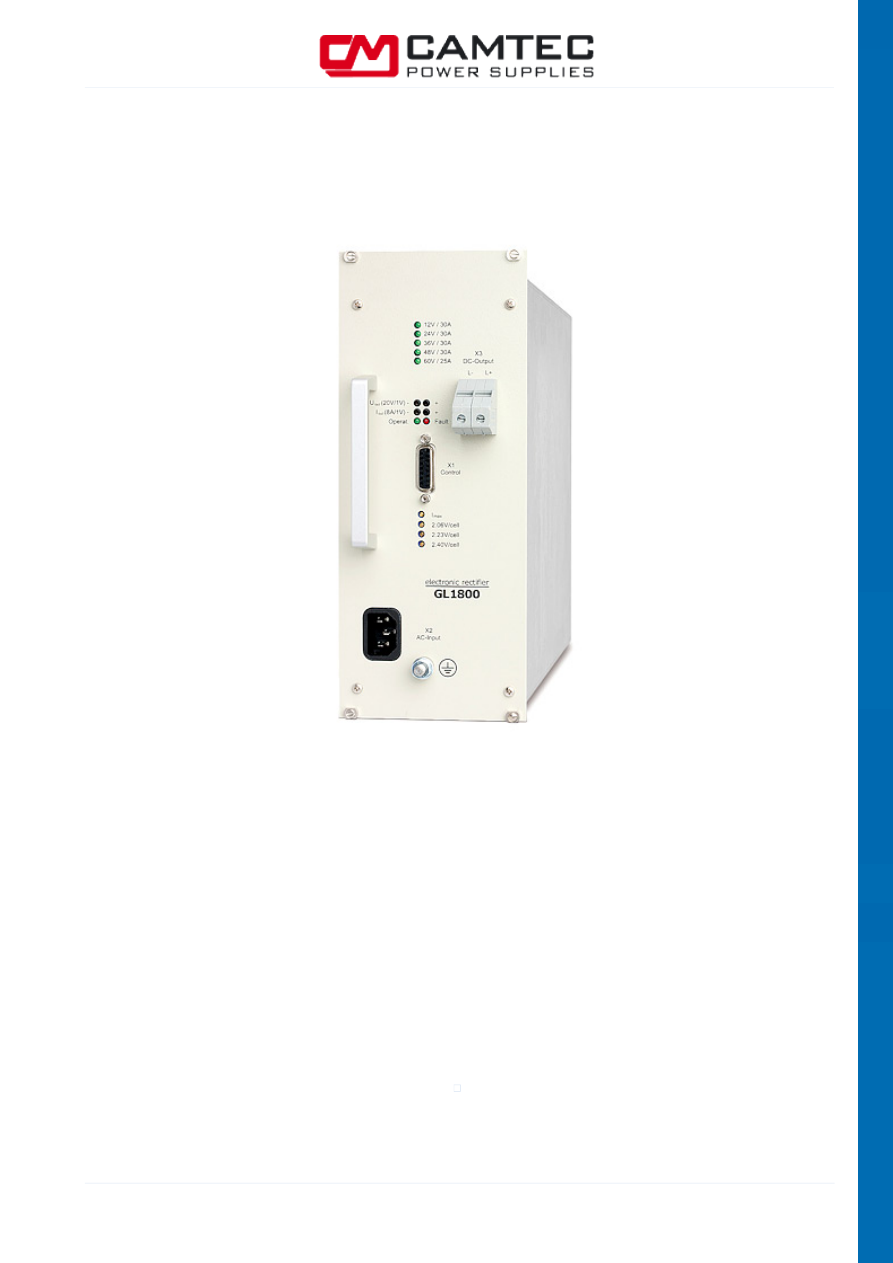

GL1800 / RM1800

Charger Electronic Rectifier

O-ring N+1 from 1,8KW up to 54KW (1,8KW-steps)

Compatible with Eltek RM1800 WBrug, Convertec RM1800

Compatible with Eltek Contoller SVS-SM7, Flatpack MCU, Flatpack 2

Digital Interface Shunt for Eltek Flatpack 2 Controller available as an option







camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 94 von 144

GL1800 / RM1800

Model

GL1800 / RM1800

Power

1800 watt

Rack Mount

6U 21HP

Input AC

230Vac

Input Frequency

47-63Hz / 16 2/3Hz

Output

Output voltage selectable

Output voltage selectable via switch

12V

24V

36V

48V

60V

Output current

30A

30A

30A

30A

25A

Ripple Ripple mV (@20MHz/50R)

10mV 10mV 10mV 10mV 10mV

Inrush current protection

Active protection

Mains short circuit

Connector inlet male

Control- & Monitoring Signal

Connector Amphenol Sub-D 15pin

Output Voltage

Connector Phoenix HDFLV 10

Efficiency typ.

> 90%

Ambient Operating Temperature

-10°C … +50°C

Cooling

Speed controlled fan

Special Features

Monitoring (relay)



Low inrush current



Battery voltage adjustable



Railway use

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 95 von 144

Category:

AC/DC Rack Mount Power Supply 19 Inch

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 96 von 144







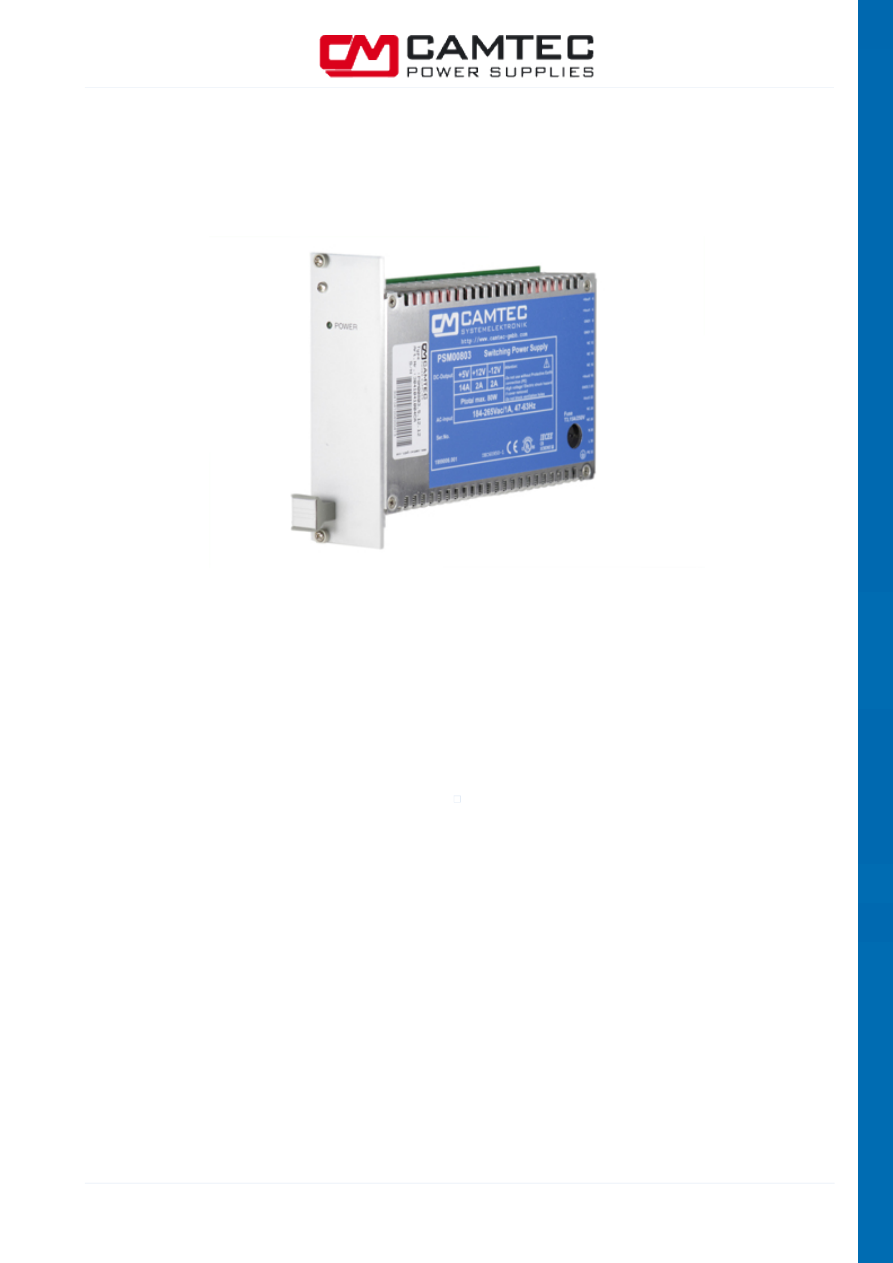

PSM00803

Rack Mount 1phase Fixed Output

Active inrush current protection

8KV strange



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 97 von 144

PSM00803

Model

PSM00803

Power

80W

Nominal Input Voltage

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

110... 300Vdc

Input Frequency

47... 63Hz

Hold-Up Time

100ms

Inrush Current Protection

< 24Apeak / 17Arms active protection ±6%

Autostart

Soft start 100ms

Output Voltage U1

+ 5V

+ 5V

Output Voltage U2

+ 12V

+ 15V

Output Voltage U3

- 12V

- 15V

Adjust Range U1

4,85... 5,15V

4,85... 5,15V

Ripple & Noise mVpp U1

20mV

20mV

Ripple & Noise mVpp U2

10mV

10mV

Ripple & Noise mVpp U3

10mV

10mV

Output Current I1

8A

8A

Output Current I2

2A

1,8A

Output Current I3

2A

1,8A

Power Boost <=60°C/60s

96W

Power Fail

 yes

Stability at Load Switch

±1%

Transient Time

< 1ms

Efficiency

83%

Basic Load

Idling-proof

Short Circuit Protected

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

3U 8HP 160mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety class 1(A)

VDE0100 VDE0805

Input to Output Insulation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

250000h

Features

8KV/2.5kHz Input transient protection / power fail

Ordering options

Protective coating

Options

see Datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 98 von 144







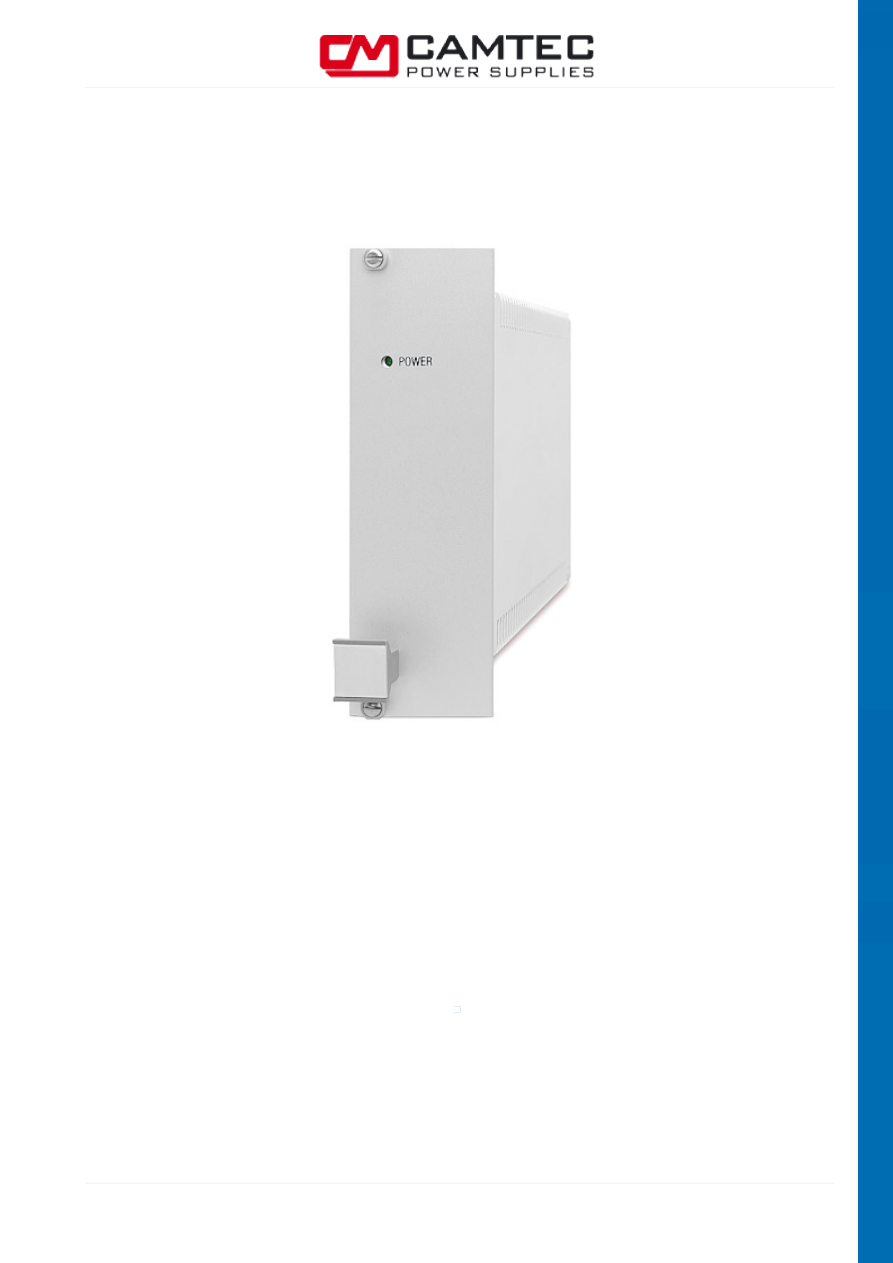

PSM01502

Rack Mount 1phase Fixed Output

Active inrush current protection

8KV strange





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 99 von 144

PSM01502

Model

PSM01502

Power

150W

Nominal Input Voltage

230Vac

Input Range AC

184... 264Vac

Input Range DC

250... 300Vdc

Input Frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current Protection

< 15Apeak / 10,6Arms aktive protection ±6%

Autostart

Soft start 20ms

Output Voltage V1

+ 12V

+ 15V



Output Voltage V2

- 12V

- 15V



Output Voltage V3

+ 24V

+ 30V

U1 and U2 connectable

Adjust Range V1 / V2

±10%

Ripple & Noise mVss V1

15mV

15mV



Ripple & Noise mVss V2

15mV

15mV



Ripple & Noise mVss V3

30mV U1 and U2 connectable

Output Current I1

12A

10A



Output Current I2

12A

10A



Output Current I3

6,25A

5A

U1 and U2 connectable

Power Boost <=60°C/60s

EN60950-1

Stability at Load Switch

±1%

Transient Time

< 1ms

Efficiency

89%

Basic Load

Idling-proof

Short Circuit Protected

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural Convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

3U 8HP 160mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety class 1(A)

VDE0100 VDE0805

Input to Output Insulation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

450000h

Remote Shutdown

Yes

Features

8KV/2.5kHz input transient protection

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 100 von 144







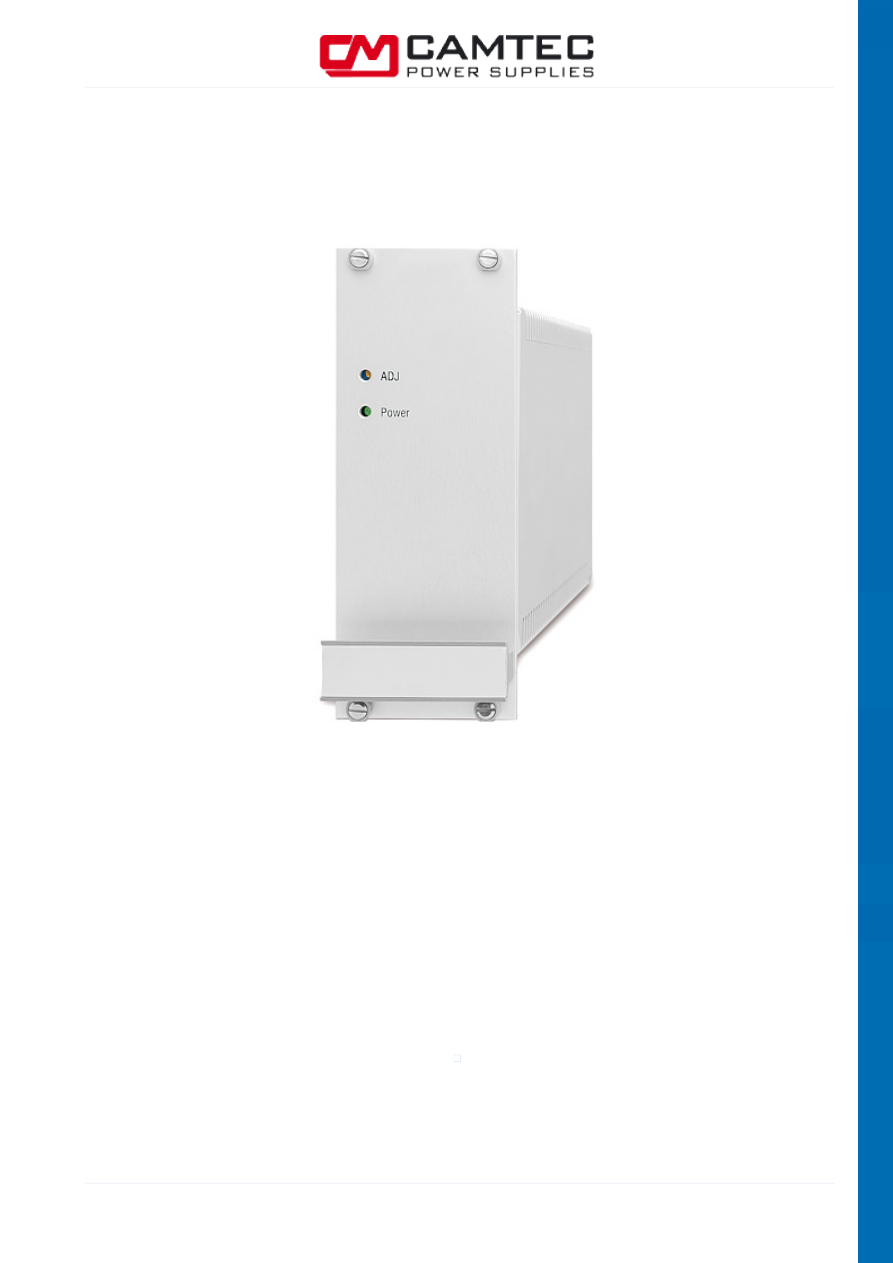

PSR01801 Redundant O-RING N+1

Rack Mount 1phase Fixed Output

Active inrush current protection

Option Line Switch

Redundant N+1

Built-in O-ring diode

PSR01801S with AC mains switch





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 101 von 144

PSR01801 Redundant O-RING

Model

PSR01801

Output power continuous

180W

Nominal input voltage

100... 240Vac

Input range AC

85... 265Vac

Input range DC

250... 375Vdc

Input frequency

47... 63Hz

Hold-Up time

50ms

Inrush current protection

< 24Apeak / 17Arms aktive protection ±6%

Auto-start

Soft start 40ms

Output voltage U1

5V

12V

24V

48V

60V

Adjust range U1

5... 5,5V 12... 15V 24... 30V 42... 53V 53... 70V

Ripple mVss U1

25mV

25mV

20mV

50mV

50mV

Output nominal current I1

25A

15A

7,5A

3,8A

3A

Power Boost <=60°C/60s

30A

18A

9A

4,6A

3,6A

Stability at Load Switch

±3%

±1%

±1%

±1%

±1%

Transient Time

< 1ms

Efficiency

90%

Basic Load

Idling-proof

Short Circuit Protected

Continuous

Ambient Operating Temperature

-20°C... +60°C

Cooling

Natural convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

3U 10HP 220mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety class 1(A)

VDE0100 VDE0805

Input to Output Insulation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

300000h

Power Good Relay

Yes

Features

redundant decoupling O-ring diodes

Ordering options

Protective coating / line switcher

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 102 von 144







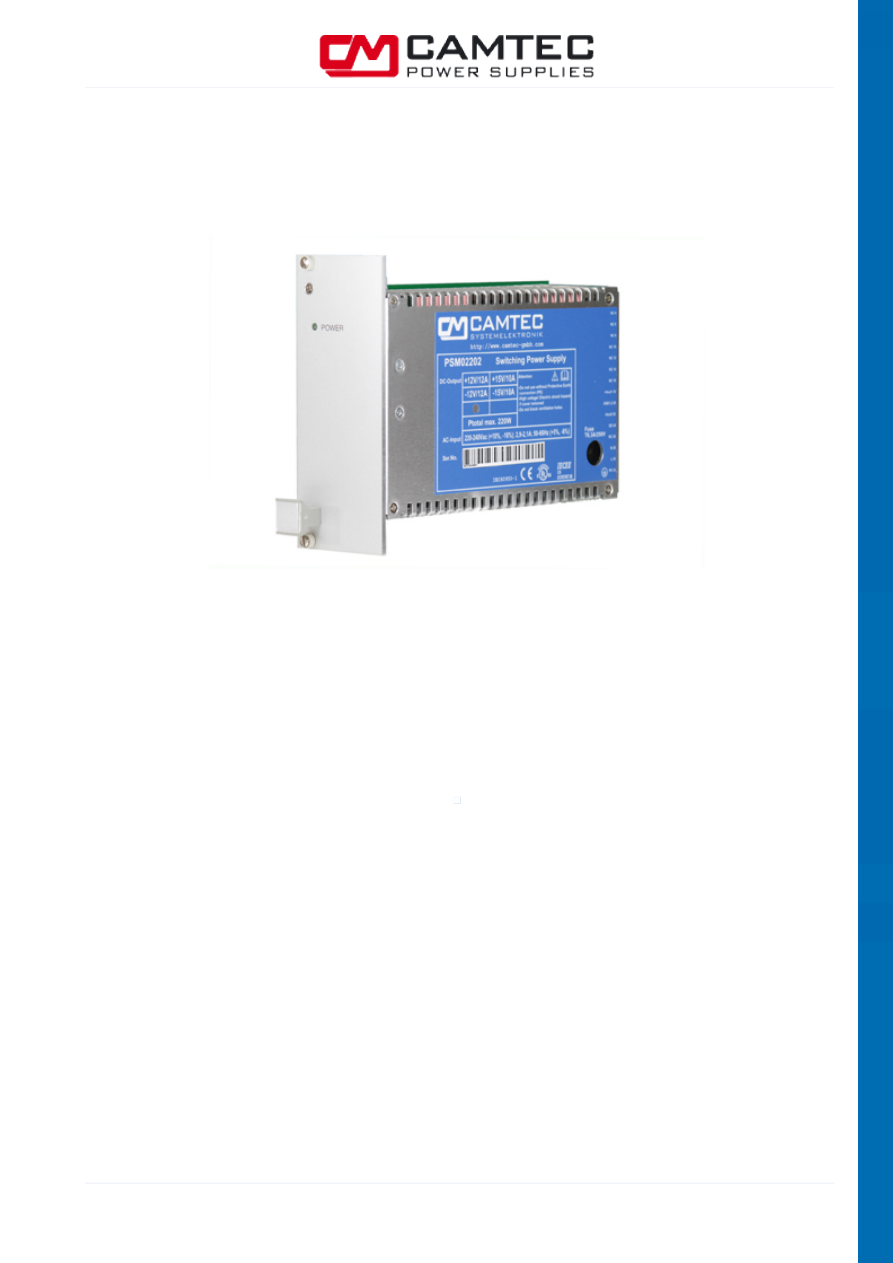

PSM02202

Rack Mount 1phase Fixed Output

Active inrush current protection

8KV strange



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 103 von 144

PSM02202

Model

PSM02202

Power

220W

Nominal Input Voltage

230Vac

Input Range AC

184... 264Vac

Input Range DC

250... 300Vdc

Input Frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current Protection

< 24Apeak / 17Arms active protection ±6%

Autostart

Soft start 20ms

Output Voltage U1

+ 12V

+ 15V



Output Voltage U2

- 12V

- 15V



Output Voltage U3

+ 24V

+ 30V

U1 and U2 connectable

Ripple & Noise mVss U1

15mV

15mV



Ripple & Noise mVss U2

15mV

15mV



Ripple & Noise mVss U3

30mV U1 and U2 connectable

Output Current I1

12A

10A



Output Current I2

12A

10A



Output Current I3

9,17A

7,33A

U1 and U2 connectable

Power Boost <=60°C/60s

264W

Stability at Load Switch

±1%

Transient Time

< 1ms

Efficiency

91%

Basic Load

Idling-proof

Short Circuit Protected

Continuous

Ambient Operating Temperature

-20°C... +70°C

Cooling

Natural Convection

Temperature Monitoring

Yes

Dimensions (WxHxD)

3U 8HP 160mm

IP-Range

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety class 1(A)

VDE0100 VDE0805

Input to Output Insulation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

450000h

Remote Shutdown

Yes

Features

8KV/2.5kHz input transient protection

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 104 von 144

Category:

AC/DC Chassis Mount Power Supply

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 105 von 144







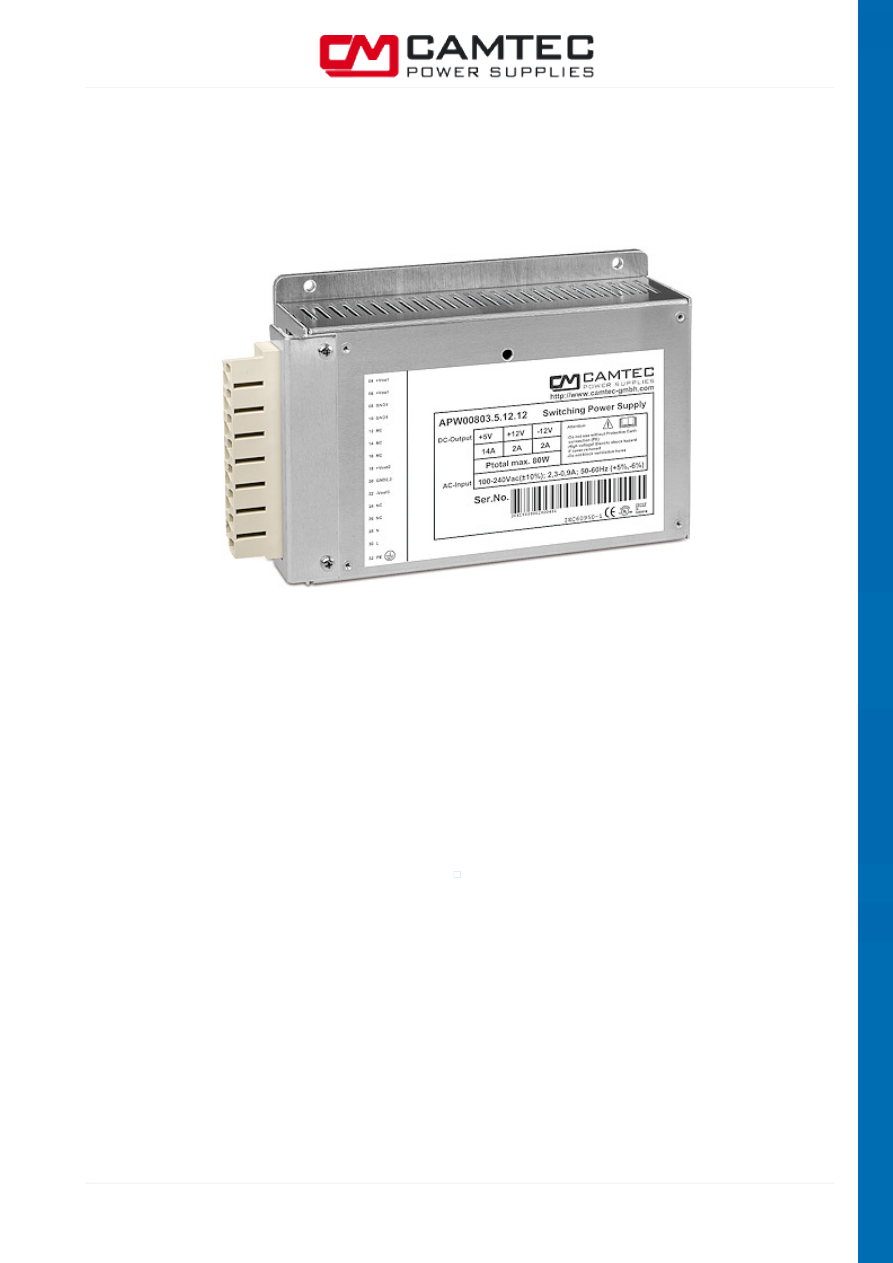

APW00803S

1phase Fixed Output baseplate cooled (not required for full operation)

Active inrush current protection

8KV strange





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 106 von 144

APW00803S

Model

APW00803S

Power

80W

Nominal Input

100... 240Vac

AC Input Range

90... 265Vac

DC Input Range

110... 300Vdc

Input Frequency

47... 63Hz

Hold-Up Time

100ms

Inrush Current Protection

< 24Apeak / 17Arms active protection ±6%

Auto-start

Soft start 100ms

Output voltage U1

+ 5V

+ 5V

Output voltage U2

+ 12V

+ 15V

Output voltage U3

- 12V

- 15V

Adjust range U1

4,85... 5,15V

4,85... 5,15V

Ripple mVss U1

20mV

20mV

Ripple mVss U2

10mV

10mV

Ripple mVss U3

10mV

10mV

Output current I1

8A

8A

Output current I2

2A

1,8A

Output current I3

2A

1,8A

Power boost <60°C

96W

Stability at Load switch

±1%

Transient time

< 1ms

Efficiency

83%

Base load

idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection & baseplate cooled power

Temperature Monitoring

yes

Dimensions (WxHxD)

126x51x177mm

Model

IP20

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

250000h

Power Fail

Yes (+5V high)

Features

8KV/2.5kHz input transient protection

Ordering options

Protective coating

Options

see datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 107 von 144







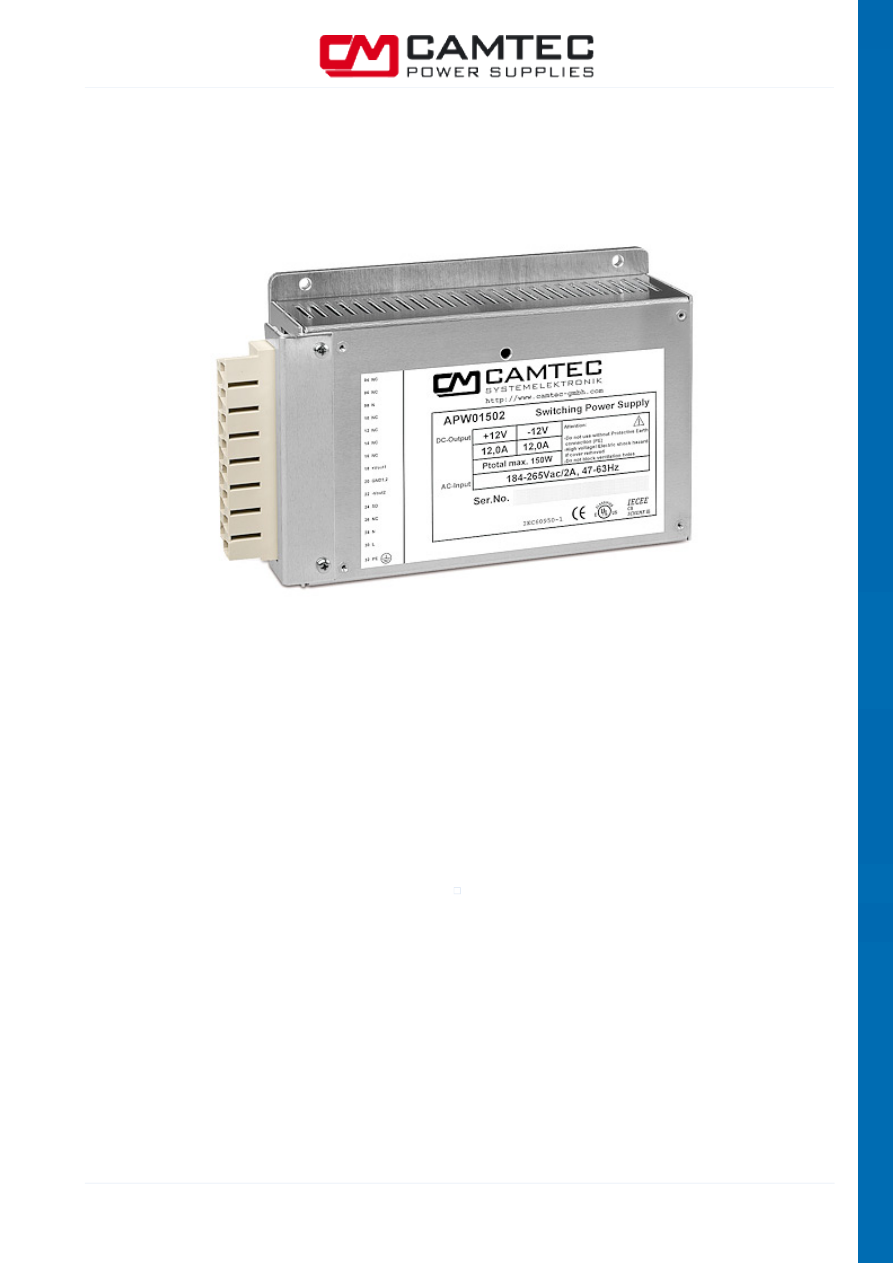

APW01502

1phase Fixed Output baseplate cooled (not required for full operation)

Active inrush current protection

8KV strange

2+1 dc output





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 108 von 144

APW01502

Model

APW01502

Power

150W

Nominal Input AC

230Vac

Input range AC

184... 264Vac

Input range DC

250... 300Vdc

Input frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current Protection

< 24Apeak / 17Arms electronic protection ±6%

Auto-start

Soft start 20ms

Output voltage V1

+ 12V

+ 15V



Output voltage V2

- 12V

- 15V



Output voltage V3

+ 24V

+ 30V

U1 and U2 connectable

Adjust range V1 & V2

±10%

Ripple mVpp V1

15mV

15mV



Ripple mVpp V2

15mV

15mV



Ripple mVpp V3

 20mV

Output current I1

12A

10A



Output current I2

12A

10A



Output current I3

6,25A

5A

 U1 and U2 connectable

Power boost 60s

180W

Stability Load switch

±1%

Transient time

< 1ms

Efficiency

89%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection & baseplate cooled power

Temperature monitoring

yes

Dimensions (WxHxD)

126x51x177mm

IP Rated

IP20

Safety norm

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

450000h

Remote Shutdown

Yes

Features

8KV/2.5kHz input transient protection

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 109 von 144







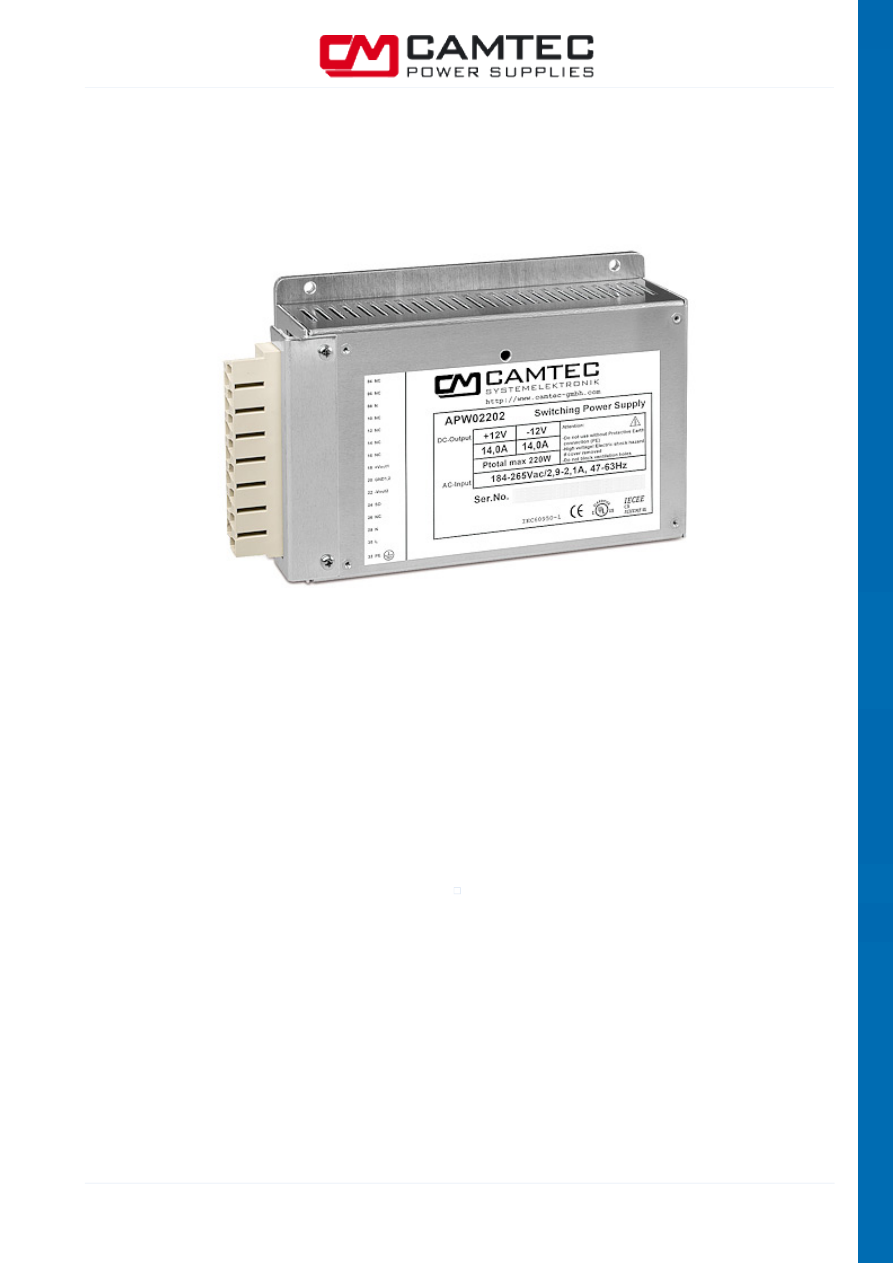

APW02202

1phase Fixed Output baseplate cooled (not required for full operation)

Active inrush current protection

8KV strange

2+1 dc output





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 110 von 144

APW02202



Model

APW02202

Power

220W

Nominal Input AC

230Vac

Input range AC

184... 264Vac

Input range DC

250... 300Vdc

Input frequency

47... 63Hz

Hold-Up Time

50ms

Inrush Current Protection

< 24Apeak / 17Arms electronic protection ±6%

Auto-start

Soft start 20ms

Output voltage V1

+ 12V

+ 15V



Output voltage V2

- 12V

- 15V



Output voltage V3

+ 24V

+ 30V

U1 and U2 connectable

Adjust range V1 & V2

±10%

Ripple mVpp V1

15mV

15mV



Ripple mVpp V2

15mV

15mV



Ripple mVpp V3

20mV

Output current I1

12A

10A



Output current I2

12A

10A



Output current I3

9,1A

7,3A

 U1 and U2 connectable

Power boost 60s

264W

Stability Load switch

±1%

Transient time

< 1ms

Efficiency

89%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection & baseplate cooled power

Temperature monitoring

yes

Dimensions (WxHxD)

126x51x177mm

IP Rated

IP20

Safety norm

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

450000h

Remote Shutdown

Yes

Features

8KV/2.5kHz input transient protection

Ordering options

Protective coating

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 111 von 144

Category:

AC/DC Open Frame Power Supply

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 112 von 144







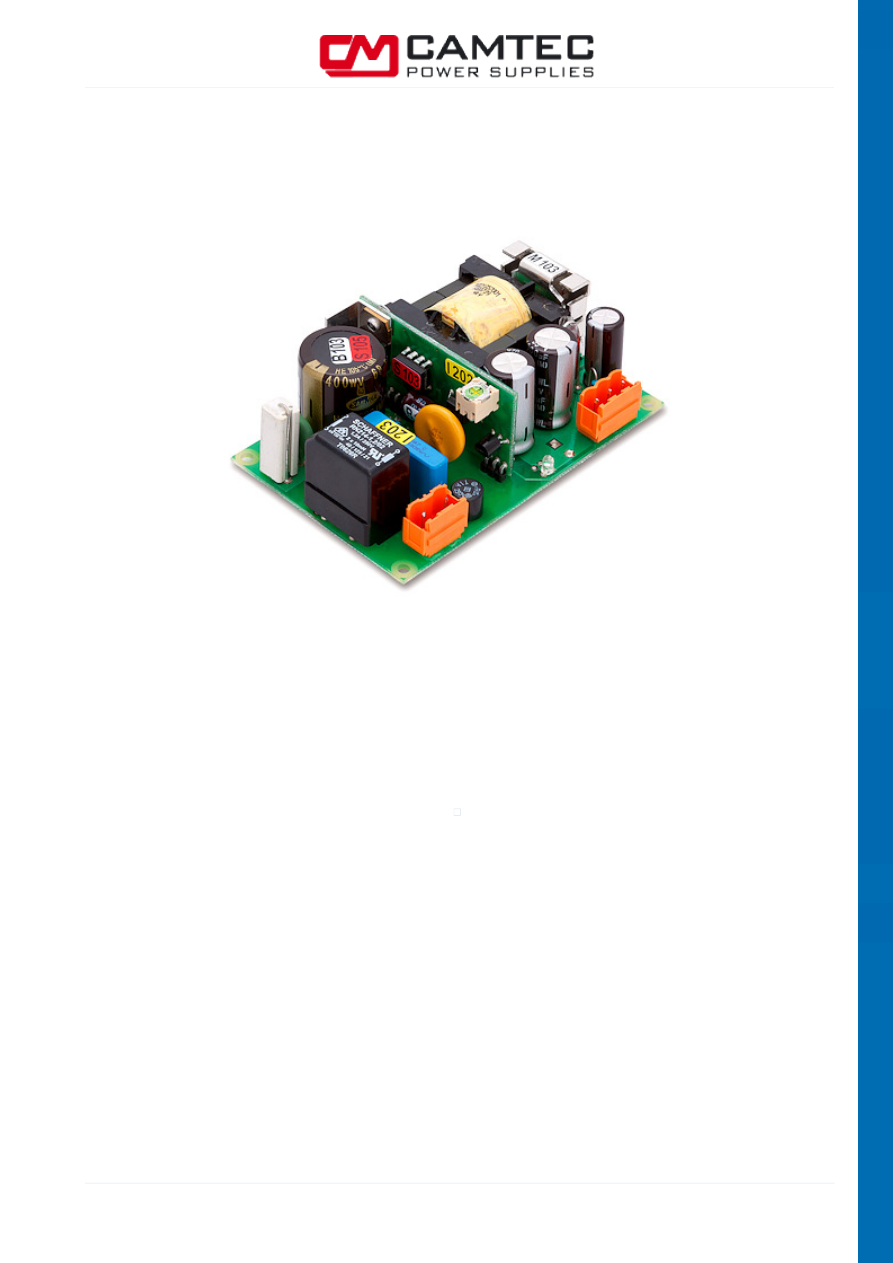

OSW00301

Open Frame 1phase Fixed Output high precision switch mode power supply

low ripple & noise for sensitive loads like sensors, professional audio, measuring & control equipment



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 113 von 144

OSW00301

Model

OSW00301W

Power

30W

Nominal AC Input

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

110... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

NTC <17A

Autostart

Soft start 30ms

Output Voltage

5V

9V

12V

15V

24V

48V

60V

Adjust Range Uout

4,9... 5,5V 8,6... 9,9V 11,4... 23,2V 14,2... 16,5V 23,5... 28,5V 45,6... 52,8V 57... 66V

Ripple & Noise mVss

15mV

15mV

10mV

10mV

50mV

100mV

100mV

Nominal Output Current

5A

3,3A

2,5A

2A

1,3A

600mA

500mA

Power Boost <=60°C/60s

6A

4A

3A

2,4A

1,56A

720mA

600mA

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

86%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Dimensions (WxHxD)

96,5x62x29mm

IP-Range

Open frame

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Sense operation

5V ±200mV standard

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 114 von 144







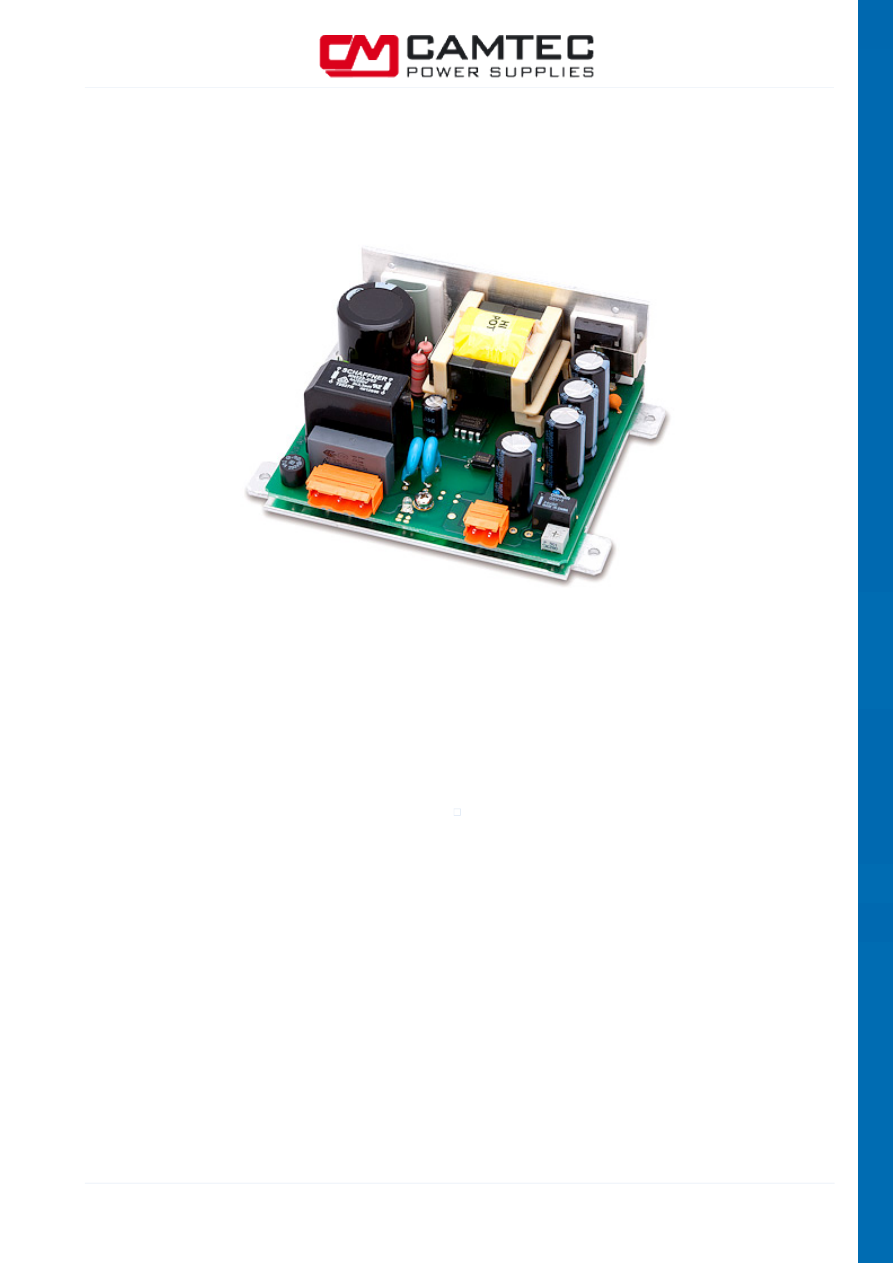

OSW00751

1phase Fixed Output baseplate cooled (not required for full operation)

low ripple & noise for sensitive loads like professional audio, sensors, measuring & control euqipment



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 115 von 144

OSW00751

Model

OSW00751W

Power

75W

Nominal AC Input

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

110... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

NTC <32A

Autostart

Soft start 50ms

Output Voltage

5V

9V

12V

15V

24V

Adjust Range Vout

4,9... 5,5V 8,6... 9,9V 11,4... 13,2V 14,3... 16,5V 22,5... 28,5V

Ripple & Noise mVpp

15mV

15mV

20mV

20mV

50mV

Nominal Output Current

7,5A

7,6A

6A

5A

3,2A

Power Boost <=60°C/60s

9A

9,1A

7,2A

6A

3,8A

Stability at Load Switch

±0,1%

±0,5%

±0,3%

±0,2%

±0,1%

Transient Time

< 1ms

Efficiency

90%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Upon request

Dimensions (WxHxD)

100x91x45mm

IP-Range

Open frame

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Upon request

Sense operation

Upon requst for 5V ±200mV

Features

Baseplate cooled power

Ordering options

Power good relay, sensing for 5Vdc model

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 116 von 144







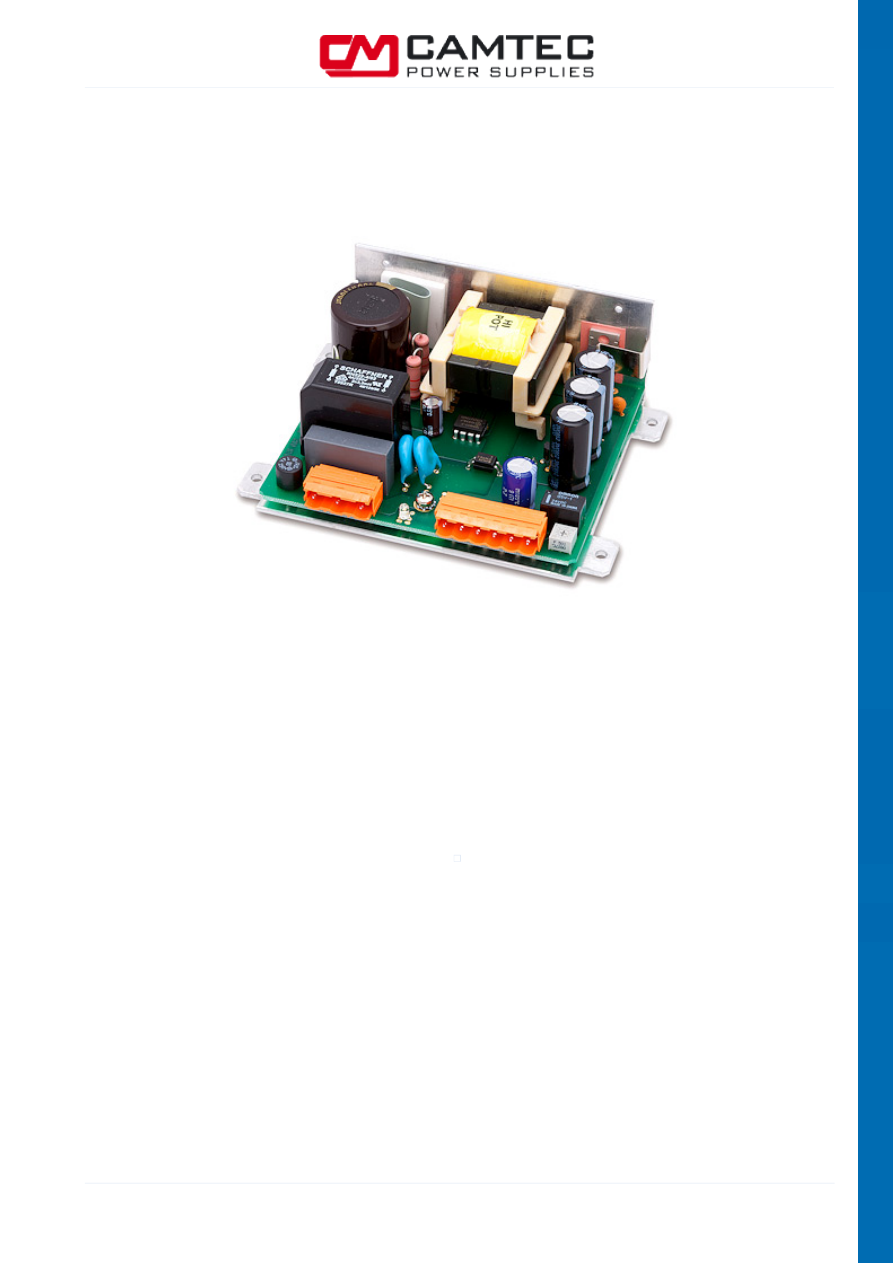

OSW00901

1phase Fixed Output baseplate cooled (not required for full operation)

low ripple & noise for sensitive loads like professional audio, sensors, measuring & control euqipment





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 117 von 144

OSW00901

Model

OSW00901W

Power

90W

Nominal AC Input

100... 240Vac

Input Range AC

90... 265Vac

Input Range DC

110... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

40ms

Inrush Current Protection

NTC <32A

Autostart

Soft start 50ms

Output Voltage

24V

36V

48V

60V

72V

140V

Adjust Range Vout

22,5... 28,5V  43,2... 39,6V 45,6... 52,8V 57... 66V  68... 86V 133... 155V

Ripple & Noise mVpp

50mV

60mV

60mV

100mV

 120mV

120mV

Nominal Output Current

3,8A

2,5A

1,9A

1,5A

1,3A

640mA

Power Boost <=60°C/60s

4,6A

3A

2,7A

1,8A

1,6A

770mA

Stability at Load Switch

±0,1%

±0,1%

±0,1%

±0,1%

±0,3%

±0,5%

Transient Time

< 1ms

Efficiency

90%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

Upon request

Dimensions (WxHxD)

100x91x45mm

IP-Range

Open frame

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178 EN60204-1

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

3000Vac

Climatic Class, Humidity

3k3, 95% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

500000h

Power Good Relay

Upon request (PG)

Features

Baseplate cooled power

Ordering options

Power good relay, temperture control

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 118 von 144







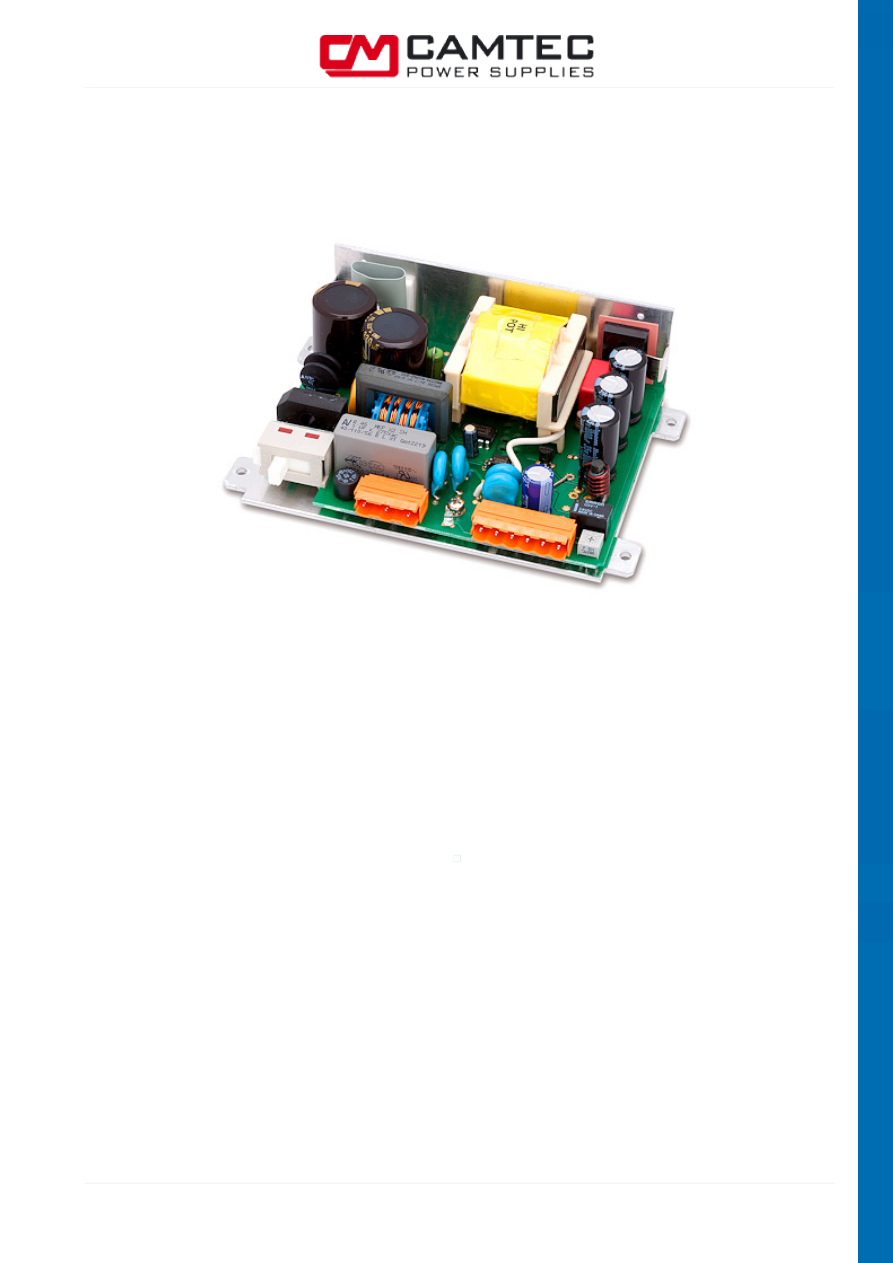

OSE01201

1phase Fixed Output baseplate cooled (not required for full operation)

low ripple & noise for sensitive loads like professional audio, sensors, measuring & control euqipment





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 119 von 144

OSE01201

Model

OSE01201W

Power

120W

Nominal AC Input

115/230Vac select

Input Range AC

90..115Vac/184..265Vac

Input Range DC

250... 375Vdc

Input Frequency

47... 63Hz

Hold-Up Time

30ms

Inrush Current Protection

NTC <16A

Autostart

Soft start 50ms

Output Voltage

12V

24V

36V

48V

60V

72V

110V

Adjust Range Vout

11,4..13,2V 22,5... 28,5V 34,2... 39,6V 42,8... 52,8V 57... 66V 68... 86V 133... 155V

Ripple & Noise mVpp

50mV

65mV

65mV

100mV

120mV

120mV

200mV

Nominal Output Current

8A

5A

3,3A

2,5A

2A

1,7A

1,1A

Power Boost <=60°C/60s

9,6A

6A

4A

3A

2,4A

2A

1,3A

Stability at Load Switch

±0,5%

Transient Time

< 1ms

Efficiency

91%

Basic load

Idling-proof

Short Circuit Protection

Continuous

Ambient Operation Temperature

-20°C... +70°C

Cooling

Natural convection

Temperature Monitoring

on Wunsch

Dimensions (WxHxD)

124x96x50mm

IP-Range

Open frame

Safety Norms

CSA UL CE according to IEC60950-1

Safety IEC

EN60950-1 EN50178

Safety Class 1(A)

VDE0100 VDE0805

Input to Output Isolation

4000Vac

Climatic Class, Humidity

3k3, 90% non condensing

EMI

EN55022B EN61000-3-2A

EMS

EN61000-6-2,3

MTBF IEC61709

600000h

Power Good Relay

Upon request

Features

Baseplate cooled power

Ordering options

Power Good Relay

Options

See datasheet

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 120 von 144

Category:

ESB AC Inrush Current Limiter 3,6kW ... 48kW

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 121 von 144







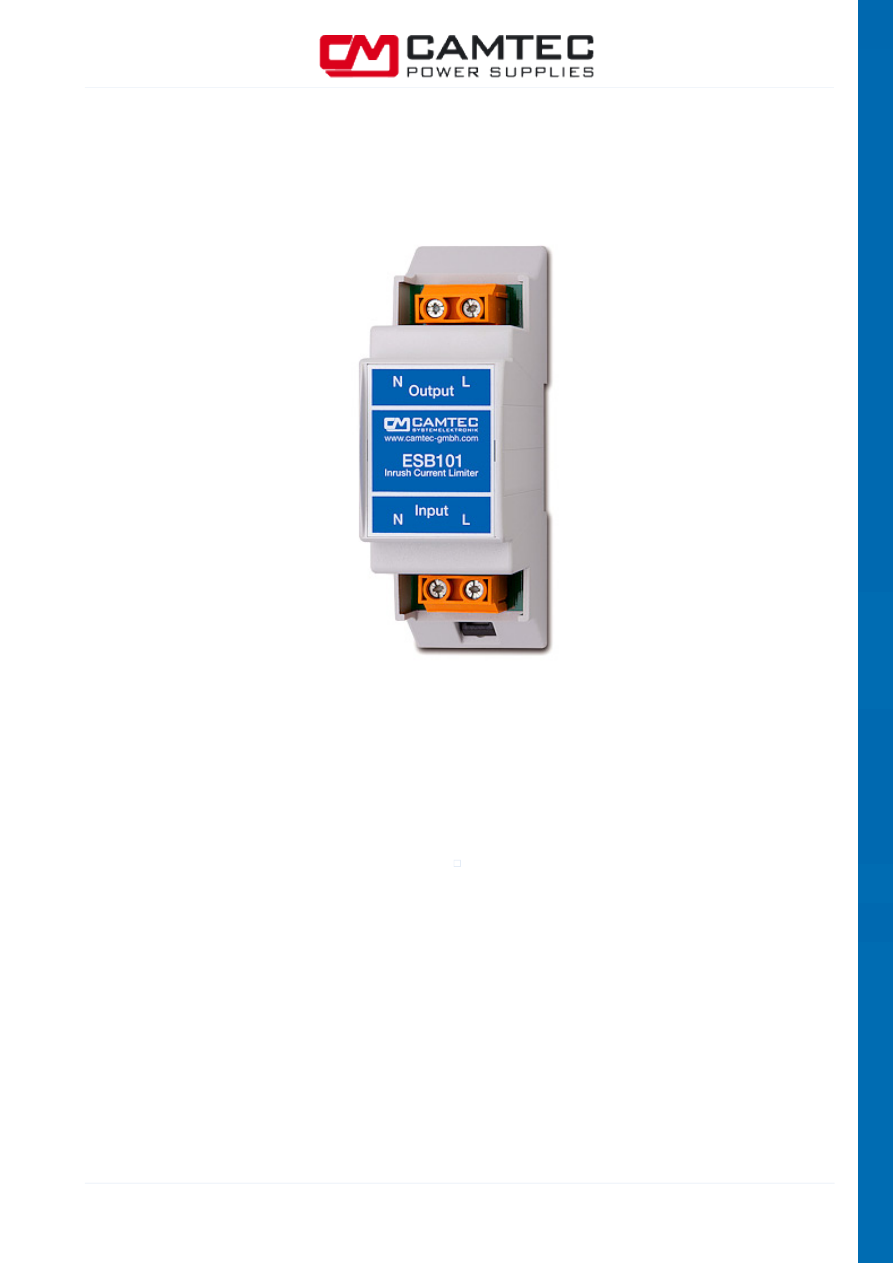

ESB101

Inrush Current Limiter (ESB) DIN-Rail TS35mm



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 122 von 144

ESB101.LED.230Vac

Model

ESB101.LED.230Vac

Limiting Peak current

48A for Ton=300ms

Limiting RMS-value

33,9A for Ton=300ms

Limiting Cycle Interval

900ms (3x/minute)

Low Voltage Detection

Toff=550ms

Input Voltage

184... 265Vac 16 1/3... 440Hz 1PH

Nominal voltage

220... 240Vac

AC Continuous Current

16A input/output

Load capacity

6000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-40°C … +70°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

36,5 x 62 x 110mm

Special Features

Temperature protected (fuse)



Fire protected



Accuracy ±5%, independent from ambient temperature



Capacitive loads



Bypass circuit



4000m / 13123 ft. Above sea level

ESB101.LED.115Vac

Model

ESB101.LED.115Vac

Limiting Peak current

43A for Ton=500ms

Limiting RMS-value

30,4A for Ton=500ms

Limiting Cycle Interval

900ms (3x/minute)

Low Voltage Detection

Toff=550ms

Input Voltage

90... 130Vac 16 1/3... 440Hz 1PH

Nominal voltage

110... 120Vac

AC Continuous Current

16A

Load capacity

10000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-40°C... +0°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

36,5 x 62 x 110mm

Special Features

Temperature protected (fuse)



Fire protected



Accuracy ±5%, independent from ambient temperature



Capacitive loads



Bypass circuit



4000m / 13123 ft. Above sea level

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 123 von 144

ESB101.16

Model

ESB101.16

Limiting Peak current

16A for Ton=300ms

Limiting RMS-value

11,3A for Ton=300ms

Limiting Cycle Interval

900ms (3x/minute)

Low Voltage Detection

Toff=500ms

Input Voltage

184... 265Vac 16 1/3... 440Hz 1PH

Nominal voltage

220... 240Vac

AC Continuous Current

16A input/output

Load capacity

1500uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-40°C … +70°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

36,5 x 62 x 110mm

Special Features

Temperature protected (fuse)



Fire protected



Accuracy ±5%, independent from ambient temperature



Capacitive loads



Bypass circuit



4000m / 13123 ft. Above sea level

ESB101.23

Model

ESB101.23

Limiting Peak current

23A for Ton=300ms

Limiting RMS-value

16,3A for Ton=300ms

Limiting Cycle Interval

900ms (3x/minute)

Low Voltage Detection

Toff=500ms

Input Voltage

184... 265Vac 16 1/3... 440Hz 1PH

Nominal voltage

220... 240Vac

AC Continuous Current

16A input/output

Load capacity

2000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-40°C... +70°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

36,5 x 62 x 110mm

Special Features

Temperature protected (fuse)



Fire protected



Accuracy ±5%, independent from ambient temperature



Capacitive loads



Bypass circuit



4000m / 13123 ft. Above sea level

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 124 von 144

ESB101.23S

Model

ESB101.23S

Limiting Peak current

23A for Ton=500ms

Limiting RMS-value

16,3A for Ton=500ms

Limiting Cycle Interval

1400ms (3x/minute)

Low Voltage Detection

Toff=800ms

Input Voltage

184... 265Vac 16 1/3... 440Hz 1PH

Nominal voltage

220... 240Vac

AC Continuous Current

16A

Load capacity

2000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-40°C... +0°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

36,5 x 62 x 110mm

Special Features

Temperature protected (fuse)



Fire protected



Accuracy ±5%, independent from ambient temperature



Capacitive loads



Bypass circuit



4000m / 13123 ft. Above sea level

ESB101.23S.115Vac

Model

ESB101.23S.115Vac

Limiting Peak current

23A for Ton=500ms

Limiting RMS-value

16,3A for Ton=500ms

Limiting Cycle Interval

1400ms (3x/minute)

Low Voltage Detection

Toff=900ms

Input Voltage

90... 130Vac 16 1/3... 440Hz 1PH

Nominal voltage

110... 120Vac

AC Continuous Current

16A

Load capacity

4000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-40°C... +0°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

36,5 x 62 x 110mm

Special Features

Temperature protected (fuse)



Fire protected



Accuracy ±5%, independent from ambient temperature



Capacitive loads



Bypass circuit



4000m / 13123 ft. Above sea level

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 125 von 144

ESB101.33

Model

ESB101.33

Limiting Peak current

33A for Ton=300ms

Limiting RMS-value

23,3A for Ton=300ms

Limiting Cycle Interval

900ms (3x/minute)

Low Voltage Detection

Toff=800ms

Input Voltage

184... 265Vac 16 1/3... 440Hz 1PH

Nominal voltage

220... 240Vac

AC Continuous Current

16A

Load capacity

4000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-40°C... +70°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

36,5 x 62 x 110mm

Special Features

Temperature protected (fuse)



Fire protected



Accuracy ±5%, independent from ambient temperature



Capacitive loads



Bypass circuit



4000m / 13123 ft. Above sea level

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 126 von 144







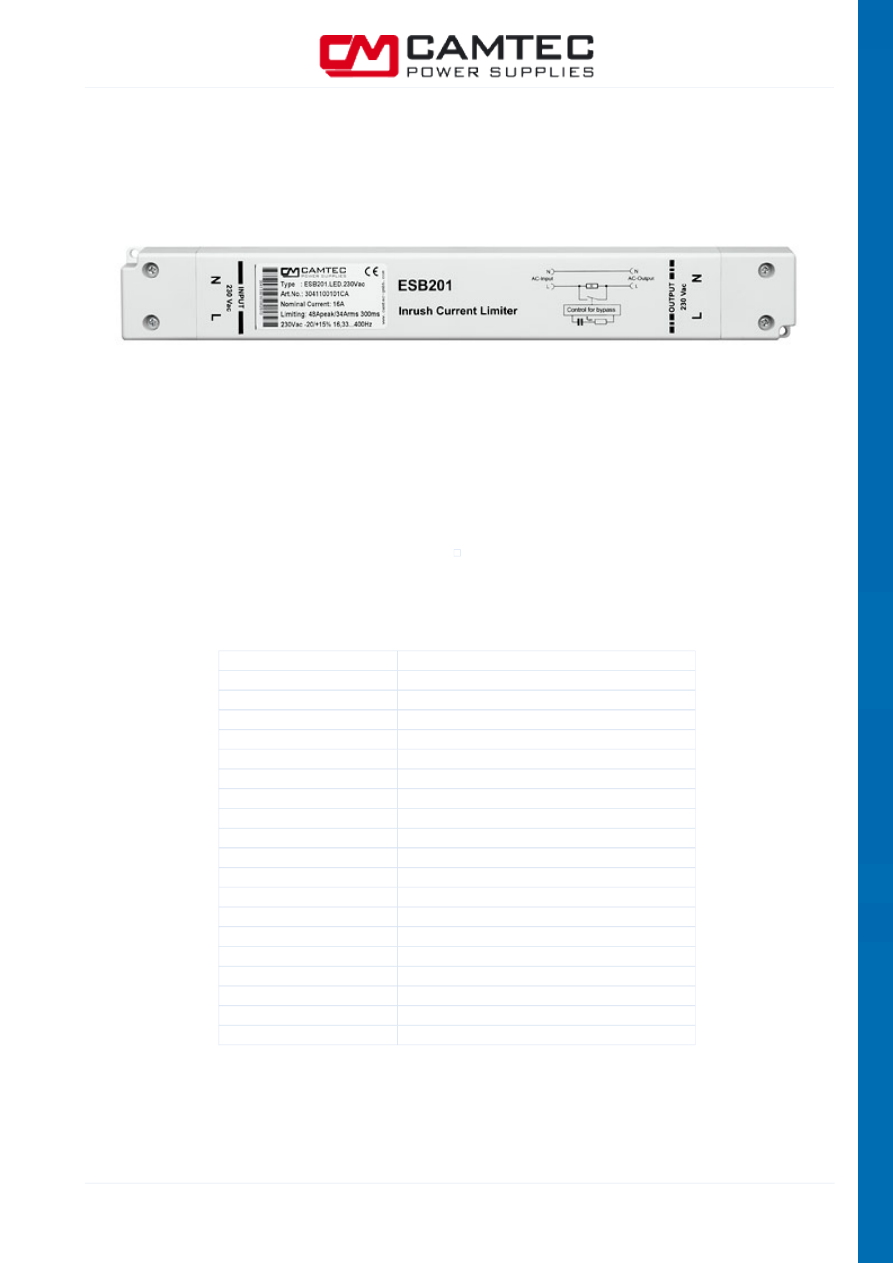

ESB201.LED

Inrush Current Limiter (ESB) for LED Power Supply and Electronic Ballast



ESB201.LED.230Vac

Model

ESB201.LED.230Vac

Limiting Peak current

48A for Ton=300ms

Limiting RMS-value

33,9A for Ton=300ms

Limiting Cycle Interval

900ms (3x/minute)

Low Voltage Detection

Toff=550ms

Input Voltage

184... 265Vac 16 1/3... 440Hz 1PH

Nominal voltage

220... 240Vac

AC Continuous Current

16A input/output

Load capacity

6000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-20... +C45°C no derating

Cooling

Natural convection

Dimensions (HxDxW)

35,4 x 23,5 x 260mm

Special Features

Temperature protected (fuse)



Safety covered terminals against electrical shock



Fire protected



Accuracy ±6%, independent from ambient temperature



Ballast and capacitive loads



Bypass circuit



4000m / 13123 ft. above sea level

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 127 von 144

ESB201.LED.115Vac

Model

ESB201.LED.115Vac

Limiting Peak current

43A for Ton=500ms

Limiting RMS-value

30,4A for Ton=500ms

Limiting Cycle Interval

900ms (3x/minute)

Low Voltage Detection

Toff=550ms

Input Voltage

90... 130Vac 16 1/3... 440Hz 1PH

Nominal voltage

110... 120Vac

AC Continuous Current

16A

Load capacity

10000uF

Connectors

Spring-type-terminal 0,5... 6mm²

Ambient Opearting Temperature

-20°C... +45°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

35,4 x 23,5 x 260mm

Special Features

Temperature protected (fuse)



Safety covered terminals against electrical shock



Fire protected



Accuracy ±6%, independent from ambient temperature



Ballast and capacitive loads



Bypass circuit



4000m / 13123 ft. above sea level

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 128 von 144







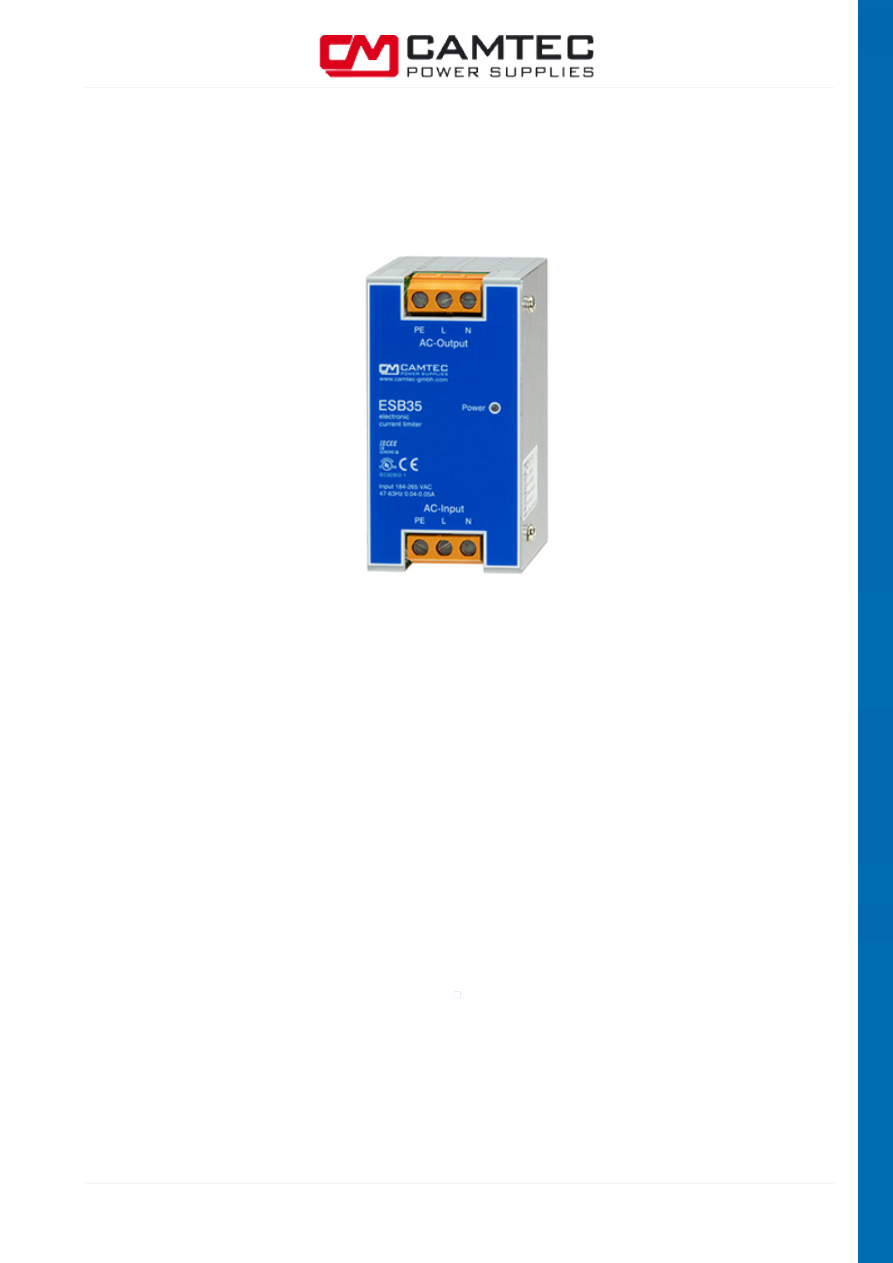

ESB00351

Inrush Current Limiter (ESB) DIN-Rail TS35mm

Designed for rough industrial environment

Strong unit for large 1-phase arrays up to 10.000uF load capacity

Built-in switch mode power supply

Advanced passive cooling and over dimensioned limiting resistors









camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 129 von 144

ESB00351

Model

ESB00351

Limiting Peak current

35A for Ton=150ms

Limiting RMS-value

24,8A for Ton=150ms

Limiting Cycle Interval

60s

Low Voltage Detection

Toff=100ms

Input Voltage

184... 265Vac 47... 63Hz

Nominal voltage

220... 240Vac

AC Continuous Current

30A

Load capacity

10000uF

Connectors

Spring-type-terminal 0,5... 10mm²

Ambient Opearting Temperature

-20°C... +70°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

195 x 130 x 122mm

Special Features

Accuracy ±5%, independent from ambient temperature



Capable of capacitive loads (no restrictions)



Active & precise measuring circuit



Bypass circuit



Built in switch mode power supply

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 130 von 144







ESB00163 (3PH)

Inrush Current Limiter (ESB) DIN-Rail TS35mm

Designed for rough industrial environment

Built-in switch mode power supply

Phase Monitor (under voltage / loss / asymmetry)

Ton limiting time & Toff low voltage delay time adjustable

Advanced passive cooling with over dimensioned limiting resistors

Limiting of each phase completely independent





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 131 von 144

ESB00163A.T (3PH)

Model

ESB00163A.T (3PH)

Limiting Peak current

22,6A Ton adjustable 70 to 240ms

Limiting RMS-value

16A Ton adjustable 70 to 240ms

Limiting Cycle Interval

60s

Low Voltage Detection

Toff adjustable 60 to 170ms

Input Voltage

170... 575Vac 47... 63Hz 3PH

Nominal voltage

200/400/500Vac selectable

AC Continuous Current

3x 16A

Load capacity

1500uF

Connectors

Spring-type-terminal 0,5... 16mm², 22... 8AWG

Ambient Opearting Temperature

-20°C... +45°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

95 x 155 x 122mm

Special Features

Integrated & complete phase monitor



Asymmetry, phase lost, phase sequence



Accuracy ±6%, independent from ambient temperature



Extending monitoring



Each phase limited independently



Ballast and capacitive loads



Active & precise measuring circuit



Bypass circuit each phase



Built in switch mode power supply

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 132 von 144

ESB00163B.T (3PH)

Model

ESB00163B.T (3PH)

Limiting Peak current

22,6A Ton adjustable 70 to 240ms

Limiting RMS-value

16A Ton adjustable 70 to 240ms

Limiting Cycle Interval

60s

Low Voltage Detection

Toff adjustable 60 to 170ms

Input Voltage

170... 460Vac 47... 63Hz 3PH

Nominal voltage

200/400Vac selectable

AC Continuous Current

3x 16A

Load capacity

1500uF

Connectors

Spring-type-terminal 0,5... 16mm², 22... 8AWG

Ambient Opearting Temperature

-20°C... +60°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

95 x 155 x 122mm

Special Features

Integrated & complete phase monitor



Asymmetry, phase lost, phase sequence



Accuracy ±6%, independent from ambient temperature



Extending monitoring



Each phase limited independently



Ballast and capacitive loads



Active & precise measuring circuit



Bypass circuit each phase



Built in switch mode power supply

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 133 von 144







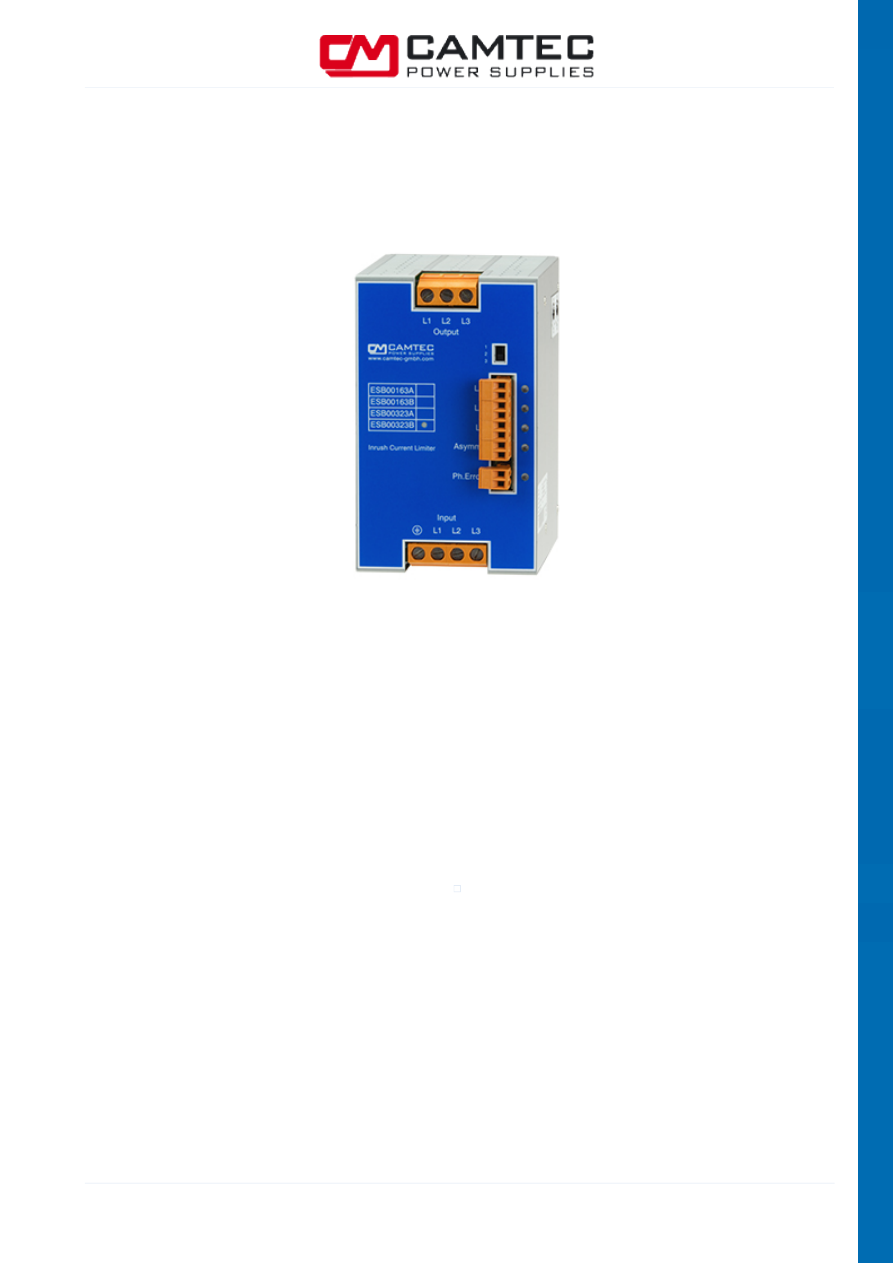

ESB00323 (3PH)

Inrush Current Limiter (ESB) DIN-Rail TS35mm

Designed for rough industrial environment

Built-in switch mode power supply

Phase Monitor (under voltage / loss / asymmetry)

Ton limiting time & Toff low voltage delay time adjustable

Advanced passive cooling with over dimensioned limiting resistors

Limiting of each phase completely independent



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 134 von 144

ESB00323A.T (3PH)

Model

ESB00323A.T (3PH)

Limiting Peak current

68,6A Ton adjustable 70 to 240ms

Limiting RMS-value

48A Ton adjustable 70 to 240ms

Limiting Cycle Interval

60s

Low Voltage Detection

Toff adjustable 60 to 170ms

Input Voltage

170... 575Vac 47... 63Hz 3PH

Nominal voltage

200/400/500Vac selectable

AC Continuous Current

3x 32A

Load capacity

2000uF

Connectors

Spring-type-terminal 0,5... 16mm², 22... 8AWG

Ambient Opearting Temperature

-20°C... +45°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

95 x 155 x 122mm

Special Features

Integrated & complete phase monitor



Asymmetry, phase lost, phase sequence



Accuracy ±6%, independent from ambient temperature



Extending monitoring



Each phase limited independently



Ballast and capacitive loads



Active & precise measuring circuit



Bypass circuit each phase



Built in switch mode power supply

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 135 von 144

ESB00323B.T (3PH)

Model

ESB00323B.T (3PH)

Limiting Peak current

68,6A Ton adjustable 70 to 240ms

Limiting RMS-value

48A Ton adjustable 70 to 240ms

Limiting Cycle Interval

60s

Low Voltage Detection

Toff adjustable 60 to 170ms

Input Voltage

170... 460Vac 47... 63Hz 3PH

Nominal voltage

200/400Vac selectable

AC Continuous Current

3x 32A

Load capacity

2000uF

Connectors

Spring-type-terminal 0,5... 16mm², 22... 8AWG

Ambient Opearting Temperature

-20°C... +60°C no derating

Cooling

Natural convection

Dimensions (WxHxD)

95 x 155 x 122mm

Special Features

Integrated & complete phase monitor



Asymmetry, phase lost, phase sequence



Accuracy ±6%, independent from ambient temperature



Extending monitoring



Each phase limited independently



Ballast and capacitive loads



Active & precise measuring circuit



Bypass circuit each phase



Built in switch mode power supply

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 136 von 144

Category:

UMS DC FET-Relay Wearless 600W...2,4kW

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 137 von 144







UMS00025 600W

DC Power Relay, DC Power Switch, Mosfet Relais

Nearly unlimted switching operations

Meintenance free

Sense Switched

Masterstop

Option Motorr-Stop short circuit autputs

Parallel operation N+1 to extend the power load







camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 138 von 144

UMS00025

Model

UMS00025.20

UMS00025.30

UMS00025.40

Power

600W

600W

600W

DC voltage switching capability

0... 60Vdc

0... 40Vdc

0... 30Vdc

Current switching capability

10A

15A

20A

Surge current for 10ms

40A

60A

80A

Re-Routing

Left/right

Output

Power MOSFETs

Resistor

Low Rds-On

Switching Operations

>100 Mio.

Confirmation Control signal

left/right

Cooling

Natural Convection

Ambient Operating Temperature

-20°C up to +70°C

Control Input-/output

I/Os galvanic insulated

Connection

Spring-type-terminal up to 25mm²

Control Signal

Sub-D 15Pole. IEC807

External Supply Voltage

19,2... 28,8Vdc

Dimensions WxHxD

65 x 124 x 96mm

Special Features

Programmable sense operation



Master stop



MosFET technology => no moved parts, >10*9 cycles



Parallel operation N+1 power capability increase



Temperature monitoring



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 139 von 144







UMS00050 1200W

DC Power Relay, DC Power Switch, Mosfet Relais

Nearly unlimted switching operations

Meintenance free

Sense Switched

Masterstop

Option Motorr-Stop short circuit autputs

Parallel operation N+1 to extend the power load



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 140 von 144

UMS00050

Model

UMS00050.20

UMS00050.30

UMS00050.40

Power

1200W

1200W

1200W

DC voltage switching capability

0... 60Vdc

0... 40Vdc

0... 30Vdc

Current switching capability

20A

30A

40A

Surge current for 10ms

80A

120A

160A

Re-Routing

Left/right

Output

Power MOSFETs

Resistor

Low Rds-On

Switching Operations

>100 Mio.

Confirmation Control signal

left/right

Cooling

Natural Convection

Ambient Operating Temperature

-20°C up to +70°C

Control Input-/output

I/Os galvanic insulated

Connection

Spring-type-terminal up to 25mm²

Control Signal

Sub-D 15Pole. IEC807

External Supply Voltage

19,2... 28,8Vdc

Dimensions WxHxD

65 x 124 x 96mm

Special Features

Programmable sense operation



Master stop



MosFET technology => no moved parts, >10*9 cycles



Parallel operation N+1 power capability increase



Temperature monitoring



camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 141 von 144







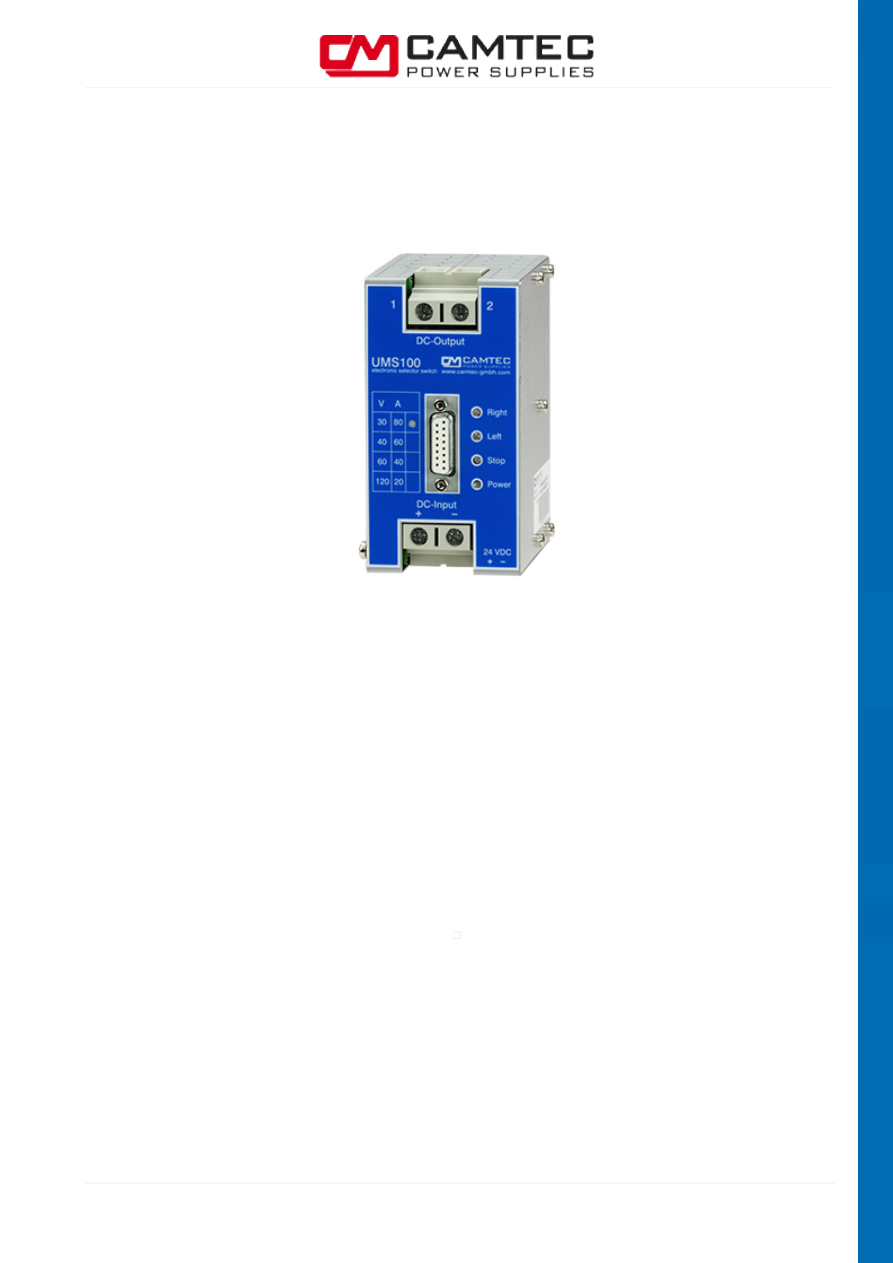

UMS00100 2400W

DC Power Relay, DC Power Switch, Mosfet Relais

Nearly unlimted switching operations

Meintenance free

Sense Switched

Masterstop

Option Motorr-Stop short circuit autputs

Parallel operation N+1 to extend the power load





camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 142 von 144

UMS00100

Model

UMS00100.20 UMS00100.40 UMS00100.60 UMS00100.80

Power

2400W

2400W

2400W

2400W

DC voltage switching capability

0... 120Vdc

0... 60Vdc

0... 40Vdc

0... 30Vdc

Current switching capability

20A

40A

60A

80A

Surge current for 10ms

80A

100A

240A

320A

Re-Routing

Left/right

Output

Power MOSFETs

Resistor

Low Rds-On

Switching Operations

>100 Mio.

Confirmation Control signal

left/right

Cooling

Natural Convection

Ambient Operating Temperature

-20°C up to +70°C

Control Input-/output

I/Os galvanic insulated

Connection

Spring-type-terminal up to 25mm²

Control Signal

Sub-D 15Pole. IEC807

External Supply Voltage

19,2... 28,8Vdc

Dimensions WxHxD

65 x 124 x 96mm

Special Features

Programmable sense operation



Master stop



MosFET technology => no moved parts, >10*9 cycles



Parallel operation N+1 power capability increase



Temperature monitoring

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 143 von 144

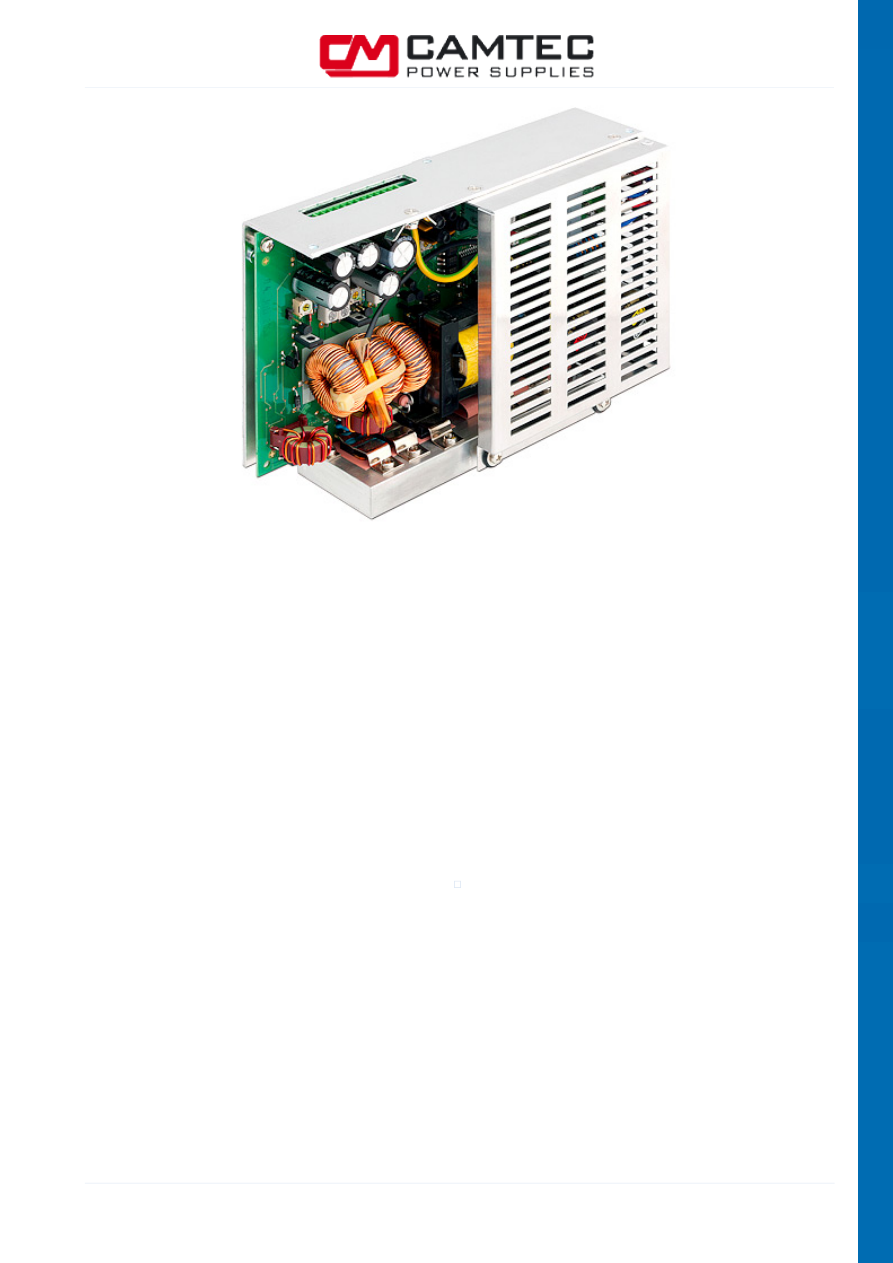

APW01303

1-Phasen Power Supply  Mains Switch, Inlet Connector, Mains Fuse, Chassis Mount

Frequency synchronisation with the load frequency





function resizeframe() { document.getElementById("anfrage").style.height = 'auto';
document.getElementById("anfrage").style.width = '658px'; document.getElementById("anfrage").style.overflow
= 'visible';}setTimeout("resizeframe()", 1000);

camtec-product-catalog-en-html.html
background image

CAMTEC Power Supplies
Gewerbestr. 30 · 76327 Pfinztal · Germany

Tel. +49 (0) 721 - 46 596 - 0
Fax +49 (0) 721 - 46 596 - 77

info@camtec-gmbh.com
www.camtec-gmbh.com

Rev. 20170302-2300

Seite 144 von 144

APW01303

Model

APW01303

Power

130 watt

Output

Triple-output (galvanic insulated)

Ouputs

U1

U2

U3

Output voltage

+5V

+12V

-12V

Output current

10A

3A

3A

Input

90- 264Vac 47-63 Hz

Mains connector

Inlet connector female incl. Filter and Mains fuse

Connection

Phoenix Combicon spring type terminal pitch 3,8mm

Efficiency typ.

> 82%

Ambient temperature

-20°C … +70°C

Cooling

Natural convection

Dimensions WxHxD

133 x 200 x 63mm

Special Features

Frequency Synchronized



Continuous short circuit protected



Low heat emission



High reliable



Excellent behavior on load switch



Idling proof
