Power factor

results in

Higher energy consumption and
costs,
Less power distributed via the
 network,
Power loss in the network,
Higher transformer losses,
Increased voltage drop in power
distribution networks.

Power factor improvement

Power factor improvement can be
achieved by

Compensation of reactive power
with capacitors,
Active compensation – using
semiconductors,
Overexcited synchronous  machine
(motor /generator).

Types of PFC

(detuned or conventional)

individual or fixed compensation
(each reactive power producer is
individually compensated),
group compensation (reactive power
producers connected as a group
and compensated as a whole),
central or automatic compen sation
(by a PFC system at a  central point),
mixed compensation.

reactive power compensation systems
(detuned /conventional) are

   installed

for larger loads like industrial machinery.
Such systems consist of a group
of capacitor units that can be cut in
and cut out and which are  driven and
switched by a power  factor controller.

Reactive Power [KVAr]

2

2

2

Q  = S — P

Q

Q

2

C

Q

1

S

2

S

1

Apparent Power [kVA]

2

2

2

S  = P + Q

Active Power [kW]

2

2

2

P  = S — Q

sin

With power factor correction the apparent power
S can be decreased by reducing the reactive

generated

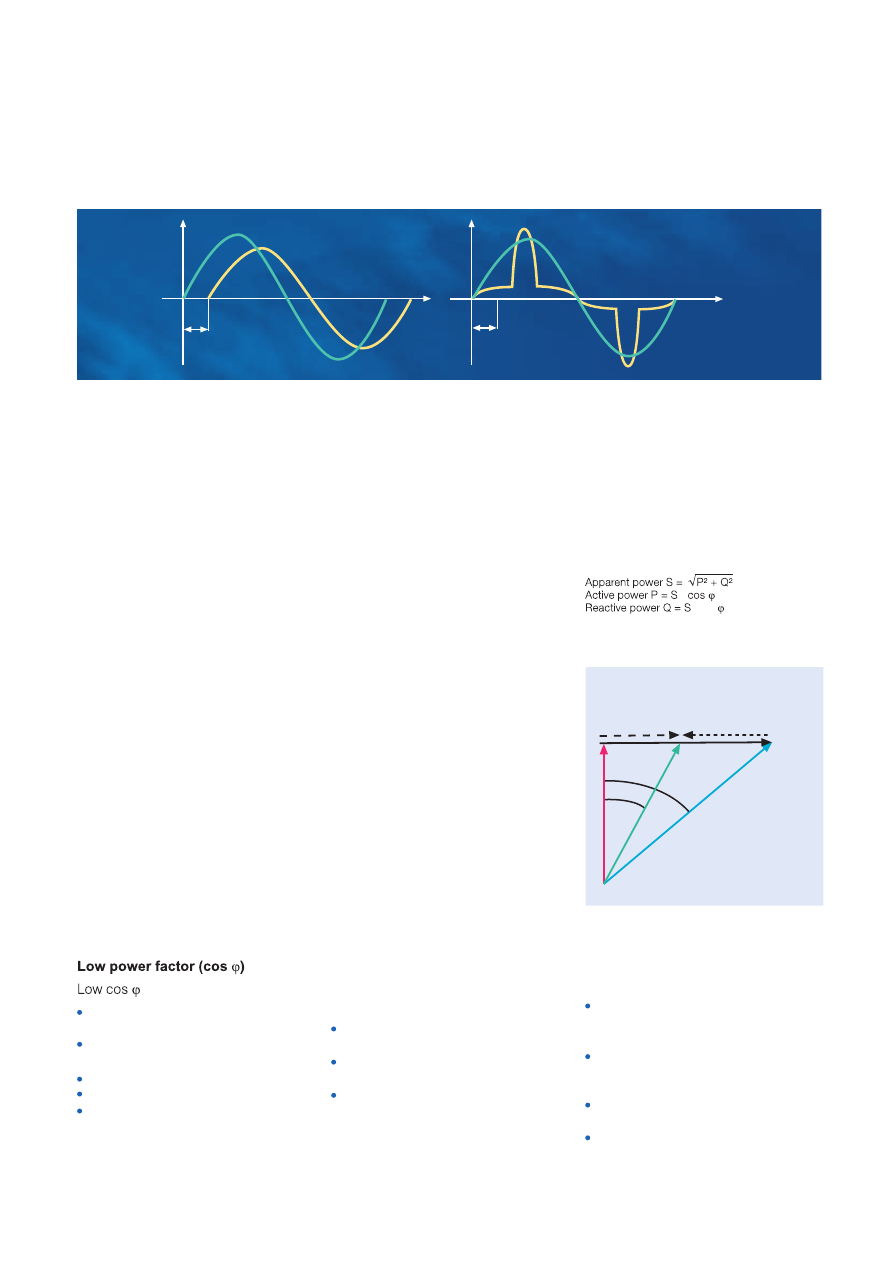

Every electric load that works with
magnetic fields (motors, chokes,
transformers, inductive heating, arc
welding, generators) produces a vary-
ing degree of electrical lag, which is
called inductance. This lag of inductive
loads maintains the current sense (e.g.
positive) for a time even though the
negative-going voltage tries to reverse
it. This phase shift between current
and voltage is maintained, current and
voltage having opposite signs. During
this time, negative power or energy
is produced and fed back into the
network. When current and voltage
have the same sign again, the same
amount of energy is again needed to
build up the magnetic fields in induc-
tive loads. This magnetic reversal

In AC networks (50 /60 Hz) such a
process is repeated 50 or 60 times a
second. So an obvious solution is to
briefly store the magnetic reversal
energy in capacitors and relieve the
network (supply line) of this reactive
energy. For this reason, automatic

j

1

P

j

2

power Q.

*

*

Preview

General

The increasing demand of electrical
power and the awareness of the
 necessity of energy saving is very up
to date these days. Also the aware-
ness of power quality is increasing,
and power factor correction (PFC) and
harmonic filtering will be implemented
on a growing scale. Enhancing power
quality – improvement of power factor
– saves costs and ensures a fast
return on investment. In power distrib-
ution, in low- and medium-voltage
networks, PFC focuses on the power
flow (cos

Ø

) and the  optimization of

voltage stability by generating reactive
power – to  im prove voltage quality and
reliability at distribution level.

How reactive power is

energy is called reactive power.

U

I

U

I

Linear loads:
voltage was followed
by current.

Non linear load produce
non sinusoidal  currents when
connected to sinusoidal voltage.

5

EIPL 2013

Uninterruptible Power supply

M

3~

EMC filter

C



250/350/

  550 Hz

Overvoltage
protection

Tuned

harmonic
filters

Linear load
with fixed

PFC

M

3~

Overvoltage
protection

Dynamic
PFC

systems

Overvoltage
protection

Passive
harmonic

filters

(de-tuned
PFC

systems)

Overvoltage
protection

Overvoltage
protection

Active
harmonic

filters

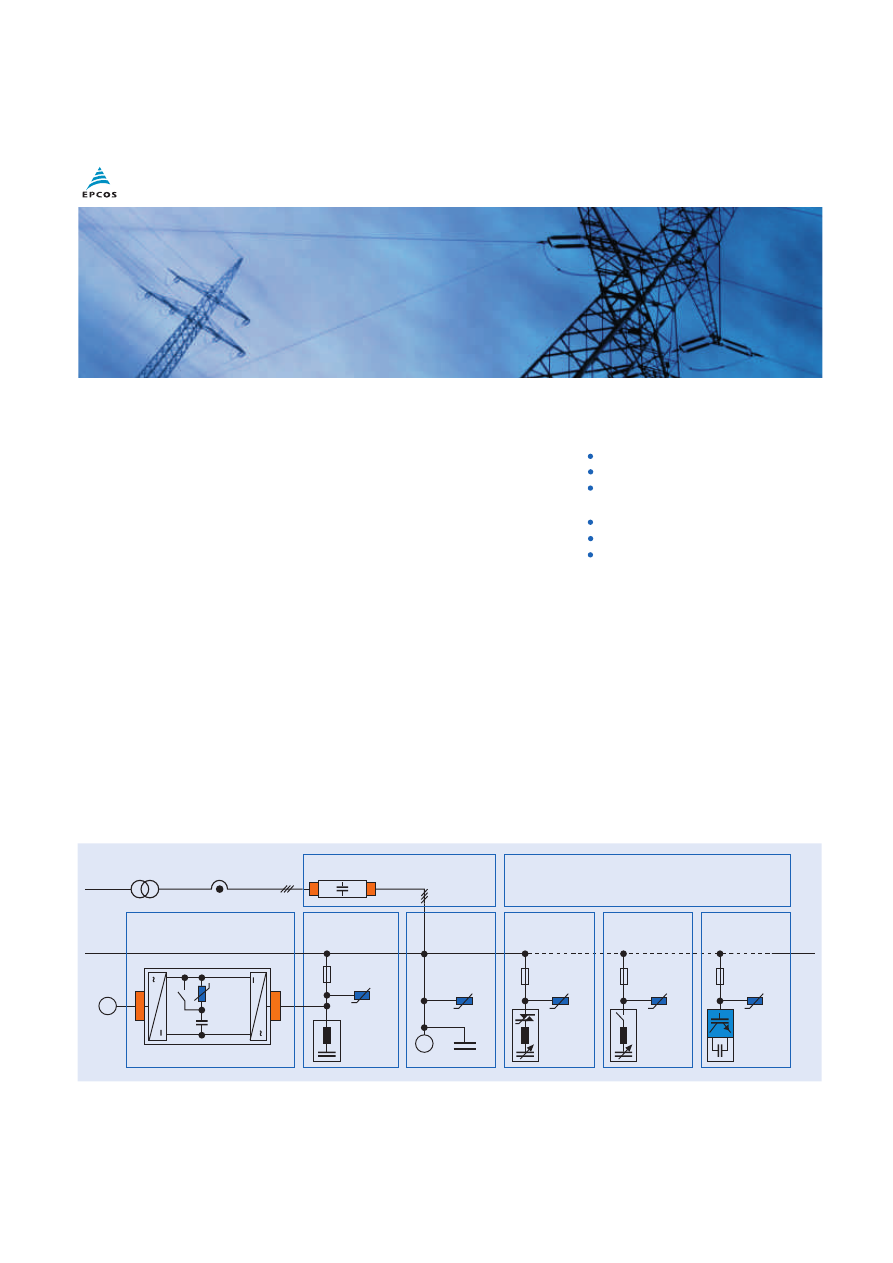

Power Factor Correction (PFC)
and Harmonic Filtering

DC link

(Aluminum electrolytic
or film capacitors)

EMC filter

Frequency converter

C

Charging

re

sistor

Output filter

Preview

Power Quality Solution strategy

Along with the emerging demand for
power quality and a growing aware-
ness of the need for environmental
protection, the complexity in the ener-
energy market is increasing: users and
decision-makers are consequently
finding it increasingly difficult to locate

the best product on the market and to
make objective decisions. It is in most
cases not fruitful to compare catalogs
and data sheets, as many of their
parameters are identical in line with
the relevant standards. Thus operating
times are specified on the basis of

tests under laboratory conditions that
may differ significantly from the reality
in the field. In addition, load structures
have changed from being mainly linear
in the past to non-linear today. All this
produces a clear trend: the market
is calling increasingly for customized
solutions rather than off-the-shelf
products. This is where Power Quality
Solutions come into the picture. It
offers all key components for an
effective PFC system from a single
source, together with:

Application know-how
Technical skills
Extensive experience in the field of
power quality improvement
A worldwide network of partners
Continuous development
Sharing of information

These are the cornerstones on which
Power Quality Solutions are built. On
the basis of this strategy, EPCOS is
not only the leading manufacturer of
power capacitors for PFC applications
but also a PQS supplier with a century
of field experience, reputation and
reliability.

7

EIPL 2013

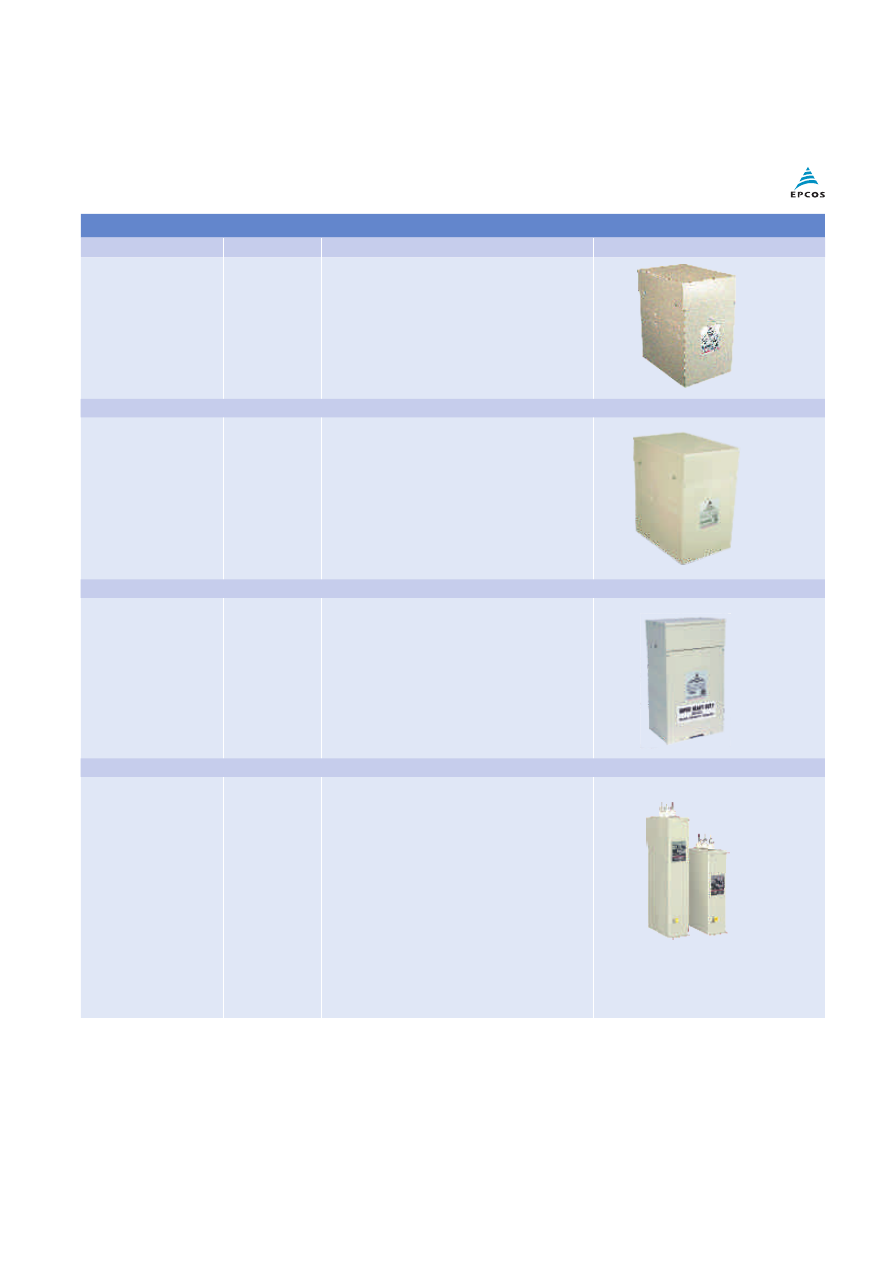

PFC Capacitor Series Overview

*Other voltages on request.

PFC Capacitor series for power factor correction capacitors

SquareCap-ENDC

B32457L . . .

Power

     KVAr

1…50.0

Voltage range

     V

415…440 V*

Frequency

     Hz

50 Hz

Impregnation
Life expectancy

    Hrs

Up to 100 000 hours

Inrush current

 A

200  I

•

R

SquareCap-EHDLL

B32459L . . .

Power

      KVAr

1…60.0

Voltage range

     V

415…525 V*

Frequency

      Hz

50 Hz

Impregnation
Life expectancy

     Hrs

Up to 125 000 hours

Inrush current

 A

250  I

•

R

SquareCap-ESHDC

B32455L . . .

Power

           KVAr

1…50.0

Voltage range

          V

415…525 V*

Frequency

           Hz

50 Hz

Impregnation
Life expectancy

          Hrs

Up to 150 000 hours

Inrush current

 A

350  I

•

R

LT-APP

B25160 . . .

Power

      KVAr

1…100

Voltage range

     V

415…525 V*

Frequency

      Hz

50 Hz/ 60Hz

Impregnation

Non PCB, biodegradable oil

Life expectancy

     Hrs

Up to 300 000 hours

Inrush current

 A

(400 to 500)  I

•

R

Non-PCB, semi-dry biodegradable resin

Non-PCB, semi-dry biodegradable resin

Non-PCB, semi-dry biodegradable resin

Important Notes

The  following applies  to all products named in this



publication:

1. Some parts of this publication contain

s tatements about

the suitability of our products for certain  areas of appli-
cation

. These statements are based on our knowledge

of typical requirements that are often placed on our prod-
ucts in the areas of application concerned. We neverthe-
less expressly point out

that such statements cannot be

regarded as binding statements about the suitability
of our products for a particular customer application.

As a rule, EPCOS is either unfamiliar with individual
customer  applications  or  less  familiar  with  them  than
 the customers themselves. For these reasons, it is always
ultimately incumbent on the customer to check and decide
whether an EPCOS product with the properties described
in the product specification is suitable for use in a partic-
ular customer application.

2. We  also point out that

in individual cases, a malfunc-

tion of electronic components or  failure  before the
end of their usual service life cannot be completely
ruled out in the current state of the art, even if they are
operated as speci fied

. In  customer applications requiring

a very high level of  operational safety and especially in
 customer applications in which the malfunction or failure
of an electronic component  could  endanger human life or
health (e.g. in accident prevention or life-saving systems),
it must therefore be ensured by means of suitable design
of the customer application or other action taken by the
 customer (e.g. installation of protective



circuitry or

 redundancy) that no injury or damage is

 sustained by third

parties in the event of malfunction or failure of an electronic
component.

3.

The  warnings,  cautions  and  product-specific  notes
must be observed.

4. In or der  to satisfy certain technical requirements, some of

the products described in this publication may contain
substances subject to restrictions in certain jurisdictions
(e.g.  because  they  are  classed  as  hazardous).
Useful  information  on  this  will  be  found  in  our  Material
Data Sheets on the Internet (www.epcos.com/material).
Should you have any more detailed questions, please
contact our sales offices.

5. We  constantly strive to  improve  our  products.  Conse-

quently,

the  products  described  in  this  publication

may change from time to time.

 The same is true of the

corresponding  product  specifications.  Please  check
therefore to what extent product  descriptions and speci-
fications contained in this publication are still applicable
before or when you place an order.

We  also  reserve  the  right  to  discontinue  production
and  delivery  of  products.

Consequently,  we  cannot

guarantee that all products named in this  publication will
always be available.

The  aforementioned  does  not  apply  in  the  case  of
individual  agreements  deviating  from  the  foregoing  for
customer-specific products.

6. Unless  otherwise  agreed  in  individual  contracts,

all



orders are subject to the current version of the “General
Terms  of  Delivery  for  Products  and  Services  in
the  Electrical  Industry”  published  by  the  German
Electrical and Electronics Industry  Association (ZVEI).

7. The  trade  names  EPCOS,  BAOKE,  Alu-X,  CeraDiode,

CSMP,  CSSP,  CTVS,  DeltaCap,  DigiSiMic,  DSSP,
FormFit, MiniBlue, MiniCell, MKD,MKK,

PhaseCube,   PhaseMod,

SIKOREL,  SilverCap, SIMDAD, SiMic,SIMID, SineFormer,

PhiCap,   SIFERRIT,    SIFI,

SIOV, SIP5D, SIP5K, ThermoFuse, WindCap  are

trademarks  registered  or  pending

in  Europe  and  in  other   countries.  Further  information

 will be found on the



Internet at

www.epcos.com/trademarks.

SquareCap,

 AgriCap, PoleCap,

MLSC,  MotorCap, PCC, PhaseCap,

10

EIPL 2013

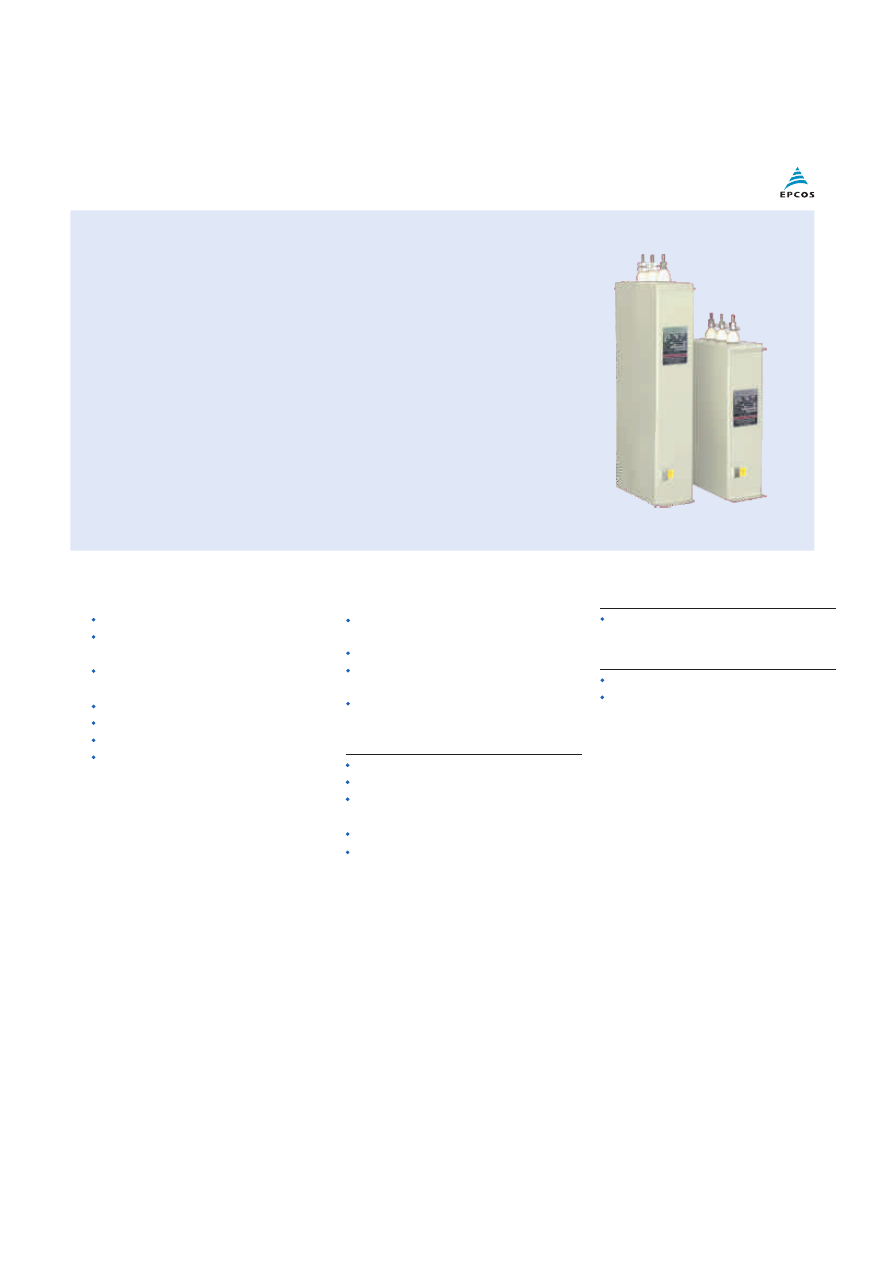

LT-APP Capacitors

Applications

Features



Electrical

Maintenance

Safety

Maintenance free

Extended foil design
Low Energy consumption
Natural air cooled.
Voltage range, 230, 415,
440…1000V
Output range 5 KVAr to
100 KVAr.

Biodegradable NPCB Oil impregnated   PP + Foil technology   Internal fuse protection

l

l

General

APP Capacitor is proven
technology from more than 30
years. The combination of
polypropylene film and aluminum
foil makes the capacitor, more
robust in varying conditions of the
load.

The power range varies from
5 KVAr to 100 KVAr and voltage
range varies from 240V to
1000V in three phase units. Single
phase units are also available on
demand.

The LT-APP capacitors are utilized
in industry for sustaining large load
variations, THD and hazardous
conditions. With high qualitative
manufacturing process, LT-APP
capacitors offer higher life
expectancy.

Automated PFC Capacitor banks.
Fixed PFC (e.g. – Motors,
Transformers lighting etc.)
Group compensation for larger load
variation
Tuned and detuned Capacitor
Dynamic PFC and RTPFC
Filter applications
Product suitable for outdoor
application, available on request.

Single phase and three phase
Life expectancy 150,000 hrs. at STP
Pulse current withstand capability
– 300 x I

R

Type tested according to IS –13585
Low temperature rise.

Internal fuse provided
Hermetically Sealed
construction. (CRCA or SS)

35

EIPL 2013

Series type

Power-KVAr

5 to 100 KVAr

Rated voltage-V (AC)

415…525 V*

Frequency

50 Hz /60Hz

Transient peak

(400 to 500)

current maximum permissible

Maximum permissible

-5/D

temperature category

Losses

 0.5 W/KVAr

(without discharge resistors)

Maximum

V  +10%(up to 8 h daily)/ V



+15% (up to 30 min daily)**



R

R

permissible voltage

V  +20%(up to 5 min daily)/ V +30% (up to 1 min daily)**

R

R

Maximum

(2.2 to 3.0)

***

permissible Current

Safety

Internal fuse provided

Impregnation

Non PCB, biodegradable oil


Life expectancy

300 000 hours

Cooling

ONAN (Oil Natural Air Natural)

Case shape/Finish

Rectangular box spray painted

Terminal

M- 6, M- 8, M-10 thread brass terminal

Mounting and

Self standing with rigid mounting bracket

grounding

and a bracket for grounding

Enclosure

IP 32 with terminal cover

Discharge resistor

Provided with external discharge resistor

Connection

Delta 3 Phase

Casing of capacitor cell

CRCA or SS container

Dielectric

Polypropylene film

No. of switching

Max. 20 000 switching

per annum

Reference standard

IS: 13585 (part - 1/2012) ISI mark applicable for 415 and 440 V up to 25 KVAr.
IEC 60931 - 1

B25160

l

I

R

l

I

R

≤

*   other voltages available on request
**  V  rated  voltage

R

*** I  : RMS line current that occurs at rated sinusoidal voltage and rated frequency, excluding transients.

R

Note : for capacitors with different features/parameters than above, please check with our nearest sales office

Technical data : LT-APP Capacitors

LT-APP Capacitors

36

EIPL 2013

Biodegradable NPCB Oil impregnated   PP + Foil technology   Internal fuse protection

l

l

LT-APP Capacitors

LT-APP Capacitors - 3Phase

Rating

Voltage

Material code

I

C

H x W x D

Packing

MOQ

Approx.

R

N

KVAr

V (AC)

A

m

F

    mm

  units



  weight



Kg

LT - APP - 415 V(AC) 3PH, 50Hz (Series B25160)

  5

415

B25160A4005T015

  7

3 x 30.8

230 x 300 x 120

1

1

  5.5

  7.5

415

B25160A4007T515

10.4

3 x 46.2

265 x 300 x 120

1

1

  7.5

10

415

B25160A4010T015

13.9

3 x 61.6

290 x 300 x 120

1

1

10

12.5

415

B25160A4012T515

17.4

3 x 77

340 x 300 x 120

1

1

12

15

415

B25160A4015T015

20.9

3 x 92.4

340 x 300 x 120

1

1

12

20

415

B25160A4020T015

27.8

3 x 123.2

415 x 300 x 120

1

1

15

25

415

B25160A4025T015

34.8

3 x 154

465 x 300 x 120

1

1

17

30

415

B25160A4030T015

41.7

3 x 184.8

515 x 300 x 120

1

1

19

50

415

B25160A4050T015

69.6

3 x 308

750 x 300 x 120

1

1

31

LT - APP - 440 V(AC) 3PH, 50Hz (Series B25160)

  5

440

B25160A4005T040

  6.6

3 x 27.4

230 x 300 x 120

1

1

  5.5

  7.5

440

B25160A4007T540

  9.8

3 x 41.1

265 x 300 x 120

1

1

  7.5

10

440

B25160A4010T040

13.1

3 x 54.8

290 x 300 x 120

1

1

10

12.5

440

B25160A4012T540

16.4

3 x 68.5

315 x 300 x 120

1

1

11

15

440

B25160A4015T040

19.7

3 x 82.2

340 x 300 x 120

1

1

12

20

440

B25160A4020T040

26.2

3 x 109.6

390 x 300 x 120

1

1

14

25

440

B25160A4025T040

32.8

3 x 137

440 x 300 x 120

1

1

16

30

440

B25160A4030T040

39.4

3 x 164.4

490 x 300 x 120

1

1

18

50

440

B25160A4050T040

65.6

3 x 274

690 x 300 x 120

1

1

28

LT - APP - 480 V(AC) 3PH, 50Hz (Series B25160)

  5

480

B25160A4005T080

  6

3 x 23

215 x 300 x 120

1

1

  5

  7.5

480

B25160A4007T580

  9

3 x 34.5

265 x 300 x 120

1

1

  7.5

10

480

B25160A4010T080

12

3 x 46.1

265 x 300 x 120

1

1

  8

12.5

480

B25160A4012T580

15

3 x 57.6

290 x 300 x 120

1

1

10

15

480

B25160A4015T080

18

3 x 69.1

315 x 300 x 120

1

1

11

20

480

B25160A4020T080

24.1

3 x 92.1

365 x 300 x 120

1

1

13

27.67

480

B25160A4027T080

33.3

3 x 127.4

415 x 300 x 120

1

1

16

30

480

B25160A4030T080

36.1

3 x 138.2

440 x 300 x 120

1

1

16

50

480

B25160A4050T080

60.1

3 x 230.3

615 x 300 x 120

1

1

23

LT - APP - 525 V(AC) 3PH, 50Hz (Series B25160)

  5

525

B25160A5005T025

  5.5

3 x 19.2

215 x 400 x 120

1

1

  7

  7.5

525

B25160A5007T025

  8.2

3 x 28.9

230 x 400 x 120

1

1

  8

10

525

B25160A5010T025

11

3 x 38.5

240 x 400 x 120

1

1

  9

12.5

525

B25160A5012T525

13.7

3 x 48.1

265 x 400 x 120

1

1

10

15

525

B25160A5015T025

16.5

3 x 57.7

290 x 400 x 120

1

1

11

20

525

B25160A5020T025

22

3 x 77

315 x 400 x 120

1

1

13

25

525

B25160A5025T025

27.5

3 x 96.2

120 x 365 x 400

1

1

16

30

525

B25160A5030T025

33

3 x 15.5

390 x 400 x 120

1

1

18

50

525

B25160A5050T025

55

3 x 192.5

540 x 400 x 120

1

1

28



LT-APP Capacitors

37

EIPL 2013

Biodegradable NPCB Oil impregnated   PP + Foil technology   Internal fuse protection

l

l
