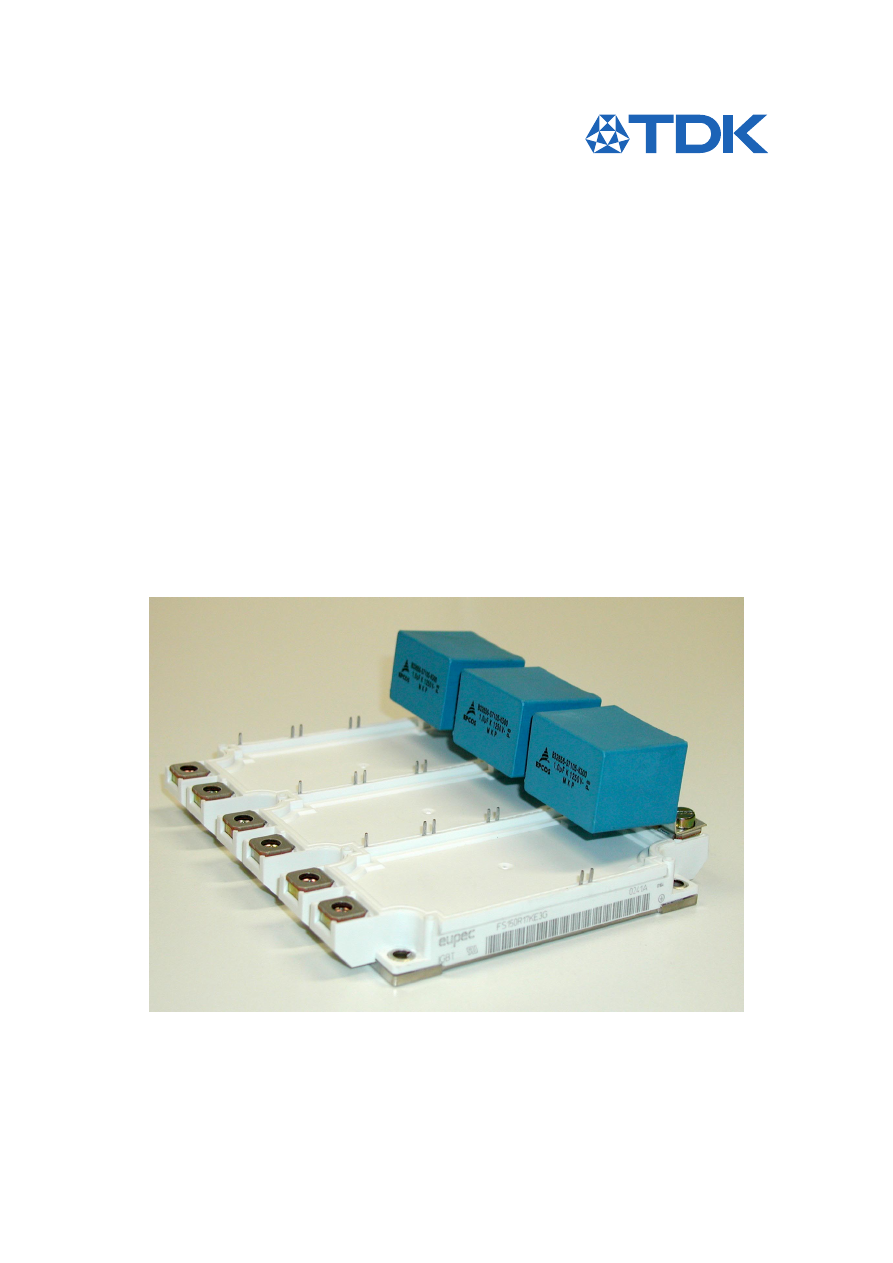

Cross Reference

for

IGBT Snubber Capacitors

Module / Capacitors

Film Capacitor Division

FK PM, January 2005

IGBT  Module / Capacitor Cross

USER GUIDE

Capacitor list

C value

Voltage

≥

module value

Terminal no.

Box size

1 : Choose a modul

2 : Take a terminal no.

3 : Choose a C-value

4 : Combine capacitor

value, voltage and
terminal

Remark:

if the desired terminal is
not available in the
requested voltage.
--> Go for next higher voltage.

Modul / Terminal list

Fuji

Eupec

eg.: FS225R12KE

Semikron

3

2

5

EPCOS Ordering Code

eg.: 0.

47 µF

eg.: T5

eg.: 1200 V

1

eg: T5 : B32656S7474K565

2

(1200V)

eg.: T5

eg.: 18x39,5x41,5

4

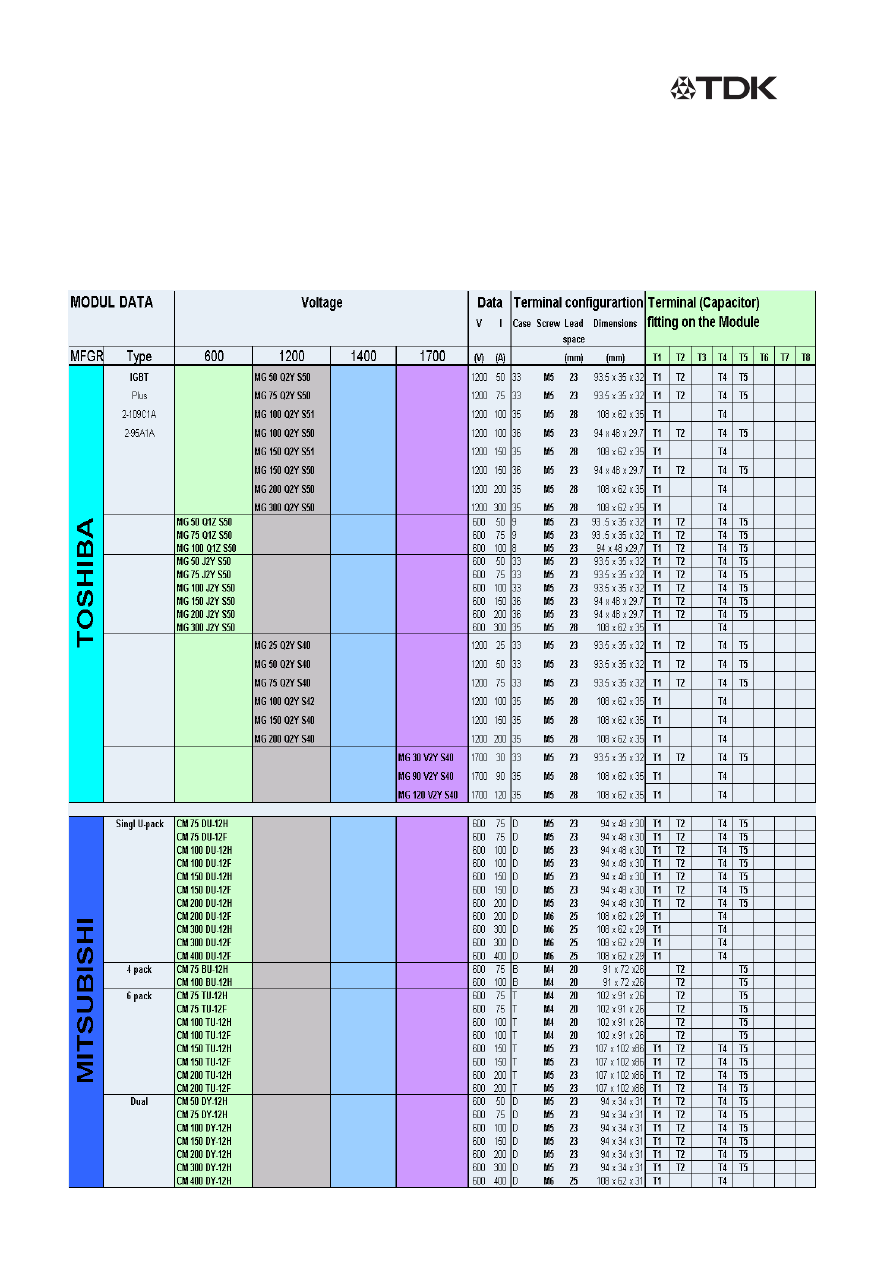

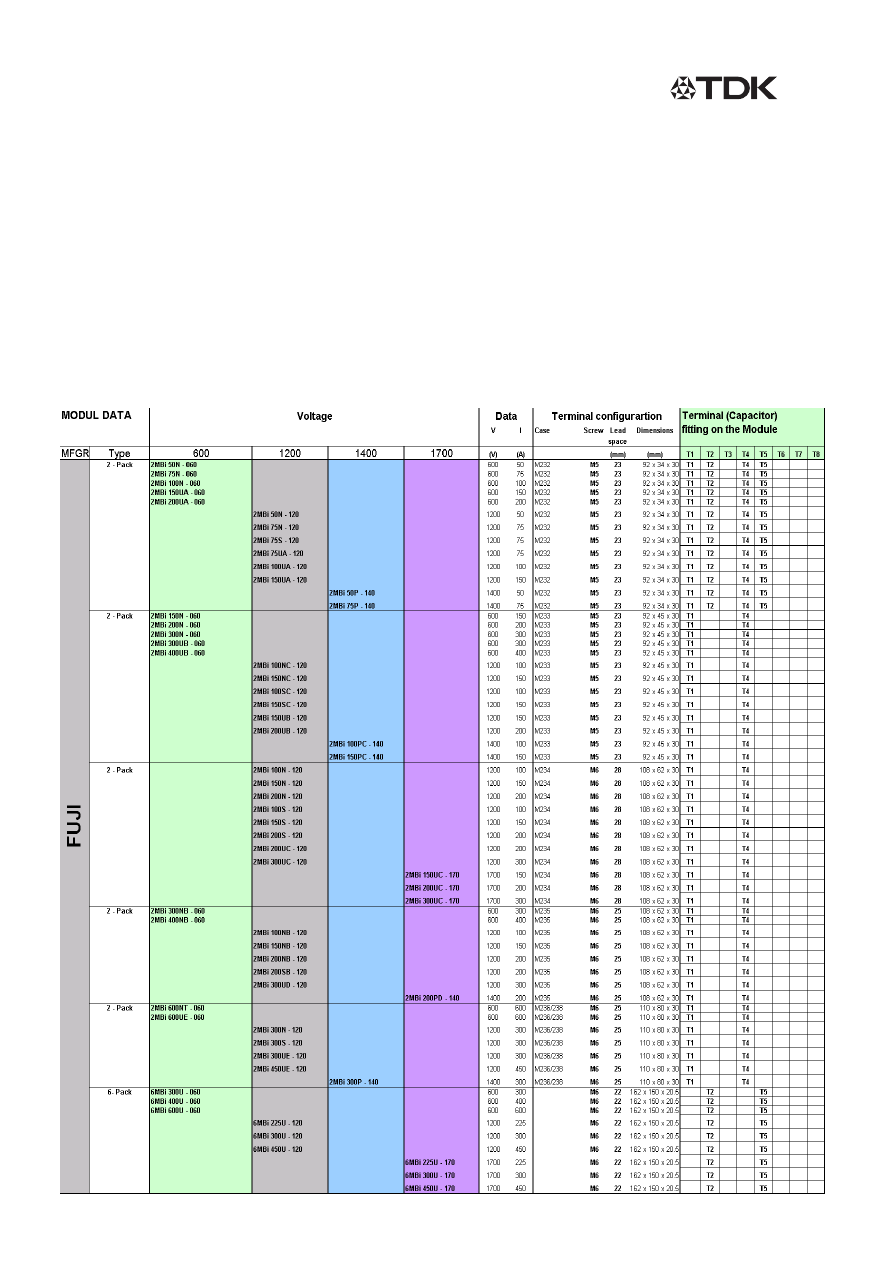

IGBT - Module List

IGBT - Module List

IGBT - Module List

IGBT - Module List

IGBT - Module List

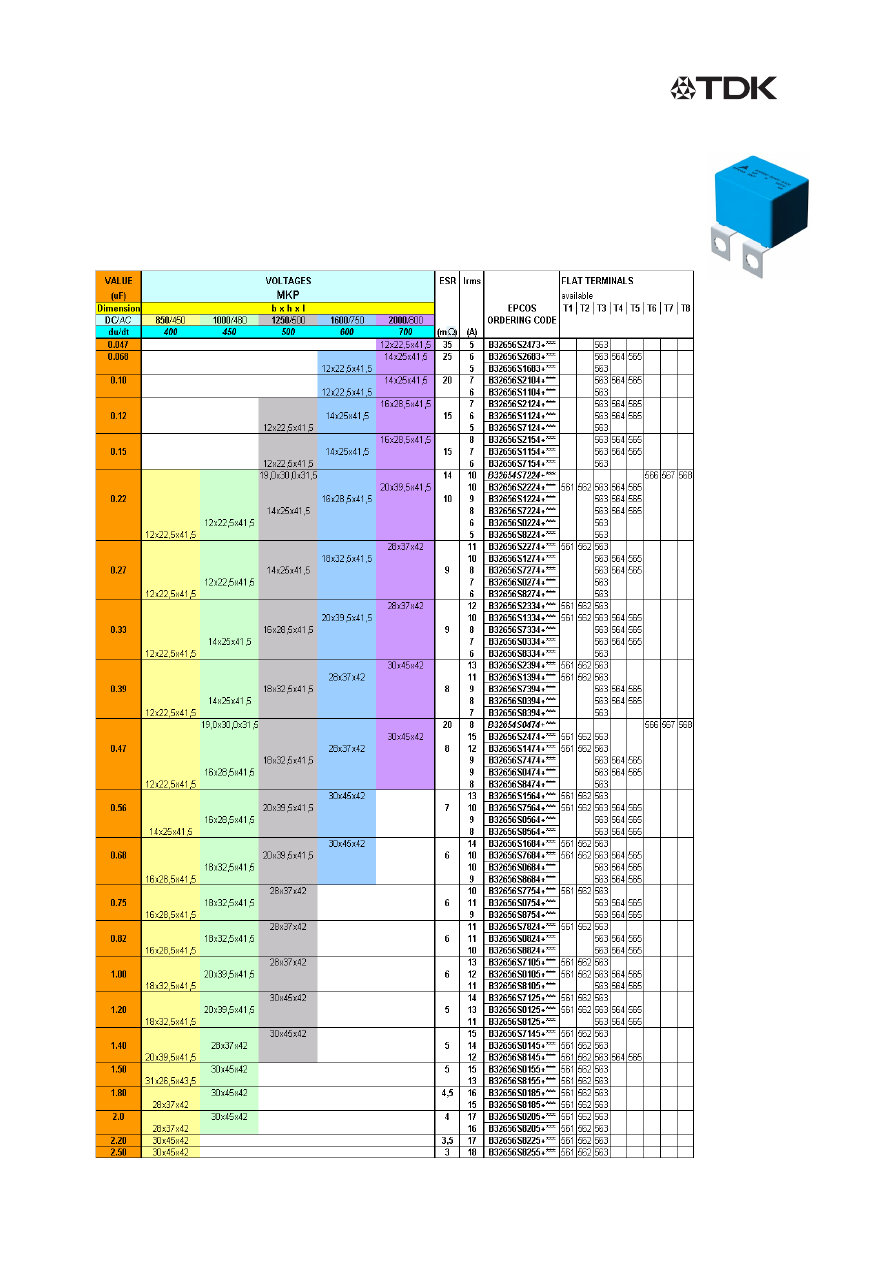

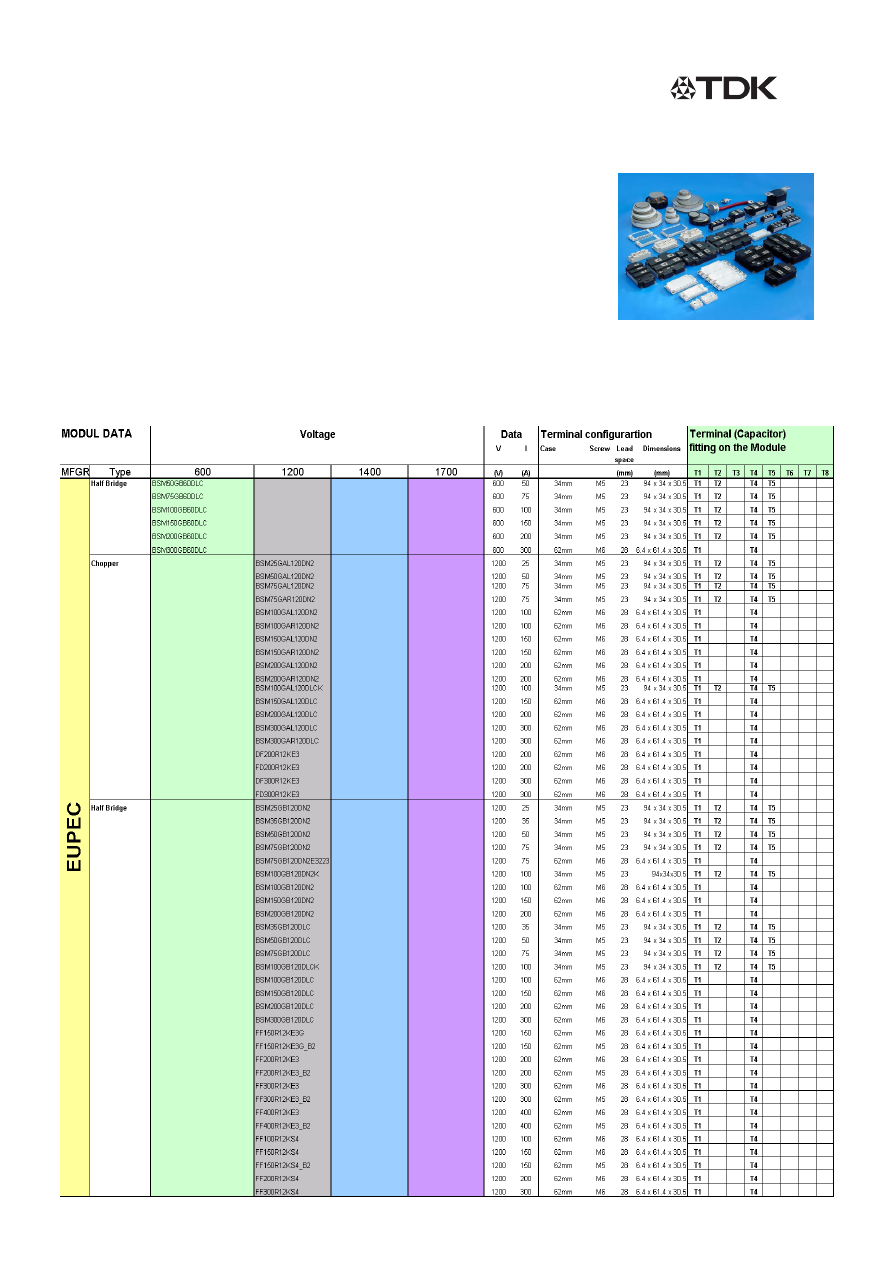

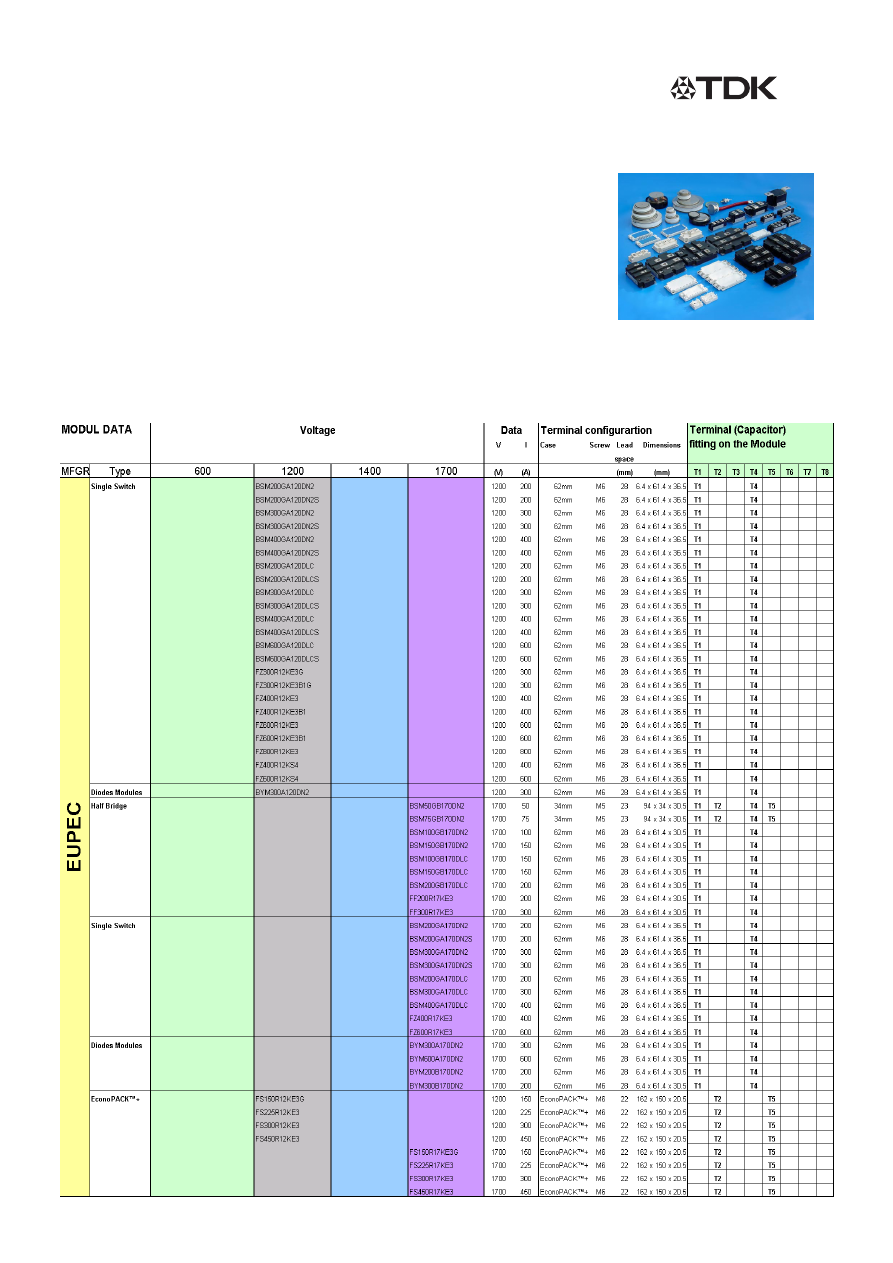

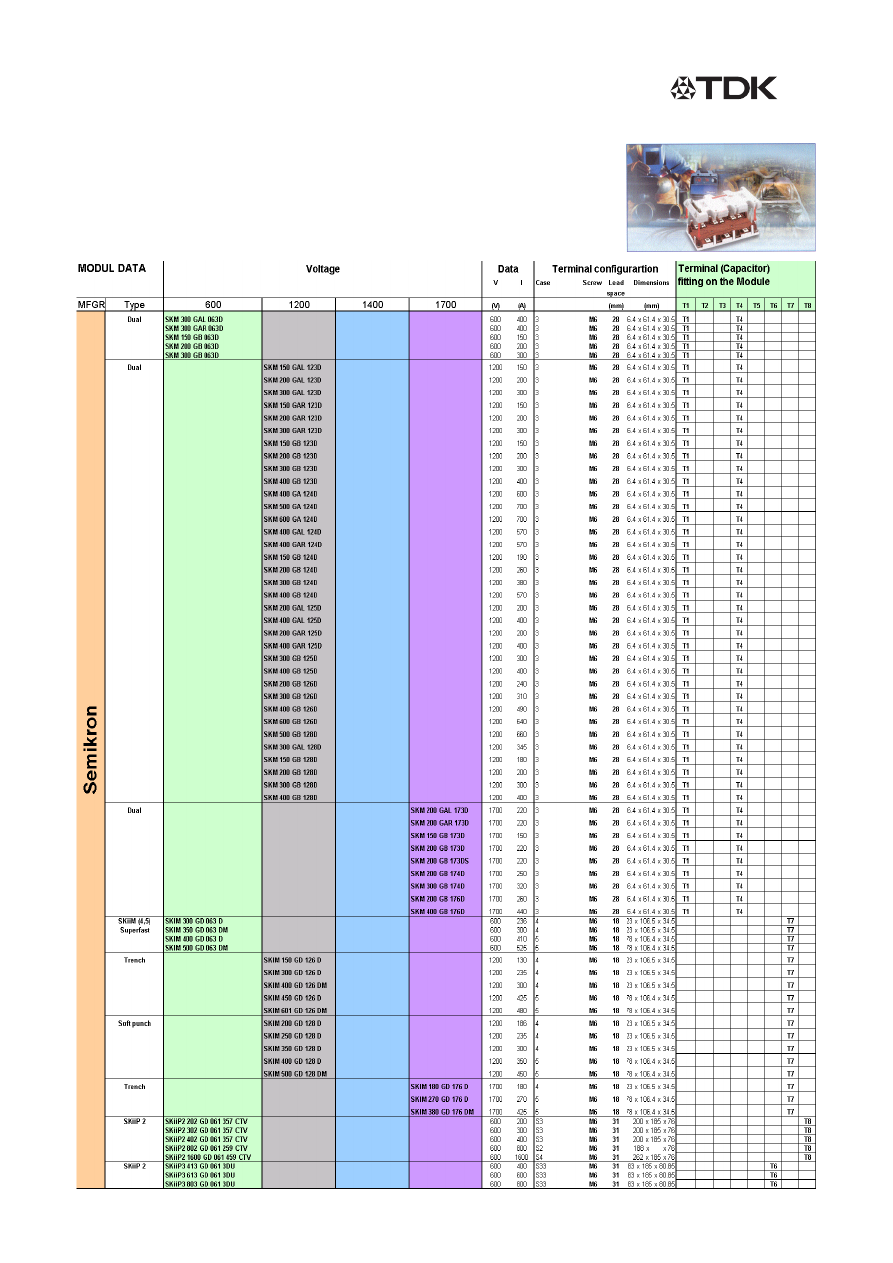

IGBT  Capacitors List (MKP)

Kapazitätstoleranz(+): +/- 20% = M, +/- 10% = K, +/- 5% = J
Terminal(***): T1 = 561 ... T8 = 568

T1

T3

T4

Special layouts upon request

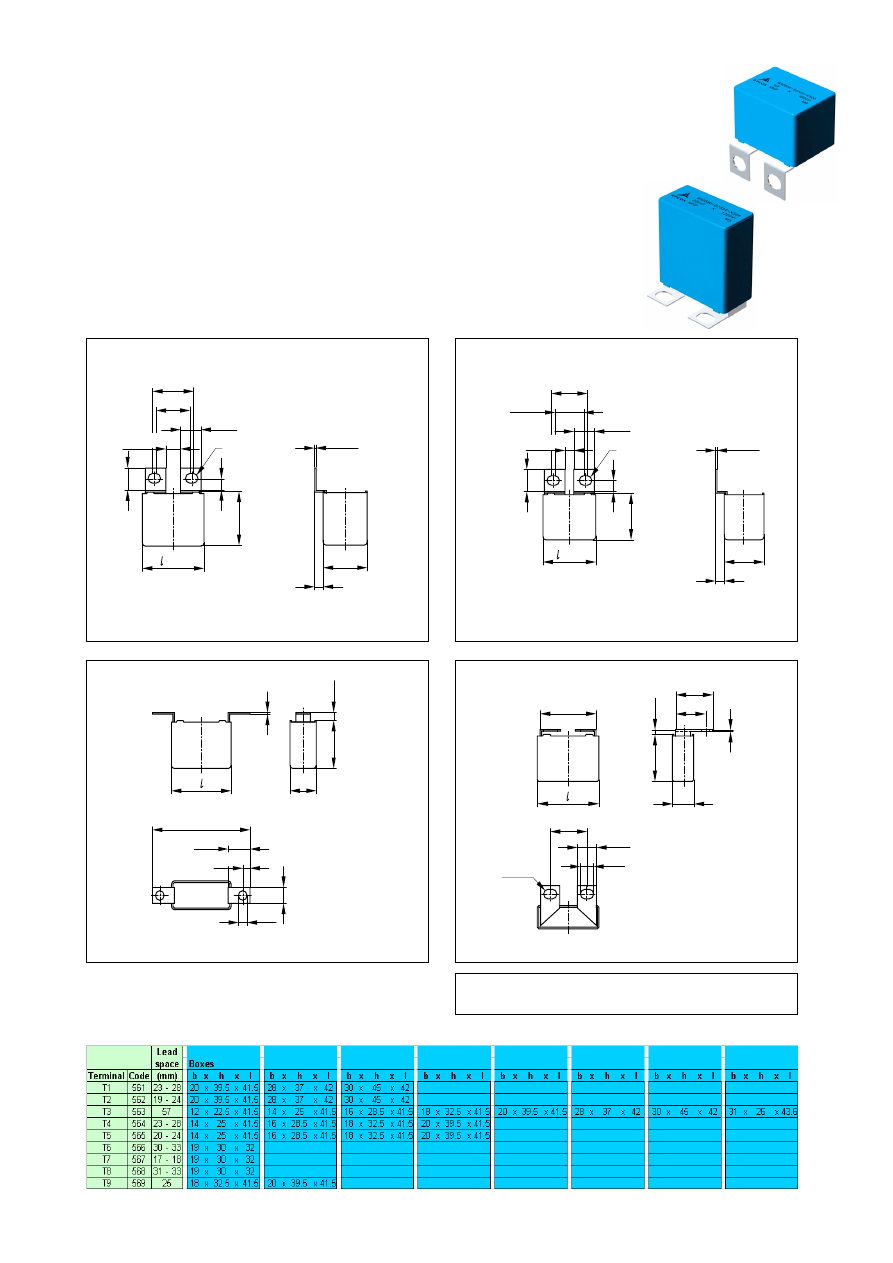

KMK0785-J

max.

10.2 min.

14 min.

23±0.5

28±0.5

14±1

7±1

R3±0.1

h max.

b max.

6±1

0.8±0.05

KMK0786-S

max.

6.2 min.

14 min.

19.5±0.5

24.5±0.5

14±1

7±1

R3±0.1

h max.

b max.

6±1

0.8±0.05

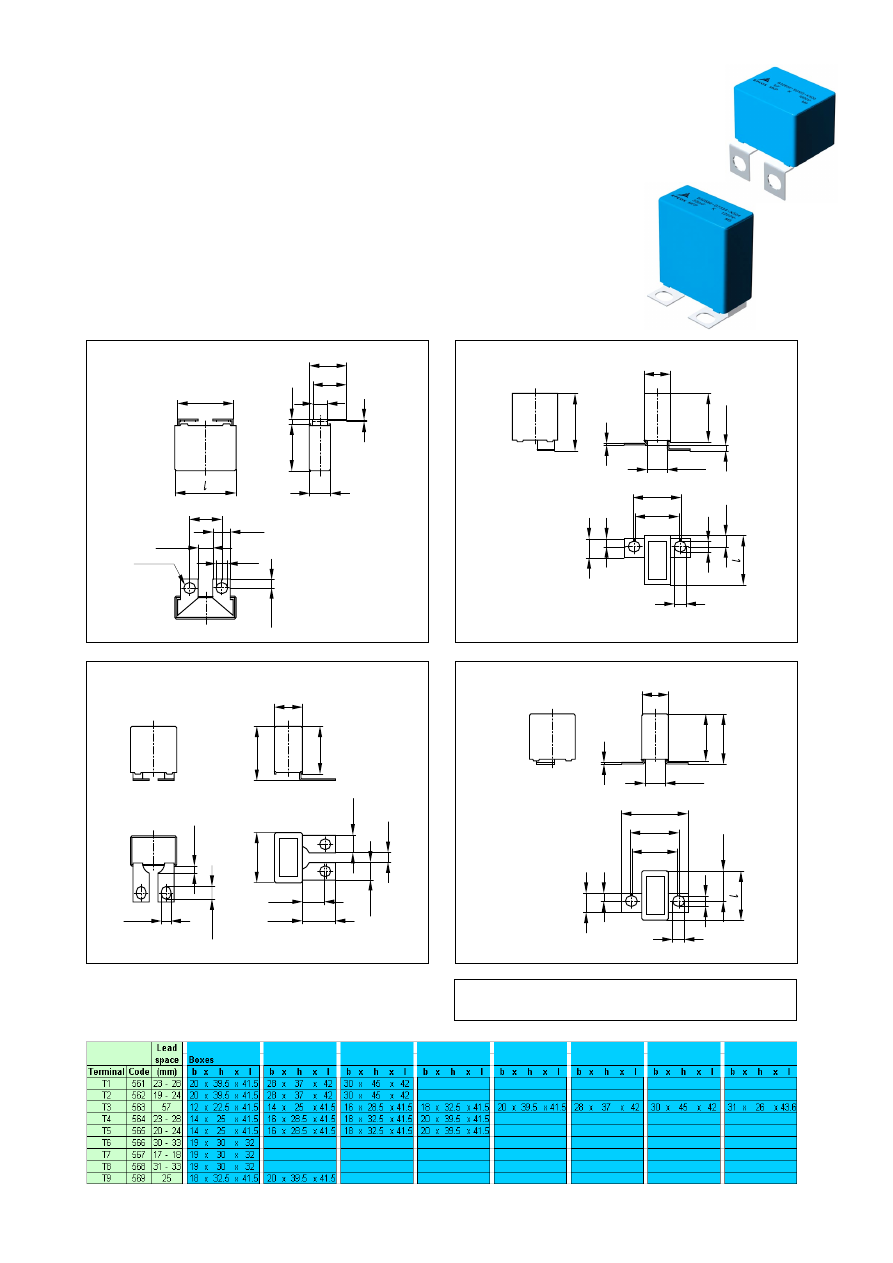

KMK0787-1

0.5

5±0.5

h

d

5±0.2

15±0.3

67±0.5

6±0.2

10±0.3

KMK0788-9

38±0.5

b

h

3±0.5

20±0.2

25±0.2

0.5

9±0.4

13±0.3

25±0.5

R3±0.1

T2

IGBT  Terminal

(Versions Available)

IGBT  Terminal

(Versions Available)

T5

KMK0789-H

38±0.5

b

h

3±0.5

10 max.

23±0.3

25.3±0.5

0.5

8±0.4

12±0.5

10±0.5

22±0.5

5.3±0.2

R3.3±0.1

T8

KMK0792-2

Marking

b

14 min.

0.8

h

31.5

12

5

8.1

6.6

19±0.5

31±1.5

33±1.5

45

KMK0790-K

Marking

b

14 min.

0.8

h

12

5

8.1

6.6

7±0.5

30±1.5

33±1.5

3.5±0.5

36 max.

T6

KMK0791-T

19 max.

34 max.

30 max.

6.6±0.2

4.5±0.5

8.1±0.2

31.5 max.

15±0.5

22.5±0

Marking

11±0.2

11±0.2

6±0.5

T7

Special layouts upon request

IGBT - Capacitor Questionnaire

Please fill in your requirements:

Application:

Start of production:
Quantity / year:

Module:

Mfgr:
Voltage:
Current:
Lead space:
Screw diameter:

Capacitor:

Lead space:
Dimensions:
Capacitance value:
Tolerance:
Voltage (Vdc):
Voltage (Vac):
Current (A):
dv/dt:
Switching frequency:
Load diagramm: if available (curve forms)
or your specification...
