P. 1/25
July 2013
Space Products & Solutions
Exxelia Group
Space Qualified
Products & Solutions
P. 1/25
July 2013
Space Products & Solutions
Exxelia Group
Space Qualified
Products & Solutions

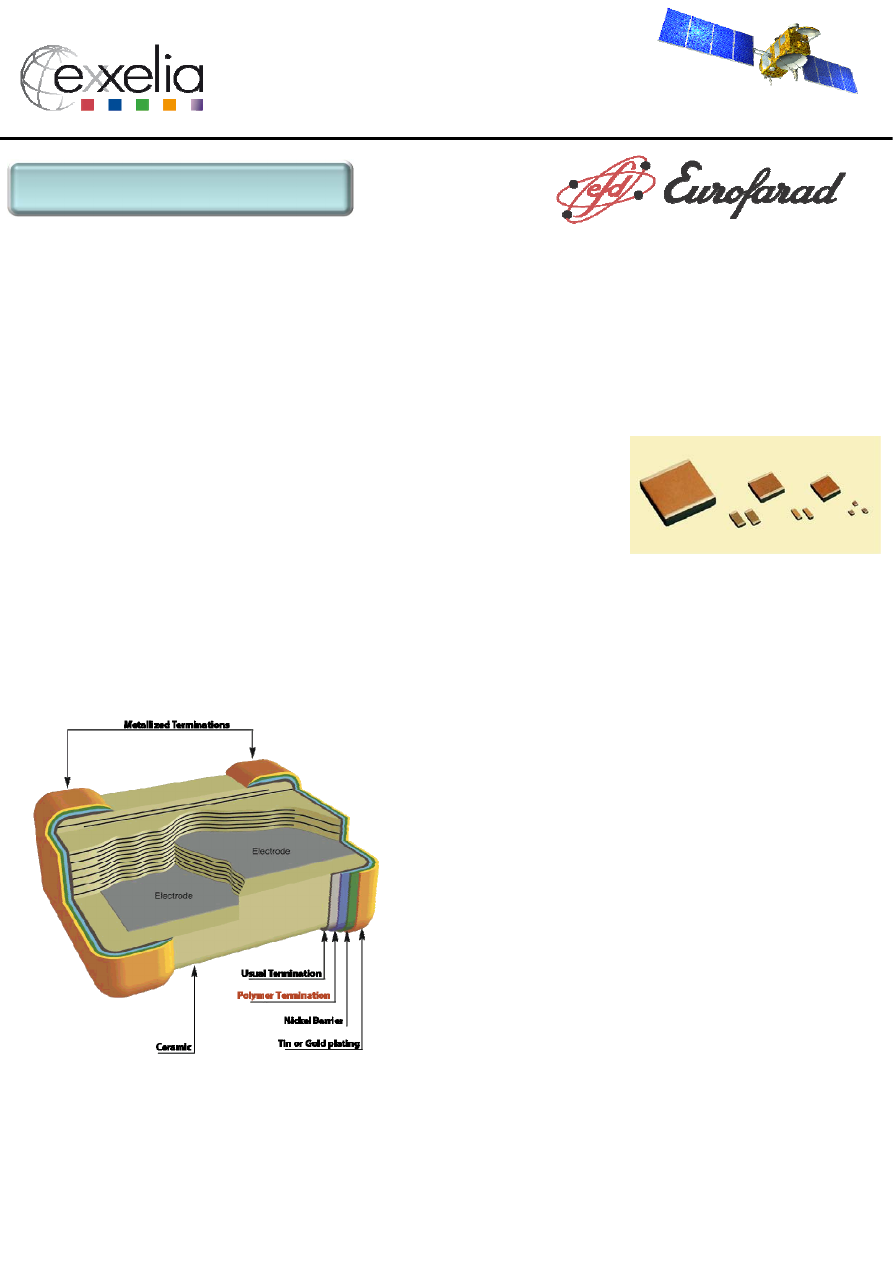

P. 2/25
July 2013
Space Products & Solutions
CERAMIC
Capacitors
EUROFARAD
ceramic chip capacitors have been used
and qualified in Space since the early 80’s (CEC and CNC
ranges). Our components are available size 0603 to size
2220 and 16V to 100V, with either NPO or BX/X7R (
2C1
or
2R1
) dielectric material.
Noble metals like Palladium or Silver are used for
electrodes.
CERAMIC
Chip
Capacitors
Such technology allows
EUROFARAD
ceramic chip capacitors keeping high
performance and reliability over a wide range of capacitance.
In early 2013,
EUROFARAD
introduced
the CerUflex as a new qualified
technology for Space applications. This
new capacitor uses flexible polymer
termination, offering improved
performance against thermo‐mechanical
stress.
EUROFARAD
’s CerUflex series is
listed in QPL with BX/X7R dielectric, size
0603 to size 2220 and 16V to 100V.
EUROFARAD
is now in the evaluation phase of two new types of ceramic
capacitors for Space use :
•
10V range for package size 0402, 0603, 0805, 1206 and 1210.
•
Size 0402 series over 10V to 100V range.
P. 3/25
July 2013
Space Products & Solutions
CERAMIC
Capacitors
ESCC
Specification
EUROFARAD
Part Number
CERAMIC
type
Main Electrical
Characteristics
Dimensions (mm)
QPL
EPPL
3009/037
CEC14
NPO
16V
100V
1pF
1nF
1,6
×
0,8
×
1max (size 0603)
QPL
3009/003
CEC2
NPO
16V
100V
1pF
2,7nF
2
×
1,25
×
1,3 max (size 0805)
QPL
3009/022
CEC12
NPO
16V
100V
1pF
6,8nF
3,2
×
1,6
×
1,8 max (size 1206)
QPL
3009/004
CEC4
NPO
16V
100V
10pF
15nF
3,2
×
2,5
×
1,8 max (size 1210)
QPL
3009/005
CEC6
NPO
16V
100V
100pF
33nF
4,5
×
3,2
×
1,8 max (size 1812)
QPL
3009/006
CEC7
NPO
16V
100V
470pF
68nF
5,7
×
5
×
1,8 max (size 2220)
QPL
3009/038
CNC14
2C1 / 2R1
16V
100V
10pF
39nF
1,6
×
0,8
×
1max (size 0603)
QPL
3009/008
CNC2
2C1 / 2R1
16V
100V
68pF
220nF
2
×
1,25
×
1,8max (size 0805)
QPL
3009/023
CNC12
2C1 / 2R1
16V
100V
470pF
390nF
3,2
×
1,6
×
2,3max (size 1206)
QPL
3009/009
CNC4
2C1 / 2R1
16V
100V
2,2nF
820nF
3,2
×
2,5
×
2,3max (size 1210)
QPL
3009/010
CNC6
2C1 / 2R1
16V
100V
3,9nF
1,8µF
4,5
×
3,2
×
2,3max (size 1812)
QPL
3009/011
CNC7
2C1 / 2R1
16V
100V
22nF
3,9µF
5,7
×
5
×
2,3max (size 2220)
QPL
3009/040
CEC14
Polymer termination
NPO
16V
100V
1pF
1nF
1,6
×
0,8
×
1max (size 0603)
CEC2
Polymer termination
NPO
16V
100V
1pF
2,7nF
2
×
1,25
×
1,3max (size 0805)
CEC12
Polymer termination
NPO
16V
100V
1pF
6,8nF
3,2
×
1,6
×
1,8max (size 1206)
CEC4
Polymer termination
NPO
16V
100V
10pF
15nF
3,2
×
2,5
×
1,8max (size 1210)
CEC6
Polymer termination
NPO
16V
100V
100pF
33nF
4,5
×
3,2
×
1,8max (size 1812)
CEC7
Polymer termination
NPO
16V
100V
470pF
68nF
5,7
×
5
×
1,8max (size 2220)

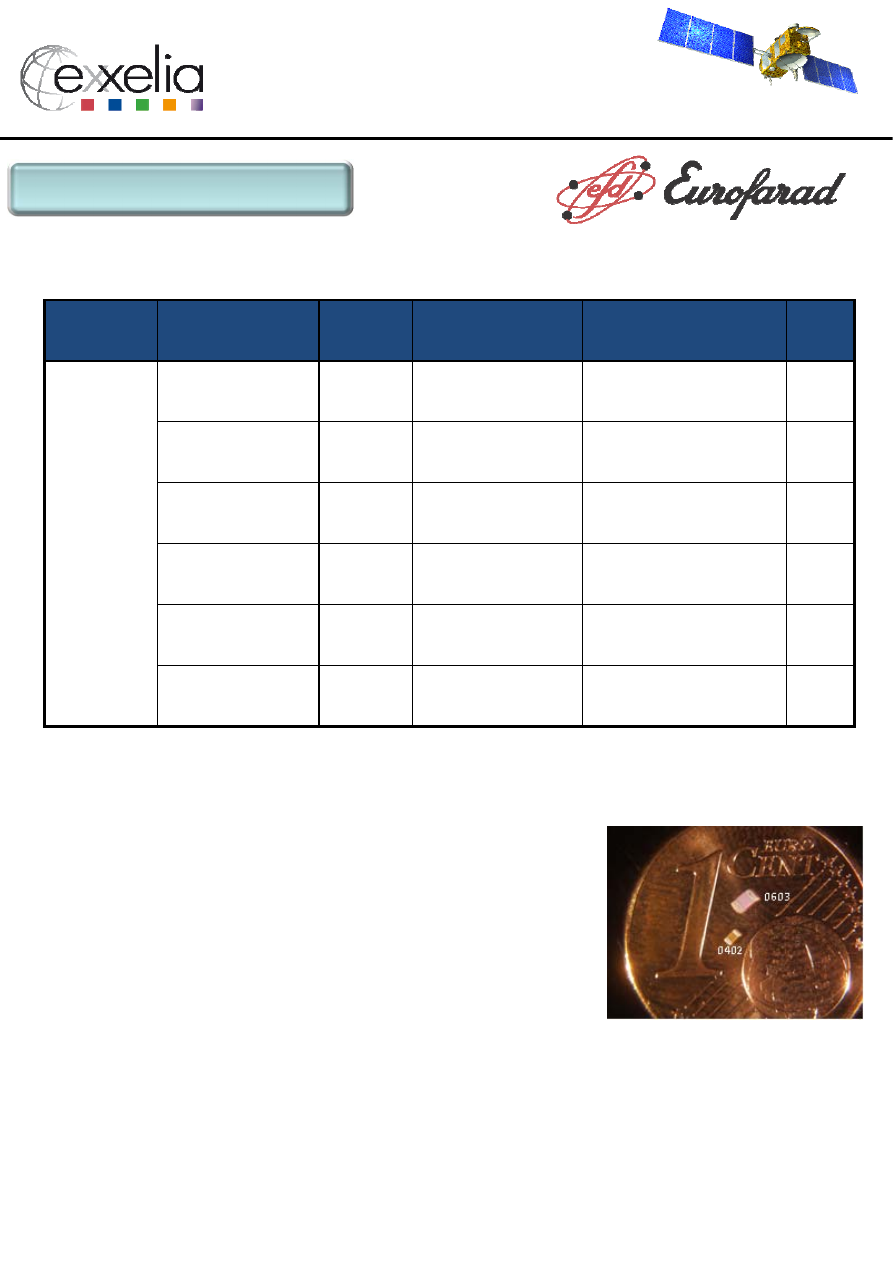

P. 4/25
July 2013
Space Products & Solutions
CERAMIC
Capacitors
ESCC
Specification
EUROFARAD
Part Number
CERAMIC
type
Main Electrical
Characteristics
Dimensions (mm)
QPL
EPPL
3009/039
CNC14
Polymer termination
2C1 / 2R1
16V
100V
10pF
100nF
1,6
×
0,8
×
1max (size 0603)
QPL
CNC2
Polymer termination
2C1 / 2R1
16V
100V
68pF
390nF
2
×
1,25
×
1,8max (size 0805)
QPL
CNC12
Polymer termination
2C1 / 2R1
16V
100V
470pF
1µF
3,2
×
1,6
×
2,3max (size 1206)
QPL
CNC4
Polymer termination
2C1 / 2R1
16V
100V
2,2nF
820nF
3,2
×
2,5
×
2,3max (size 1210)
QPL
CNC6
Polymer termination
2C1 / 2R1
16V to 100V
3,9nF
1,8µF
4,5
×
3,2
×
2,3max (size 1812)
QPL
CNC7
Polymer termination
2C1 / 2R1
16V
100V
22nF
3,9µF
5,7
×
5
×
2,3max (size 2220)
QPL
EUROFARAD
ceramic chip capacitors are present
on all major European Space programs, including
Galileo, Spot, Helios, Eutelsat, Insight…

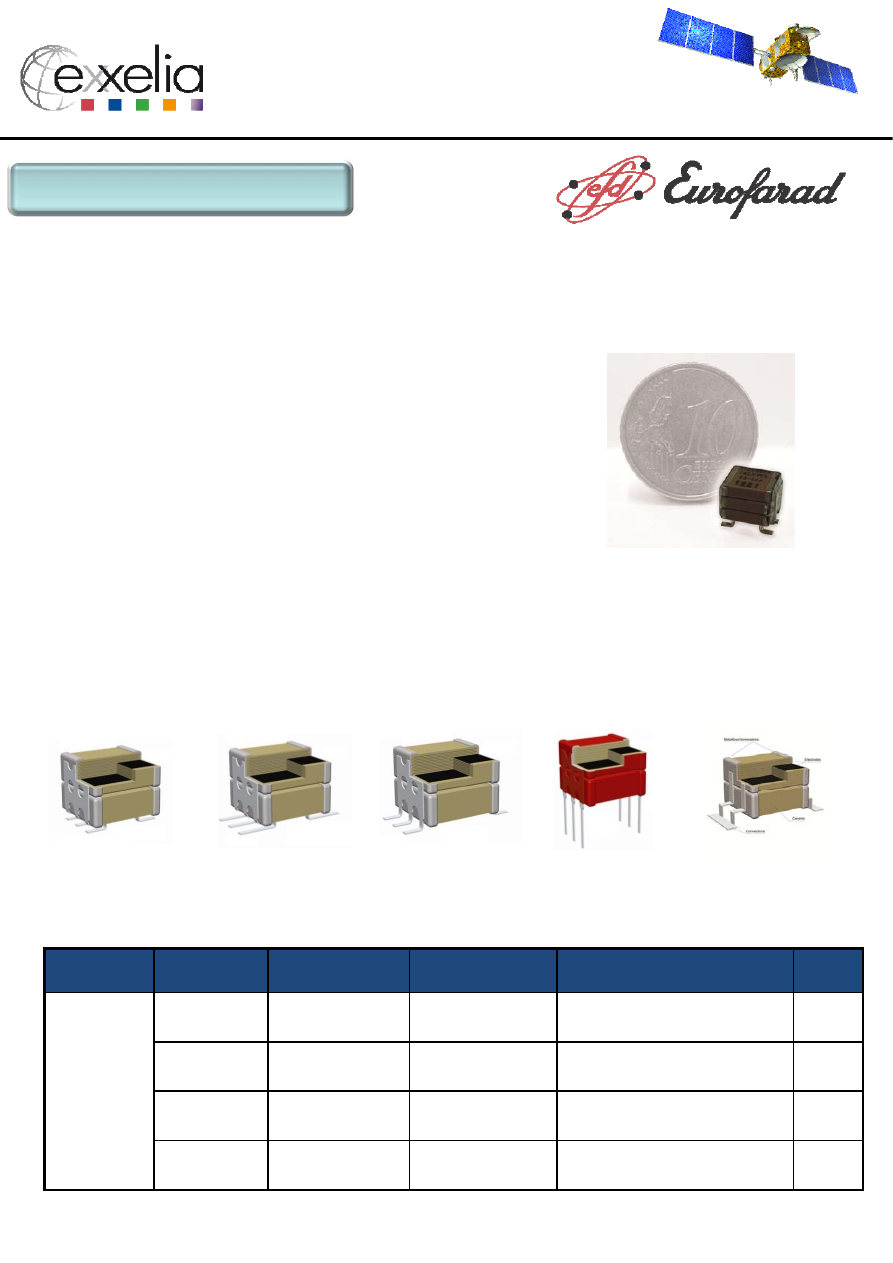

P. 5/25
July 2013
Space Products & Solutions
CERAMIC
Capacitors
EUROFARAD
ceramic capacitors are available in
stacked configurations, offering high capacitance for
power applications like Switch Mode Power Supplies,
DC‐DC converters…
CERAMIC
Capacitors for
Switch
Mode
Power
Supplies
(SMPS)
Five ranges of components are
ESA
qualified :
•
CNC3X series from16V to 25V
•
CNC5X series from 50V to 500V
The following series are not qualified but used in Space : TCN83E, CNC82RE
and CNC83RE series from 50V to 400V.
Different terminations are available :
ESCC
Specification
EUROFARAD
Part Number
CERAMIC
type
Main Electrical
Characteristics
Dimensions (mm)
QPL
EPPL
3001/037
CNC31
2C1 / 2R1
16V
25V
1,2µF
12µF
7,5
×
6
×
7,5max (size 2220)
QPL
CNC32
2C1 / 2R1
16V
25V
1,8µF
15µF
8
×
8
×
7,5max (size 2528)
QPL
CNC33
2C1 / 2R1
16V
25V
3,3µF
33µF
10
×
9,2
×
10max (size 3333)
QPL
CNC34
2C1 / 2R1
16V
25V
5,6µF
68µF
12,5
×
12
×
10max (size 4040)
QPL
PE
termination
PLE
termination
LE
termination
NE
termination
RE
termination
P. 6/25
July 2013
Space Products & Solutions
CERAMIC
Capacitors
CERAMIC
Capacitors for
Switch
Mode
Power
Supplies
(SMPS)
ESCC
Specification
EUROFARAD
Part Number
CERAMIC
type
Electrical
Characteristics
Dimensions (mm)
QPL
EPPL
3001/038
CNC53
2C1 / 2R1
50V
500V
0,1µF
12µF
9
×
9,2
×
16max (size 3033)
QPL
CNC54
2C1 / 2R1
50V
500V
0,22µF
22µF
12
×
11,5
×
16max (size 3740)
QPL
CNC55
2C1 / 2R1
50V
500V
0,33µF
39µF
14,9
×
13,8
×
16max (size 5550)
QPL
CNC56
2C1 / 2R1
50V
500V
0,47µF
68µF
16,8
×
21,6
×
16max (size 6080)
QPL
CNC65
2C1 / 2R1
50V
500V
0,47µF
68µF
21,6
×
16,6
×
16max (size 8060)
CNC57
2C1 / 2R1
50V
500V
0,82µF
82µF
12
×
38,2
×
16max (size 40140)
CNC58
2C1 / 2R1
50V
500V
2,7µF
180µF
24
×
40,6
×
16max (size 80150)
3001/028
CNC82RE
2C1 / 2R1
50V
400V
1,0µF
47µF
22x19,5x30max (moulded part)
CNC83RE
2C1 / 2R1
50V
400V
0,22µF
22µF
15,5x11,5x12max (size 5440)
3001/027
TCN83E
2C1 / 2R1
50V
400V
2,7µF
47µF
18,5x17x26max (size 6560)
P. 7/25
July 2013
Space Products & Solutions
CERAMIC
Capacitors
EUROFARAD
has a wide range of ceramic capacitors
used but not qualified in High Voltage Space applications,
using either NPO dielectric for improved stability or X7R
dielectric for higher energy density.
CERAMIC
Capacitors for
High
Voltage
PS
termination
Our high voltage ceramic capacitors are available in
multilayer type with nickel barrier and tin/lead coating. Other
connection & coating types (
moulded &
epoxy
dipped
) are also
available, in addition to below termination options :
PLS
termination
RS
termination
LS
termination
EUROFARAD PART NUMBER
CERAMIC TYPE
CAPACITANCE VALUES
TKD179S
NPO
12pF
3,3nF
TKD180S
NPO
15pF
3,3nF
TKD181S
NPO
22pF
5,6nF
TKD182S
NPO
47pF
15nF
TKD183S
NPO
68pF
22nF
TKD184S
NPO
120pF
33nF
TKD185S
NPO
180pF
56nF
C179 / TCK179S / TCF179S
NPO
10pF
5,6nF
C180 / TCK180S / TCF180S
NPO
10pF
8,2nF
C181 / TCK181S / TCF181S
NPO
18pF
18nF
P. 8/25
July 2013
Space Products & Solutions
CERAMIC
Capacitors
CERAMIC
Capacitors for
High
Voltage
EUROFARAD PART NUMBER
CERAMIC TYPE
CAPACITANCE VALUES
C182 / TCK182S / TCF182S
NPO
33pF
33nF
C183 / TCK183S / TCF183S
NPO
10pF
56nF
C184 / TCK184S / TCF184S
NPO
22pF
82nF
C185 / TCK185S / TCF185S
NPO
47pF
180nF
TKD279S
X7R
180pF
39nF
TKD280S
X7R
270pF
82nF
TKD281S
X7R
390pF
1µF
TKD282S
X7R
390pF
1µF
TKD283S
X7R
680pF
470nF
TKD284S
X7R
1,5nF
680nF
TKD285S
X7R
2,2nF
1,2µF
C279 / TCK279S / TCF279S
X7R
100pF
220nF
C280 / TCK280S / TCF280S
X7R
150pF
390nF
C281 / TCK281S / TCF281S
X7R
150pF
820nF
C282 / TCK282S / TCF282S
X7R
330pF
1,5µF
C283 / TCK283S / TCF283S
X7R
270pF
2,7µF
C284 / TCK284S / TCF284S
X7R
390pF
2,7µF
C285 / TCK285S / TCF285S
X7R
1nF
4,7µF

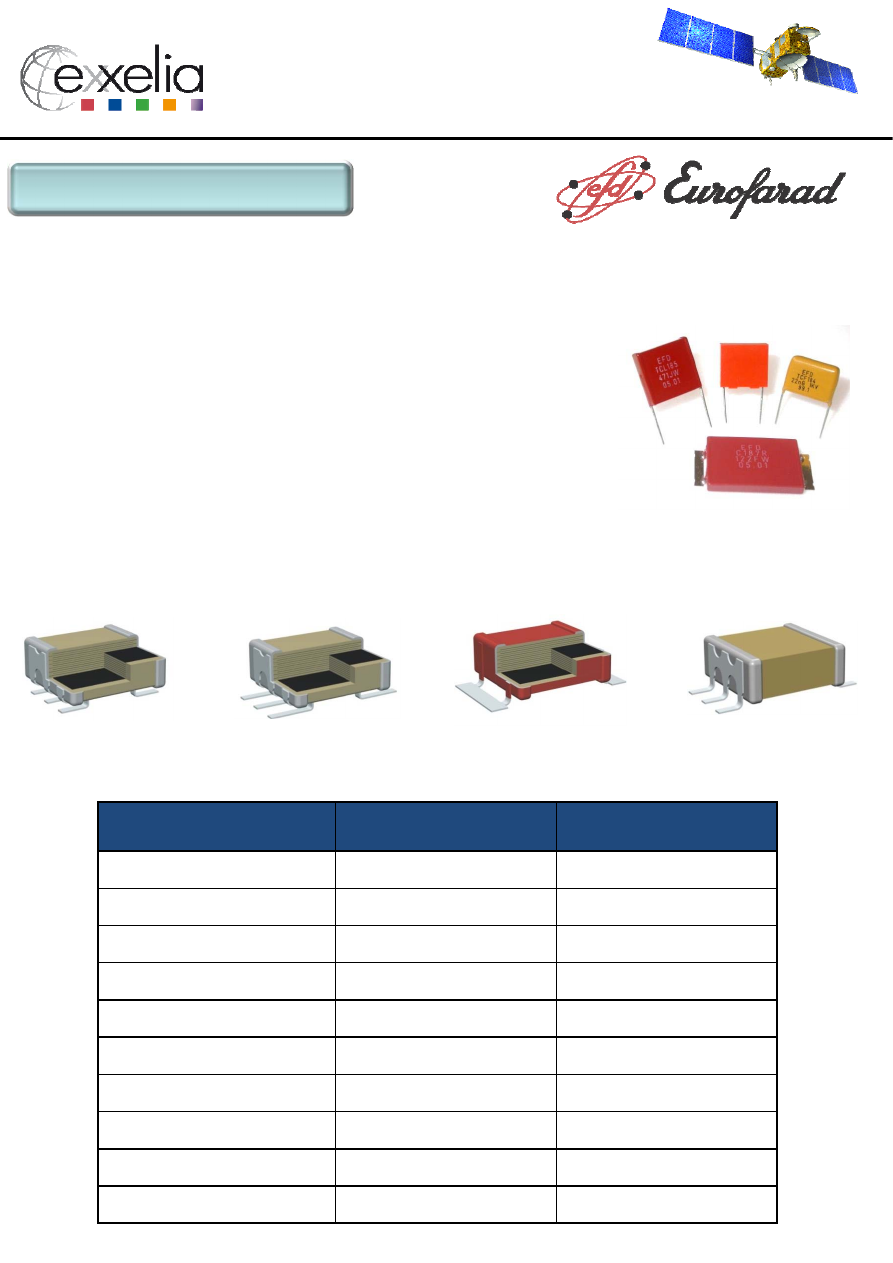

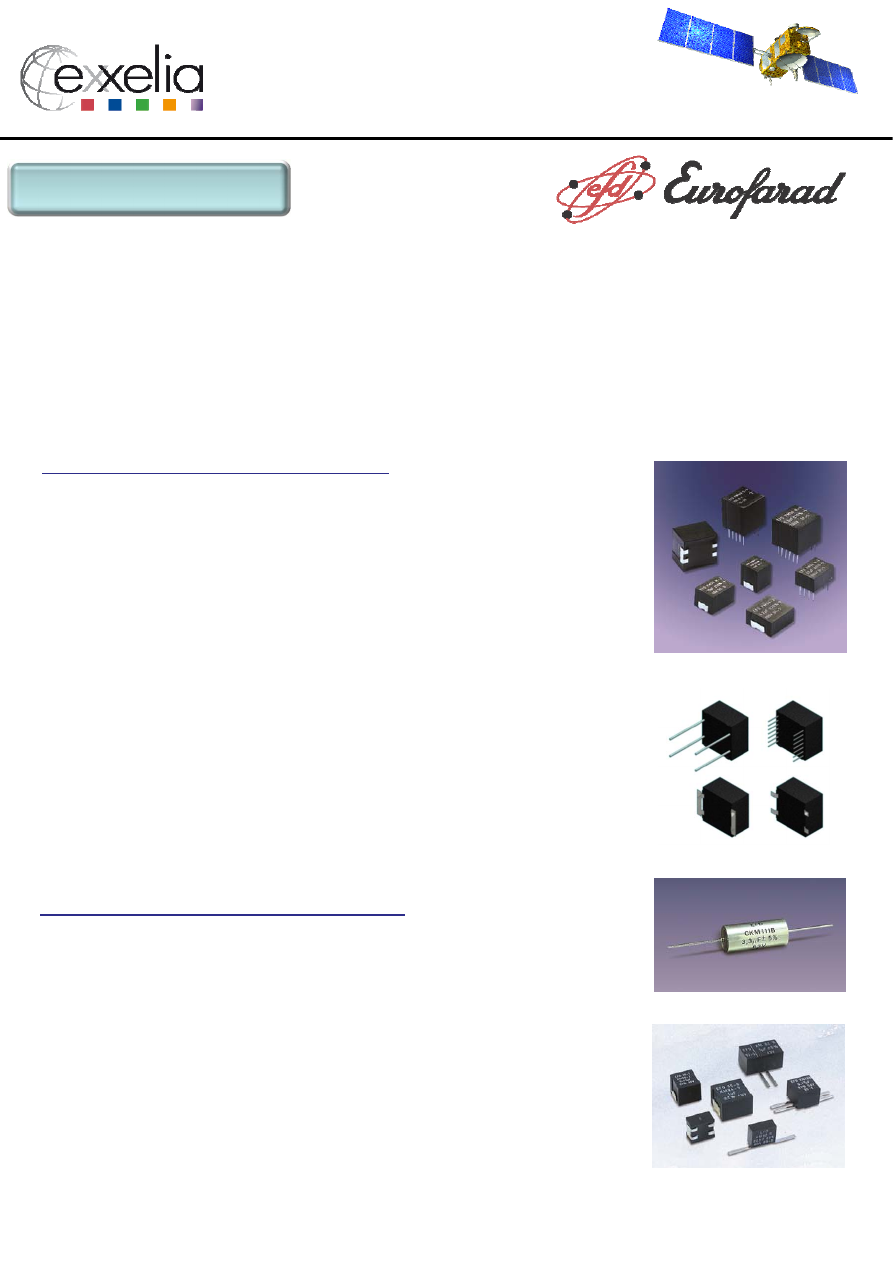

P. 9/25
July 2013
Space Products & Solutions
FILM
Capacitors
EUROFARAD
Film Capacitors are widely used in different high performance demanding applications in
Space, Defense and Aeronautic markets. With many years of heritage in the component field,
EUROFARAD
has developed and memorized practically all the techniques associated with film capacitor
technologies.
EUROFARAD
film capacitors are widely used in space power electronics applications due
to their good compromise between energy density, good integration factor and electrical robustness.
The light weight of film capacitors and their flexible structure give them good capabilities to withstand
harsh environments: large range of temperature, shock, vibration, pressure, vacuum, etc.
M
ETALLIZED
P
OLYESTER
F
ILM
T
ECHNOLOGY
For many years
EUROFARAD
has improved its own experience and
handled PET film capacitor in harsh electrical and mechanical
environment of space applications. Beginning with MKTS and PM96S
series, passing through well‐known PM90S, PM94S,
EUROFARAD
reached finally the PM907S and PM948S series which present high level
of miniaturization. PM ranges are widely embedded in space programs.
The light weight and self‐healing properties of this technology propose
excellent technical solution for the filtering, energy storage or fast
discharge functions. The no loss of capacitance versus applied voltage
and the low drift versus temperature participate in the stability of the
filters.
Having wide capacitance and voltage ranges, but also different sizes and
terminations,
EUROFARAD
PET series are particularly suitable for
different space applications.
M
ETALLIZED
PC
OR
PPS F
ILM
T
ECHNOLOGIES
Known for its high stability and low temperature coefficient, these
technologies allow the manufacturing of precision capacitors having
low capacitance tolerances up to
±
1%. They meet severe technical
requirements and have excellent electrical and thermo‐mechanical
properties.
EUROFARAD
capacitors KM111S, KM94S, etc. have low dissipation
factor and its performance versus frequency provide excellent
performance in high reliable filters.
EUROFARAD
KM ranges are widely
used in space programs, but also in aeronautic and military
applications.

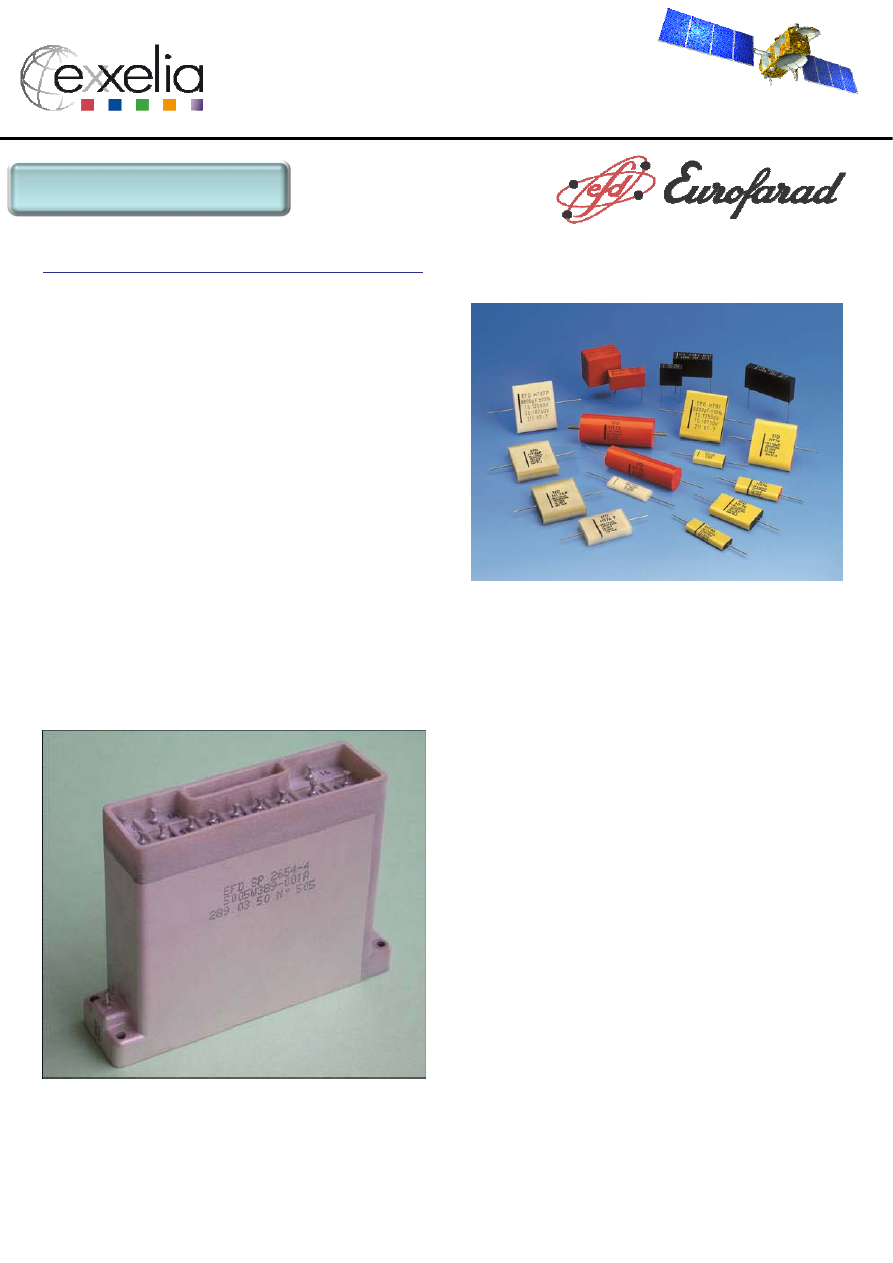

P. 10/25
July 2013
Space Products & Solutions
FILM
Capacitors
R
ECONSTITUTED
M
ICA
C
APACITOR
T
ECHNOLOGY
Different advantages of reconstituted mica
capacitors make them suitable for diverse
applications. One of their success factors is the
high reliability, due to their electrical and
mechanical
performances.
Having
a
solid
impregnated structure and low level of partial
discharges, mica paper technology is well
adapted for high voltage domain. Thanks to their
metal foil electrodes, the reconstituted mica
capacitors can accept high discharge current. The
low ESR and ESL make them well‐adapted in
some space, military and aeronautic applications
(radar systems, thrusters, missile exploding
devices, aeronautic ignition systems, etc.)
Eurofarad reconstituted mica capacitors are space qualified and used for many years in space projects in
Europe and in the world. The HT86PS, but also HT97PS and other specific series, are widely embedded
in space programs. Eurofarad proposes a large range of capacitance and voltages with different standard
products in reconstituted mica technology.
Thanks to his rich experience, Eurofarad had
developed
and
preserve
mastership
in
reconstituted mica technology. The technological
knowledge allowed the miniaturization of the
products during the years and their adaptation
to the environmental constraints.
Eurofarad is recognized for development of
custom design products, proposing know‐how in
the domain of reliable packaging, adapting the
characteristics to the using conditions.
Our company proposes the reconstituted mica
technology up to 100kV rated voltages.
Different high temperature solutions have been
developed on the base of reconstituted mica
technology. Using adapted materials and
especially different resins for impregnation,
Eurofarad extends the range of temperature to ‐
65
°
C / 200
°
C. Some recent tests have been
performed with success at +250
°
C.
Space Application – On Board TWT Radar
Custom design integrating 25 capacitors
with 13kV total rated voltage
Dimensions 102x25,5x70,5 mm Weight < 280 g
P. 11/25
July 2013
Space Products & Solutions
FILM
Capacitors
S
OME
P
RODUCT
R
EFERENCES FOR
F
ILM
C
APACITORS
S
TA N DAR D
S
E R I ES
C
U STO M
D
ES I G N
E
U R O FA R A D
P
A R T
N
U M B E R
D
E TA I L
S
P E C I F I C AT I O N
E
U R O FA R A D
P
A R T
N
U M B E R
D
E TA I L
S
P E C I F I C AT I O N
MKT
S
ESCC
3006/019
EFD
557.98.390
SP
1923
S
EFD
465.92.390
CKM
111
S
ESCC
3006/007
SP
2009
SP
2009
‐
1
RA.0107.002.XX
RA.0107.006.XX
CKM
501
S
EFD
432.92.390
SP
2161
S
EFD
491.94.390
KM
78
TS
EFD
589.01.390
SP
2256
S
ESCC
3006/006
EFD
513.95.390
KM
94
S
ESCC
3006/023
EFD
563.99.390
SP
2654
‐
4
S
EFD
602.02.390
PM
90
S
ESCC
3006/020
EFD
516.95.390
SP
2667
S
EFD
621.03.390
PM
94
S
ESCC
3006/024
EFD
573.00.390
SP
2792
S
EFD
656.04.390
PM
96
S
EFD
512.95.390
SP
2810
S
EFD
678.04.390
PM
96
ST
EFD
580.00.390
SP
2851
S
EFD
678.04.390
PM
907
ST
EFD
748.09.390
SP
2852
S
EFD
678.04.390
PM
948
ST
EFD
741.09.390
SP
2854
S
RA.0107.005.XX
HT
78
PS
ESCC
3006/018
SP
2954
S
EFD
713.07.390
HT
86
PS
ESCC
3006/022
EFD
421.91.390
SP
3032
S
EFD
732.08.390
HT
97
PS
EFD
606.02.390
SP
3129
S
EFD
774.10.390

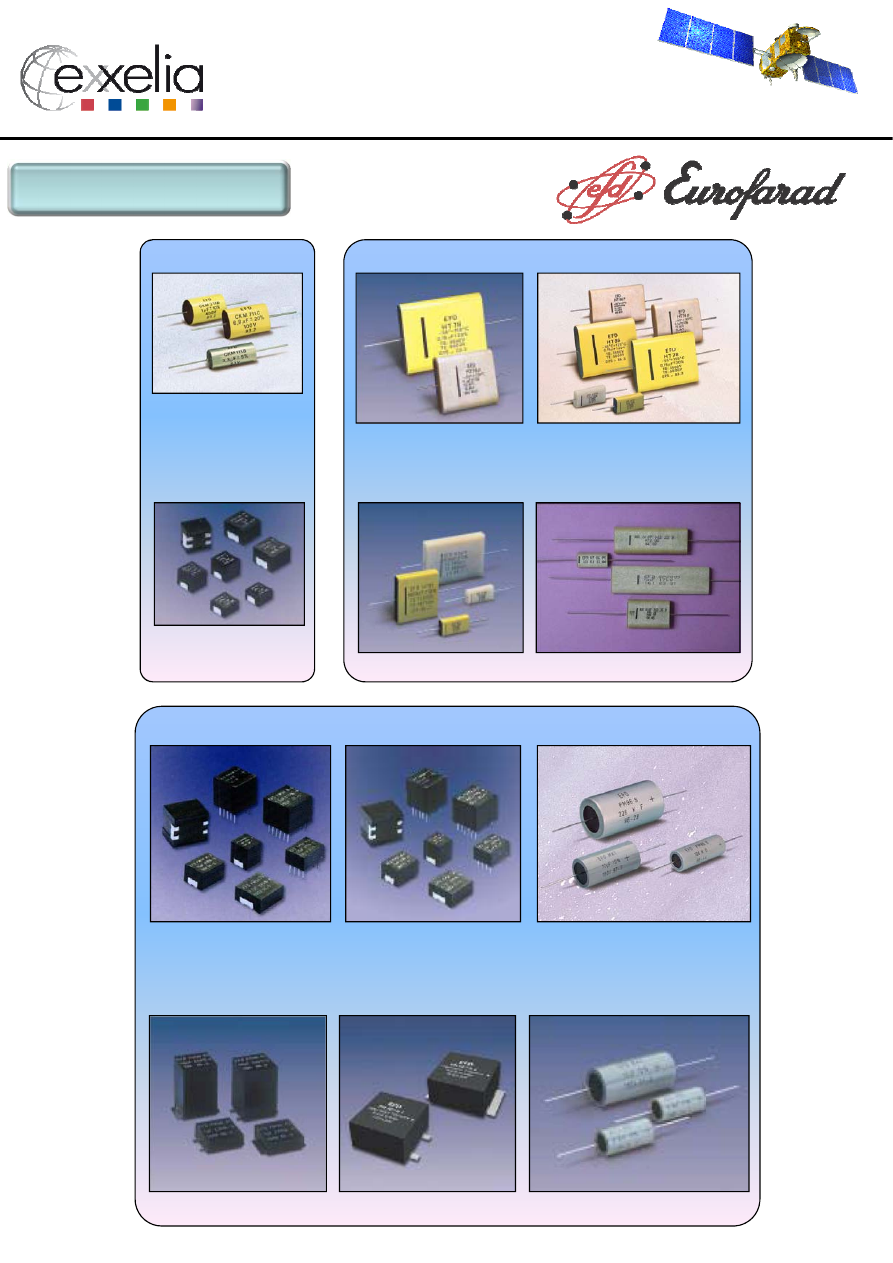

P. 12/25
July 2013
Space Products & Solutions
FILM
Capacitors
M
E T A L L I Z E D
P
O L Y E S T E R
F
I L M
C
A P A C I T O R S
A
CCORDING TO
ESA/SCC
3006/
(019,
020,
024,
ETC
.)
PM
948
S
PM
94
S
PM
907
S
PM
90
S
PM
96
S
(T)
MKT
S
PC C
APACITORS
ESA/SCC
3006/007
PPS Capacitors
ESA/SCC
3006/023
KM
111
S
KM
94
S
HT
86
PS
HT
78
PS
R
E C O N S T I T U T E D
M
I C A
C
A P A C I T O R S
E S A / S C C
3 0 0 6 /
( 0 1 8 ,
0 2 2 ,
E T C
. )
HT
97
PS
SP
2009
/
SP
2009
‐
1

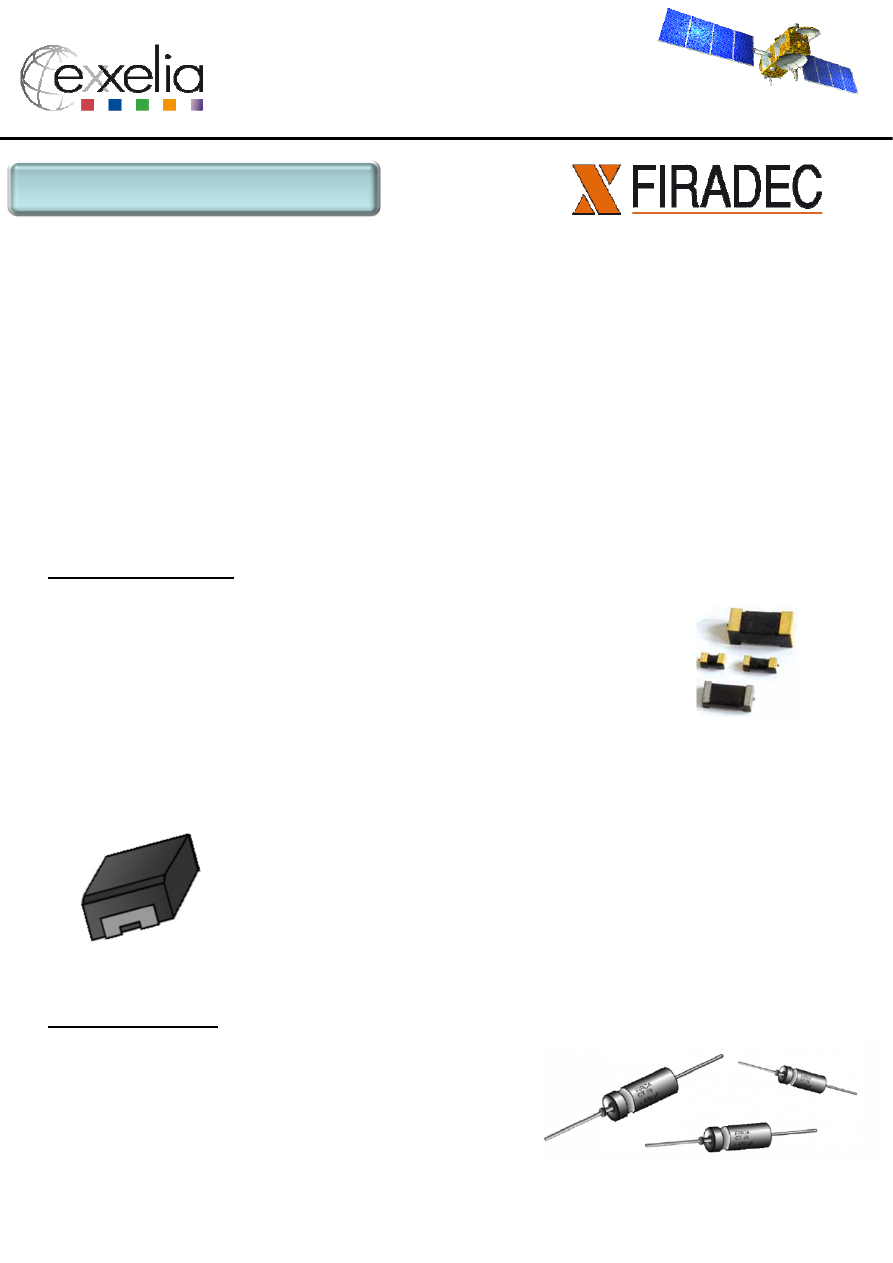

P. 13/25
July 2013
Space Products & Solutions
FIRADEC
Solid and Wet Tantalum capacitors comply with ESCC
recommandations and have been listed in ESA EPPL for decades. Thanks to
their high capacitance and low ESR characteristics,
FIRADEC
Tantalum
capacitors are particularly suitable for spacecraft systems like EPC, DC/DC
converters or energy storage.
SOLID
Tantalum:
CTC1
series is available in 8 different case sizes and offers
a wide range of termination : gold plating for epoxy
bonding and soldering paste, additional gold plating for
ultrasonic or ball‐bonding, electrolytic tinning.
CTC1
small size makes it particularly suitable for low voltage
digital applications.
WET
Tantalum:
FIRADEC
CT79
family allows higher Capacitance
and Voltage per case than Solid Tantalum
capacitors. Wet Tantalum series is a perfect
alternative for systems requiring high
capacitance or high energy storage.
TANTALUM
Capacitors
CTC21
series has the lower ESR and the highest
capacitance per single case on the market. These
features, combined with a very high proven
reliability (0.001% per 1000 hours), allow our
CTC21
series bringing significant flight heritage over
the last 15years.
P. 14/25
July 2013
Space Products & Solutions
TANTALUM
Capacitors
ESCC
Specification
FIRADEC
Part
Number
EPPL
/
QPL
Main
Electrical
Characteristics
Dimensions
ESCC3011/001
CTC1
A
4
50V
0,1
2,2µF
2,54x1,27x1,27
mm
ESCC3011/002
CTC1
B
4
50V
0,22
4,7µF
3,81x1,27x1,27
mm
ESCC3011/003
CTC1
C
4
50V
0,47
6,8µF
5,08x1,27x1,27
mm
ESCC3011/004
CTC1
D
4
50V
0,68
10µF
3,81x2,54x1,27
mm
ESCC3011/005
CTC1
E
4
50V
1
15µF
5,08x2,54x1,27
mm
ESCC3011/006
CTC1
F
4
50V
1,5
33µF
5,59x3,43x1,78
mm
ESCC3011/007
CTC1
G
4
50V
3,3
68µF
6,73x2,79x2,79
mm
ESCC3011/008
CTC1
H
4
50V
4,7
100µF
7,24x3,81x2,79
mm
ESCC3012/002
CTC21
EPPL1
6,3
63V
5,6
330µF
C:
11x9x4,5
mm
D:
11x12,5x5,5
mm
ESCC3012/003
CTC21E
EPPL2
6,3
100V
10
680µF
C:
11x9x4,5
mm
D:
11x12,5x5,5
mm
ESCC3003/005
CT79/CT79E
EPPL2
6,3
150V
1,7
2200µF
A:
18x5,6
mm
B:
23x7,4
mm
C:
26x10,1
mm
D:
34x10,1
mm
ESCC3003/006
ST79
EPPL2
25
125V
68
1800µF
A:
18x5,6
mm
B:
23x7,4
mm
C:
26x10,1
mm
D:
34x10,1
mm
ESCC3002/003
CTS21E
6,3
63V
47
330µF
C:
18,2x7,5
mm
D:
20,8x9,1
mm
Some Programs
flying FIRADEC
Tantalum capacitors :
SENTINEL, COSMO SkyMed 1, 2, 3 & 4, GALILEO, TELSAT, GLOBALSTAR...
P. 15/25
July 2013
Space Products & Solutions

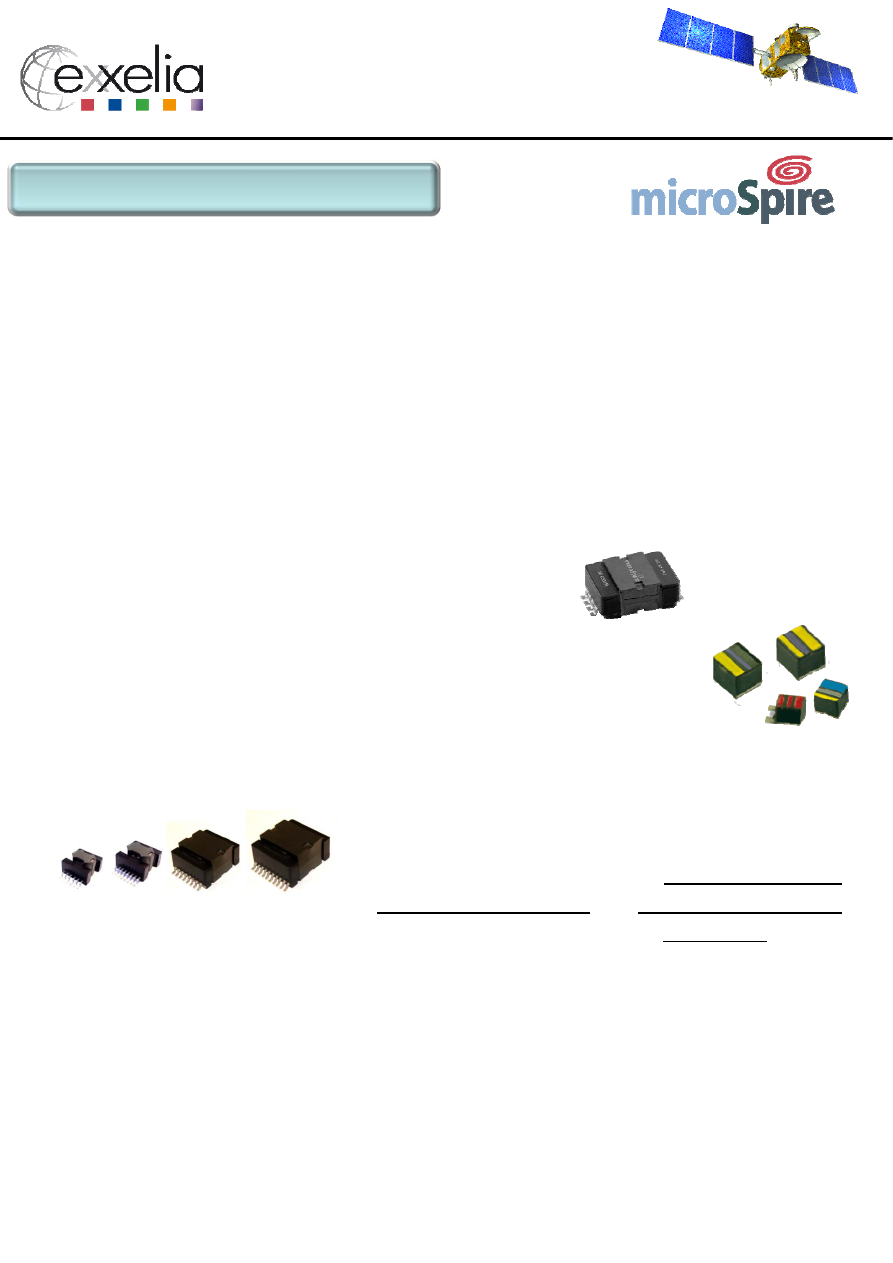

Inductors &
Transformers
As a leader in design and manufacturing of magnetic components for
severe environment,
MICROSPIRE
has more than 30 years heritage in
Space. A wide wide range of
MICROSPIRE
’s inductors and transformers
are available according to ESCC generic specification No. 3201, or detailed
specifications No. 3201/008, /009 and /010.
Several families of products have entries in
ESA
QPL
(MSCI‐Miniature Chip Inductors, SESI‐SMD
Energy Storage Inductors, CMC‐Common Mode
Chokes) or
EPPL
(Data Bus Transformers).
MSCI
SESI
CMC
In addition to QPL & EPPL series,
MICROSPIRE is on the way to receive ESA’s
Capability Approvals for its Toroidal Transfer
Moulded Technology and Chameleon Concept
Magnetics (CCM).
CCM
:
Chameleon Concept
Magnetics
Typical Space applications for
MICROSPIRE
products include : Common
mode chokes, SMD filtering chokes, PFC chokes, Current transformers,
Gate Drive transformers, Flyback transformers, Forward transformers,
Push‐Pull transformers…
P. 16/25
July 2013
Space Products & Solutions
ESCC
Specification
MICROSPIRE
Product
Range
&
P/N
Main
Electrical
Characteristics
EPPL
/
QPL
Miniature Chip
Inductors (MSCI)
10K
0,01
10 µH
2, 5 and 10 % tolerance
750‐87 mA DC current
QPL
12K
12
1000 µH
2, 5 and 10 % tolerance
110‐15 mA DC current
QPL
20K
0,010
1000 µH
10 % tolerance
1000‐25 mA DC current
QPL
H01
0,38
100 µH
15 % tolerance
1500‐100 mA DC current
QPL
SMD Energy Storage
Inductors (SESI)
SESI
9.1
0,6µH 6 A
700µH 0,2 A
QPL
SESI
14
2,3µH 5,8 A
260µH 0,57 A
QPL
SESI
15
0,9µH 14 A
800µH 0,4 A
QPL
SESI
18
4,2µH 9,8 A
231µH 1,34 A
QPL
SESI
22
3,8µH 18,9 A
1760µH 0,8 A
QPL
SESI
32
4,7µH 27 A
4700µH 0,5 A
QPL
Common Mode
Chokes (CMC)
CMC
15
0,052mH 5,2 A
4mH 0,5 A
QPL
CMC
18
0,06mH 7,7 A
4,9mH 0,7 A
QPL
CMC
22
0,06mH 7,7 A
4,9mH 0,7 A
QPL
CMC
22
0,06mH 11 A
3,3mH 1,4 A
QPL
ESCC3201/008
ESCC3201/009
ESCC3201/010
Inductors &
Transformers

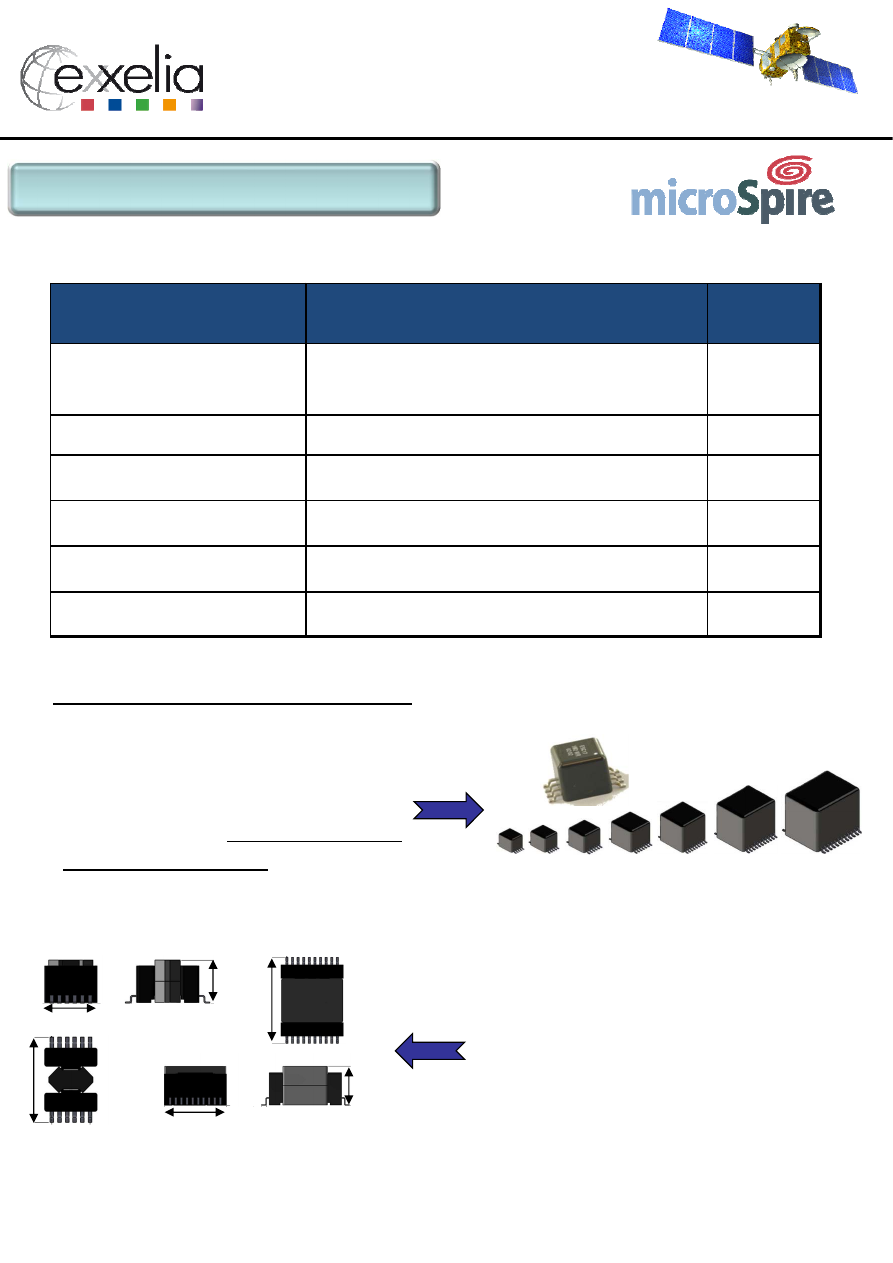

P. 17/25
July 2013
Space Products & Solutions
MICROSPIRE
Product
Range
&
P/N
Main
Electrical
Characteristics
EPPL
/
QPL
MIL‐STD‐1553 Data
Bus Transformers
Impedance
≥
3kΩ, Leakage
inductance
≤
6 µH
DBIT
‐
X
‐
7P10
H
max
: 17 mm Through hole
EPPL
DBIT
‐
X
‐
3S
H
max
: 3,81 mm SMD
EPPL
DBIT
‐
X
‐
5S
H
max
: 5 mm SMD
EPPL
DBIT
‐
X
‐
7S
H
max
: 7 mm SMD
EPPL
DBIT
‐
X
‐
7P
H
max
: 11 mm Through hole
EPPL
ESA
Capability Approvals :
MICROSPIRE
is in the final path
to receive a first Capability
Approval for its
Toroidal Transfer
Moulded Technology
manufacturing process.
L
H
W
L
H
W
A second Capability Approval will
be granted soon to MICROSPIRE’s
CCM
technology (
Chameleon
Concept
Magnetics
). This brand
new epoxy transfer moulding
process allows custom designed
Transformers and Chokes with
+30%
increased power
density
…
Inductors &
Transformers
Toroidal Transfer
Moulded Technology
CCM
:
Chameleon Concept
Magnetics
P. 18/25
July 2013
Space Products & Solutions

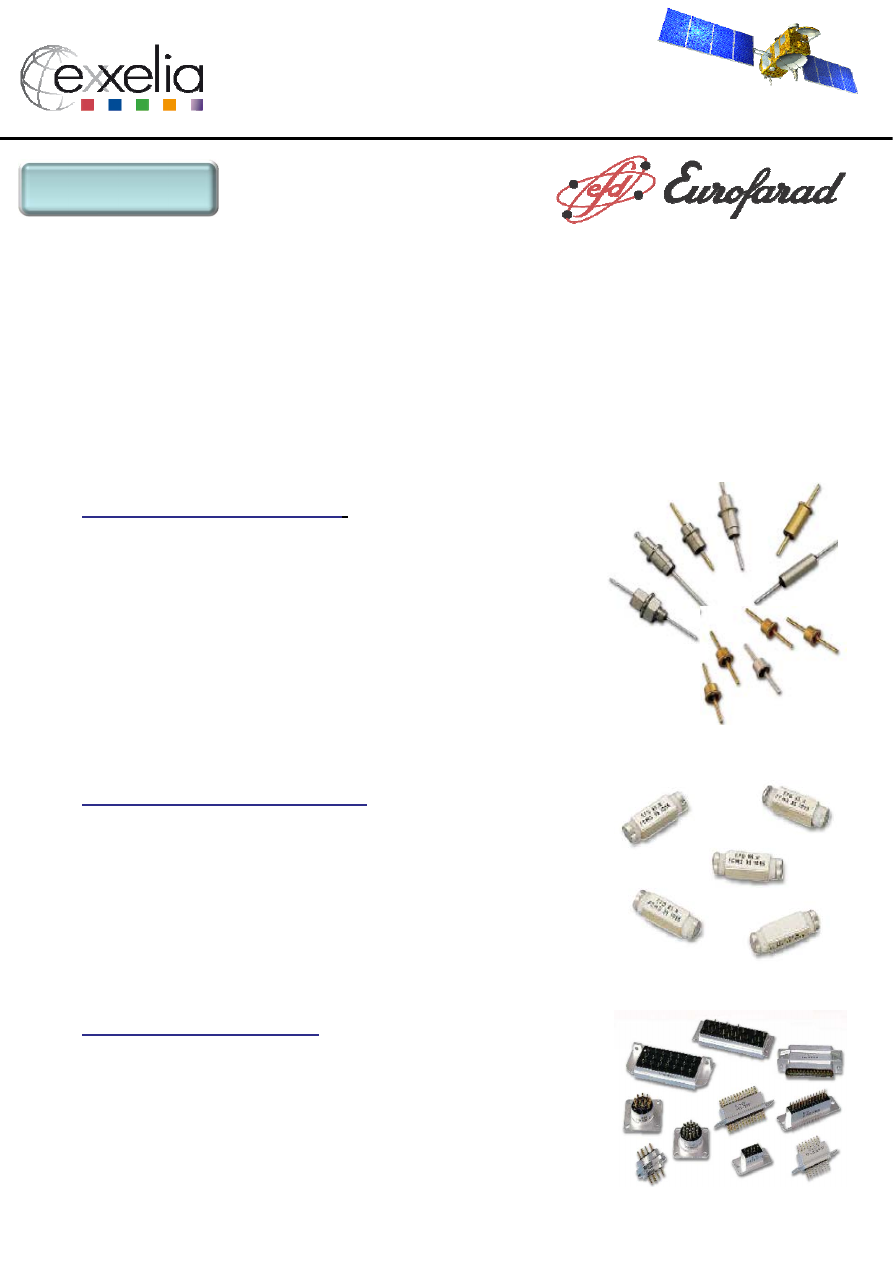

EMI
Filters
Eurofarad
manufactures miniature EMI filters based on ceramic capacitors
and sometimes ferrite inductors in order to prevent disturbances generated
by an appliance or to protect sensitive devices against those interferences.
Eurofarad’s filters are well known for their high reliability, robustness and
electrical performances. Moreover, they reach the ESCC requirements and
have been referenced in ESA EPPL for many years.
•
Feedthrough EMI filters
:
Many different kinds of filtering solutions are
proposed such as C, L, П or T cells. Linked to the
targeted performance, 14 specifications have
been designed from diameter 30 to 100. Many
variants are available to configure the internal
components, the case plating (Gold, Steel,
Kovar), the threading, the sealing and
the
terminations.
•
Surface Mount EMI filters:
These products are created to be mounted on a
PCB. They are clearly based on the same design
than the tubular feedthrough filters with a
shielded package. 4 specifications are proposed
for Space applications (C, L, П or T cells with
diameter 35).
•
Customized EMI filter
Eurofarad added value is to reach any customer
requirements owing to their mechanical
division so that multiways feedthrough filters
can be implemented to optimize installation
and housing.
P. 19/25
July 2013
Space Products & Solutions
EMI
Filters
ESCC
Specification
Eurofarad
Part
Number
EPPL
/
QPL
Main
Electrical
Characteristics
Dimensions
3008/020
SFC030
EPPL
QPL
« C » cell,
25V
to
200V,
470pF
to
22nF,
1A
to
5A,
Variant
1
to
12
Feedthroug
h Ø 3mm
3008/031
SFC035
EPPL
QPL
« C »
cell,
25V
to
200V,
470pF
to
22nF,
10A,
Variant
1
to
6
Feedthroug
h Ø 3.5mm
3008/032
SFC040
EPPL
QPL
« C »
cell,
25V
to
200V,
470pF
to
22nF,
10A,
Variant
1
to
12
Feedthroug
h Ø 4mm
3008/026
SFC060 Herm.
EPPL
QPL
« C »
cell,
25V
to
200V,
680pF
to
22nF,
10A,
Variant
1
to
6
Feedthroug
h Ø 6mm
3008/033
SFC060 Non-herm
EPPL
QPL
« C »
cell,
25V
to
200V,
680pF
to
22nF,
10A,
Variant
1
to
12
Feedthroug
h Ø 6mm
3008/027
SFC100
EPPL
QPL
« C »
cell,
25V
to
200V,
1nF
to
1µF,
10A,
Variant
1
to
6
Feedthroug
h Ø 10mm
3008/029
SFL100
EPPL
QPL
« L »
cell,
40V
to
300V,
17.6nF
to
1,6µF,
5A
10A
15A,
Variant
1
to
48
Feedthroug
h Ø 10mm
3008/025
SFP035
EPPL
QPL
«
П
»
cell,
35V
to
200V,
2.4nF
to
35.2nF,
10A,
Variant
1
to
20
Feedthroug
h Ø 3.5mm
3008/014
SFP040
EPPL
QPL
«
П
»
cell,
70V
to
250V,
750pF
to
44,8nF,
10A,
Variant
1
to
40
Feedthroug
h Ø 4mm
SFP040xV
«
П
»
cell,
70V
to
250V,
750pF
to
44,8nF,
10A
Feedthroug
h Ø 4mm
3008/021
SFP060 Herm
EPPL
QPL
«
П
»
cell,
35V
to
500V,
2.4nF
to
89.6nF,
10A,
Variant
1
to
14
Feedthroug
h Ø 6mm
3008/030
SFP060 Non-herm.
EPPL
QPL
«
П
»
cell,
35V
to
500V,
2.4nF
to
89.6nF,
10A,
Variant
1
to
28
Feedthroug
h Ø 6mm
3008/028
SFP100
EPPL
QPL
«
П
»
cell,
50V
to
300V,
160pF
to
1312nF,
10A,
Variant
1
to
6
Feedthroug
h Ø 10mm
SFT100
« T
« cell,
50V,
10A
Feedthroug
h Ø 10mm
3008/034
SFCMS 35 C
« C »
cell,
25V
to
200V,
470pF
to
22nF,
10A,
Variant
1
to
6
SMD
Ø 3.5mm
3008/036
SFCMS 35 L
« L»
cell,
100V,
680pF
to
17.6nF,
10A,
Variant
1
to
2
SMD
Ø 3.5mm
3008/037
SFCMS 35 Pi
«
П
»
cell,
35V
to
200V,
2.4nF
to
35.2nF,
10A,
Variant
1
to
4
SMD
Ø 3.5mm
3008/035
SFCMS 35 T
« T
« cell,
50V, 10A
SMD
Ø 3.5mm

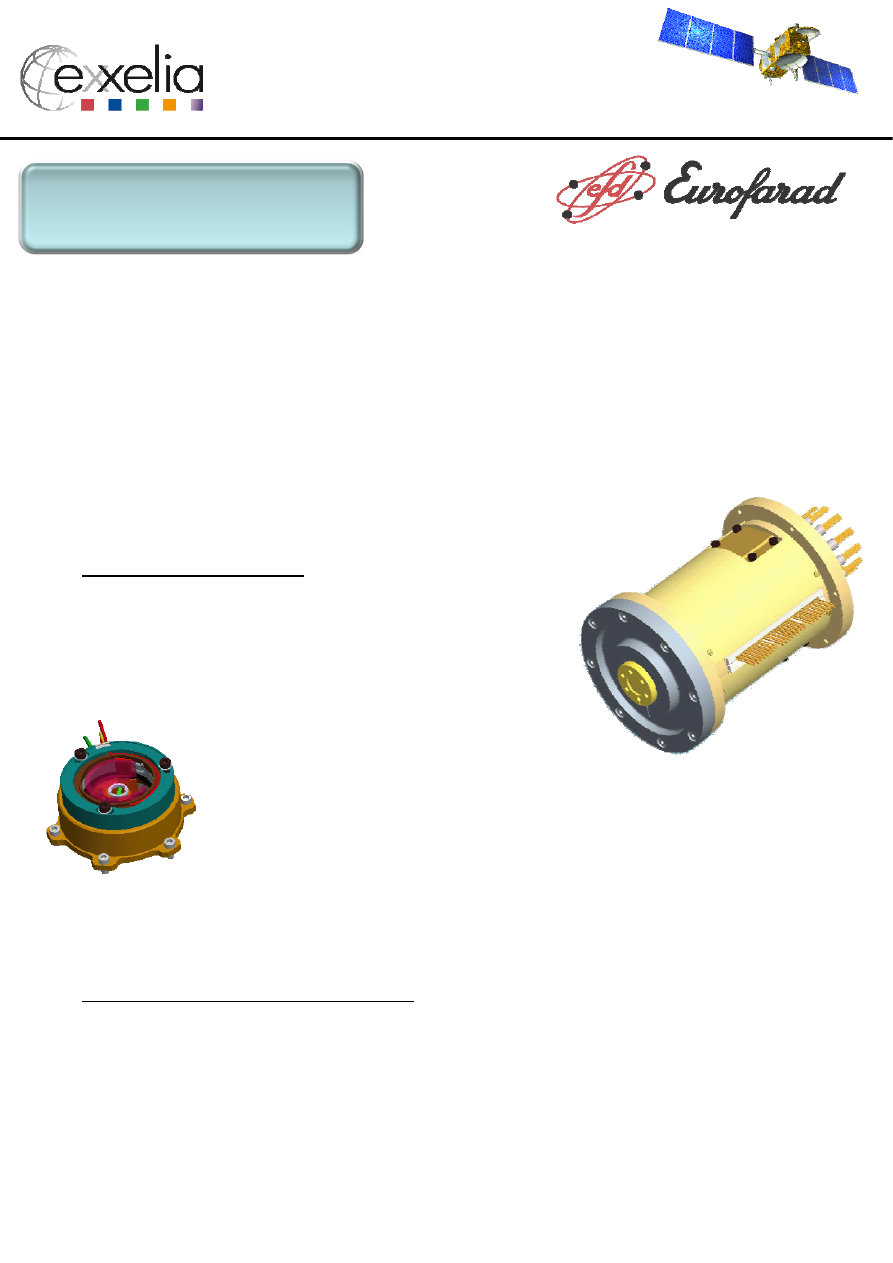

P. 20/25
July 2013
Space Products & Solutions
Slip
Rings
and
Potentiometers
EUROFARAD
developed its first Slip Ring and Potentiometer assembly
in 1998 for the PROTEUS Solar Array Drive Mechanism (SADM) family.
15 years later,
EUROFARAD
Slip Rings and Potentiometers have been
used on multiple scientific and commercial missions, with more than 75
years global in‐orbit heritage.
•
Key
Design
Features
EUROFARAD
slip rings only use noble metals
contacts, and can be equipped with qualified
Double Insulation features for ESD purposes.
Electrical transfer capability goes up to 12 kW.
•
Applications
&
Flight
Heritage
Typical applications for
EUROFARAD
Slip Rings or Potentiometers
include : SADMs, Antenna actuators (Pointing, Deployment, Trimming),
Radiometers, scanning mechanisms, CMG’s, Robotics, Hexapods…
Our strong heritage includes multiple Qualification tests and in‐orbit
life in several spacecraft like Jason 1&2, Smart 1, CALIPSO, Skynet 5,
Eutelsat, Inmarsat, Intelsat, Astra, GALILEO…
Our proprietary plastic film and wirewound potentiometers
provide robust and reliable solutions for all kind of
actuation mechanisms.
When combined,
EUROFARAD
slip rings and potentiometer
assemblies offer unique dual function compact designs for
SADMs, or scanning mechanisms.
Double Insulation
Slip Ring
Redundant Precision
Potentiometer

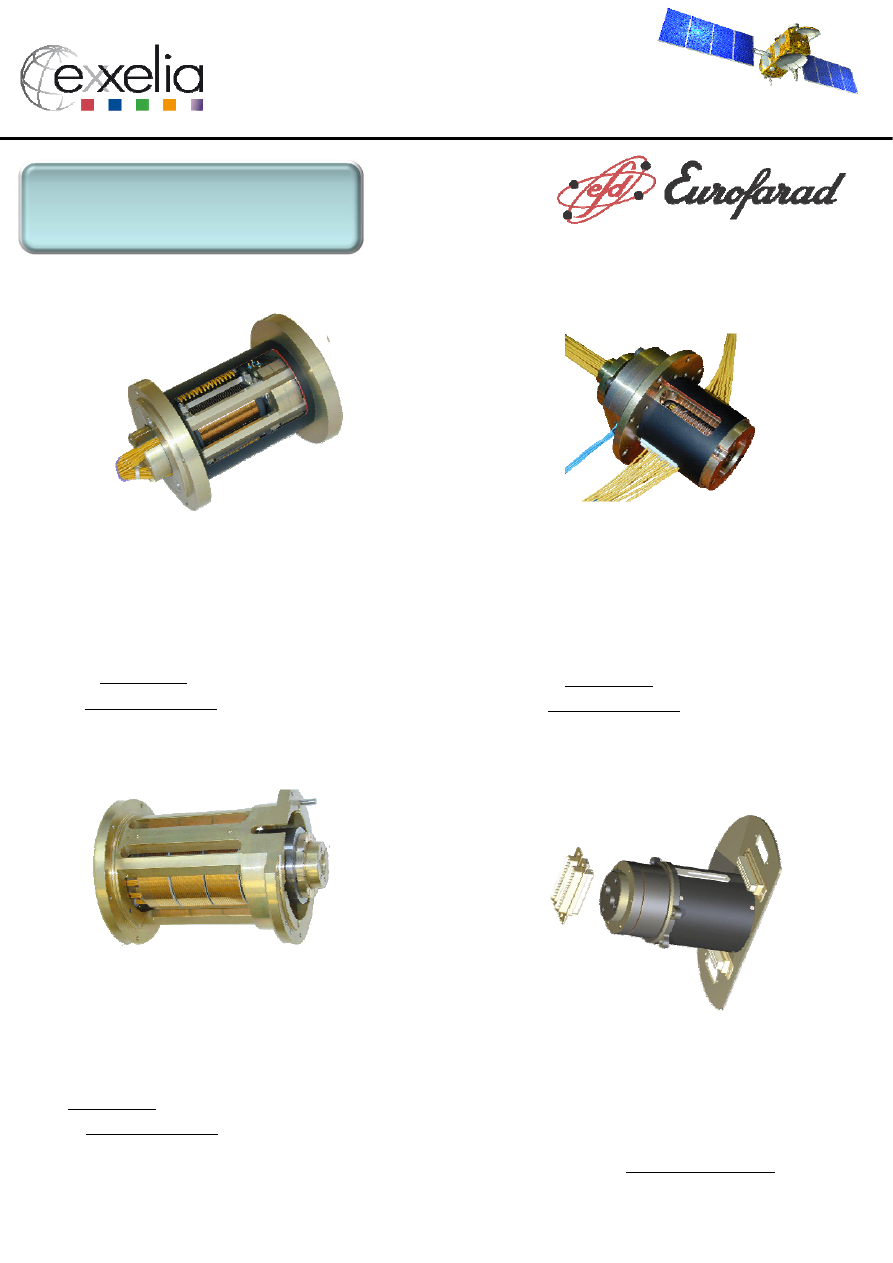

P. 21/25
July 2013
Space Products & Solutions
Slip
Rings
and
Potentiometers
Slip-Ring & Potentiometer
for SEPTA
®
41 SADM
MYRIADE platform
Slip Ring :
24x 1.5 Amp
Potentiometer :
plastic film,
Redundant, 0.1% linearity
Slip-Ring & Potentiometer
for SEPTA
®
31 SADM
PROTEUS platform
Slip Ring :
60 x 1.5 Amp
Potentiometer : w
irewound,
Redundant, 0.1% linearity
Slip-Ring & Potentiometer
for SEPTA
®
32 SADM
Slip Ring :
42 x 5 A – 12 x 1,5 A
Potentiometer :
plastic film,
Redundant, 0.1% linearity
Slip Ring for
PROTEUS Mk2 platform
3 kW Power
24 circuits, 1
5 A
Double Insulation

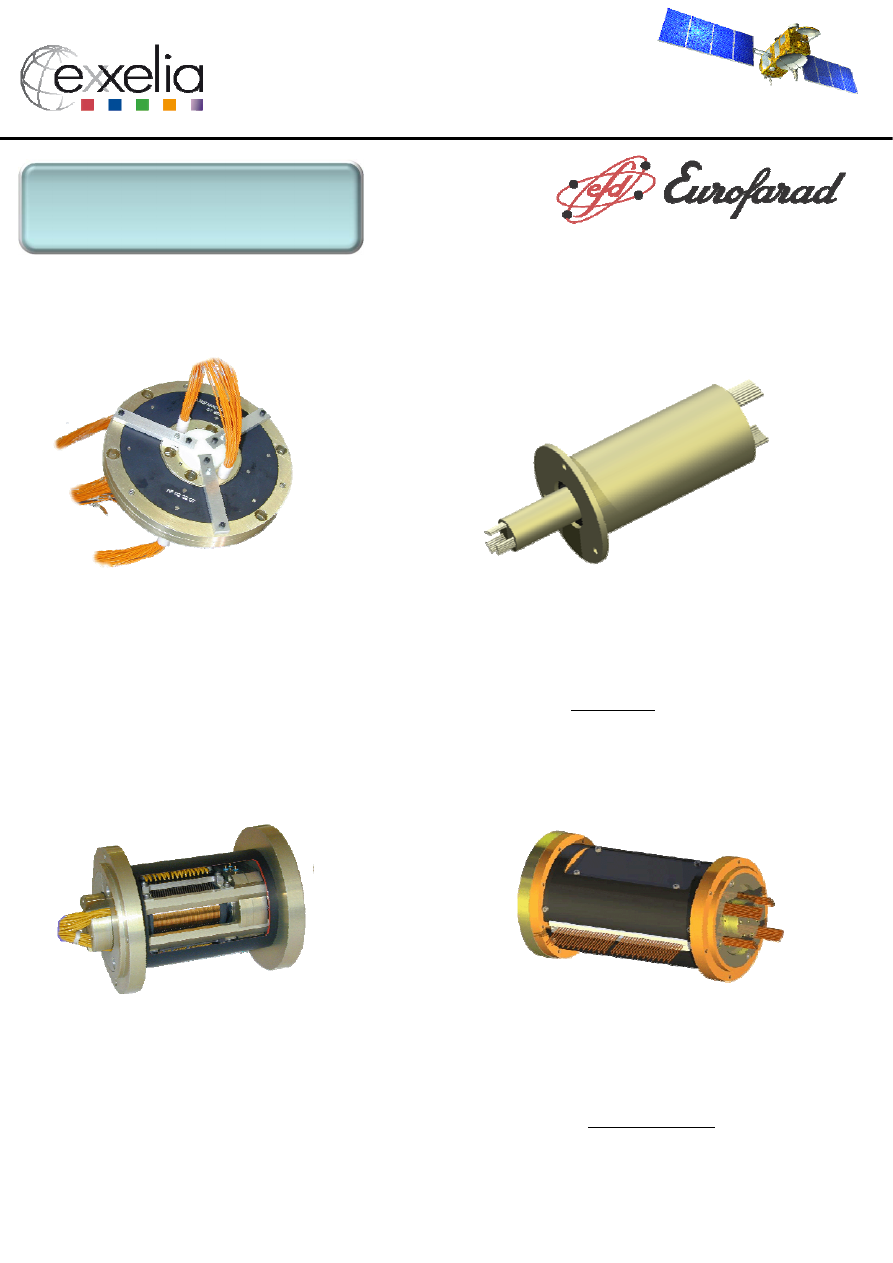

P. 22/25
July 2013
Space Products & Solutions
Slip
Rings
and
Potentiometers
CT 9931
Flat Pancake High Power
12 kW Slip-Ring
24 x 10 Amp
High Temperature Life Test
CT 9911
Low Power
36 circuits slip ring
36 x 1,5 Amp
100 Million cycles Life Test
CT 9701-01
Qualification Slip Ring
for JASON 2 Extended life
Test Requirements (15 years)
60 x 1,5 Amps
CT 0828-01
Medium Power
Slip Ring for ESD Tests
6 kW – 42 x 5 Amps
Double Insulation

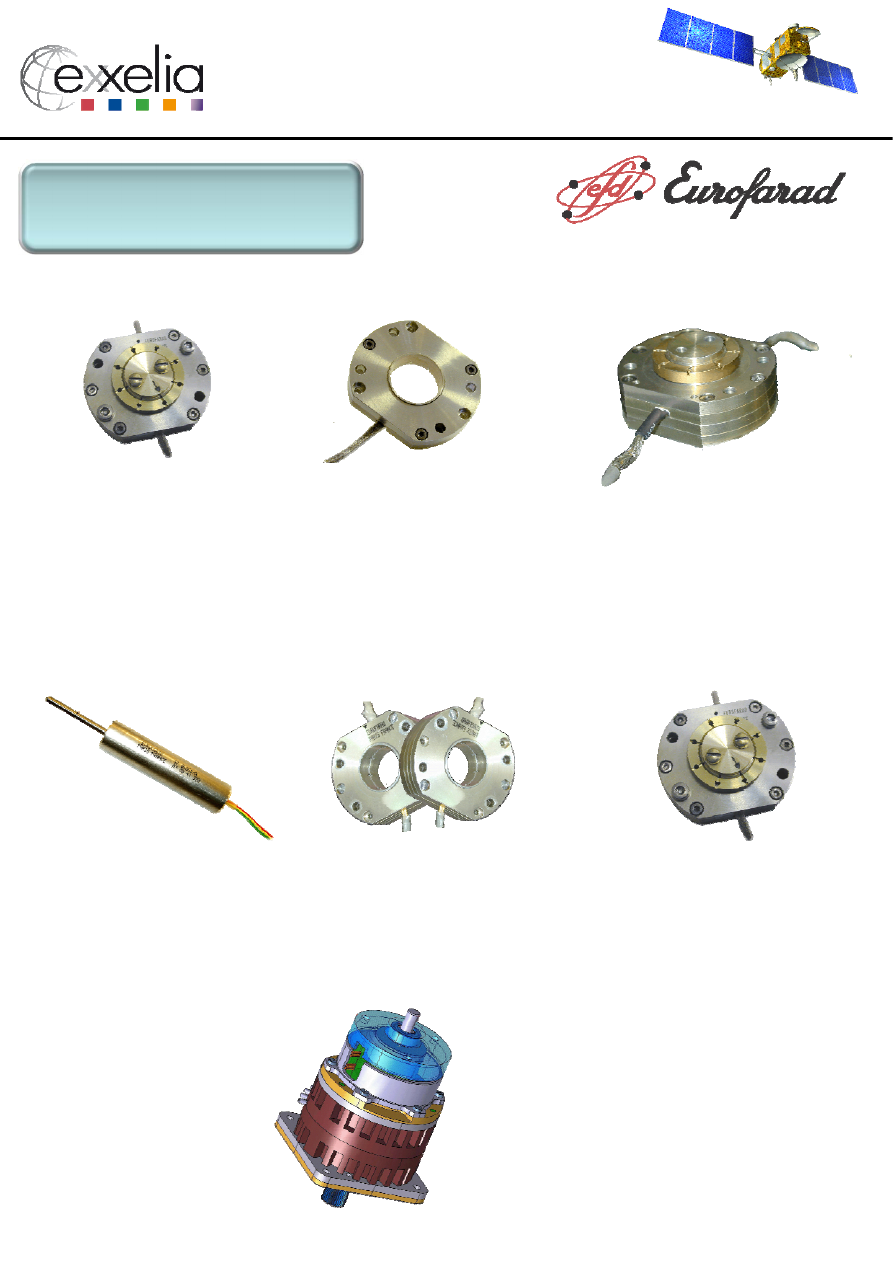

P. 23/25
July 2013
Space Products & Solutions
Slip
Rings
and
Potentiometers
Precision Potentiometer
+ Stepper Motor Assembly
SKYNET 5
Plastic film,
Redundant, 0.1% linearity
SP 05043 dual rotary
Pancake Potentiometer
Eurostar 3000 Platforms
Plastic film,
Redundant, 0.1% linearity
SP 02038 dual rotary
Pancake Potentiometer
Septa®233 CSSADM
Plastic film, 0.1% linearity
Linear motion miniature
Plastic Film Potentiometer
for AMOS 3
Plastic film, 0.1% linearity,
Repeatability 10 µm
SP 02011 dual rotary
Pancake Potentiometer
SARA®21 Rotary Actuator
Plastic film, 0.1% linearity
SP 99051 Pancake
Potentiometer
Beagle 2 Robotic Arm
Plastic film, 0.1% linearity
SP 02011 dual rotary
Pancake Potentiometer
HDRA Rotary Actuator
Plastic film,
Redundant, 0.1% linearity
P. 24/25
July 2013
Space Products & Solutions
A5B
AGE
AGSTENTOR
ALOS
2
ALPHABUS
ALPHASAT
AMAZONAS
AMOS
‐
5
ANIK
APSTAR
AR2
ARABSAT
ARGOS
ARIANE
4
ARIANE
5
ARTEMIS
ASTRA
1K
ASIASAT
ASTRO
15
ATV
BEPI
COLOMBO
CALIPSO
CASSINI
CESASAT
CHINASAT
CLUSTER
(1&2)
COMSAT
CoRoT
COSMO
SkyMed
DEMETER
Akspress
‐
AM4
EMS
EMS2
ENVISAT1
EOSAT
ERS
EUTELSAT
‐
F6
FIRST
GAIA
GALILEO
GLOBALSTAR
GLONASS
GOCE
HELIOS
HERSCHEL
HISPASAT
HOTBIRD
4
HUYGENS
Inmarsat
‐
4
INMAR
‐
TLC2
INTELSAT
‐
7
INTELSAT
‐
X
INTEGRAL
IRS
IRRIDIUM
ISS
ITALSAT
JASON
1,
2
Ka
‐
Sat
LOCSTAR
LOUTCH
MAB
MARS
Express
MASAS
MELFI
METEOSAT
METOP
MPLM
METEOSAT
‐
2
MSG
MTSAT
NAHUEL
NEUROLAB
NILSAT
Nimiq
NuSTAR
PARASOL
PICARD
PLANCK
PMT
POSEIDON
PPF
PROTEUS
PTG
RADARSAT
RAPIDEYE
ROSETTA
SENTINEL
SARLUPE
SARSAT
SHB
SICRAL
SILEX
SKYNET
5
A,
B,
C
SMART
1
SMOS
SPACELAB
SPIRALE
SPOT
(4&5)
STENTOR
TDE
TDF
TELECOM2
TELSAT
TERRA
‐
SAR
THURAYA
TR6
TURKSAT
VEGETATION
XMM
XSAR
YahSat
WORLDSTAR
…
S
OME
S
PACE
P
ROJECT
&
C
USTOMERS
R
EFERENCES
P. 25/25
July 2013
Space Products & Solutions
EUROFARAD
93, rue Oberkampf
75540 PARIS Cedex 11 - France
Tel : + 33 1 49 23 10 00
Fax : + 33 1 43 57 05 33
MICROSPIRE
16, parc d'Activités du Beau Vallon
57970 Illange - France
Tél. : +33 3 82 56 55 64
Fax : +33 3 82 51 00 49
DEARBORN Electronics
1221 North US Highway 17-92
Longwood, FL, 32750 – USA
Tél. : +1 (407) 695-6562
TEMEX Ceramics
Parc Industriel Bersol - Voie Romaine
33600 PESSAC – France
Tél. : +33 5 56 46 66 66
Fax : +33 5 56 36 31 98
FIRADEC – SIC SAFCO
ZI de Brais
44600 Saint Nazaire - France
Tél. : +33 2.40.01.26.51
Fax : +33 2 40 01 25 08
EXXELIA
C
OMPANIES
&
L
OCATIONS
www.exxelia.com
