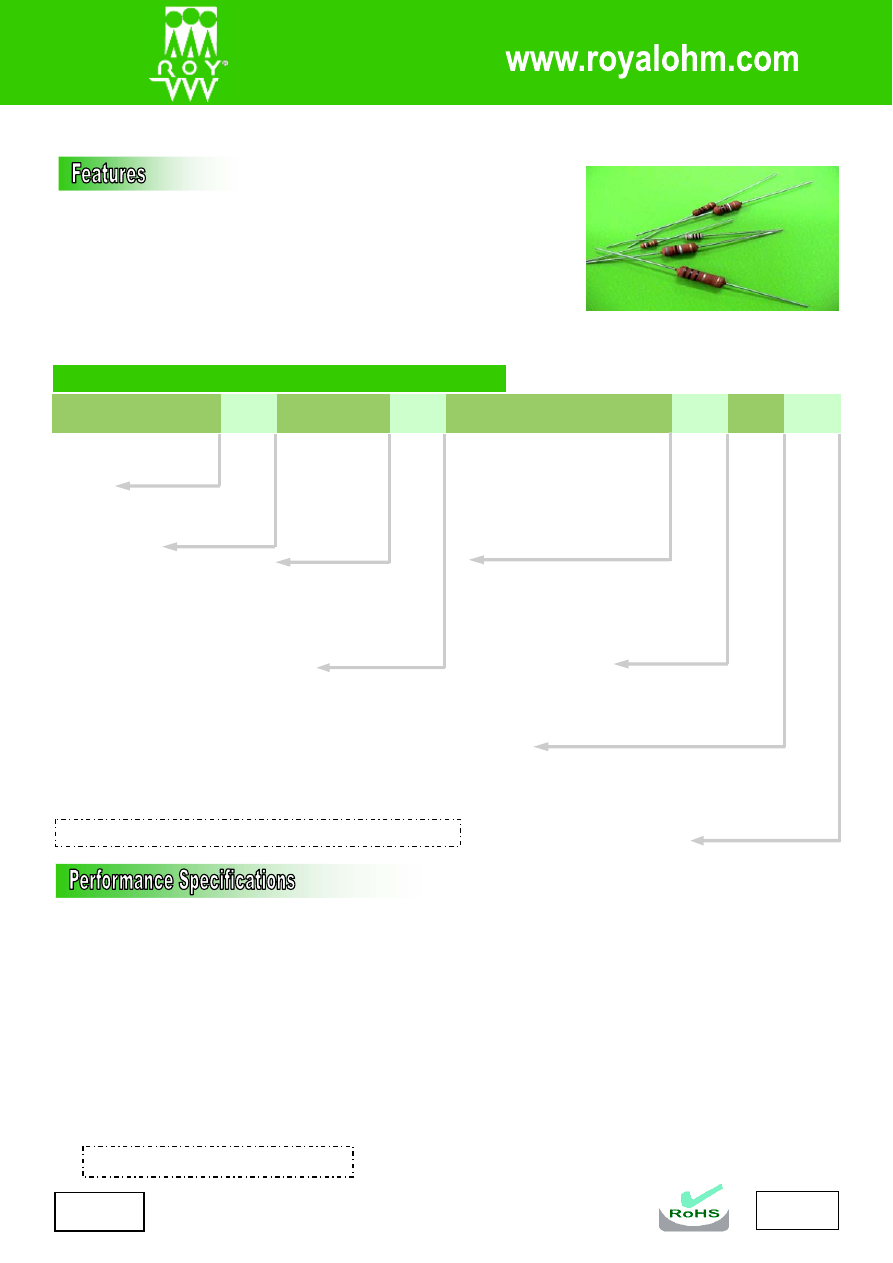

FUSIBLE FIXED RESISTORS
•
Non-flame coating, raw materials used for
F
usible
R
esistors are that
of Metal
F
ilm
R
esistors
•
Ideal circuit opening controller, disconnecting units from overload
rating specified
•
Too low or too high ohmic value can be supplied on a case to case
basis
Ordering Procedure: (Ex.: FRN 1W, +/-5%, 10
Ω
, T/B-1000)
F R N 0 1 W J 0 1 0 0 A 1 8
Resistor Type:
Wattage:
FRN = Fusible Fixed Resistors
W4 = 1/4W
W2 = 1/2W
1W = 1W
Special Feature:
2W = 2W
0 = Standard Product
3W = 3W
S2 = 1/2W-S
Resistance Value:
E-24 series: the 1
st
digit is “0”, the
2
nd
& 3
rd
digits are for the significant
figures of the resistance and the 4
th
indicate the number of zeros:
“J” ~ 0.1, “K” ~ 0.01
Ex.
4.7
Ω
~ 47J, 4.7K
Ω
~ 472
Packing Type:
A = Tape/Box
T = Tape/Reel
B = Bulk/Box
P = Tape/Box of
PT-26 product
Packing Qty:
1 = 1,000 pcs, 2 = 2,000 pcs, 4 = 4,000 pcs,
5 = 5,000 pcs, A = 500 pcs,
0 = for Bulk/Box packing

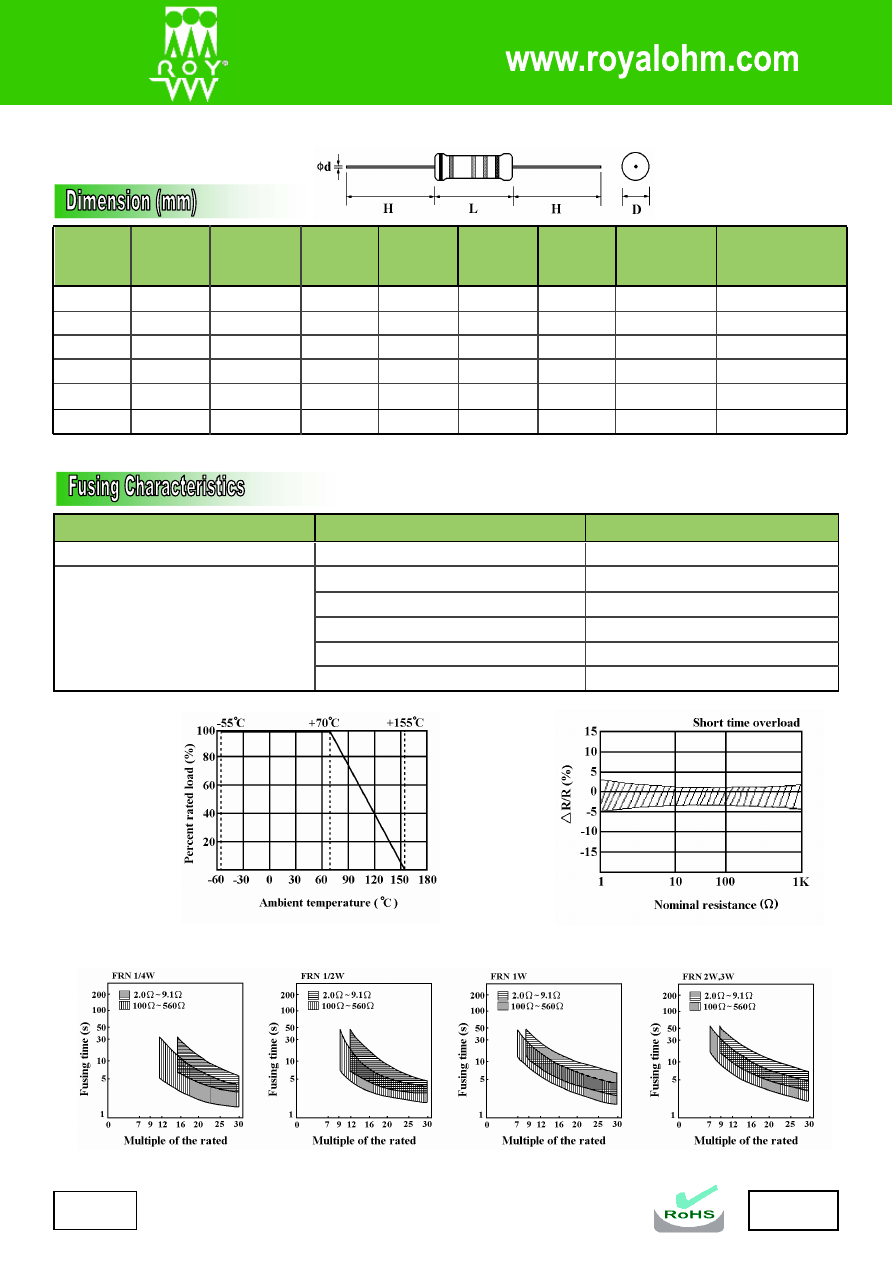

Temperature coefficient
±350PPM/°C
Short-time overload
∆
R/R
≤
±(2.0% + 0.05
Ω
), with no evidence of mechanical damage.
Dielectric withstanding voltage
No evidence of flashover, mechanical damage, arcing or insulation breakdown.
Terminal strength
No evidence of mechanical damage.
Resistance to soldering heat
∆
R/R
≤
±(1.0% + 0.05
Ω
), with no evidence of mechanical damage.
Solderability
Min. 95% coverage
Temperature cycling
∆
R/R
≤
±(2.0% + 0.05
Ω
), with no evidence of mechanical damage.
Load life in humidity
∆
R/R
≤
±(5.0% + 0.05
Ω
), with no evidence of mechanical damage.
E Load life
∆
R/R
≤
±(5.0% + 0.05
Ω
), with no evidence of mechanical damage.
Non-Flame
Not have any specimens which burn with flaming combustion after
each application
Tolerance:
G = ±2%
J = ±5%
K = ±10%
Additional Information:
0 = PT-52 mm, NIL for PT-26
8 = PT-58 mm
9 = PT-64 mm
