AUTOMOTIVE

RESISTIVE DEVICES

HANS

SERIES

NOISE SUPPRESSOR RESISTORS

• Noise suppressor wire wound resistor

• Reduces RFI during electrical discharges on petrol

engines in cars and in scooters / motorcycles.

• ROHS compliant.

e : info@htr-india.com

www.htr-india.com

Rev Date : 30/12/2022

AEC-Q200 Qualified

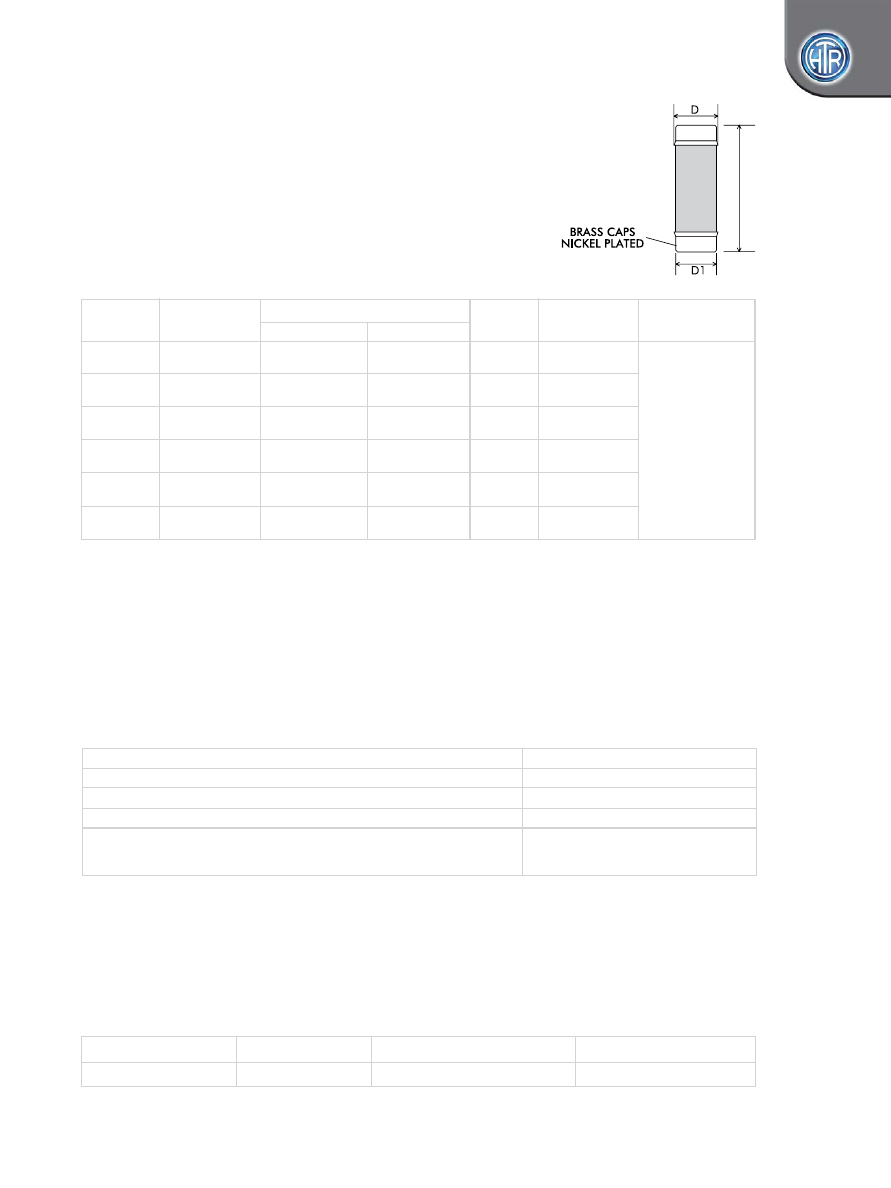

MECHANICAL SPECIFICATION

  HTR Type

Resistance Value





D (max)

D1 (+/-0.1)

Typical Inductance







L (+/-0.3) Min.

L (+/-0.3) Max.

(mm)

(mm)



NS 1K0

1K0

11.0

24.0

4.65

4.35















  NS 1K125

1K125

11.0

24.0

4.65

4.35

















NS 5K0

5K0

11.0

24.0

4.65

4.35

















NS 7K5

7K5

15.0

24.0

4.65

4.35

















NS 10K

10K

18.0  24.0  4.65 4.35















ELECTRICAL SPECIFICATION

Nominal Value

:

NS 1K0 - 1K0





NS 1K125 - 1K125





NS 2K0 - 2K0





NS 5K0 - 5K0





NS 7K5 - 7K5





NS 10K - 10K

Tolerance

:

± 20% / ± 10% / ± 5%

L

AUTOMOTIVE

RESISTIVE

DEVICES

HANS

2. PERFORMANCE REQUIREMENTS

PARAMETER REQUIREMENTS
Short Term Overload : 5 x Rated Power for 5 sec

ΔR – MAX 2%

Operating Temperature Range

-40°C to 220°C

Temperature Co-efficient (Typical)

± 150 ppm / °C

High Voltage Pulses At High Frequency :

(15 kv to 20 kv continuous pulses – 0.1 sec ON & 0.1

sec OFF in series with spark plug – duration 3 hrs.)

ΔR – MAX 1% (Typical)

TYPICAL APPLICATIONS :

The HANS series has been developed to be introduced in automotive ignition systems to reduce Radio Frequency Interference (RFI),

which are caused during electrical discharges on petrol engines in both cars and motorcycles. In order to meet the current legislation in

force to reduce these disturbances, the introduction of these Noise Suppressor resistors in the rotor of the distributor or the spark plug

leads can ensure compliance.

MARKING : NO MARKING

PACKING : 2000 pcs / small box of approx size 200 mm x 150 mm x 70 mm.

ORDERING INFORMATION



Series

 HTR Type

Length

 Tolerance



HANS

NS 5K0

18.0

20%

e : info@htr-india.com

www.htr-india.com

Rev Date : 30/12/2022

Length Range

“*” Please specify length required



NS 2K0

2K0

11.0

24.0

4.65

 4.35

5 to 56 μH















(at freq. 1 Mhz)
