AUTOMOTIVE

RESISTIVE DEVICES

HANS-F

SERIES

NOISE SUPPRESSOR RESISTORS

• Noise suppressor wire wound resistor

• Reduces RFI during electrical discharges on petrol

engines in cars and in scooters / motorcycles.

• ROHS compliant.

e : info@htr-india.com

www.htr-india.com

Rev Date : 11/12/2022

As per  AEC-Q200

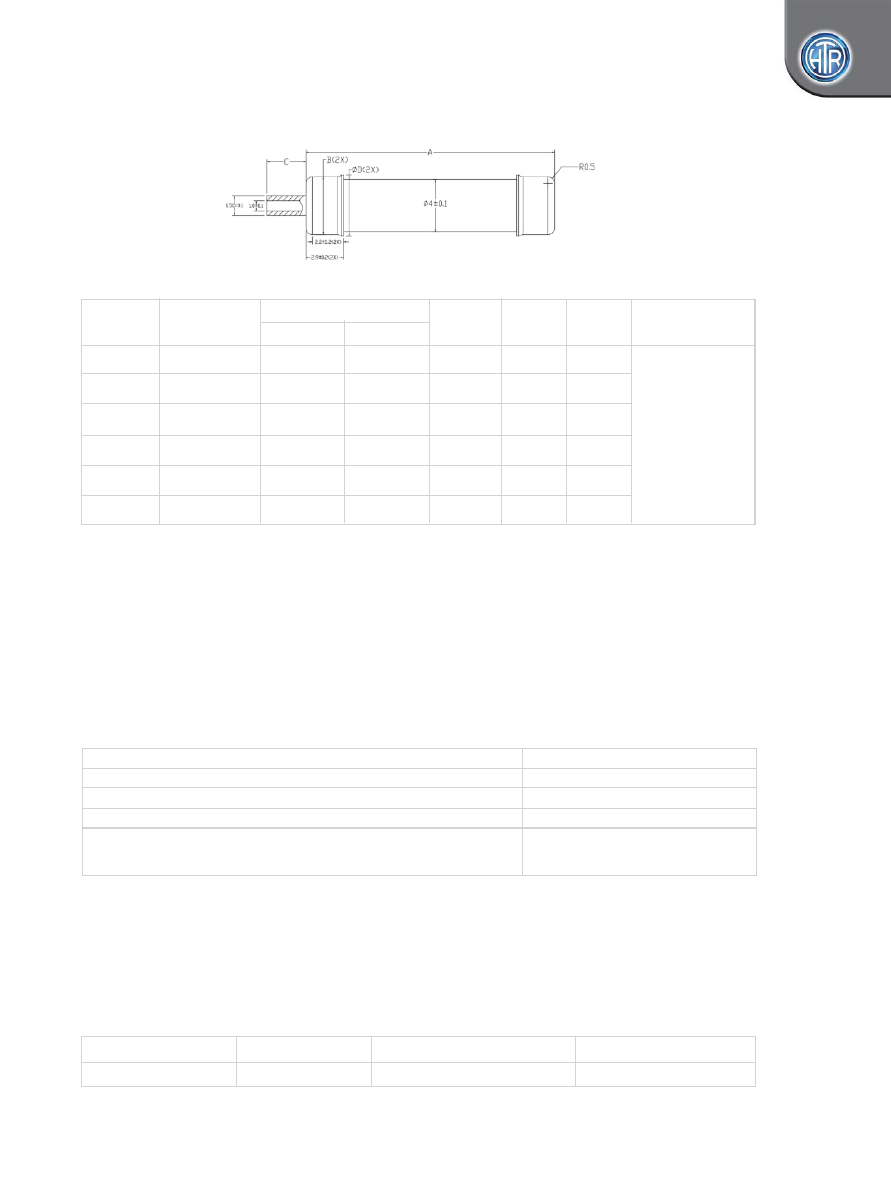

MECHANICAL SPECIFICATION

  HTR Type

Resistance Value





B

C

D

Typical







A (+/-0.3) Min.

A (+/-0.3) Max.

(4.35 ±0.1)

(3.0 ±0.2)

(4.5 ±0.1)

Inductance


  NSF 1K0

1K0

11.50

24.0

4.35

3.0

4.50



















  NSF 1K125

1K125

11.50

24.0

4.35

3.0

4.50















  NSF 2K0

2K0

11.50

24.0

4.35

 3.0

4.50















  NSF 5K0

5K0

12.0

24.0

4.35

3.0

4.50

















  NSF 7K5

7K5

15.0

24.0

4.35

3.0

4.50

















  NSF 10K

10K

18.0

24.0

4.35

3.0

4.50

ELECTRICAL SPECIFICATION

NOMINAL VALUE   :

NSF 1K0

- 1K0





NSF 1K125  - 1K125





NSF 2K0

- 2K0





NSF 5K0

- 5K0





NSF 7K5

- 7K5





NSF 10K

- 10K

TOLERANCE

:

± 20% / ±10%

AUTOMOTIVE

RESISTIVE

DEVICES

HANS-F

2. PERFORMANCE REQUIREMENTS

PARAMETER REQUIREMENTS
Short Term Overload : 5 x Rated Power for 5 sec

ΔR – MAX 2%

Operating Temperature Range

-40°C to 220°C

Temperature Co-efficient (Typical)

± 50 ppm / °C

High Voltage Pulses At High Frequency :

(15 kv to 20 kv continuous pulses – 0.1 sec ON & 0.1

sec OFF in series with spark plug – duration 3 hrs.)

ΔR – MAX 1% (Typical)

TYPICAL APPLICATIONS :

The HANS series has been developed to be introduced in automotive ignition systems to reduce Radio Frequency Interference (RFI),

which are caused during electrical discharges on petrol engines in both cars and motorcycles. In order to meet the current legislation in

force to reduce these disturbances, the introduction of these Noise Suppressor resistors in the rotor of the distributor or the spark plug

leads can ensure compliance.

MARKING : NO MARKING

PACKING : 2000 pcs / small box of approx size 200 mm x 150 mm x 70 mm.

ORDERING INFORMATION



Series

 HTR Type

Length

 Tolerance



HANS-F

NSF 5K0*

18.0

20%

e : info@htr-india.com

www.htr-india.com

Rev Date : 11/12/2022

Length Range

“*” Please specify length required

MIN 5 to 56 μH

(Inductance

range 1MHz)
