Test Methods for Electronic Connector is According to Following Military Standard
Dielectric Withstanding Voltage
Contact Resistance
Insulation Resistance
Solderability

1.27mm (.050") Center spacing Flat Cable - IDC







Electrical:

Physical:

Current rating: 1 Amp
Dielectric Withstanding Voltage:
500 VAC for one minute
Contact Resistance: < 10 m

Ω

Insulation Resistance: > 1000 M

Ω

Operating Temperature: -40°C ~ +105°C
Wire: 28 AWG, 7/36 stranded

2.00mm (.079") Center spacing Flat Cable - IDC

2.54mm (.100") Center spacing Flat Cable - IDC

-  Per MIL-STD-1344A method 3001.1
-  Per MIL-STD-1344A method 3002.1
-  Per MIL-STD-1344A method 3003.1
-  Per MIL-STD-202F method 208D

Insulator: Red, Glass Filled Polyester as standard
Flammability Rating: UL 94V-0
Contacts: Phosphor Bronze
Contacts plating: Selective gold on surface contact area
Pleass see ordering code plating options.







Electrical:

Physical:

Current rating: 1 Amp
Dielectric Withstanding Voltage:
500 VAC for one minute
Contact Resistance: < 30 m

Ω

Insulation Resistance: > 1000 M

Ω

Operating Temperature: -40°C ~ +105°C
Wire: 28 AWG, 7/36 stranded

Insulator: Black, Glass Filled Polyester as standard
Flammability Rating: UL 94V-0
Contacts: Phosphor Bronze
Contacts plating: Selective gold on surface contact area
Pleass see ordering code plating options.







Electrical:

Physical:

Current rating: 1 Amp
Dielectric Withstanding Voltage:
1000 VAC for one minute
Contact Resistance: < 30 m

Ω

Insulation Resistance: > 1000 M

Ω

Operating Temperature: -40°C ~ +105°C
Wire: 28 AWG, 7/36 stranded

Insulator: Black, Glass Filled Polyester
Flammability Rating: UL 94V-0
Contacts: Phosphor Bronze or Brass
Contacts plating: Selective gold on surface contact area
Pleass see ordering code plating options.

System CA - Technical Specifications

IDC CONNECTORS

215

IDC CONNECTORS

CA

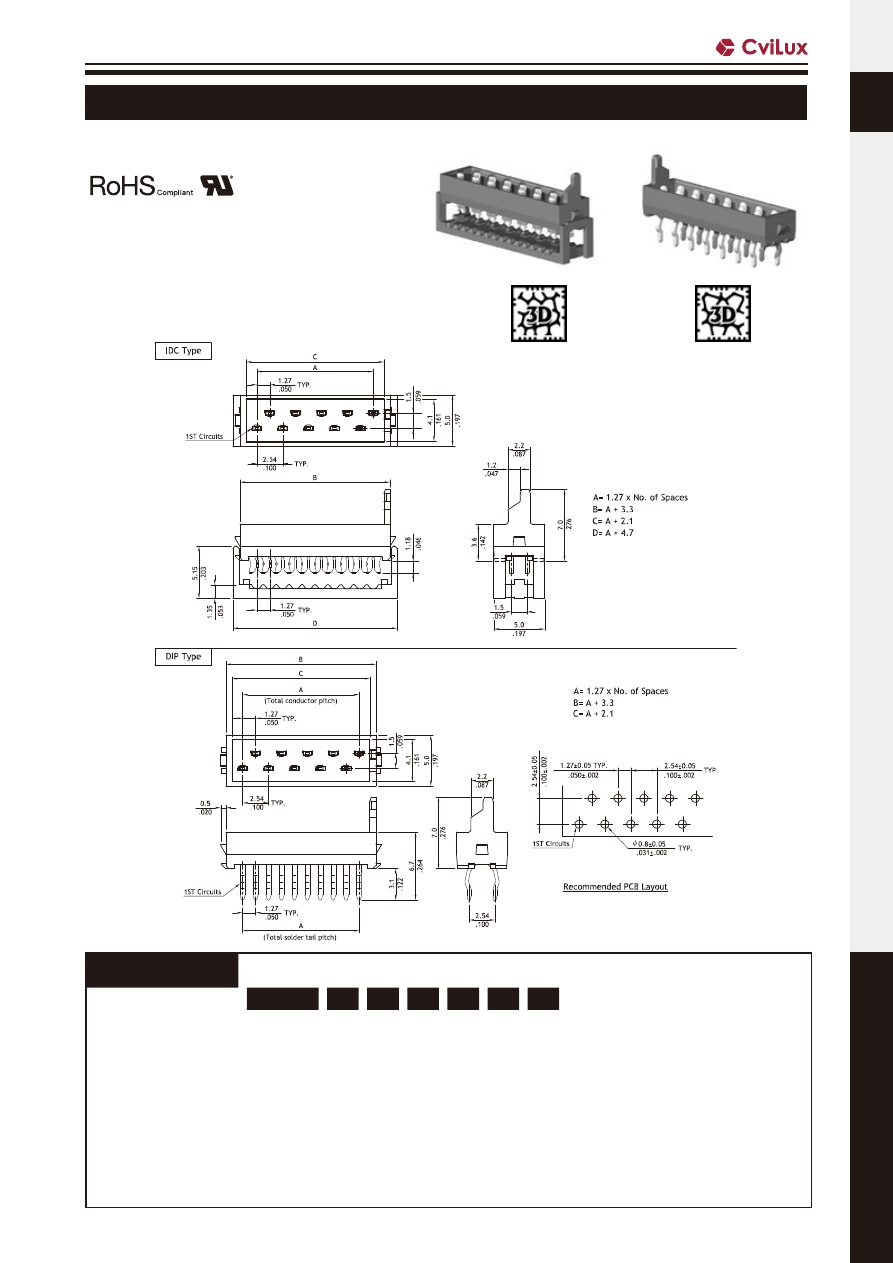

CA30 Series 1.27mm(.050") Male IDC & DIP Type Connectors

◎

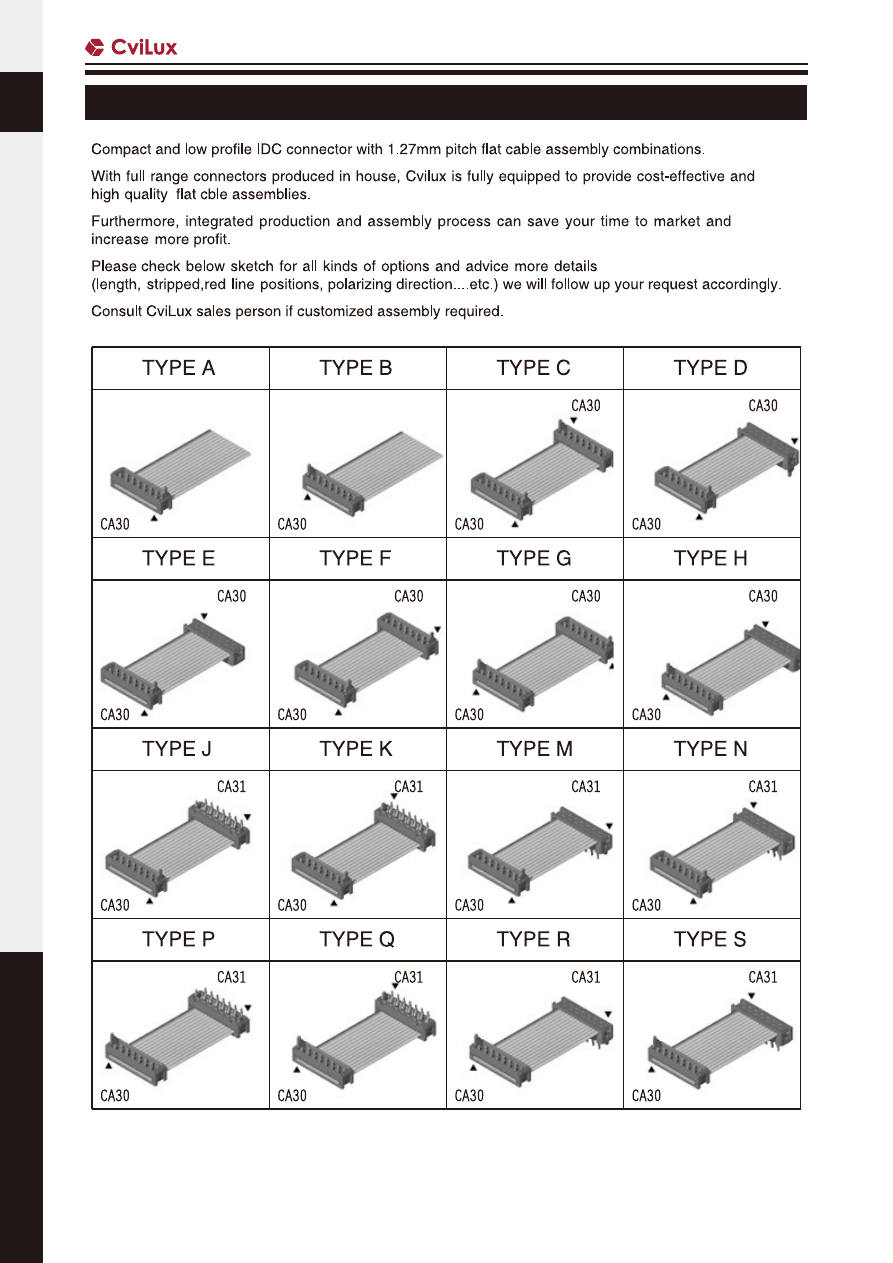

Can be used with CW03 1.27mm(.050") center spacing flat ribbon cable.



◎

Mate with CA32 connector

Ordering Code

①

②

③

④

⑤

⑥

⑦

C A 3  0  2 6

P

1

3

0

0

NH

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type: P = Plug

④

Plating Code:



1 = Matte Tin over Nickel



*Optional plating available but MOQ requested

⑤

Color: 3 = Red

⑥

Type: 0 = DIP Type

              I = IDC Type

⑦

Other Options:

     0 = Standard





*Special options consult manufacturer

IDC CONNECTORS

216

CA

IDC CONNECTORS

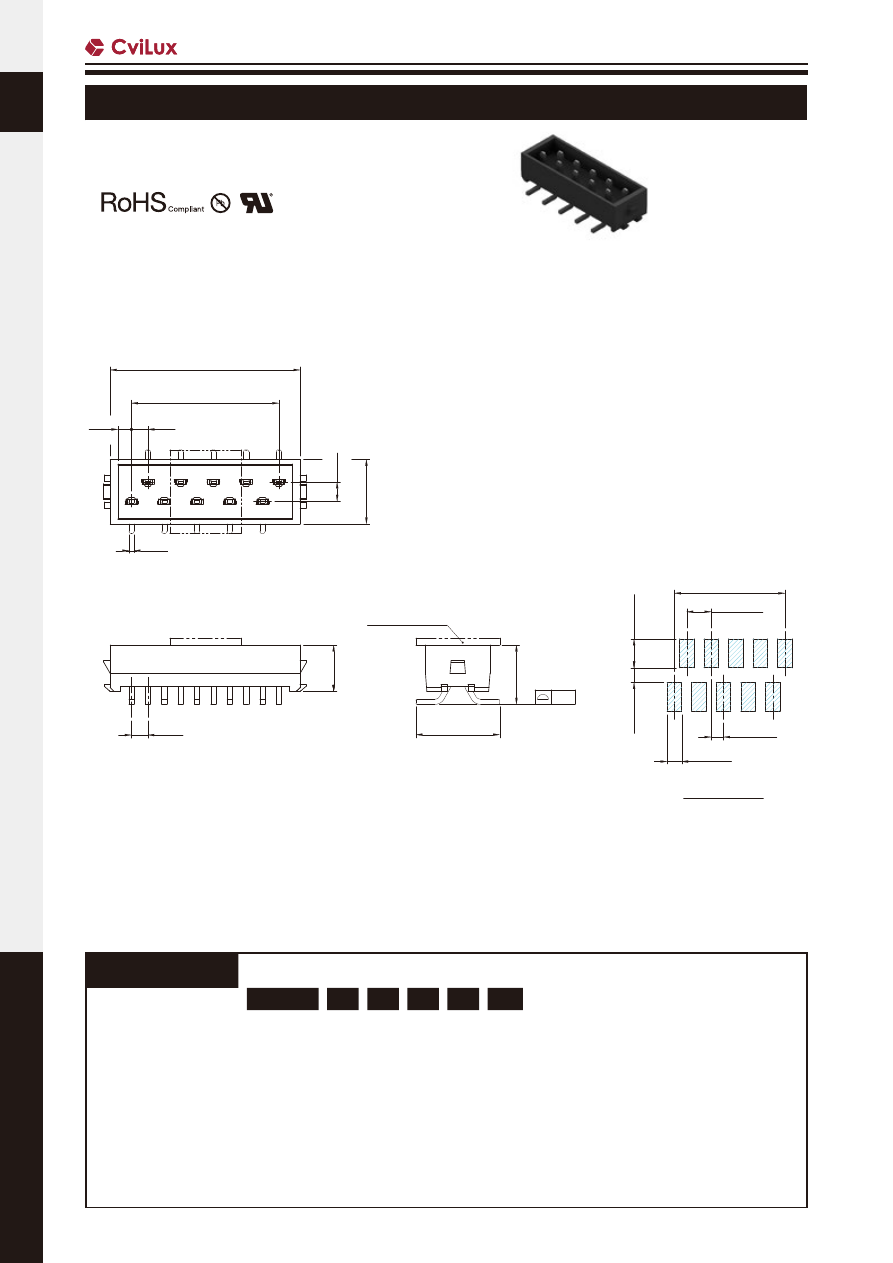

CA30 Series 1.27mm(.050") Male IDC SMT Type Connectors

◎

Mate with CA32 connector

◎

High temperature plastic UL 94V-0, color red

Ordering Code

①

②

③

④

⑤

⑥

C A 3  0

2  6  M

1

3

R 0

0

NH

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type: M = SMT

④

Plating Code:



1 = Matte Tin over Nickel



*Optional plating available but MOQ requested

⑤

Color: 3 = Red

⑥

Packing Options:



R0 = With PAD Tape & Reel



RN = Without PAD Tape & Reel



T0 = Without PAD Tube Packing



*Special options consult manufacturer

0.5

1.27
.050

6.5

.256

TYP.

.020

.14

2

3.

6

Pick

&

 Place Pad

0.1

4.

6

.18

1

1.05
.041

5.

0

.19

7

.05

9

1.

5

A

1.27
.050

B

B= A + 3.3

A= 1.27 x No. of Spaces

1.

5±

0.0

5

3.

0±

0.

1

.05

9±.0

02

1.27±0.05
.050±.002

TYP.

1.5±0.05

.059±.002

TYP.

2.54±0.05

.11

8±.0

04

.100±.002

A±0.1

TYP.2

Solder Pad Pattern

TYP.

TYP.

IDC CONNECTORS

217

IDC CONNECTORS

CA

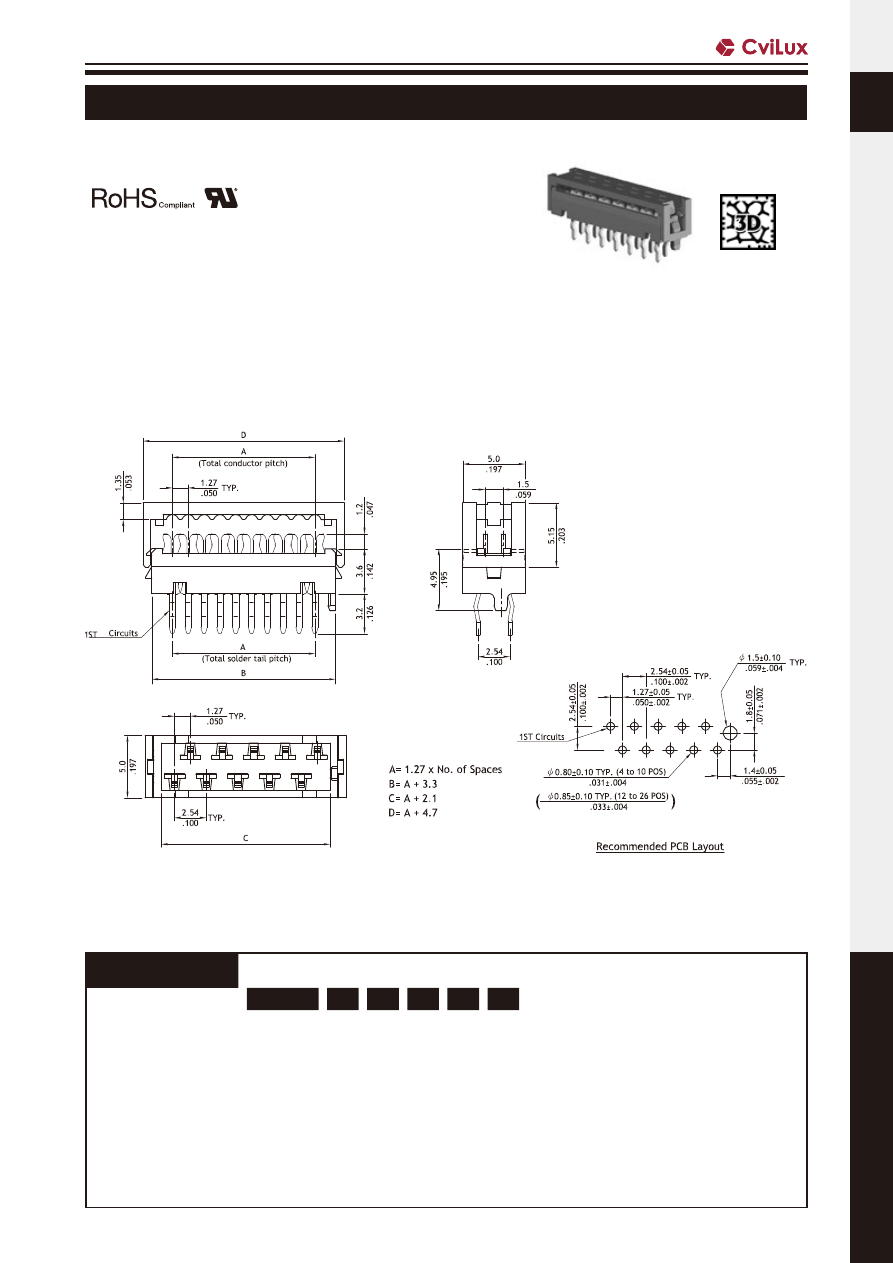

CA31 Series 1.27mm(.050") Flat Cable - IDC DIP Type Connectors

◎

 Can be used with CW03 1.27mm(.050") center spacing flat ribbon cable.

Ordering Code

①

②

③

④

⑤

⑥

C A 3 1

2  6   P

1

3

0  0

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type:P=Plug

④

Plating Code:

         1 = Matte Tin over Nickel

         *Optional plating available but MOQ requested

⑤

Color: 3 = Red

⑥

Other Options:

     00=Standard

     *Special options consult manufacturer

IDC CONNECTORS

218

CA

IDC CONNECTORS

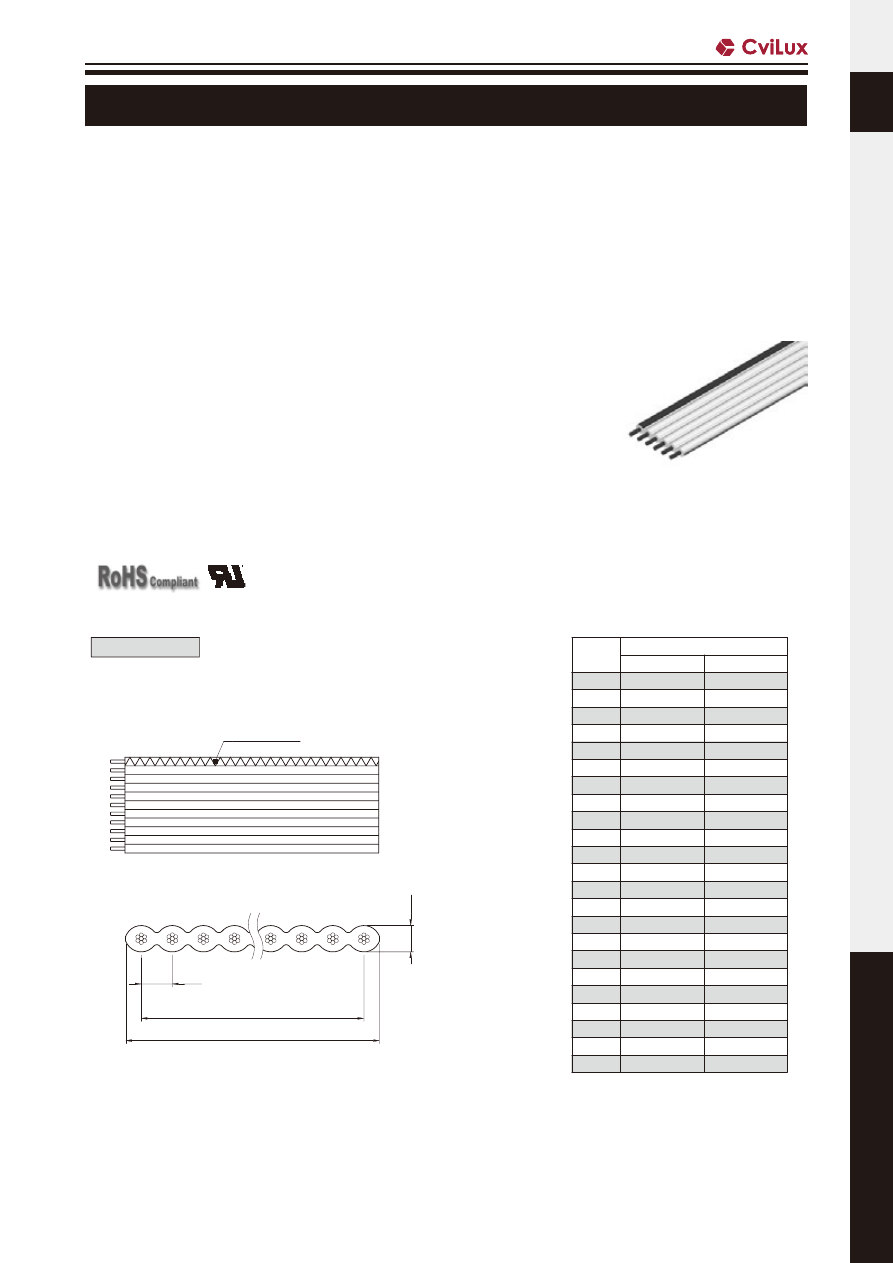

CA30 & CA31 Series Flat Cable Assemblies

IDC CONNECTORS

219

IDC CONNECTORS

CA

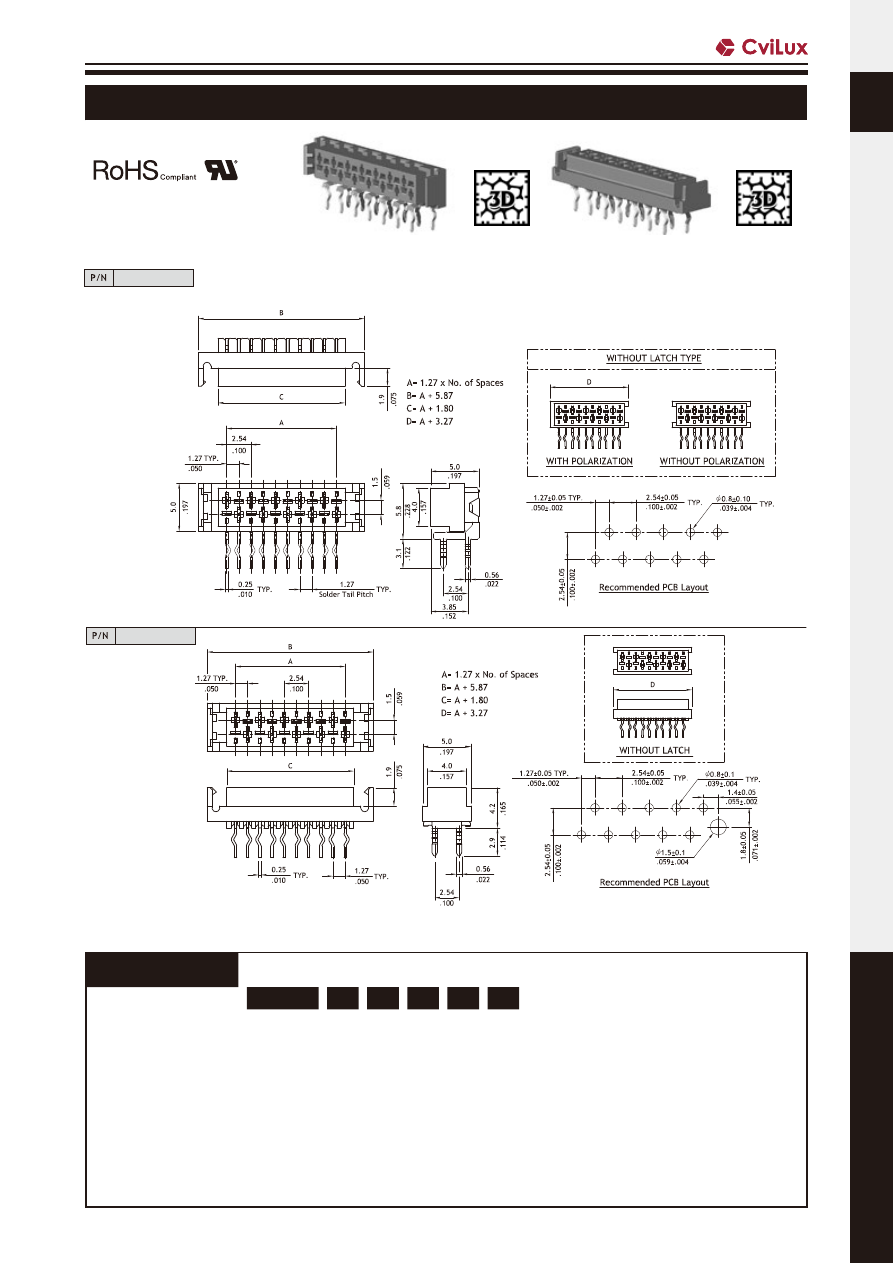

CA32 Series 1.27mm(.050") Female DIP Type Connectors

◎

Mate with CA30 connector

Ordering Code

①

②

③

④

⑤

⑥

C A 3  2

2 6

H

1

3

0 0

NH

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type: V = Straight

                            H = Right Angle

④

Plating Code:



1 = Matte Tin over Nickel



*Optional plating available but MOQ requested

⑤

Color: 3 = Red

⑥

Right Angle Type:

    00 = Without Latch & With Polarization
    S0 = Without Latch & Without Polarization
    0L = With Latch
    Straight Type:
    00 = Without Latch
    0L = With Latch
    *Special options consult manufacturer


CA32**H**00

CA32**V**00

IDC CONNECTORS

220

CA

IDC CONNECTORS

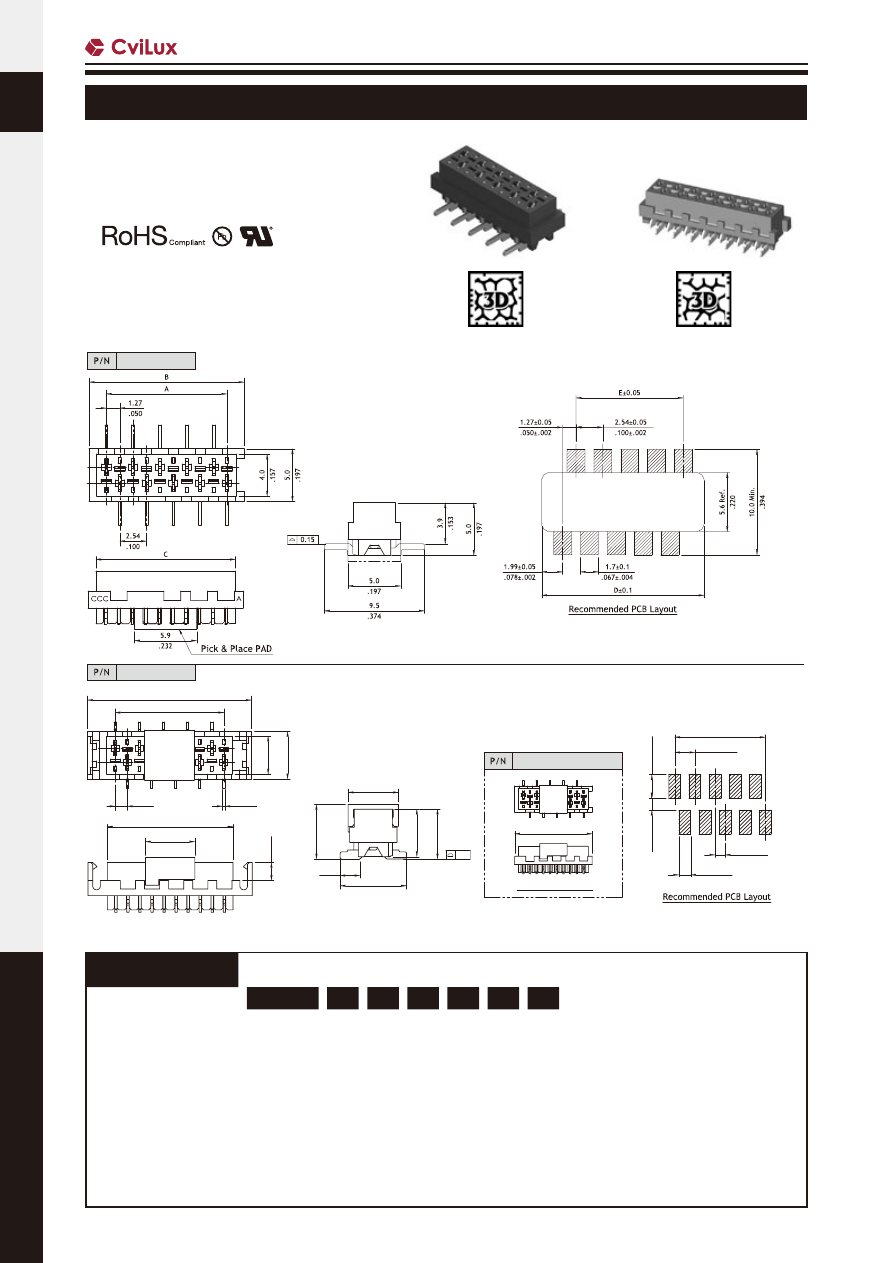

CA32 Series 1.27mm(.050") Female SMT Type Connectors

◎

Mate with CA30 connector

◎

High temperature plastic UL 94V-0, color red

Ordering Code

①

②

③

④

⑤

⑥

⑦

C A 3  2

2 6

M

1

3

0

A

NH

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type: M = SMT Type

④

Plating Code:



1 = Matte Tin over Nickel



*Optional plating available but MOQ requested

⑤

Color: 3 = Red

⑥

Pad Options:

    0 = With Pad (Reel Packing)

⑦

 Other Options:

     A = Middle mount type
     0 = Top mount type (Without Latch)
     L = Top mount type (With Latch)
     *Special options consult manufacturer

CA32**M**0A

A= 1.27 x No. of Spaces
B= A + 5.87

D= A + 3.27

C= A + 1.80

5.

75

.226

0.1

7.0

.276

2.1

.083

5.

25

5.

0

.197

5.3

.209

.207

.205

C

5.2

.075

1.

9

CA32**M**0L

1.27
.050

TYP.

TYP.

.010

0.25

4.

0

.157

.197

5.

0

A

B

.059±.00

2

1.

5±

0.05

.118±.00

4

3.

0±

0.

1

1.27±0.05
.050±.002

1.5±0.05

.059±.002

TYP.

TYP.2

.100±.002

2.54±0.05

TYP.

A±0.1

 WITHOUT LATCH

D

CA32**M**00

A= 1.27 x No. of Spaces
B= A + 3.28
C= A + 1.80
D= A + 3.97
E= A - 1.27

IDC CONNECTORS

221

IDC CONNECTORS

CA

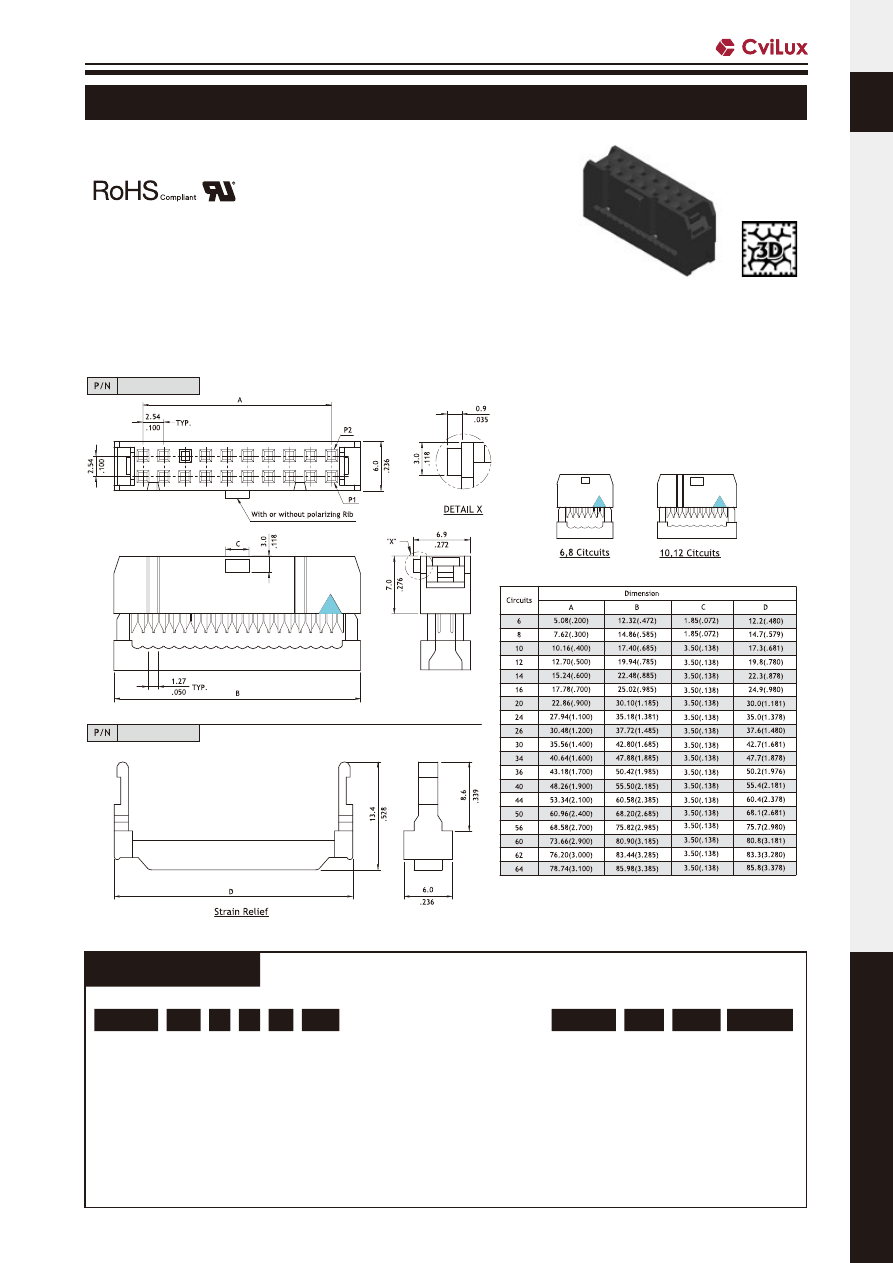

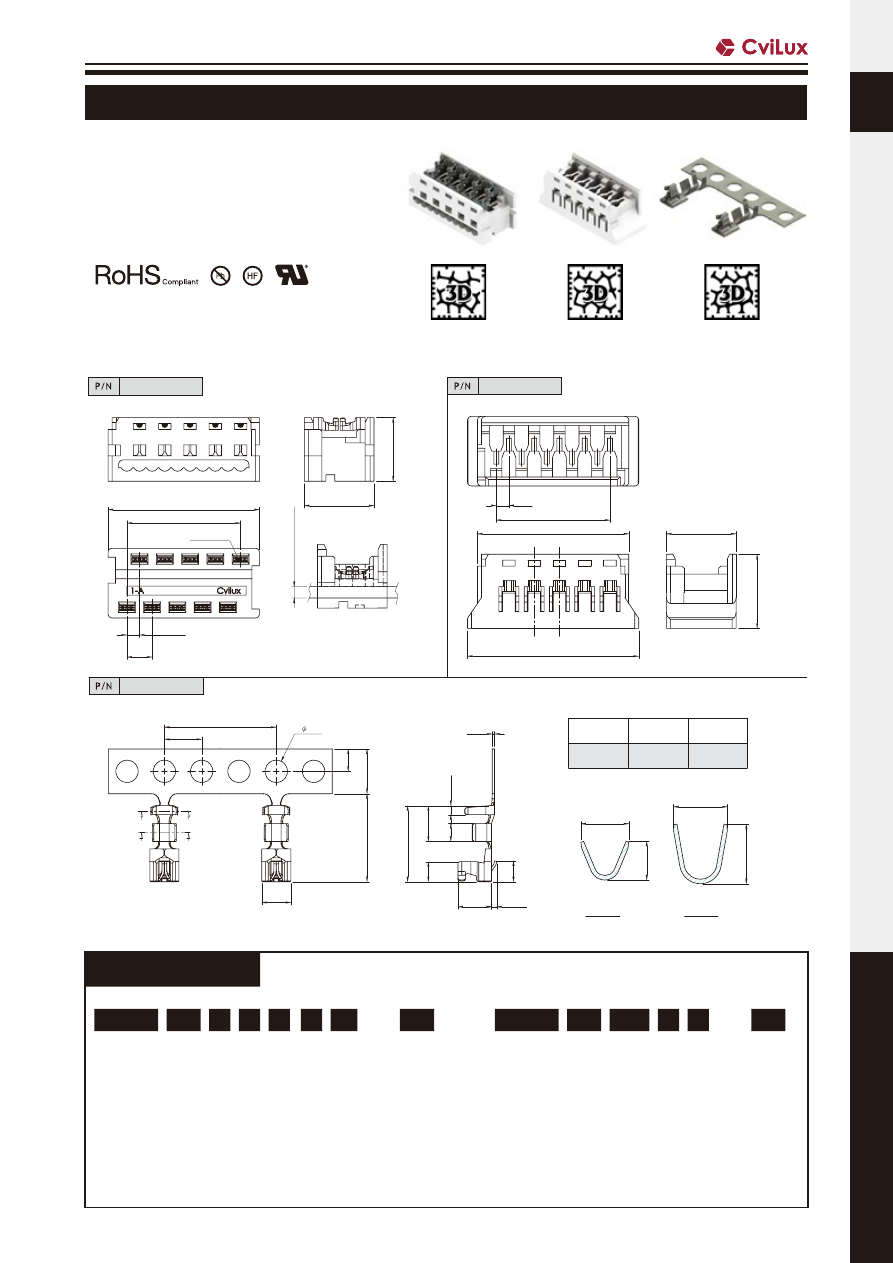

CA33 Series 1.27mm(.050") IDC & Crimping Type Connectors

◎

  Can be used CW03 1.27mm(.050") Center Spacing

      flat ribbon cable

◎

  Mate with CA35 Connectors

◎

  Can be used CA33 crimp clip terminal

◎

  Insulator: Glass Filled Polyester UL 94V-0,

      Color Nature

    Ordering Code

①

②

③ ④ ⑤

⑥

⑦

⑧

①

②

③

④ ⑤

⑥

C  A 3  3  2  6  P

1

0

I

0

-

NH

C A 3  3  2 6 S 0 0 0

0

-

NH

①

Series No.

②

No. of Circuits: 04 to 26

③

Contact Type:

     P = Pin Header

④

Plating:

1 = Tin over Nickel

⑤

Color: 0 = Nature

⑥

Type: I = IDC Type

⑦

Other Options:

0 = Standard

(Tube Packing)

⑧

 Process: -NH = Halogen-

Free

①

Series No.

②

No. of Circuits: 04 to 26

③

Type: S00 = Housing

④

Color: 0 = Nature

⑤

Other Options: 0 = Standard

⑥

Process: -NH = Halogen-Free

(.053)

#26~#28

Range

Wire

AWG

10,000 PCS.

Insulation

Diameter

1.35

MAX.

Reel Q'ty

2.5

7.5

1.

5

3.

0

0.15t

5.

9

1.95

1.

2

0.

6

2.25

0.35

1.

4

1.

35

2.

4

5.

1

.024

.094

.047

.201

.053

.089

.014

.055

.232

.118

.059

.077

.098

.295

.059

1.5

TYP.

TYP.

1.

3

1.6

1.8

2.

0

.063

.071

.051

.079

SEC. B-B

SEC. A-A

.002

B

B

A

A

1.

27

mm Ribbon Cable

A

B

1.27 TYP.

.050

2.54

TYP.

7.0

6.

4

.100

A= 1.27 x No. of Spaces
B= A + 3.78

.276

.252

1ST Circuits

CA33**P10I0-NH

CA33**S0000-NH

A= 1.27 x No. of Spaces

B

C= A + 3.78

B= A + 5.78

C

1.27

A

TYP.

.050

.276

7.0

.293

7.

45

CA33T011PE0

IDC CONNECTORS

222

CA

IDC CONNECTORS

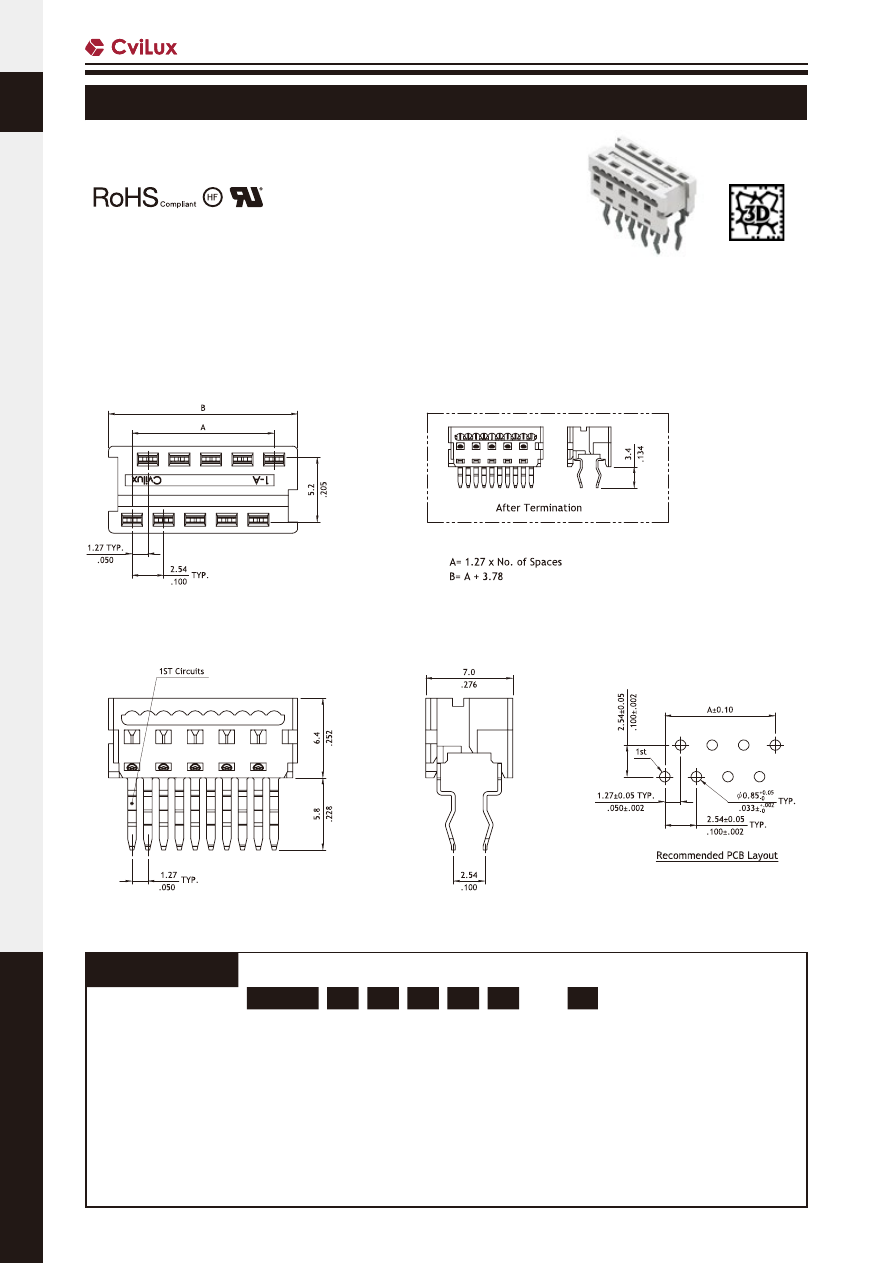

CA34 Series 1.27mm(.050") Flat Cable - IDC DIP Plugs

◎

Can be used CW03 1.27mm(.050") Ccenter Spacing flat ribbon cable

◎

Insulator:Glass Filled Polyester UL 94V-0, Color Nature

Ordering Code

①

②

③

④

⑤

⑥

⑦

C A 3  4

2 6

P

1

0

0  0

-

N H

NH

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type:

     P = Pin Header



④

Plating Code:

    1 = Matte Tin over Nickel

⑤

Color: 0 = Nature

⑥

Other Options: 00 = Standard (Tube Packing)

⑦



Process:

-NH = For Lead Free Process and

Halogen-Free

CF

IDC CONNECTORS

223

IDC CONNECTORS

CA

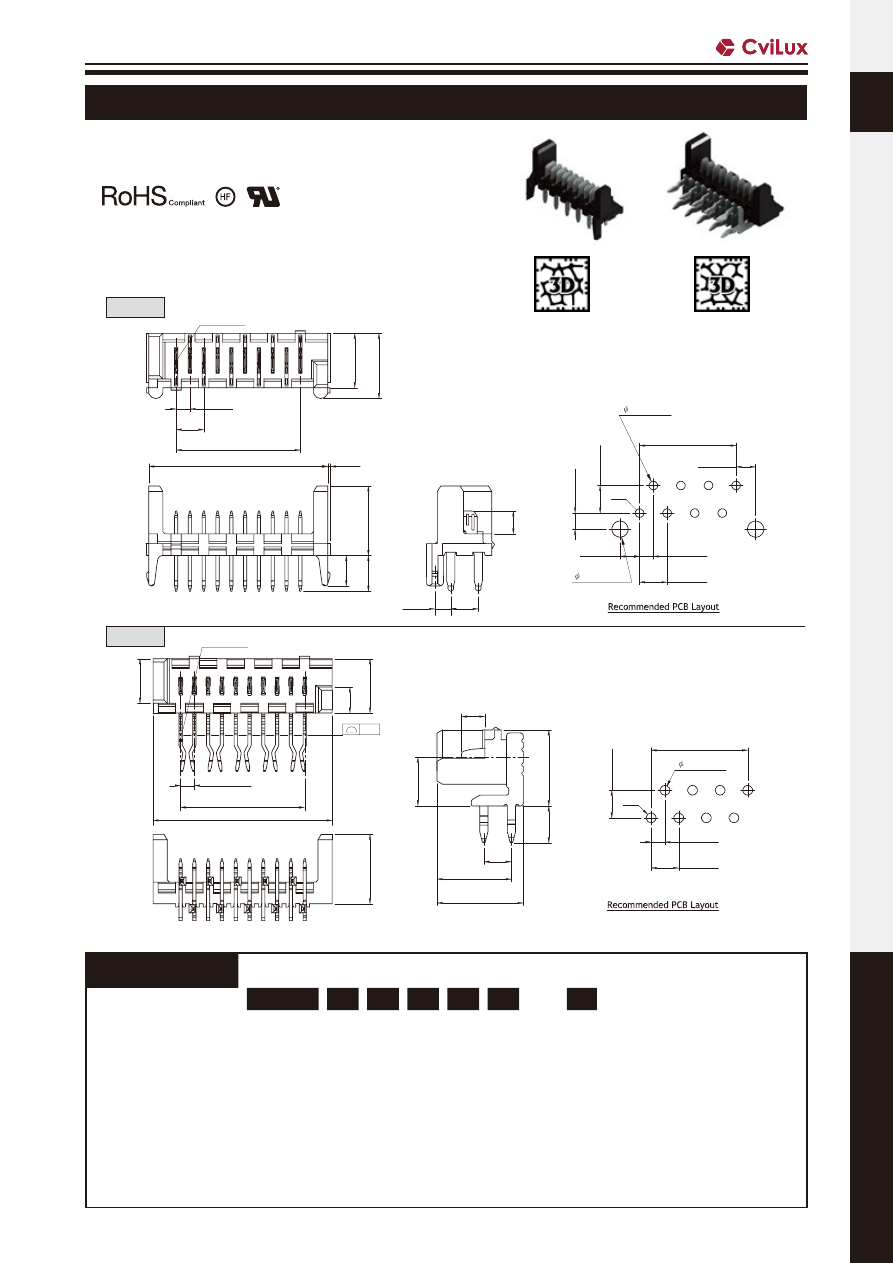

CA35 Series 1.27mm(.050") Male DIP Type Connectors

◎

Mate with CA33 connectors

◎

Insulator: High temperature plastic UL 94V-0, Color Black

Ordering Code

①

②

③

④

⑤

⑥

⑦

C A 3  5

2 6

V

1

1

0 0

-

N H

NH

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type:

     V = Straight

     H = Right Angle

④

Plating Code:



1 = Matte Tin over Nickel

⑤

Color: 1 = Black

⑥

Other Options: 00 = Standard

⑦

Process:

-NH = For Lead Free Process and

Halgen-Free

CF

A= 1.27 x No. of Spaces
B= A + 5.0

5

6.

0

5.

0

A

TYP.

2.54

TYP.

1.27

6.

4

3.

3

2.

8

B

2.

1

2.54

1.8±0.05

1.27±0.05
0.50±.002

.071±.002

2.

54

±0.

05

.100±.00

2

1.

48

±0.

05

.058±.00

2

1.8±0.05

.071±.002

A±0.10

2.54±0.05
.100±.002

TYP.

TYP.

.059

+.004

-0

1.5

+0.10

-0

 TYP.2

0.8

+0.10

-0

 TYP.

.031

+.004

-0

.050

.100

1ST Circuits

.197

.236

.110

.130

.252

.100

.083

1.48
.058

0.25

.010

1st

1.27

4.

1

B

A

TYP.

6.

4

4.

5

A= 1.27 x No. of Spaces
B= A + 5.0

5

6.85

2.54

3.4

7.95

2.15

7.

0

2.

4

0.10

5.

0

.094

.197

.050

.252

.313

.085

.177

.13

4.

27

6

.270

.100

1ST Circuits

.100±.00

2

2.

54

±0.

05

0.50±.002

1.27±0.05

.100±.002

2.54±0.05

TYP.

TYP.

.035

+.004

-0

0.9

+0.10

-0

 TYP.

A±0.10

1st

Straight

Right Angle

IDC CONNECTORS

224

CA

IDC CONNECTORS

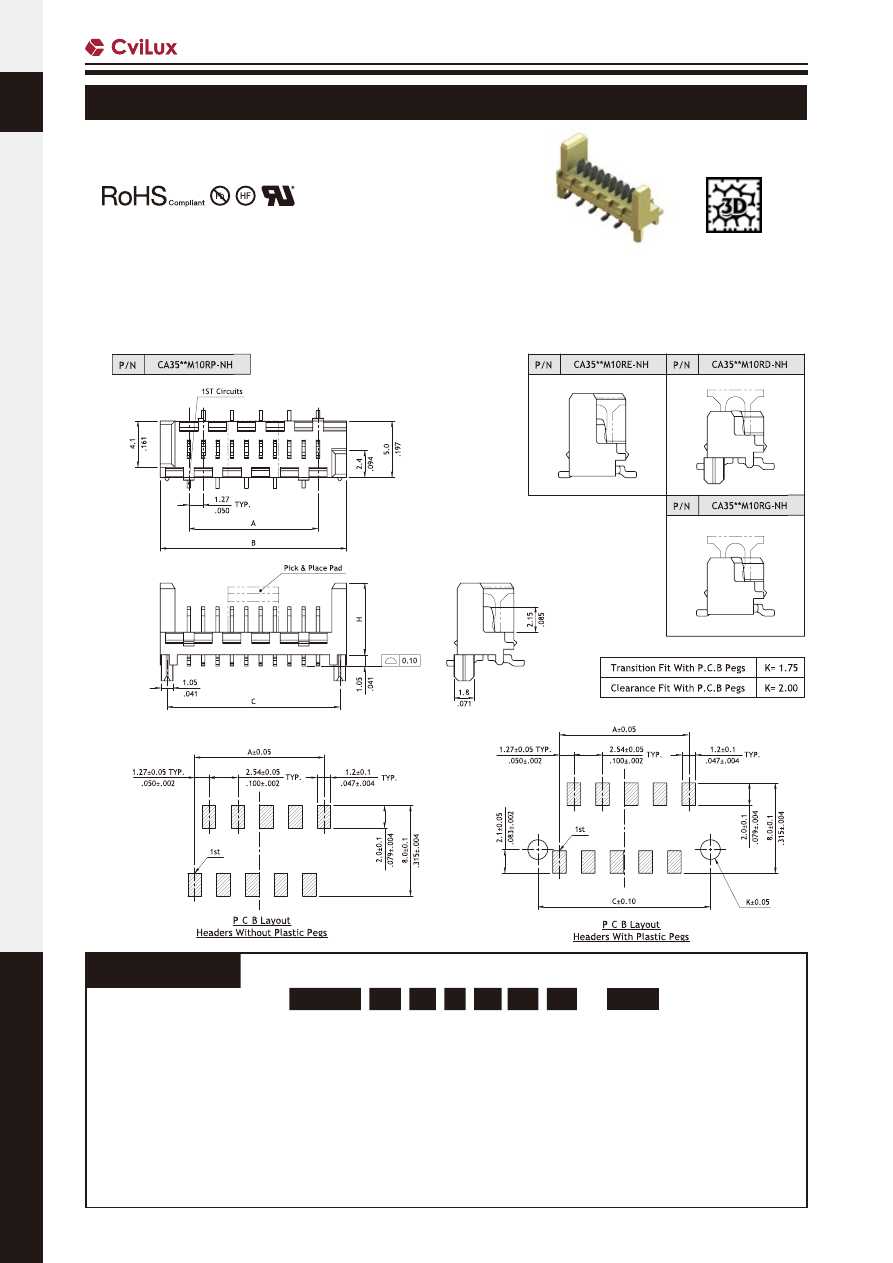

CA35 Series 1.27mm(.050") Male SMT Type Connectors

◎

Mate with CA33 connectors

◎

Insulator:High temperature plastic UL 94V-0, Nature

Ordering Code

①

②

③

④

⑤

⑥

⑦

⑧

C A 3  5

2 6

M     1

1

R

P

-

NH

①

Series No.

②

No. of Circuits:  04 to 26

③

Contact Type:

     M = SMT Type

④

Plating Code:

    1 = Matte Tin over Nickel

⑤

Color: 0 = Nature

⑥

Packing Options:

    R = Tape & Reel

          (With pick & place pad)

    T = Tube

    0 = Bags

⑦

Other Options:

     G = Without positioning pegs, H = 4.10mm

     D = With positioning pegs, H = 4.10mm

     E = Without positioning pegs, H = 6.40mm

     P = With positioning pegs, H = 6.40mm

⑧

Process: -NH = For Lead Free IR Process

and Halogen-Free

CF

A= 1.27 x No. of Spaces
B= A + 5.05
C= A + 3.85

IDC CONNECTORS

225

IDC CONNECTORS

CA

UL GRADE:

UL STYLE: 2651
Rate temperature: 105 degree celsius
Rate voltage: 300V
Flame Test: VW -1

CONDUCTOR:Standard

AWG size: 28 AWG
Number of strands in each conductor: 7/0.127mm

INSULATION:

Material of insulation: PVC, Color Gray

PHYSICAL PROPERTIES:

after 7 days air oven at 136 degree celsius
Average tensile strength: 1500 lbs/inch
Percent of original: 70% at least
Average elongation: 200%
Percent of original: 65% at least

ELECTRICAL CHARACTERISTICS:

Spark test: 2500V
Dielectric strength test: Min. 2KV in 1 minute
Conductor resistance: Max. 237 ohm/km
Insulation resistance: Min. 1G ohm/m
Capacity: 45 PF/m
Inductance: 1.45 uH/m
Impedance: 100 ohm
Propagation Delay Time: 4.2 ns/m

1.27
.050

TYP.

A

B

Reference Color

.035

0.

9

P/N : CW03**D900A

76.20(3.000)

74.93(2.950)

60

81.28(3.200)

80.01(3.150)

64

10.16(.400)

12.70(.500)

15.24(.600)

17.78(.700)

20.32(.800)

30.48(1.200)

25.40(1.000)

22.86(.900)

35.56(1.400)

38.10(1.500)

40.64(1.600)

43.18(1.700)

33.02(1.300)

48.26(1.900)

50.80(2.000)

63.50(2.500)

45.72(1.800)

31.75(1.250)

29.21(1.150)

34.29(1.350)

36.83(1.450)

39.37(1.550)

41.91(1.650)

46.99(1.850)

49.53(1.950)

62.23(2.540)

44.45(1.750)

34

40

50

36

38

30

32

26

24

28

A

8.89(.350)

11.43(.450)

13.97(.550)

16.51(.650)

19.05(.750)

24.13(.950)

21.59(.085)

10

16

20

18

14

12

Circuits

8

Dimension

B

10.16(.400)

9

11.43(.450)

15

17.78(.700)

19.05(.750)

25

30.48(1.200)

31.75(1.250)

20.32(.800)

17

21.59(.085)

 CW03 Series 1.27mm(.050") Flat Ribbon Cable

IDC CONNECTORS

226

CA

IDC CONNECTORS

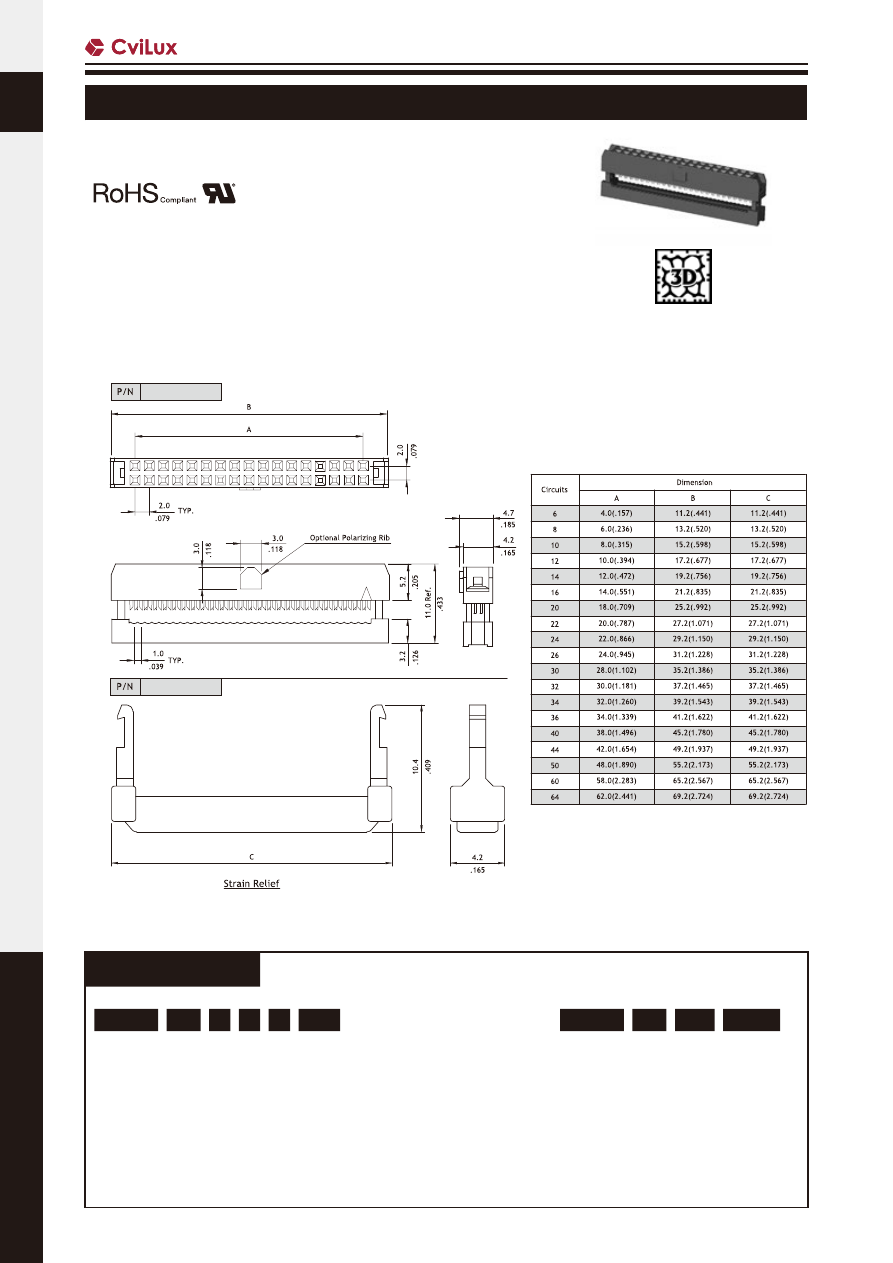

CA11 Series 2.00mm(.079") Center Spacing Flat Cable - IDC Sockets

◎

 Mates with CH71, CH75 and CH74 headers

◎

Can be used CW02 1.00mm(.039") Center Spacing flat ribbon cable

    Ordering Code

①

②

③ ④ ⑤

⑥

①

②

③

④

C A 1  1  6  4  S  A

1

0  0

C A 1  1  6  4

S R

1  0  0

①

Series No.

②

No. of Circuits: See above table

③

Contact Type: S = Socket

④

Plating:

    A = Selective Gold flash over Nickel

   *Optional plating available

     but MOQ requested

⑤

Color: 1 = Black

⑥

Other Options:

     00 = With polarizing rib

             (Standard)

A0 = Without polarizing rib

*Special options consult

manufacturer



①

Series No.

②

Contacts: See above table

③

SR = Strain-Relief

④

Color: 100 = Black

CF

CA11**SA1*00

CA11**SR100

IDC CONNECTORS

227

IDC CONNECTORS

CA

CA21 Series 2.54mm(.100") Center Spacing Flat Cable - IDC Sockets

◎

  Mates with CH81, CH84, CH87 and CH88 Headers

◎



Can be used CW03 1.27mm(.050") Center Spacing flat ribbon cable

    Ordering Code

①

②

③ ④

⑤

⑥

①

②

③

④

C A  2  1 6  4 S

A

1

0  0

C A  2  1 6  4

S  R

1  0  0

①

Series No.

②

No. of Circuits: See above table

③

Contact Type: S = Socket

④

Plating Code:

A = Selective Gold flash over Nickel

*Optional plating available

but MOQ requested



⑤

Color: 1 = Black

⑥

 Other Options:

00 = With polarizing rib

(Standard)

A0 = Without polarizing rib

*Special options consult

manufacturer

①

Series No.

②

Contacts: See above table

③

SR = Strain-Relief

④

Color: 100 = Black

CA21**SA1*00

CA21**SR100

IDC CONNECTORS

228

CA

IDC CONNECTORS

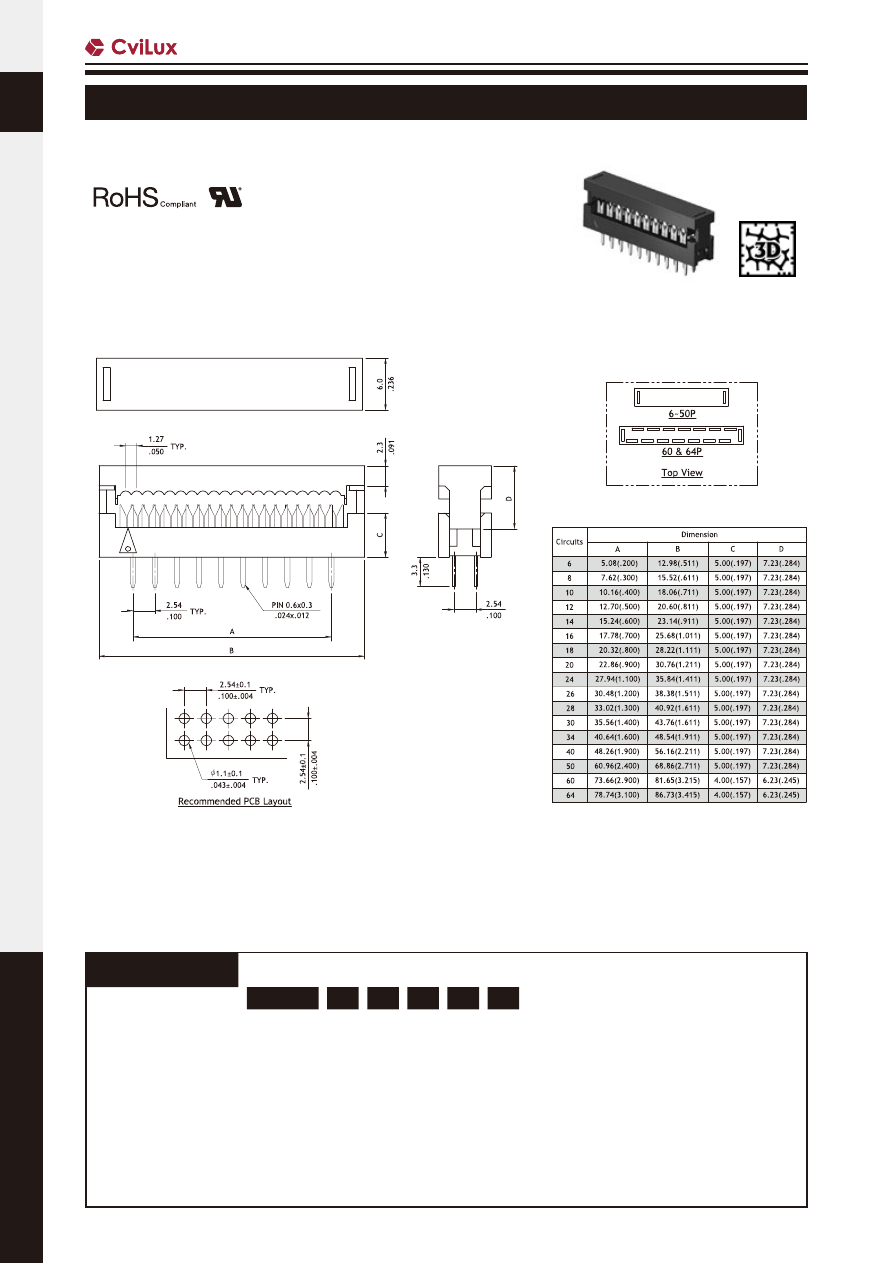

CA23 Series 2.54mm(.100") Center Spacing Flat Cable - IDC DIP Plugs

◎

Can be used CW03 1.27mm(.050) Center Spacing flat ribbon cable

Ordering Code

①

②

③

④

⑤

⑥

C A 2  3

6 4

P

A

1

0 0

NH

①

Series No.

②

No. of Circuits:  See above table

③

Contact Type=P= Plug

④

Plating Code:

     A=Selective Gold flash over Nickel

     *Optional plating available but MOQ requested



⑤

Color:1 = Black

⑥

Other Options:

     00 = Standard

*Special options consult manufacturer

CF
