ETALDOC 407/5

Page 1 of 2

January 2001

PRODUCT DATA SHEET

MICROPROFILE ISDN QUAD CHOKE

P2910

Features

Applications

∗

  7mm seated height

∗

  Basic Rate ISDN





DESCRIPTION

P2910 is a  microprofile current compensated quad
choke to assist ISDN S

o

  equipments meet EMC

requirements. The winding inductance is
maintained at a more constant level than is
achievable with strip-wound cores over the
important decade 100kHz – 1MHz, and leakage
inductance between the windings is exceptionally
low.

SPECIFICATIONS

Electrical

At T = 25ºC unless otherwise stated.

Parameter

Conditions

Min

Typ

Max

Units

Rated indictance of
winding

10kHz

100mV

100kHz  100mV
1MHz

100mV

-
-
-

4.0
3.8
2.5

-
-
-

mH
mH
mH

DC resistance of
windings

-

1.2

-

Ù

Leakage inductance

-

100

-

nH

to Electronic Techniques

(Anglia) Limited

P2910

ETALDOC 407/5

Page 2 of 2

January 2001

CONSTRUCTION

COPYRIGHT

ETAL and P2910 are  Trade Marks of Profec
Technologies Ltd.

The  Trade Mark ETAL and Service Mark ETAL are
registered at the UK Trade Marks Registry.

Profec Technologies Ltd. is the owner of the design
right under the Copyright Designs and Patents Act
1988 and no rights or licences are hereby granted
or implied to any third party.

© 2000 Profec Technologies Ltd.
Reproduction prohibited

T R A N S F O R M I N G    T H E         F U T U R E

Profec Technologies Ltd., 10 Betts Avenue, Martlesham Heath, Ipswich, IP5 3RH, England

                           Telephone: +44 (0) 1473 611422

Fax:  +44 (0) 1473 611919

Websites: www.etal.ltd.uk

www.profec.com

Email:

info@etal.ltd.uk

sales@profec.com

ISO 9001

FM 25326

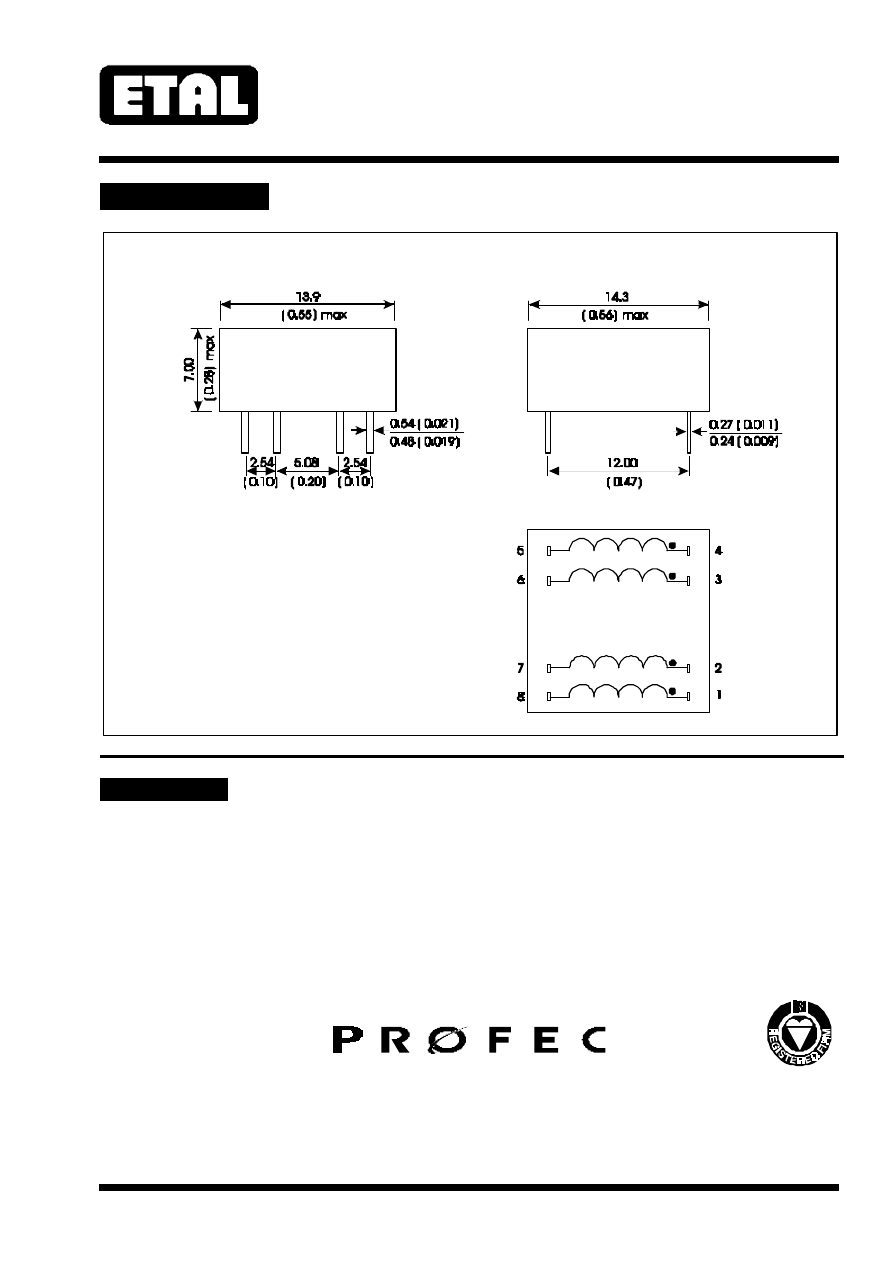

Fig 1  Mechanical Specification
