Cable assembly

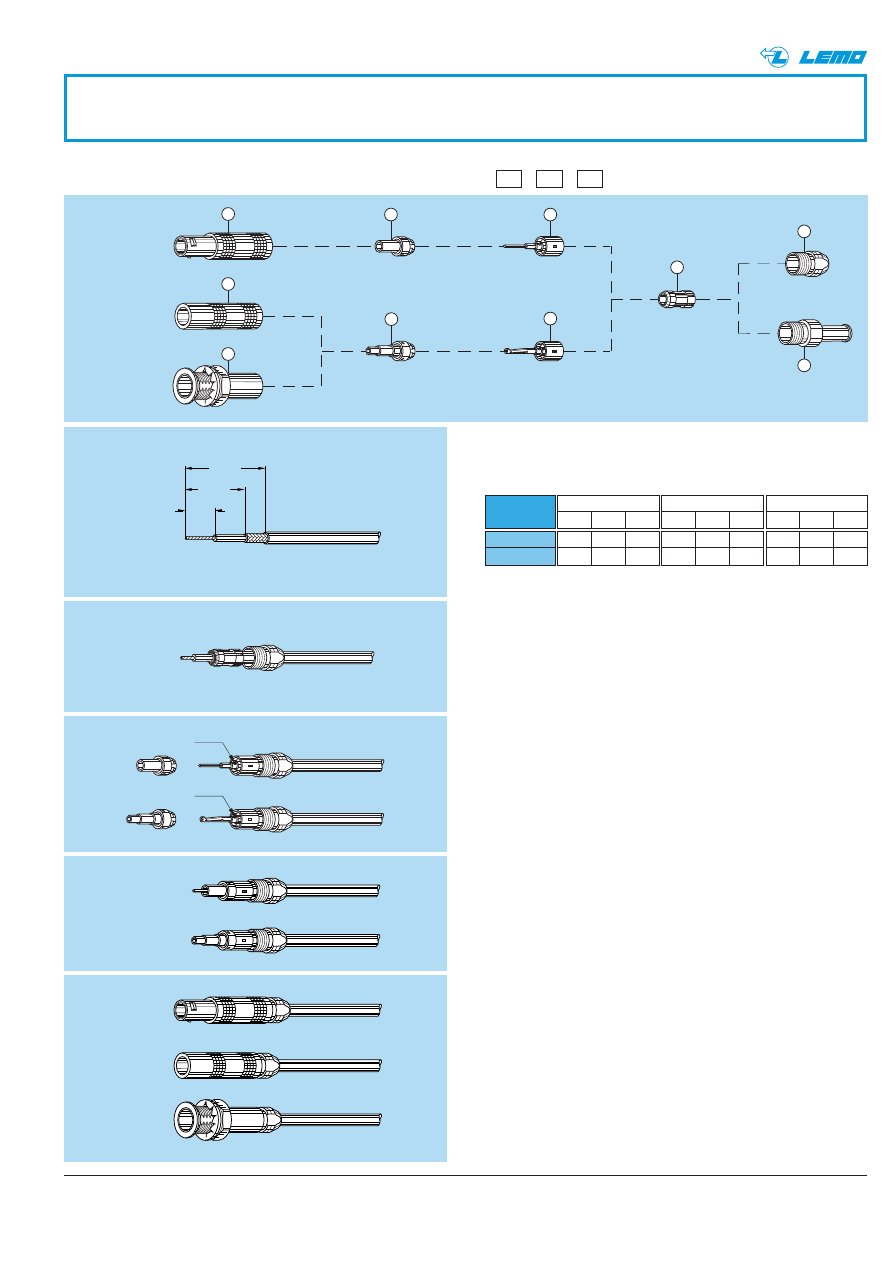

Terminating of plugs and straight sockets with cable collet

M3

M2

M1

5

5

5

2

4

3

3

4

1

1

T

± 0.2

S

± 0.2

L

± 0.2

1.

Cable preparation

First place the bend relief (if to be used) on the cable.
Strip the cable according to dimensions below.

2.

Cable termination

2.1 Place the collet nut

➀

and the collet

➁

on the cable. Fold back the

shield braid onto the conical part of the collet, and trim to the outer
edge of the collet

2.2 Slide the subassembly

➂

to trap the shield braiding and solder the

central conductor into the contact.

Straight plug

Free socket

Fixed socket
nut fixing

Crimp

Crimp

2.3 Slide the insulator

➃

onto the subassembly

➂

until it rests against

the earthing sleeve of the subassembly

➂

.

2.4 Slide the assembly into the connector outer shell

➄

. Screw the

collet nut

➀

into the connector outer shell

➄

using the appropriate

tool and tighten to a torque of 0.25 Nm (see “Tooling” on page 35,
36 and 37). Push the bend relief (if used) onto the collet nut.

Cable
group

1-2-3-4-8

6-7

M1

T

S

L

4

4.5

8

–

–

–

M2

T

S

L

–

–

–

7.5

8.5

13

M3

T

S

L

5

5

8

–

–

–

Note:

these terminating instructions apply to the following models:
M1 = FFA, FFE, FFF, PCA, PSA
M2 = FFY
M3 = FFC

40

www.lemo.com

®

®

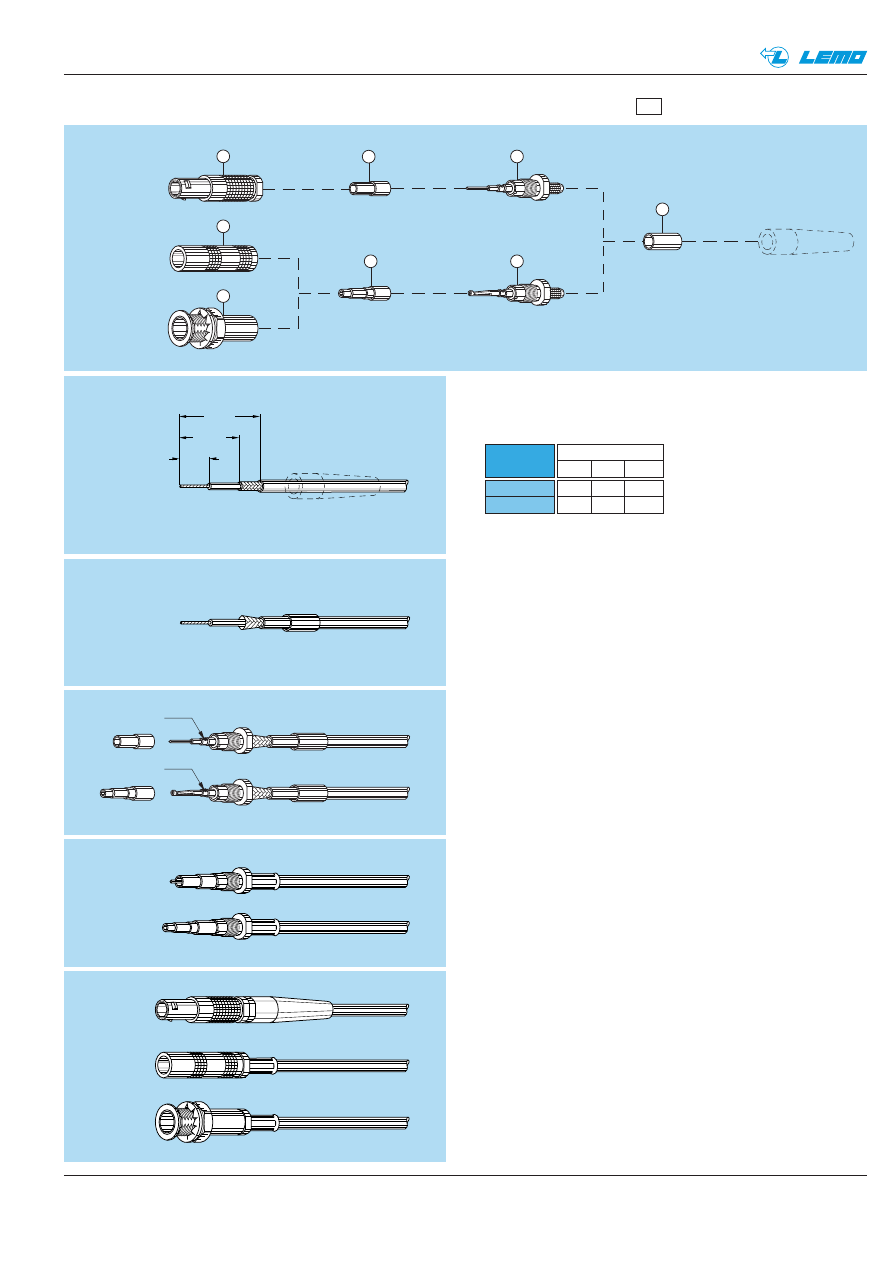

Terminating of plugs and straight sockets with cable crimping (crimp contact)

M4

3

2

2

3

1

4

4

4

T

± 0.2

S

± 0.2

L

± 0.2

1.

Cable preparation

First place the bend relief (if to be used) on the cable.
Strip the cable according to dimensions below.

2.

Cable termination

2.1 Place crimp ferrule

➀

on the cable. Widen the shield braid.

Slide the subassembly

➁

into the cable until the insulator rests

against the dielectric and the cable conductor is visible through
the contact inspection hole.

2.2 Crimp the contact with the LEMO crimping tool using

the square hole (see “Tooling” on page 37).
Gently pull the cable in order to check the crimping.

2.3 Slide the crimp ferrule

➀

onto the shield until it rests against

the crimp backnut of the subassembly

➁

. Crimp with the same

LEMO crimping tool using the hexagonal opening.
Slide the insulator

➂

onto the subassembly

➁

.

2.4 Slide the assembly into the connector shell

➃

and screw it

onto the subassembly

➁

. Tighten using the appropriate tool

to a torque of 0.25 Nm (see “Tooling” on page 35, 36 and 37).
Push the bend relief (if used) onto the crimp ferrule

➀

.

Cable
group

1-2-3-4-8

6-7

M4

T

S

L

7

15

19.5

7

15

21.5

Note:

these terminating instructions apply to the following models:
M4 = FFS, FFV, PCS, PSS, PES

Straight plug

Free socket

Fixed socket
nut fixing

Crimp

Crimp

41

www.lemo.com

®

®

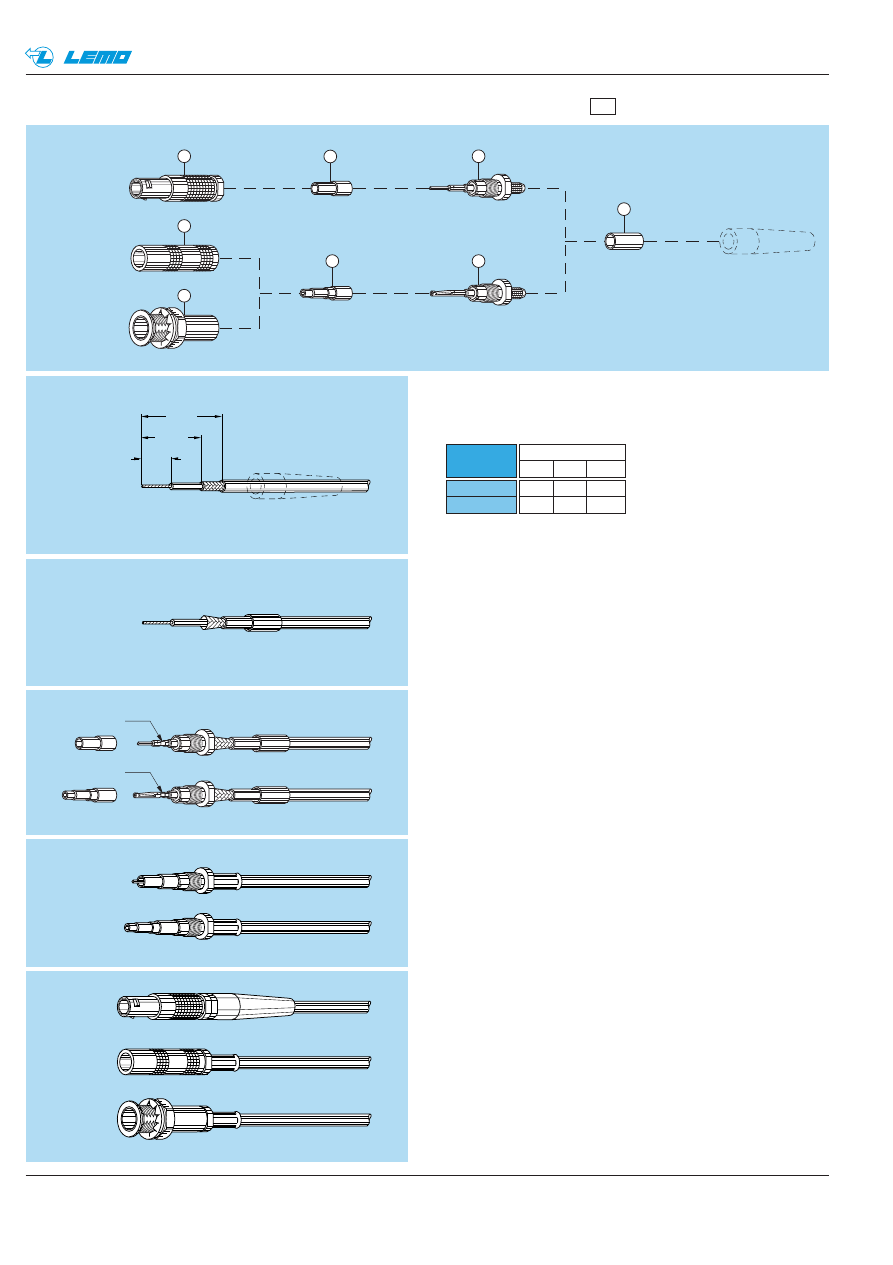

Terminating of plugs and straight sockets with cable crimping  (solder contact)

M5

3

2

2

3

1

4

4

4

T

± 0.2

S

± 0.2

L

± 0.2

1.

Cable preparation

First place the bend relief (if to be used) on the cable.
Strip the cable according to dimensions below.

2.

Cable terminating

2.1 Place the crimp ferrule

➀

on the cable. Widen the shield braid.

Slide the subassembly

➁

over the cable until the insulator rests

against the dielectric and the cable conductor is visible through
the contact solder hole.

2.2 Solder the conductor through the hole.

2.3 Slide the crimp ferrule

➀

onto the shield until it rests against

the crimp backnut of the subassembly

➁

.

Crimp with the LEMO crimping tool using the hexagonal opening
(see “Tooling” on page 37).
Slide the insulator

➂

onto the subassembly

➁

.

2.4 Slide the assembly into the connector shell

➃

and screw

it onto the subassembly

➁

. Tighten using the appropriate tool

to a torque of 0.25 Nm (see tooling on pages 35, 36 and 37).
Push the bend relief (if used) onto the crimp ferrule.

Cable
group

1-2-3-4-8

6-7

M5

T

S

L

5

12

17

5

12

19

Note:

these terminating instructions apply to the following models:
M5 = FFS, FFV

Straight plug

Free socket

Fixed socket
nut fixing

Solder

Solder

42

www.lemo.com

®

®

3

2

1

4

5

L

± 0.2

S

± 0.2

T

± 0.2

2

1

3

4

L

±

 0.2

S

±

 0.2

T

±

 0.2

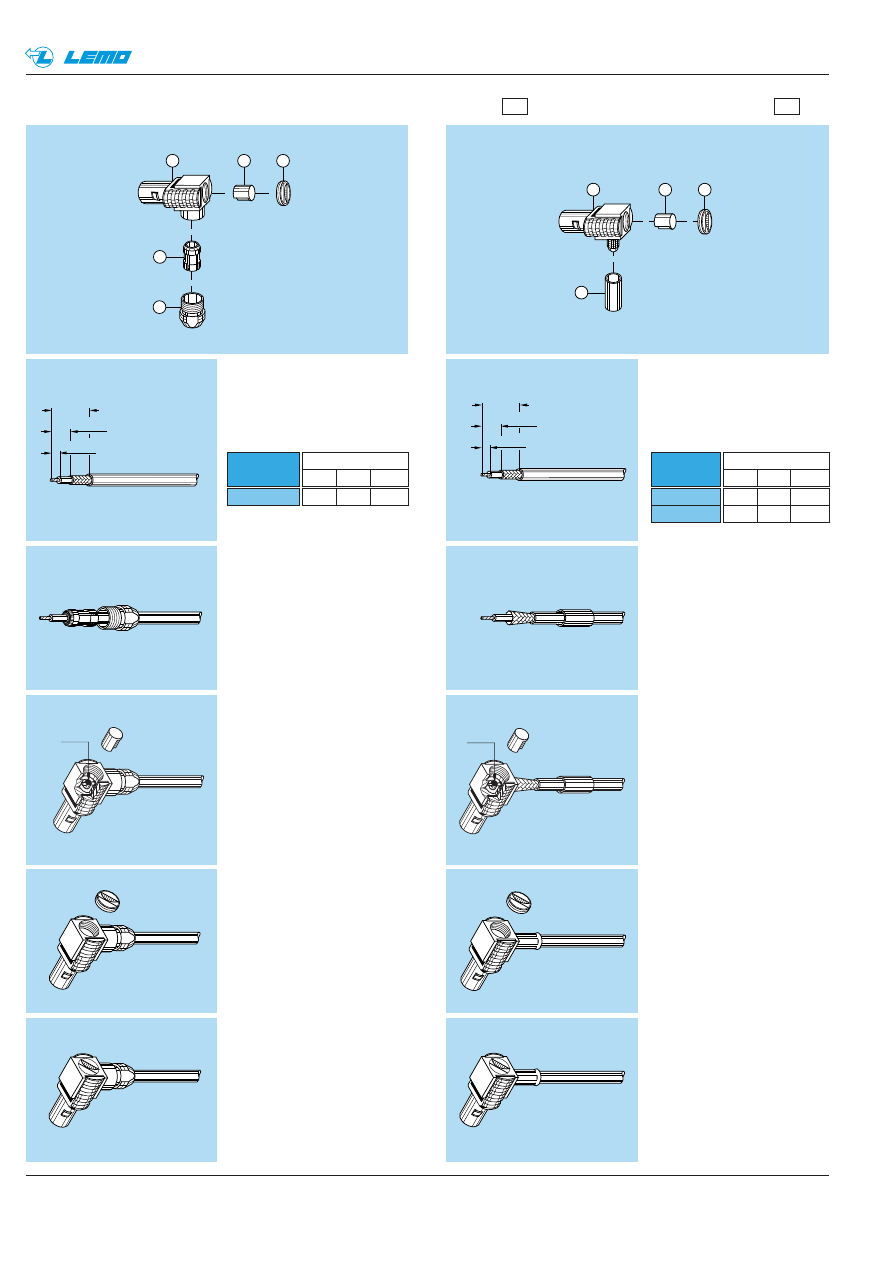

Terminating of elbow plugs (90°) with cable collet (solder contact)

and cable crimp (solder contact)

M7

M6

1.

Cable preparation

First place the bend relief
(if to be used) on the cable.
Strip the cable according to
dimensions below.

2.

Cable terminating

2.1 Place the crimp ferrule

➀

and

collet

➁

on the cable. Fold

back the shield braid onto
the conical part of the collet,
and trim to outer edge of the
collet.

2.2 Slide the assembly into

the connector shell

➂

and tighten the collet nut

➀

using the appropriate tool
to a torque of  0.25 Nm
(see “Tooling” on page 35,
36 and 37). Check that
the cable conductor rests
in the contact slot, solder
the conductor through
the hole.

2.3 Place the insulating sleeve

➃

over the soldered contact.

2.4 Close the access hole with

the flat screw

➄

.

Push the bend relief (if used)
onto the collet nut

➀

.

1.

Cable preparation

First place the bend relief
(if to be used) on the cable.
Strip the cable according to
dimensions below.

2.

Cable terminating

2.1 Place the cable crimp ferrule

➀

on the cable and widen

the braiding.

2.2 Slide the cable into the con-

nector shell

➁

. Check that

cable conductor rests in the
contact slot, tin solder the
conductor through the hole.
Slide the crimp ferrule

➀

over

the braiding until it reaches
the connector shell

➁

. Crimp

with the LEMO crimp tool
using the hexagonal opening
(see “Tooling” on page 37).

2.3 Place the insulating sleeve

➂

over the soldered contact.

2.4 Close the connector hole

with the flat screw

➃

.

Push the bend relief (if used)
onto the crimping tube

➀

.

Note:

these terminating instruc-

tions apply to the following
models:

M6 = FLA

Note:

these terminating instruc-

tions apply to the following
models:

M7 = FLS, FLV

Cable
group

1-2-3-4-8

6-7

M7

T

S

L

1

4.5

9

3

4.5

11

Cable
group

1-2-3-4-8

M6

T

S

L

1

3.5

6.5

Solder

Solder
