With over 16.5 million devices installed in

photovoltaic power systems, Littelfuse

understands the global challenges of the solar

market. Littelfuse offers numerous

circuit-protection products that are uniquely

suited to protect the equipment and systems

subject to the harsh environments of

photovoltaic installations. Items listed

within this catalog, and even newer products

available online, represent over 85 years of

Littelfuse technical expertise and

manufacturing excellence.

The high power research lab in Champaign,

Illinois, USA, provides design and test

capabilities for up to 1500 Vdc. Littelfuse design

engineers and technicians, participate in the

global standards committees and understand the

applications of photovoltaic systems.

Littelfuse products are manufactured in one of six

facilities around the world, supported by a strong

network of suppliers and a knowledgeable sales

channel. This allows Littelfuse to provide the best

products for photovoltaic applications when and

where they are needed.

Technical Expertise and

Manufacturing Excellence

FUSES

FUSE HOLDERS

RELAYS & CONTROLS

VARISTORS
TVS DIODES
POWER DISTRIBUTION

Littelfuse App!

Download our free Littelfuse
Catalogs and Literature App
to keep our products and
technical resources at
your finger tips!

Visit

littelfuse.com/solar

for additional

technical specifications, reference
materials and the latest updates on
new products being developed.

Circuit Protection Products for Photovoltaic Applications

As a global leader in circuit protection, Littelfuse provides a wide selection
of fuses, fuse holders, relays & controls, TVS diodes and varistors. These
products improve system uptime, sustainability and reliability of photovoltaic
power systems. Littelfuse circuit-protection products meet the unique
requirements of photovoltaic applications – where issues such as heat,
efficiency, longevity and global standards impact the choices in
selecting protection options.

In addition to a wide portfolio of circuit-protection products, Littelfuse offers
decades of design experience to help address application challenges and
achieve regulatory compliance.

littelfuse.com/solar

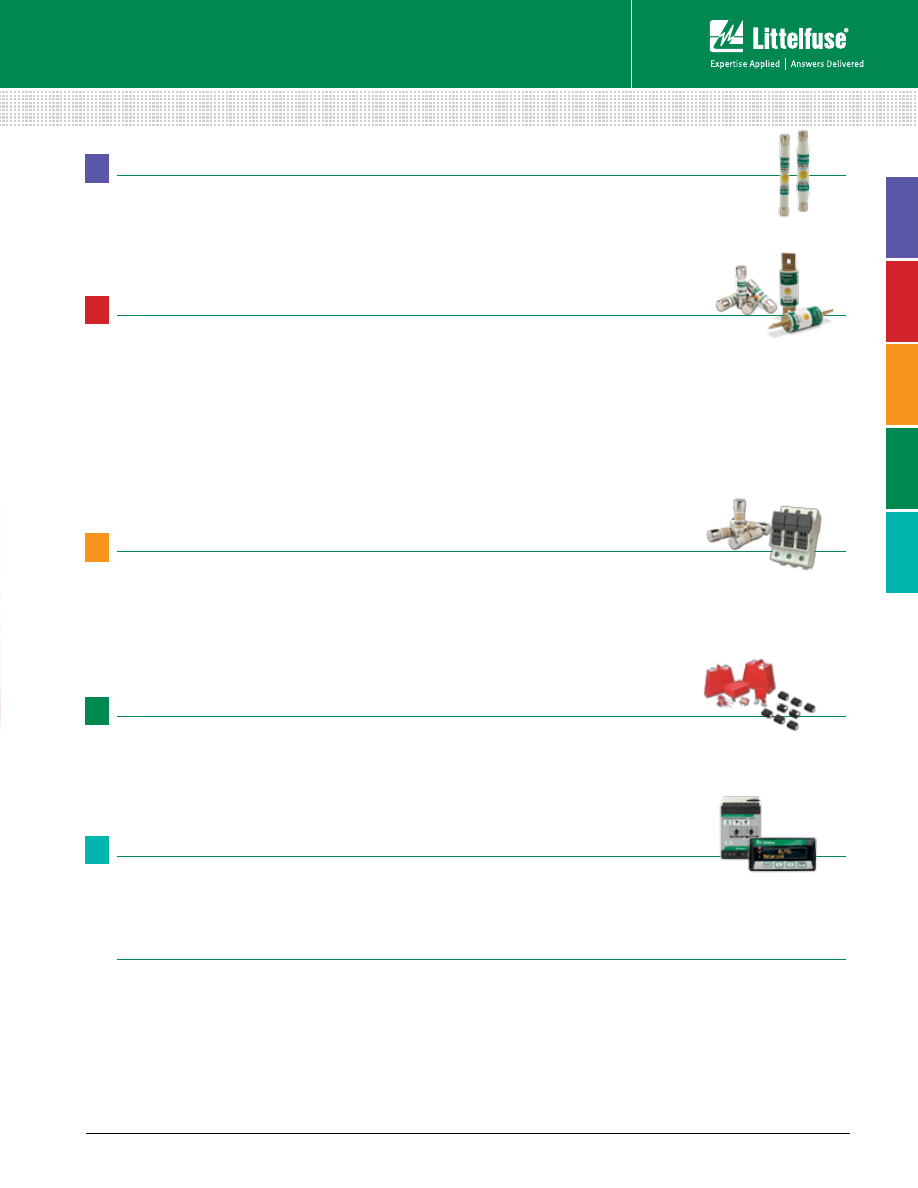

TABLE OF CONTENTS

POWR-GARD

Solar Catalog

1500 Vdc RATED PRODUCTS

SPXV String Fuses ..........................................................................................................................................................................................2
SPXI In-Line Fuses ..........................................................................................................................................................................................3
LPXV Fuse Holders .........................................................................................................................................................................................4

1000 Vdc RATED PRODUCTS

SPFJ High Amperage Fuses ...........................................................................................................................................................................5
SPF String Fuses.............................................................................................................................................................................................6
SPFI In-Line Fuses ..........................................................................................................................................................................................7
LFJ1000 Open-Face Fuse Blocks ....................................................................................................................................................................8
SPFR Class R Fuses ........................................................................................................................................................................................9
SPFRHV Open-Face Fuse Blocks ....................................................................................................................................................................9
LFPHV Touch-Safe Indicating Fuse Holders .................................................................................................................................................10

600 Vdc RATED PRODUCTS

LFPSM Touch-Safe Indicating Fuse Holders ................................................................................................................................................11
POWR-Bar Bus Bar .......................................................................................................................................................................................12
KLKD 10x38mm (Midget) Fuses ...................................................................................................................................................................13
POWR-BLOKS™ Distribution Blocks ............................................................................................................................................................14

ELECTRONIC COMPONENT PRODUCTS

IGBT Power Modules ...................................................................................................................................................................................15
Transient Voltage Suppression (TVS) Diodes ..............................................................................................................................................16
Overvoltage Suppression Varistors (MOV) ..................................................................................................................................................17

PROTECTION RELAY PRODUCTS

SE-601 Ground-Fault Monitor ......................................................................................................................................................................18
EL731 Sensitive Earth-Leakage Relay..........................................................................................................................................................19

APPENDIX

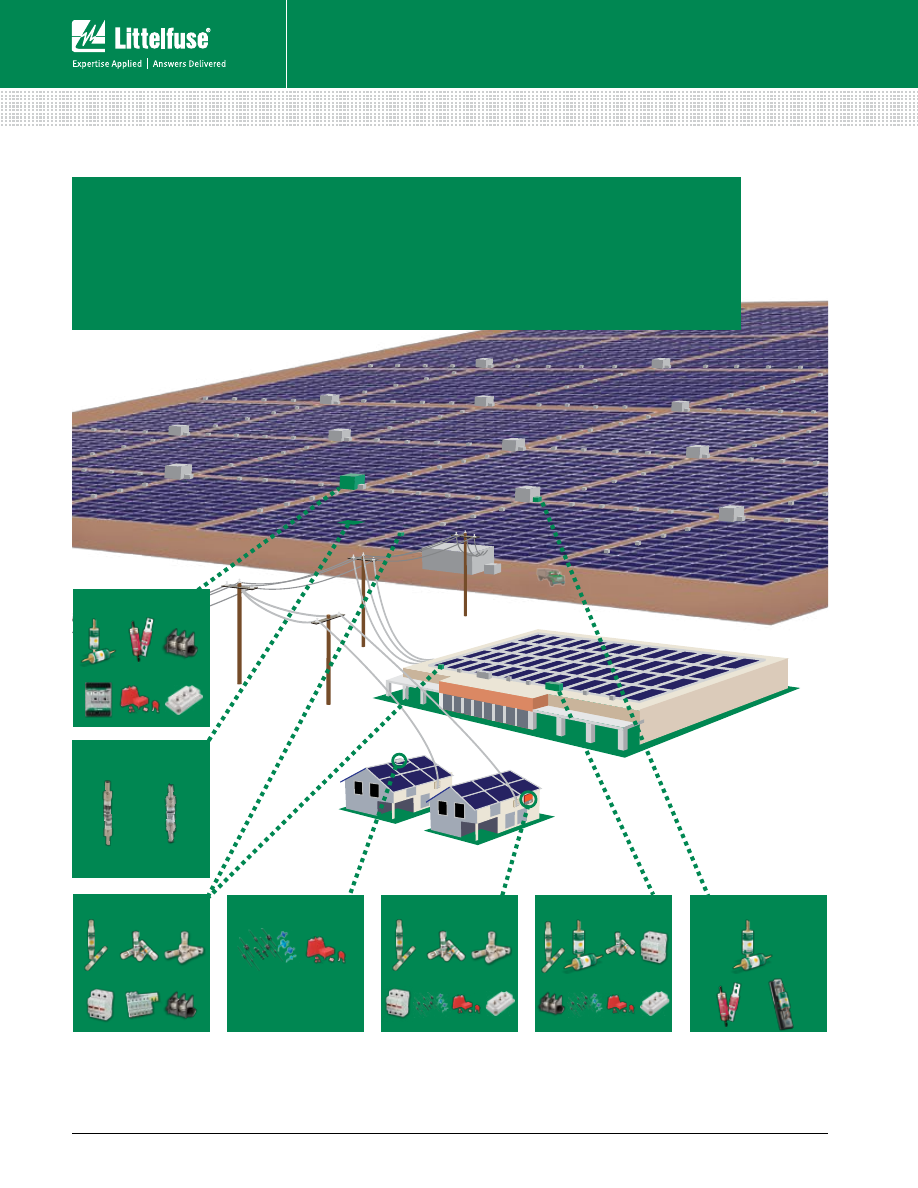

Solar Products by Application ......................................................................................................................................................................20

littelfuse.com/solar

Dimensions inches (mm)

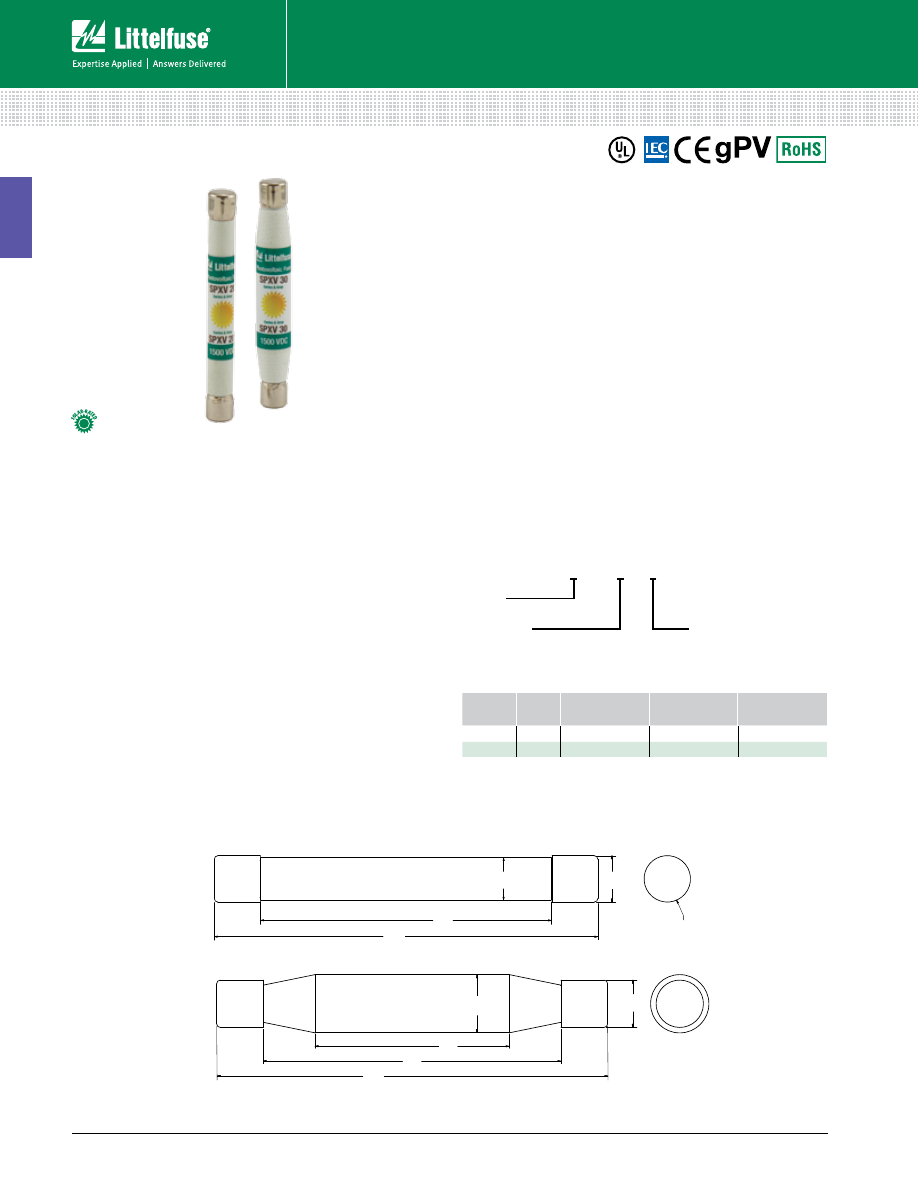

SPXV SERIES SOLAR FUSE

1500 Vdc • 6 – 30 A

6 – 20 A

25 – 30 A

1.67

(42.4)

.50

(12.7)

3.36

(85.3)

2.56

(65.0)

.41

(10.4)

2.55

(64.8)

.38

(9.6)

3.36

(85.3)

.41

(10.4)

ø .41

(10.4)

Specifications

Voltage Rating

1500 Vdc

Amperage Rating

6, 8, 10, 12, 15, 20, 25, 30

Max. Interrupting Rating

15 kA (UL 2579)

30 kA (Littelfuse Self-Certified)

Time Constant

≤

1ms

Material

Body: Melamine

Caps: Copper Alloy

Approvals

UL 2579 Listed (File: E339112)

IEC 60269-6

Environmental

RoHS Compliant

Reach Compliant

Country of Origin

Mexico

Part Numbering System

SPXV xxx T

Package Quantity

Series

Amp Code

T = 10

L = 50

Refer to datasheet

for amp code

SERIES

AMP

PACKAGE

QUANTITY

CATALOG

NUMBER

ORDERING

NUMBER

SPXV

SPXV006

SPXV006.T

SPXV

SPXV030

SPXV030.L

Description

The Littelfuse SPXV solar string fuse is designed
specifically for 6-30 A 1500 Vdc applications.

Features/Benefits

•  10 x 85 mm package size
•  UL 2579 Listed and IEC 60269-6
•  30,000 A interrupting rating

Applications

• Inverters
• Combiner boxes

Recommended Fuse Holder

Littelfuse LPXV Solar Series ......................................... 4

Web Resources

Download the complete datasheet and other technical
documents:

littelfuse.com/spxv

POWR-GARD

1500 V Solar Rated Products

littelfuse.com/solar

POWR-GARD

1500 V Solar Rated Products

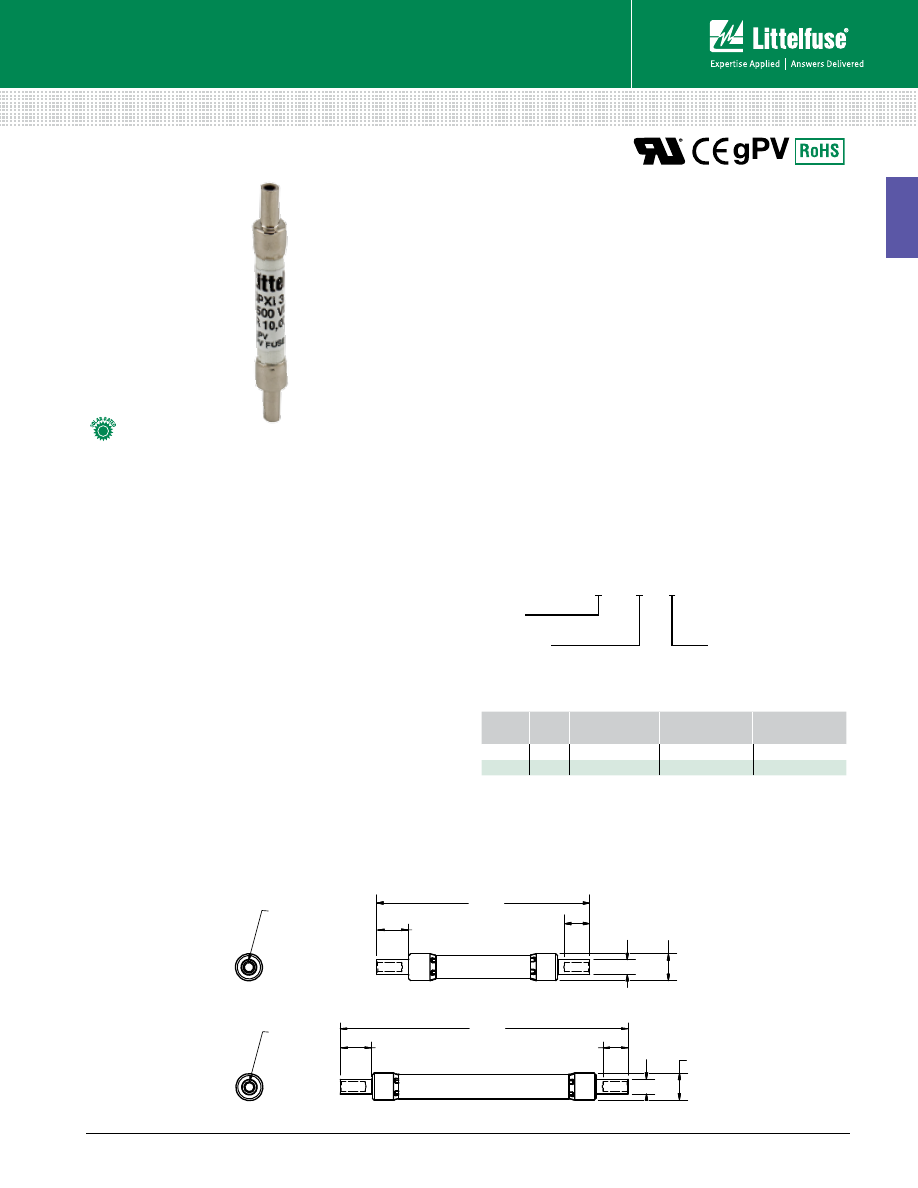

SPXI SERIES IN-LINE SOLAR FUSE

1500 Vdc • 2.5-20 A • Patent Pending

Specifications

Voltage Rating

1500 Vdc

Amperage Rating

2.5, 3.5, 6, 8, 10, 12, 15, 20 A

Max. Interrupting Rating

15 kA (UL 2579)

30 kA (Littelfuse Self-Certified)

Time Constant

≤

1ms

Material

Body: Melamine

Caps: Copper Alloy (Nickel Plated)

Approvals

UL 2579 Recognized (File: E339112)

Environmental

RoHS Compliant

Country of Origin

Mexico

Part Numbering System

SPXI xxx T

Package Quantity

Series

Amp Code

T = 10

L = 50

Refer to datasheet

for amp code

SERIES AMP PACK QUANTITY

CATALOG

NUMBER

ORDERING

NUMBER

SPXI

2.5

SPXI02.5

SPXI02.5T

SPXI

SPXI020

SPXI020.L

Description

The Littelfuse SPXI solar fuse is designed to integrate into
an in-line assembly within a wire harness. The fuse provides
photovoltaic (PV) protection that meets UL 2579 for photovoltaic
applications. The SPXI can be electrically insulated by either
overmolding or using approved heat-shrink.

Features/Benefits

• UL 2579 Recognized
• Meets IEC 60269-6 performance requirements

• 30,000 A interrupting rating capable
• No fuse holder required

Applications

• Photovoltaic wire harness

Recommended Crimping Tool

T&B Sta-Kon ERG4002 or equivalent
Weidmüller HTN 21 or equivalent

Web Resources

Download the complete datasheet and other technical
documents:

littelfuse.com/spxi

Dimensions mm (in)

2.5-3.5 A

6-20 A

10.31

(0.406)

9.53

(0.375)

110.06

(4.333)

12.70

(0.500)

110.06

(4.333)

9.53

(0.375)

9.53

(0.375)

5.59

(0.220)

10.31

(0.406)

10.31

(0.406)

5.59

(0.220)

5.59

(0.220)

81.41

(3.205)

3.56

(0.140)

3.56

(0.140)

3.56

(0.140)

12.26

(0.483)

12.26

(0.483)

12.26

(0.483)

littelfuse.com/solar

POWR-GARD

1500 V Solar Rated Products

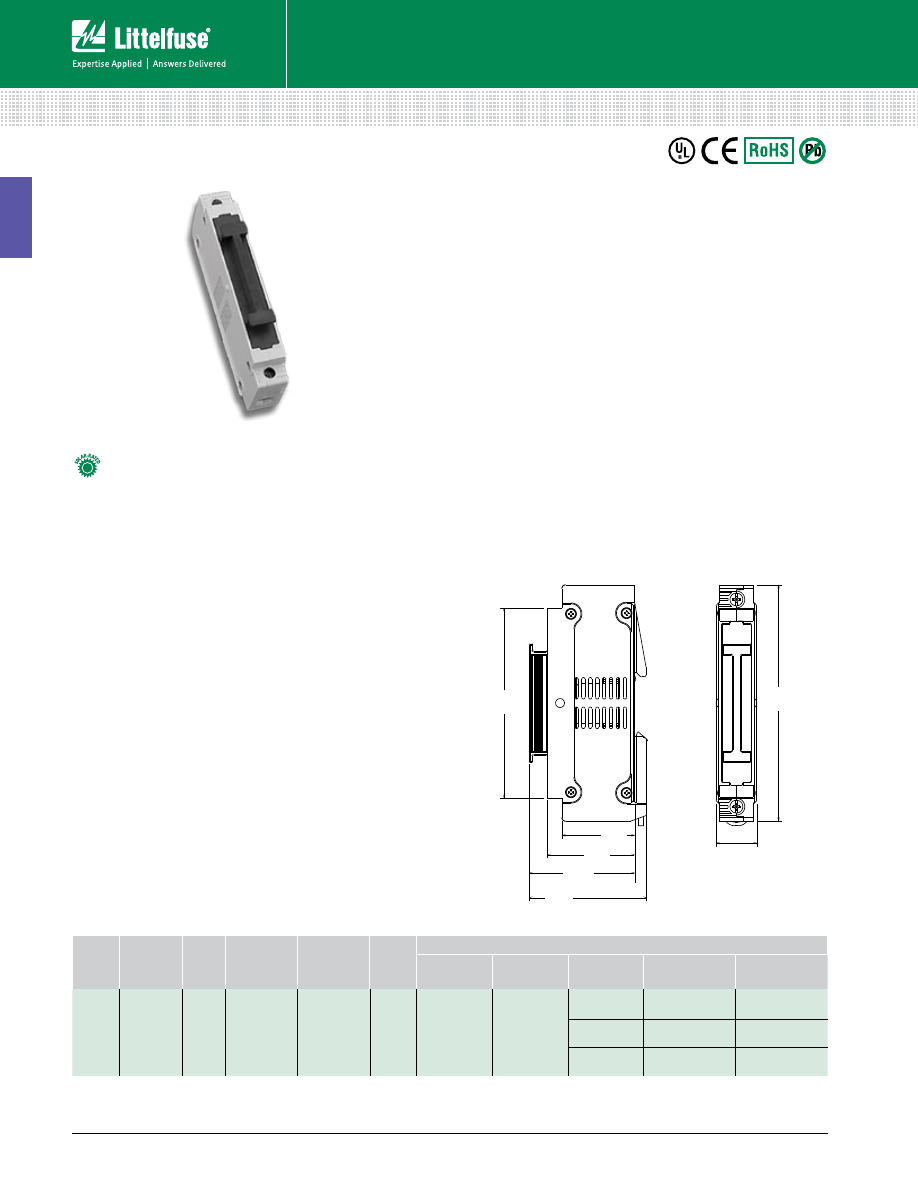

LPXV TOUCH-SAFE FUSE HOLDERS

1500 Vdc • 30 A

Specifications

Voltage Ratings

1500 Vdc

Amperage Rating

30 A

SCCR Rating

15 kA

Fuse Type

10x85mm

Terminal Type

Box Lug

Material

Thermoplastic

Flammability Rating

UL94 V-0

Temperature Stability

Body: 125˚ C

Carrier: 140˚ C

Approvals

UL 4248-18 Listed (File: E345481)

IEC 60269-1 & IEC 60269-2

Environmental

RoHS compliant, Lead (Pb) free

Dimensions Inches (mm)

Ordering Information

Description

The Littelfuse LPXV fuse holder is designed to hold
1500 Vdc 10x85mm fuses.

Features/Benefits

•  Finger-safe design offers personnel protection
•  No fuse pullers or tools required for fuse removal
•  35mm DIN-rail mountable
•  Compact design

Recommended Fuses

Littelfuse SPXV Solar Series ..............................................2

Web Resources

Download the complete datasheet and other technical
documents:

littelfuse.com/

lpxv

SERIES

VOLTAGE

(Vdc)

POLES

CATALOG

NUMBER

ORDERING

NUMBER

PACK

QTY

TERMINAL INFORMATION

TERMINAL

TYPE

WIRE TYPE

NUMBER

OF WIRES

WIRE SIZE

TORQUE

LPXV

1500

LPXV001

LPXV0001Z

Box Lug

90˚ Max

CU Only

Stranded

6-4 AWG

(16-25 mm

)

22-26 lb-in

(2.5-3 N-m)

18-8 AWG

(.75-10 mm

)

18-22 lb-in

(2-2.5 N-m)

18-6 AWG

(.75-16 mm

)

18-22 lb-in

(2-2.5 N-m)

*Must be the same cross-sectioned size

5.1

(130.0)

.88

(22.3)

2.54

(64.5)

4.11

(104.5)

2.28

(58.0)

1.89

(48.0)

1.57

(40.0)

littelfuse.com/solar

POWR-GARD

1000 V Solar Rated Products

Specifications

Voltage Rating

1000 Vdc

600 Vac (125-450 A)

Amperage Rating

70, 80, 90, 100, 125, 160, 200,

250, 300, 350, 400, 450

Max. Interrupting Rating

AC: 200 kAIC (125-450 A)

DC: 70-200 A: 20 kAIC

250-400 A: 10 kAIC
450 A: 20 kAIC

Time Constant

≤

1ms

Material

Body: Melamine

End Bells: Copper Alloy

Approvals

UL 2579 Listed (File: E339112)

UL 248-8, Class J (125-450 A)

C UL (125-450 A)

IEC 60269-6 (125-450 A)

VDE Certified (125-450 A)

(No. 40033659, 40033660, 40033661)

Environmental

RoHS Compliant

Country of Origin

Mexico

Description

The SPFJ series is the smallest 1000 Vdc 70-450 A
photovoltaic fuse available in the market. The SPFJ series is
manufactured in Class J case sizes that allows for both fuse
holder and busbar mounting configuration. The SPFJ meets
both UL and IEC requirements.

Features/Benefits

•  Meets UL and IEC photovoltaic standards
•  VDE certified specifications
•  Small footprint reduces panel size
•  Flexibility of fuse holder or busbar mounting
•  Higher amperage solar fuses in standard sizes
•  UL Listed branch and feeder circuit rated
•  Class J case sizes for the 125-450 A ratings

Applications

• Inverters
• Re-combiner boxes

Recommended Fuse Holders

Littelfuse LFJ1000 Solar Series .................................... 8

Web Resources

Download the complete datasheet, time-current curves,
outline drawings and certifications:

littelfuse.com/spfj

Dimensions Inches (mm)

A
B

AMPERAGE

DIMENSIONS IN INCHES (MM)

70-100

3.02 (76.5)

4.38 (111.3)

5.75 (146.1)

1.5 (38.1)

1.125 (28.3)

.335 (8.5)

.189 (4.8)

125-200

3.02 (76.5)

4.38 (111.3)

5.75 (146.1)

1.5 (38.1)

1.125 (28.3)

.281 (7.1)*

.189 (4.8)

250-400

3.37 (85.7)

5.25 (133.4)

7.125 (181.0)

2.0 (50.8)

1.63 (41.3)

.406 (10.3)

.252 (6.4)

450

3.75 (95.3)

5.98 (152.0)

8.0 (203.2)

2.5 (63.5)

2.0 (50.8)

.531 (13.5)

.374 (9.5)

* SPFJ L option = 8.5 mm (UL 2579 approval only)

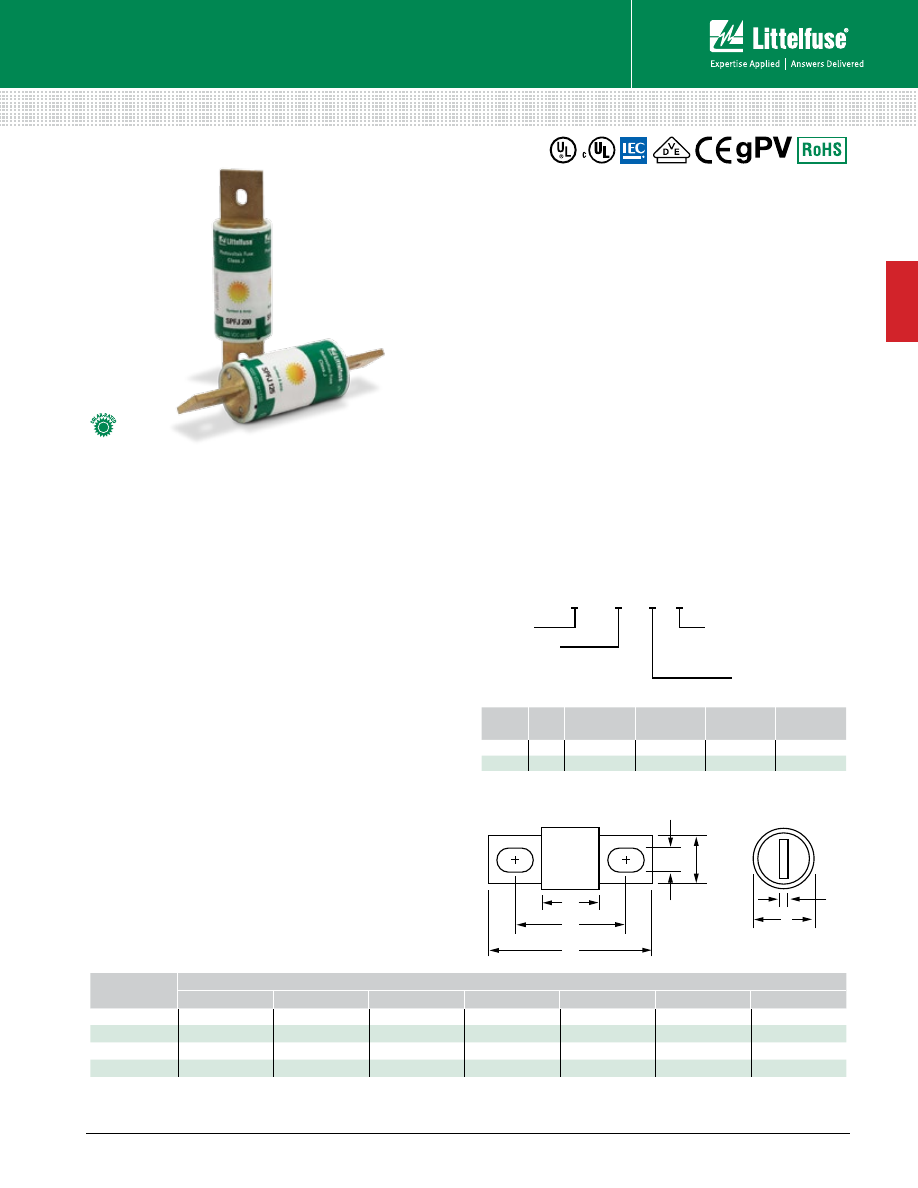

SPFJ SERIES SOLAR FUSE

1000 Vdc • 70-450 A

SERIES AMP

PACKAGE

QUANTITY

MOUNTING

METHOD

CATALOG

NUMBER

ORDERING

NUMBER

SPFJ

CLASS J

SPFJ070

SPFJ070.X

SPFJ

200

LARGE

SPFJ200

SPFJ200.XXL

Part Numbering System

SPFJ xxx X —

Package Quantity

Series

Mounting Options

Amp Code

X = 1

Blank = Class J

XL = 8.5mm opening

Refer to datasheet

for amp code

littelfuse.com/solar

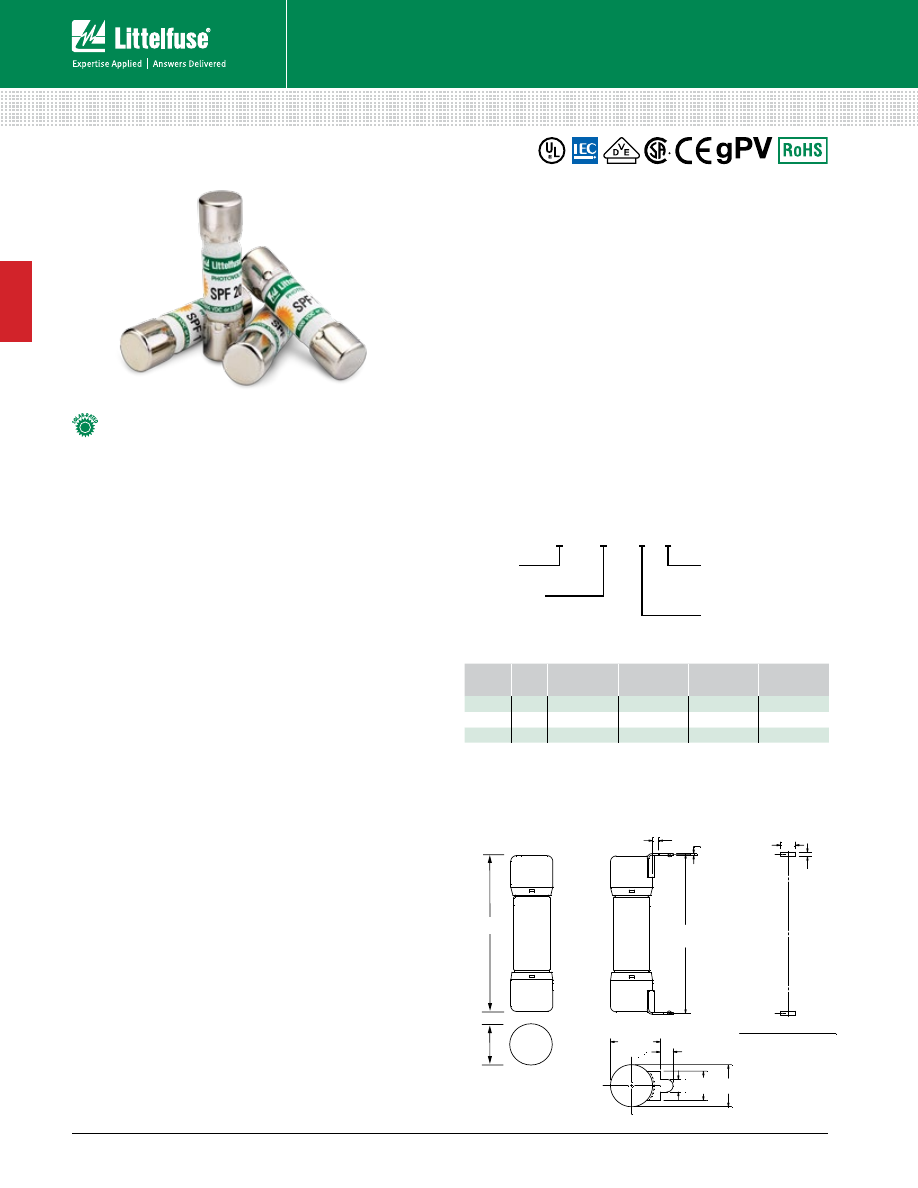

SPF SERIES 10x38mm SOLAR FUSES

1000 Vdc • 1-30 A

Specifications

Voltage Rating

1000 Vdc

Amperage Rating

1, 2, 3, 3.5, 4, 5, 6, 8, 10, 12, 15, 20, 25, 30

Max. Interrupting Rating

20 kA

Time Constant

≤

2ms

Material

Body: Melamine

Caps: Copper Alloy

Approvals

UL 2579 Listed (File: E339112)

IEC 60269-6 (1-25 A)

VDE Certified (No. 40033098)

CSA Certified (File: 029862_0_000)

Environmental

RoHS Compliant

Country of Origin

Mexico

Part Numbering System

Description

The SPF Solar Protection Fuse series has been specifically
designed for the protection of photovoltaic (PV) systems.
This series of Midget style fuses (10 x 38 mm) can
safely protect PV modules and conductors from reverse-
overcurrent conditions.
As PV systems have grown in size, so have the
corresponding voltage requirements. This increase in
system voltage has typically been intended to minimize
power loss associated with long conductor runs. Standard
circuit protection devices are not designed to completely
protect photovoltaic panels. However, the SPF series is
UL Listed to safely interrupt faulted circuits up to this
demanding voltage level.

Features/Benefits

• Meets UL, IEC and VDE photovoltaic standards

•  UL 2579 Listed 1000 Vdc maximum
•  1-30 A ratings available
•  20,000 A Interrupting Rating
•  Both PCB mount and dead-front holder options available

Applications

•  Inverters
•  Combiner boxes
•  Battery charge controllers

Recommended Fuse Holders

Littelfuse LFPHV Indicating Series ................................... 10

Web Resources

Download the complete datasheet, time-current curves,
outline drawings and certifications:

littelfuse.com/spf

.06 (1.52)

.14

(3.56)

.04

(1.02)

.02 (.51)

1.53

(38.86)

.50 (12.7)

.12 (3.05)

MOUNTING HOLE

DETAIL

.406 (10.31)

.12

(3.05) .28

(7.11)

1.5 (38.1)

.406

(10.31)

Dimensions Inches (mm)

Ferrule Version

PCB Version

SERIES AMP

PACKAGE

QUANTITY

MOUNTING

METHOD

CATALOG

NUMBER

ORDERING

NUMBER

SPF

FERRULE

SPF002

0SPF002.T

SPF

3.5

FERRULE

SPF03.5

0SPF03.5T

SPF

100

PCB TABS

SPF030R

0SPF030.HXR

0SPF xxxx H XR

Package Quantity

Series

Mounting Options

Amp Code

T = 10

H = 100

Blank = Ferrule

XR = PCB

Refer to datasheet

for amp code

POWR-GARD

1000 V Solar Rated Products

littelfuse.com/solar

POWR-GARD

1000 V Solar Rated Products

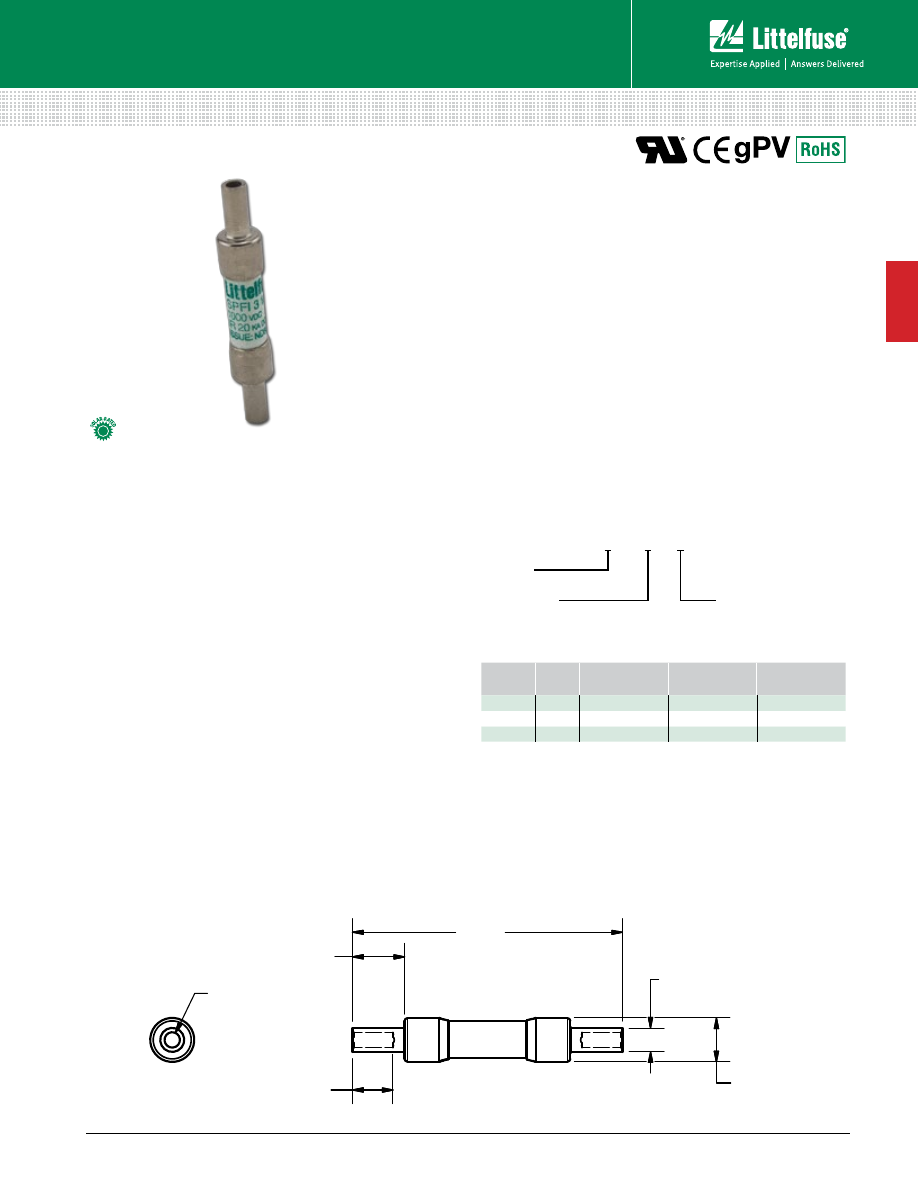

SPFI SERIES IN-LINE SOLAR FUSE

1000 Vdc • 2-30 A • Patent Pending

Specifications

Voltage Rating

1000 Vdc

Amperage Rating

2, 3, 3.5, 4, 5, 6, 8, 10, 12, 15, 20, 25, 30

Max. Interrupting Rating

20 kA

Time Constant

≤

1ms

Material

Body: Melamine

Caps: Copper Alloy (Nickel Plated)

Approvals

UL 2579 Recognized (File: E339112)

Environmental

RoHS Compliant

Country of Origin

Mexico

Part Numbering System

Description

The Littelfuse SPFI solar fuse has been designed to
integrate into an in-line assembly within a wire harness.
The fuse provides photovoltaic (PV) protection is UL 2579
Recognized for photovoltaic applications. The SPFI can
be electrically insulated by either overmolding or using
approved heat-shrink.

Features/Benefits

•  UL 2579 Recognized (2-20 A only)
•  Meets IEC 60269-6 performance requirements for 2-25 A
•  20,000 A Interrupting Rating
•  No fuse holder required

Applications

• Photovoltaic wire harness

Recommended Crimping Tool

T&B Sta-Kon ERG4002 or equivalent
Weidmüller HTN 21 or equivalent

Web Resources

Download the complete datasheet, time-current curves,
outline drawings and certifications:

littelfuse.com/spfi

Dimensions mm (in)

SERIES

AMP

PACKAGE

QUANTITY

CATALOG

NUMBER

ORDERING

NUMBER

SPFI

SPFI002

SPFI002.T

SPFI

3.5

SPFI03.5

SPFI03.5T

SPFI

SPFI020

SPFI020.L

SPFI xxx T

Package Quantity

Series

Amp Code

T = 10

L = 50

Refer to datasheet

for amp code

63.50

(2.50)

12.26

(0.483)

Typ. 2

5.59

(0.22)

Typ. 2

10.31

(0.406)

Typ. 2

9.53

(0.375)

Typ. 2

ø 3.56

(0.140)

littelfuse.com/solar

POWR-GARD

1000 V Solar Rated Products

Clip-to-Box Lug

Specifications

Voltage Ratings

1000 Vdc

Ampere Ratings

200, 400, 450

SCCR Rating

See ordering information table

Flammability Rating

UL94 V-0

Termination Type

Box Lug or Stud Mount

Base Temp Rating

130˚ C

Approvals

UL 4248-18 Listed (File: E345481)

Environmental

RoHS Compliant

Recommended Fuses

Littelfuse SPFJ Solar Series .......................................... 5

Web Resources

Download the complete datasheet, outline drawings,
3-D models and certifications:

littelfuse.com/LFJ1000

Dimensions

Reference complete datasheet for product dimensions.

Stud-to-Stud

Clip-to-Stud

Description

The LFJ1000 series fuse block is specifically designed for
the Littelfuse SPFJ 1000 V Solar Fuse. The holder meets
UL electrical requirements, is available in multiple
amperages, and comes in a variety of fuse mounting
and termination configurations— fuse clip to box lug,
fuse stud to wire stud and fuse clip to wire stud.

Features/Benefits

•  Narrow width increases space savings
•  Range of amperages to match all SPFJ fuse options
•  Box lug termination style accommodates a wide

range of cable sizes

• Stud-mounted option increases convenience
• Approval for use with copper or aluminum lugs

allowing for design flexibility

Ordering Information

(Clip-to-Box Lug 1000 V)

AMPERAGE

ORDERING

NUMBER

INTERRUPT

RATING

WIRE RANGE

STANDARD (METRIC)

WIRE TYPE

RECOMMENDED

TORQUE

200

LFJ102001C

20 kA

250 kcmil - #6 (127mm

- 16mm

)

Cu/Al

Solid/

Stranded

275 in-lb (31.1 N-m)

400

LFJ104001C

10 kA

350 kcmil - 1/0 (177mm

- 55mm

)

275 in-lb (31.1 N-m)

450

LFJ104501C

20 kA

500 kcmil - #4 (253mm

- 25mm

)

375 in-lb (42.4 N-m)

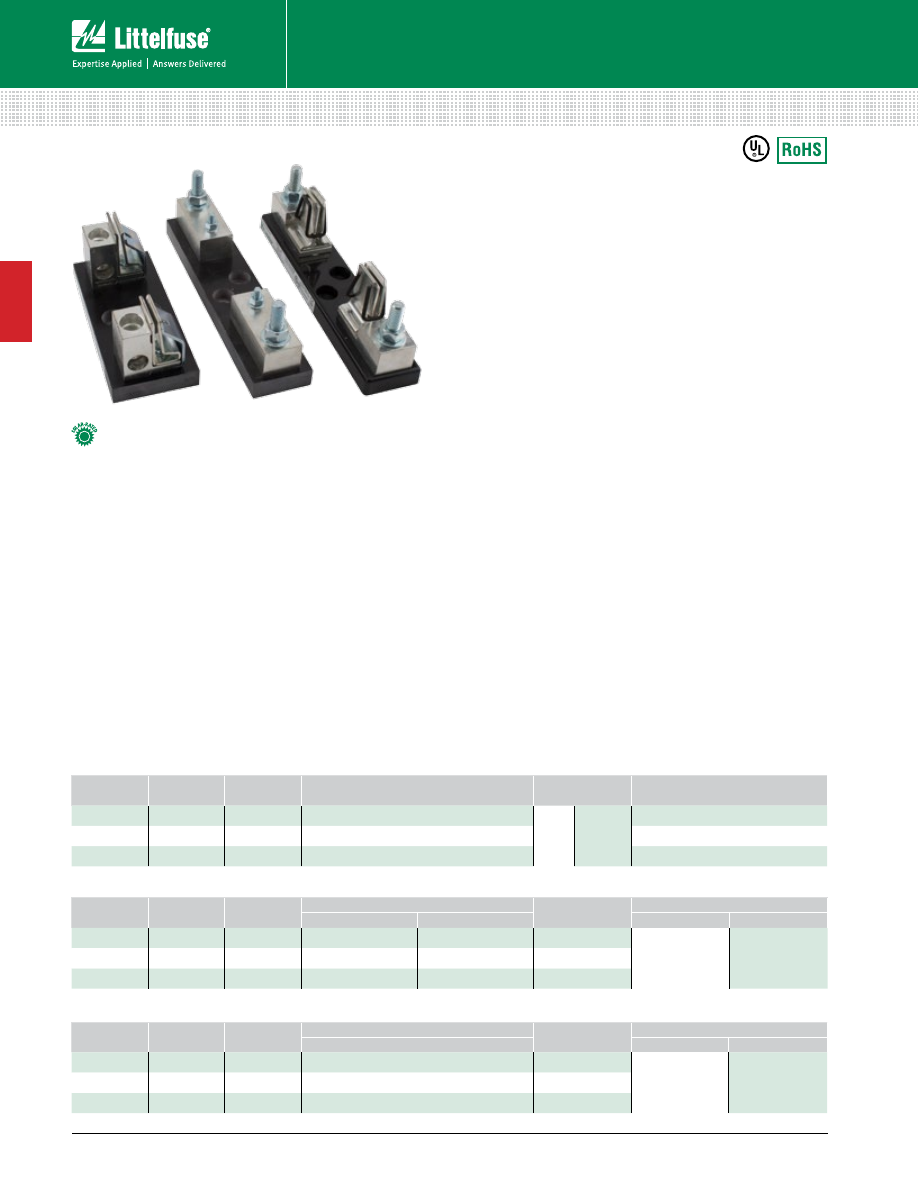

LFJ1000 SERIES SOLAR FUSE BLOCK

1000 Vdc • Clip-to-Box • Stud-to-Stud • Clip-to-Stud

(Stud-to-Stud 1000 V)

AMPERAGE

ORDERING

NUMBER

INTERRUPT

RATING

RECOMMENDED TORQUE

MAX. BUSBAR

THICKNESS

RECOMMENDED BASE TORQUE

FUSE

TERMINAL

BOLT SIZE

TORQUE

200

LFJ102001STST

20 kA

65 in-lb (7.3 N-m)

200 in-lb (22.6 N-m)

.774” (19.66 mm)

1/4”

5/16”

30-40 in-lb

40-50 in-lb

400

LFJ104001STST

10 kA

170 in-lb (19.2 N-m)

200 in-lb (22.6 N-m)

.555” (14.10 mm)

450

LFJ104501STST

20 kA

300 in-lb (33.9 N-m)

.570” (14.18 mm)

(Clip-to-Stud 1000 V)

AMPERAGE

ORDERING

NUMBER

INTERRUPT

RATING

RECOMMENDED TORQUE

MAX. BUSBAR

THICKNESS

RECOMMENDED BASE TORQUE

TERMINAL

BOLT SIZE

TORQUE

200

LFJ102001CST

20 kA

200 in-lb (22.6 N-m)

.774” (19.66 mm)

1/4”

5/16”

30-40 in-lb

40-50 in-lb

400

LFJ104001CST

10 kA

200 in-lb (22.6 N-m)

.555” (14.10 mm)

450

LFJ104501CST

20 kA

300 in-lb (33.9 N-m)

.570” (14.18 mm)

littelfuse.com/solar

POWR-GARD

1000 V Solar Rated Products

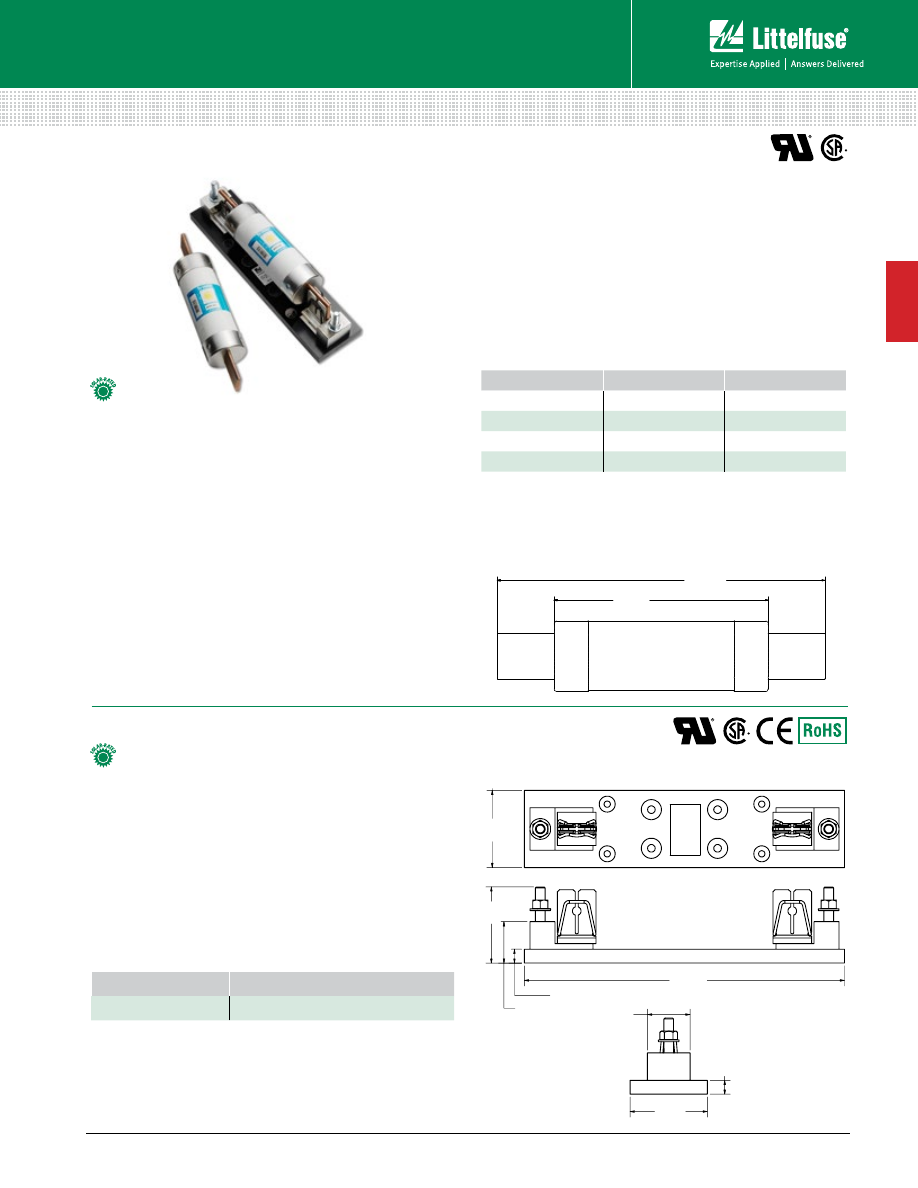

SPFR SERIES AND SPFRHV SERIES

1000 Vdc • 250-400 A

88.90

(3.50)

15.88

(0.625)

47.58

(1.873)

87.63

(3.45)

368.30

(14.50)

49.0

(1.93)

88.90

(3.50)

15.88

(0.625)

Specifications

Voltage Rating

1000 Vdc

Ampere Rating

250, 300, 350, 400

Interrupting Rating

10 kA; Time Constant less than 1 ms

Fuse Type

Fast-acting

Approvals

UL 248 Recognized (File: 71611)

CSA Certified (File: 29862)

Ordering Information

Dimensions mm (inches)

298.80

(11.76)

189.94

(7.48)

AMPERAGE

PART NUMBER

ORDERING NUMBER

250

SPFR 250

SPFR250.X

300

SPFR 300

SPFR300.X

350

SPFR 350

SPFR350.X

400

SPFR 400

SPFR400.X

Web Resources

Download CAD drawings and other technical information:

littelfuse.com/spfr

Dimensions mm (inches)

Description

The Littelfuse SPFRHV fuse block is designed to hold

Littelfuse high amperage (250-400 A) SPFR fuses.

Specifications

Voltage Rating

1000 Vdc

Amperage Rating

250 - 400 A

Approvals

UL 4248 Recognized (File: E14721)

CSA (File: 29862)

Environmental

RoHS Compliant

Ordering Information

Web Resources

Download CAD drawings and other technical information:

littelfuse.com/spfrhv

Description

The SPFR series was designed to meet the growing needs

of the solar industry with higher amperage and voltage re-

quirements. It was developed specifically for solar applica-

tions, ranging from 250 to 400 A.

Applications

• Solar inverters

• High-amperage combiner boxes

Features/Benefits

• DC Voltage rating meets European system requirements

and North American utility scale requirements

• Multiple amperage ratings

• UL Class H Dimensions

• Full Range Protection

1000 Vdc • 250-400 A

AMPERAGE

ORDERING NUMBER

250 – 400

SPFRHV4001ST

littelfuse.com/solar

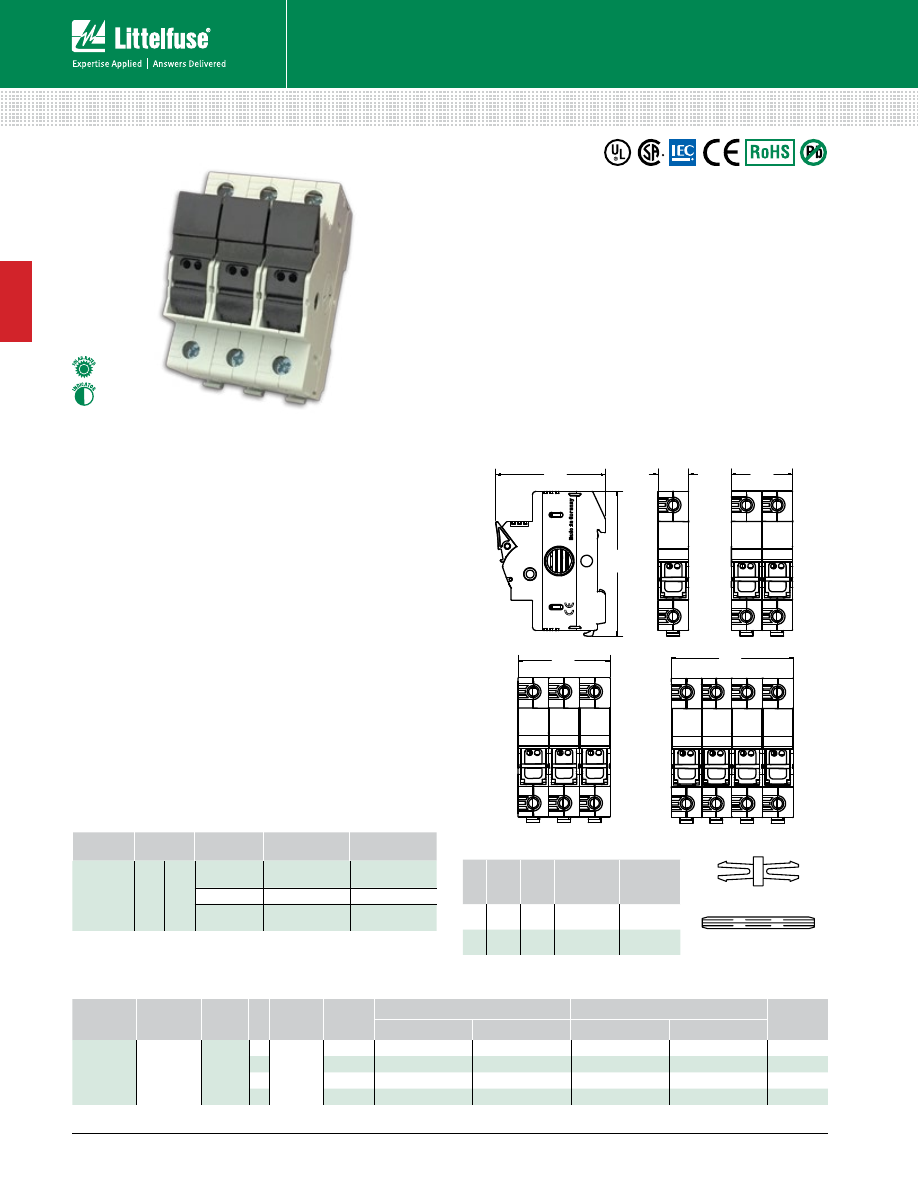

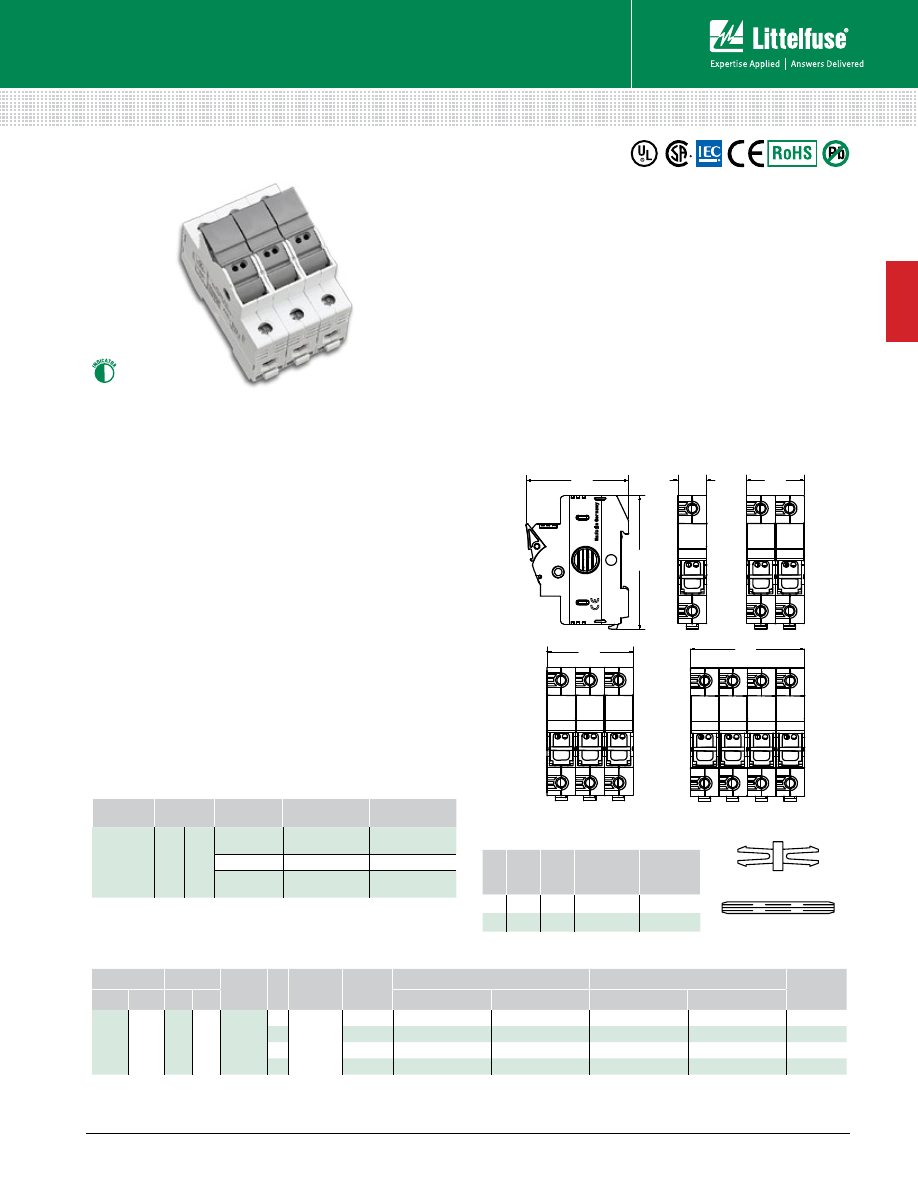

LFPHV DEAD-FRONT 10x38mm (MIDGET) FUSE HOLDERS

1000 Vdc • 30 A

POWR-GARD

1000 V Solar Rated Products

Specifications

Voltage Ratings

1000 Vdc

Ampere Rating

30 A

SCCR Rating

33 kA

Power Acceptance

4W Maximum

Indication Voltage Range

400-1000 Vdc

Terminal Type

Pressure Plate

Material

Thermoplastic

Flammability Rating

UL94 V-0, self-extinguishing

Approval

UL Listed (File: E345481)

CSA Certified

IEC 60269

Environmental

RoHS compliant, Lead (Pb) free

Dimensions mm (inches)

Description

The Littelfuse LFPHV fuse holder is designed to house
1000 Vdc 10x38mm (midget style) fuses. It is not designed for
load break but is ideal for isolating photovoltaic module strings
for maintenance and meets UL requirements for 1000 Vdc solar
fuse protection.

Features/Benefits

• Finger-Safe design offers personnel protection

• Compact design

• 35 mm DIN Rail Mountable

• No fuse pullers or tools required for fuse removal

• Indication option available

• Approved for field wiring

Web Resources

Download technical documents:

littelfuse.com/lfphv

Recommended Fuses

Littelfuse SPF Solar Series .................................................6

Ordering Information

(LFPHV 10x38mm)

VOLTAGE

AMPERE

SCCR

Rating

POLES

FUSE TYPE SERIES

NON-INDICATING

INDICATING

PACK

QUANTITY

CATALOG NUM.

ORDERING NUM.

CATALOG NUM.

ORDERING NUM.

1000 Vdc

30 A

33 kA

10x38mm

(midget)

LFPHV

LFPHV001

LFPHV0001Z

LFPHV001ID

LFPHV0001ZXID

LFPHV

LFPHV002

LFPHV0002Z

LFPHV002ID

LFPHV0002ZXID

LFPHV

LFPHV003

LFPHV0003Z

LFPHV003ID

LFPHV0003ZXID

LFPHV

LFPHV004

LFPHV0004Z

LFPHV004ID

LFPHV0004ZXID

Terminal Information

TERMINAL

TYPE

WIRE

TYPE

NUMBER

OF WIRES

WIRE SIZE

TORQUE

Pressure

Plate

90˚ Max

CU Only

Stranded

18-8 AWG

(.75 -.25 mm

)

18-22 lb-in

(2-2.5 N-m)

6-4 AWG

22-26 lb-in

†

18-6 AWG

(.75 -10 mm

)

18-22 lb-in

(2-2.5 N-m)

*Contact Tech-Line (800-TEC-FUSE) for other wire types.

†

Must be the same cross-sectioned size*

83.20

(3.28)

62.82

(2.47)

71.20

(2.803)

35.60

(1.402)

17.80

(0.701)

53.40

(2.102)

Connector Pincer

Handle Pin

Multi-Pole Assembly Kits

POLES

PINCER

QTY.

ASSEMBLY

SETS

ORDERING

NUMBER

10 pack

LFPHV2PAK

10 pack

LFPHV3PAK

littelfuse.com/solar

POWR-GARD

1000 V Solar Rated Products

LFPSM SERIES DEAD-FRONT FUSE HOLDERS

600 V • 10x38mm • Touch-Safe • Indication

Specifications

Voltage Rating

UL: 600 Vac/dc

IEC: 690 Vac

Ampere Rating

UL: 30 A

IEC: 32 A

SCCR Rating

100 kA (Midget)

Power Acceptance

3W Maximum

Indication Voltage Range

110-690 Vac/dc

Terminal Type

Pressure Plate

Material

Thermoplastic

Flammability Rating

UL94 V-0, self-extinguishing

Approvals

UL Listed (File: E14721)

CSA Certified

IEC 60269

Environmental

RoHS compliant, Lead (Pb) free

Dimensions mm (inches)

Description

Littelfuse LFPSM 10x38mm dead-front holders feature
optional LED indication, DIN rail mounts and a small
space saving design. These high SCCR rated holders
provide optimum protection to personnel and have a large
clamping range with dual wire rated terminals.

Features

•  Indicating and non-indicating options available
•  Dual LED indication distinguishes polarity in DC applications
•  Small compact design offers ultimate flexibility
•  35 mm DIN-Rail Mountable
•  1-, 2-, 3- and 4-pole configurations
•  Easy installation and fuse removal with no additional

pullers or tools required

Web Resources

Download technical documents at:

littelfuse.com/lfpsm

Recommended Fuses

Littelfuse KLKD Solar Series ............................................ 13

Ordering Information

VOLTAGE

AMPERE

SCCR

Rating

POLES

FUSE
TYPE

SERIES

NON-INDICATING

INDICATING

PACK

QUANTITY

IEC

UL IEC

CATALOG NUM.

ORDERING NUM.

CATALOG NUM.

ORDERING NUM.

600

Vac/dc

690

Vac 30 A 32 A 100 kA

10x38mm

(Midget)

LFPSM

LFPSM001

LFPSM0001Z

LFPSM001ID

LFPSM0001ZXID

LFPSM

LFPSM002

LFPSM0002Z

LFPSM002ID

LFPSM0002ZXID

LFPSM

LFPSM003

LFPSM0003Z

LFPSM003ID

LFPSM0003ZXID

LFPSM

LFPSM004

LFPSM0004Z

LFPSM004ID

LFPSM0004ZXID

Connector Pincer

Handle Pin

Multi-Pole Assembly Kits

POLES

PINCER

QTY.

ASSEMBLY

SETS

ORDERING

NUMBER

10 pack

LFPHV2PAK

10 pack

LFPHV3PAK

Terminal Information

TERMINAL

TYPE

WIRE

TYPE

NUMBER

OF WIRES

WIRE SIZE

TORQUE

Pressure

Plate

75˚ Max

CU Only

Stranded

18-8 AWG

(.75-25 mm

)

18-22 lb-in

(2-2.5 N-m)

6-4 AWG

22-26 lb-in

†

18-6 AWG

(.75-10 mm

)

18-22 lb-in

(2-2.5 N-m)

*Contact Tech-Line (800-TEC-FUSE) for other wire types.

†

Must be the same cross-sectioned size

83.20

(3.28)

62.82

(2.47)

71.20

(2.803)

35.60

(1.402)

17.80

(0.701)

53.40

(2.102)

littelfuse.com/solar

POWR-GARD

1000/600 V Solar Rated Products

Ordering Information

Description

A key objective for panel designers is safe distribution
of power to multiple fuse holders in a compact design.
The Littelfuse UL 508 Listed bus bar system eliminates
most wire terminations in a timesaving package. A power
distribution block and associated conductors are no longer
needed to feed multiple POWR-Safe fuse holders.

Features/Benefits

•  Touch-safe design offers protection when replacing fuses
•  Compact design
•  35mm DIN-rail mountable
•  Available in one and three phase configurations
•  Can be cut down to optimal size

Web Resources

Download technical documents:

littelfuse.com/busbar

Specifications

Voltage Ratings

600 Vac/dc

1000 Vdc*

Current Ratings

CROSS SECTION (mm

)

18 mm

25 mm

END FED

80 A

100 A

CENTER FED

160 A

200 A

SCCR

10 kA, 100 kA

†

Conductor

Copper

Pitch

17.8 mm

Approvals

UL 508 Listed (File E328654)

Environmental

RoHS Compliant

Lead (Pb) free

* 1 Phase 18 mm

rated 1000 Vdc up to 160 A when center fed

1 Phase 25 mm

rated 1000 Vdc up to 200 A when center fed

†

When protected directly upstream by Class J 175 amperes max

(18 mm

bus bar) and Class J 200 amperes max (25 mm

bus bar).

Accessories

Endcaps are standard with all 3 phase configurations except 57-pole.

Endcaps are not needed for the 1 phase configurations from the factory or if the

copper bus is trimmed per the supplied instructions.

Power feed lugs and protective covers are extra.

Power Feed Lug

PART

NUMBER

AMP

RATING

VOLTAGE

(AC / DC) WIRE RANGE

WIRE

TYPE

TORQUE

BB17

115

1000

#10 - 1/0 AWG

50 lb-in

BB18

115

1000

#10 - 1/0 AWG

50 lb-in

BB19

115

1000

#10 - 1/0 AWG

50 lb-in

BB20

115

1000

#10 - 1/0 AWG

50 lb-in

Pole Protective Covers

PART

NUMBER

QUANTITY

CTPT5

Endcaps

PART

NUMBER

PHASE QUANTITY

EDCP42

Single

EDCP7

Three

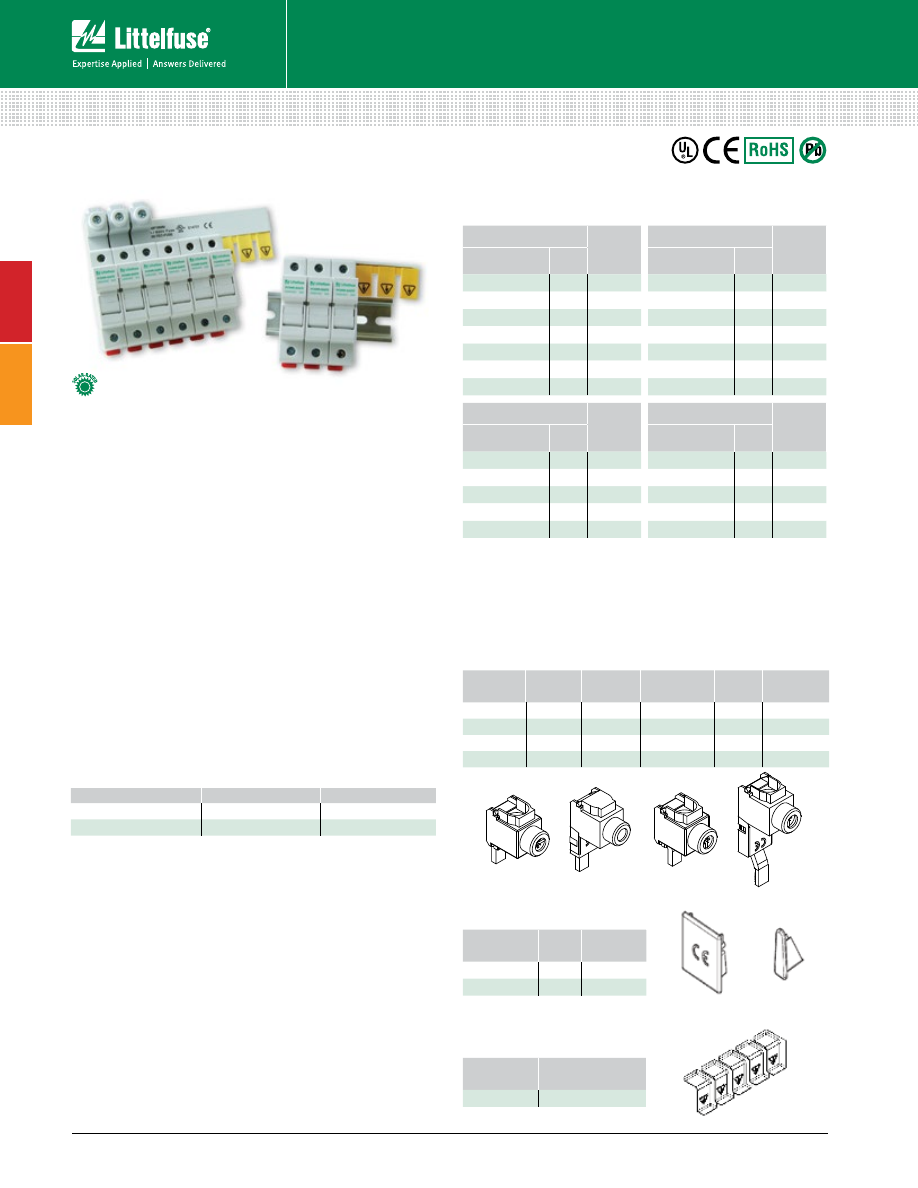

BUS BAR SYSTEM

POWR-BAR Distribution

3 PHASE, 25 mm

LENGTH

(mm)

ORDERING

NUMBER

POLES

3PH6P25mm

104

3PH9P25mm

158

3PH12P25mm

214

3PH15P25mm

266

3PH57P25mm

1009

1 PHASE, 18 mm

LENGTH

(mm)

ORDERING

NUMBER

POLES

1PH3P18mm

1PH4P18mm

1PH6P18mm

104

1PH9P18mm

155

1PH12P18mm

208

1PH15P18mm

270

1PH57P18mm

1009

1 PHASE, 25 mm

LENGTH

(mm)

ORDERING

NUMBER

POLES

1PH3P25mm

1PH4P25mm

1PH6P25mm

104

1PH9P25mm

155

1PH12P25mm

208

1PH15P25mm

270

1PH57P25mm

1009

3 PHASE, 18

LENGTH

(mm)

ORDERING

NUMBER

POLES

3PH6P18mm

104

3PH9P18mm

158

3PH12P18mm

214

3PH15P18mm

266

3PH57P18mm

1009

EDCP7

EDCP42

BB17

BB18

BB19

BB20

littelfuse.com/solar

POWR-GARD

600 V Solar Rated Products

Specifications

Voltage Rating

600 Vac/Vdc

Amperage Rating

, 1, 1

, 2, 2

, 3,

, 4, 5, 6, 7, 8, 9,10, 12, 15, 20, 25, 30

Interrupting Ratings

AC: 100 kA

DC:

-30: 10 kA (UL 2579)

-30: 50 kA (UL 248-14)

Material

Body: Melamine

Caps: Copper Alloy

Approvals

UL 2579 Listed (File: E339112)

IEC 60269-6 (2-25 A)

VDE Certified (No. 40033094)

UL 248-14 Listed (File: E10480)

CSA Certified - Ferrule only (File: LR29862)

Environmental

RoHS Compliant

Country of Origin

Mexico

Part Numbering System

Description

The KLKD fuse series is fast-acting with a high DC voltage
rating. This family of Midget style fuses (10 x 38 mm) is used in
solar combiner boxes and in circuits with DC fault currents up
to 50,000 amperes. KLKD fuses are available in standard and
board-mount configurations.
In addition, the KLKD series has been designed to meet both
the UL and IEC photovoltaic fuse standards.
Littelfuse offers a wide range of ampere ratings to match
specific requirements in a variety of applications.

Features/Benefits

•  Designed to UL and IEC photovoltaic specifications
•  1/10 - 30 A ratings available
•  50,000 A interrupting rating
•  Both PCB mount and dead-front holder options available

Applications

• Combiner boxes
• Inverters

Recommended Fuse Holders

Littelfuse LFPSM Indicating Series ................................... 11

Web Resources

Download the complete datasheet, time-current curves,
outline drawings and certifications:

littelfuse.com/klkd

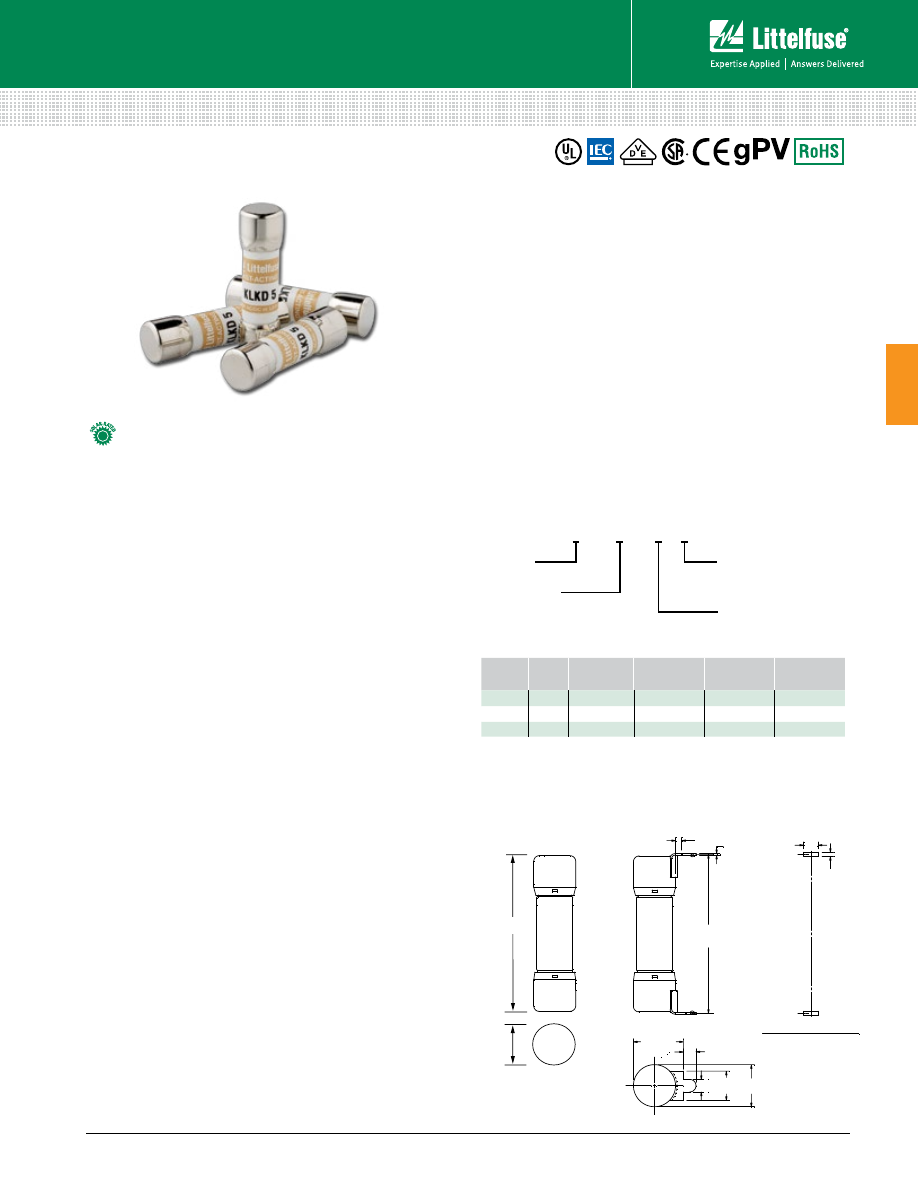

KLKD SERIES 10x38 FUSES

600 Vac • 600 Vdc •

-30 A • Fast Acting

SERIES AMP

PACKAGE

QUANTITY

MOUNTING

METHOD

CATALOG

NUMBER

ORDERING

NUMBER

KLKD

1/8

FERRULE

KLKD002

KLKD.125T

KLKD

3 1/2

FERRULE

KLKD03.5

KLKD03.5T

KLKD

100

PCB TABS

KLKD030R

KLKD030.HXR

.06 (1.52)

.14

(3.56)

.04

(1.02)

.02 (.51)

1.53

(38.86)

.50 (12.7)

.12 (3.05)

MOUNTING HOLE

DETAIL

.406 (10.31)

.12

(3.05) .28

(7.11)

1.5 (38.1)

.406

(10.31)

Dimensions Inches (mm)

Ferrule Version

PCB Version

KLKD xxxx H XR

Package Quantity

Series

Mounting Options

Amp Code

T = 10

H = 100

Blank = Ferrule

XR = PCB

Refer to datasheet

for amp code

littelfuse.com/solar

POWR-GARD

600 V Solar Rated Products

Specifications

Voltage Rating

600 V

Current Rating

Based on NEC Table 310.16,

using 75°C copper wire

Material

Phenolic rated at 150°C and Thermoplastic

rated at 125°C (LD1400 and LS1300 series only)

Connector

Standard: Highly con duc tive aluminum, tin plated

Copper: Highly conductive copper, tin plated

Flammability Rating

UL94 V-0

Approvals

UL Recognized - LD/LS Series (File: E171395)

LFD/LFS Series (File: E309688)

CSA Certified - LD/LS Series (File: LR700111)

LFD/LFS Series

(File: 007316_0_000)

Environmental

RoHS compliant, Lead (Pb) free

Web Resources

For a detailed list of part numbers, ordering information,
dimensions, and CAD drawings, visit:

littelfuse.com/powrbloks

Clear Plastic Covers

Hinged Plastic Covers

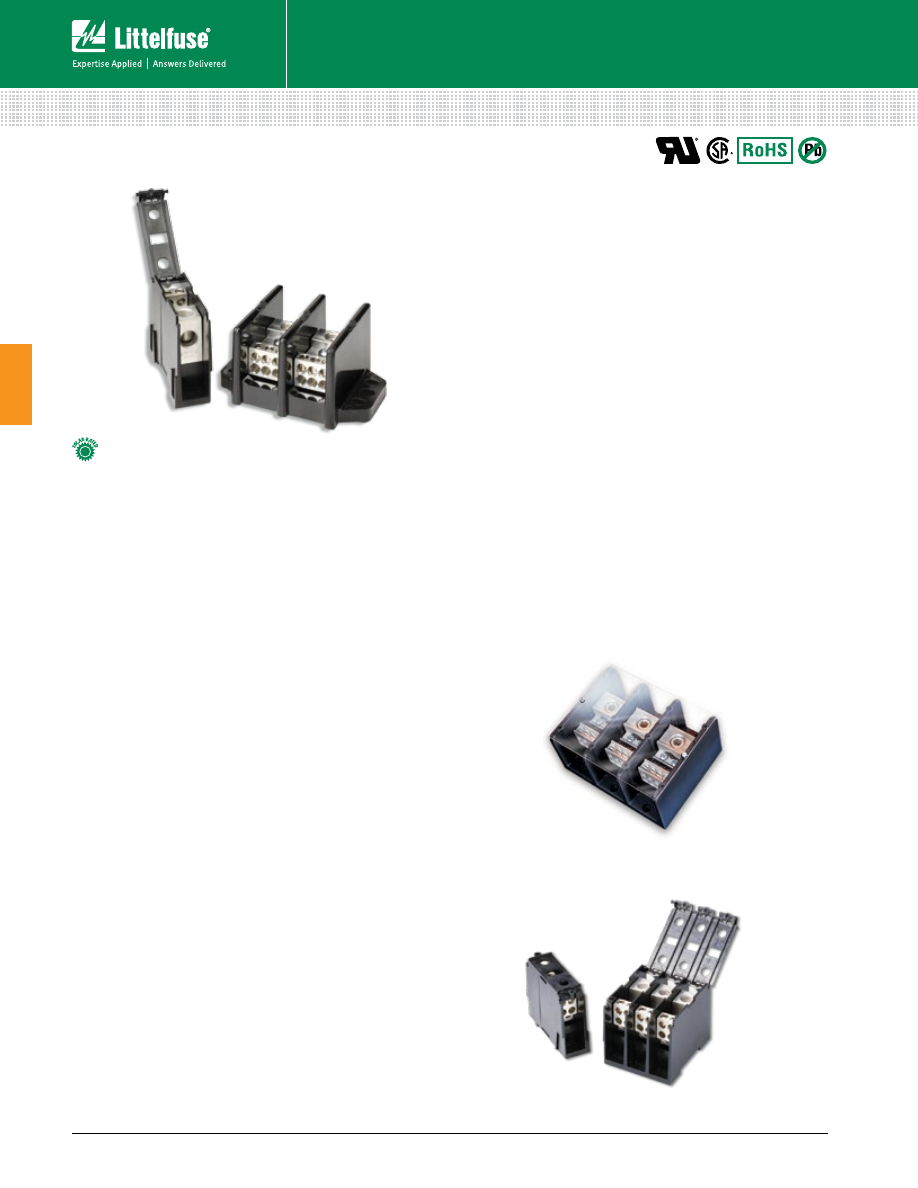

POWR-BLOKS

™

600 V • Distribution Blocks • Splicer Blocks

Description

POWR-BLOKS

power distribution blocks offer a safe,

convenient way of splicing cables, providing a fixed junction
tap-off point or splitting primary power into secondary circuits.
Lx2xxx-DIN series offers integral DIN-Rail mount and an
optional hinged safety cover.

Optional power distribution block covers provide protection
against accidental shorting between poles caused by
loose wires, tools, or other conductive material. They also
protect personnel from accidentally contacting energized
connectors. To order protective covers, match the number
of poles for the block to the cover.

Applications

•

Solar string

•

Array combiner boxes

•

Inverters

Ampere Ratings

The ampere rating per pole for the power distribution blocks is
based on the line ampacity of 75° C insulated conductors per
NEC

Table 310.16. If 60° C insulated conductors are used,

load must not exceed the ampacity of 60° C conductors.
Use of conductors rated in excess of 75° C is permitted
(for example 90° C), however, load must not exceed the
ampacity of 75° C conductors.

Connectors

Box lug connectors are designed for use with a single,
solid or class B or C stranded conductor. Use of more
than one con ductor per connector opening or use of
extra-flexible, fine-stranded conductors, such as welding
cable, voids the UL Listing and may cause overheating.
Manufacturers of cable ter minations can furnish crimp-on
sleeves for fine stranded conductors which permit these
conductors to be used with box lugs.

littelfuse.com/solar

POWR-GARD

600 V Solar Rated Products

Specifications

Voltage Rating

600 / 1200 V

Amperage Rating

S Package: 75, 100, 150, 200

D Package: 100, 150, 200, 300, 400

WB Package: 225, 300, 450, 600

Circuit Type

Half-Bridge

Approvals

UL Listed (File: E71639)

Environmental

RoHS Compliant

Part Numbering System

Description

Half-Bridge Circuit IGBT Modules offer the high efficiency
and fast switching speeds of modern IGBT technology
in a robust and flexible format. Used for power control
applications, Littelfuse offers its first IGBT modules for
flexible and efficient motor control and inverter applications.

Features

•  Ultra Low Loss
•  High Ruggedness
•  High Short Circuit Capability
•  Positive Temperature Coefficient
•  With Fast Free-Wheeling Diodes

Benefits

•  High efficiency and switching speed
•  High reliability in demanding applications
•  Reduced protection needs
•  Easily paralleled
•  Integrated solution in compact module package

Applications

•  AC Motor Control
•  Inverter
•  Motion / Servo Control
•  Power Supplies
•  Photovoltaic / Fuel Cell

Web Resources

Download the complete datasheet and other
technical information:

littelfuse.com

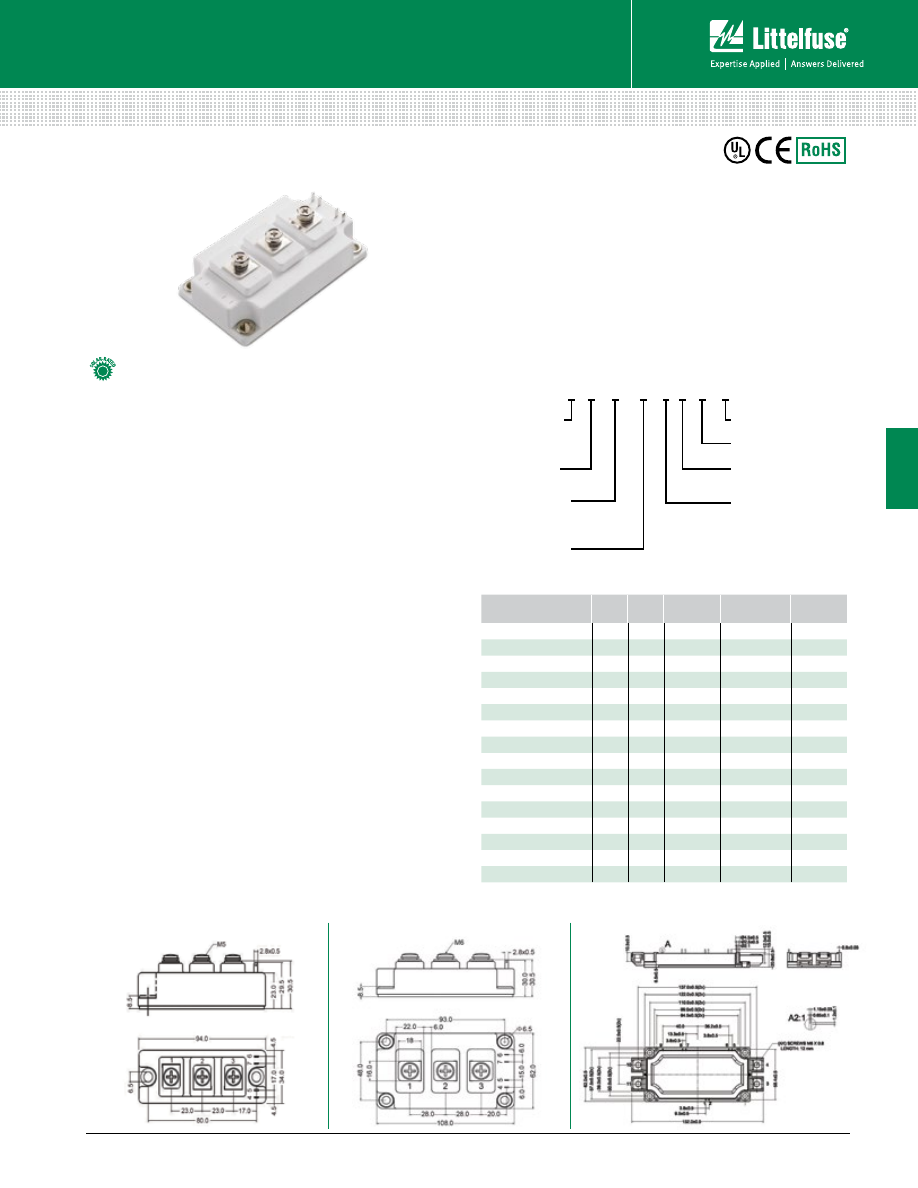

IGBT MODULE, HALF-BRIDGE

600 / 1200 V • S Package • D Package • WB Package

ORDERING NUMBER VOLT AMPS PACKAGE

TYPE

MOUNTING

METHOD

M.O.Q.

MG1250S-BA1MM

1200

SCREW

100

MG12100S-BN2MM

1200

100

SCREW

100

MG12150S-BN2MM

1200

150

SCREW

100

MG1275S-BA1MM

1200

SCREW

100

MG06100S-BN4MM

600

100

SCREW

100

MG06150S-BN4MM

600

150

SCREW

100

MG06300D-BN4MM

600

300

SCREW

MG06400D-BN4MM

600

400

SCREW

MG12200D-BA1MM

1200

200

SCREW

MG12300D-BA1MM

1200

300

SCREW

MG12300D-BN3MM

1200

300

SCREW

MG12400D-BN2MM

1200

400

SCREW

MG06600WB-BN4MM

600

PRESS FIT

MG12225WB-BN2MM

1200

225

PRESS FIT

MG12300WB-BN2MM

1200

300

PRESS FIT

MG12450WB-BN2MM

1200

450

PRESS FIT

Dimensions Inches (mm)

S Package Type

D Package Type

WB Package Type

Ordering Information

M G xx xx S-B xx xx

Wafer Type

Circuit Type

Package Type

Product Type

Assembly Site

Module Type

Voltage Rating

Current Rating

2x (IGBT + FWD)

“S” Package

“D” Package

“WB” Package

G: IGBT

06: 600 V

12: 1200 V

M: Power

Module

littelfuse.com/solar

POWR-GARD

Solar Rated Products

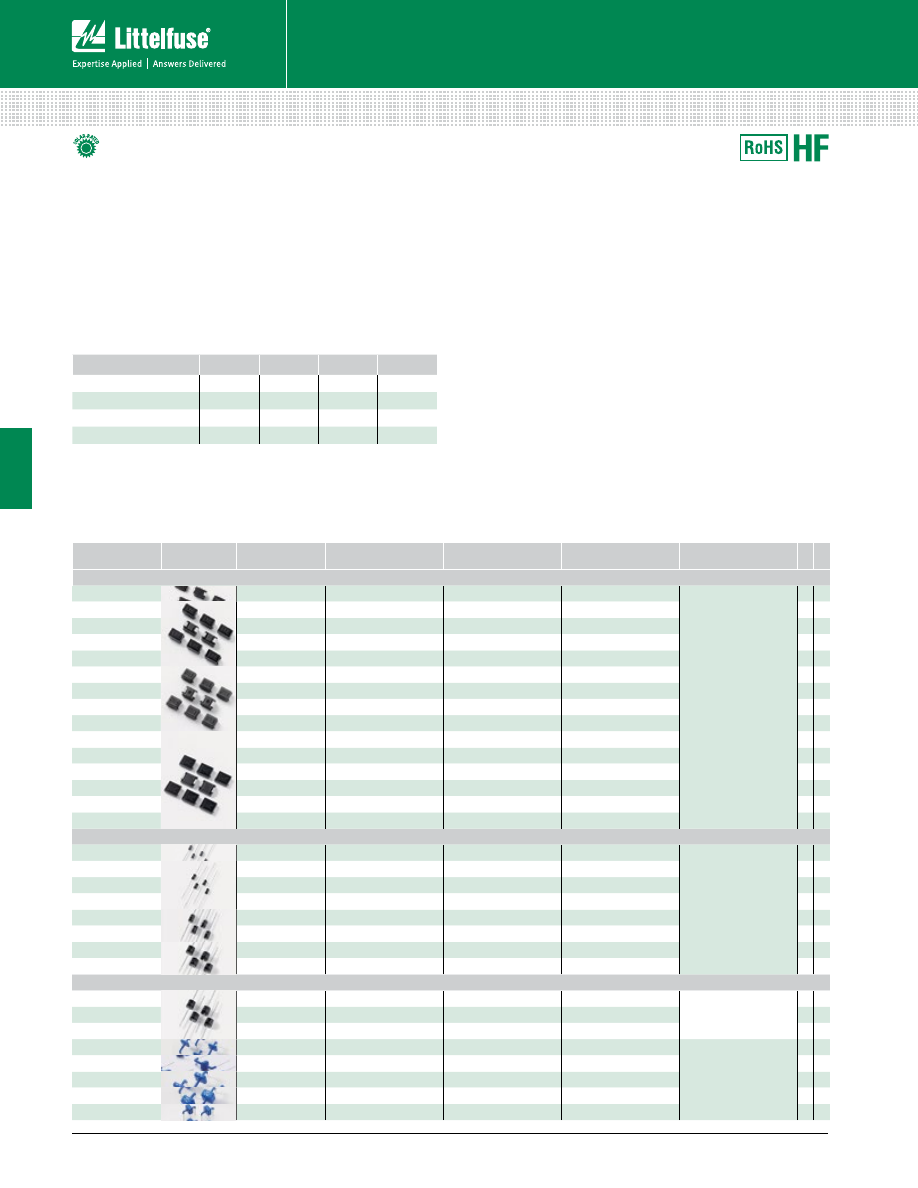

TVS (TRANSIENT VOLTAGE SUPPRESSION) DIODES

What Are Voltage Transients?

Voltage transients are unwanted short duration surges of electrical

energy. They may result from the sudden release of previously stored

energy, and can come from internal and external sources. If the

voltage magnitude of the transient is large enough, circuit component

damage or malfunction of the circuit may result.
Transients can occur either repeatedly or as random impulses.

Repeatable transients are frequently caused by the operation of other

system components, such as motors, generators or the switching

of reactive circuit components. Random transients, are often caused

by lightning, electrostatic discharge (ESD), and other outdoor

environment events.

SOURCE

VOLTAGE CURRENT RISE-TIME DURATION

Lightning

25 kV

20 kA

10 µs

50 ms

Load Switching

600 V

500 A

50 µs

500 ms

Electromagnetic Pulse (EMP)

1 kV

300 kV

20 ns

1 ms

Electrostatic Discharge (ESD)

15 kV

30 A

1–5 ns

100 ns

SERIES

NAME


PACKAGE

TYPE

REVERSE STANDOFF

VOLTAGE (V

)

PEAK PULSE POWER

RANGE (P

10/1000µs)

PEAK PULSE CURRENT

8/20µs)

OPERATING

TEMPERATURE

ROHS

SURFACE MOUNT - STANDARD APPLICATION (200-5000 W)

SMF

SOD-123F

5.0-85

200 W

–

-67° to +302° F

(-55° to +150° C)

• •

SMAJ

DO-214AC

5.0-440

400 W

–

• •

P4SMA

DO-214AC

5.8-495

400 W

–

• •

SMA6J

DO-214AC

5.0-12

600 W

–

• •

SMA6L

DO-221AC

5.0-85

600 W

–

• •

SACB

DO-214AA

5.0-50

500 W

–

• •

SMBJ

DO-214AA

5.0-440

600 W

–

• •

P6SMB

DO-214AA

5.8-495

600 W

–

• •

1KSMB

DO-214AA

5.8-136

1000 W

–

• •

SMCJ

DO-214AB

5.0-440

1500 W

–

• •

1.5SMC

DO-214AB

5.8-495

1500 W

–

• •

3.0SMC

DO-214AB

20-33

–

• •

SMDJ

DO-214AB

5.0-220

3000 W

–

• •

4.0SMDJ

DO-214AB

4000 W

–

• •

5.0SMDJ

DO-214AB

12-170

5000 W

–

• •

AXIAL LEADED - STANDARD APPLICATION (400-5000 W)

P4KE

DO-41

5.8-495

400 W

–

-67° to +347° F

(-55° to +175° C)

• •

DO-15

5.0-180

500 W

–

• •

SAC

DO-15

5.0-50

500 W

–

• •

P6KE

DO-15

5.8-512

600 W

–

• •

1.5KE

DO-201

5.8-512

1500 W

–

• •

LCE

DO-201

6.5-90

1500 W

–

• •

3KP

P600

5.0-220

3000 W

–

• •

5KP

P600

5.0-250

5000 W

–

• •

AXIAL LEADED - HIGH POWER (15000-30000 W; 1-15 kA)

15KPA

P600

17-280

15000 W

–

-67° to +347° F

(-55° to +175° C)

• •

20KPA

P600

20-300

20000 W

–

• •

30KPA

P600

28-300

30000 W

–

• •

AK1

Radial Lead

–

1000 A

-67° to +302° F

(-55° to +150° C)

• •

AK3

Radial Lead

15-430

–

3000 A

• •

AK6

Radial Lead

30-430

–

6000 A

• •

AK10

Radial Lead

30-530

–

10000 A

• •

AK15

Radial Lead

58-76

–

15000 A

• •

TVS and Solar Inverter Protection

Integration of Transient Voltage Suppression (TVS) components

within solar system designs help to prevent the damaging effects

of transient events and assure compliance to safety and reliability

standards. Solar power inverters are vulnerable to transient voltage

effects and its direct connection to other system components allows

transient voltage transfer. For example:

•

Lightning-induced transient events may pass through the solar

array and outdoor cabling to the inverter.

•

Transients originating from the outside utility power grid may pass

through the main circuit panel and cabling to the inverter.

•

Startup of motorized equipment enable vulnerabilities produced

by repeat load changes.

•

Electrostatic discharge events generated internal and external to

the system may pass between the inverter and sensitive

electronic control equipment.

It is important to build surge withstand ability in the inverter and at

locations before damaging transients may reach sensitive equipment.

Transient Voltage Suppression (TVS) Diodes

TVS Diodes are used to protect semiconductor components from high-voltage transients. Their p-n junctions have a larger cross-sectional area

than those of a normal diode, allowing them to conduct large currents to ground without sustaining damage. Littelfuse supplies TVS Diodes with

peak power ratings from 200 W to 30 kW, and reverse standoff voltages from 5 V to 530 V. For more information visit

littelfuse.com/tvsdiodes

littelfuse.com/solar

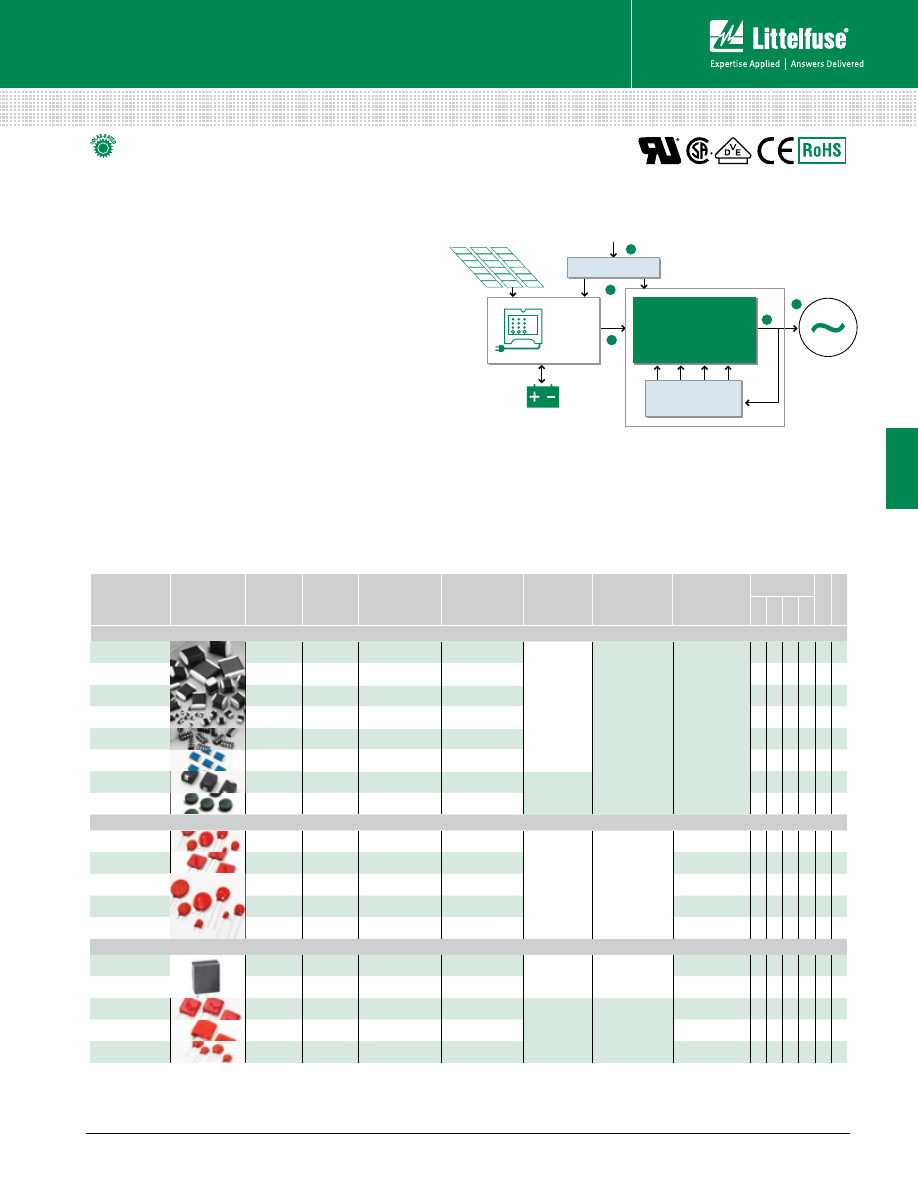

OVERVOLTAGE SUPPRESSION VARISTORS

Protection Application and Needs

Description:

Microprocessor-controlled inverter with the AC output

synchronized to the AC grid stores energy in utility

company and maximizes PV array energy output.

Threats:

• Power surges on AC or DC Input and AC Output

• ESD threats through the communication network

Solutions:

AC Input:

Fuse / MOV / GDT

DC Input:

DC-rated fuse / Unidirectional TVS / MOV

AC Output:

Fuse / TVS / MOV

Local Ethernet:

MLV / SPA

Outside Ethernet:

SEP series SIDACtor

device

Example: Hybrid Solar Inverter Configuration

Inverter Driver

AC Grid

SYNC

µP

Ethernet Router

Battery Bank

PV Array

DC/AC

INVERTER

Battery

Charge

Controller

Remote Monitor / Admin

SERIES NAME


OPERATING

Vac RANGE

OPERATING

Vdc RANGE

PEAK CURRENT

RANGE

(A)

PEAK ENERGY

RANGE (J)

OPERATING

TEMPERATURE

MOUNT/

FORM FACTOR

DISC SIZE

AGENCY

APPROVALS

ROHS

CSA

VDE

CECC

SURFACE MOUNT MLV / MOV

MHS

9-42

30-135

300

–

-55 to +125°C

Surface Mount

Not Applicable

•

MLE

22-28

–

•

2.7-107

5.5-120

4-500

0.02-2.5

•

AUML

–

•

MLN

5.5-18

0.05-0.10

•

14-275

18-369

100-250

1.0-8.0

•

SM7

115-510

369-675

1200

23-40

-55 to +85°C

•

• •

SM20

20-320

6500

165

•

• •

RADIAL LEADED MOV

UltraMOV

130-625

170-825

1750-10000

12.5-720

-55 to +85°C

Radial Leaded

7, 10, 14, 20 mm • • • • • •

UltraMOV

25S

115-750

150-970

22000

230-890

25 mm

• • • • • •

C-III

130-660

–

3500-9000

40-530

10, 14, 20 mm

• • •

• •

130-1000

175-1200

1200-6500

11-360

7, 10, 14, 20 mm • • • • • •

4-460

5.5-615

50-6500

0.1-52

5, 7, 10, 14, 20 mm •

• • • •

THERMALLY PROTECTED MOV

SMOV

25S

115-750

150-970

20000

170-670

-45 to +75°C Industrial Packaged

Radial Leads

25 mm

•

SMOV

34S

115-750

150-970

40000

280-1200

34 mm

•

TMOV

25S

115-750

150-970

20000

170-670

-55 to +85°C

Radial Leaded

25 mm

•

• • •

TMOV

34S

115-750

150-970

40000

235-1050

34 mm

•

• • •

TMOV

/iTMOV

115-750

150-970

6000-10000

35-480

14, 20 mm

• • • • •

Varistor Products

Varistors possess characteristics that divert transient currents away from sensitive components. Littelfuse offers two types:

miniature surface mount Multi-Layer Varistors (MLVs) for small electronics applications and Metal Oxide Varistors (MOVs) for

higher energy applications. For more information visit

littelfuse.com/varistor

POWR-GARD

Solar Rated Products

littelfuse.com/solar

POWR-GARD

Solar Rated Products

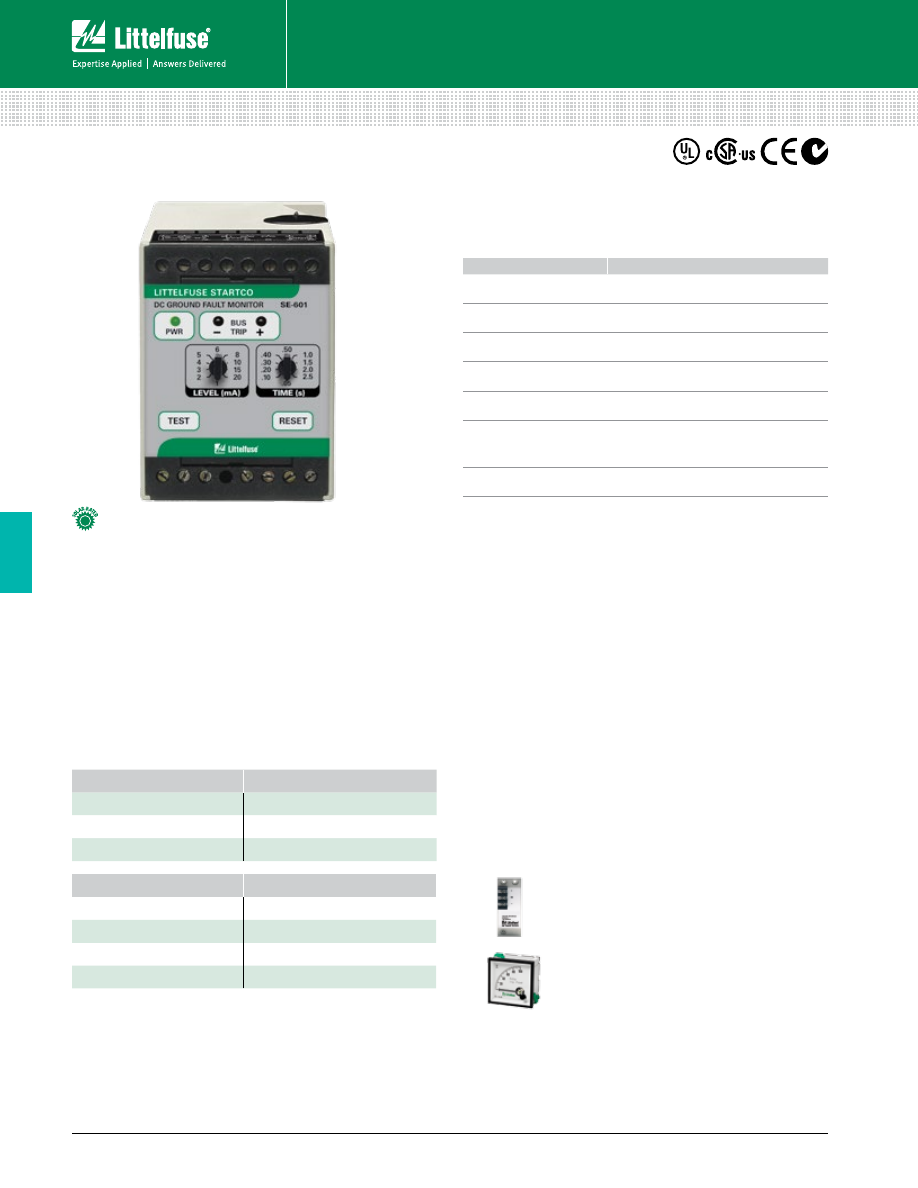

Description

The SE-601 is a microprocessor-based ground-fault relay for
ungrounded dc systems. It provides sensitive ground-fault
protection without the problems associated with nuisance
tripping. Ground-fault current is sensed using an SE-GRM
Series Ground-Reference Module—a resistor network that
limits ground-fault current to 25 mA. The SE-601 is used
on ungrounded DC systems ranging from industrial 24 Vdc
control circuits to 1000 Vdc solar and transportation systems.

Specifications

IEEE Device Numbers

DC Overcurrent Relay (76G)

Input Voltage

See ordering information

Dimensions

75 mm (3.0”);

55 mm (2.2”);

115 mm (4.5”)

Trip Level Settings

1-20 mA

Trip Time Settings

0.05-2.5 s

Output Contacts

Isolated Form A and Form B

Contact Operating Mode

Selectable fail-safe or non-fail-safe

Test Button

Local

Reset Button

Local and remote

Analog Output

0-5 V

Conformally Coated

Consult factory

Approvals

CSA Certified, UL Listed (E340889),

CE (European Union), C-Tick (Australian)

Warranty

5 years

Mounting

DIN, Surface (standard)

Panel (with PMA-55 or PMA-60 adapter)

ORDERING NUMBER

CONTROL POWER

SE-601-OU

120/240 Vac/Vdc

SE-601-OD

12/24 Vdc

SE-601-OT

48 Vdc

ACCESSORIES

REQUIREMENT

SE-GRM SERIES

Required

PGA-0500

Optional

PMA-55

Optional

PMA-60

Optional

Note: For optional conformal coating please consult factory.

Ordering Information

FEATURES

BENEFITS

Adjustable pickup

(1 - 20 mA)

Ten settings provide a wide range of

low-level protection

Adjustable time delay

(50 ms - 2.5 s)

Adjustable trip delay allows quick protection or

delayed response

Output contacts

Form A and Form B output contacts for operation of

separate annunciation and trip circuits

Analog output

(0 - 5 V)

Provides means for connecting to a meter

(PGA-0500) or a control system

Non-volatile trip

Memory

Retains trip state when de-energized to simplify

troubleshooting

Selectable contact

operating mode

Selectable fail-safe or non-fail-safe operating

modes allow connection to shunt or undervoltage

breaker coil

Microprocessor based

No calibration required saves on maintenance cost

Features & Benefits

SE-601 SERIES

DC Ground-Fault Monitor

SE-GRM Series Ground-Reference Module

Required accessory, used to connect the

SE-601 DC Ground-Fault Monitor to the

DC bus.

PGA-0500 Analog % Current Meter

Optional panel-mounted analog meter displays

ground-fault current as a percentage of 22 mA.

Accessories

littelfuse.com/solar

POWR-GARD

Solar Rated Products

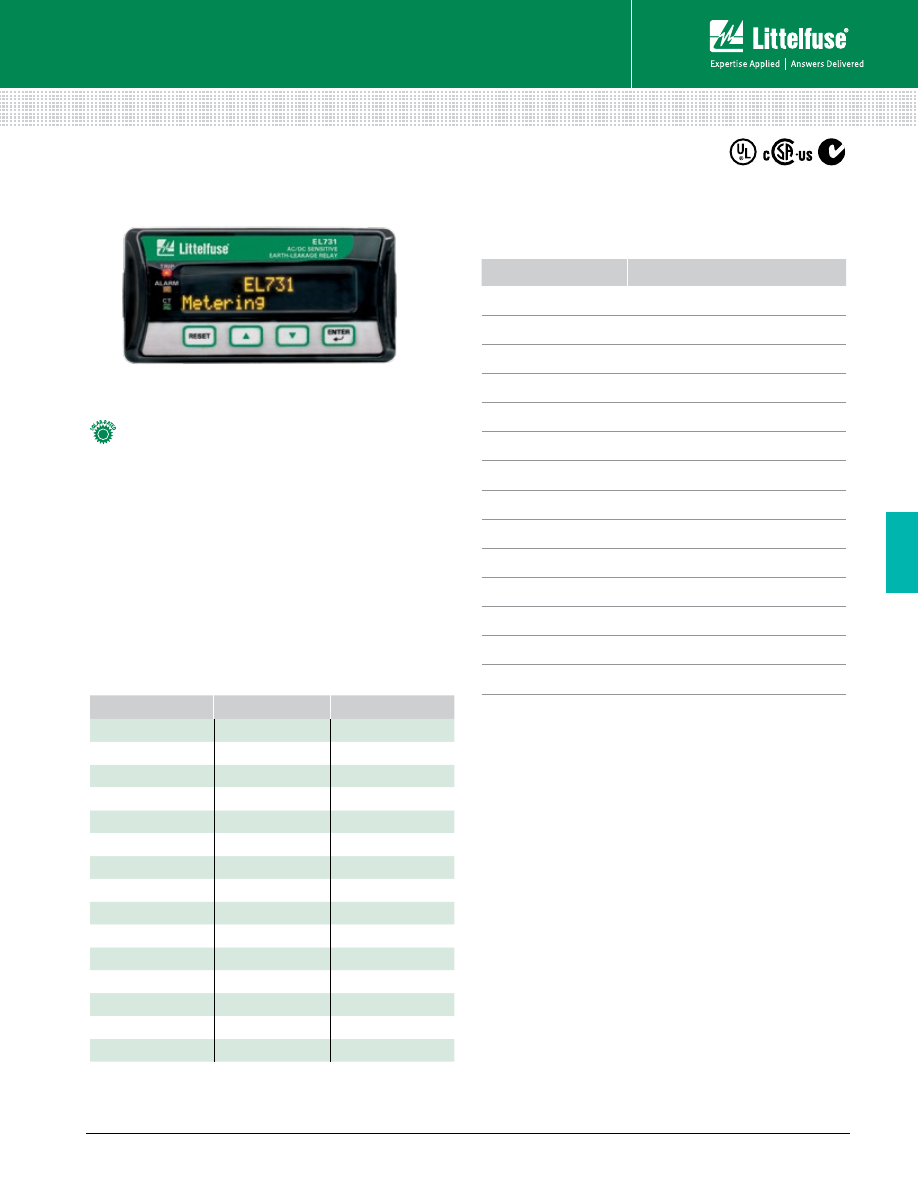

EL731 SERIES

AC/DC Sensitive Earth-Leakage Relay

Description

The EL731 is a microprocessor-based AC/DC Sensitive
Earth-Leakage Relay that offers complete coverage for all
frequencies from 0-6,000 Hz. Two CTs are required for the
entire frequency range, or one CT can be used for only low-
or high-frequency detection. An RTD/PTC sensor input
allows over-temperature protection. The EL731 offers
metering capabilities, password-protected alarm and trip
settings and optional network communications. It is used to
add low-level ground-fault protection to variable-speed
drives, and to DC currents.

ORDERING NUMBER

CONTROL POWER

COMMUNICATIONS

EL731-00-X0

120/240 Vac/Vdc

None

EL731-01-X0

120/240 Vac/Vdc

DeviceNet

™

EL731-02-X0

120/240 Vac/Vdc

Profibus

EL731-03-X0

120/240 Vac/Vdc

EtherNet/IP

™

EL731-04-X0

120/240 Vac/Vdc

Modbus

TCP

EL731-10-X0

48 Vdc & 24 Vac

None

EL731-11-X0

48 Vdc & 24 Vac

DeviceNet

™

EL731-12-X0

48 Vdc & 24 Vac

Profibus

EL731-13-X0

48 Vdc & 24 Vac

EtherNet/IP

™

EL731-14-X0

48 Vdc & 24 Vac

Modbus

TCP

EL731-20-X0

24 Vdc

None

EL731-21-X0

24 Vdc

DeviceNet

™

EL731-22-X0

24 Vdc

Profibus

EL731-23-X0

24 Vdc

EtherNet/IP

™

EL731-24-X0

24 Vdc

Modbus

TCP

Ordering Information

Note: When building a part number, replace the “X” with “1” for AS/NZS 2081:2011

Compliant product, “0” otherwise.

Specifications

IEEE Device Numbers

AC ground fault (50G/N, 51G/N), DC ground fault (79G),

PTC overtemperature (49), RTD temperature (38, 49)

Supply Voltage

120/240 Vac/Vdc, 24 Vdc, 48 Vdc/24 Vac

Trip Level Settings

30-5,000 mA AC and DC

Alarm Level Settings

30-5,000 mA AC and DC

Trip Delay

0.05-2 s

Output Contacts

3 Form C (programmable)

Contact Operating Mode

Fail-safe & non-fail-safe

Reset

Front panel and remote

Freq. Response, CT1

0-90 Hz

Freq. Response, CT2

20-6,000, 190-6,000, 20-90, 20-3,000 Hz; selectable

Current Transformer

EFCT-x series

CT Detection

Open & short detection

Terminals

Plug-in, wire clamping,

24 to 12 AWG (0.2-2.5 mm

)

Communications

EtherNet/IP™, DeviceNet™, Profibus

Modbus

TCP

(optional)

Analog Output

4-20 mA (selectable 0-5 A or

0-100% trip-level setting)

Conformal Coating

Standard feature

Dimensions H

48 mm (1.9”);

96 mm (3.8”);

129 mm (5.0”)

Approvals

UL Listed (E340889), CSA Certified, C-Tick (Australia)

Warranty

5 years

Mounting

Panel; Surface and DIN (with optional AC700-SMK)

FEATURES

BENEFITS

Adjustable pickup

(30-5,000 mA)

Adjustable trip setting provides a wide range of

low-level protection and system coordination

Frequency range

(0-90 Hz, 20-6,000 Hz)

Operate in either AC or DC mode or both. Use

single or combined ranges. Separate metering

32-char OLED display

Earth-leakage metering, setup and programming

Local LED indication

Visual Trip, Alarm, CT connection indication

CT-Loop monitoring

Alarms when CT is not connected

Analog output

(4-20 mA)

Connect to DCS. Allows connection to an optional

meter (PGA-0500) or control system

Adjustable time delay

Adjustable trip delay for quick protection and

system coordination

Alarm and trip settings

Detect a deteriorating condition before damage

occurs

Temperature-sensor

input

Drive or motor temperature protection

Output contacts

3 programmable: Operate 2 alarm and 1 trip

circuit

Network communication

Optional connection to plant network

Harmonic filtering

Eliminates nuisance tripping due to harmonic noise

Microprocessor based

No required calibration saves maintenance cost

Universal power supply

Provides flexibility for numerous applications

Features & Benefits

Let Us Help With Your

Solar Applications

Shenzhen, China

Phone

+86 755 8207 0760

Dubai

Phone

+971 4341 3660

Europe

Phone

+49 4244 819149

India

Phone

+65 6885 9185

Japan

Phone

+81 45 478 1088

Singapore

Phone

+65 6885 9188

South Korea

Phone

+82 2 6000 8600

Taiwan

Phone

+886 2 8751 1234

Sales and Technical Support

United States and Mexico

Phone

800 TEC FUSE

(800 832 3873)

Fax

800 522 7697

Brazil

Phone

+55 11 4427 6261

Canada

Phone

306 373 5505

Hong Kong, China

Phone

+852 2810 5099

Shanghai, China

Phone

+86 21 2327 6000

Contact our solar product experts today and visit us at

Littelfuse.com/solar

to find out what Littelfuse can do for you.

Corporate Headquarters

Littelfuse Inc.

8755 West Higgins Road
Suite 500
Chicago, IL 60631 USA

773 628 1000
Littelfuse.com

LITTELFUSE.COM /SOLAR

Littelfuse products and technical resources enhance the productivity and safety
of electrical systems. Littelfuse offers current-limiting fuses to decrease arc-flash
exposure, fuse holders and fuse covers to reduce incidental contact, protection
relays to safeguard equipment and safety resources to improve safety.

Fuses and Fuse Holders

Solar-Rated Products

Relays and Controls

Status Indication

Safety by Design

Specifications, descriptions and illustrative material in this literature are as accurate as known at the time of publication,
but are subject to changes without notice. Visit

Littelfuse.com

for the most up-to-date technical information.

Form: PF140N

Rev: 4-B-102014

POWR-GARD Catalog

Littelfuse offers a complete circuit protection portfolio of

industrial power fuses, including time-saving indication

products for an instant visual blown-fuse identification,

even on de-energized systems.

Relays & Controls Catalog

The comprehensive line of electronic and microprocessor-

based protections relays and controls safeguard

equipment and personnel to prevent expensive damage,

downtime or injury due to electrical faults.

Varistor Catalog

Littelfuse offers industrial Metal Oxide Varistors (MOVs)

to protect against transient voltage surges.

For 35 years Littelfuse POWR-GARD

has helped OEM engineers, consulting engineers and end users select the right products

to protect critical electrical equipment—supported by our full line of product catalogs and reference materials.

Littelfuse POWR-GARD is in the App Store!

Our free Littelfuse Catalogs and Literature App keeps our products and

technical resources at your finger tips, wherever you are. Find products

and technical specifications you need, quickly and easily!
