Release Date: 06/30/2022

The Power to Drive Innovation

Magtech Industries Corporation

Available LED Driver Models

•  TRIAC/ELV/0-10V/PWM CV and CC mode dimming with full AC input from 110-277

•  Fully programmable output

•  Turn on timing less than 500 ms

•  UL 8750 Class 2 Class P Listed certification,

•  Flickering Rate less than 10% at 120 HZ

•  No load power consumption- less than 0.5 W (1W with wireless control)

•  Isolation dimming circuit- Isolated from both primary and secondary circuits

•  Dimming percentage less than 1%- with all 4 dimming methods

•  Dual output available with 50W and 100W, pre-programmable dimming effects

•  Wireless using ZigBee  or Casambi – Optional

NOTE 1: Available in 3rd Quarter of 2022

Dry & damp location; 4-in-1 Dimming

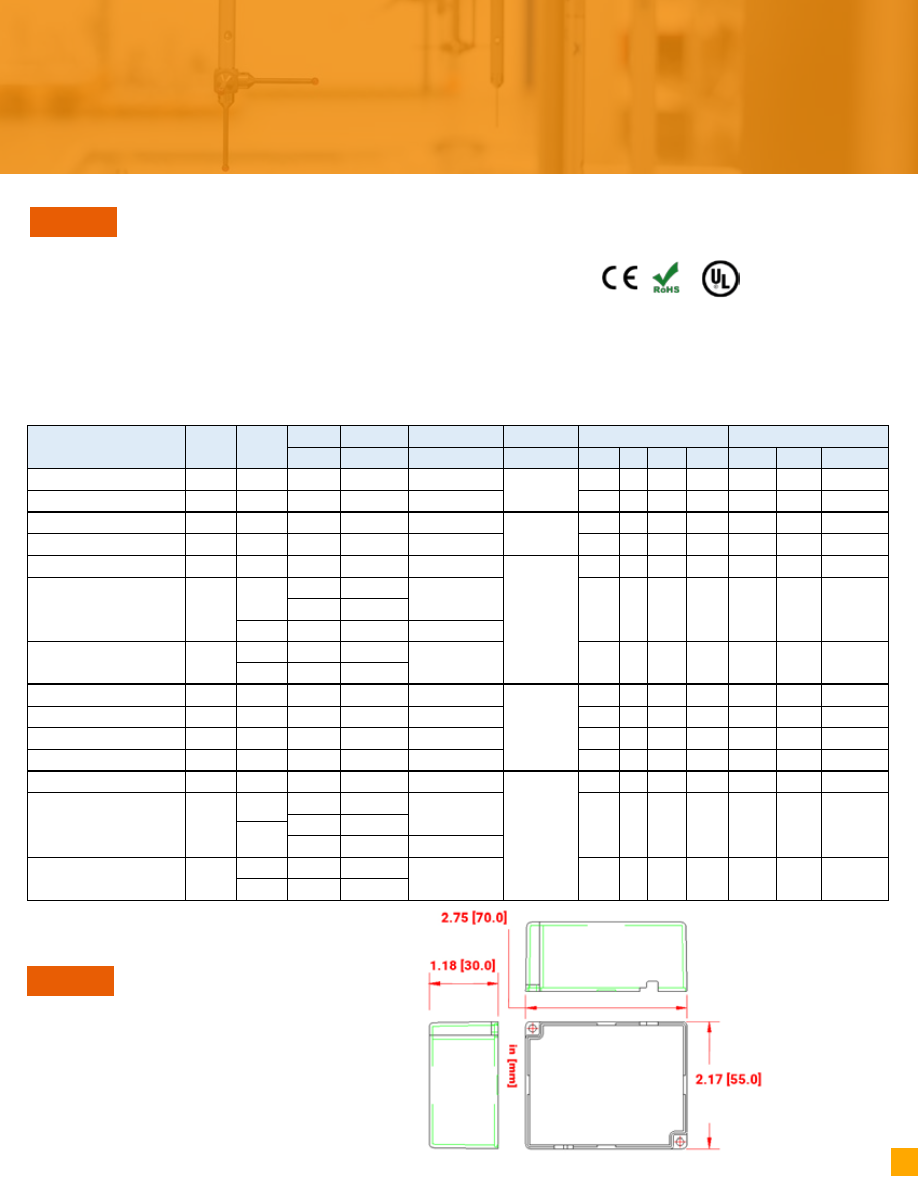

QM Series

C

US

LISTED

MODEL

NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

PROGRAMMABLE MAX. POWER

DIMMING METHODS

CASE STYLE

(VDC)

(mA)

(OUTPUT)

(WATTS)

TRIAC ELV 0-10V PWM PLASTIC METAL ALUMINUM

QM20-U48-yyyy-XP Note1

1

CC

20 – 48

625 – 300

DIP Switch

20

●

●

●

●

●

QM20-Uxx-XP

1

CV

12 OR 24

1660 / 830

N

●

●

●

●

●

QM40-U48-yyyy-XP

1

CC

20 – 48

1250 – 250

DIP Switch

40

●

●

●

●

●

QM40-U24-XP

1

CV

24

1660

N

●

●

●

●

●

QM50-U48-yyyy-XP

1

CC

20 – 48

1900 – 250

DIP Switch

50

●

●

●

●

●

QM50D-U48-yyyy-XP

3

CC

20 – 48

1250 – 250

DIP Switch

●

●

●

●

●

20 – 48

1250 – 250

CV

12

200

N

QM50-U24z-XP

2

CV

24

1900

N

●

●

●

●

●

CV

12

200

QM70-U38-yyyy-XM Note1

1

CC

10 – 36

2000

70

●

QM70-U52-yyyy-XM Note1

1

CC

30 - 52

1500

●

QM70-U24-yyyy-XM Note1

1

CC

24

3000

●

QM70-U48-yyyy-XM Note1

1

CC

48

1500

●

QM100-U48-yyyy-XP

1

CC

20 – 48

4100 – 2000

DIP Switch

100

●

●

●

●

●

●

QM100D-U48-yyyy-XM

3

CC

20 – 48

4100 – 2000

DIP Switch

●

●

●

●

●

20 – 48

4100 – 2000

CV

12

200

N

QM100D-U24z-XP

2

CV

24

4100

N

●

●

●

●

●

CV

12

200

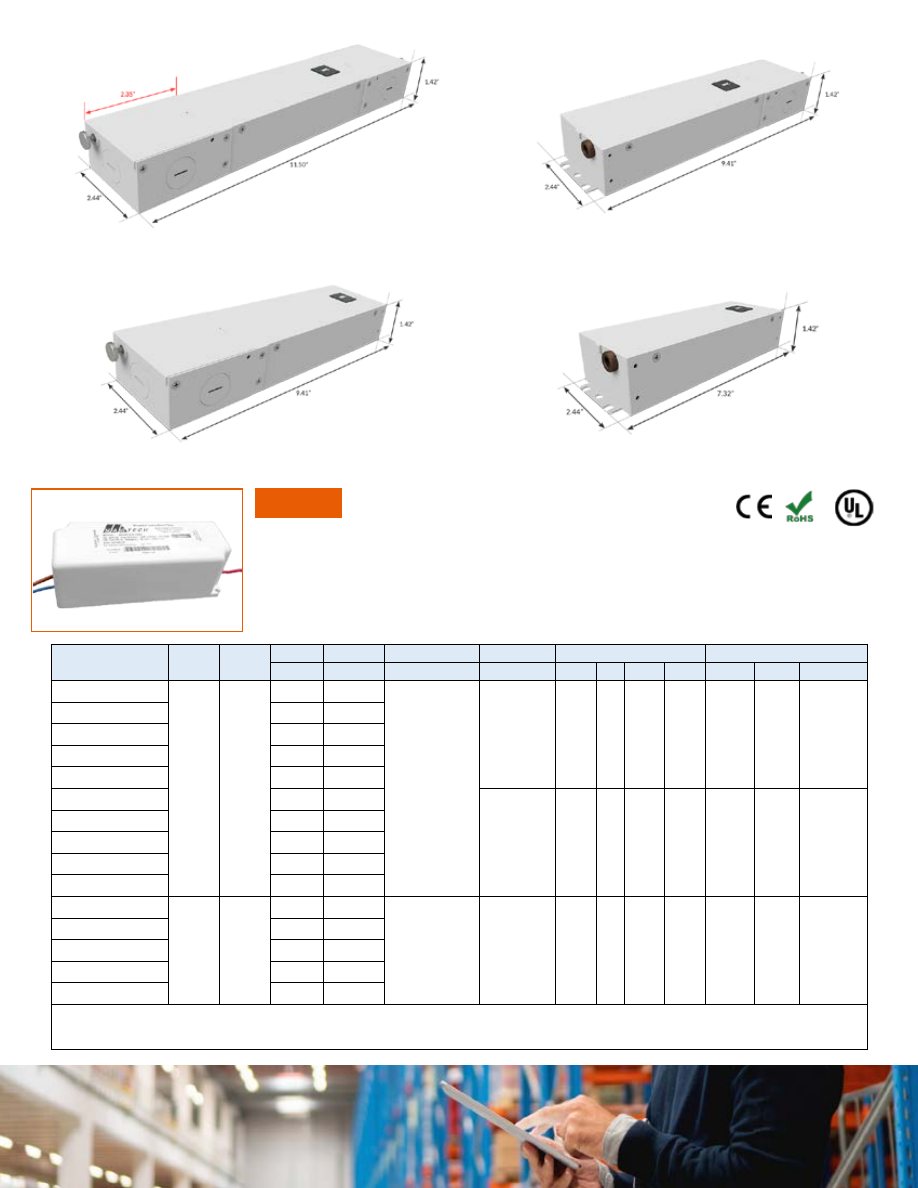

QM20 Series : 2.17” (L) x  2.75” (W) x 1.18” (H)

Dimensions (L x W x H)

QM Series

www.magtechind.com

Release Date: 06/30/2022

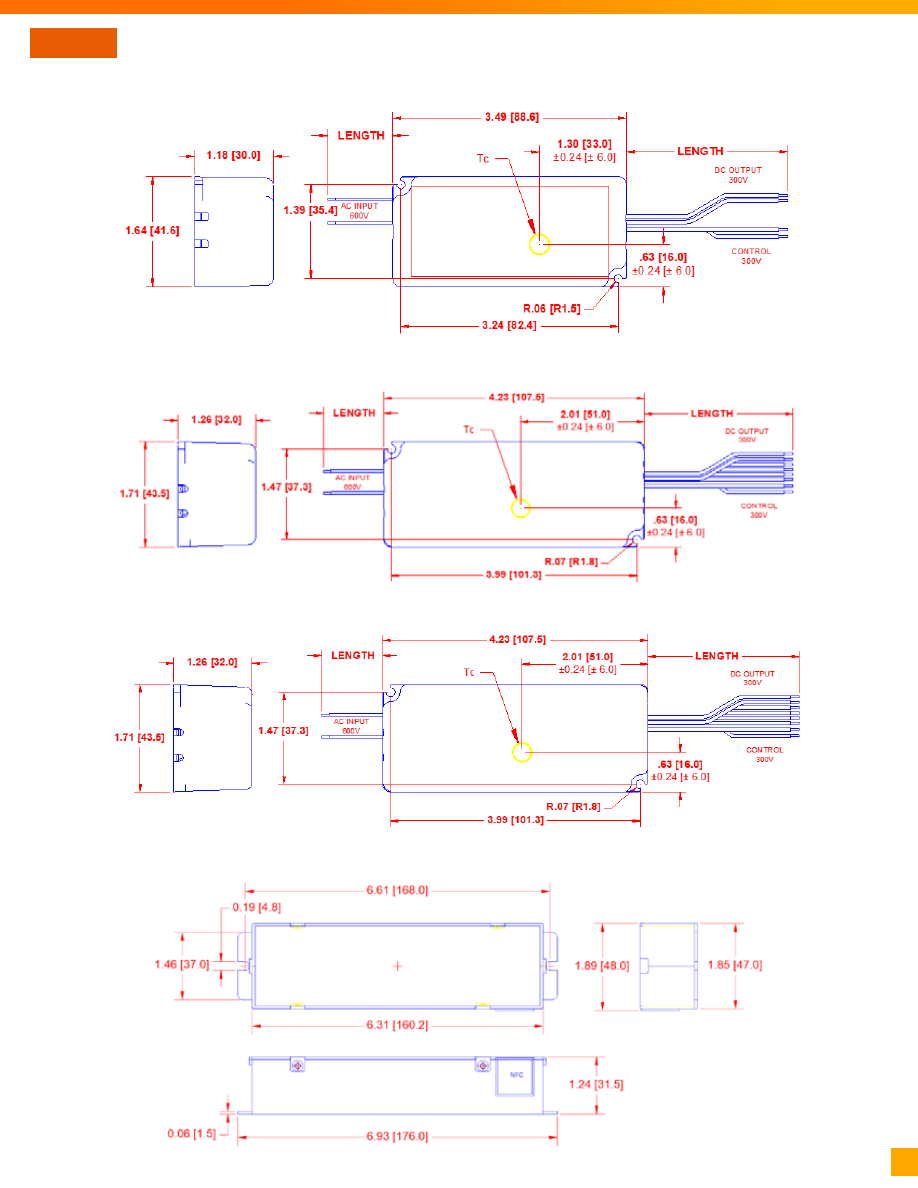

QM40 Series :

3.49” x 1.64” x 1.20” (L x W x H)

QM40 Series :

3.49” x 1.64” x 1.20” (L x W x H)

QM50 Series :

4.23” x 1.71” x 1.26” (L x W x H)

QM50 Series :

4.23” x 1.71” x 1.26” (L x W x H)

Dimensions (L x W x H)

QM Series

www.magtechind.com

Release Date: 06/30/2022

•  Full range AC input 110-277VAC, 60/50Hz

•  Constant current outputs

•  Deep dimming level as low as 1%

•  UL 8750 Class 2 Class P certified with HL mark

•  Compact size suitable for dry and damp locations

•  0-10V dimming - optional

Dry & damp location; TRIAC/ ELV dimmable

MD Series

C

US

LISTED

MODEL

NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

PROGRAMMABLE MAX. POWER

DIMMING METHODS

CASE STYLE

(VDC)

(mA)

(OUTPUT)

(WATTS)

TRIAC ELV 0-10V PWM PLASTIC METAL ALUMINUM

MD22-U24-yyyy-Xz

1

CC

14-24

500-250

N

10

●

●

●

●

MD22-U30-yyyy-Xz

16-30

400-200

MD22-U36-yyyy-Xz

20-36

350-170

MD22-U42-yyyy-Xz

24-42

300-150

MD22-U54-yyyy-Xz

36-54

250-120

MD22-U54-yyyy-Xz

14-24

1000-500

20

●

●

●

●

MD22-U30-yyyy-Xz

16-30

770-400

MD22-U36-yyyy-Xz

20-36

670-340

MD22-U42-yyyy-Xz

27-42

580-290

MD22-U54-yyyy-Xz

36-54

450-230

MD42-U24-yyyy-Xz

1

CC

14-24

2000-1000

N

40

●

●

●

●

MD42-U30-yyyy-Xz

16-30

1540-800

MD42-U36-yyyy-Xz

20-36

1340-670

MD42-U42-yyyy-Xz

27-42

1150-580

MD42-U54-yyyy-Xz

36-54

890-450

DIMENSIONS (L x W x H)

MD22-XM: 121 x 42 x 29mm

MD22-XP: 85.3 x 32 x 27.7mm

MD42-XM: 121 x 42 x 29mm

MD42-XP: 88 x 41 x 30mm

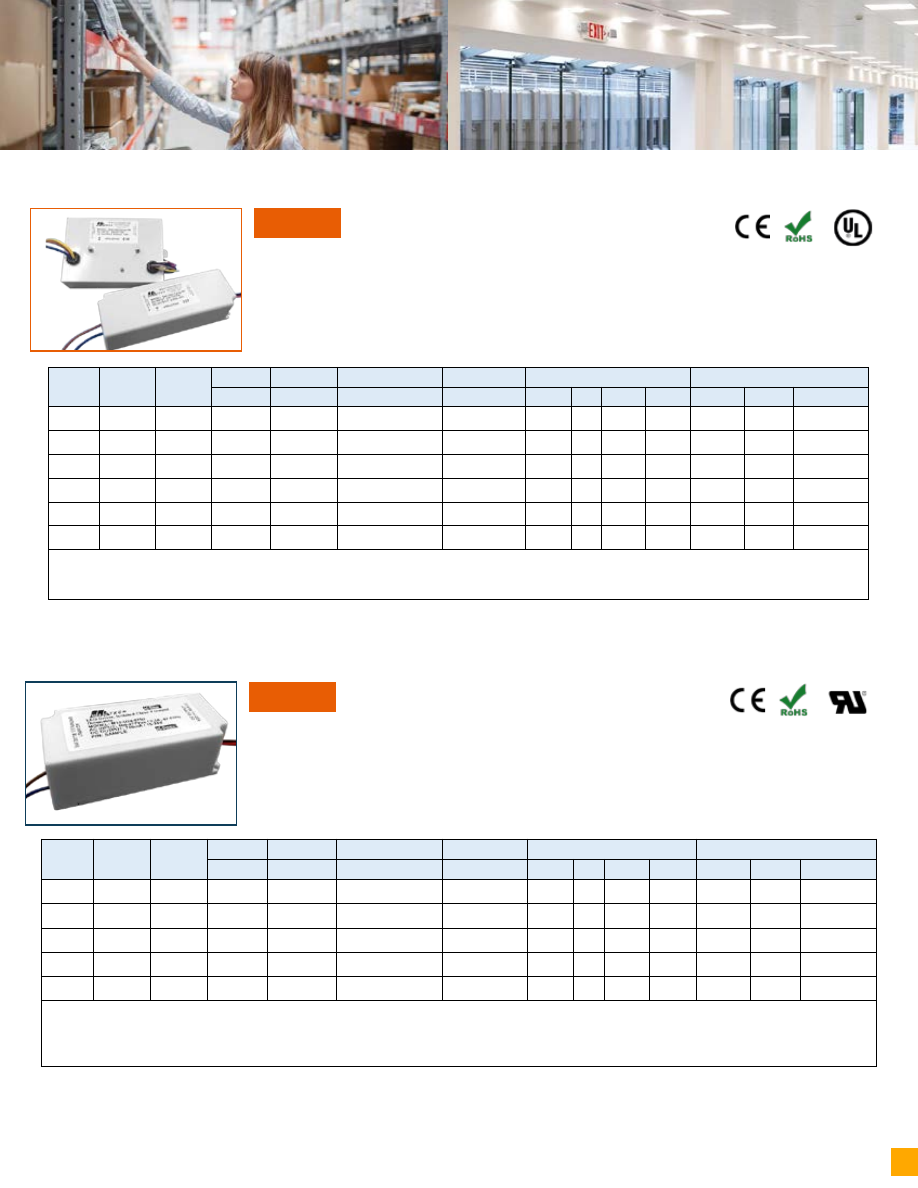

QM100 Series

QM100-U48z-yyyy-LP

QM100-U24z-LP

QM100-U48z-yyyy-MB

QM100-U24z-MB

QM100-U48z-yyyy-BM

QM100-U24z-BM

QM100-U48z-yyyy-SB

QM100-U24z-SB

•  Low cost single stage design

•  Constant current and constant voltage available

•  Compatible with 0-10 or 1-10V dimmers

•  UL/CE certified

•  Fullrange AC unput from 110-277VAC

Dry & damp location; Multipurpose

M Series

C

MODEL NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

PROGRAMMABLE MAX. POWER

DIMMING METHODS

CASE STYLE

(VDC)

(mA)

(OUTPUT)

(WATTS)

TRIAC ELV 0-10V PWM PLASTIC METAL ALUMINUM

M9

1

CC

9-30

750

N

10

●

●

M18

1

CC

10-30

830

N

22

●

●

M28

1

CC

15-54

1250

N

30

●

●

●

M38

1

CC

15-54

1660

N

40

●

●

●

M48

1

CC

15-54

2090

N

50

●

●

DIMENSIONS (L x W x H)

M9: 70.5 x 34.5 x 25mm

M18: 85.3 x 41 x 29mm

M28-XM: 114 x 42 x 29mm

M28-XP: 88 x 41 x 29mm

M38-XM: 114 x 42 x 29mm

M38-XP: 88 x 41 x 30mm

M48-XP: 138 x 47 x 32mm

•  Available in plastic and metal (stud-mountable) design

•  Constant current output only

•  Compatible with 0-10V dimmers; source and sink

•  UL8750 Class 2 / CE certified

•  Full range AC unput from 110-277VAC

Dry & damp location; 0-10V Dimming

Q Series

C

US

LISTED

MODEL NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

PROGRAMMABLE MAX. POWER

DIMMING METHODS

CASE STYLE

(VDC)

(mA)

(OUTPUT)

(WATTS)

TRIAC ELV 0-10V PWM PLASTIC METAL ALUMINUM

Q12

1

CC / CV

12-54

1300

N

23

●

●

●

Q22

1

CC / CV

12-54

2500

N

25

●

●

●

Q38

1

CC / CV

24-72

1850

N

40

●

●

●

Q48

1

CC / CV

24-72

2200

N

50

●

●

●

Q58

1

CC / CV

24-72

2650

N

60

●

●

●

Q68

1

CC / CV

24-72

3150

N

70

●

●

●

Dimensions (L x W x H)

Q12, Q22-XM: 114 x 42 x 29mm

Q12-XP: 85.3 x 38 x 27.7mm

Q22-XP: 85.3 x 38 x 27.7

Q38, Q48, Q58, Q68-XM: 120.3 x 76.3 x 30mm

Q38, Q48, Q58, Q68-XP: 138 x 47 x 32

www.magtechind.com

Release Date: 06/30/2022

•  Universal AC input range 90~305VAC

•  Constant Voltage Operatio

•  Cooling by Free Air Convection (Metal Housing)

•  Suitable for LED Strips and Moving Sign Applications

•  Function options: 3 in 1 dimming (dim-to-off); DALI

Dry & damp location; Multipurpose

LD Series

MODEL

NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

PROGRAMMABLE MAX. POWER

DIMMING METHODS

CASE STYLE

(VDC)

(mA)

(OUTPUT)

(WATTS)

TRIAC ELV 0-10V PWM PLASTIC METAL ALUMINUM

LD100H-VU83012-70(X)

CV

12

99.6

100

●

●

●

LD100H-VU42024-70(X)

CV

24

100.8

●

●

●

LD100H-VU28036-70(X)

CV

36

100.8

●

●

●

LD100H-VU21048-70(X)

CV

48

100.8

●

●

●

LD200H-VU1K612-72(X)

CV

12

200.4

200

●

●

●

LD200H-VU83034-72(X)

CV

24

199.2

●

●

●

LD200H-VU55036-72(X)

CV

36

198

●

●

●

LD200H-VU41548-72(X)

CV

48

199.2

●

●

●

LD300H-VU1K224-74(X)

CV

24

350

300

●

●

●

LD300H-VU83336-74(X)

CV

36

400

●

●

●

LD300H-VU62548-74(X)

CV

48

500

●

●

●

LD400H-VU1K624-76(X)

CV

24

400.8

400

●

●

●

LD400H-VU1K136-76(X)

CV

36

399.6

●

●

●

LD400H-VU83348-76(X)

CV

48

398.4

●

●

●

DIMENSIONS (L x W x H)

LD100H: 230 x 80.3 x 33.5mm

LD300H: 223.2 x 98 x 38.5mm

LD200H: 230 x 80.3 x 33.5mm

LD400H: 273.2 x 98 x 38.5mm

•

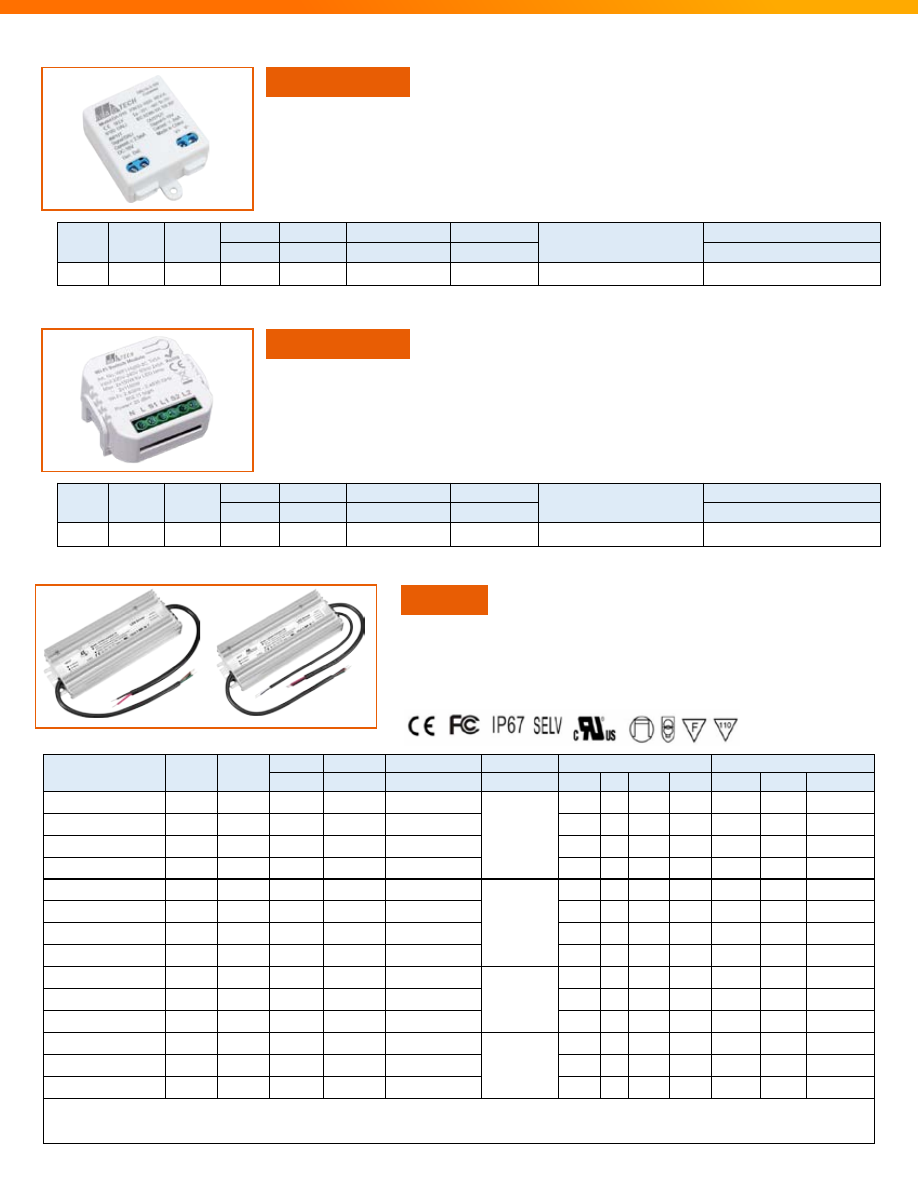

Powered by DALI Bus voltage or external Class 2 DC source

•

Output 0-10V current sink

•

Convert DALI signal to 0-10V dimming signal

•

IEC 62386 DALI-1 certified

•

Compact size

For dry location

DALI Converter

•

Powered by DALI Bus voltage or external Class 2 DC source

•  DALI Type 8 Command

•

Output 0-10V current sink

•

Convert DALI signal to 0-10V dimming signal

•

IEC 62386 DALI-1 certified

•

Compact size

For dry location

DALI Converter

MODEL NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

OUTPUT

SINK CURRENT

COMPATIBILITY

CASE STYLE

(VDC)

(mA)

(VDC)

(mA)

PLASTIC

DA-010

1

Linear

12-22.5

2

0-10

<2

DALI

42 X 40 X 20.5MM (L x W x H)

MODEL NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

OUTPUT

SINK CURRENT

COMPATIBILITY

CASE STYLE

(VDC)

(mA)

(VDC)

(mA)

PLASTIC

DA-020

1

Linear

12-22.5

2

0-10

<2

DALI

50 X 45 X 20MM (L x W x H)

•

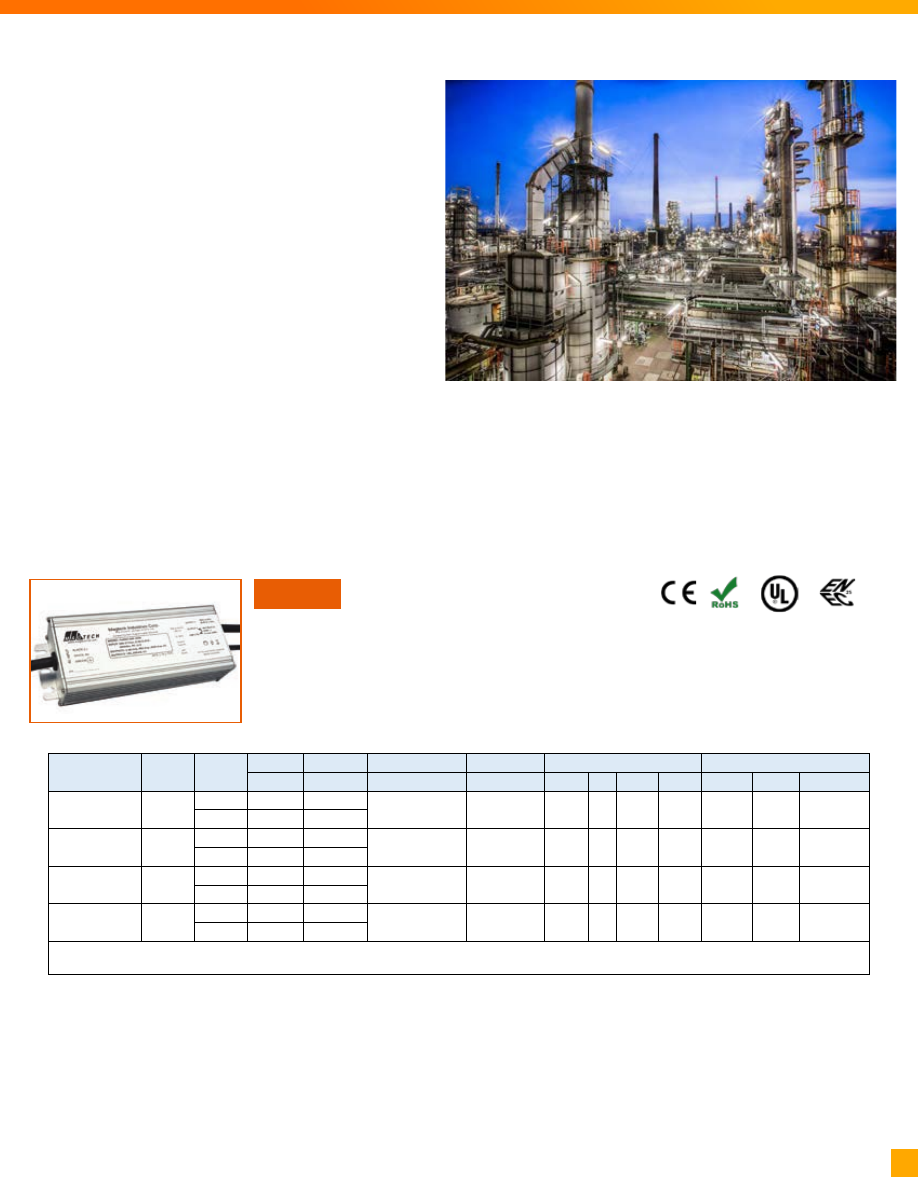

Wide Range input from 110-277 VAC, 50-60Hz

•

Constant power design with programmable output current

•

Isolation dimming circuit- isolated from both primary and secondary circuits

•

UL HL Recognized;  CE Certified

•

Isolated 0-10V Dimmable

•

Auxillary DC output at 200mA

•

ATEX  Explosion-proof certified

For Hazardous Locations

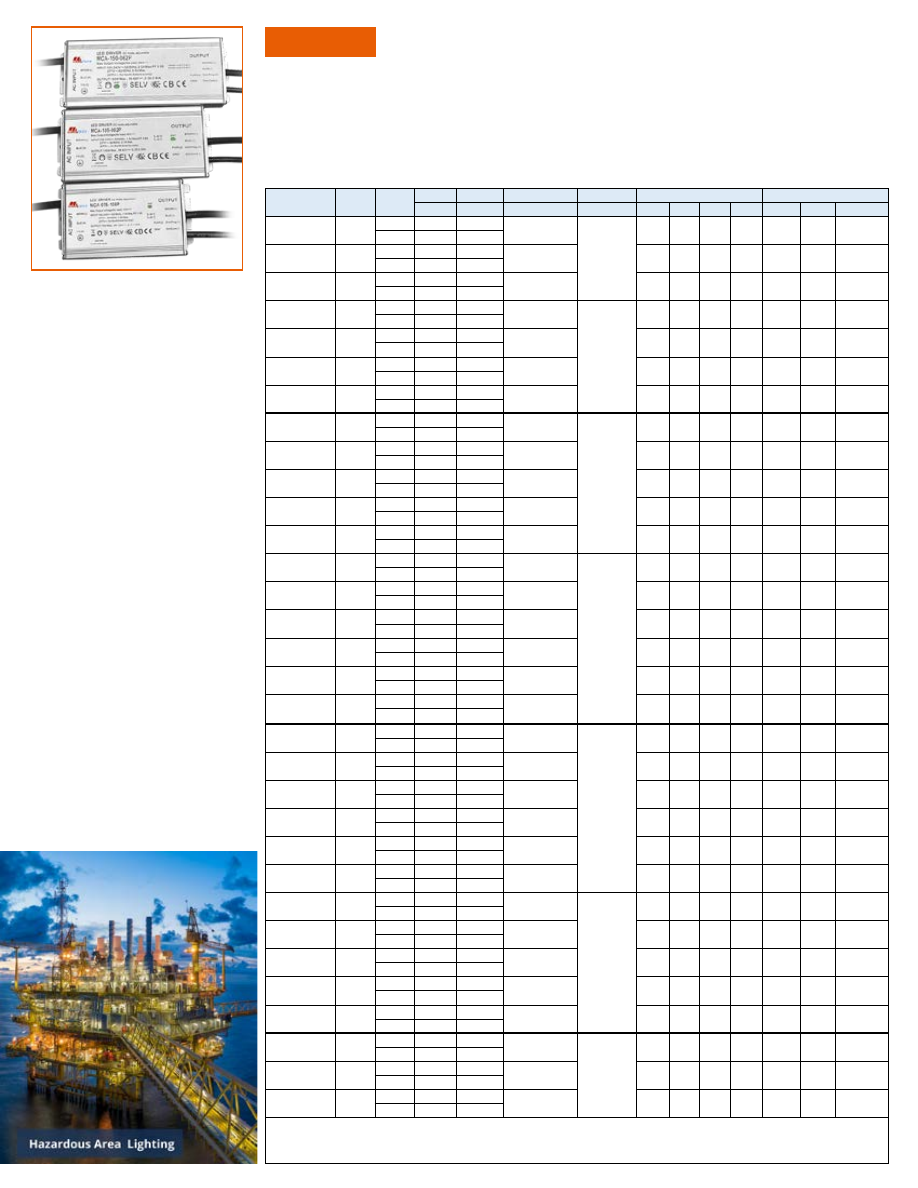

HA Series

C

US

    hL

CB

n.ECM 20 ATEX-B DW96

II 2G Ex mb IIC T4 Gb

MODEL

NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

PROGRAMMABLE MAX. POWER

DIMMING METHODS

CASE STYLE

(VDC)

(mA)

(OUTPUT)

(WATTS)

TRIAC ELV 0-10V PWM PLASTIC METAL ALUMINUM

HA060-090-0750

2

CC

45-90

300-750

Y

60

●

●

●

CV

12

200

HA060-048-1400

2

CC

24-48

600-1400

Y

60

●

●

●

CV

12

200

HA100-120-1000

2

CC

60-120

1000-400

Y

100

●

●

●

CV

12

200

HA100-070-1600

2

CC

36-72

1600-700

Y

100

●

●

●

CV

12

200

Dimensions (L x W x H)

HA060: 160 x 64 x 36mm

HA100: 180 x 64 x 36mm

For  the  international  hazardous  location  ATEX

standards, our HA060 and HA100 will meet your needs.

The HA060 and HA100 are designed  to exceed the

requirements  and  ATEX  certified.  The  series  design

provides a wide range of forward voltages and

programmable constant current outputs.

In addition to 0-10V dimming, a 12VDC auxiliary output

can be used to power control apparatus in fixtures. This

is a design with a lot of benefits & savings!

ATEX Hazardous Location

www.magtechind.com

Release Date: 06/30/2022

MODEL

NO. OF

OUTPUT

OUTPUT

TYPE

OUTPUT

OUTPUT

PROGRAMMABLE MAX. POWER

DIMMING METHODS

CASE STYLE

(VDC)

(mA)

(OUTPUT)

(WATTS)

TRIAC 0-10V PWM

STEP PLASTIC METAL ALUMINUM

MCA075-041X

2

CC

20-41

2670-1830

Y

75

●

●

●

●

CV

12

200

MCA-075-062X

2

CC

38-62

1880-1220

Y

●

●

●

●

CV

12

200

MCA-075-108X

2

CC

54-108

1050-700

Y

●

●

●

●

CV

12

200

MCA-105-041X

2

CC

20-41

3500-2560

Y

105

●

●

●

●

CV

12

200

MCA-105-062X

2

CC

38-62

2500-1690

Y

●

●

●

●

CV

12

200

MCA-105-100X

2

CC

50-100 1400-1050

Y

●

●

●

●

CV

12

200

MCA-105-150X

2

CC

75-150

1050-700

Y

●

●

●

●

CV

12

200

MCA-150-041X

2

CC

20-41

5400-540

Y

150

●

●

●

●

CV

12

200

MCA-150-062X

2

CC

38-62

3600-360

Y

●

●

●

●

CV

12

200

MCA-150-108X

2

CC

54-108

2100-210

Y

●

●

●

●

CV

12

200

MCA-150-143X

2

CC

80-143

1500-150

Y

●

●

●

●

CV

12

200

MCA-150-214X

2

CC

142-214 1050-150

Y

●

●

●

●

CV

12

200

MCA-200-041X

2

CC

20-41

6670-670

Y

200

●

●

●

●

CV

12

200

MCA-200-062X

2

CC

38-62

5000-3230

Y

●

●

●

●

CV

12

200

MCA-200-096X

2

CC

48-96

3000-300

Y

●

●

●

●

CV

12

200

MCA-200-143X

2

CC

96-143

2100-210

Y

●

●

●

●

CV

12

200

MCA-200-191X

2

CC

133-191 1500-150

Y

●

●

●

●

CV

12

200

MCA-200-286X

2

CC

191-286 1050-110

Y

●

●

●

●

CV

12

200

MCA-240-041X

2

CC

20-41

7500-750

Y

240

●

●

●

●

CV

12

200

MCA-240-062X

2

CC

28-62

5710-570

Y

●

●

●

●

CV

12

200

MCA-240-086X

2

CC

43-86

4200-2800

Y

●

●

●

●

CV

12

200

MCA-240-171X

2

CC

85-171 2100-1400

Y

●

●

●

●

CV

12

200

MCA-240-229X

2

CC

114-229 1500-1050

Y

●

●

●

●

CV

12

200

MCA-240-343X

2

CC

171-343 1050-700

Y

●

●

●

●

CV

12

200

MCA-320-041X

2

CC

20-41 10000-1000

Y

320

●

●

●

●

CV

12

200

MCA-320-062X

2

CC

36-62

7500-750

Y

●

●

●

●

CV

12

200

MCA-320-143X

2

CC

50-143 3200-2240

Y

●

●

●

●

CV

12

200

MCA-320-230X

2

CC

115-230 2110-1540

Y

●

●

●

●

CV

12

200

MCA-320-457X

2

CC

228-457 1100-700

Y

●

●

●

●

CV

12

200

MCA-600-060X

2

CC

24-60

10-12.5A

Y

600

●

●

●

●

CV

12

200

MCA-600-152X

2

CC

61-152 3.95-5.25A

Y

●

●

●

●

CV

12

200

MCA-600-545X

2

CC

430-545 1.1-1.4A

Y

●

●

●

●

CV

12

200

Dimensions (L x W x H)

MCA075: 120 x 66.2 x 36.8mm

MCA105: 145 x 66.2 x 39mm

MCA150: 185 x 66.2 x 39mm

MCA200: 185 x 66.2 x 39mm

MCA240: 200 x 66.2 x 39mm

MCA320: 223.2 x 66.2 x 40.3mm

MCA600: 251 x 142 x 46.5mm

•

Input voltage 120-277VAC, 50/60 Hz

•

Fully programmable CC output

•

Low dim to off ; 100% - 10% dimming

•

12VDC Auxiliary output available

•

Surge Protection- 5KV line-line, 10KV line-ground

•

Suitable for dry/ damp/ wet locations; IP67 compliant

•

Isolation dimming circuit- isolated from both primary and secondary circuits

For Outdoor, 75W to 600W

MCA Series

•  Best low power load support, no bypass part or low power light adapter required

•  Default local circuit operate and do not require system control

•  20dBm 2.4G for long range communication

•  Power failure memory to return to its previous set level prior to the

    interruption of power

•  Compatible to desinger style wallplates or stanard off-the-shelve wall plates

•  Fit in 1-gang U.S. wallbox ; 2 1/2" minimum depth recommended

•  Non-neutral design make installation easier (ZigBee only)

•  Available color - white

Standard and Non-neutral Available

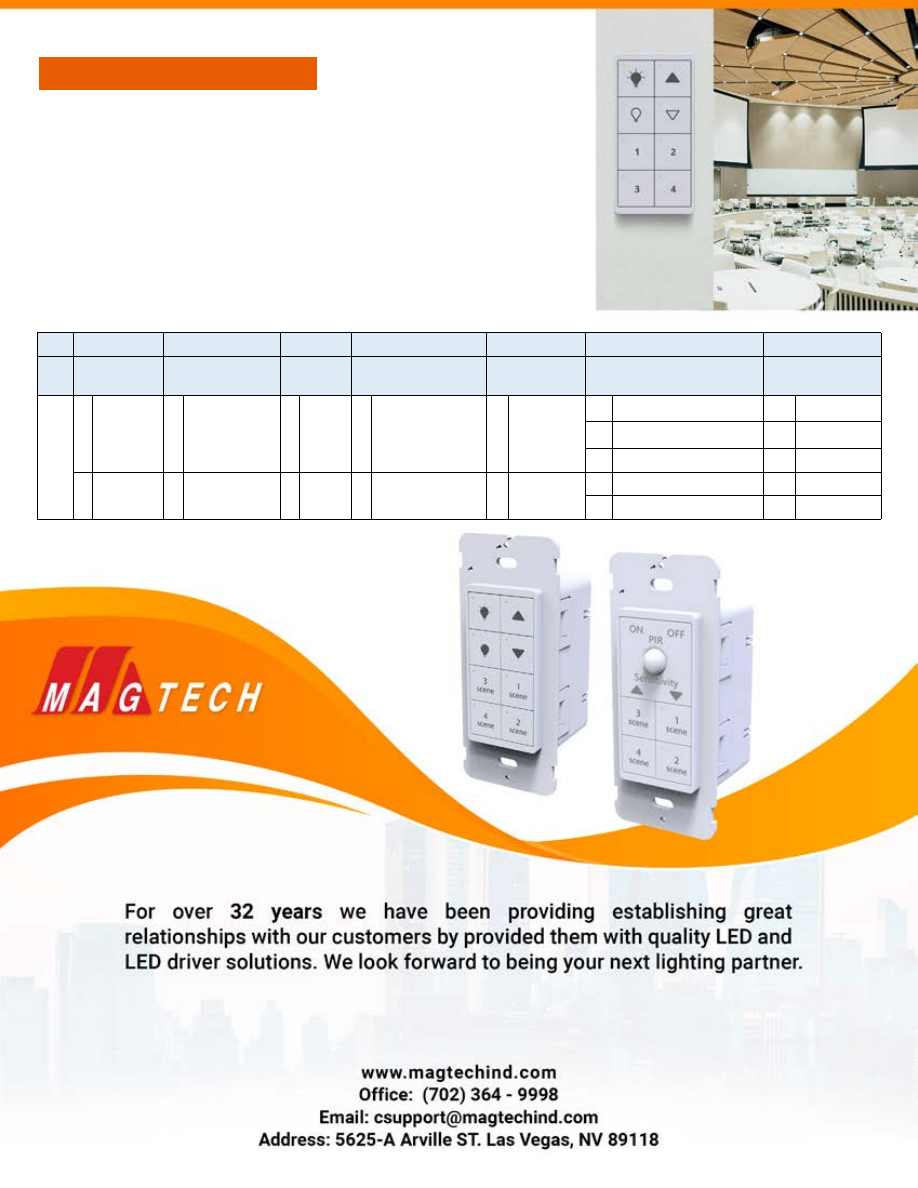

Order Information: WS-QRX-SY-ZZT

ATOM WIRELESS IN-WALL SWITCH

WS-

Q

R

X-

S

Y-

ZZ

T

RELAY FOR AC

ON/OFF

LOCATION

0-10V

DIMMING

NEUTRAL WIRE

WIRELESS

COMMUNICATION

PROTOCOL

NUMBER OF BUTTONS

FACE PLATE COLOR

(Optional)

WS

T

For Yes

A

For U

S

A

,

110 – 277VAC

Input

0

No

0

Yes (With) for

Zigbee or Bluetooth

1

Zigbee

02

2 Buttons | On/O

ff

A1

Dark

Chocolate

04

4 Buttons | On/O

ff

A2

Warm

Caramel

05

5 Buttons | On/O

ff

; 2

S

cene

A3

Moon Rock

N

For No

E

For Europe

,

230VAC Input

1

Yes

N

No (Without) for

Zigbee only

2

BT 5.0

06

6 Buttons | On/O

ff

; 2

S

cene

A4

S

ilver Gray

08

8 Buttons | On/O

ff

; 4

S

cene

A5

Pebble Gray
