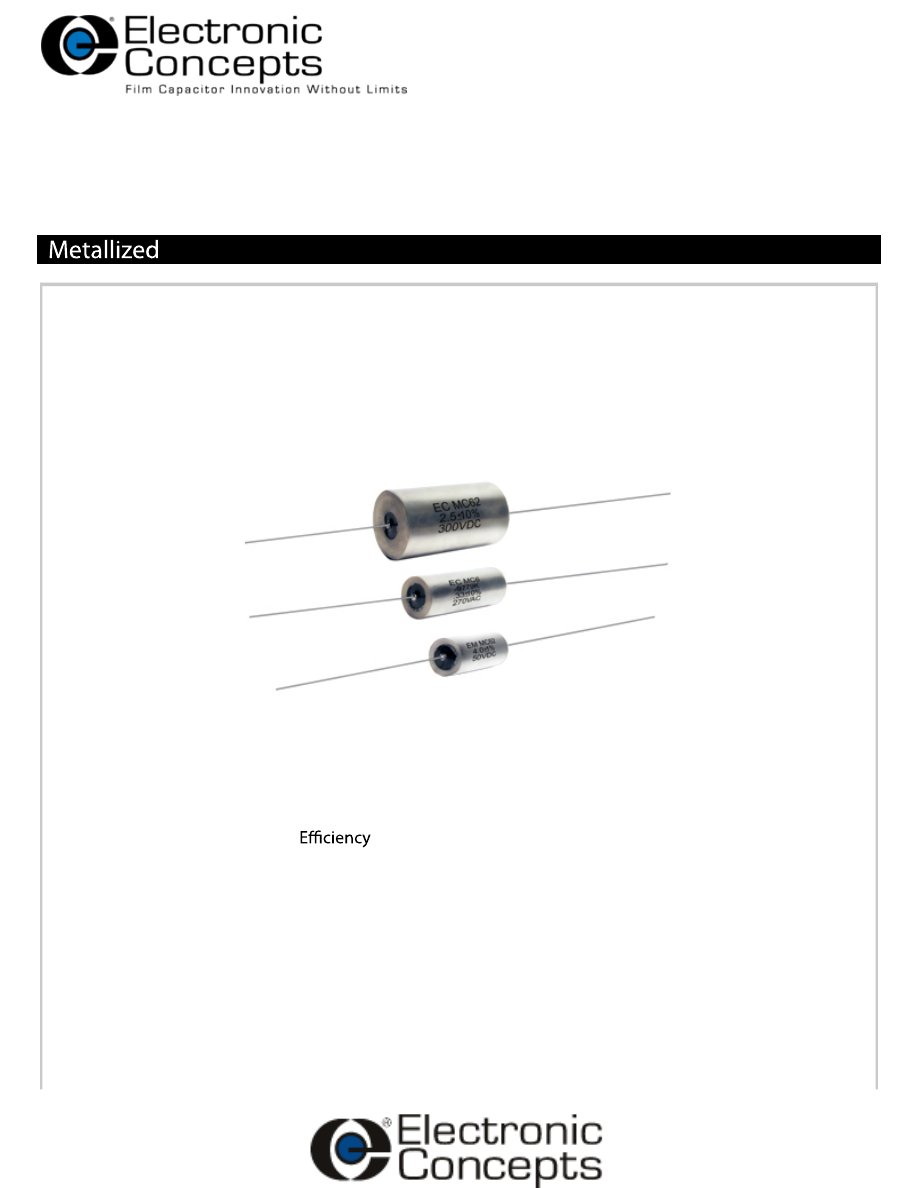

Summary

Capacitance Range

.001uF to 100uF

Capacitance Tolerance

Standard tolerance is ±10%. Tolerances of ±20%, ±5%, ±2%,

±1% are available.

Operating Temperature Range

-55°C to +125°C without derating

Enclosure/ Construction

Hermetically Sealed in metal tubes with glass-to-metal

solder-sealed terminals

Voltage Rating

DC working voltages of 100VDC, 150VDC, 200VDC,

300VDC, and 400VDC are standard.

Quality Control

Capacitors are tested 100% for:

o Capacitance

o Tolerance

o Dissipation Factor

o Dielectric withstanding Voltage

o Insulation Resistance

o Equivalent Series Resistance (ESR)

Process and inspection data are maintained on

and available

on special request.

Environmental

Parameter

Method

Condition

Vibration

204

Immersion

104

Shock

213

Humidity

106

Thermal Shock

107

Life

108

Reference MIL-STD-202

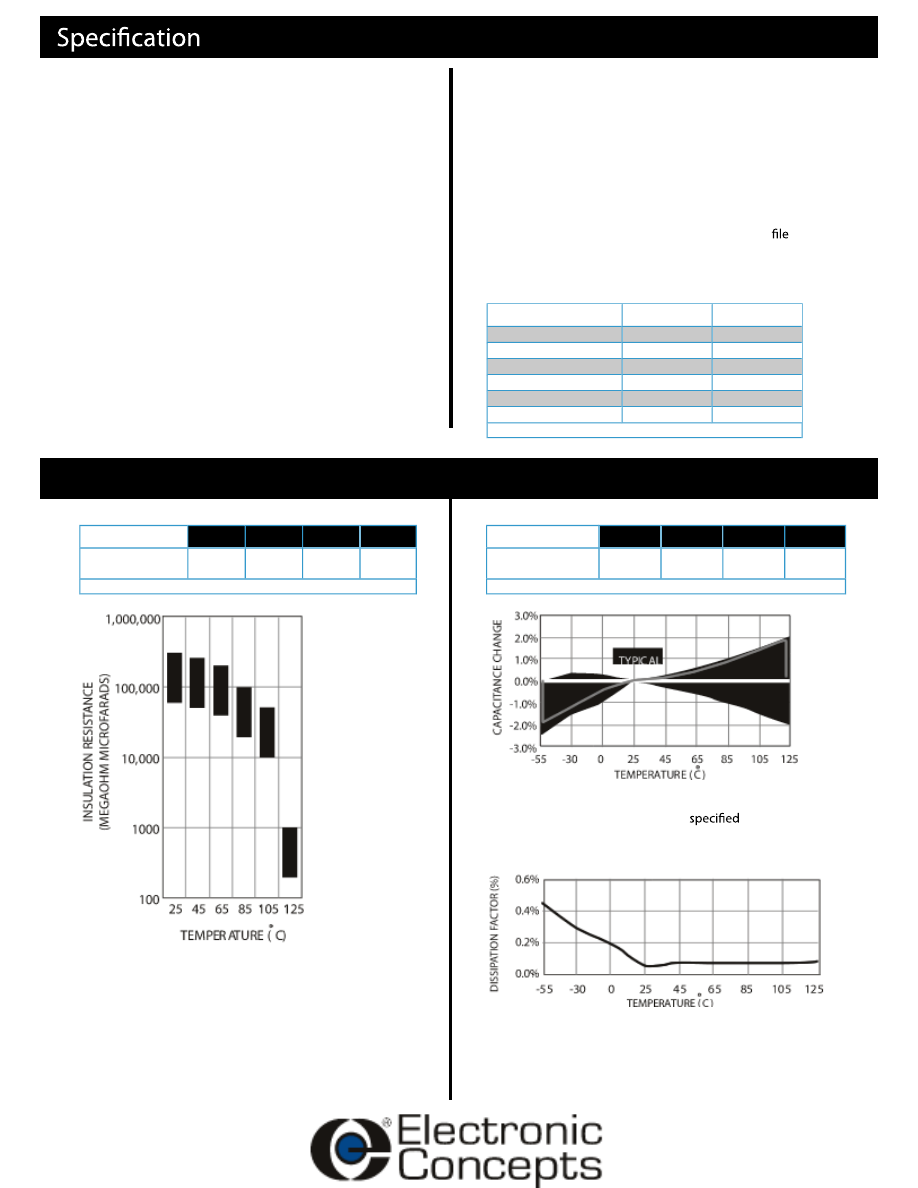

Characteristics

Insulation Resistance

Temperature(°C)

125

Megaohmsx

Microfarads

100,000

7,000

700

Insulation Resistance

Dielectric Strength

Capacitors shall withstand a DC potential of 200% rated

voltage for two minutes without damage. When the

capacitor section is insulated from the case, the

capacitors shall withstand a DC potential of 200% rated

voltage applied between the case and the

terminals.Test voltage must be applied and discharged

through a resistance of 1 OHM per volt, minimum and at

25°C.

Capacitance Change

Temperature(°C)

-55

125

PercentageChange

(typical)

±1.5

±0.3

±0.8

CapacitanceChange

Dissipation Factor

When measured at the frequency

for capacitance

measurements, the dissipation factor shall not exceed 0.3% from

+25°C to +125°C.

Rev. 4

DATA

EC PART

NUMBER

CAP

(µF)

100 VDC

150 VDC

200 VDC

MC52_103K

0.010

0.174

0.625 24 0.174

0.625 24

MC52_123K

0.012

0.174

0.625 24 0.174

0.625 24

MC52_153K

0.015

0.174

0.625 24 0.174

0.625 24

MC52_183K

0.018

0.174

0.625 24 0.174

0.625 24 0.193

0.625 24

MC52_223K

0.022

0.174

0.625 24 0.174

0.625 24 0.193

0.625 24

MC52_273K

0.027

0.174

0.625 24 0.193

0.625 24 0.235

0.625 22

MC52_333K

0.033

0.174

0.625 24 0.193

0.688 24 0.235

0.625 22

MC52_393K

0.039

0.174

0.625 24 0.193

0.688 24 0.235

0.688 22

MC52_473K

0.047

0.193

0.625 24 0.235

0.625 22 0.235

0.688 22

MC52_563K

0.056

0.193

0.625 24 0.235

0.688 22 0.312

0.625 22

MC52_683K

0.068

0.235

0.625 22 0.235

0.688 22 0.312

0.625 22

MC52_823K

0.082

0.235

0.625 22 0.312

0.688 22

MC52_104K

0.100

0.235

0.688 22 0.312

0.688 22

MC52_124K

0.120

0.235

0.688 22 0.312

0.812 22

MC52_154K

0.150

0.312

0.625 22 0.312

0.812 22 0.312

0.812 22

MC52_184K

0.180

0.312

0.625 22 0.312

0.812 22 0.400

0.688 20

MC52_224K

0.220

0.312

0.688 22 0.312

0.812 22 0.400

0.812 20

MC52_274K

0.270

0.312

0.688 22 0.400

0.812 20 0.400

0.812 20

MC52_334K

0.330

0.312

0.812 22 0.400

0.812 20 0.400

0.938 20

MC52_394K

0.390

0.312

0.812 22 0.400

0.812 20 0.400

0.938 20

MC52_474K

0.470

0.400

0.688 20 0.400

0.938 20 0.400

1.125 20

MC52_564K

0.560

0.400

0.812 20 0.400

1.125 20 0.400

1.312 20

MC52_684K

0.680

0.400

0.812 20 0.400

1.125 20 0.500

1.125 20

MC52_824K

0.820

0.400

0.938 20 0.500

1.125 20

MC52_105K

1.000

0.400

0.938 20 0.500

1.125 20 0.562

1.125 20

MC52_125K

1.200

0.500

0.938 20 0.500

1.125 20 0.562

1.312 20

MC52_155K

1.500

0.500

0.938 20 0.500

1.312 20 0.562

1.312 20

MC52_185K

1.800

0.500

1.125 20 0.562

1.312 20 0.562

1.812 20

MC52_205K

2.000

0.500

1.125 20 0.562

1.312 20 0.562

1.812 20

MC52_225K

2.200

0.500

1.125 20 0.562

1.562 20 0.562

1.812 20

MC52_275K

2.700

0.562

1.312 20 0.562

1.812 20 0.670

1.562 20

MC52_305K

3.000

0.562

1.312 20 0.562

1.812 20 0.750

1.562 20

MC52_335K

3.300

0.562

1.312 20 0.562

1.812 20 0.750

1.812 20

MC52_395K

3.900

0.562

1.562 20 0.670

1.812 20 0.750

1.812 20

MC52_475K

4.700

0.670

1.312 20 0.670

1.812 20 0.750

2.062 20

MC52_505K

5.000

0.670

1.312 20 0.750

1.562 20 0.750

2.062 20

MC52_565K

5.600

0.670

1.312 20 0.750

1.812 20 0.750

2.312 20

MC52_685K

6.800

0.670

1.562 20 0.750

2.063 20 1.000

1.812 20

MC52_825K

8.200

0.670

1.812 20 0.750

2.375 20 1.000

2.062 20

MC52_106K

10.000

0.750

1.812 20 0.750

2.625 20 1.000

2.312 20

MC52_126K

12.000

0.750

1.812 20 1.000

1.875 20 1.000

2.563 18

MC52_156K

15.000

1.000

1.875 20 1.000

2.125 20 1.125

2.687 18

MC52_186K

18.000

1.000

1.875 20 1.000

2.625 18 1.250

2.687 18

MC52_206K

20.000

1.000

1.875 20 1.000

2.875 18 1.250

2.687 18

MC52_226K

22.000

1.000

1.875 20 1.125

2.937 18 1.250

2.937 18

MC52_256K

25.000

1.000

2.125 20 1.250

2.687 18 1.390

2.937 18

MC52_276K

27.000

1.000

2.125 20 1.250

2.687 18 1.390

2.937 18

MC52_306K

30.000

1.000

2.375 20 1.250

2.937 18 1.390

3.187 18

MC52_336K

33.000

1.000

2.625 18 1.250

2.937 18 1.390

3.187 18

MC52_396K

39.000

1.000

2.875 18 1.390

2.937 18 1.500

3.187 18

Note:

The

character of the part number represents the DC voltage rating (i.e. D=100 VDC, E=150 VDC, etc.).

Rev. 4

EC PART

NUMBER

CAP

(µF)

100 VDC

150 VDC

200 VDC

MC52_476K

47.000

1.125

2.937

18 1.500

2.937 18 -

MC52_506K

50.000

1.250

2.937

18 1.500

3.187 18 -

MC52_566K

56.000

1.250

2.937

18 1.500

3.187 18 -

MC52_686K

68.000

1.390

2.937

18 -

MC52_756K

75.000

1.390

2.937

18 -

MC52_826K

82.000

1.390

3.187

18 -

MC52_906K

90.000

1.390

3.187

18 -

MC52_107K

100.000 1.500

3.187

18 -

Note:

The

character of the part number represents the DC voltage rating (i.e. D=100 VDC, E=150 VDC, etc.).

EC PART

NUMBER

CAP

(µF)

300 VDC

400 VDC

MC52_103K

0.010

0.193

0.688

0.235

0.688

MC52_123K

0.012

0.235

0.688

0.235

0.812

MC52_153K

0.015

0.235

0.688

0.235

0.812

MC52_183K

0.018

0.235

0.812

0.235

0.812

MC52_223K

0.022

0.235

0.812

0.312

0.688

MC52_273K

0.027

0.312

0.688

0.312

0.812

MC52_333K

0.033

0.312

0.688

0.312

0.812

MC52_393K

0.039

0.312

0.812

0.312

0.938

MC52_473K

0.047

0.312

0.812

0.400

0.812

MC52_563K

0.056

0.312

0.938

0.400

0.812

MC52_683K

0.068

0.312

0.938

0.400

0.938

MC52_823K

0.082

0.400

0.812

0.400

0.938

MC52_104K

0.100

0.400

0.938

0.400

1.125

MC52_124K

0.120

0.400

0.938

0.400

1.312

MC52_154K

0.150

0.400

1.125

0.400

1.312

MC52_184K

0.180

0.400

1.312

0.562

1.125

MC52_224K

0.220

0.400

1.312

0.562

1.125

MC52_274K

0.270

0.562

1.125

0.562

1.312

MC52_334K

0.330

0.562

1.125

0.562

1.562

MC52_394K

0.390

0.562

1.125

0.562

1.562

MC52_474K

0.470

0.562

1.562

0.562

1.812

MC52_564K

0.560

0.562

1.562

0.670

1.562

MC52_684K

0.680

0.670

1.312

0.670

1.812

MC52_824K

0.820

0.670

1.562

0.750

1.812

MC52_105K

1.000

0.670

1.812

0.750

2.062

MC52_125K

1.200

0.670

1.812

1.000

1.812

MC52_155K

1.500

0.750

2.062

1.000

1.812

MC52_185K

1.800

0.750

2.062

1.000

2.062

MC52_205K

2.000

0.750

2.062

1.000

2.062

MC52_225K

2.200

1.000

1.812

1.000

2.312

MC52_275K

2.700

1.000

1.812

1.000

2.562

MC52_305K

3.000

1.000

2.062

1.000

2.687

MC52_335K

3.300

1.000

2.312

MC52_395K

3.900

1.000

2.562

Rev. 4

Note:

The

character of the part number represents the DC voltage rating (i.e. H=300 VDC, J=400 VDC, etc.).

Information

High volumetric

which results in small, lightweight units. This is particularly important to

designers of equipment where space is at a premium. Self-healing properties assuring greater

operational reliability. Low loss characteristics and high current carrying capabilities make these

capacitors especially suitable for specialized AC and RF applications. Applications for these capacitors

include tuned circuits, analog computer reference capacitors and precision timing and integrating circuits.

TO ORDER

TYPE

Metallized Polycarbonate

STYLE / VOLTAGE

5=Metal tube, hermetically sealed round without insulating sleeves;

6=Metal tube, hermetically sealed round with clear plastic insulating

sleeves. / D=100VDC, E=150VDC, F=200VDC, H=300VDC, J=400VDC

52 D

CAPACITANCE

IN PICOFARADS

The

two digits are

the third represents the number of zeros

(e.g. 104 = 100,000 pfd = .1mfd)

104

TOLERANCE

Standard tolerance is ±10% : Tolerances of ±20%, ±5%, ±2%, ±1% are

available.

Marking And Date Code

All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type MC, capacitance,

tolerance, rated DC working voltage and date code. The

two digits of the date code represent the year, the second two digits the

week, i.e., 0952 is the 52nd week of 2009, 0902 is the second week of 2009.

Quality Assurance

Major emphasis is placed on quality assurance. EC is an ISO 9001-2000 and AS9100:2004

Company. Raw material

inspection and the use of SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the

EC Quality Control Manual. Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology,

compact capacitor designs and establishing reliability procedures.
