MC0

SERIES

Metallized

Polycarbonate

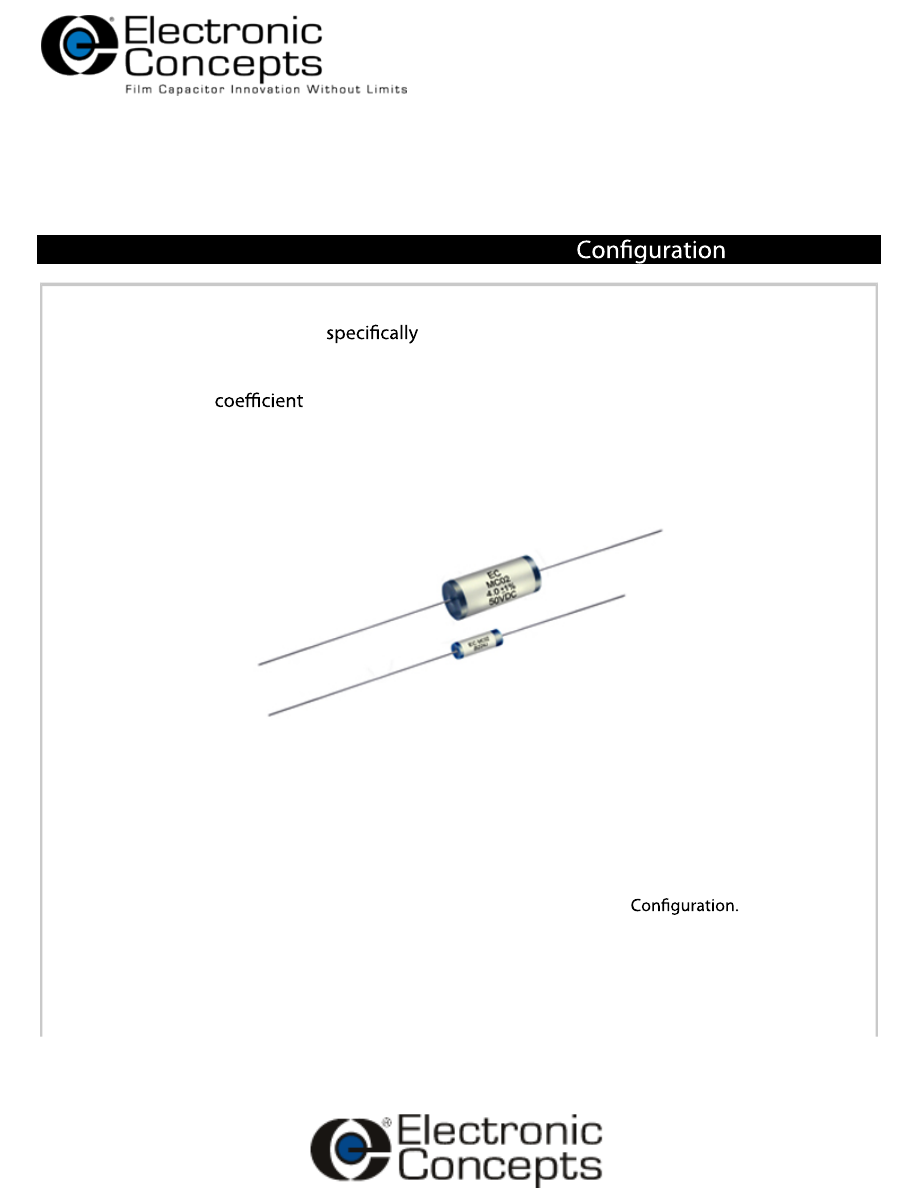

Metallized Polycarbonate Wrap & Fill Tubular

The MC0

Series

designed for low-drift, tight tolerance

applications that require voltage to 400VDC,

a continuous operating

temperature to 125°C and capacitance tolerance as low as 1%. There is also a

temperature

of ±100ppm and a dissipation factor <0.3%.

FEATURES

STANDARD CONFIGURATION

1% Capacitor Tolerance

Dual Moisture Seal

Construction

Superior Protection Against

Hostile Environments

Manufactured to MIL

Standards

Wrap & Fill Tubular

Rev. 2

Specification Summary

Capacitance Range

0.0010µF to 20.0µF Capacitance shall be measured at 25°C

and at or referred to a frequency of 1 kHz.

Capacitance Tolerance

Standard tolerance is ±1%, ±2%, ±5%, ±10%

Operating Temperature Range

-55°C to +125°C

Enclosure/ Construction

Extended metallized Polycarbonate film (non-inductive)

Voltage Rating

DC working voltage ratings at +125°C, are 50VDC, 100VDC,

200VDC and 400VDC.

Quality Control

Capacitors are tested 100% for:

o Capacitance

o Tolerance

o Dissipation Factor

o Dielectric withstanding Voltage

o Insulation Resistance

o Equivalent Series Resistance (ESR)

Process and inspection data are maintained on file and available

on special request.

Environmental

Parameter

Method

Condition

Vibration

204

Immersion

104

Shock

213

Humidity

106

Thermal Shock

107

Life

108

Reference MIL-STD-202

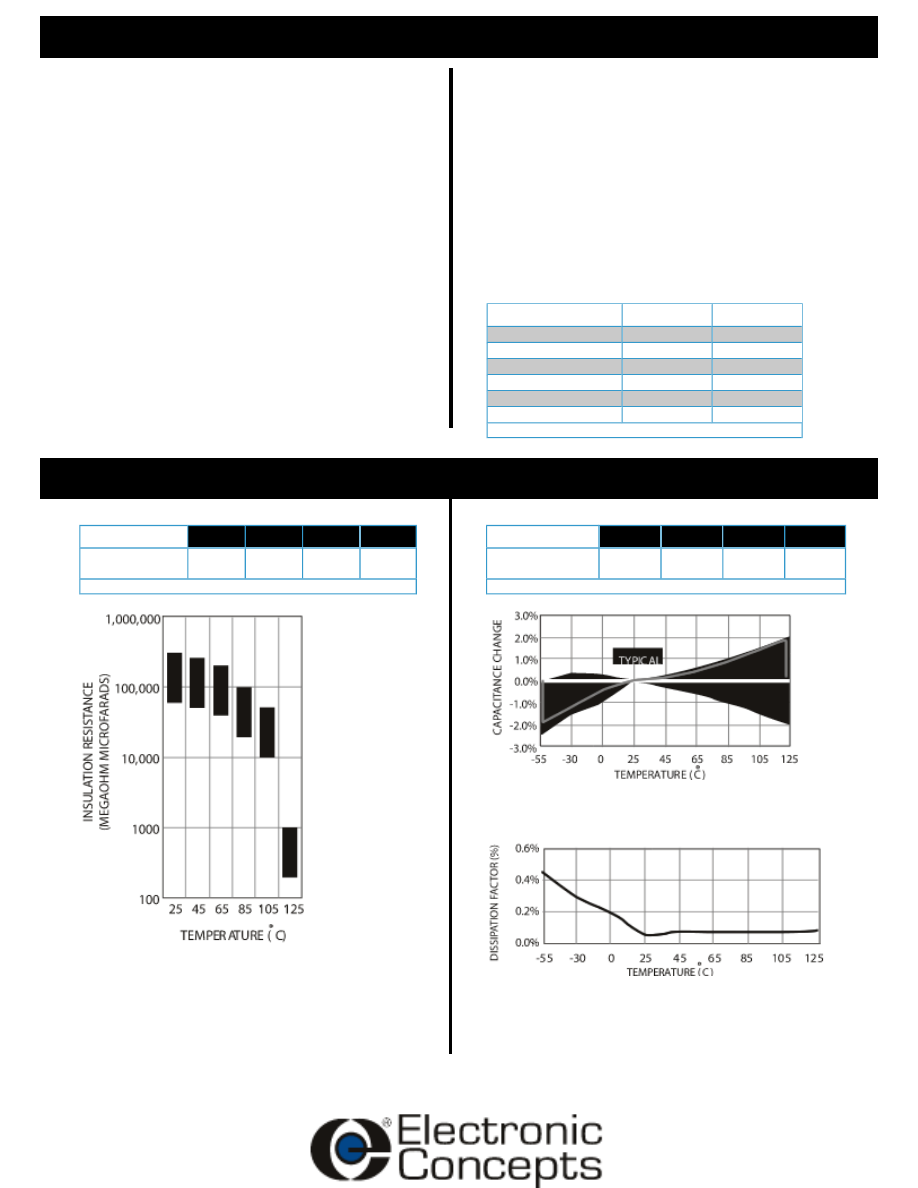

Characteristics

Insulation Resistance

Temperature(°C)

125

Megaohmsx

Microfarads

50,000

5,000

500

Insulation Resistance

Dielectric Strength

Capacitors shall withstand a DC potential of 200% rated

voltage for two (2) minutes without damage or

breakdown. Test voltage must be applied and

discharged through a resistance of 1 OHM per volt,

minimum and at 25°C.

Capacitance Change

Temperature(°C)

-55

125

PercentageChange

(typical)

-2.5

±1.0

±2.0

CapacitanceChange

Dissipation Factor

When measured at 1kHz, the dissipation factor shall not exceed

0.3% from +25°C to +125°C.

Rev. 2

ELECTRICAL

DATA

EC PART

NUMBER

MFD

50 VDC

100 VDC

200 VDC

400 VDC

AWG

MC02_102_

0.0010

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.40

MC02_122_

0.0012

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.40

MC02_152_

0.0015

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.40

MC02_182_

0.0018

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.40

MC02_222_

0.0022

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.40

MC02_272_

0.0027

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.40

MC02_332_

0.0033

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.40

MC02_392_

0.0039

0.15

0.40

0.15

0.40

0.15

0.40

0.16

0.40

MC02_472_

0.0047

0.15

0.40

0.15

0.40

0.15

0.40

0.17

0.40

MC02_562_

0.0056

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.53

MC02_682_

0.0068

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.53

MC02_822_

0.0082

0.15

0.40

0.15

0.40

0.15

0.40

0.15

0.53

MC02_103_

0.0100

0.15

0.40

0.15

0.40

0.15

0.40

0.17

0.53

MC02_123_

0.0120

0.15

0.40

0.15

0.40

0.15

0.40

0.18

0.53

MC02_153_

0.0150

0.15

0.40

0.15

0.40

0.15

0.40

0.20

0.53

MC02_183_

0.0180

0.15

0.40

0.15

0.40

0.16

0.40

0.22

0.53

MC02_223_

0.0220

0.15

0.40

0.15

0.40

0.17

0.40

0.24

0.53

MC02_273_

0.0270

0.15

0.40

0.15

0.40

0.15

0.53

0.27

0.53

MC02_333_

0.0330

0.15

0.40

0.15

0.40

0.15

0.53

0.29

0.53

MC02_393_

0.0390

0.15

0.40

0.15

0.40

0.16

0.53

0.27

0.68

MC02_473_

0.0470

0.15

0.40

0.15

0.40

0.18

0.53

0.30

0.68

MC02_563_

0.0560

0.15

0.40

0.16

0.40

0.19

0.53

0.33

0.68

MC02_683_

0.0680

0.15

0.40

0.18

0.40

0.21

0.53

0.32

0.78

MC02_823_

0.0820

0.15

0.40

0.15

0.53

0.23

0.53

0.35

0.78

MC02_104_

0.1000

0.15

0.40

0.16

0.53

0.25

0.53

0.38

0.78

MC02_124_

0.1200

0.15

0.40

0.17

0.53

0.27

0.53

0.41

0.78

MC02_154_

0.1500

0.16

0.40

0.19

0.53

0.31

0.53

0.40

0.95

MC02_184_

0.1800

0.15

0.53

0.20

0.53

0.29

0.68

0.44

0.95

MC02_224_

0.2200

0.15

0.53

0.22

0.53

0.32

0.68

0.41

1.17

MC02_274_

0.2700

0.16

0.53

0.24

0.53

0.32

0.78

0.45

1.17

MC02_334_

0.3300

0.18

0.53

0.26

0.53

0.35

0.78

0.50

1.17

MC02_394_

0.3900

0.19

0.53

0.29

0.53

0.38

0.78

0.54

1.17

MC02_474_

0.4700

0.20

0.53

0.26

0.68

0.41

0.78

0.59

1.17

MC02_564_

0.5600

0.22

0.53

0.29

0.68

0.39

0.95

0.64

1.17

MC02_684_

0.6800

0.24

0.53

0.29

0.78

0.36

1.17

0.65

1.45

MC02_824_

0.8200

0.26

0.53

0.31

0.78

0.39

1.17

0.63

1.70

MC02_105_

1.0000

0.28

0.53

0.34

0.78

0.44

1.17

0.66

1.90

MC02_125_

1.2000

0.26

0.68

0.37

0.78

0.48

1.17

0.72

1.90

MC02_155_

1.5000

0.28

0.68

0.37

0.95

0.53

1.17

0.80

1.90

MC02_185_

1.8000

0.29

0.78

0.40

0.95

0.58

1.17

0.87

1.90

MC02_205_

2.0000

0.30

0.78

0.38

1.17

0.61

1.17

0.92

1.90

MC02_255_

2.5000

0.34

0.78

0.42

1.17

0.62

1.45

MC02_305_

2.0000

0.37

0.78

0.45

1.17

0.61

1.70

MC02_355_

3.5000

0.40

0.78

0.48

1.17

0.66

1.70

MC02_405_

4.0000

0.37

0.95

0.52

1.17

0.66

1.90

MC02_455_

4.5000

0.39

0.95

0.55

1.17

0.70

1.90

MC02_505_

5.0000

0.36

1.17

0.58

1.17

0.73

1.90

MC02_605_

6.0000

0.39

1.17

0.62

1.17

0.80

1.90

MC02_805_

8.0000

0.45

1.17

0.63

1.45

0.92

1.90

Note:

The

characterof thepartnumberrepresentstheDC voltagerating(i.e. B=50 VDC, D=100 VDC, etc.). Additionally, thetenth

characterof thepartnumberrepresentstheTolerance (K=±10%, J=±5%, G=±2%, F=±1%).

Rev. 2

EC PART

NUMBER

MFD

50 VDC

100 VDC

200 VDC

400 VDC

AWG

MC02_106_

10.0000

0.50

1.17

0.64

1.70

1.02

1.90

MC02_126_

12.0000

0.54

1.17

0.65

1.90

MC02_156_

15.0000

0.60

1.17

0.72

1.90

MC02_186_

18.0000

0.58

1.45

0.78

1.90

MC02_206_

20.0000

0.61

1.45

0.82

1.90

Note:

The

characterof thepartnumberrepresentstheDC voltagerating(i.e. B=50 VDC, D=100 VDC, etc.). Additionally, thetenth

characterof thepartnumberrepresentstheTolerance (K=±10%, J=±5%, G=±2%, F=±1%).

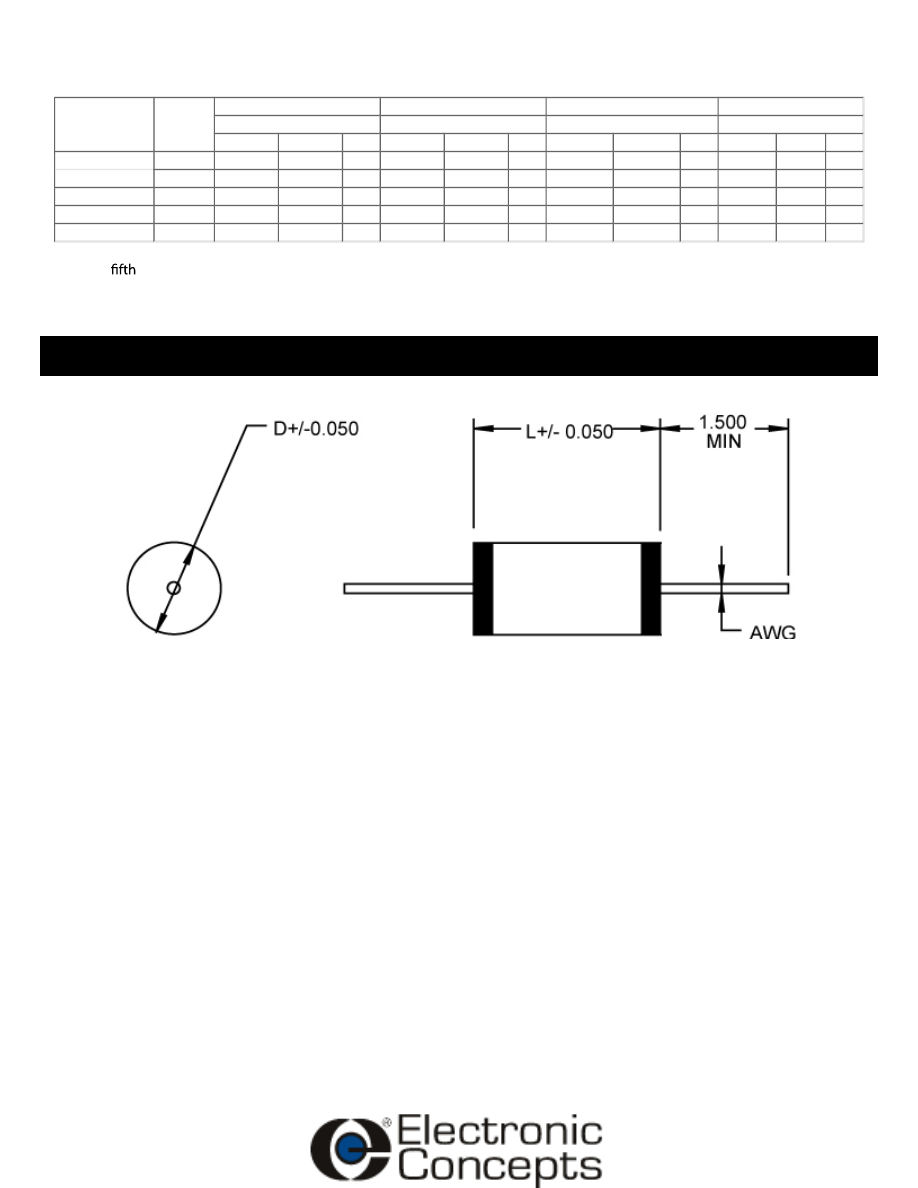

Mechanical Data

Rev. 2

ADDITIONAL INFORMATION

The MC0 Series is a new polycarbonate,

capacitor developed by Electronic Concepts to meet the

ever changing, more demanding requirements of circuit designers. Although not called for, it is built to

MIL-PRF-55514 to maximize reliability. The MC0 Series is

designed for low-drift, tight

tolerance applications that require voltage to 400VDC, a continuous operating temperature to 125°C and

capacitance tolerance as low as 1%. There is also a temperature

of ±100ppm and a

dissipation factor <0.3%. Importantly, the MC0 Series features a unique dual moisture seal construction

(versus the single seal method of others). Dual sealing ensures greater overall electrical integrity with

long term stability - and imparts the ability to accommodate adverse environments normally associated

with the electronic industry.

With the introduction of the MC0 Series, the designer can now build in more performance with

greater reliability and operating protection. Plus overall system cost savings can often be realized.

HOW TO ORDER

TYPE

Metallized Polycarbonate

MC0

STYLE / VOLTAGE

B=50VDC, D=100VDC, F=200VDC, J=400VDC

2 J

CAPACITANCE

IN PICOFARADS

The

two digits are

the third represents the number of zeros

(e.g. 475=4,700,000pF)

106

TOLERANCE

K=±10% J=5% G 2% F=1%

Marking and Date Code

All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type MC0, capacitance,

tolerance, rated DC working voltage and date code. The

two digits of the date code represent the year, the second two digits the

week, i.e., 0952 is the 52nd week of 2009, 0902 is the second week of 2009.

Quality Assurance

Major emphasis is placed on quality assurance. EC is an ISO 9001-2000 and AS9100:2004

Company. Raw material

inspection and the use of SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the

EC Quality Control Manual. Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology,

compact capacitor designs and establishing reliability procedures.
