AEM, Inc.
11525 Sorrento Valley Rd., San Diego, CA92121, USA
Phone: (858)481-0210, Fax: (858)481-1123

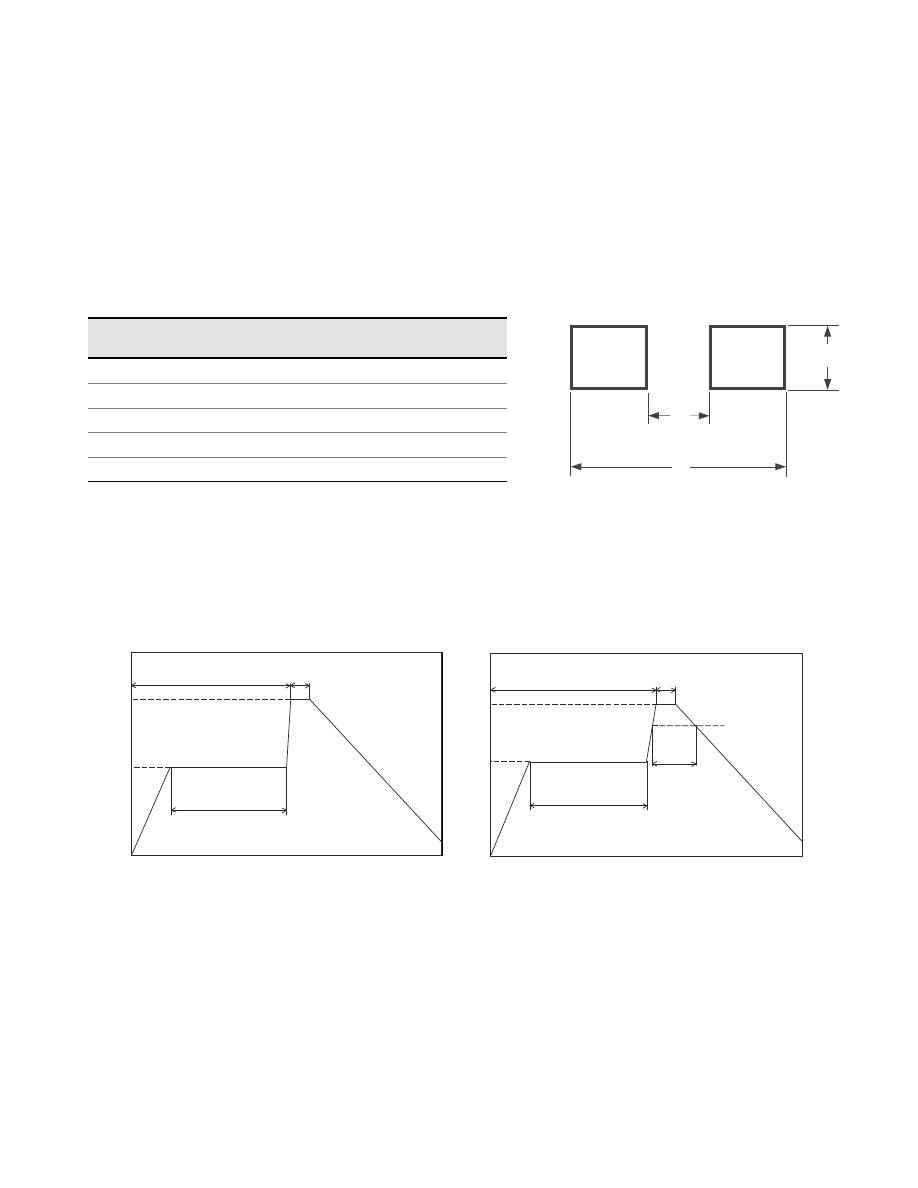

Recommended PC Board Land Patterns

Recommended Temperature Profiles for Soldering

Recommended Temperature Profile

for Wave Soldering

250°C

150°C

60 Seconds Min.

Preheat 100 Seconds Max.

Soldering

10 Seconds Max.

Natural
Cooling

Recommended Temperature Profile

for Reflow Soldering

230°C

150°C

60 Seconds Min.

Preheat 100 Seconds Max.

Soldering

10 Seconds Max.

Natural
Cooling

200°C

20 Seconds Max.

L



G



H

Chip Size



L mm (inch)



G mm (inch)



H mm (inch)

0402(1005)



1.3 (0.051)



0.4 (0.016)



   0.5 (0.020)



0603(1608)



2.6 (0.102)



0.6 (0.023)



   0.8 (0.031)



0805(2012)



3.0 (0.118)



1.0 (0.039)



   1.0 (0.039)



1206(3216)



4.4 (0.173)



2.2 (0.087)



   1.4 (0.055)



1806(4516)



5.5 (0.217)



3.0 (0.118)



   1.4 (0.055)



Land Patterns and Soldering
Temperature Profiles
