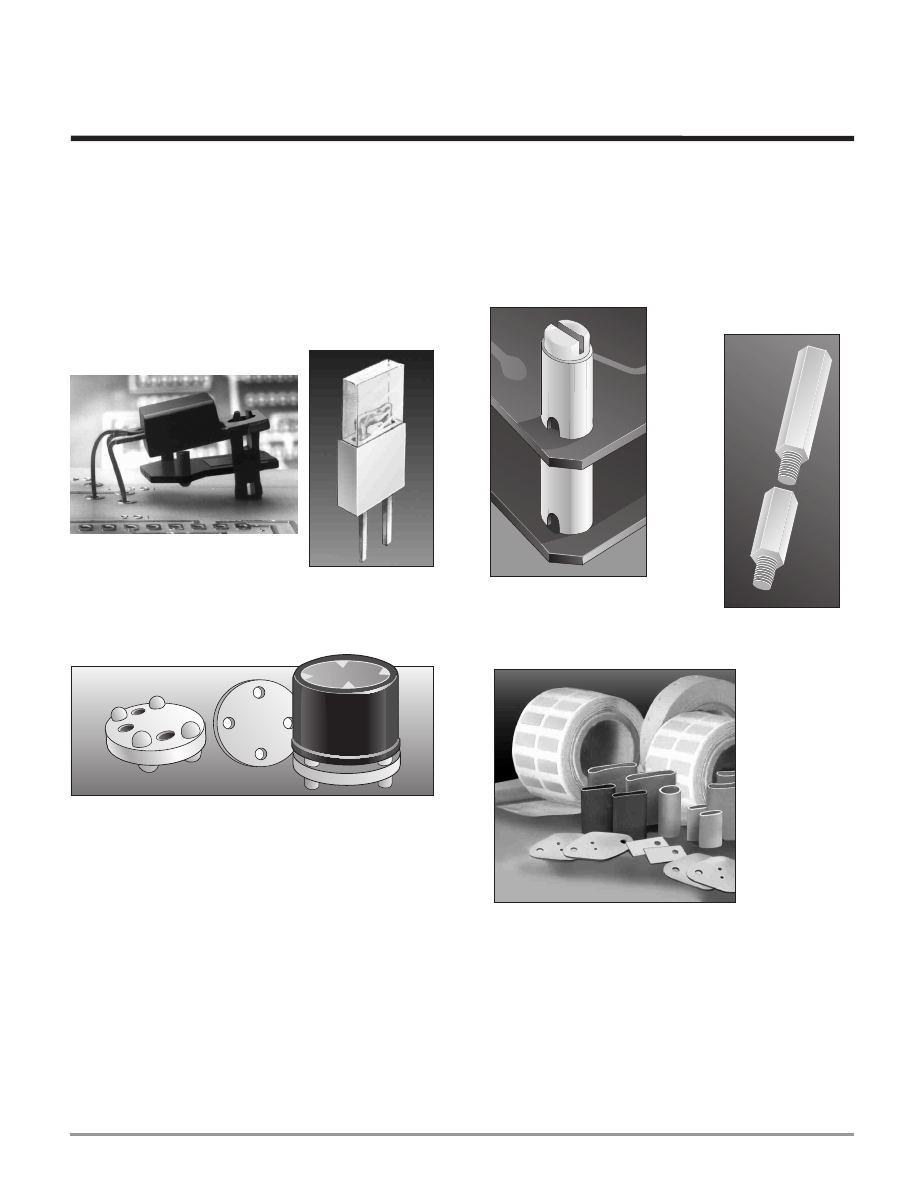

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Deep Channel Guides provide

“extra” gripping power

Space Saver Guides

permit greater use of valuable board space

New Stat Guides

protect static sensitive materials

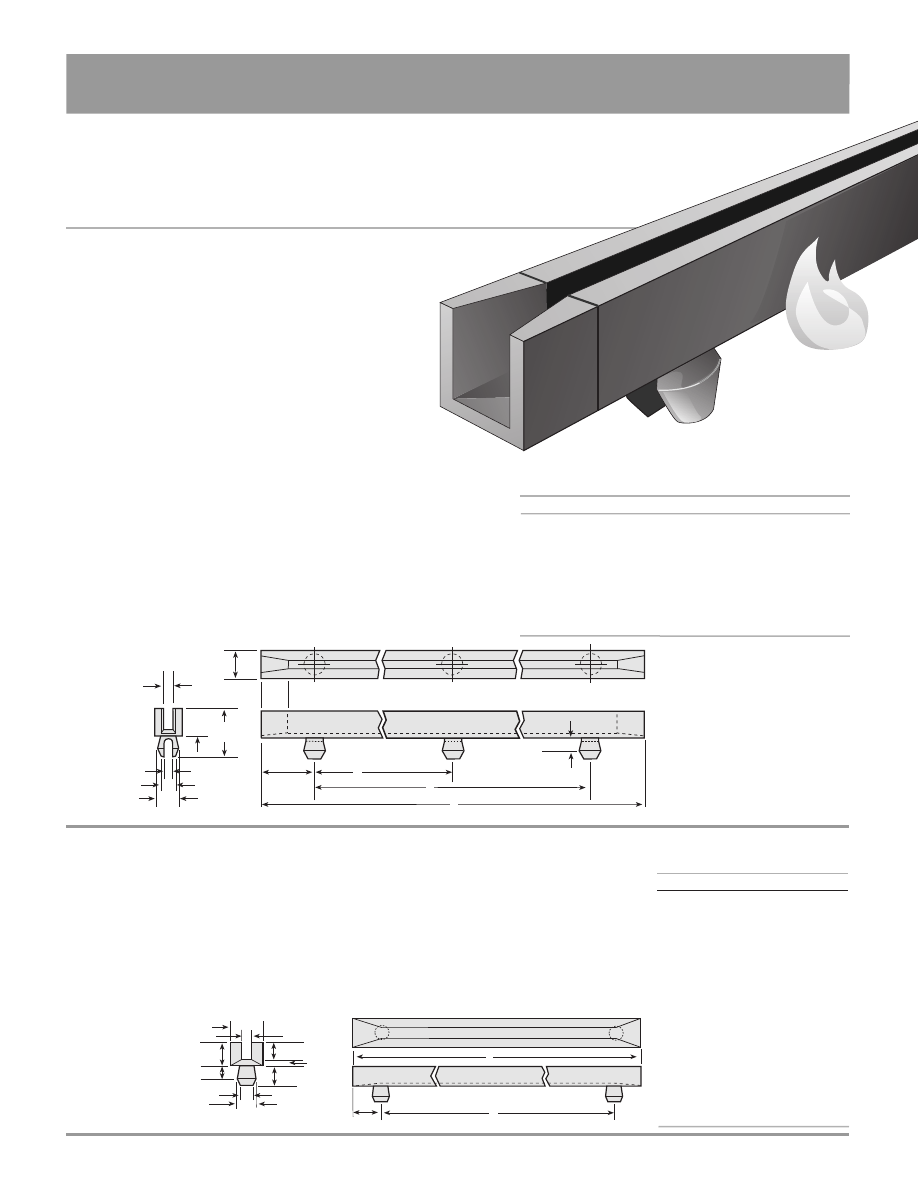

Deep Channel Guides

For 1/16" and 1/8" PCB’s

• Permit horizontal and vertical mounting of extra

large boards.
• .200" (5.08mm) deep channel slot firmly holds the heaviest PCB’s.
• Extra grip “pinching action” is precision molded into the guide.
• PCB’s will not vibrate out of slot.
• Reversible guides can be mounted end to end for tandem assembly.
• Press fit pylons easily slide into a .187" dia +.003" hole in any plate

.047" to .090" thickness -.001". (4.75mm dia +.08mm hole in any

plate 1.19mm to 2.29mm thickness -.03mm). Slotting or elongating

of second and third hole is recommended to allow for length variations

in molding.
• MATERIAL: Flame retardant nylon, U.L. rated 94V-0, Color: Black

PART NO. A B

C D

9425

2.5( 63.5) 1.5(038.1) –

.250(6.35) .080(2.03)

9445

4.5(114.3) 3.5(088.9) –

.250(6.35) .080(2.03)

9445-125 4.5(114.3) 3.5(088.9) –

.250(6.35) .130(3.30)

9460

6.0(152.4) 5.0(127.0) –

.250(6.35) .080(2.03)

9460-125 6.0(152.4) 5.0(127.0) –

.250(6.35) .132(3.35)

9480

8.0(203.2) 7.0(177.8) 3.5(88.9) .250(6.35) .080(2.03)

9480-125 8.0(203.2) 7.0(177.8) 3.5(88.9) .290(7.37) .132(3.35)

.250

(6.35) .44

(11.18)

.080 (2.03)

.110 (2.79)

.200(5.08)

.250

(6.35)

TYP.

.500

(12.70)

TYP.

–.015 (.038)

+.016 (.041)

–.032 (.081)

–.062 (1.57)

The 9400 series DEEP CHANNEL card guides hold
PCB’s more firmly, withstanding vibration. These
guides are specified more and more because of their
versatility and extra “gripping power”.

E RETARDA

Cross Reference to Bivar, Richco on page 21 and Milspec
84101 on page 22

STANDARD DRAWING

TOLERANCES,

Unless otherwise indicated:

Fractions
.X : – 1/64 (.397)
.XX : – .010 (.025)
.XXX : – .005 (.127)

+
+
+

.095(2.41)

Dimensions in Millimeters are indicated by (.00)

9200 Series Guides

For Tight Spaces

• Thin (less than 1/4" width) improves

airflow and packaging density.

• 13 standard sizes, 2.5" - 8.5".

• Snap-in design for easy assembly,

no tools required.

• .125" channel depth for good board

retention.

• Molded in natural

nylon 6/6,

U.L. rated 94V2.

Available U.L.

94V-0

Teknational’s 9200 Series guides have been
designed for easy insertion in sheet metal housing
.048"-.085" (1.2-2.2) thick (US gauges 18/14). Parts
should be mounted in a front hole .125" (3.2mm)
diameter with a slotted hole .120" (3.0mm) X .218"
(5.5mm) for the rear pylon. Longer lenghts available
with a third pylon (special order).

PART NO. L A

+/-.030 (.76) +/- .024 (61)

9200-25 2.5 ( 63.5) 2.0 ( 50.8)

9200-30 3.0 ( 76.2) 2.5 ( 63.5)

9200-35 3.5 ( 88.9) 3.0 ( 76.2)

9200-40 4.0 (101.6) 3.5 ( 88.9)

9200-45 4.5 (114.3) 4.0 (101.6)

9200-50 5.0 (127.0) 4.5 (114.3)

9200-55 5.5 (139.7) 5.0 (127.0)

9200-60 6.0 (152.4) 5.5 (139.7)

9200-65 6.5 (165.1) 6.0 (152.4)

9200-70 7.0 (177.8) 6.5 (165.1)

9200-75 7.5 (190.5) 7.0 (177.8)

9200-80 8.0 (203.2) 7.5 (190.5)

9200-85 8.5 (215.9) 8.0 (203.2)

Cross Reference to Bivar, Keystone
and Richco on page 21

.25

(6.35)

TYP.

.245 (6.22)

.172 REF

(4.37)

.078 (1.98)

.125 (3.18)

.047

.125 (3.18)

.085 (2.16)

.109 (2.77)

.132 (3.35)

TEK-GUIDES

Web-Site: www.teknational.com

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Part No. A

B C D E

9725E

2.520( 64.9) 1.511( 38.4) –

.254(6.35) .075(1.91)

9745E

4.520(114.8) 3.513(089.2) –

.250(6.35) .075(1.91)

9745-125E 4.520(114.8) 3.513(089.2) –

.250(6.35) .128(3.25)

9760-E

6.036(153.3) 5.017(127.4) –

.250(6.35) .075(1.91)

9760-125E 6.036(153.3) 5.017(127.4) –

.250(6.35) .128(3.25)

9780E

8.065(204.9) 7.024(178.4) 3.512(89.2) .250(6.35) .075(1.91)

9780-125E 8.065(204.9) 7.024(178.4) 3.512(89.2) .290(7.37) .128(3.25)

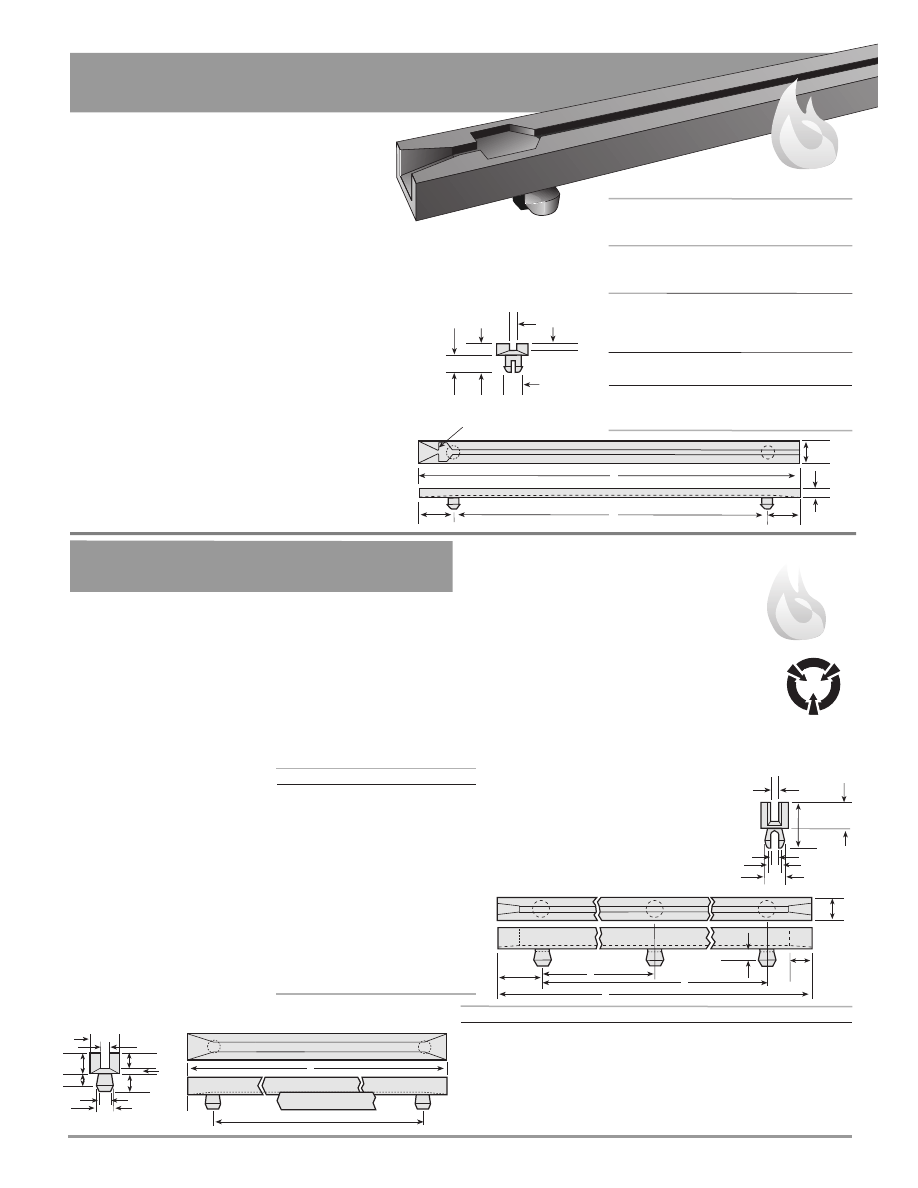

Space Saver Guides

For 1/16" PCB’s – Low profile

for economy of space

The 9300 series TEK-Guide offers excellent retention
with its .078" (1.98mm x 1.98mm) channel while saving
valuable board area due to its shallow depth.

• Available 2.5" to 8" in 12 standard lengths.
• Precision molded, offering strength and rigidity.
• Snap-in installation with any metal plate.
• PCB’s will not vibrate out of slot.

• Mount on a plate .047" to .090" (1.19mm to 2.29mm) thickness

with hole size .172" dia. + .003" (4.37mm dia. + .08mm)

- .001" (.03mm) 11/64 drill)
Slotting or elongating of second hole is recommended

to allow for length variations in molding.
• For extra retention use TEK 9062 or 9162 Locking

Ejectors to firmly hold PCB’s in place, see page 4.
• MATERIAL: Flame retardant nylon, U.L. rated 94V-0,
Color: Black

9200-S N-Stat Guides

For 1/16" PCB’s

1.516

(38.51)

3.016

(76.61)

5.016

(127.41)

6.031

(153.19)

• 13 standard sizes, 2.5"

through 8.5"

• Simple snap-in installation, no

tools required.

• Narrow width (less than 1/4")

Tek-Stat Guides

For 1/16" and 1/8" PCB’s

• Available 2.5", 4.5", 6" and 8" long.

• Deep channel design ensures that PCB ’s will

not vibrate loose.

• Sturdy design.

• Snap mounting system with two or three

pylons depending upon length.

• Press fit pylons easily slide into a .187"

dia. +.003" (4.75mm dia.+.08mm) hole

in any plate .047" to .090" (1.19mm to

2.29mm) thickness –.001" (.03mm).

Slotting or elongating of second and

third hole is recommended to allow

for length variations in molding.

.078 (1.98)

.280

(7.11)

.156

(3.96)

.188

(4.78)

.010

(.25)

Opening for engaging TEK Locking Ejectors

.50 (12.70)

.312

(7.92)

.125 (3.18)

.250

(6.35)

.500

(12.70

.016(.41)

–

.032(.81

.095(2.41

ETARDA

ESD

PROTECTION

.200(5.08)

.44 (11.18)

.250

(6.35)

.80 (2.03)

.110 (2.79)

Dimensions in Millimeters are indicated by (.00)

ANTISTATIC GUIDES

Precisely molded in static dissipative UL rated 94VO material,
these guides protect static sensitive boards. Made of nylon
6/6 filled with electrical grade PAN fibers (color gray), volume
and surface resistivity are measured per ASTM D257 at 105-
109 OHMS/"

. This material meets or exceeds NFPA and MB-

81705B standards for static decay.

–

.032(.81

.25

Cross Reference to Bivar
E Series on page 21
Milspec 84006 on page 22

.245 (6.22)

.172 REF

(4.37)

.078 (1.98)

.125 (3.18)

.047

.125 (3.18)

.085 (2.10)

.109 (2.77)

.132 (3.35)

A B

Part #. +.062(1.575) +.016(.407) +.047(1.19)

–.032(.813)
9300-25 2.5 ( 63.5)

0.5 (12.70)

-30 3.0 ( 76.2)

1.0 (25.40)

-35 3.5 ( 88.9)

1.5 (38.10)

-40 4.0 (101.6)

0.5 (12.70)

-45 4.5 (114.3)

1.0 (25.40)

-50 5.0 (127.0)

1.5 (38.10)

-55 5.5 (139.7)

2.0 (50.80)

-60 6.0 (152.4)

0.5 (12.70)

-65 6.5 (165.1)

1.0 (25.40)

-70 7.0 (177.8)

0.5 (12.70)

-75 7.5 (190.5)

1.0 (25.40)

-80 8.0 (203.2)

1.5 (38.10)

Part No. L

+/- .030(.76)

+/- .024(.61)

9200-25S 2.532( 64.3) 2.020( 51.3)

9200-30S 3.032( 77.0) 2.520( 64.0)

9200-35S 3.532( 89.7) 3.020( 76.7)

9200-40S 4.032(102.4) 3.520( 89.4)

9200-45S 4.532(115.1) 4.020(102.1)

9200-50S 5.032(127.8) 4.520(114.8)

9200-55S 5.532(140.5) 5.020(127.5)

9200-60S 6.032(153.2) 5.520(140.2)

9200-65S 6.532(165.9) 6.020(152.9)

9200-70S 7.032(178.6) 6.520(165.6)

9200-75S 7.532(191.3) 7.020(178.3)

9200-80S 8.032(204.0) 7.520(191.0)

9200-85S 8.532(216.7) 8.020(203.7)

These guides easily snap mount
into sheet metal .048" -.085"
(1.2mm-2.2mm) thick
sheet metal (US gages 18/14).
Recommended mounting is a
.125" (3.2mm) front hole with a
slotted rear hole
.120" (3.0mm) X .218" (5.5mm).

E RETARDAN

TEK-GUIDES

Web-Site: www.teknational.com

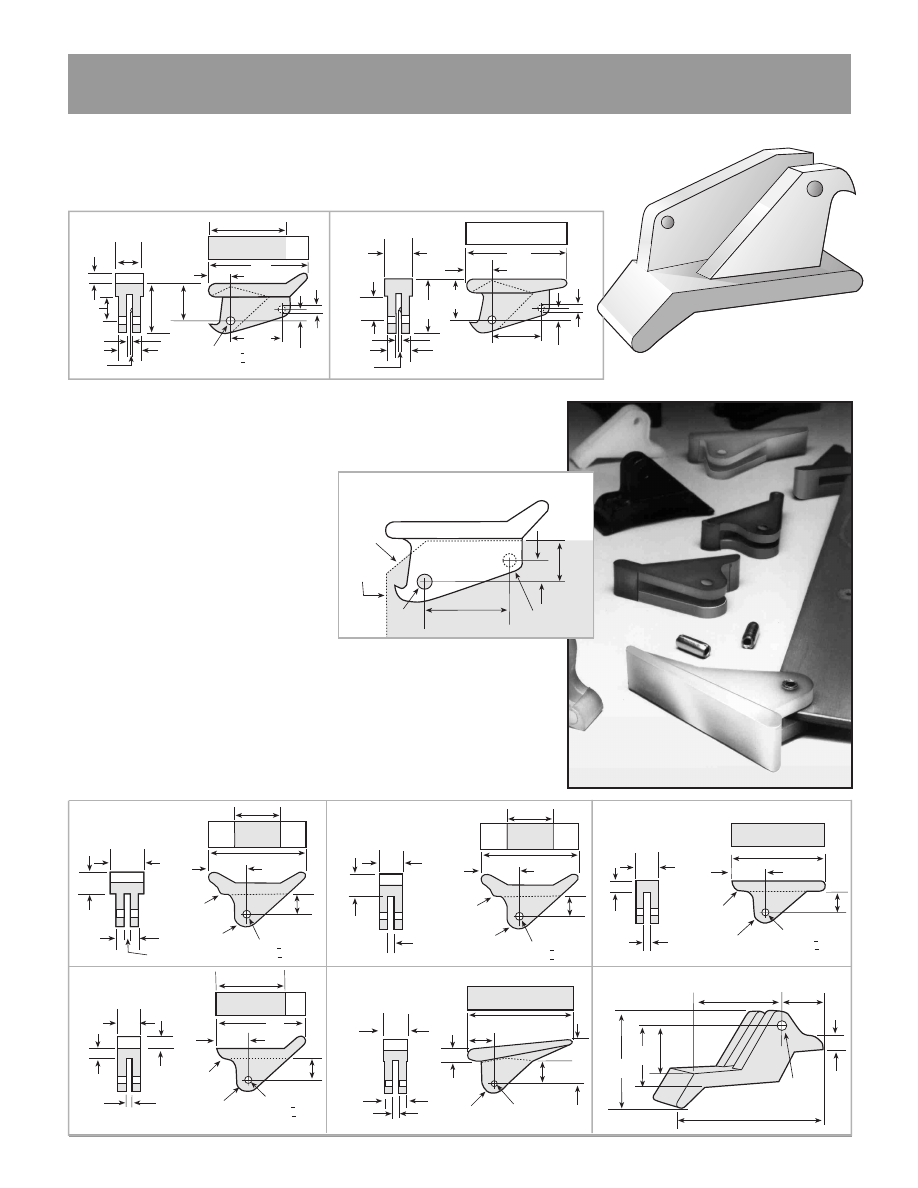

Locking Ejectors

For Space Saver Guides

Cross References for Ejectors on page 21
Cross References to Milspec 83023 and 84191 on page 22

Dimensions in Millimeters are indicated by (.00)

.030

(.76)

9762

1/16" (1.59) Card

9732

3/32" (2.38) Card

9662

1/16" (1.59) Card

9632

3/32" (2.38) Card

9862

1/16" (1.59) Card

9832

3/32" (2.38) Card

.080

(2.03)

CARD

THICKNESS

.093 DIA. + .003

(2.36) DIA. + .08

.250

(6.35)

.125

(3.18)

CARD

THICKNESS

.125 R

(3.18)

.093 DIA. + .003

(2.36) DIA. + .08

.140 R

(3.56)

.025

(6.35)

1.10 (27.94)

.375

(9.53)

.052

(13.21)

.125 R

(3.18)

1.11(28.19)

.437

(11.10)

.025

(6.35)

.140 R

(3.56)

.093 DIA. + .003

(2.36) DIA. + .08

0.500(2.70)

.250

(6.35)

.250

(6.35)

CARD

THICKNESS

.250

(6.35)

CARD

THICKNESS

.125

(3.18)

.125 R

(3.18)

.093 DIA. + .003

(2.36) DIA. + .08

.125

(3.18)

.375

(9.53)

1.02

(25.91)

.89 (22.61)

.140R

(3.56)

.250

(6.35)

9209

TEK-INJECTOR EJECTOR

.650

(16.51

1.550 (39.37)

.500

(12.70)

.250

(6.35)

.880 (22.35)

.465

(11.81)

.192

(4.88)

.563 (14.30)

.125

(3.18)

.250

(6.35)

.250 X 45

(6.35)

.250

(6.35)

.109 DIA.

(2.77)

.085 (2.16) DIA.

LOCKING EJECTOR

CARD MOUNTING DIMENSIONS

Locking Ejector illustrated

NYLON MATERIAL ASTM D4066 PA225
UL RATED 94 V-2
Standard Color: Natural.
Other colors available for an additional charge.
Ejectors furnished with or without
mounting pins.
STANDARD DRAWING TOLERANCES
Unless otherwise indicated:
Fractions
.X

: +/-1/64 (.397)

.XX : +/-.010 (.025)
.XXX : +/-.005 (.127)

9062

1/16"(1.59) Card

9162

1/16" (1.59) Card

.312

(7.92)

1.12

(28.45)

.125

(3.18)

.563

(14.30)

.425

(10.80)

.05(1.27)

.250(6.35)

.270

(6.86)

.093 DIA. + .003

(2.36) DIA. + .08

.563

(14.30)

.080

(2.03)

.300

(7.62)

.312

(7.92)

.300

(7.62)

.030

(.76)

.005

(1.27)

.250

(6.35)

.563

(14.30)

.425

(10.08)

.125

(3.18)

.270

(6.86)

1.12

(28.45)

.563

(14.30)

.125

(3.18)

.078 (19.81)

Standard Ejectors

9562

1/16" (1.59) Card

9532

3/32" (2.38) Card

.375

(9.05)

.250

(6.35)

.240

(6.10)

.125 R

(3.18)

1.11(28.19)

0.500(2.70)

.437

(11.10)

.025

(6.35)

.140 R

(3.56)

MOUNTING SLOT DIMENSIONS:
1/16 PCB’s .073 (1.85)
3/32 PCB’s .100 (2.54)
Flanges may converge as much
as .020 (.51).

MARKING
TEK-PULLS can be numerically and
alphabetically marked to code PCB’s.
The marking method is accepted by
both military and commercial users for
its durability.
Specify Marking size and position.

9962

1/16" (1.59) Card

9932

3/32" (2.38) Card

.125 (3.18)

.290

(7.37)

CARD THICKNESS

.250

(6.35)

.300

(7.62)

.300

(7.62)

1.25 (31.75)

.140 R

(3.56)

.093 DIA. + .003

(2.36) DIA. + .08

.127

(3.23) DIA.

TEK-EJECTORS & HANDLES

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Web Site:

www.teknational.com

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

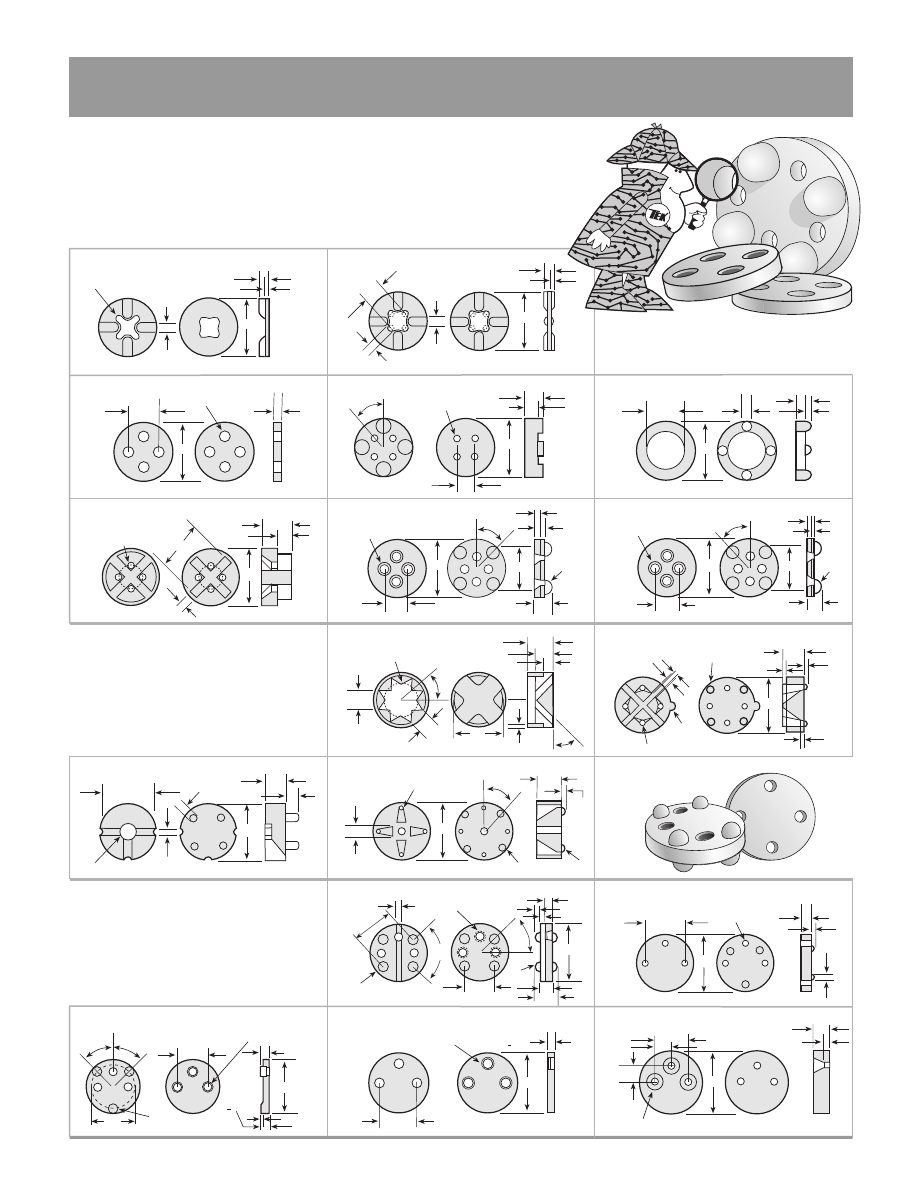

These are the more popular Mounting Pads.

Many other pads available, call the plant for details

TO-18 Mounts

For .100" Entry and Exit

Also used with TO-16, 26, 28, 46, 52, 54, 56, 58, 72, 104, 106, 107

Parts arranged by outside diameters

For Lead Conversion

Also used with TO-7, 9, 11, 12, 16, 26, 29, 31, 32,
38, 39, 40, 43, 45, 55, 77, 78, 92, 98, 105

Parts arranged by number of leads and outside
diameters

TO-5 Mounts

For .200" Entry and Exit

Also used with TO-7, 9, 11, 12, 16, 26, 29, 31, 32,

38, 39, 40, 43, 45, 55, 77, 78, 105

Parts arranged by number of leads

1000

1011

1002

1015

1019

1020

1027

.250

.032 DIA. HOLES ON

.100 DIA. 4 PLS.

FUNNEL ENTRY

032 TYP.

.218

.125

.062

.200

.025 DIA. TYP. 4 PLS. .100 CIRCLE

.040

TYP.

.010

.030

.025 DIA. TYP.

.100

.028 DIA. THRU C’SINK

.05 DIA. 4 PLS.

.100

.250

.188

.45˚ TYP.

.045

.022

.028 DIA. THRU C’SINK .05

DIA. 4 PLS.

.100

.250

.188

SPHERE

.080

.038

SPHERE

.010

.022

.45˚ TYP.

.040

TYP.

.200

.100 CIRCLE LEAD SPACING

.015 TYP.

.045

.040

4 PLS.

.075

.040

.100

.225

.200

.045˚ TYP.

.025 DIA. TYP.

.60

.40

Cross Reference to Bivar on page 23 ,
to Thermalloy on pages 25

.200

.100

.036 DIA. 4 PLS.

.020

1017

2015

2018

.46˚

.100

.065

.040

.23

.010

.015

.022 R TYP.

.080

TYP.

45˚

.100

SPHERE

.305

.040 DIA 4 PLS.

ON .225 DIA.

.027 R

.040

.020

.033 DIA. 4 HOLES ON .200 DIA.

.105

.020

.010

.020

.032 TYP.

2020

.250

.025 DIA. THRU 4 PLS.

ON .200 DIA.

.45˚

TYP.

2007

.200

EXIT

SPACING

.250

.032 3 PLS.

.093 RECESS

DIA. 4 PLS

BOTTOM SIDE

100

.050

.090

3005

3028

.075

.343

.050 DIA. 8 PLS.

.246

DIA.

.90˚

TYP.

.200

DIA.

.045 DIA. THRU

C’ SINK .075 DIA. 3

.45˚

TYP.

SPHERE

.028

.017

.018

.060

3008

.345

.200 DIA.

.045 DIA.

HOLES 3 PLS.

.025

075

.050

.038

+ .002

.017

.045 DIA. THRU C’ SINK

.060 DIA. 3 PLS.

.290

45˚

.060 DIA. 3 PLS.

.200

.350

.010

3034

.347

.021

+.002

.045 DIA. THRU C’

SINK .060 DIA. 3 PLS.

.200DIA.

3035

.375

200

.100

.029 DIA. THRU C’ SINK .093 DIA. 3

.094

.055

SPHERE R

.030 DIA. 4 PLS. ON .235 DIA.

TEK-MOUNTING PADS

.100

.020

Web Site: www.teknational.com

Discrete Component and

Capacitor Mounts

ELIMINATE: • Non Conducting Joints.

• Component Failures.

• Reduce inspection/rework.

Dimensions in Millimeters are indicated by (.00)

Screw Insulators–Power Devices

3012

3005 A

3005-C

3002

3013

.355

.050

.047

.038 HOLE-.045 C’ SINK 5 PLS.

.200

.120

.050

.020

.060

.200

.037 2 PLS.

.050

.350

.031

.355

.45˚

TYP.

.310

.045 DIA. FEET TYP. 4 PLS.

.060 DIA. C’ SINK TYP.

.046 DIA. FEET TYP. 4 PLS.

.023

.015

.046

.200

.370

.050 4 PLS.

.070

.225

.035

.345

.050 TYP.

7 PLS.

.045 HOLE x .060 C’ SINK

ON .200 DIA. 4 PLS.

.038
.021

.052

Cross Reference to Bivar on page 23, to Thermalloy on pages 25

3001

200

LEAD

SPACING

.345

.075

.025 TYP.

.025

.050

3019

3008 A

.345

.200 DIA.

.045 DIA. HOLE 4 PLS.

.075

.025

.200

.347

.021

Pad No. No. of Inches Spacing of Leads

Leads O.D. THK. Entry Exit

4021

.375 .080

200

300

.230

.300

4022

–

.186

.200

300

.230

300

4028

.375 .075

–

4041

.365 .080

.200

.230

4013

6005-A

.800

.200
.200
.200

.100

.400

.200

.030

8-.062 HOLES x .080 C’ SINK

.060

.030
.050

.032 R

.045

.02O ( DIA. TYP.

.100

.040

.020

.036

DIA.

.200

DIA.

.22˚ 30’ TYP

.45˚ TYP

.010

.020

.080

.050 DIA. FEET

ON A .300 DIA.

4 PLS.

4028

8 LEADS

4041

8 LEADS

Intergrated Circuit and

Miscellaneous Mounts

4021

8 LEADS

Standard Color: Natural or White.

4022

TO-100 12 LEADS

.585

.385

.300

.200/.230 DIA.

.032 DIA. 12 PLS.

.100

TYP

.160 DIA.

.62

.25

.125

.36

.50

.040 DIA. HOLE

ON A .300 DIA.

(8 PLS.)

.375

.145

.040 DIA. 4 PLS.

ON .315 DIA.

.200 DIA.

45˚

TYP

22˚ 30’

.012R 8 PLS.

.365

FULL R

30˚

.030

.005

.075

.375

22˚ 30’

45˚ TYP

.060 DIA.

ON .325 DIA.

.050

DIA.

.025

.075

.020

• Isolates mounting screws

• Permits uses of optimum pressure on power

device for contact with heat sink

.045

(.114)

DIA.

2 PLACES

PART # 8100 8200

.100 (2.54) .200 (5.08)

.045 (1.14) .045 (1.14)

.022 (0.56) .022 (0.56)

.055 (1.40) .090 (2.29)

.180 (4.57) .290 (7.37)

.090 (2.29) .090 (2.29)

TEK-MOUNTING PADS

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

.22 (5.6)

Max.

2520 (TO-220

.13-.14

(3.4-3.6)

Dia.

.39 (10.0)

Hole for

#6 screw

.16 (54) Min.

.25 (6.4) Min.

.48

(12.1)

.69 (17.7)

To accept .04-.06

(1.0-1.5) thick tab

Hole for

#6 screw

2518 (TO-218)

.75

(19.1)

.60

(15.2)

Web Site: www.teknational.com

.48 (12.1)

.20 (5.1) Min.

.31 (7.9) Min.

.136-.144

(3.5-3.7)

Dia.

.24

(6.1)

To accept .04-.06

(1.0-1.5) thick pad

• Molded in nylon 6/6, glass filled

• Color: Black

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

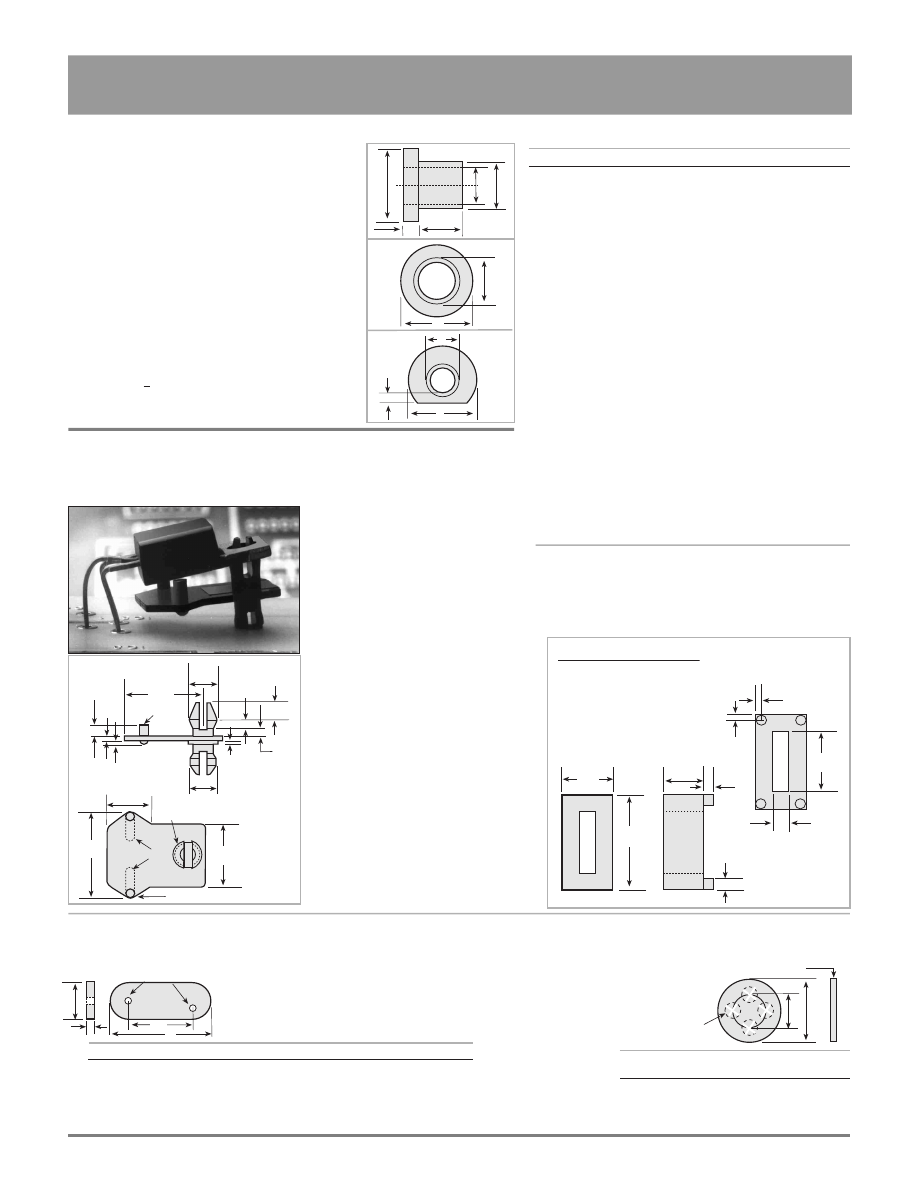

PCB BUSHINGS & MOUNTS

Web Site:

www.teknational.com

Quality of PCB’s is improved
with the 11-2201. It prevents
lead breakage from accidental
bumping and flexing of components.
Feet on the 11-2201 permit complete
washing under the assembly after wave
solder. Devices are protected from
heat during solder process.

MATERIAL: Nylon 6/6-
COLOR: Black

Nylon Flanged Bushings

Molded in natural nylon 6/6 unless part number
has suffix “P” for PPS–40% glass filled
polyphenylene sulfide–color black. PPS is
chemically inert and permits maximum
temperature 260˚C. Tolerances +.005" (.127).
Recommended torque for PPS is 5 to 6 inch-
pounds; except 7037P which is 4 inch-pounds

Popular Applications for:

7045 – TO-220 Tabs Triac

7075 – Metal Brackets for Gauge Mtg.

7115 – TO-3, TO-41, TO-66

7175 – TO-3, TO-41, TO-66

11-2201 is:

• A FASTENER - Secures devices

without extra hardware.
• AN INSULATOR - Run circuity

beneath devices.

- Protects during wave solder
• A SPACER - Uniformly positions

parts on PCB

For Vertical Mounting to 220’s

Dimensions in Millimeters are indicated by (.00)

* PPS material

Cross Reference to Thermalloy page 25, Bivar page 23

2100 Series

The 11-2201 frees up valuable PCB
real estate beneath TO-220’s for
circuitry by electrically insulating the
assembly.

The 11-2201 cuts cost by eliminating
hardware and improving assembly time.

Cross Reference to Bivar page 23

Part No. A B C D E No. Fig.
7037 P* .040

.215

.116

.032

.135

(1.02) (5.46) (2.95) (0.81) (3.43)

SW4021 .063

.240

.114

.047

.138

(1.60) (6.10) (2.80) (1.19) (3.51)

7033 P* .042

.280

.112

.125

.140

(1.07) (7.11) (2.84) (3.18) (3.56)

7038 P* .040

.245

.119

.040

.140

(1.02) (6.22) (3.02) (1.02) (3.56)

7045

.047

.238

.114

.047

.142

(1.19) (6.05) (2.90) (1.19) (3.61)

7036P* .047

.280

.118

.031

.145

(1.19) (7.11) (3.00) (0.79) (3.68)

7031 P* .042

.280

.112

.125

.150

(1.07) (7.11) (2.84) (3.18) (3.81)

7032 P* .042

.280

.112

.185

.150

(1.07) (7.11) (2.84) (4.70) (3.81)

7115

.050

.247

.125

.122

.150

4/5

(1.27) (6.27) (3.18) (3.10) 3.81)

7035 P* .047

.312

.144

.031

.177

(1.19) (7.92) (3.66) (0.79) (4.50)

7034 P* .047

.312

.146

.031

.190

(1.19) (7.92) (3.71) (0.79) (4.83)

7075

.062

.380

.228

.173

.310

(1.57) (9.65) (5.79) (4.39) (7.87)

7175

.047

.246

.125

.175

.153

4/5

FIG.2

FIG.1

.045

(1.19)

11-2201 Power Pad

For Low Profile Mounting
of TO-220’s

Part No. F

2125

.000 (.000)

2150

.025 (.64)

2175

.050 (1.27)

2200

.075 (1.91)

2275

.150 (3.81)

.052

(1.3)

“F” REF.

.040 (1.0)

4 PL.

.280

(7.1)

.040 (1.0)

4 PL.

.220

(6.6)

.425

(10.18)

.125

(3.2)

.080 (1.5)

DIA. 4 PL.

White Nylon 6/6

.055

(1.40)

.137 (3.48)

.100

(2.54)

.062 (1.57)

DIA.

2 PLS.

.020

(.51)

.062 (1.58) DIA.

.604

(15.34)

.415

(10.54)

FEET

.139 (3.53) DIA.

.260

(6.60)

.148

(3.76)

.500

(12.70)

.075

(1.91)

.020(.51) FEET

2 PLS.

.020(.51)

.055

(1.40)

11-2201

.005 (.130)

• Self-retaining.

• Insulates while running circuitry

beneath capacitors.

• Punch resistant

material.

• Heat resistant,

UL Rated 94V-2.

Color: Clear

PART # Case O.D. Use

Style +/-.005 F With
MY-710 1 .710 (18.0) .394 (10.0) 30
MY-830 2 .830 (21.0) .394 (10.0) 22,25,35

O.D.

DIA. OF LANCING IS

.105 (2.7) MAX 4 PLS.

PART #

C/C

W T Case Style

MY-192-028 .192 (4.88) .465 (11.81) .028 (0.71) .219 (5.56) .005 (.13) 1

MY-192-050 .192 (4.88) .465 (11.81) .050 (1.27) .219 (5.56) .005 (.13) 2

MY-486-040 .486 (12.3) .775 (19.7) .040 (1.0) .375 (9.5) 3

MY-486-060 .486 (12.3) .775 (19.7) .060 (1.5) .375 (9.5) 4

MY-486-105 .486 (12.3) .775 (19.7) .105 (2.7) .375 (9.5) 5

Case Style

Use With

HC-18/U, HC-43/U & HC-49/U

HC-25/U, HC-42/U & HC-50/U

HC-33/U, HC-47/U & HC-51/U

HC- 6/U, HC-36/U & HC-48/U

HC-17/U

Material: Dupont Mylar

EL-21, UL rated 94V-2

Cross
Reference to
Bivar CI and
ECI Series
page 23

D DIA.

C/C

Crystal Insulators

Electrolytic Capacitor Insulators

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Dimensions in Millimeters are indicated by (.00)

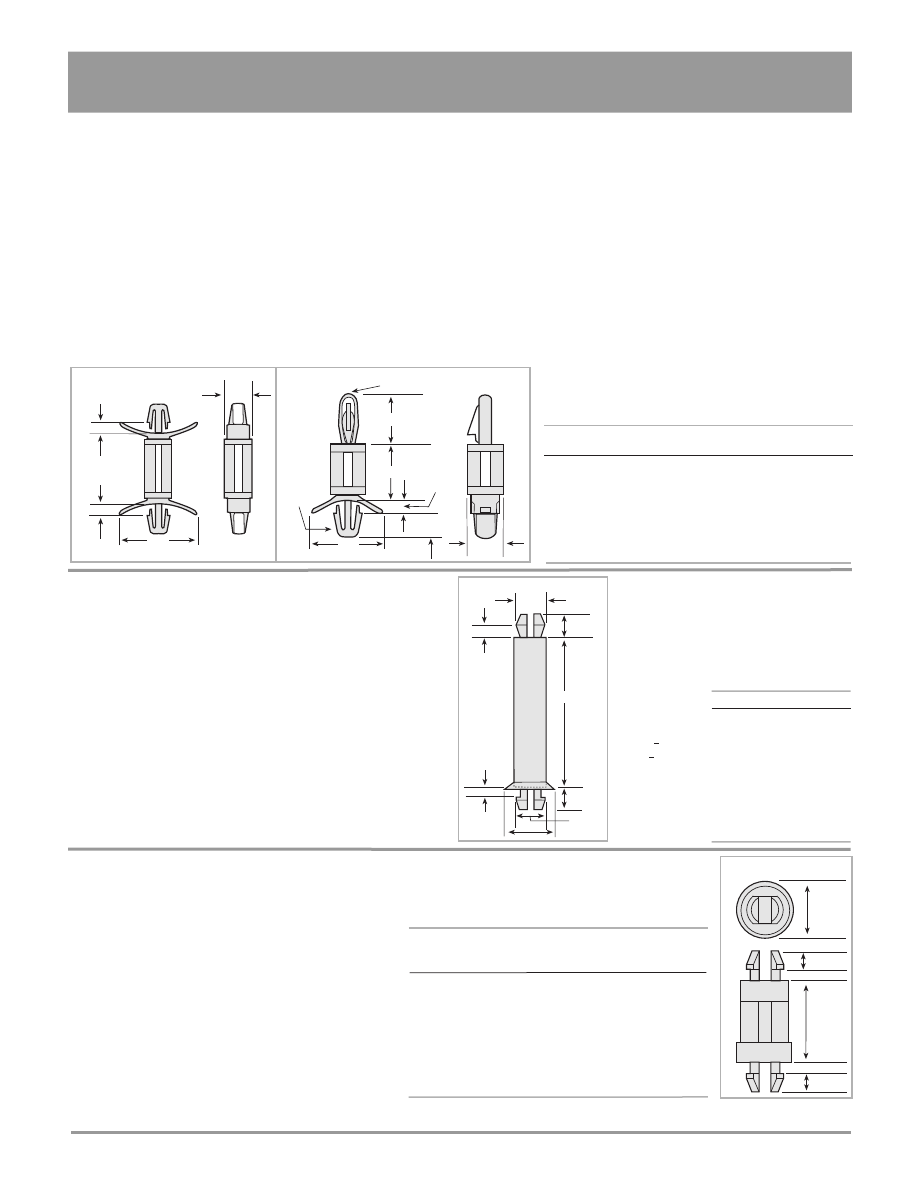

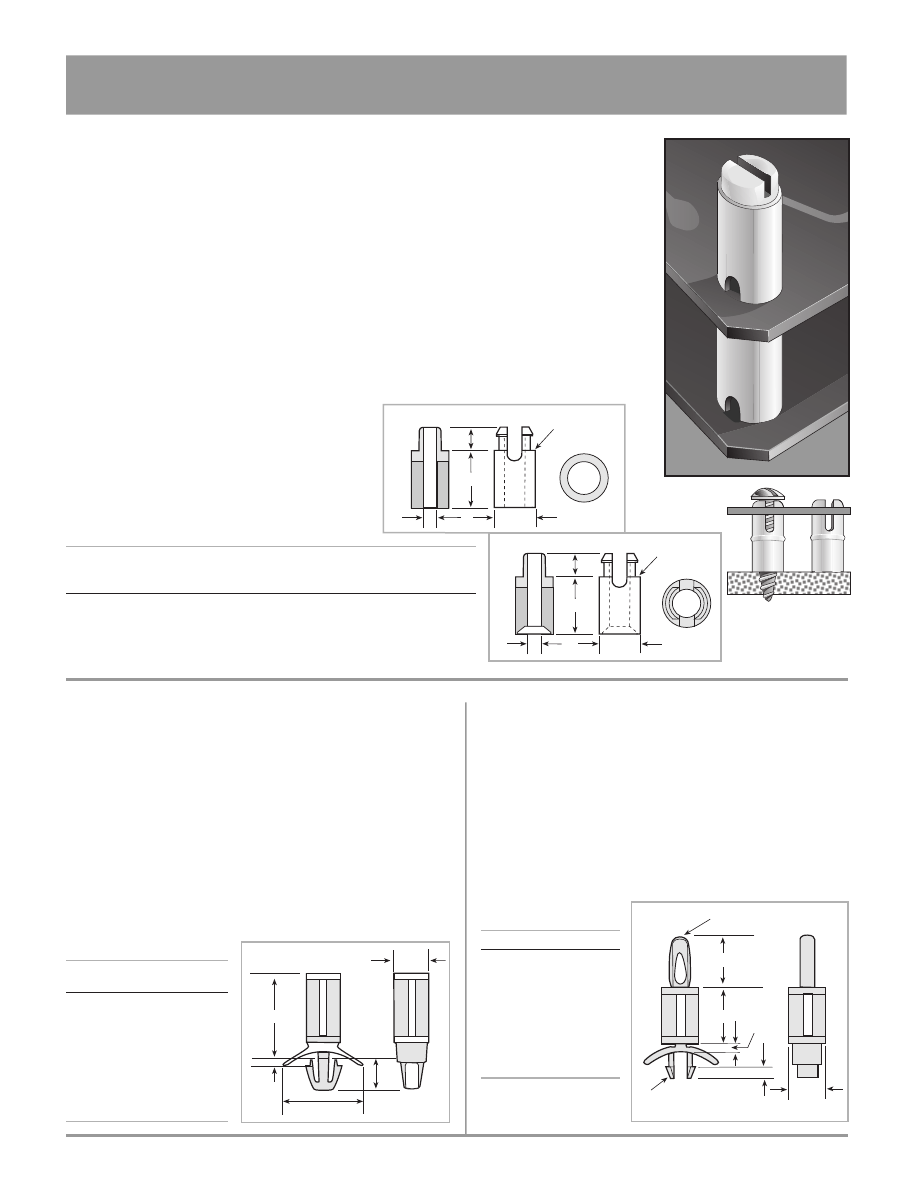

PCB SPACERS & SUPPORT POSTS

Dual Locking Supports for 1/16" PCB’s

5200 SERIES

• Identical locking prongs on both ends (fig 1). (4.0mm)

• Available in stock for mounting in .156" (4.0)/ .156" (4.0)

diameter and .187" (4.8)/ .187" (4.8) diameter holes.

• A .156"/.187" diameter combination may be special ordered.

• Seven lengths available from 3/16" (4.8) to 7/8" (22.2).

•

NO TOOL REQUIRED TO LOCK

•

EASY ASSEMBLY

•

STURDY, RELIABLE GRIP

5800 SERIES

•

Bayonet nose lock for mounting in .156" diameter hole in PCB

with a locking prong to mount in a .187" (4.8) diameter base hole.
• May be special ordered for1/8" (3.2) chassis thickness.

• Seven standard lengths stocked. Other lengths up to 1 3/8" (34.9)

may be special ordered.

Part numbers consist of the a base number for the
PCB/chassis hole combination desired followed by
“XXX” for the length designation in the table below.

Base # PCB Chassis XXX Length

Fig. hole dia. hole dia.
5200 1 .156" (4.0) .156" (4.0) -187 3/16" ( 4.8)

5225 1 .187" (4.8) .187" (4.8) -250 1/4" ( 6.4)

5250* 1 .156" (4.0) .187" (4.8) -375 3/8" ( 9.5)

5800 2 .156" (4.0) .187" (4.8) -500 1/2" (12.7)

-625 5/8" (15.9)

-750 3/4" (19.1)

-875 7/8" (22.2)

•

MOLDED IN NATURAL NYLON,

UL RATED 94-V2

•

TWO DESIGNS AVAILABLE

9/16

(14.3)

.11 (2.8)

.28

(7.1)

FIG.1 5200/5225/5250

Snap Mount Support Posts

With Wide Base For Stability

Mount PCB’s on metal chassis or stack them using no
screws or other hardware. Available in nine lengths from
.125" to 1.000".

• Economical, eliminates all hardware.

• Saves labor.

• Support base on chassis-end of post improves stability.

• Releasable head for mounting and removing PCB.

• Permanent locking head for chassis.

• Color code posts for identification.

Improved Support posts

5300 Series

• Easy assembly, no tools required.

• Pinch prongs to remove for repairs.

• Available for mounting in .156" (4.0), .187" (4.8)

holes, or a combination of .187" and .156" holes.

• Releasable head for mounting and removing PCB.

• Permanent locking head for chassis.

To fit a .187

(.48) dia.

hole in a

.062 (1.57)

nom. thick

board

.40 (10.2)

To fit a .156 (4.0) dia hole in a

.1/16 (1.6) nom. thick board

7/32 (5.6)

.28

(7.1)

FIG.2 5800

*Special order

Part No. A
11-5125

.125 ( 3.2)

11-5250

.250 ( 6.4)

11-5312

.312 ( 7.9)

11-5375

.375 ( 9.5)

11-5500

.500 (12.7)

11-5625

.625 (15.9)

11-5750

.750 (19.1)

11-5875

.875 (22.2)

11-5000-1 1.000 (25.4)

.170

(4.32)

.140

(3.56)

.070 (1.78)

+.000

–.005(.13)

.070 (1.78)

+.000

–.005(.13)

.140

(3.56)

.172

(4.37)

.281

(7.14)

.25

(6.4)

3/32 (2.4)

Part No. Part No. Part No. Height

.156(4.0) .187(4.8) .156 (4.0) and “A” Dim.

Dia. Hole Dia. Hole .187 (4.8) Hole
5300-187

5325-187

5350-187

3/16" ( 4.8)

5300-250

5325-250

5350-250

1/4" ( 6.4)

5300-375

5325-375

5350-375

3/8" ( 9.5)

5300-500

5325-500

5350-500

1/2" (12.7)

5300-625

5325-625

5350-625

5/8" (15.9)

5300-750

5325-750

5350-750

3/4" (19.1)

5300-875

5325-875

5350-875

7/8" (22.2)

5300-1000 5350-1000

5350-1000

1" (25.4)

Recommended

hole size

is.152 +.002

(3.86 +.05)

in .062 (1.57)

chassis.

.011 (2.8)

1/16" PCB

.18 (4.8)

1/8 PCB

9/16

(14.3)

Cross References to Keystone page 24 and Richco page 24

Cross References to Richco page 24

11-500 SERIES

5300 SERIES

Web Site: www.

teknational.com

Dimensions in Millimeters are indicated by (.00)

PCB Snap Mount Spacers and Support Posts

Self Retaining Board Spacers

5500 SERIES

• Maintain PCB spacing, insulate screws.

• Multilevel stacking.

• Spacers are self aligning and self retaining.

• Stack and space 1/16" PCB’s.

5600 SERIES

• Snap mount design for 1/16" PCB’s.

• Ideal for mounting PCB above wood.

• Secure fit in PCB before setting with screw.

• Insulate screws.

Molded in natural 94-V2 nylon, SERIES 5500 and 5600 PCB spacers are available for use
with #4 (M-3) and #6 (M-3.5) screws. Five standard lengths range from 1/4" to 1". Spacers
for #8 (M-4) screws and for some intermediate lengths may be special ordered.
94-VO nylon is also available.
Call the plant for details.
The part number for the spacers consists
of the “PN” for the thread size and style
shown in the table below followed by
“XXX” for the length, eg 5600-375 or
5525-750.
The available lengths for the “XXX”
are shown in column “A”

5400 Series Spacers

Support Heavy Boards

•

Snap mount into 1/16" (1.6) thick chassis; may be

special ordered for 1/8" (3.2) chassis.

•

Easy installation with no tools.

•

Mount in 3/16" (4.8) dia. hole.

•

May be special ordered for 5/32" (4.0) hole.

•

Molded in natural nylon 6/6, 94V2; (94VO may be

special ordered).

•

Eight lengths available.

Part No. Length

“A” Dim.
5400-187

3/16" ( 4.8)

5400-250

1/4" ( 6.4)

5400-375

3/8" ( 9.5)

5400-437

7/16" (11.1)

5400-500

1/2" (12.7)

5400-625

5/8" (15.9)

5400-750

3/4" (19.1)

5400-875

7/8" (22.2)

Versatile PCB Supports

5100 SERIES

• Locks on chassis, snaps onto board.

• Fits .187" (4.8) hole in chassis, .156" (4.0) hole in PCB

• No tools required.

• Releases easily for repairs.

• Molded in natural nylon 6/6, 94-V2; (94-VO available

special order).

• Seven lengths available

3/16" (4.8) -

7/8" (22.2).

.11 (2.8)

7/32

(5.6)

.28

(7.1)

9/16 (14.3)

5100 SERIES

To fit a .156 (4.0) dia hole in a

.062 (1.57) nom. thick board

.040 (10.2)

.010 (2.5)

.28

(7.1)

To fit a .187 (.48) dia. hole in

a .062 (1.57) nom. thick board

*Other lengths up to 1 3/8"

(34.9) may be special ordered

.11 (2.8)

Dimensions in Millimeters are indicated by (.00)

TO LOCK IN A

.06 (.15)

THICK PANEL

.125

(3.2)

FIG.2 5600 SERIES

TO LOCK IN A

.06 (.15)

THICK PANEL

.125

(3.2)

FIG.1 5500 SERIES

Cross References to Keystone page 24
Cross References to Richco page 24

Part No. Length
5100-187 3/16" ( 4.8)
5100-250   1/4" ( 6.4)
5100-375   3/8" ( 9.5)
5100-500   1/2" (12.7)
5100-625   5/8" (15.9)
5100-750   3/4" (19.1)
5100-875 *7/8" (22.2)

Cross References to Keystone
and Richco page 24

5400 SERIES

PCB SPACERS & SUPPORT POSTS

PN PN Screw Mounting Length XXX

Fig 1 Fig 2 size “B” “C” hole dia. dim.

+.003 (.08)

“A”

5500 5600 #4 (m-3) .250 (6.6) .125 (3.1) .187 (4.75) 1/4" (6.4) -125

5525 5625 #6 (m-3.5) .312 (7.1) .153 (3.9) .234 (5.94) 3/8" (9.5) -375

5550 5650 #8 (m-4) .313 (7.1) .169 (4.3) .234 (5.94) 1/2" (12.7) -500

3/4" (19.1) -750

1" (25.4) -1000

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Web-Site: www.

teknational.com

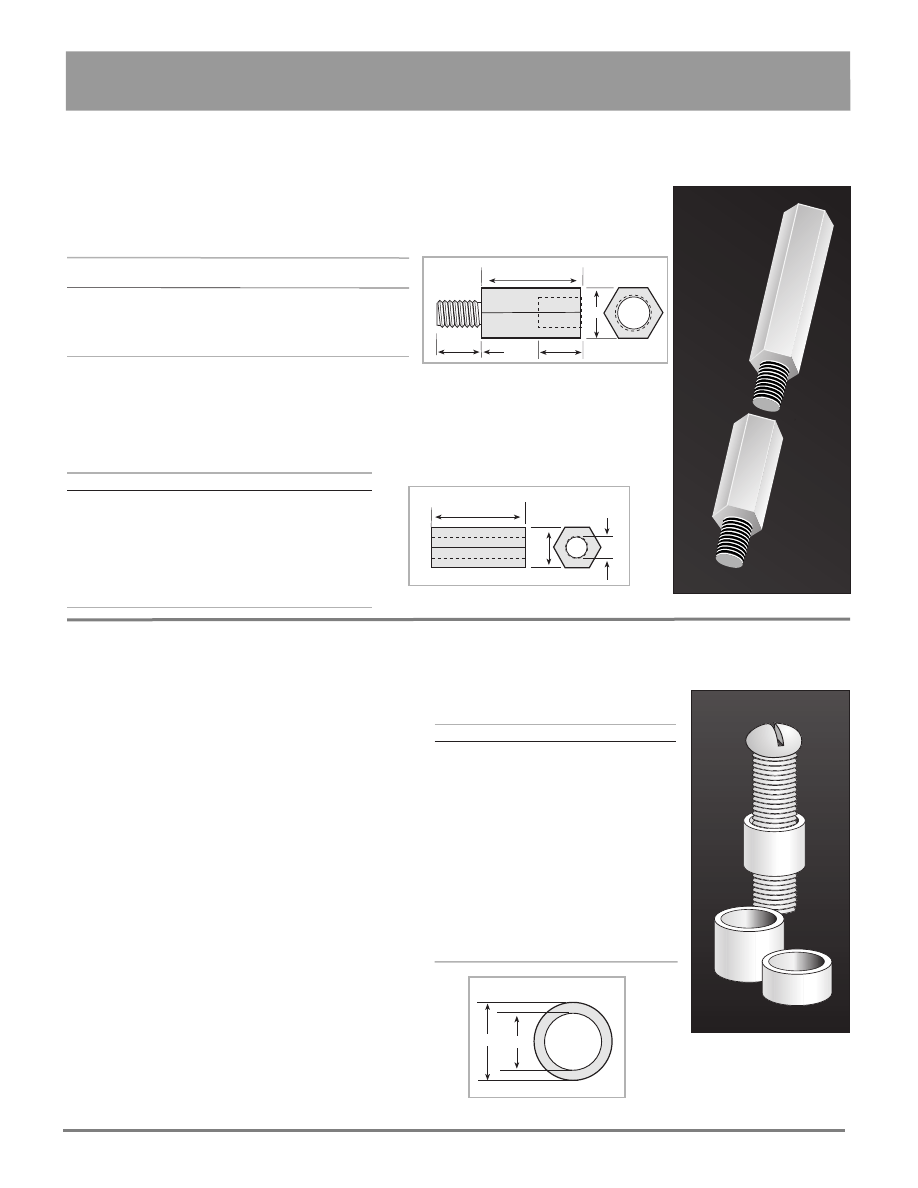

Threaded Nylon Standoffs

Available in 14 lengths (1/4" - 1 3/8") with 1/16" incremental spacing, these standoffs are
economical supports for PCB’s. Molded in 94-V2 nylon, 4-40 and 6-32 threads are stocked.
These are also available on a special order basis with 8-32 and 10-32 threads, or molded in
94-VO nylon.

Thread PN Fem PN Male/Fem A (fig.2) B. (fig.2)

Size Fig.1

Fig.2

4-40

4MF

3/16"(4.76) 3/16"(4.76)min

6-32

6MF

1/4" (6.35) 1/4" (6.35)min

8-32

8H*

8MF*

3/8" (9.53) 3/8" (9.53)min

10-32

10H*

10MF*

3/8" (9.53) 3/8" (9.53)min

The part number for each standoff consists of the PN for the thread size and type of standoff
shown above followed by “XXX” for the length. The available lengths for the “XXX” suffix are
shown in Column “L” on the table below. The part number consists of the thread shown on
Figure 1 0r 2, followed by (xxx) the desired length in column “L” below. PN 6 MF-375 is a
male/female standoff with a 6-32 thread and 3/8" body length; 6 H-375 is a 3/8" long hex
standoff with 6-32 thread).

Permanent Spacers and LED Mounts

5000 SERIES TUBULAR SPACERS

The 5000 Series tubular spacers inexpensively solve
many mounting problems. Designs can now be
customized without being limited to the few standard
lengths of molded spacers commercially available.

The ID/OD combinations for the 5000 SERIES are
shown in the table right. Each ID/OD has its own letter
or style designation (ie. an ID/OD of .028"/.085" is “F”).
The complete part number is 5+ “xxx” for the height
+ the ID/OD style letter. In other words a spacer .200"
long ID/OD of .028"/.085" will have part number 5200-F.
These spacers may be ordered in lengths from .030" up
to 1.000" in .010" length increments.  Tolerances are
+/- .005" for lengths up to .500", for lengths .505" - .750"
+/- .008", .755" - 1.000" +/- .015".

Style I.D. O.D. Screw No.
F

.028 (0.71) .085 (2.16)

.032 (0.81) .085 (2.16)

.032 (0.81) .125 (3.18)

.047 (1.19) .125 (3.18)

.047 (1.19) .156 (3.96)

.063 (1.60) .156 (3.96)

.063 (1.60) .187 (4.75)

.085 (2.16) .148 (3.76)

.091 (2.31) .187 (4.75)

.091 (2.31) .250 (6.35)

.105 (2.67) .167 (4.24)

.115 (2.92) .250 (6.35)

.135 (3.43) .230 (5.84)

.120 (3.05) .187 (4.75)

.147 (3.73) .250 (6.35)

• Customized lengths up to 1"
• 15 ID/OD combinations available
• Available for #2, 4, 6, and 8 screws
• Made from extruded Nylon 6/6
• Inexpensive even in small quantities

L (XXX Suffix)

1/4" ( 6.35) - 250

5/16" ( 7.84) - 312

3/8" ( 9.53) - 375

7/16" (11.11) - 438

1/2" (12.70) - 500

9/16" (14.25) - 562

5/8" (15.88) - 625

L (XXX Suffix)

11/16" (17.36) - 688

3/4" (19.05) - 750

7/8" (22.23) - 875

(25.40) - 1000

1 1/8" (28.58) - 1125

1 1/4" (31.75) - 1250

1 3/8" (34.93) - 1375

O.D. I.D.

Dimensions in Millimeters are indicated by (.00)

Cross Reference to Keystone page 23.

Cross Reference to Bivar page 23

TOLERANCE +/- .005

PCB SPACERS & STANDOFFS

FIG.2

.250

I.D

FIG.1

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Web-Site:

www.teknational.com

.055

(1.40)

Dimensions in Millimeters are indicated by (.00)

(716) 473-6310
(716) 473-6324 FAX

.032 (.81)

SQ. Entry

.045

(1.14)

6 PLS.

(Prefix #

& XXX)

“L Dim.

“H” Dim.

5700-120 .120 (3.05) .075 ( 1.91)

5725-140 .140 (3.56) .075 ( 1.91)

-160 .160 (4.06) .075 ( 1.91)

-180 .180 (4.57) .075 ( 1.91)

-200 .200 (5.08) .075 ( 1.91)

-220 .220 (5.59) .075 ( 1.91)

-240 .240 (6.10) .200 ( 5.08)

-250 .250 (6.35) .200 ( 5.08)

-260 .260 (6.60) .200 ( 5.08)

-280 .280 (7.11) .200 ( 5.08)

-300 .300 (7.62) .200 ( 5.08)

-320 .320 (8.13) .200 ( 5.08)

-340 .340 (8.64) .200 ( 5.08)

-360 .360 (9.14) .200 ( 5.08)

-380 .380 (9.65) .325 ( 8.26)

-400 .400 (10.16) .325 ( 8.26)

-420 .420 (10.67) .325 ( 8.26)

-440 .440 (11.18) .325 ( 8.26)

-450 .450 (11.43) .325 ( 8.26)

-460 .460 (11.68) .325 ( 8.26)

-480 .480 (12.19) .325 ( 8.26)

-500 .500 (12.70) .445 (11.30)

-550 .550 (13.97) .445 (11.30)

-600 .600 (15.24) .445 (11.30)

-650 .650 (16.51) .580 (14.73)

-700 .700 (17.78) .580 (14.73)

-750 .750 (19.05) .580 (14.73)

-800 .800 (20.32) .690 (17.53)

-850 .850 (21.59) .690 (17.53)

-900 .900 (22.86) .690 (17.53)

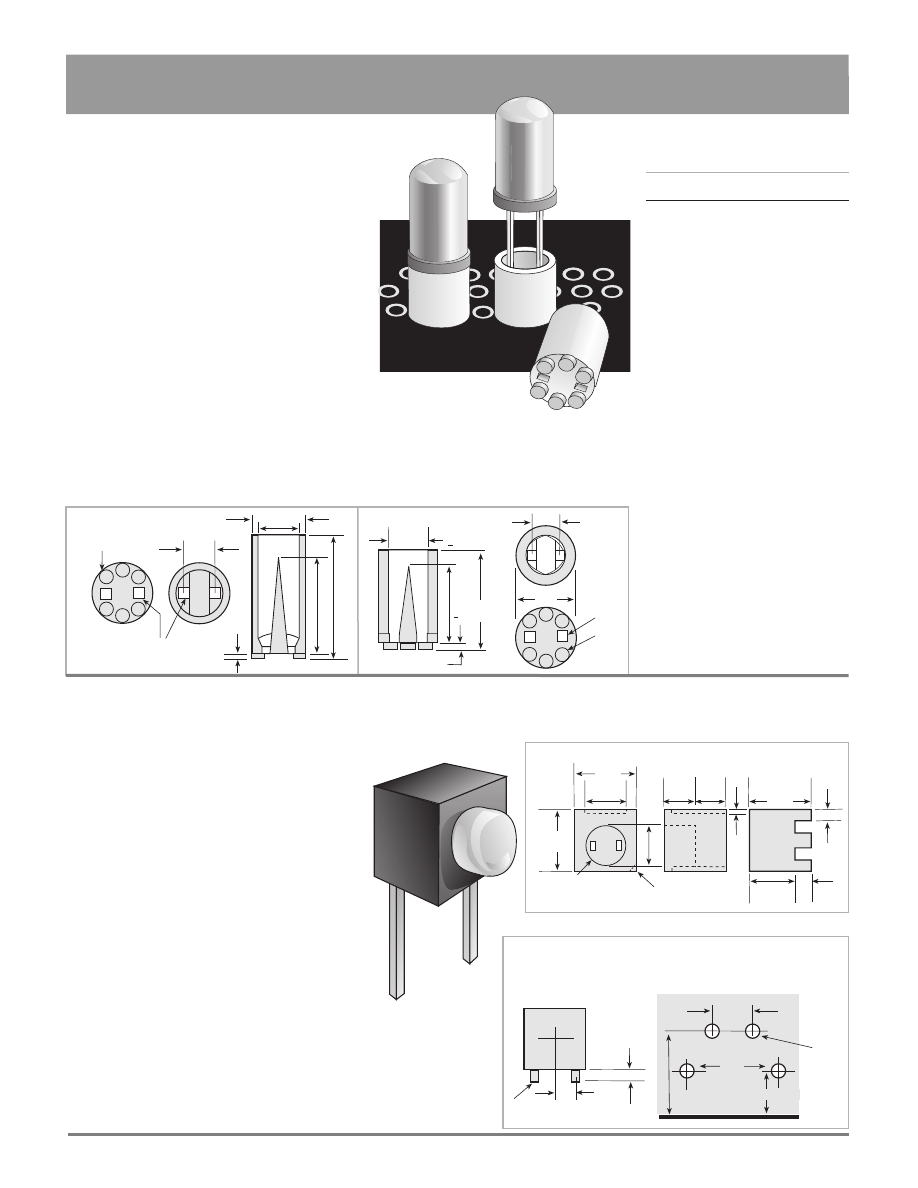

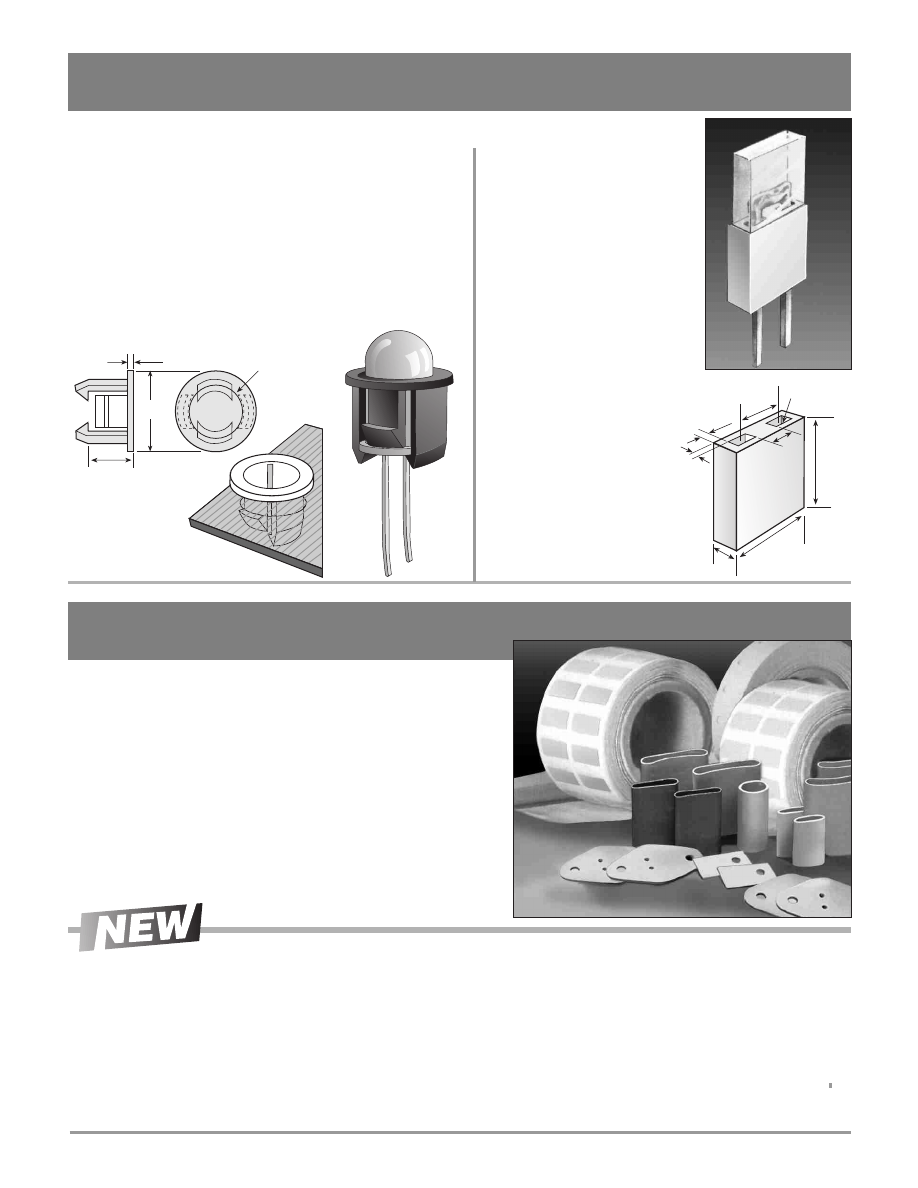

5700 Series

For T 1 3/4

5725 Series Universal

Mount

For T 1 and T 1 3/4

• Tapered entry eases lead insertion.
• Feet permit board cleansing.
• Leads isolated and protected.
• Uniform spacing of LED’s.
• Available in .010" (.25mm) increments from

.120" (3.05mm) to .900" (22.86mm).

Molded in natural nylon, UL rated 94-V2, Teknational’s 5700 and
5725 Series LED mounts solve many mounting problems. The 5700
Series is designed specifically for T1

LED’s (see figure 1). For universal mounting of

both T1

and T1 LED’s, use the 5725, followed by “XXX” for the height. PN 5725-500

is figure 2, .500" (12.7mm) high; Pn 5700-140 is figure 1, .140" (3.56) high. A table
showing standard heights is shown right. Other sizes available upon request.

5700 SERIES T-1 3/4"

.031 (.81) SQ ENTRY

.100

(2.54)

.020

(.51)

.157

(3.99)

.200

(5.08)

.045 (1.14) STANDOFFS

6 PLCS.

.133 (3.38)

+ .005 (.13)

5725 SERIES T-1 & T 13/4"

.032 (.81)

+ .003 (.08)

.100

(2.54)

.197

(.50)

FIG.1

FIG.2

Cross Reference to Keystone pages
23 and 24 and Richo page 24

LED MOUNTS

.020 (.51)

5301 Series Right Angle LED Mount

For T 1

/4 LEDS

Assembly ease for accurate alignment of LED’s in the 90˚
position is an important consideration in PCB design
and layout. The 5301 solves several design
and assembly problems for flangeless LED’s.

• Uniform accurate spacing.

• Precise 90˚ alignment.

• Low Cost.

• Ease of PCB assembly.

• Compact size uses minimal board space.

• Wide viewing angle.

• Available in a black case to improve contrast.

• Polarity identification.

• Vibration and shock resistance for improved

PCB reliability.

• Prevents lead breakage.

• Molded nylon 6/6, 94V-2, black.

For more accurate positioning, the 5301 Mount may be ordered

with optional locating pins (PN 5301P) which are pressed into

holes in the PCB. The pins are .055" (1.40mm) diameter and

.073" (2.36mm) long. A suggested hole drill pattern for the

5301P is shown on the right.

.120

(3.05)

.100

(2.54)

.220 (5.59)

.047 (1.19)

DIA..

2 PLS. FOR

LEADS

SUGGESTED DRILL PATTERN

FOR 5301 P

.POLARITY

REFERENCE

.196

(4.98)

.276

(7.01)

.200 DIA. (5.08)

.150

(3.81)

.250

(6.35)

.125

(3.18)

.115

(2.92)

.245

(6.22)

.190

(4.83)

.035

(.89)

2 PLS.

.030

(.76)

.130 (3.30)

.060

(1.52)

.055 (1.40)

DIA. 2 PLS.

.093 (2.36)

LOCKING PINS FOR

EXACT POSITING

5301

5301P

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Web-Site: www.teknational.com

Dimensions in Millimeters are indicated by (.00)

TEK-SIL PRODUCTS

TEK-SIL Materials

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

TEK-SIL “SCH” is made using the same compound as “SH”.
Without fiber glass reinforcement thermal resistance improves
from .26 degrees for “SH” to .18 for “SCH”. This material
has a smooth, comformable surface. Part number includes
material plus thickness (“SH-12” or “SCH-33”).

TEK-SIL “SB” Materials

TEK-SIL “SB-08”  is our best performing
material with thermal conductivity
measured at 2.9 watts/m-k and
thermal resistance as low as .10
degress C. It is available in four
thicknesses from .008" to .033" (.20-.85mm).
All “SB” materials are coated on a fiber glass matrix to improve
tear strength and pre-vent pin holes from forming. These
materials also have excellent dielectric strength. They are
available with optional PSA.  Teknational stocks many standard
shapes and sizes of parts made with “SB” materials. See
Tables 1 and 2 on page 15 for specific properties of all
thicknesses of TEK-SIL “SB” (.008"-.033"). It is also available
in sheets 12" x 12" (310 x 310mm).

TEK-SIL “SU”

TEK-SIL “SU” is an improved
formulation of silicone and
alumina fillers which offers a
low cost solution to many high heat
problems. With thermal conductivity measured
at 2.6 W/m-k, its performance is close to that of our best
performing “SB-08” . As “SU” is not reinforced with fiber
glass, PSA is unavailable. Teknational die cuts “SU” in many
standard sizes. This material is also sold in roll form 3.33"
(85mm) wide. Specific properties are shown in the Tables 1
and 2 on page15.

Best Value

Lower Cost

Excellent

Performance

Lower Cost

Excellent

Performance

Comparative Summary of TEK-SIL materials

Material Page# Suggested Application

cal/cm˚sec˚C W/m-k

Reinforced, general use

.0022

.90

SCT

Unreinforced, general use, low cost .0029

1.20

Reinforced, better than “SR”

.0034

1.40

SCH

Unreinforced, cost effective

.0041

1.70

Unreinforced, high performance

.0062

2.60

Reinforced, best performance

.0070

2.90

Medium hardness, good dielectric

.0031

1.30

.025"-.062" (.64-1.57mm) thick

“SQ”

Medium hardness

.0026

1.10

“Gel Pad” 16

best gap filler, very soft<5

.0036

1.50

.020"-.200" (.50-5.0mm) thick

TEK SIL Products will keep me cool !

Web-Site: www.teknational.com

Optimum

Performance

Optimum

Performance

TEK-SIL “SR” and “SCT”

Materials

TEK-SIL “SR” materials offer an
economical solution to most thermal
transfer problems. They are inexpensive and easy to use.
All “SR” materials are made with a fiber glass matrix to resist
puncturing and improve tear strength. “SR” is available in
four standard thicknesses (.006"to .012") both with and without
PSA. Typical thermal conductivity for “SR” is .90 W/m-k. See
Tables 1 and 2 on page 15 for specific properties.

TEK-SIL “SCT” is an unreinforced version of “SR” without
the fiber glass matrix. To provide puncture resistance, “SCT”
is somewhat thicker than “SR” materials. It is made in three
thicknesses from .012" to .033". The added thickness combined
with the smooth surface of “SCT” make this a highly
comformable material. PSA is not available for the unreinforced
materials. Specific material properties are shown in the
Tables 1 and 2 on page 15. Part number is material and
thickness (SCT-12, SR-06).

TEK-SIL “SH” and “SCH”

Materials

TEK-SIL “SH” has added fillers
to improve thermal conductivity and
dielectric strength. “SH” materials are formulated using a
fiber glass matrix to improve tear strength and puncture
resistance. Thermal conductivity for TEK-SIL “SH” is 1.40
W/m-k, a 56% improvement compared to “SR”. “SH” materials
come in 3 thicknesses from .006" to .012". Optional PSA is
also available. See the Tables 1 and 2 on page 15 for specific
properties .

Better Performance

1 5

Dimensions in Millimeters are indicated by (.00)

TEK-SIL PRODUCTS

SCT

SCH

Material – Binder

.Silicone

Silicone

– Filler

Alumina

Alumina+ALN

Boron Nitride

Alumina

Alummina

– Reinforcement

Fiber glass

None

Fiber glass

None

Fiber glass

None

Elongation %

100

250

110

200

Hardness (Shore A)

Thermal condctivity

– watts/m-k

0.9

1.2

1.4

1.7

2.9

1.1

2.6

1.3

– cal/cm˚sec

0.0022

0.0029

0.0034

0.0041

0.007

0.0026

0.0062

0.0031

UL 94 rating

˚F

-76 to >356

-76 to >356 -80 to >400

˚C

-60 to >180

-60 to >180 -60 to >204

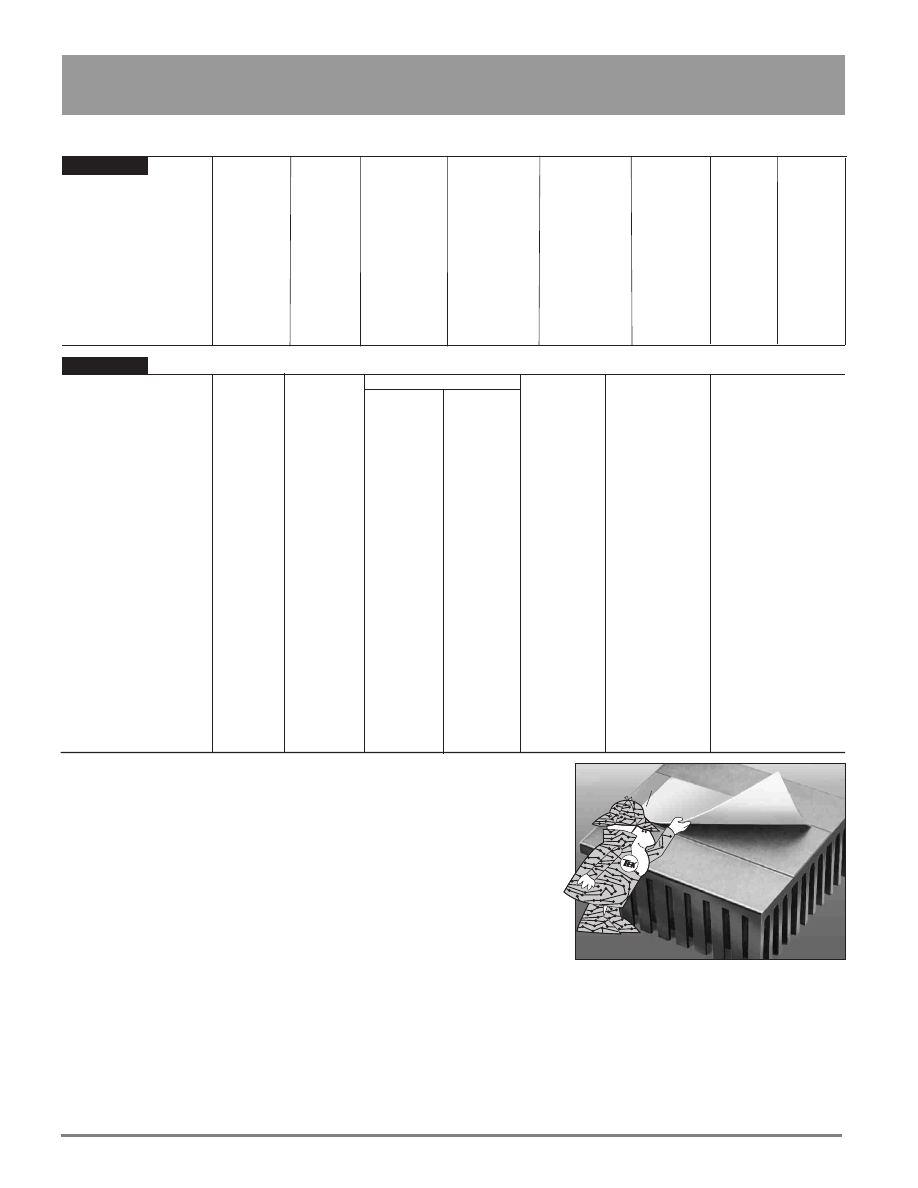

Physical Properties of Thermal Insulating Materials

Withstand

Maximum Roll

MATERIAL

Color

Thickness

w.o. PSA

w. PSA

Voltage kv

Width inches(mm)

SR-06

Green

.0059 (.15)

0.21

0.54

4.0

3.33 (85)

SR-07

Gray

.007 (.18)

0.39

0.61

3.5

11.80 (300)

SR-09

Gray

.009 (.23)

0.45

0.71

4.5

11.80 (300)

SR-12

Green

.012 (.30)

0.48

0.86

7.0

3.33 (85)

SCT-12

Green

.012 (.30)

0.36

10.0

3.33 (85)

SCT-18

Green

.018 (.45)

0.46

11.0

3.33 (85)

SCT-33

Green

.033 (.85)

0.90

15.0

3.33 (85)

SH-06

Brown

.0059 (.15)

0.22

0.39

2.0

3.33 (85)

SH-08

Brown

.008 (.20)

0.22

0.41

4.0

3.33 (85)

SH-12

Brown

.012 (.30)

0.26

0.56

8.0

3.33 (85)

SCH-12

Brown

.012 (.30)

0.18

9.0

3.33 (85)

SCH-18

Brown

.018 (.45)

0.29

10.0

3.33 (85)

SCH-33

Brown

.033 (.85)

0.51

14.0

3.33 (85)

SB-08

White

.008 (.20)

0.11

0.24

3.0

NA***

SB-12

White

.012 (.30)

0.10

0.25

5.0

NA***

SB-18

White

.018 (.45)

0.20

0.30

7.0

NA***

SB-33

White

.033 (.85)

0.32

0.48

10.0

NA***

SU-12

Dark Gray

.012 (.30)

0.09

11.0

3.33 (85)

SU-18

Dark Gray

.018 (.45)

0.15

12.0

3.33 (85)

SU-33

Dark Gray

.033 (.85)

0.32

16.0

3.33 (85)

SQ-12

Black

.012 (.30)

0.39

9.0

3.33 (85)

SQ-18

Black

.018 (.45)

0.55

12.0

3.33 (85)

SQ-33

Black

.033 (.85)

1.01

16.0

3.33 (85)

SA-025

Blue

.025(.64)

1.80

11.0

18.00(457)

TABLE 1

TABLE 2

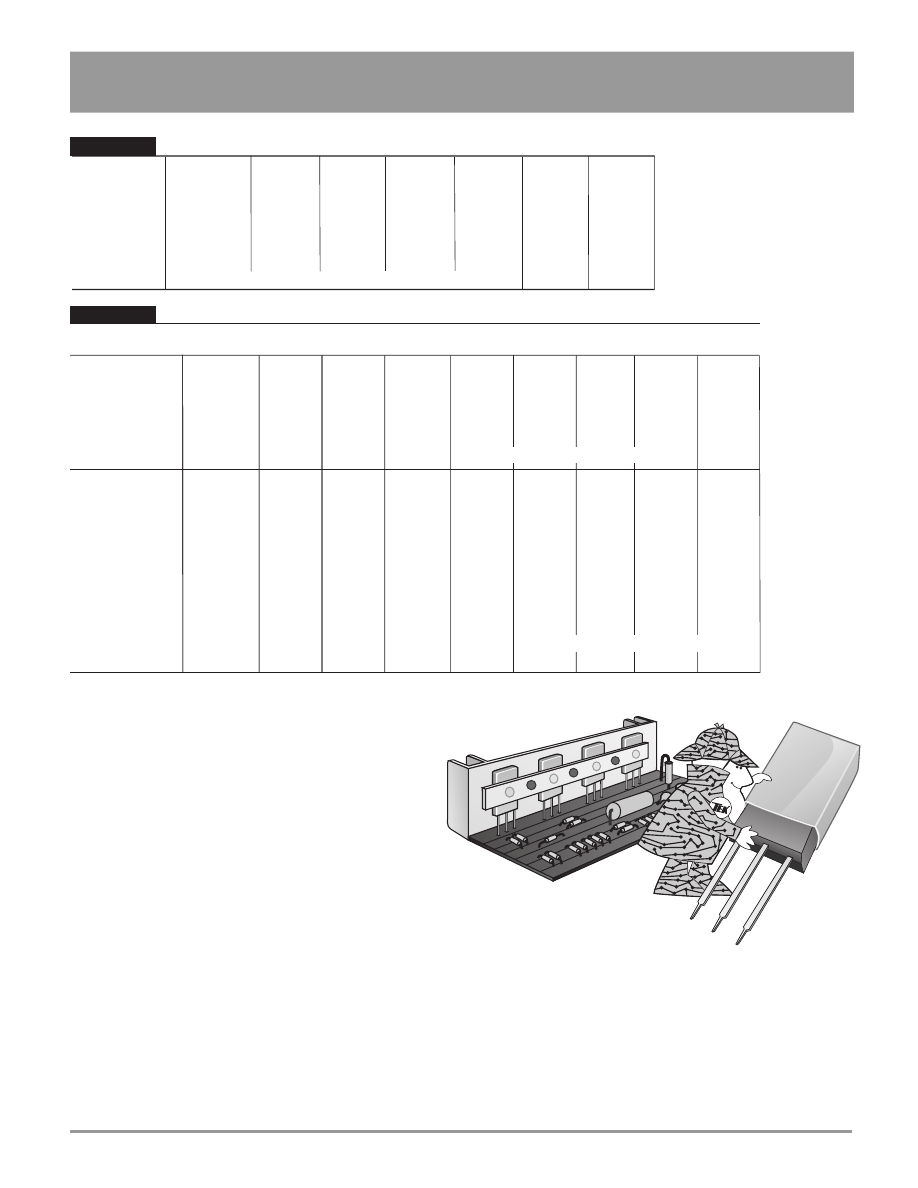

Medium/Firm Materials

Some times there may be a small space between mismatched
surfaces that must be filled. The TEK-SIL line includes two
materials from .012" (.30mm) to .062" (1.57mm) thickness. Being
somewhat softer in durometer and often thicker than the standard
materials, these products conform well to mating surfaces for
optimum heat transfer. They also protect assemblies from
mechanical shock and absorb thermal expansion.

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Conformable Materials

For Gasketing and Filling Gaps

• Thermally conductive • Shock absorbent

Recognizing a need for thermally conductive products which will conform
well to irregular surfaces and fill larger gaps,Teknational offers a variety
of materials to solve these problems.

This is soft and very compliant!

Before specifying user

shall determine suitability

of the product for his use.

User assumes all risk and

liability whatsoever in

connection therewith.

*Tolerance for material

thickness generally

+/- .0005" (.013mm).

Exceptions are: SR-06

+.0008/-.0016" (+.02/-.04);

SB-08. SB-33 +/-.002"

(+/-.06)

**˚C/watt (one square inch)

***12" x 12" sheets

(310 x 310)

TEK-SIL SA

TEK-SIL SA is an unsupported, thermally conductive silicone
rubber with high dielectric strength to protect against power
surges. TEK-SIL SA conforms better than many thermally
conductive materials while protecting assemblies from
mechancial shock and absorbing thermal expansion.

Continued on page 16

Web-Site: www.teknational.com

Thermal Resistance**

Resistance and Compression Set for all thicknesses are shown
on Table 3 and Table 4 on page 17. Sheets are 11.8" x 7.9" (300
x 200mm). To order by the sheet, the part number is “GPN”
followed by the thickness (eg. GPN-06 for .06" thick). Teknational
will also die cut parts to your specifications. All materials are
supplied with release liner on both sides.

TEK-SIL “GPH”

In some assembly situations, the stickiness of our standard
Gel Pad “GP” makes it difficult to handle. We now offer Gel Pad
“GPH” which is hardened on one surface. Even with the hardened
surface, this material is supplied with release liner on both sides.
Thermal characteristics are not affected by the hardening.
Standard sheet sizes and thicknesses are available. Comparative
product data is shown on Table 3 and Table 4 on page 17. The
ordering method is the same as for “TEK-SIL “GP”. The part
number for a sheet .197" (5.0mm) thick will be “GPN-197”.

TEK-SIL “GPHN”

Gel Pad “GPHN” combines all of the above options. It has been
extruded using nylon mesh to stiffen the material so that it is
more puncture proof. Distortion from compression is also
minimized. With one hardened surface, the pads are easy to
handle. Thermal conductivity which is measured at 1.50
W/m-k is the same as for Gel Pad “GP”. Look at Table 3 and
Table 4 for specific product information. The ordering method
is the same as for TEK-SIL “GP”, with the part number for a
sheet .118" thick “GPHN-118”.

TEK-SIL PRODUCTS

Dimensions in Millimeters are indicated by (.00)

TEK-SIL SA

(Continued from page 15)

The thicknesses are: .025" (.64"mm); .032" (.82mm); and .062"
(1.57mm). This material is available in sheets or roll stock 18"
wide. Teknational will die cut parts to customer specifications.
See tabes 1 & 2 on page 15 for general specifications and
properties.
Order TEK-SIL SA by thickness and size - eg.SA-062-9X16.

TEK-SIL “SQ”

Offered in three thicknesses ranging from .012" to .033" (.30 -
.85mm), TEK-SIL “SQ” is a medium firm material. With a
durometer of 55, “SQ” may be used as thermally conductive
gasketing which will absorb shock. It can also be squeezed into
tight places. It’s thermal properties are very good with conductivity
measured at 1.10 W/m-k. Dielectrically, “SQ” will withstand a
minimum 9 Kv depending upon thickness. See Tables 1 & 2 for
comparative physical properties.

Extra Soft Gap Fillers

Teknational has a whole range of gap filling materials to fill
voids up to .197" (5.0mm). Even highly polished surfaces
have irregularities which prevent them from making complete
contact. In typical manufacturing environments such precision
polishing is not affordable, even if it would solve the contact
problem. To correct this, our gap fillers will minimize thermal
resistance providing the best thermally conductive path.
Most of our gap fillers/Gel Pads are available in 9 thicknesses:
.20"; .039"; .059"; .079"; .098"; .118"; .126"; .157"; and .197"
(.5; 1.0; 1.5; 2.0; 2.5; 3.0; .3.2; 4.0; and 5.0mm).

TEK-SIL “GP”

With a durometer of <5, our TEK-SIL “GP” Gel Pads fill all voids.
Gel Pads, which are made of unreinforced silicone rubber, are
quite thermally conductive (1.5 W/m-k). They are so soft and
tacky that no PSA is required. To ease handling problems, the
sheets have release liner on both sides. “GP” is made in 9
thicknesses ranging from .020" to .197" (.50 - 5.0mm). All
thicknesses are supplied in sheets 11.8" x 7.9" (300 x 200mm).
As with all other TEK-SIL materials, Teknational will die cut
special shapes to customer specifications. Material properties,
comparative Thermal Resistance and Compression Set for all

thicknesses are shown on Table 3 and Table 4 page 17. To order

sheets of

“GP”, specify the material and thickness (eg. “GP-04”

for a sheet .04" (1.0mm) thick).

TEK-SIL “GPN”

In some instances where puncturing from sharp edges may be
a problem, Gel Pad “GPN” will solve this problem. Using the
same material formulation as “GP”, “GPN” is extruded with a
nylon mesh that makes it more puncture resistant while not
affecting the thermal properties of the base material. The mesh
stiffens the material so that it will not stretch as much as “GP”

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

High Performance GEL Pads

TEK-SIL “GPX”

If you need a gap filler with higher thermal conductivity, Gel Pad
“GPX” is rated at 2.30 watt/mk compared to 1.50 watt/mk for
the standard “GP” material. Thermal resistance data and
Compression Set for each thickness are shown on the Table 4
below. All other performance aspects of “GPX” are shown on
Table 3. This material is presently available in five thicknesses,
ranging from .020" to .098" (.50 - 2.50mm). Consult the plant
for data on thicknesses greater than .098". The part number is
the material plus thickness.

TEK-SIL “GPXH”

As with the original “GP” material, four thicknesses of the high
performance GEL PAD are available with one hardended surface
to ease handling of the material. This material is named TEK-
SIL “GPXH”. All GEL PADS are supplied with a release liner
on both sides. The part number is the material plus its thickness
(eg “GPXH-118” is 118" thick.)

Web-Site: www.teknational.com

Dimensions in Millimeters are indicated by (.00)

TEK-SIL PRODUCTS

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

TABLE 4

.020 (.5mm) .040 (1.0) .060 (1.5) 0.79 (2.0) .098 (2.5) .118 (3.0) .138 (3.5) .157 (4.0) .197 (5.0)

Thermal Resistance

˚C/watt/inch

0.39

0.82

1.23

1.48

1.87

2.10

2.34

2.54

3.04

GPH

0.44

0.89

1.37

1.71

2.00

2.29

2.38

2.62

3.06

GPN

0.42

0.83

1.35

1.62

2.03

2.32

2.38

2.64

2.91

GPHN

0.48

0.90

1.43

1.69

2.15

2.43

2.49

2.66

3.11

GPX

0.37

0.63

0.98

1.18

GPXH

0.37

0.72

1.08

1.37

COMPRESSION SET

Kgf/inch

GP 10%

13.0

12.5

11.5

10.2

7.7

6.1

5.6

4.9

4.2

50%

40.2

39.2

33.1

30.9

27.2

24.7

23.5

20.3

15.8

GPH 10%

20.9

19.8

15.2

12.3

10.9

8.0

6.9

5.7

5.0

50%

106.9

91.6

59.8

33.4

28.1

25.2

24.7

23.1

20.0

GPN 10%

17.0

15.2

15.4

11.2

8.2

7.3

6.5

5.4

4.8

50%

96.4

71.6

49.9

31.2

25.8

20.8

18.9

18.2

17.9

GPHN 10%

22.5

20.7

20.1

15.7

14.8

12.1

9.8

9.0

7.1

50%

119.8

102.9

78.2

50.8

41.7

38.7

32.2

32.4

25.2

GPX 10%

15.5

16.2

14.0

8.0

5.5

50%

95.2

85.3

66.7

48.2

38.2

GPXH 10%

15.5

16.2

14.0

8.0

50%

92.5

85.3

66.7

48.2

Tek-Sil GEL PADS Thermal Resistance and Compression Set

MATERIAL THICKNESS

For ease of handling, all sheets are

supplied with release liner on both sides.

To order, the part number is the matterial

name followed by thickness. “GP-04” is

one sheet .04" thick. Before specifying,

user shall determine suitability for his

use. User assumes all risk and liability

whatsover in connection therewith.

Common Material Properties - GEL PADS

“GP”

“GPN”

“GPH”

“GPHN”

“GPX”

“GPXH”

Color

Dark Gray

Gray

Hardness

Shore A

Elongation

100

Temperature

Continuous Use 250F (120C) 250F (120C) 250F (120C) 250F (120C) 250F (120C) 250F (120C)

Thermal

Watt/m-k

1.5

2.3

Conductivity

Cal/cm-sec-˚C

0.0036

0.005

Flame Retardance

UL 94

Sheet Size

7.9" x 11.8" (200 x 300mm) for all materials

TABLE 3

Consult plant for specifications

Before specifying,

user shall determine

suitability of the

product for his use.

User assumes all

risk and liability

whatsoever in

connection

therewith.

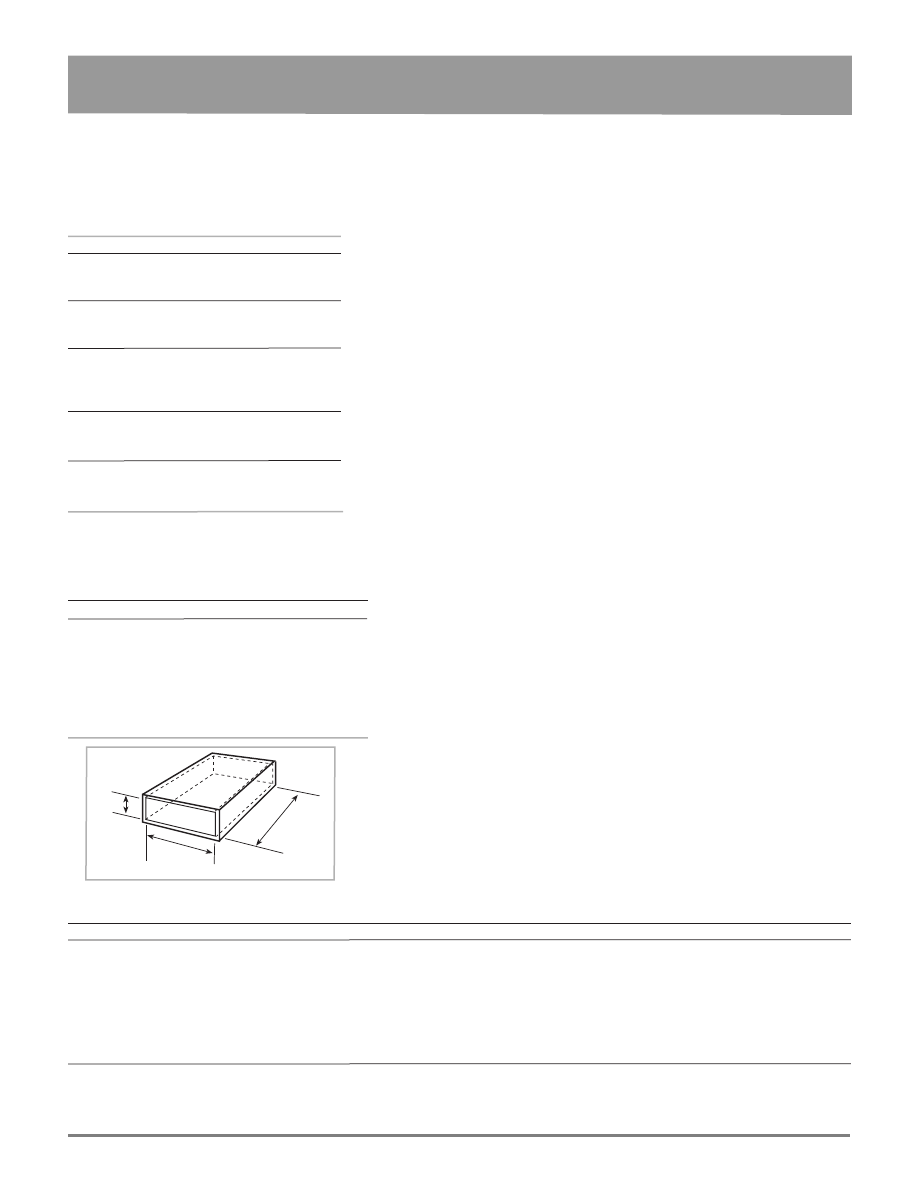

Thermally Conductive Silicone

Tubes and Covers

• Easy Assembly

• Full Protection

Teknational now offers both TEK-SIL SCT and SCH
materials extruded in tubular form as sleeves and molded as
five sided rectangular covers to completely encapsulate
electronic devices. Easy to assemble, the tubes and covers
slip over IC’s to fully protect them from shock or damage during
assembly and prevent arcing. With the sleeves, assembly
labor is reduced when several are secured with a bar against
an aluminum housing used as a heat sink.

The dielectric qualities of TEK-SIL SCT

and SCH isolate the

devices while conducting heat to a heat sink. Both materials
are UL rated 94VO. These products are often used for mounting
TO-3P and TO-220 style devices. See Tables 1 & 2 on page
15 for the physical properties of TEK-SIL SCT and SCH
materials.

TEK-SIL Tubes are available in
three thicknesses and three inner diameters. .433", .531", and
.669" (11mm, 13.5mm and17mm).  They are stocked in several
lengths which are standard for TO-220’s, TO-3P’s and TO-
3PL’s.  Tubes are also available cut into other lengths not
shown. Some other diameters may be available for special
order.  Tables showing part numbers for standard sizes of both
Tubes and Covers are shown on the right and below. If you
are ordering the better performing TEK-SIL SCH

material,

Substitute “SCH” in place of “SCT” for the part number.

Web Site: www.teknational.com

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

K-275

Thermally

Conductive Insulators

K-275

solves many problems encountered in surface mounting

applications.

With K-275 you can attach heat sinks without any external hardware.
Suggested uses are for mounting ceramic hybrid and flat packages.

The base material for K-275 is thermally conductive polyimide which is noted
for its high (6.0 KV) dielectric strength and excellent thermal impedance.
K-275 is coated with a liberal application of thermoset acrylic PSA adhesive
(.002" thick on both sides). The uncured PSA adheres sufficiently for assembly
operations. In its soft, uncured state, the extra thickness of PSA conforms to
mating surfaces – improving thermal conductivity.

Ordinary exposure to wave solder will thermoset the PSA, with adhesion
improving to 60 oz/in

. In the absence of wave soldering, the PSA may be

cured for 5 seconds at 250˚C. Thermosetting also improves resistance to
solvents. The PSA used in K-275 is thermally conductive. Its thermal interface
penalty is less than for most adhesives offered with this type of product.

TEK-SIL K-275

is made by Furon. The base material is .001" thermally

conductive KAPTON

type MT which is puncture resistant. It is supplied with

a release liner of 80# silicone coated paper on one or both sides. TEK-SIL
K-275

is available in roll form, 16" wide and in squares or rectangles: 8" x 8"

and 9" x 16". Teknational will die cut parts to your specifications.

TEK-SIL SK-04

TEK-SIL SK-04 is a composite of high performance thermally conductive
materials. Polyimide film is coated on one side with thermally conductive silicone
rubber to provide high conformability with the upper surface. The opposite side
is coated with thermally conductive acrylic adhesive which speeds assembly
and improves performance by filling voids between mating surfaces.

SK-O4 is highly puncture resistant. Its excellent dielectric strength (6000 volts)
and thermal resistance. (.20˚ C/w) make SK-04 a cost effective replacement
for beryllium oxide insulators. To reduce assembly time, SK-04 parts are kiss-
cut on a release liner. SK-04 is also available in 16" wide sheets.

TEK-SIL PPRODUCTS

TEK-SIL TUBES

Standard Part Numbers

Part number consists of material designation
(eg. SCT or SCH followed by material thickness
(eg. “12” for .012")

TEK-SIL COVERS

Standard SIZES

Standard sizes-the part number begins with the material
name (eg. SCT or SCH and thickness (eg.“12” for .012"

Part No. A

SCT12-0886 0.886 (22.5) 0.433 (11.0) 0.177 (4.5)

SCT18-0866 0.866 (22.0) 0.433 (11.0) 0.197 (5.0)

SCT33-0866 0.866 (22.0) 0.433 (11.0) 0.197 (5.0)
FOR TO-3P’s

SCT12-1102 1.102 (28.0) 0.630 (16.0) 0.177 (4.5)

SCT20-1083 1.083 (27.5) 0.650 (16.5) 0.197 (5.0)

SCT33-1102 1.102 (28.0) 0.709 (18.0) 0.197 (5.0)

COVERS

K-275

SK-04

MATERIAL COMPOSTION

Kapton

MT - thickness

.001" (.025mm)

Silicon (one side) - thickness NA

.002" (5.08mm)

Acrylic PSA- thickness

.002" (5.08mm)

0.015" (3.81mm)

THERMAL CONDUCTIVITY

watt/m-k

.40

.60

DIELECTRIC STRENGTH

volts/mil

1600

TABLE 5

Physical Properties Kapton

Materials

ASTM E1530 @ 10psi.

The thermosetting PSA will become stronger and

more solvent resistant after curing with wave solder;
cure at 15 seconds @ 200˚ C or 5 sec @ 250˚C.

K-275

SK-04

ADHESION TO STEEL (oz/inch)

before thermoset

after thermoset

TEMPERATURE RANGE ˚F

-20 to +300

˚C

-20 to +149

-29 to +149

MAXIMUM ROLL WIDTH

16" (406.4mm)

All properties are typical and should not be used for writing specifications. Before
specifying, user shall determine the suitability of the product for his intended use.
User assumes all risk and liability whatsoever in connection therewith.

FOR TO-220’s Diameter Length
SCT12-433-0984 .433+/-.04

.984+/-.04

SCT18-433-0984 (11+/-1)

(25+/-1)

SCT33-433-0984
SCT12-433-1181 .433+/-.04

1.181+/-.04

SCT18-433-1181 (11+/-1)

(30+/-1)

SCT33-433-1181
FOR T0-3P’s/TO-247/TO- 218

SCT12-531-0984 .531+/-.04

.984 +/-.04

SCT18-531-0984 (13.5+/-1)

(25 +/-1)

SCT33-531-0984
SCT12-531-1181 .531 +/-.04

1.181+/-.04

SCT18-531-1181 (13.5 +/-1)

(30 +/-1)

SCT33-531-1181
FOR TO-3PL’s

SCT18-669-1378 .669 +/-.04

1.378 +/-.04

SCT33-669-1378 (17 +/-1)

(35 +/-1)

Web Site: www.teknational.com

Note: A, B and C are inside dimensions

Dimensions in Millimeters are indicated by (.00)

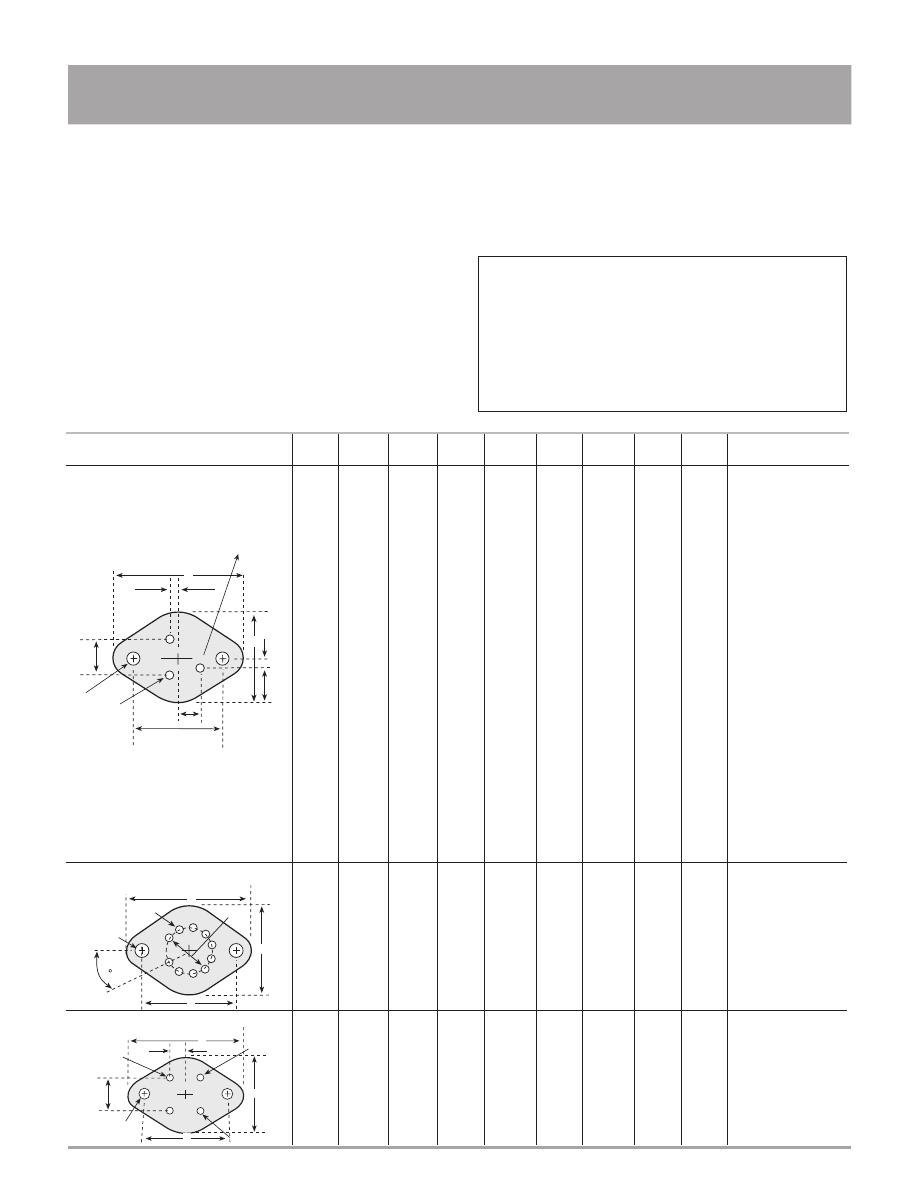

FOR STYLES NOT YET TOOLED
We can design and produce new dies within a few days.
Depending upon your volume requirements, tooling is inexpen-
sive. Call or fax us with the material and dimensions required.
Dimensional Tolerances +/- .015"(.381mm),
Hole Diameters +/- .005"(.127mm).

CONFIGURATION

STYLE

LEAD

SCREW TORQUE

HOLES

-3

1.563

1.050

.140

0.080

0.072

(39.70) (26.67)

(3.56)

(2.03)

(1.83)

-5

1.563

1.050

0.140

0.072

#4-40 5 in/lb.

(39.70)

(26.67)

(3.56)

(1.83)

-6

1.593

1.100

0.156

0.062

0.072

#6-32 6in/lb.

(40.46)

(27.94)

(3.96)

(1.57)

(1.83)

-9

1.650

1.140

0.140

0.046

0.072

(41.91)

(28.96)

(3.56)

(1.17)

(1.83)

-11

1.650

1.140

0.165

0.062

0.072

(41.91)

(28.96)

(4.19)

(1.57)

(1.83)

-12

1.700

1.187

0.156

0.062

0.072

(43.18)

(30.15)

(3.96)

(1.57)

(1.83)

-14

1.780

1.250

0.140

0.093

0.072

(45.21)

(31.75)

(3.56)

(2.36)

(1.83)

-17

1.650

1.140

0.140

0.093

0.124

0.400

0.155

(41.91)

(28.96)

(3.56)

(2.36)

(3.15)

(10.16)

(3.94)

-83

1.650

1.140

0.140

0.093

0.072

(41.91)

(28.96)

(3.56)

(2.36)

(1.83)

-90

1.655

1.063

0.156

0.062

0.072

(42.04)

(27.00)

(3.96)

(1.57)

(1.83)

-91

1.646

1.125

0.156

0.093

0.072

(41.81)

(28.58)

(3.96)

(2.36)

(1.83)

-100

1.650

1.140

0.122

0.062

0.072

(41.91)

(28.96)

(3.10)

(1.57)

(1.83)

-189

1.653

1.142

.122

.059

.079

(42.00)

(29.00)

(3.10)

(1.50)

(2.00)

-19

1.563

1.050

0.156

0.063

1.187

0.470

#4-45 5 in/lb

(39.70)

(26.67)

(3.96)

(1.60)

(30.15)

(11.94)

-20

1.655

1.187

0.156

0.060

1.187

0.500

#6-32 6in/lb.

(42.04)

(30.15)

(3.96)

(1.52)

(30.15)

(12.7)

-23

1.312

0.762

0.140

0.062

0.960

0.200

0.100

#4-40 5 in/lb.

(33.32)

(19.35)

(3.56)

(1.57)

(24.38)

(5.08)

(2.54)

-24

1.250

0.700

0.140

0.062

0.960

0.200

0.100

#6-32 6 in/lb.

(31.75)

(17.78)

(3.56)

(1.57)

(24.38)

(5.08)

(2.54)

-25

1.375

0.825

0.140

0.062

0.960

0.200

0.100

(34.93)

(20.96)

(3.56)

(1.57)

(24.38)

(5.08)

(2.54)

-190

1.378

0.826

0.122

0.059

0.960

0.200

0.079

(35.00)

(21.00)

(3.10)

(1.50)

(24.38)

(5.08)

(2.00)

TO 3

2/3 Leads

TO 3

4/8/10 Leads

TO 66

2/3/4 Leads

How to order TEK-SIL Materials

Tek-Sil materials may be ordered in sheet form or die cut.

SHEET FORM
To order sheets, designate the material desired (e.g. Tek-Sil
SK-04 or SR-09) followed by the dimensions of the sheet. The
part number for a 12"x12" sheet of SR-09 will be SR-09 12"x12"

DIE CUT
Tek-Sil materials are available die cut in styles to fit the more
common transistor, diode and IC packages. The table below
shows drawings and dimensions for many of our die cut prod-
ucts. Select the “Style” which fits your requirements.

The Part Number will consist of:
Material

Thickness

Style

(optional PSA)

PN: SR

-6

-83

-58

*Since SK-04 is only available with PSA, no “P” is necessary

IMPORTANT NOTICE TO PURCHASER–the following is made in
lieu of all warranties express or implied. Seller’s and manufacturer’s
only obligation shall be to replace such quantity of the product found
to be defective. Neither seller nor manufacturer shall be liable for
any injury, loss or damage, direct or consequential, arising out of the
use of or the inability to use the product. Before using, user shall
determine the suitability of the product for his intended use and
assume all risk and liability whatsoever in connection therewith. The
foregoing may not be changed except by an agreement signed by
officers of seller and manufacturer.

THIRD LEAD

THIRD

LEAD

.430

(10.92)

D DIA.

(2/3 PL)

1.187

(30.15)

C DIA

(2 PL)

D DIA.

(2/3/4 PL)

FOURTH

LEAD

THIRD LEAD

C DIA.

C Dia.

(2PL)

D Dia.

G Dia.

(4/8/10 PL)

HANDLES & PULLS

TEK-SIL PRODUCTS

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

TEK-SIL PRODUCTS

Web Site: www.teknational.com

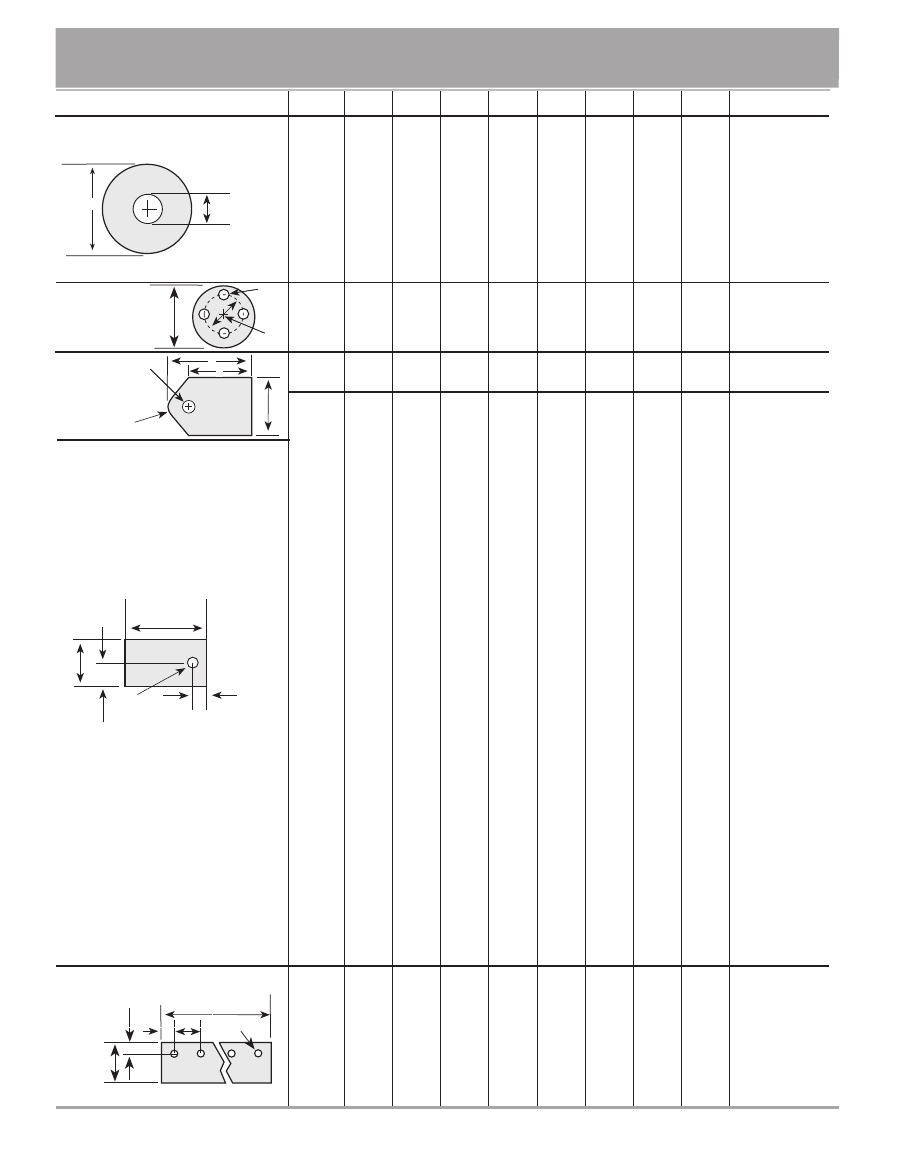

How to order TEK-SIL Materials

TO 3

2/3Leads

TO 3

4/8/10 Leads

TO 66

2/3/4 Leads

CONFIGURATION

STYLE

LEAD

SCREW TORQUE

HOLES

-93

0.562

0.203

(14.27)

(5.16)

-34

0.625

0.200

#10-32 2in/lb.

(DO-4)

(15.88)

(5.08)

-37

0.800

0.260

(DO-5)

(20.32)

(6.60)

-42

1.000

0.260

(DO-5)

(25.40)

(6.60)

-110

0.360

0.172

(9.14)

(4.37)

154

1.600

0.200

(40.64)

(5.08)

-48

0.360

0.200

0.040

(TO-5)

(9.14)

(5.08)

(1.02)

-49

0.360

0.200

0.040

(TO-5)

(9.14)

(5.08)

(1.02)

-65

0.865

0.650

0.140

0.205

#4-40 4 in/lb.

(Tip-36)

(21.97)

(16.51)

(3.56)

(5.21)

-51

0.437

0.312

0.140

0.122

(TO-126)

(11.10)

(7.92)

(3.56)

(3.10)

-54

0.687

0.562

0.218

0.125

(17.45)

(14.27)

(5.54)

(3.18)

-97

0.687

0.562

0.185

0.093

(17.45)

(14.27)

(4.70)

(2.33)

-191

0.708

0.512

0.177

0.118

(TO-220)

(18.00)

(13.00)

(4.50)

(3.00)

-55

0.710

0.500

0.160

0.141

#4-40 2in/lb.

(18.03)

(12.70)

(4.06)

(3.58)

-81

0.725

0.520

0.170

0.115

(18.42)

(13.21)

(4.32)

(2.92)

-56

0.750

0.410

0.225

0.156

(19.05)

(10.41)

(5.72)

(3.96)

-57

0.750

0.500

0.187

0.125

(TO-220)

(19.05)

(12.70)

(4.75)

(3.18)

-58

0.750

0.500

0.187

0.147

(TO-220)

(19.05)

(12.70)

(4.75)

(3.73)

-52

0.760

0.600

0.240

0.150

(19.05)

(15.24)

(6.10)

(3.81)

-64

0.750

0.500

(220 clip)

(19.05)

(12.70)

-102

0.870

0.620

(no hole)

(22.10)

(15.75

-98

0.800

0.600

0.218

0.110

(TO-218)

(20.32)

(15.24)

(5.54)

(2.79)

-99

0.826

0.905

0.210

0.145

(20.96)

(22.99)

(5.33)

(3.69)

-96

0.937

0.750

0.656 0.125

(23.80)

(19.05)

(16.66)

(3.18)

-192

0.945

0.787

0.295

0.122

(TO-3PF)

(24.00)

(20.00)

(7.50)

(3.10)

-84

0.945

0.825

0.235

0.140

(24.00)

(20.96)

(5.97)

(3.56)

-106

0.945

0.825

0.235

0.120

(24.00)

(20.96)

(5.97)

(3.05)

-112

1.125

0.625

0.200

0.145

(28.58)

(15.88)

(5.08)

(3.68)

-113

1.410

0.810

0.360

0.147

(35.81)

(20.57)

(9.14)

(3.73)

-122

1.300

1.000

0.650

0.166

0.350

(33.02)

(25.4)

(16.51) (4.22)

(8.89)

-82

1.260

0.690

0.250

0.160

0.230

0.800

(32.00)

(17.53)

(6.35)

(4.06)

(5.84)

(20.32)

-107

1.420

0.440

0.155

0.120

0.310

0.400

(36.07)

(11.18)

(3.94)

(3.05)

(7.87)

(10.16)

-109

2.165

0.945

0.472

0.167

0.472

1.220

(54.99)

(24.00)

(11.99)

(4.24)

(11.99)

(30.99)

-134

2.515

2.031

0.531

0.156

0.734

1.047

(63.88)

(51.59)

(13.49)

(3.96)

(18.64)

(26.59)

-80

4.000

0.750

0.187

0.125 0.250

0.500

(101.60)

(19.05)

(4.75)

(3.18)

(6.35)

(12.70)

Dimensions in Millimeters are indicated by (.00)

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

B Dia

D Dia.

B Dia.

C Dia.

Diode Washers

Plastic Power
Devices

Plastic Devices
Multiples

D Dia.

E Rad.

Small
Power
Devices

Tip
Package

TEK-SIL PRODUCTS

Web Site: www.teknational.com

CROSS REFERENCES

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Teknational Birtcher

Bivar

Calmark

E.S.F

Keystone Richco

Rosin

Thermalloy

9425

94-2-5

DC-250

RDC-250

C12203-0004F 8820-2

9445

94-2-9

DC-450

RDC-450

8820-4

9445-125

94-4-9

DC-450-130

RDC-450-130

9460

94-2-12

DC-600

RDC-600

C12203-0002F 8820-6

9460-125

94-4-12

DC-600-130

RDC-600-130

9480

94-2-16

DC-800

RDC-800

C12203-0003F 8820-8

9480-125

94-4-16

DC-800-130

RDC-800-130

9200-25

N-250-2

8620

RN-250-2

9200-30

N-300-2

A-42870-4

8621

RN-300-2

9200-35

N-350-2

8622

RN-350-2

9200-40

N-400-2

120-400

A-42870-1

8623

RN-400-2

9200-45

N-450-2

8624

RN-450-2

9200-50

N-500-2

8625

RN-500-2

9200-55

N-550-2

8626

RN-550-2

9200-60

N-600-2

120-600

A-42870-2

8627

RN-600-2

9200-65

N-650-2

8628

RN-650-2

9200-70

N-700-2

120-700X

8629

RN-700-2

9200-70-3

N-700-3

120-700

8630

RN-700-3

9200-75

N-750-2

8631

RN-750-2

920075-3

N-750-3

8632

RN-750-3

9200-80

N-800-2

120-800X

8633

RN-800-2

9200-80-3

N-800-3

120-800

8634

RN-800-3

9200-85

N-850-2

8635

RN-850-2

9200-85-3

N-850-3

8637

RN-850-3

9300-25

93-5

E-250

9300-30

93-6

E-300

9300-35

93-7

E-350

9300-40

93-8

E-400

9300-45

93-9

E-450

9300-50

93-10

E-500

9300-55

93-11

E-550

9300-60

93-12

E-600

9300-65

93-13

E-650

9300-70

93-14

E-700

9300-75

93-15

E-750

9300-80

93-16

E-800

LP-06

LP-36

1209-062

R1209-062 S209

CP-09

RCP-09

S200-100

CP-06 Series 103 770-4496 8640

RCP-06

S200

CP-29

RCP-29

S202-100

CP-26

770-4497 8641

RCP-26

S202

6297 5003N

CP-39

RCP-39

S203-100

CP-36 770-4495 8842

RCP-36

S203

5009N

CP-89

RCP-89

S208-100

CP-86

Series 101 770-4493 8844

RCP-86

S208

5005-20N

CP-69

RCP-69

CP-66

Series 105 770-4494 8643

RCP-66 6100 S-212

5005-08N

CP-00

CP-2 Series 110

6200

40080

5005-09N

TEK Birtcher Bivar Calmark Concord Keystone Richco

SAE Scanbe HH Smith Thermalloy

9062 90-2

9162 91-2

9209 92-2

9532 95-3

9562 93-2

9632 96-3

9662 96-2

9732 97-3

9762 97-2

9832 98-3

9862 98-2

9932 99-3

9962 99-2

9990 88-125

9991 86-125

*Teknational ejectors are natural nylon. The parts shown are
functional equivalents to those offered by other manufacturers.

Ejectors

NOTE: The user is responsible for determining suitability of all materials for the intended use.

Web Site: www.teknational.com

Card Guides

Cross

References

to:

Bergquist

Birtcher

Bivar

Calmark

Concord

Keystone

Milspec

Richco

Rosin

SAE

Scanbe

HH Smith

Thermalloy

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

TEKNATIONAL to MILSPEC

FSC #24227

Mil M38527C Sup 1 & CID A-A 55485

002N

2009

006N

2014

004N

4130

005N

4160

006N

4180

007N

4360

008N

8100

009N

8150

010N

8200

017N

8250

018N

8300

019N

8350

020N

8400

021N

8500

023N

8201

024N

8202

025N

8203

026N

8204

027N

8205

028N

8206

029N

5xxx-F

030N

5xxx-P

031N

5xxx-E

032N

5xxx-Q

033N

5xxx-A

034N

5xxx-G

035N

5xxx-B

036N

5xxx-H

037N

5xxx-M

038N

5xxx-C

039N

5xxx-J

040N

5xxx-K

041N

5xxx-D

042N

5xxx-L

M38527/01-or

A55485/01-

M38527/02-or

A55485/02-

M38527/03- or

A55485/03-

M38527/04 or

A55485/04-

M38527/06-or

A55485/06 -

030N 1018

031N 1011

033N 1029

034N 1020

036N 1027

037N 1000

040N 1017

041N 3035

044N 1030

049N 1001

004N 4041

010N 3001

012N 4015

013N 3027

014N 3005

018N 3019

019N 3034

020N 3005-A

027N 3030

030N 4031

033N 4029

039N 3005-C

047N 3006

002N 2001

004N 2018

007N 2010

008N 2017

009N 2016

010N 2015

013N 2028

015N 2020

017N 3032

001N 4018-A

011N 4021

013N 4006

001N 4042

M38527/07-or

A55485/07-

M38527/10 or

A55485/10-

Dip Pad

M38527/06-or

A55485/06 -

Capacitor Mount

Led Spacer

*Note: /06-029 thru 042N
The Teknational 5000 Series spacers use a letter suffix (eg “F”) which is
equal to the DESC three digit suffix (eg ”029N = “F”). The “H” dimension
of the Teknational part is indicated by the three digits following the “5”
(eg 5125-F is .125" long and equals 06/029N-125H).

Tek-Sil SR07 and SR09 meet all specs
for MIL49456A, Type 1, Grade 3.

84006- 01 9300-25

02 9300-30

03 9300-35

04 9300-40

05 9300-45

06 9300-50

07 9300-55

08 9300-60

09 9300-65

10 9300-70

11 9300-75

12 9300-80

Deep Channel

Guide

84101- 01 9425

02 9445

03 9460

04 9480

22 9445-125

23 9460-125

24 9480-125

PCB Ejectors

83023- 01 9762

02 9562

03 9662

04 9962

05 9732

06 9532

07 9632

08 9932
18 9162

19 9209

Metal Ejectors

84191- 03 9191-03

04 9191-04

Mil. No. TEK No. Mil. No. TEK No. Mil No. TEK No. Mil No. TEK No. Descp.

Mounting Pads Mounting Pads PCB Guides

BQ. TEK

No.

-02

-14

-03

-4

-04

-100

-05

-83

-06

-11

-07

-15

-08

-47

-09

-48

-10

-22

-11

-23

-12

-114

-13

-116

-15

-13

-16

-17

-9

-18

-5

-19

-31

-20

-32

-21

-37

-22

-34

-23

-6

-24

-12

-25

-42

-26

-38

-27

-39

-28

-41

-29

-7

-30

-24

-31

-25

-32

-46

-33

-49

-34

-144

-35

-55

-36

-75

-37

-76

-38

-77

-39

-78

-40

-79

-41

-80

-42

-68

-43

-64

-50

-51

-54

-52

-62

-53

-65

BQ. TEK

No.

-54

-58

-55 -53

-56

-61

-57

-69

-58

-57

-59

-111

-60

-51

-61

-56

-62

-60

-63

-59

-64

-52

-65

-67

-66

-71

-72

-121

-73

-66

-75

-30

-76

-35

-78

-40

-79

-43

-80

-44

-81

-45

-82

-33

-83

-28

-84

-27

-85

-18

-86

-18

-87

-19

-88

-20

-89

-70

-90

-63

-91

-21

-92

-17

-93

-29

-94

-142

-95

-143

-96

-72

-97

-73

-98

-74

-99

-75

-101 -146

-102 -147

-104 -148

-105 -149

-105 -150

NOTE: The user is responsible
for determining suitability of all
materials for the intended use.

BQ. Material

TEK. Material

7403-09-FR (Gray) SR-09 (Gray)

3223-07-FR (Gray) SR-07 (Gray)

1009 (Pink)

SB-09 (Green)

1007 (Pink)

SB-07 (Green)

Example:

“Style No.”

7403-09-FR-04=

SR-09-100

3223-07-FR-35=

SR-07-55

1009-11=

SB-09-23

1007-51=

SB-07-54

01R

002R

003R

004R

006R

007R

OO9R

01OR

011R

012R

013R

014R

016R

017R

019R

020R

O22R

023R

024R

025R

026R

027R

029R

030R

031R

032R

034R

035R

036R

037R

038R

039R

040R

041R

060R

061R

067R

068R

070R

071R

080R

081R

082R

083R

085R

086R

087R

088R

SR-09-04

SB-09-04

SR-09-05

SB-09 05

SR-09-06

SB-09 06

SR-09-100

SB-09-100

SR-09-09

SB-09-09

SR-09-83

SB-09-83

SR-09-12

SB-09-12

SR-09-132

SB-09-132

SR-09-14

SB-09-14

SR-09-15

SB-09-15

SR-09-24

SB-09-24

SR-09-23

SB-09- 23

SR-09-25

SB-09-25

SR-09-26

SB-09-26

SR-09-27

SB-09-27

SR-09-19

SB-09-19

SR-09-20

SB-09-20

SR-09-47

SB-09-47

SR-09-48

SB-09-48

SR-09-49

SB-09-49

SR-09-32

SB-09-32

SR-09-34

SB-09-34

SR-09-37

SB-09-37

SR-09-42

SB-09-42

1-49466/02-

TO-3

TO-66

TO-66 3 Leads

TO-66 4 Leads

TO-3 4 Leads

TO-3 8 Leads

TO-36

TO-5

DO-4

DO-5

Mil-I-49466, 2 April 90,

superseding M38527/08

TEKNATIONAL to

Bergquist

7034-P

7033-P

7032-P

7034-P

7035-P

7036-P

001S

002S

003S

004S

005S

006S

Mil-I-4946/03, 2 April 90, superseding M38527/08
Shoulder Washer, PP

Mil. No. TEK No.

1-49466/03-

CROSS REFERENCES

Web-Site: www.teknational.com

875 5125-K

876 5250-K

877 5375-K

878 5500-K

879 5625-K

880 5750-K

881 5875-K

882 5000-1-K

883 5125-D

884 5250-D

885 5375-D

836 5500-D

887 5625-D

888 5750-D

889 5875-D

890 5000-1-D

891 5125-L

892 5250-L

893 5375-L

894 5500-L

895 5625-L

896 5750-L

897 5875-L

89B 5000-1-L

1902A 4H-250

1902B 4H-375

1902C 4H-500

1902F 4H-625

1902D 4H-750

1902G 4H-875

1902E 4H-1000

1903A 6H-250

1903B 6H-375

1903C 6H-500

1903F 6H-625

1903D 6H-750

1903G 6H-875

1903E 6H-1000

1904A 8H-250

1904B 8H-375

1904C 8H500

1904F 8H-625

1904D 8H-750

1904G 8H-875

1904E 8H-1000

4800

4MF-250

4801 4MF-375

4802 4MF-500

4803 4MF-625

4804 4MF-750

4805 4MF-875

4806 4MF-1000

4807 4MF-1125

4808

4MF-1250

4809 4MF-1375

TEKNATIONAL to

KEYSTONE

Spacers, Standoffs and

PCBMounts

4814 6MF- 250

4815

6MF- 375

4816

6MF- 500

4817

6MF- 625

4818

6MF- 750

4819

6MF- 875

4820

6MF-1000

4821

6MF-1125

4822

6MF-1250

4823

6MF-1375

4828

8MF- 250

4829

8MF- 375

4830

8MF- 500

4831

8MF- 625

4832

8MF- 750

4833

8MF- 875

4884

8MF-1000

4835

8MF-1125

4836

8MF-1250

4837

8MF-1375

7351

5725-120

7352

5725-140

7353

5725-160

7354

5725-180

7355

5725-200

7356

5725-220

7357

5725-240

7358

5725-250

7359

5725-260

7360

5725-280

7361

5725-300

7362

5725-320

7363

5725-340

7364

5725-350

7365

5725-360

7366

5725-380

7367

5725-400

7368

5725-420

7369

5725-440

7370

5725-450

7371

5725-460

7372

5725-480

7373

5725-500

7374

5725-550

7375

5725-600

7376

5725-650

7377

5725-700

7378

5725-750

7379

5725-800

7380

5725-850

7381

5725-900

Mounting Pads

Bivar No. TEK No. Bivar No. TEK No. Bivar No. TEK No.

TEKNATIONAL to BIVAR

Spacers

901

5xxxF

902

5xxxE

903

5xxxG

904

5xxxH

905

5xxxD

906

5xxxA

907

5xxxB

908

5xxxC

910

5xxxJ

911

5xxxK

912

5xxxL

913

5xxxM

938

5xxxP

939

5xxxQ

940

5xxxT

941

5xxxS

For Teknational spacers

xxx =“H” dimension for

the spacer

Example:

Bivar 901-250 =

Teknational 5250-F

Other Bivar Cross

References

CI192-028

MY192-028

CI192-050

MY192-050

CI480-060

MY480-060

CI480-105

MY480-105

ECI-1

MY710

ECI-2

MY820

SW-125-150 7031-P

SW-185-150 7032-P

SW-125-140 7033-P

SW-031-190 7034-P

SW-031-177 7035-P

SW-031-145 7036-P

SW-032-135 7037-P

SW-040-140 7038-P

101-096

1009

103-080

1002

104-020

1017

105-021

1004

106-045

1001

107-180

1008

108-021

1003

109-045

1011

110-030

1000

112-040

2009

113-125

1015

115-100

1018

116-060

1019

117-080

1020

118-055

1027

119-096

1029

120-156

1030

121-032

1031

200-115

2028

200-170

2004

201-150

2002

202-150

2007

203-150

2006

205-085

2001

209-125

2015

211-040

2016

212-087

2030

213-100

2018

214-120

2020

300-100

8100

301-150

8150

302-200

8200

03-090

7203

303-469

7203-WB

311-200

8201

312-250

8202

313-300

8203

315-400

8205

316-500

8206

366-090

7266

366-402

7266-WB

400-100

3004

401-187

5002

402-120

2010

403-062

5001

405-160

7115

407-220

7175

408-080

4013

409-120

7055

414-125

2005

415-480

7003-5

416-110

4011

416-480

7003-0

417-480

7003-1

422-315

2012

424-040

6008

424-125

2125

424-150

2150

424-175

2175

424-200

2200

425-310

7006

426-250

7009

427-327

7010

428-207

7028

429-217

7029

466-380

7066-5

467-380

7066-0

468-380

7066-1

500-080

3002

501-075

3008

502-120

3013

503-075

3001

505-120

3011

506-038

3012

507-100

3010

508-075

3006

509-060

3009

510-110

3007

511-038

3005-A

513-075

3008-A

515-020

3019

517-038

3027

517-095

3028

518-038

3041

519-075

3032

520-021

3034

521-094

3035

524-085

3037

525-038

3005

526-090

3045

527-117

3030

528-117

3042

530-090

3038

531-218

3011-A

532-050

3011-A

600-080

3003

601-120

3015

602-038

3040

603-115

4030*

605-085

4001*

606-075

4005

607-075

4008

608-090

4015

609-075

3018

610-075

4028

611-075

4031

612-075

4040

615-075

4029

616-070

4041

700-130

4002

701-130

4006

702-130

4009

703-250

4004

704-250

4003

706-250

4010

707-120

4012

709-275

4016

710-275

4018

812-187

4022

814-030

4130

814-045

4145

814-060

4160

814-060

4160

814-080

4180

814-100

4200

816-030

4330

816-060

4360

816-080

4380

816-100

4400

Bivar No.

TEK No.

P1-07-0031-N SR-07-06

P1-07-0032-N SR-07-83

P1-07-0041-N SR-07-34

P1-07-0051-N SR-07-37

P1-07-0052-N SR-07-42

P1-07-0661-N SR-07-24

P1-07-0662-N SR-07-23

P1-07-2181-N SR-07-65

P1-07-2182-N SR-07-96

P1-07-2201-N SR-07-54

P1-07-2202-N SR-07-55

P1-07-2203-N SR-07-57

P1-07-2204-N SR-07-58

P1-07-2205-N SR-07-63

P1-09-0031-N SR-09-06

P1-09-0032-N SR-09-83

P1-09-0041-N SR-09-34

P1-09-0051-N SR-09-37

P1-09-0052-N SR-09-42

P1-09-0661-N SR-09-24

P1-09-0662-N SR-09-23

P1-09-2181-N SR-09-65

P1-09-2182-N SR-09-96

P1-09-2201-N SR-09-54

P1-09-2202-N SR-09-55

P1-09-2203-N SR-09-57

P1-09-2204-N SR-09-58

P1-09-2205-N SR-09-63

P2-09-0031-N SB-09-06

P2-09-0032-N SB-09-83

P2-09-0041-N SB-09-34

P2-09-0051-N SB-09-37

P2-09-0052-N SB-09-42

P2-09-0661-N SB-09-24

P2-09-0662-N SB-09-23

P2-09-2181-N SB-09-65

P2-09-2182-N SB-09-96

P2-09-2201-N SB-09-54

P2-09-2202-N SB-09-55

P2-09-2203-N SB-09-57

P2-09-2204-N SB-09-58

P2-09-2205-N SB-09-63

Bivar cross references to

Card Guides DC,N,S and E

Series, for Ejectors LP & CP

Series see page 21

Power Device

Insulators

KEY TEK KEY TEK

No. No. No. No.

Continued on page 24

NOTE: The user is
responsible for
determining suitability of
all materials for the
intended use.

CROSS REFERENCES

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Web-Site: www.teknational.com

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

5700-360

5700-380

5700-400

5700-420

5700-440

5700-450

5700-460

5700-480

5700-500

5700-550

5700-600

5700-650

5700-700

5700-750

5700-800

5700-850

5700-900

4HV-250

4HV-375

4HV-500

4HV-625

4HV-750

4HV-875

4HV-1000

6HV-250

6HV-375

6HV-500

6HV-625

6HV-750

6HV-475

6HV-1000

8HV-250

8HV-375

8HV-500

8HV-625

8HV-750

8311 5700-120

8312 5700-140

8313 5700-160

8314 5700-180

8315 5700-200

8316 5700-220

8317 5700-240

8318 5700-250

8319 5700-260

8320 5700-280

8321 5700-300

8322 5700-320

8323 5700-340

8324 5700-350

8325

8326

8327

8328

8329

8330

8331

8332

8333

8334

8335

8336

8337

8338

8339

8340

8341

8440A

8440B

8440C

8440D

8440E

8440F

8440G

8441A

8441B

8441C

8441D

8441E

8441F

8441G

8442A

8442B

8442C

8442D

8442E

8442F 8HV-875

8842G 8HV-1000

8800

5100-187

8801

5100-250

8802

5100-375

8803

5100-500

8804

5100-625

8805

5100-750

8806

5100-875

8807 5800-187

8808

5800-250

8809

5800-375

8810

5800-500

8811

5800-625

8812

5800-750

8813

5800-875

8814

5800-1000

8815

5225-187

8816

5225-250

8817

5225-375

8818

5225-500

8819

5225-625

8820

5225-750

8821

5225-875

8822

5400-187

8823

5400-250

8824

5400-375

8825

5400-500

8826

5400-625

8827

5400-750

8828

5400-875

8829

5500-125

8830

5500-187

8831

5500-250

8832

5500-375

8833

5500-500

8834

5500-625

8835

5525-250

8836

5525-375

8837

5525-500

8838

5525-625

8839

5550-250

8840

5550-375

8841

5550-500

8842

5550-625

Richco No.

TEK No.

LEDS2M-450-48 5700-450

LEDS2M-460-48 5700-460

LEDS2M-480-48 5700-480

LEDS2M-500-48 5700-500

LEDS2M-550-48 5700-550

LEDS2M 600-48

5700-600

LEDS2M-650-48 5700-650

LEDS2M-700-48 5700-700

LEDS2M-750-48 5700-750

LEDS2M-800-48 5700-800

LEDS2M-850-48 5700-850

LEDS2M-900-48

5700-900

MNI-HT #4-2

7036-P

MNI-HT #4-8

7031-P

MNI-HT #4-12

7032-P

MNI-HT #6-2

7034-P

PS-3-01

5400-187

PS-4-01

5400-250

PS-6-01

5400-375

PS-7-01

5400-437

PS-8-01

5400-500

PS-10-01

5400-625

PS-12-01

5400-750

PS-14-01

5400-875

SP1-3-01

5300-187

SP1-4-01

5300-250

SP1-6-01

5300-375

SP1-8-01

5300-500

SP1-10-01

5300-625

SP1-12-01

5300-750

SP1-14-01

5300-875

SP1-16-01

5300-1000

SP2-3-01

5325-187

SP2-4-01

5325-250

SP2-6-01

5325-375

SP2-8-01

5325-500

SP2-10-01

5325-625

SP2-12-01

5325-750

SP2-14-01

5325-875

SP2-16-01

5325-1000

SP3-3-01

5350-187

SP3-4-01

5350-250

SP3-6-01

5350-375

SP3-8-01

5350-500

SP3-10-01

5350-625

SP3-12-01

5350-750

SP3-14-01

5350-875

SP3-16-01

5350-1000

SRS4-2-01

5600-125

SRS4-3-01

5600-187

SRS4-4-01

5600-250

SRS4-5-01

5600-312

SRS4-6-01

5600-375

SRS4-8-01

5600-500

SRS4-10-01

5600-625

SRS4-12-01

5600-750

SRS4-14-01

5600-875

SRS4-16-01

5600-1000

Richco No.

TEK No.

SRS6-4-01

5625-250

SRS6-5-01

5625-312

SRS6-6-01

5625-375

SRS6-8-01

5625-500

SRS6-10-01

5625-625

SRS6-12-01

5625-750

SRS6-14-01

5625-875

SRS6-16-01

5625-1000

SRS8-4-01

5650-250

SRS8-5-01

5650-312

SRS8-6-01

5650-375

SRS8-8-01

5650-500

SRS8-10-01

5650-625

SRS8-12-01

5650-750

SRS8-14-01

5650-875

SRS8-16-01

5650-1000

SSRS4-2-01

5500-125

SSRS4-3-01

5500-187

SSRS4-4-01

5500-250

SSRS4-5-01

5500-312

SSRS4-6-01

5500-375

SSRS4-7-01

5500-437

SSRS4-8-01

5500-500

SSRS4-10-01

5500-625

SSRS6-4-01

5525-250

SSRS6-5-01

5525-312

SSRS6-6-01

5525-375

SSRS6-7-01

5525-437

SSRS6-8-01

5525-500

SSRS6-10-01

5525-625

SSRS8-4-01

5550-250

SSRS8-5-01

5550-312

SSRS8-6-01

5550-375

SSRS8-7-01

5550-437

SSRS8-8-01

5550-500

SSRS8-10-01

5550-625

TO-3-05

SR-07-83

TO-220-68

SR-07-112

TO-218-70

SR-07-113

IEC TO-220V-18

2520

IEC TO-218

2518

Led Spacers

Richco TEK Richco TEK

No. No. No. No.

R901 F Series

R908 C Series

R902 E Series

R910 J Series

R903 G Series R911 K Series

R904 H Series R912 L Series

R905 D Series R913 M Series

R906 A Series R938 P Series

R907 B Series R939 Q Series
Example: Richco R905-2=

Teknational 5125-D
Richco

TEK Richco TEK

“H”Dim. No. “H”Dim. No.
1

5060

9 5560

5125

10 5625

5185

11 5685

5250

12 5750

5310

13 5810

5375

14 5875

TEKNATIONAL to Richco

Richco No.

TEK No.

CBS-3-01

5100-187

C8S-4-01

5100-250

CBS-6-01

5100-375

CBS-8-01

5100-500

CBS-10-01

5100-625

CBS-12-01

5100-750

CBS-14-01

5100-875

DLCBS-3-01

5200-187

DLCBS-4-01

5200-250

DLCBS-6-01

5200-375

DLCBS-8-01

5200-500

DLCBS-10-01

5200-625

DLCBS-12-01

5200-750

DLCBS-14-01

5200-875

DLCBS2-3-01 5225-187

DLCBS2-4-01 5225-250

DLCBS2-6-01 5225-375

DLC8S2-8-01

5225-500

DLCBS2-10-01

5225-625

DLCBS2-12-01 5225-750

DLCBS2-14-01 5225-875

DLCBS3-3-01 5250-187

DLCBS3-4-01 5250-250

DLCBS3-6-01

5250-375

DLCBS3-8-01

5250-500

DLCBS3-10-01 5250-625

DLCBS3-12-01 5250-750

DLCBS3-14-01 5250-875

LCBS-3

5800-187

LCBS-4

5800-250

LCBS-5

5800-312

LCBS-6

5800-375

LCBS-8

5800-500

LCBS-10

5800-625

LCBS-12

5800-750

LCBS-14

5800-875

LCBS-16

5800-1000

LCBS-18

5800-1125

LCBS-20

5800-1250

LCBS-22

5800-1375

LEDS2M-120-48 5700-120

LEDS2M-140-48 5700-140

LEDS2M-160-48 5700-160

LEDS2M-180-48 5700-180

LEDS2M-200-48 5700-200

LEDS2M-220-48 5700-220

LEDS2M-240-48 5700-240

LEDS2M-250-48 5700-250

LEDS2M-260-48 5700-260

LEDS2M-280-48 5700-280

LEDS2M-300-48 5700-300

LEDS2M-320-48 5700-320

LEDS2M-340-48 5700-340

LEDS2M-350-48 5700-350

LEDS2M-360-48 5700-360

LEDS2M-380-48 5700-380

LEDS2M-400-48 5700-400

LEDS2M-420-48 5700-420

LEDS2M-440-48 5700-440

LEDS2M-450-48 5700-450

TEKNATIONAL to

KEYSTONE

Spacers, Standoffs and

PCBMounts

KEY TEK KEY TEK

No. No. No. No.

Cross references to Card Guides 8620

thru 8637 Series, to Ejectors 8640 thru

8643 Series, Die Cast Handles 7169

thru 7199 Series see page 21

Cross references to Card Guides RDC Series, RN Series,

to Ejectors R1209-062,RCP Series see page 21

CROSS REFERENCES

Web-Site: www.teknational.com

TEKNATIONAL INDUSTRIES, Inc. 391 Gregory St., Rochester NY 14620 • (716) 473-6310 • (716) 473-6324 FAX

Web-Site: www.teknational.com

Therm No. TEK No.

Teknational to Thermalloy

* Teknational parts marked with an asterisk are recommended substitutes which
perform equally in function to the part referenced.Overall appearance and
dimensions may be different.

Mounting Pads

Therm No. TEK No.
7717-2

2014

3001

3008-A*

51124

3018

51746

4028

4031

5001*

4040

3019

1017

1018*

4014*

4016*

3008*

2010

4005*

4040*

4029

2017

2015

1019

3005-A*

3008

1020

2016

3027

104

4016*

107

4012*

108

1006*

109

3028

110

1003*

112

1000*

114

3005-A*

119

4016*

120

4004*

121

2015*

122

4041*

124

1003

125

4001*

127

3012

128

3030

129

4013*

130

2009

131

3041

133

2001*

135

2020*

137

2018

139

2015*

145

2015

146

1018

147

4005*

148

4030*

149

2020

151

3006*

152

1011

53-02-10

53-02-15

53-02-20

53-02-25

53-02-95

53-02-102

50-02-103

53-03-02

53-03-11

53-03-12

53-03-14

53-03-15

53-03-16

53-66-2

53-66-9

53-66-10

53-66-11

53-77-2

53-77-3

53-77-4

53-77-5

53-77-9

53-77-10

53-77-11

53-77-13

53-78-1
(no hole)
53-78-3
(no hole)

SR-06-93
SR-06-34
SR-06-42
SR-06-94
SR-06-95
SR-06-173
SR-06-96
SR-06-90
SR-06-91
SR-06- 83
SR-06-05
SR-06-172
SR-06-12
SR-06-23
SR-06-92
SR-06-24
SR-06-25
SR-06-54
SR-06-97
SR-06-58
SR-06-98
SR-06-81
SR-06-99
SR-06-101
SR-06-55
SR-06-102

SR-06-103

54-02-10
54-02-15
54-02-20
54-02-25
54-02-95
54-02-102
54-02-103
54-03-102
54-03-11
54-03-12
54-03-14
54-03-15
54-03-16
54-66-2
54-66-9
54-66-10
54-66-11
54-77-2
54-77-3
54-77-4
54-77-5
54-77-9
5477-10
54-77-11
54-77-13
55-78-1
(no hole)

55-78-3

(no hole)

SR-09-93
SR-09-34
SR-09-42
SR-09-94
SR-09-95
SR-09-173
SR-09-96
SR-09-90
SR-09-91
SR-09-83
SR-09-05
SR-09-172
SR-09-12
SR-09-23
SR-09-92
SR-09-24
SR-09-25
SR-09-93
SR-07-54
SR-09-97
SR-09-58
SR-09-98
SR-09-81
SR-09-99
SR-09-101
SR-07-102

SR-07-103

Thermasil

Thermalloy TEK Thermalloy TEK

No. No. No. No.

7717-153

1027

154

3002*

155

3033

156

4145

157

1004*

159

3013*

160

2010

161

3032

162

4017*

175

4013*

178

3034

188

1029

189

3031

190

3037

192

1030

193

1031

195

3028*

198

3005

201

4030*

205

2028

206

3008-A

207

1017

219

3005-A*

220

1012

222

6008

224

3039

227

3009

239

1180*

240

3040

241

4360*

247

2020*

248

2015

251

3001

252

4018*

253

4030*

330

3012

337

1002

342

1180*

7721-1

7031-P

7721-2

7032-P

7721-3

7033-P

7721-4

7034-P

7721-5

7035-P

7721-6

7036-P

7721-7

7037-P

7721-8

7038-P

7732

8202

7733

8203

7734

8204

7735

8205

7736

8206

7737

8100

7738

8150

7739

8200

7741

7203-WB

7742

7203

Cross References to 8820 Guides and 5003-5009

ejectors on page 21

Thermalloy TEK

No. No.

SR-07-93
SR-02-34
SR-07-42
SR-07-94
SR-07-95
SR-07-173
SR-07-96
SR-07-90
SR-07-91
SR-07-83
SR-07-05
SR-07-172
SR-07-12
SR-07-23
SR-07-92
SR-07-24
SR-07-25
SR-07-54
SR-07-97
SR-07-58
SR-07-98
SR-07-81
SR-07-99
SR-07-101
SR-07-55
SR-07-102

SR-07-103

55-02-10
55-02-15
55-02-20
55-02-25
55-02-95
55-02-102
55-02-103
55-03-02
55-03-11
55-03-12
55-03-14
55-03-15
55-03-16
55-66-2
55-66-9
55-66-10
55-66-11
55-77-2
55-77-3
55-77-4
55-77-5
55-77-9
55-77-10
55-77-11
55-77-13
55-78-1
(no hole)
55-78-3
(no hole)

CROSS REFERENCES

Mr TEK always on the
look out for new
solutions to your PCB
assembly problems.
