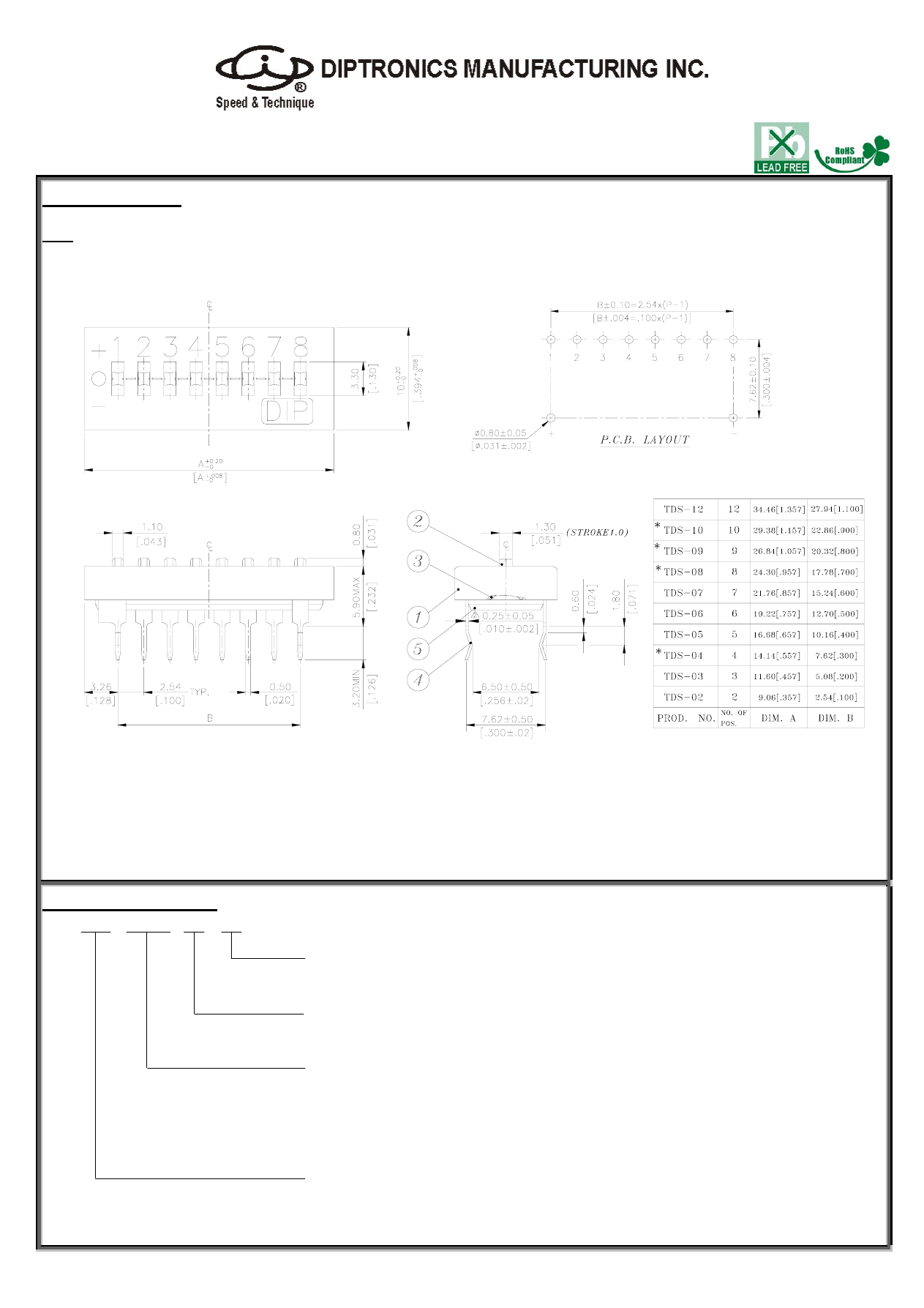

TDS SERIES



DIMENSIONS


TDS



































**General Tolerance

：

±

0.2mm





HOW TO ORDER

          TDS -

□  □

-

□

-

  □




Package Style :

□

= Tube


Soldering :
V = Lead Free Solderable

Number Of Positions:
04 =



4 Positions

08 =



8 Positions

09 =



9 Positions

10 = 10 Positions

Tri-State Type Dip Switch






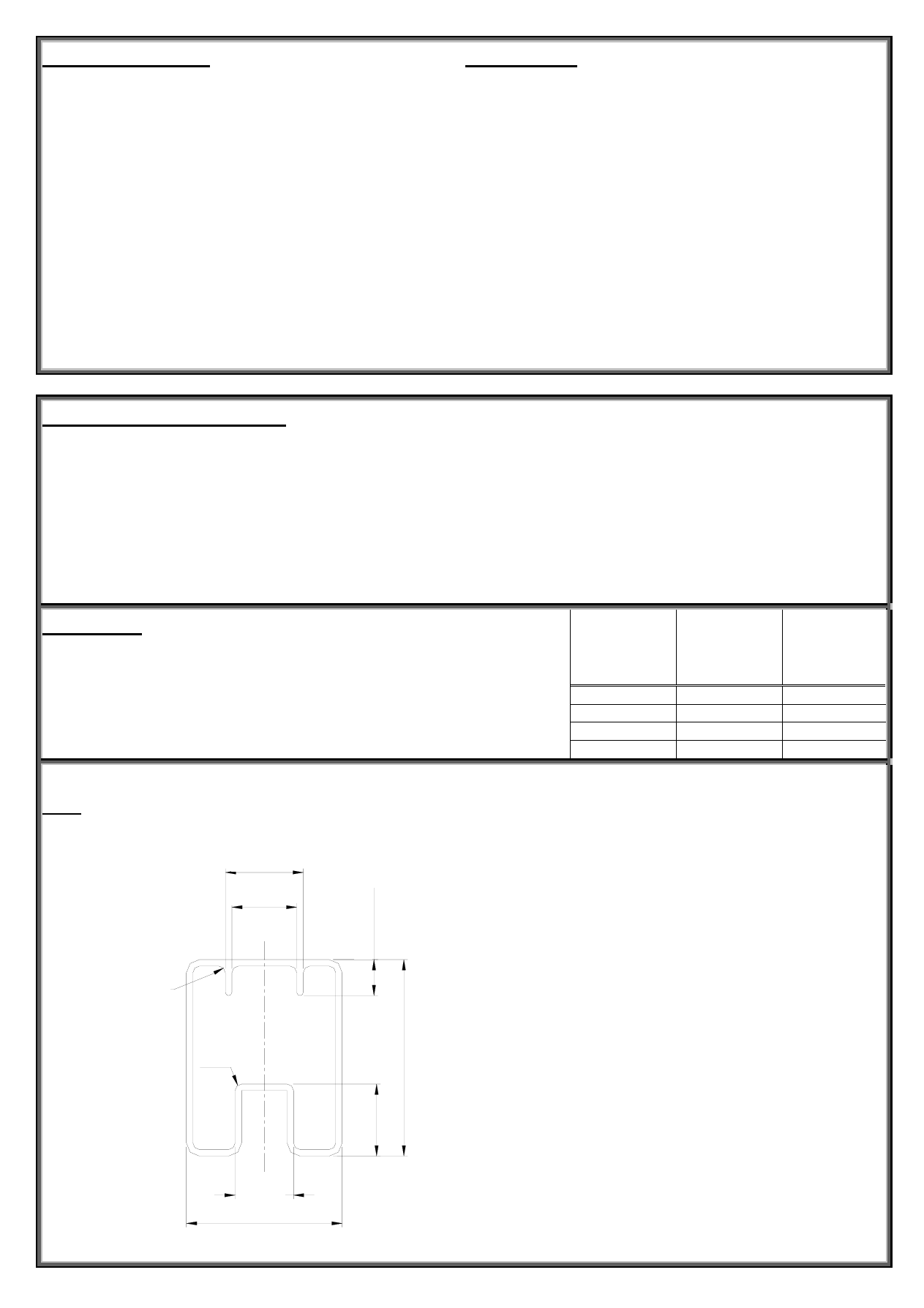

SPECIFICATION

MATERIAL

△

MECHANICAL

△

BASE & COVER: UL940V-0 PBT High Thermoplastic

Mechanical Life: 2,000 operations cycles

Color: Black

Operation Force: 1,000gf max.

△

ACTUATORS: UL94V-0 Nylon Thermoplastic

Stroke: 1.0mm

Color: White

Operation Temp: -20

℃

to +70

℃



△

CONTACT: Alloy Copper with gold plated

Storage Temp: -40 to

℃

+85

℃



△

TERMINAL: Brass with tin plated



CONTACT PLATING: Gold plating over nickel

△



△

ELECTRICAL

Electrical Life: 2,000 cycles



Non-Switching Rating: 100mA, 50VDC



Switching Rating: 25mA, 24VDC



Contact Resistance: (a) 50m

Ω

 max. at initial



                                        (b)100m

Ω

max. after life test



Insulation Resistance: 100M

Ω

 min. at 500VDC



Dielectric Strength: 500VAC/1 minute



Circuit: 3 switching positions









SOLDERING PROCESS

△

Keep all switch contacts in their ”O” position for all



operations.





△

WAVE SOLDERING: Recommended solder temperature
at 500

℉

 (260

℃

) max. 5seconds.







△

HAND SOLDERING: Use a soldering iron of 30 watts,
controlled at 350  approximately

℃

5 seconds while

Applying solder.







PACKING





PART

NUMBER

NO.POS

QUANTITY

PER TUBE



TDS-04 04

33



TDS-08 08

19



TDS-09 09

17



TDS-10 10

16

















TUBE























































































































































































































**General Tolerance

：

±

0.2mm










5.5

3.5±0.5

12.0±0.1

R0.5

2.75

5.0

6.0

±0

.2

R0.5

6.0

-0

+

0.2

2.75

+

0.2/

-0

5.0

R0.5

R0.5

3.5

±

0.5

12

±

0.1

1

0.1

5.0±

1

5±

0.1

5.5±0.2
