INDEX

Globally Certificated Cable Adoption for ELG/ELG-C

Globally Certificated Cable Adoption for HLG/HLG-C

FDHC-100

Junction Box

Plastic Case

(non PFC)

APV-8, APV-12, APV-16, APV-25, APV-35

APC-8, APC-12, APC-16, APC-25, APC-35

APV-8E, APV-12E, APV-16E

APC-8E, APC-12E, APC-16E

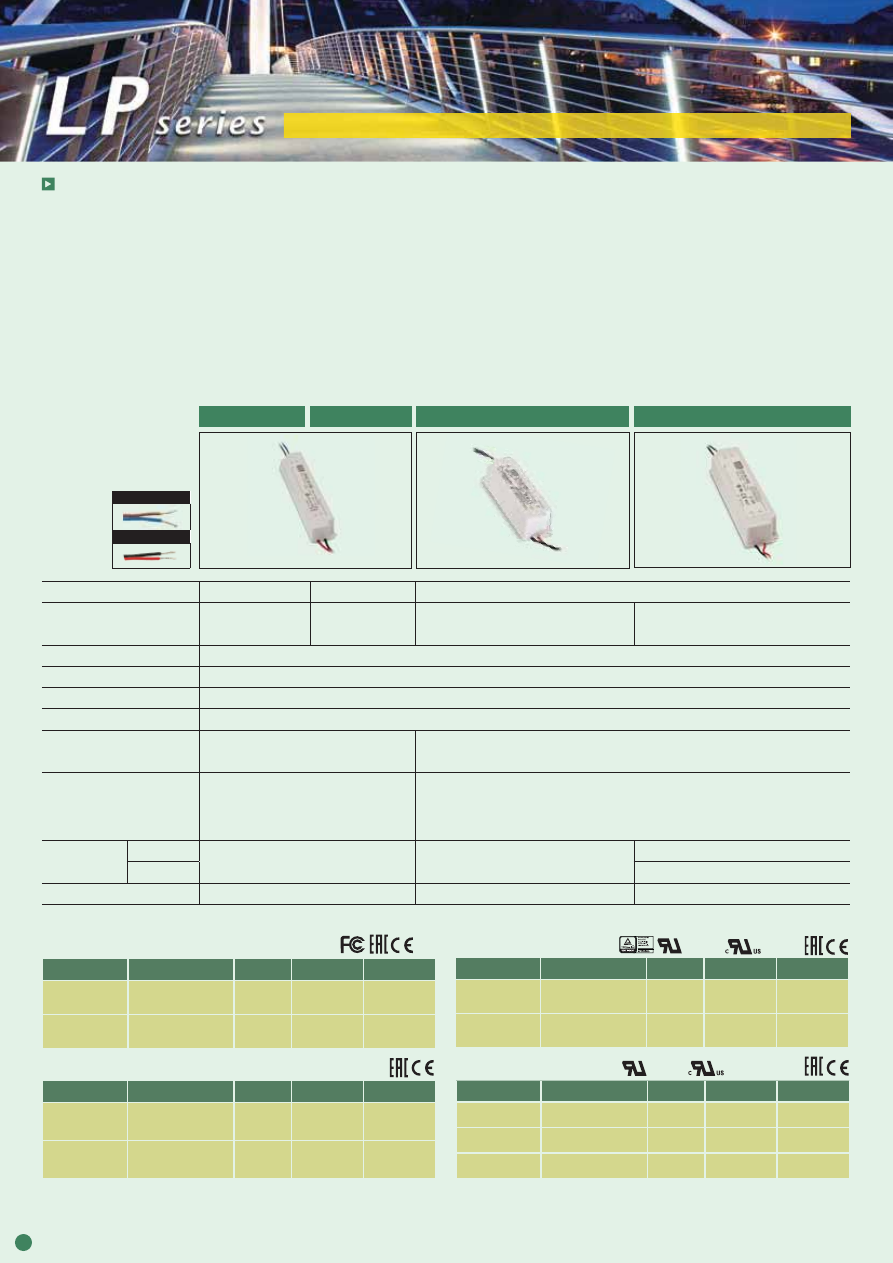

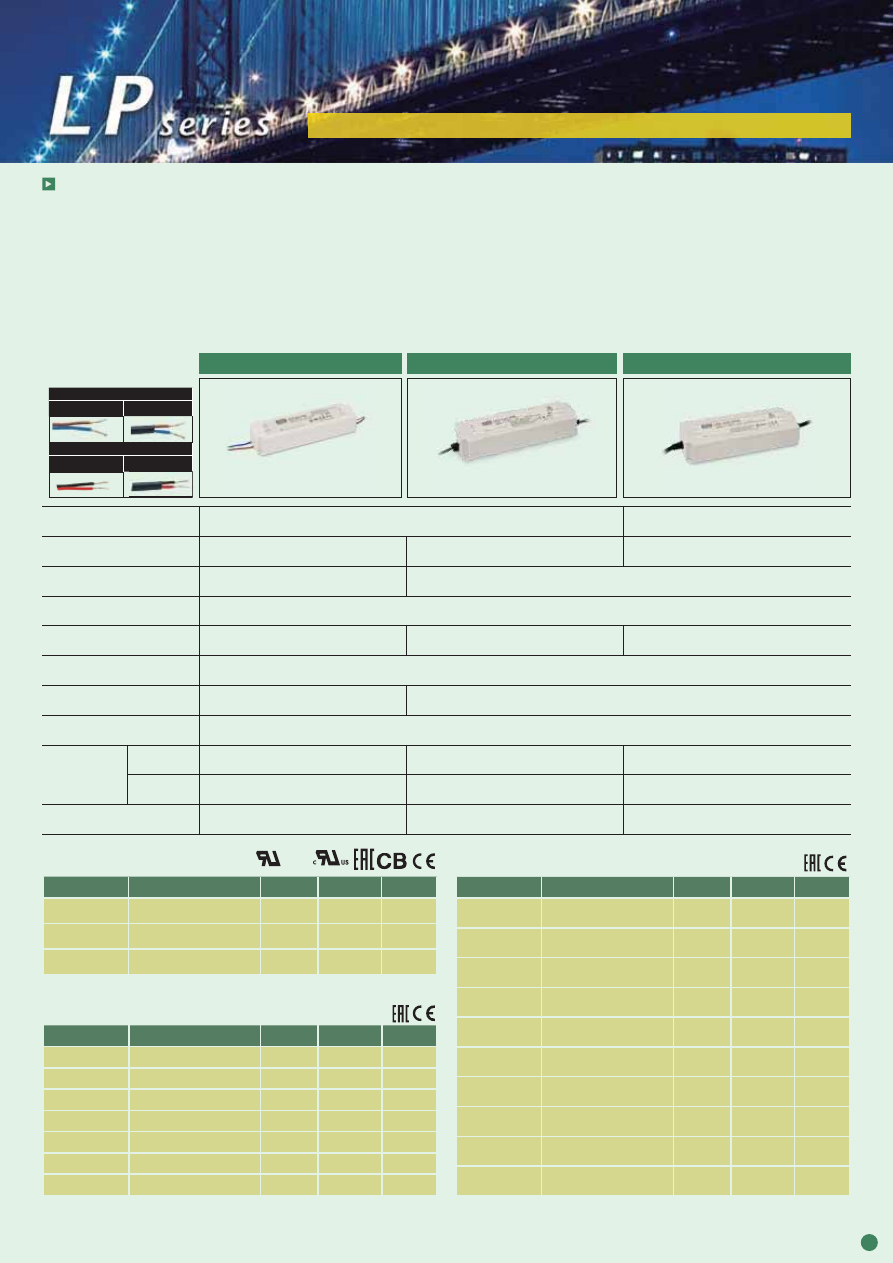

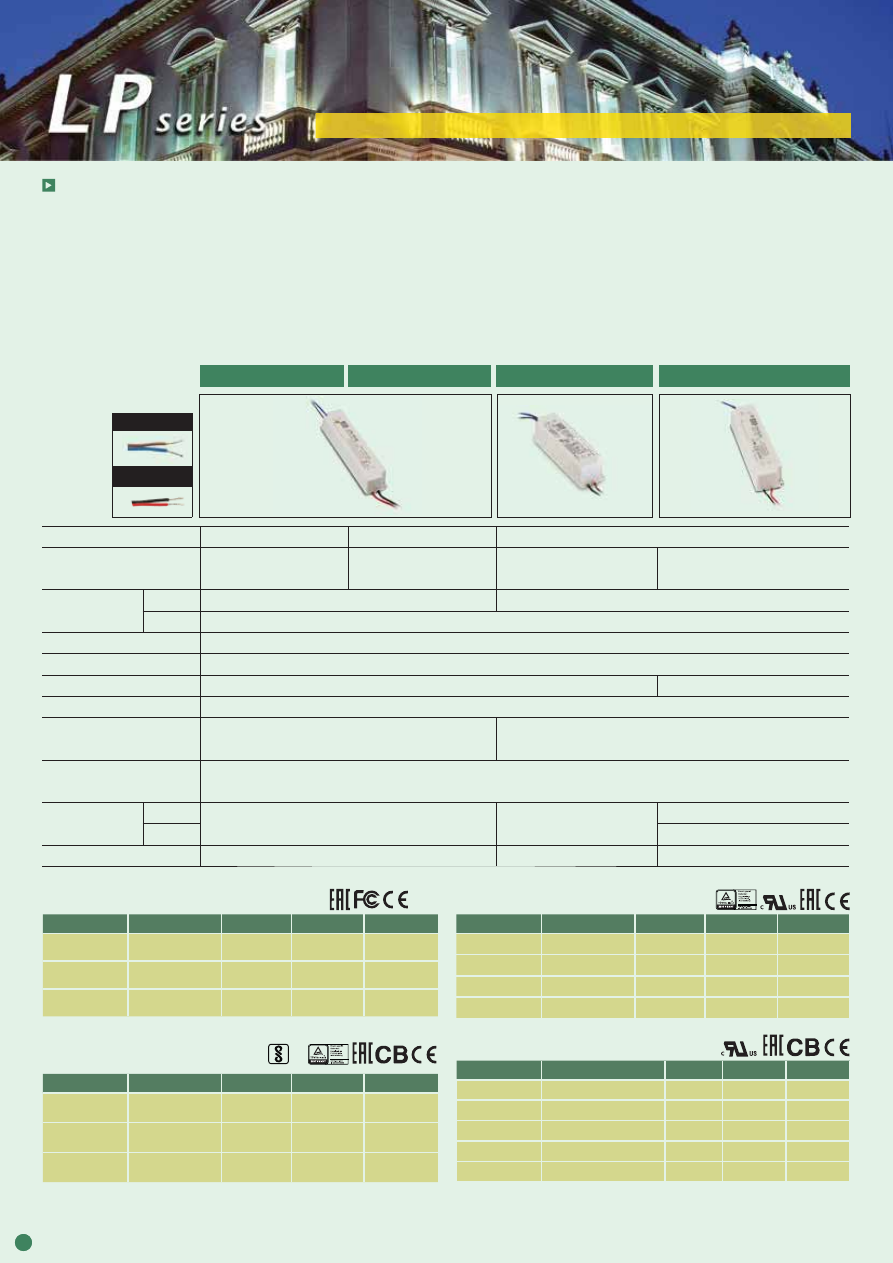

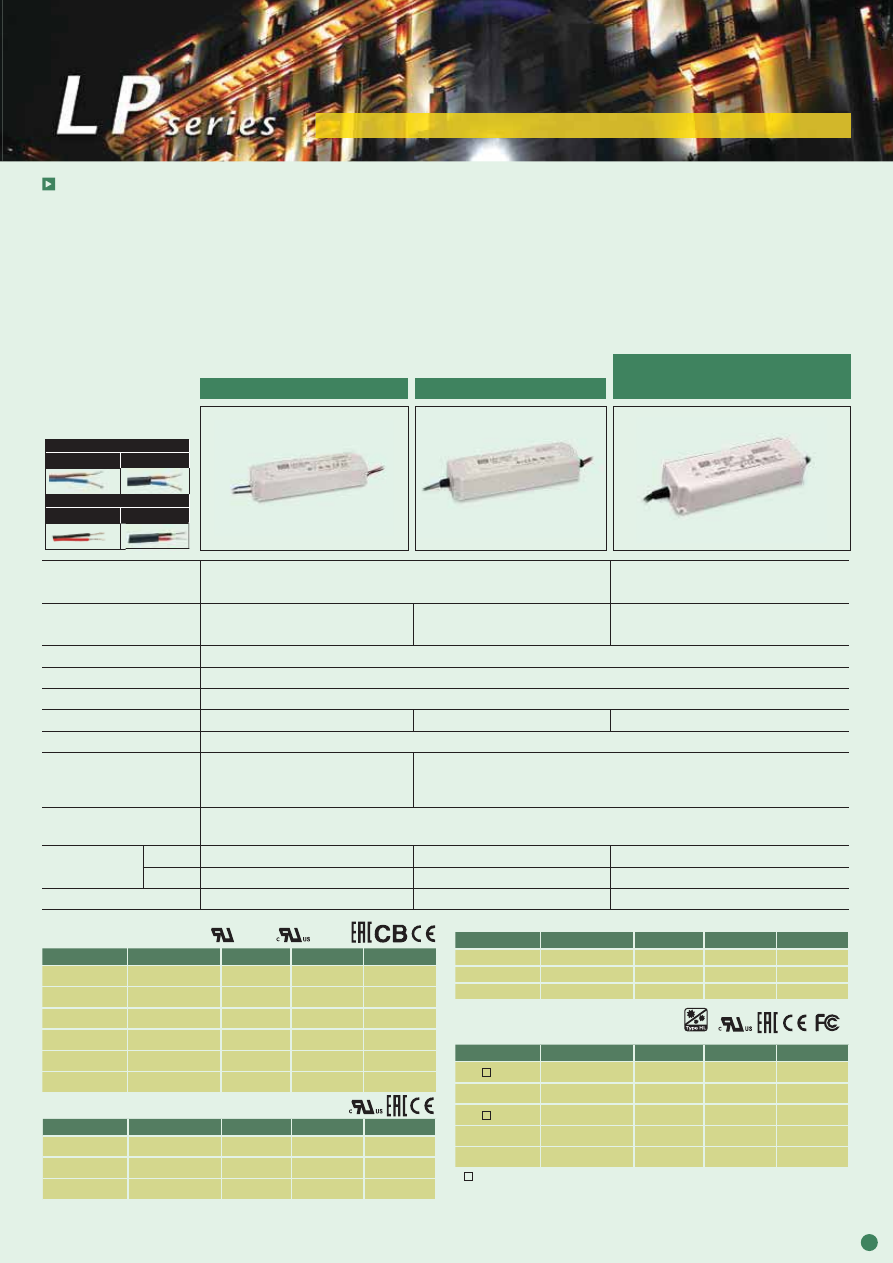

LPL-18, LPH-18, LPV-20, LPV-35

LPV-60, LPV-100, LPV-150, LPVL-150

LPLC-18, LPHC-18, LPC-20, LPC-35

LPC-60, LPC-100, LPC-150

Plastic Case

(with PFC) 9

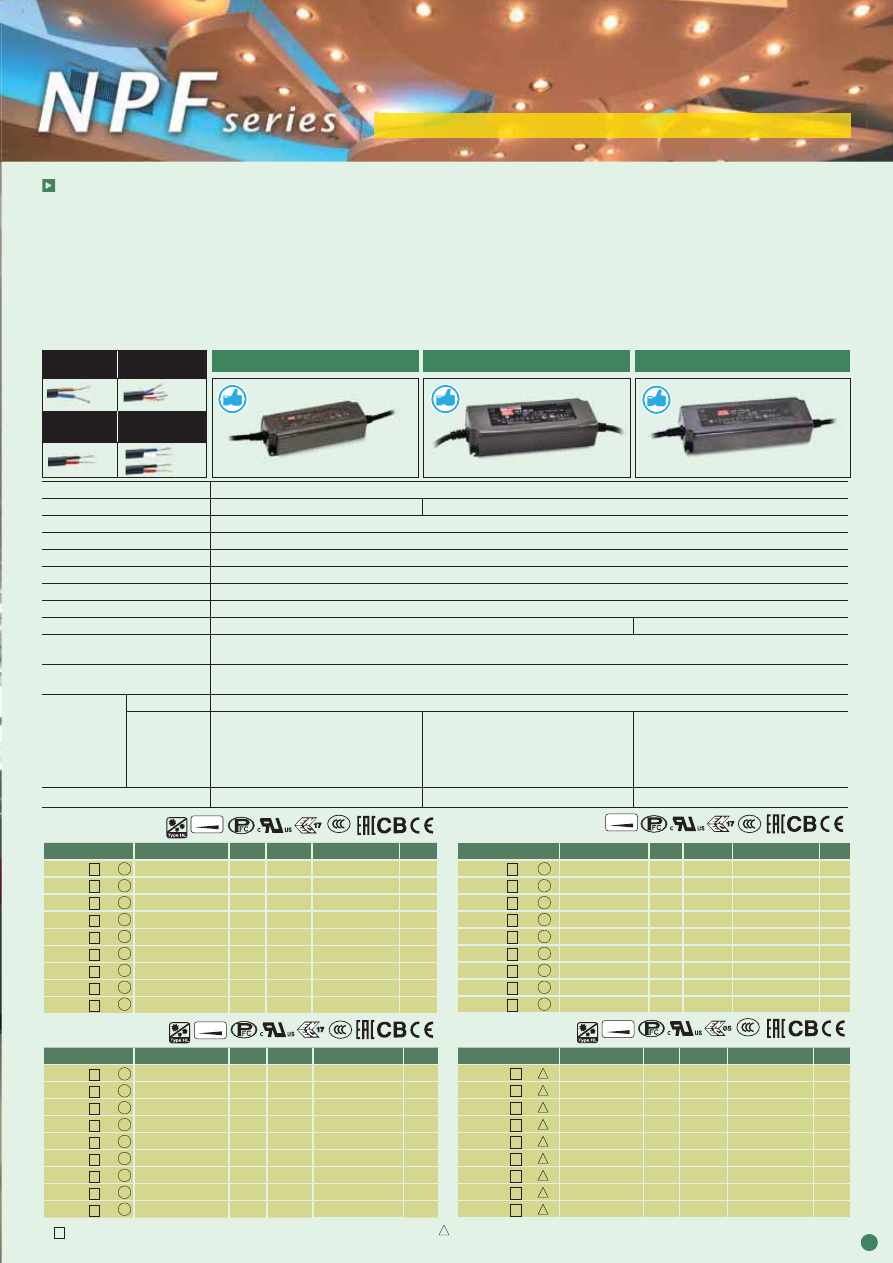

NPF

NPF-40(D), NPF-60(D), NPF-90(D),

NPF-120(D)

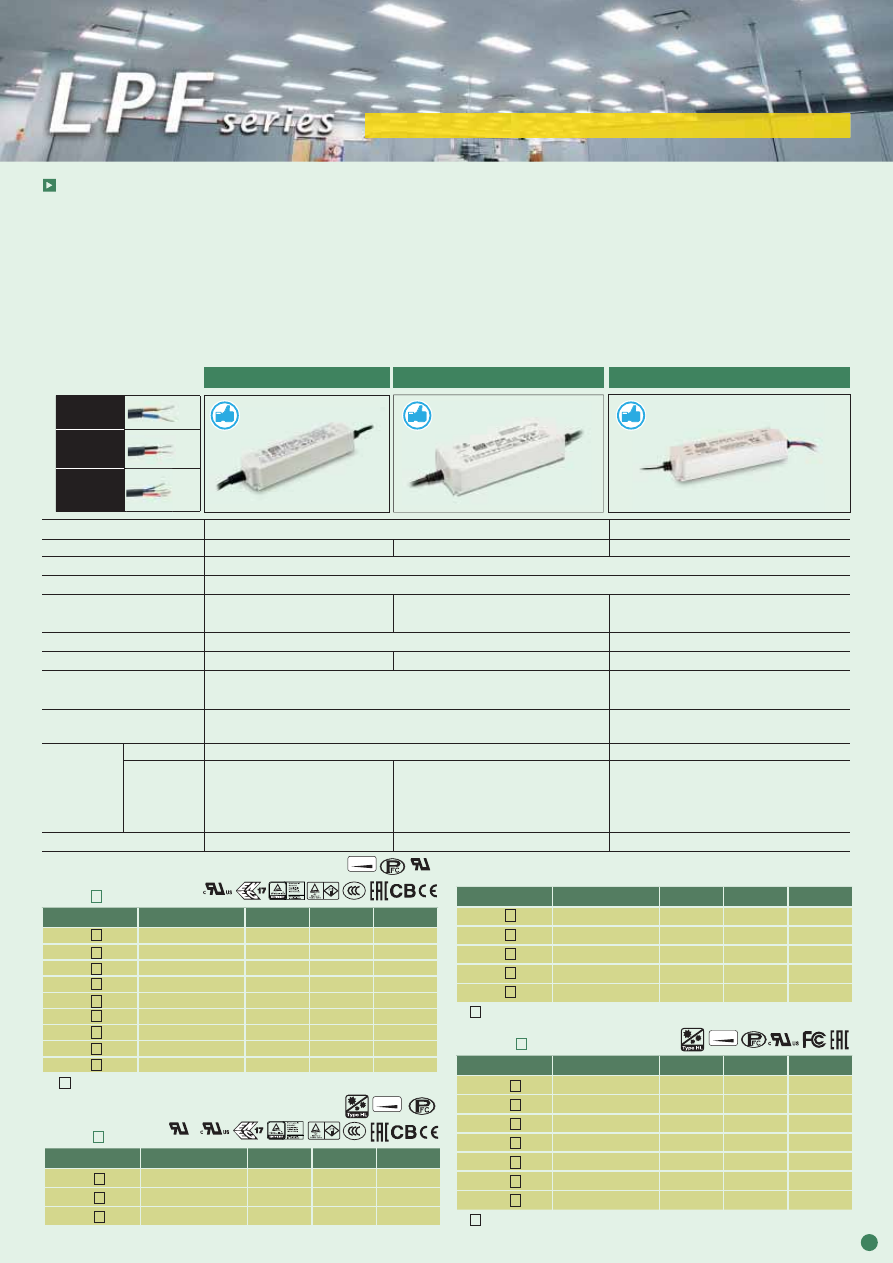

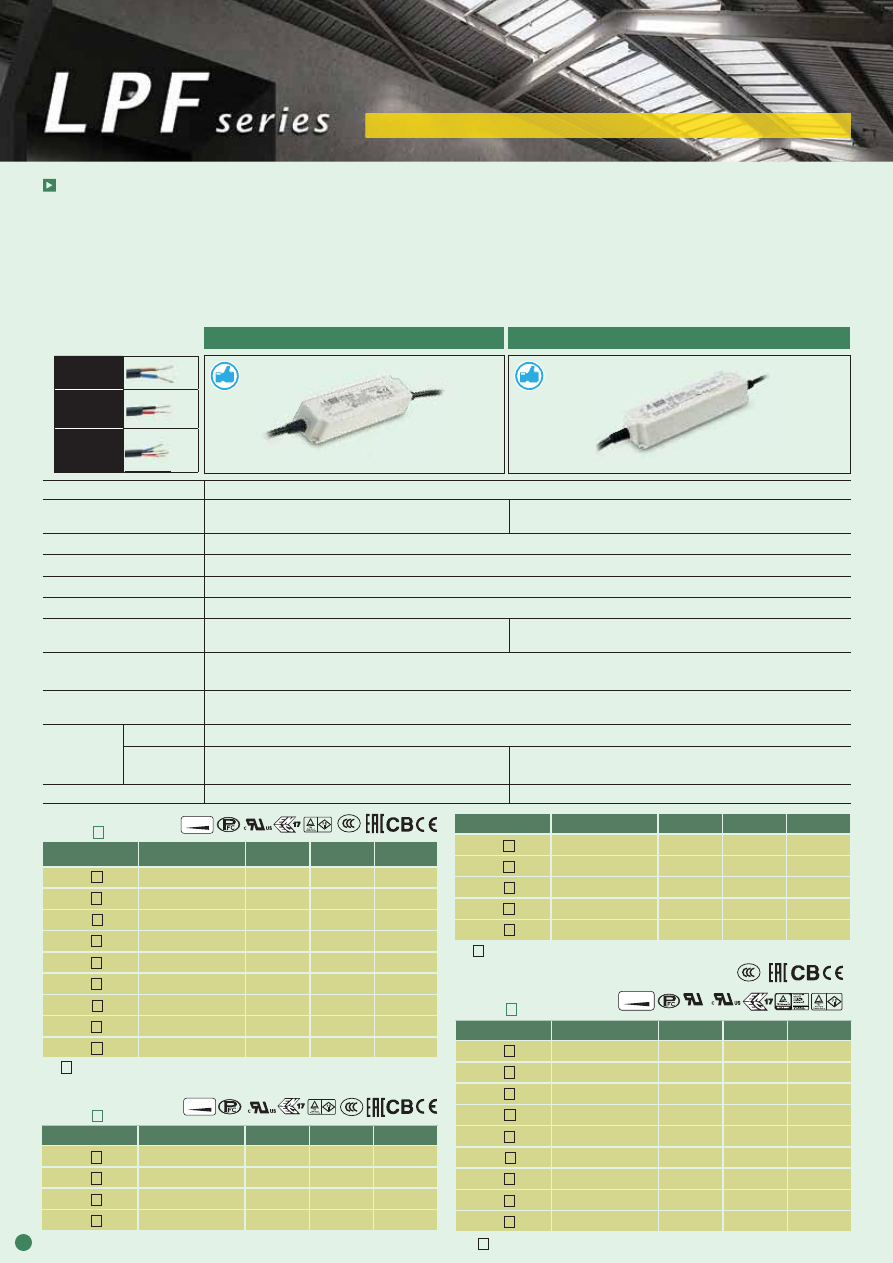

LPF

LPF-16(D), LPF-25(D), LPF-40(D)

LPF-60(D), LPF-90(D), LPFH-60(D)

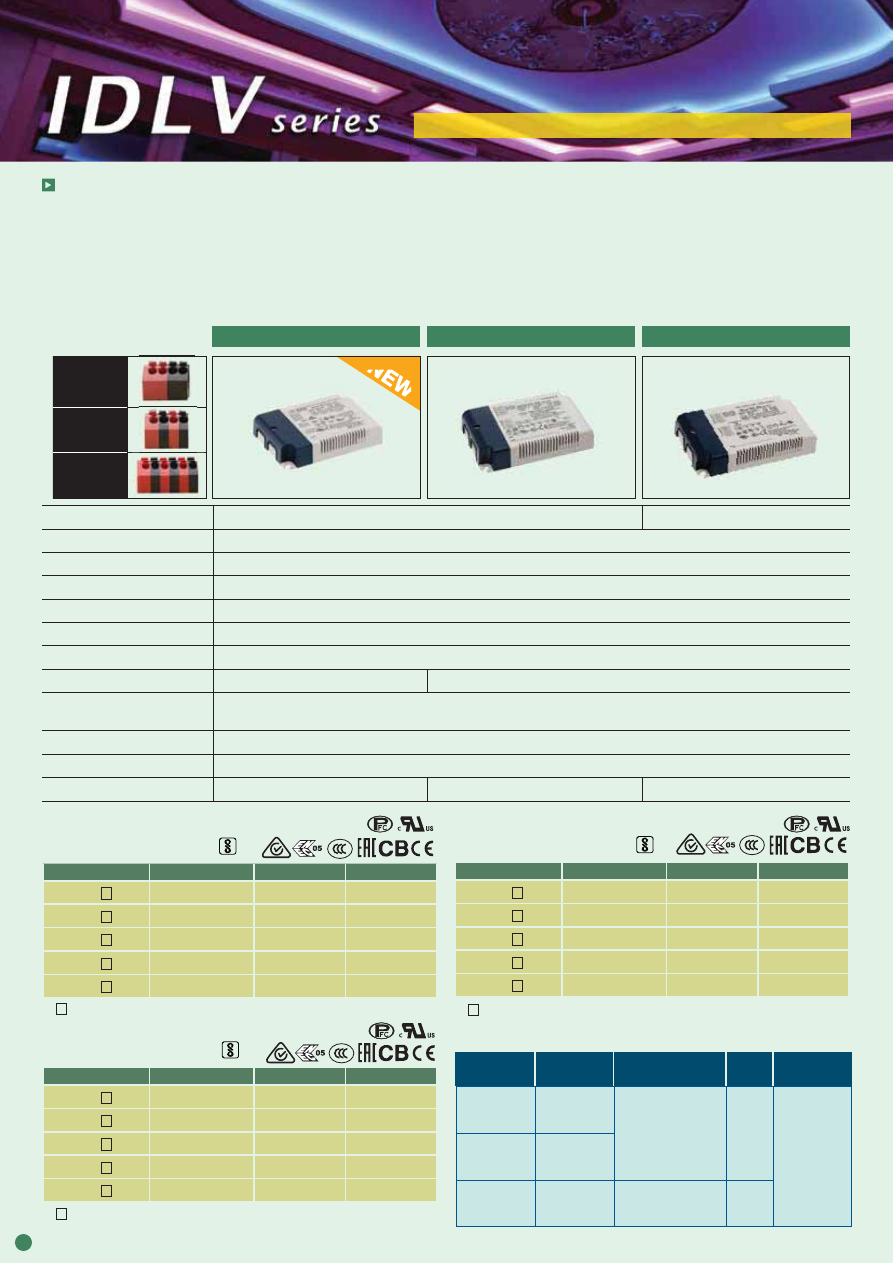

IDL

IDLV-25(A), IDLV-45(A), IDLV-65(A)

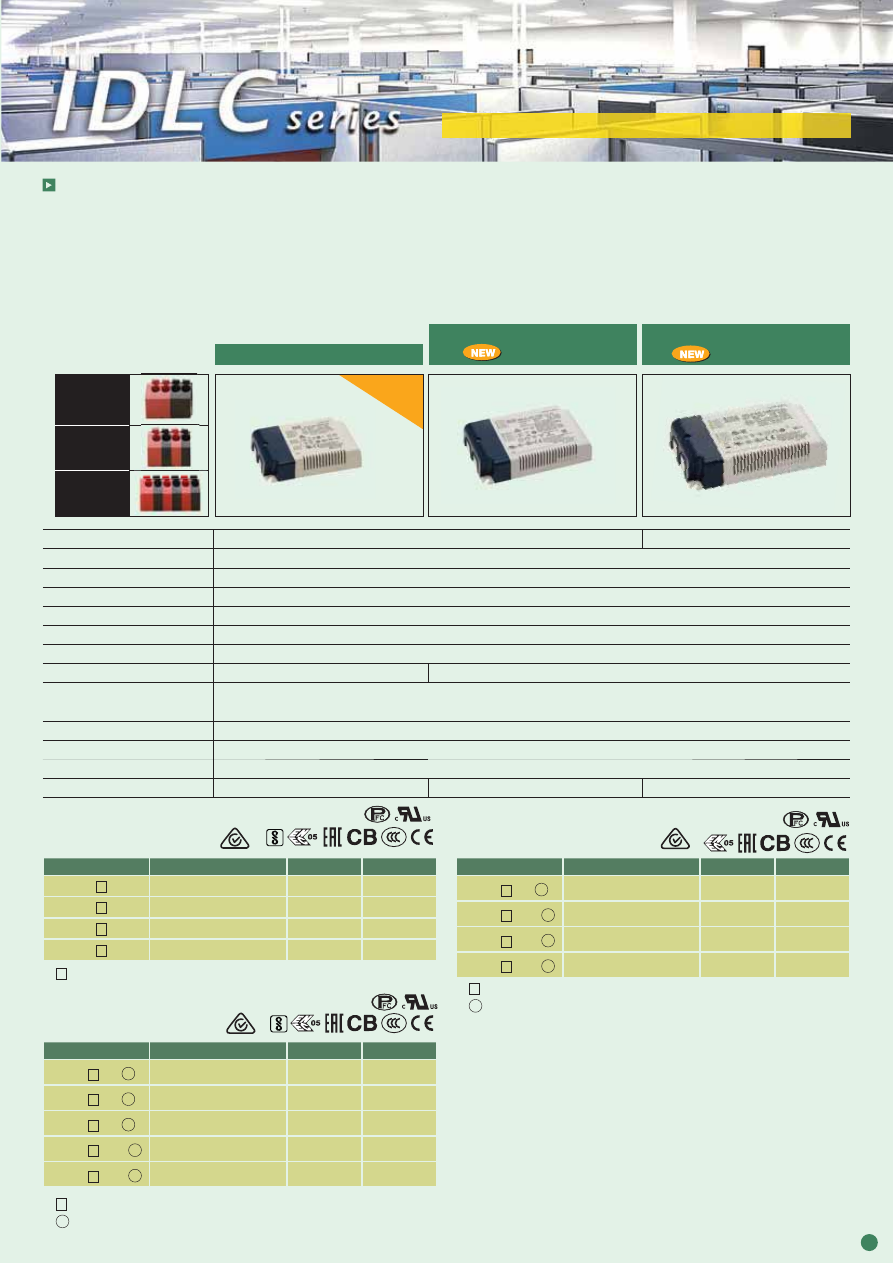

IDLC-25(A), IDLC-45(A), IDLC-65(A),

IDLC-45-DA, IDLC-65-DA

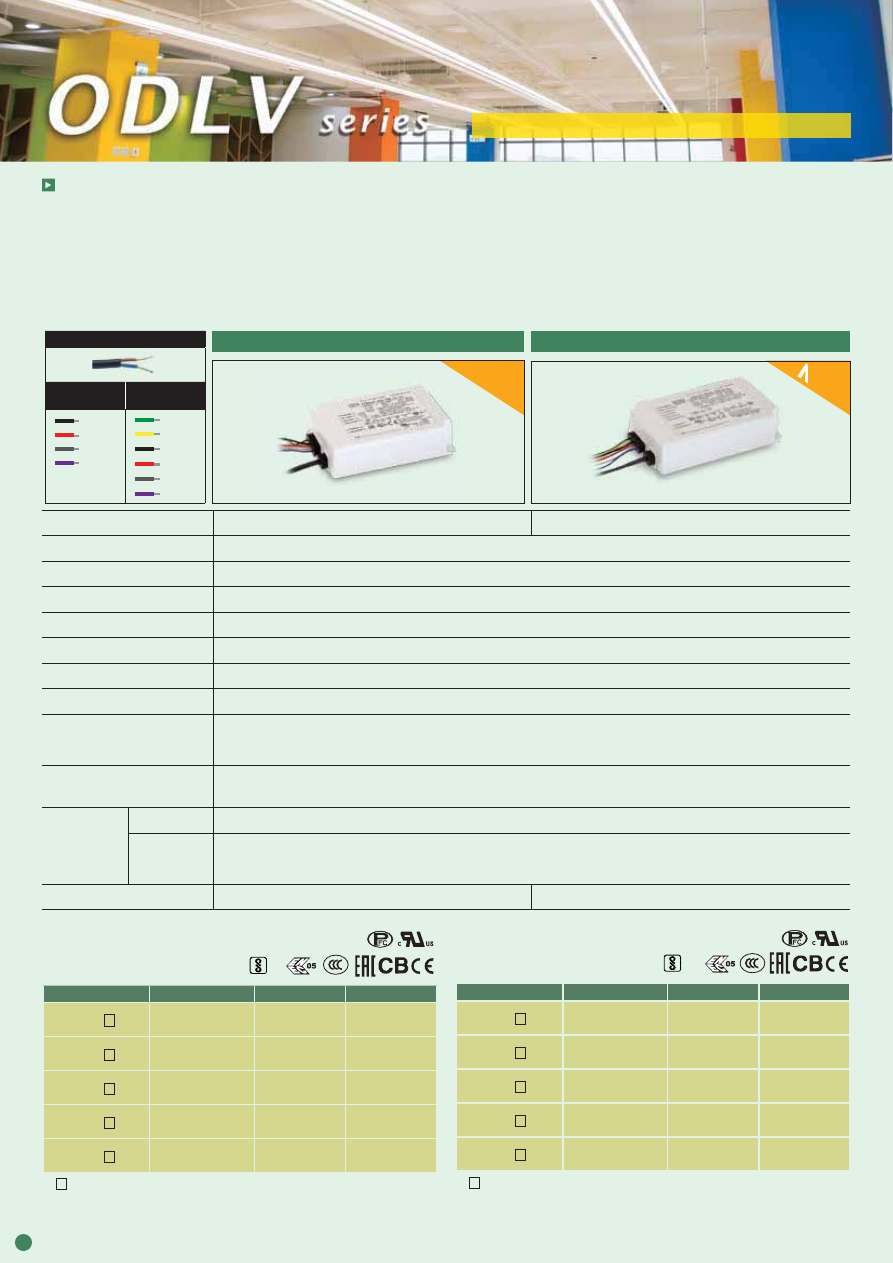

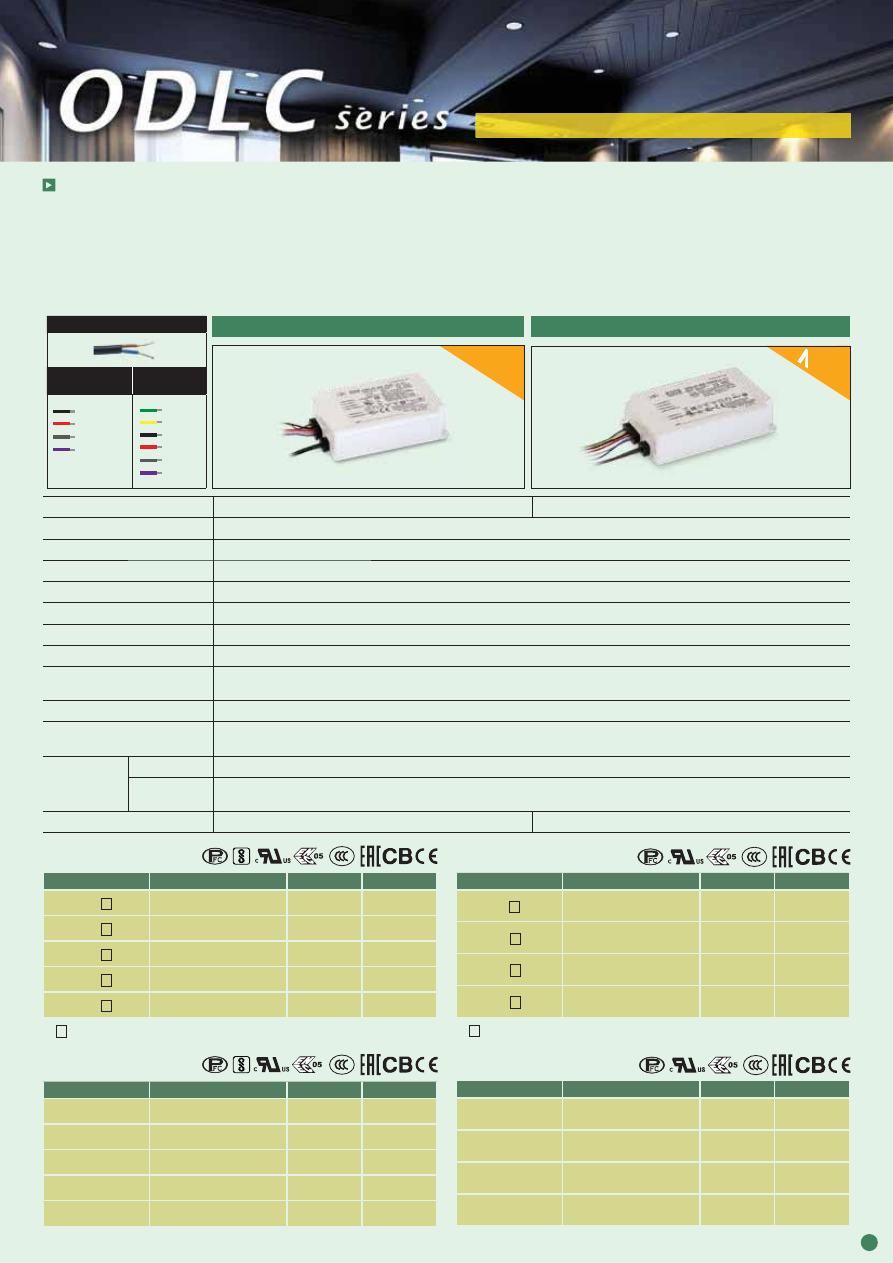

ODL

ODLV-45(A), ODLV-65(A)

ODLC-45(A), ODLC-65(A),

ODLC-45DA, ODLC-65DA

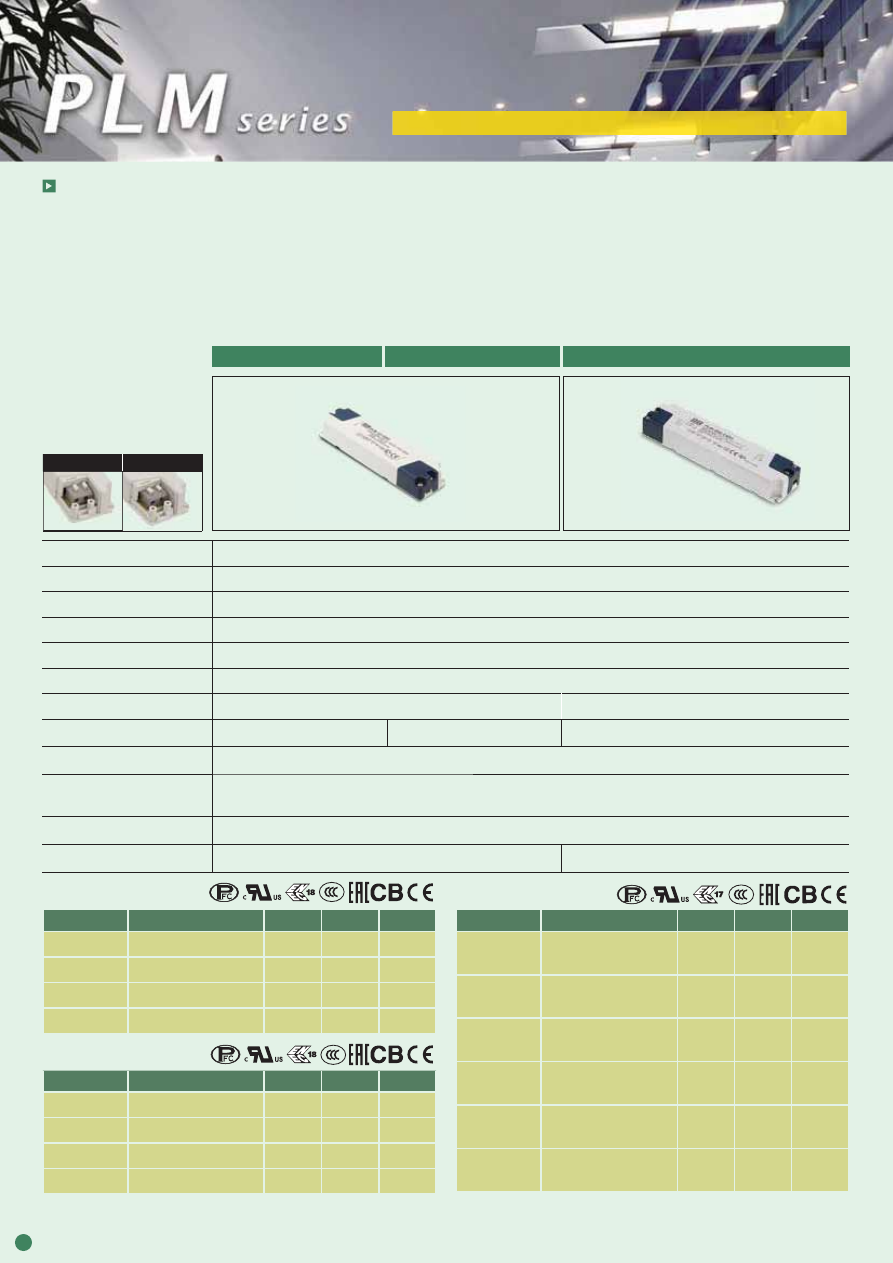

PLM

PLM-12, PLM-25, PLM-40

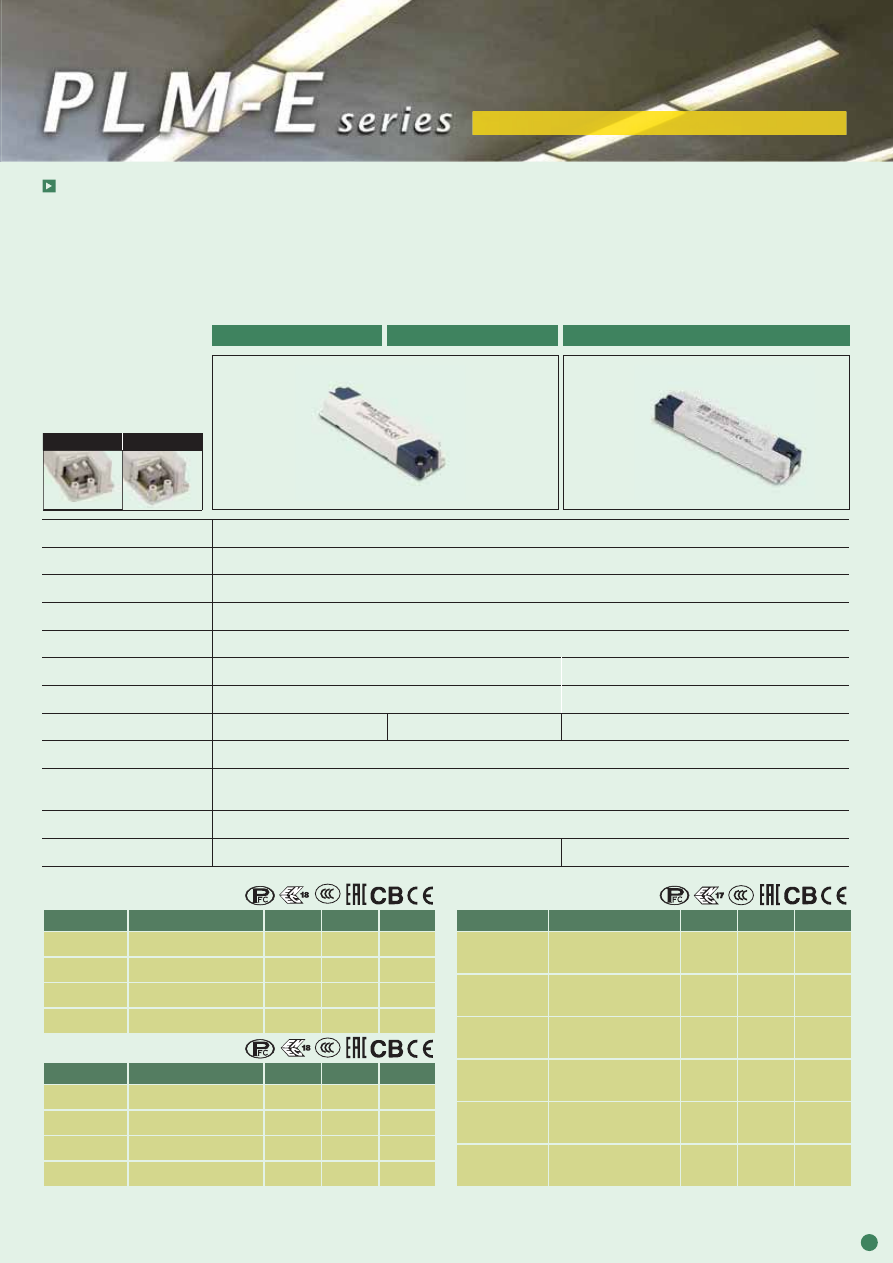

PLM-12E, PLM-25E, PLM-40E

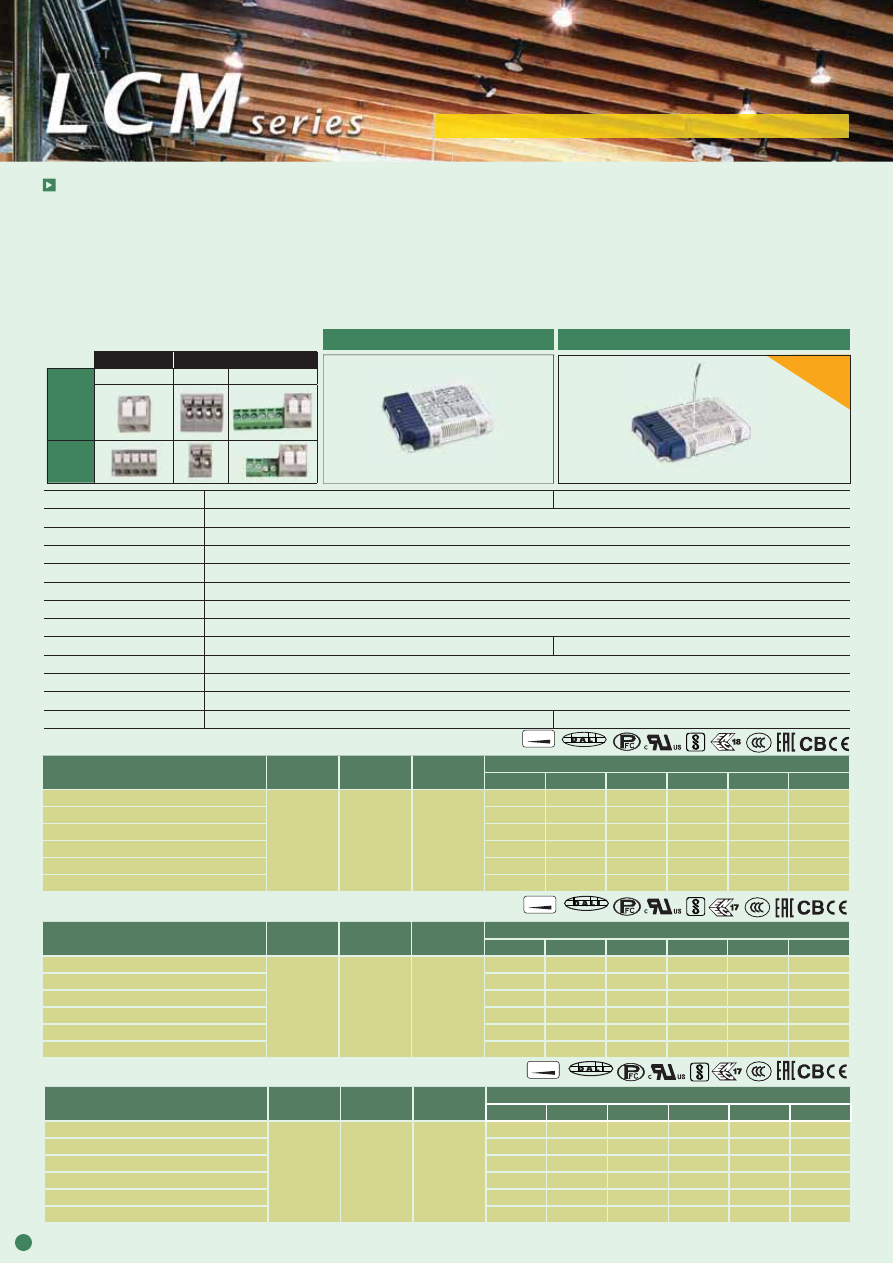

LCM

LCM-25(DA), LCM-40(DA), LCM-60(DA),

LCM-40EO, LCM-60EO
LCM-40U(DA), LCM-60U(DA)

LCM-40UEO, LCM-60UEO

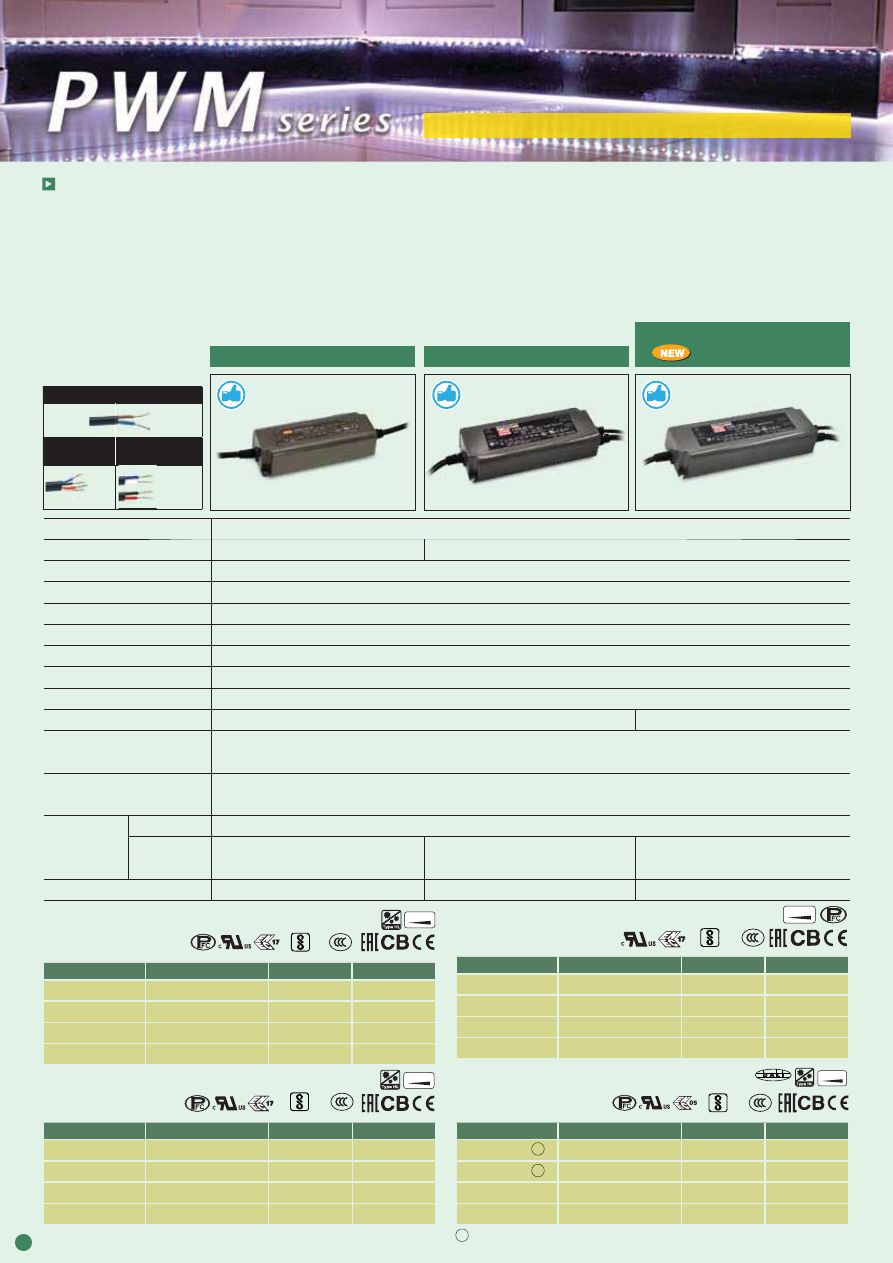

PWM

PWM-40, PWM-60, PWM-90

PWM-120, PWM-120-DA

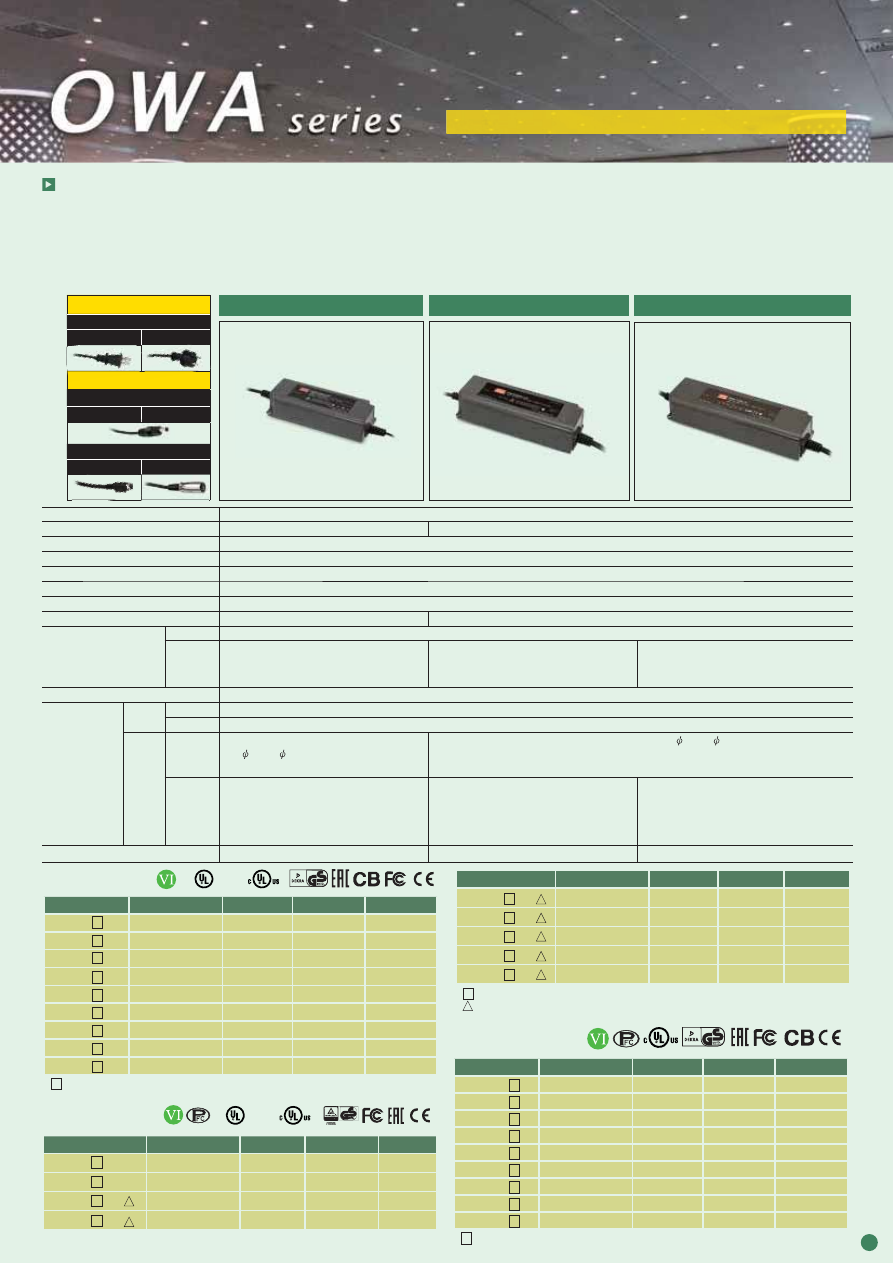

OWA

OWA-60E, OWA-90E, OWA-120E

OWA-60U, OWA-90U, OWA-120U

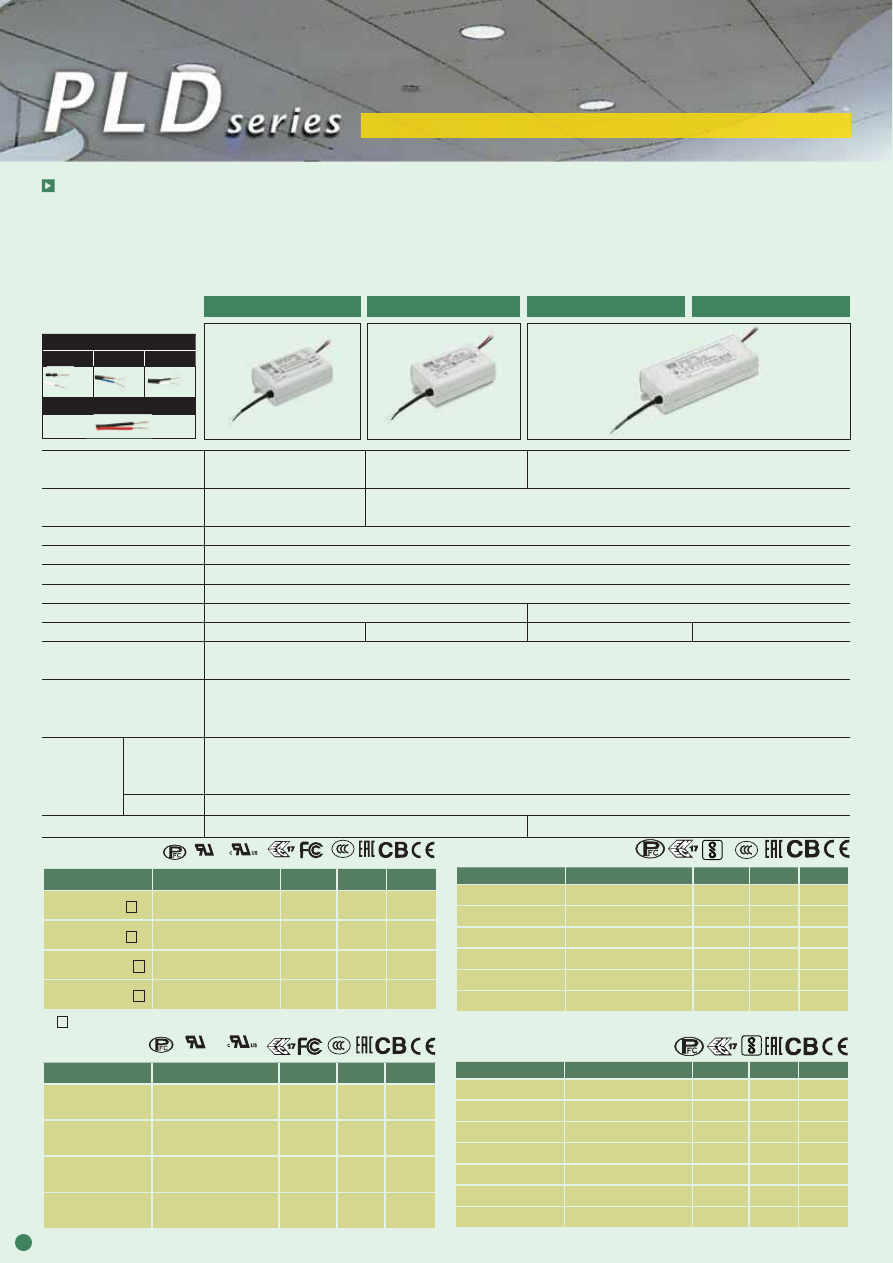

PLD

PLD-16, PLD-25, PLD-40, PLD-60

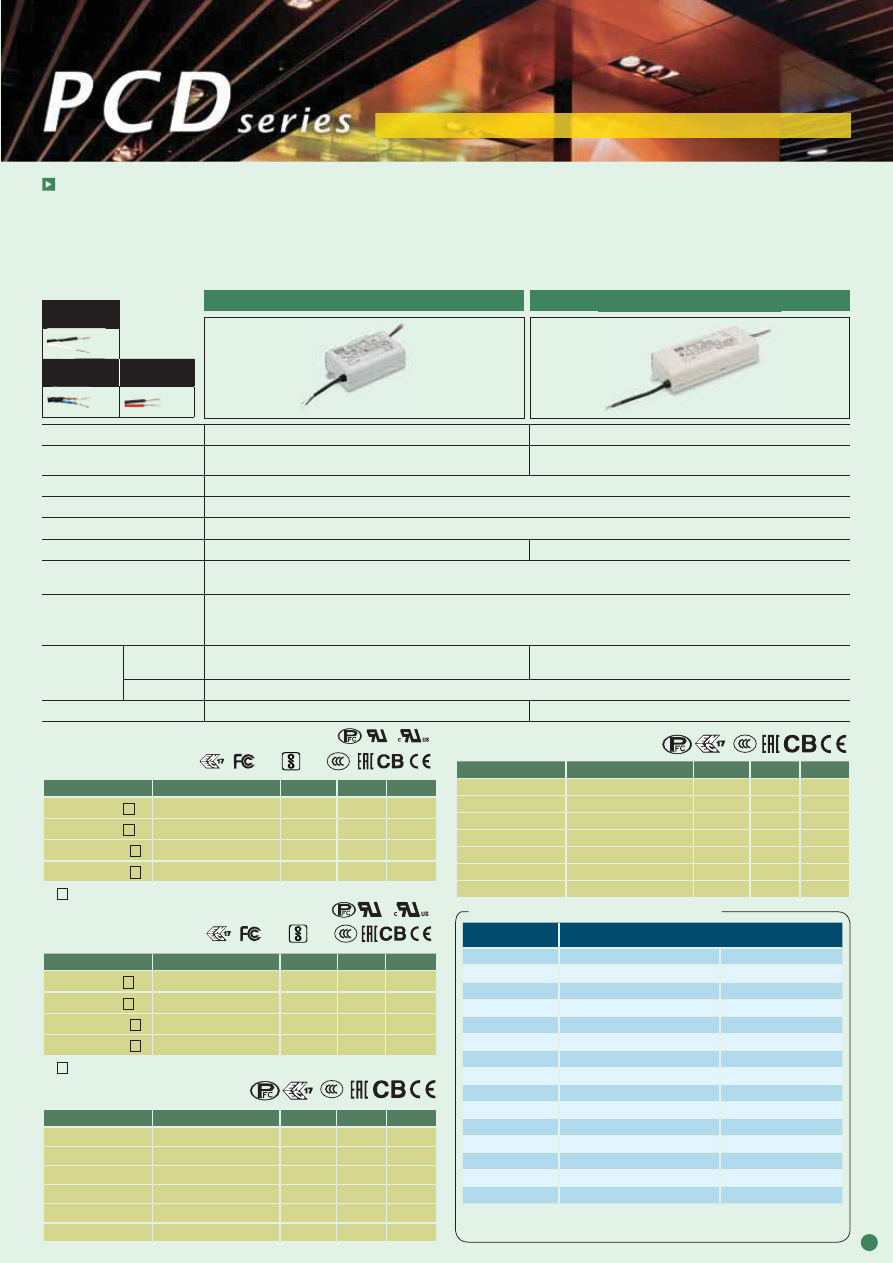

PCD

PCD-16, PCD-25, PCD-40, PCD-60

PLN

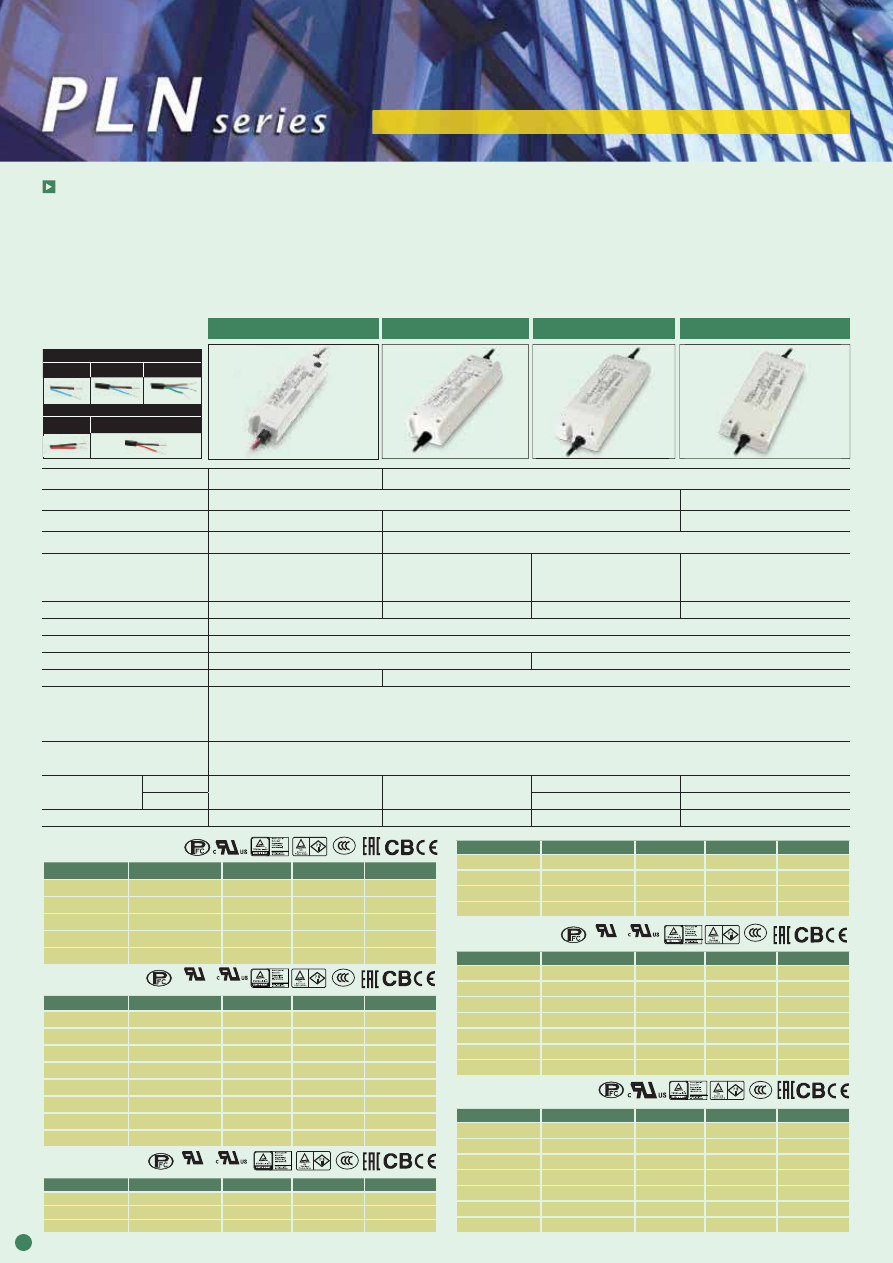

PLN-20, PLN-30, PLN-45, PLN-60,

PLN-100

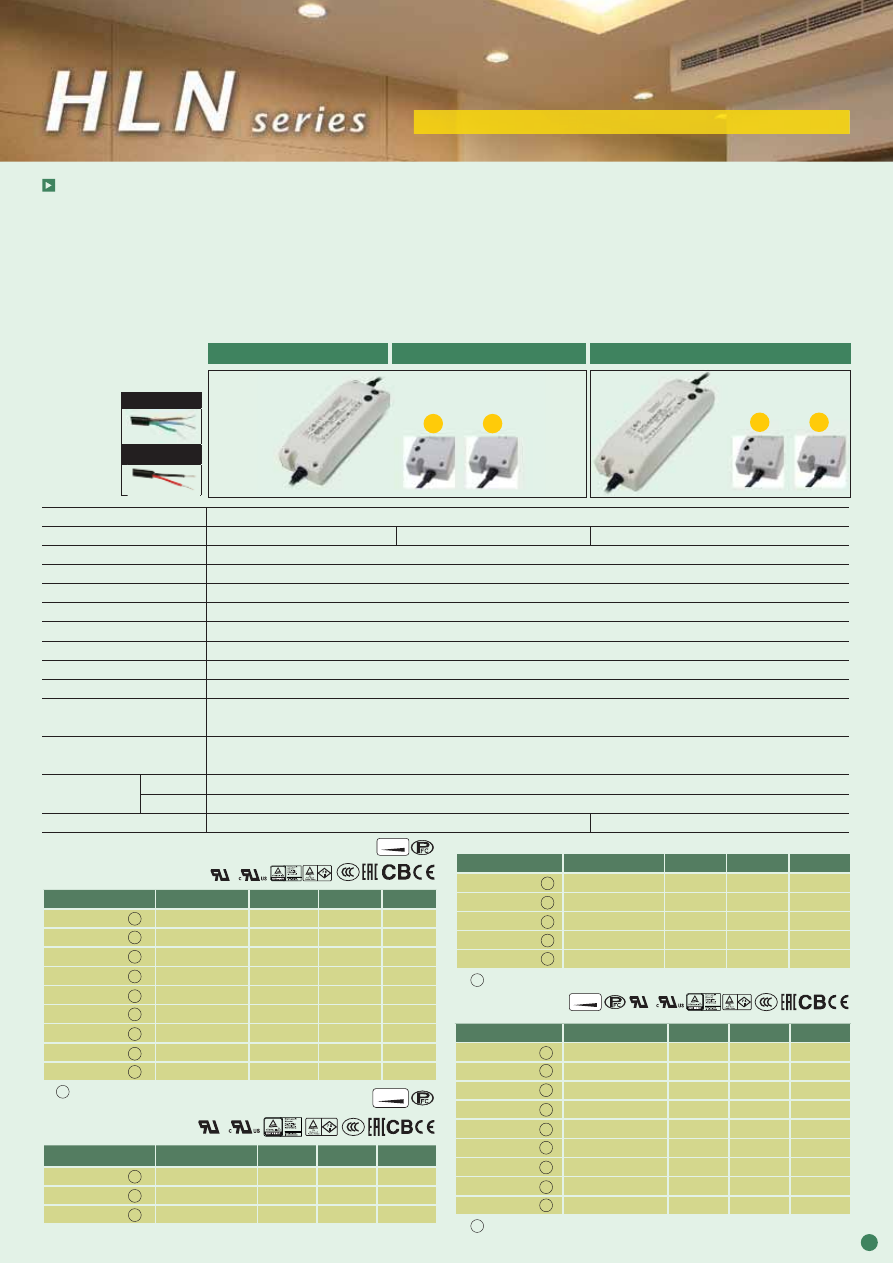

HLN

HLN-40H, HLN-60H, HLN-80H

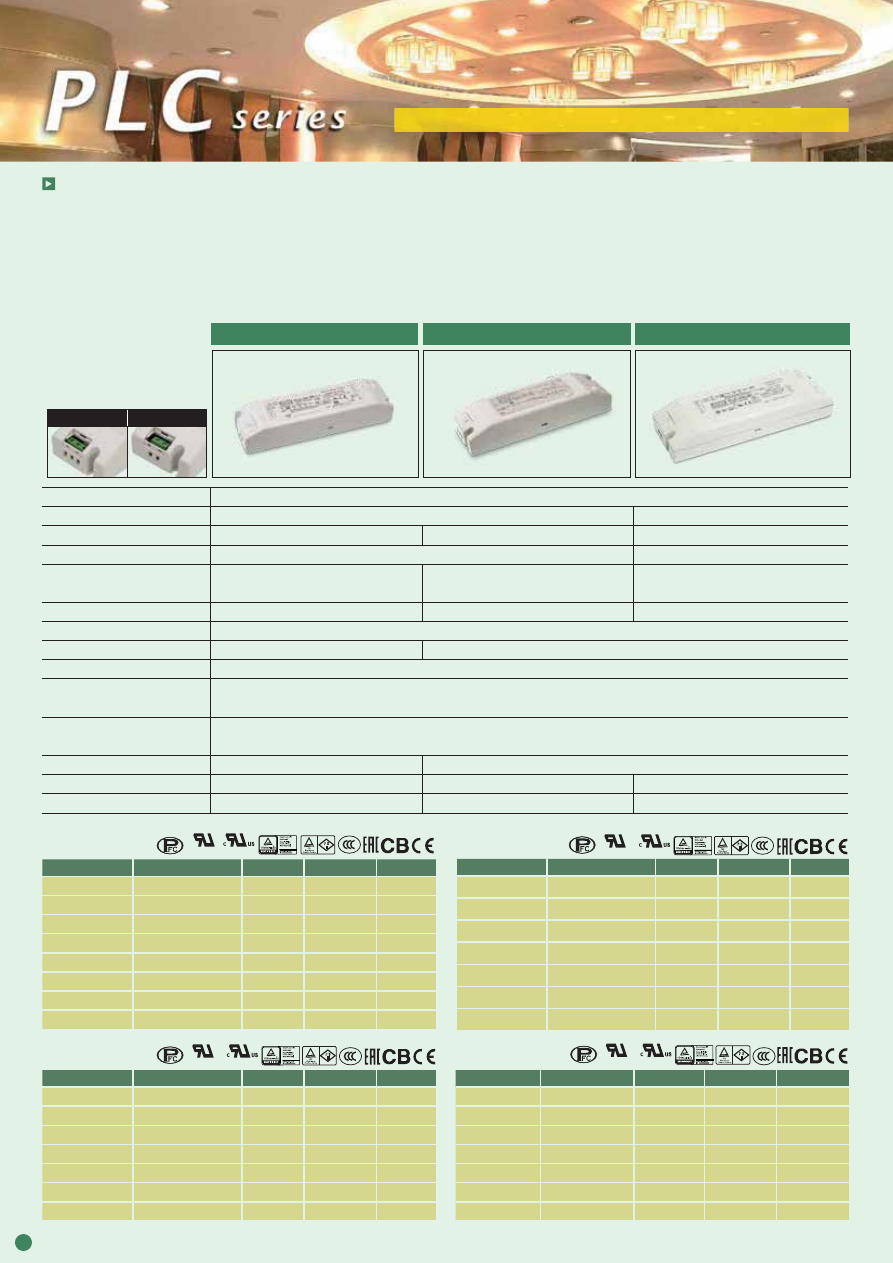

PLC

PLC-30, PLC-45, PLC-60, PLC-100

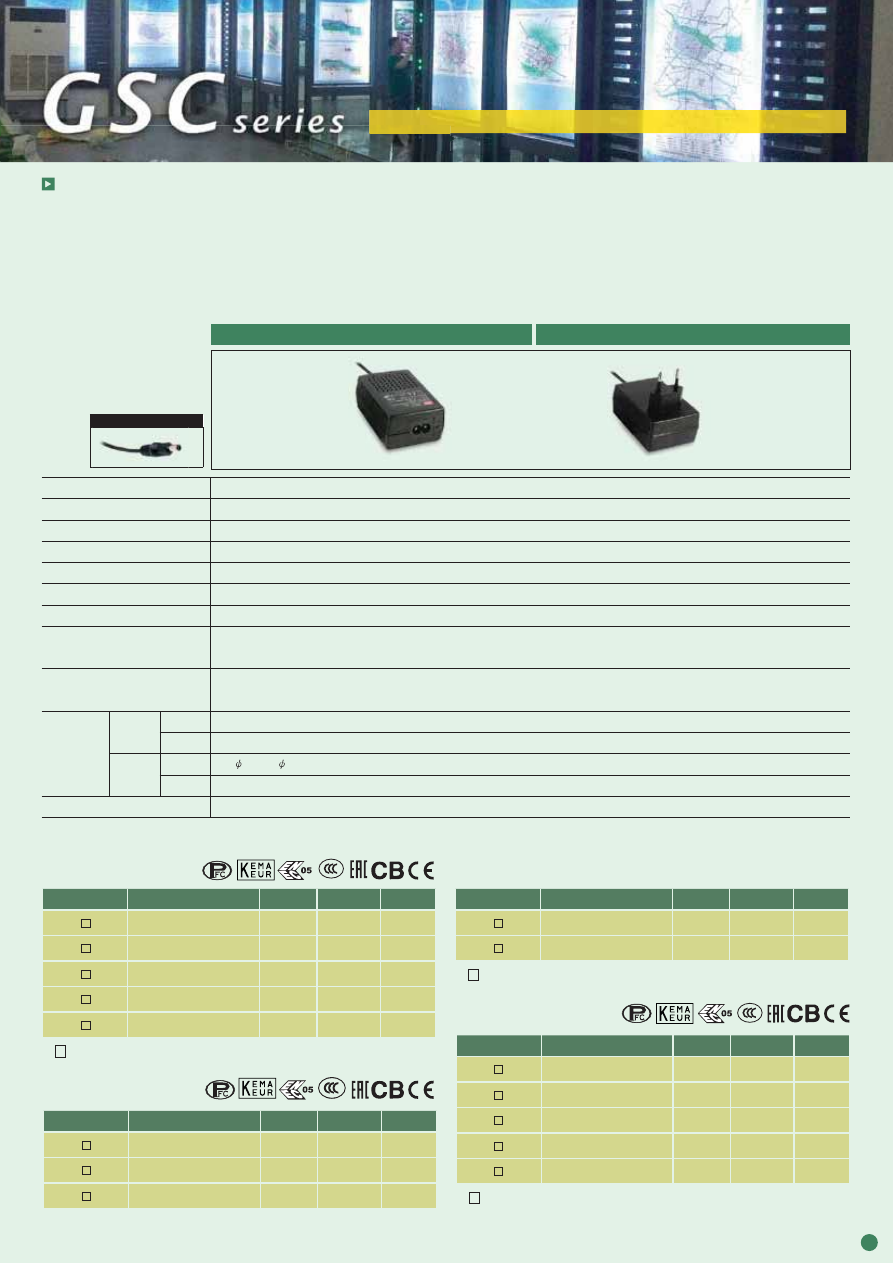

GSC

GSC18B, GSC25B, GSC40B

GSC18E, GSC25E, GSC40E

Metal Case

(with PFC) 29

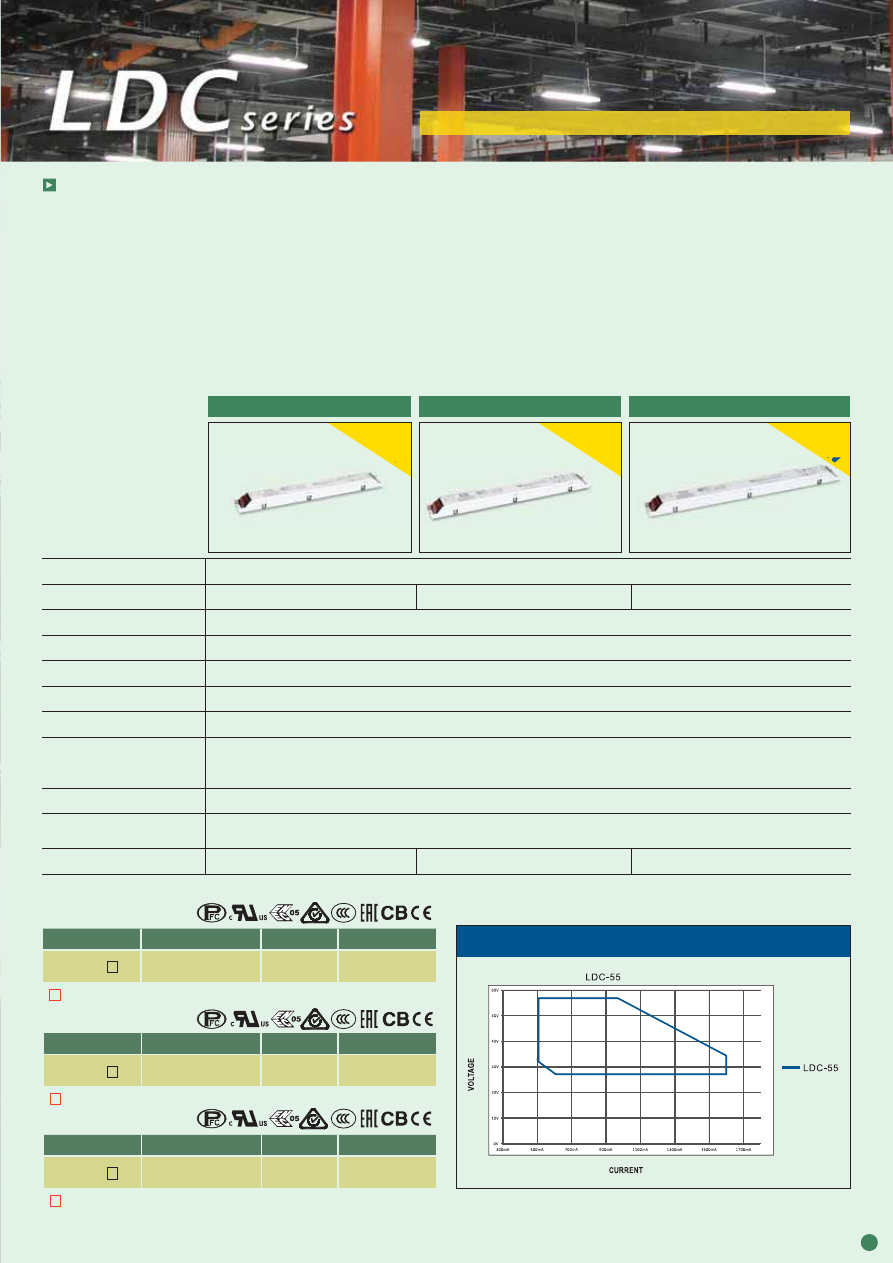

LDC

LDC-35(DA), LDC-55(DA), LDC-80(DA)

CP Curve

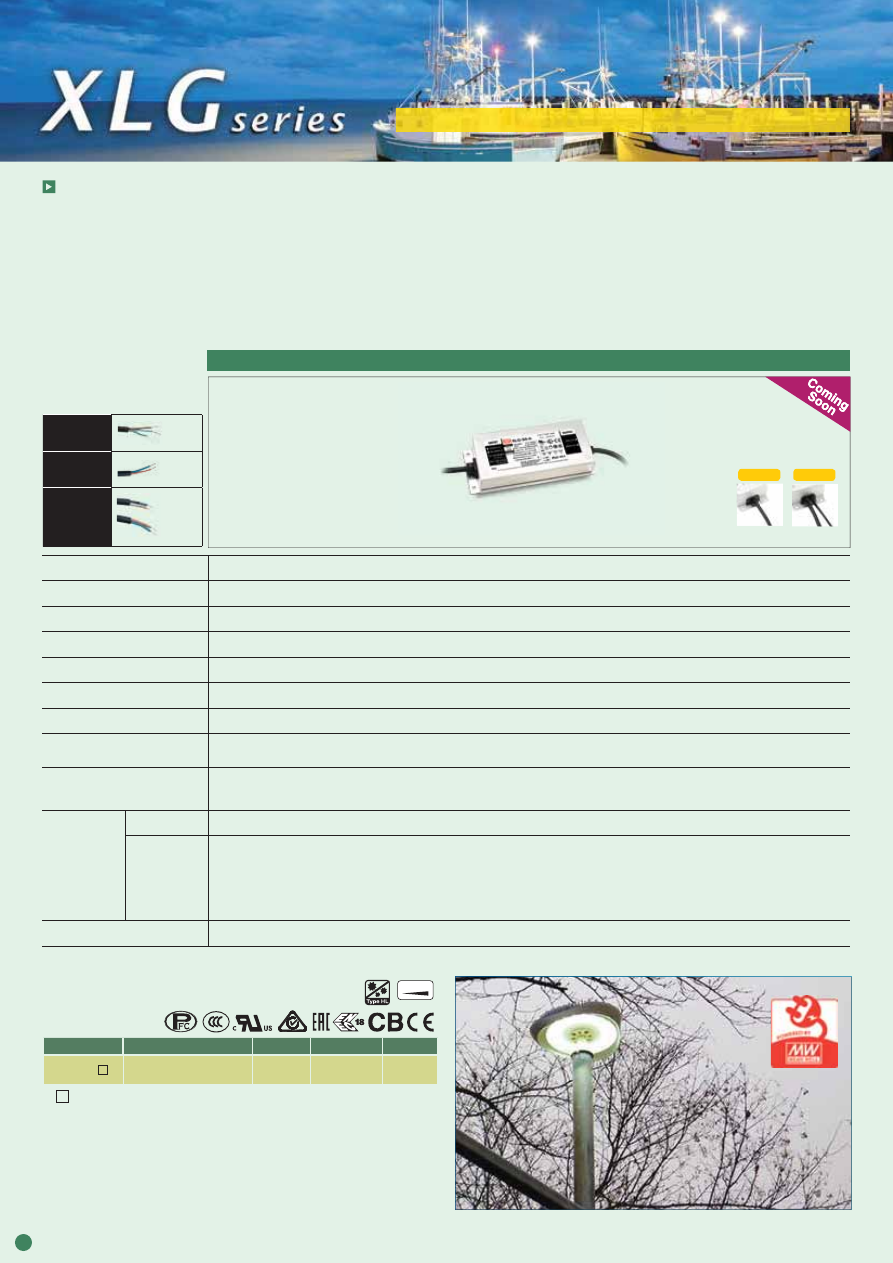

XLG

XLG-50

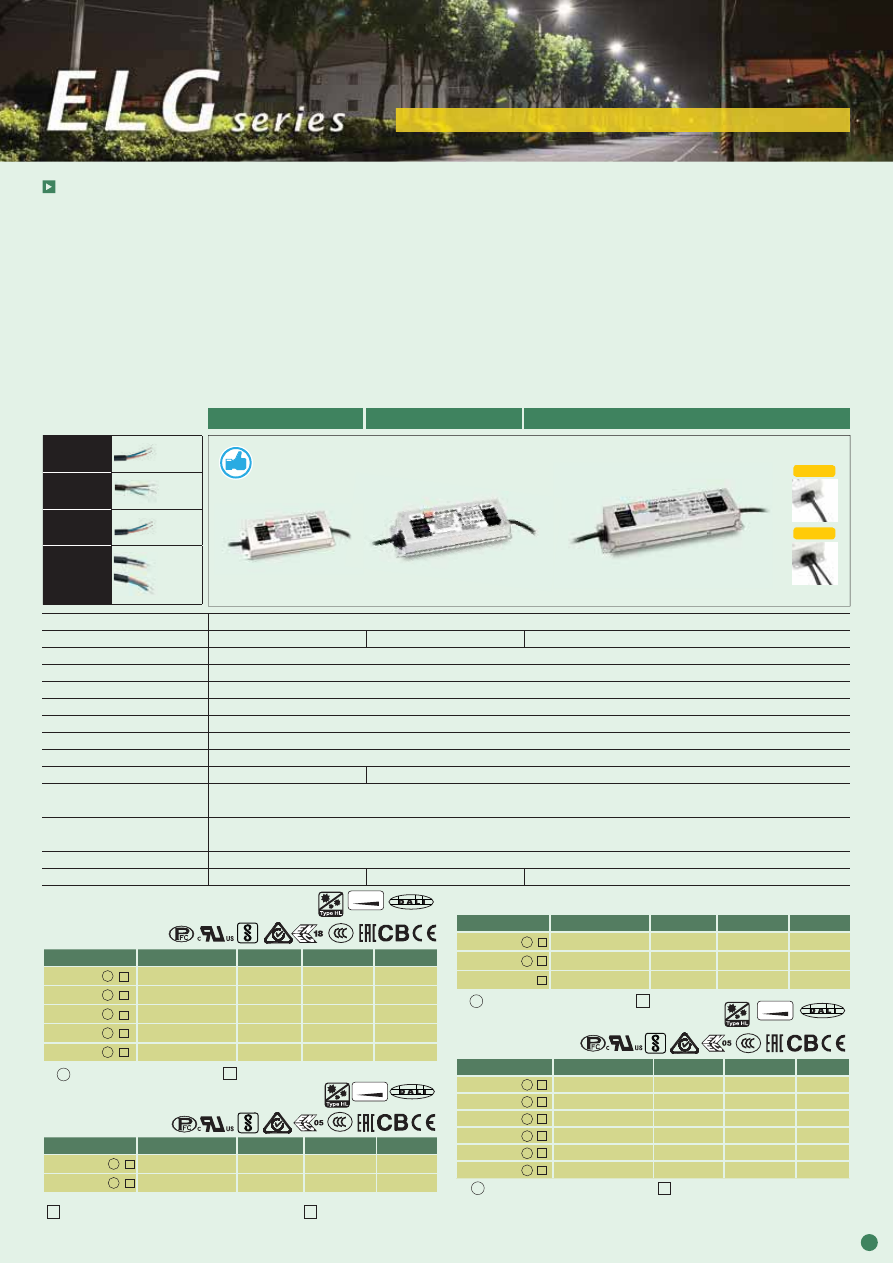

ELG

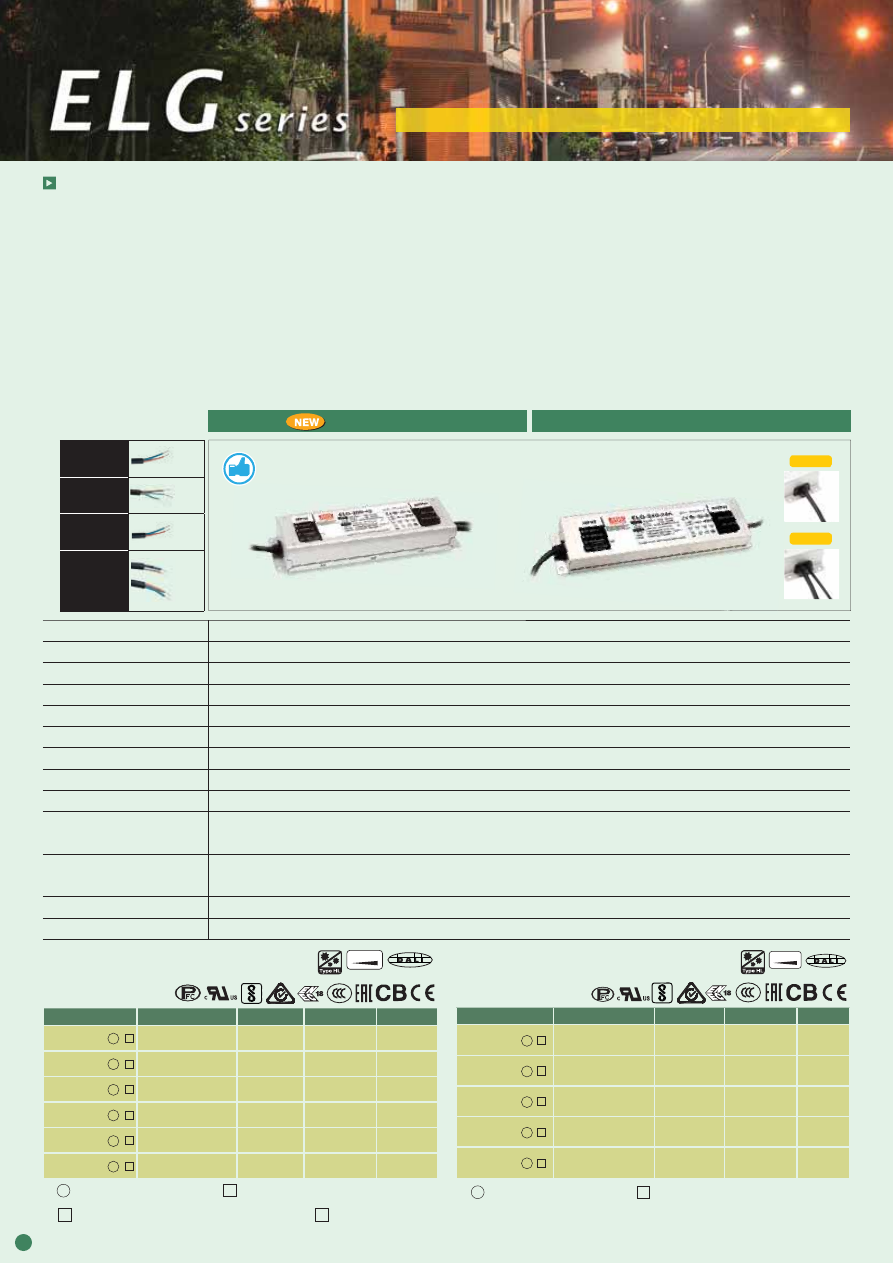

ELG-75, ELG-100, ELG-150

ELG-200, ELG-240

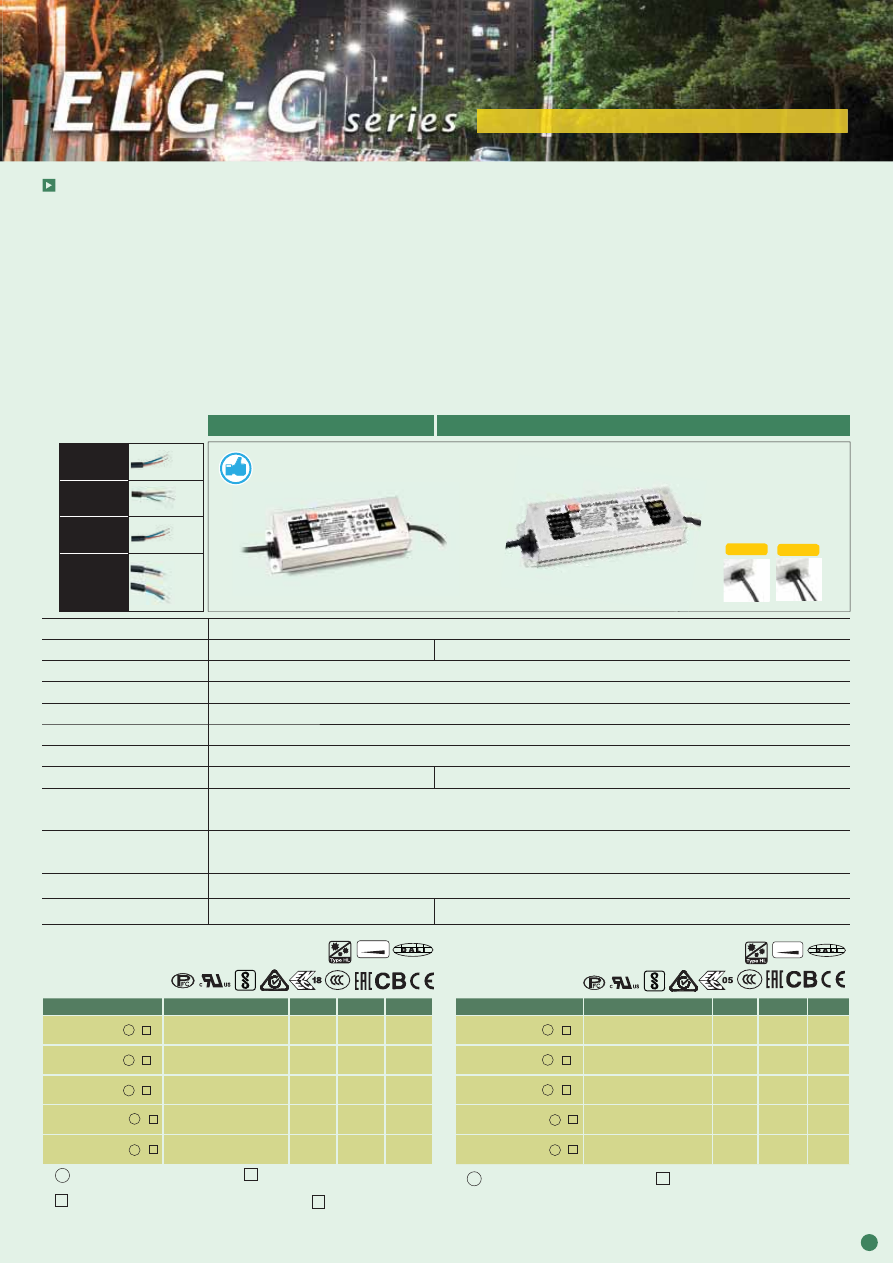

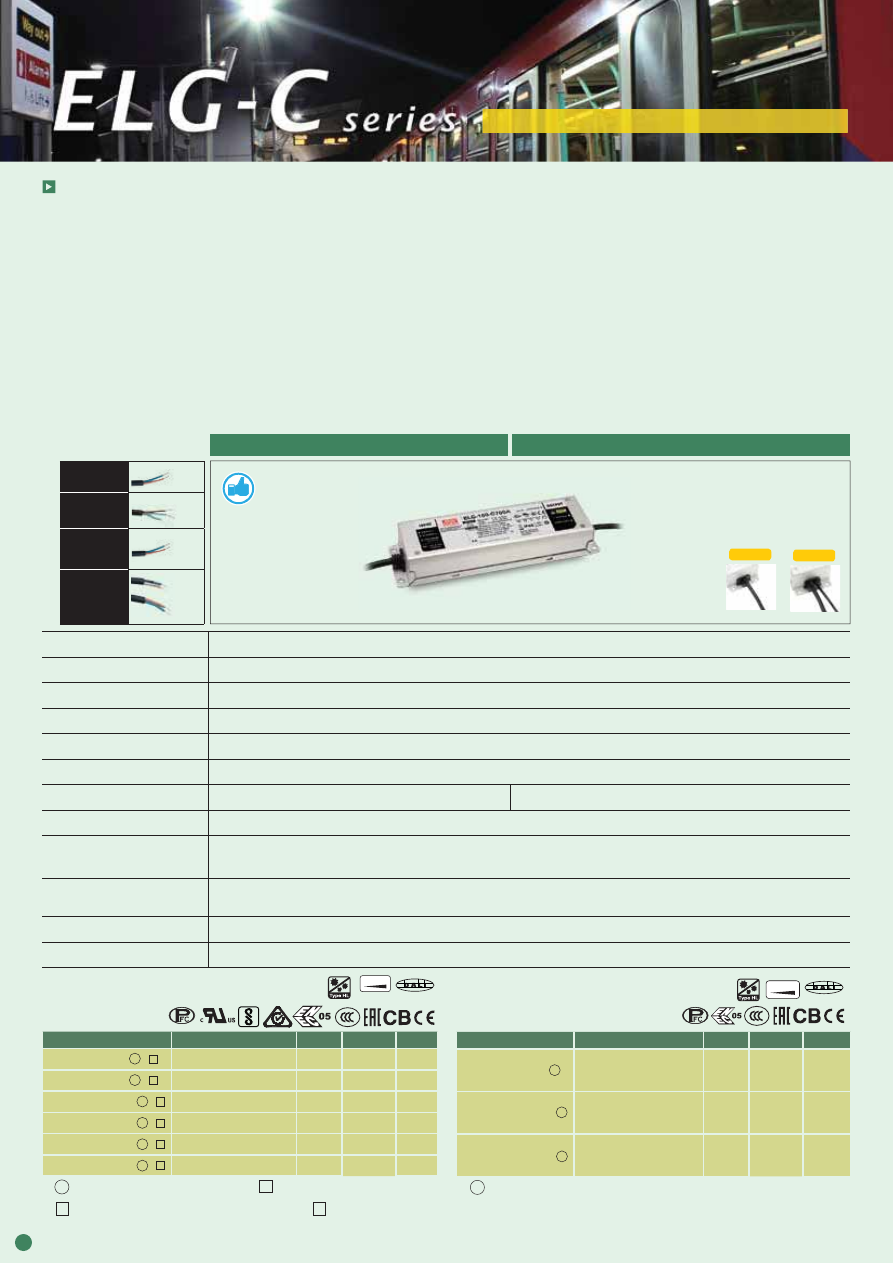

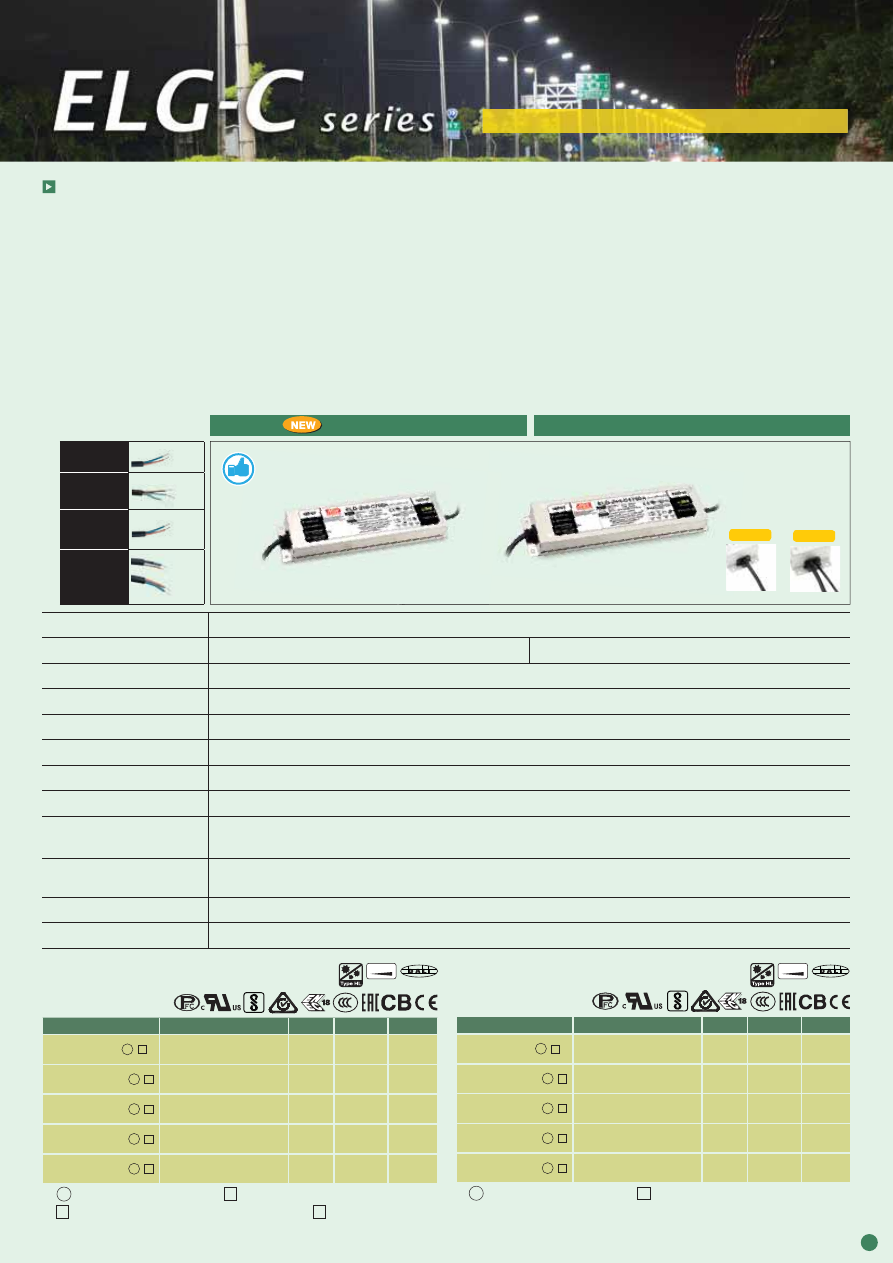

ELG-75-C, ELG-100-C

ELG-150-C, ELGT-150-C

ELG-200-C, ELG-240-C

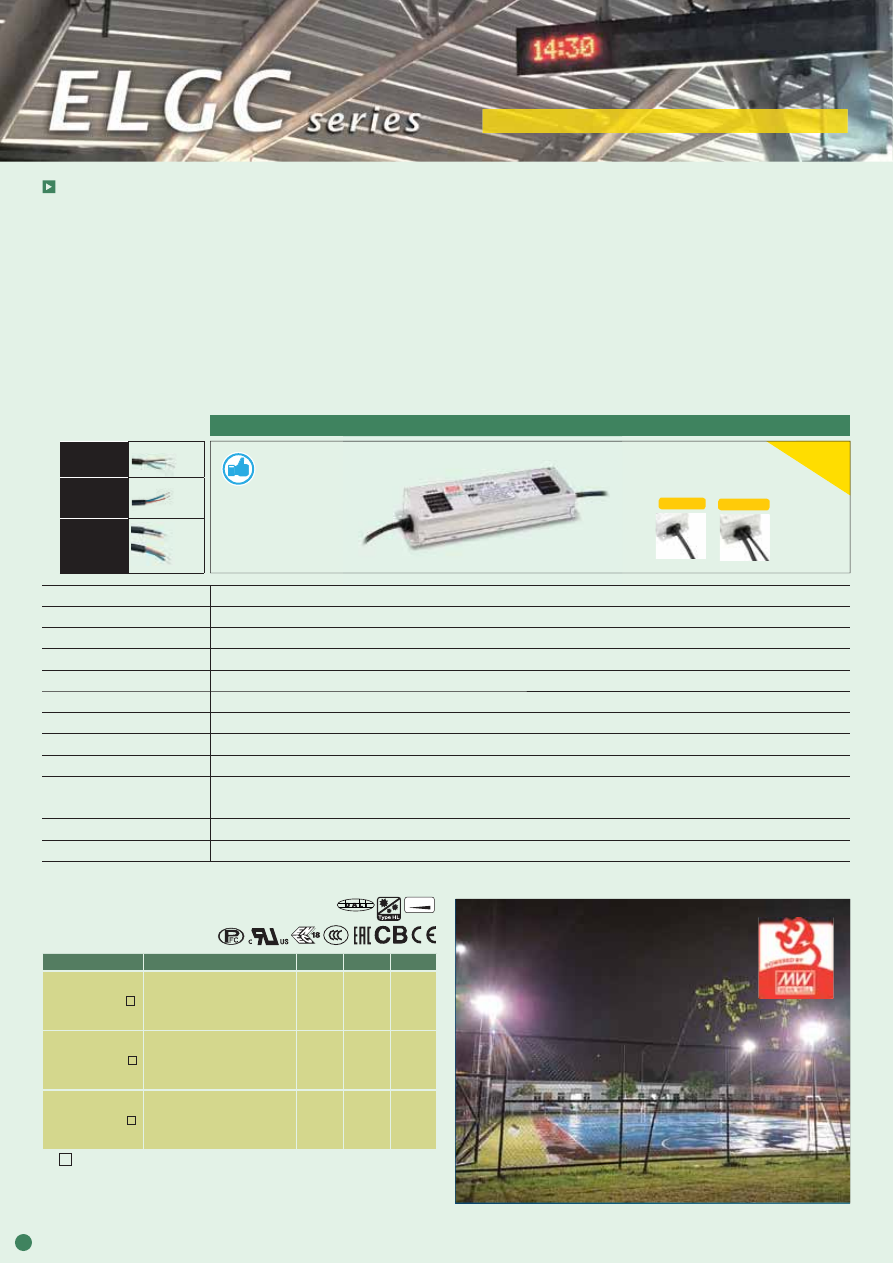

ELGC-300

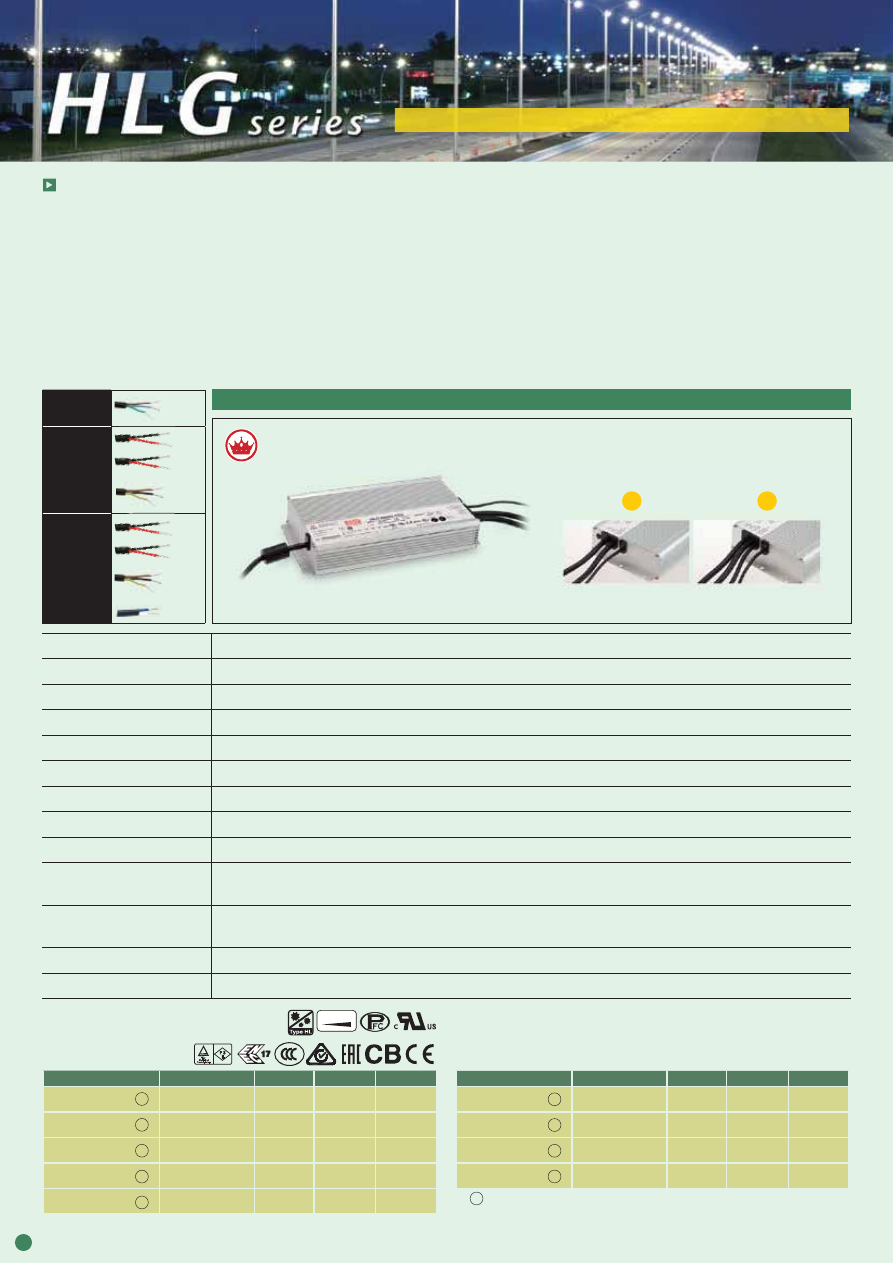

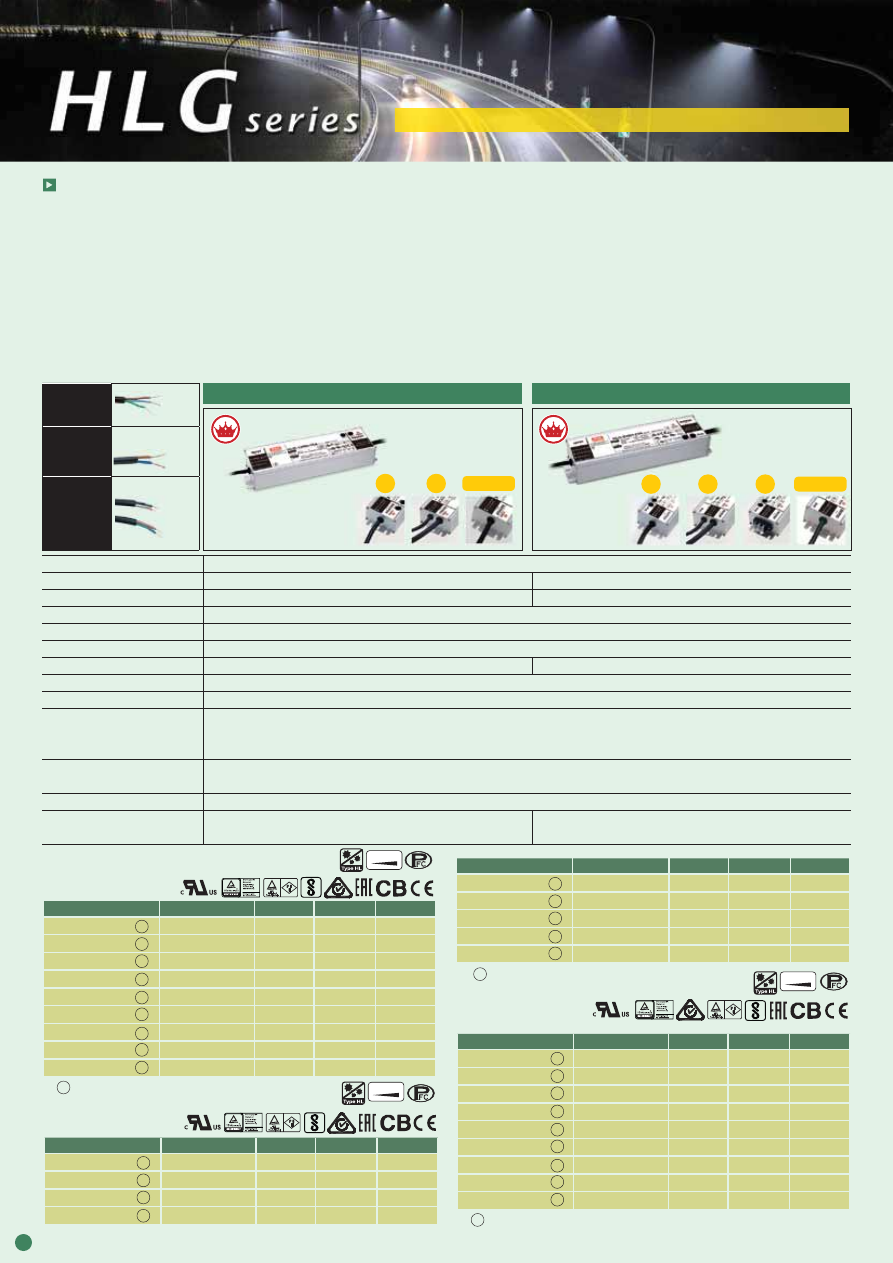

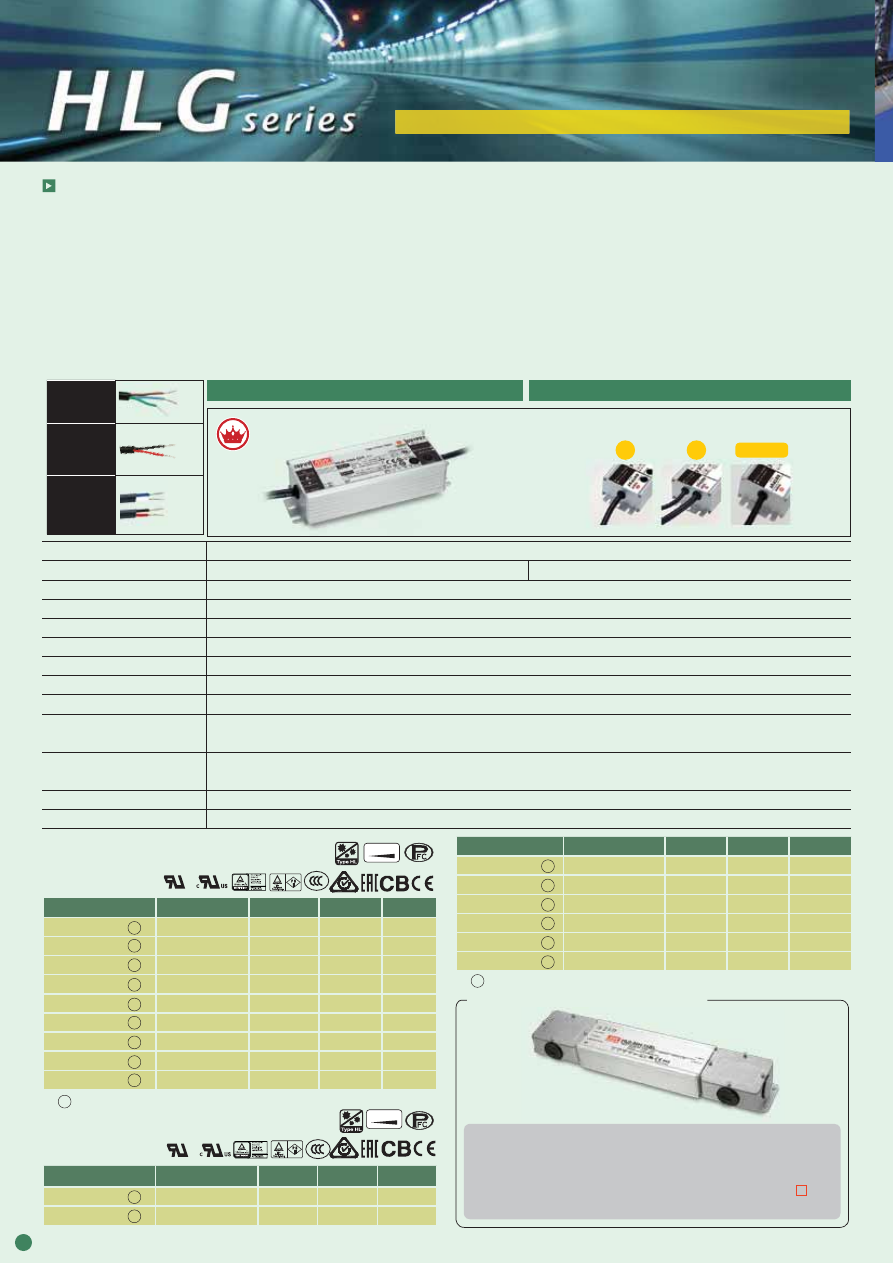

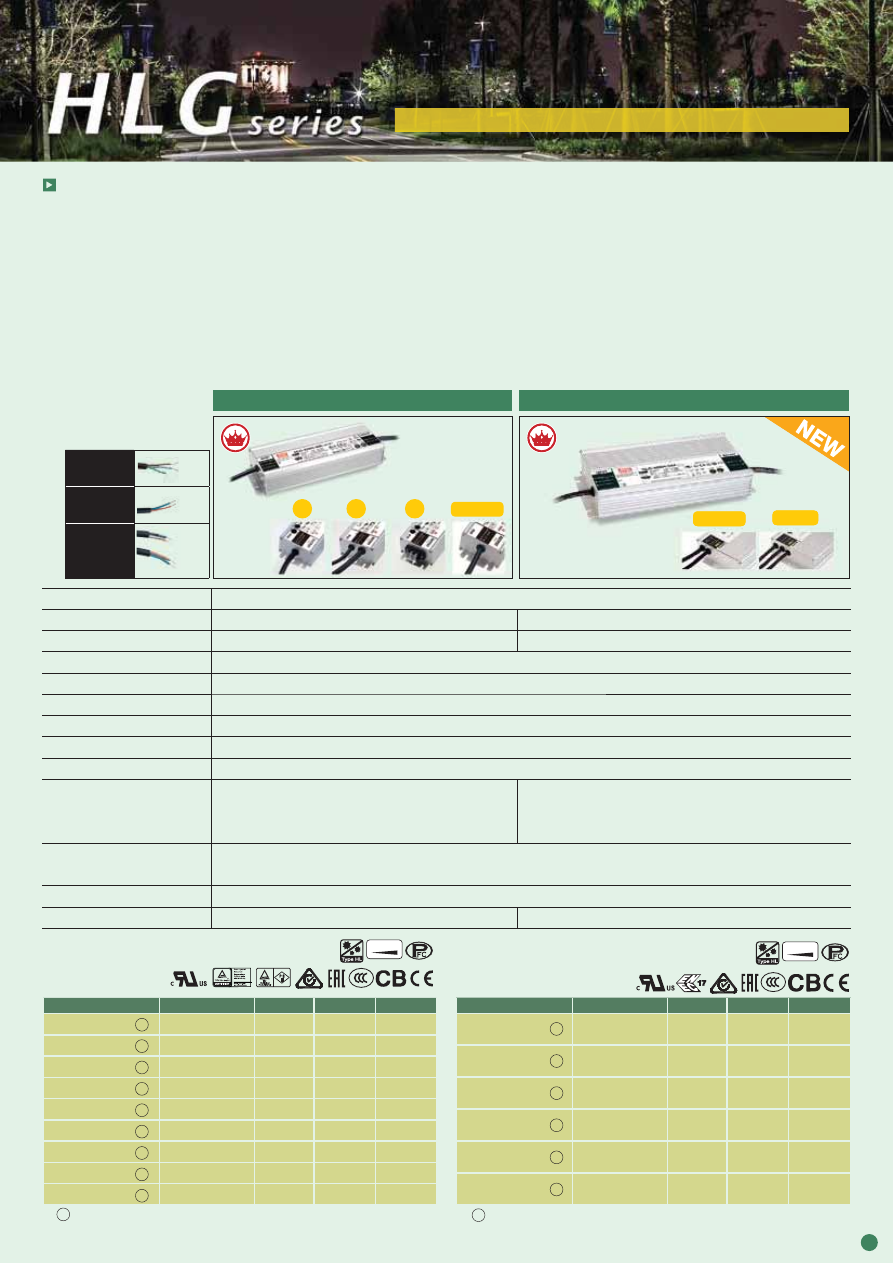

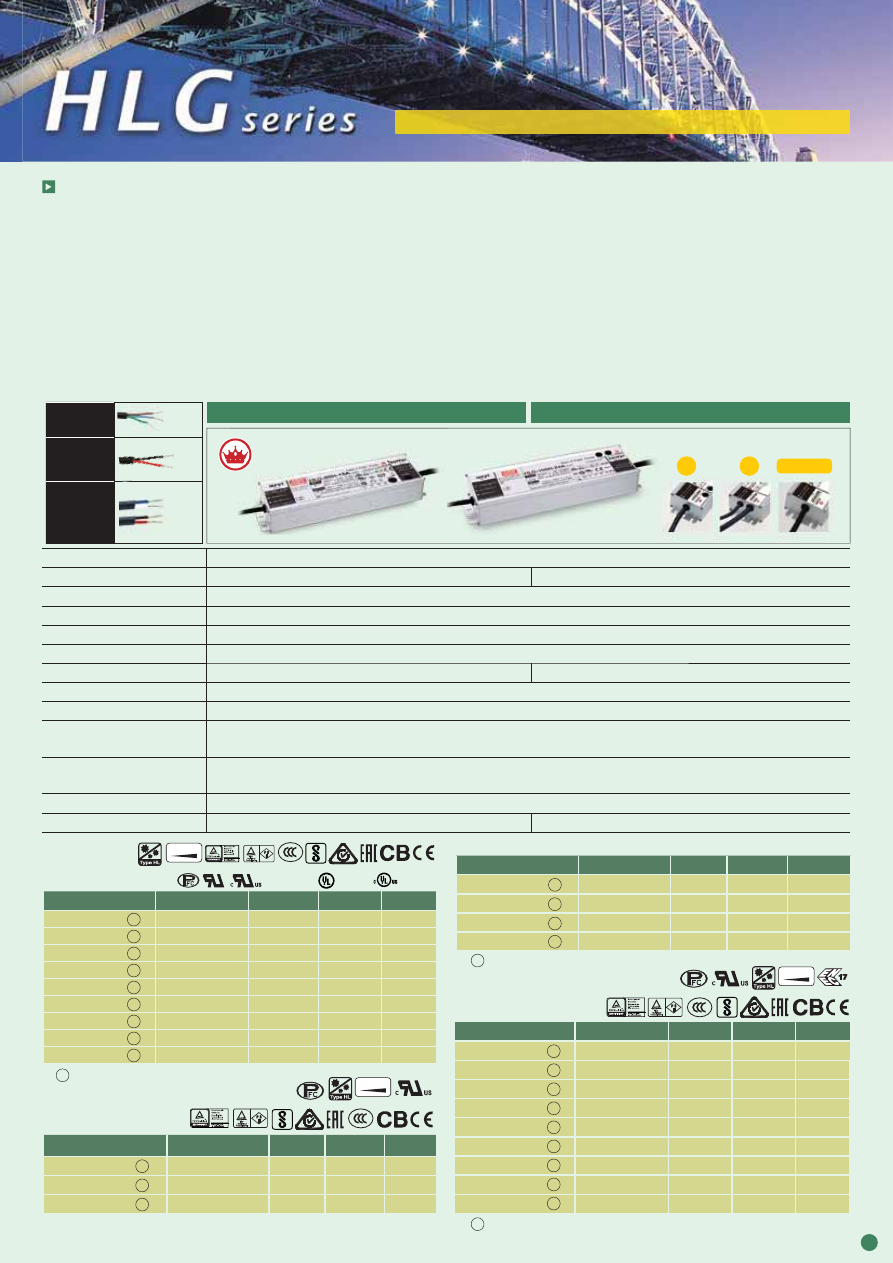

HLG

HLG-40H, HLG-60H

HLG-80H, HLG-100H, HLG-120H

HLG-150H, HLG-185H, HLG-240H

HLG-320H, HLG-480H

HLG-600H

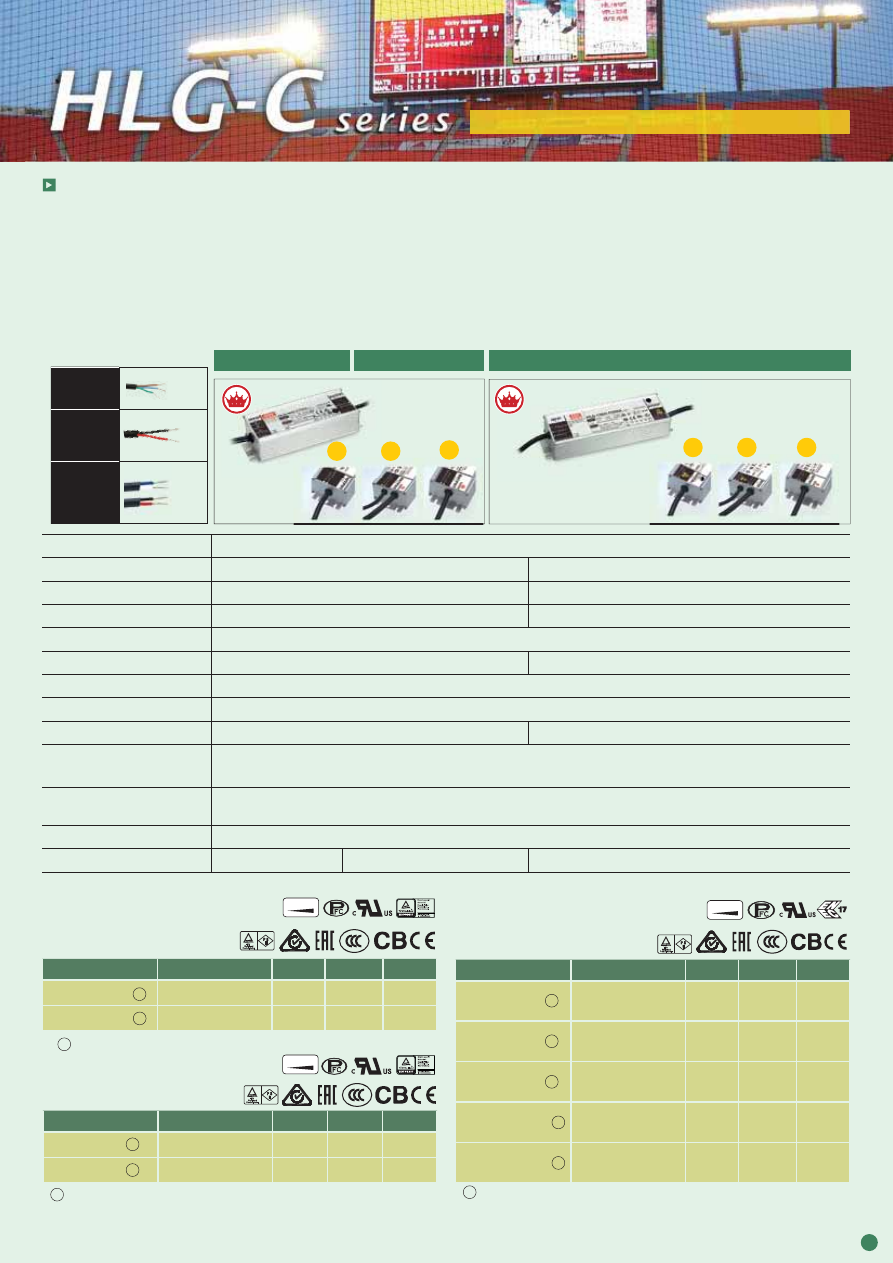

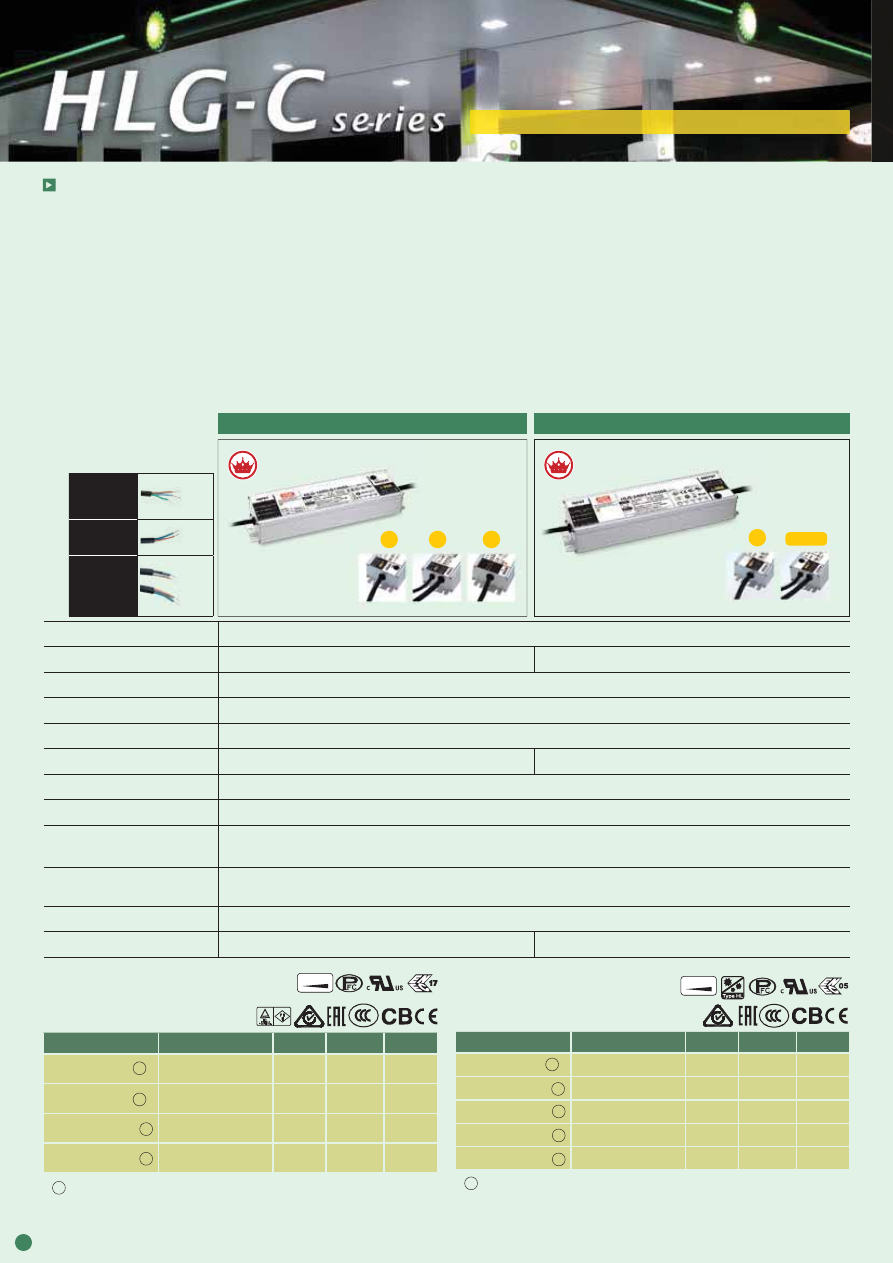

HLG-60H-C, HLG-80H-C, HLG-120H-C

HLG-185H-C, HLG-240H-C

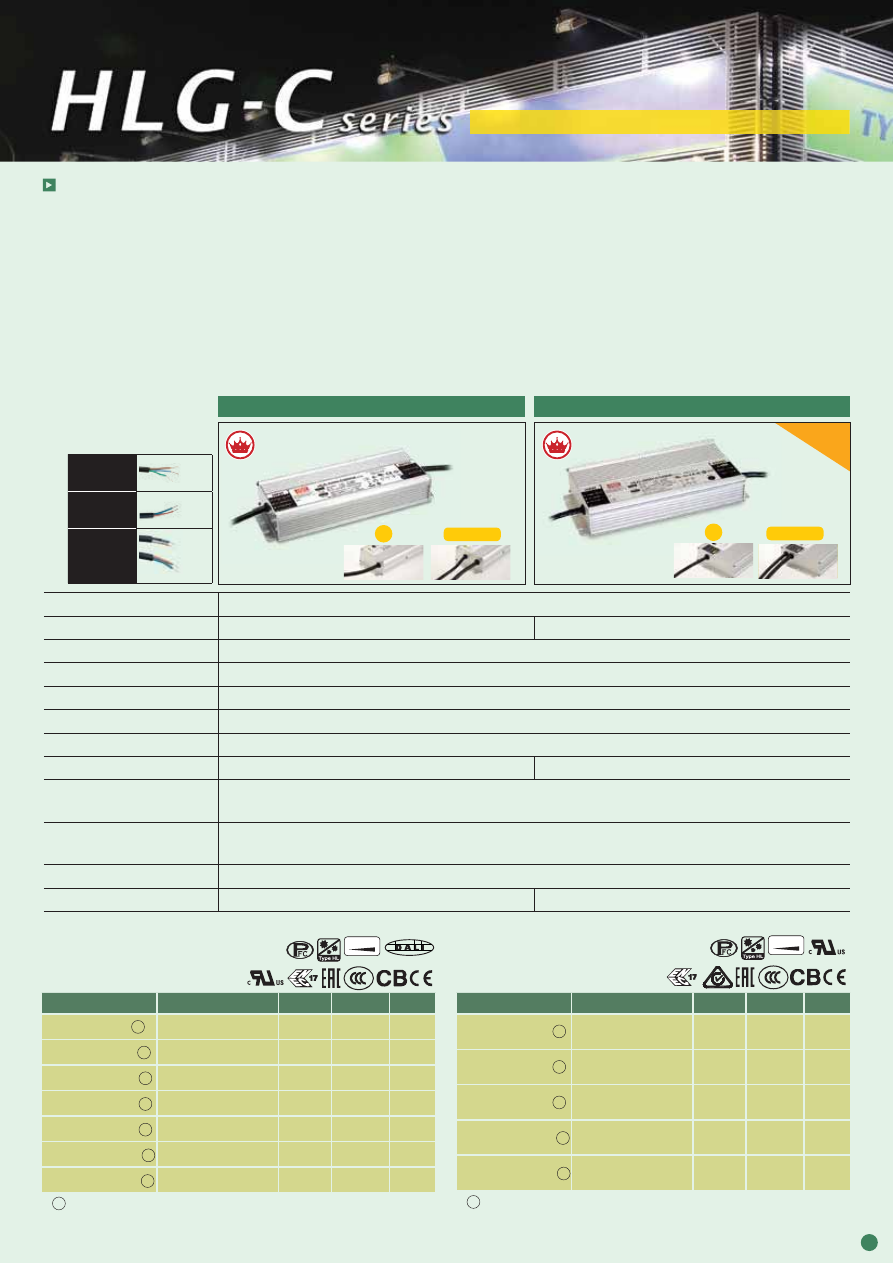

HLG-320H-C, HLG-480H-C

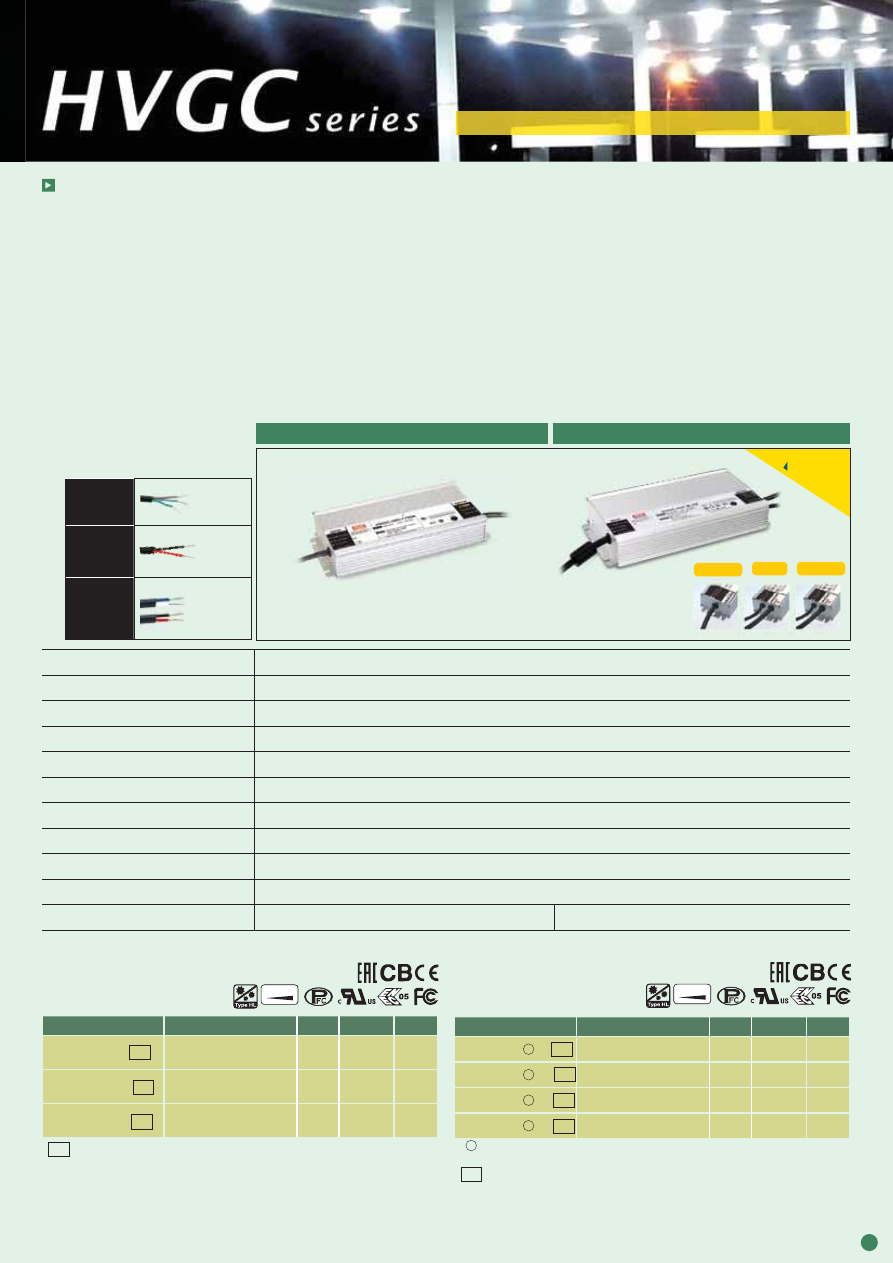

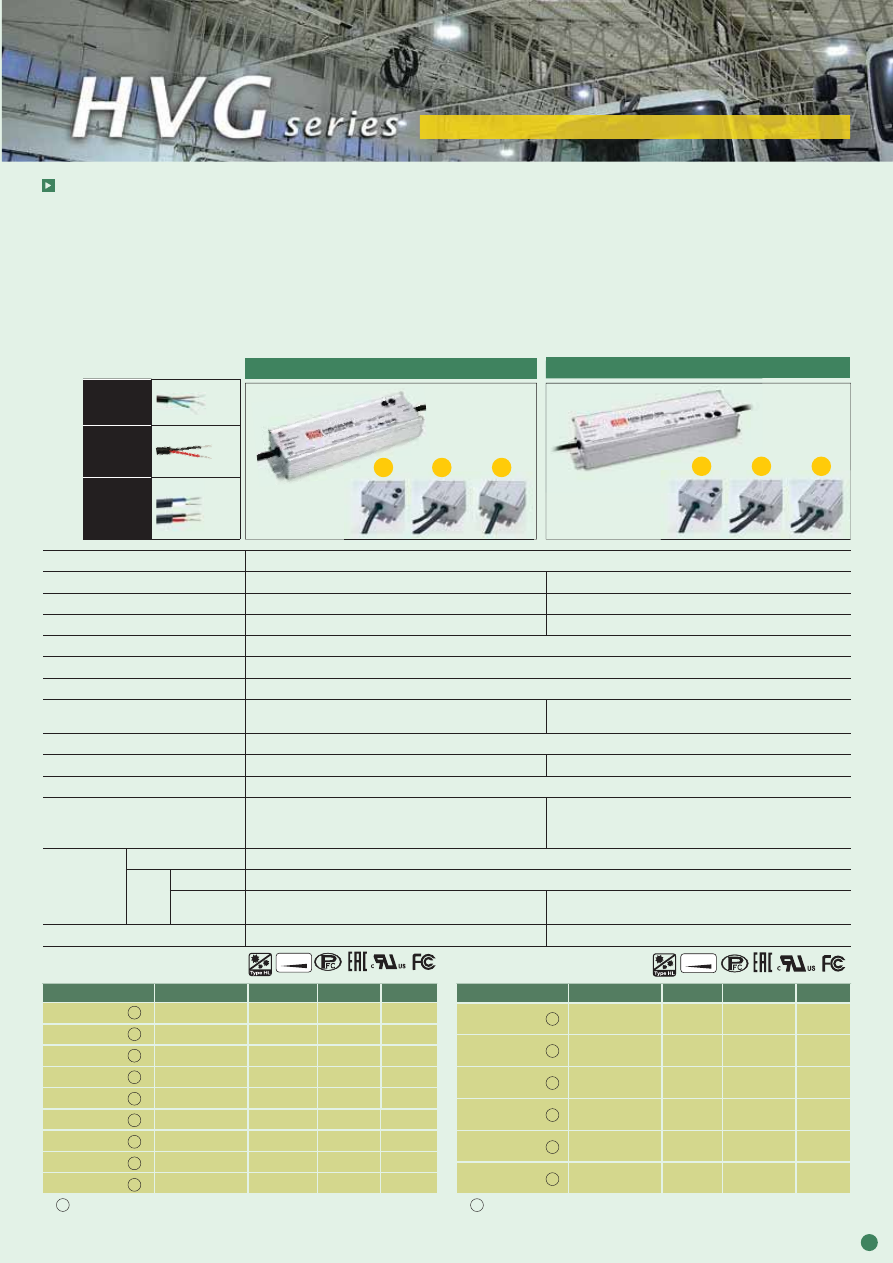

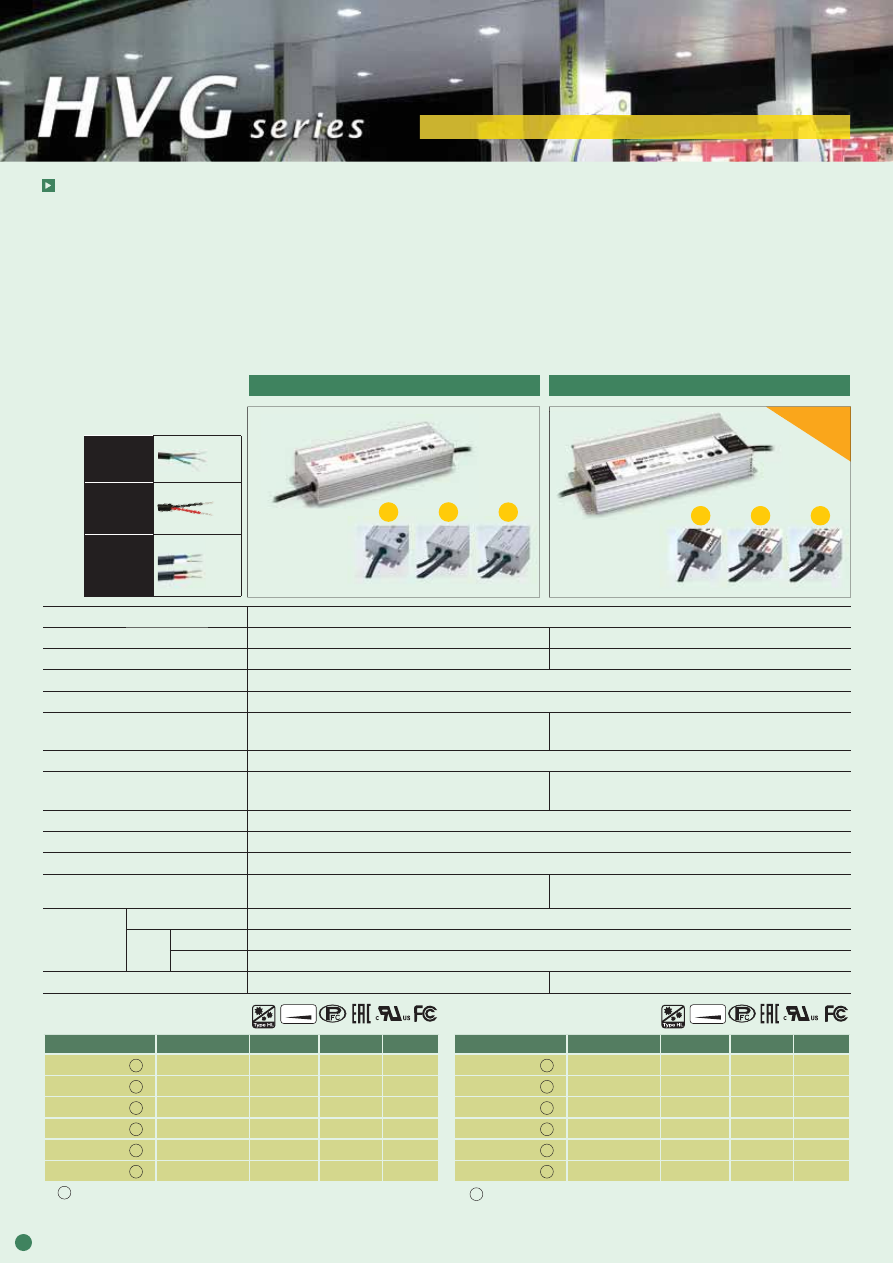

HVG(C)

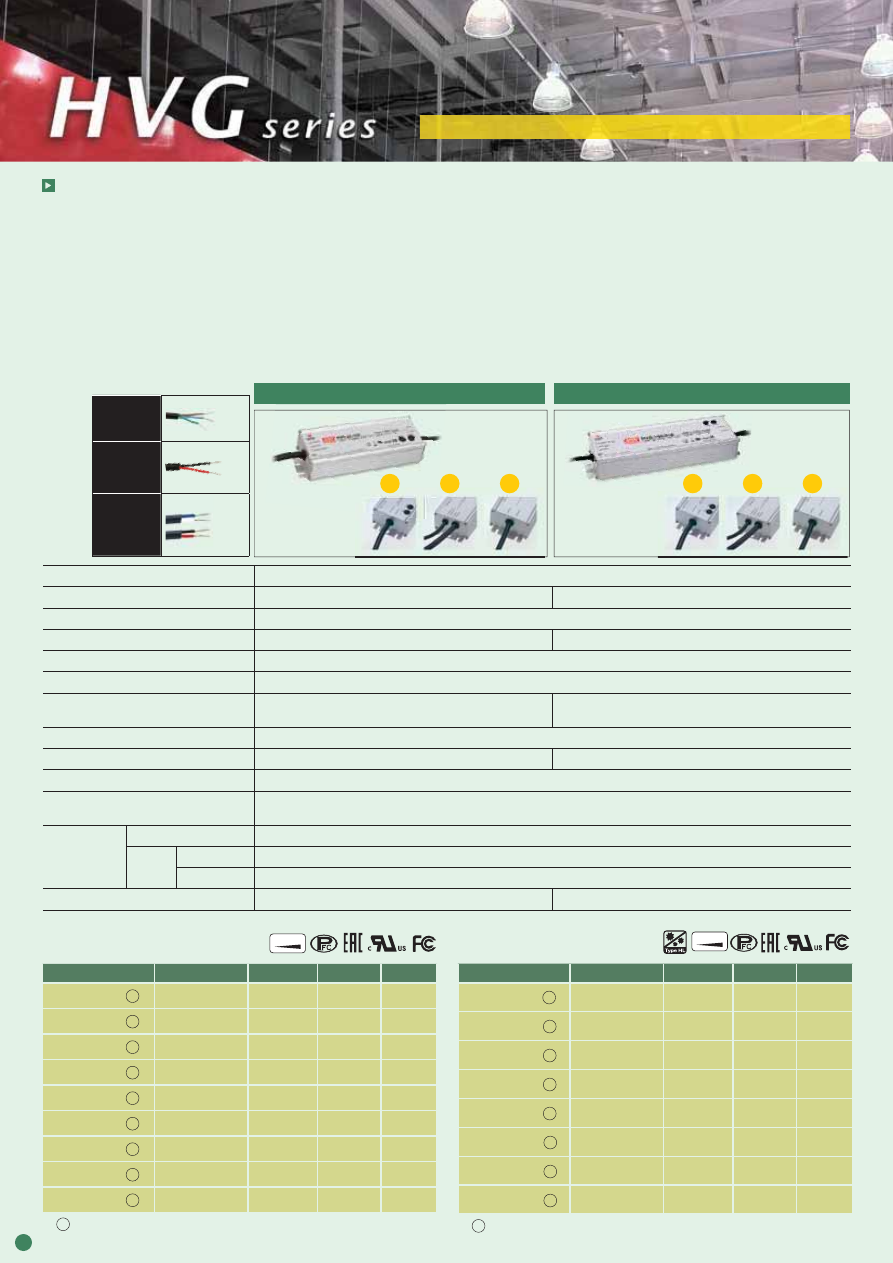

HVG-65, HVG-100

HVG-150, HVG-240

HVG-320, HVG-480

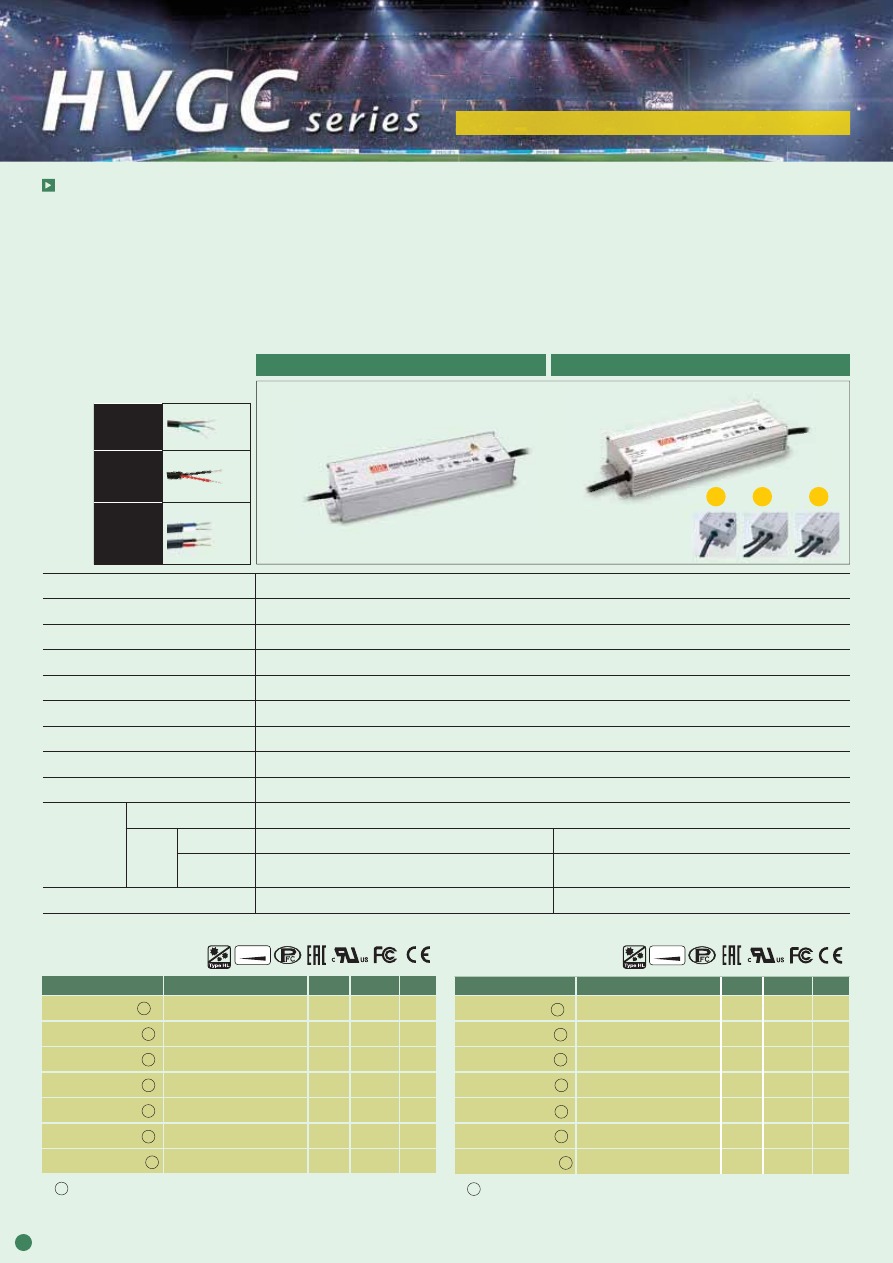

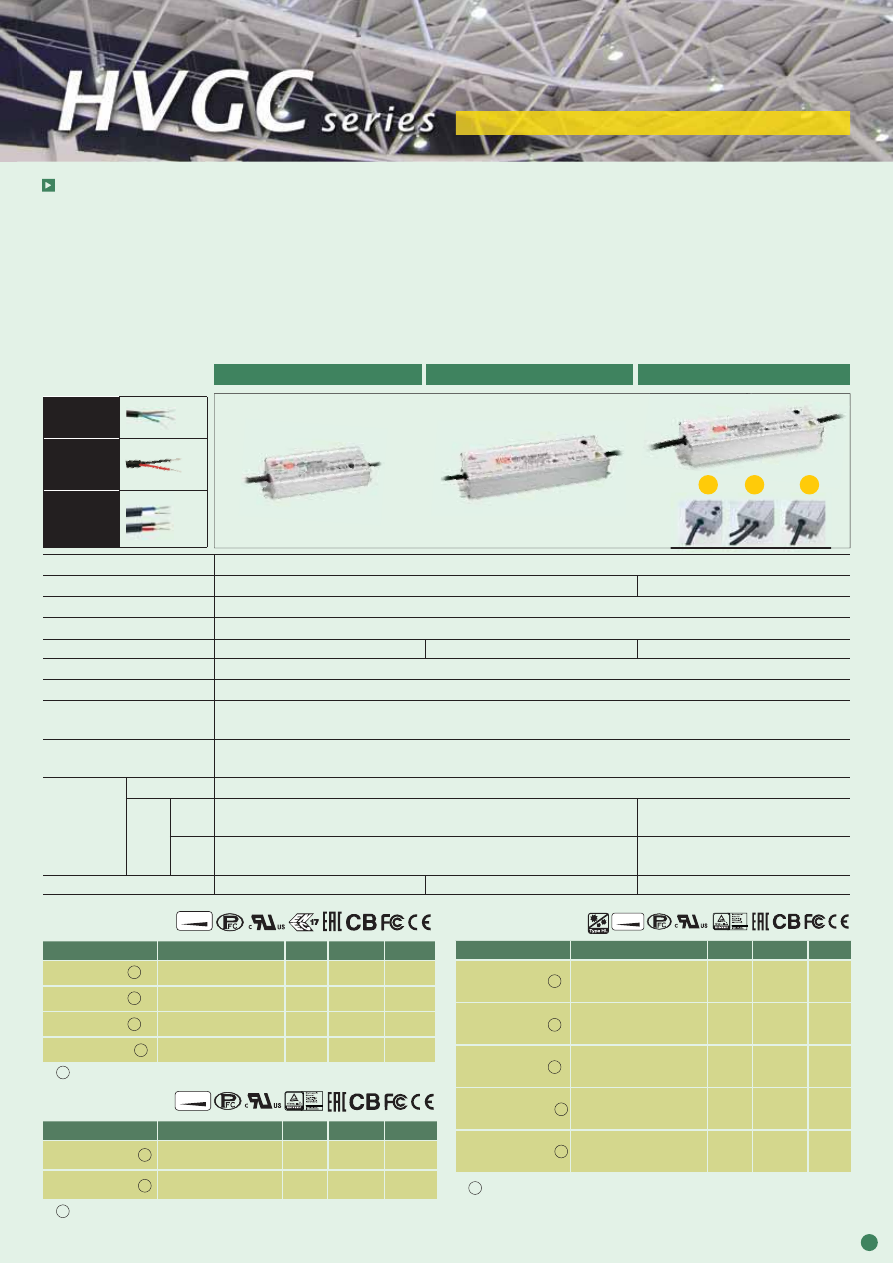

HVGC-65, HVGC-100, HVGC-150

HVGC-240, HVGC-320

HVGC-480, HVGC-650

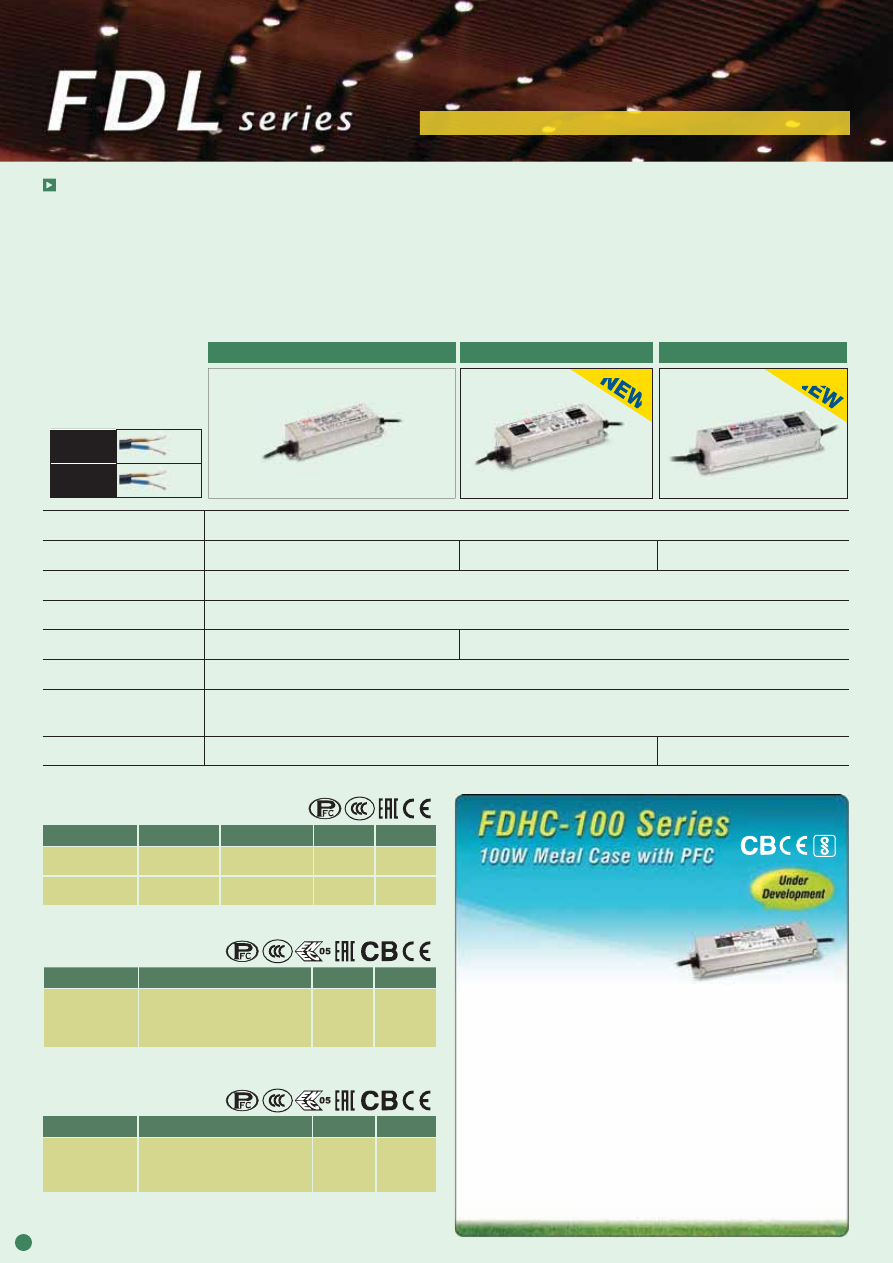

FDL

FDL-65, FDLC-80, FDLC-100

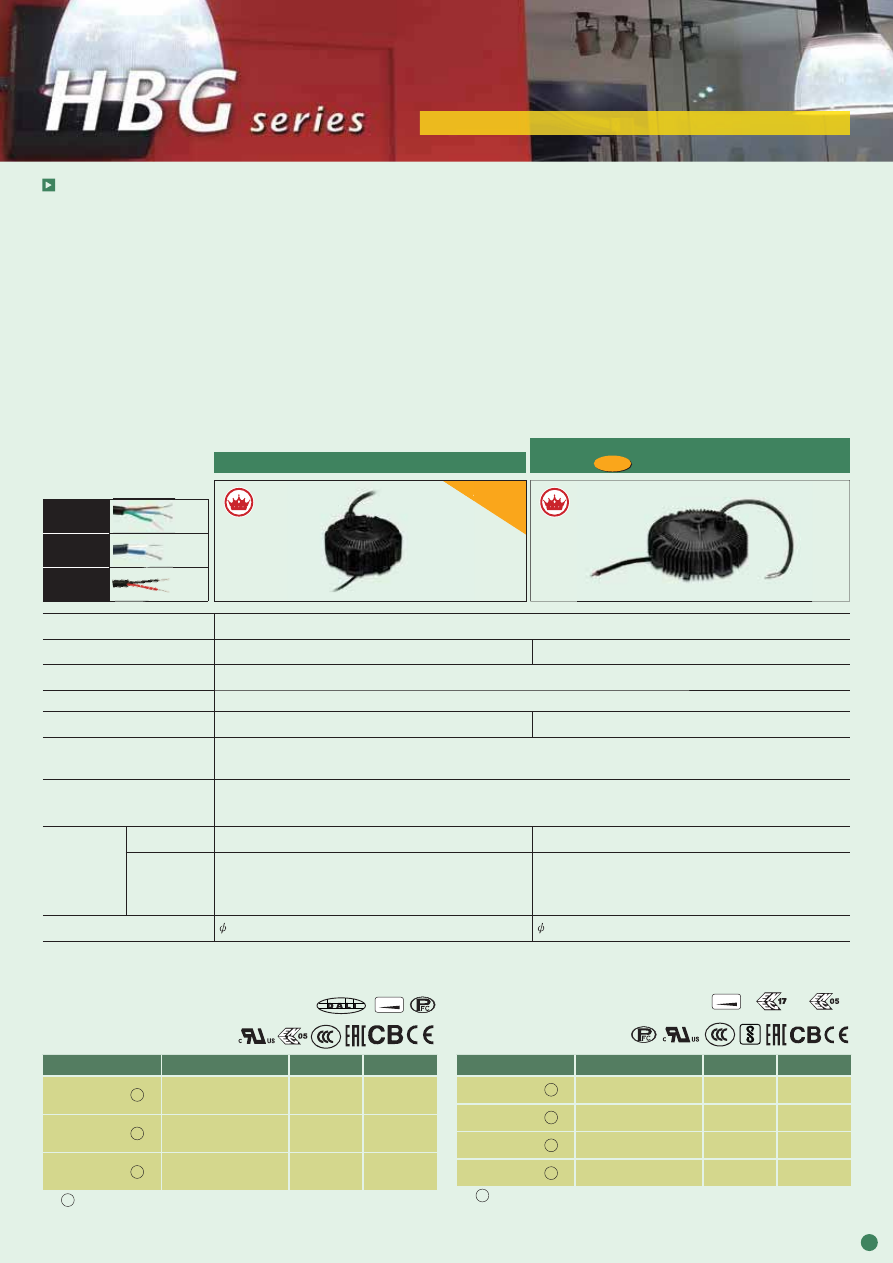

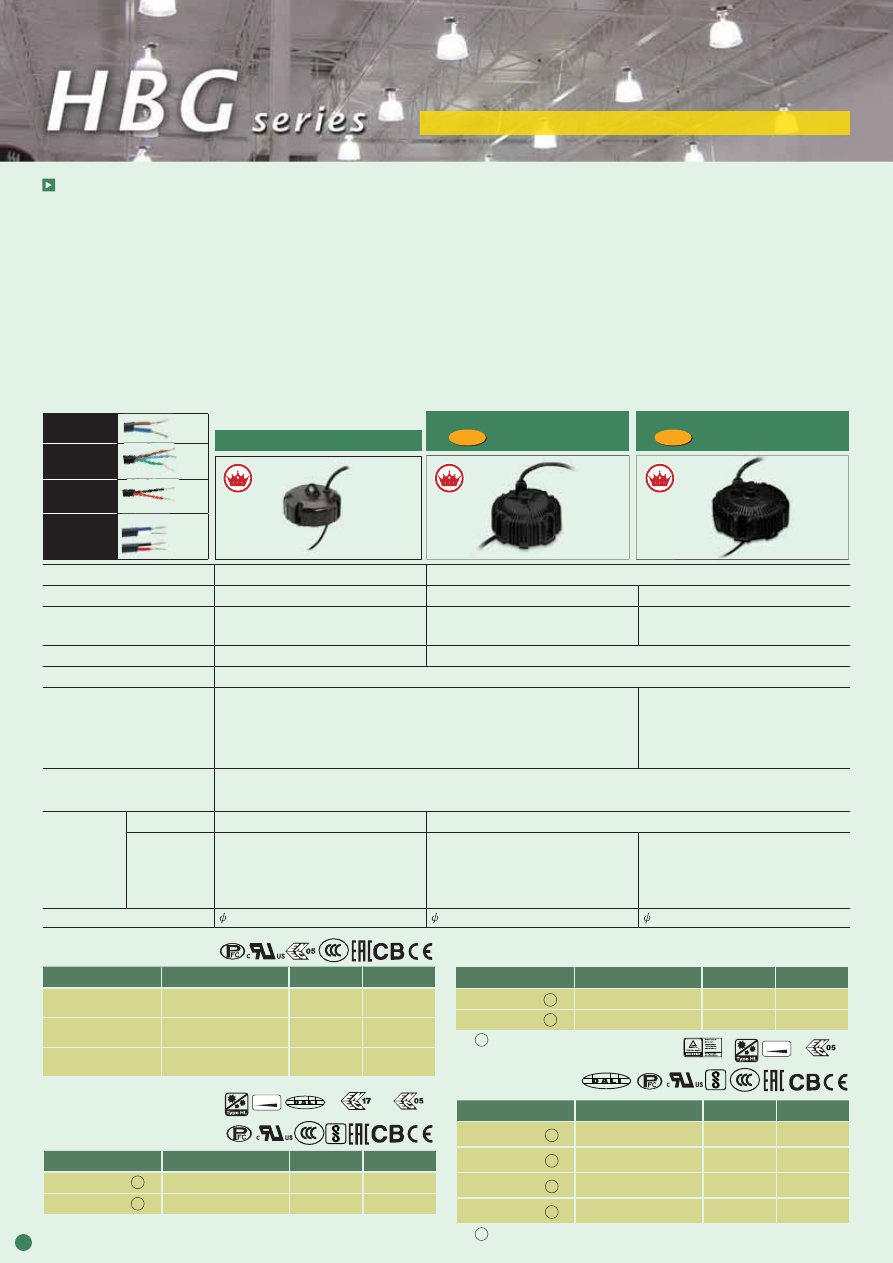

HBG

HBG-60, HBG-100, HBG-100(DA)

HBG-160, HBG-160(DA)

HBG-200(DA), HBG-240, HBG-240(DA)

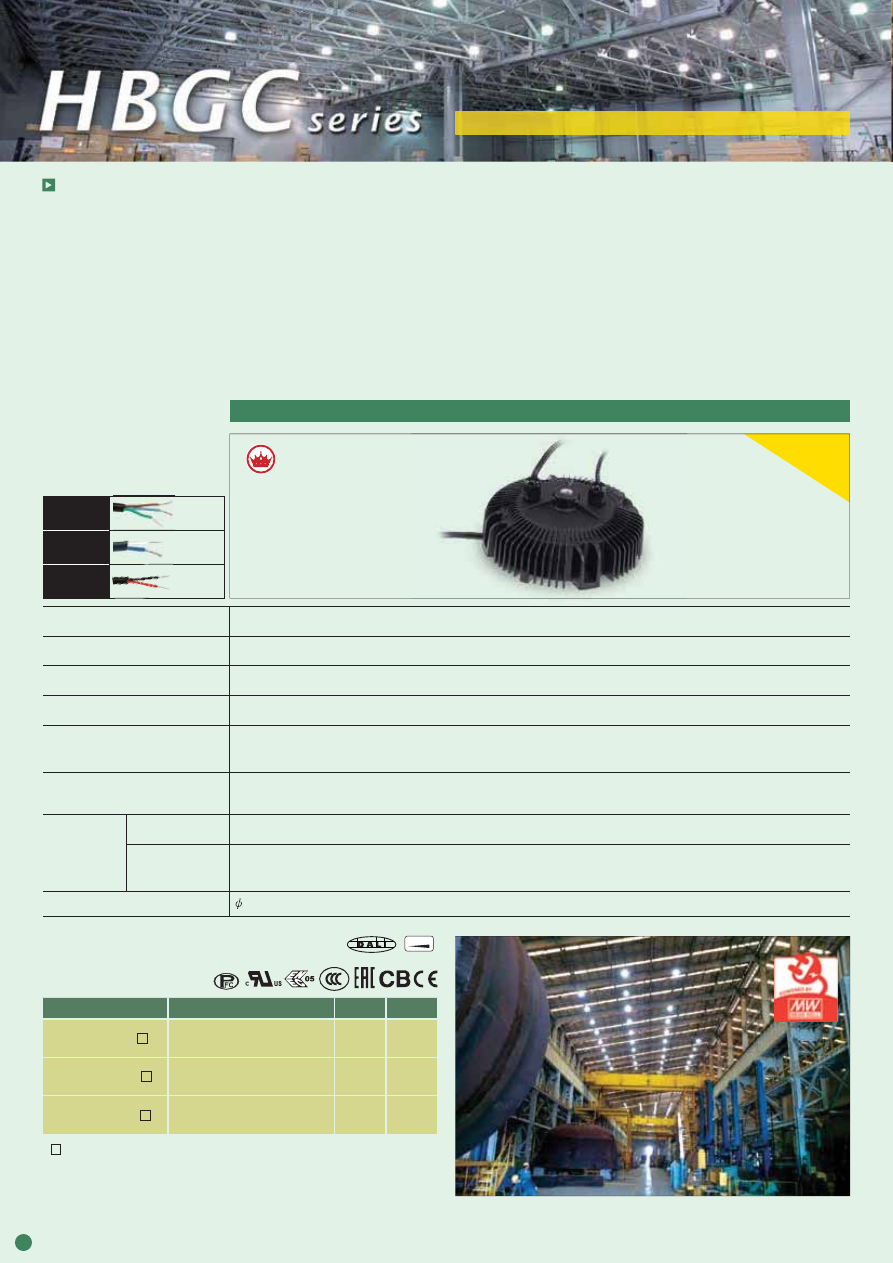

HBGC-300

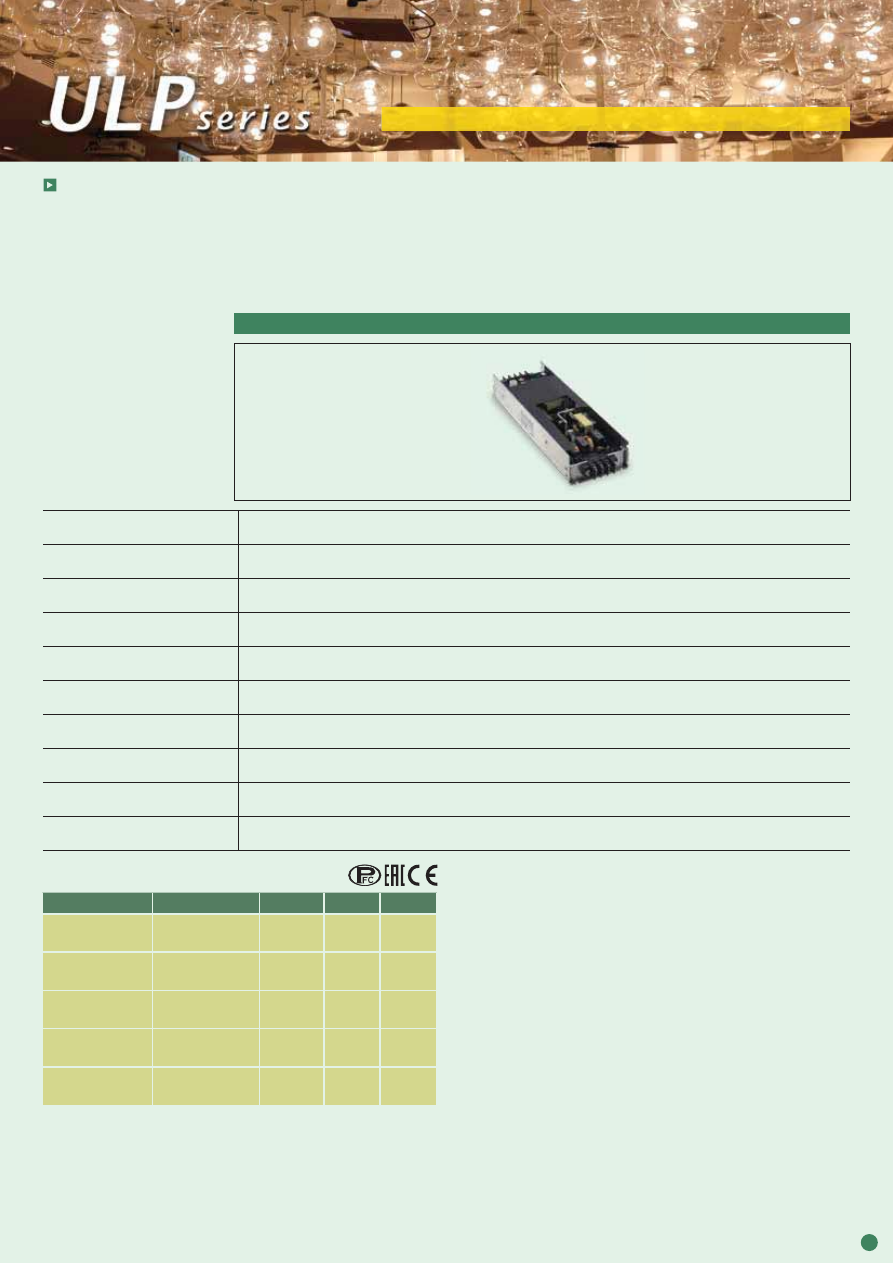

ULP

ULP-150

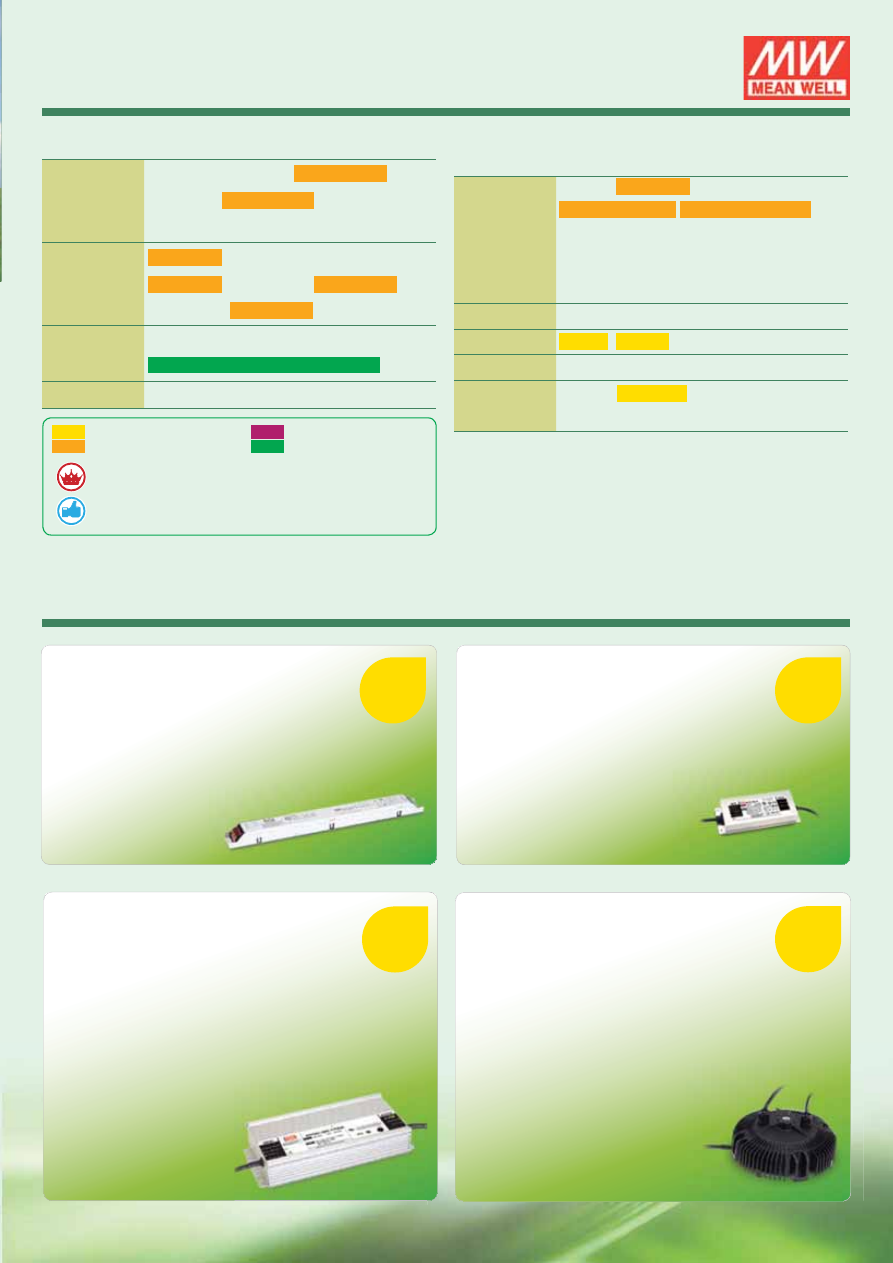

New Products Overview

HBGC-300

LDC-35/55/80(DA)

HVGC-480/650

FDLC-80/100

300W Circular Shape with PFC

35W/55W/80W Metal Linear Type with PFC

480W & 650W Metal Case with PFC

80W & 100W Metal Case with PFC

P a g e

• Constant power mode
• Full power at 60~100% max current
• Universal AC input (up to 305VAC)
• High efficiency up to 94.5%
• Patented metal housing design
(Patent No.: CN201220314551)
• Suitable for dry, damp, and wet location
• 5 years warranty

• Constant power mode
• No load/power consumption <0.5W
• 3 in 1 dimming function (B-Type)
• DALI & Push dimming (DA-Type)
• 5 years warranty

• Constant power mode
• 180~528VAC wide input range
• High efficiency up to 95.5%
• Type HL LED Driver for use in Class

Division 2 hazardous location luminaires

• Suitable for dry, damp, and wet location
• 5 years warranty

• Constant power mode
• Output current adjustable via

potentiometer

• No load power consumption <0.5W
• Suitable for LED flood light,

architectural lighting

• 3 years warranty

Special Symbols for EN61347-2-13

DA Type)

DC/DC LED Driver

Controller & Accessory

DC-DC
Driver

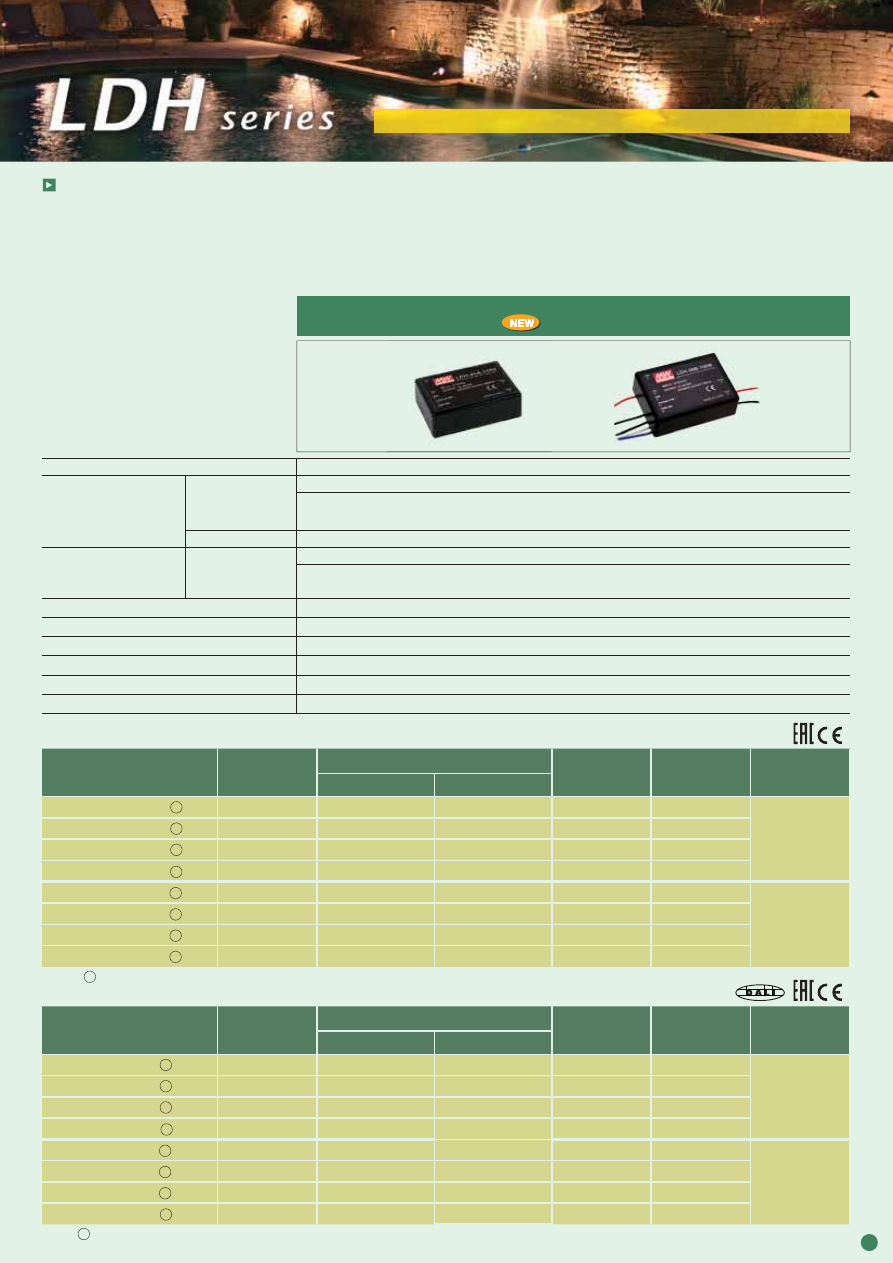

LDH-45, LDH-45DA

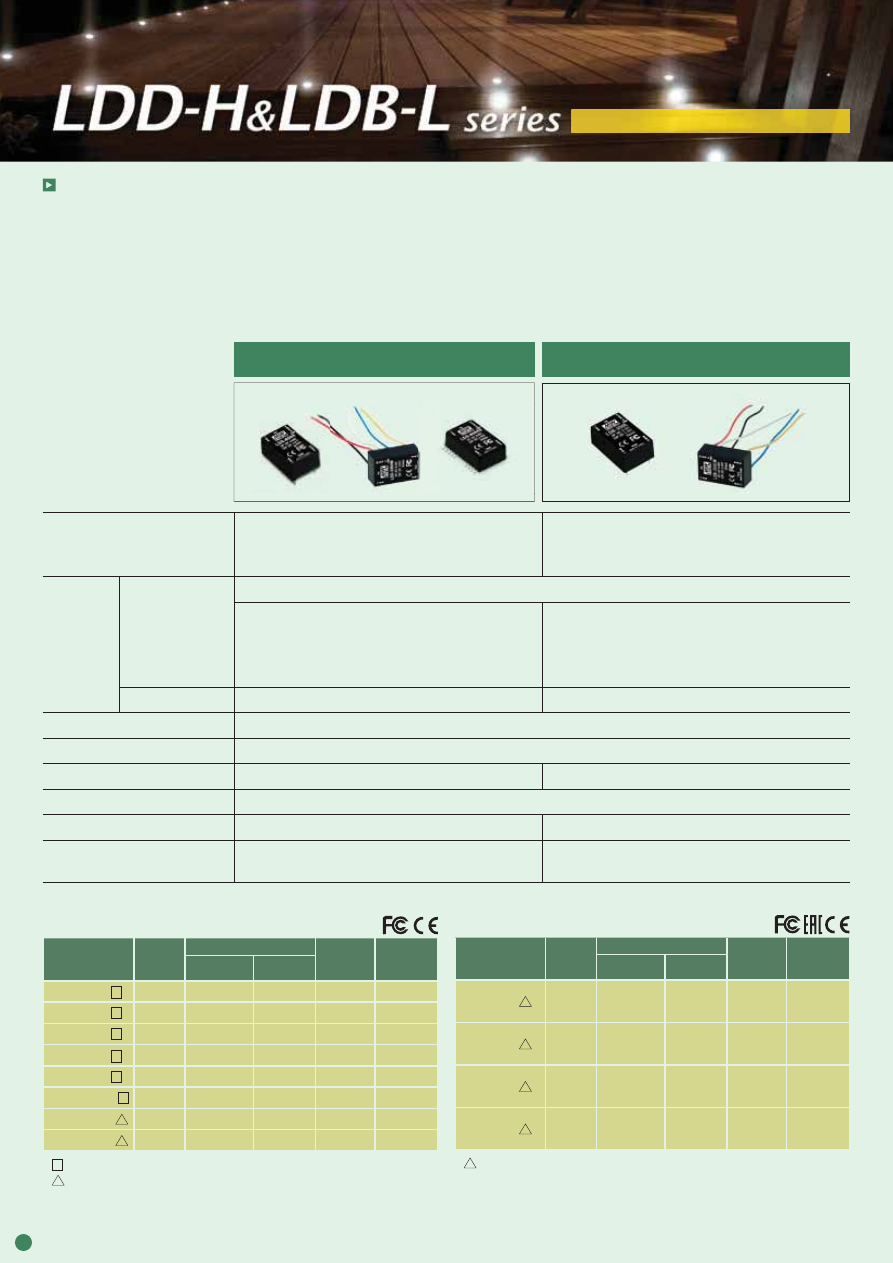

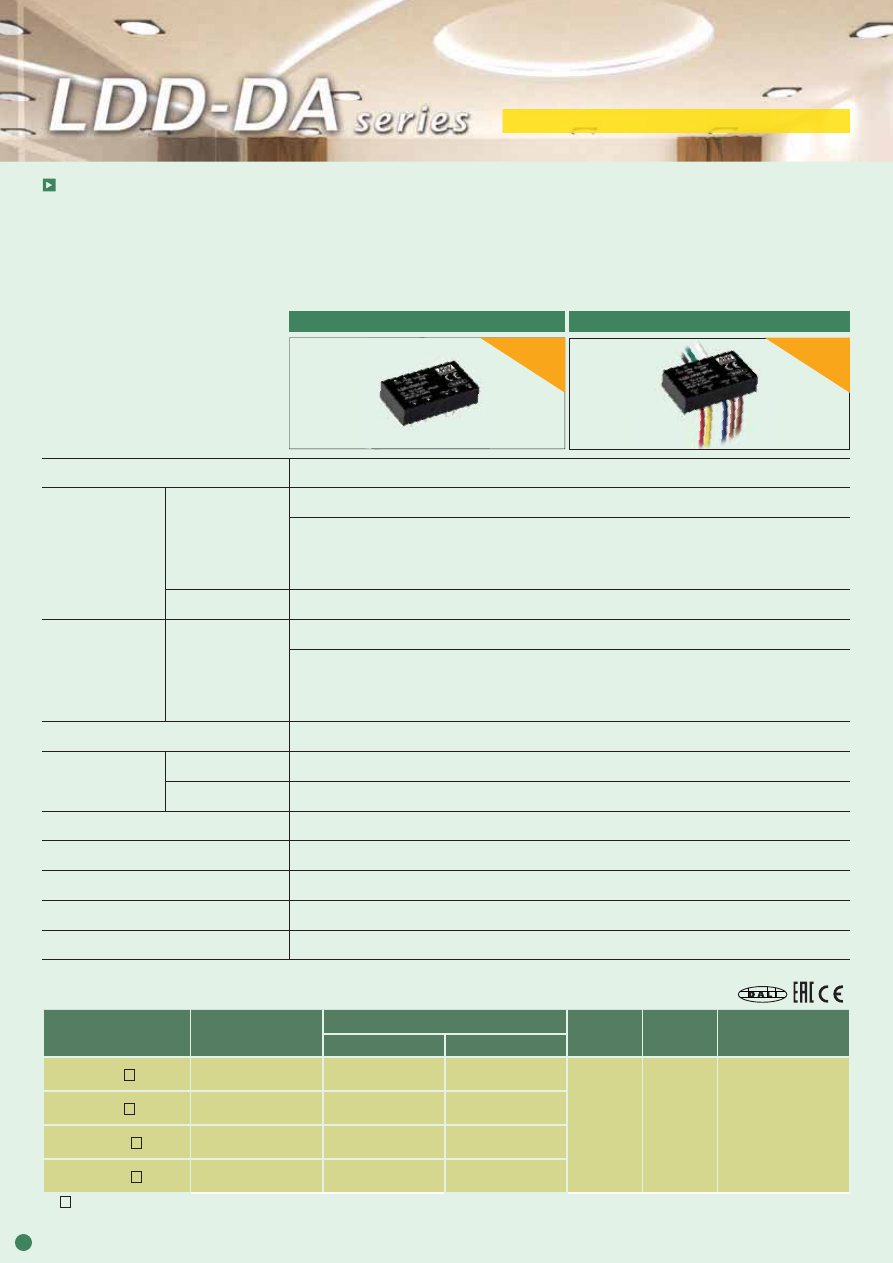

LDD-350~1400H-DA, LDD-350~1400H-WDA

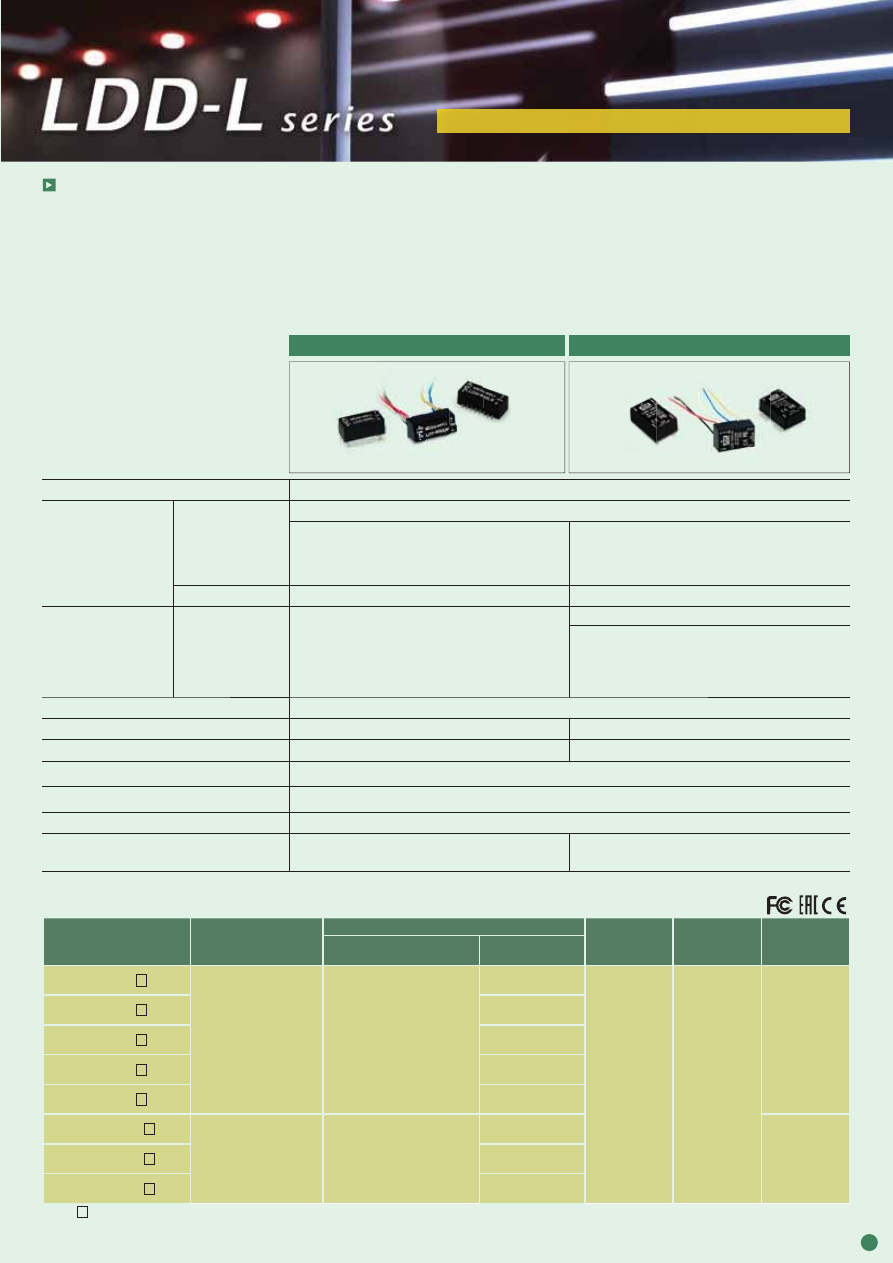

LDD-300~700L / LW / LS, LDD-1000~1500L / LW / LS

LDD-300~1000H / HW / HS

LDD-1200 / 1500H / HW
LDB-300~600L / LW

DAP

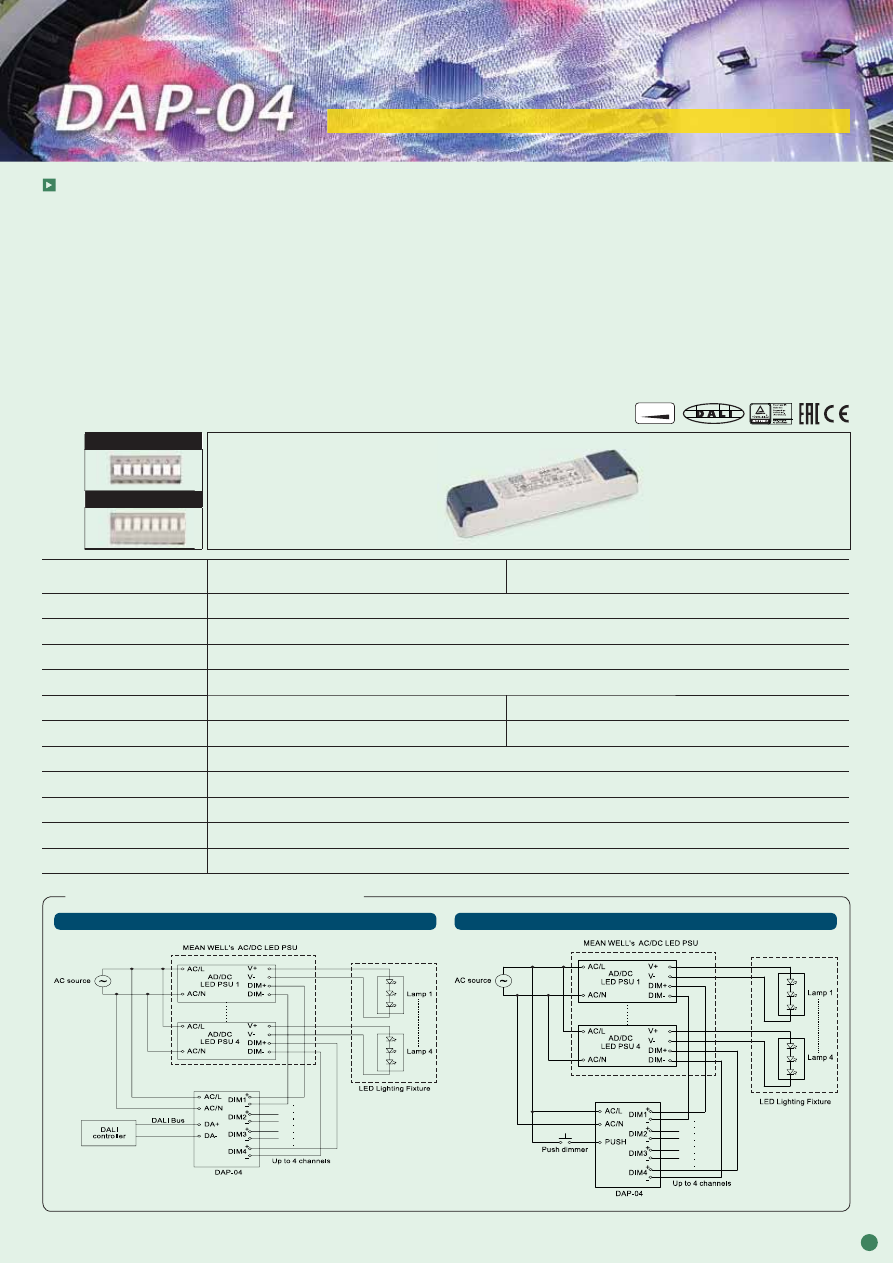

DAP-04, DAP-04-S01

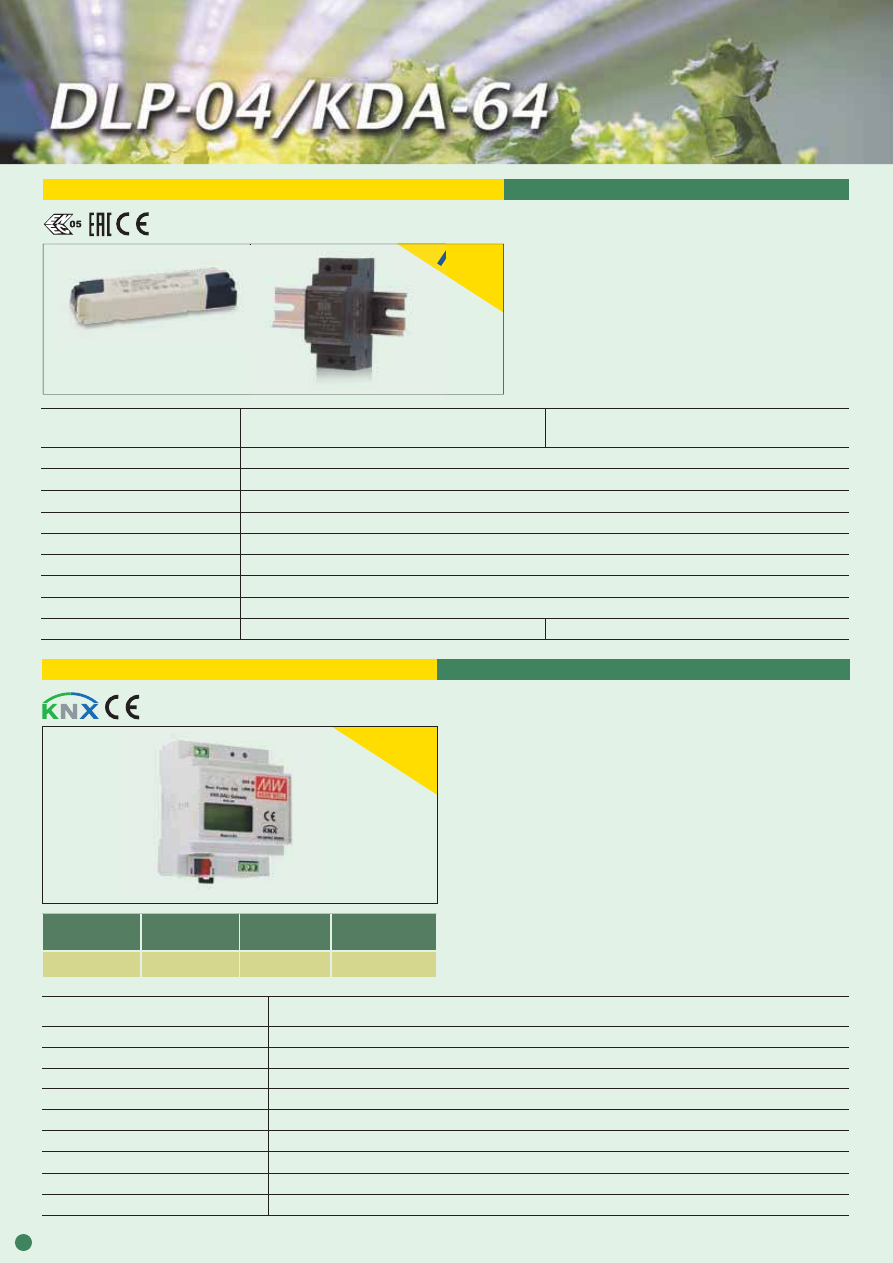

DLP/KDA

DLP-04, KDA-64

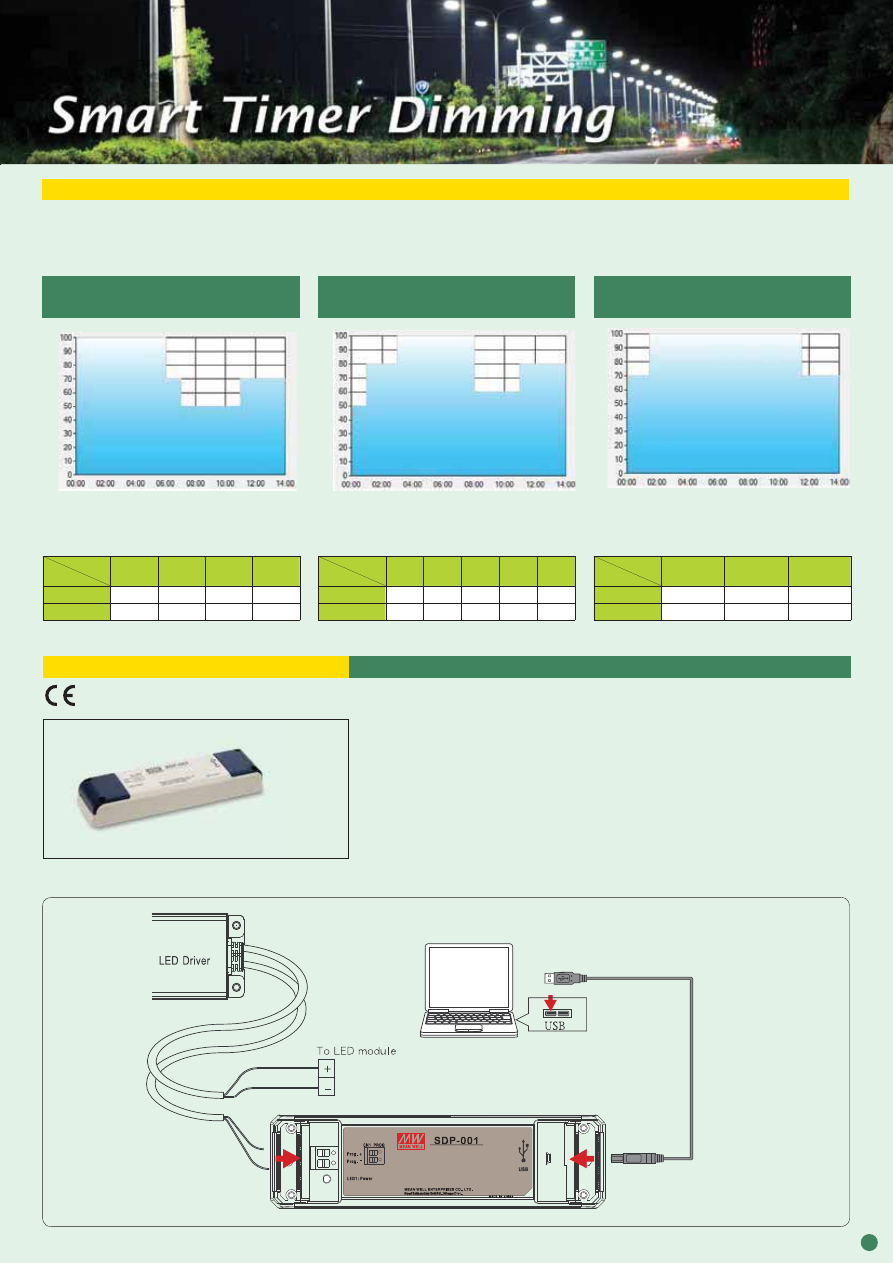

Smart Timer

Dimming & SDP

SDP-001

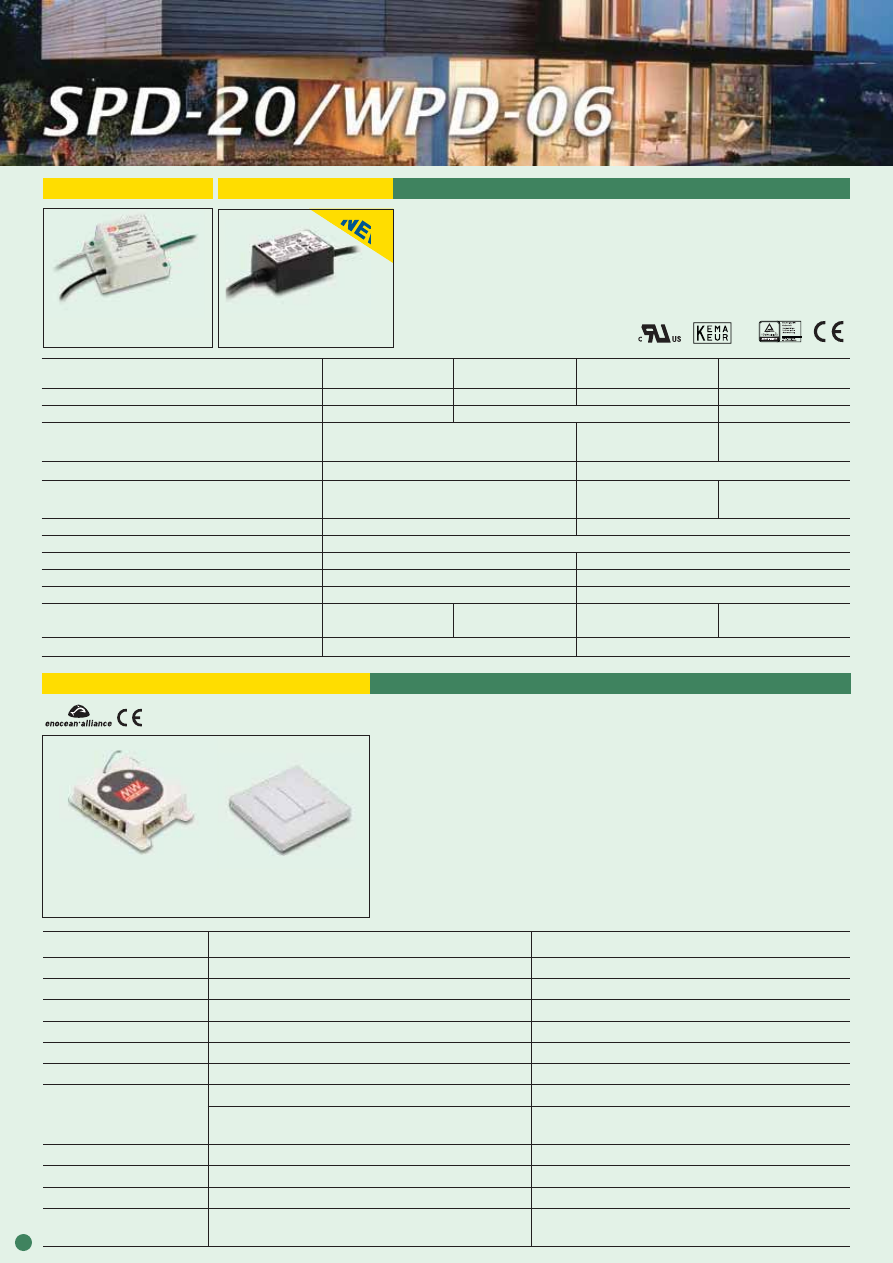

SPD/WPD

SPD-20, SPD-20HP,

WPD-06, WPD-06SWT

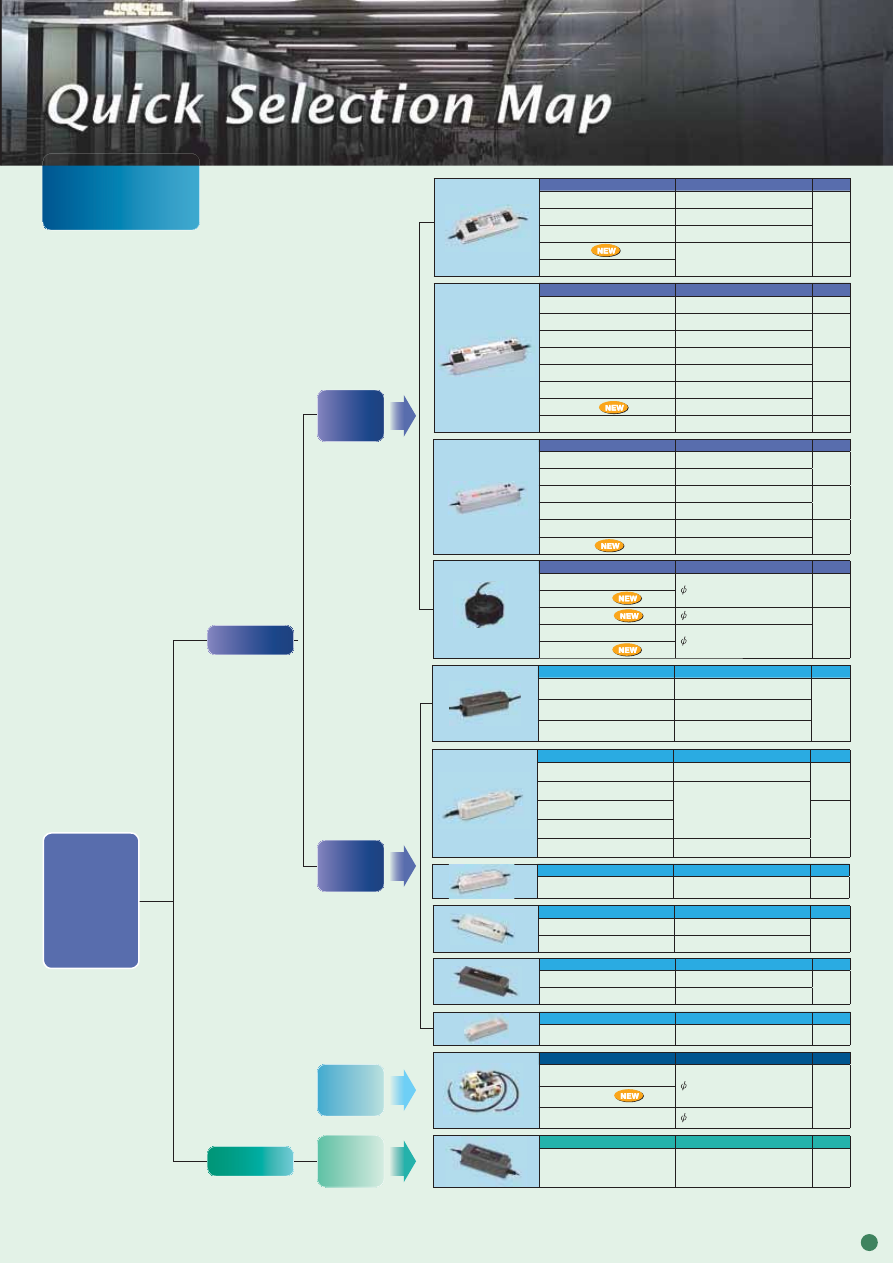

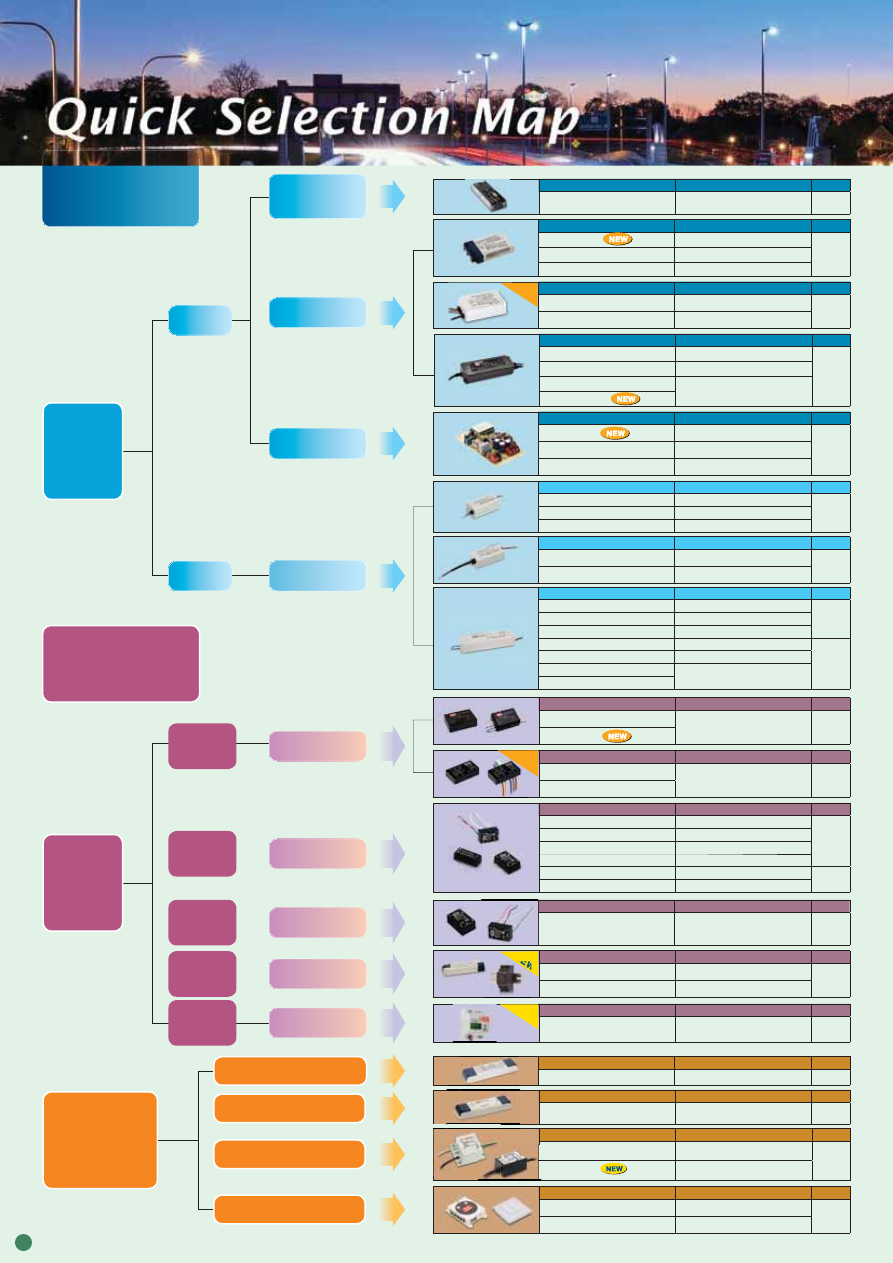

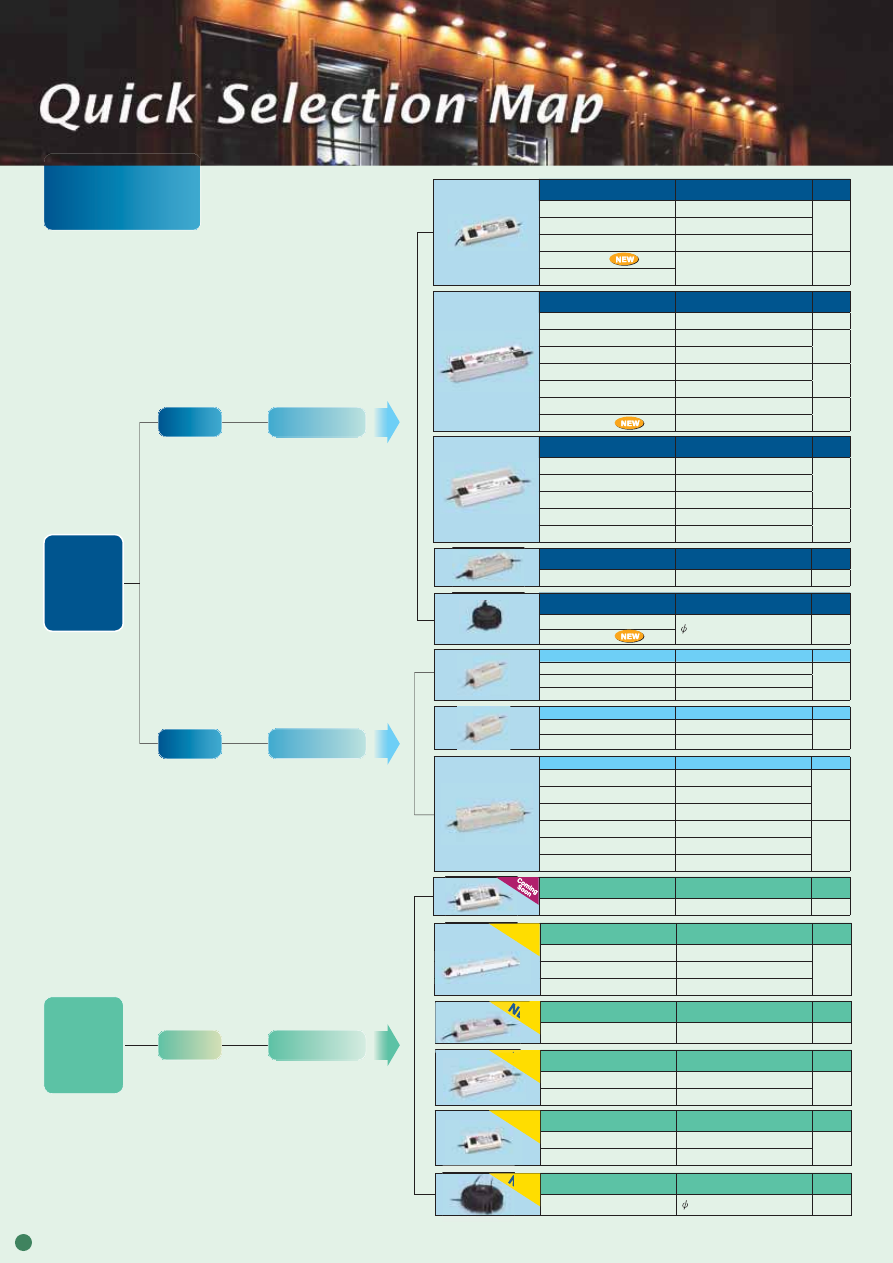

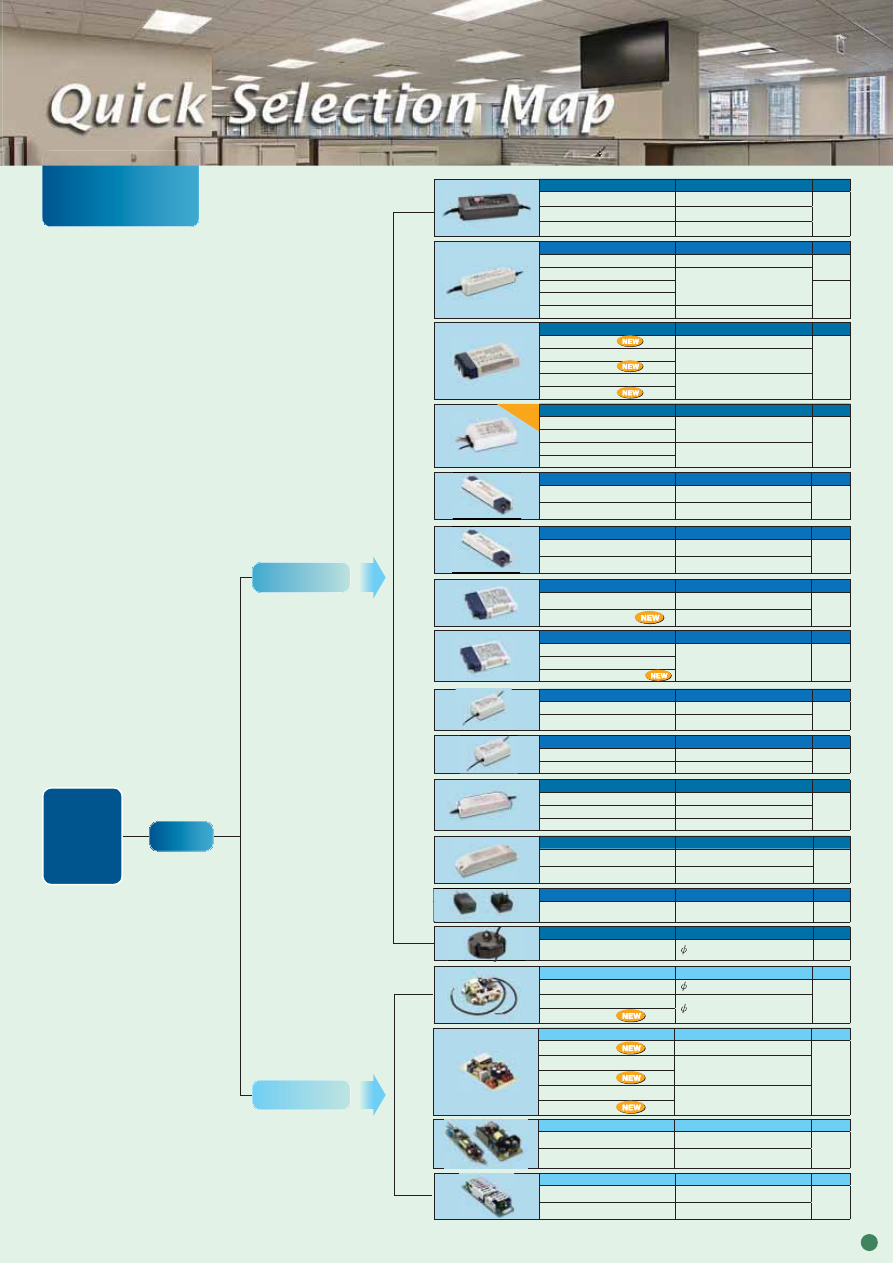

Quick Selection Map

74~77

Comparison Chart

78 ~80

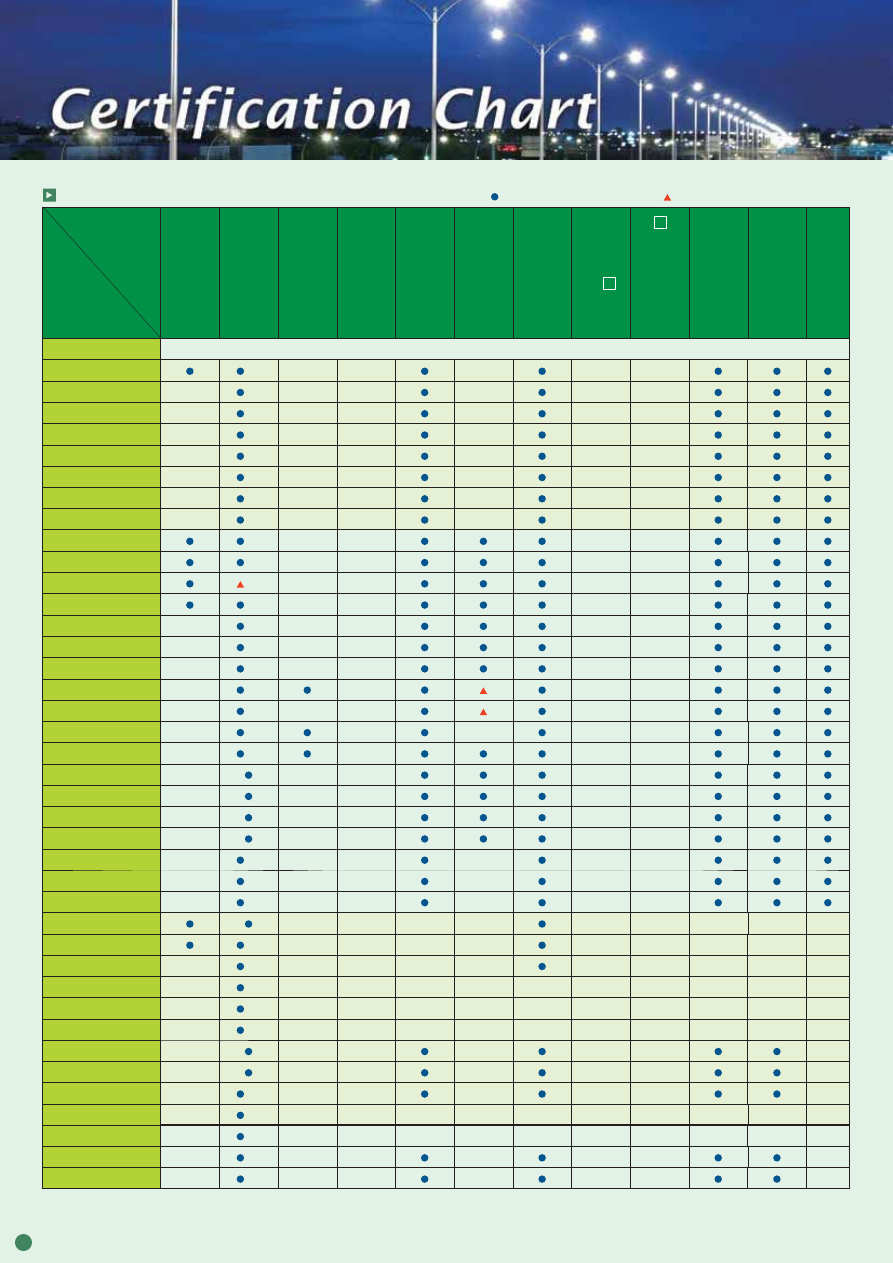

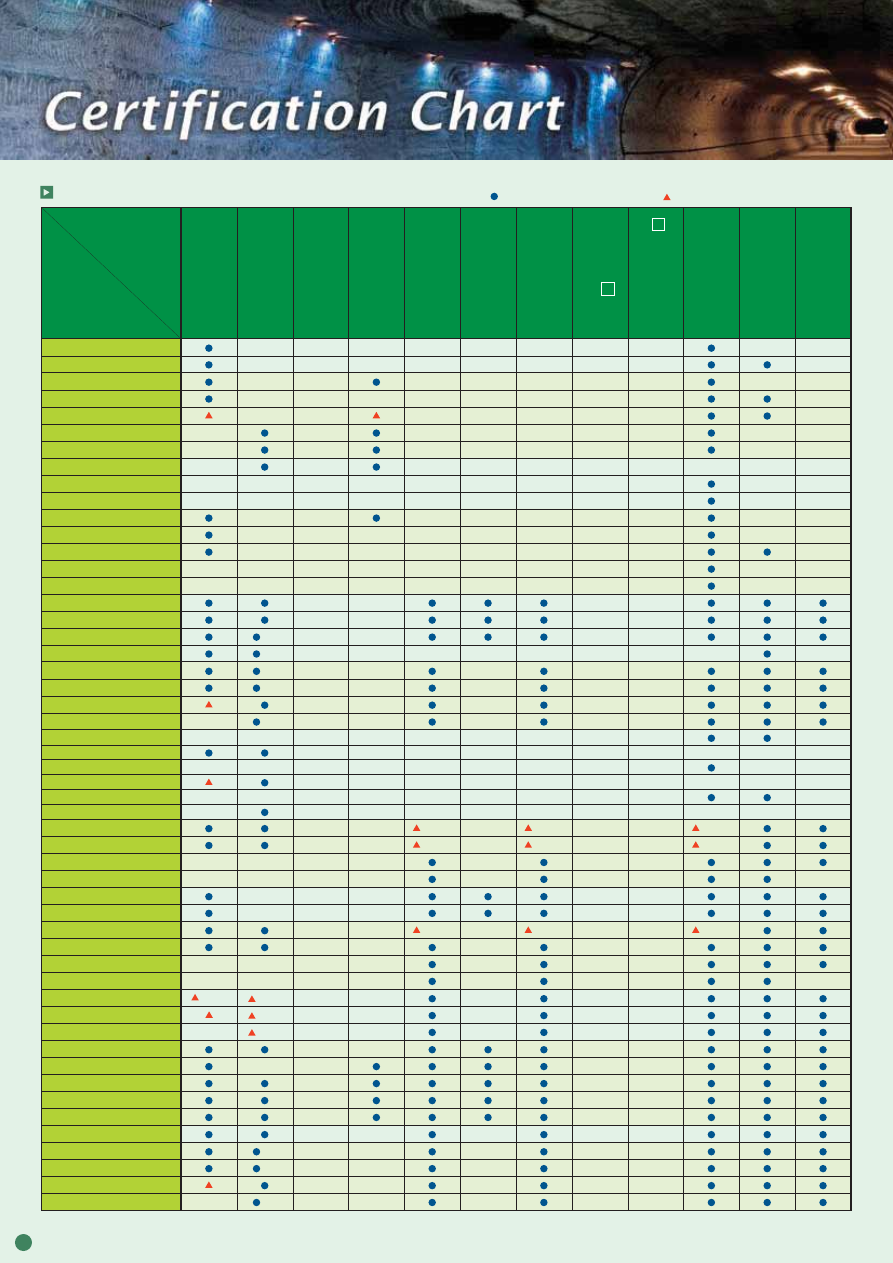

Certification Chart

81~83

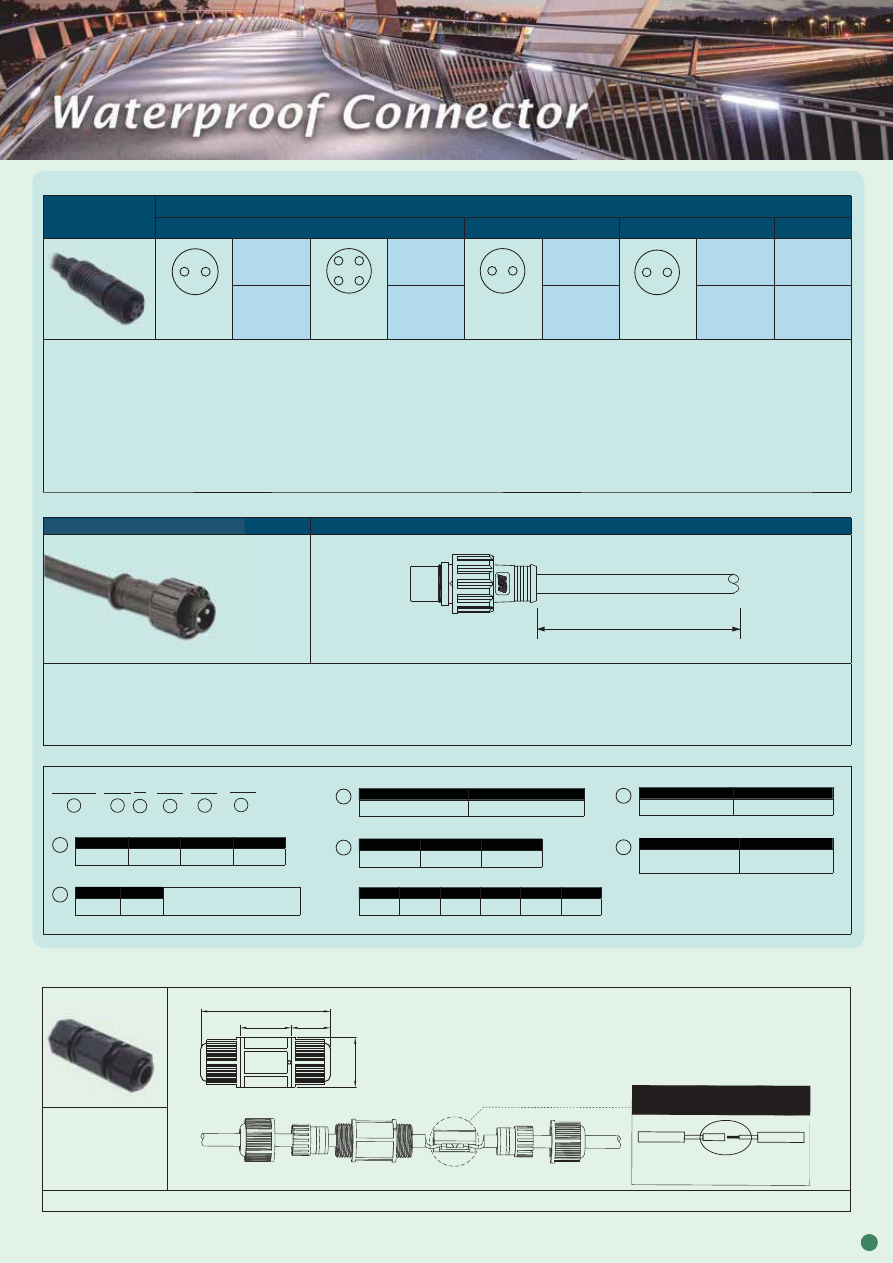

Waterproof Connector

PCB Type

(with PFC) 59

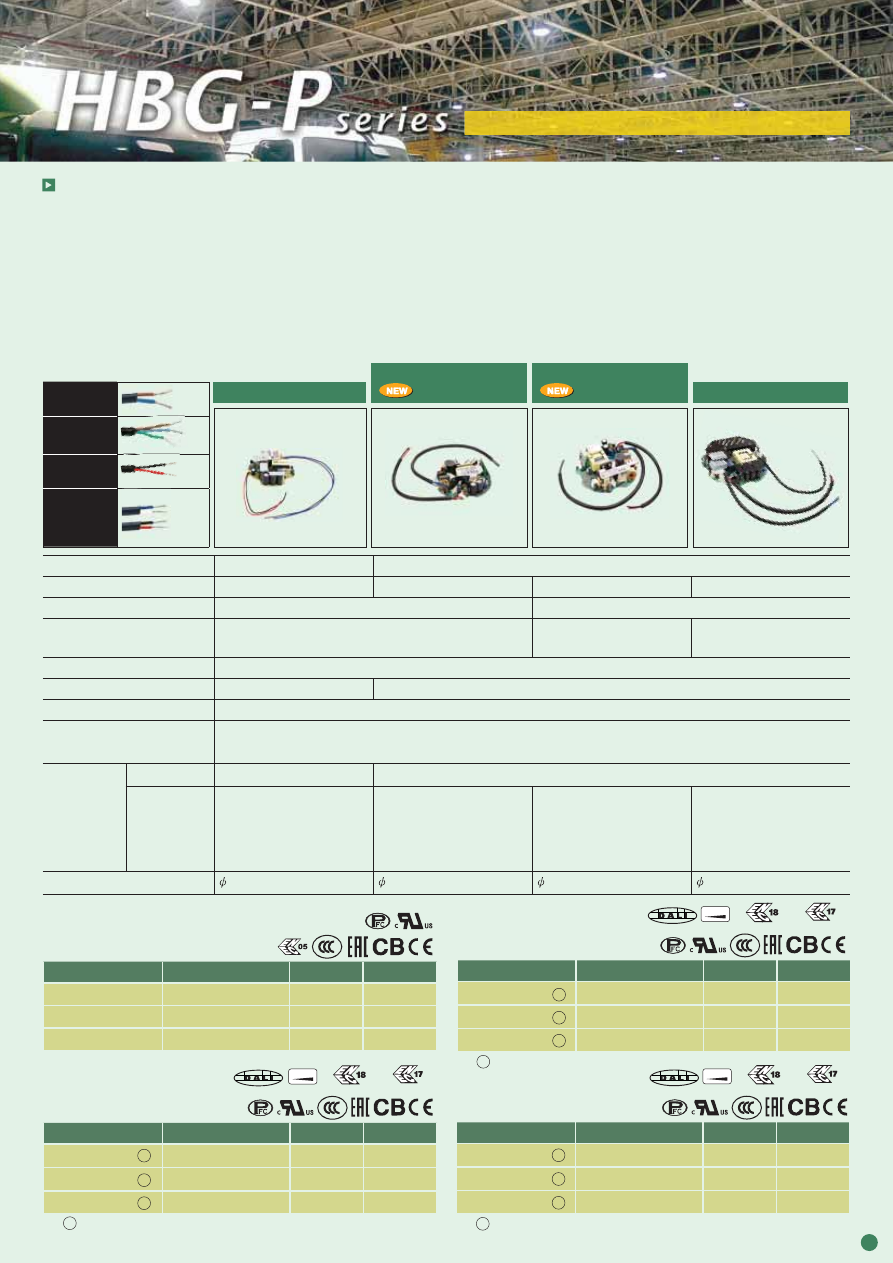

HBG-P

HBG-60-P, HBG-100P, HBG-100PDA

HBG-160P, HBG-160PDA

HBG-240P

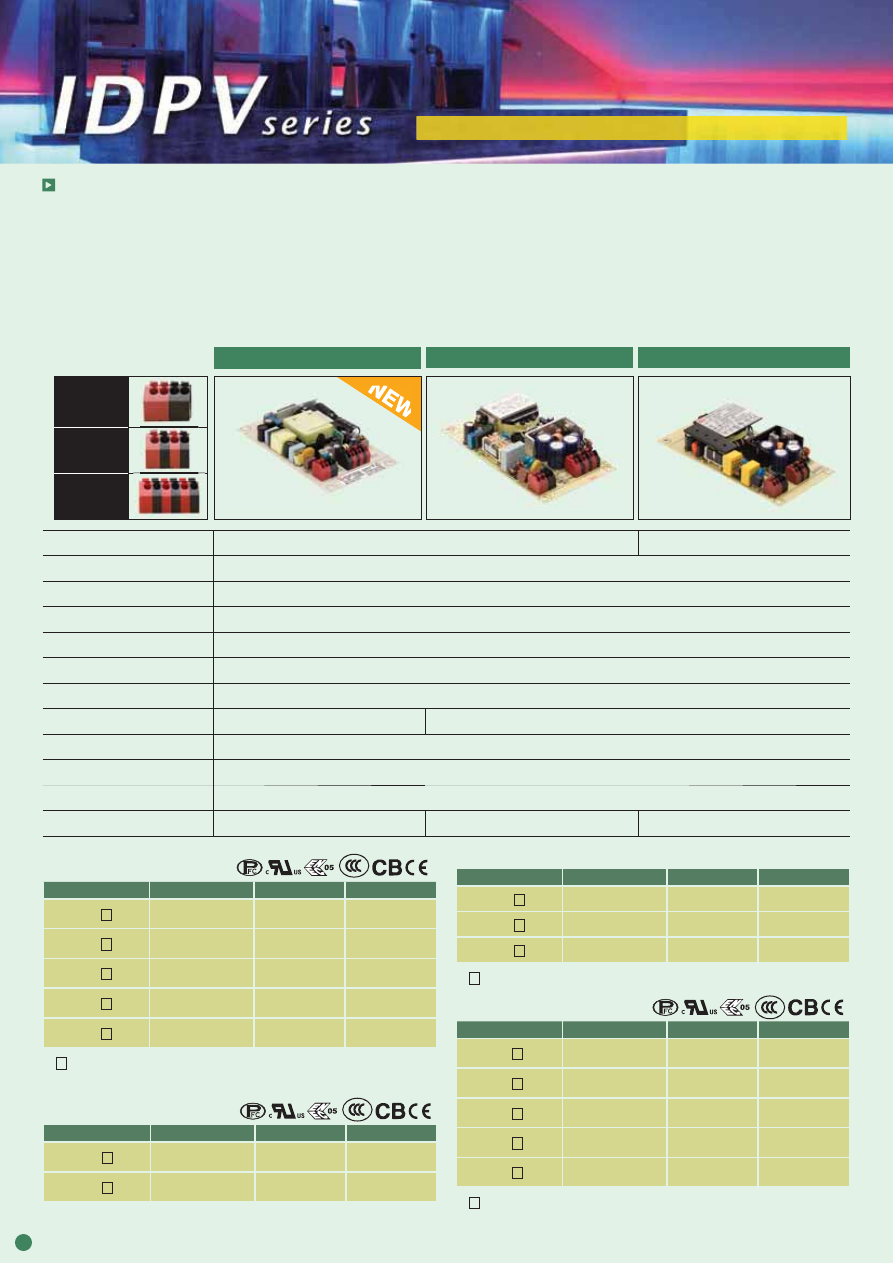

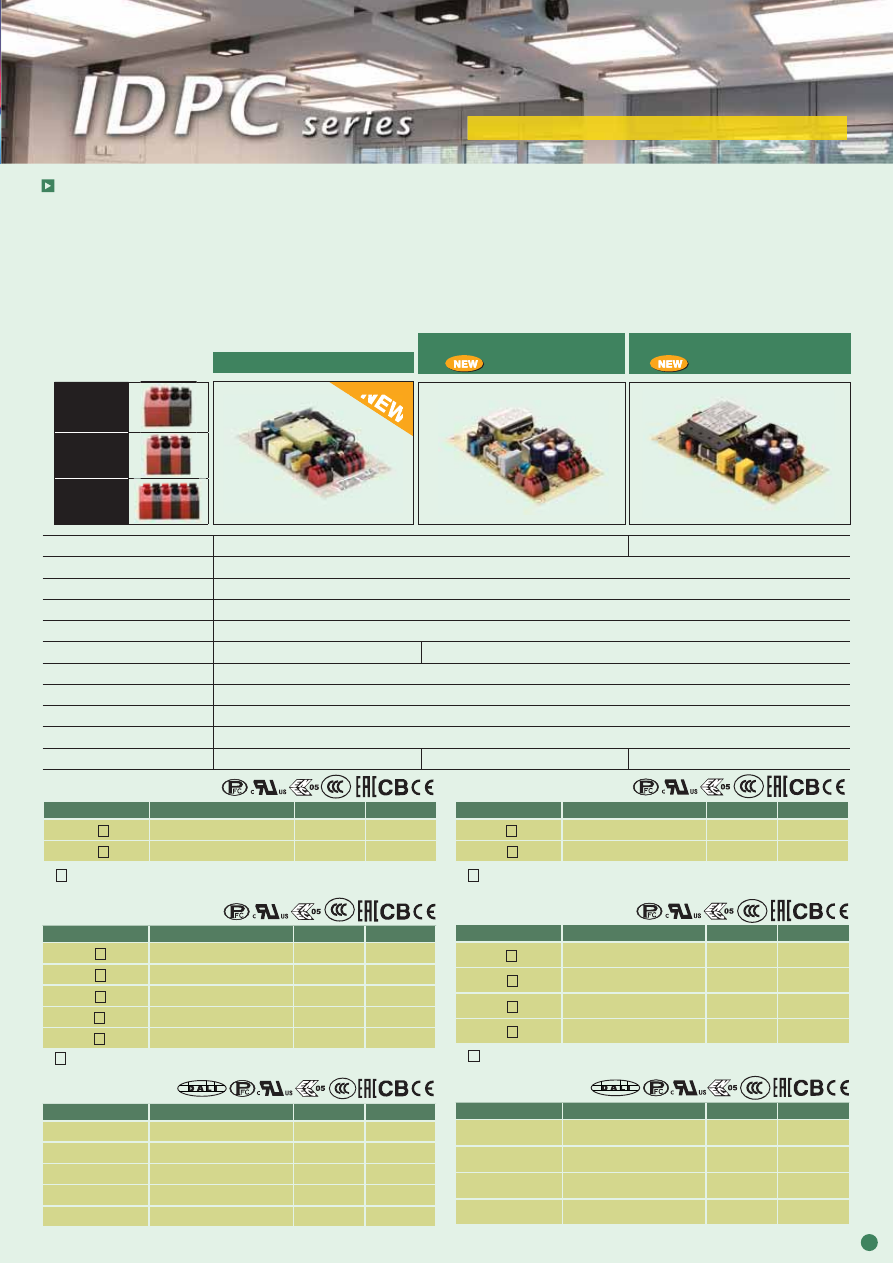

IDP

IDPV-25(A), IDPV-45(A), IDPV-65(A)

IDPC-25(A), IDPC-45(A), IDPC-45-DA

IDPC-65(A), IDPC-65-DA

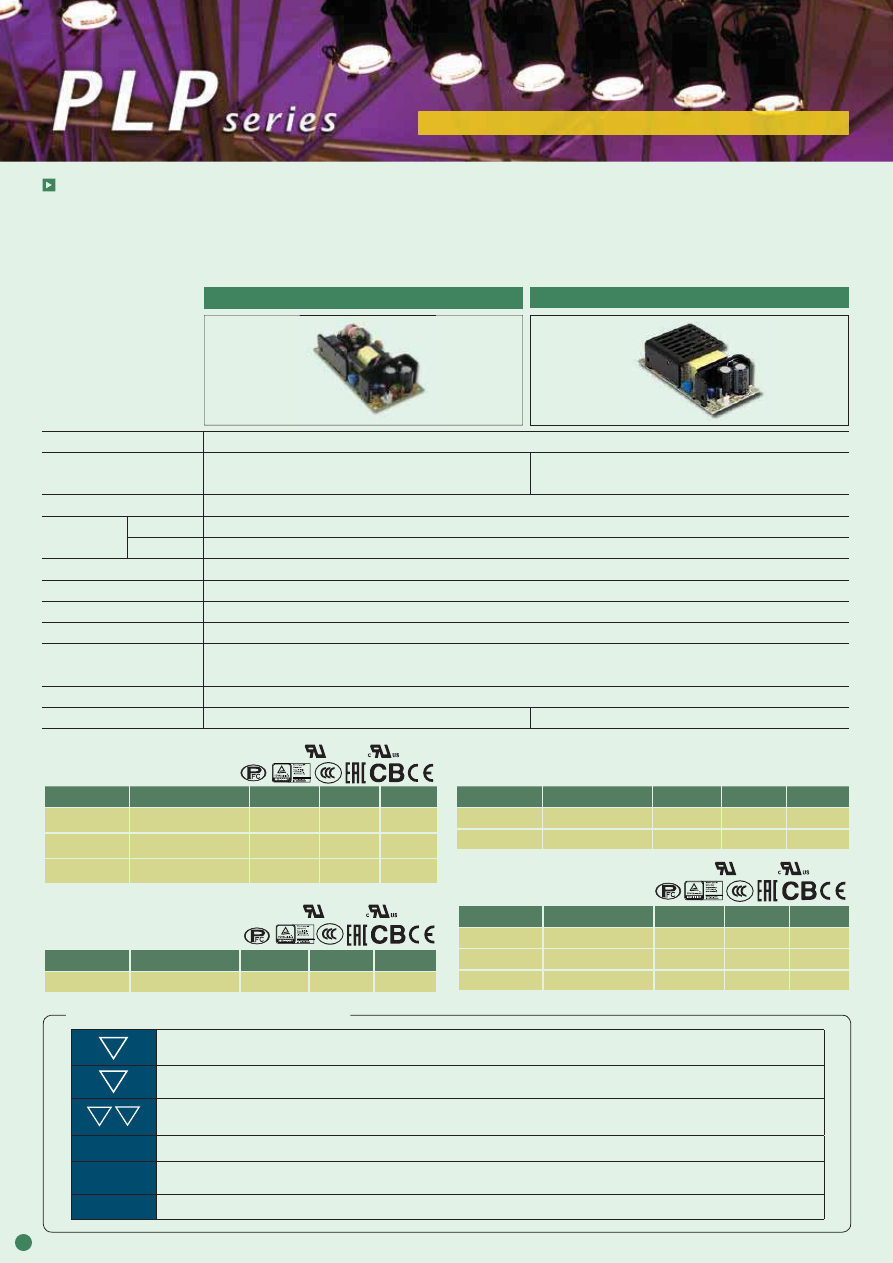

PLP

PLP-30, PLP-45, PLP-60

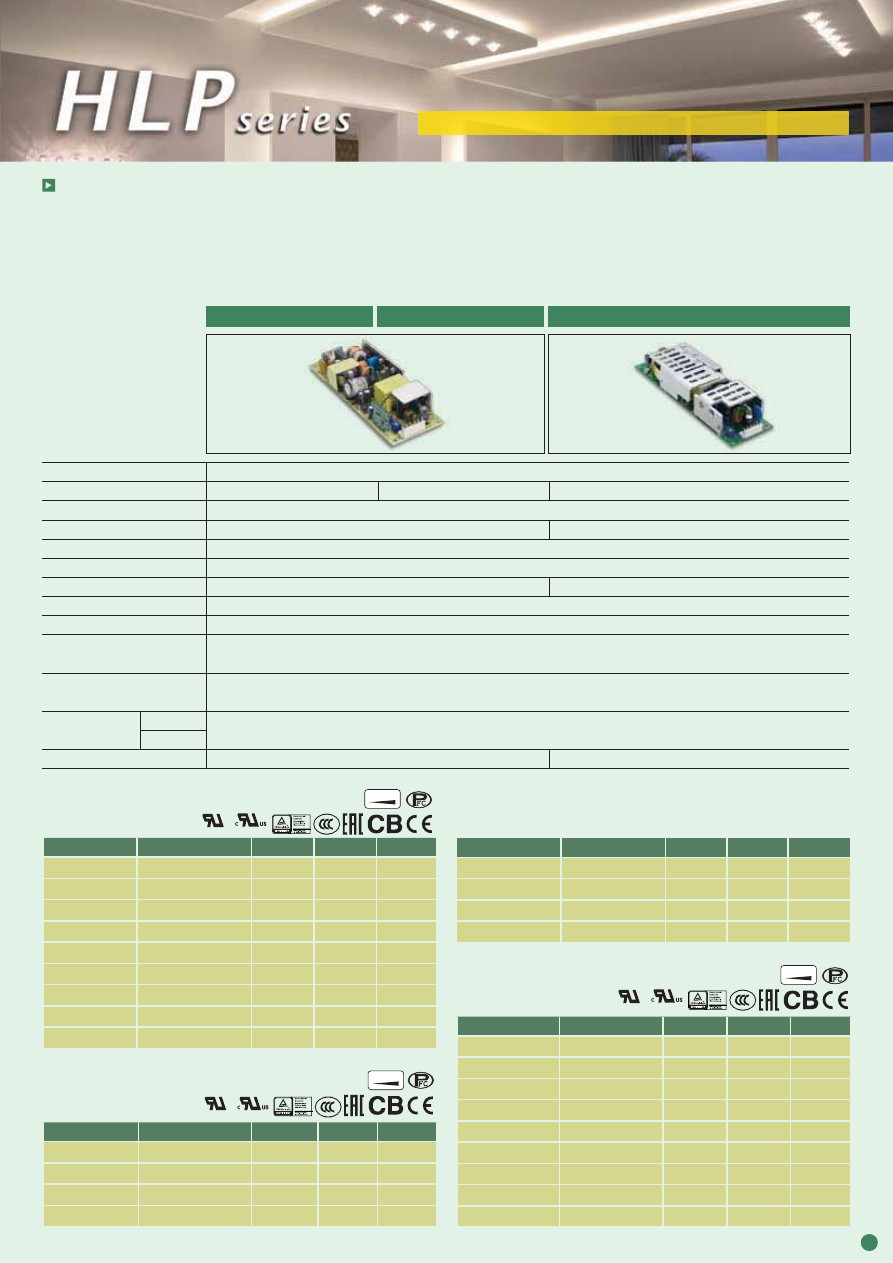

HLP

HLP-40H, HLP-60H, HLP-80H

: New Announced

: Coming Soon

: New Product within 2 Years

: Supplementary Information

: Premium Series

: The Best Cost-Performance Series

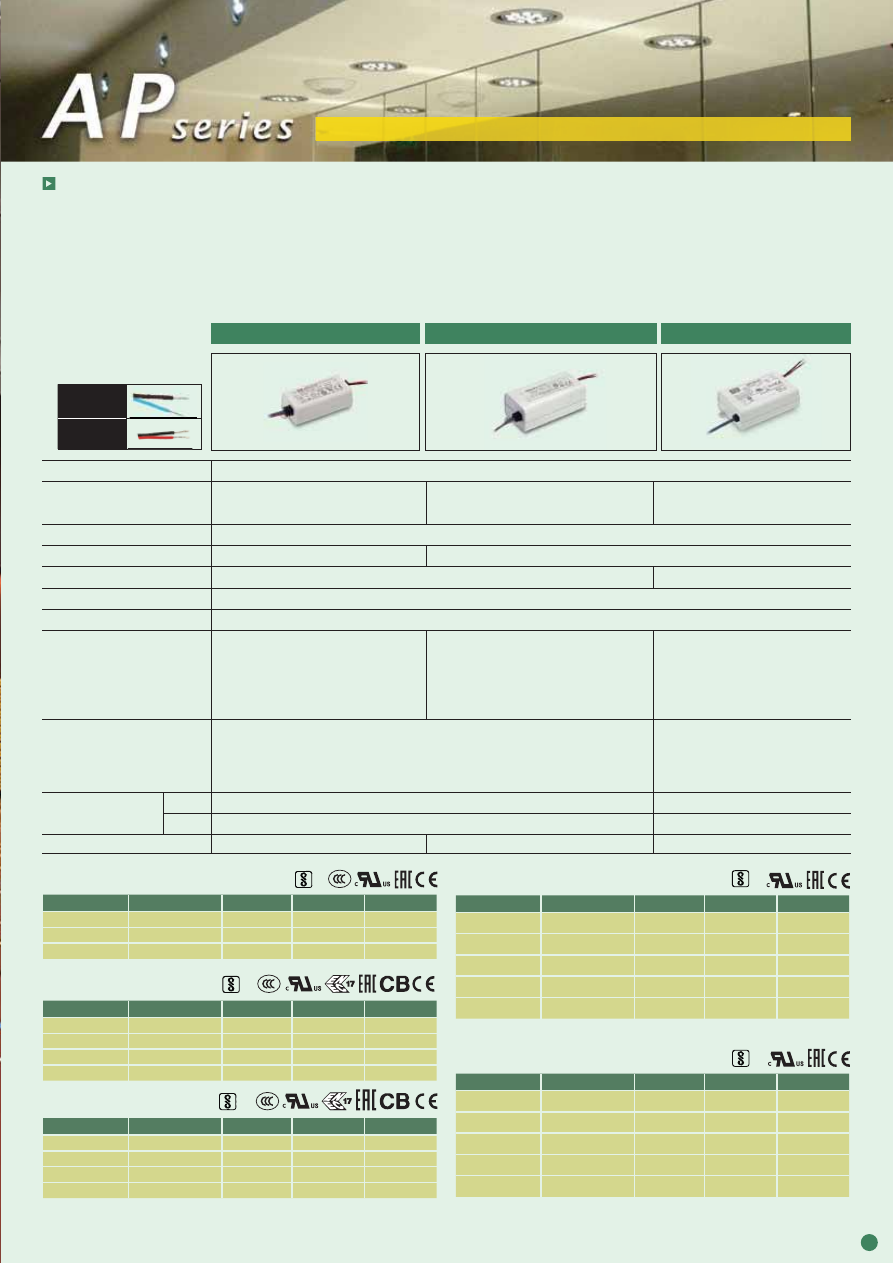

ocation

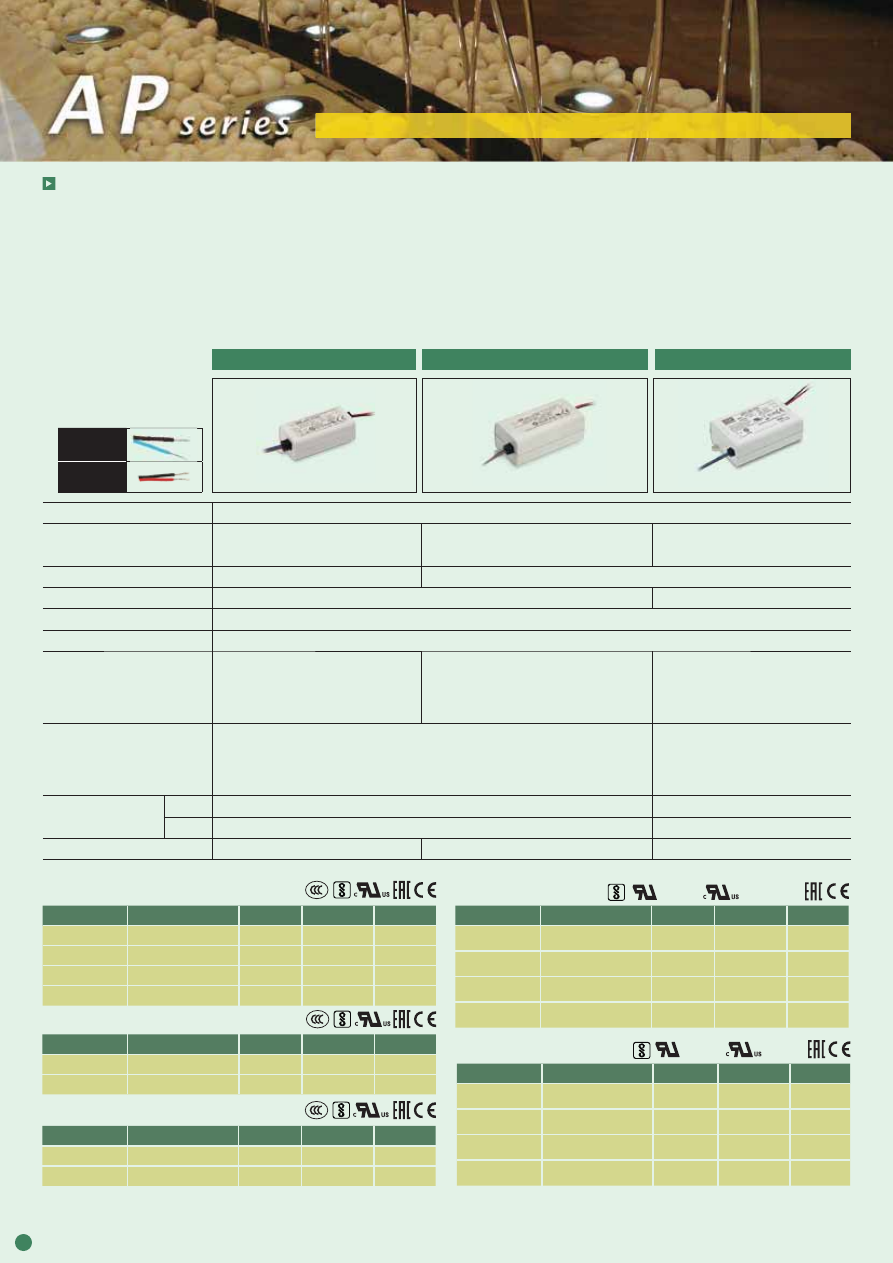

A P V - 8

A P V - 1 2 / 1 6

A P V - 2 5 / 3 5

INPUT

O U T P U T

Features

• Constant voltage mode

• Universal AC input / Full range
• No load power consumption <0.5W for APV-8
• Withstand 300VAC surge input for 5 seconds (APV-25/35)
• Fully isolated plastic case with IP42 level
• Isolation class

, no F.G.

AC input voltage range

90~264VAC ; 127~370VDC

AC inrush current (max.)

Cold start, 70A at 230VAC

APV-12: Cold start, 70A at 230VAC
APV-16: Cold start, 50A at 230VAC

Cold start, 45A at 230VAC

Overload protection

>105% rated output power (110% ~160% for APV-35) hiccup mode, auto-recovery

Over voltage protection

115%~135% rated output voltage

110%~145% rated output voltage

Withstand voltage

I/P-O/P: 3.75kVAC

I/P-O/P: 3kVAC

Working temperature

-30~+70

C (refer to output derating curve)

Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes

Safety standards

UL8750, EN61347-2-13 (LVD);
BIS IS15885(except for 5V);
EAC TP TC 004 approved;
Design refer to EN62368-1,
EN61347-1,-2-13; GB19510.14,
GB19510.1(optional)

UL8750, ENEC EN61347-1/2-13;
GB19510.14, GB19510.1, EAC TP
TC 004; BIS IS15885(except for 5V);
Design refer to EN62368-1

UL8750, EAC TP TC 004 approved,
BIS IS15885(except for 15V, 36V);
Design refer to EN62368-1

EMC standards

EN55032, EN61000-3-2 class A , EN61000-3-3, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11, EN61547; GB17743, GB17625.1(optional)

EN55032 class B,
EN61000-3-2 class A,
EN61000-3-3, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11

Connection

Input

UL rated, 18AWGx2C (15cm)

Output UL rated, 20AWGx2C (15cm)

UL rated, 18AWGx2C (15cm)

Dimension (LxWxH)(mm)

60x 30x 23.5

77x 40x 29

84x 57x 29.5

• Class 2 power unit / Pass LPS (except for APV-8)
• Low cost, high reliability
• Suitable for LED strip applications
• Protections: Short circuit / Overload / Over voltage
• 2 years warranty

APV-12 Series

APV-8 Series

APV-25 Series

APV-16 Series

APV-35 Series

Model No.

Output

Tol.

R&N

Effi.

APV-12-5

5V, 0~2A

±5%

100mV

76%

APV-12-12

12V, 0~1A

±5%

120mV

82%

APV-12-15

15V, 0~0.8A

±5%

120mV

82%

APV-12-24

24V, 0~0.5A

±5%

150mV

84%

Model No.

Output

Tol.

R&N

Effi.

APV-8-5

5V, 0~1.4A

±5%

250mV

74%

APV-8-12

12V, 0~0.67A

±5%

250mV

80%

APV-8-24

24V, 0~0.34A

±5%

300mV

81%

Model No.

Output

Tol.

R&N

Effi.

APV-25-5

5V, 0~3.5A

±5%

120mV

75.5%

APV-25-12

12V, 0~2.1A

±5%

150mV

82.0%

APV-25-15

15V, 0~1.68A

±5%

150mV

83.0%

APV-25-24

24V, 0~1.05A

±5%

150mV

83.0%

APV-25-36

36V, 0~0.7A

±5%

150mV

84.0%

Model No.

Output

Tol.

R&N

Effi.

APV-16-5

5V, 0~2.6A

±5%

100mV

76%

APV-16-12

12V, 0~1.25A

±5%

120mV

80%

APV-16-15

15V, 0~1.00A

±5%

120mV

81%

APV-16-24

24V, 0~0.67A

±5%

150mV

83%

Model No.

Output

Tol.

R&N

Effi.

APV-35-5

5V, 0~5A

±5%

120mV

76.5%

APV-35-12

12V, 0~3A

±5%

150mV

83.0%

APV-35-15

15V, 0~2.4A

±5%

150mV

84.0%

APV-35-24

24V, 0~1.5A

±5%

180mV

84.0%

APV-35-36

36V, 0~1.0A

±5%

180mV

85.0%

8~35W Rectangular Plastic Case

Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.

(optional)

(except for 5 V)

(except for 15/36V)

(except for 15 V)

(optional)

A P C - 8

A P C - 1 2 / 1 6

A P C - 2 5 / 3 5

INPUT

O U T P U T

Features

• Constant current mode

• Universal AC input / Full range
• No load power consumption <0.5W for APC-8
• Withstand 300VAC surge input for 5 seconds (APC-25/35)
• Fully isolated plastic case with IP42 level
• Isolation class

, no F.G.

• Class 2 power unit / Pass LPS

(except for APC-8, APC-25-350 and APC-35-350/500)

AC input voltage range

90~264VAC ; 127~370VDC

AC inrush current (max.)

Cold start,
70A at 230VAC

APC-12: Cold start, 70A at 230VAC
APC-16: Cold start, 45A at 230VAC

Cold start, 45A at 230VAC

Over voltage protection

None

110%~145% rated output voltage

Withstand voltage

I/P-O/P: 3.75kVAC

I/P-O/P: 3kVAC

Working temperature

-30~+70

C (refer to output derating curve)

Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes

Safety standards

UL8750, EAC TP TC 004,
BIS 15885 approved;
Design refer to EN62368-1,
EN61347-1, EN61347-2-13 (LVD);
GB19510.14, GB19510.1(optional)

UL8750, EAC TP TC 004,
BIS 15885 approved;
Design refer to TUV EN61347-1;
GB19510.14, GB19510.1(optional)

UL8750 (except for APC-25-350
& APC-35-350/500), EAC TP
TC 004, BIS IS15885 approved,
Design refer to EN62368-1(LVD)

EMC standards

EN61000-3-2 class A , EN61000-3-3, EN55032,
EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020; B17743/17625.1(optional)

EN55032 class B,
EN61000-3-2 class A,
EN61000-3-3, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11

Connection

Input

UL rated, 18AWGx2C (15cm)

Output UL rated, 20AWGx2C (15cm)

UL rated, 18AWGx2C (15cm)

Dimension (LxWxH)(mm)

60x 30x 23.5

77x 40x 29

84x 57x 29.5

• Low cost, high reliability
• Small and compact size
• Suitable for LED strip applications
• Protections:
Short circuit / Over voltage (except for APC-8)
• 2 years warranty

APC-12 Series

APC-25 Series

APC-8 Series

APC-16 Series

APC-35 Series

Model No.

Output

Tol.

R&N

Effi.

APC-12-350

9~36V, 350mA

±8%

300mV

82%

APC-12-700

9~18V, 700mA

±8%

250mV

80%

Model No.

Output

Tol.

R&N

Effi.

APC-25-350

25~70V, 350mA

±8%

300mV

83%

APC-25-500

15~50V, 500mA

±8%

300mV

83%

APC-25-700

11~36V, 700mA

±8%

300mV

83%

APC-25-1050

9~24V, 1050mA

±8%

300mV

83%

Model No.

Output

Tol.

R&N

Effi.

APC-8-250

16~32V, 250mA

±8%

350mV

82.5%

APC-8-350

11~23V, 350mA

±8%

300mV

81.5%

APC-8-500

8~16V, 500mA

±8%

300mV

81%

APC-8-700

6~11V, 700mA

±8%

250mV

80%

Model No.

Output

Tol.

R&N

Effi.

APC-16-350

12~48V, 350mA

±8%

300mV

84%

APC-16-700

9~24V, 700mA

±8%

250mV

83%

Model No.

Output

Tol.

R&N

Effi.

APC-35-350

28~100V,350mA

±8%

350mV

84%

APC-35-500

25~70V, 500mA

±8%

350mV

84%

APC-35-700

15~50V, 700mA

±8%

350mV

84%

APC-35-1050

11~33V, 1050mA

±8%

350mV

84%

8~35W Rectangular Plastic Case

(for 700 & 1050mA)

(for 1050mA)

(for 500mA)

(for 700mA)

Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.

(optional)

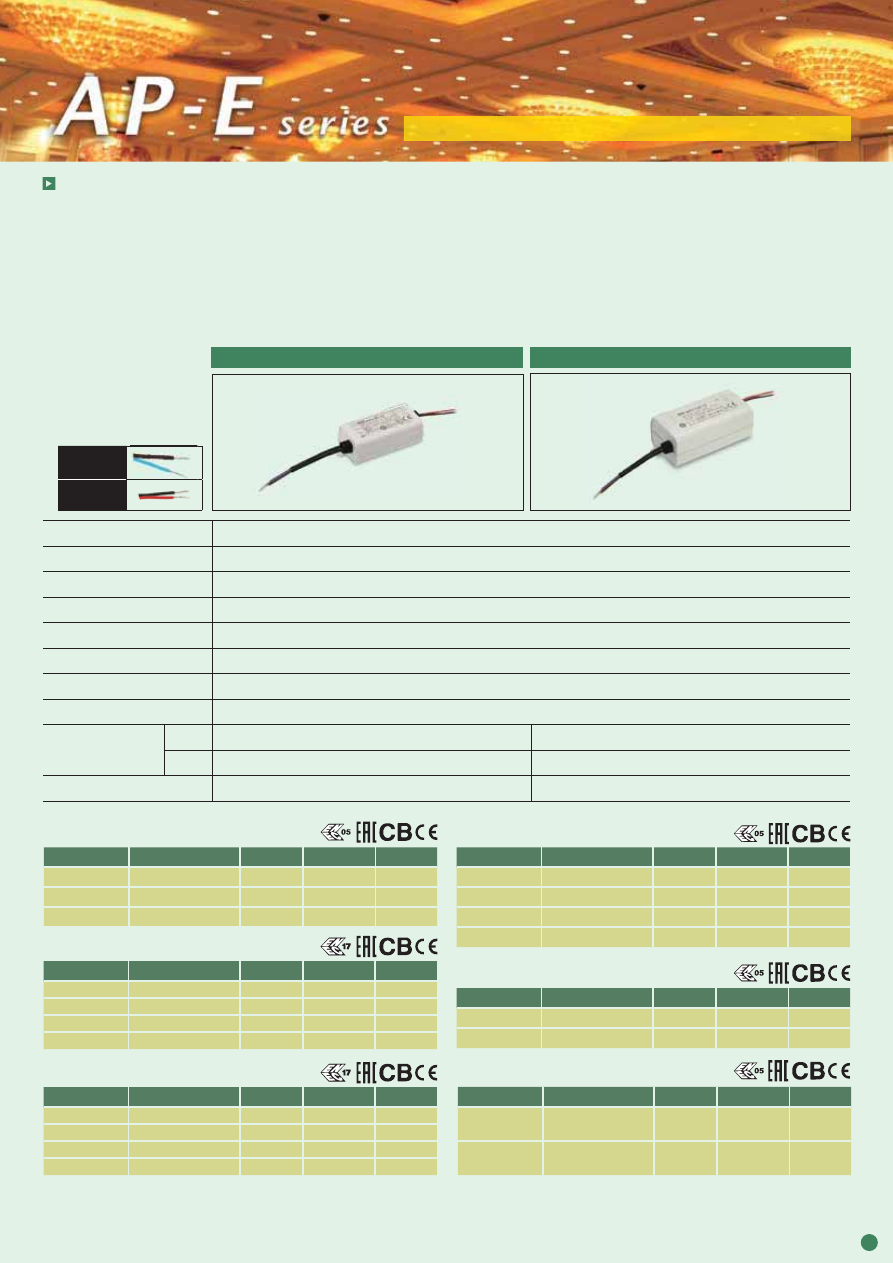

A P V / A P C - 8 E

A P V / A P C - 1 2 E / 1 6 E

INPUT

O U T P U T

8 ~ 1 6 W R e c t a n g u l a r P l a s t i c C a s e

Features

• Constant voltage mode for APV-E series
Constant current mode for APC-E series
• 180~264VAC input only

• No load power consumption<0.5W
• Fully isolated plastic case
• Isolation class

, no F.G.

AC input voltage range

180 ~ 264VAC ; 254 ~ 370VDC

AC inrush current (max.)

Cold start, 70A at 230VAC (50A for APV-16E, 45A for APC-16E)

Over voltage protection

115%~135% rated output voltage (except for APC-8E)

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

-30~+70

C (refer to output derating curve)

Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes

Safety standards

ENEC EN61347-1,EN61347-2-13, EN62384, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class A , EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EAC TP TC 020

Connection

Input

H03VVH2-F 0.75mm

x2C (15cm)

H03VVH2-F 0.75mm

x2C (15cm)

Output UL rated, 20AWGx2C (15cm)

UL rated, 20AWGx2C (15cm)

Dimension (LxWxH)(mm)

60x 30x 23.5

77x 40x 29

• Low cost, high reliability
• Suitable for LED strip applications
• Protections:
Short circuit / Overload (APV-E series only) / Over voltage
(except for APC-8E)
• 2 years warranty

APC-12E Series

APC-8E Series

APV-12E Series

APV-16E Series

APV-8E Series

APC-16E Series

Model No.

Output

Tol.

R&N

Effi.

APC-12E-350

9~36V, 350mA

±8%

300mV

81.0%

APC-12E-700

9~18V, 700mA

±8%

250mV

79.0%

Model No.

Output

Tol.

R&N

Effi.

APC-8E-250

16~32V, 250mA

±8%

350mV

81.5%

APC-8E-350

11~23V, 350mA

±8%

300mV

80.5%

APC-8E-500

8~16V, 500mA

±8%

300mV

79.0%

APC-8E-700

6~11V, 700mA

±8%

250mV

77.5%

Model No.

Output

Tol.

R&N

Effi.

APV-12E-5

5V, 0~2A

±5%

100mV

75.0%

APV-12E-12

12V, 0~1A

±5%

120mV

81.0%

APV-12E-15

15V, 0~0.8A

±5%

120mV

81.0%

APV-12E-24

24V, 0~0.5A

±5%

150mV

83.0%

Model No.

Output

Tol.

R&N

Effi.

APV-16E-5

5V, 0~2.6A

±5%

100mV

75.0%

APV-16E-12

12V, 0~1.25A

±5%

120mV

79.0%

APV-16E-15

15V, 0~1A

±5%

120mV

80.0%

APV-16E-24

24V, 0~0.67A

±5%

150mV

82.0%

Model No.

Output

Tol.

R&N

Effi.

APV-8E-5

5V, 0~1.4A

±5%

250mV

74.0%

APV-8E-12

12V, 0~0.67A

±5%

250mV

77.5%

APV-8E-24

24V, 0~0.34A

±5%

300mV

78.5%

Model No.

Output

Tol.

R&N

Effi.

APC-16E-350

12~48V, 350mA

±8%

300mV

83.0%

APC-16E-700

9~24V, 700mA

±8%

250mV

82.0%

L P L - 1 8

L P H - 1 8

L P V - 2 0

L P V - 3 5

I N P U T

O U T P U T

Features

• Constant voltage mode

• LPL-18: 90~132VAC input only

LPH-18: 180~264VAC input only
LPV: 90~264VAC input

• Withstand 300VAC surge input for 5 seconds (LPV-20/35)

• Fully encapsulated with IP67 level

• Isolation class

, no F.G.

AC input voltage range

90~132VAC

180~264VAC

90~264VAC

AC inrush current (max.)

Cold start,
40A at 115VAC

Cold start,
50A at 230VAC

Cold start,
70A at 230VAC

Cold start,
55A at 230VAC

Overload
Protection

Range

>105%

110%~150%

Type

Hiccup mode, auto-recovery

Over voltage protection

115%~135% rated output voltage

Withstand voltage

I/P-O/P: 3kVAC

Working temperature

-30~+70

-30~+65

Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes

Safety standards

TUV EN62368-1, EAC TP TC 004, BIS IS15885
(except for LPL-18, LPH-18-36) approved for LPH-18

LPV-20: TUV EN62368-1, UL879, UL1310, EAC TP TC 004 approved
LPV-35: UL1310, IEC62368-1, EAC TP TC 004 approved

EMC standards

EN55032 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020,
FCC part 15 class B (LPL-18)

Connection

Input

UL rated,18AWGx2C (30cm)

UL rated,

18AWGx2C (60cm)

UL rated, 18AWGx2C (60cm)

Output

UL rated, 16AWGx2C (60cm)

Dimension (LxWxH)(mm)

140x 30x 22

118x 35x 26

148x 40x 30

• Class 2 power unit / Pass LPS
• Low cost, high reliability
• Suitable for LED-based decorative/architectural lighting,

LED stage, theater lighting, and LED electronic displays

• Protections: Short circuit / Overload / Over voltage /
Over temperature (LPH-18/LPL-18 only)
• 2 years warranty

LPV-35 Series

LPH-18 Series

LPV-20 Series

Model No.

Output

Tol.

R&N

Effi.

LPH-18-12

12V, 0~1.5A

±3%

120mV

77%

LPH-18-24

24V, 0~0.75A

±3%

150mV

82%

LPH-18-36

36V, 0~0.5A

±3%

200mV

83%

Model No.

Output

Tol.

R&N

Effi.

LPV-20-5

5V, 0~3A

±5%

80mV

77%

LPV-20-12

12V, 0~1.67A

±5%

120mV

81%

LPV-20-15

15V, 0~1.33A

±5%

120mV

83%

LPV-20-24

24V, 0~0.84A

±5%

150mV

83%

Model No.

Output

Tol.

R&N

Effi.

LPV-35-5

5V, 0~5A (peak 6A)

±6%

80mV

77%

LPV-35-12

12V, 0~3A

±5%

120mV

84%

LPV-35-15

15V, 0~2.4A

±5%

120mV

84%

LPV-35-24

24V, 0~1.5A

±5%

150mV

85%

LPV-35-36

36V, 0~1A

±5%

150mV

85%

LPL-18 Series

Model No.

Output

Tol.

R&N

Effi.

LPL-18-12

12V, 0~1.5A

±3%

120mV

80%

LPL-18-24

24V, 0~0.75A

±3%

150mV

83%

LPL-18-36

36V, 0~0.5A

±3%

200mV

84%

(LVD)

Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.

18~35W Slim Type Plastic Case

(except for 36V)

L P V - 6 0

L P V - 1 0 0

L P V - 1 5 0

L P V L - 1 5 0

I N P U T

LPV-60/100

LPV/LPVL-150

O U T P U T

LPV-60/100

LPV/LPVL-150

Features

• Constant voltage mode

• LPV-60/100: 90~264VAC input

LPV-150: 180~305VAC input only
LPVL-150: 90~132VAC input only

• Withstand 300VAC surge input for 5 seconds (LPV-60/100)

• Fully encapsulated with IP67 level

• Isolation class

, no F.G.

• Class 2 power unit / Pass LPS (LPV-60-12/15/24/36/48 only)

AC input voltage range

90~264VAC; 127~370VDC

LPV-150: 180~305VAC; 254~431VDC
LPVL-150: 90~132VAC; 127~370VDC

AC inrush current (max.)

Cold start, 60A at 230VAC

Cold start, 75A at 230VAC

LPV-150: Cold start, 60A at 230VAC
LPVL-150: Cold start, 75A at 115VAC

Overload protection

110%~150% hiccup mode, auto-recovery

Over voltage protection

115%~135% rated output voltage

Withstand voltage

I/P-O/P: 3kVAC

Working temperature

-30~+70

-25~+70

C -25~+65

Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes

Safety standards

UL879 (except for LPV-60-5),
UL1310 (except for LPV-60-5),
EAC TP TC 004 approved

UL8750, UL879, EAC TP TC 004 approved;
Design refer to EN62368-1

EMC standards

EN55032 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020;
FCC part 15 for LPVL-150 only

Connection

Input

UL rated, 18AWGx2C (60cm)

UL rated, 18AWGx2C (30cm)

UL rated, SJTW 18AWGx2C (30cm)

Output

UL rated, 16AWGx2C (60cm)

UL rated, 14AWGx2C (30cm)

UL rated, SJTW 14AWGx2C (30cm)

Dimension (LxWxH)(mm)

162.5x 42.5x 32

190x 52x 37

191x 63x 37.5

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires (LPVL-150 only)

• Low cost, high reliability
• Suitable for LED-based decorative/architectural lighting,

LED stage, theater lighting, and LED electronic displays

• Protections: Short circuit / Overload / Over voltage /
Over temperature (LPV-150, LPVL-150 only)
• 2 years warranty

LPV-60 Series

LPV-100 Series

LPV/LPVL-150 Series

Model No.

Output

Tol.

R&N

Effi.

LPV-60-5

5V, 0~8A

±8%

80mV

76%

LPV-60-12

12V, 0~5A

±5%

120mV

83%

LPV-60-15

15V, 0~4A

±5%

120mV

83%

LPV-60-24

24V, 0~2.5A

±5%

150mV

86%

LPV-60-36

36V, 0~1.67A

±5%

150mV

86%

LPV-60-48

48V, 0~1.25A

±5%

150mV

86%

Model No.

Output

Tol.

R&N

Effi.

LPV-100-5

5V, 0~12A

±8%

80mV

80%

LPV-100-12

12V, 0~8.5A

±5%

120mV

85%

LPV-100-15

15V, 0~6.7A

±5%

120mV

87%

Model No.

Output

Tol.

R&N

Effi.

LPV-100-24

24V, 0~4.2A

±5%

150mV

88%

LPV-100-36

36V, 0~2.8A

±5%

150mV

88%

LPV-100-48

48V, 0~2.1A

±5%

150mV

89%

Model No.

Output

Tol.

R&N

Effi.

LPV -150-12

12V, 0~10A

±5%

200mV

87%

LPV-150-15

15V, 0~8A

±5%

200mV

88%

LPV -150-24

24V, 0~6.3A

±5%

200mV

89%

LPV-150-36

36V, 0~4.2A

±5%

200mV

89%

LPV-150-48

48V, 0~3.2A

±5%

200mV

90%

=Blank, L ;

Blank: AC input range 180~305VAC, L: AC input range 90~132VAC

(for 48V only)

(for 12~36V)

Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.

(LPVL-150 only)

(LPV-150) (LPVL-150)

60~150W Slim Type Plastic Case

L P C - 3 5

L P C - 2 0

L P L C - 1 8

L P H C - 1 8

I N P U T

O U T P U T

LPLC-18 Series

LPHC-18 Series

LPC-20 Series

LPC-35 Series

Features

• Constant current mode

• LPL C -18: 90~132VAC input only
LPHC-18: 180~264VAC input only
LPC-20/35: 90~264VAC input
• Withstand 300VAC surge input for 5 seconds

(only for LPC-20/35)

• Fully encapsulated with IP67 level

• Isolation class

, no F.G.

Model No.

Output

o Tol.

R&N

Effi.

LPLC-18-350

6~48V, 350mA

±8%

300mV

82%

LPLC-18-700

6~25V, 700mA

±8%

250mV

80%

Model No.

Output

o Tol.

R&N

Effi.

LPHC-18-350

6~48V, 350mA

±8%

300mV

80%

LPHC-18-700

6~25V, 700mA

±8%

250mV

80%

Model No.

Output

o Tol.

R&N

Effi.

LPC-20-350

9~48V, 350mA

±5%

200mV

83%

LPC-20-700

9~30V, 700mA

±5%

200mV

83%

Model No.

Output

o Tol.

R&N

Effi.

LPC-35-700

9~48V, 700mA

±5%

200mV

85%

LPC-35-1050

9~30V, 1050mA

±5%

200mV

85%

LPC-35-1400

9~24V, 1400mA

±5%

200mV

85%

AC input voltage range

90~132VAC

180~264VAC

90~264VAC

AC inrush current (max.)

Cold start,
40A at 115VAC

Cold start,
50A at 230VAC

Cold start,
70A at 230VAC

Cold start,
55A at 230VAC

Over voltage protection

105%~135% rated output voltage

Withstand voltage

I/P-O/P: 3kVAC

Working temperature

-30~+70

Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes

Safety standards

Design refer to UL1310,
TUV EN62368-1, EAC TP TC 004

LPC-20: UL1310, UL879, TUV EN62368-1, EAC TP TC 004 approved
LPC-35: UL1310, EAC TP TC 004 approved

EMC standards

FCC part 15 class A (LPLC-18),
EN55032 class A, EN61000-3-2
class A, EN61000-3-3, EAC TP TC
020, EN61000-4-2,3,4,5,6,8,11

EN55032 class B, EN61000-3-2 class A, EN61000-3-3, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11

Connection

Input

UL rated, 18AWGx2C (30cm)

UL rated, 18AWGx2C (60cm)

Output

UL rated, 16AWGx2C (60cm)

Dimension (LxWxH)(mm)

140x 30x 22

118x 35x 26

148x 40x 30

• Class 2 power unit / Pass LPS
• Low cost, high reliability
• Suitable for LED-based decorative / architectural lighting,

LED stage, theater lighting, and LED electronic displays

• Protections: Short circuit / Over voltage /
Over temperature (except for LPC-20/35)
• 2 years warranty

(LVD)

(for 350mA)

(for 700mA)

(for 1050mA & 1400mA)

Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.

18~35W Slim Type Plastic Case

L P C - 6 0

L P C - 1 5 0

L P C - 1 0 0

I N P U T

60W / 100W

150W

O U T P U T

60W / 100W

150W

LPC-60 Series

LPC-100 Series

LPC-150 Series

Features

• Constant current mode

• LPC-60/100: 90~264VAC input

LPC-150: 180~305VAC input only

• High efficiency up to 90%

• Fully encapsulated with IP67 level

• Isolation class

, no F.G.

• Class 2 power unit / Pass LPS (LPC-60)

Model No.

Output

o Tol.

R&N

Effi.

LPC-60-1050

9~48V, 1050mA

±5%

200mV

87%

LPC-60-1400

9~42V, 1400mA

±5%

200mV

85%

LPC-60-1750

9~34V, 1750mA

±5%

200mV

87%

Model No.

Output

o Tol.

R&N

Effi.

LPC-100-350

143~286V, 350mA

±5%

1.5V

90%

LPC-100-500

100~200V, 500mA

±5%

1.5V

90%

LPC-100-700

72~143V, 700mA

±5%

1.0V

90%

LPC-100-1050

48~96V, 1050mA

±5%

1.0V

90%

LPC-100-1400

36~72V, 1400mA

±5%

1.0V

89.5%

LPC-100-1750

29~58V, 1750mA

±5%

1.0V

89.5%

LPC-100-2100

24~48V, 2100mA

±5%

1.0V

89%

Model No.

Output

o Tol.

R&N

Effi.

LPC-150-350

215~430V, 350mA

±5%

2.0V

90%

LPC-150-500

150~300V, 500mA

±5%

1.5V

90%

LPC-150-700

107~215V, 700mA

±5%

1.0V

90%

LPC-150-1050

72~144V, 1050mA

±5%

1.0V

90%

LPC-150-1400

54~108V, 1400mA

±5%

1.0V

90%

LPC-150-1750

43~86V, 1750mA

±5%

1.0V

90%

LPC-150-2100

36~72V, 2100mA

±5%

1.0V

90%

LPC-150-2450

31~62V, 2450mA

±5%

1.0V

90%

LPC-150-2800

27~54V, 2800mA

±5%

1.0V

90%

LPC-150-3150

24~48V, 3150mA

±5%

1.0V

90%

AC input voltage range

90~264VAC; 127~370VDC

180~305VAC; 254~431VDC

AC inrush current (max.)

Cold start, 60A at 230VAC

Cold start, 75A at 230VAC

Cold start, 40A at 230VAC

Over voltage protection

105%~135%

110%~135%

Withstand voltage

I/P-O/P: 3kVAC

Working temperature

-30~+70

-25~+50

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety standards

UL1310, EAC TP TC 004 approved EN62368-1(LVD), EAC TP TC 004 approved

EMC standards

EN55032 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020

Connection

Input

UL rated, 18AWG x2C (60cm)

UL rated, 18AWG x2C (30cm)

UL rated, SJTW 18AWG x2C (30cm)

Output

UL rated, 16AWG x2C (60cm)

UL rated, 18AWG x2C (30cm)

UL rated, SJTW 18AWG x2C (30cm)

Dimension (LxWxH)(mm)

162.5x 42.5x 32

190x 52x 37

191x 63x 37.5

• Low cost, high reliability
• Suitable for LED-based decorative / architectural lighting,
LED stage, theater lighting, and LED electronic displays
• Protections: Short circuit / Over voltage /

Over temperature (LPC-150 only)

• 2 years warranty

(for 1750mA)

(for 1050mA & 1400mA)

Note: The models on this page might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of
the model of interest.

60~150W Slim Type Plastic Case

I N P U T

O U T P U T

(NPF-40D/60D)

O U T P U T

(NPF-40/60/90/120)

O U T P U T

(NPF-90D/120D)

(NPF-90D/1

ACL

ACN

Vo+

DIM+

Vo+

DIM

Features

•

Constant voltage+constant current modes

(D-Type: Constant current mode only)

• Universal AC input (up to 305VAC) / Full range

• High efficiency up to 90%

• No load power consumption <0.15W (<0.5W for D-Type)

• Fully isolated plastic case with IP67 level

• Isolation class

, no F.G.

• Class 2 power unit [except for NPF-90(D)-12/15 & NPF-120(D)]

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires [except for NPF-90(D)]

• D-Type: Built-in 3 in 1 dimming function

(0~10VDC, PWM signal or resistance)

• BE-Type: Built-in 3 in 1 dimming function (0~10VDC, PWM

signal or resistance) and

12V/200mA auxiliary output

for 120W only

• Suitable for dry, damp, and wet location

• Protections:

Short circuit / Over current / Over voltage / Over temperature

• 5 years warranty

N P F - 4 0 ( D ) / 6 0 ( D )

N P F - 1 2 0 ( D )

NPF-40 Series

NPF-60 Series

NPF-120 Series

Model No.

Output

Tol.

R&N

o Ripple

(D-Type)

Effi.

NPF-40

-12

12V, 0~3.34A

±4%

150mV

86%

NPF-40

-15

15V, 0~2.67A

±4%

150mV

87%

NPF-40

-20

20V, 0~2A

±4%

150mV

88%

NPF-40

-24

24V, 0~1.67A

±3%

150mV

89%

NPF-40

-30

30V, 0~1.34A

±3%

200mV

89%

NPF-40

-36

36V, 0~1.12A

±2%

200mV

90%

NPF-40

-42

42V, 0~0.96A

±1%

200mV

90%

NPF-40

-48

48V, 0~0.84A

±1%

200mV

90%

NPF-40

-54

54V, 0~0.76A

±1%

350mV

90%

Model No.

Output

Tol.

R&N

o Ripple

(D-Type)

Effi.

NPF-90

-12

12V, 0~7.5A

±4%

150mV

88%

NPF-90

-15

15V, 0~6A

±4%

150mV

89%

NPF-90

-20

20V, 0~4.5A

±4%

150mV

90%

NPF-90

-24

24V, 0~3.75A ±3%

150mV

90%

NPF-90

-30

30V, 0~3A

±3%

200mV

89%

NPF-90

-36

36V, 0~2.5A

±2%

200mV

90%

NPF-90

-42

42V, 0~2.15A ±1%

250mV

90%

NPF-90

-48

48V, 0~1.88A ±1%

250mV

90%

NPF-90

-54

54V, 0~1.67A ±1%

350mV

90%

Model No.

Output

Tol.

R&N

o Ripple

(D-Type)

Effi.

NPF-60

-12

12V, 0~5A

±4%

150mV

86%

NPF-60

-15

15V, 0~4A

±4%

150mV

87%

NPF-60

-20

20V, 0~3A

±4%

150mV

88%

NPF-60

-24

24V, 0~2.5A

±3%

150mV

89%

NPF-60

-30

30V, 0~2A

±3%

200mV

90%

NPF-60

-36

36V, 0~1.67A

±2%

200mV

90%

NPF-60

-42

42V, 0~1.43A

±1%

200mV

90%

NPF-60

-48

48V, 0~1.25A

±1%

200mV

90%

NPF-60

-54

54V, 0~1.12A

±1%

350mV

90%

Model No.

Output

Tol.

R&N

o Ripple

(D-Type)

Effi.

NPF-120

-12

12V, 0~10A

±4%

150mV

87.5%

NPF-120

-15

15V, 0~8A

±4%

150mV

88%

NPF-120

-20

20V, 0~6A

±4%

150mV

89%

NPF-120

-24

24V, 0~5A

±4%

150mV

89.5%

NPF-120

-30

30V, 0~4A

±3%

200mV

89%

NPF-120

-36

36V, 0~3.4A

±2%

200mV

89.5%

NPF-120

-42

42V, 0~2.9A

±1%

250mV

89.5%

NPF-120

-48

48V, 0~2.5A

±1%

250mV

90%

NPF-120

-54

54V, 0~2.3A

±1%

350mV

90%

NPF-90 Series

N P F - 9 0 ( D )

AC input voltage range

90~305VAC; 127~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC

Cold start, 60A at 230VAC

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Over temp. protection

Shut down o/p voltage, re-power on to recover

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

Total harmonic distortion

THD<20%

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

Tcase= -40~+85

(refer to "OUTPUT LOAD vs TEMPERATURE")

Tcase= -40~+90

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved, GB19510.14, GB19510.1,
EAC TP TC 004, UL879[for NPF-40(D)/60(D)12V,24V only]; Design refer to EN60335-1

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020

Connection

Input

UL rated, SJTW 18AWGx2C (30cm)

Output

NPF-40/60:
SVT 18AWGx 2C (30cm)
NPF-40D/60D:
UL2464 18AWG x2C (30cm)+
22AWG x2C (30cm)

NPF-90:
SJTW 16AWGx2C (30cm)
NPF-90D:
SJTW 16AWGx2C (30cm)+
UL2464 18AWGx2C (30cm)

NPF-120:
SJTW 14AWGx2C (30cm)
NPF-120D:
SJTW 14AWGx2C (30cm)+
UL2464 18AWGx2C (30cm)
[UL2464 22AWGx3C(30cm) for BE-Type]

Dimension (LxWxH) (mm)

150x 53x 35

171x 63x 37.5

191x 63x 37.5

40~120W Plastic Case with PFC

0-10VDC

(D-Type)

= Blank, D ; Blank: without dimming function , D: with dimming function

= Blank, BE ; Blank: without auxiliary output , BE: D-Type with auxiliary function

(Optional)

INPUT

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACL

DIM

ACN

Features

AC input voltage range

90~305VAC ; 127~431VDC

AC inrush current (max.)

LPF-16(D): Cold start, 45A at 230VAC
LPF-25(D): Cold start, 50A at 230VAC

Cold start, 50A

Over current protection

95% ~108% constant current, auto-recovery

Over voltage protection

110%~150% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

Withstand voltage

I/P - O/P: 3.75kVAC

Working temperature

Tcase= -35~+70

(refer to "OUTPUT LOAD vs TEMPERATURE")

Tcase= -40~+80

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13, EAC TP TC 004,
GB19510.14, GB19510.1 approved; TUV EN61347-1, EN61347-2-13 approved for LPF-40(D)

EMC standards

EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020,
GB17743, GB17625

Connection

Input

UL rated, SJTW 18AWGx2C (30cm)

Output

LPF-16/25: UL rated, SVT 18AWGx2C (30cm)
LPF-16D/25D: UL rated, SJTW 18AWGx4C (30cm)

LPF-40: UL rated, SVT 18AWGx2C (30cm)
LPF-40D: UL2464,18AWGx2C(30cm)+22AWGx2C (30cm)

Dimension (LxWxH)(mm)

148x 40x 32

162.5x 43x 32

• Constant voltage+constant current modes

(D-Type: Constant current mode only)

• Universal AC input (up to 305VAC) / Full range
• Isolation class

, no F.G.

• Class 2 power unit

• Fully encapsulated with IP67 level

[optional for LPF-16(D)]

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPF-25 -12

12V, 0~2.10A

±4%

150mV

84.0%

LPF-25 -15

15V, 0~1.67A

±4%

150mV

84.0%

LPF-25 -20

20V, 0~1.25A

±4%

150mV

85.0%

LPF-25 -24

24V, 0~1.05A

±4%

150mV

85.5%

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPF-25 -30

30V, 0~0.84A

±4%

200mV

85.5%

LPF-25 -36

36V, 0~0.70A

±4%

250mV

85.5%

LPF-25 -42

42V, 0~0.60A

±4%

250mV

85.5%

LPF-25 -48

48V, 0~0.53A

±4%

250mV

86.0%

LPF-25 -54

54V, 0~0.47A

±4%

350mV

86.0%

= Blank, D ; Blank: without dimming function , D: with dimming function

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPF-40 -12

12V, 0~3.34A

±4%

150mV

84.0%

LPF-40 -15

15V, 0~2.67A

±4%

150mV

85.0%

LPF-40 -20

20V, 0~2.00A

±4%

150mV

86.0%

LPF-40 -24

24V, 0~1.67A

±4%

150mV

87.0%

LPF-40 -30

30V, 0~1.34A

±4%

200mV

88.0%

LPF-40 -36

36V, 0~1.12A

±4%

250mV

88.0%

LPF-40 -42

42V, 0~0.96A

±4%

250mV

88.5%

LPF-40 -48

48V, 0~0.84A

±4%

250mV

89.0%

LPF-40 -54

54V, 0~0.76A

±4%

350mV

89.0%

= Blank, D ; Blank: without dimming function , D: with dimming function

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPF-16 -12

12V, 0~1.34A

±5%

150mV

83.0%

LPF-16 -15

15V, 0~1.07A

±5%

150mV

83.0%

LPF-16 -20

20V, 0~0.80A

±5%

150mV

84.5%

LPF-16 -24

24V, 0~0.67A

±5%

150mV

84.5%

LPF-16 -30

30V, 0~0.54A

±5%

200mV

84.5%

LPF-16 -36

36V, 0~0.45A

±5%

250mV

85.0%

LPF-16 -42

42V, 0~0.39A

±5%

250mV

85.0%

LPF-16 -48

48V, 0~0.34A

±5%

250mV

85.0%

LPF-16 -54

54V, 0~0.30A

±5%

350mV

84.5%

= Blank, D ; Blank: without dimming function , D: with dimming function

LPF-25 Series

LPF-40 Series

LPF-16 Series

L P F - 4 0 ( D )

L P F - 1 6 ( D ) / 2 5 ( D )

• Built-in 3 in 1 dimming function (1~10VDC, PWM signal

or resistance) for D type

• Suitable for LED lighting with independent applications
• Suitable for dry, damp, and wet location
• Protections: Short circuit / Over current /

Over voltage / Over temperature

• 5 years warranty

(for 48~54V) (for 12~42V)

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

1-10VDC

(D-Type)

(optional)

(D-Type)

16~40W Plastic Case with PFC

INPUT

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACL

DIM

ACN

60~90W Plastic Case with PFC

Features

AC input voltage range

90~305VAC ; 127~431VDC

200~400VAC; 282~566VDC

AC inrush current (max.)

Cold start, 55A at 230VAC

Cold start, 70A at 230VAC

Cold start, 40A at 374VAC

Over current protection

95% ~108% constant current, auto-recovery

Over voltage protection

110%~150% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 16ms
at full load and 230VAC

500ms, 200ms, 16ms
at full load and 230VAC

500ms, 100ms, 10ms
at full load and 347VAC

Withstand voltage

I/P - O/P: 3.75kVAC

I/P - O/P: 3kVAC

Working temperature

Tcase= -40~+80

C Tcase=

-40~+70

Tcase= -40~+90

Safety standards

UL8750, ENEC and TUV EN61347-1, EN61347-2-13, EAC TP TC 004,
EN62384, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1

UL8750, EAC TP TC 004 approved

EMC standards

EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3,
EN61000-4-2,3,4,5,6,8,11, GB17743, GB17625.1, EAC TP TC 020

FCC part 15 class B, EAC TP TC 020

Connection

Input

UL rated, SJTW 18AWGx2C (30cm)

UL rated, UL1015 18AWGx2C (30cm)

Output

LPF-60:
UL rated, SVT 18AWGx2C (30cm)
LPF-60D: UL2464
18AWGx2C(30cm)+22AWGx2C (30cm)

LPF-90:
UL rated, SVT 18AWGx2C (30cm)
LPF-90D:
UL2464 18AWGx4C (30cm)

LPFH-60:
UL rated, UL1015 18AWGx2C (30cm)
LPFH-60D:
UL rated, UL1015 18AWGx2C (30cm)
+22AWGx2C (30cm)

Dimension (LxWxH)(mm)

162.5x 43x 32

161x 61x 36

162.5x 43x 32

• Constant voltage+constant current modes

(D-Type: Constant current mode only)

• LPF: 90~305VAC input

LPFH: 200~400VAC input

• Fully isolated plastic case with IP67 level

• Isolation class

, no F.G.

• Class 2 power unit

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires [LPFH-60(D) & LPF-90(D) only]

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPF-90 -15

15V, 0~5.00A

±4%

150mV

89.0%

LPF-90 -20

20V, 0~4.50A

±4%

150mV

89.5%

LPF-90 -24

24V, 0~3.75A

±4%

150mV

90.0%

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPF-90 -30

30V, 0~3.00A

±4%

200mV

90.5%

LPF-90 -36

36V, 0~2.50A

±4%

200mV

90.5%

LPF-90 -42

42V, 0~2.15A

±4%

200mV

90.5%

LPF-90 -48

48V, 0~1.88A

±4%

200mV

90.5%

LPF-90 -54

54V, 0~1.67A

±4%

200mV

90.5%

= Blank, D ; Blank: without dimming function , D: with dimming function

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPF-60 -12

12V, 0~5.00A

±4%

150mV

86%

LPF-60 -15

15V, 0~4.00A

±4%

150mV

87%

LPF-60 -20

20V, 0~3.00A

±4%

150mV

88%

LPF-60 -24

24V, 0~2.50A

±4%

150mV

89%

LPF-60 -30

30V, 0~2.00A

±4%

200mV

90%

LPF-60 -36

36V, 0~1.67A

±4%

250mV

90%

LPF-60 -42

42V, 0~1.43A

±4%

250mV

90%

LPF-60 -48

48V, 0~1.25A

±4%

250mV

90%

LPF-60 -54

54V, 0~1.12A

±4%

350mV

90%

= Blank, D ; Blank: without dimming function , D: with dimming function

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

LPFH-60 -12

12V, 0~5.00A

±4%

150mV

86%

LPFH-60 -15

15V, 0~4.00A

±4%

150mV

87%

LPFH-60 -24

24V, 0~2.50A

±4%

150mV

89%

LPFH-60 -36

36V, 0~1.67A

±4%

250mV

90%

LPFH-60 -42

42V, 0~1.43A

±4%

250mV

90%

LPFH-60 -48

48V, 0~1.25A

±4%

250mV

90%

LPFH-60 -54

54V, 0~1.12A

±4%

350mV

90%

= Blank, D ; Blank: without dimming function , D: with dimming function

LPF-90 Series

LPF-60 Series

LPFH-60 Series

L P F - 9 0 ( D )

L P F H - 6 0 ( D )

L P F - 6 0 ( D )

• Built-in 3 in 1 dimming function

(1~10VDC, PWM signal or resistance) for D-Type

• Suitable for LED lighting with independent applications
• Suitable for dry, damp, and wet location
• Protections: Short circuit / Over current /

Over voltage / Over temperature

• 5 years warranty

(for 48~54V)

(for 15~42V)

(for 12~42V)

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

1-10VDC

(D-Type)

(Optional)

I D L V - 4 5 ( A )

I D L V - 2 5 ( A )

I D L V - 6 5 ( A )

NEW

I N P U T

O U T P U T

(Blank-Type)

O U T P U T

(A-Type)

NEW

25~65W Plastic Case with PFC

Features

• Constant voltage PWM style output mode

• IDLV-25/45: 90~295VAC input
IDLV-65: 180~295VAC input only
• High efficiency up to 90%

• No load power consumption <0.5W (Blank-Type)

• Fully isolated plastic case with IP20 level

AC input voltage range

90 ~ 295VAC ; 127 ~ 417VDC

180 ~ 295VAC; 254~417VDC

AC inrush current (max.)

Cold start, 30A at 230VAC

Setup time

500ms / 230AVC

PWM dimming signal

10V PWM signal, frequency range 300Hz~3kHz

Total harmonic distortion

THD<20%

Short circuit protection

Shut down o/p voltage, repower on to recover

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase= -20~+90

Tcase= -20~+85

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC EN/AS/NZS61347-1, EN/AS/NZS61347-2-13, EN62384, GB19510.14, GB19510.1,
EAC TP TC 004, BIS IS15885(for 12V,24V,48V only) approved

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1, EAC TP TC 020

Connection (Input/Output)

4+4P push-in terminal block for Blank-Type, 4+6P for A-Type

Dimension (LxWxH) mm

110 x 75 x 22

120 x 75 x 25

130 x 75 x 25

• Isolation class

, no F.G.

• Built-in 2 in 1 dimming function (0~10VDC or PWM signal)

• Built-in 12V/50mA auxiliary output (A-Type)
• Suitable for indoor LED strip lighting
• Protection: Short circuit / Over current
• 3 years warranty

IDLV-45/45A Series

IDLV-25/25A Series

IDLV-65/65A Series

Model No.

Output

Tol.

Effi.

IDLV-45

-12

12V, 0~3A

±10%

84%

IDLV-45

-24

24V, 0~1.88A

±10%

86%

IDLV-45

-36

36V, 0~1.25A

±10%

88%

IDLV-45

-48

48V, 0~0.94A

±10%

88%

IDLV-45

-60

60V, 0~0.75A

±10%

90%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

IDLV-25

-12

12V, 0~1.8A

±10%

80%

IDLV-25

-24

24V, 0~1.05A

±10%

81%

IDLV-25

-36

36V, 0~0.7A

±10%

82%

IDLV-25

-48

48V, 0~0.52A

±10%

83%

IDLV-25

-60

60V, 0~0.42A

±10%

84%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

IDL / IDP / ODL Series Difference

Series

Type

AC Input Range

Output Mode

IDLC

IDLV

Plastic case

with T.B.

90~295VAC

IP20

IDLC/IDPC/

ODLC:

C.C. mode

IDLV/IDPV/

ODLV:

C.V. mode

IDPC

IDPV

PCB Type

ODLC

ODLV

Plastic case

with wire

180~295VAC

IP67

Model No.

Output

Tol.

Effi.

IDLV-65

-12

12V, 0~4.2A

±10%

85%

IDLV-65

-24

24V, 0~2.4A

±10%

87%

IDLV-65

-36

36V, 0~1.8A

±10%

88%

IDLV-65

-48

48V, 0~1.35A

±10%

89%

IDLV-65

-60

60V, 0~1.08A

±10%

90%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

(for 12V,24V,48V only)

NEW

IDLC-45(A)
IDLC-45-DA

IDLC-65(A)
IDLC-65-DA

I D L C - 2 5 ( A )

I N P U T

O U T P U T

(Blank-Type)

(DA-Type)

O U T P U T

(A-Type)

25~65W Plastic Case with PFC

Features

• Constant current mode
• Flicker free design

• IDLC-25/45: 90~295VAC input
IDLC-65: 180~295VAC input only

• No load power consumption <0.5W (Blank/DA-Type)

• Fully isolated plastic case with IP20 level
• Isolation class

, no F.G.

AC input voltage range

90 ~ 295VAC ; 127 ~ 417VDC

180 ~ 295VAC ; 254~417VDC

AC inrush current (max.)

Cold start, 30A at 230VAC

Setup time

500ms / 230VAC

PWM dimming signal

10V PWM signal, frequency range 300Hz~3kHz

Total harmonic distortion

THD<20%

Short circuit protection

Hiccup mode, auto-recovery

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase= -20~+90

Tcase= -20~+85

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC EN/AS/NZS61347-1(except for DA-Type), EN/AS/NZS61347-2-13(except for DA-Type),
EN62384, GB19510.14, GB19510.1, EAC TP TC 004; BIS 15885 (refer to spec for models) approved

DALI standards

IEC 62386-101, 102 (DA-Type only)

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1, EAC TP TC 020

Connection (Input/Output)

4+4P push-in terminal block for Blank/DA-Type, 4+6P for A-Type

Dimension (LxWxH) mm

110 x 75 x 22

120 x 75 x 25

130 x 75 x 25

• Built-in DALI interface (IDLC-45/65-DA)
• Built-in 2 in 1 dimming function (0~10VDC or PWM signal)

• Built-in 12V/50mA auxiliary output (A-Type)
• Suitable for indoor LED lighting applications
• Protection: Short circuit
• 3 years warranty

IDLC-45(A) Series
IDLC-45-DA Series

IDLC-25(A) Series

IDLC-65(A) Series
IDLC-65-DA Series

Model No.

Output

Tol.

Effi.

IDLC-45

-350

57 ~ 95V, 350mA

±5%

86%

IDLC-45

-500

54 ~ 90V, 500mA

±5%

85%

IDLC-45

-700

38 ~ 64V, 700mA

±5%

85%

IDLC-45

-1050

26 ~ 43V, 1050mA

±5%

84%

IDLC-45

-1400

19 ~ 32V, 1400mA

±5%

83%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

= Blank/DA; Blank: 2 in 1 dimming, DA: DALI

Model No.

Output

Tol.

Effi.

IDLC-25

-350

49 ~ 70V, 350mA

±7%

82%

IDLC-25

-500

35 ~ 50V, 500mA

±7%

81.5%

IDLC-25

-700

25 ~ 36V, 700mA

±7%

82%

IDLC-25

-1050

17 ~ 24V, 1050mA

±7%

81.5%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

IDLC-65

-700

69 ~ 93V, 700mA

±5%

89%

IDLC-65

-1050

46 ~ 62V, 1050mA

±5%

87%

IDLC-65

-1400

34 ~ 46V, 1400mA

±5%

86%

IDLC-65

-1750

27 ~ 36V, 1750mA

±5%

86%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

= Blank/DA; Blank: 2 in 1 dimming, DA: DALI

(except for DA-Type)

O D L V - 6 5 ( A )

O D L V - 4 5 ( A )

I N P U T

O U T P U T

(Blank-Type)

O U T P U T

(A-Type)

ACN

ACL

Vo-
Vo+
DIM-
DIM+

AUX-
AUX+
Vo-
Vo+
DIM-
DIM+

NEW

45~65W Plastic Case with PFC

Features

• Constant voltage PWM style output mode

• ODLV-45: 90~295VAC input
ODLV-65: 180~295VAC input only

• No load power consumption<0.5W (Blank-Type)

• High efficiency up to 90%

• Fully encapsulated with IP67 level

AC input voltage range

90 ~ 295VAC ; 127 ~ 417VDC

180 ~ 295VAC; 254~417VDC

AC inrush current (max.)

Cold start, 30A at 230VAC

Setup time

500ms / 230VAC

Short circuit protection

Shut down O/P voltage, re-power on to recovery

PWM dimming signal

10V PWM signal, frequency range 300Hz~3kHz

Total harmonic distortion

THD<20%

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase= -20~+85

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1,
BIS IS15885(for 12V, 24V, 48V only), EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB17743, GB17625.1, EAC TP TC 020

Connection

Input

SVT 18AWGx2C (20cm)

Output

Blank-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm)
A-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm) + UL1007 22AWGx2C(15cm)

Dimension (LxWxH) mm

111 x 77 x 28.5

121 x 77 x 28.5

ODLV-45/45A Series

ODLV-65/65A Series

Model No.

Output

Tol.

Effi.

ODLV-45

-12

12V, 0~3A

±10%

84%

ODLV-45

-24

24V, 0~1.88A

±10%

86%

ODLV-45

-36

36V, 0~1.25A

±10%

88%

ODLV-45

-48

48V, 0~0.94A

±10%

88%

ODLV-45

-60

60V, 0~0.75A

±10%

90%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

ODLV-65

-12

12V, 0~4.2A

±10%

85%

ODLV-65

-24

24V, 0~2.4A

±10%

87%

ODLV-65

-36

36V, 0~1.8A

±10%

88%

ODLV-65

-48

48V, 0~1.35A

±10%

89%

ODLV-65

-60

60V, 0~1.08A

±10%

90%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

• Isolation class

, no FG

• Built-in 2 in 1 dimming (0~10VDC or PWM signal)

• Built-in 12V/50mA auxiliary output (A-Type)
• Suitable for LED strip lighting
• Protection: Short circuit / Over current
• 3 years warranty

(for 12V,24V,48V only)

O D L C - 6 5 ( A ) & O D L C - 6 5 D A

O D L C - 4 5 ( A ) & O D L C - 4 5 D A

I N P U T

O U T P U T

(Blank/DA-Type)

O U T P U T

(A-Type)

ACN

ACL

Vo-
Vo+
DIM-/DA-
DIM+/DA+

AUX-
AUX+
Vo-
Vo+
DIM-
DIM+

NEW

45~65W Plastic Case with PFC

Features

• Constant Current mode

• Flicker free design

• ODLC-45: 90~295VAC input,

ODLC-65: 180~295VAC input

• No load power consumption <0.5W (Blank/DA-Type)

• Fully encapsulated with IP67 level

• Isolation class

, no FG

AC input voltage range

90 ~ 295VAC ; 127 ~ 417VDC

180 ~ 295VAC ; 254~417VDC

AC inrush current (max.)

Cold start, 30A at 230VAC

Setup time

500ms / 230VAC

PWM dimming signal

10V PWM signal, frequency range 300Hz~3kHz

Total harmonic distortion

THD<20%

Short circuit protection

Hiccup mode, auto-recovery

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase= -20~+85

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004,
BIS 15885 (refer to spec for models) approved

DALI standards

IEC 62386-101, 102 (DA-Type only)

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Input

SVT 18AWGx2C (20cm)

Output

Blank/DA-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm)
A-Type: UL1007 18AWGx2C(20cm) + UL1007 22AWGx2C(15cm) + UL1007 22AWGx2C(15cm)

Dimension (LxWxH) mm

111x 77x 28.5

121 x 77 x 28.5

ODLC-45(A) Series

ODLC-45-DA Series

ODLC-65(A) Series

ODLC-65-DA Series

Model No.

Output

Tol.

Effi.

ODLC-45

-350

57 ~ 95V, 350mA

±7%

86%

ODLC-45

-500

54 ~ 90V, 500mA

±7%

85%

ODLC-45

-700

38 ~ 64V, 700mA

±7%

85%

ODLC-45

-1050

26 ~ 43V, 1050mA

±7%

84%

ODLC-45

-1400

19 ~ 32V, 1400mA

±7%

83%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

ODLC-45-350DA

57 ~ 95V, 350mA

±7%

86%

ODLC-45-500DA

54 ~ 90V, 500mA

±7%

85%

ODLC-45-700DA

38 ~ 64V, 700mA

±7%

85%

ODLC-45-1050DA

26 ~ 43V, 1050mA

±7%

84%

ODLC-45-1400DA

19 ~ 32V, 1400mA

±7%

83%

Model No.

Output

Tol.

Effi.

ODLC-65

-700

69 ~ 93V, 700mA

±7%

88%

ODLC-65

-1050

46 ~ 62V, 1050mA

±7%

86%

ODLC-65

-1400

34 ~ 46V, 1400mA

±7%

85%

ODLC-65

-1750

27 ~ 36V, 1750mA

±7%

85%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

ODLC-65-700DA

69 ~ 93V, 700mA

±7%

88%

ODLC-65-1050DA

46 ~ 62V, 1050mA

±7%

86%

ODLC-65-1400DA

34 ~ 46V, 1400mA

±7%

85%

ODLC-65-1750DA

27 ~ 36V, 1750mA

±7%

85%

• Built-in DALI interface (ODLC-45/65-DA)

• Built-in 2 in 1 dimming (0~10VDC or PWM signal)

• Built-in 12V/50mA auxiliary output (A-Type)

• Suitable for LED lighting applications

• Protection: Short circuit / Over current

• 3 years warranty

P L M - 1 2

P L M - 4 0

P L M - 2 5

I N P U T

O U T P U T

Features

• Constant current mode

• 110~295VAC input

• No load power consumption <0.5W

• Fully isolated plastic case with push terminal style I/O
• Three-step analog dimming function (PLM-40)
• IP30 design

AC input voltage range

110~295VAC; 156~417VDC

AC inrush current (max.)

Cold start, 15A at 230VAC

Setup time

500ms at full load and 230VAC

Total harmonic distortion

THD<20%

Short circuit protection

Hiccup mode, auto-recovery

Over temp. protection

Hiccup mode, auto-recovery (PLM-40 only)

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

-30~+50ºC -30~+45ºC -30~+40ºC

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection (Input / Output) 2+2P push terminal block

Dimension (LxWxH)(mm)

145x 38x 22

175x 42x 24

• Isolation class

, no F.G.

• Class 2 power unit (except for PLM-25-350 & PLM-40)
• Low cost, high reliability
• Suitable for indoor LED lighting applications
• Protections: Short circuit / Over temperature (PLM-40)
• 2 years warranty

PLM-25 Series

PLM-40 Series

PLM-12 Series

Model No.

Output

o Tol.

R&N

Effi.

PLM-40-350

53~105V, 350mA

±5%

10V

88%

PLM-40-500

40~80V, 500mA

±5%

8.0V

88%

PLM-40-700

29~57V, 700mA

±5%

6.0V

87%

PLM-40-1050

19~38V, 1050mA

±5%

4.0V

87%

PLM-40-1400

15~29V, 1400mA

±5%

3.0V

86%

PLM-40-1750

12~23V, 1750mA

±5%

2.5V

86%

Model No.

Output

o Tol.

R&N

Effi.

PLM-25-350

42~72V, 350mA

±5%

7.2V

87%

PLM-25-500

30~50V, 500mA

±5%

5.0V

86%

PLM-25-700

21~36V, 700mA

±5%

3.6V

86%

PLM-25-1050

14~24V, 1050mA

±5%

2.4V

85%

Model No.

Output

o Tol.

R&N

Effi.

PLM-12-350

22~36V, 350mA

±5%

3.6V

85%

PLM-12-500

15~24V, 500mA

±5%

2.4V

84%

PLM-12-700

11~18V, 700mA

±5%

2.4V

83%

PLM-12-1050

7~12V, 1050mA

±5%

1.8V

81%

12~40W Slim Type Plastic Case with PFC

P L M - 1 2 E

P L M - 4 0 E

P L M - 2 5 E

I N P U T

O U T P U T

Features

• Constant current mode
• 180~295VAC input
• No load power consumption <0.5W

• Fully isolated plastic case with push terminal style I/O
• Three-step analog dimming function (PLM-40E)
• IP30 design

AC input voltage range

180~295VAC; 254~417VDC

AC inrush current (max.)

Cold start, 15A at 230VAC

Setup time

500ms at full load and 230VAC

Total harmonic distortion

THD<20%

Short circuit protection

Hiccup mode, auto-recovery

Over temp. protection

Hiccup mode, auto-recovery (PLM-40E only)

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

-30~+50ºC

-30~+45ºC

-30~+40ºC (refer to output derating curve)

Safety standards

ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020

Connection (Input / Output) 2+2P push terminal block

Dimension (LxWxH)(mm)

145x 38x 22

175x 42x 24

• Isolation class

, no F.G.

• Low cost, high reliability
• Suitable for indoor LED lighting applications
• Protections: Short circuit / Over temperature (PLM-40E)
• 2 years warranty

PLM-25E Series

PLM-40E Series

PLM-12E Series

Model No.

Output

o Tol.

R&N

Effi.

PLM-40E-350

53~105V, 350mA

±5%

10V

88%

PLM-40E-500

40~80V, 500mA

±5%

8.0V

88%

PLM-40E-700

29~57V, 700mA

±5%

6.0V

87%

PLM-40E-1050

19~38V, 1050mA

±5%

4.0V

87%

PLM-40E-1400

15~29V, 1400mA

±5%

3.0V

86%

PLM-40E-1750

12~23V, 1750mA

±5%

2.5V

86%

Model No.

Output

o Tol.

R&N

Effi.

PLM-25E-350

42~72V, 350mA

±5%

86%

PLM-25E-500

30~50V, 500mA

±5%

7.5V

85%

PLM-25E-700

21~36V, 700mA

±5%

5.4V

85%

PLM-25E-1050

14~24V, 1050mA

±5%

3.6V

82%

Model No.

Output

o Tol.

R&N

Effi.

PLM-12E-350

22~36V, 350mA

±5%

5.5V

84%

PLM-12E-500

15~24V, 500mA

±5%

3.6V

83%

PLM-12E-700

11~18V, 700mA

±5%

3.6V

82%

PLM-12E-1050

7~12V, 1050mA

±5%

2.7V

78%

12~40W Slim Type Plastic Case with PFC

LCM-25(DA)/40(DA)/60(DA)

I N P U T

O U T P U T

Non-DA
Type

25W/40W/60W

25W

40W/60W

DA-Type

By request

NEW

Features

AC input voltage range

180~277VAC; 254~392VDC

180~295VAC; 254~417VDC

AC inrush current (Typ.)

Cold start, 20A at 230VAC

Short circuit protection

Constant current limiting, recovers automatically after fault condition is removed

Over voltage protection

LCM-40/40DA: 110~130VDC, LCM-60/60DA: 105~125VDC

Setup time

500ms / 230VAC

Total harmonic distortion

THD<20%

Wireless protocol

EnOcean standard 868MHz for European (EO-Type)

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

Tcase= -30~+85

Tcase= -30~+90

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, BIS IS15885, EAC TP TC 040 approved

DALI standards

Comply with IEC62386-101, 102, 207 (DA-Type only)

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17625.1, GB17743, EAC TP TC 020

Dimension (LxWxH)(mm)

105x 68x 23

123.5x 81.5x 23

• Constant current mode

• LCM-25(DA): 180~277VAC input only

LCM-40(DA)/60(DA): 180~295VAC input only

• Multiple-stage output current level selectable by DIP switch

• No load power consumption <0.5W (LCM-25/25DA/40DA/60DA)

• Class

power unit, no F.G.

• Built-in 3 in 1 dimming function, 0~10VDC,

PWM signal, or resistance (non DA-Type)

O u t p u t

o T o l .

o Ripple

E f f i .

D I P S w i t c h

3 5 0 m A , 2 ~ 1 0 0 V

± 5 %

(max.)

91%

- - - - -

5 0 0 m A , 2 ~ 8 0 V

O N

- - - - -

6 0 0 m A , 2 ~ 6 7 V

O N

- - - - -

7 0 0 m A , 2 ~ 5 7 V (Factory setting)

O N

- - - - -

O N

9 0 0 m A , 2 ~ 4 5 V

O N

- - - - -

O N

1 0 5 0 m A , 2 ~ 4 0 V

O N

O u t p u t

o T o l .

o Ripple

E f f i .

D I P S w i t c h

3 5 0 m A , 6 ~ 5 4 V

± 5 %

(max.)

86%

- - - - -

5 0 0 m A , 6 ~ 5 0 V

O N

- - - - -

6 0 0 m A , 6 ~ 4 2 V

O N

- - - - -

7 0 0 m A , 6 ~ 3 6 V (Factory setting)

O N

- - - - -

O N

9 0 0 m A , 6 ~ 2 8 V

O N

- - - - -

O N

1 0 5 0 m A , 6 ~ 2 4 V

O N

O u t p u t

o T o l .

o Ripple

E f f i .

D I P S w i t c h

5 0 0 m A , 2 ~ 9 0 V

± 5 %

(max.)

92%

- - - - -

6 0 0 m A , 2 ~ 9 0 V

O N

- - - - -

7 0 0 m A , 2 ~ 8 6 V (Factory setting)

O N

- - - - -

9 0 0 m A , 2 ~ 6 7 V

O N

- - - - -

O N

1 0 5 0 m A , 2 ~ 5 7 V

O N

- - - - -

O N

1 4 0 0 m A , 2 ~ 4 2 V

O N

L C M - 2 5 / 4 0 / 6 0 a r e p r i m a r y m o d e l s w i t h 0 ~ 1 0 V D C , P W M o r r e s i s t a n c e s i g n a l d i m m i n g f u n c t i o n .

LCM-40 Series

LCM-25 Series

LCM-60 Series

L C M - 4 0 E O / 6 0 E O

• Wireless driver with integrated EnOcean for LCM-40EO/60EO (by request)

• Built-in DALI interface and push dimming function (DA-Type)

• 12V/50mA auxiliary output for LCM-40/60 (LCM-40DA/60DA by request)

• Temperature compensation function by external NTC (40W/60W only)

• Power supplies synchronization function up to 10 units

• Suitable for indoor LED lighting applications

• Protections: Short circuit / Over voltage (40W/60W only) / Over temp.

• 3 years warranty

0-10VDC

(non DA-Type) (DA-Type)

(DA-Type)

(non DA-Type)

25~60W Plastic Case with PFC

NEW

I N P U T

O U T P U T

Non-DA
Type

DA-Type

By request

By req

0-10VDC

(non DA-Type)

(DA-Type)

Features

AC input voltage range

90~132VAC ; 127~186VDC

AC inrush current (Typ.)

Cold start, 15A at 230VAC

Short circuit protection

Constant current limiting, recovers automatically after fault condition is removed

Over voltage protection

LCM-40U(DA): 110~130VDC, LCM-60U(DA): 105~125VDC

Over temperature protection

Shut down o/p voltage, auto-recovery or re-power on to recover

Setup time

1000ms / 115VAC

Total harmonic distortion

THD<20%

Wireless protocol

EnOcean standard 902MHz for USA/Canada (EO-Type)

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

Tcase= -30~+90

Safety standards

UL8750 approved

DALI standards

Comply with IEC62386-101, 102, 207 (DA-Type only)

EMC standards

FCC part 15

Dimension (LxWxH)(mm)

123.5x 81.5x 23

• Constant current mode

• 90~132VAC input only

• Multiple-stage output current level selectable by DIP switch

• Class

power unit, no F.G.

• Built-in 3 in 1 dimming function, 0~10VDC, PWM signal,

or resistance (non DA-Type)

• Wireless driver with integrated EnOcean for LCM-40EO/60EO

(by request)

O u t p u t

o T o l .

o Ripple

E f f i .

D I P S w i t c h

3 5 0 m A , 2 ~ 1 0 0 V

± 5 %

(max.)

87.5%

- - - - -

5 0 0 m A , 2 ~ 7 0 V

O N

- - - - -

6 0 0 m A , 2 ~ 5 9 V

O N

- - - - -

7 0 0 m A , 2 ~ 5 0 V (Factory setting)

O N

- - - - -

O N

9 0 0 m A , 2 ~ 3 9 V

O N

- - - - -

O N

1 0 5 0 m A , 2 ~ 3 4 V

O N

O u t p u t

o T o l .

o Ripple

E f f i .

D I P S w i t c h

5 0 0 m A , 2 ~ 9 0 V

± 5 %

(max.)

89%

- - - - -

6 0 0 m A , 2 ~ 8 4 V

O N

- - - - -

7 0 0 m A , 2 ~ 7 2 V (Factory setting)

O N

- - - - -

9 0 0 m A , 2 ~ 5 6 V

O N

- - - - -

O N

1 0 5 0 m A , 2 ~ 4 8 V

O N

- - - - -

O N

1 4 0 0 m A , 2 ~ 3 6 V

O N

L C M - 4 0 U / 6 0 U a r e p r i m a r y m o d e l s w i t h 0 ~ 1 0 V D C , P W M o r r e s i s t a n c e s i g n a l d i m m i n g f u n c t i o n .

LCM-40U Series

LCM-60U Series

L C M - 4 0 U ( D A ) / 6 0 U ( D A )

L C M - 4 0 U E O / 6 0 U E O

• Built-in DALI interface and push dimming function (DA-Type)

• 12V/50mA auxiliary output for LCM-40U/60U

(LCM-40UDA/60UDA by request)

• Temperature compensation function by external NTC

• Power supplies synchronization function up to 10 units

• Suitable for indoor LED lighting applications

• Protections: Short circuit / Over voltage / Over temp.

• 3 years warranty

40~60W Plastic Case with PFC

I N P U T

O U T P U T

(PWM-40/60)

O U T P U T

(PWM-90/120)

(PWM-9

ACN

DIM+

DIM+/DA+

Vo+

DIM

/DA

ACL

Features

• Constant voltage PWM style output mode

• Universal AC input (up to 305VAC) / Full range

• High efficiency up to 90.5%

• No load power consumption <0.5W

• Fully isolated plastic case with IP67 level

• Isolation class

, no F.G.

• Class 2 power unit (except for PWM-90-12 & PWM-120)

• Type HL LED Driver for use in Class

Division 2

hazardous location luminaires (except for PWM-90)

• Built-in 3 in 1 dimming function

(0~10VDC, PWM signal or resistance)

• Built-in DALI interface (PWM-120-12/24DA only)

• Suitable for dry, damp, and wet location

• Suitable for LED strip lighting

• Protections:

Short circuit / Overload / Over voltage / Over temp.

• 5 years warranty

P W M - 4 0 / 6 0

P W M - 1 2 0
P W M - 1 2 0 - D A

PWM-40 Series

PWM-60 Series

PWM-120 Series

Model No.

Output

Tol.

Effi.

PWM-40-12

12V, 0~3.34A

±4%

86.0%

PWM-40-24

24V, 0~1.67A

±3%

89.0%

PWM-40-36

36V, 0~1.12A

±2%

90.0%

PWM-40-48

48V, 0~0.84A

±1%

90.0%

Model No.

Output

Tol.

Effi.

PWM-60-12

12V, 0~5A

±4%

86.0%

PWM-60-24

24V, 0~2.5A

±3%

89.0%

PWM-60-36

36V, 0~1.67A

±2%

90.0%

PWM-60-48

48V, 0~1.25A

±1%

90.0%

Model No.

Output

Tol.

Effi.

PWM-90-12

12V, 0~7.5A

±4%

88.0%

PWM-90-24

24V, 0~3.75A

±3%

90.5%

PWM-90-36

36V, 0~2.5A

±2%

90.5%

PWM-90-48

48V, 0~1.88A

±1%

90.5%

Model No.

Output

Tol.

Effi.

PWM-120-12

12V, 0~10A

±4%

88.0%

PWM-120-24

24V, 0~5A

±4%

90.0%

PWM-120-36

36V, 0~3.4A

±2%

90.0%

PWM-120-48

48V, 0~2.5A

±1%

90.5%

PWM-90 Series

P W M - 9 0

AC input voltage range

90~305VAC; 127~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC

Cold start, 60A at 230VAC

Overload protection

108%~120% hiccup mode, auto-recovery

Over voltage protection

113%~142% rated output voltage

Over temp. protection

Shut down o/p voltage, re-power on to recover

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

Total harmonic distortion

THD<20%

PWM output frequency

1.47kHz

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

Tcase= -40~+85

(refer to "OUTPUT LOAD vs TEMPERATURE")

Tcase= -40~+90

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved, BIS IS15885(refer to spec for
models),GB19510.14, GB19510.1, EAC TP TC 040 ; Design refer to EN60335-1

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Input

UL rated, SJTW 18AWGx2C (30cm)

Output

UL2464 18AWG x2C (30cm)+
22AWG x2C (30cm)

SJTW 16AWGx2C (30cm)+
UL2464 18AWGx2C (30cm)

SJTW 14AWGx2C (30cm)+
UL2464 18AWGx2C (30cm)

Dimension (LxWxH) (mm)

150x 53x 35

171x 63x 37.5

191x 63x 37.5

0-10VDC

40~120W Plastic Case with PFC

(DA-Type)

= Blank, DA ;
Blank: with 3 in 1 dimming function , DA: with DALI function (12V/24V only)

(Optional)

(for 12V,24V)

(except for 36V)

(Optional)

I N P U T

OWA-60/90/120

U-Type

E-Type

O U T P U T

OWA-60

U-Type

E-Type

OWA-90/120

U-Type

E-Type

O W A - 9 0

O W A - 6 0

O W A - 1 2 0

U T

ype

60~120W External Moistureproof Plastic Case

Features

• Constant voltage + constant current modes

• Universal AC input / Full range

• Built-in active PFC function (OWA-90/120)

•

No load power consumption <0.15W

•

Energy efficiency Level V

• Fully encapsulated with IP67 level for power body

AC input voltage range

90~264VAC ; 127~370VDC (180~264VAC ; 254~370VDC for OWA-120E)

AC inrush current (max.)

Cold start, 65A at 230VAC

Cold start, 60A at 230VAC

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Over temp. protection

Shut down output voltage, re-power on to recover

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

-35~+70

C -40~+70

C (refer to output derating curve)

Safety standards

U-Type

UL8750 Listed

approved

E-Type

DEKRA IEC/EN60335-1(except for 48~54V),
IEC/EN61558-1, EN61558-2-16,
EAC TP TC 040 approved

TUV EN60335-1(except for 42~54V),
EN61558-1, EN61558-2-16,
EAC TP TC 040 approved

DEKRA IEC/EN60335-1(except for 48~54V),
IEC/EN61558-1, EN61558-2-16,
EAC TP TC 040 approved

EMC standards

U-Type: FCC Part 15; E-Type: EN55014, EN55032 class B, EN61000-3-2,-3, EAC TP TC 020

Connection

Input

Plug

U-Type: NEMA 1-15P plug; E-Type: CEE 7/7 EU plug

Cable

U-Type: UL rated, SVT 18AWGx2C (150cm); E-Type: H05RN-F 1.0mm2 x2C (150cm)

Output

Plug

2.1 x 5.5 x 11mm / C+

U-Type: Power DIN 4P (with lock) type, or 2.5 x 5.5 x 11mm/C+,
tuning fork type (20~54V only)
E-Type : XLR 4P, male type

Cable

U-Type : UL1185 16AWG x 2C (30cm);
E-Type : H05RN-F 1.0mm

x 2C (30cm)

U-Type: UL2464 18AWGx4C (30cm)
for Power DIN 4P type;
UL246416AWGx2C (30cm)
for tuning fork type;
E-Type : H05RN-F 1.0mm

x2C (30cm)

U-Type: UL2464 18AWGx4C (30cm);
E-Type : H07RN-F 1.5mm

x2C (30cm)

Dimension (LxWxH)(mm)

130× 53× 35

171× 63× 37.5

191× 63× 37.5

• Isolation class

, no F.G.

• Class 2 power unit (OWA-60 & OWA-90-20~54)

• Protections: Short circuit / Over current / Over voltage / Over temp.

• Suitable for dry and damp location

• 5 years warranty

OWA-90 Series

OWA-60 Series

OWA-120 Series

Model No.

Output

Tol.

R&N

Effi.

OWA-90

-12

12V, 0~7.5A

±4%

150mV

89%

OWA-90

-15

15V, 0~6A

±4%

150mV

90%

OWA-90

-20-

20V, 0~4.5A

±4%

150mV

90%

OWA-90

-24-

24V, 0~3.75A

±3%

150mV

90%

Model No.

Output

Tol.

R&N

Effi.

OWA-90

-30-

30V, 0~3A

±3%

200mV

90%

OWA-90

-36-

36V, 0~2.5A

±2%

200mV

91%

OWA-90

-42-

42V, 0~2.15A

±1%

250mV

91%

OWA-90

-48-

48V, 0~1.88A

±1%

250mV

91%

OWA-90

-54-

54V, 0~1.67A

±1%

350mV

91%

= U / E; U: American 2P, E: European 2P
= Blank/P1M; Blank: Power DIN 4P with lock type,

P1M: 2.5

x5.5

x11mm/C+, tuning fork type

Model No.

Output

Tol.

R&N

Effi.

OWA-60

-12

12V, 0~5A

±4%

150mV

88%

OWA-60

-15

15V, 0~4A

±4%

150mV

89%

OWA-60

-20

20V, 0~3A

±4%

150mV

89%

OWA-60

-24

24V, 0~2.5A

±3%

150mV

90%

OWA-60

-30

30V, 0~2A

±3%

200mV

90%

OWA-60

-36

36V, 0~1.67A

±2%

200mV

90%

OWA-60

-42

42V, 0~1.5A

±1%

250mV

90%

OWA-60

-48

48V, 0~1.25A

±1%

250mV

91%

OWA-60

-54

54V, 0~1.12A

±1%

350mV

91%

= U / E; U: American 2P, E: European 2P

Model No.

Output

Tol.

R&N

Effi.

OWA-120

-12

12V, 0~10A

±4%

150mV

87.5%

OWA-120

-15

15V, 0~8A

±4%

150mV

89%

OWA-120

-20

20V, 0~6A

±4%

150mV

90%

OWA-120

-24

24V, 0~5A

±4%

150mV

90.5%

OWA-120

-30

30V, 0~4A

±3%

200mV

90%

OWA-120

-36

36V, 0~3.4A

±2%

200mV

90%

OWA-120

-42

42V, 0~2.9A

±1%

250mV

90.5%

OWA-120

-48

48V, 0~2.5A

±1%

250mV

90.5%

OWA-120

-54

54V, 0~2.3A

±1%

350mV

90.5%

= U / E; U: American 2P, E: European 2P

(E-Type)

(U-Type, 42~54V)

(U-Type, 12~36V)

(U-Type)

(E-Type)

(U-Type)

I N P U T

A-Type

B-Type

PLD-25

O U T P U T

A T

ACL

ACN

ACL

V+

AC input voltage range

115VAC (90~135VAC) or
230VAC (180~295VAC)

90~295VAC

230VAC (180~295VAC)

AC inrush current (max.)

Cold start,
20A at 230VAC

Cold start,
25A at 230VAC

Setup time

500ms at full load and 230VAC

Total harmonic distortion

THD<20%

Withstand voltage

I/P - O/P: 3.75kVAC

Short circuit protection

Hiccup mode, auto-recovery

Over temp. protection

Shut down o/p voltage, re-power on to recover

Shut down o/p voltage, auto-recovery

Working temperature

-30~+50ºC -30~+60ºC -30~+50ºC

-30~+45ºC

Safety standards

UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EAC TP TC 040, BIS IS15885 (refer to sepc for
models), EN62384 (except for PLD-16 A-Type) GB19510.14, GB19510.1 (except for PLD-60)

EMC standards

EN55015 (except for PLD-16 A-Type), EN61000-3-2 Class C, EN61000-3-3, EN61000-4,2,3,4,5,6,8,11,
EN61547, FCC part 18 non-consumer equipment (PLD-16 A-Type, PLD-25), GB17743, EAC TP TC 020,
GB17625.1(except for PLD-60)

Connection

Input

PLD-16 A-Type: UL1430 18AWGx2C (7.5cm)
PLD-16 B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm)
PLD-40/60: H03VVH2-F 0.75mm

x2C (7.5cm)

Output

UL1430 18AWGx2C (15cm)

Dimension (LxWxH)(mm)

84x 57x 29.5

128x 60x 31.5

• Constant current mode

•PLD-16: 115VAC or 230VAC input
PLD-25: 90~295VAC input
PLD-40/60: 230VAC input only
• Fully isolated plastic case with IP42 level

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PLD-16-350

24~48V, 350mA

± 5 %

4.6V

84.5%

PLD-16-700

16~24V, 700mA

± 5 %

2.7V

84.5%

PLD-16-1050

12~16V, 1050mA

± 5 %

2.2V

84.0%

PLD-16-1400

8~12V, 1400mA

± 5 %

2.0V

82.5%

=A or B-Type ; A-Type: 90~135VAC, B-Type: 180~295VAC

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PLD-25-350

36~58V, 350mA

± 5 %

4.6V

85%

PLD-25-700

24~36V, 700mA

± 5 %

2.7V

86%

PLD-25-1050

16~24V, 1050mA

± 5 %

2.2V

85%

PLD-25-1400

12~18V, 1400mA

± 5 %

2.0V

84%

PLD-16 Series

PLD-25 Series

P L D - 6 0

P L D - 4 0

P L D - 1 6

P L D - 2 5

Features

• Isolation class

, no F.G.

• Class 2 power unit / Pass LPS (PLD-16/25)
• Suitable for indoor LED lighting applications
• Protections: Short circuit / Over temperature
• 3 years warranty

(for 350/700mA) (for 1050/1400mA)

(A-Type)

(B-Type)

(Optional)

(B-Type)

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PLD-40-350B

70~108V, 350mA

± 5 %

9.5V

88%

PLD-40-500B

45~80V, 500mA

± 5 %

5.0V

88%

PLD-40-700B

34~57V, 700mA

± 5 %

3.1V

87%

PLD-40-1050B

22~38V, 1050mA

± 5 %

2.6V

87%

PLD-40-1400B

17~29V, 1400mA

± 5 %

2.5V

86%

PLD-40-1750B

13~23V, 1750mA

± 5 %

2.4V

86%

PLD-40 Series

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PLD-60-500B

70~108V, 500mA

± 5 %

10.2V

88%

PLD-60-700B

50~86V, 700mA

± 5 %

5.6V

87%

PLD-60-1050B

34~57V, 1050mA

± 5 %

3.8V

87%

PLD-60-1400B

25~43V, 1400mA

± 5 %

3.4V

86%

PLD-60-1750B

20~34V, 1750mA

± 5 %

3.3V

86%

PLD-60-2000B

18~30V, 2000mA

± 5 %

2.4V

86%

PLD-60-2400B

15~25V, 2400mA

± 5 %

2.4V

85%

PLD-60 Series

(for 350mA)

(for 700~1400mA)

16~60W Plastic Case with PFC

I N P U T

( A t y p e )

I N P U T

( B t y p e )

O U T P U T

( A t y p )

y p

ACL

ACN

Vo+

AC input voltage range

115VAC (90~135VAC) or 230VAC (180~295VAC)

230VAC (180~295VAC)

AC inrush current (max.)

Cold start, 10A at 230VAC

PCD-40: Cold start, 11A at 230VAC
PCD-60: Cold start, 13A at 230VAC

Setup time

500ms at full load and 230VAC

Total harmonic distortion

THD<20%

Withstand voltage

I/P - O/P: 3.75kVAC

Working temperature

-30~+60ºC (refer to output derating curve)

PCD-40: -30~+50ºC ; PCD-60: -30~+45ºC

Safety standards

UL8750 (PCD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for PCD-16/25 A-Type),
GB19510.14, GB19510-1, EAC TP TC 004, BIS IS15885 (PCD-16/25-350B/700B)

EMC standards

EN55015(except for PCD-16/25 A-Type), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8, 11,
EN61547; FCC part 18 non-consumer equipment (for PCD-16/25 A-Type), GB17743,
GB17625.1, EAC TP TC 020

Connection

Input

A-Type: UL1430 18AWGx2C (7.5cm);
B-Type: NISPT-1 18AWGx2C (7.5cm)

H03VVH2-F 0.75mm

x2C (7.5cm)

Output

UL1430 18AWGx2C (15cm)

Dimension (LxWxH)(mm)

84x 57x 29.5

128x 60x 31.5

• Constant current mode

•PCD-16/25: 115VAC or 230VAC input
PCD-40/60: 230VAC input only

•AC phase-cut dimming

, work with leading edge and

trailing edge TRIAC dimmers

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PCD-16-350

24~48V, 350mA

± 5 %

4.6V

82.0%

PCD-16-700

16~24V, 700mA

± 5 %

2.7V

81.0%

PCD-16-1050

12~16V, 1050mA

± 5 %

2.2V

80.5%

PCD-16-1400

8~12V, 1400mA

± 5 %

2.0V

80.0%

= A o r B - T y p e ; A - T y p e : 9 0 ~ 1 3 5 V A C , B - T y p e : 1 8 0 ~ 2 9 5 V A C

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PCD-40-350B

70~108V, 350mA

± 5 %

9.5V

87%

PCD-40-500B

45~80V, 500mA

± 5 %

5.0V

87%

PCD-40-700B

34~57V, 700mA

± 5 %

3.1V

86%

PCD-40-1050B

22~38V, 1050mA

± 5 %

2.6V

86%

PCD-40-1400B

17~29V, 1400mA

± 5 %

2.5V

85%

PCD-40-1750B

13~23V, 1750mA

± 5 %

2.4V

85%

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PCD-60-500B

70~108V, 500mA

± 5 %

10.2V

87%

PCD-60-700B

50~86V, 700mA

± 5 %

5.6V

86%

PCD-60-1050B

34~57V, 1050mA

± 5 %

3.8V

86%

PCD-60-1400B

25~43V, 1400mA

± 5 %

3.4V

85%

PCD-60-1750B

20~34V, 1750mA

± 5 %

3.3V

85%

PCD-60-2000B

18~30V, 2000mA

± 5 %

2.4V

85%

PCD-60-2400B

15~25V, 2400mA

± 5 %

2.4V

84%

M a n u f a c t u r e r

D i m m e r M o d e l

LUTRON

SKYLARK SF-12P-277

(277VAC / 60Hz)

LUTRON

DVF-103P-277

(277VAC / 60Hz)

LUTRON

SKYLARK SF-10P

(120VAC / 60Hz)

LUTRON

SKYLARK S-600P

(120VAC / 60Hz)

LUTRON

SKYLARK DVF-103P

(120VAC / 60Hz)

LEVITON

ILLUMATECH TM Cat.No.IP106 (120VAC / 60Hz)

LEVITON

SURESLIDE TM Cat.No.6633-P

(120VAC / 60Hz)

LEVITON

SURESLIDE TM Cat. NO.6615-P (120VAC / 60Hz)

JUNG

Licht-Management 225 T DE

(230VAC / 50Hz)

JUNG

Licht-Management 225 NV DE (230VAC / 50Hz)

BERKER

Tronic-Drehdimmer 286710

(230-240VAC / 50Hz)

BE LICHTREGLER

T39.01

(230VAC / 50Hz)

BE LICHTREGLER

T46

(230VAC / 50Hz)

CLIPSAL

32E450UDM

(220-240VAC / 50Hz)

CLIPSAL

NO 32E450TM

(220-240VAC / 50Hz)

Conduction angle: 30 degrees (min.) / 180 degrees (max.)

For PCD-16/25/40/60 only

M o d e l N o .

O u t p u t

o T o l .

R & N

E f f i .

PCD-25-350

40~58V, 350mA

± 5 %

4.6V

82.0%

PCD-25-700

24~36V, 700mA

± 5 %

2.7V

81.0%

PCD-25-1050

16~24V, 1050mA

± 5 %

2.2V

80.5%

PCD-25-1400

12~18V, 1400mA

± 5 %

2.0V

80.0%

= A o r B - T y p e ; A - T y p e : 9 0 ~ 1 3 5 V A C , B - T y p e : 1 8 0 ~ 2 9 5 V A C

PCD-16 Series

PCD-40 Series

PCD-60 Series

PCD-25 Series

P C D - 4 0 / 6 0

P C D - 1 6 / 2 5

(A-Type) (for 350B, 700B)

(for 350B, 700B)

(A-Type)

(B-Type)

Features

• Fully isolated plastic case with IP42 level
•Isolation class

, no F.G.

• Class 2 power unit / Pass LPS (PCD-16/25)
• Protections: Short circuit / Over temperature
• 3 years warranty

Dimmer Compatibility Chart

(for 350mA)

(for 350/700mA)

(for 700~1400mA)

(for 1050/1400mA)

16~60W Plastic Case with PFC

(Optional)

(optional)

I N P U T

PLN-20

PLN-30

PLN-45/60/100

O U T P U T

PLN-20

PLN-30/45/60/100

AC input voltage range

90~277VAC; 127~392VDC

90~295VAC ; 127~417VDC

AC inrush current (max.)

Cold start, 35A at 230VAC

Cold start, 40A at 230VAC

DC adjustment range

None

95%~108%

85%~100%

Current adjustment range

75%~100%

75%~103%

Over current protection

95%~110% constant
current limiting,
auto-recovery

100%~110% constant
current limiting,
auto-recovery

95%~110% constant
current limiting,
auto-recovery

95%~102% constant
current limiting,
auto-recovery

Over voltage protection

105%~142%

110%~155% 115%~140% 107%~135%

Setup time

500ms at full load and 230VAC

Total harmonic distortion

THD<20%

Withstand voltage

I/P-O/P: 3.75kVAC

I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

Working temperature

-30~+60

-30~+50

C (refer to output derating curve)

Safety standards

TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1,
EAC TP TC 004 approved for PLN series; UL8750 approved for PLN-20/45/60,
UL879, UL1310 approved for PLN-30/45/60/100

EMC standards

EN55015, EN55032 class B (PLN-100 only), EN61000-3-2 class C, EN61000-3-3,
EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1, EAC TP TC 020

Connection

Input

UL rated, UL1015
18AWGx2C (32cm)

UL rated, SVT
18AWGx2C (32cm)

UL rated, SVT 18AWGx3C (30cm) UL rated, SVT 18AWGx3C (31cm)

Output

UL rated, SVT 18AWGx2C (30cm) UL rated, SVT 18AWGx2C (31cm)

Dimension (LxWxH) (mm)

148.5x 38.5x 28

145x 47x 30

181x 61.5x 35

200x 70.5x 35

Features

• Constant current mode (PLN-20/30/45/60)

•

Constant current + constant voltage (PLN-100)

• Universal AC input

(up to 295VAC) / Full range

• Fully isolated plastic case with IP64 level
• Isolation class

, no F.G. for PLN-20/30

• Class 2 power unit / Pass LPS

• User adjustable output voltage (except for PLN-20)
and current protection level
• Suitable for LED lighting with independent applications
• Protections: Short circuit / Over current / Over voltage /

Over temperature

• 2 years warranty

P L N - 3 0

P L N - 2 0

PLN-45/60

P L N - 1 0 0

PLN-20 Series

PLN-30 Series

PLN-45 Series

Model No.

Output

Tol.

R&N

Effi.

PLN-20-12

12V, 0~1.6A

±10%

2.5V

80.0%

PLN-20-18

18V, 0~1.1A

±10%

3.0V

81.0%

PLN-20-24

24V, 0~0.8A

±10%

3.0V

82.0%

PLN-20-36

36V, 0~0.55A

±10%

3.0V

83.0%

PLN-20-48

48V, 0~0.42A

±10%

3.8V

83.5%

Model No.

Output

Tol.

R&N

Effi.

PLN-30-9

9V, 0~3.3A

±10%

2.6V

80.0%

PLN-30-12

12V, 0~2.5A

±10%

2.0V

82.5%

PLN-30-15

15V, 0~2.0A

±10%

2.6V

83.5%

PLN-30-20

20V, 0~1.5A

±10%

2.6V

84.0%

PLN-30-24

24V, 0~1.25A

±10%

2.6V

84.0%

PLN-30-27

27V, 0~1.12A

±10%

2.3V

84.5%

PLN-30-36

36V, 0~0.84A

±10%

4.5V

85.0%

PLN-30-48

48V, 0~0.63A

±10%

3.7V

85.5%

Model No.

Output

Tol.

R&N

Effi.

PLN-45-12

12V, 0~3.8A

±10%

2.0V

83.5%

PLN-45-15

15V, 0~3.0A

±10%

2.4V

85.0%

PLN-45-20

20V, 0~2.3A

±10%

1.8V

86.5%

Model No.

Output

Tol.

R&N

Effi.

PLN-45-24

24V, 0~1.9A

±10%

2.7V

86.5%

PLN-45-27

27V, 0~1.7A

±10%

2.7V

86.5%

PLN-45-36

36V, 0~1.25A

±10%

3.6V

87.5%

PLN-45-48

48V, 0~0.95A

±10%

4.6V

87.5%

Model No.

Output

Tol.

R&N

Effi.

PLN-60-12

12V, 0~5.0A

±10%

2.0V

85.0%

PLN-60-15

15V, 0~4.0A

±10%

2.4V

86.0%

PLN-60-20

20V, 0~3.0A

±10%

1.8V

87.5%

PLN-60-24

24V, 0~2.5A

±10%

2.7V

87.0%

PLN-60-27

27V, 0~2.3A

±10%

2.7V

88.0%

PLN-60-36

36V, 0~1.7A

±10%

3.6V

89.0%

PLN-60-48

48V, 0~1.3A

±10%

4.6V

89.0%

PLN-60 Series

PLN-100 Series

Model No.

Output

Tol.

R&N

Effi.

PLN-100-12

12V, 0~5.0A

±3%

150mV

83.0%

PLN-100-15

15V, 0~5.0A

±3%

150mV

85.0%

PLN-100-20

20V, 0~4.8A

±3%

150mV

88.5%

PLN-100-24

24V, 0~4.0A

±3%

150mV

88.5%

PLN-100-27

27V, 0~3.55A

±3%

150mV

88.0%

PLN-100-36

36V, 0~2.65A

±2%

150mV

88.0%

PLN-100-48

48V, 0~2.0A

±2%

200mV

88.5%

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

(for 48V only)

(for 9~36V)

(for 12~36V)

20~96W Plastic Case with PFC

(Optional)

I N P U T

O U T P U T

AC input voltage range

90~305VAC; 127~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC Cold start, 55A at 230VAC

Cold start, 70A at 230VAC

DC adjustment range

±10% rated output voltage (A-Type only)

Current adjustment range

60%~100%

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

109%~150% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

Total harmonic distortion

THD<20%

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:1.5kVAC

Working temperature

-40~+50

C (refer to output derating curve)

Safety standards

UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1,
EAC TP TC 004 approved; Design refer to UL/EN60950-1, EN60335-1for HLN-40H/60H

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020

Connection

Input

UL rated, SVT 18AWGx3C (30cm)

Output

A-Type: UL rated, SVT 18AWGx2C (30cm) ; B-Type: UL rated, SVT 18AWGx4C (30cm)

Dimension (LxWxH) (mm)

161x 61.5x 35

181x 61.5x 35

Features

• Constant voltage + constant current modes

• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 91%
• Fully isolated plastic case with IP64 level
• Class 2 power unit / Pass LPS
• Suitable for dry, damp location
• Suitable for LED lighting with independent applications

• Protections:

Short circuit / Over current / Over voltage / Over temperature

• Multiple models for choice:
A-Type: IP64 rated. Output voltage and constant current level

can be adjusted through internal

potentiometer

B-Type: IP64 rated and

built-in 3 in 1 dimming function

(1-10VDC, PWM signal, or resistance)

• 3 years warranty

H L N - 4 0 H

H L N - 6 0 H

H L N - 8 0 H

HLN-40H Series

HLN-60H Series

HLN-80H Series

Model No.

Output

Tol.

R&N

Effi.

HLN-40H-12 A

12V, 0~3.33A

±2.5%

150mV

86.5%

HLN-40H-15 A

15V, 0~2.67A

±2.0%

150mV

86.5%

HLN-40H-20 A

20V, 0~2.00A

±1.0%

150mV

87.5%

HLN-40H-24 A

24V, 0~1.67A

±1.0%

150mV

88.0%

HLN-40H-30 A

30V, 0~1.34A

±1.0%

200mV

88.5%

HLN-40H-36 A

36V, 0~1.12A

±1.0%

200mV

88.5%

HLN-40H-42 A

42V, 0~0.96A

±1.0%

300mV

88.5%

HLN-40H-48 A

48V, 0~0.84A

±1.0%

300mV

89.0%

HLN-40H-54 A

54V, 0~0.75A

±1.0%

300mV

89.0%

= A or B

Model No.

Output

Tol.

R&N

Effi.

HLN-80H-12 A

12V, 0~5.0A

±2.5%

150mV

88.0%

HLN-80H-15 A

15V, 0~5.0A

±2.0%

150mV

89.0%

HLN-80H-20 A

20V, 0~4.0A

±1.0%

150mV

90.0%

HLN-80H-24 A

24V, 0~3.4A

±1.0%

150mV

90.5%

HLN-80H-30 A

30V, 0~2.7A

±1.0%

200mV

91.0%

HLN-80H-36 A

36V, 0~2.3A

±1.0%

200mV

91.0%

HLN-80H-42 A

42V, 0~1.95A

±1.0%

200mV

91.0%

HLN-80H-48 A

48V, 0~1.7A

±1.0%

200mV

91.0%

HLN-80H-54 A

54V, 0~1.5A

±1.0%

200mV

91.0%

= A or B

Model No.

Output

Tol.

R&N

Effi.

HLN-60H-15 A

15V, 0~4.0A

±2.0%

150mV

87.0%

HLN-60H-20 A

20V, 0~3.0A

±1.0%

150mV

88.5%

HLN-60H-24 A

24V, 0~2.5A

±1.0%

150mV

89.0%

Model No.

Output

Tol.

R&N

Effi.

HLN-60H-30 A

30V, 0~2.0A

±1.0%

200mV

89.5%

HLN-60H-36 A

36V, 0~1.70A

±1.0%

200mV

90.0%

HLN-60H-42 A

42V, 0~1.45A

±1.0%

300mV

90.0%

HLN-60H-48 A

48V, 0~1.30A

±1.0%

300mV

90.5%

HLN-60H-54 A

54V, 0~1.15A

±1.0%

300mV

90.5%

= A or B

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

(for 48~54V)

(for 12~42V)

(for 15~42V)

(for 48~54V) (for 12~42V)

1-10VDC

(B-Type)

40~80W Plastic Case with PFC

(Optional)

I N P U T

O U T P U T

Features

• Constant current mode
(Constant voltage + constant current modes for PLC-100)

• Universal AC input / Full range

• Fully isolated plastic case with screw terminal style I/O

• Adjustable output voltage and current level
• Class 2 power unit / Pass LPS

• Isolation class

, no F.G. for PLC-30

• Suitable for LED lighting and moving sign applications
• Protections: Short circuit / Over current / Over voltage /

Over temperature

• Cooling by free air convection
• 2 years warranty

P L C - 3 0

P L C - 1 0 0

PLC-30 Series

PLC-45 Series

Model No.

Output

Tol.

R&N

Effi.

PLC-30-9

9V, 0~3.3A

±10%

2.6V

80.0%

PLC-30-12

12V, 0~2.5A

±10%

2.0V

82.5%

PLC-30-15

15V, 0~2.0A

±10%

2.6V

83.5%

PLC-30-20

20V, 0~1.5A

±10%

2.6V

84.0%

PLC-30-24

24V, 0~1.25A

±10%

2.4V

84.0%

PLC-30-27

27V, 0~1.12A

±10%

2.3V

84.5%

PLC-30-36

36V, 0~0.84A

±10%

3.6V

85.0%

PLC-30-48

48V, 0~0.63A

±10%

3.7V

85.5%

Model No.

Output

Tol.

R&N

Effi.

PLC-45-12

12V, 0~3.8A

±10%

2.0V

83.5%

PLC-45-15

15V, 0~3.0A

±10%

2.4V

85.0%

PLC-45-20

20V, 0~2.3A

±10%

1.8V

86.5%

PLC-45-24

24V, 0~1.9A

±10%

2.7V

86.5%

PLC-45-27

27V, 0~1.7A

±10%

2.7V

86.5%

PLC-45-36

36V, 0~1.25A

±10%

3.6V

87.5%

PLC-45-48

48V, 0~0.95A

±10%

4.6V

87.5%

Model No.

Output

Tol.

R&N

Effi.

PLC-60-12

12V, 0~5.0A

±10%

2.0V

85.0%

PLC-60-15

15V, 0~4.0A

±10%

2.4V

86.0%

PLC-60-20

20V, 0~3.0A

±10%

1.8V

87.5%

PLC-60-24

24V, 0~2.5A

±10%

2.4V

87.0%

PLC-60-27

27V, 0~2.3A

±10%

2.7V

88.0%

PLC-60-36

36V, 0~1.7A

±10%

3.6V

89.0%

PLC-60-48

48V, 0~1.3A

±10%

4.6V

89.0%

PLC-60 Series

PLC-100 Series

Model No.

Output

Tol.

R&N

Effi.

PLC-100-12

12V, 0~5.0A

±3%

150mV

83.0%

PLC-100-15

15V, 0~5.0A

±3%

150mV

85.0%

PLC-100-20

20V, 0~4.8A

±3%

150mV

88.5%

PLC-100-24

24V, 0~4.0A

±3%

150mV

88.5%

PLC-100-27

27V, 0~3.55A

±3%

150mV

88.0%

PLC-100-36

36V, 0~2.65A

±2%

150mV

88.0%

PLC-100-48

48V, 0~2.0A

±2%

200mV

88.5%

P L C - 4 5 / 6 0

AC input voltage range

90~264VAC ; 127~370VDC

AC inrush current (max.)

Cold start, 35A at 230VAC

Cold start, 40A at 230VAC

DC adjustment range

95%~110% rated output voltage

90%~110% rated output voltage

85%~100% rated output voltage

Current adjustment range

75%~103% 75%~100%

Over current protection

100%~110% constant current
limiting, auto-recovery

95%~110% constant current
limiting, auto-recovery

95%~102% constant current
limiting, auto-recovery

Over voltage protection

110%~155% rated output voltage 115%~140% rated output voltage 107%~135% rated output voltage

Setup time

500ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:1.5kVAC

Working temperature

-30~+50

C (refer to output derating curve)

Safety standards

UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1,
EAC TP TC 004 approved; TUV EN62368-1 approved for PLC-100 only

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB17743, GB17625.1

Connection (Input / Output)

2+2P screw terminal block

3+2P screw terminal block

Dimension (LxWxH)(mm)

160x 46x 30

181.5x 62x 35

200.5x 69.5x 35

Packing

0.2kg ; 70pcs / 15kg

0.41kg ; 30pcs / 13.3kg

0.52kg ; 25pcs / 14kg

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

TUV

Rheinland

Product Safety

P S

(for 48V only)

(for 9~36V)

(for 12~36V)

30~96W Plastic Case with PFC

G S C 1 8 B / 2 5 B / 4 0 B

G S C 1 8 E / 2 5 E / 4 0 E

O U T P U T

GSC18 Series

GSC25 Series

GSC40 Series

Features

• Constant current mode
• No load power consumption <0.15W

• Universal AC input (up to 277VAC) / Full range
• Isolation class

, no F.G.

• Fully isolated plastic case with IP40 level

Model No.

Output

o Tol.

R&N

Effi.

GSC25 -350

36~72V, 350mA

±8%

7.2V

89.5%

GSC25 -500

26~52V, 500mA

±8%

5.0V

89.5%

GSC25 -700

18~36V, 700mA

±8%

3.6V

88.5%

Model No.

Output

o Tol.

R&N

Effi.

GSC25 -1050

12~24V, 1050mA

±8%

2.4V

87.5%

GSC25 -1400

9~18V, 1400mA

±8%

1.8V

86.0%

= B / E ; B: IEC320-C8, E: European 2P

Model No.

Output

o Tol.

R&N

Effi.

GSC18 -350

26~52V, 350mA

±8%

4.6V

89.0%

GSC18 -500

18~36V, 500mA

±8%

3.0V

88.5%

GSC18 -700

13~26V, 700mA

±8%

2.5V

88.5%

GSC18 -1050

8~17V, 1050mA

±8%

1.6V

87.0%

GSC18 -1400

6~13V, 1400mA

±8%

1.6V

85.5%

= B / E ; B: IEC320-C8, E: European 2P

Model No.

Output

o Tol.

R&N

Effi.

GSC40 -350

50~100V, 350mA

±8%

11.6V

89.5%

GSC40 -500

40~80V, 500mA

±8%

8.0V

89.5%

GSC40 -700

29~58V, 700mA

±8%

5.8V

88.5%

GSC40 -1050

19~38V, 1050mA

±8%

3.8V

87.5%

GSC40 -1400

14~28V, 1400mA

±8%

2.9V

87.0%

= B / E ; B: IEC320-C8, E: European 2P

AC input voltage range

90~277VAC, 127~392VDC

AC inrush current (max.)

Cold start, 17A at 230VAC

Setup time

500ms at full load and 230VAC

Total harmonic distortion

THD<20%

Short circuit protection

Hiccup mode, auto-recovery

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

-30~+50

C ( refer to output derating curve)

Safety standards

DEKRA/ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004
approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020

Connection

Input

B-Type

IEC320-C8

E-Type

European 2P

Output

Plug

2.1

5.5

x11mm, C+

Cable

UL rated, UL1185 18AWG (150cm)

Dimension (LxWxH)(mm)

79x54x33

• IEC320-C8 or 2 pole EURO plug
• Low cost, high reliability
• Suitable for indoor LED lighting applications
• Protection: Short circuit
• 3 years warranty

18~40W External Type with PFC

(B-Type)

35~80W Metal Case with PFC

NEW

Features

• Constant power mode (Full power at 70~100% current)
• Linear metal housing

• SELV and Isolated
• Flicker-Free

• No load power consumption<0.5W
• Push terminal style

• Protections: Short circuit / Over temperature / Over voltage

L D C - 5 5 ( D A )

L D C - 8 0 ( D A )

L D C - 3 5 ( D A )

LDC-35(DA)

LDC-55(DA)

LDC-80(DA)

Model No.

Output

Tol.

Effi.

LDC-35

27~56V,

300~1000mA

88%

= Blank, B or DA

Model No.

Output

Tol.

Effi.

LDC-55

27~56V,

500~1600mA

90%

= Blank, B or DA

Model No.

Output

Tol.

Effi.

LDC-80

27~56V,

700~2100mA

90%

= Blank, B or DA

AC input voltage range

180~295VAC; 254 ~ 420VDC

AC inrush current (max.)

Cold start, 30A at 230VAC

Cold start, 65A at 230VAC

Cold start, 55A at 230VAC

Setup time

500ms at 230VAC

Short circuit protection

Constant current limiting or hiccup mode, auto-recovery

Over temp. protection

Shut down o/p voltage with auto-recovery

Withstand voltage

I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC

Working temperature

Tcase=-25~+80

Safety standards

UL8750, ENEC EN/AS/NZS61347-1, EN/AS/NZS61347-2-13, EN62384, GB19510.14, GB19510.1,
EAC TP TC 004

DALI standards

Design refer to IEC62386-101, 102, 207 (DA-Type only)

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB/T17743, GB17625.1, EAC TP TC 020

Dimension (LxWxH)(mm)

280x 30x 21

320x 30x 21

360x 30x 21

• Multiple types for choice:

Blank-Type: Without dimming function
B-Type: Built-in 3 in 1 dimming function
(0~10VDC, PWM signal or resistance)
DA-Type: Built-in DALI interface, push dimming function

• Output current level can be adjusted by resistence
• Built-in temperature compensation function by external NTC
• 5 years warranty

CP Curve

XLG-50

INPUT

( 3 Y M o d e l s )

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

AC input voltage range

100~305VAC ; 142~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC

Over power protection

110%~130% over power protection, recovers automatically after fault condition is removed

Over temp. protection

Hiccup mode, recovers automatically after fault condition is removed

Setup, rise, hold up time

500ms, 100ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

Working temperature

Tcase= -40~+85

Safety standards

UL8750, ENEC AS/NZS EN61347-1, ENEC/AS/NZS EN61347-2-13 independent, EN62384; GB19510.1,
GB19510.14, EAC TP TC 004 approved

EMC standards

EN55015,EN61000-3-2 Class C; EN61000-3-3; GB17743, GB17625.1, EN61000-4-2,3,4,5,6,8,11; EN61547,
EAC TP TC 020

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• B/D2/DA-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Dimension (LxWxH) (mm)

105x 63x 30

Features

• Constant power mode

• Metal housing design with functional ground
• Built-in active PFC function
• Class 2 power unit
• No load / Standby power consumption <0.5W

• Multiple models for choice:
A-Type: IP67 rated. Constant current level can be adjusted
through internal potentiometer
AB-Type: IP67 rated. 3 in 1 dimming function (0~10VDC,
PWM signal, and resistance)
• 5 years warranty

XLG-50 Series

Model No.

Output

Tol.

Ripple

Effi.

XLG-50-

22~54V, 0.53A~2.1A

90%

= A, AB

0-10VDC

50W Metal Case with PFC

(AB-Type)

Source: Neotroni Lighting Inc.

E L G - 7 5

Blank/A

B/D2/DA

INPUT

( 3 Y M o d e l s )

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACN

DIM

/DA

DIM+/DA

Vo+

ACL

ACN

ACL

AC input voltage range

100~305VAC ; 142~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC

Cold start, 60A at 230VAC

Cold start, 65A at 230VAC

DC adjustment range

±10% rated output voltage (A-Type only)

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Over temp. protection

Shut down o/p voltage, re-power on to recover

Setup, rise, hold up time

500ms, 100ms, 10ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

Working temperature

Tcase= -40~+85

Tcase= -40~+90

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, IEC/EN/AS/NZ61347-1,-2-13, EN62384, GB19510.1, GB19510.14, EAC TP TC 004,
BIS IS15885(refer to spec for models) approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020

Connection

Please refer to page 38

Dimension (LxWxH) (mm)

180x 63x 35.5

199x 63x 35.5

219x 63x 35.5

Features

• Constant voltage+constant current modes

• Universal AC input (up to 305VAC) / Full range

• High efficiency up to 91%

• No load / Standby power consumption <0.5W

• Meet 6KV surge immunity level (IEC61000-4-5)

• Class 2 power unit (ELG-75/100 only)

• Type HL LED Driver for use in Class

, Division 2 hazardous

location luminaires

• Suitable for dry / damp / wet locations

with IP67

• Suitable for LED lighting and outdoor lighting applications

• Protections:
Short circuit / Over current / Over voltage / Over temp.

• Multiple models for choice:

A-Type:

IP65 rated. Output voltage and constant current level can

be adjusted through internal potentiometer

B-Type:

IP67 rated. Constant current level adjustable through

output cable with

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

Blank-Type:

IP67 rated. Cable for I/O connection

D2-Type:

IP67 rated.

Smart timer dimming function*,

contact

MEAN WELL for details

DA-Type:

IP67 rated.

DALI control technology

BE-Type:

IP67 rated. 3 in 1 dimming function and

15V/400mA

auxiliary output

(ELG-150 only)

• 5 years warranty

E L G - 1 0 0

ELG-150

ELG-75 Series

ELG-150 Series

ELG-100 Series

Model No.

Output

Tol.

R&N

Effi.

ELG-75-12 A -

12V, 0~5A

±3.0%

150mV

85%

ELG-75-24 A -

24V, 0~3.15A

±3.0%

200mV

88%

ELG-75-36 A -

36V, 0~2.1A

±2.5%

250mV

89%

ELG-75-42 A -

42V, 0~1.8A

±2.5%

250mV

90%

ELG-75-48 A -

48V, 0~1.6A

±2.0%

250mV

90%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

Model No.

Output

Tol.

R&N

Effi.

ELG-150-12 A -

12V, 0~10A

±3.0%

150mV

88%

ELG-150-24 A -

24V, 0~6.25A

±3.0%

200mV

89%

ELG-150-36 A -

36V, 0~4.17A

±2.5%

250mV

90%

ELG-150-42 A -

42V, 0~3.57A

±2.5%

250mV

90%

ELG-150-48 A -

48V, 0~3.13A

±2.0%

250mV

90%

ELG-150-54 A -

54V, 0~2.8A

±2.0%

350mV

91%

= Blank, A, B, D2, DA or BE ;

= Blank, 3Y

Model No.

Output

Tol.

R&N

Effi.

ELG-100-24 A -

24V, 0~4A

±3%

200mV

88%

ELG-100-36 A -

36V, 0~2.66A

±2.5%

250mV

89%

Model No.

Output

Tol.

R&N

Effi.

ELG-100-42 A -

42V, 0~2.28A

±2.5%

250mV

90%

ELG-100-48 A -

48V, 0~2A

±2%

300mV

90%

ELG-100-54 A -

54V, 0~1.78A

±2%

350mV

91%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

0-10VDC

75~150W Metal Case with PFC

= Blank, 2-wire input for standard mode ; = 3Y, 3-wire input for standard mode.

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

(DA-Type)

(B & BE-Type)

(DA-Type)

(B-Type)

(DA-Type)

(B-Type)

E L G - 2 4 0

Blank/A

B/D2/DA

= Blank, 2-wire input for standard mode ; = 3Y, 3-wire input for standard mode.

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

INPUT

( 3 Y M o d e l s )

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACN

DIM

DIM+

Vo+

ACL

ACN

ACL

E L G - 2 0 0

AC input voltage range

100~305VAC ; 142~431VDC

AC inrush current (max.)

Cold start, 75A at 230VAC

DC adjustment range

±10% rated output voltage (A-Type only)

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Setup, rise, hold up time

500ms, 100ms, 10ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

Working temperature

Tcase= -40~+85

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC/AS/NZS/EN61347-1,-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004,
BIS IS15885(refer to spec for models) approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,

GB17625.1, EAC TP TC 020

Connection

Please refer to page 38

Dimension (LxWxH) (mm)

244x 71x 37.5

Features

• Constant voltage+constant current modes

• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 93%

• No load / Standby power consumption <0.5W
• Meet 6KV surge immunity level (IEC61000-4-5)
• Type HL LED Driver for use in Class

, Division 2 hazardous

location luminaires

• Suitable for dry / damp / wet locations
• Suitable for LED lighting and street lighting applications
• Protections:
Short circuit / Over current / Over voltage / Over temp.

• Multiple models for choice:

A-Type:

IP65 rated. Output voltage and constant current level

can be adjusted through internal potentiometer

B-Type:

IP67 rated. Constant current level adjustable through

output cable with

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

Blank-Type:

IP67 rated. Cable for I/O connection

D2-Type:

IP67 rated.

Smart timer dimming function*,

contact

MEAN WELL for details

DA-Type:

IP67 rated.

DALI control technology

• 5 years warranty

ELG-240 Series

ELG-200 Series

Model No.

Output

Tol.

R&N

Effi.

ELG-240-24 A -

24V, 0~10A

±2%

200mV

92.0%

ELG-240-36 A -

36V, 0~6.66A

±2%

250mV

92.0%

ELG-240-42 A -

42V, 0~5.71A

±2%

250mV

92.5%

ELG-240-48 A -

48V, 0~5.0A

±2%

250mV

93.0%

ELG-240-54 A -

54V, 0~4.45A

±2%

350mV

93.0%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

Model No.

Output

Tol.

R&N

Effi.

ELG-200-12 A -

12V, 0~16A

±3%

150mV

90.0%

ELG-200-24 A -

24V, 0~8.4A

±2%

200mV

92.0%

ELG-200-36 A -

36V, 0~5.55A

±2%

250mV

92.0%

ELG-200-42 A -

42V, 0~4.76A

±2%

250mV

92.5%

ELG-200-48 A -

48V, 0~4.16A

±2%

250mV

93.0%

ELG-200-54 A -

54V, 0~3.72A

±2%

350mV

93.0%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

0-10VDC

200~240W Metal Case with PFC

(DA-Type)

(B-Type)

Blank/A B/D2/DA

INPUT

( 3 Y M o d e l s )

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACN

DIM

DIM+

Vo+

ACL

ACN

ACL

= Blank, 2-wire input for standard mode ; = 3Y, 3-wire input for standard mode.

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

Model No.

Output

Tol.

o Ripple

Effi.

ELG-75-C350 A -

107~214V, 350mA

±5%

91%

ELG-75-C500 A -

75~150V, 500mA

±5%

91%

ELG-75-C700 A -

53~107V, 700mA

±5%

90%

ELG-75-C1050 A -

35~71V, 1050mA

±5%

90%

ELG-75-C1400 A -

27~54V, 1400mA

±5%

90%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

AC input voltage range

100~305VAC; 142~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC

Cold start, 40A at 230VAC

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over voltage protection

105%~145% rated output voltage

Over temperature protection

Shut down o/p voltage, re-power on to recover

Setup time

500ms at 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

Working temperature

Tcase=-40~+90

Tcase=-40~+85

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC/AS/NZS/EN61347-1,-2-13, EN62384, GB19510.1, GB19510.14, EAC TP TC 004,
BIS IS15885(refer to spec for models) approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Please refer to page 38

Dimension (LxWxH) (mm)

180x 63x 35.5

199x 63x 35.5

Features

• Constant current mode

• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 92%

• No load / Standby power consumption <0.5W
• Meet 6KV surge immunity level (IEC61000-4-5)
• Type HL LED Driver for use in Class

, Division 2 hazardous

location luminaires

• Suitable for dry / damp / wet locations
• Suitable for LED lighting and street lighting applications
• Protections:
Short circuit / Over voltage / Over temperature

• Multiple models for choice:

A-Type:

IP65 rated. Constant current level can be adjusted

through internal potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

Blank-Type:

IP67 rated. Cable for I/O connection

D2-Type:

IP67 rated.

Smart timer dimming function*,

contact MEAN WELL for details

DA-Type:

IP67 rated.

DALI control technology

• 5 years warranty

ELG-75-C Series

ELG-100-C Series

Model No.

Output

Tol.

o Ripple

Effi.

ELG-100-C350 A -

143~286V, 350mA

±5%

92%

ELG-100-C500 A -

100~200V, 500mA

±5%

91%

ELG-100-C700 A -

71~143V, 700mA

±5%

90%

ELG-100-C1050 A -

48~95V, 1050mA

±5%

90%

ELG-100-C1400 A -

35~72V, 1400mA

±5%

90%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

0-10VDC

ELG-75-C

ELG-100-C

75~100W Metal Case with PFC

(DA-Type)

(B-Type)

ELGT-150-C

ELG-150-C

Blank/A

B/D2/DA

INPUT

( 3 Y M o d e l s )

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACN

DIM

DIM+

Vo+

ACL

ACN

ACL

= Blank, 2-wire input for standard mode ; = 3Y, 3-wire input for standard mode.

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

ELG-150-C Series

ELGT-150-C Series

Model No.

Output

Tol.

o Ripple

Effi.

ELG-150-C500 A -

150~300V, 500mA

±5%

92%

ELG-150-C700 A -

107~214V, 700mA

±5%

92%

ELG-150-C1050 A -

72~143V, 1050mA

±5%

92%

ELG-150-C1400 A -

54~107V, 1400mA

±5%

91%

ELG-150-C1750 A -

43~86V, 1750mA

±5%

91%

ELG-150-C2100 A -

36~72V, 2100mA

±5%

91%

= Blank, A, B, D2, DA or BE ;

= Blank, 3Y

Model No.

Output

Tol.

o Ripple

Effi.

ELGT-150-C700 A

107~214V, 700mA

±5%

92%

ELGT-150-C1050 A

72~143V, 1050mA

±5%

92%

ELGT-150-C1400 A

54~107V, 1400mA

±5%

91%

= Blank, A, B, D2, DA

0-10VDC

(DA-Type)

(B & BE-Type)

AC input voltage range

100~305VAC; 142~431VDC

AC inrush current (max.)

Cold start, 65A at 230VAC

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over voltage protection

105%~145% rated output voltage

Over temperature protection

Shut down o/p voltage, re-power on to recover

Setup time

500ms at 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

I/P-O/P: 3.75kVAC I/P-CASE: 3.75kVAC O/P-CASE: 1.5kVAC

Working temperature

Tcase=-40~+90

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004 approved,
BIS IS15885(ELG-150-C700A/1050A, 700DA only)

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020

Connection

Please refer to page 38

Dimension (LxWxH) (mm)

219x 63x 35.5

Features

• Constant current mode
• Compliant with class

design (ELGT-150-C only)

• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 92%

• No load / Standby power consumption <0.5W
• Meet 6KV surge immunity level (IEC61000-4-5)
• Type HL LED Driver for use in Class

, Division 2 hazardous

location luminaires

• Suitable for dry / damp / wet locations

with IP67

• Suitable for LED lighting and outdoor lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• Multiple models for choice:

A-Type:

IP65 rated. Constant current level can be adjusted

through internal

potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

Blank-Type:

IP67 rated. Cable for I/O connection

D2-Type:

IP67 rated.

Smart timer dimming function*,

contact MEAN WELL for details

DA-Type:

IP67 rated.

DALI control technology

BE-Type:

IP67 rated. 3 in 1 dimming function and

15V/400mA

auxiliary output(ELG-150-C only)

• 5 years warranty

150W Metal Case with PFC

E L G - 2 4 0 - C

ELG-200-C

Blank/A

B/D2/DA

INPUT

( 3 Y M o d e l s )

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACN

DIM

DIM+

Vo+

ACL

ACN

ACL

= Blank, 2-wire input for standard mode ; = 3Y, 3-wire input for standard mode.

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

AC input voltage range

100~305VAC; 142~431VDC

AC inrush current (max.)

Cold start, 65A at 230VAC

Cold start, 75A at 230VAC

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over voltage protection

105%~145% rated output voltage

Over temperature protection

Shut down o/p voltage, re-power on to recover

Setup time

500ms at 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

Working temperature

Tcase=-40~+85

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, ENEC/AS/NZS/EN61347-1,-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004,
BIS IS15885(refer to spec for models) approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1,
EAC TP TC 020

Connection

Please refer to page 38

Dimension (LxWxH) (mm)

244x 71x 37.5

Features

• Constant current mode

• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 93%

• No load / Standby power consumption <0.5W
• Meet 6KV surge immunity level (IEC61000-4-5)
• Type HL LED Driver for use in Class

, Division 2 hazardous

location luminaires

• Suitable for dry / damp / wet locations

with IP67

• Suitable for LED lighting and outdoor lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• Multiple models for choice:

A-Type:

IP65 rated. Constant current level can be adjusted

through internal

potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

Blank-Type:

IP67 rated. Cable for I/O connection

D2-Type:

IP67 rated.

Smart timer dimming function*,

contact MEAN WELL for details

DA-Type:

IP67 rated.

DALI control technology

• 5 years warranty

ELG-200-C Series

ELG-240-C Series

Model No.

Output

Tol.

o Ripple

Effi.

ELG-200-C700 A -

142~286V, 700mA

±5%

93%

ELG-200-C1050 A -

95~190V, 1050mA

±5%

93%

ELG-200-C1400 A -

71~142V, 1400mA

±5%

92%

ELG-200-C1750 A -

57~114V, 1750mA

±5%

92%

ELG-200-C2100 A -

48~96V, 2100mA

±5%

92%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

Model No.

Output

Tol.

o Ripple

Effi.

ELG-240-C700 A -

172~343V, 700mA

±5.0%

93%

ELG-240-C1050 A -

114~228V, 1050mA

±5.0%

93%

ELG-240-C1400 A -

86~171V, 1400mA

±5.0%

93%

ELG-240-C1750 A -

69~137V, 1750mA

±5.0%

93%

ELG-240-C2100 A -

57~115V, 2100mA

±5.0%

93%

= Blank, A, B, D2 or DA ;

= Blank, 3Y

0-10VDC

200~240W Metal Case with PFC

(DA-Type)

(B-Type)

E L G C - 3 0 0

AB/D2/DA

INPUT

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

*MEAN WELL Smart timer dimming primarily provides the adaptive

proportion dimming profile for the output constant current level.

NEW

E L G C - 3 0 0

AC input voltage range

100~305VAC; 142~431VDC

AC inrush current (max.)

Cold start, 45A at 230VAC

Current adjustment range

32.5%~100% via potentiometer(A/AB-Type only)

Over voltage protection

105%~145% rated output voltage

Over temperature protection

Derate power automatically

Setup time

500ms at 230VAC and 115VAC

Withstand voltage

I/P-O/P:3.75kVAC I/P-FG: 2kVAC O/P-FG: 1.5kVAC

Working temperature

Tcase=-40

C~+90

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750(type “HL”), ENEC EN61347-1, EN61347-2-13 independent, EN62384, EAC TP TC 004

EMC standards

GB19510.1, GB19510.14, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,6,8,11,
EN61547, GB17743, GB17625.1, EAC TP TC 020

Connection

Please refer to page 38

Dimension (LxWxH) (mm)

246x 77x 39.5

Features

• Constant power mode

• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 94.5%
• Standby power consumption<0.5W
• Meet 6KV surge immunity level (IEC61000-4-5)
• Type HL LED driver for use in Class I, Division 2 hazardous
location luminaires
• Suitable for dry / damp / wet locations
• Suitable for LED lighting and outdoor lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• Multiple models for choice:
A-Type: IP67 rated. Constant power level can be adjusted
through internal potentiometer
AB-Type: IP67 rated. output constant power can be adjusted
through internal potentiometer and

3 in 1 dimming

function (0~10VDC, PWM signal and resistance)

D2-Type: IP67 rated.

Smart timer dimming function*

, contact

MEAN WELL for details
DA-TYpe: IP67 rated. DALI control technology

• 5 years warranty

ELGC-300 Series

Model No.

Output

Tol.

o Ripple

Effi.

ELGC-300-L-

116~232V, 1300~2000mA

±5%

94.5%

ELGC-300-M-

58~116V, 2600~4000mA

±5%

93.5%

ELGC-300-H-

29~56V, 5200~8000mA

±5%

92.5%

= A, AB, D2 or DA

0-10VDC

300W Metal Case with PFC

(DA-Type)

(B-Type)

Source: CooLED Corp.

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• B/D2/DA-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• B/D2/DA-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• B/D2/DA-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• BE-Type:

SJOW 17AWGx4C & H05RN-F 1.0mm

(30cm)+ SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• B/D2/DA-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• BE-Type:

SJOW 17AWGx4C & H05RN-F 1.0mm

(30cm)+ SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJTW 14AWGx2C (30cm) for 12V

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) for others

• B/D2/DA-Type:

SJTW 14AWGx2C (30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) for 12V

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) for others

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• B/D2/DA-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Connection

Input

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

Output

• Blank/A-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

• AB/D2/DA-Type:

SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F 1.0mm

(30cm)

ELG-75/100 Series

ELG-75/100-C Series

ELG-150 Series

ELG-150-C Series

ELG-200/240 Series

ELG-200/240-C Series

ELGC-300 Series

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

Features

• Constant voltage + constant current modes

• Universal AC input (up to 305VAC) / Full range

• High efficiency up to 90.5%

• Meet 4kV surge immunity level (IEC61000-4-5)

• Class 2 power unit

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location

with IP67

• Suitable for LED lighting and outdoor lighting applications

• Protections:

Short circuit / Over current / Over voltage / Over temp.

• Multiple models for choice:

A-Type:

IP65 rated. Output voltage and constant current level can

be adjusted through internal potentiometer

B-Type:

IP67 rated and

built-in

3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

Blank-Type:

IP67 rated. Cable for I/O connection

D-Type(option):

IP67 rated. Timer dimming function, contact

MEAN WELL for details.

• 7 years warranty

H L G - 4 0 H

H L G - 6 0 H

Blank/D

AC input voltage range

90~305VAC ; 127~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC

Cold start, 55A at 230VAC

DC adjustment range

±10% rated output voltage (A-Type only)

Current adjustment range

60%~100% via potentiometer (A-Type only)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

109%~145% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:1.5kVAC

Working temperature

-40~+80

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, EN/AS/NZS61347-1,-2-13, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1,

EAC TP TC 004 approved; Design refer to UL62368-1, EN60335-1

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,

GB17743, GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH) (mm)

171x 61.5x 36.8

HLG-40H Series

HLG-60H Series

Model No.

Output

Tol.

R&N

Effi.

HLG-40H-12 A

12V, 0~3.33A

±2.5%

150mV

86.5%

HLG-40H-15 A

15V, 0~2.67A

±2.0%

150mV

86.5%

HLG-40H-20 A

20V, 0~2.00A

±1.0%

150mV

88.0%

HLG-40H-24 A

24V, 0~1.67A

±1.0%

200mV

88.0%

HLG-40H-30 A

30V, 0~1.34A

±1.0%

200mV

88.5%

HLG-40H-36 A

36V, 0~1.12A

±1.0%

200mV

88.5%

HLG-40H-42 A

42V, 0~0.96A

±1.0%

200mV

88.5%

HLG-40H-48 A

48V, 0~0.84A

±1.0%

300mV

89.5%

HLG-40H-54 A

54V, 0~0.75A

±1.0%

300mV

89.5%

= A, B, D or Blank

Model No.

Output

Tol.

R&N

Effi.

HLG-60H-15 A

15V, 0~4.0A

±2.0%

150mV

87.5%

HLG-60H-20 A

20V, 0~3.0A

±1.0%

150mV

89.0%

Model No.

Output

Tol.

R&N

Effi.

HLG-60H-24 A

24V, 0~2.5A

±1.0%

150mV

89.5%

HLG-60H-30 A

30V, 0~2.0A

±1.0%

200mV

90.0%

HLG-60H-36 A

36V, 0~1.70A

±1.0%

200mV

90.0%

HLG-60H-42 A

42V, 0~1.45A

±1.0%

300mV

90.0%

HLG-60H-48 A

48V, 0~1.30A

±1.0%

300mV

90.5%

HLG-60H-54 A

54V, 0~1.15A

±1.0%

300mV

90.5%

= A, B, D or Blank

Junction Box for HLG Series

• Optional junction box available for HLG-80H~320H series
(A/B/Blank-Type only). Please contact MEAN WELL for
details.

• “UL8750 listed” safety & IP66 approved for HLG-80H- BL
(modified from B-Type only)

(for 48V/54V)

(for 12~42V)

(for 15~42V)

(B-Type)

1-10VDC

40~60W Metal Case with PFC

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

H L G - 8 0 H

Blank/D

• Constant voltage + constant current modes

• Universal AC input (up to 305VAC) / Full range

• High efficiency up to 93.5%

• Meet 4kV surge immunity level (IEC61000-4-5)

• Class 2 power unit / Pass LPS (except for HLG-120H)

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location

with IP67

• Suitable for LED lighting and outdoor lighting applications

• Protections:

Short circuit / Over current / Over voltage / Over temp.

• Multiple models for choice:

A-Type:

IP65 rated. Output voltage and constant current level

can be adjusted through internal

potentiometer

B-Type:

IP67 rated and

built-in

3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

Blank-Type:

IP67 rated. Cable for I/O connection

BL-Type(option)

: Junction box option for HLG-80H B-Type only,

"UL8750 listed" safety & IP66 approved,

contact MEAN WELL for details

D-Type(option):

IP67 rated. Timer dimming function,

contact MEAN WELL for details

• 7 years warranty

HLG-80H Series

HLG-100H Series

HLG-120H Series

Model No.

Output

Tol.

R&N

Effi.

HLG-80H-12 A

12V, 0~5.0A

±2.5%

150mV

88.0%

HLG-80H-15 A

15V, 0~5.0A

±2.0%

150mV

89.0%

HLG-80H-20 A

20V, 0~4.0A

±1.0%

150mV

90.0%

HLG-80H-24 A

24V, 0~3.4A

±1.0%

150mV

90.5%

HLG-80H-30 A

30V, 0~2.7A

±1.0%

200mV

91.0%

HLG-80H-36 A

36V, 0~2.3A

±1.0%

200mV

91.0%

HLG-80H-42 A

42V, 0~1.95A

±1.0%

200mV

91.0%

HLG-80H-48 A

48V, 0~1.7A

±1.0%

200mV

91.0%

HLG-80H-54 A

54V, 0~1.5A

±1.0%

200mV

91.0%

= A , B, BL, D or Blank

Model No.

Output

Tol.

R&N

Effi.

HLG-120H-12 A

12V, 0~10A

±2.5%

150mV

92.0%

HLG-120H-15 A

15V, 0~8.0A

±2.0%

150mV

92.0%

HLG-120H-20 A

20V, 0~6.0A

±1.0%

150mV

93.0%

HLG-120H-24 A

24V, 0~5.0A

±1.0%

150mV

93.0%

HLG-120H-30 A

30V, 0~4.0A

±1.0%

200mV

93.0%

HLG-120H-36 A

36V, 0~3.4A

±1.0%

200mV

93.0%

HLG-120H-42 A

42V, 0~2.9A

±1.0%

200mV

93.0%

HLG-120H-48 A

48V, 0~2.5A

±1.0%

200mV

93.5%

HLG-120H-54 A

54V, 0~2.3A

±1.0%

200mV

93.5%

= A , B, D or Blank

Model No.

Output

Tol.

R&N

Effi.

HLG-100H-20 A

20V, 0~4.8A

±1%

150mV

93%

HLG-100H-24 A

24V, 0~4.0A

±1%

150mV

93%

HLG-100H-30 A

30V, 0~3.2A

±1%

200mV

93%

Model No.

Output

Tol.

R&N

Effi.

HLG-100H-36 A

36V, 0~2.65A

±1%

200mV

93%

HLG-100H-42 A

42V, 0~2.28A

±1%

200mV

93%

HLG-100H-48 A

48V, 0~2.0A

±1%

200mV

93%

HLG-100H-54 A

54V, 0~1.77A

±1%

200mV

93%

= A , B, D or Blank

Features

(except for BL-Type)

(for 12~42BL)

(for 48/54BL)

AC input voltage range

90~305VAC ; 127~431VDC

AC inrush current (max.)

Cold start, 70A at 230VAC

Cold start, 60A at 230VAC

DC adjustment range

±10% rated output voltage (A-Type only)

Current adjustment range

HLG-80H/100H: 60%~100% ; HLG-120H: 50%~100% via potentiometer (A-Type only)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

500ms, 50ms, 16ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:1.5kVAC

Working temperature

-40~+80

C (refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, GB19510.14, GB19510.1,

EAC TP TC 004 approved; BIS IS15885(refer to spec for models);

UL8750 listed for HLG-80H-

BL only

EMC standards

EN55015, EN55032 class B (except for HLG-80H), EN61000-3-2 class C, EN61000-3-3,

EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH) (mm)

195.6x 61.5x 38.8

220x 68x 38.8

H L G - 1 0 0 H

H L G - 1 2 0 H

80~120W Metal Case with PFC

1-10VDC

(B-Type)

1-10VDC

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

Features

• Constant voltage+constant current modes

• Universal AC input (up to 305VAC) / Full range
• High efficiency up to 94%
• Meet 4kV surge immunity level (IEC61000-4-5)

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location

with IP67

• Suitable for LED lighting and outdoor lighting applications
• Protections:

Short circuit / Over current / Over voltage / Over temp.

• Multiple models for choice:

A-Type

: IP65 rated. Output voltage and constant current level

can be adjusted through internal potentiometer

B-Type

: IP67 rated and

built-in

3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

C-Type

: Terminal block for I/O connection (HLG-240H)

Blank-Type

: IP67 rated. Cable for I/O connection

D-Type(option)

: IP67 rated. Timer dimming function,

contact MEAN WELL for details

• Optional RCM models available

(HLG-150H/185H/240H-A/B/Blank-Type)

• 7 years warranty

AC input voltage range

90~305VAC; 127~431VDC

AC inrush current (max.)

Cold start, 65A at 230VAC

Cold start, 75A at 230VAC

DC adjustment range

±10% rated output voltage (A-Type only)

±6% rated output voltage (A-Type & C-Type)

Current adjustment range

HLG-150H: 60%~100% ; HLG-185H/240H: 50%~100%

via potentiometer (A-Type & HLG-240H C-Type)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Setup, rise, hold up time

500ms, 50ms, 16ms

500ms, 80ms, 15ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-40~+90

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, EN/AS/NZS61347-1,-2-13(except for HLG-240H C-Type), PSE J61347-1, J61347-2-13 , GB19510.14, GB19510.1,

EAC TP TC 004 approved; UL1012, UL62368-1, TUV EN62368-1 approved for HLG-240H only;

BIS IS15885(refer to spec for models)

EMC standards

EN55015, EN55032 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,

GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH)(mm)

228x 68x 38.8

A/B/D/Blank-Type: 244.2x 68x 38.8
C-Type: 251x 68x 38.8

Model No.

Output

Tol.

R&N

Effi.

HLG-150H-12 A

12V, 0~12.5A

±2.5%

150mV

91.5%

HLG-150H-15 A

15V, 0~10.0A

±2.0%

150mV

92.0%

HLG-150H-20 A

20V, 0~7.50A

±1.0%

150mV

93.0%

HLG-150H-24 A

24V, 0~6.30A

±1.0%

150mV

93.0%

HLG-150H-30 A

30V, 0~5.00A

±1.0%

200mV

93.5%

HLG-150H-36 A

36V, 0~4.20A

±1.0%

200mV

93.5%

HLG-150H-42 A

42V, 0~3.60A

±1.0%

200mV

94.0%

HLG-150H-48 A

48V, 0~3.20A

±1.0%

200mV

94.0%

HLG-150H-54 A

54V, 0~2.80A

±1.0%

200mV

94.0%

= A , B , D or Blank

Model No.

Output

Tol.

R&N

Effi.

HLG-240H-12 A

12V, 0~16.0A

±2.5%

150mV

90.0%

HLG-240H-15 A

15V, 0~15.0A

±2.0%

150mV

90.0%

HLG-240H-20 A

20V, 0~12.0A

±1.0%

150mV

91.5%

HLG-240H-24 A

24V, 0~10.0A

±1.0%

150mV

92.5%

HLG-240H-30 A

30V, 0~8.00A

±1.0%

200mV

92.5%

HLG-240H-36 A

36V, 0~6.70A

±1.0%

250mV

92.5%

HLG-240H-42 A

42V, 0~5.72A

±1.0%

250mV

92.5%

HLG-240H-48 A

48V, 0~5.00A

±1.0%

250mV

93.0%

HLG-240H-54 A

54V, 0~4.45A

±1.0%

350mV

93.5%

= A, B , C , D or Blank

(except for C-Type)

Model No.

Output

Tol.

R&N

Effi.

HLG-185H-12 A

12V, 0~13.0A

±2.5%

150mV

91.5%

HLG-185H-15 A

15V, 0~11.5A

±2.0%

150mV

92.0%

HLG-185H-20 A

20V, 0~9.30A

±1.0%

150mV

93.0%

HLG-185H-24 A

24V, 0~7.80A

±1.0%

150mV

93.5%

HLG-150H Series

HLG-185H Series

HLG-150H/185H

H L G - 2 4 0 H

Blank/D

HLG-240H Series

Model No.

Output

Tol.

R&N

Effi.

HLG-185H-30 A

30V, 0~6.20A

±1.0%

200mV

93.5%

HLG-185H-36 A

36V, 0~5.20A

±1.0%

200mV

93.5%

HLG-185H-42 A

42V, 0~4.40A

±1.0%

200mV

94.0%

HLG-185H-48 A

48V, 0~3.90A

±1.0%

200mV

94.0%

HLG-185H-54 A

54V, 0~3.45A

±1.0%

200mV

94.0%

= A , B , D or Blank

Blank/D

150~240W Metal Case with PFC

(B-Type)

1-10VDC

INPUT

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACL

DIM

DIM+

Vo+

ACN

H L G - 3 2 0 H

H L G - 4 8 0 H

Features

• Constant voltage+constant current modes

• Universal AC input (up to 305VAC) / Full range

• Meet 4kV surge immunity level (IEC61000-4-5)

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for LED lighting and outdoor lighting applications

• Protections:

Short circuit / Over current / Over voltage / Over temp.

• 7 years warranty

• Multiple models for choice:

A-Type

: IP65 rated. Output voltage and constant current level

can be adjusted through internal potentiometer

B-Type

: IP67 rated.

Built-in 3 in 1 dimming function

(1~10VDC*, PWM signal, or resistance) (*: 0~10VDC for HLG-480H)

C-Type

: Terminal block for I/O connection (HLG-320H only)

Blank-Type

: IP67 rated. Cable for I/O connection

D-Type(option)

: IP67 rated. Timer dimming function, contact

MEAN WELL for details (HLG-320H only)

D2-Type(option)

: IP67 rated.

Smart timer dimming function*

(HLG-480H only)

Model No.

Output

Tol.

R&N

Effi.

HLG-320H-12 A

12V, 0~22.0A

±3.0%

150mV

91.0%

HLG-320H-15 A

15V, 0~19.0A

±2.0%

150mV

92.5%

HLG-320H-20 A

20V, 0~15.0A

±1.5%

150mV

93.5%

HLG-320H-24 A

24V, 0~13.34A

±1.0%

150mV

94.0%

HLG-320H-30 A

30V, 0~10.7A

±1.0%

200mV

94.0%

HLG-320H-36 A

36V, 0~8.90A

±1.0%

250mV

94.5%

HLG-320H-42 A

42V, 0~7.65A

±1.0%

250mV

95.0%

HLG-320H-48 A

48V, 0~6.70A

±1.0%

250mV

95.0%

HLG-320H-54 A

54V, 0~5.95A

±1.0%

350mV

95.0%

= A , B , C , D or Blank

Model No.

Output

Tol.

R&N

Effi.

HLG-480H-24 A

24V, 0~20A

±1.0%

200mV

94.0%

HLG-480H-30 A

30V, 0~16A

±1.0%

200mV

94.5%

HLG-480H-36 A

36V, 0~13.3A

±1.0%

250mV

95.0%

HLG-480H-42 A

42V, 0~11.4A

±1.0%

250mV

95.0%

HLG-480H-48 A

48V, 0~10A

±1.0%

250mV

94.5%

HLG-480H-54 A

54V, 0~8.9A

±1.0%

350mV

95.0%

= A , B, D2 or Blank

HLG-320H Series

HLG-480H Series

Blank / D

Blank / A

B / D2

AC input voltage range

90~305VAC; 127~431VDC

AC inrush current (max.)

Cold start, 70A at 230VAC

Cold start, 35A at 230VAC

DC adjustment range

-15%~+13.3% rated output voltage (A-Type & C-Type) -15%~+5% rated output voltage (A-Type only)

Current adjustment range

50%~100% via potentiometer (A-Type & HLG-320H C-Type only)

Over current protection

95%~108% constant current limiting, auto- recovery

Over voltage protection

110%~140% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 15ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-40~+90

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, EN/AS/NZS61347-1,-2-13, EAC TP TC 004,
PSE J61347-1/2-13(except for C-Type) ,
EN62384, GB19510.14, GB19510.1 approved

UL8750, CSA C22.2 No. 250.13-12; EAC TP TC 004,
ENEC EN61347-1, EN61347-2-13 independent,
EN62384; GB19510.14,GB19510.1; AS/NZS60950.1

EMC standards

EN55015, EN55032 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547,
GB17743, GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH)(mm)

252x 90x 43.8

262x 125x 43.8

320~480W Metal Case with PFC

(B-Type)

( e x c e p t f o r C - T y p e )

(B-Type)

1-10VDC

0-10VDC

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

NEW

Blank / A

B / D2

NEW

INPUT

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACL

ACN

RC-&GND

+5V

DIM

DIM+

H L G - 6 0 0 H

Features

• Constant voltage+constant current modes

• Universal AC input (up to 305VAC) / Full range

• High efficiency up to 96%

• Meet 4kV surge immunity level (IEC61000-4-5)

• No load power consumption <0.5W at remote off (HLG-600H)
• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• LED indicator for power on (A-Type only)
• Suitable for LED lighting and outdoor lighting applications

• Protections:

Short circuit / Over current / Over voltage / Over temperature

• Multiple models for choice:

A-Type

: IP65 rated. Output voltage and constant current level

can be adjusted through internal potentiometer

B-Type

: IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

• 7 years warranty

Model No.

Output

Tol.

R&N

Effi.

HLG-600H-12 A

12V, 0~40A

±3.0%

150mV

92.0%

HLG-600H-15 A

15V, 0~36A

±2.0%

150mV

93.5%

HLG-600H-20 A

20V, 0~28A

±1.5%

150mV

94.5%

HLG-600H-24 A

24V, 0~25A

±1.0%

150mV

95.0%

HLG-600H-30 A

30V, 0~20A

±1.0%

200mV

95.0%

Model No.

Output

Tol.

R&N

Effi.

HLG-600H-36 A

36V, 0~16.7A

±1.0%

250mV

95.5%

HLG-600H-42 A

42V, 0~14.3A

±1.0%

250mV

96.0%

HLG-600H-48 A

48V, 0~12.5A

±1.0%

250mV

96.0%

HLG-600H-54 A

54V, 0~11.2A

±1.0%

350mV

96.0%

= A , B

HLG-600H Series

AC input voltage range

90~305VAC; 127~431VDC

AC inrush current (max.)

Cold start, 70A at 230VAC

DC adjustment range

-15%~+5% rated output voltage (A-Type only)

Current adjustment range

50%~100% via potentiometer (A-Type & HLG-320H C-Type only)

Over current protection

95%~108% constant current limiting, auto- recovery

Over voltage protection

110%~140% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 15ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-40~+90

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL62368-1, AS/NZS60950.1, UL8750, ENEC EN61347-1/2-13, EN62384, GB19510.14, GB19510.1,
EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH)(mm)

280x 144x 48.5

600W Metal Case with PFC

(B-Type)

0-10VDC

H L G - 6 0 H - C

H L G - 8 0 H - C

H L G - 1 2 0 H - C

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

M o d e l N o .

O u t p u t

o Tol.

o Ripple

E f f i .

HLG-80H-C350 A

167~257V, 350mA

±5%

8% max.

91.5%

HLG-80H-C700 A

84~129V, 700mA

±5%

8% max.

91.5%

= A, B or D

M o d e l N o .

O u t p u t

o T o l .

o Ripple

E f f i .

HLG-120H-C350 A

215~430V, 350mA

±5%

8% max.

94%

HLG-120H-C500 A

150~300V, 500mA

±5%

8% max.

94%

HLG-120H-C700 A

107~215V, 700mA

±5%

8% max.

94%

HLG-120H-C1050 A

74~148V, 1050mA

±5%

8% max.

94%

HLG-120H-C1400 A

54~108V, 1400mA

±5%

8% max.

93.5%

= A, B or D

M o d e l N o .

O u t p u t

o T o l .

o Ripple

E f f i .

HLG-60H-C350 A

100~200V, 350mA

±5%

5% max.

91%

HLG-60H-C700 A

50~100V, 700mA

±5%

5% max.

90.5%

= A, B or D

AC input voltage range

90~305VAC; 127VDC~431VDC

AC inrush current (max.)

Cold start, 60A at 230VAC

Cold start, 50A at 230VAC

Current adjustment range

60%~100%

via potentiometer (A-Type only)

50%~100%

via potentiometer (A-Type only)

Short circuit protection

Hiccup mode, auto-recovery

Constant current limiting, auto-recovery

Over voltage protection

110%~140%, shut down o/p voltage, re-power on to recover

Over temp. protection

Shut down o/p voltage, re-power on to recover

Shut down o/p voltage, auto-recovery

Setup time

500ms at full load and 230VAC

Withstand voltage

I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:1.5kVAC

Working temperature

-40~+80

(refer to "OUTPUT LOAD vs TEMPERATURE")

-40~+90

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, GB19510.14, GB1950.1, EAC TP TC 004, EN/AS/NZS61347-1,-2-13, PSE J61347-1,
J61347-2-13 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH)(mm)

171x 61.5x 36.8

195.6x 61.5x 38.8

220x 68x 38.8

• Constant current mode

• Universal AC input (up to 305VAC)/ Full range
• High efficiency up to 94%
• Suitable for dry, damp, and wet location
• Suitable for LED lighting and outdoor lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• Multiple models for choice:

A-Type

: IP65 rated. Constant current level can be adjusted

through internal potentiometer

B-Type

: IP67 rated and

built-in

3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

D-Type (option)

: IP67 rated. Timer dimming function,

contact MEAN WELL for details

• 7 years warranty

Features

HLG-60H-C Series (70W)

HLG-120H-C Series (150W)

HLG-80H-C Series (90W)

1-10VDC

70~150W Metal Case with PFC

(B-Type)

H L G - 1 8 5 H - C

H L G - 2 4 0 H - C

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACN

DIM

DIM+

Vo+

ACL

M o d e l N o .

O u t p u t

o T o l .

o Ripple

E f f i .

HLG-185H-C500 A

200~400V, 500mA

±5%

5% max.

94%

HLG-185H-C700 A

143~286V, 700mA

±5%

5% max.

94%

HLG-185H-C1050 A

95~190V, 1050mA

±5%

5% max.

94%

HLG-185H-C1400 A

71~143V, 1400mA

±5%

5% max.

94%

= A, B or D

M o d e l N o .

O u t p u t

o T o l .

o Ripple

E f f i .

HLG-240H-C700 A

178~357V, 700mA

±5%

5% max.

93.5%

HLG-240H-C1050 A

119~238V, 1050mA

±5%

5% max.

93.5%

HLG-240H-C1400 A

89~179V, 1400mA

±5%

5% max.

94%

HLG-240H-C1750 A

71~143V, 1750mA

±5%

5% max.

94%

HLG-240H-C2100 A

59~119V, 2100mA

±5%

5% max.

93.5%

= A, B or D2

AC input voltage range

90~305VAC; 127VDC~431VDC

AC inrush current (max.)

Cold start, 55A at 230VAC

Cold start, 75A at 230VAC

Current adjustment range

50%~100%

via potentiometer (A-Type only)

Short circuit protection

Constant current limiting, auto-recovery

Over voltage protection

105%~120%, Shut down o/p voltage, re-power on to recover

Setup time

500ms at full load and 230VAC

Withstand voltage

I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:1.5kVAC

Working temperature

-40~+90

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, EN/AS/NZS61347-1,-2-13, EN62384, GB19510.1, GB19510.14, EAC TP TC 004;
PSE J61347-1, J61347-2-13(HLG-185H-C only) approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
GB17743, GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH)(mm)

228x 68x 38.8

244.2x 68x 38.8

• Constant current mode

• Universal AC input (up to 305VAC)/ Full range
• High efficiency up to 94%

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires (HLG-240H-C)

• Suitable for dry, damp, and wet location
• Suitable for LED lighting and outdoor lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• Multiple models for choice:

A-Type

: IP65 rated. Constant current level can be adjusted

through internal potentiometer

B-Type

: IP67 rated and

built-in

3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

D-Type (option)

: IP67 rated. Timer dimming function,

contact MEAN WELL for details(HLG-185H-C only)

D2-Type (option)

: IP67 rated.

Smart timer dimming function*

contact MEAN WELL for details (HLG-240H-C)

• 7 years warranty

Features

HLG-185H-C Series (200W)

HLG-240H-C Series (250W)

B/D2

1-10VDC

(B-Type)

200~250W Metal Case with PFC

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

H L G - 3 2 0 H - C

H L G - 4 8 0 H - C

NEW

INPUT

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

M o d e l N o .

O u t p u t

o T o l .

o Ripple

E f f i .

HLG-320H-C700 A

214~428V, 700mA

±5%

5% max.

94.0%

HLG-320H-C1050 A

152~305V, 1050mA

±5%

5% max.

94.0%

HLG-320H-C1400 A

114~229V, 1400mA

±5%

5% max.

94.0%

HLG-320H-C1750 A

91~183V,1750mA

±5%

5% max.

94.0%

HLG-320H-C2100 A

76 ~ 152V, 2100mA

±5%

5% max.

94.0%

HLG-320H-C2800 A

57~114V, 2800mA

±5%

5% max.

94.0%

HLG-320H-C3500 A

46~91V, 3500mA

±5%

5% max.

94.0%

= A, B, D2 or DA

M o d e l N o .

O u t p u t

o T o l .

o Ripple

E f f i .

HLG-480H-C1400 A

171~341V, 1400mA

±5%

5% max.

95.0%

HLG-480H-C1750 A

137~274V,1750mA

±5%

5% max.

95.0%

HLG-480H-C2100 A

114~229V, 2100mA

±5%

5% max.

95.0%

HLG-480H-C2800 A

85~171V, 2800mA

±5%

5% max.

95.0%

HLG-480H-C3500 A

68~137V, 3500mA

±5%

5% max.

95.0%

= A, B, D2

AC input voltage range

90~305VAC; 127VDC~431VDC

AC inrush current (max.)

Cold start, 70A at 230VAC

Cold start, 35A at 230VAC

Current adjustment range

50%~100%

via potentiometer (A-Type only)

Short circuit protection

Constant current limiting, auto-recovery

Over voltage protection

105%~120%, Shut down o/p voltage, re-power on to recover

Setup time

500ms at full load and 230VAC

Withstand voltage

I/P-O/P:3.75kVAC, I/P-FG:2kVAC, O/P-FG:1.5kVAC

Working temperature

-40~+85

(refer to "OUTPUT LOAD vs TEMPERATURE")

-40~+90

(refer to "OUTPUT LOAD vs TEMPERATURE")

Safety standards

UL8750, AS/NZS60950.1(HLG-480-C), ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,
GB19510.1, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH)(mm)

252x 90x 43.8

262x 125x 43.8

• Constant current mode

• Universal AC input (up to 305VAC)/ Full range
• High efficiency up to 95%

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location
• Suitable for LED lighting and street lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• Environment-adaptive driving capability (HLG-480H-C)

• Multiple models for choice:

A-Type

: IP65 rated. Constant current level can be adjusted

through internal potentiometer

B-Type

: IP67 rated and

built-in

3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

D2-Type (option)

: IP67 rated.

Smart timer dimming function*

contact MEAN WELL for details

DA-Type (option)

: IP67 rated.

DALI control technology

(HLG-320H-C only)

• 7 years warranty

Features

HLG-320H-C Series (320W)

HLG-480H-C Series (480W)

B/DA/D2

B/D2

0-10VDC

(B-Type)

(DA-Type)

320~480W Metal Case with PFC

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

H V G - 6 5

H V G - 1 0 0

H V G 6

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

AC input voltage range

180~528VAC (single phase); 254~747VDC

AC inrush current (max.)

Cold start, 25A at 480VAC

DC adjustment range

±10% rated output voltage (A-Type only)

Current adjustment range

60%~100% via potentiometer (A-Type only)

55%~100% via potentiometer (A-Type only)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Setup, rise, hold up time

400ms, 80ms, 16ms at full load and
347VAC/480VAC

500ms, 80ms, 30ms at full load and
347VAC/480VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-40~+80

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

-40~+90

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, CSA C22.2 No. 250.0-13, EAC TP TC 004 IP65 or IP67 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
EAC TP TC 020, FCC part 15 subpart B

Connection

Input

UL rated, STW 18AWGx3C (30cm)

Output

A&D-Type

SVT 18AWGx2C (30cm)

B-Type

SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm)

Dimension (LxWxH)(mm)

189x 61.5x 36.8

236x 68x 38.8

• Constant voltage+constant current modes
• 180~528VAC wide input range

• Class 2 power unit / Pass LPS

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires (HVG-100)

• Suitable for dry, damp, and wet location
• Suitable for LED lighting and street lighting applications
• Protections: Short circuit / Over current / Over voltage /

Over temperature

• Multiple models for choice:

A-Type:

IP65 rated. Output voltage and constant current level

can be adjusted through internal

potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

D-Type (option):

IP67 rated. Timer dimming function,

contact MEAN WELL for details

• 5 years warranty

HVG-100 Series

HVG-65 Series

Model No.

Output

Tol.

R&N

Effi.

HVG-100-15 A

15V, 0~5A

±2.0%

150mV

89.0%

HVG-100-20 A

20V, 0~4.8A

±1.0%

150mV

90.0%

HVG-100-24 A

24V, 0~4A

±1.0%

150mV

91.0%

HVG-100-30 A

30V, 0~3.2A

±1.0%

200mV

91.0%

HVG-100-36 A

36V, 0~2.65A

±1.0%

200mV

90.5%

HVG-100-42 A

42V, 0~2.28A

±1.0%

200mV

90.5%

HVG-100-48 A

48V, 0~2A

±1.0%

200mV

91.0%

HVG-100-54 A

54V, 0~1.77A

±1.0%

200mV

91.0%

= A , B or D

Model No.

Output

Tol.

R&N

Effi.

HVG-65-12 A

12V, 0~5A

±2.0%

120mV

86.5%

HVG-65-15 A

15V, 0~4.3A

±2.0%

150mV

87.5%

HVG-65-20 A

20V, 0~3.25A

±1.0%

150mV

88.5%

HVG-65-24 A

24V, 0~2.71A

±1.0%

150mV

89.0%

HVG-65-30 A

30V, 0~2.17A

±1.0%

200mV

89.0%

HVG-65-36 A

36V, 0~1.81A

±1.0%

200mV

89.5%

HVG-65-42 A

42V, 0~1.55A

±1.0%

300mV

89.5%

HVG-65-48 A

48V, 0~1.36A

±1.0%

300mV

90.0%

HVG-65-54 A

54V, 0~1.21A

±1.0%

300mV

90.0%

= A , B or D

Features

0-10VDC

(B-Type)

65~100W Metal Case with PFC

H V G - 1 5 0

H V G - 2 4 0

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

H V G - 2 4 0

AC input voltage range

180~528VAC (single phase); 254~747VDC

AC inrush current (max.)

Cold start, 35A at 480VAC

Cold start, 50A at 480VAC

DC adjustment range

±10% rated output voltage (A-Type only)

±7% rated output voltage (A-Type only)

Current adjustment range

55%~100% via potentiometer (A-Type only)

50%~100% via potentiometer (A-Type only)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% rated output voltage

Over temperature protection

Shut down and latch off o/p voltage, re-power on to recover

Setup, rise, hold up time

500ms, 80ms, 18ms at full load and
347VAC/480VAC

500ms, 150ms, 12ms at full load and
347VAC/480VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-40~+85

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

-40~+90

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, CSA C22.2 No. 250.0-08, EAC TP TC 004

EMC standards

EN55015, EN61000-3-2 class C, EAC TP TC 020,
EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,
EN61547, FCC part 15 subpart B

FCC Part 15 subpart B, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11, EN61547

Connection

Input

UL rated, STW 18AWGx3C (30cm)

Output

A&D-Type

SJTW 14AWGx2C (30cm)

B-Type

SJTW 14AWGx2C (30cm)+
UL2517 18AWGx2C (30cm)

SJTW 14AWGx2C (30cm)+
UL2517 22AWGx2C (30cm)

Dimension (LxWxH)(mm)

245x 68x 38.8

254.2x 68x 38.8

• Constant voltage+constant current modes

• 180~528VAC wide input range

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location

• Suitable for LED lighting and street lighting applications

• Protections: Short circuit / Over current / Over voltage /

Over temperature

• 5 years warranty

• Multiple models for choice:

A-Type:

IP65 rated. Output voltage and constant current level can

be adjusted through internal

potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

D-Type (option):

IP67 rated. Timer dimming function,

contact MEAN WELL for details (HVG-150 only)

D2-Type (option):

IP67 rated.

Smart timer dimming function*

(HVG-240 only)

HVG-150 Series

Model No.

Output

Tol.

R&N

Effi.

HVG-150-12 A

12V, 0~10A

±2.5%

150mV

87.0%

HVG-150-15 A

15V, 0~10A

±2.0%

150mV

89.0%

HVG-150-20 A

20V, 0~7.5A

±1.0%

150mV

90.5%

HVG-150-24 A

24V, 0~6.25A

±1.0%

150mV

91.0%

HVG-150-30 A

30V, 0~5A

±1.0%

200mV

91.0%

HVG-150-36 A

36V, 0~4.17A

±1.0%

200mV

91.0%

HVG-150-42 A

42V, 0~3.58A

±1.0%

200mV

91.0%

HVG-150-48 A

48V, 0~3.13A

±1.0%

200mV

91.5%

HVG-150-54 A

54V, 0~2.78A

±1.0%

200mV

91.5%

= A , B or D

Features

0-10VDC

(B-Type)

150~240W Metal Case with PFC

HVG-240 Series

Model No.

Output

Tol.

R&N

Effi.

HVG-240-24 A

24V, 0~10A

±1%

150mV

92.5%

HVG-240-30 A

30V, 0~8A

±1%

200mV

92.5%

HVG-240-36 A

36V, 0~6.7A

±1%

250mV

93%

HVG-240-42 A

42V, 0~5.7A

±1%

250mV

93%

HVG-240-48 A

48V, 0~5A

±1%

250mV

92.5%

HVG-240-54 A

54V, 0~4.5A

±1%

350mV

93%

= A , B or D2

0-10VDC

(B-Type)

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

NEW

H V G - 3 2 0

H V G - 4 8 0

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

AC input voltage range

180~528VAC ; 254~747VDC

AC inrush current (max.)

Cold start 50A at 480VAC

Cold start 40A at 480VAC

DC adjustment range

-10%~+8% rated output voltage (A-Type only)

-15%~+5% rated output voltage

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

110%~140% shut down o/p voltage,
re-power on to recover

108%~125%

Over temperature protection

Shut down and latch off o/p voltage, re-power on to recover

Setup, rise, hold up time

500ms, 150ms, 15ms at full load and
347VAC/480VAC

500ms, 100ms, 16ms at full load and
347VAC/480VAC

Withstand voltage

I/P-O/P: 3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC

Working temperature

-40~+85

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, CSA C22.2 No. 250.13-12, EAC TP TC 004

EMC standards

FCC Part 15 Subpart B, EAC TP TC 020,
EN61000-4-2,3,4,5,6,8,11, EN61547

FCC Part 15 Subpart B, EAC TP TC 020

Connection

Input

UL rated, STW 18AWGx3C (30cm)

Output

A-Type

SJTW 14AWGx2C (30cm)

B&D2-Type SJTW 14AWGx2C (30cm) + UL2517 22AWGx2C (30cm)

Dimension (LxWxH)(mm)

262x 90x 43.8

262x 125x 43.8

• Constant voltage+constant current modes
• 180~528VAC wide input range
• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location
• Suitable for LED lighting and street lighting applications
• Protections: Short circuit / Over current / Over voltage /

Over temperature

• Multiple models for choice:

A-Type:

IP65 rated. Output voltage and constant current level

can be adjusted through internal

potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

D2-Type (option):

IP67 rated.

Smart timer dimming function*

contact MEAN WELL for details

• 5 years warranty

HVG-320 Series

HVG-480 Series

Model No.

Output

Tol.

R&N

Effi.

HVG-320-24 A

24V, 0~13.4A

±1%

150mV

92.5%

HVG-320-30 A

30V, 0~10.7A

±1%

200mV

93.0%

HVG-320-36 A

36V, 0~8.9A

±1%

250mV

93.5%

HVG-320-42 A

42V, 0~7.6A

±1%

250mV

93.5%

HVG-320-48 A

48V, 0~6.7A

±1%

250mV

94.0%

HVG-320-54 A

54V, 0~6A

±1%

350mV

94.0%

= A , B or D2

Model No.

Output

Tol.

R&N

Effi.

HVG-480-24 A

24V, 0~20A

±1%

200mV

94.0%

HVG-480-30 A

30V, 0~16A

±1%

200mV

94.0%

HVG-480-36 A

36V, 0~13.3A

±1%

250mV

94.5%

HVG-480-42 A

42V, 0~11.4A

±1%

250mV

95.0%

HVG-480-48 A

48V, 0~10A

±1%

250mV

95.0%

HVG-480-54 A

54V, 0~8.9A

±1%

350mV

95.0%

= A , B or D2

Features

0-10VDC

320~480W Metal Case with PFC

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

(B-Type)

H V G C - 6 5

H V G C - 1 0 0

H V G C - 1 5 0

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

(Dimming Models)

DIM

DIM+

Vo+

ACN

ACL

Model No.

Output

o Tol.

o Ripple

Effi.

HVGC-150-350 A

42~428V, 350mA

±5%

5% max.

91%

HVGC-150-500 A

30~300V, 500mA

±5%

5% max.

91%

HVGC-150-700 A

21~215V, 700mA

±5%

5% max.

91%

HVGC-150-1050 A

15~143V, 1050mA

±5%

5% max.

90%

HVGC-150-1400 A

12~107V, 1400mA

±5%

5% max.

90%

= A , B or D

AC input voltage range

180~528VAC (single phase); 254~747VDC

AC inrush current (max.)

Cold start, 25A at 480VAC

Cold start, 35A at 480VAC

Current adjustment range

60%~100% via potentiometer (A-Type only)

Over voltage protection

105%~115% rated output voltage

Setup time

400ms at 347VAC/480VAC

500ms at 347VAC/480VAC

400ms at 347VAC/480VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-40~+80

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

HVGC-65: UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, EAC TP TC 004 approved
HVGC-100/150: UL8750, TUV EN61347-1, EN61347-2-13, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
FCC part 15 subpart B, EAC TP TC 020

Connection

Input

UL rated, STW 18AWGx3C (30cm)

Output

A&D-
Type

SJTW 18AWGx2C (30cm)

STW 18AWGx2C (30cm)

B-
Type

SJTW 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm)

STW 18AWGx2C (30cm)+
UL2517 18AWGx2C (30cm)

Dimension (LxWxH)(mm)

189x 61.5x 36.8

236x 68x 38.8

245x 68x 38.8

• Constant current mode
• 180~528VAC wide input range

• High efficiency up to 91%

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires (HVGC-150)

• Suitable for dry, damp, and wet location
• Suitable for LED lighting and street lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• Multiple models for choice:

A-Type:

IP65 rated. Constant current level can be adjusted

through internal

potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

D-Type (option):

IP67 rated. Timer dimming function,

contact MEAN WELL for details

• 5 years warranty

HVGC-100 Series

HVGC-150 Series

HVGC-65 Series

Model No.

Output

o Tol.

o Ripple

Effi.

HVGC-100-350 A

29~285V, 350mA

±5%

5% max.

91%

HVGC-100-700 A

15~142V, 700mA

±5%

5% max.

91%

= A , B or D

Model No.

Output

o Tol.

o Ripple

Effi.

HVGC-65-350 A

18~186V, 350mA

±5%

5% max.

90.0%

HVGC-65-500 A

13~130V, 500mA

±5%

5% max.

90.5%

HVGC-65-700 A

9~93V, 700mA

±5%

5% max.

90.5%

HVGC-65-1050 A

6~62V, 1050mA

±5%

5% max.

90.0%

= A , B or D

Features

0-10VDC

65~150W Metal Case with PFC

(B-Type)

H V G C - 3 2 0

H V G C - 2 4 0

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

DIM+

Vo+

ACN

ACL

Model No.

Output

o Tol.

o Ripple

Effi.

HVGC-240-700 A

171.4~342.8V, 700mA

±5% 5% max. 93.5%

HVGC-240-1050 A

114.3~228.6V, 1050mA

±5% 5% max. 93.0%

HVGC-240-1400 A

85.7~171.4V, 1400mA

±5% 5% max. 93.0%

HVGC-240-1750 A

68.5~137.1V, 1750mA

±5% 5% max. 93.0%

HVGC-240-2100 A

57.2~114.3V, 2100mA

±5% 5% max. 92.5%

HVGC-240-2800 A

42.9~85.7V, 2800mA

±5% 5% max. 92.5%

HVGC-240-3500 A

34.3~68.6V, 3500mA

±5% 5% max. 92.5%

= A , B or D2

Model No.

Output

o Tol.

o Ripple

Effi.

HVGC-320-700 A

214~428V,700mA

±5% 5% max. 93.5%

HVGC-320-1050 A

152.4~304.8V,1050mA

±5% 5% max. 93.5%

HVGC-320-1400 A

114.3~228.6V,1400mA

±5% 5% max. 93.5%

HVGC-320-1750 A

91.4~182.8V,1750mA

±5% 5% max. 93.5%

HVGC-320-2100 A

76.2~152.4V,2100mA

±5% 5% max. 93.5%

HVGC-320-2800 A

57~114.3V,2800mA

±5% 5% max. 93.5%

HVGC-320-3500 A

45.7~91.4V,3500mA

±5% 5% max. 93%

= A , B or D2

AC input voltage range

180~528VAC ; 254~747VDC

AC inrush current (max.)

Cold start, 50A at 480VAC

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over voltage protection

105%~110% shut down o/p voltage, re-power on to recover

Setup time

500ms at 347VAC/480VAC

Withstand voltage

I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC

Working temperature

-40~+90

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, EAC TP TC 004 approved

EMC standards

FCC Part 15 subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, EAC TP TC 020

Connection

Input

UL rated, STW 18AWGx3C (30cm)

Output

A-Type

STW 18AWGx2C (30cm)

SJTW 14AWGx2C (30cm)

B&D2-Type

STW 18AWGx2C (30cm) +
UL2517 22AWGx2C (30cm)

SJTW 14AWGx2C (30cm) +
UL2517 22AWGx2C (30cm)

Dimension (LxWxH)(mm)

254.2x 68x 38.8

262x 90x 43.8

• Constant current mode
•180~528VAC wide input range

• High efficiency up to 93.5%

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location
• Suitable for LED lighting and street lighting applications

• Protections: Short circuit / Over voltage / Over temperature

• Multiple models for choice:

A-Type:

IP65 rated. Constant current level can be adjusted

through internal

potentiometer

B-Type:

IP67 rated and

built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

D2-Type (option):

IP67 rated.

Smart timer dimming function*

contact MEAN WELL for details

• 5 years warranty

HVGC-240 Series

HVGC-320 Series

Features

0-10VDC

240~320W Metal Case with PFC

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

(B-Type)

(pending)

(B-Type)

H V G C - 4 8 0

H V G C - 6 5 0

I N P U T

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

DIM

/DA

DIM+/DA+

Vo+

ACN

ACL

NEW

Model No.

Output

o Tol.

o Ripple

Effi.

HVGC-480-L- AB

137~343V,1750mA

±5%

5% max. 94.5%

HVGC-480-M- AB

92~228.5V,2625mA

±5%

5% max. 94.5%

HVGC-480-H- AB

68~171.5V,3500mA

±5%

5% max. 94.5%

= AB, blank, D2 or DA

Model No.

Output

o Tol.

o Ripple

Effi.

HVGC-650

-L- AB

93~232V, 2800mA

±5%

5% max.

95%

HVGC-650

-M- AB

62~155V, 4200mA

±5%

5% max.

95%

HVGC-650

-H- AB

47~116V, 5600mA

±5%

5% max.

95%

HVGC-650

-U- AB

24~58V, 1120mA

±5%

5% max. 95.5%

= Blank, A ;
Blank: without auxiliary function, A: with auxiliary DC output power

= AB, D2 or DA

AC input voltage range

180~528VAC ; 254~747VDC

AC inrush current (max.)

Cold start, 40A at 480VAC

Current adjustment range

50%~100% via potentiometer (A-Type only)

Over voltage protection

105%~110% shut down o/p voltage, re-power on to recover

Setup time

500ms at 347VAC/480VAC

Withstand voltage

I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC

Working temperature (Tcase)

-40~+90

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, CSA C22.2 No. 250.13-12, IP65 or IP67, EAC TP TC 004 approved

EMC standards

FCC Part 15 subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, EAC TP TC 020

Connection

Please refer to page 54

Dimension (LxWxH)(mm)

262x 125x 43.8

280x 144x 48.5

• Constant power mode
• 180~528VAC wide input range

• High efficiency up to 95.5%

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires

• Suitable for dry, damp, and wet location
• Suitable for LED lighting and street lighting applications
• Protections: Short circuit / Over voltage / Over temperature

• With auxiliary DC output power (optional for HVGC-650)

• Multiple models for choice:

AB-Type:

IP67 rated. Standard constant power output with 3 in 1

dimming function (0~10Vdc,10V PWM signal and
resistance) and built-in potentiometer

Blank-Type(option):

IP67 rated. Io and Vo fixed.

(HVGC-480 only)

D2-Type (option):

IP67 rated. Built-in Smart timer dimming and

programmable function

DA-Type (option):

IP67 rated. DALI control technology

• 5 years warranty

HVGC-480 Series

HVGC-650 Series

Features

0-10VDC

480~650W Metal Case with PFC

*MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level.

(B-Type)

Blank

D2/DA

65~100W Metal Case with PFC

NEW

I N P U T

O U T P U T

ACL
ACN

NEW

NEEEWWW

NEW

NEEEWWW

Features

• Constant current mode (FDL-65)

Constant power mode (FDLC-80/100)

• IP65 design (FDL-65)

IP67 design (FDLC-80/100)

• Output current adjustable via

potentiometer

• Full power at 60~100% max. current (FDLC-80/100)

• Constant power mode

• Built-in input (over voltage protection):

300~310VAC(shut down);
295~305VDC(auto recovery)
440VAC(survive 48hrs)

• Output current region:

L-Type: 490~1050mA; H-Type: 1300~3000mA

• Constant current region:

L-Type: 96~142V; H-Type: 30~54V

• Full power currwnt range:

L-Type: 700~1050mA; H-Type: 1850~3000mA

• Built-in active PFC function, PF>0.9, THD<10%
• Full power at 70~100% max. current
• No load power consumption<0.5W
• IP67 rating for indoor and outdoor installations
• Output current adjustable via potentiometer
• Dimensions(LxWxH): 150x 53x 33mm
• 3 years warranty

F D L C - 8 0

F D L C - 1 0 0

F D L - 6 5

FDLC-80 Series

FDLC-100 Series

FDL-65 Series

Model No.

Output

Tol.

Effi.

FDLC-80

30~54V, 1000~2100mA

±5%

90%

Model No.

Output

Tol.

Effi.

FDLC-100

30~54V, 1300~3000mA

±5%

90%

Model No.

Output

Tol.

Effi.

FDL-65-1550

25.2~42V

770~1550mA

±5%

90%

FDL-65-1800

21.6~36V

900~1800mA

±5%

90%

AC input voltage range

180~295VAC; 254 ~ 417VDC

Over voltage protection

90%~105% rated output voltage

---

Over temp. protection

Hiccup mode, auto-recovery after fault condition is removed

Withstand voltage

I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC

Working Temperature

-40~+90

-30~+90

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety Standards

LVD EN61347-1, EN61347-2-13, GB19510.1, GB19510.14, EAC TP TC 004 approved

EMC Standards

EN55015, EN61000-3-2 Class C , EN61000-3-3, EN61547,GB17743, GB17625.1,
EAC TP TC 020, EN61000-4-2,3,4,5,6,8,11

Dimension (LxWxH)(mm)

151x 53x 31.5

180x 53x 33

• No load power consumption

• Suitable for LED flood light<0.5W

• Protections: Short circuit / Over voltage / Over temperature (FDL-65)

Short circuit / Over temperature (FDLC-80/100)

• 3 years warranty

For the output cable of HLG-320H-C700 & C1050 and HLG-480H-C1400 & C1750, please refer to the specification.

For the output cable of HLG-185H-C500 & C700 and HLG-240H-C700, please refer to the specification.

Connection

Input

SJOW 17AWG

& H05RN-F 1.0mm

x3C (30cm)

Output

A/D/Blank-Type: SJOW 17AWG & H05RN-F 1.0 mm

x2C (30cm);

B-Type: SJOW 17AWG & H05RN-F 1.0 mm

x2C (30cm) + SJOW 17AWG & H05RN-F 1.0mm

x2C (30cm)

HLG-40H/60H/80H/100H/120H Series

HLG-150H/185H/240H Series

HLG-320H Series

HLG-480H Series

HLG-600H Series

HLG-60H/80H/120H-C Series

HLG-185H/240H-C Series

HLG-320H/480H-C Series

HVGC-480 Series

HVGC-650 Series

Connection

Input

SJOW 17AWG

& H05RN-F 1.0mm

x3C (30cm); Terminal block for HLG-240H C-Type

Output

•

A/D/Blank-Type: SJOW 14AWGx2C (30cm) for 150H-12V, 185H-12~15V, 240H-12V~20V;

SJOW 17AWG & H05RN-F1.0mm

x2C (30cm) for others

•

B-Type: SJOW 14AWGx2C (30cm) + SJOW 17AWG & H05RN-F1.0mm

x2C (30cm) for 150H 12V,

185H-12~15V, 240H-12V~20V;

SJOW 17AWG & H05RN-F1.0mm

x2C (30cm) + SJOW 17AWG& H05RN-F1.0mm

x2C (30cm) for others

•

C-Type: Terminal block for HLG-240H C-Type

Connection

Input

•

A/B/D/Blank-Type: SJOW 17AWG

& H05RN-F 1.0mm

x3C (30cm)

•

C-Type:

Terminal block

Output

•

A/D/Blank-Type: SJOW 14AWGx2C (30cm) for 12V~30V ; SJOW 17AWG & H05RN-F1.0mm

x2C (30cm) for others

•

B-Type: SJOW 14AWGx2C (30cm) + SJOW 17AWG & H05RN-F1.0mm

x2C (30cm) for 12V~30V;

SJOW 17AWG & H05RN-F1.0mm

x2C (30cm) + SJOW 17AWG & H05RN-F1.0mm

x2C (30cm) for others

•

C-Type: Terminal block

Connection

Input

A/B/D2/Blank-Type: SJOW 17AWGx3C

& H05RN-F 3G 1.0mm

Output

•

A/Blank-Type: SJOW 17AWGx2C & H05RN-F1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F2x1.0mm

(30cm) for 24~42V;

SJOW 17AWGx2C & H05RN-F1.0mm

(30cm) for others

•

B/D2-Type: SJOW 17AWGx2C & H05RN-F1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F2x1.0mm

(30cm) +

SJOW 17AWGx2C & H05RN-F1.0mm

(33cm) for 24V~42V

SJOW 17AWGx2C & H05RN-F1.0mm

(30cm) + SJOW 17AWGx2C & H05RN-F2x1.0mm

(33cm) for others

Connection

Input

SJTW 17AWGx3C (30cm)

Output

A-Type: SJTW 14AWGx2C (30cm) + SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)
B-Type: SJTW 14AWGx2C (30cm) + SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) +
UL2517 18AWGx2C (30cm)

HLG-60H/80H-C

HLG-120H-C

Connection

Input

SJOW 17AWG & H05RN-F 1.0mm

x3C(30cm)

Output

A&D-Type: SJOW 17AWG & H05RN-F
1.0mm

x2C(30cm)

B-Type: SJOW 17AWG & H05RN-F
1.0mm

x2C(30cm)

A&D-Type: SOOW 17AWG & H07RN-F 1.0mm

(30cm) for HLG-120H-C350;

SJOW 17AWG & H07RN-F 1.0mm

(30cm) for others

B-Type: SJOW 17AWG & H07RN-F 1.0mm2x2C(30cm) + SOOW 17AWG &
H07RN-F 1.0mm

(30cm) for HLG-120H-C350;

SJOW 17AWG & H07RN-F 1.0mm

x2C (30cm) + SJOW 17AWG &

H07RN-F 1.0mm

x2C (30cm) for others

HLG-185H-C

HLG-240H-C

Connection

Input

SJOW 17AWG &

H05RN-F1.0mm

x3C (30cm)

Output

A/D-Type: SJOW 17AWG &

H05RN-F1.0mm

x2C (30cm)

B-Type: SJOW 17AWG &

H05RN-F1.0mm

x2C (30cm)+

SJOW

17AWG &

H05RN-F1.0mm

x2C (30cm)

A-Type: SJOW 17AWG &

H05RN-F1.0mm

x2C (30cm)

B/D2-Type: SJOW 17AWG &

H05RN-F1.0mm

x2C (30cm)+

SJOW

17AWG &

H05RN-F1.0mm

x2C (30cm)

HLG-320H-C

HLG-480H-C

Connection

Input

SJOW 17AWG &

H05RN-F1.0mm

x3C (30cm)

SJOW 17AWGx3C &

H05RN-F 3G 1.0mm

x3C (30cm)

Output

A-Type: SJOW17AWG &

H05RN-F1.0mm

x2C (30cm)

B/DA/D2-Type:
SJOW17AWG &

H05RN-F1.0mm

x2C (30cm)+

SJOW17AWG &

H05RN-F1.0mm

x2C (30cm)

A-Type: SOOW17AWG &

H07RN-F 2x1.0mm

(30cm)

B/D2-Type: SOOW17AWG &

H07RN-F 2x1.0mm

(30cm)+

SOOW17AWG &

H07RN-F2x1.0mm

(30cm)

Connection

Input

AB-Type: SOOW 17AWGx3C &

H07RN-F 3x1.0mm

(30cm)

Output

AB/D2/DA-Type: SOOW 17AWGx2C & H07RN-F 2x 1.0mm

(30cm)+SJOW 17AWGx2C & H07RN-F 2x1.0mm

(30cm)

Blank-Type: SOOW 17AWGx2C & H07RN-F 2x 1.0mm

(30cm)

Connection

Input

SOOW 17AWGx3C &

H07RN-F 2x1.0mm

(30cm)

Output

SJOW 17AWGx4C & H05RN-F 2x1.0mm

(30cm)

DIM

SJOW 17AWGx2C & H05RN-F 2x1.0mm

(30cm)

AUX

SJOW 17AWGx2C & H05RN-F 2x1.0mm

(30cm)

60~160W Circular Shape with PFC

I N P U T

(HBG-60)

I N P U T

(HBG-100/160/240)

O U T P U T

( N o n - D i m m i n g

M o d e l s )

O U T P U T

( D i m m i n g

M o d e l s )

ACL

ACN

Vo+

DIM

DIM+

Vo+

Features

•Constant current mode (HBG-60/100)

Constant voltage+constant current modes (HBG-160)

•Universal AC input / Full range

•Patented metal housing design for HBG-100/160

(Patent No.: CN201220314551)

Fully isolated plastic case (HBG-60)

• Type HL LED Driver for use in Class

Division 2 hazardous

location luminaires (HBG-100/160)

• Isolation class

, no F.G. (HBG-60)

•Class 2 power unit (HBG-60)

•Suitable for dry, damp, and wet location

H B G - 1 6 0
H B G - 1 6 0 ( D A )

H B G - 1 0 0
H B G - 1 0 0 ( D A )

H B G - 6 0

•Protections: Short circuit / Over current / Over voltage /

Over temp. (Short circuit / Over temp. for HBG-60)

•Multiple models for HBG-100/160

A-Type

: IP65 rated. Constant current level can be adjusted

through internal potentiometer

B-Type

: IP67 rated and

built-in 3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

B-Type

: IP65 rated. Constant current level can be adjusted

through internal potentiometer,

3 in 1 dimming function

Blank-Type

: IP67 rated. Cable for I/O connection

DA-Type

: IP67 rated. DALI control technology

•5 years warranty

HBG-100 Series

(C.C. mode)

HBG-60 Series

(C.C. mode)

HBG-160 Series

Model No.

Output

o Tol.

Effi.

HBG-100-24 A

24V, 0~4A

±5%

90.5%

HBG-100-36 A

36V, 0~2.7A

±5%

91.0%

Model No.

Output

o Tol.

Effi.

HBG-100-48 A

48V, 0~2A

±5%

91.0%

HBG-100-60 A

60V, 0~1.6A

±5%

91.5%

= A, B, AB, DA or Blank

Model No.

Output

o Tol.

Effi.

HBG-60-1050

37~55V, 1050mA

±5%

90%

HBG-60-1400

28~43V, 1400mA

±5%

89%

HBG-60-2100

19~29V, 2100mA

±5%

89%

Model No.

Output

Tol.

Effi.

HBG-160-24 A

24V, 0~6.5A

±2%

92.0%

HBG-160-36 A

36V, 0~4.4A

±2%

92.0%

HBG-160-48 A

48V, 0~3.3A

±2%

93.0%

HBG-160-60 A

60V, 0~2.6A

±2%

93.5%

= A, B, AB, DA or Blank

TYPE HL

Type HL

1-10VDC

AC input voltage range

90~295VAC ; 127~417VDC

9 0 ~ 3 0 5 V A C ; 1 2 7 ~ 4 3 1 V D C

AC inrush current (max.)

Cold start, 45A at 230VAC

Cold start, 60A at 230VAC

Cold start, 65A at 230VAC

Setup, rise, hold up time

500ms
at 230VAC for setup time

500ms, 80ms, 12ms
at full load and 230VAC

500ms, 200ms, 12ms
at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC

Working temperature

-40~+85

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 ,
GB19510.14, GB19510.1, EAC TP TC 004 approved

UL8750, TUV EN61347-1,
EN61347-2-13, GB19510.14,
GB19510.1, EAC TP TC 004
approved; Design refer to
TUV EN62368

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11; EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Input

SJTW 18AWGx2C (30cm)

SJTW 18AWGx3C (30cm)

Output

SVT 18AWGx2C (20cm)

A & Blank Type:
SJTW 18AWGx2C (20cm)
B Type:
SJTW 18AWGx2C (20cm) +
UL2517 22AWGx2C (30cm)

A & Blank Type:
SJTW 18AWGx2C (20cm)
B Type:
SJTW 18AWGx2C (20cm) +
SVT 18AWGx2C (30cm)

Dimension (DxH)(mm)

110x 60.5

130x 66.5

151.68x 66.5

(B-Type)

(except for DA-Type)

(for DA-Type only)

NEW

200~240W Circular Shape with PFC

NEW

I N P U T

O U T P U T

ACL

ACN

DIM

DIM+

(for DA-Type only)

Features

• Constant voltage+constant current modes

• Universal AC input (up to 305VAC)
• High efficiency up to 93.5%

• Patented metal housing design (Patent No.: CN201220314551)

• Suitable for dry, damp, and wet location
• Protections: Short circuit / Over current / Over voltage /
Over temperature
• Optional RCM models available

• 5 years warranty

H B G - 2 4 0
H B G - 2 4 0 ( D A )

H B G - 2 0 0 ( D A )

• Multiple models for choice:

A-Type

: IP65 rated. Constant current level can be adjusted

through internal potentiometer

B-Type

: IP67 rated and

built-in 3 in 1 dimming function,

PWM signal, or resistance,
0~10VDC(HBG-200), 1~10VDC(HBG-240)

B-Type

: IP65 rated. Constant current level can be adjusted

through internal potentiometer,

3 in 1 dimming

function

Blank-Type

: IP67 rated. Cable for I/O connection

DA-Type

: IP67 rated. DALI control technology

HBG-240 Series

HBG-200 Series

Model No.

Output

Tol.

Effi.

HBG-240-24 A

24V, 0~10A

±2%

92.5%

HBG-240-36 A

36V, 0~6.7A

±2%

92.5%

HBG-240-48 A

48V, 0~5A

±2%

93.0%

HBG-240-60 A

60V, 0~4A

±2%

93.5%

= A, B, AB, DA or Blank

Model No.

Output

Tol.

Effi.

HBG-200-36 A

36V, 0~5.5A

±2%

92%

HBG-200-48 A

48V, 0~4.1A

±2%

93%

HBG-200-60 A

60V, 0~3.3A

±2%

93.5%

= A, B, AB, DA or Blank

1-10VDC

0-10VDC

AC input voltage range

9 0 ~ 3 0 5 V A C ; 1 2 7 ~ 4 3 1 V D C

AC inrush current (max.)

Cold start, 85A at 230VAC

Cold start, 75A at 230VAC

Setup, rise, hold up time

500ms, 200ms/230VAC; 2500ms, 200ms/115VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC

Working temperature

-40~+85

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

-40~+75

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, BIS IS15885(refer to
spec for HBG-240 models), EAC TP TC 004

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,
EAC TP TC 020

Connection

Input

SJTW 18AWGx3C (30cm)

Output

A & Blank-Type: SJTW 18AWGx2C (20cm)
B & AB & DA-Type: SJTW 18AWGx2C (20cm)+
SVT 18AWGx2C (30cm)

A & Blank-Type: SJTW 18AWGx3C (30cm)
B&DA-Type : SJTW 14AWGx2C (30cm) +

SVT 18AWGx2C (30cm)

Dimension (DxH)(mm)

151.68x 66.5

191.5x 69

(B-Type)

NEW

Type HL

(except for DA-Type) (for DA-Type only)

(48A, 60A)

300W Circular Shape with PFC

I N P U T

O U T P U T

ACL

ACN

DIM

/DA

DIM+/DA+

NEW

(for DA-Type only)

Features

• Constant power mode (full power at 60~100% max current)

• Universal AC input (up to 305VAC)
• High efficiency up to 94.5%

• Patented metal housing design
(Patent No.: CN201220314551)

• Suitable for dry, damp, and wet location
• Protections:
Short circuit / Over current / Over voltage / Over temperature

H B G C - 3 0 0

• Multiple models for choice:

A-Type

: IP67 rated. Constant power level can be adjusted

through internal potentiometer

AB-Type

: IP67 rated and built-in 3 in 1 dimming function

(0~10VDC, PWM signal, or resistance)

DA-Type

: IP67 rated. DALI control technology

• 5 years warranty

HBGC-300 Series

Model No.

Output

Tol.

Effi.

H B G C - 3 0 0 - L -

116~232V, 650~2170mA

±5%

94.5%

H B G C - 3 0 0 - M -

58~116V, 1300~4330mA

±5%

93.5%

H B G C - 3 0 0 - H -

29~58V, 2600~8670mA

±5%

92.5%

= A, AB or DA

0-10VDC

AC input voltage range

1 0 0 ~ 3 5 0 V A C ; 1 4 2 ~ 4 3 1 V D C

AC inrush current (max.)

C o l d s t a r t , 4 5 A a t 2 3 0 V A C

Withstand voltage

I / P - O / P : 3 . 7 5 k V A C , I / P - F G : 2 k V A C , O / P - F G : 1 . 5 k V A C

Working temperature

-40~+90

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

U L 8 7 5 0 ( t y p e " H L " ) , E N E C E N 6 1 3 4 7 - 1 , E N 6 1 3 4 7 - 2 - 1 3 i n d e p e n d e n t , E N 6 2 3 8 4 ,
G B 1 9 5 1 0 . 1 , G B 1 9 5 1 0 . 1 4 , E A C T P T C 0 0 4

EMC standards

E N 5 5 0 1 5 , E N 6 1 0 0 0 - 3 - 2 c l a s s C

, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,

EAC TP TC 020

Connection

Input

S J T W 1 8 A W G x 3 C ( 3 0 c m )

Output

A - T y p e : S J T W 1 4 A W G x 2 C ( 3 0 c m )
A B / D A - T y p e : S J T W 1 4 A W G x 2 C ( 3 0 c m ) + S V T 1 8 A W G x 2 C ( 3 0 c m )

Dimension (DxH)(mm)

1 9 1 . 5 x 6 9

(AB-Type)

Type HL

Source: JMLED Lighting Alliance

I N P U T

(HBG-60P)

I N P U T

(HBG-

100P/160P/240P)

O U T P U T

(Non-Dimming

Models)

O U T P U T

(Dimming Models)

ACL

ACN

DIM

DIM+

Vo+

HBG-240P

HBG-100P
HBG-100PDA

HBG-160P
HBG-160PDA

H B G - 6 0 - P

Features

•Constant current mode (HBG-60P/100P)
Constant voltage+constant current modes (HBG-160P/240P)

•Universal AC input (up to 305VAC) /
Full range (up to 295VAC for HBG-60P)
•High efficiency up to 93.5%
•Class

power unit, no F.G. (HBG-60P)

•Class 2 power unit (HBG-60P)
•Suitable for dry, damp, and wet location

•Protections: Short circuit / Over temperature
•Multiple models for HBG-100P/160P/240P

A-Type

: Constant current level can be adjusted through internal

potentiometer

B-Type

Built-in 3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

DA-Type

: DALI control technology

•5 years warranty

HBG-100P Series

(C.C. mode)

HBG-160P Series

HBG-240P Series

HBG-60-P Series

(C.C. mode)

Model No.

Output

Tol.

Effi.

HBG-100P-36 A

36V, 0~2.7A

±5%

91.0%

HBG-100P-48 A

48V, 0~2A

±5%

91.0%

HBG-100P-60 A

60V, 0~1.6A

±2%

91.5%

= A, B, or DA

Model No.

Output

Tol.

Effi.

HBG-160P-36 A

36V, 0~24.4A

±2%

92.0%

HBG-160P-48 A

48V, 0~3.3A

±2%

93.0%

HBG-160P-60 A

60V, 0~2.6A

±2%

93.5%

= A, B, or DA

Model No.

Output

Tol.

Effi.

HBG-240P-36 A

36V, 0~6.7A

±2%

92.5%

HBG-240P-48 A

48V, 0~5A

±2%

93.0%

HBG-240P-60 A

60V, 0~4.0A

±2%

93.5%

= A or B

Model No.

Output

o Tol.

Effi.

HBG-60-1050P

37~55V, 1050mA

±5%

90%

HBG-60-1400P

28~43V, 1400mA

±5%

89%

HBG-60-2100P

19~29V, 2100mA

±5%

89%

1-10VDC

AC input voltage range

90~295VAC ; 127~417VDC

9 0 ~ 3 0 5 V A C ; 1 2 7 ~ 4 3 1 V D C

AC inrush current (max.)

Cold start, 45A at 230VAC

Cold start, 60A at 230VAC

Cold start, 65A at 230VAC

Cold start, 75A at 230VAC

Over temp. protection

Shut down o/p voltage, re-power on to recover

Shut down o/p voltage, auto-recovery

Setup, rise, hold up time

500ms at 230VAC for setup time

500ms, 200ms, 12ms
at full load and 230VAC

500ms, 120ms, 15ms
at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC

Working temperature

-40~+70

-40~+45

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,
GB17625.1, EAC TP TC 020

Connection

Input

UL1015 18AWGx2C (30cm)

SJTW 18AWGx3C (30cm)

Output

UL1015 18AWGx2C (30cm)

A Type:
SJTW 18AWGx2C (20cm)
B Type:
SJTW 18AWGx2C (20cm) +
UL2517 22AWGx2C (30cm)

A Type:
SJTW 18AWGx2C (20cm)
B Type:
SJTW 18AWGx2C (20cm) +
SVT 18AWGx2C (30cm)

A Type:
SJTW 14AWGx2C (30cm)
B Type:
SJTW 14AWGx2C (30cm) +
SVT 18AWGx2C (30cm)

Dimension (DxH)(mm)

9 9 x 2 6

104x 34

124.6x 34

144x 31

60~240W Circular Shape PCB with PFC

(B-Type)

(for DA-Type only)

(except for DA-Type)

I N P U T

O U T P U T

(Blank-Type)

O U T P U T

(A-Type)

NEW

25~65W PCB Type with PFC

I D P V - 4 5 ( A )

I D P V - 2 5 ( A )

I D P V - 6 5 ( A )

NEW

Features

• Constant voltage PWM style output mode

• IDPV-25/45: 90~295VAC input

•

IDPV-65: 180~295VAC input only

• High efficiency up to 90%

• No load power consumption <0.5W (Blank-Type)

• Miniature PCB size
• Isolation class

, no F.G.

AC input voltage range

90 ~ 295VAC ; 127 ~ 417VDC

180 ~ 295VAC ; 254~417VDC

AC inrush current (max.)

Cold start, 30A at 230VAC

Setup time

500ms / 230VAC

PWM dimming signal

10V PWM signal, frequency range 300Hz~3kHz

Total harmonic distortion

THD<20%

Short circuit protection

Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

-20~+45

-20~+40

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1 approved

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1

Connection (Input/Output)

Blank-Type: 4+4P push-in terminal block, A-Type: 4+6P push-in terminal block

Dimension (LxWxH) mm

114.5x 72.5x 20

120 x 66.5 x 22

130 x 67.5 x 22

• Built-in 2 in 1 dimming function (0~10VDC or PWM signal)

• Built-in 12V/50mA auxiliary output (A-Type)

• Suitable for indoor LED strip lighting
• Protection: Short circuit
• 3 years warranty

IDPV-65/65A Series

Model No.

Output

Tol.

Effi.

IDPV-65

-12

12V, 0~4.2A

±10%

85%

IDPV-65

-24

24V, 0~2.4A

±10%

87%

IDPV-65

-36

36V, 0~1.8A

±10%

88%

IDPV-65

-48

48V, 0~1.35A

±10%

89%

IDPV-65

-60

60V, 0~1.08A

±10%

90%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

IDPV-45/45A Series

IDPV-25/25A Series

Model No.

Output

Tol.

Effi.

IDPV-45

-12

12V, 0~3A

±10%

84%

IDPV-45

-24

24V, 0~1.88A

±10%

86%

Model No.

Output

Tol.

Effi.

IDPV-45

-36

36V, 0~1.25A

±10%

88%

IDPV-45

-48

48V, 0~0.94A

±10%

88%

IDPV-45

-60

60V, 0~0.75A

±10%

90%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

IDPV-25

-12

12V, 0~1.8A

±10%

80%

IDPV-25

-24

24V, 0~1.05A

±10%

81%

IDPV-25

-36

36V, 0~0.7A

±10%

82%

IDPV-25

-48

48V, 0~0.52A

±10%

83%

IDPV-25

-60

60V, 0~0.42A

±10%

84%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

NEW

I N P U T

O U T P U T

(Blank/DA-Type)

O U T P U T

(A-Type)

NEW

25~65W PCB Type with PFC

IDPC-45(A)
IDPC-45-DA

IDPC-65(A)
IDPC-65-DA

I D P C - 2 5 ( A )

Features

• Constant current mode
• Flicker free design

• IDPC-25/45: 90~295VAC input
IDPC-65: 180~295VAC input only

• No load power consumption <0.5W (Blank/DA-Type)
No load power consumption <1.2W (A-Type)

• Miniature PCB size

AC input voltage range

90 ~ 295VAC ; 127 ~ 417VDC

180 ~ 295VAC ; 254~417VDC

AC inrush current (max.)

Cold start, 30A at 230VAC

Setup time

500ms / 230VAC

Short circuit protection

Hiccup mode, auto-recovery

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

-20~+50

-20~+40

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1, EAC TP TC 004 approved

DALI standards

IEC 62386-101, 102 (DA-Type only)

EMC standards

EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1, EAC TP TC 020

Connection (Input/Output)

Blank/DA-Type: 4+4P push-in terminal block, A-Type: 4+6P push-in terminal block

Dimension (LxWxH) mm

114.5x 72.5x 20

120 x 66.5 x 25

130 x 67.5 x 20.5

• Isolation class

, no F.G.

• Built-in DALI interface (IDPC-45/65-DA)
• Built-in 2 in 1 dimming function (0~10VDC or PWM signal)

• Built-in 12V/50mA auxiliary output (A-Type)

• Suitable for indoor LED lighting applications
• Protection: Short circuit
• 3 years warranty

IDPC-65/65A Series

IDPC-65-DA Series

Model No.

Output

Tol.

Effi.

IDPC-65

-700

69 ~ 93V, 700mA

±7%

89%

IDPC-65

-1050

46 ~ 62V, 1050mA

±7%

87%

IDPC-65

-1400

34 ~ 46V, 1400mA

±7%

86%

IDPC-65

-1750

27 ~ 36V, 1750mA

±7%

86%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

IDPC-65-700DA

69 ~ 93V, 700mA

±7%

89%

IDPC-65-1050DA

46 ~ 62V, 1050mA

±7%

87%

IDPC-65-1400DA

34 ~ 46V, 1400mA

±7%

86%

IDPC-65-1750DA

27 ~ 36V, 1750mA

±7%

86%

IDPC-45/45A Series

IDPC-45-DA Series

IDPC-25/25A Series

Model No.

Output

Tol.

Effi.

IDPC-45

-350

57 ~ 95V, 350mA

±7%

86%

IDPC-45

-500

54 ~ 90V, 500mA

±7%

85%

IDPC-45

-700

38 ~ 64V, 700mA

±7%

85%

IDPC-45

-1050

26 ~ 43V, 1050mA

±7%

84%

IDPC-45

-1400

19 ~ 32V, 1400mA

±7%

83%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

IDPC-45-350DA

57 ~ 95V, 350mA

±7%

86%

IDPC-45-500DA

54 ~ 90V, 500mA

±7%

85%

IDPC-45-700DA

38 ~ 64V, 700mA

±7%

85%

IDPC-45-1050DA

26 ~ 43V, 1050mA

±7%

84%

IDPC-45-1400DA

19 ~ 32V, 1400mA

±7%

83%

Model No.

Output

Tol.

Effi.

IDPC-25

-350

49 ~ 70V, 350mA

±7%

82%

IDPC-25

-500

35 ~ 50V, 500mA

±7%

81.5%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

Model No.

Output

Tol.

Effi.

IDPC-25

-700

25 ~ 36V, 700mA

±7%

81.5%

IDPC-25

-1050

17 ~ 24V, 1050mA

±7%

80%

= Blank/A; Blank: without auxiliary output, A: with auxiliary function

P L P - 3 0

P L P - 4 5 / 6 0

Features

AC input voltage range

90~264VAC; 127~370VDC

AC inrush current (max.)

Cold start, 25A at 230VAC

PLP-45: Cold start, 30A at 230VAC
PLP-60: Cold start, 35A at 230VAC

Current adjustment range

75%~100%

Over current
protection

Range

100%~110%

Type

Constant current limiting, auto-recovery

Setup time

500ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC

Working temperature

-30~+70

C (

refer to "OUTPUT LOAD vs TEMPERATURE"

)

Safety standards

UL8750, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743,

GB17625.1, EAC TP TC 020

Connection

3+2P / 3.96mm pitch, JST P/N: B3P / B2P-VH

Dimension (LxWxH)(mm)

101.6x 50.8x 26.6

101.6x 50.8x 29.6

• Constant current mode

• Universal AC input / Full range
• Class 2 power unit / Pass LPS
• Suitable for built-in LED lighting systems

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

P L P - 3 0 - 1 2

1 2 V , 0 ~ 2 . 5 A

± 1 0 %

2 . 0 V

8 3 . 0 %

P L P - 3 0 - 2 4

2 4 V , 0 ~ 1 . 3 A

± 1 0 %

2 . 4 V

8 5 . 5 %

P L P - 3 0 - 4 8

4 8 V , 0 ~ 0 . 6 3 A

± 1 0 %

4 . 8 V

8 6 . 5 %

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

P L P - 6 0 - 1 2

1 2 V , 0 ~ 5 . 0 A

± 1 0 %

4 . 5 V

8 4 %

P L P - 6 0 - 2 4

2 4 V , 0 ~ 2 . 5 A

± 1 0 %

4 . 5 V

8 8 %

P L P - 6 0 - 4 8

4 8 V , 0 ~ 1 . 3 A

± 1 0 %

4 . 8 V

8 9 %

PLP-45 Series

PLP-30 Series

PLP-60 Series

• Protections: Short circuit / Over current / Over voltage
• Cooling by free air convection
• 2 years warranty

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

P L P - 4 5 - 1 2

1 2 V , 0 ~ 3 . 8 A

± 1 0 %

4 . 2 V

8 6 %

M o d e l N o .

O u t p u t

T o l .

R & N

E f f i .

P L P - 4 5 - 2 4

2 4 V , 0 ~ 1 . 9 A

± 1 0 %

3 . 8 V

8 9 %

P L P - 4 5 - 4 8

4 8 V , 0 ~ 0 . 9 5 A

± 1 0 %

4 . 8 V

8 9 %

(for 48V only)

(for 12/24V)

Special Symbols for EN61347-2-13

Protection against overheating to prevent the lamp controlgear case temperature under any conditions of use from
exceeding the indicated value (110

Suitable for direct mounting on normally flammable surfaces, such as wood (>2mm)

Based on VDE0710-14, can be installed inside a wooden material like wooden cabinet.
The minimum distance between the product enclosure to wooden material in each side is defined.

Limited power source

Full load operation up to 40

C with surface temperature of case < 80

Vo< 120VDC can have this mark on the unit

110

LPS

: 80

: 40

SELV

30~60W PCB Type with PFC

AC input voltage range

90~305VAC ; 127~431VDC

AC inrush current (max.)

Cold start, 50A at 230VAC Cold start, 55A at 230VAC Cold start, 70A at 230VAC

DC adjustment range

±10% rated output voltage

Current adjustment range

60%~100% 80%~100%

Over current protection

95%~108% constant current limiting, auto-recovery

Over voltage protection

109%~145% rated output voltage

Setup, rise, hold up time

500ms, 80ms, 16ms at full load and 230VAC

500ms, 200ms, 16ms at full load and 230VAC

Withstand voltage

I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC

Working temperature

-40~+70

C (refer to output derating curve)

Safety standards

UL8750, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved;

Design refer to EN60335-1(HLP-40H/60H), UL62368-1, EN62368-1

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547,

GB17743, GB17625.1, EAC TP TC 020

Connection

Input

6+6P/3.96mm pitch, JST P/N: B6P-VH

Output

Dimension (LxWxH) (mm)

147x 53x 27

167x 53x 29.5

Features

• Constant current mode

• Universal AC input (up to 305VAC) / Full range
•

Built-in 3 in 1 dimming function

(1~10VDC, PWM signal, or resistance)

• Class 2 power unit / Pass LPS

• Suitable for built-in LED lighting system
• Protections:

Short circuit / Over current / Over voltage / Over temperature

• Cooling by free air convection
• 3 years warranty

H L P - 8 0 H

H L P - 4 0 H

H L P - 6 0 H

HLP-40H Series

HLP-60H Series

HLP-80H Series

Model No.

Output

Tol.

R&N

Effi.

HLP-40H-12

12V, 0~3.33A

±2.5%

150mV

87.0%

HLP-40H-15

15V, 0~2.67A

±2.0%

150mV

87.0%

HLP-40H-20

20V, 0~2.00A

±1.0%

150mV

88.0%

HLP-40H-24

24V, 0~1.67A

±1.0%

150mV

88.0%

HLP-40H-30

30V, 0~1.34A

±1.0%

200mV

88.5%

HLP-40H-36

36V, 0~1.12A

±1.0%

200mV

89.0%

HLP-40H-42

42V, 0~0.96A

±1.0%

300mV

89.0%

HLP-40H-48

48V, 0~0.84A

±1.0%

300mV

89.5%

HLP-40H-54

54V, 0~0.75A

±1.0%

300mV

89.5%

Model No.

Output

Tol.

R&N

Effi.

HLP-80H-12

12V, 0~5.0A

±2.5%

150mV

87.5%

HLP-80H-15

15V, 0~5.0A

±2.0%

150mV

88.5%

HLP-80H-20

20V, 0~4.0A

±1.0%

150mV

89.5%

HLP-80H-24

24V, 0~3.4A

±1.0%

150mV

90.0%

HLP-80H-30

30V, 0~2.7A

±1.0%

200mV

90.0%

HLP-80H-36

36V, 0~2.3A

±1.0%

200mV

90.0%

HLP-80H-42

42V, 0~1.95A

±1.0%

200mV

90.0%

HLP-80H-48

48V, 0~1.7A

±1.0%

200mV

90.0%

HLP-80H-54

54V, 0~1.5A

±1.0%

200mV

90.0%

Model No.

Output

Tol.

R&N

Effi.

HLP-60H-15

15V, 0~4.0A

±2.0%

150mV

88.0%

HLP-60H-20

20V, 0~3.0A

±1.0%

150mV

89.0%

HLP-60H-24

24V, 0~2.5A

±1.0%

150mV

89.5%

HLP-60H-30

30V, 0~2.0A

±1.0%

200mV

90.0%

Model No.

Output

Tol.

R&N

Effi.

HLP-60H-36

36V, 0~1.70A

±1.0%

200mV

90.0%

HLP-60H-42

42V, 0~1.45A

±1.0%

300mV

90.0%

HLP-60H-48

48V, 0~1.30A

±1.0%

300mV

90.5%

HLP-60H-54

54V, 0~1.15A

±1.0%

300mV

90.5%

(for 48V/54V)

(for 12~42V)

1-10VDC

40~80W PCB Type with PFC

Model No.

Input

(VDC)

Output

o Tol.

Effi.

Dimming

Voltage

(VDC)

Current

(mA)

LDH-45A-350

9~18

12~86

350

±5%

91%

Blank&W:

PWM+Analog

LDH-45A-500

9~18

12~86

500

±5%

90%

LDH-45A-700

9~18

12~64

700

±5%

90%

LDH-45A-1050

9~18

12~43

1050

±5%

91%

LDH-45B-350

18~32

21~126

350

±5%

93%

Blank&W:

PWM+Analog

LDH-45B-500

18~32

21~86

500

±5%

94%

LDH-45B-700

18~32

21~64

700

±5%

95%

LDH-45B-1050

18~32

21~43

1050

±5%

95%

=Blank, W; Blank: pin style, PWM+analog dimming; W: Wire style, PWM+analog dimming

Model No.

Input

(VDC)

Output

o Tol.

Effi.

Dimming

Voltage

(VDC)

Current

(mA)

LDH-45A-350 DA

9~18

24~86

350

±5%

91%

DALI

LDH-45A-500 DA

9~18

24~86

500

±5%

90%

LDH-45A-700 DA

9~18

24~64

700

±5%

90%

LDH-45A-1050 DA

9~18

24~43

1050

±5%

91%

LDH-45B-350 DA

18~32

36~126

350

±5%

93%

DALI

LDH-45B-500 DA

18~32

36~86

500

±5%

94%

LDH-45B-700 DA

18~32

36~64

700

±5%

95%

LDH-45B-1050 DA

18~32

36~43

1050

±5%

95%

=Blank, W; Blank: pin style, DALI dimming; W: Wire style, DALI dimming

Features

• Constant current step-up mode

• Wide input and output voltage range
• High efficiency up to 95%

• Comply with EN55015 without additional
input filter and capacitors

LDH-45

LDH-45DA

• DALI dimming function for DA and WDA type

• Fully enclosed plastic case (UL 94V-0)
• Low cost, high reliability
• Protections: Short circuit / Over voltage / Under voltage
• 3 years warranty

Output current accuracy (Typ.)

±5% at 12VDC input for A type; ±5% at 24VDC input for B type

PWM dimming &
ON/OFF control

Remote ON/OFF

Leave open if not used

• Power ON with dimming: PWM DIM~DIM- > 2~8VDC or open circuit
• Power OFF: PWM DIM ~ DIM- < 0.5VDC or short

PWM frequency

1K~10KHz

Analog dimming &
ON/OFF control

Remote
ON/OFF

Leave open if not used

• Power ON with dimming: Analog DIM ~ DIM- > 0.25~8VDC or open circuit
• Power OFF: Analog DIM ~ DIM- < 0.2VDC or short

Short circuit protection

Power OFF and fuse open

Over voltage protection

>115% rated output voltage

Working temperature

-40~+70

Safety standards

EAC TP TC 004 approved

EMC standards

EN55015, EN61547, EN61000-4-2,3,4,6,8, EAC TP TC 020

Dimension (LxWxH)(mm)

75x 53x 22.7

LDH-45A/B Series

LDH-45A/B-DA Series

DC-DC LED Driver

NEW

Model No.

Input

(VDC)

Output

o Tol.

Effi.

Dimming

Voltage

(VDC)

Current

(mA)

LDD-350H- DA

6~50

3~45

350

±5%

95%

PWM+Analog

LDD-700H- DA

6~50

3~45

700

LDD-1050H- DA

6~50

3~45

1050

LDD-1400H- DA

6~40

3~36

1400

= Blank, W; Blank: pin style, W: Wire style

Features

LDD-350~1400H-DA

LDD-350~1400H-WDA

Output current accuracy (Typ.)

±5% at 48VDC input (350~1050mA), 24VDC input (1400mA)

PWM dimming &
ON/OFF control

Remote ON/OFF

Leave open if not used

• Power ON with dimming : PWM DIM~-Vin >1.2 ~5VDC or open circuit
• Power OFF: PWM DIM~-Vin <0.1 VDC or short
• Max operation voltage 5.5 VDC

PWM frequency

200~1KHz

Analog dimming
& ON/OFF control

Remote ON/OFF

Leave open if not used

• Power ON with dimming : Analog DIM~-Vin >0.1~2.5VDC or open circuit
• Power OFF: Analog DIM~-Vin <0.1VDC or short
• Max operation voltage 5. 5 VDC

Short circuit protection

Constant current with auto-recovery

Input under
voltage lockout

Power up (Typ.)

4.2VDC

Power down (Typ.)

3.8VDC

Working temperature

-40~+85

(refer to output derating curve)

Safety standards

EAC TP TC 004 approved

EMC standards

EN55015, EN61547, EN61000-4-2,3,4,6,8, EAC TP TC 020

Operating case temp. (max.)

100

Dimension (LxWxH)(mm)

40.6x 23.5x 10.1

LDD-DA Series

DC-DC LED Driver

• Constant current step-down mode

• Wide input and output voltage range
• High efficiency up to 95%

• Comply with EN55015 without additional input filter and capacitors

• DALI dimming function

• Protections: Short circuit / Input under voltage lockout
• Fully enclosed plastic case
• 3 years warranty

Model No.

Input

(VDC)

Output

o Tol.

Effi.

Dimming

Voltage

(VDC)

Current

(mA)

LDD-300L

9~36

(9~32 for S style)

2~32

(2~28 for S style)

300

±5%

95%

PWM

LDD-350L

350

LDD-500L

500

LDD-600L

600

LDD-700L

700

LDD-1000L

6~36

2~30

1000

PWM+Analog

LDD-1200L

1200

LDD-1500L

1500

= Blank, W, S ; Blank: pin style, W: Wire style, S: SMD style

Features

• Constant current step-down mode

• Wide input and output voltage range
• High efficiency up to 95%

• Comply with EN55015 / FCC part 15 without additional
input filter and capacitors

• Compact size

LDD-300~700L/LW/LS

LDD-1000~1500L/LW/LS

• Protections: Short circuit / Over temperature (LDD-300~700)
• Fully enclosed plastic case (UL 94V-0)
• Low cost, high reliability
• 3 years warranty

Output current accuracy (Typ.)

±5% at 24VDC input

PWM dimming &
ON/OFF control

Remote ON/OFF

Leave open if not used

• Power ON with dimming:

DIM ~ -Vin >3.5~8VDC or open circuit

• Power OFF:

DIM ~ -Vin <0.5VDC or short

• Power ON with dimming:

DIM ~ -Vin >2.6~5.5VDC or open circuit

• Power OFF:

DIM ~ -Vin <0.4VDC or short

PWM frequency

100~1000Hz

100~500Hz

Analog dimming &
ON/OFF control

Remote ON/OFF

None

Leave open if not used

• Power ON with dimming:

DIM ~ -Vin >0.5~2.5VDC or open circuit

• Power OFF:

DIM ~ -Vin <0.4VDC or short

Short circuit protection

Regulated at rated output current; can be continued, auto-recovery

Over temp. protection

Shut down, auto-recovery

None

Working temperature

-40~+85

-40~+71

Safety standards

EAC TP TC 004 approved

EMC standards

EN55015, EN61547, EN61000-4-2,3,4,6,8, FCC part 15 class B, EAC TP TC 020

Operating case temp. (max.)

100

Dimension (LxWxH)(mm)

L/LW: 22.6x 9.9x 8.9
LS: 25.4x 10.5x 9.3

L/LW: 31.8x 20.3x 12.2
LS: 31.8x 20.3x 10.9

LDD-L Series

DC-DC LED Driver

Features

• Constant current step-down mode (LDD-H) ;

Constant current buck-boost mode (LDB-L)

• Wide input and output voltage range
• High efficiency up to 97%

• Comply with EN55015 and FCC part 15

without additional input filter and capacitors

Model No.

Input

(VDC)

Output

o Tol.

Effi.

Voltage

(VDC)

Current

(mA)

LDD-300H

9~56

2~52

300

±4%

97%

LDD-350H

9~56

2~52

350

±4%

97%

LDD-500H

9~56

2~52

500

±4%

97%

LDD-600H

9~56

2~52

600

±4%

97%

LDD-700H

9~56

2~52

700

±4%

97%

LDD-1000H

9~56

2~52

1000

±4%

97%

LDD-1200H

9~52

2~46

1200

±5%

95%

LDD-1500H

9~52

2~46

1500

±5%

96%

= Blank, W, S ; Blank: pin style, W: wire style, S: SMD style

= Blank, W ; Blank: pin style, W: wire style

Model No.

Input

(VDC)

Output

o Tol.

Effi.

Voltage

(VDC)

Current

(mA)

LDB-300L

9~36

2~40

300

±5%

90%

LDB-350L

9~36

2~40

350

±5%

90%

LDB-500L

9~30

2~32

500

±5%

91%

LDB-600L

9~28

2~30

600

±5%

91%

= Blank, W ; Blank: pin style, W: wire style

L D D - 3 0 0 ~ 1 0 0 0 H / H W / H S
L D D - 1 2 0 0 / 1 5 0 0 H / H W

• PWM dimming and remote ON/OFF control
• Protections: Short circuit / Over temperature
• Fully enclosed plastic case (UL 94V-0)
• 3 years warranty

Output current accuracy

±3% at 24VDC input;
±4% at 48VDC input for LDD-H/HW;
±5% at 48VDC input for LDD-HS

±5%

PWM
dimming &
ON/OFF
control

Remote ON/OFF

Leave open if not used

• Power ON with dimming:
DIM ~ -Vin >2.5~6VDC or open circuit
• Power OFF:
DIM ~ -Vin <0.8VDC or short

• Power ON with dimming:
DIM ~ -Vin >2~10VDC or open circuit
• Power OFF:
DIM ~ -Vin <0.5VDC or short

PWM frequency

100~1KHz

1KHz

Short circuit

Regulated at rated output current, can be continued, auto-recovery

Over temperature protection

Shut down, recovers automatically after temperature goes down

Working temperature

-40~+85

(refer to output derating curve)

-40~+71

(refer to output derating curve)

EMC standards

EN55015, EN61547, EN61000-4-2,3,4,6,8, FCC part 15 class B

Operating case temp. (max.)

100

110

Dimension
(LxWxH)(mm)

LDD-H/HW: 31.8x 20.3x 12.2
LDD-HS: 31.8x 20.3x 11.4

31.8x 20.3x 12.2

LDD-H Series

LDB-L Series

DC-DC LED Driver

L D B - 3 0 0 ~ 6 0 0 L / LW

I N P U T

O U T P U T

I N P U T

1-10VDC

Features

4 Channel DALI to PWM Converter

•

Convert DALI signal to PWM signal

•

Comply with DALI standards (IEC62386-101,102,207)

•

Universal AC input (up to 305VAC)

•

4 DALI addressable output channels

•

Built-in push dim function

•

Linear or logarithm dimming curve selectable

(comply with IEC62386-207)

•

Built-in relay for ON/OFF control of LED PSU

•

Fully isolated plastic case

•

Class

, no FG

Model No.

DAP-04

DAP-04-S01

AC input voltage range

90~305VAC ; 127~431VDC

Power consumption(typ.)

0.5W

Dimming range

1~100%

Output signal

PWM, 1KHz

Output channel

4 channels with 4 DALI addresses

4 channels with 4 or 1 DALI address selectable

Output PWM logic

Active high or active low selectable

Active high

Working temperature

-30~+60

C (refer to output derating curve)

Safety standards

EN61347-1, EN61347-2-11, EN61058-1 clause 8/17/20/25, EAC TP TC 004 approved

DALI standards

Comply with IEC62386-101, 102, 207

EMC standards

EN55015, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61547, EAC TP TC 020

Dimension(LxWxH)(mm)

165x 46x 23

Connection of Dimming Operation

DALI Dimming Solution

Push Dimming Solution

•

Power consumption<0.5W

•

Suitable to use along with
MEAN WELL's AC/DC LED PSU with 3-in-1 dimming
function

• Two models for choice:

Blank-Type

: 4 channels with

4 DALI addresses

S01-Type

: 4 channels with

4 or 1DALI address selectable

•

3 years warranty

NEW

Model No.

DLP-04L

DLP-04R

Rated DC voltage

16V

Rated current

240mA (max.)

Input voltage range

90~264VAC ; 120~370VDC

Rated power

3.84W

Working temperature

-20~+60

C (refer to output derating curve)

Safety standards

EN61347-2-11, EAC TP TC 004 approved

DALI standards

Compliance to IEC62386-101

EMC emission

Compliance to En55015, EN61547, EN61000-3-2,-3, EAC TP TC 020

Dimension(mm)

145x 38x 22(LxWxH)

35x 90x 54.5 (WxHxD)

D A L I B u s P o w e r S u p p l y

•  Compact size with 2SU(35mm) width(type R)
•  Universal AC input / Full range
•  Withstand 300VAC surge input for 5 seconds
•  Isolation class

•  No load power consumption <0.5W(type L)
•  Protections: Short circuit / Over voltage
•  Cooling by free air convection
•  3 color LED for status indicator (type R)
•  Installed on DIN rail TS-35/7.5 or 15(type R)
•  3 years warranty

D L P - 0 4

•  KNX proof gateway
•  Easy configuration & installation
•  Cost effective solution for smart building
•  Connect up to 64 DALI ECGs/Drivers
•  Built-in DALI power supply
•  LCD 2x12 display
•  Lighting control via the button
•  Lighting control via the integrated web server
•  Up to 16 DALI lighting groups setting
•  Up to 16 DALI scenes setting
•  3 year warranty

KNX to DALI Gateway

K D A - 6 4

DLP-04L

DLP-04R

DLP

-04

M o d e l N o .

K D A - 6 4

A C i n p u t v o l t a g e r a n g e

1 0 0 ~ 2 4 0 V A C ; 1 4 2 ~ 3 3 9 V D C

P o w e r c o n s u m p t i o n

7 W ( T y p . )

Input KNX bus

S t a n d a r d K N X c o n n e c t o r

Output DALI bus voltage

B u i l t - i n s i n g l e D A L I v o l t a g e 1 6 - 2 0 V D C

O u t p u t D A L I b u s r a t e d c u r r e n t

2 5 0 m A

E t h e r n e t c o m m u n i c a t i o n p o r t

1 0 0 M B / s v i a R J 4 5 c o n n e c t o r

D A L I s t a n d a r d

E N 6 2 3 8 6 - 1 0 3 D A L I 1 . 0 c o n t r o l l e r

W o r k i n g t e m p e r a t u r e

- 5 ~ + 4 5 ° C ( r e f e r t o o u t p u t d e r a t i n g c u r v e )

D i m e n s i o n ( W x H x D ) ( m m )

7 2 x 8 6 x 5 5

Model No.

Input signal

Output signal

Additional

communication

KDA-64

KNX

DALI

Ethernet

Dimming Level (%)

Operating Time (HH:MM)

MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current
level to perform up to 14 consecutive hours. 3 dimming profiles hereunder are defined accounting for the most frequently seen
applications. If other options may be needed, please contact MEAN WELL for details.

TIME**

06:00

07:00

11:00

---

LEVEL**

100%

70%

50%

70%

TIME**

01:00 03:00 08:00 11:00

---

LEVEL**

50%

80%

100%

60%

80%

TIME**

01:30

11:00

---

LEVEL**

70%

100%

70%

Smart Timer Dimming Function

S m a r t Ti m e r D i m m i n g P r o g r a m m e r

SDP-001 is a programmer, particularly for ME AN WELL’s Smart Timer
Dimming Tool for LED lighting dimming function, reading or writing
various parameters designated by users.

L165x W46x H23 mm

S D P - 0 0 1

**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.

Ex : D01-Type: the profile recommended
for residential lighting

Ex : D02-Type: the profile recommended
for street lighting

Ex : D03-Type: the profile recommended
for tunnel lighting

Set up for D01-Type in

Smart timer dimming software program

Set up for D02-Type in

Smart timer dimming software program

Set up for D03-Type in

Smart timer dimming software program

•

Simple connection and configuration

•

Push terminal and mini-USB port

•

No need of battery or AC power

(LVD)

NEW

Model No.

SPD-20-240P

SPD-20-277P

SPD-20HP-277S

SPD-20HP-480S

Operating voltage

240VAC, 50/60Hz

277VAC, 50/60Hz 120~277VAC, 50/60Hz 347~480VAC, 50/60Hz

MCOV (Max. continuous operating voltage)

300VAC

320VAC

510VAC

MLV (Measured limiting voltage)

---

L-N:810V, L-G:1560V,
N-G: 1570V

L-N:1400V, L-G:1560V,
N-G: 1570V

VPR (Voltage protection rating)

≤1500V (L-FG, N-FG, L-N)

---

UP (Voltage protection level)

---

L-N:1000V, L-G/PE:3800V,
N-G/PE: 2900V

---

IN (Nominal discharge current)

5kA

10kA

Max. surge current (8/20

20kA

SCCR (Short circuit current rating)

5kA

---

Response time

<25ns

---

Operating temperature

-40~+70

-40~+75

Safety standard

UL1449 3

Edition,

TUV EN61643-11 approved

UL1449 3

Edition

approved

UL1449 4

Edition,

EN61643-11 approved

UL1449 4

Edition

approved

Connection [L (Black)/N (White)/FG (Green)]

FEP 10AWG (15cm)

---

2 0 k A S u r g e P r o t e c t i o n D e v i c e

• UL1449, Type 2 (SPD-20), Type 4 (SPD-20HP) component assemblies

• Line to Ground & Line to Line protected

• Parallel (3 wires) connection style (SPD-20)

• Series connection style (SPD-20HP)

•LED status indicators

•IP67 (SPD-20); IP66 (SPD-20HP)

• Suitable for surge protection of LED drivers

• Thermally protected (SPD-20HP)

90x 70x 50 mm

(LxWxH)

71.6x 67.7x 32 mm

(LxWxH)

(SPD-20-240P)

(SPD-20HP-277S)

(LVD)

S P D - 2 0

S P D - 2 0 H P

• EnOcean compliant products,

up to 30 meters wireless distance

• Operating frequency 868MHz

(other frequency for outside EU available on request)

• WPD-06 (PWM dimmer):

- 6 protected channels, independent dimming control on each channel

- Up to 128 wireless batteryless switches connected possible

- Built-in 3 wire push dimming function ports

- Suitable for constant voltage lighting application,

Possible for constant current lighting application

- Multiple dimmer application via CANBus (optional)

- Conformal coating for highly humid environment

• WPD-06SWT (switch transmitter):

- Batteryless switch with cycles >50000 times

- Maintenance free

• 5 years warranty

Model No.

WPD-06

WPD-06SWT

Input voltage range

10-32VDC SELV

---

Rated output current

4.5A each channel, 27A for the entire module

---

Rated output power

324W (input: 12V); 648W (input: 24V)

---

Output dimming range

1 to 100%; Switching frequency: 125Hz

---

DC input current

27A

---

Input standby power

1.2W (Typ.)

---

Overload protection

150% rated output power for 300ms max.

---

Electronic shut down rated at 5A. Restart
by switching on again the output of channel

---

Over voltage protection

Transient protection starting at 33V

---

Transmission power

---

10mW max.

Working temperature

-40~+60

C -25~+65

Input / Output terminal

Clamping spring disconnectable terminal for solid
or stranded copper conductors 0.25 to 2.5mm

---

Wireless DC Multi-channel PWM Dimmer Kit

W P D - 0 6 / W P D - 0 6 S W T

WPD-06

WPD-06SWT

NEW

NEEEWWW

110x 77x 26.4mm

(LxWxH)

80x 80x 15mm

(LxWxH)

AC/DC

Series

Dimension

(Lx Wx H)

Page

LPF-16D/25D

148x 40x 32 mm

LPF-40D

162.5x 43x 32 mm

LPF-60D

LPFH-60D
LPF-90D

161x 61x 36 mm

Series

Dimension

(Lx Wx H)

Page

PLD-16/25

84x 57x 29.5 mm

PLD-40/60

128x 60x 31.5 mm

Series

Dimension

(Lx Wx H)

Page

PCD-16/25

84x 57x 29.5 mm

PCD-40/60

128x 60x 31.5 mm

Series

Dimension

(Lx Wx H)

Page

PLM-12/25

145x 38x 22 mm

PLM-40

175x 42x 24 mm

Series

Dimension

(Lx Wx H)

Page

PLM-12E / 25E

145x 38x 22 mm

PLM-40E

175x 42x 24 mm

Series

Dimension

(Lx Wx H)

Page

PLN-20

148.5x 38.5x 28 mm

PLN-30

145x 47x 30 mm

PLN-45/60

181x 61.5x 35 mm

Series

Dimension

(Lx Wx H)

Page

NPF-40D/60D

150x 53x 35 mm

NPF-90D

171x 63x 37.5 mm

NPF-120D

191x 63x 37.5 mm

Series

Dimension

(Lx Wx H)

Page

PLC-30

160x 46x 30 mm

PLC-45/60

181.5x 62x 35 mm

Series

Dimension

(Lx Wx H)

Page

IDLC-25(A)

110x 75x 22

IDLC-45(A)

120x 75x 25 mm

IDLC-45-DA
IDLC-65(A)

130x 75x 25 mm

IDLC-65-DA

Series

Dimension

(Lx Wx H)

Page

ODLC-45(A)

111x 77x 28.5 mm

ODLC-45DA
ODLC-65(A)

121x 77x 28.5 mm

ODLC-65DA

Series

Dimension

(Dx H)

Page

HBG-60

110x 60.5

Series

Dimension

(Lx Wx H)

Page

LCM-25(DA)/40(DA)/60(DA) 105x 68x 23 mm

LCM-40EO/60EO

123.5x 81.5x 23 mm

Series

Dimension

(Lx Wx H)

Page

LCM-40U(DA)

123.5x 81.5x 23 mm

LCM-60U(DA)
LCM-40UEO/60UEO

Series

Dimension

(Lx Wx H)

Page

GSC18/25/40

79x 54x 33 mm

Series

Dimension

(Dx H)

Page

HBG-60-P

99x 26

HBG-100P

104x 34

HBG-100PDA

NEW

Series

Dimension

(Lx Wx H)

Page

PLP-30

101.6x 50.8x 26.6 mm

PLP-45/60

101.6x 50.8x 29.6 mm

Series

Dimension

(Lx Wx H)

Page

HLP-40H/60H

147x 53x 27 mm

HLP-80H

167x 53x 29.5 mm

Series

Dimension

(Lx Wx H)

Page

IDPC-25(A)

114.5x 72.5x 20 mm

IDPC-45(A)

120 x 66.5 x 20.5 mm

IDPC-45-DA
IDPC-65(A)

130 x 67.5 x 20.5 mm

IDPC-65-DA

Plastic Case

PCB Type

Constant

Current

(C.C.)

PFC

AC/DC

Series

Dimension

(Lx Wx H)

Page

LPLC-18, LPHC-18

140x 30x 22 mm

LPC-20

118x 35x 26 mm

LPC-35

148x 40x 30 mm

LPC-60

162.5x 42.5x 32 mm

LPC-100

190x 52x 37 mm

LPC-150

191x 63x 37.5 mm

Series

Dimension

(Lx Wx H)

Page

APC-8

60x 30x 23.5 mm

APC-12/16

77x 40x 29 mm

APC-25/35

84x 57x 29.5 mm

Series

Dimension

(Lx Wx H)

Page

APC-8E

60x 30x 23.5 mm

APC-12E/16E

77x 40x 29 mm

PFC

Non-PFC

Plastic Case

Series

Dimension

(Lx Wx H)

Page

HLG-60H-C

171x 61.5x 36.8 mm

HLG-80H-C

195.6x 61.5x 38.8 mm

HLG-120H-C

220x 68x 38.8 mm

HLG-185H-C

228x 68x 38.8 mm

HLG-240H-C

244.2x 68x 38.8 mm

HLG-320H-C

252x 90x 43.8 mm

HLG-480H-C

262x 125x 43.8 mm

Series

Dimension

(Lx Wx H)

Page

HVGC-65

189x 61.5x 36.8 mm

HVGC-100

236x 68x 38.8 mm

HVGC-150

245x 68x 38.8 mm

HVGC-240

254.2x 68x 38.8 mm

HVGC-320

262x 90x 43.8 mm

Series

Dimension

(Lx Wx H)

Page

ELG-75-C

180x 63x 35.5 mm

ELG-100-C

199x 63x 35.5 mm

ELG-150-C

219x 63x 35.5 mm

ELG-200-C

244x 71x 37.5 mm

ELG-240-C

Constant

Power

(C.P.)

Metal Case

PFC

Series

Dimension

(Lx Wx H)

Page

FDLC-80

151x 53x 31.5 mm

FDLC-100

175x 53x 31.5 mm

Series

Dimension

(Lx Wx H)

Page

HVGC-480

262x 125x 43.8 mm

HVGC-650

280x 144x 48.5

Series

Dimension

(Lx Wx H)

Page

ELGC-300

246x 77x 39.5 mm

Series

Dimension

(Lx Wx H)

Page

HBGC-300

191.5x 69 mm

Series

Dimension

(Lx Wx H)

Page

LDC-35(DA)

280x 30x 21 mm

LDC-55(DA)

320x 30x 21 mm

LDC-80(DA)

360x 30x 21 mm

Series

Dimension

(Dx H)

Page

HBG-100

130x 66.5 mm

HBG-100(DA)

Series

Dimension

(Lx Wx H)

Page

FDL-65

151x 53x 31.5 mm

Series

Dimension

(Lx Wx H)

Page

XLG-50

105x 63x 30 mm

NEW

NEEE

Constant

Current

(C.C.)

AC/DC

Non-PFC

PFC

Metal

Case

Plastic

Case

PCB

Type

Plastic

Case

Series

Dimension

(Lx Wx H)

Page

HLG-40H/60H

171x 61.5x 36.8 mm

HLG-80H

195.6x 61.5x 38.8 mm

HLG-100H/120H

220x 68x 38.8 mm

HLG-150H/185H

228x 68x 38.8 mm

HLG-240H

244.2x 68x 38.8 mm

HLG-320H

252x 90x 43.8 mm

HLG-480H

262x 125x 43.8 mm

HLG-600H

280x 144x 48.5 mm

Series

Dimension

(Lx Wx H)

Page

HVG-65

189x 61.5x 36.8 mm

HVG-100

236x 68x 38.8 mm

HVG-150

245x 68x 38.8 mm

HVG-240

254.2x 68x 38.8 mm

HVG-320

262x 90x 43.8 mm

HVG-480

262x 125x 43.8 mm

Series

Dimension

(Lx Wx H)

Page

ELG-75

180x 63x 35.5 mm

ELG-100

199x 63x 35.5 mm

ELG-150

219x 63x 35.5 mm

ELG-200

244x 71x 37.5 mm

ELG-240

Series

Dimension

(Lx Wx H)

Page

PLN-100

200x 70.5x 35 mm

Series

Dimension

(Lx Wx H)

Page

HLN-40H/60H

161x 61.5x 35 mm

HLN-80H

181x 61.5x 35 mm

Series

Dimension

(Lx Wx H)

Page

LPF-16/25

148x 40x 32 mm

LPF-40

162.5x 43x 32 mm

LPF-60

LPFH-60

LPF-90

161x 61x 36 mm

Series

Dimension

(Lx Wx H)

Page

OWA-90E/U

171x 63x 37.5 mm

OWA-120E/U

191x 63x 37.5 mm

Series

Dimension

(Lx Wx H)

Page

OWA-60E/U

130× 53× 35 mm

Series

Dimension

(Lx Wx H)

Page

NPF-40/60

150x 53x 35 mm

NPF-90

171x 63x 37.5 mm

NPF-120

191x 63x 37.5 mm

Series

Dimension

(Lx Wx H)

Page

PLC-100

200.5x 69.5x 35 mm

Series

Dimension

(Dx H)

Page

HBG-160

151.68x 66.5

HBG-160(DA)

HBG-200(DA)

151.68x 66.5

HBG-240

191.5x 69

HBG-240(DA)

Series

Dimension

(Dx H)

Page

HBG-160P

124.6x 34

HBG-160PDA

HBG-240P

144x 31

Constant

Voltage

Constant

Current

(C.V.+C.C.)

AC/DC

DC/DC

Series

Dimension

(Lx Wx H)

Page

PWM-40/60

150x 53x 35 mm

PWM-90

171x 63x 37.5 mm

PWM-120

191x 63x 37.5 mm

PWM-120-DA

Series

Dimension

(Lx Wx H)

Page

LPL-18, LPH-18

140x 30x 22 mm

LPV-20

118x 35x 26 mm

LPV-35

148x 40x 30 mm

LPV-60

162.5x 42.5x 32 mm

LPV-100

190x 52x 37 mm

LPV-150

191x 63x 37.5 mm

LPVL-150

Series

Dimension

(Lx Wx H)

Page

APV-8E

60x 30x 23.5 mm

APV-12E/16E

77x 40x 29 mm

Series

Dimension

(Lx Wx H)

Page

IDPV-25(A)

114.5x 72.5x 20 mm

IDPV-45(A)

120 x 66.5 x 20.5 mm

IDPV-65(A)

130 x 67.5 x 20.5 mm

Series

Dimension

(Lx Wx H)

Page

IDLV-25(A)

110x 75x 22 mm

IDLV-45(A)

120 x 75 x 25 mm

IDLV-65(A)

130 x 75 x 25 mm

Series

Dimension

(Lx Wx H)

Page

ODLV-45(A)

111x 77x 28.5 mm

ODLV-65(A)

121x 77x 28.5 mm

Series

Dimension

(Lx Wx H)

Page

APV-8

60x 30x 23.5 mm

APV-12/16

77x 40x 29 mm

APV-25/35

84x 57x 29.5 mm

Plastic Case

PCB Type

Plastic Case

U-bracket

Metal Case

Series

Dimension

(Lx Wx H)

Page

ULP-150

215x 67.4x 33 mm

PFC

Non-PFC

NEW

Series

Dimension

(Lx Wx H)

Page

LDB-300~600L/W

31.8x 20.3x 12.2 mm

Series

Dimension

Page

DLP-04L

145x 38x 22 mm

(LxWxH)

DLP-04R

35x 90x 54.5mm

(WxHxD)

Series

Dimension

(Lx Wx H)

Page

KDA-64

72x 86x 55mm

Series

Dimension

(Lx Wx H)

Page

LDH-45

75x 53x 22.7 mm

LDH-45DA

Series

Dimension

(Lx Wx H)

Page

LDD-350~1400H-DA

40.6x 23.5x 10.1 mm

LDD-350~1400H-WDA

Series

Dimension

(Lx Wx H)

Page

LDD-300~700L / LW

22.6x 9.9x 8.9 mm

LDD-300~700LS

25.4x 10.5x 9.3 mm

LDD-1000~1500L / LW

31.8x 20.3x 12.2 mm

LDD-1000~1500LS

31.8x 20.3x 10.9 mm

LDD-300~1500H / HW

31.8x 20.3x 12.2 mm

LDD-300~1500HS

31.8x 20.3x 10.9 mm

Plastic Case

Step-down
LED Driver

DALI Bus

Power Supply

Buck-boost

LED Driver

KNX to DALI

Gateway

Step-up

LED Driver

Constant

Current

(C.C.)

DALI to PWM Converter

Surge Protection Device

Smart Timer Dimming

EnOcean Dimmer Kit

Series

Dimension

(Lx Wx H)

Page

DAP-04, DAP-04-S01

165x 46x 23 mm

Series

Dimension

(Lx Wx H)

Page

SPD-20

90x 70x 50 mm

SPD-20HP

71.6x 67.7x 32 mm

Series

Dimension

(Lx Wx H)

Page

SDP-001

165x 46x 23 mm

Series

Dimension

(Lx Wx H)

Page

WPD-06

110x 77x 26.4 mm

WPD-06-SWT

80x 80x 15

ACCESSORIES

NEW

Constant

Voltage

(C.V.)

NEW

NEEEWWW

Family

AC Input

Range

(VAC)

Potted

C.C./C.P.

/C.V.

(Note 1)

Dimming

(Note 2)

Adj

Warranty

(years)

Remark

Series Name

Type

HLG-40H / 60H / 80H /

100H / 120H / 150H /

185H / 240H / 320H /

480H / 600H

90~305

C.V.+C.C.

Vo<60VDC

3 in 1

(240W/320W only)

Blank

(40 ~320W )

D (option, 40 ~ 480W )

Timer

D2 (option, 480W only)

Smart Timer

HLG-60H-C / 80H-C /

120H-C / 185H-C /

240H-C / 320H-C /

480H-C

90~305

C.C.

Vo>60VDC

3 in 1

(70 ~200W )

Timer

D2 (option, 250 ~ 480W )

Smart Timer

DA (option, 320W only)

DALI

ELG-75 / 100 / 150 /
200 / 240

100~305

C.V.+C.C.

Vo<60VDC

3 in 1

Blank

Smart Timer

DALI

BE (150W only)

3 in 1

ELG-50-C / 75-C / 100-C
/ 150-C / 200-C / 240-C
ELGT-150 / ELGC-300

100~305

C.C.

Vo>60VDC

3 in 1

Blank (ELGC-300 except)

Smart Timer

DALI

BE (ELG-150-C only)

3 in 1

AB (ELGC-300 only)

C.P.

(ELGC-300

only)

HBG

90~295

(half)

C.C.

1. Circular

shape

2. Metal case

(Plastic case

for HBG-60)

100

90~305

C.C.

3 in 1

Blank

DALI

160 / 200 /
240

C.V.+C.C.

3 in 1

AB (200W only)

3 in 1

Blank

3 in 1

60P

90~295

C.C.

1. Circular

shape

2. PCB type

100P

90~305

C.C.

3 in 1

DALI

160P / 240P

C.V.+C.C.

3 in 1

DA (160W only)

DALI

HBGC-300

100~305

C.P.

Circular shape

3 in 1

DALI

PFC

Family

AC Input

Range

(VAC)

Potted

C.C./C.P.

/C.V.

(Note 1)

Dimming

(Note 2)

Adj

Warranty

(years)

Remark

Series Name

Type

HVG(C)-
65 / 100 / 150 /
240 / 320 / 480
/ 650

180~528

HVG : C.V.+C.C.

HVGC :C.C.

HVGC-

480/650 :C.P.

HVG:

HLG:

HVGC:

3 in 1

(option, 65~150W )

Timer

(option, 240~480W only)

Smart Timer

DALI

(480W, 650W only)

FDL-65

180~295

C.C.

FDLC-80 / 100

180~295

C.P.

LDC-
35 / 55 / 80

180~264

C.P.

3 in 1

1. CP mode

2. Flirker free

Blank

DALI

Push Dim

2 in 1

ULP-150

90~295

(half)

C.V.

U-bracket

HLN-40H /
60H / 80H

90~305

(60W/80W half)

C.V.+C.C.

3 in 1

LPF-16   /
25   / 40    /
60    / 90   /
LPFH-60

90~305

Blank Type :

C.V.+C.C.

D-Type : C.C.

(16W

option)

3 in 1

Blank

NPF-40 / 60
/ 90 / 120

90~305

Blank Type :

C.V.+C.C.

D-Type : C.C.

3 in 1

Blank

PWM-40 / 60 / 90 / 120

90~305

C.V.

3 in 1

PWM output

IDLV-25 / 45
/ 65

25W/45W: 90~295

65W: 180~295

C.V.

2 in 1

Push-in

terminal

Blank

IDLC-25 / 45
/ 65

A/Blank

25W/45W: 90~295

65W: 180~295

C.C.

2 in 1

1. Flicker free

2. Push-in

terminal

(45~65W)

DALI

ODLV-45/65

180~295

C.V.

2 in 1

PWM output

Blank

2 in 1 &

Auxilary DC

ODLC-45/65

A/Blank

90~295

C.C.

2 in 1

Flicker free

DALI

OWA- 90 / 120

90~264

(OWA-120E: 180~264)

C.C.+C.V.

External type

PLN-100

90~295

C.C.+C.V.

PLN-30 / 45 / 60

90~295

C.C.

PLN-20

90~277

C.C.

PLC-100

90~264

C.V.+C.C.

Terminal

block

PLC-30 / 45 / 60

90~264

C.C.

Terminal

block

PCD-16 / 25 / 40 / 60

A: 90~135

B: 180~295

(16W/25W/

60W half)

C.C.

Phase-Cut

XLG-50

Blank

coming soon

Family

AC Input Range

(VAC)

Potted

C.C. or C.V.

(Note 1)

Max.

Eff.

Warranty

(years)

Remark

Series Name

Type

APV-8 / 12 / 16 / 25 / 35

90~264

(16W/35W half)

C.V.

85%

APC-8 / 12 / 16 / 25 / 35

90~264

(16W/35W half)

C.C.

84%

APV-8E / 12E / 16E

180~264

(16W half)

C.V.

83%

APC-8E / 12E / 16E

180~264

(16W half)

C.C.

83%

LPL-18 / LPH-18

LPV-20 / 35 / 60 / 100 / 150

LPVL-150

LPL: 90~132

LPH: 180~264

LPV-20~100: 90~264

LPV-150: 180~305

LPVL-150: 90~132

C.V.

90%

LPLC-18 / LPHC-18

LPC-20 / 35 / 60 / 100 / 150

LPLC: 90~132

LPHC: 180~264

LPC-20~100: 90~264

LPC-150: 180~305

C.C.

90%

OWA-60

90~264

C.V.+C.C.

91%

External type

Note 1

C.V. represents Constant Voltage Mode Output, whereas C.C. represents Constant Current Mode Output; C.P. represents constant power

mode output. For C.V.+C.C., C.C., and C.V. operations, please refer to Application Q&A section on MEAN WELL LED website. (The C.C. only

LED power supplies are suitable for directly driving LED modules, but not suitable for connecting with additional DC-DC LED drivers.)

Note 2

3 in 1 dimming: 1~10Vdc (or 0~10Vdc), PWM signal, or resistance.

2 in 1 dimming: 1~10Vdc (or 0~10Vdc), PWM signal.

DALI: DALI control technology

For Timer Dimming and Smart Timer Dimming function, please contact MEAN WELL for details.

Note 3

IP67 design for power body

Non-PFC

Family

AC Input Range

(VAC)

Potted

C.C./C.P./C.V.

(Note 1)

Dimming

(Note 2)

Adj

Warranty

(years)

Remark

Series Name

Type

PLD-16 / 25 / 40 / 60

16W/40W/60W:

A: 90~135

B: 180~295

(16W/25W/

60W half)

C.C.

25W: 90~295

GSC18 / 25 / 40

90~277

(40W half)

C.C.

External type

PLM-12 / 25 / 40

110~295

C.C.

Push terminal

PLM-12E / 25E / 40E

180~295

LCM-25 / 40 / 60 (EO)

25W: 180~277

40W/60W: 180~295

C.C.

3 in 1

o level

selectable

in one power

unit

LCM-25DA / 40DA / 60DA

DALI &

Push DIM

LCM-40U / 60U (EO)

90~132

3 in 1

LCM-40UDA / 60UDA

DALI &

Push DIM

IDPV-25 / 45 / 65

A/Blank

25W/45W: 90~295

65W: 180~295

C.V.

2 in 1

1. PCB type

2. Push-in

terminal

IDPC-25 / 45 / 65

A/Blank

25W/45W: 90~295

65W: 180~295

C.C.

2 in 1

1. PCB type

2. Flicker free

3. Push-in

terminal

DALI

DALI

PLP-30 / 45 / 60

90~264

C.C.

PCB type

HLP-40H / 60H / 80H

90~305

C.C.

3 in 1

PCB type

Standard

Series

XLG-50

coming soon

ELG-75/100

ELG-150/200/240

ELG-75-C

ELG-100-C

ELG-150-C

ELG-200-C

ELG-240-C

ELGC-300

HLG-40H

HLG-60H

HLG-80H

HLG-100H

HLG-120H

HLG-150H

HLG-185H

HLG-240H

HLG-320H

HLG-480H

HLG-600H

HLG-60H-C

HLG-80H-C

HLG-120H-C

HLG-185H-C

HLG-240H-C

HLG-320H-C

HLG-480H-C

HVG-65

HVG-100

HVG-150

HVG-240

HVG-320

HVG-480

HVGC-65

HVGC-100

HVGC-150

HVGC-240

HVGC-320

HVGC-480

HVGC-650

Class 2 power unit

UL8750 (type”HL”)

UL62368-1

UL879

EN61347-1,

EN61347-2-13

PSE J61347-1,

J61347-2-13

EN55015

Note1

: CCC models are offered as optional models.

Metal Case

: Certified for whole series ; : Certified for assigned models

EN61000-3-2

Class

EN55032 Class

CCC

(Note 1)

Standard

Series

HBG-100(DA)

HBG-160(DA)

HBG-200(DA)

HBG-240(DA)

HBGC-300

ULP-150

FDL-65

FDLC-80/100

LDC-35/55/80(DA)

Class 2 power unit

UL8750 (type”HL”)

UL62368-1

UL879

EN61347-1,

EN61347-2-13

PSE J61347-1,

J61347-2-13

EN55015

EN61000-3-2

Class

EN55032 Class

Ty p e HL L ED Dr i ver for use in Cla ss I, D i v ision 2 ha z ardous lo c ation luminaires.

Metal Case

: Certified for whole series ; : Certified for assigned models

Note 2

: CCC models for HBG-100/160/240 are offered as optional models.

Standard

Series

APV-8

APV-12/16

APV-25/35

APC-8

APC-12/16

APC-25/35

APV-8E/12E/16E

APC-8E/12E/16E

GSC18/25/40 (B/E)

B type

HBG-60 (P)

HBG-100P/160P/240P

HLN-40/60/80H

HLP-40H/60H/80H

LCM-25/40/60(DA)(EO)

LCM-40U/60U(DA)(EO)
IDLV-25(A)/45(A)/65(A)

IDLC-25(A)/45(A)/65(A)

IDPV-25(A)/45(A)/65(A)

IDPC-25(A)/45(A)/65(A)

ODLV-45(A)/65(A)

ODLC-45(A)/65(A)

ODLC-45-DA/65-DA

Class 2 power unit

UL8750 (type”HL”)

UL62368-1

UL879

EN61347-1,

EN61347-2-13

PSE J61347-1,

J61347-2-13

EN55015

: GS Mark ; : Certified for whole series ; : Certified for assigned models

Plastic Case & PCB Type

Note 3

: CCC models for AP and HLN series are offered as optional models.

EN61000-3-2

Class

EN55032 Class

CCC

(Note 2)

CCC

(Note 3)

Standard

Series

LPL-18

LPH-18

LPV-20

LPV-35

LPV-60

LPV-100

LPV-150

LPVL-150

LPLC-18

LPHC-18

LPC-20

LPC-35

LPC-60

LPC-100

LPC-150

LPF-16(D)/25(D)

LPF-40(D)/60(D)

LPF-90(D)

LPFH-60(D)

NPF-40(D)

NPF-60(D)

NPF-90(D)

NPF-120(D)

OWA-60E

OWA-60U
OWA-90E
OWA-90U
OWA-120E
OWA-120U
PCD-16 (A/B)

B type

PCD-25 (A/B)

B type

PCD-40

PCD-60

PLC-30

PLC-45/60/100

PLD-16 (A/B)

B type

PLD-25

PLD-40

PLD-60

PLM-12(E)

Blank

PLM-25(E)

Blank

PLM-40(E)

Blank

PLN-20

PLN-30

PLN-45

PLN-60

PLN-100

PLP-30/45/60

PWM-40

PWM-60

PWM-90

PWM-120

Class 2 power unit

UL8750 (type”HL”)

UL62368-1

UL879

EN61347-1,

EN61347-2-13

PSE J61347-1,

J61347-2-13

EN55015

: Certified for whole series ; : Certified for assigned models

Plastic Case & PCB Type

Note 4

: Except for PLC, PLM-E and PLP series that the standard models are certified for CCC, CCC models are offered as optional models.

: Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires.

EN61000-3-2

Class

EN55032 Class

CCC

(Note 4)

Order No. : CJ04-1

CJ04-2

CJ04 cable joiner can be purchased independently for user's own assembly.

Waterproof Cable Joiner

CJ04-1 suitable for 14AWG~16AWG
CJ04-2 suitable for 18AWG~22AWG

Up to four wires can be connected through this cable
joiner by soldering or clamping by tools.

Female Waterproof Output Connector (Power supply side)

Waterproof

Connector

P i n C o n f i g u r a t i o n ( F e m a l e )

M 1 2

M 1 5

M 2 0 . 5

M 2 0 . 8

Order No. :
M12-02

Order No. :
M12-04

Order No. :
M15-02

Order No. :
M20.5-02

Order No. :
M20.8-02

Suitable
Current :
5A max.

Suitable
Current :
10A max.

Suitable
Current :
12A max.

Suitable
Current :
20A max.

4-pin

(5A/PIN)

2-pin

(12A/PIN)

2-pin

(20A/PIN)

2-pin

(5A/PIN)

The output cable can be modified to include different waterproof connectors by MEAN WELL. Minimum order quantity

may vary for different models.

We would suggest you to order the configurations of "

M15

connector with length of

20cm / 30cm / 45cm / 60cm

/ 80cm / 100cm

cables" due to its cost effectiveness and fast delivery. Ordering other connector type or cable

lengths will have higher cost and longer lead-time.

Suitable for CLG / HLG / HLG-C / HVG(C) / ELG / ELG-C / HBG / CEN / HSG / HLN / LPF / NPF / PWM series.

Male Waterproof Output Connector with Cable (System side)

Figure

Drawing

MEAN WELL offers male waterproof connectors with cable length of

30cm, 60cm, and 100cm

as our

standard mating accessories.

These mating accessories need to be ordered together with PSU.

For other

length or cable style, the higher MOQ requirement and long lead-time will be expected. Please consult
MEAN WELL for details.

Order No.

M 1 2 - 0 2 M - 3 0 - U 1 - U N

Cable Type

U1 E1

SJTW (USA)

H05RN-F (EURO)

Brand Name

UN CH

UNICABLE

(Made in Taiwan)

CHOGORI

(Made in China)

No. of PIN

2P 4P

M15, M20.5 and M20.8 only
have 2-pin choice

2pin 4pin

Male (System Side)

Female (PSU Side)

Cable Length: Male with Cable

100

30cm

60cm

100cm

Cable Length: Female with Cable

100

20cm

30cm

45cm

60cm

80cm

100cm

Connector Type: Male / Female

M12

M15

M20.5

M20.8

UN & CH

UN only

CH only

Figure

/ FPFPFPIRUFKRLFH
