STS2

Temperature sensor

Applications

- Household appliances
- Electronics
- Engineering
- Automotive

Benefits

- Temperatures from -40°C up to +140°C
- Excellent long-term temperature stability
- High precision and reliability
- No reversal polarity (+/-) possible

Replacement

for

KTY83

Tel:   +49 (0)7231 787-0
Fax : +49 (0)7231 787-155
info@microtherm.de
www.microtherm.de

05.2016/HB   Technical subject to change without notice

Microtherm GmbH

Taeschenwaldstrasse 3
D-75181 Pforzheim

or

PO Box 1208
D-75112 Pforzheim

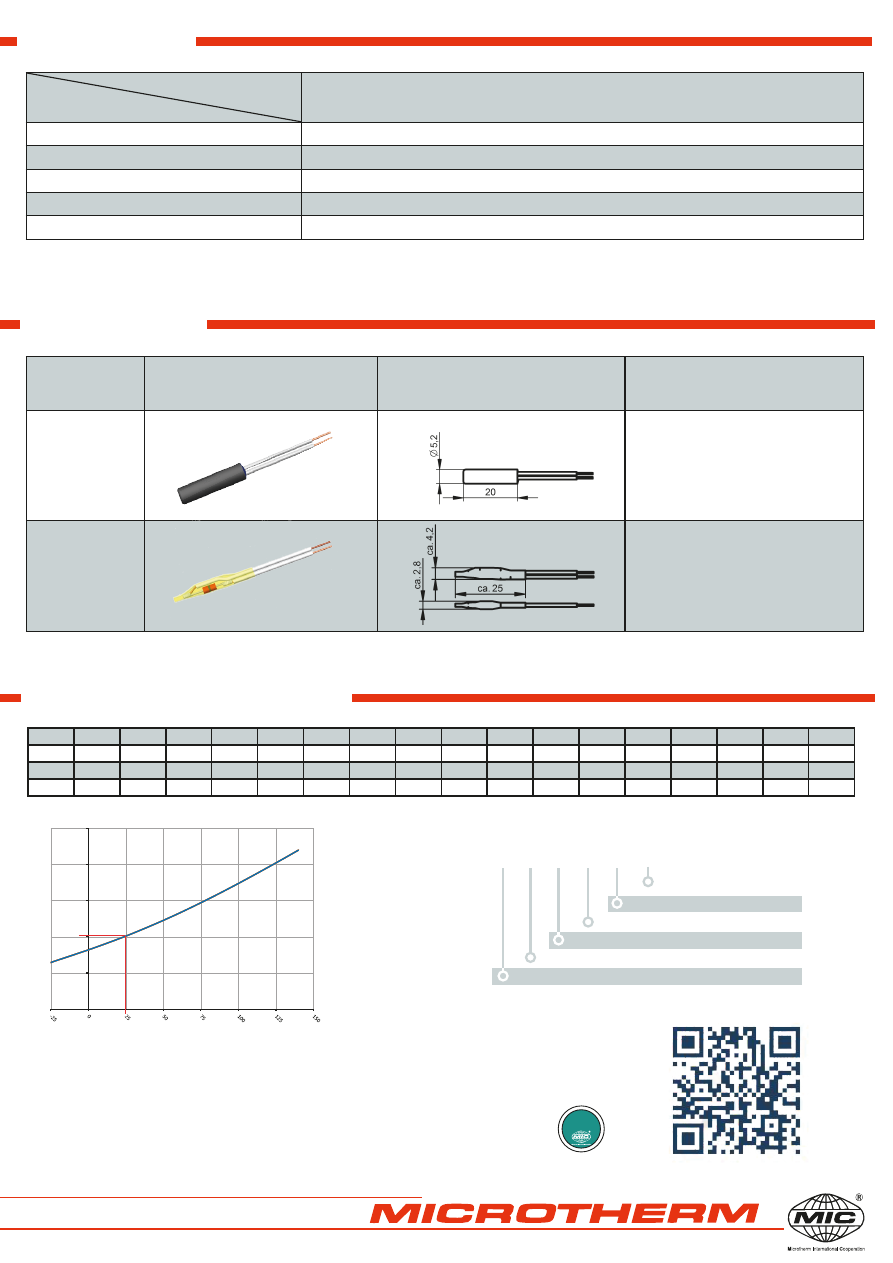

technical data

ordering example

STS2 1010  1    L360  500 G918



Housing number



                                  Length of leads (+/- 10 mm)
                         Leads white, AWG24, ETFE
                Tolerance (%)
        R at 25°C
Type of sensor



type

ratings

STS2

Typ. resistance at 25°C

1010

Ω

operating temperature range

-40°C ... +140 (145)°C

min. insulation resistance (100 Vdc)

100 M

Ω

operating current

5 mA

rated power

50 mW

standard types

type

execution

illustration

drawing

dimensions (mm)

technical

description

STS2 G918

housing PPS

leads ETFE, AWG24, white

STS2 U129

shring sleeve Kynar

®

leads ETFE, AWG24, white

temperature vs. resistance

Remark:

Values of electric resistance correspond almost exactly to KTY83.

               Above140°C the sensor may loose its linearity.

RoHS

compliant

product

T°C

-10

0

10

20

25

30

40

50

60

70

80

90

100

110

120

130

140

min.

735

806

881

959

1000

1039

1123

1210

1301

1396

1494

1596

1699

1806

1912

2024

2135

typ.

749

819

893

970

1010

1051

1137

1227

1321

1420

1522

1628

1737

1849

1963

2079

2197

max.

762

832

905

981

1020

1063

1151

1244

1342

1444

1550

1660

1775

1891

2014

2134

2258

0

500

1000

1500

2000

2500

 resi

stan

ce

 [Ω

]

T [°C]
